Research Trends and Future Perspectives in Marine Biomimicking Robotics

Department of Renewable Marine Resources, Instituto de Ciencias del Mar (ICM-CSIC), 08003 Barcelona, Spain
Stazione Zoologica Anton Dohrn (SZN), 80122 Naples, Italy
Centro di Ricerca Ingegneria e Trasformazioni Agroalimentari, Consiglio per la Ricerca in Agricoltura e l’Analisi dell’Economia Agraria (CREA), 00015 Rome, Italy
The BioRobotics Institute, Scuola Superiore Sant’Anna (SSAA), 56127 Pisa, Italy
Lincoln Institute for Agri-food Technology (LIAT), University of Lincoln, Lincoln LN6 7TS, UK
Consiglio Nazionale delle Ricerche (CNR), Istituto di Scienze Marine (ISMAR), 40129 Bologna, Italy
Department of Life and Environmental Science, Università Politecnica delle Marche, 60121 Ancona, Italy
Faculty of Engineering, University of Nottingham, Nottingham NG7 2RD, UK
School of Life Sciences, University of Westminster, London W1W 6UW, UK
Spartan Space, 13275 Marseille, France
Compagnie Maritime d’Expertises (COMEX), 13275 Marseille, France
Department of Physics and Earth Sciences, Jacobs University, 28759 Bremen, Germany
Consiglio Nazionale delle Ricerche (CNR), Istituto di Scienze Marine (ISMAR), 19032 La Spezia, Italy
Authors to whom correspondence should be addressed.
Last active affiliation.
Sensors 2021, 21(11), 3778;
Received: 14 April 2021 / Revised: 17 May 2021 / Accepted: 27 May 2021 / Published: 29 May 2021


Mechatronic and soft robotics are taking inspiration from the animal kingdom to create new high-performance robots. Here, we focused on marine biomimetic research and used innovative bibliographic statistics tools, to highlight established and emerging knowledge domains. A total of 6980 scientific publications retrieved from the Scopus database (1950–2020), evidencing a sharp research increase in 2003–2004. Clustering analysis of countries collaborations showed two major Asian-North America and European clusters. Three significant areas appeared: (i) energy provision, whose advancement mainly relies on microbial fuel cells, (ii) biomaterials for not yet fully operational soft-robotic solutions; and finally (iii), design and control, chiefly oriented to locomotor designs. In this scenario, marine biomimicking robotics still lacks solutions for the long-lasting energy provision, which presently hinders operation autonomy. In the research environment, identifying natural processes by which living organisms obtain energy is thus urgent to sustain energy-demanding tasks while, at the same time, the natural designs must increasingly inform to optimize energy consumption.

1. Introduction

We are experiencing a “robotics revolution” [1] under the paradigm of mechatronics, which combines mechanical, computer, telecommunications, and control engineering, all multidisciplinarily integrated for the creation of autonomously operating robots [2]. An entirely new class of flying, walking, and swimming robots is currently under development [3]. Unprecedented robotic capabilities are being implemented, likely contributing to the next industrial era in worldwide economies, including the marine sector [4].
The term biomimicking refers to the use of Nature as inspiration for the design and development of technological systems, as a promising methodology to generate a new breed of autonomous machines [5,6]. In the last decades, marine mechatronic is taking inspiration from several animal phyla to create mobile robots [7,8,9]. To give a few examples, salamanders [10], insects [11], birds [12], swimming robo-tuna, -salmon, -manta, and -jellyfish (respectively by [13,14,15,16] and their walking counterparts as the 6-legged Crabster CR200 and Silver 2, or robo-lobsters [17,18], have been created. Additionally, SCUBA droids [19], remotely controlled through immersive 3D visual interfaces [20], are biomimicking human functionalities to be used for remote in situ operations [21].
Marine robotic development is subjected to energy provision and traditional tools for that task are batteries, chemical fuel cells and (super)capacitors [22]. New biologically-inspired reactors such as microbial fuel cells (MFC) and other bioelectrochemical systems (BES) are being proposed as reservoirs to powering robotic platforms [23,24]. MFC and BES are biologically catalyzed electrochemical systems, in which microorganisms perform the oxidation and reduction of raw chemical substrates (as nutrients) at the electrodes, to generate energy for motion, sensing and computation [25,26].
In this scenario, environmental sciences benefit from such a development in robotics, including the biomimicking sector, to provide new data picturing the complex changes in natural and human-impacted ecosystems [27]. Robotics provide a generous contribution to a breakthrough in “Earth System Science”, embracing the idea that geosphere, hydrosphere, atmosphere, and anthroposphere are interconnected into global change frameworks [28,29]. Therefore, new robotic solutions are increasingly capable of operating without human supervision across ecosystems and under virtually any habitat condition [30] in a cooperative and intercommunicating mode [31,32,33,34]. Robots are being used for a wide range of agricultural, industrial, and broad environmental activities, e.g., [35,36,37], including forefront deep-sea and extra-terrestrial operational scenarios, e.g., [31,38,39,40]). For example, in the oceanic domains, robots’ data-gathering provides long-lasting time series on species presence and their abundances and environmental data in geographically and three-dimensionally extended water column-seabed scenarios [21,31,40]. This highly integrated spatiotemporal monitoring is finally opening new possibilities to understand how environmental processes shape life responses in cause-effects relationships, e.g., [41,42].
Here, we used innovative bibliographic statistics tools for information content metrics and mapping as the traditional survey approaches, based on some studies selected from the literature, often do not fully represent the state of the art of a specific scientific domain. They produce a bias, caused by the arbitrary choice of the discussed studies, that do not offer a comprehensive background for theory development [43,44]. As a consequence, many surveys are based on the systematic study of the literature, across different scientific domains, like building engineering [45], business and marketing [46], waste management [47] and medicine [48]. The statistical approach proposed in this work is based on [49,50,51] and aimed to highlight the most promising bio-inspired robotics marine research areas, identifying temporal trends, some established and emerging research targets, and the degree of international cooperation. We focused on marine biomimetics for three main reasons: (i) ocean exploration is challenging and the exploration and monitoring require the development of innovative platforms technologies, also fulfilling the needs for space research, e.g., [52,53]; (ii) underwater organisms show unique adaptations to extreme conditions, which could be of inspiration for entirely novel robotic developments; and finally, (iii) marine organisms have dynamic reactions when they perceive the presence of current platforms [54,55,56,57,58,59] as remotely operated vehicles (ROVs), autonomous underwater vehicles (AUVs) and internet operated vehicles (IoVs) as crawlers, so that the biomimetic development will improve the exploration capability, to picture biodiversity to an extent never attained before.

2. Materials and Methods

2.1. Database Search

The Scopus database was consulted on 27 August 2020 and used to retrieve bibliographic records related to biomimicking for 1950–2020. The search was restricted to scientific publications written in English, avoiding biomedicine and agricultural oriented results.
To identify relevant publications, the following keywords were used in the combined fields of title, abstract and keywords (per publication): TITLE-ABS-KEY (bioinspired OR bioinspiration OR “biologically-inspired” OR biophysics OR bionics OR biomimicking OR biomimics OR biomimetics OR biomimic OR biomimetic OR bio-mimicking OR bio-inspired OR “microbial fuel cell” OR “bio fuel cell” OR bioenergy OR bio-energy) AND (marine OR sea OR underwater OR water OR ocean OR exocean OR exo-ocean OR astrobiology OR moon OR moons OR “planets” OR deep-sea OR deepsea OR acid-mine-drainage) AND (design OR cybernetics OR robot OR mechatronic OR vehicle OR engineering OR mechanical OR technologies OR materials) AND NOT (agricultural OR agriculture OR tumour OR orthopaedic OR fouling OR pharmacology OR medicine OR tumor OR antibiotics OR lubricants OR lubricant OR dentist OR dentistry OR dental OR dentin OR surgical OR bone OR surgery OR disease OR clinic OR clinical OR “biomedical device” OR biomedicine OR solution OR endoprosthesis OR trauma OR orthopaedic OR surgery OR “in vitro” OR drug OR anticoagulant OR inflammatory OR “oil spill” OR saliva OR salivary OR therapy OR healing OR wound OR europium OR urban OR megacity OR megacities OR child OR children OR dietary OR nurse OR “medical imaging” OR tomography OR “magnetic resonance” OR x-ray OR nutrition OR pregnancy OR “body water” OR nursing OR infancy OR “comparative study”) AND PUBYEAR >1950.
The publications resulting from the query were validated in order to avoid false positives, especially in the cases were the singular and plural forms of a term might bear a different meaning.

2.2. Bibliometric Mapping and Clustering

This study is based on the latest advancements in science mapping, to provide the most comprehensive and systematic review of bio-inspired robotics marine research. While a traditional narrative review may base its findings on 50–200 studies subjectively chosen by a researcher, this study uses the entire Elsevier Scopus database with a statistically formal approach that has slimmed down a list of 6980 articles on since 1950. The results are robust and reproducible, which infers the reliability of the offered methodology. This is a modern and quantitative way of reviewing a subject area [60]. A general quantitative description of the bibliographic records was conducted, based on all the publications returned by the query. A word cloud of country names with different font sizes as a proxy of the number of publications (based on co-authors affiliations), was constructed. The number of publications for a single country was computed considering all the co-authorships of each published item.
Bibliometric maps were created on retrieved publications, using the VOSviewer software version The software was specifically developed for creating, visualizing and exploring science’s bibliometric maps [61]. A term-map, also called co-word map, is a two-dimensional representation of a research field. The larger the number of publications in which two terms occurring in titles, abstracts and keywords, co-occur, the stronger the terms are related [49,50,51,62]. In a term-map, strongly related terms are located close to each other, and the weaker the relationship is between terms, the bigger the distance is between them [63]. For this purpose, VOSviewer uses a clustering technique that can be seen as a kind of weighted variant-of-modularity-based clustering [64,65]. After the clustering, terms that belong to the same domain of knowledge have the same color. Only terms occurring at least eight times were extracted from the retrieved publications and a subset of more relevant labels was displayed in the maps to avoid text overlapping.
Before starting with the analysis in VOSviewer, a thesaurus was created to ensure consistency for different term spelling and synonyms. As an example, “biomimetic”, “biomimetic approach”, “biomimicry” or “biomimetic system” were listed as synonymous with “biomimetic”. Another example was “energy”, “energy production”, “energy source” or “power” substituted with “energy” or “microbial fuel cells”, “microbial fuel cells technology”, “MFC”, “MFCs”, “MFC system”, and “MFC technology” all named as “microbial fuel cells”. A final example was represented by “fish robot”, “robot fish” or “robotic fish” collectively named as “robotic fish”. For the scope of this paper, we prepared three types of maps: (i) a term-clustering map; (ii) a term-year map, and (iii) a term-citation map.

2.3. The Term-Year Map

For the term-year map, the color of a term indicates the average publication year of all the publications in which the term occurs. As for the previous term-citation map, we used colors that range from blue (mean year term presence 2011 or earlier), through yellow (2014), to red (2016 or later). Therefore, blue terms mainly occur in older publications, while red terms are in more recent publications.

2.4. The Term-Citation Map

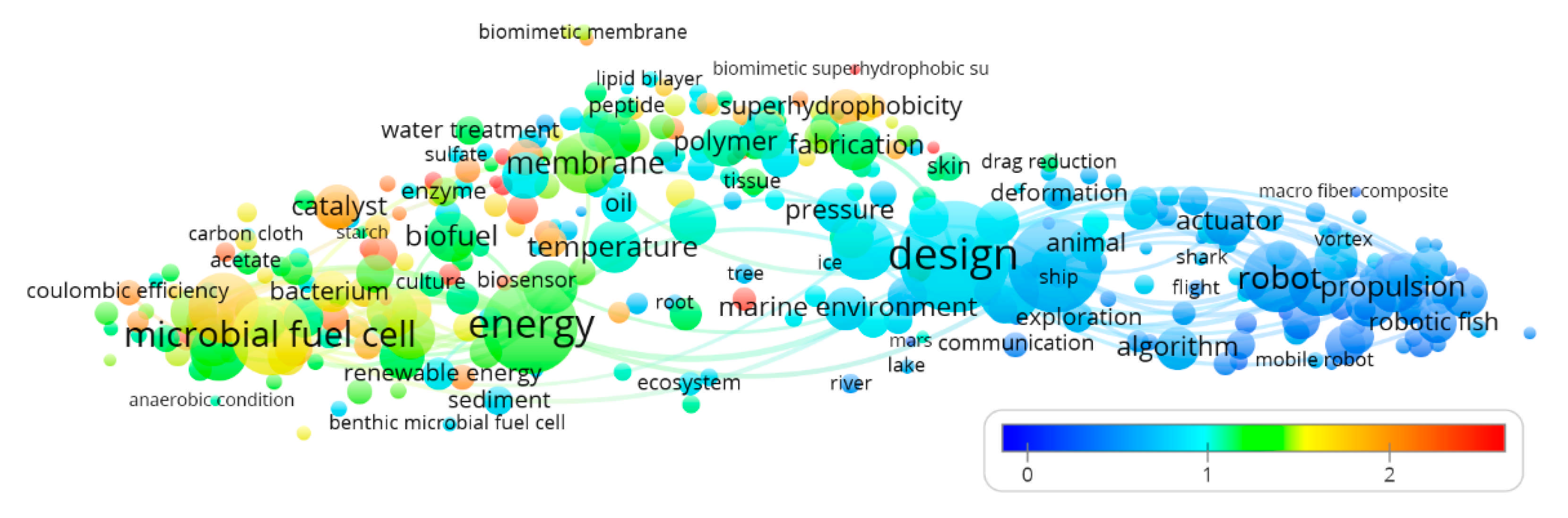

In the term-citation map, the color of a term is determined by the average citation impact of the publications where the term occurs. The number of citations of each publication is divided by the average number of citations of all publications appearing in the same year, to avoid biases related to the age of a publication (older publications are expected to be more cited). This produces a publication’s normalized citation score range from 0 to 2.5. In the map, the colors are assigned according to the score, ranging from blue (average score of 0) to green (average score of 1.25) to red (average score of 2.5). Therefore, a blue (cold) or red (hot) term indicates low and high average citation impacts, respectively [66].

2.5. Statistical Analyses

The mean values of the average publication year or term-citation map for each group obtained by the cluster analysis was tested on the null hypothesis of the same median (Kruskal-Wallis Test) being the distributions not normal (Shapiro-Wilk Test) and homoscedastic (Levene Test); Mann-Whitney pairwise comparisons and Bonferroni corrected Post Hoc Test were applied. Basic statistics were performed using the software PAST [67].

3. Results

3.1. Journals, Subject Categories and Countries

A total of 6980 publications were retrieved from the Scopus database encompassing 70 years (i.e., 1950–2020). The selected pool of scientific references includes 63.1% of them are research papers, while the remaining 36.9% are distributed in this way: 23.7% of conference papers, 8.9% reviews, 3.1% book chapters, and 1.3% is of miscellaneous origin (e.g., letters to editors, short communications, notes). The query results showed that a total of 146 journals published at least eight or more papers in the field of biomimicking.
The top ten journals, in terms of the number of papers, are reported in Table 1, and the top three are the following: Bioresource Technology (1991; n = 167; 2.39%) Bioinspiration and Biomimetics (2006; n = 147; 2.11%) and Proceedings of SPIE the International Society for Optical Engineering (1963; n = 107; 1.53%). Early biomimicry papers were published in general engineering/electronics journals, and then as the field developed, more papers were published in dedicated biomimetics journals as they came into existence. The complete list of publications numbers per subject category is reported in Table A1, Appendix A.

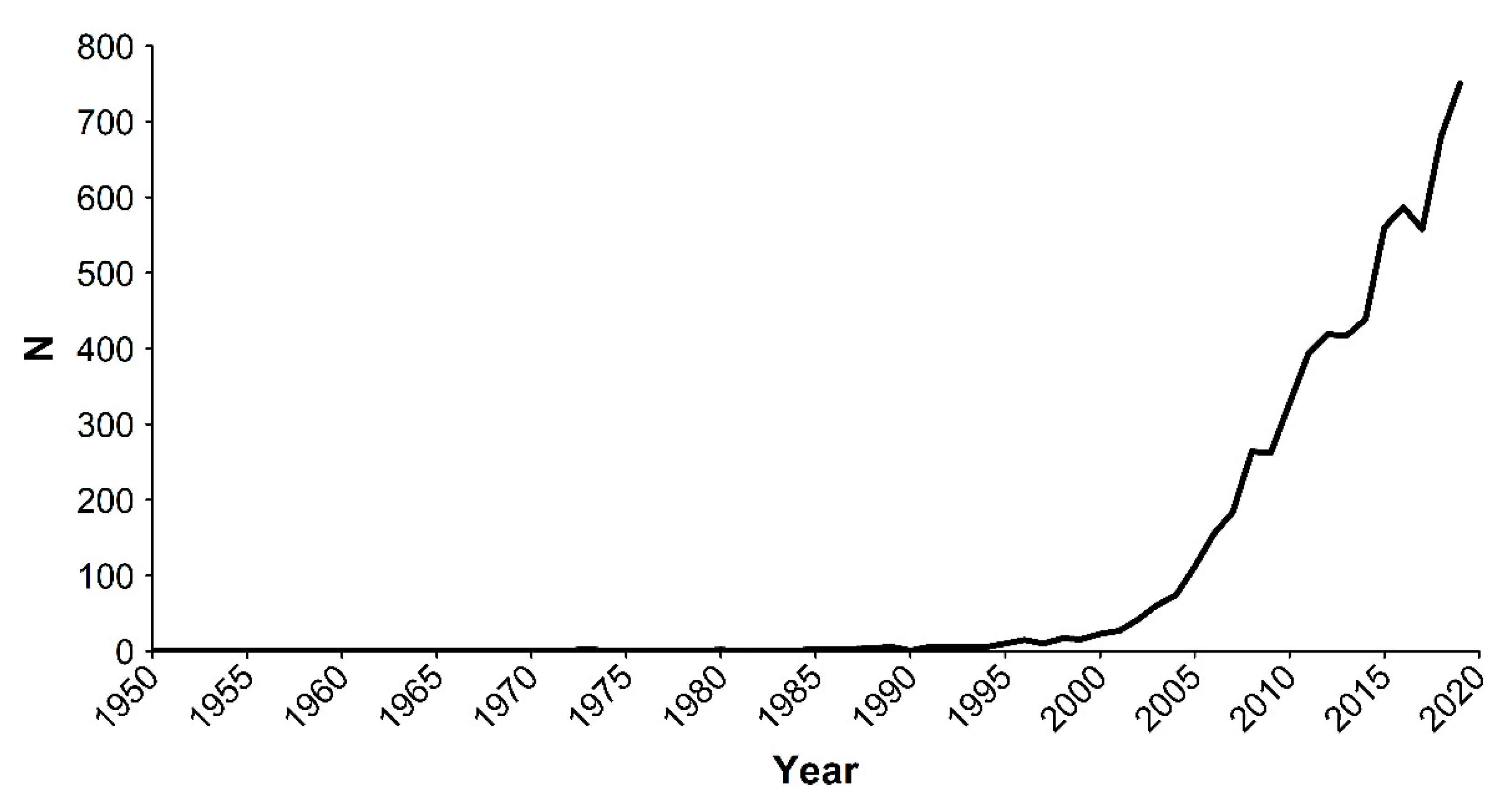

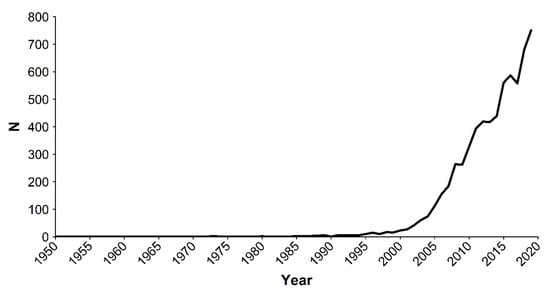

In Figure 1, the number of biomimicking publications produced within the time interval 1950 to 2020 is shown to highlight the temporal trends. Before 2004, the total number of publications was low (350; 5.0%), then it drastically and continuously increased with a sharper slope until 2019, with data for 2020 being incomplete (as per the date of the query).
As represented by the grouping of the papers in the top subject categories, the publication is reported in Table 2. Only the first ten categories are reported, as they account for 90.4% of the total available papers.
Authors that published at least one paper focused on biomimicking, were affiliated to a total of 100 countries (see Table A2 for the complete country list). Figure 2 shows the word cloud chart representing the countries (in blue text), where the larger font size represents a higher number of publications: China (24.1%, n = 2183), United States (18.9%, n = 1714), United Kingdom (5.0%, n = 451), India (4.2%, n = 384), Germany (4.0%, n = 364), Japan (3.7%, n = 339), South Korea (3.2%, n = 294), Italy (2.7%, n = 241), and Australia (2.6%, n = 234).

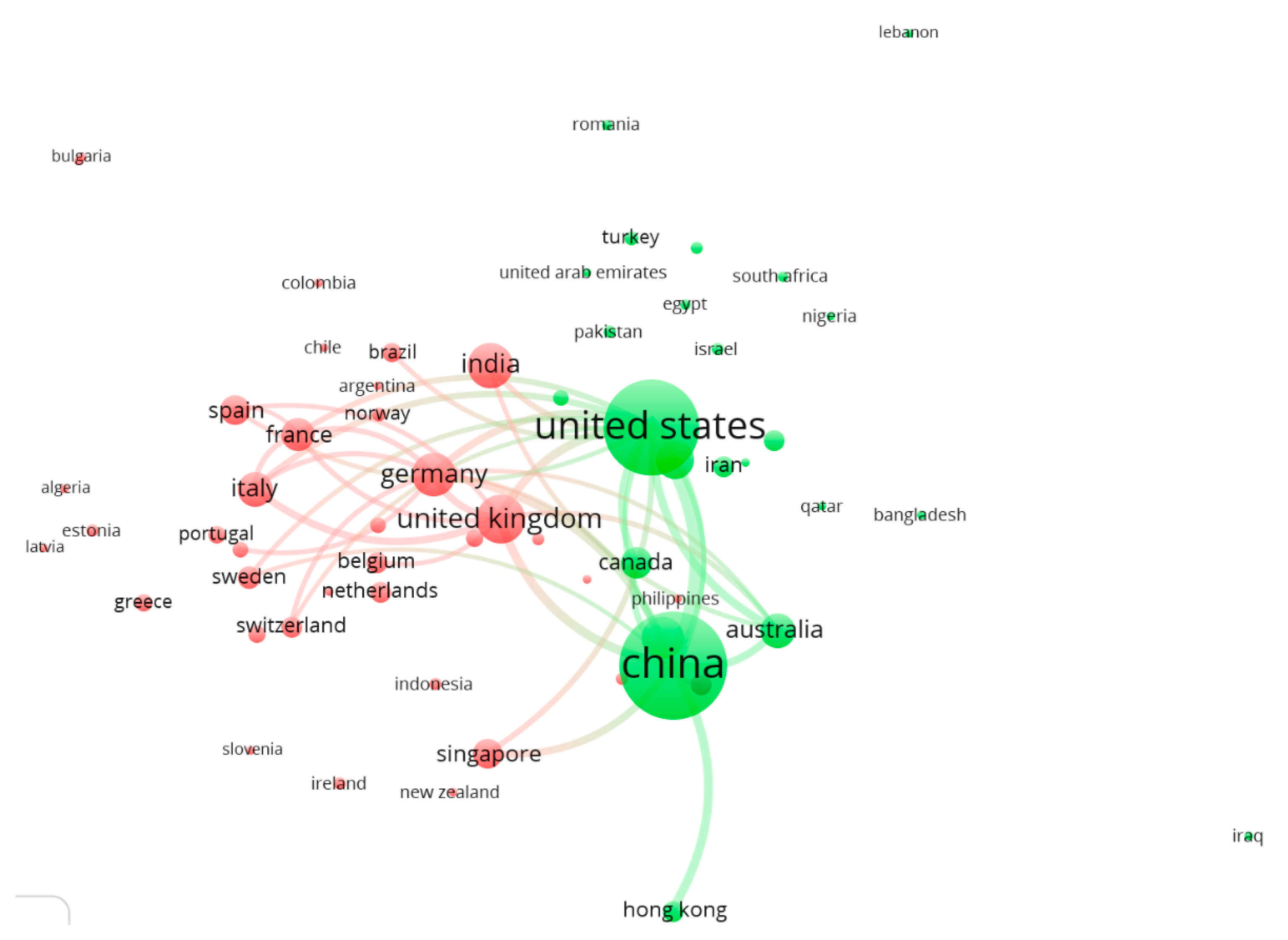

Figure 3 displays the countries’ color-coded collaborative clustering, with two different major groups: Asia-North America (USA and Canada; green) versus Europe (red). The partnership between USA and China (and Hong Kong) is evidenced by the association of both with Canada and Commonwealth countries, as Australia (but not New Zealand). The United Kingdom and Germany are the core for the European cluster in association with Spain, France, and Italy, plus Asian countries of Singapore and India. However, the patchy distribution of the collaborations (same color but no connections) of satellite countries around both red and green clusters indicates occasional, temporally sparse and non-sustained collaborations (i.e., below the 50 linkages).

3.2. The Term-Clustering Map Identifying Major Research Areas

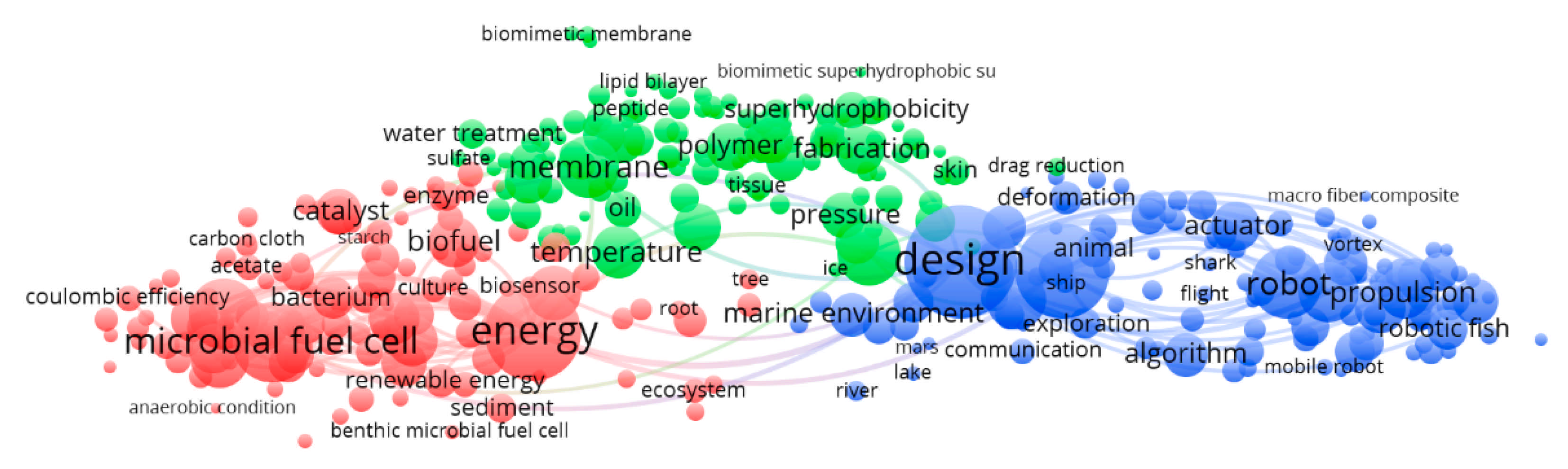

The outputs of term-clustering map analysis are presented in Figure 4. Three major color-coded groups are identified based on the differential level of interconnection between each cluster and among the clusters.
In Figure A1, the clusters are enlarged, to show the connections among their elements better. The terms grouped in the three clusters can be summarized and hence named as energy provision (red), biomaterials (green), and design and control (blue).
According to the most relevant terms, the red cluster identifies the biologically-based energy solutions (see also Figure A1A). The four top-ranked terms concerning the averaged normalized citation were: “energy” (9635), “microbial fuel cell” (7398), “wastewater” (5663), and “electricity” (4103). The terms refer to processes based on “bio-energy” production (“enzyme”, “biocathode”, “biocatalyst”, “biofuel”), centred on bacteria (“bacterium”, “culture” and “microbe”) and the utilization of microbial communities’ metabolism, to sustain that energy provision (e.g., “microbial fuel cell”, “bioenergy” and “energy” in general), with special attention to aerobic and anaerobic solutions (i.e., “chemical oxygen demand”, “oxygen reduction” and “anaerobic condition”). That cluster is also related to energy provision based on electricity production (i.e., “biocathode”, “bioelectricity”, “electrical energy”, “electrode”, “battery”, “coulombic efficiency”, and “conversion”), including new renewable ways for its production (i.e., “gas”, “hydrogen”, “photosynthesis”). Industrial procedures (e.g., “wastewater” and “water quality”, as well as “waste”, “contamination”, “residue”, “metal” and “emission”) are also included. Operational factors affecting microbial energy provision by “microbial fuel cells” in different marine deployment areas are also evidenced (i.e., “marine sediment”, “sediment microbial fuel cells” and “benthic microbial fuel cells”), as is “ecosystem” in general.
The biomaterials (green) cluster (see also Figure A1B) has a relevant aspect concerning the development of nature-inspired composites for both energy provision (green items close to the red cluster; see above) and new robotic functionalities (green items close to the blue cluster; see below). The analysis related to the four top-ranked terms for this cluster concerning the averaged normalized citation shows the following: (i) “device” (4007); (ii) “membrane” (3953); (iii) “temperature” (2528); and (iv) “fabrication” (2280). In the left part of this cluster, there are terms mainly related to energy provision as, e.g., for “charge”, “conductivity”, “salt”, “ion”, “cation”, “sulphate”, “pH value”, “acid” and “temperature”. On the central and right part, terms are related to new biomimicking composites (e.g., “polymer”, “fibre”, “composite material”, “biomimetic membrane”, “biomimetic superhydrophobic surfaces”) at different size scales (e.g., “nanostructure”, “film”), cable to operate under different conditions (e.g., “resistance”, “aqueous medium”, “pressure”, “permeability”, “superhydrophobicity”). Interestingly, animal “biomimetic” approaches appear within this cluster side at the level of specific solutions as “mussel”, “gecko”, “beetle”, for membrane functionalities related to, e.g., adhesion (i.e., “adhesive”). In this cluster right half there are also items as “tissue” (i.e., “skin” and “shell”), or “polymer” whose engineering is bio-inspired (e.g., “silk”, “spider silk”, “cellulose”), along with “fabrication” methods (e.g., “lipid” and “lipid bilayer” or “biological material” as “peptide” and “protein”) for “permeability” (with “pore” and “porosity”), “absorption” and “suspension” functionalities in “liquid water” “fog”, “aqueous medium” or “ice”.
The design and control (blue) cluster (see also Figure A1C) has terms dealing with robotic “design” and “model” within all types of platforms (including the biomimicking ones), dedicated to the “environmental monitoring” as well as the “exploration” of the “marine environment”, “river”, “lake” and all “aquatic environments” in general, including also space research (“Mars”). The analysis related to the four top-ranked terms concerning the averaged normalized citation indicates the following: “design” (10857), “model” (7452), “robot” (4625) and “fish” (3698). This cluster encompasses the system control, actuators and computational features (i.e., “neural network”, “genetic algorithm”, and “algorithm”). This cluster shows a high level of elements interconnection at the level of prototype and platforms design for autonomous robotic animal-inspired solutions (“animal” and “robotic fish”, exemplified by “shark”, “jellyfish”, and “squid”). The method developments for underwater motility (“thrust” and “propulsion”) likely discriminate underwater vehicles from robots adopting more biomimicking solutions for locomotion. Advanced motility systems (e.g., “walking” and “swimming”) by biomimicked appendages (e.g., “wing”, “leg” and “fin”) appear related to hydrodynamic simulations (e.g., “particle image velocimetry”, “analytical model” and “mathematical model”), with a higher relevance in term of interconnection than “autonomous underwater vehicle”.

3.3. Publication Trends: Years and Citation Rate

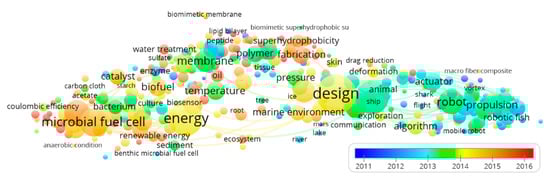

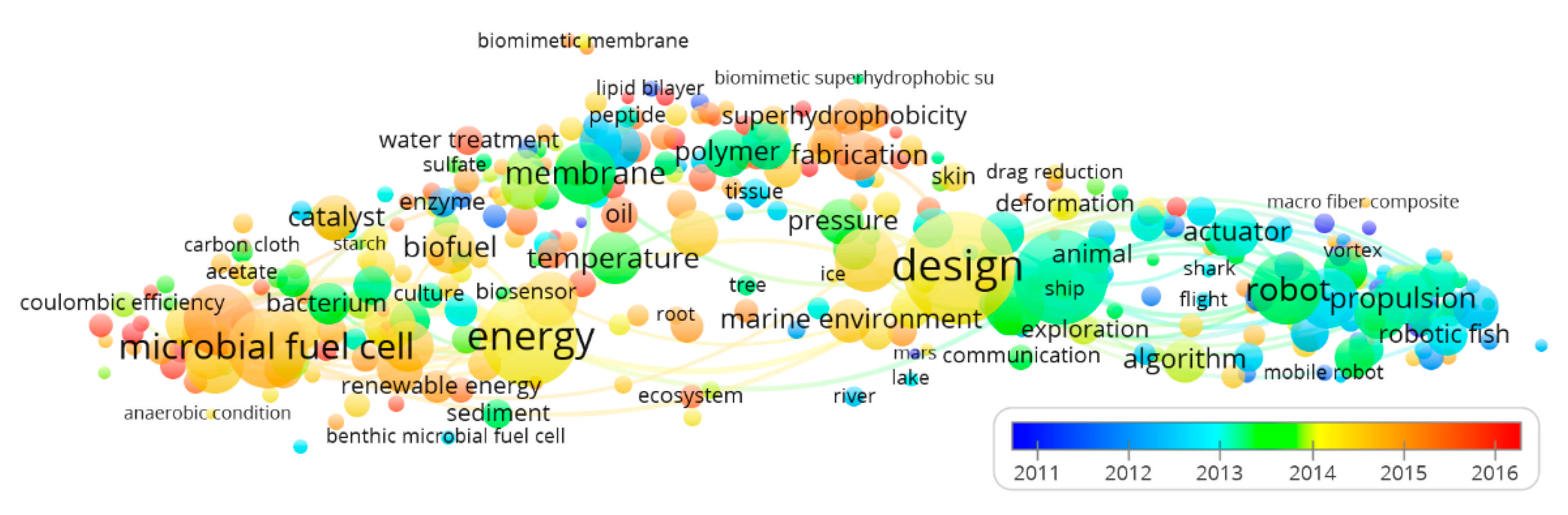

The term-year map based on “biomimicking” papers (Figure 5) presents a temporal trend where energy provision (red cluster of Figure 4) at the level of fuel cells and design and control (blue cluster of Figure 4) at the level of the design itself shows the most recent field of research. Also, the different levels of elements interconnection for each of the three recognized clusters (see Figure 4) are a proxy of the robotic field’s maturation level. Control and propulsion methods appear as the oldest (within the blue cluster), biomimetic designs have an intermediate age, and membranes engineering are the newest (along with bioenergy sustained solutions). The different maturation level of the research scenario within each of the three clusters is also visible for citations ranges (Figure 6). The four top-ranked terms for the red cluster (energy provision) in terms of averaged citation rate are: “ionic liquid” (3.72), “biochar” (2.92), “water splitting” (2.91), and “battery” (2.41). These four items for the green cluster (biomaterials) are: “salt” (4.01), “biomimetic superhydrophobic surface” (3.00), “gecko” (83.56), and “metal ion” (2.84). The four top-ranked terms for the blue cluster (design and control) are: “filter” (1.77), “gravity” (1.07), “environmental monitoring” (1.07), and “insect” (1.00).
Considering the mean values of the average publication year for the three groups obtained by the cluster analysis (see Figure 4), the red cluster (energy provision) showed a more recent mean value (2014.4), followed by the green one (biomaterials; 2014.3) and the blue one (design and control; 2013.3). Considering the mean values of the average normalized citation rate for the three groups obtained by the cluster analysis (see Figure 4), the red cluster (energy provision) showed a higher normalized citation rate (1.46), followed by the green one (biomaterials; 1.30) and the blue one (design and control; 0.56). For both the publication years and citation trend, the goodness of the data was tested on the null hypothesis of the same median, being the distributions not normal (Shapiro-Wilk test; p < 0.05) and homoscedastic (Levene Test; p > 0.05); Kruskal-Wallis rejected the null hypothesis of equality of median. Mann-Whitney pairwise comparisons Bonferroni corrected post-hoc test showed a significant difference (p < 0.001) between all the clusters.

4. Discussion

Our results pointed out that the main emerging fields of marine biomimicking robotic research are the provision of energy via microbial fuel cells, biomaterials for the development of not yet fully operational soft-robotic solutions, and a more classic bioinspired design and control, associated with a multiplication of locomotion solutions. In this scenario, one central aspect is the lack of long-lasting energy provision, which to date conditions robots’ operation autonomy. Energy generation could represent a solution via internal systems in a homeostatic interaction with the surrounding environment. For this reason, marine bio-inspiration is becoming increasingly oriented toward the identification of metabolic processes by which living organisms obtain energy from their environment and the natural designs allowing the optimization of energy consumption.

4.1. The Temporal Trends in Biomimicking Robotics Research

Biomimicking robotic research has poor development prior to 2000 (i.e., only 123 out of 6980 are publications related to this subject prior that year, constituting 1.76% of the total retrieved with the query). From 2003–2004 onwards, a sharp increase occurred, which is still lasting today without signs of saturation (see Figure 1). Since 2000, there has been an increasing interest in developing technological products for the maritime and offshore industries and science, with marine robotics enabling the execution of increasingly complex industrial and military missions [37]. After 2004, U.S. military research [68] and the industrial innovation in Europe and Asia [69] broadly stimulated general robotic research. At the same time, in 2004, the U.S. Commission on Ocean Policy evaluated that a large part of the U.S. marine infrastructure was obsolete, which advocated for research toward its renewal [70].
More recent research developments are related to efforts for energy provision and storage (see next section). For example, the advent of microbial fuel cells (MFC) contributed to the publication peak in 2016 [71] and added new perspectives for energy supply, especially after the appearance of the miniaturized supercapacitive MFC [72]. Also, membrane separation technology and biosorbents are some of the branches that developed quickly after the 2000s due to the interest in purification and recovery of strategic metals from complex matrices, e.g., [73,74]. The latest advances in electrodialysis have provided clues on the control of electron transfer during the treatment of different materials using MFC, e.g., [75]. In the past five years, using biocatalysts in electrode materials led to significant improvements in efficiency compared to abiotic anode [76]. Bioelectrochemical systems (BES), anode surface modifications with nanomaterials, and bacterial gene modifications are becoming prevalent approaches to improve MFC performances [77]. In this last decade, biofuel production technologies contributed to energy provision research and new nanomaterials or nanotechnologies [22,77], including actions taken to improve memory storage capacity in robotic applications for data exchange [23,78].
Another reason justifying the recent growth in robotic biomimicry research is space exploration. Such an exploration is not only oriented to Mars, but it actually includes the sub-surface oceans of Europa and Enceladus and other icy moons as equivalents to deep-sea terrestrial environments [38,53,79,80]. Proposed applications plan to use vectors to carry biomimicking probes for their delivery into specific terrestrial, atmospheric and aquatic environments, orienting biomimicking research toward the design of the structural hardware and toward the emulation of specific behavioral aspects. Platforms operative cooperation is biomimicked considering the example of sociality in insects [81,82,83]. For instance, behavioral biomimicking is being used as a reference to build swarms of travelling platforms with differential distribution of tasks in the atmosphere of Mars (e.g., the flying bees for Mars [84]).

4.2. Biomimicking Energy Provision

Our results on the biomimicking design for energy provision in the underwater environment (red cluster; see Figure 4) evidenced its relationships with the conditioning needs of locomotion functionalities. That biomimicking is only partially developed at the level of metabolism-inspired functionalities, with microbial fuel cells (MFCs) becoming a hot topic in the recent literature developments (see the previous section and Figure 5).
Using MFCs to produce and distribute energy is provided by the electrolytic mediators through an external circuit. So this design is far to be seen as an equivalent of metabolism in living organisms since it is not diffused throughout the robotic structures. However, robotic systems powered by MFCs are usually termed ‘gastrobots’, which means robots with a stomach [23,85]. So, organ-like structures are being conceived to provide energy, exploiting metabolic reactions to power, e.g., motility. Such an energy system often requires a pulsed or opportunistic behavior to perform tasks and sub-tasks because the energy supply cannot support a continuous mode operation [23,78].
Biochemical applications simulating metabolism in robots have been developed but not yet coupled into biomechanics designs. Under this aspect, the challenge is linked to the power density that microbial fuel cells can output: computation, locomotion and interaction, especially in harsh environments, are extremely energy demanding for the bigger robots, and novel approaches are required to reduce such energy demands [86]. The energy density (per unit of mass) is still insignificant compared to standard fuels like gasoline or Li-ion batteries, so a combination of different technologies is still required for the autonomy of robotic systems [23,78]. However, the electricity produced by the microbial fuel cell can be further stored in a capacitor for burst-mode power delivery [23]. Also, a microbial fuel cell can be transformed into a microbial electrolysis cell (MEC) [87] to produce ancillary biofuel (hydrogen energy) eventually. This type of cell may be the biotic substitute for traditional batteries to supply the required voltage. Combining these two types of microbial cells may be suited for almost entirely self-sustained motility of small weights [77].
To achieve sufficient energy performances and maintain control over physio-chemical variations (homeostasis) is challenging, such that few results have been transferred into the industry [22]. The main limiting factor is the energy requirement. Nano-research is vital to lighten the mechanical structure and “organs”, but when it comes to working with bare microbial fuel cells, volumetric energy density is an essential parameter for mobile applications [22] due to the limited spaces available inside the devices. Even if a higher gravimetric energy density than a metal-based fuel cell is generated, smaller volumetric energy density will limit the application range of those cells alone [22,88]. From this viewpoint, MFC relying on organic cathode materials with a low mass density might demonstrate limited performances [24].
In this scenario, the metabolism-inspired functionalities for energy provision sustaining marine platforms autonomous operability has still poor connectivity within the overall energy provision research scenario (e.g., “benthic fuel cells” and “sediment fuel cells” appearing as separated in the red cluster; see Figure A1A). The U.S. Naval Research Laboratory has used sediment MFC to harvest energy from the seafloor for low-power consuming applications like meteorological buoys [89]. Biosensors powered by MFC have drawn increasing interest due to their sustainability and cost-effectiveness, with several applications for water quality monitoring [90,91], which can be used in aquatic robots. MFC-based biosensors are being used to detect metals such as copper, chromium, and zinc, as well as organic compounds [91], although there is a need to improve their sensitivity, as they have high detection thresholds.
In the next future, the design of efficient and effective metabolic engineering approaches will increasingly benefit from artificial intelligence (AI) methodologies [92]. AI can picture retrobiosynthesis (a reverse engineering-like approach, where metabolism can be disentangled in terms of originating reactions and their relationship) approaches, highlighting key reaction rules present in biological systems [93]. Moreover, machine learning techniques are used to incorporate genomic data for predicting the optimal feed substrate of MFCs [94], while machine learning can be used for modelling and controlling the temperature inside those cells [95].

4.3. Biomimicking Materials for Robotics

Biomaterials biomimicking is the replication of biological processes at the molecular level with human-made materials [96]. In this context, our results indicated that the terms in this cluster (green; see Figure 4) have an identity related to the creation of new solutions at scales ranging from macro to micro. Biomimicry is used to solve conflictual engineering problems across very different multi-functional materials size ranges to merge flexibility and resistance [97,98]. The existence of that cluster in our analysis as separated from that of the design and control (see the next section) indicates that robots planning and construction is still conceived along two independent lines: one using traditional materials in large sizes mechanically-designed platforms and one looking for new functionalities at the level of membrane and surfaces for soft robotic frontline applications.
The implementation of bio-inspired materials at nanoscales is a research field parallel but still poorly connected to robotic mechanical design. Microfabrication of membranes is not yet at a sufficient level of technological development to have substantially impacted the published literature we analyzed and therefore does not appear prominently within the green cluster. The rightmost terms (“gecko”, “beetle”, etc.), which may point toward the design of bioinspired systems (blue cluster), resulted instead primarily for the micro properties of the bioinspired mechanism, e.g., adhesion [99], or the properties of fabrication process of the animals, e.g., spider silk [100,101]. Another example is represented by the study of marine organisms’ biomacromolecules (e.g., hyaluronic acid, chitin and chitosan, peptides, collagen, enzymes, algal polysaccharides). Reef fish mucus, marine adhesives and structural coloration are biomimicked to recreate adhesives, collagen, or coating-antifouling materials [102,103,104].
Therefore, this cluster belongs to the bottom-up approach to biomimicking: the quest here is to create new materials, technologies and devices, which replicate specific biological solutions. Those solutions have to be intended as the building blocks for further general applications (e.g., gecko adhesion for vertical locomotor functionalities). Moreover, technology can rarely grant a perfect mimicking of the natural solution. In those cases, the phenomena are abstracted at a high level, eventually instantiating concrete products with still low diffusion in robotics applications [98].

4.4. Biomimicking Design and Control

The design and control cluster (blue; see Figure 4) highlighted that most robotic applications mimic innovative automated body motions in associations with the morphology of different types of aquatic animals. That quest for improved locomotion highlights the need to move beyond the state of the art of traditional robotic platforms [2,105]. The result is creating biomimetic underwater drones with thrusters-independent swimming capability, as a step forward compared to the more conventional designs such as autonomous underwater vehicles (AUVs) and gliders [106]. This is confirmed in our results (see Figure A1C) by the relevance of terms we identified in our survey, all related to animal morphological models (i.e., “jellyfish”, “shark”, “fish”, “squid”, and even “insect”) with different levels of association with mobility (“manoeuvrability”, “propulsion”, “thrust”, “mobile robot”, etc.). Also, terms like “actuators” and “sensors” and their linksappear related to locomotion effectiveness rather than generic functionality.
Interestingly, our research revealed how mobility functionalities are prioritized over manipulation (i.e., robot having appendages to interact with objects). The “manipulation” term appears only on the far-right side of the biomaterial cluster (see previous section and Figure A1B,C). By considering the vast amount of research in robot manipulation and robotic grippers [107,108], and the huge bioinspired efforts carried out in creating artificial hand prosthesis [109,110,111], it is surprising that marine robotics manipulation is underrepresented, and this may be a promising area for future developments, especially concerning bio-ecological and industrial applications.
Two reasons could lie beyond that situation. First, locomotion efforts are still far from being completed and satisfactory, and therefore no attention is directed toward underwater bioinspired manipulation. This appears less probable due to the high request for innovative grippers and manipulators employed in the underwater domain [112,113]. A second reason seems more realistic: if we consider the usual bioinspired path, peculiar, smart, or novel biological solutions should be identified by life scientists and eventually proposed to engineers. We believe this path is presently underexploited, and that additional research into animals/systems that could be used as a reference for novel bioinspired grippers and arms would be profitable. The oil industry historically developed underwater robotic manipulators to work on metal components. Still, for biological applications such as sampling delicate/fragile species, innovative solutions in soft robotics are required, e.g., [114,115].
AI is not apparent in the design and control cluster, since its development is very recent. An AI-related key question emerging from this cluster is which combination of sensorial technologies allows full autonomy in robotic functionalities. A promising research field is within the hardware devices for underwater vision. It is clear that marine animals evolved several solutions to adapt their vision system to the underwater environment [116], and several attempts were performed into bio-inspired underwater vision. Examples span from the biomimicking of vision to guide vehicles as the use of underwater light polarization-sensitivity (by shrimps [117]), to the neuro-model driving anguilliform-swimming devices (by lamprey [116]), and celestial compass-based approaches (by ants [118]). Also, non-light oriented approaches were implemented as the use of turbulence and pressure changes to reconstructs 3D panoramas (i.e., seal whiskers [119]) or the sensing of weak electric fields near objects (muddy water fishes [120]).
Other applications of AI are related to swarm intelligence [121,122], neural simulation [123,124], and evolutionary computing [125] for controlling fleets of vehicles. Similarly, neural networks are often used to detect and localize underwater objects [126,127], fins sensors can inform the design of control systems of fin-driven robots [128], while bio-inspired algorithms are applied for localizing odour or chemical sources by underwater robots [129].

4.5. Limitations of Our Bibliographic Meta-Analysis

There are some limitations in the term-map analysis regarding both the production and the interpretation of results. There are mainly two kinds of limitations: those generated by the data and those imposed by the map. For the first aspect, during the creation of the bibliometric dataset, the record’s availability could have been somehow limited mainly due to the arbitrary keywords’ choice for the primary search. Also, regarding this aspect, synonyms and homonyms represent another kind of problem that could arise. Although this problem was solved with an accurate manual thesaurus polishing by merging the synonymous terms (see the methodological section “Bibliometric Mapping and Clustering”), more advanced approaches can be used based on the formal conceptualization of the marine science domain [130]. For example, the Semantic Web for Earth and Environmental Terminology (SWEET) ontology [131] and the Natural Environment Research Council (NERC; assessed on 28 May 2021) vocabulary could be used for the automated merging of the terms resulting from the abstract, titles and keyword analysis. Similarly, natural processing language techniques can also be used to identify the most relevant terms, on which the map is built up [132,133].
For the second aspect, the interpretation of a bibliometric map is not always straightforward. A term-map represents a simplified version of reality, leading to loss of information and a partial representation of the investigated field [134]. VOSviewer generates such an inevitable loss of information due to the two-dimensional representation of the terms in a Euclidean space. We are aware that those mapping and clustering procedures rely on dissimilar design principles and conventions. However, the VOS mapping technique and the weighted and parameterized variant of modularity-based clustering can both be derived from the same underlying principle [64]. This justified our choice of a unified approach to mapping and clustering bibliometric networks to identify sub-fields or specific sub-topics [135]. Despite these limitations, depending on researcher errors and bibliometric mapping constraints, term-map analysis represents a valuable tool to support experts to improve their knowledge on a specific domain [135].

Author Contributions

Conceptualization, J.A., C.C. and S.M.; methodology, J.A., C.C., M.C., V.F., S.S. and S.M.; formal analysis, J.A., C.C., M.C., V.F., S.S. and S.M.; data curation, J.A., C.C., and S.M.; writing—original draft preparation, J.A., C.C., M.C., V.F., S.S., R.D., H.I.G., F.V., L.R.D., P.W., K.N. and S.M.; writing—review and editing, J.A., C.C., M.C., V.F., S.S., R.D., H.I.G., F.V., L.R.D., P.W., K.N., D.C. and S.M.; visualization, C.C. and D.C.; funding acquisition, J.A., H.I.G. and S.M. All authors have read and agreed to the published version of the manuscript.


This research was developed within the framework of the Tecnoterra Associate Research UNIT (ICM-CSIC/UPC) and the following project activities: ARIM (Autonomous Robotic sea-floor Infrastructure for benthopelagic Monitoring; MartTERA ERA-Net Cofund), and RESBIO [TEC2017-87861-R; Ministerio de Ciencia, Innovación y Universidades; PI: J.A.]. S.M. was funded by the projects: ENDURUNS [ERC Research Grant Agreement H2020-MG-2018-2019-2020 n.824348] and by JERICO-S3 [Horizon 2020; Grant Agreement no. 871153]. H.I.G. acknowledges the University of Nottingham for her funding through an Anne McLaren Fellowship. This work also acknowledges the ‘Severo Ochoa Centre of Excellence’ accreditation to ICM (CEX2019-000928-S).

Data Availability Statement

The EndNote file containing the database of the publication extracted is available online at (Figshare repository, accessed on 28 May 2021).

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

Appendix A

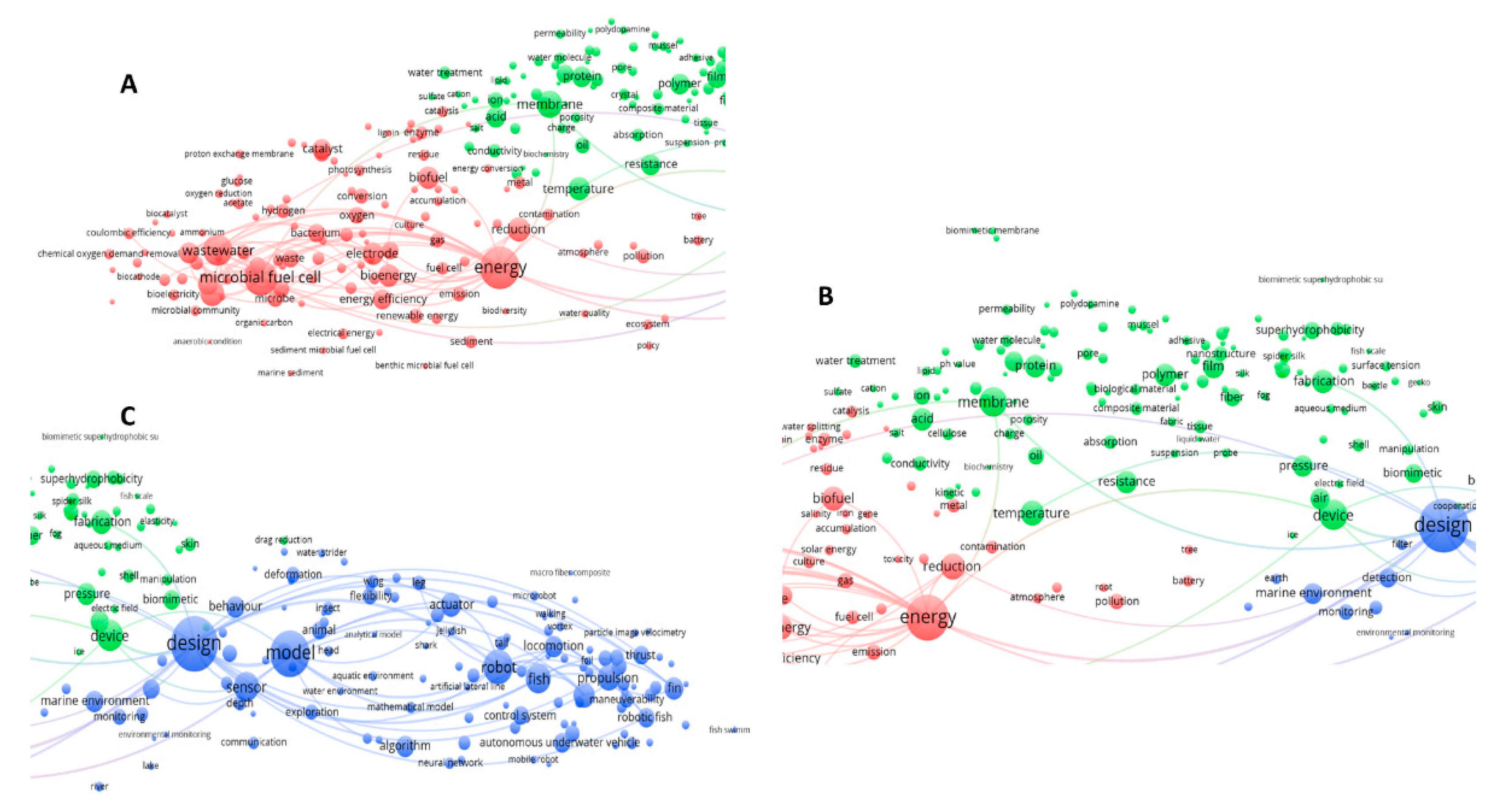

Figure A1. The enlarged view of the 3 clusters (AC) from the term-map analysis.
Figure A1. The enlarged view of the 3 clusters (AC) from the term-map analysis.
Sensors 21 03778 g0a1
Table A1. Number of publications (n) per the complete list of subject categories as different disciplines (see Table 2).
Table A1. Number of publications (n) per the complete list of subject categories as different disciplines (see Table 2).
Subject Arean
Materials Science1707
Chemical Engineering1290
Environmental Science1259
Computer Science1193
Biochemistry, Genetics and Molecular Biology1152
Physics and Astronomy1109
Agricultural and Biological Sciences420
Earth and Planetary Sciences285
Immunology and Microbiology174
Social Sciences79
Business, Management and Accounting53
Pharmacology, Toxicology and Pharmaceutics24
Economics, Econometrics and Finance22
Arts and Humanities19
Health Professions18
Decision Sciences17
Table A2. Complete list of countries and their total number of issued scientific papers (n) as well as their relative percentage.
Table A2. Complete list of countries and their total number of issued scientific papers (n) as well as their relative percentage.
United States171420.864Israel340.414Lithuania60.073Nepal10.012
United Kingdom4515.490Saudi Arabia340.414Oman50.061North Macedonia10.012
Germany3644.431Ireland310.377Kenya40.049Sri Lanka10.012
South Korea2943.579Indonesia290.353Slovakia40.049Venezuela10.012
France2102.556South Africa260.316Luxembourg30.037
Singapore1732.106Czech Republic200.243Puerto Rico30.037
Sweden981.193New Zealand200.243Cuba20.024
Taiwan921.120Viet Nam200.243Jordan20.024
Hong Kong861.047Hungary190.231Kazakhstan20.024
Denmark630.767Qatar110.134Bosnia and Herzegovina10.012
Greece610.743United Arab Emirates100.122Burkina Faso10.012
Portugal570.694Latvia90.110French Polynesia10.012
Russian Federation570.694Lebanon90.110Ghana10.012
Austria550.670Algeria80.097Libyan Arab Jamahiriya10.012
