Linear and Nonlinear Deformation Effects in the Permanent GNSS Network of Cyprus
Abstract
:1. Introduction
2. Processing of Continuous GNSS Data

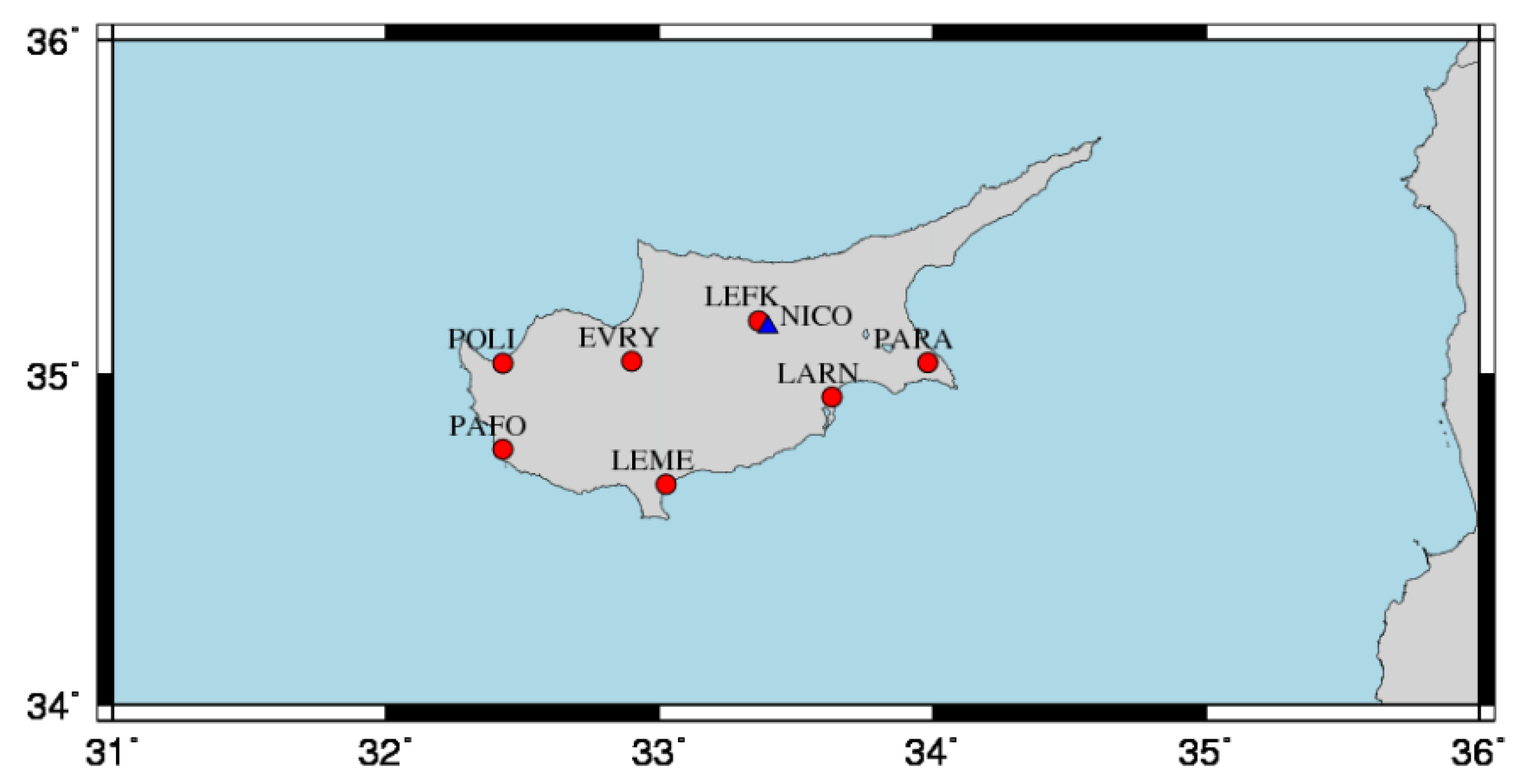

2.1. GNSS Permanent Stations in Cyprus
2.2. Observation Dataset and Software

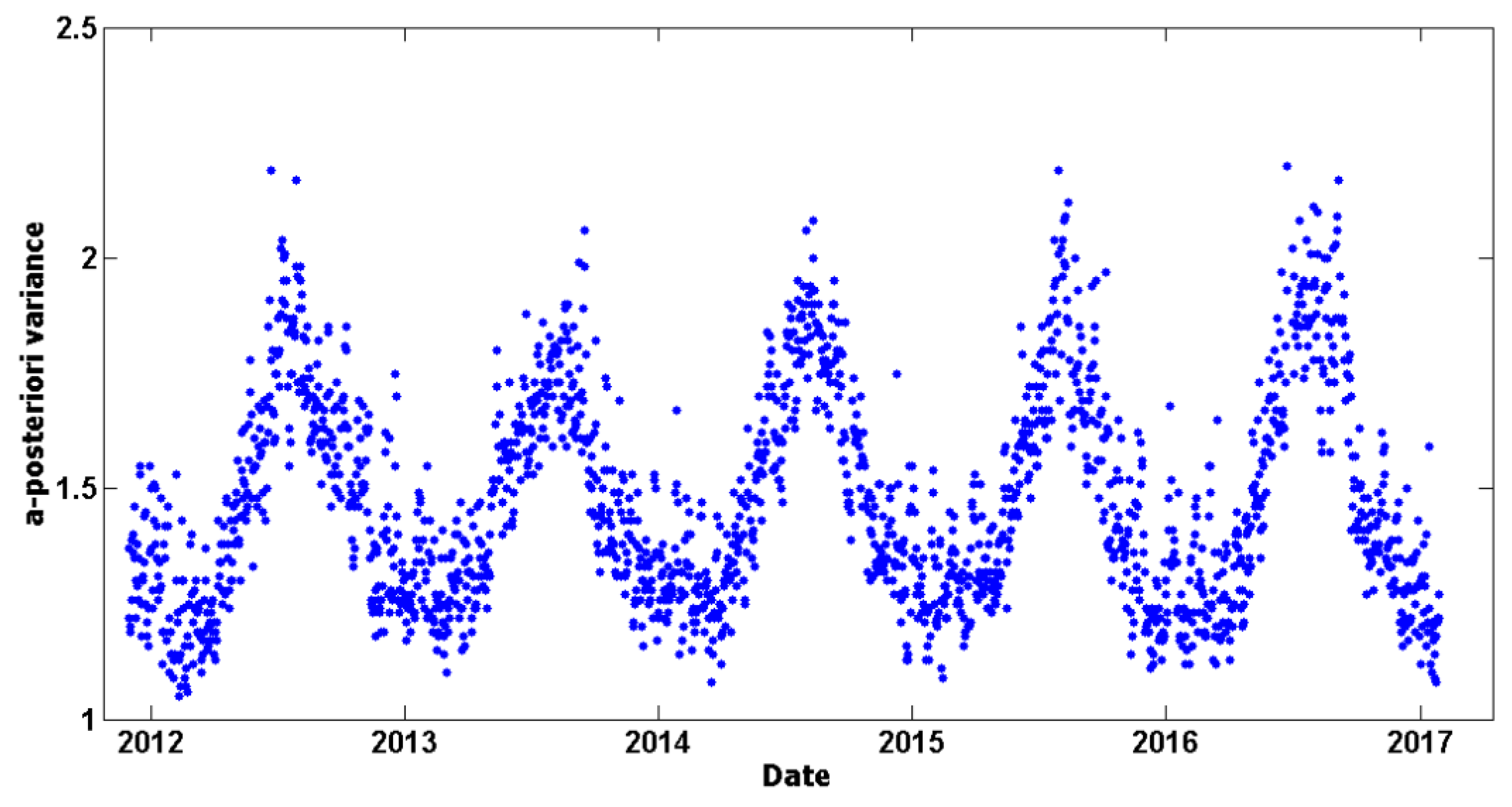

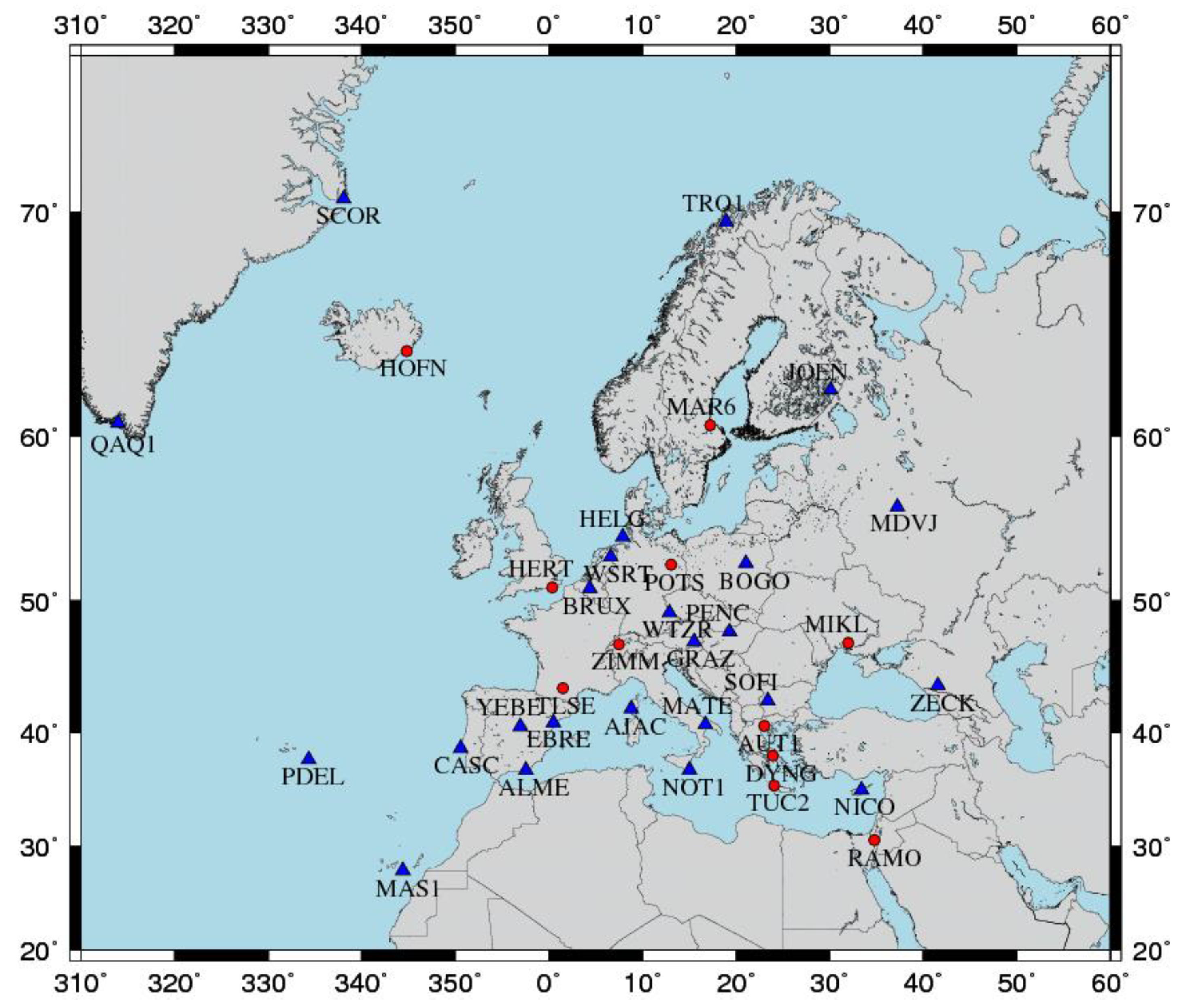

2.3. Computation of Daily Solutions

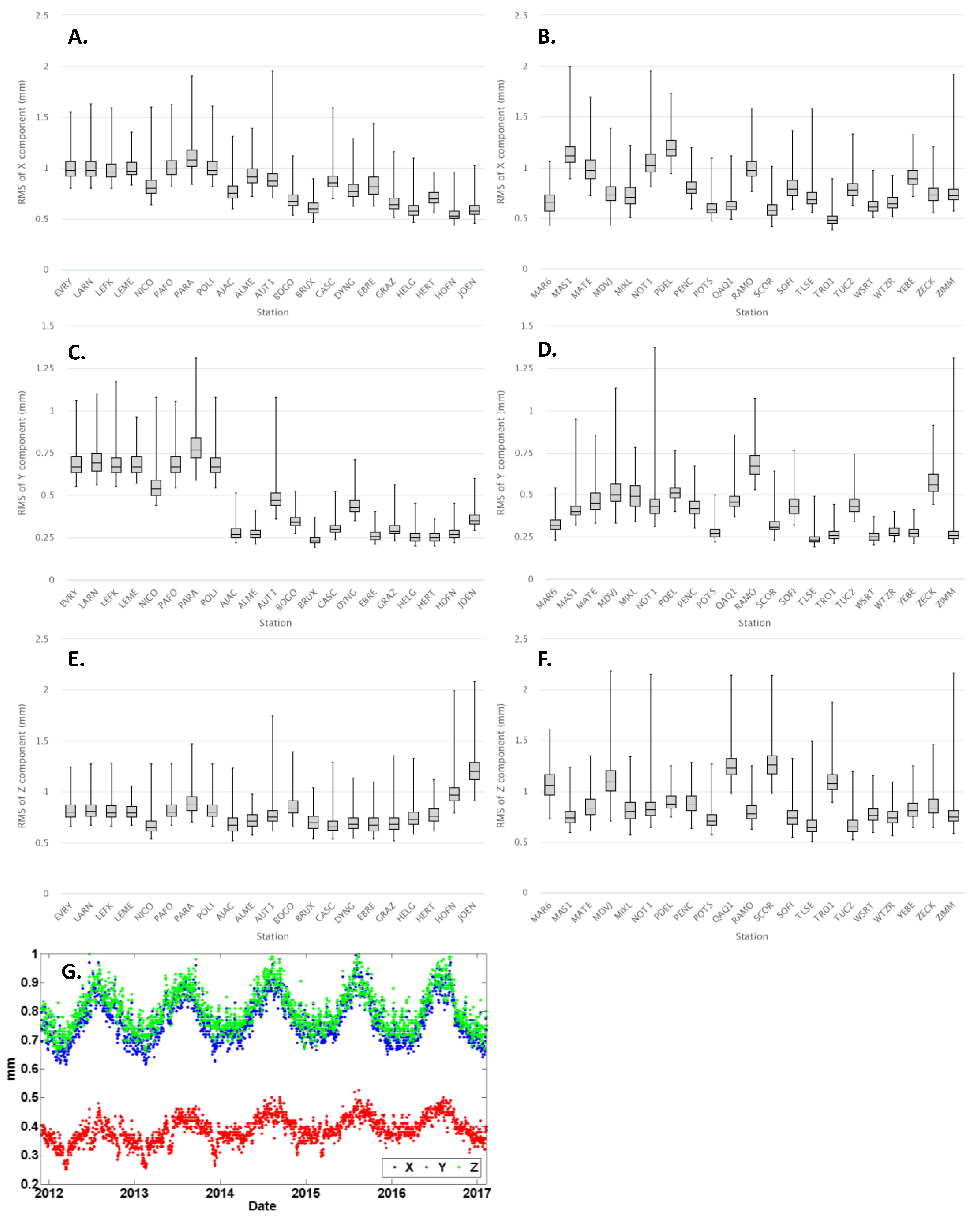

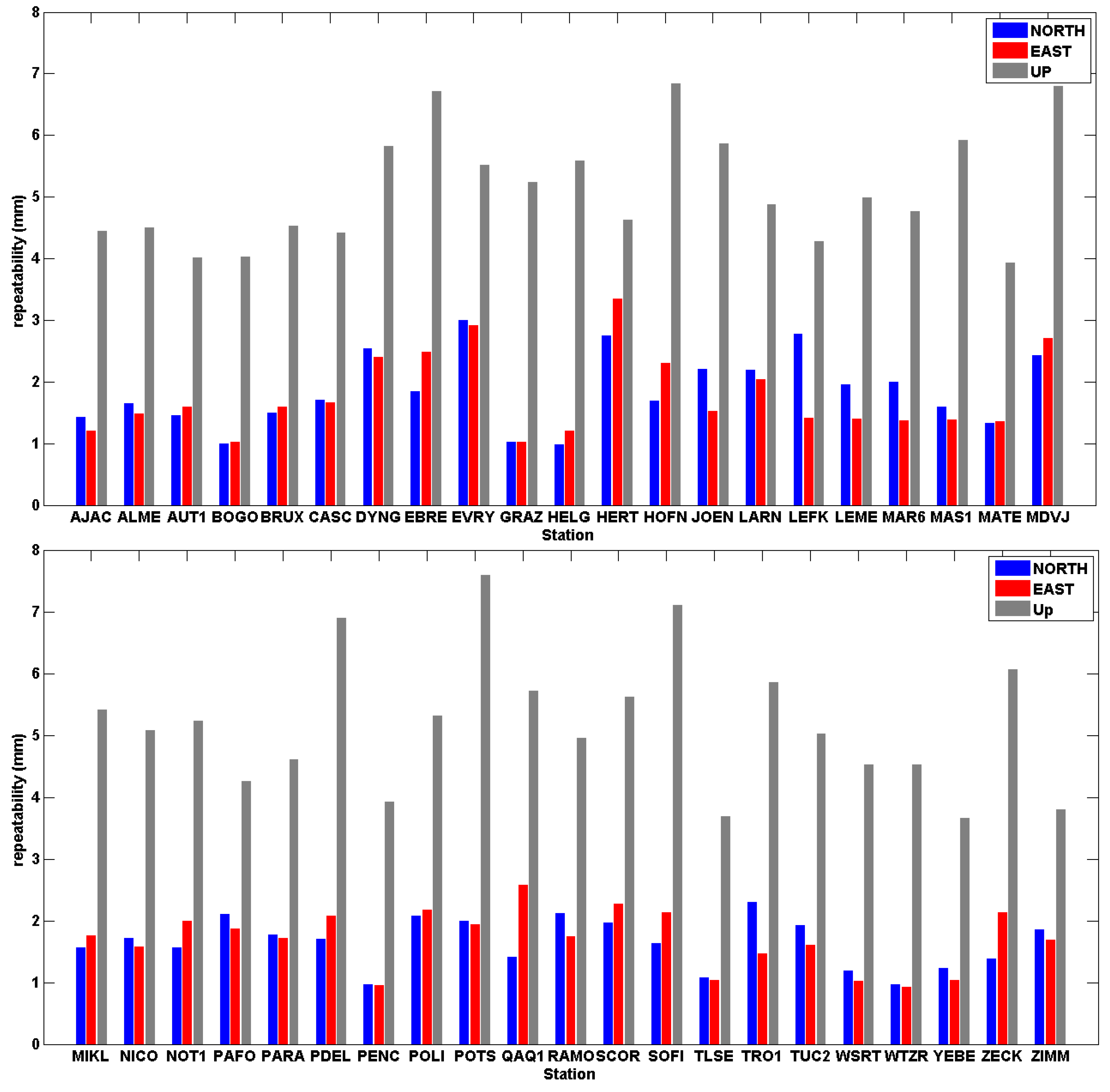

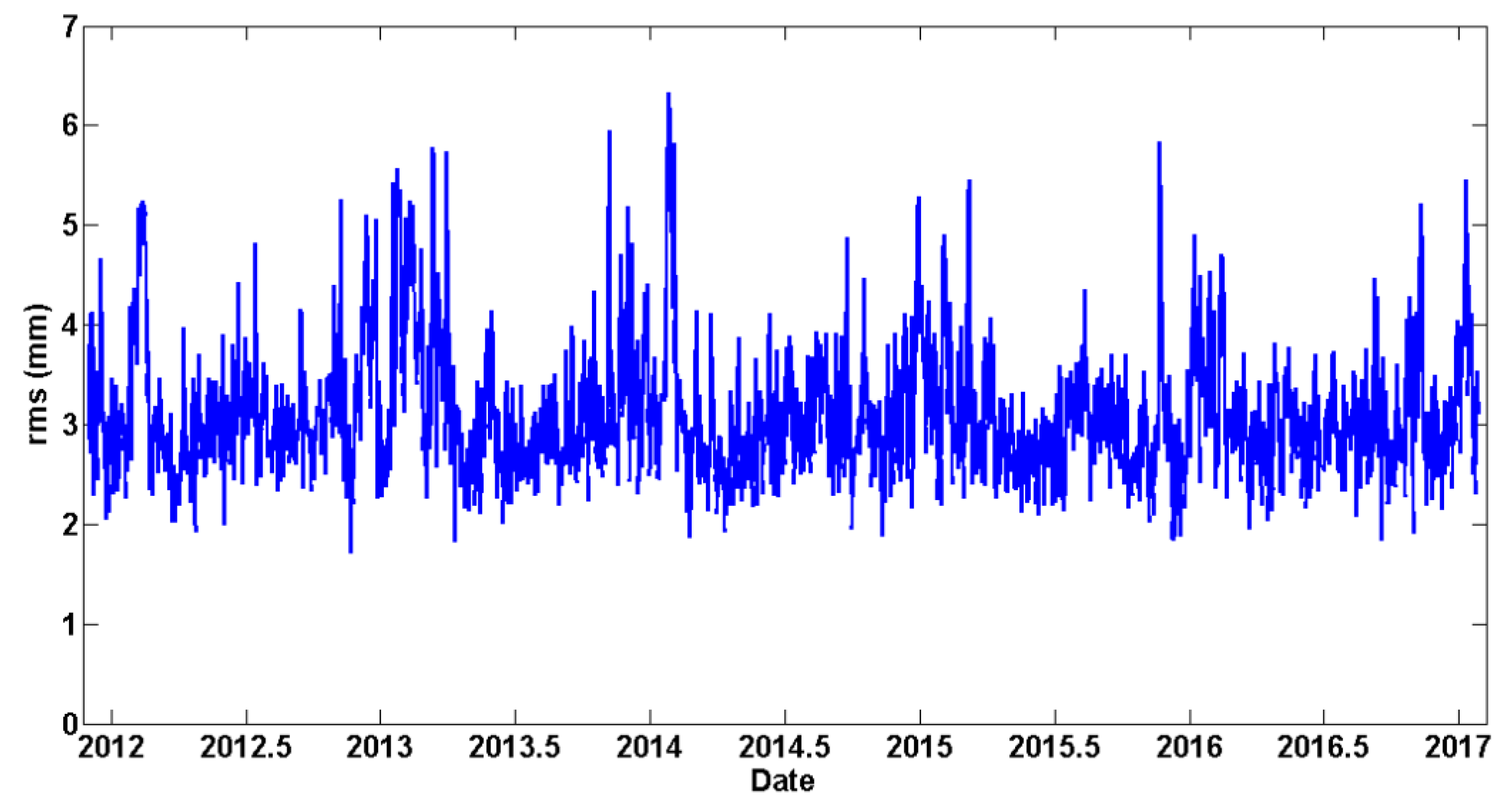

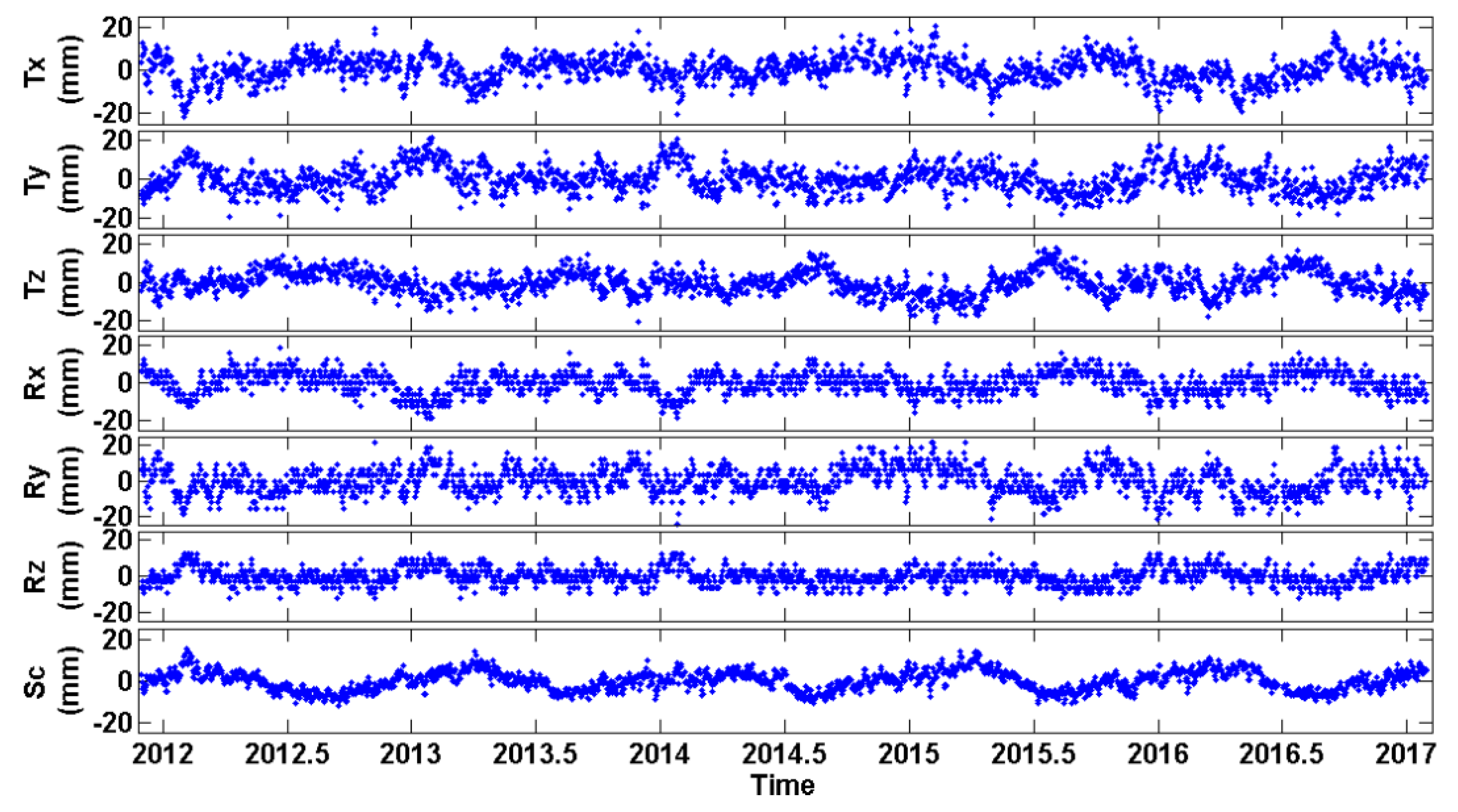

2.4. MultiYear Solution and Quality Assessment

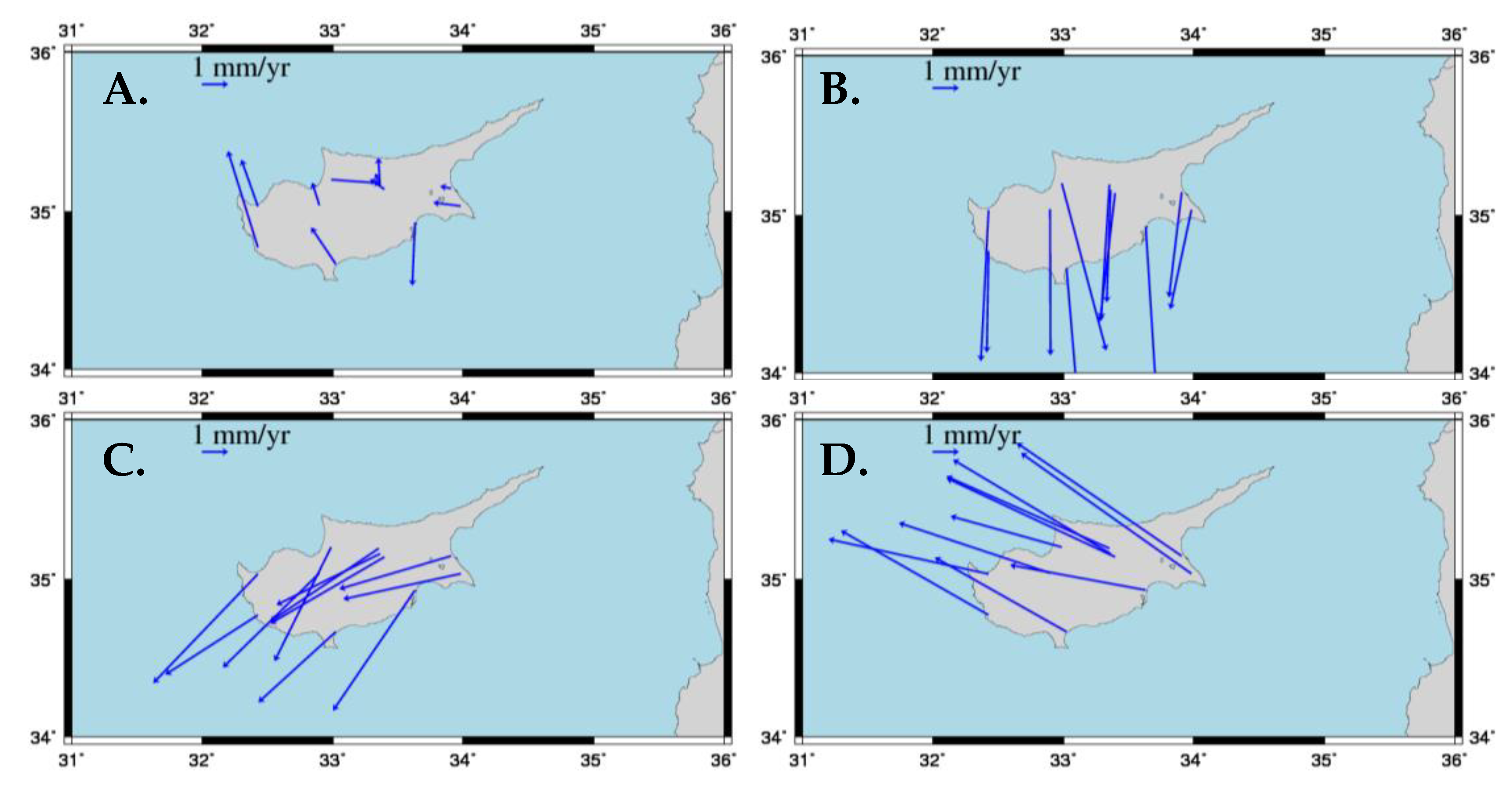

3. Horizontal and Vertical Secular Displacements in Cyprus
4. Analysis of Position Time Series at CYPOS Stations
4.1. Station Discontinuities

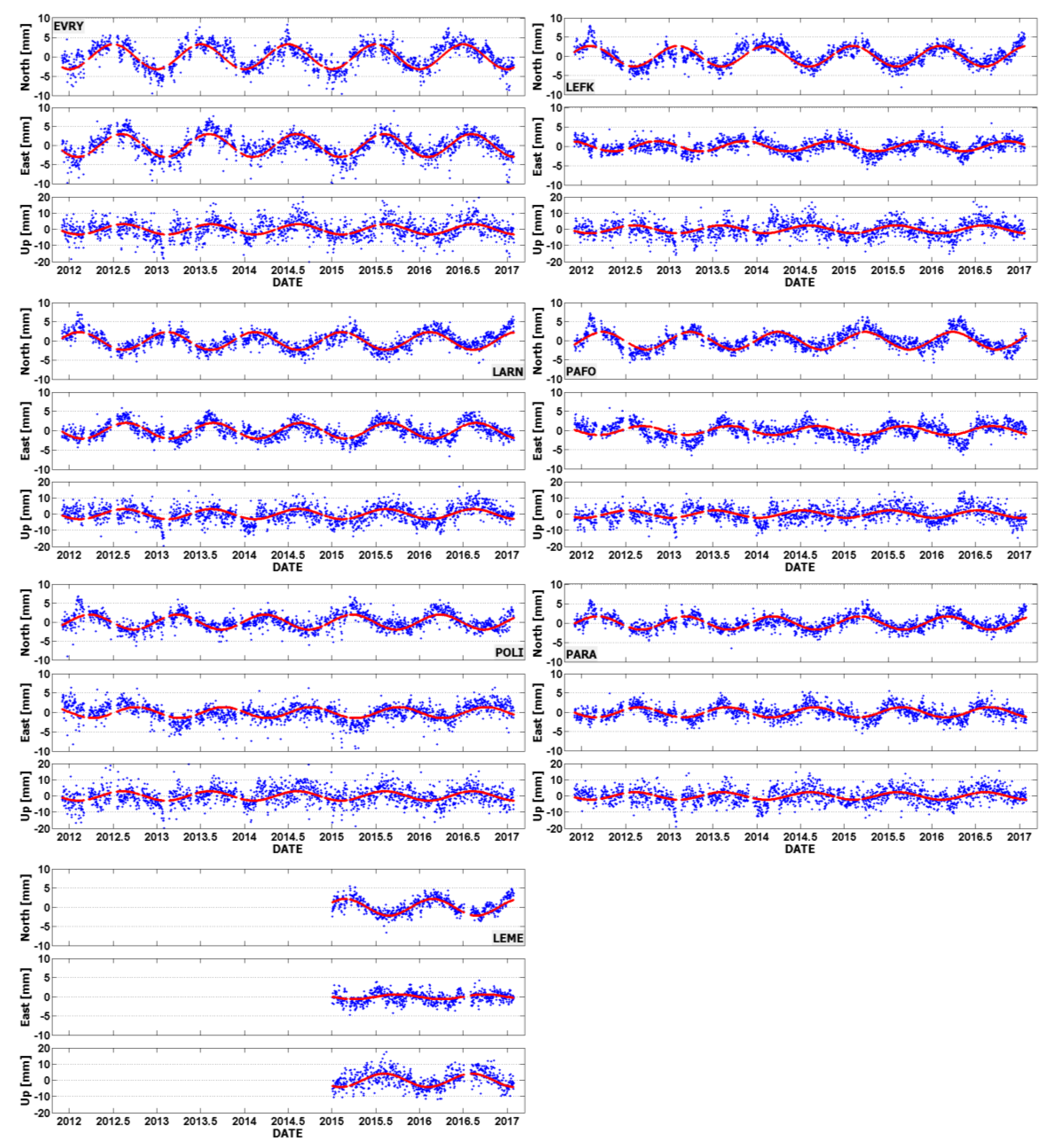

4.2. Estimation of Periodic Signals

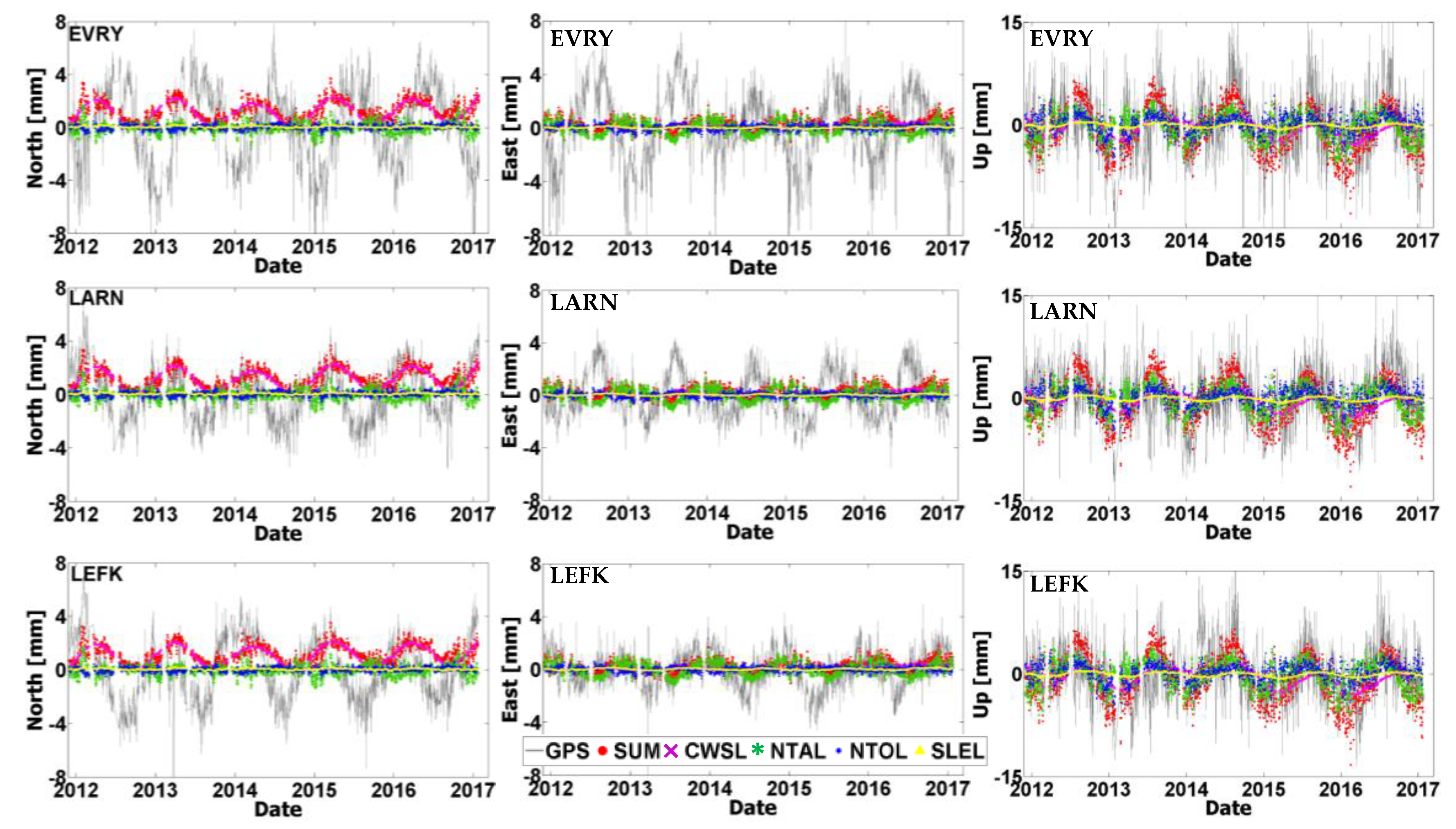

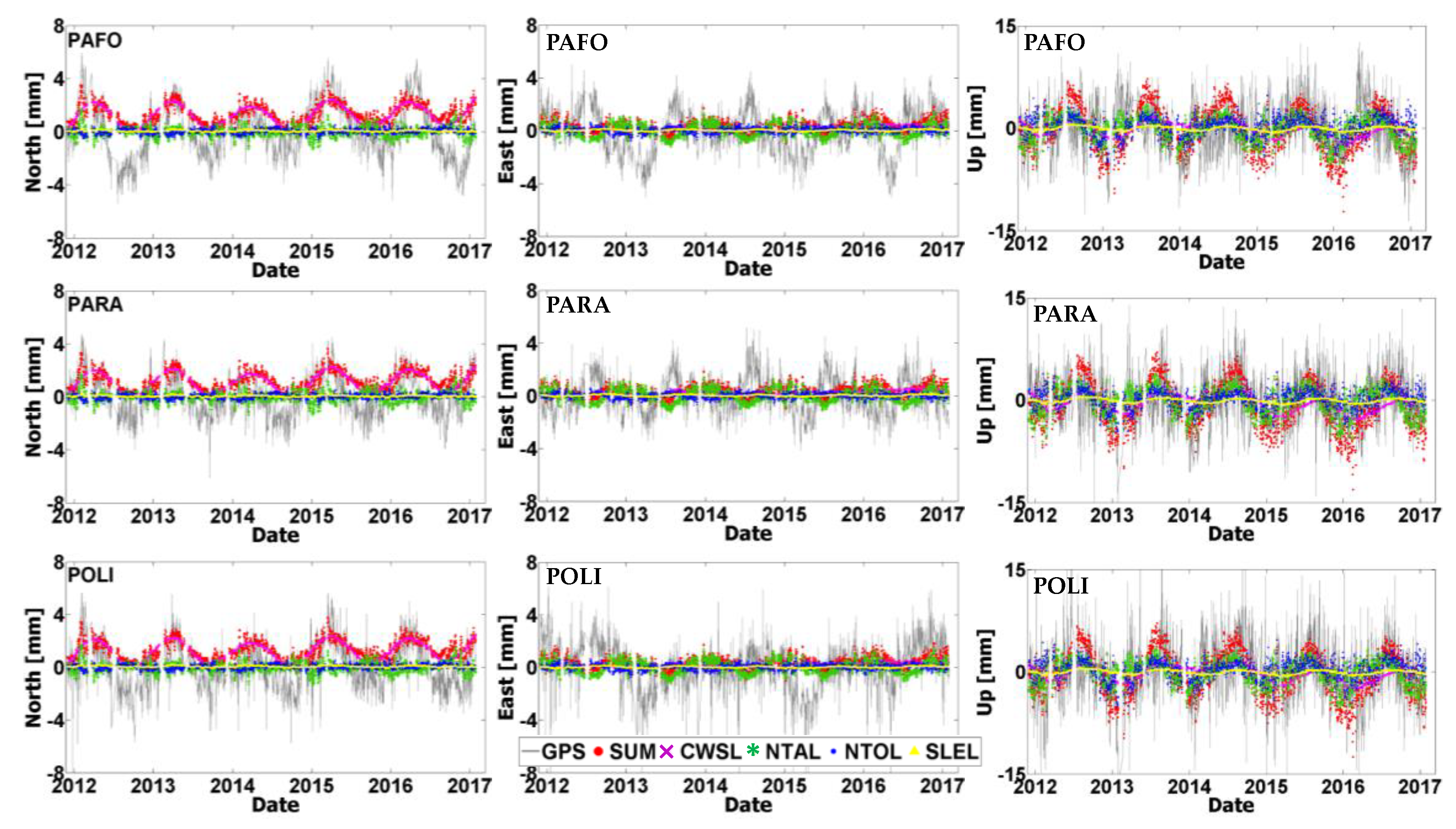

4.3. Comparison with Geophysical Loading Models
5. Conclusions
 the area of Cyprus seems to be stable, without suffering any notable local crustal deformations, at least within the time range considered in the present study (11/2011–01/2017);
 the GNSS station that is located in Larnaca (LARN) shows some significant local effects, both in the horizontal and vertical components of its position time series. It is surmised that these effects are attributed to the underlying geology;
 the horizontal and vertical positions of all CYPOS GNSS stations have annual periodic variations of considerable magnitude (several mm)—the semiannual periodic displacements however were found to be negligible;
 some of the CYPOS GNSS stations appear to have periodic variations in their spatial positions at higher frequencies (120 to 60 days)—the related results have not been presented herein (due to space limitations) and they need to be investigated in detail in the future.
Author Contributions
Acknowledgments
Conflicts of Interest
References
 Sella, G.F.; Dixon, T.H.; Mao, A. REVEL: A model for Recent plate velocities from space geodesy. J. Geophys. Res. Solid Earth 2002, 107. [Google Scholar] [CrossRef]
 Altamimi, Z.; Métivier, L.; Collilieux, X. ITRF2008 plate motion model. J. Geophys. Res. Solid Earth 2012, 117. [Google Scholar] [CrossRef]
 Reilinger, R.; McClusky, S.; Vernant, P.; Lawrence, S.; Ergintav, S.; Cakmak, R.; Ozener, H.; Kadirov, F.; Guliev, I.; Stepanyan, R.; et al. GPS constraints on continental deformation in the AfricaArabiaEurasia continental collision zone and implications for the dynamics of plate interactions. J. Geophys. Res. Solid Earth 2006, 111. [Google Scholar] [CrossRef]
 Prawirodirdjo, L.; Bock, Y. Instantaneous global plate motion model from 12 years of continuous GPS observations. J. Geophys. Res. Solid Earth 2004, 109, B08405. [Google Scholar] [CrossRef]
 Bastos, M.L.; Bos, M.S.; Fernandes, R. Deformation and Tectonics: Contribution of GPS Measurements to Plate Tectonics—Overview and Recent Developments. In Sciences of Geodesy—I; Xu, G., Ed.; Springer: Berlin/Heidelberg, Germany, 2010; pp. 155–184. [Google Scholar]
 King, M.A.; Altamimi, Z.; Boehm, J.; Bos, M.; Dach, R.; Elosegui, P.; Fund, F.; HernándezPajares, M.; Lavallee, D.; Mendes Cerveira, P.J.; et al. Improved Constraints on Models of Glacial Isostatic Adjustment: A Review of the Contribution of GroundBased Geodetic Observations. Surv. Geophys. 2010, 31, 465–507. [Google Scholar] [CrossRef]
 Argus, D.F.; Peltier, W.R. Constraining models of postglacial rebound using space geodesy: A detailed assessment of model ICE5 G (VM2) and its relatives. Geophys. J. Int. 2010, 18, 697–723. [Google Scholar] [CrossRef] [Green Version]
 Nocquet, J.M.; Calais, E.; Parsons, B. Geodetic constraints on glacial isostatic adjustment in Europe. Geophys. Res. Lett. 2005, 32, L06308. [Google Scholar] [CrossRef] [Green Version]
 Lidberg, M.; Johansson, J.M.; Scherneck, H.G.; Davis, J.L. An improved and extended GPSderived 3 D velocity field of the glacial isostatic adjustment (GIA) in Fennoscandia. J. Geod. 2007, 81, 213–230. [Google Scholar] [CrossRef]
 Vey, S.; Calais, E.; Llubes, M.; Florsch, N.; Woppelmann, G.; Hinderer, J.; Amalvict, M.; Lalancette, M.F.; Simon, B.; Duquenne, F.; et al. GPS measurements of ocean loading and its impact on zenith tropospheric delay estimates: A case study in Brittany, France. J. Geod. 2002, 76, 419–427. [Google Scholar] [CrossRef]
 Dach, R.; Böhm, J.; Lutz, S.; Steigenberger, P.; Beutler, G. Evaluation of the impact of atmospheric pressure loading modeling on GNSS data analysis. J. Geod. 2011, 85, 75–91. [Google Scholar] [CrossRef] [Green Version]
 Dong, D.; Fang, Y.; Bock, Y.; Cheng, S.; Miyazaki, S. Anatomy of apparent seasonal variations from GPSderived site position time series. J. Geophys. Res. Solid Earth 2002, 107. [Google Scholar] [CrossRef] [Green Version]
 Penna, N.T.; King, M.A.; Stewart, M.P. GPS height time series: Shortperiod origins of spurious longperiod signals. J. Geophys. Res. Solid Earth 2007, 112, B02402. [Google Scholar] [CrossRef] [Green Version]
 Van Dam, T.M.; Blewitt, G.; Heflin, M.B. Atmospheric pressure loading effects on Global Positioning System coordinate determinations. J. Geophys. Res. Solid Earth 1994, 99, 23939–23950. [Google Scholar] [CrossRef]
 Van Dam, T.M.; Wahr, J. Modeling environment loading effects: A review. Phys. Chem. Earth 1998, 23, 1077–1087. [Google Scholar] [CrossRef]
 King, M.A.; Watson, C.S. Long GPS coordinate time series: Multipath and geometry effects. J. Geophys. Res. Solid Earth 2010, 115. [Google Scholar] [CrossRef]
 Goebell, S.; King, M.A. Effects of azimuthal multipath asymmetry on long GPS coordinate time series. GPS Solut. 2011, 15, 287–297. [Google Scholar] [CrossRef]
 Steigenberger, P.; Rothacher, M.; Fritsche, M.; Rülke, A.; Dietrich, R. Quality of reprocessed GPS satellite orbits. J. Geod. 2009, 83, 241–248. [Google Scholar] [CrossRef] [Green Version]
 Munekane, H.; Boehm, J. Numerical simulation of troposphereinduced errors in GPSderived geodetic time series over Japan. J. Geod. 2010, 84, 405–417. [Google Scholar] [CrossRef]
 Williams, S.D.P. Offsets in Global Positioning System time series. J. Geophys. Res. Solid Earth 2003, 108. [Google Scholar] [CrossRef]
 Perfetti, N. Detection of station coordinate discontinuities within the Italian GPS Fiducial Network. J. Geod. 2006, 80, 381–396. [Google Scholar] [CrossRef]
 Chatzinikos, M.; Fotiou, A.; Pikridas, C. The effects of the receiver and satellite antenna phase center models on local and regional GPS networks. In Proceedings of the International Symposium: Modern Technologies, Educations and Professional Practice in Geodesy and Relative Fields, Sofia, Bulgaria, 5–6 November 2009; pp. 213–223. [Google Scholar]
 Ostini, L. Analysis and Quality Assessment of GNSSDerived Parameter Time Series. Ph.D. Thesis, Philosophisch—Naturwissenschaftlichen Fakultät of the University of Bern, Bern, Switzerland, 2012. [Google Scholar]
 Chatzinikos, M.; Dermanis, A. A Study on the Impact of Reference Frame Implementation Strategy on GNSS Time Series for Regional Network Analysis. In REFAG 2014. International Association of Geodesy Symposia; van Dam, T., Ed.; Springer: Cham, Switzerland, 2015; Volume 146. [Google Scholar]
 Altamimi, Z.; Dermanis, A. The Choice of Reference System in ITRF Formulation. In International Association of Geodesy Symposia, Proceedings of the VII HotineMarussi Symposium on Mathematical Geodesy, Rome, Italy, 6–10 June 2009; Sneeuw, N., Novák, P., Crespi, M., Sansò, F., Eds.; Springer: Berlin/Heidelberg, Germany, 2012; pp. 329–334. [Google Scholar]
 Fowler, C.M.R. The Solid Earth: An Introduction to Global Geophysics; Cambridge University Press: Cambridge, UK, 1990. [Google Scholar]
 De Mets, C.R.; Gordon, R.G.; Argus, D.; Stein, S. Current plate motions. Geophs. J. Int. 1990, 101, 425–478. [Google Scholar] [CrossRef] [Green Version]
 Altamimi, Z.; Métivier, L.; Rebischung, P.; Rouby, H.; Collilieux, X. ITRF2014 plate motion model. Geophys. J. Int. 2017, 209, 1906–1912. [Google Scholar] [CrossRef]
 Rebischung, P.; Griffiths, J.; Ray, J.; Schmid, R.; Collilieux, X.; Garayt, B. IGS08: The IGS realization of ITRF2008. GPS Solut. 2012, 16, 483–494. [Google Scholar] [CrossRef]
 Rizos, C. Multiconstellation GNSS/RNSS from the perspective of high accuracy users in Australia. J. Spat. Sci. 2008, 53, 29–63. [Google Scholar] [CrossRef]
 International GNSS Service Current IGS Site Guidelines. Available online: http://kb.igs.org/hc/enus/articles/202011433CurrentIGSSiteGuidelines (accessed on 20 March 2017).
 ICSM Guideline for Continuously Operating Reference Stations—Special Publication 1; Intergovernmental Committee on Survey and Mapping (ICSM): Australia, 2014.
 Bruyninx, C.; Altamimi, Z.; Caporali, A.; Kenyeres, A.; Lidberg, M.; Stangl, G.; Torres, J.A. Guidelines for EUREF densifications. Bull. Geod. Geomat. 2010, 69, 137–147. [Google Scholar]
 Dach, R.; Lutz, S.; Walser, P.; Fridez, P. Bernese GNSS Software Version 5.2; University of Bern, Bern Open Publishing: Bern, Switzerland, 2015. [Google Scholar]
 Minster, J.B.; Jordan, T.H. Presentday plate motions. J. Geophys. Res. 1978, 83, 5331–5354. [Google Scholar] [CrossRef]
 Drewes, H. The Actual Plate Kinematic and Crustal Deformation Model APKIM2005 as Basis for a NonRotating ITRF. In International Association of Geodesy Symposia, Proceedings of the IAG Symposium on Geodetic Reference Frames, Munich, Germany, 9–14 October 2006; Springer: Berlin/Heidelberg, Germany, 2009; pp. 96–100. [Google Scholar]
 Chatzinikos, M. Study of the Earth’s Crust Displacements in the Area of Greece Analysing GNSS Data. Ph.D. Thesis, School of Rural and Surveying Engineering, Aristotle University of Thessaloniki, Thessaloniki, Greece, 2013. [Google Scholar]
 Blewitt, G.; Kreemer, C.; Hammond, W.C.; Goldfarb, J.M. Terrestrial reference frame NA12 for crustal deformation studies in North America. J. Geodyn. 2013, 72, 11–24. [Google Scholar] [CrossRef]
Station ID  Location  Receiver Model  Antenna Model  Supported GNSS

EVRY  Evrychou  Leica GRX1200+ GNSS  Leica AR25  GPS + GLONASS
LARN  Larnaca  Leica GMX902 GG  Leica AT 504 GG  GPS + GLONASS
LEFK  Nicosia  Leica GMX902 GG  Leica AT 504 GG  GPS + GLONASS
LEME  Limassol  Leica GMX902 GG  Leica AT 504 GG  GPS + GLONASS
PAFO  Paphos  Leica GMX902 GG  Leica AT 504 GG  GPS + GLONASS
PARA  Paralimni  Leica GMX902 GG  Leica AT 504 GG  GPS + GLONASS
POLI  Polis  Leica GRX1200+ GNSS  Leica AR25  GPS + GLONASS
Parameter  Setting

Basic Observable  GNSS carrier phase. Codeonly for receiver clock sync and ambiguity resolution. MelbourneWübbena wide lane combination.
Elevation CutOff Angle  10°, elevationdependent weighting (cosz).
Data Sampling  30 s and 180 s in final solution.
Modeled Observable  Ionospherefree linear combination of doubledifferenced carrier phase.
Ground/Satellite APC calibration  Absolute Antenna Phase Center (APC) corrections (igs08.atx).
Tidal Displacements  IERS 2010 conventions (solid Earth tides) FES2004 conventions (ocean loading corrections) No atmospheric loading corrections
Orbits and Earth Rotation Parameters (ERPs)  IGS Final GPS and GLONASS orbits and ERPs
Ionosphere  Firstorder ionospheric delays eliminated by forming ionospherefree L1/L2 linear combination. Higherorder ionospheric corrections are applied. Regional ionospheric maps were used to increase the number of resolved ambiguities in QuasiIonosphere Free (QIF), L5/L3 and L1/L2 ambiguity resolution.
Ambiguity Resolution  Ambiguities are resolved in a baselinebybaseline mode:

Troposphere  Dry GMF (prior model), estimation of hourly zenith delay corrections for each station using Wet GMF. Horizontal gradient parameter estimated each day per station (ChenHerring)
Reference Frame  IGb08, nonet translation on reference station coordinates and velocities (IGb08.snx)
Station ID  $\mathbf{X}\text{}\left({\mathit{t}}_{0}\right)$  $\mathbf{Y}\text{}\left({\mathit{t}}_{0}\right)$  $\mathbf{Z}\text{}\left({\mathit{t}}_{0}\right)$

EVRY  4389846.035  2839909.319  3641645.008
LARN  4358623.310  2899369.048  3631599.949
LEFK ^{1}  4360035.737  2870860.968  3652605.816
4360035.736  2870860.987  3652605.816
LEME  4403058.471  2862122.638  3607630.266
NICO  4359415.715  2874117.069  3650777.829
PAFO ^{1}  4427028.128  2812497.092  3617359.846
4427028.124  2812497.091  3617359.841
PARA  4335378.631  2922300.281  3641064.127
POLI  4413130.062  2803627.159  3640911.041
Station ID  ${\mathit{V}}_{\mathit{n}\mathit{o}\mathit{r}\mathit{t}\mathit{h}}$  ${\mathit{V}}_{\mathit{e}\mathit{a}\mathit{s}\mathit{t}}$  ${\mathit{V}}_{\mathit{u}\mathit{p}}$

EVRY  14.7  19.5  0.2
LARN  13.6  20.2  −4.9
LEFK ^{1}  16.3  19.3  0.1
16.4  19.3  0.2
LEME  15.6  20.3  0.3
NICO  15.7  18.9  −0.3
PAFO ^{1}  16.1  19.6  1.7
15.9  19.7  1.6
PARA  17.2  18.9  0.6
POLI  14.2  19.1  −0.4
Φ [deg]  Λ [deg]  ω [deg/Myear]

49.83 ± 33.98  13.19 ± 15.30  0.629 ± 0.036
Φ [deg]  Λ [deg]  ω [deg/Myear]

Anatolia  40.0 ± 0.2  28.3 ± 0.4  2.021 ± 0.137
Arabian  49.5 ± 0.8  4.8 ± 3.3  0.596 ± 0.029
African  49.3 ± 0.4  280.5 ± 1.0  0.273 ± 0.002
Eurasia  54.5 ± 0.4  262.9 ± 0.5  0.258 ± 0.001
Anatolia  Arabian  African  Eurasia

North component
Mean  0.7  −5.1  −2.9  2.7
RMS  1.6  5.2  3.1  3.0
East component
Mean  −0.3  0.0  −3.7  −5.8
RMS  0.9  0.7  3.8  5.8
Station ID  Amplitude [mm]  Phase [deg]

North  East  Up  North  East  Up
EVRY  3.2  3.0  3.2  114.5  80.9  74.0
LARN  2.3  2.1  3.1  253.0  62.2  71.9
LEFK  2.7  1.3  2.4  259.5  344.9  80.6
LEME  2.1  0.6  4.1  45.2  190.0  244.8
PAFO  2.3  1.2  2.2  211.6  49.0  109.0
PARA  1.7  1.3  2.3  233.0  59.9  78.8
POLI  2.0  1.4  2.9  212.7  22.2  79.4
Station ID  GNSSBased  Total Loading

North  East  Up  North  East  Up
EVRY  2.9  2.7  4.9  0.7  0.5  3.3
LARN  2.0  1.7  4.3  0.7  0.5  3.3
LEFK  2.4  1.5  4.1  0.7  0.5  3.3
PAFO  2.0  1.7  3.9  0.8  0.5  3.2
PARA  1.5  1.4  4.0  0.7  0.5  3.3
POLI  1.8  1.9  4.7  0.7  0.5  3.2
