Application of Deep and Machine Learning Using Image Analysis to Detect Fungal Contamination of Rapeseed
Abstract
:1. Introduction
2. Materials and Methods
2.1. Preparation of Samples

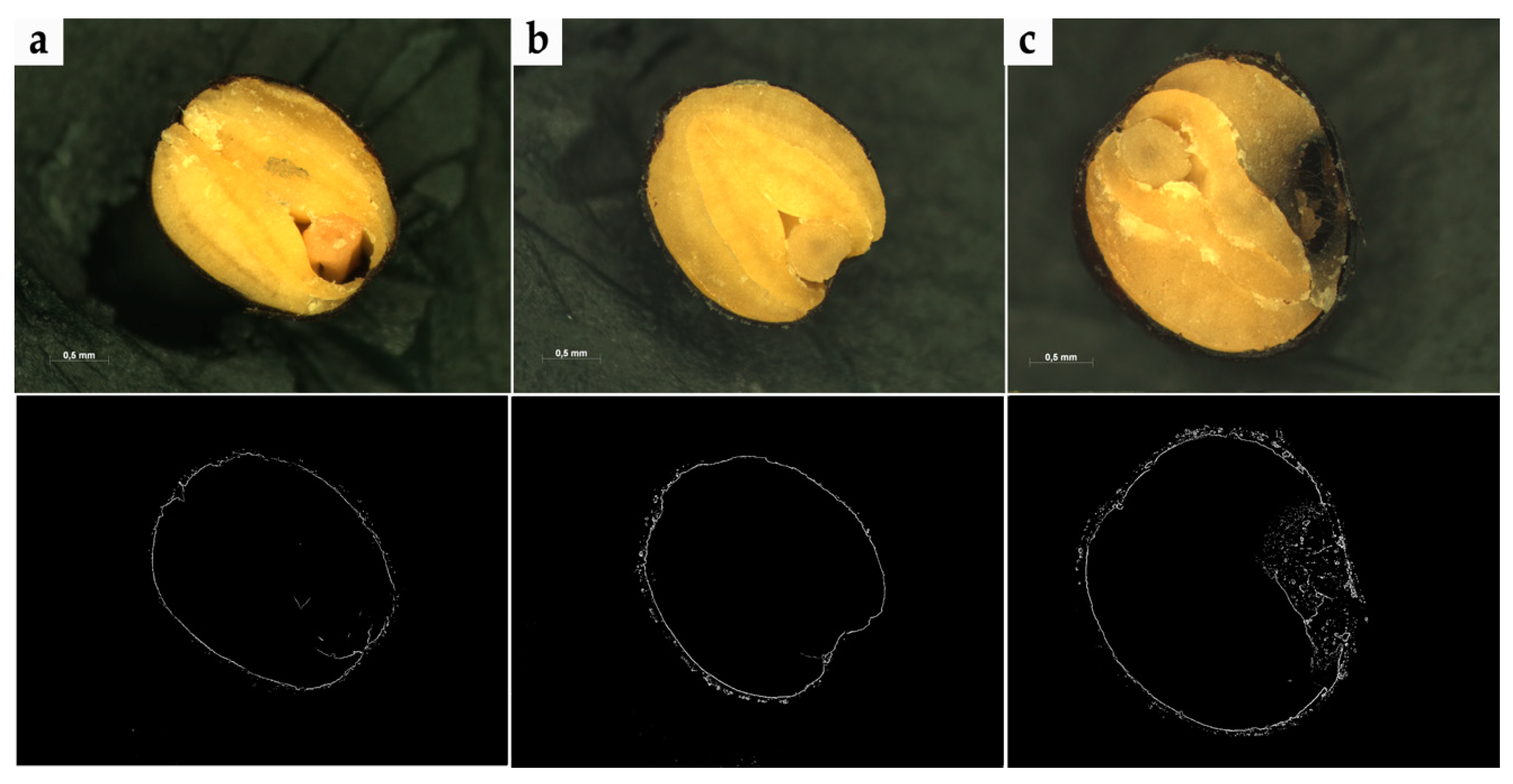

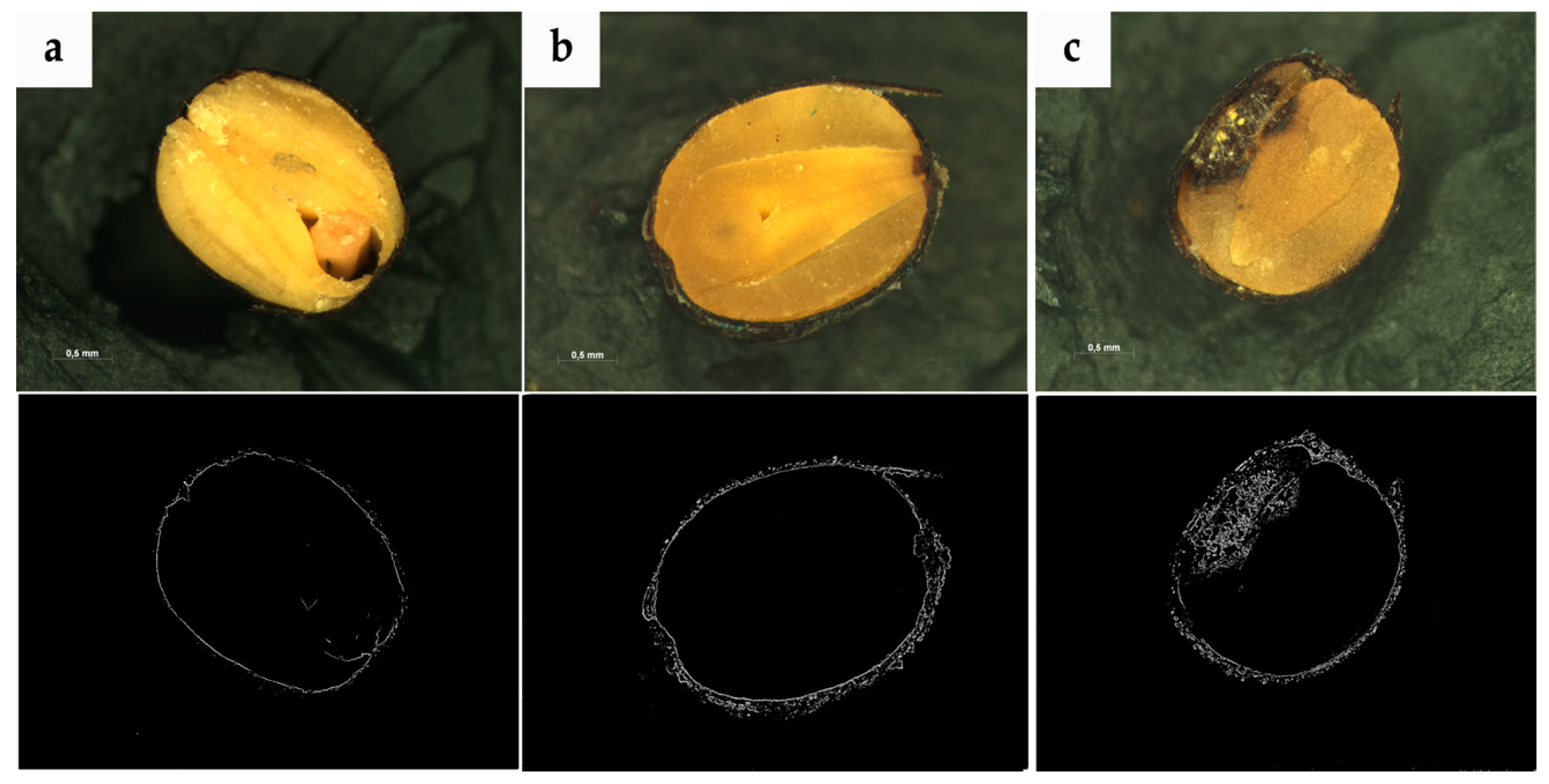

2.2. Image Preparation by Microscope

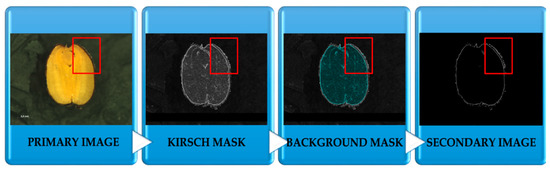

2.3. Image Processing by Software
2.4. The Structure of the Neural Network

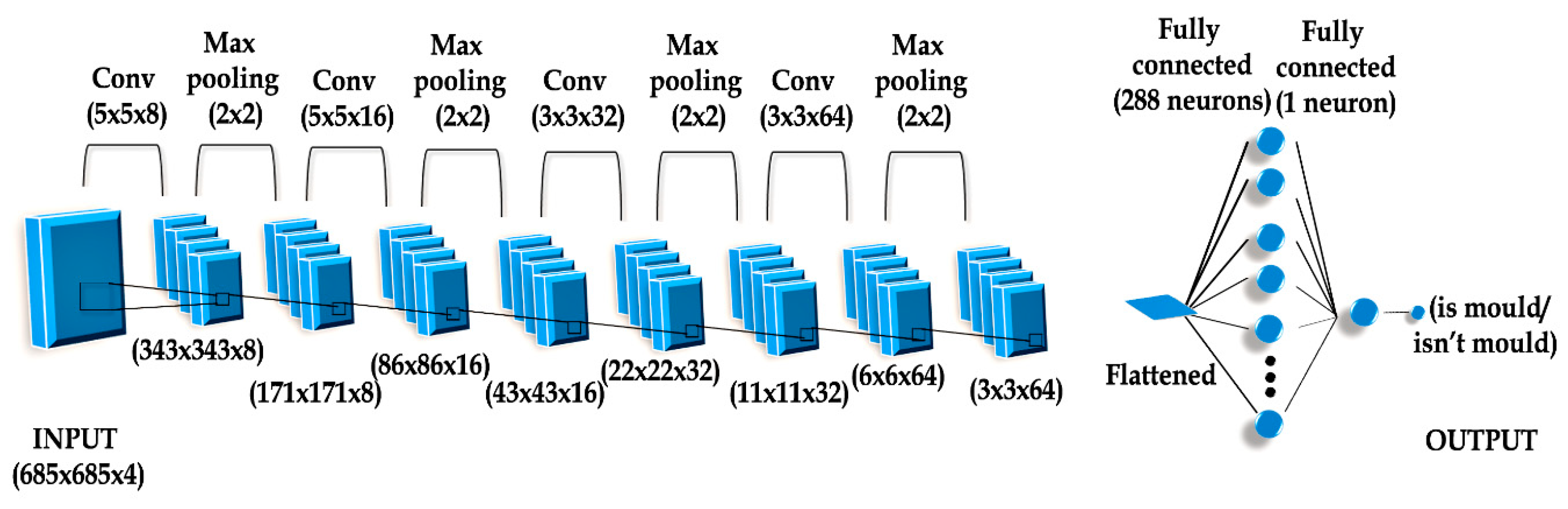

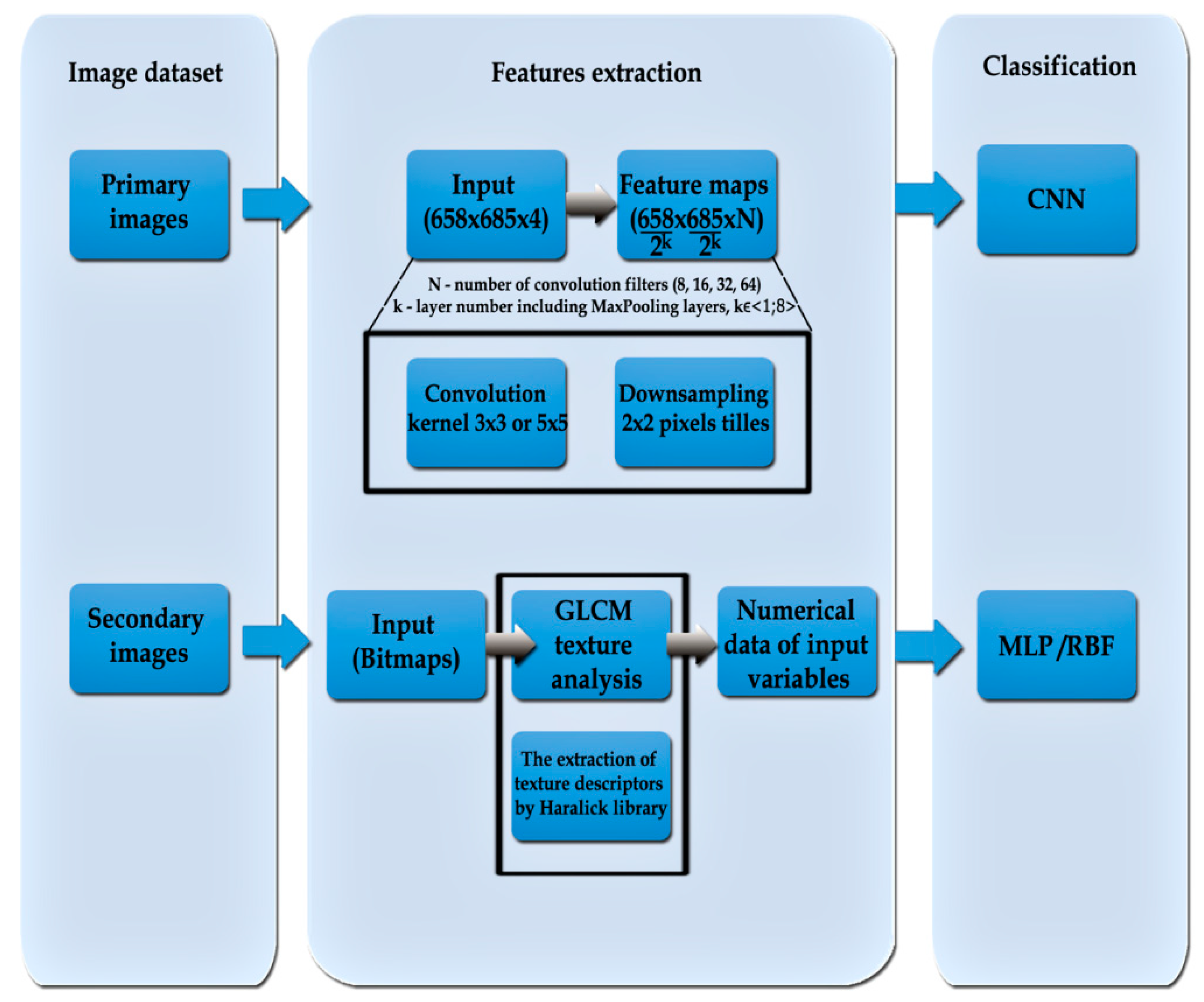

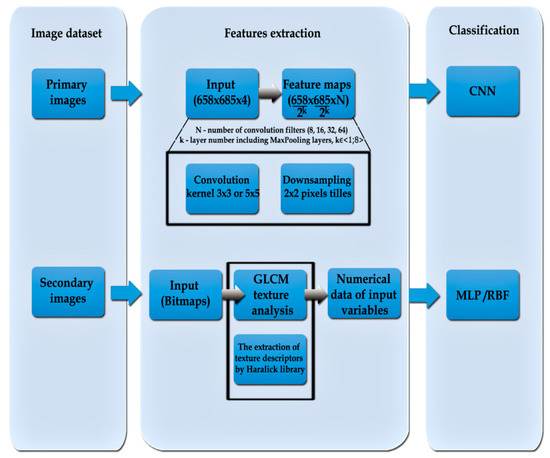

- Input layer, i.e., 685 × 685 × 4 bitmap, in which 32-bit primary images in RGBA format were included;
- Convolution layers for each loaded image, 8, 16, 32, or 64 filters were used. The kernel size in the first two convolution layers was 5 × 5, and 3 × 3 in the next two. Parameter “strides” determined the dimension of the convolution step (the distance of the convolution window that is moved) expressed as (width, height) was set as value (2, 2) [44,45];
- The pooling layer was used to reduce information included in previously acquired images. Operation MaxPooling allowed for the reduction in the resolution of bitmaps (learning case). For each map of features, 2 × 2-pixel areas were singled out. For each region, the maximum pool algorithm was used, i.e., the resultant pixel with the highest value was selected, and other pixels were omitted. Each operation resulted in image reduction in the outermost areas of this map. The “padding” parameter was set as “same”. It means the outermost areas of the matrix field that was processed were added after each MaxPooling operation in order to avoid excess data loss. As a result of this, the data size of the operation was the same as the size of input data. Convolution depth was doubled for each two-fold width and height reduction of the analyzed image. It minimized the problem of fitting networks to training sets via gradual resolution reduction of the processed image during tensor operations. Reduction of resolution on the stage of initial data processing could lead to the loss of some data and would affect the prediction abilities of the created network;
- A thick (fully connected) layer including 288 neurons with activation function “relu”, and one neuron with activation function “sigmoid”. The function of activating a rectified linear unit, causes it to return the standard activation ReLu with default values within the range: max (y, 0), for which basic maximum equals 0 and value “y” is treated as an input tensor. On the other hand, for low values (<=5) sigmoid returns a value close to zero, for high values (>5) the result of the function is close to one.
3. Results and Discussion

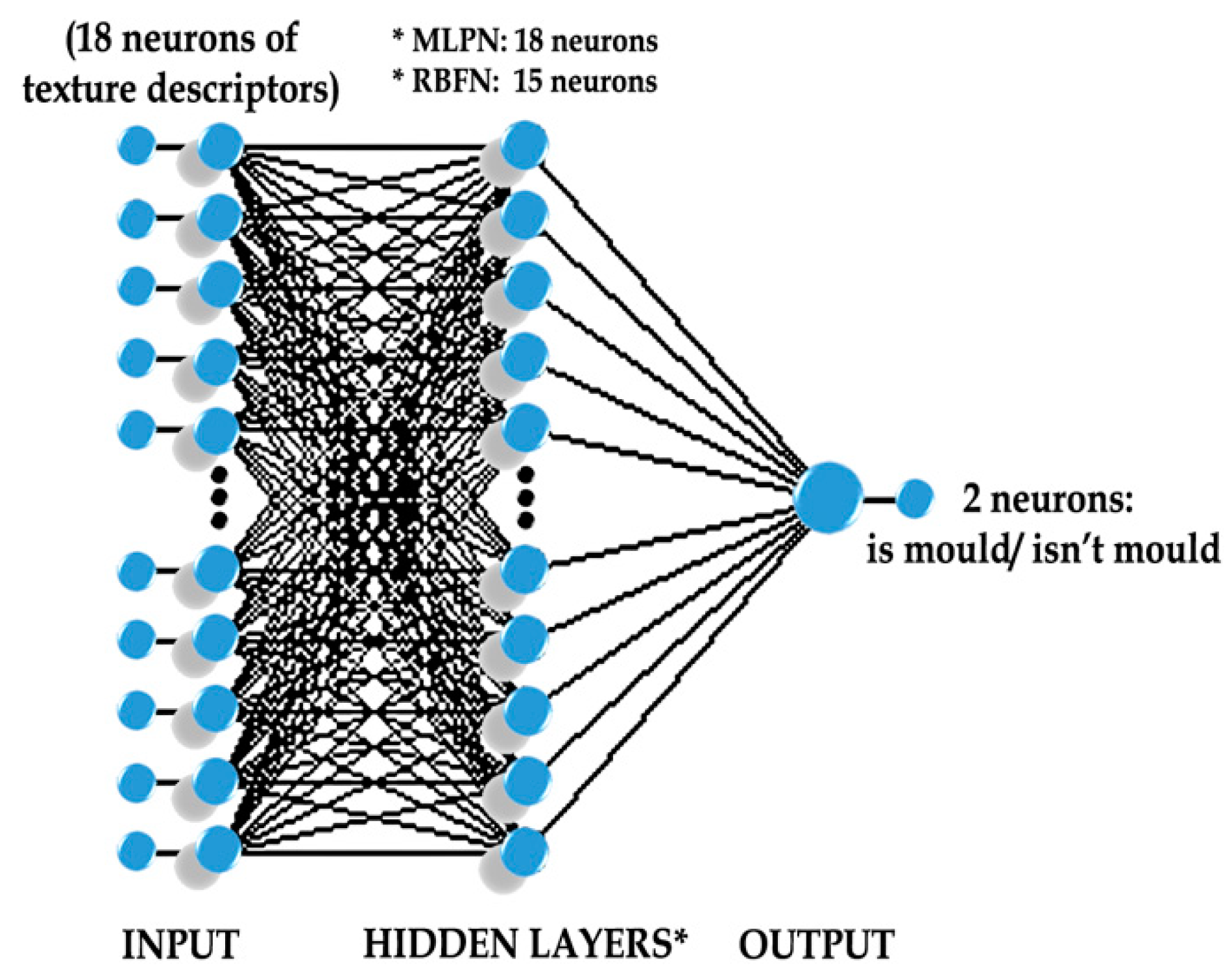

3.1. Results of Machine Learning
3.2. Results of Deep Learning
4. Conclusions
