Temperature Measurement of a Bullet in Flight
Abstract
:1. Introduction
2. Materials and Methods
2.1. Analytical Background
2.2. Experimental Measurement
3. Results and Discussion
4. Conclusions
Author Contributions
Funding
Conflicts of Interest
Appendix A

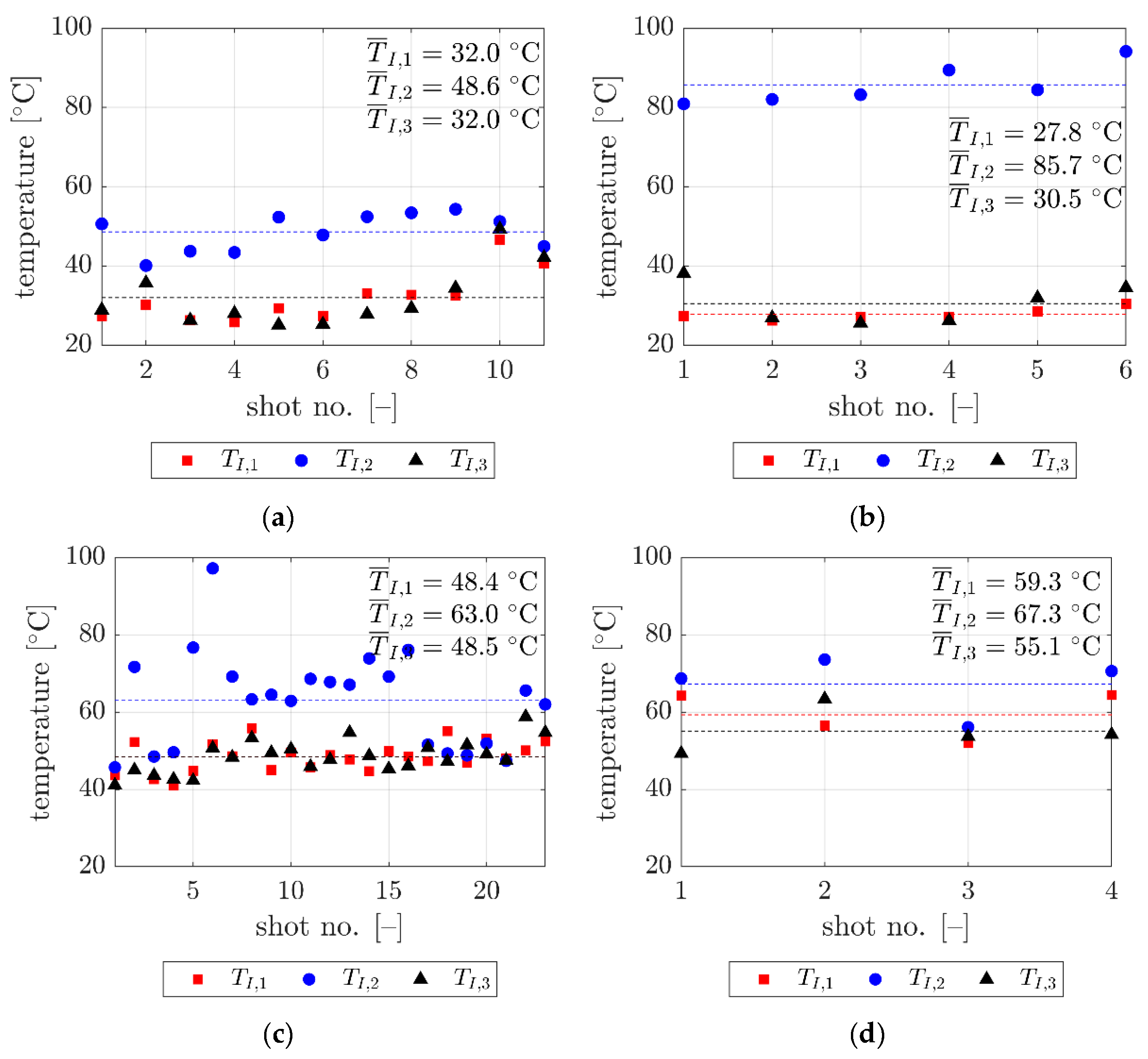

Test Number | VI (m/s) | TI,1 (°C) | TI,2 (°C) | TI,3 (°C) |
---|---|---|---|---|
1 | 360 | 27.4 | 50.6 | 28.9 |
2 | 354 | 30.2 | 40.1 | 35.7 |
3 | 358 | 26.3 | 43.7 | 26.3 |
4 | 354 | 25.8 | 43.4 | 28.0 |
5 | 356 | 29.3 | 52.3 | 25.1 |
6 | 359 | 27.4 | 47.8 | 25.3 |
7 | 353 | 33.1 | 52.4 | 27.8 |
8 | 354 | 32.7 | 53.4 | 29.3 |
9 | 353 | 32.5 | 54.3 | 34.4 |
10 | 350 | 46.6 | 51.2 | 49.3 |
11 | 352 | 40.6 | 44.9 | 42.1 |
Average | 355 | 32.0 | 48.6 | 32.0 |
Test Number | VI (m/s) | TI,1 (°C) | TI,2 (°C) | TI,3 (°C) |
---|---|---|---|---|
1 | 295 | 27.4 | 80.9 | 38.1 |
2 | 293 | 26.2 | 82.0 | 26.9 |
3 | 293 | 27.1 | 83.2 | 25.6 |
4 | 288 | 27.1 | 89.4 | 26.2 |
5 | 288 | 28.5 | 84.4 | 31.9 |
6 | 285 | 30.4 | 94.1 | 34.5 |
Average | 290 | 27.8 | 85.7 | 30.5 |
Test Number | VI (m/s) | TI,1 (°C) | TI,2 (°C) | TI,3 (°C) |
---|---|---|---|---|
1 | 756 | 43.6 | 45.7 | 41.1 |
2 | 745 | 52.3 | 71.7 | 45.0 |
3 | 750 | 42.6 | 48.5 | 43.6 |
4 | 749 | 41.0 | 49.6 | 42.6 |
5 | 756 | 44.8 | 76.7 | 42.3 |
6 | 748 | 51.6 | 97.2 | 50.7 |
7 | 756 | 48.6 | 69.2 | 48.3 |
8 | 748 | 55.8 | 63.3 | 53.3 |
9 | 757 | 45.0 | 64.5 | 49.5 |
10 | 754 | 49.5 | 62.9 | 50.4 |
11 | 753 | 45.7 | 68.6 | 45.9 |
12 | 754 | 48.9 | 67.8 | 47.7 |
13 | 754 | 47.7 | 67.1 | 54.7 |
14 | 754 | 44.7 | 73.9 | 48.7 |
15 | 753 | 49.9 | 69.2 | 45.3 |
16 | 754 | 48.5 | 76.1 | 46.1 |
17 | 754 | 47.3 | 51.6 | 50.8 |
18 | 752 | 55.1 | 49.3 | 47.2 |
19 | 758 | 46.9 | 48.8 | 51.5 |
20 | 753 | 53.1 | 51.9 | 49.1 |
21 | 756 | 48.0 | 47.4 | 47.5 |
22 | 753 | 50.1 | 65.6 | 58.8 |
23 | 754 | 52.4 | 62.0 | 54.7 |
Average | 753 | 48.4 | 63.0 | 48.5 |
Test Number | VI (m/s) | TI,1 (°C) | TI,2 (°C) | TI,3 (°C) |
---|---|---|---|---|
1 | 798 | 64.3 | 68.7 | 49.3 |
2 | 796 | 56.5 | 73.6 | 63.4 |
3 | 802 | 52.0 | 56.1 | 53.7 |
4 | 799 | 64.4 | 70.6 | 54.2 |
Average | 799 | 59.3 | 67.3 | 55.1 |
