Fused-Deposition-Material 3D-Printing Procedure and Algorithm Avoiding Use of Any Supports

1
Department of Industrial and Information Engineering and Economics (DIIIE), University of L’Aquila, Piazzale Pontieri 1, Monteluco di Roio, 67100 L’Aquila, Italy
2
Research & Development department, 3DPRN, 65013 Pescara, Italy
*
Author to whom correspondence should be addressed.
The paper is an extended version of a conference paper Fazzini, G.; Paolini, P.; Paolucci, R.; Chiulli, D.; Barile, G.; Leoni, A.; Muttillo, M.; Pantoli, L.; Ferri, G. Print on Air: FDM 3D Printing without Supports. In Proceedings of the 2019 II Workshop on Metrology for Industry 4.0 and IoT (MetroInd4.0 and IoT), Naples, Italy, 4–6 June 2019.
Sensors 2020, 20(2), 470; https://doi.org/10.3390/s20020470
Received: 30 November 2019 / Revised: 6 January 2020 / Accepted: 13 January 2020 / Published: 14 January 2020

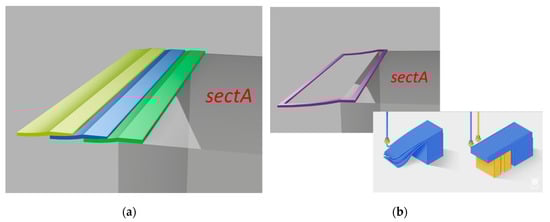

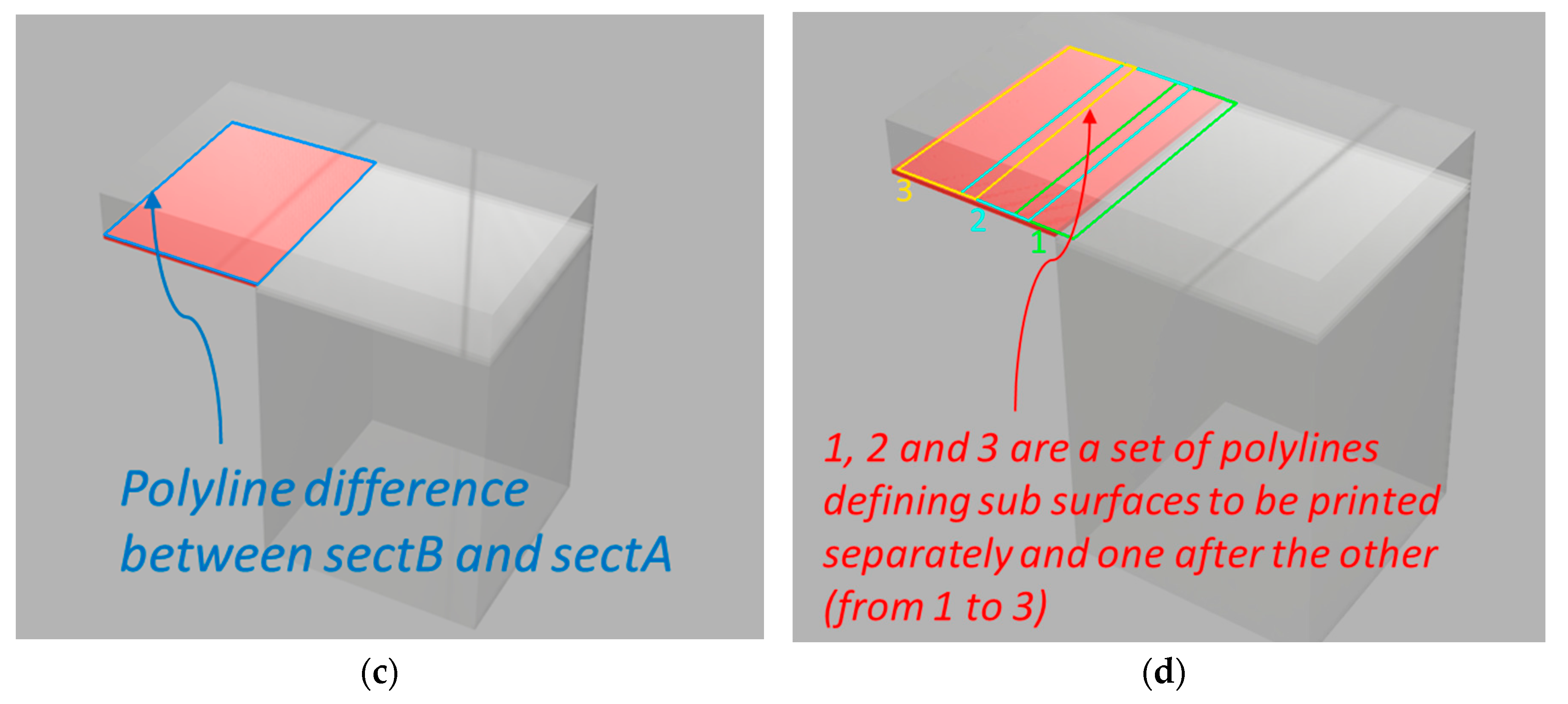

The three-dimensional printing of complex shapes without using supporting structures is the most attractive factor of merit in current additive manufacturing because it allows to drastically reduce printing time, and ideally nullify postprocessing and waste material. In this work, we present an innovative procedure and algorithm (Print on Air, PoA) for additive manufacturing that, relying on sensing systems embedded into the three-dimensional (3D) printer (e.g., temperature and speed sensors), aims at generating a printing sequence capable of a self-sustaining bridge and overhang structures. This feature was achieved by splitting the actual floating area of the layer where the aforementioned structures are in many subsections. Each is generated with a negligible floating surface and printed in a well-determined sequence with accurate temperature and speed profiles. Therefore, each subsection is formed without the need for scaffolding, simultaneously acting as a supporting structure for the following subsection. The array of subsections constitutes the actual bridge or overhang structure. The proposed method can be used for any object, including very long bridges or convex surfaces. The revolutionary method is here reported and evaluated in order to show its applicability in any condition. Although the study was conducted in a Fused Deposition Material (FDM) environment, it can certainly be adapted to other manufacturing environments with adequate modifications. View Full-Text
Keywords: additive manufacturing; 3D printing; supports; FDM additive manufacturing; 3D printing; supports; FDM
Show Figures

Figure 1

MDPI and ACS Style

Barile, G.; Leoni, A.; Muttillo, M.; Paolucci, R.; Fazzini, G.; Pantoli, L. Fused-Deposition-Material 3D-Printing Procedure and Algorithm Avoiding Use of Any Supports. Sensors 2020, 20, 470.
