Open AccessArticle

Design and Implementation of an On-Chip Low-Power and High-Flexibility System for Data Acquisition and Processing of an Inertial Measurement Unit

1
Engineering Research Center for Navigation Technology, Department of Precision Instrument, Tsinghua University, Beijing 100084, China
2
College of Information Science and Engineering, Shandong Agricultural University, Tai’an 271018, China
*
Authors to whom correspondence should be addressed.
Sensors 2020, 20(2), 462; https://doi.org/10.3390/s20020462
Received: 26 December 2019 / Revised: 13 January 2020 / Accepted: 13 January 2020 / Published: 14 January 2020
(This article belongs to the Section Physical Sensors)

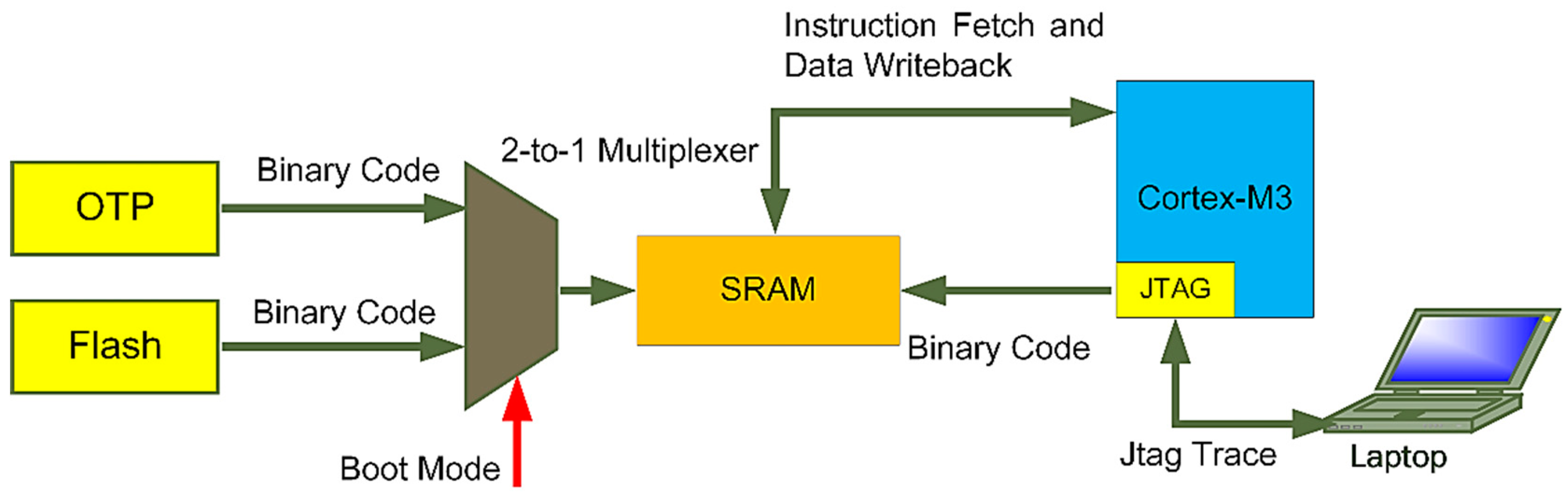

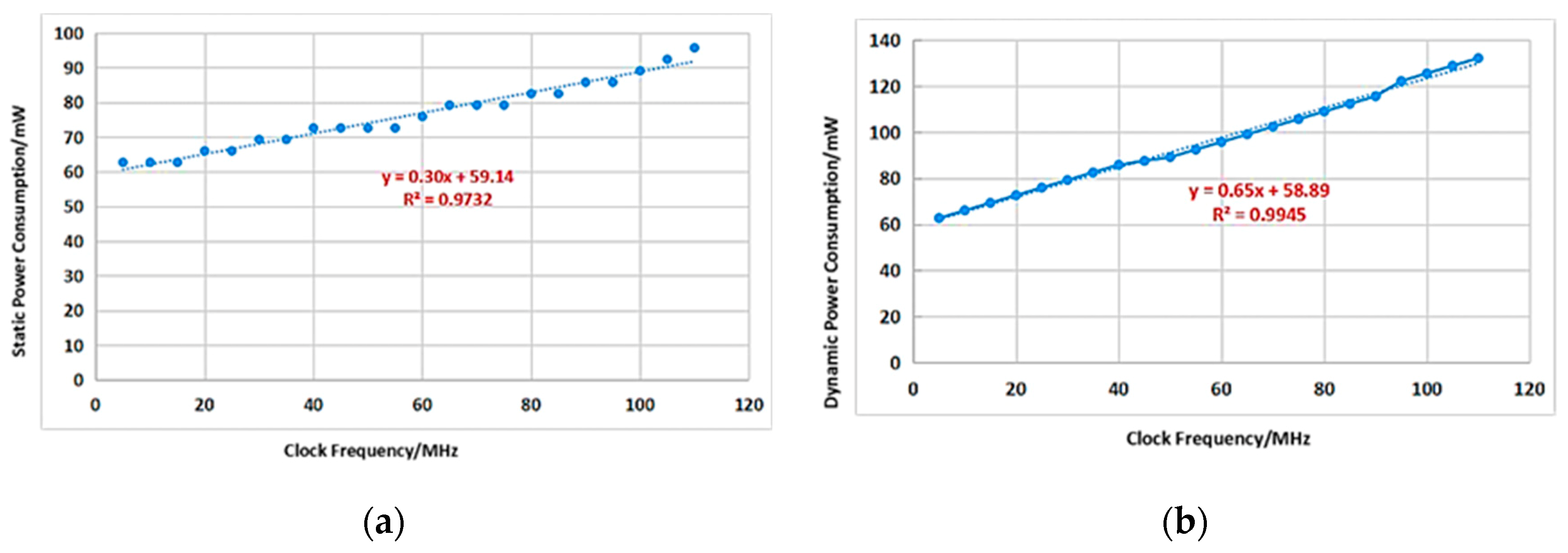

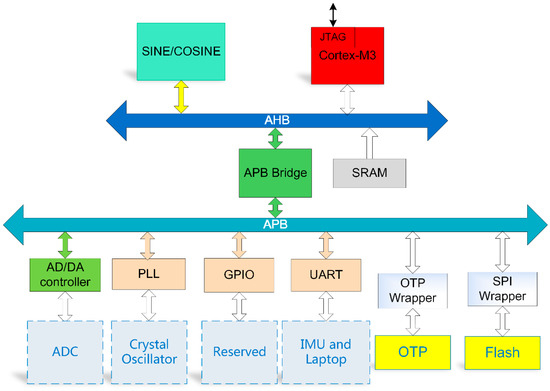

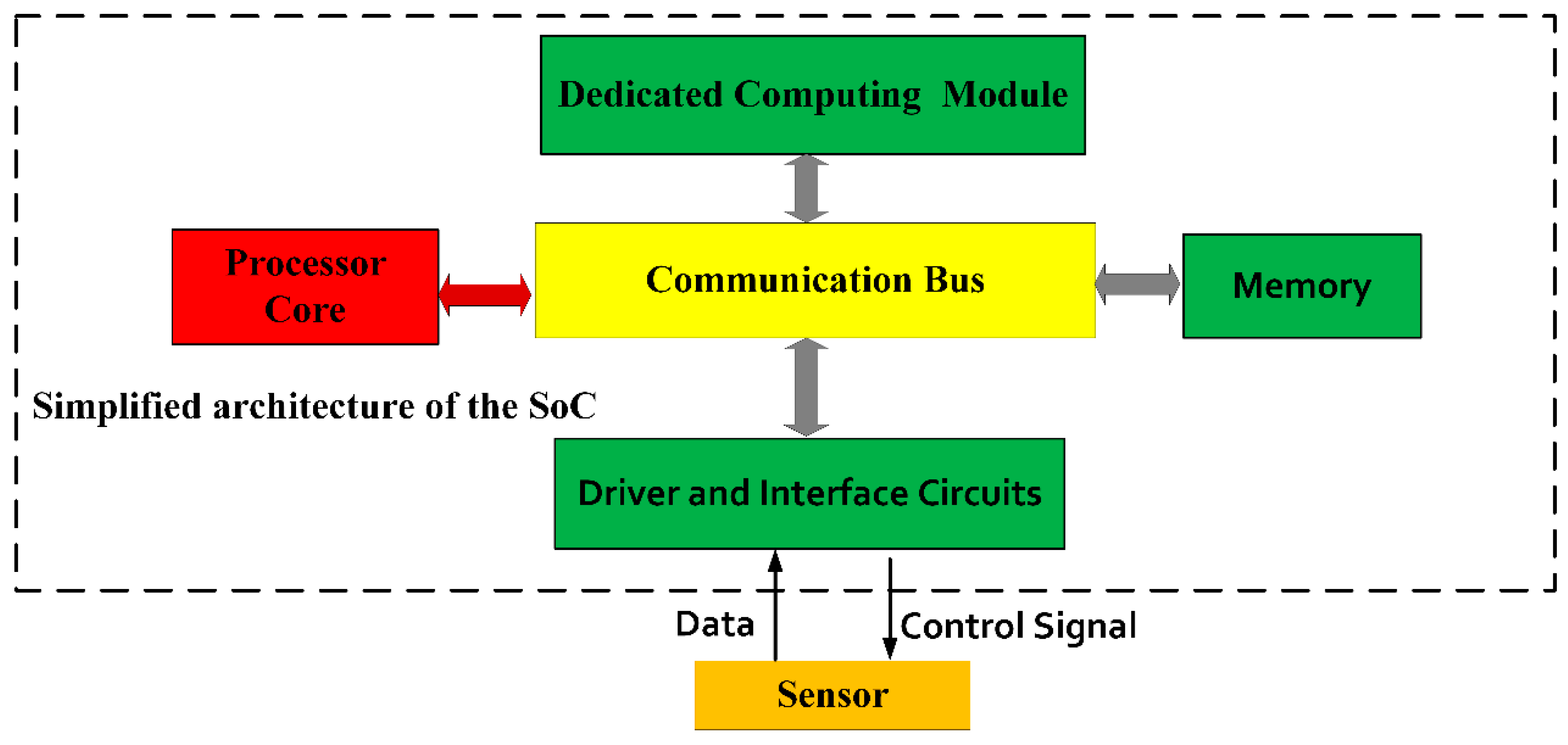

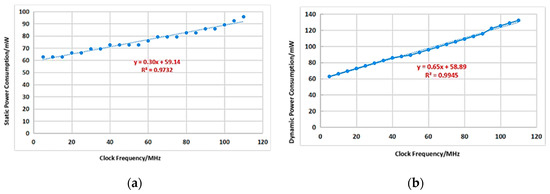

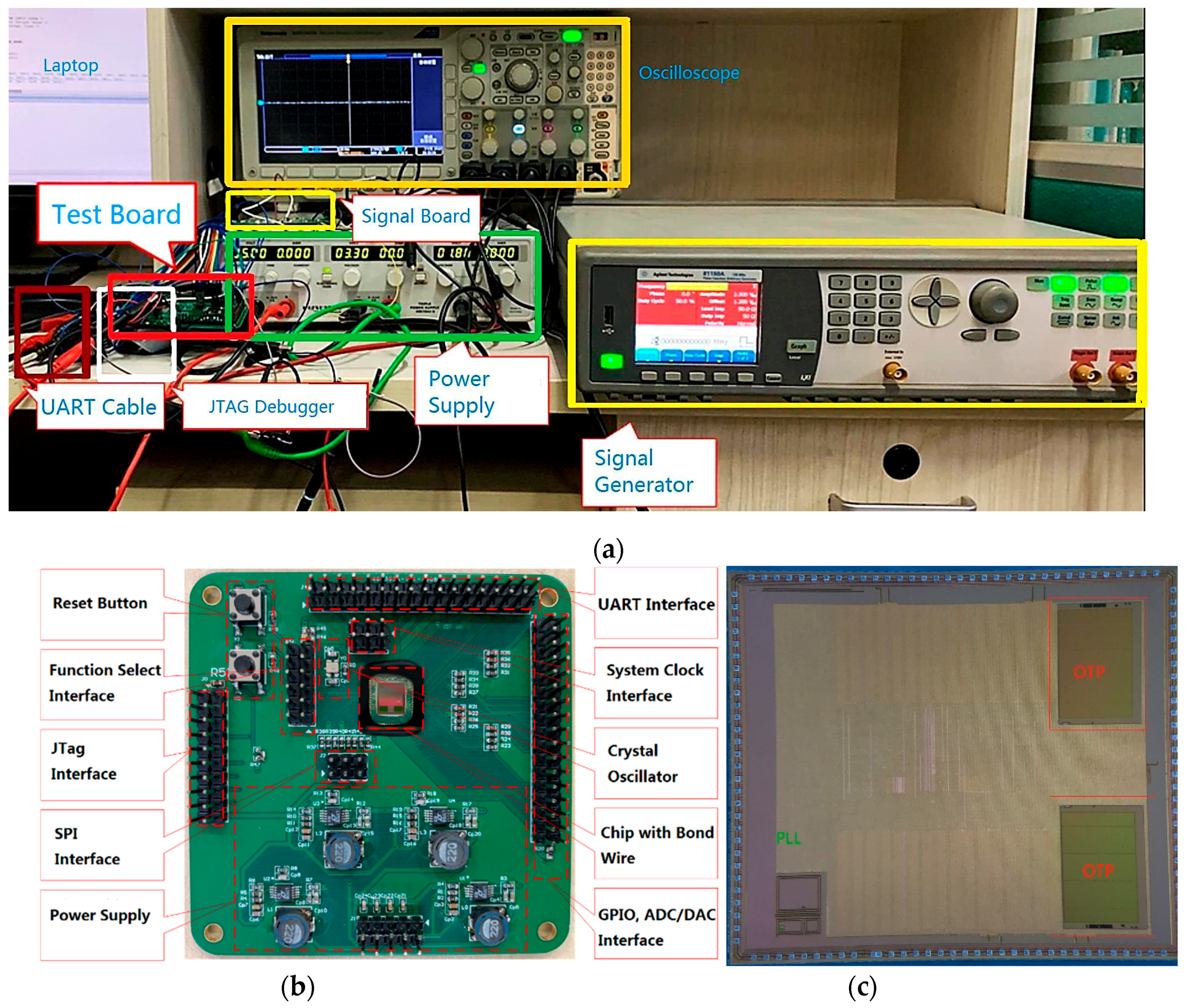

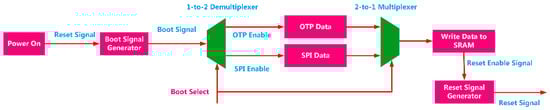

For signal processing of a Micro-Electro-Mechanical System (MEMS) Inertial Measurement Unit (IMU), a digital-analog hybrid system-on-chip (SoC) with small area and low power consumption was designed and implemented in this paper. To increase the flexibility of the processing circuit, the designed SoC integrates a low-power processor and supports three startup or debugging modes for different application scenarios. An application-specific computing module and communication interface are designed in the circuit to meet the requirements of IMU signal processing. The configurable clock allows users to dynamically balance computing speed and power consumption in their applications. The chip was taped out under SMIC 180 nm CMOS technology and tested for performance. The results show that the chip’s maximum running frequency is 105 MHz. The total area is 33.94 mm 2 . The dynamic and static power consumption are 0.65 mW/MHz and 0.30 mW/MHz, respectively. When the system clock is 25 MHz, the dynamic and static power consumption of the chip is 76 mW and 66 mW, and the dynamic and static power consumption of the FPGA level are 634 mW and 520 mW. The results verify the superiority of the application specific integrated circuit (ASIC) solution in terms of integration and low power consumption. View Full-Text
Keywords: IMU; signal processing; SoC; low power; miniaturization IMU; signal processing; SoC; low power; miniaturization
Show Figures

Figure 1

MDPI and ACS Style

Gao, Z.; Zhou, B.; Li, Y.; Yang, L.; Li, X.; Wei, Q.; Chu, H.; Zhang, R. Design and Implementation of an On-Chip Low-Power and High-Flexibility System for Data Acquisition and Processing of an Inertial Measurement Unit. Sensors 2020, 20, 462.
