Article

Temperature and Torque Measurements of Switched Reluctance Actuator with Composite or Laminated Magnetic Cores

1
Łukasiewicz Research Network—Tele and Radio Research Institute, Ratuszowa 11 St., 03-450 Warsaw, Poland
2
Computer and Biomedical Engineering, Department of Electrical, University of Pavia, via Ferrata 5, 27100 Pavia, Italy
3
Institute of Mechatronics and Information Systems, Łódź University of Technology, Stefanowskiego 18/22 St., 90-924 Łódź, Poland
*
Author to whom correspondence should be addressed.
Sensors 2020, 20(11), 3065; https://doi.org/10.3390/s20113065
Received: 24 April 2020 / Revised: 26 May 2020 / Accepted: 28 May 2020 / Published: 28 May 2020

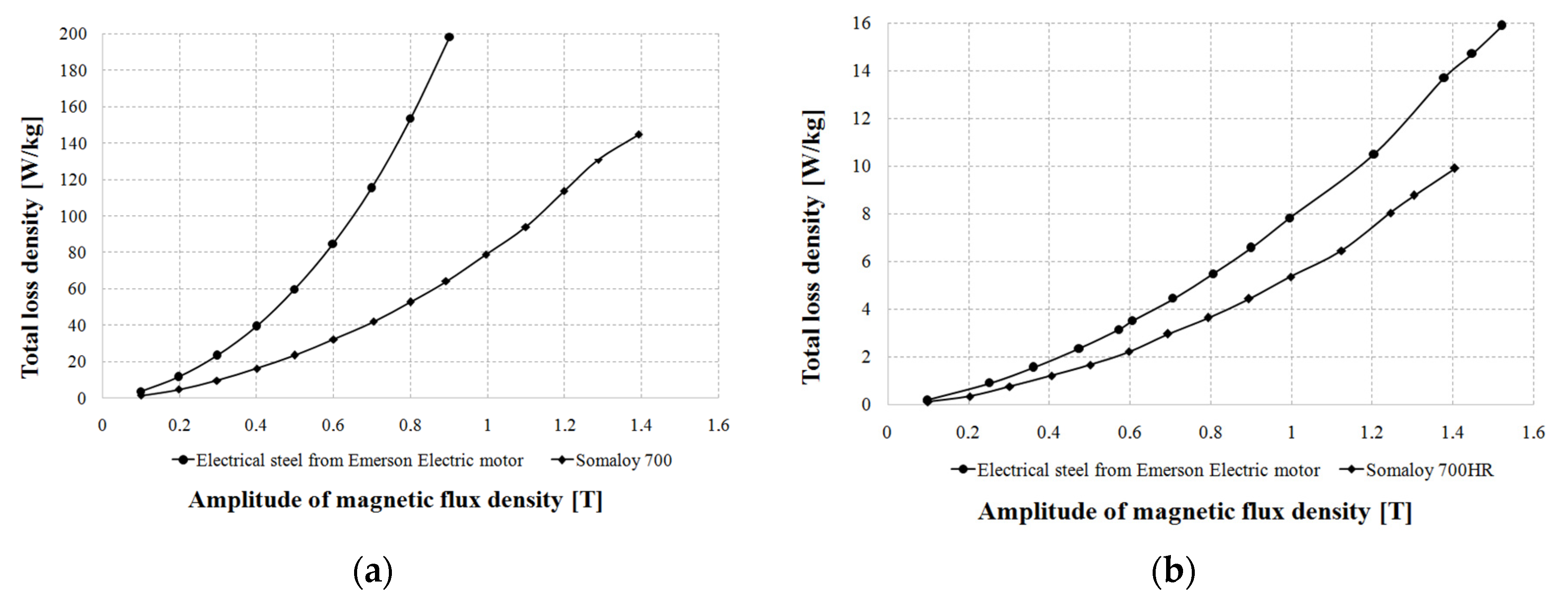

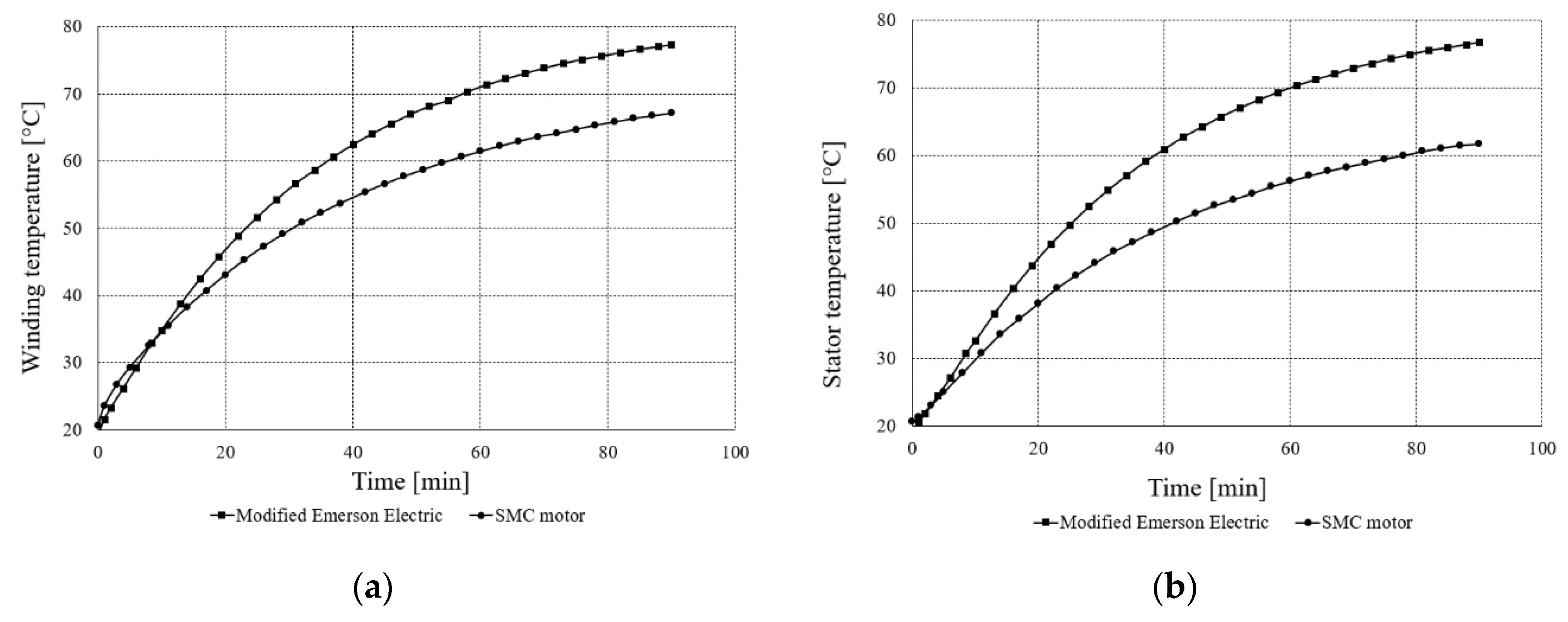

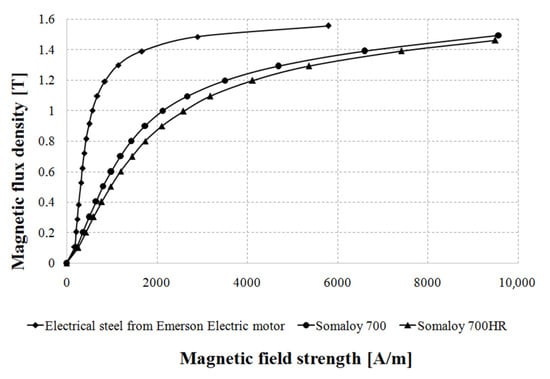

Soft magnetic composite (SMC) materials made of iron powder are more frequently used in construction of electric actuators and motors because of their advantages with respect to Fe–Si electric steel sheets and because they have almost no powder loss. The study deals with measurements of temperature and torque of a low-power rotary switched reluctance actuator, with reference to a commercial actuator and a prototype actuator characterized by stator and rotor cores made of soft magnetic composite materials. Further power loss analysis was also conducted. To assess the actuators, magnetization characteristics and iron loss vs. magnetic flux density at a given frequency were measured according to IEC standards. Results show that the actuator made of soft magnetic composites exhibits higher efficiency and a lower temperature rise of stator and windings in comparison with the commercial actuator. View Full-Text
Keywords: switched reluctance actuators and motors; thermal measurements; soft magnetic composites; variable speed drives; magnetization characteristics; iron loss measurements switched reluctance actuators and motors; thermal measurements; soft magnetic composites; variable speed drives; magnetization characteristics; iron loss measurements
Show Figures

Figure 1
