- Development of an anomaly-based intrusion-detection model using deep learning for IoT networks.
- Implementation and evaluation of the model for efficiency.
2. Related Work
3. Intrusion-Detection Framework
3.1. System Architecture
3.2. Components of Detection System

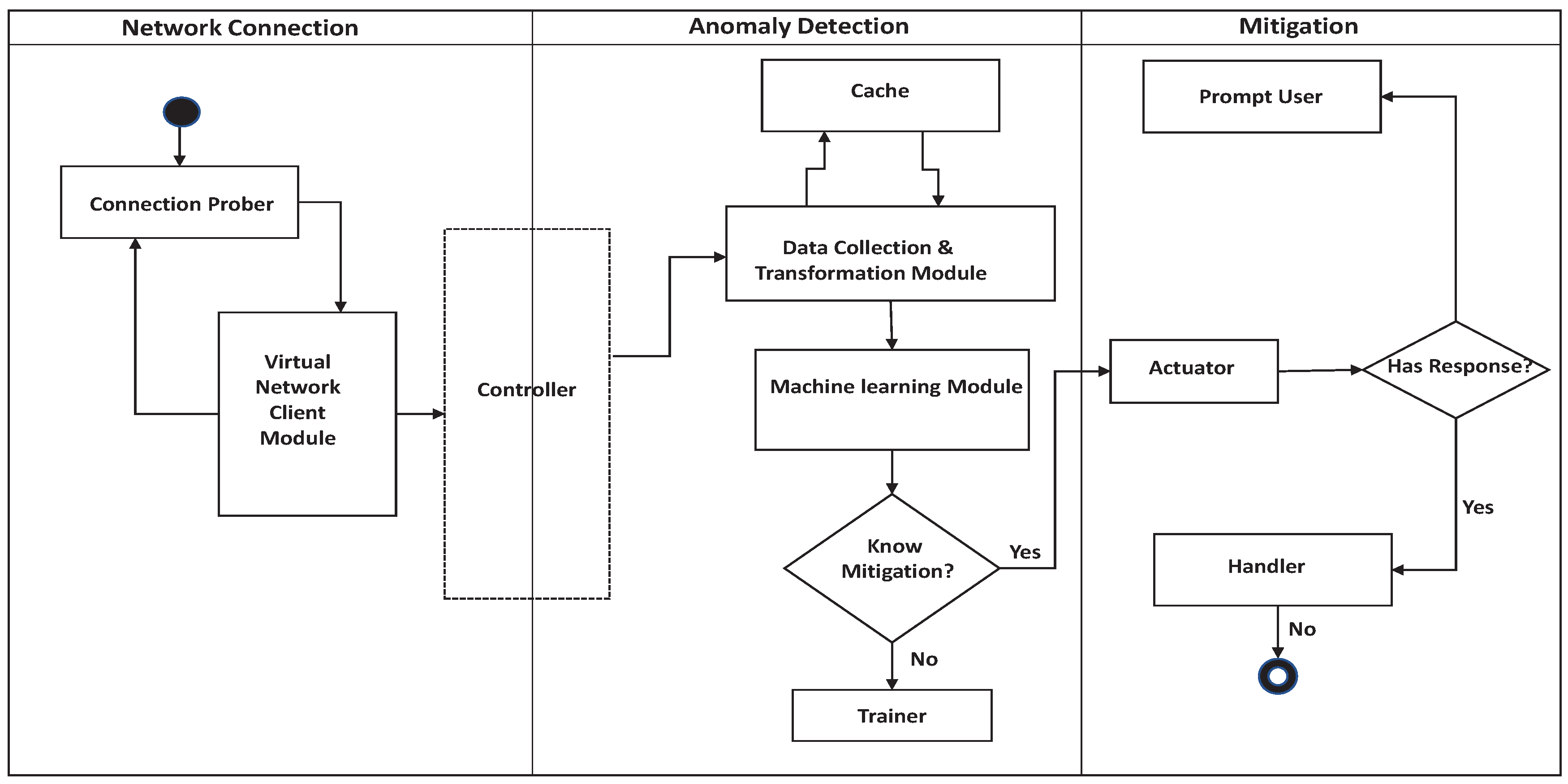

3.2.1. Network Connection Phase
- Connection Prober: The connection prober module is responsible for sending probe-signals and broadcast beacons to all the devices within the host IoT personal area network. The module is executed periodically and on-line, as the communication links are constructed dynamically within an IoT network. Connection Prober module maintains a list of all the active communications protocols that are being used in the network. It uses this list to maintain active network interfaces which can be used to intercept different wireless communication signals, transmitted in the surrounding environment. Consequently, it attempts to intercept broadcast beacons, handshake messages, or session requests to learn the communication protocols that are being used by IoT devices. On receiving a handshake or a session request, the connection prober module translates the data-packet into appropriate network packet format. Typically, the connection prober module is designed to use a secondary storage location as a default cache location that is simultaneously replicated in the physical memory using a cache-handle. After fetching the bit stream, it uses the known communication protocols to bisect the bit stream into different networks packets and then feeds these packets into cache and the data collection and transformation module (discussed in the next subsection).If the connection prober fails at intercepting the broadcast beacons, or handshake messages, it attempts to deduce the connection protocol by apprehending the data packets transmitted during regular data communication of surrounding IoT devices. This is made possible because CoAP communication cycle involves at least 4 successful messages and when connection prober fails to intercept a communication, it attempts to gather information from successive messages, resulting in CP’s probability of success, . The number of messages in an IoT communication cycle increases as bare IoT communication is loaded with payload. With increase in number of messages, probability of successful interception increases, resulting in , approaching towards unity. In worst-case scenario, if CP misses the entire IoT communication cycle, the IDS uses pre-trained neural networks to estimate the network behavior in the current period. Subsequently, with further training the IDS can be trained to respond to a new protocol.
- Virtual Network Client (VNC): The VNC module is a client-based network emulator responsible for establishing compatible network channels with various IoT devices after gathering information about their network protocols. VNC module transforms the packets from different network channels and switches the network protocol according to a specific IoT device.
- Controller: The Controller module is responsible for controlling and interfacing the exchange of data packets or commands between the data collection & transformation module and the VNC module. All the modules other than connection prober and VNC module are autonomous and not governed by the Controller module.
3.2.2. Anomaly-Detection Phase
- Data Collection and Transformation (DCT): DCT module is responsible for stripping the data packets, extracting the header tags as features, populating the cached database, and feeding these tuples into machine-learning-based anomaly-detection module. The features extracted in this work is listed in Table 1. Algorithm 1 details the process where each input network packet is sliced into distinct layers of the TCP/IP stack, and thereafter, respective header tags are extracted for each layer in string format. Each non-empty layer is then designated a label for future reference. Consequently, the extracted header tags are added to a list under the label of their respective layer, thereby removing any repetition of header tags. The data collection and transformation module also pipelines these lists back to the cache.
Algorithm 1 Extracting tags from the sniffed network packets. Require: T - List of all header tags from all packets in network interface queue.
function PacketHandler() /*where pkt - captured network packet*/
Extract /*Get tagstring from the packet*/
Divide the for each
for every in do
for every do
Add the to a list
Assign the to /*assign list to layer*/
- Machine-learning-based anomaly-detection (MLAD): This module is the principal machine-learning engine of the proposed IDS, responsible for classifying benign network traffic from malicious network traffic. It employs a perceptual learning model for performing anomaly detection. This module is activated when the IDS enters the Anomaly-Detection phase, which consists of two phases, i.e., the training phase and the detection phase. The training phase is performed across long intervals of time, and performed off-line. The perceptual model is trained using supervised learning over the tuples of features generated during the data-preprocessing. Before feeding the tuple into the perceptual learning model, each tuple is manually augmented with a binary-classification label representing malicious or benign nature of network packet. The perceptual learning model uses information gain at each perceptual layer to filter out the preferred features, before feeding to the next perceptual layer. We discuss the MLAD module in detail in Section 4.
- Trainer: This module is invoked when MLAD is required to train for an unknown tuple and it requires human intervention.
3.2.3. Mitigation Phase
- Actuator ModuleThe Actuator module is responsible for identifying the most suitable mitigation response in the event of an attack within the IoT network. The mitigation response can either send an alarm signal or shut down the communication in the network. When the Actuator module is aware of an appropriate mitigation response, it would activate the Handler module to execute the response or generate an alarm for the end-user.
- Handler ModuleThe Handler module is primarily a set of mitigation procedures hard-coded within IID program to execute a mitigation procedure as a proof of concept. A mitigation procedure is invoked by the Actuator module in response to an intrusion, and is further executed by the Handler module. Once the mitigation response is executed successfully by the Handler module, it logs the type of attack and the mitigation response provided. If the Handler module is required to raise an alarm for the user, it flags the discovered intrusion for ’requiring user attention’ and logs this information in the log file.
4. Detection Using Deep Learning
4.1. Feature Set

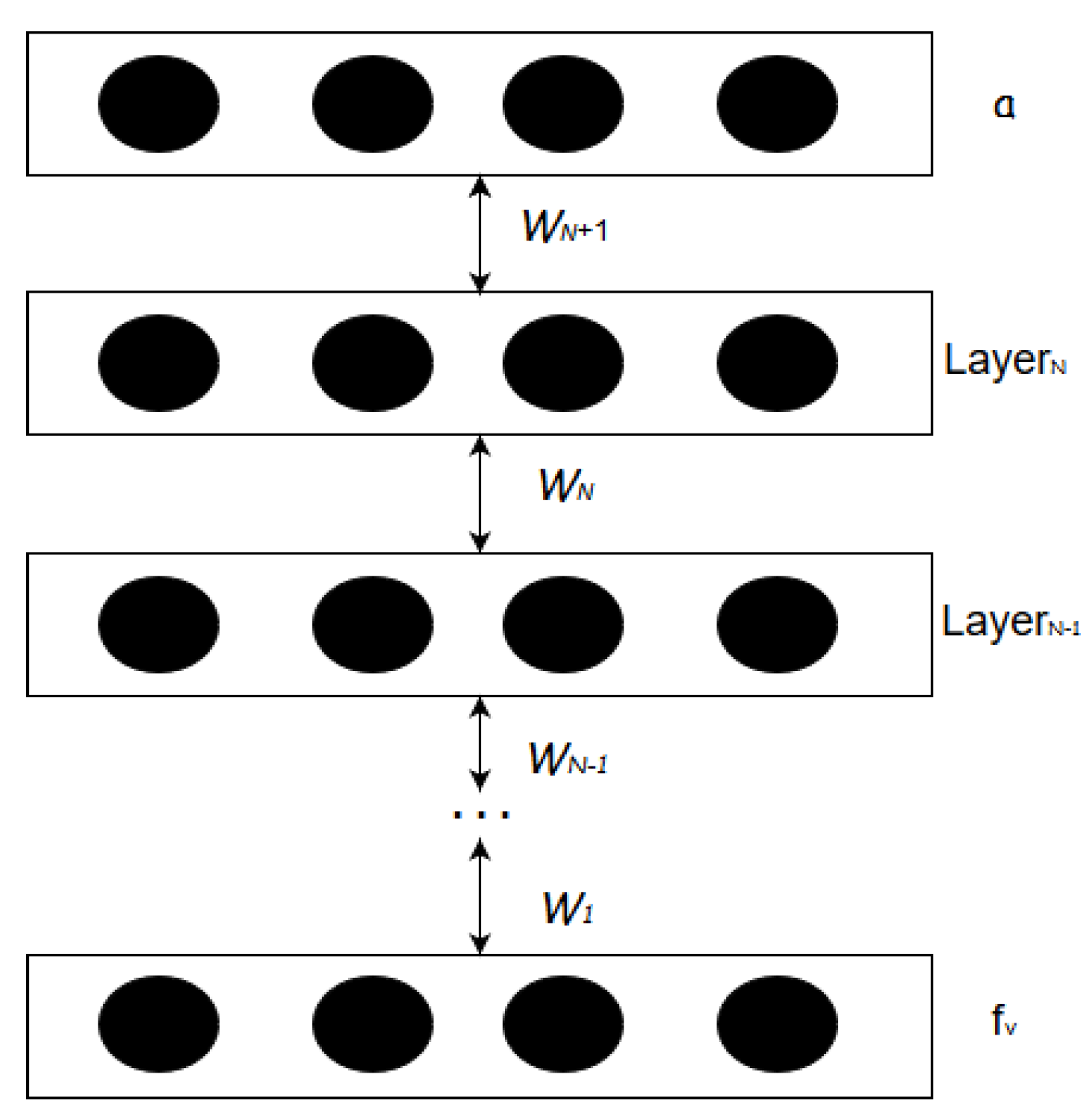

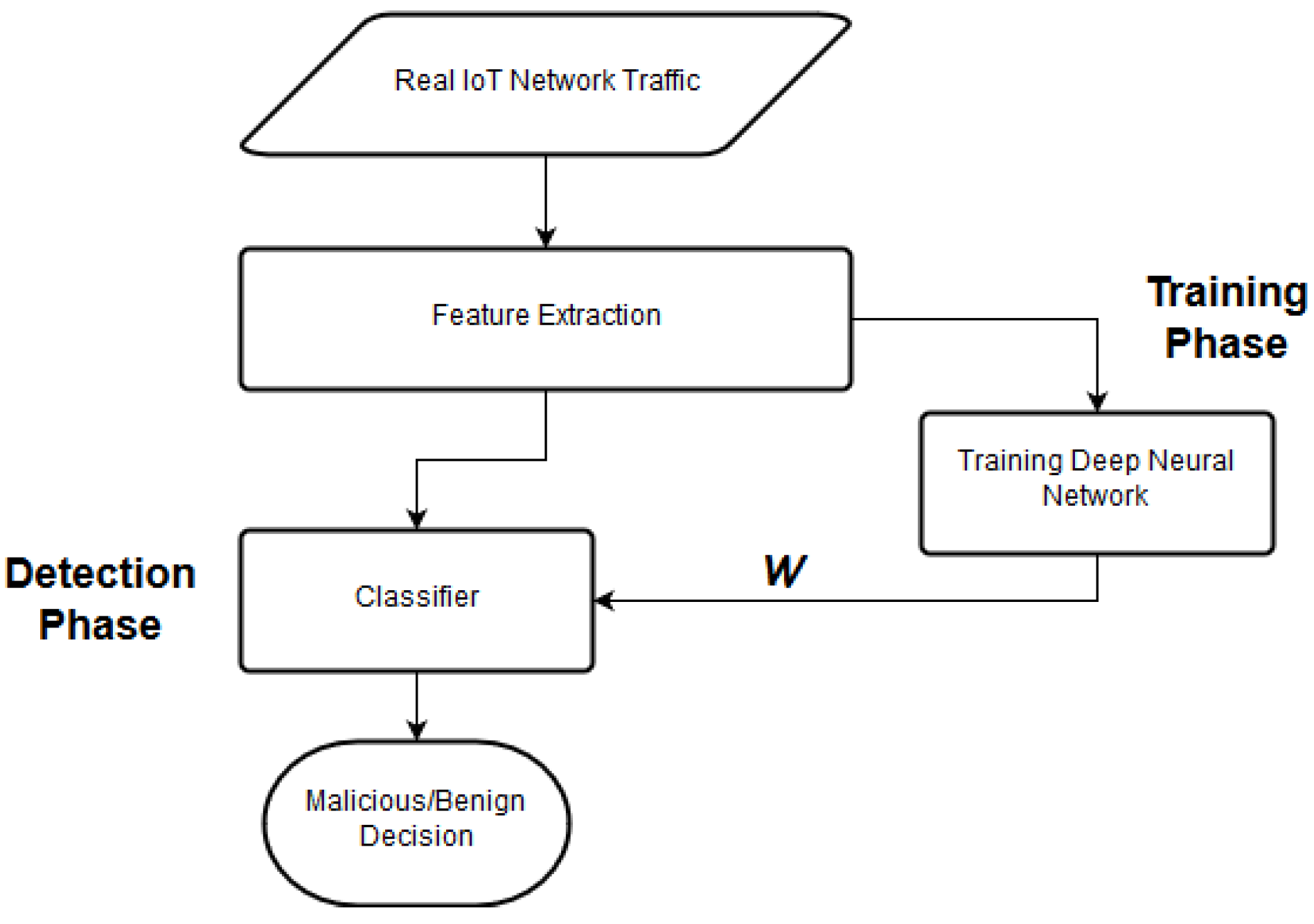

4.2. Deep-Learning-Based Anomaly Detection
|Algorithm 2 Intrusion-Detection using Deep-Learning model|
|Require: N - List of all header tags from all packets in network interface queue.|
function Predict() /*where cachePipe - is the pipe established with cache*/
/*translate packets to matrices*/
Extract from matrix
if is complete then
if are correct then
Store: /*store the classifier model*/
Training Deep Neural Network
5. Implementation and Results
5.1. Data Preprocessing
5.2. Deep-Learning Implementation
5.3. Attack Model
- Blackhole Attack: In a blackhole attack, the malicious device falsely advertises shortest route to destination and then silently drops all packets on its path creating a blackhole in the network.
- Opportunistic Service Attack: In an opportunistic service attack, the malicious device increases its trust value by providing highly dependable services at first and then later resorts to providing inferior service for its own profit.
- Distributed Denial-of-Service (DDoS) Attack: In a DDoS attack, multiple compromised IoT devices attack a target server or other network resources resulting in denial of service for users of the targeted resource.
- Sinkhole Attack: In a sinkhole attack, the malicious node may announce beneficial route or falsified path to attract all nodes to redirect their packets through it, acting as a sink.
- Wormhole Attack: In a wormhole tunnel attack, pair of attacker devices collude with each other through a virtual private connection. The network packets received by the victim device is first forwarded through the wormhole, and replayed later, resulting in non-optimized routes.

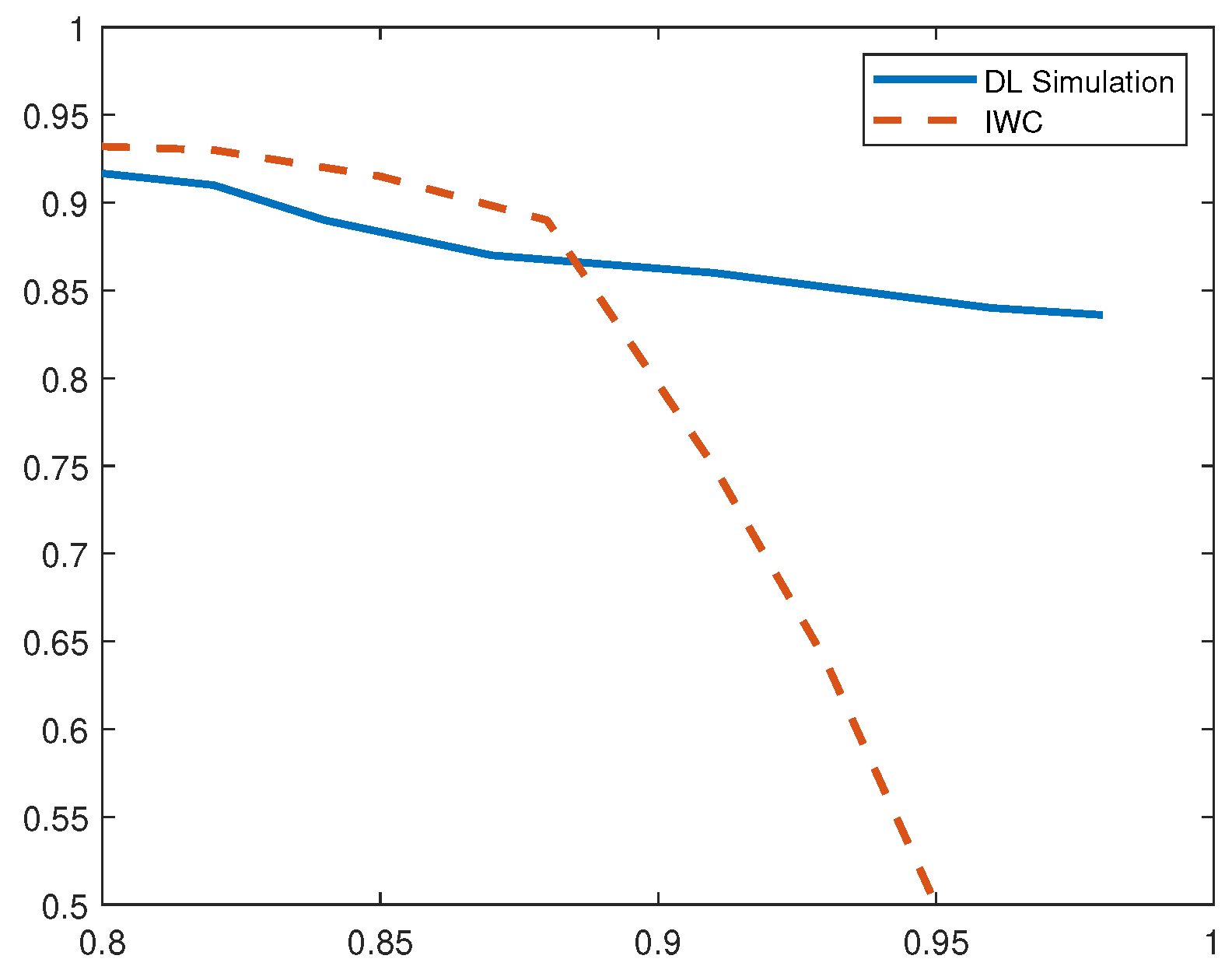

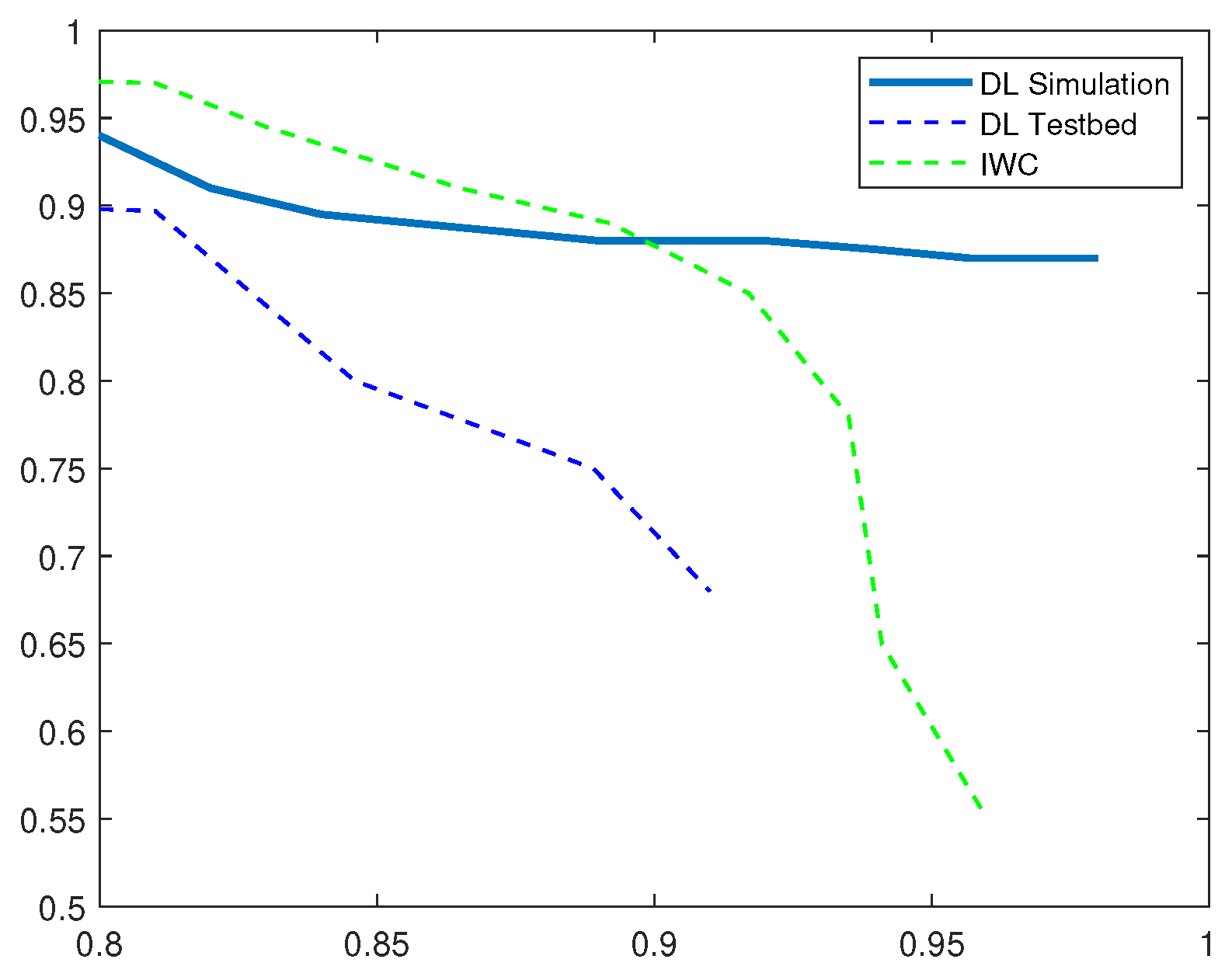

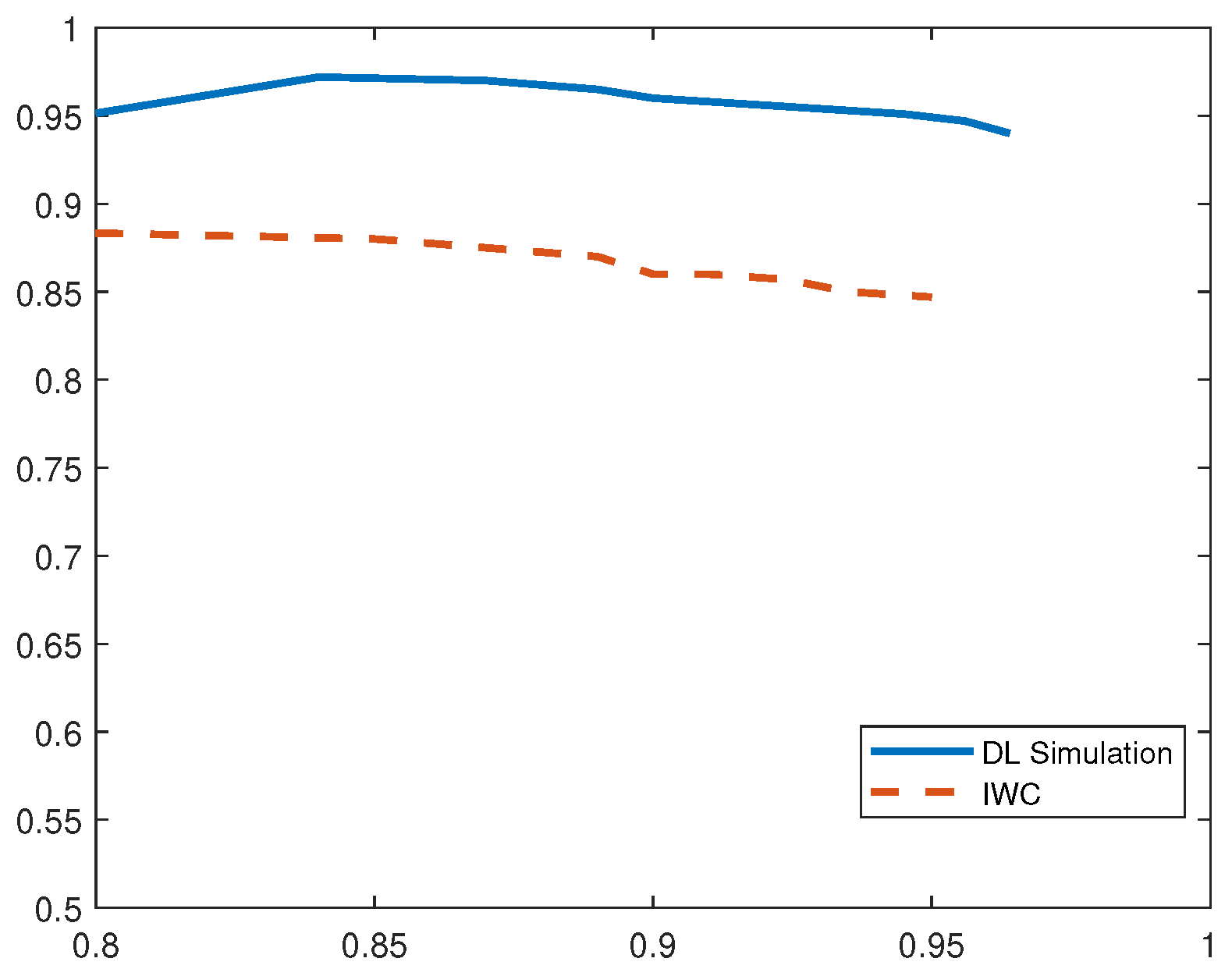

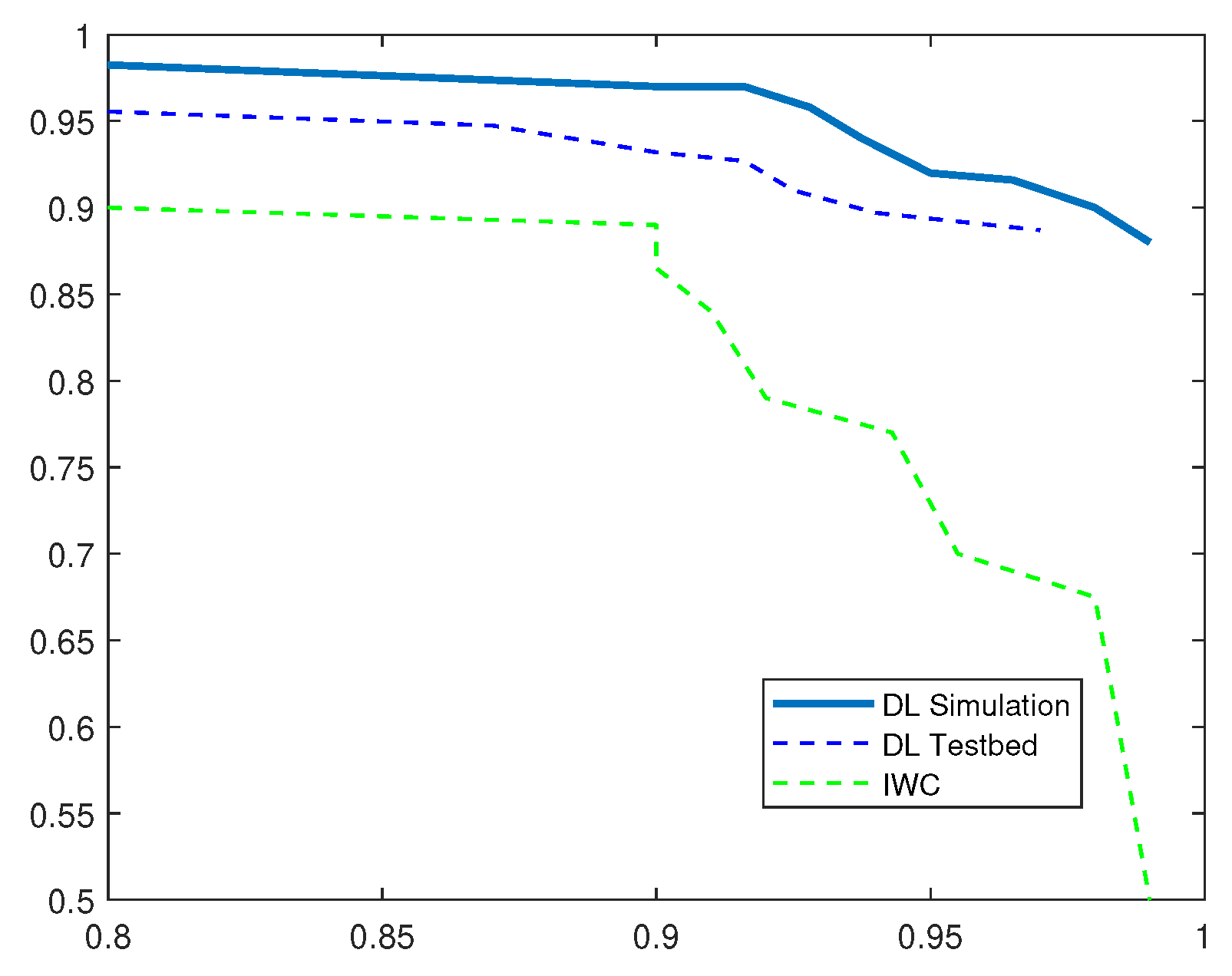

5.4. Evaluation Results
6. Conclusions and Future Work
Conflicts of Interest
