In Situ Diagnosis of Industrial Motors by Using Vision-Based Smart Sensing Technology

Department of Mechanical Engineering, National Taipei University of Technology, Taipei 10608, Taiwan
*
Author to whom correspondence should be addressed.
Sensors 2019, 19(24), 5340; https://doi.org/10.3390/s19245340
Received: 28 October 2019 / Revised: 27 November 2019 / Accepted: 2 December 2019 / Published: 4 December 2019

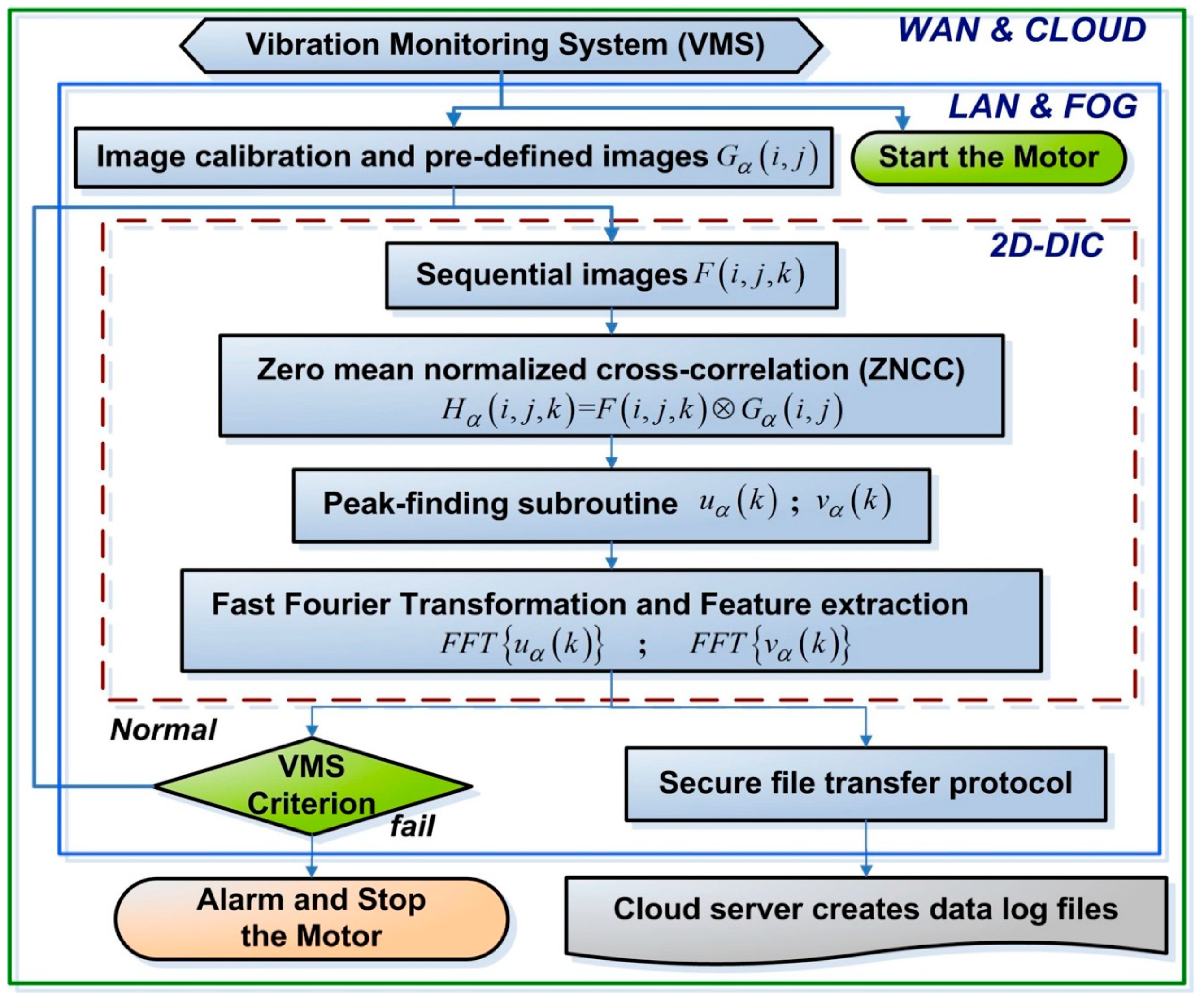

This study uses machine vision, feature extraction, and support vector machine (SVM) to compose a vibration monitoring system (VMS) for an in situ evaluation of the performance of industrial motors. The vision-based system respectively offers a spatial and temporal resolution of 1.4 µm and 16.6 ms after the image calibration and the benchmark of a laser displacement sensor (LDS). The embedded program of machine vision has used zero-mean normalized correlation (ZNCC) and peak finding (PF) for tracking the registered characteristics on the object surface. The calibrated VMS provides time–displacement curves related to both horizontal and vertical directions, promising remote inspections of selected points without attaching additional markers or sensors. The experimental setup of the VMS is cost-effective and uncomplicated, supporting universal combinations between the imaging system and computational devices. The procedures of the proposed scheme are (1) setting up a digital camera, (2) calibrating the imaging system, (3) retrieving the data of image streaming, (4) executing the ZNCC criteria, and providing the time–displacement results of selected points. The experiment setup of the proposed VMS is straightforward and can cooperate with surveillances in industrial environments. The embedded program upgrades the functionality of the camera system from the events monitoring to remote measurement without the additional cost of attaching sensors on motors or targets. Edge nodes equipped with the image-tracking program serve as the physical layer and upload the extracted features to a cloud server via the wireless sensor network (WSN). The VMS can provide customized services under the architecture of the cyber–physical system (CPS), and this research offers an early warning alarm of the mechanical system before unexpected downtime. Based on the smart sensing technology, the in situ diagnosis of industrial motors given from the VMS enables preventative maintenance and contributes to the precision measurement of intelligent automation. View Full-Text
Keywords: digital image processing; early warning service; frequency monitoring; industrial motor; machine learning; non-contact inspection; preventative maintenance; support vector machine; vibration monitoring system digital image processing; early warning service; frequency monitoring; industrial motor; machine learning; non-contact inspection; preventative maintenance; support vector machine; vibration monitoring system
Show Figures

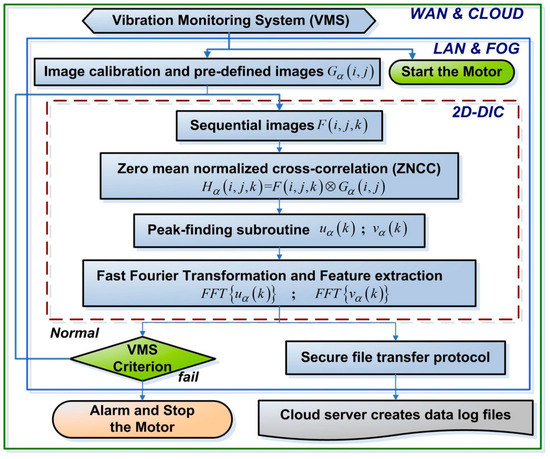

Figure 1

MDPI and ACS Style

Chang, C.-Y.; Chang, E.-C.; Huang, C.-W. In Situ Diagnosis of Industrial Motors by Using Vision-Based Smart Sensing Technology. Sensors 2019, 19, 5340.
