Modeling and Solution of Signal Oscillation Mechanism of the Multi-Coil Sensor

1
School of Electrical Engineering, Chongqing University, Chongqing 400044, China
2
School of Robot Engineering, Yangtze Normal University, Chongqing 408100, China
3
Operation and maintenance department, State Grid Chongqing Electric Power Company, Chongqing 400010, China
*
Author to whom correspondence should be addressed.
Sensors 2019, 19(16), 3563; https://doi.org/10.3390/s19163563
Received: 24 July 2019 / Revised: 12 August 2019 / Accepted: 13 August 2019 / Published: 15 August 2019
(This article belongs to the Special Issue Magnetic Sensors 2020)
  |
PDF [7549 KB, uploaded 15 August 2019]
  |

Abstract

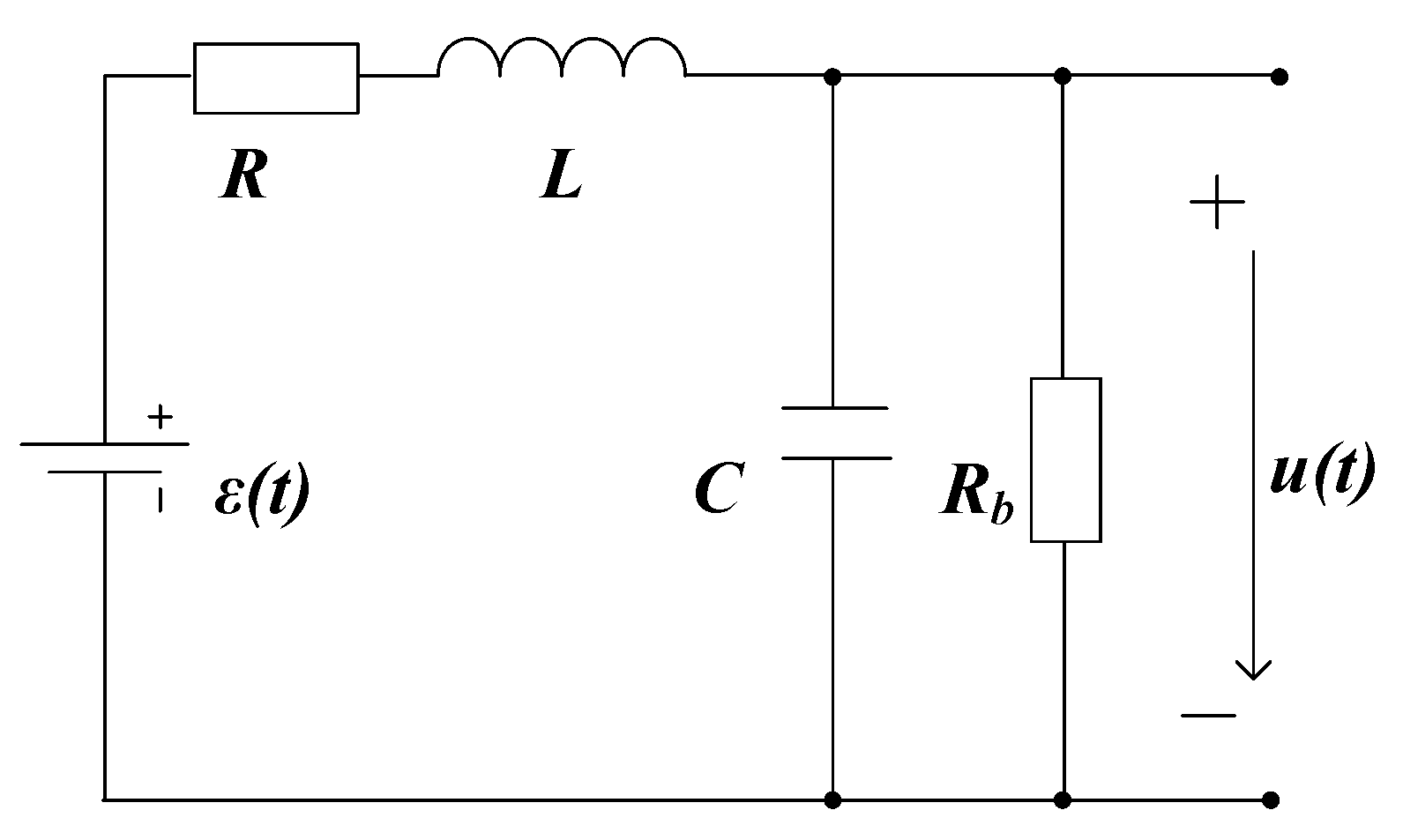

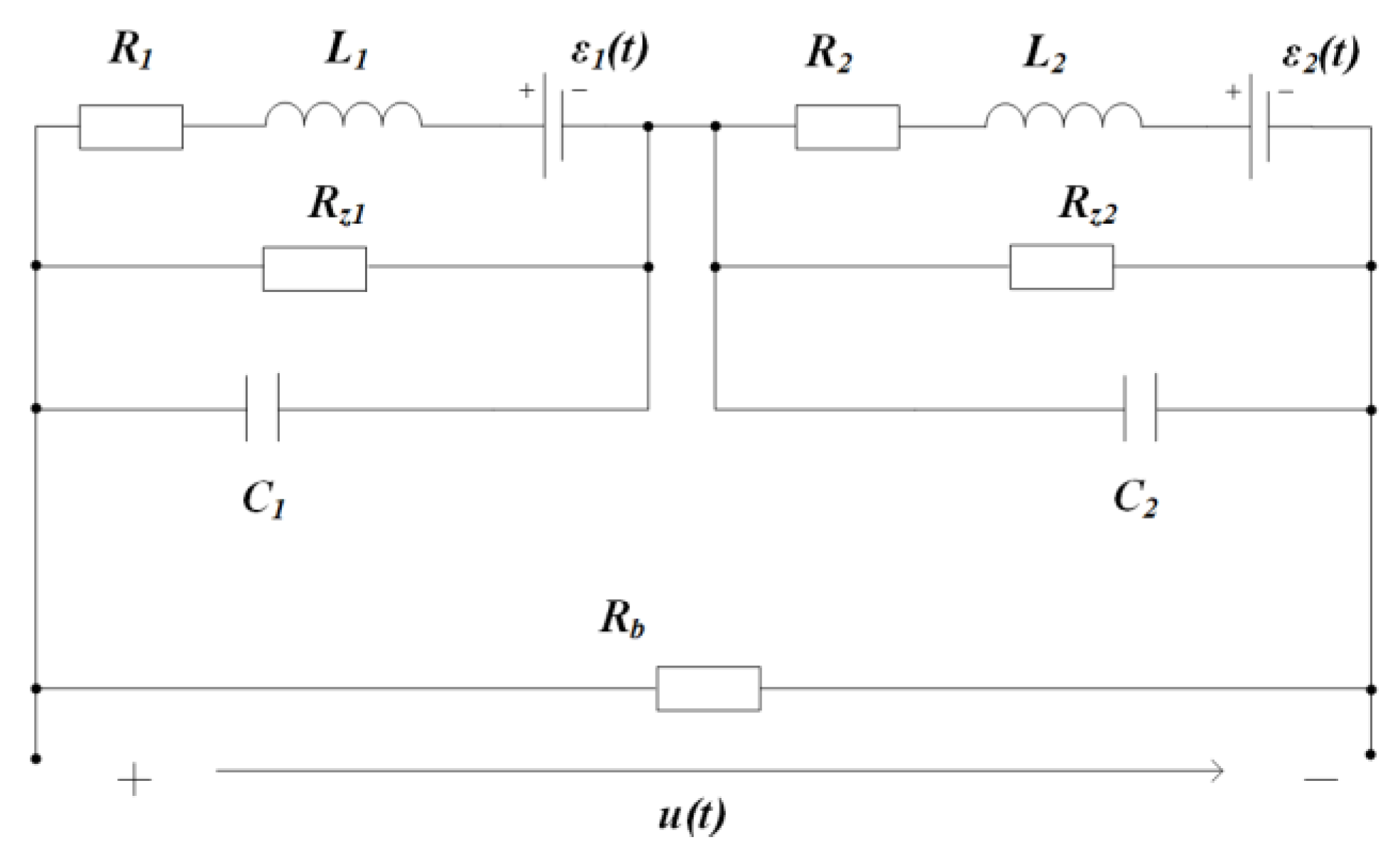

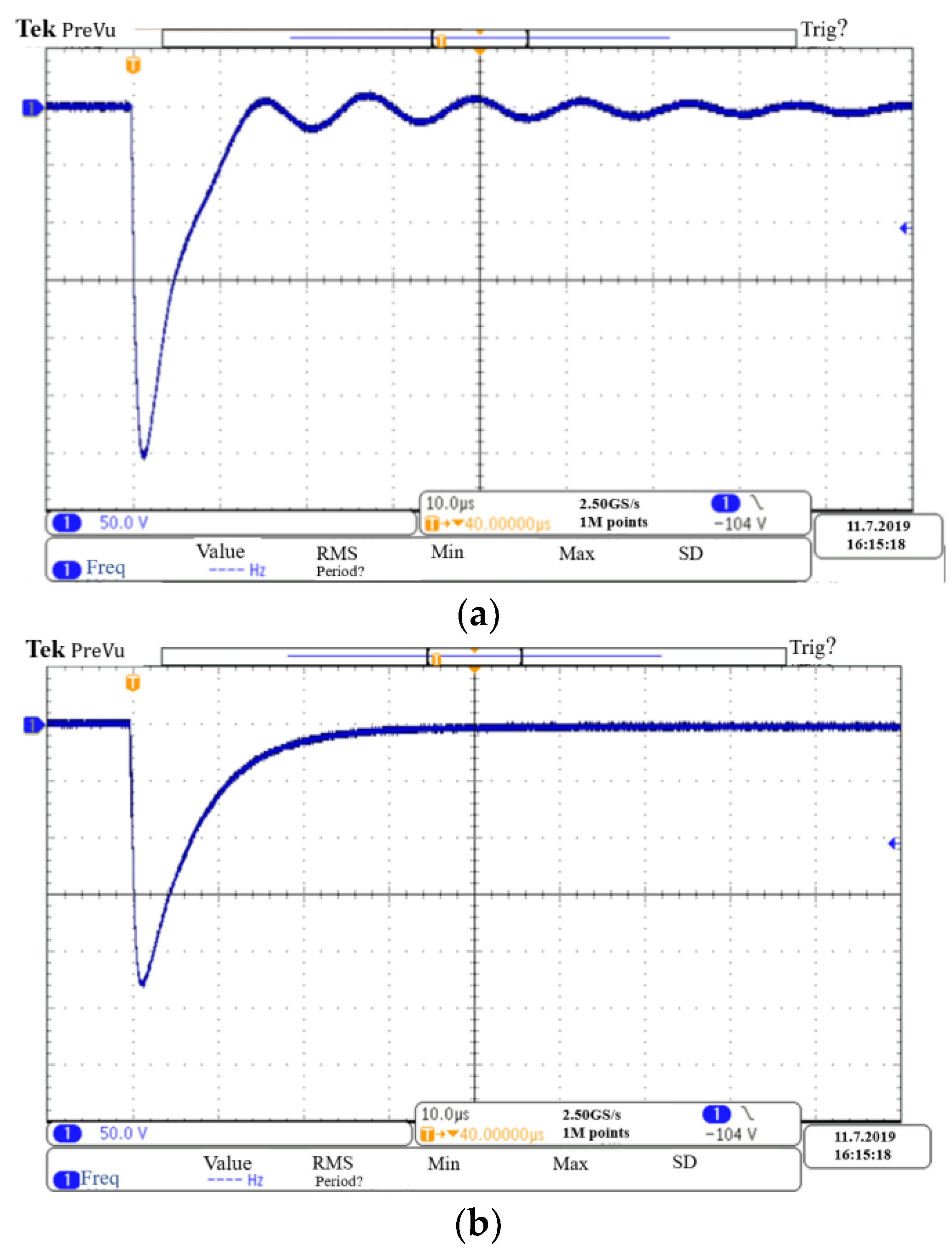

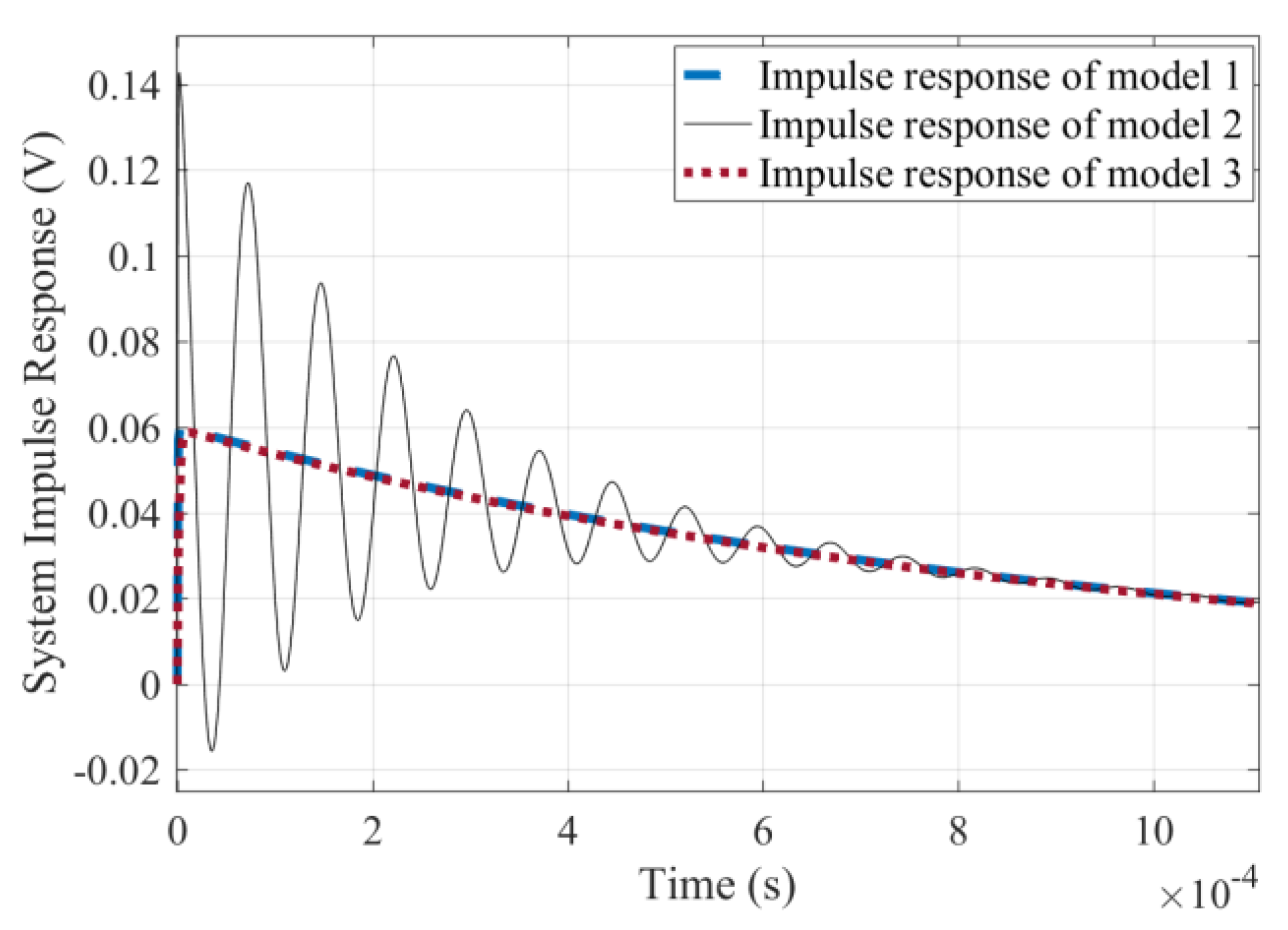

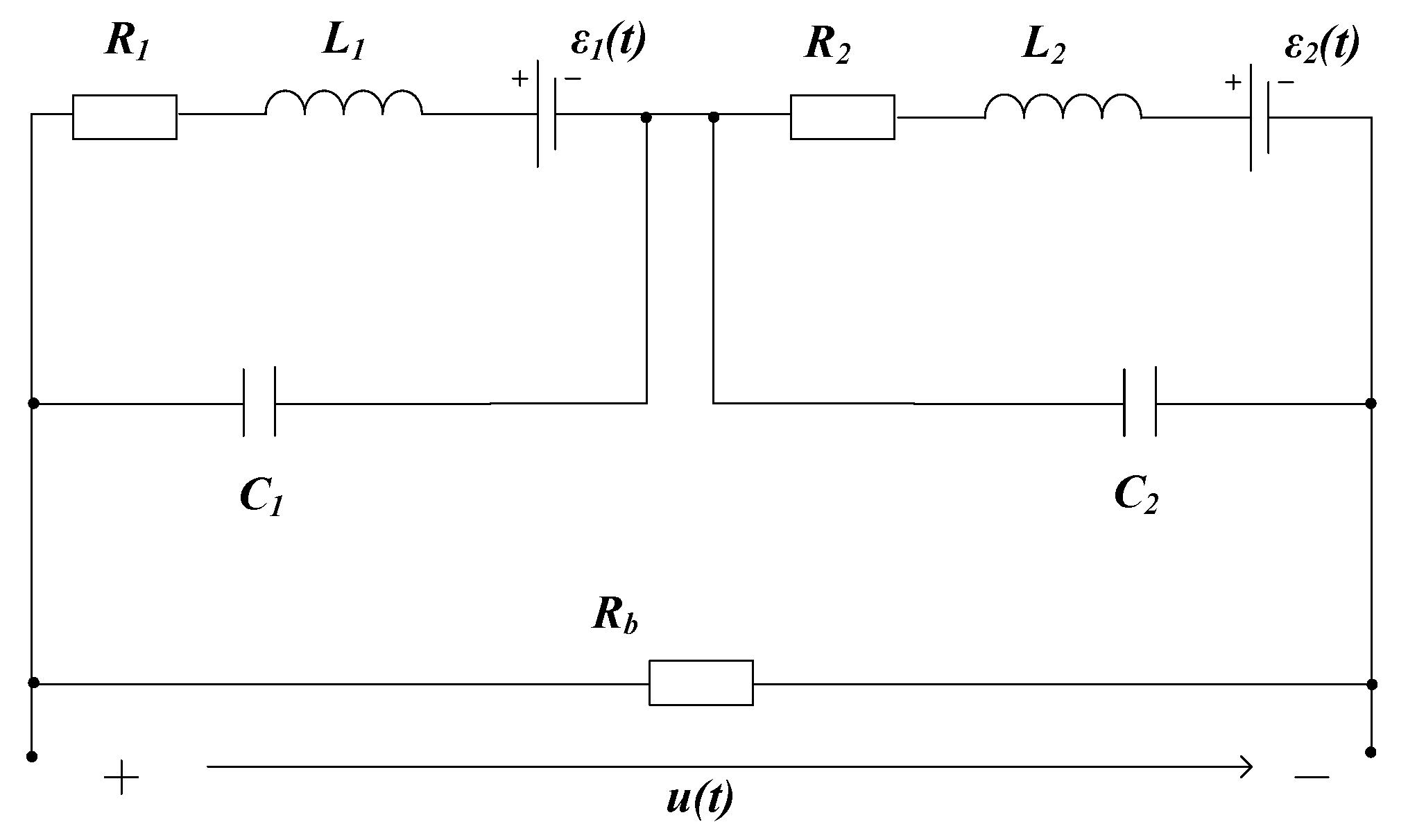

The multi-coil sensor consisting of a series of sub-coils provides a reliable way to avoid signal distortion from excitation field. Compared with conventional coil sensors, the multi-coil sensor exhibits more complex signal conversion performance, and the conventional equivalent circuit cannot reveal the possible attenuated oscillation, which seriously degrades the detection reliability. Based on a novel equivalent circuit model, this research investigates the causes of signal oscillation and proposes and validates an effective solution, which contributes to the signal transmission characteristics of multi-coil sensors for engineering applications. View Full-Text
Keywords: multi-coil; sensor; signal oscillation multi-coil; sensor; signal oscillation
Figures

Figure 1
