Quantitative Comparison of Protein Adsorption and Conformational Changes on Dielectric-Coated Nanoplasmonic Sensing Arrays

School of Materials Science and Engineering and Centre for Biomimetic Sensor Science, Nanyang Technological University, 50 Nanyang Drive 637553, Singapore
School of Chemical and Biomedical Engineering, Nanyang Technological University, 62 Nanyang Drive 637459, Singapore
Author to whom correspondence should be addressed.
Sensors 2018, 18(4), 1283;
Submission received: 16 March 2018 / Revised: 18 April 2018 / Accepted: 19 April 2018 / Published: 22 April 2018
(This article belongs to the Special Issue Biosensing for Interfacial Science)


Nanoplasmonic sensors are a popular, surface-sensitive measurement tool to investigate biomacromolecular interactions at solid-liquid interfaces, opening the door to a wide range of applications. In addition to high surface sensitivity, nanoplasmonic sensors have versatile surface chemistry options as plasmonic metal nanoparticles can be coated with thin dielectric layers. Within this scope, nanoplasmonic sensors have demonstrated promise for tracking protein adsorption and substrate-induced conformational changes on oxide film-coated arrays, although existing studies have been limited to single substrates. Herein, we investigated human serum albumin (HSA) adsorption onto silica- and titania-coated arrays of plasmonic gold nanodisks by localized surface plasmon resonance (LSPR) measurements and established an analytical framework to compare responses across multiple substrates with different sensitivities. While similar responses were recorded on the two substrates for HSA adsorption under physiologically-relevant ionic strength conditions, distinct substrate-specific behavior was observed at lower ionic strength conditions. With decreasing ionic strength, larger measurement responses occurred for HSA adsorption onto silica surfaces, whereas HSA adsorption onto titania surfaces occurred independently of ionic strength condition. Complementary quartz crystal microbalance-dissipation (QCM-D) measurements were also performed, and the trend in adsorption behavior was similar. Of note, the magnitudes of the ionic strength-dependent LSPR and QCM-D measurement responses varied, and are discussed with respect to the measurement principle and surface sensitivity of each technique. Taken together, our findings demonstrate how the high surface sensitivity of nanoplasmonic sensors can be applied to quantitatively characterize protein adsorption across multiple surfaces, and outline broadly-applicable measurement strategies for biointerfacial science applications.

Graphical Abstract

1. Introduction

Nanoplasmonic sensing is a popular surface-sensitive measurement technique for biomolecular detection, and has several compelling features including simple instrumental requirements, label-free format, and high detection sensitivity [1,2,3]. One of the most popular versions is based on the localized surface plasmon resonance (LSPR) of metal nanoparticles. LSPR refers to the collective oscillation of free electrons in the conduction band of noble metal nanoparticles that occurs upon interaction with light, leading to light extinction that is characterized by a wavelength position with maximum extinction, λmax [1,4]. The evanescent electromagnetic field surrounding LSPR-active nanoparticles is highly amplified in the near vicinity of the nanoparticle surface (~5–20 nm decay length [5,6]), and the specific value of λmax is sensitive to the local dielectric environment within the probing volume. The presence of a biomolecule near the sensor surface will typically cause an increase in the local refractive index that is registered as a positive Δλmax shift. As the decay length of the LSPR-enhanced field is on the length scale of various classes of biomolecules, it is possible to not only detect biomolecular binding events, but also characterize structural transformations that influence the spatial proximity of adsorbed molecules to the sensor surface [7,8,9]. In turn, these capabilities have proven useful for gaining novel insights into well-studied biomacromolecular interactions involving lipid vesicles [10,11,12,13,14] and supported lipid bilayers [8,15,16,17,18].
Within this scope, proteins have become a popular subject of inquiry as protein adsorption onto a solid support is often accompanied by substrate-induced denaturation and resulting conformational changes. Indeed, while most nanoplasmonic sensing works involving proteins have focused on end-point detection [19,20], there is a growing number of studies that have exploited the high surface sensitivity of LSPR measurement strategies to investigate protein-protein interactions [21,22,23,24,25], protein interactions with small molecules [26,27,28,29], sugars [30,31,32], and drugs [33,34], and protein conformational changes triggered by an environmental stimuli [9]. In recent years, the utility of LSPR sensors to study protein adsorption has become greatly expanded through the introduction of indirect nanoplasmonic sensing (INPS), which involves coating plasmonic metal nanoparticles with a dielectric material of interest [35]. In addition to tuning measurement sensitivity and increasing platform stability [36], perhaps the greatest advantage of the dielectric coating is that it facilitates nanoplasmonic sensing across a wide range of materials and surface chemistries.
In one prominent example, Langhammer and co-workers employed the INPS strategy to characterize protein adsorption onto silica-coated gold nanodisks within the context of studying protein corona formation [37,38]. In addition to coating the nanoplasmonic transducer with a conformal dielectric layer, other materials can also be deposited on the sensor surface to study protein adsorption. For example, Zen et al. investigated the adsorption of bovine serum albumin (BSA) and fibrinogen onto amorphous carbon and hydrogenated amorphous carbon using nanoplasmonic sensors comprised of gold nanodisks coated with the two types of carbon materials [39]. While the extent of protein adsorption has been mainly characterized by directly relating the magnitude of the final LSPR peak shift to the amount of adsorbed protein, the LSPR measurement response per individual protein molecule can vary because the protein’s molecular mass is, on average, in a region of different field intensity [40,41,42]. Recently, we investigated the effect of temperature on BSA adsorption and denaturation onto silica-coated nanoplasmonic sensor arrays, and showed how denaturation of individual, adsorbed protein molecules affects the LSPR measurement response [43]. To date, existing LSPR studies for protein adsorption have been performed on individual substrates, and comparative measurements of protein adsorption and denaturation across multiple substrates have yet to be explored. From a measurement perspective, the challenge lies in taking into account the different surface sensitivities of the substrates, along with the different conformations of adsorbed protein molecules that occur when protein molecules interact with a particular surface of defined material composition.
Herein, we investigated human serum albumin (HSA) adsorption onto silica- and titania-coated arrays of plasmonic gold nanodisks. Understanding protein adsorption behavior on silica and titania surfaces is important considering their prevalence in biomedical applications [44,45]. HSA was selected as the model protein because it is widely studied and known to denature (via conformational changes) in the adsorbed state [46,47,48,49,50]. HSA is also a structural cognate of BSA [51,52], and this similarity provided the basis for comparing LSPR measurement data with past findings as further verification. While we previously focused on measuring the relative denaturation of individual, BSA molecules on silica-coated surfaces at low surface coverage [43], we expand the scope of our present investigation to comprehensively investigate HSA adsorption and denaturation across different surface coverage regimes and compare results obtained on dielectric-coated substrates with different surface sensitivities. For the first time, protein adsorption behavior on different surfaces are compared on the same nanoplasmonic sensing platform. In terms of their physicochemical properties, the silica and titania coatings used in this work share some similarities in that they are both hydrophilic and negatively-charged. This allowed us to highlight the effect of subtle differences in surface properties on protein adsorption behavior. Furthermore, by varying the ionic strength condition, it was possible to tune the protein-substrate interaction, especially via charge shielding of electrostatic forces [53,54,55,56,57]. In turn, this enabled us to establish an analytical framework to quantitatively compare responses across multiple substrates with different sensitivities and demonstrate the capability of the nanoplasmonic sensing technique to identify unique patterns of protein adsorption and denaturation on different surfaces, paving the way for its utilization across various application settings.

2. Materials and Methods

2.1. HSA Preparation

Lyophilized human serum albumin (HSA) (A3782) was obtained from Sigma-Aldrich (Singapore) and was stored at 4 °C prior to use. Buffer solutions were prepared using 10 mM tris(hydroxymethyl)aminomethane (Tris) and varying concentrations of sodium chloride. All buffer solutions were adjusted to pH 7.5 with 1 M hydrochloric acid, and filtered through a membrane filter with 0.22 μm diameter pores before use. All protein samples were freshly prepared on the day of experiments by dissolving a weighed mass of lyophilized protein in the appropriate buffer solution. The molar concentrations of protein samples were determined by measuring the sample absorbance at 280 nm wavelength and taking into account the molar extinction coefficient of 36,500 M−1 cm−1 based on previous works [58,59]. The protein concentration was adjusted by dilution to 50 µM final concentration for experiments.

2.2. LSPR Measurements

Ensemble-averaged LSPR measurements were performed on an Insporion XNano instrument (Insplorion AB, Gothenburg, Sweden) that was operated in transmission mode. The highly uniform sensor chips composed of silica- and titania-coated gold nanodisk arrays on glass surfaces were purchased from Insplorion AB. The sensor chips were assembled within the measurement cell with an effective circular sensing area ~2 mm in diameter and a flow depth of ~44 µm (i.e., effective sensing volume ~0.14 µL), as previously described [13]. The arrays are comprised of well-separated and randomly distributed gold nanodisks (average height and diameter of 20 and 120 nm, respectively, with a surface coverage of ~8%), which were fabricated by hole-mask lithography [60] and sputter-coated with a thin dielectric layer (thickness ~10 nm). Prior to each experiment, the sensor chips were thoroughly rinsed with 1 wt % sodium dodecyl sulfate (SDS) in water, water, and ethanol and dried with a stream of nitrogen gas. The sensor chips were then treated with oxygen plasma before being loaded into the measurement cell. For the silica-coated sensor chips, the base material is silicon nitride and the oxygen plasma treatment results in the formation of a silica layer on the sensor surface and hence the coatings are referred to as silica coatings [61]. A peristaltic pump was used to introduce liquid sample into the measurement cell at a constant flow rate of 100 µL/min. All LSPR data collection and analysis was performed using the Insplorer software package (Insplorion AB) with a time resolution of 1 Hz. The spectral resolution of the plasmon resonance, as well as its centroid position (denoted as λmax), was determined by high-order polynomial fitting [62].

2.3. QCM-D Measurements

QCM-D measurements were performed on a Q-Sense E4 instrument (Biolin Scientific AB, Stockholm, Sweden) using AT-cut crystals with sputter-coated, 50 nm-thick silica (QSX 303, Biolin Scientific AB) or titania (QSX 310, Biolin Scientific AB) layers. The crystals had a mass sensitivity constant of 17.7 ng/cm2Hz (Ref. [63]). Before measurement, the crystals were rinsed with 1 wt % SDS in water, water, and ethanol, dried with a stream of nitrogen gas, and treated with oxygen plasma for 1 min. Samples were introduced at a constant flow rate of 100 µL/min, as regulated by a peristaltic pump, and the temperature of the measurement cell was maintained at 25.0 ± 0.5 °C. Data was collected at the odd overtones (3rd, 5th, 7th, and 9th), and the normalized data at the 5th overtone are reported.

3. Results and Discussion

3.1. Sensor Characterization

We employed the INPS strategy to monitor HSA adsorption and denaturation on dielectric-coated sensor arrays, which were comprised of randomly-distributed gold nanodisks on glass surfaces fabricated via hole-mask colloidal lithography and the entire surface was then conformally coated with a 10-nm thick silica or titania overlayer (Figure 1A). Briefly, when HSA solution is introduced into the microfluidic chamber, HSA molecules adsorb onto the sensor surface and accumulate to gradually form a dense protein adlayer, as shown in Figure 1B. The entire process occurs under the illumination of light, which passes through the sensor to reach the spectrophotometer. The adsorption of HSA molecules onto the sensor surface leads to a Δλmax shift, and our measurement approach is sensitive to the dry mass of adsorbed HSA molecules.
The optical extinction spectra corresponding to before and after HSA adsorption onto silica- and titania-coated gold nanodisks are shown in Figure 2A. The presence of different dielectric coatings leads to a significant variation in the initial λmax position (i.e., ~715 nm and ~767 nm for silica- and titania-coated sensors, respectively), which arises from perturbations in the electromagnetic field distribution around the gold nanodisks due to the presence of the dielectric coatings [64,65,66]. Consequently, the distinct plasmonic properties result in the sensor arrays exhibiting different bulk refractive index sensitivities, which typically increase as the LSPR peak position moves to higher wavelengths [67,68]. We determined the bulk refractive index sensitivities to be ~100 and ~140 nm/RIU for bare silica- and titania-coated sensors, respectively (Figure 2B). While electromagnetic field enhancement around the edges of bare plasmonic nanostructures is often amplified by up to several orders of magnitude more than flat or smooth regions [69,70,71], past simulation results suggest a relatively uniform electromagnetic field distribution around the contacting surface of dielectric-coated gold nanodisks [11].
After HSA adsorption under physiologically-relevant ionic strength conditions (i.e., 150 mM NaCl) for 20 min, a positive Δλmax shift was observed on both surfaces. While the magnitude of the Δλmax shift (~1 nm) is relatively small, it is significantly larger than the sensing resolution by several orders of magnitude. This was verified by directly characterizing the sensing resolution, which was defined as the smallest change in the bulk refractive index that produced a detectable change in the output [72]. The practical resolutions were determined to be 9.20 × 10−5 RIU and 1.12 × 10−4 RIU, which translates to Δλmax shifts of around 0.009 nm and 0.016 nm, for silica- and titania-coated sensors, respectively (details in Supplementary Materials). Taken together, these findings identify that the fabricated titania-coated arrays have ~1.4-times greater measurement sensitivity than the silica-coated arrays, and establish that HSA protein molecules adsorb onto both sensor surfaces producing detectable measurement responses.

3.2. Real-Time Monitoring of HSA Adsorption Kinetics

To resolve protein adsorption kinetics, we tracked the Δλmax shift as a function of time. As shown in Figure 3A, the time-resolved peak shifts indicated that HSA adsorption onto silica and titania surfaces shows similar adsorption profiles under physiologically relevant ionic strength conditions (i.e., 150 mM NaCl). In particular, there were similar adsorption rates in the initial and equilibration stages, while one distinct difference was a significantly higher final peak shift for the titania case. The final peak shifts were around 0.9 nm and 1.4 nm for HSA adsorption onto silica and titania, respectively, and the range of these values agrees well with literature values for BSA adsorption [37,38,43], validating our measurement approach. The LSPR signals can be normalized by the bulk refractive index sensitivities to directly compare the measurement responses across different substrates [11]. After normalizing the measurement responses by the bulk refractive index sensitivities, it is noticeable that the extent of HSA adsorption was nearly identical on the two substrates (Figure 3B). Specifically, the rates in the initial and equilibration stages were slightly higher for HSA adsorption onto silica than titania surfaces, with the trend switching in the intermediate stage.
It is known that the presence of salt can affect protein-protein and protein-substrate interactions through electrostatic shielding effects [56,73]. In addition, protein conformation can also be stabilized by the presence of salt [74,75,76,77]. Since a silica surface is more negatively charged than a titania surface under the tested pH conditions [52], we proceeded to investigate HSA adsorption onto both surfaces under different ionic strength conditions ranging from 0 mM to 250 mM NaCl to evaluate surface charge effects. Interestingly, significant differences in adsorption behavior became apparent at different ionic strengths. With increasing ionic strength, there was a decrease in the normalized peak shifts for the case of HSA adsorption onto silica, indicating lower accumulation of protein molecules within the immediate vicinity of the gold nanodisks (Figure 4A). In marked contrast to the silica case, minimal variations in the measurement response were observed for the titania case (Figure 4B).
In order to verify the observed measurement trends, we performed quartz crystal microbalance-dissipation (QCM-D) experiments using silica- and titania-coated quartz crystals. The QCM-D technique tracks changes in the resonance frequency and energy dissipation of an oscillating quartz crystal that reflect the acoustic mass and viscoelastic properties of an adsorbate, respectively. With increasing ionic strength, there was an overall decrease in the QCM-D frequency shift for the case of HSA adsorption onto silica, indicating lower accumulation of protein molecules on the surface (Figure 5A). Compared to the LSPR peak shifts, the QCM-D frequency and dissipation shifts for HSA adsorption onto silica were less varied across the tested range of ionic strength conditions. In contrast, frequency shifts closely overlapped for the case of HSA adsorption onto titania, except for the case of 0 mM NaCl, which indicated the lowest amount of adsorbed HSA (Figure 5B). The accompanying energy dissipation shifts showed similar values during the stabilization stage for HSA adsorption onto silica, suggesting that protein molecules are closely packed to form a compact film and the specific configuration likely depends on the particular ionic strength condition (Figure 5C). Likewise, energy dissipation shifts for HSA adsorption onto titania at different ionic strengths were also similar, although the values were much lower compared to the case of silica, indicating that HSA molecules are more deformed and tightly bound on the titania surface (Figure 5D). Overall, the trends observed via QCM-D measurements were in excellent agreement with those observed via LSPR measurements.

3.3. Data Analysis

A detailed analysis of the LSPR response requires some prior knowledge about the biomacromolecular interaction under consideration. In general, a protein molecule initially adsorbs onto a surface in its native conformation and then, depending on the protein-surface interaction, either remains in its native conformation or unfolds and spreads on the surface [42,78,79,80]. Upon spreading, the surface area covered by a protein molecule, as well as the binding strength between the surface and protein molecule increases [81,82]. Depending on the extent of protein deformation, protein molecules can either remain adsorbed or desorb from the surface. Over time, the protein adsorption process will become less reversible and the extent of protein spreading will increase after multiple adsorption-desorption cycles [82,83,84,85,86].
When interpreting LSPR measurement responses, it is often assumed that protein density remains constant [87,88] leading to a direct correlation between LSPR peak shift and optical mass. However, as mentioned above, both protein density and thickness of the protein film change. As described in our previous works [11,13,14], the peak shift, Δ λ max , arising from a refractive index change in the LSPR-probed sensing volume around the nanodisk is denoted by:
Δ λ max = S B z = 0 5 R * 5 ( R * + Z ) 6 Δ n ( z ) d z
where S B is the bulk refractive index sensitivity of the sensing arrays (i.e., 100 nm/RIU and 140 nm/RIU for silica- and titania-coated surfaces, respectively), z is the coordinate perpendicular to the substrate surface ( z = 0 corresponds to the protein-substrate), R * is the length scale characterizing the distance between the center of the nanodisk and the protein-substrate contact (i.e., 74 nm as previously determined by simulation results [11]), and Δ n ( z ) d z is the spatial distribution of the refractive index change along the z coordinate. Considering the formation of a protein layer directly on the sensor surface, integration of Equation (1) yields:
Δ λ max ¯ = Δ n [ 1 ( R * R * + D ) 5 ] ,
where Δ λ max ¯ is the normalized peak shift and Δ n is the refractive index change arising from the adsorption of protein molecules to form a protein layer with thickness D . We applied the above correlation to approximate the thickness of the HSA layer based on typical values of local refractive index changes due to HSA adsorption onto titania, which is in the range of 0.08 to 0.12 RIU after 30 mins [88]. Rearranging Equation (2), we obtain:
D = [ R * 5 ( 1 Δ λ max ¯ Δ n ) 1 ] 1 5 R * ,
Substituting the typical values of Δ n , as well as Δ λ max ¯ from Figure 4A, B into Equation (3), we obtain a protein film thickness of around 1.5 nm for adsorbed protein layers on both surfaces at physiological ionic strength condition, which agrees well with previous works [38,39]. Based on the above arguments, the LSPR measurement response (Δλmax shift) can arise from either protein adsorption (mass accumulation) on the surface and/or from substrate-induced conformational changes [43,89]. Applying this framework to protein films requires a delicate approach because (1) the majority of albumin molecules will desorb shortly after they initially adsorb on the surface, especially when there is low surface coverage [90]. Over time, (2) HSA molecules that remain irreversibly adsorbed reduce the available surface area for subsequent adsorption events and, as a consequence, (3) there will gradually be a lower flux of newly adsorbing proteins [82,86].
Having established the framework for interpreting LSPR responses, let us first analyze the data for HSA adsorption on silica and titania at physiological ionic strength. By comparing the time-resolved peak shifts in Figure 3B, we can deduce that the initial rate of reversible adsorption was higher on silica, while the tendency for protein spreading is lower. Consequently, protein spreading on silica occurred more gradually over a longer time period. On the other hand, a quicker and higher degree of HSA spreading occurred on titania. The evidence supports that, due to a higher surface charge, the initial adsorption of HSA on silica is more strongly governed by long-range electrostatic interactions [91,92], compared to that on titania where the adsorption process is less driven by electrostatic forces (i.e., no dependence on ionic strength) [93,94]. Conversely, this supports that HSA spreading on titania occurs due to stronger, short-range protein-surface interactions stemming from non-electrostatic forces (e.g., van der Waals). Furthermore, the LSPR measurements also showed a lower propensity for HSA desorption from titania upon rinsing with buffer (Figure S1). Of note, Givens et al. recently showed that BSA adsorption onto oxide nanoparticles follows a similar trend, whereby adsorbed BSA is more completely denatured on titania nanoparticle surfaces, while it is less denatured on silica nanoparticle surfaces [95].
Furthermore, the decrease in initial rate and equilibration uptake with increasing ionic strength on silica suggested lower rates of reversible adsorption and greater spreading. Interestingly, for 0 mM and 50 mM NaCl conditions, the initial rates were closely matching before the rate decreased more considerably for 50 mM NaCl during the intermediate stage. This result is reasonable since it is known that proteins are destabilized in the absence of salt due to the lack of intramolecular charge shielding resulting in greater intramolecular repulsions [74,75,77]. The observations also suggest that HSA spreading and/or reorientation in the later stage was induced by further protein uptake, which did not occur for 50 mM NaCl since the adsorbed HSA molecules were more stable and, therefore, had lesser tendency to reorient to accommodate later arriving molecules [96]. In contrast, HSA adsorption onto titania did not change significantly as compared to adsorption under physiological ionic strength, supporting that HSA adsorption onto titania is strongly governed by short-range interaction forces. Compared to HSA desorption from silica, HSA desorption from titania was also lower at all tested ionic strengths (Figure S2). In addition, stronger van der Waals forces on titania also promote the formation of a thicker hydration layer [97], which may mediate the propensity for protein deformation on the surface, resulting in similar rates of conformational change on the surface independent of ionic strength.
Taken together, our results reveal that, while HSA adsorption onto two hydrophilic surfaces appears to be very similar under physiologically relevant ionic strength conditions, significant variations in adsorption behavior are observed under different ionic strength conditions and can be detected by LSPR measurements. Comparison between experimentally-measured HSA adsorption behaviors on silica and titania surfaces is briefly summarized in Table 1, and provides insight into the role of different factors, as well as benefits of the INPS sensing approach for measurement discrimination.

4. Conclusions

In this work, we have employed a nanoplasmonic sensing technique to comparatively investigate HSA adsorption onto silica and titania surfaces. This represents the first work comparing protein adsorption behavior on different surfaces using the same nanoplasmonic sensing platform. We highlight the capability of the technique to clearly resolve differences in HSA adsorption behavior on two surfaces that share similar physicochemical properties in that they are both hydrophilic and negatively charged. By comparing time-resolved LSPR peak shifts at different ionic strength conditions, we revealed that the amount of adsorbed HSA and the degree of protein spreading on a silica surface was highly dependent on the ionic strength condition, while HSA adsorption behavior on a titania surface was largely unaffected by changes in ionic strength. Data analysis further underscored the particular significance of the high surface sensitivity of the nanoplasmonic sensing approach to distinguish the ionic strength-dependent trends. In general, our results suggest a higher degree of protein spreading on titania. Based on these findings, we concluded that the HSA adsorption onto silica is mainly governed by long-range electrostatic interactions and adsorbed HSA molecules would experience weaker short-range interactions than on titania. In the latter case, it appears that non-electrostatic forces (e.g., van der Waals) and surface hydration have more significant effects on influencing protein adsorption on titania than electrostatic forces alone. Taken together, our findings demonstrate how nanoplasmonic sensors can be applied to identify unique patterns of protein adsorption and denaturation on different sensor surfaces, and offer unique measurement capabilities for characterizing protein adsorption and conformational changes at solid-liquid interfaces.

Supplementary Materials

The following are available online at, Information on the Approximation of Protein Layer Thickness, Determination of Practical Sensor Resolution, and Supporting Figures S1–S2.


This work was supported by the National Research Foundation of Singapore through a Proof-of-Concept grant (NRF2015NRF-POC0001-19), as well as through the Center for Precision Biology at Nanyang Technological University.

Author Contributions

A.R.F., J.A.J., and N.J.C. conceived and designed the experiments; A.R.F. and T.N.S. performed the experiments; A.R.F. and J.A.J. analyzed the data; and A.R.F., J.A.J., and N.J.C. wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Anker, J.N.; Hall, W.P.; Lyandres, O.; Shah, N.C.; Zhao, J.; Van Duyne, R.P. Biosensing with plasmonic nanosensors. Nat. Mater. 2008, 7, 442–453. [Google Scholar] [CrossRef] [PubMed]
  2. Jackman, J.A.; Rahim Ferhan, A.; Cho, N.-J. Nanoplasmonic sensors for biointerfacial science. Chem. Soc. Rev. 2017, 46, 3615–3660. [Google Scholar] [CrossRef] [PubMed]
  3. Spackova, B.; Wrobel, P.; Bockova, M.; Homola, J. Optical biosensors based on plasmonic nanostructures: A review. Proc. IEEE 2016, 104, 2380–2408. [Google Scholar] [CrossRef]
  4. Willets, K.A.; Duyne, R.P.V. Localized surface plasmon resonance spectroscopy and sensing. Annu. Rev. Phys. Chem. 2007, 58, 267–297. [Google Scholar] [CrossRef] [PubMed]
  5. Haes, A.J.; Zou, S.; Schatz, G.C.; Van Duyne, R.P. A nanoscale optical biosensor:  The long range distance dependence of the localized surface plasmon resonance of noble metal nanoparticles. J. Phys. Chem. B 2004, 108, 109–116. [Google Scholar] [CrossRef]
  6. Whitney, A.V.; Elam, J.W.; Zou, S.; Zinovev, A.V.; Stair, P.C.; Schatz, G.C.; Van Duyne, R.P. Localized surface plasmon resonance nanosensor:  A high-resolution distance-dependence study using atomic layer deposition. J. Phys. Chem. B 2005, 109, 20522–20528. [Google Scholar] [CrossRef] [PubMed]
  7. Chah, S.; Hammond, M.R.; Zare, R.N. Gold nanoparticles as a colorimetric sensor for protein conformational changes. Chem. Biol. 2005, 12, 323–328. [Google Scholar] [CrossRef] [PubMed]
  8. Ferhan, A.R.; Jackman, J.A.; Cho, N.-J. Integration of quartz crystal microbalance-dissipation and reflection-mode localized surface plasmon resonance sensors for biomacromolecular interaction analysis. Anal. Chem. 2016, 88, 12524–12531. [Google Scholar] [CrossRef] [PubMed]
  9. Hall, W.P.; Modica, J.; Anker, J.; Lin, Y.; Mrksich, M.; Van Duyne, R.P. A conformation- and ion-sensitive plasmonic biosensor. Nano Lett. 2011, 11, 1098–1105. [Google Scholar] [CrossRef] [PubMed]
  10. Ferhan, A.R.; Jackman, J.A.; Cho, N.-J. Investigating how vesicle size influences vesicle adsorption on titanium oxide: A competition between steric packing and shape deformation. Phys. Chem. Chem. Phys. 2017, 19, 2131–2139. [Google Scholar] [CrossRef] [PubMed]
  11. Jackman, J.A.; Spackova, B.; Linardy, E.; Kim, M.C.; Yoon, B.K.; Homola, J.; Cho, N.-J. Nanoplasmonic ruler to measure lipid vesicle deformation. Chem. Commun. 2016, 52, 76–79. [Google Scholar] [CrossRef] [PubMed]
  12. Jackman, J.A.; Yorulmaz Avsar, S.; Ferhan, A.R.; Li, D.; Park, J.H.; Zhdanov, V.P.; Cho, N.-J. Quantitative profiling of nanoscale liposome deformation by a localized surface plasmon resonance sensor. Anal. Chem. 2017, 89, 1102–1109. [Google Scholar] [CrossRef] [PubMed]
  13. Jackman, J.A.; Zhdanov, V.P.; Cho, N.-J. Nanoplasmonic biosensing for soft matter adsorption: Kinetics of lipid vesicle attachment and shape deformation. Langmuir 2014, 30, 9494–9503. [Google Scholar] [CrossRef] [PubMed]
  14. Oh, E.; Jackman, J.A.; Yorulmaz, S.; Zhdanov, V.P.; Lee, H.; Cho, N.-J. Contribution of temperature to deformation of adsorbed vesicles studied by nanoplasmonic biosensing. Langmuir 2015, 31, 771–781. [Google Scholar] [CrossRef] [PubMed]
  15. Ferhan, A.R.; Jackman, J.A.; Cho, N.-J. Probing spatial proximity of supported lipid bilayers to silica surfaces by localized surface plasmon resonance sensing. Anal. Chem. 2017, 89, 4301–4308. [Google Scholar] [CrossRef] [PubMed]
  16. Ferhan, A.; Ma, G.; Jackman, J.; Sut, T.; Park, J.; Cho, N.-J. Probing the interaction of dielectric nanoparticles with supported lipid membrane coatings on nanoplasmonic arrays. Sensors 2017, 17, 1484. [Google Scholar] [CrossRef] [PubMed]
  17. Larsson, E.M.; Edvardsson, M.E.M.; Langhammer, C.; Zorić, I.; Kasemo, B. A combined nanoplasmonic and electrodeless quartz crystal microbalance setup. Rev. Sci. Instrum. 2009, 80, 125105. [Google Scholar] [CrossRef] [PubMed]
  18. Zan, G.H.; Jackman, J.A.; Kim, S.-O.; Cho, N.-J. Controlling lipid membrane architecture for tunable nanoplasmonic biosensing. Small 2014, 10, 4828–4832. [Google Scholar] [CrossRef] [PubMed]
  19. Guo, L.; Jackman, J.A.; Yang, H.-H.; Chen, P.; Cho, N.-J.; Kim, D.-H. Strategies for enhancing the sensitivity of plasmonic nanosensors. Nano Today 2015, 10, 213–239. [Google Scholar] [CrossRef]
  20. Unser, S.; Bruzas, I.; He, J.; Sagle, L. Localized surface plasmon resonance biosensing: Current challenges and approaches. Sensors 2015, 15, 15684–15716. [Google Scholar] [CrossRef] [PubMed]
  21. Bhagawati, M.; You, C.; Piehler, J. Quantitative real-time imaging of protein-protein interactions by LSPR detection with micropatterned gold nanoparticles. Anal. Chem. 2013, 85, 9564–9571. [Google Scholar] [CrossRef] [PubMed]
  22. Ferreira, J.; Santos, M.J.L.; Rahman, M.M.; Brolo, A.G.; Gordon, R.; Sinton, D.; Girotto, E.M. Attomolar protein detection using in-hole surface plasmon resonance. J. Am. Chem. Soc. 2009, 131, 436–437. [Google Scholar] [CrossRef] [PubMed]
  23. Haes, A.J.; Van Duyne, R.P. A nanoscale optical biosensor: Sensitivity and selectivity of an approach based on the localized surface plasmon resonance spectroscopy of triangular silver nanoparticles. J. Am. Chem. Soc. 2002, 124, 10596–10604. [Google Scholar] [CrossRef] [PubMed]
  24. Hall, W.P.; Ngatia, S.N.; Van Duyne, R.P. LSPR biosensor signal enhancement using nanoparticle-antibody conjugates. J. Phys. Chem. C 2011, 115, 1410–1414. [Google Scholar] [CrossRef] [PubMed]
  25. Ruemmele, J.A.; Hall, W.P.; Ruvuna, L.K.; Van Duyne, R.P. A localized surface plasmon resonance imaging instrument for multiplexed biosensing. Anal. Chem. 2013, 85, 4560–4566. [Google Scholar] [CrossRef] [PubMed]
  26. Cheng, X.R.; Wallace, G.Q.; Lagugné-Labarthet, F.; Kerman, K. Au nanostructured surfaces for electrochemical and localized surface plasmon resonance-based monitoring of α-synuclein-small molecule interactions. ACS Appl. Mater. Interfaces 2015, 7, 4081–4088. [Google Scholar] [CrossRef] [PubMed]
  27. Guerreiro, J.R.L.; Bochenkov, V.E.; Runager, K.; Aslan, H.; Dong, M.; Enghild, J.J.; De Freitas, V.; Ferreira Sales, M.G.; Sutherland, D.S. Molecular imprinting of complex matrices at localized surface plasmon resonance biosensors for screening of global interactions of polyphenols and proteins. ACS Sens. 2016, 1, 258–264. [Google Scholar] [CrossRef]
  28. Guerreiro, J.R.L.; Frederiksen, M.; Bochenkov, V.E.; De Freitas, V.; Ferreira Sales, M.G.; Sutherland, D.S. Multifunctional biosensor based on localized surface plasmon resonance for monitoring small molecule-protein interaction. ACS Nano 2014, 8, 7958–7967. [Google Scholar] [CrossRef] [PubMed]
  29. Zhang, D.; Lu, Y.; Zhang, Q.; Yao, Y.; Li, S.; Li, H.; Zhuang, S.; Jiang, J.; Liu, G.L.; Liu, Q. Nanoplasmonic monitoring of odorants binding to olfactory proteins from honeybee as biosensor for chemical detection. Sens. Actuators B 2015, 221, 341–349. [Google Scholar] [CrossRef]
  30. Bellapadrona, G.; Tesler, A.B.; Grünstein, D.; Hossain, L.H.; Kikkeri, R.; Seeberger, P.H.; Vaskevich, A.; Rubinstein, I. Optimization of localized surface plasmon resonance transducers for studying carbohydrate-protein interactions. Anal. Chem. 2012, 84, 232–240. [Google Scholar] [CrossRef] [PubMed]
  31. Kitano, H.; Takahashi, Y.; Mizukami, K.; Matsuura, K. Kinetic study on the binding of lectin to mannose residues in a polymer brush. Colloids Surf. B 2009, 70, 91–97. [Google Scholar] [CrossRef] [PubMed]
  32. Nagatsuka, T.; Uzawa, H.; Sato, K.; Kondo, S.; Izumi, M.; Yokoyama, K.; Ohsawa, I.; Seto, Y.; Neri, P.; Mori, H.; et al. Localized surface plasmon resonance detection of biological toxins using cell surface oligosaccharides on glyco chips. ACS Appl. Mater. Interfaces 2013, 5, 4173–4180. [Google Scholar] [CrossRef] [PubMed]
  33. Couture, M.; Ray, K.K.; Poirier-Richard, H.-P.; Crofton, A.; Masson, J.-F. 96-well plasmonic sensing with nanohole arrays. ACS Sens. 2016, 1, 287–294. [Google Scholar] [CrossRef]
  34. Das, A.; Zhao, J.; Schatz, G.C.; Sligar, S.G.; Van Duyne, R.P. Screening of type I and II drug binding to human cytochrome P450-3A4 in nanodiscs by localized surface plasmon resonance spectroscopy. Anal. Chem. 2009, 81, 3754–3759. [Google Scholar] [CrossRef] [PubMed]
  35. Langhammer, C.; Larsson, E.M.; Kasemo, B.; Zorić, I. Indirect nanoplasmonic sensing: Ultrasensitive experimental platform for nanomaterials science and optical nanocalorimetry. Nano Lett. 2010, 10, 3529–3538. [Google Scholar] [CrossRef] [PubMed]
  36. Li, J.; Ye, J.; Chen, C.; Li, Y.; Verellen, N.; Moshchalkov, V.V.; Lagae, L.; Van Dorpe, P. Revisiting the surface sensitivity of nanoplasmonic biosensors. ACS Photonics 2015, 2, 425–431. [Google Scholar] [CrossRef] [Green Version]
  37. Frost, R.; Langhammer, C.; Cedervall, T. Real-time in situ analysis of biocorona formation and evolution on silica nanoparticles in defined and complex biological environments. Nanoscale 2017, 9, 3620–3628. [Google Scholar] [CrossRef] [PubMed]
  38. Frost, R.; Wadell, C.; Hellman, A.; Molander, S.; Svedhem, S.; Persson, M.; Langhammer, C. Core-shell nanoplasmonic sensing for characterization of biocorona formation and nanoparticle surface interactions. ACS Sens. 2016, 1, 798–806. [Google Scholar] [CrossRef]
  39. Zen, F.; Karanikolas, V.D.; Behan, J.A.; Andersson, J.; Ciapetti, G.; Bradley, A.L.; Colavita, P.E. Nanoplasmonic sensing at the carbon-bio interface: Study of protein adsorption at graphitic and hydrogenated carbon surfaces. Langmuir 2017, 33, 4198–4206. [Google Scholar] [CrossRef] [PubMed]
  40. Nakanishi, K.; Sakiyama, T.; Imamura, K. On the adsorption of proteins on solid surfaces, a common but very complicated phenomenon. J. Biosci. Bioeng. 2001, 91, 233–244. [Google Scholar] [CrossRef]
  41. Rabe, M.; Verdes, D.; Seeger, S. Understanding protein adsorption phenomena at solid surfaces. Adv. Colloid Interface Sci. 2011, 162, 87–106. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Vogler, E.A. Protein adsorption in three dimensions. Biomaterials 2012, 33, 1201–1237. [Google Scholar] [CrossRef] [PubMed]
  43. Jackman, J.A.; Ferhan, A.R.; Yoon, B.K.; Park, J.H.; Zhdanov, V.P.; Cho, N.-J. Indirect nanoplasmonic sensing platform for monitoring temperature-dependent protein adsorption. Anal. Chem. 2017, 89, 12976–12983. [Google Scholar] [CrossRef] [PubMed]
  44. Li, Z.; Barnes, J.C.; Bosoy, A.; Stoddart, J.F.; Zink, J.I. Mesoporous silica nanoparticles in biomedical applications. Chem. Soc. Rev. 2012, 41, 2590–2605. [Google Scholar] [CrossRef] [PubMed]
  45. Yin, Z.F.; Wu, L.; Yang, H.G.; Su, Y.H. Recent progress in biomedical applications of titanium dioxide. Phys. Chem. Chem. Phys. 2013, 15, 4844–4858. [Google Scholar] [CrossRef] [PubMed]
  46. Dąbkowska, M.; Adamczyk, Z. Ionic strength effect in HSA adsorption on mica determined by streaming potential measurements. J. Colloid Interface Sci. 2012, 366, 105–113. [Google Scholar] [CrossRef] [PubMed]
  47. Hlady, V.; Füredi-Milhofer, H. Adsorption of human serum albumin on precipitated hydroxyapatite. J. Colloid Interface Sci. 1979, 69, 460–468. [Google Scholar] [CrossRef]
  48. Kempson, I.M.; Martin, A.L.; Denman, J.A.; French, P.W.; Prestidge, C.A.; Barnes, T.J. Detecting the presence of denatured human serum albumin in an adsorbed protein monolayer using TOF − SIMS. Langmuir 2010, 26, 12075–12080. [Google Scholar] [CrossRef] [PubMed]
  49. Mao, Y.; Wei, W.; Peng, H.; Zhang, J. Monitoring for adsorption of human serum albumin and bovine serum albumin onto bare and polystyrene-modified silver electrodes by quartz crystal impedance analysis. J. Biotechnol. 2001, 89, 1–10. [Google Scholar] [CrossRef]
  50. Ramezani, F.; Rafii-Tabar, H. An in-depth view of human serum albumin corona on gold nanoparticles. Mol. BioSyst. 2015, 11, 454–462. [Google Scholar] [CrossRef] [PubMed]
  51. Bujacz, A. Structures of bovine, equine and leporine serum albumin. Acta Crystallogr. Sect. D Biol. Crystallogr. 2012, 68, 1278–1289. [Google Scholar] [CrossRef] [PubMed]
  52. Kurrat, R.; Prenosil, J.E.; Ramsden, J.J. Kinetics of human and bovine serum albumin adsorption at silica–titania surfaces. J. Colloid Interface Sci. 1997, 185, 1–8. [Google Scholar] [CrossRef] [PubMed]
  53. Hartvig, R.A.; van de Weert, M.; Østergaard, J.; Jorgensen, L.; Jensen, H. Protein adsorption at charged surfaces: The role of electrostatic interactions and interfacial charge regulation. Langmuir 2011, 27, 2634–2643. [Google Scholar] [CrossRef] [PubMed]
  54. Jackman, J.A.; Tabaei, S.R.; Zhao, Z.; Yorulmaz, S.; Cho, N.-J. Self-assembly formation of lipid bilayer coatings on bare aluminum oxide: Overcoming the force of interfacial water. ACS Appl. Mater. Interfaces 2015, 7, 959–968. [Google Scholar] [CrossRef] [PubMed]
  55. McUmber, A.C.; Randolph, T.W.; Schwartz, D.K. Electrostatic interactions influence protein adsorption (but not desorption) at the silica–aqueous interface. J. Phys. Chem. Lett. 2015, 6, 2583–2587. [Google Scholar] [CrossRef] [PubMed]
  56. Mulheran, P.A.; Connell, D.J.; Kubiak-Ossowska, K. Steering protein adsorption at charged surfaces: Electric fields and ionic screening. RSC Adv. 2016, 6, 73709–73716. [Google Scholar] [CrossRef]
  57. Oleson, T.A.; Sahai, N. Interaction energies between oxide surfaces and multiple phosphatidylcholine bilayers from extended-DLVO theory. J. Colloid Interface Sci. 2010, 352, 316–326. [Google Scholar] [CrossRef] [PubMed]
  58. Sancataldo, G.; Vetri, V.; Foderà, V.; Di Cara, G.; Militello, V.; Leone, M. Oxidation enhances human serum albumin thermal stability and changes the routes of amyloid fibril formation. PLoS ONE 2014, 9, e84552. [Google Scholar] [CrossRef] [PubMed]
  59. Sengupta, A.; Koninti, R.K.; Gavvala, K.; Ballav, N.; Hazra, P. An anticancer drug to probe non-specific protein-DNA interactions. Phys. Chem. Chem. Phys. 2014, 16, 3914–3917. [Google Scholar] [CrossRef] [PubMed]
  60. Fredriksson, H.; Alaverdyan, Y.; Dmitriev, A.; Langhammer, C.; Sutherland, D.S.; Zäch, M.; Kasemo, B. Hole–mask colloidal lithography. Adv. Mater. 2007, 19, 4297–4302. [Google Scholar] [CrossRef]
  61. Jime´nez, C.; Perrie`re, J.; Vickridge, I.; Enard, J.P.; Albella, J.M. Transformation of silicon nitride in oxygen plasma. Surf. Coat. Technol. 1991, 45, 147–154. [Google Scholar] [CrossRef]
  62. Dahlin, A.B.; Tegenfeldt, J.O.; Höök, F. Improving the instrumental resolution of sensors based on localized surface plasmon resonance. Anal. Chem. 2006, 78, 4416–4423. [Google Scholar] [CrossRef] [PubMed]
  63. Cho, N.-J.; Jackman, J.A.; Liu, M.; Frank, C.W. pH-driven assembly of various supported lipid platforms: A comparative study on silicon oxide and titanium oxide. Langmuir 2011, 27, 3739–3748. [Google Scholar] [CrossRef] [PubMed]
  64. Szunerits, S.; Das, M.R.; Boukherroub, R. Short- and long-range sensing on gold nanostructures, deposited on glass, coated with silicon oxide films of different thicknesses. J. Phys. Chem. C 2008, 112, 8239–8243. [Google Scholar] [CrossRef]
  65. Galopin, E.; Noual, A.; Niedziółka-Jönsson, J.; Jönsson-Niedziółka, M.; Akjouj, A.; Pennec, Y.; Djafari-Rouhani, B.; Boukherroub, R.; Szunerits, S. Short- and long-range sensing using plasmonic nanostructures: Experimental and theoretical studies. J. Phys. Chem. C 2009, 113, 15921–15927. [Google Scholar] [CrossRef]
  66. Niedziółka-Jönsson, J.; Barka, F.; Castel, X.; Pisarek, M.; Bezzi, N.; Boukherroub, R.; Szunerits, S. Development of new localized surface plasmon resonance interfaces based on gold nanostructures sandwiched between tin-doped indium oxide films. Langmuir 2010, 26, 4266–4273. [Google Scholar] [CrossRef] [PubMed]
  67. Lee, K.-S.; El-Sayed, M.A. Gold and silver nanoparticles in sensing and imaging:  sensitivity of plasmon response to size, shape, and metal composition. J. Phys. Chem. B 2006, 110, 19220–19225. [Google Scholar] [CrossRef] [PubMed]
  68. Miller, M.M.; Lazarides, A.A. Sensitivity of metal nanoparticle surface plasmon resonance to the dielectric environment. J. Phys. Chem. B 2005, 109, 21556–21565. [Google Scholar] [CrossRef] [PubMed]
  69. Joshi, G.K.; McClory, P.J.; Muhoberac, B.B.; Kumbhar, A.; Smith, K.A.; Sardar, R. Designing efficient localized surface plasmon resonance-based sensing platforms: Optimization of sensor response by controlling the edge length of gold nanoprisms. J. Phys. Chem. C 2012, 116, 20990–21000. [Google Scholar] [CrossRef]
  70. Hao, E.; Schatz, G.C. Electromagnetic fields around silver nanoparticles and dimers. J. Chem. Phys. 2004, 120, 357–366. [Google Scholar] [CrossRef] [PubMed]
  71. Sherry, L.J.; Jin, R.; Mirkin, C.A.; Schatz, G.C.; Van Duyne, R.P. Localized surface plasmon resonance spectroscopy of single silver triangular nanoprisms. Nano Lett. 2006, 6, 2060–2065. [Google Scholar] [CrossRef] [PubMed]
  72. Homola, J. Surface plasmon resonance sensors for detection of chemical and biological species. Chem. Rev. 2008, 108, 462–493. [Google Scholar] [CrossRef] [PubMed]
  73. Nelson, N.; Schwartz, D.K. Specific ion (Hofmeister) effects on adsorption, desorption, and diffusion at the solid–aqueous interface. J. Phys. Chem. Lett. 2013, 4, 4064–4068. [Google Scholar] [CrossRef]
  74. Dias-Cabral, A.C.; Queiroz, J.A.; Pinto, N.G. Effect of salts and temperature on the adsorption of bovine serum albumin on polypropylene glycol-sepharose under linear and overloaded chromatographic conditions. J. Chromatogr. A 2003, 1018, 137–153. [Google Scholar] [CrossRef] [PubMed]
  75. Hlady, V.V.; Buijs, J. Protein adsorption on solid surfaces. Curr. Opin. Biotechnol. 1996, 7, 72–77. [Google Scholar] [CrossRef]
  76. Mizutani, T. Adsorption of proteins on silicone-coated glass surfaces. J. Colloid Interface Sci. 1981, 82, 162–166. [Google Scholar] [CrossRef]
  77. Pace, C.N. Conformational stability of globular proteins. Trends Biochem. Sci. 1990, 15, 14–17. [Google Scholar] [CrossRef]
  78. Dee, K.C.; Puleo, D.A.; Bizios, R. (Eds.) Protein-surface interactions. In An Introduction to Tissue-Biomaterial Interactions; Wiley: Hoboken, NJ, USA, 2002. [Google Scholar]
  79. Norde, W. Driving forces for protein adsorption at solid surfaces. Macromol. Symp. 1996, 103, 5–18. [Google Scholar] [CrossRef]
  80. Ouberai, M.M.; Xu, K.; Welland, M.E. Effect of the interplay between protein and surface on the properties of adsorbed protein layers. Biomaterials 2014, 35, 6157–6163. [Google Scholar] [CrossRef] [PubMed]
  81. Santore, M.M.; Wertz, C.F. Protein spreading kinetics at liquid−solid interfaces via an adsorption probe method. Langmuir 2005, 21, 10172–10178. [Google Scholar] [CrossRef] [PubMed]
  82. van der Veen, M.; Stuart, M.C.; Norde, W. Spreading of proteins and its effect on adsorption and desorption kinetics. Colloids Surf. B 2007, 54, 136–142. [Google Scholar] [CrossRef] [PubMed]
  83. Calonder, C.; Tie, Y.; Van Tassel, P.R. History dependence of protein adsorption kinetics. Proc. Natl. Acad. Sci. USA 2001, 98, 10664–10669. [Google Scholar] [CrossRef] [PubMed]
  84. Larsericsdotter, H.; Oscarsson, S.; Buijs, J. Structure, stability, and orientation of BSA adsorbed to silica. J. Colloid Interface Sci. 2005, 289, 26–35. [Google Scholar] [CrossRef] [PubMed]
  85. Norde, W.; Giacomelli, C.E. BSA structural changes during homomolecular exchange between the adsorbed and the dissolved states. J. Biotechnol. 2000, 79, 259–268. [Google Scholar] [CrossRef]
  86. Tassel, P.R.V.; Viot, P.; Tarjus, G. A kinetic model of partially reversible protein adsorption. J. Chem. Phys. 1997, 106, 761–770. [Google Scholar] [CrossRef]
  87. Fischer, H.; Polikarpov, I.; Craievich, A.F. Average protein density is a molecular-weight-dependent function. Protein Sci. 2004, 13, 2825–2828. [Google Scholar] [CrossRef] [PubMed]
  88. Vörös, J. The density and refractive index of adsorbing protein layers. Biophys. J. 2004, 87, 553–561. [Google Scholar] [CrossRef] [PubMed]
  89. Park, J.H.; Sut, T.N.; Jackman, J.A.; Ferhan, A.R.; Yoon, B.K.; Cho, N.-J. Controlling adsorption and passivation properties of bovine serum albumin on silica surfaces by ionic strength modulation and cross-linking. Phys. Chem. Chem. Phys. 2017, 19, 8854–8865. [Google Scholar] [CrossRef] [PubMed]
  90. Kwok, K.C.; Yeung, K.M.; Cheung, N.H. Adsorption kinetics of bovine serum albumin on fused silica:  population heterogeneities revealed by single-molecule fluorescence microscopy. Langmuir 2007, 23, 1948–1952. [Google Scholar] [CrossRef] [PubMed]
  91. Mathé, C.; Devineau, S.; Aude, J.-C.; Lagniel, G.; Chédin, S.; Legros, V.; Mathon, M.-H.; Renault, J.-P.; Pin, S.; Boulard, Y.; et al. Structural Determinants for Protein adsorption/non-adsorption to Silica Surface. PLoS ONE 2013, 8, e81346. [Google Scholar] [CrossRef] [PubMed]
  92. Kubiak-Ossowska, K.; Tokarczyk, K.; Jachimska, B.; Mulheran, P.A. Bovine Serum Albumin Adsorption at a Silica Surface Explored by Simulation and Experiment. J. Phys. Chem. B 2017, 121, 3975–3986. [Google Scholar] [CrossRef] [PubMed]
  93. Kang, Y.; Li, X.; Tu, Y.; Wang, Q.; Ågren, H. On the Mechanism of Protein Adsorption onto Hydroxylated and Nonhydroxylated TiO2 Surfaces. J. Phys. Chem. C 2010, 114, 14496–14502. [Google Scholar] [CrossRef]
  94. Brandt, E.G.; Lyubartsev, A.P. Molecular Dynamics Simulations of Adsorption of Amino Acid Side Chain Analogues and a Titanium Binding Peptide on the TiO2 (100) Surface. J. Phys. Chem. C 2015, 119, 18126–18139. [Google Scholar] [CrossRef]
  95. Givens, B.E.; Xu, Z.; Fiegel, J.; Grassian, V.H. Bovine serum albumin adsorption on SiO2 and TiO2 nanoparticle surfaces at circumneutral and acidic pH: A tale of two nano-bio surface interactions. J. Colloid Interface Sci. 2017, 493, 334–341. [Google Scholar] [CrossRef] [PubMed]
  96. Lassen, B.; Malmsten, M. Structure of protein layers during competitive adsorption. J. Colloid Interface Sci. 1996, 180, 339–349. [Google Scholar] [CrossRef]
  97. Jackman, J.A.; Zan, G.H.; Zhao, Z.; Cho, N.-J. Contribution of the hydration force to vesicle adhesion on titanium oxide. Langmuir 2014, 30, 5368–5372. [Google Scholar] [CrossRef] [PubMed]

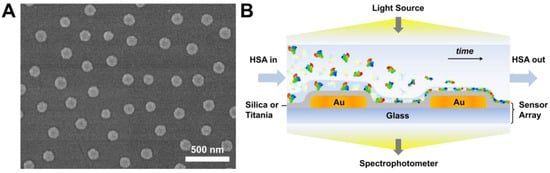

Figure 1. (A) Representative top-down SEM image of the gold nanodisk sensor array; and (B) a schematic illustration of HSA adsorption onto silica- and titania-coated gold nanodisk arrays.
Figure 1. (A) Representative top-down SEM image of the gold nanodisk sensor array; and (B) a schematic illustration of HSA adsorption onto silica- and titania-coated gold nanodisk arrays.
Sensors 18 01283 g001

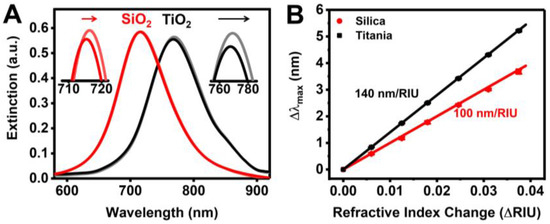

Figure 2. (A) LSPR spectra before and after HSA adsorption onto the two sensor surfaces; (B) Bulk refractive index sensitivity measurements from water-glycerol titration measurements (0–30 wt % glycerol). Data are reported as mean and standard deviation for n = 3 measurements.
Figure 2. (A) LSPR spectra before and after HSA adsorption onto the two sensor surfaces; (B) Bulk refractive index sensitivity measurements from water-glycerol titration measurements (0–30 wt % glycerol). Data are reported as mean and standard deviation for n = 3 measurements.
Sensors 18 01283 g002

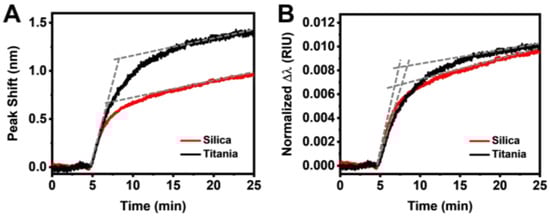

Figure 3. (A) LSPR peak shift responses as a function of time for HSA adsorption onto silica- and titania-coated sensors before normalization; and (B) the normalized LSPR peak shift responses as a function of time for HSA adsorption from panel (A).
Figure 3. (A) LSPR peak shift responses as a function of time for HSA adsorption onto silica- and titania-coated sensors before normalization; and (B) the normalized LSPR peak shift responses as a function of time for HSA adsorption from panel (A).
Sensors 18 01283 g003

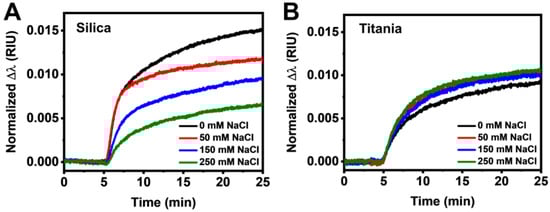

Figure 4. Normalized LSPR peak shift responses as a function of time for HSA adsorption onto (A) silica and (B) titania surfaces in 0, 50, 150, and 250 mM NaCl conditions.
Figure 4. Normalized LSPR peak shift responses as a function of time for HSA adsorption onto (A) silica and (B) titania surfaces in 0, 50, 150, and 250 mM NaCl conditions.
Sensors 18 01283 g004

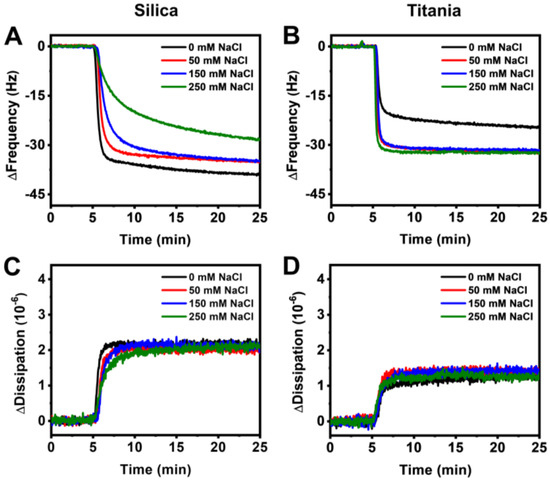

Figure 5. QCM-D frequency shifts for HSA adsorption onto (A) silica and (B) titania at 0, 50, 150, and 250 mM NaCl. Accompanying dissipation shifts for adsorption onto (C) silica and (D) titania.
Figure 5. QCM-D frequency shifts for HSA adsorption onto (A) silica and (B) titania at 0, 50, 150, and 250 mM NaCl. Accompanying dissipation shifts for adsorption onto (C) silica and (D) titania.
Sensors 18 01283 g005
Table 1. Summary of the differences in surface properties between silica and titania and the resulting differences in measurement responses obtained from QCM-D and LSPR measurement techniques.
Table 1. Summary of the differences in surface properties between silica and titania and the resulting differences in measurement responses obtained from QCM-D and LSPR measurement techniques.
Surface charge (influenced by hydroxyl groups)Highly negativeSlightly negative
Force governing protein-surface interactionElectrostaticNon-electrostatic/van der Waals
Degree of surface hydration LowHigh
Dependency of protein adsorption on ionic strength based on QCM-D responses WeakWeak
Dependency of protein adsorption on ionic strength based on LSPR responsesStrongNegligible

Share and Cite

MDPI and ACS Style

Ferhan, A.R.; Jackman, J.A.; Sut, T.N.; Cho, N.-J. Quantitative Comparison of Protein Adsorption and Conformational Changes on Dielectric-Coated Nanoplasmonic Sensing Arrays. Sensors 2018, 18, 1283.

AMA Style

Ferhan AR, Jackman JA, Sut TN, Cho N-J. Quantitative Comparison of Protein Adsorption and Conformational Changes on Dielectric-Coated Nanoplasmonic Sensing Arrays. Sensors. 2018; 18(4):1283.

Chicago/Turabian Style

Ferhan, Abdul Rahim, Joshua A. Jackman, Tun Naw Sut, and Nam-Joon Cho. 2018. "Quantitative Comparison of Protein Adsorption and Conformational Changes on Dielectric-Coated Nanoplasmonic Sensing Arrays" Sensors 18, no. 4: 1283.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
