# Real-Space Probing of the Local Magnetic Response of Thin-Film Superconductors Using Single Spin Magnetometry

^{1}

^{2}

^{*}

^{†}

## Abstract

**:**

_{2}Cu

_{3}O

_{7−δ}(YBCO) using scanning single spin magnetometry. Our experiments yield a direct measurement of the sample’s London penetration depth and allow for a quantitative reconstruction of the supercurrents flowing in the sample as a result of Meissner screening. These results show the potential of scanning single spin magnetometry for studies of the nanoscale magnetic properties of thin-film superconductors, which could be readily extended to elevated temperatures or magnetic fields.

## 1. Introduction

## 2. Experiment

_{2}Cu

_{3}O

_{7−δ}(YBCO) [24] (Figure 1d). The c-axis-oriented YBCO film was grown to a thickness ${d}_{\mathrm{YBCO}}$ of ∼119 nm on top of a (001)-oriented single-crystal SrTiO

_{3}(STO) substrate using pulsed laser deposition and was covered with ∼16 nm of STO to avoid oxygen diffusion out of the sample [25]. Patterning was performed by optical lithography and Ar ion milling 5 nm into the substrate yielding step size ${z}_{\mathrm{Step}}\sim $ 140 nm at the edge of the disk. The film shows a ${T}_{c}\approx 90$ K as measured in-situ by a four-probe conductance measurement. The data presented in this work were taken on the 6 μm diameter disk highlighted in Figure 1d.

## 3. Results and Discussion

## 4. Conclusions and Summary

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Božović, I.; He, X.; Wu, J.; Bollinger, A.T. Dependence of the critical temperature in overdoped copper oxides on superfluid density. Nature
**2016**, 536, 309–311. [Google Scholar] [CrossRef] [PubMed] - Caviglia, A.D.; Gariglio, S.; Reyren, N.; Jaccard, D.; Schneider, T.; Gabay, M.; Thiel, S.; Hammerl, G.; Mannhart, J.; Triscone, J.M. Electric field control of the LaAlO
_{3}/SrTiO_{3}interface ground state. Nature**2008**, 456, 624–627. [Google Scholar] [CrossRef] [PubMed] - Wendin, G. Quantum information processing with superconducting circuits: A review. Rep. Prog. Phys.
**2017**, 80, 106001. [Google Scholar] [CrossRef] [PubMed] - Müller, C.; Cole, J.H.; Lisenfeld, J. Towards understanding two-level-systems in amorphous solids-Insights from quantum devices. arXiv, 2017; arXiv:1705.01108. [Google Scholar]
- Dauler, E.A.; Grein, M.E.; Kerman, A.J.; Marsili, F.; Miki, S.; Nam, S.W.; Shaw, M.D.; Terai, H.; Verma, V.B.; Yamashita, T. Review of superconducting nanowire single-photon detector system design options and demonstrated performance. Opt. Eng.
**2014**, 53, 081907. [Google Scholar] [CrossRef] [Green Version] - Badía, A.; Freyhardt, H.C. Meissner state properties of a superconducting disk in a non-uniform magnetic field. J. Appl. Phys.
**1998**, 83, 2681–2688. [Google Scholar] [CrossRef] - Kim, J.; Civale, L.; Nazaretski, E.; Haberkorn, N.; Ronning, F.; Sefat, A.S.; Tajima, T.; Moeckly, B.H.; Thompson, J.D.; Movshovich, R. Direct measurement of the magnetic penetration depth by magnetic force microscopy. Supercond. Sci. Technol.
**2012**, 25, 112001. [Google Scholar] [CrossRef] [Green Version] - Luan, L.; Auslaender, O.M.; Lippman, T.M.; Hicks, C.W.; Kalisky, B.; Chu, J.H.; Analytis, J.G.; Fisher, I.R.; Kirtley, J.R.; Moler, K.A. Local measurement of the penetration depth in the pnictide superconductor Ba(Fe
_{0.95}Co_{0.05})_{2}As_{2}. Phys. Rev. B**2010**, 81, 100501. [Google Scholar] [CrossRef] - Chang, A.M.; Hallen, H.D.; Hess, H.F.; Kao, H.L.; Kwo, J.; Sudbø, A.; Chang, T.Y. Scanning Hall-Probe Microscopy of a Vortex and Field Fluctuations in La
_{1.85}Sr_{0.15}CuO_{4}Films. Europhys. Lett.**1992**, 20, 645–650. [Google Scholar] [CrossRef] - Brisbois, J.; Raes, B.; de Vondel, J.V.; Moshchalkov, V.V.; Silhanek, A.V. Determination of the magnetic penetration depth in a superconducting Pb film. J. Appl. Phys.
**2014**, 115, 103906. [Google Scholar] [CrossRef] [Green Version] - Lin, H.T.; Wu, S.L.; Wang, J.W.; Chen, T.J.; Wang, M.J.; Chen, J.C.; Wu, M.K.; Chi, C.C. Determination of the London penetration depth of FeSe
_{0.3}Te_{0.7}thin films by scanning SQUID microscope. Supercond. Sci. Technol.**2015**, 28, 085006. [Google Scholar] [CrossRef] - Embon, L.; Anahory, Y.; Jelić, Ž.L.; Lachman, E.O.; Myasoedov, Y.; Huber, M.E.; Mikitik, G.P.; Silhanek, A.V.; Milošević, M.V.; Gurevich, A.; et al. Imaging of super-fast dynamics and flow instabilities of superconducting vortices. Nat. Commun.
**2017**, 8, 85. [Google Scholar] [CrossRef] [PubMed] - Vasyukov, D.; Anahory, Y.; Embon, L.; Halbertal, D.; Cuppens, J.; Neeman, L.; Finkler, A.; Segev, Y.; Myasoedov, Y.; Rappaport, M.L.; et al. A scanning superconducting quantum interference device with single electron spin sensitivity. Nat. Nanotechnol.
**2013**, 8, 639–644. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Rondin, L.; Tetienne, J.P.; Hingant, T.; Roch, J.F.; Maletinsky, P.; Jacques, V. Magnetometry with nitrogen-vacancy defects in diamond. Rep. Prog. Phys.
**2014**, 77, 056503. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Waxman, A.; Schlussel, Y.; Groswasser, D.; Acosta, V.M.; Bouchard, L.S.; Budker, D.; Folman, R. Diamond magnetometry of superconducting thin films. Phys. Rev. B
**2014**, 89, 054509. [Google Scholar] [CrossRef] [Green Version] - Alfasi, N.; Masis, S.; Shtempluck, O.; Kochetok, V.; Buks, E. Diamond magnetometry of Meissner currents in a superconducting film. AIP Adv.
**2016**, 6, 075311. [Google Scholar] [CrossRef] [Green Version] - Nusran, N.M.; Joshi, K.R.; Cho, K.; Tanatar, M.A.; Meier, W.R.; Bud’ko, S.L.; Canfield, P.C.; Liu, Y.; Lograsso, T.A.; Prozorov, R. Spatially-resolved study of the Meissner effect in superconductors using NV-centers-in-diamond optical magnetometry. New J. Phys.
**2018**, 20, 043010. [Google Scholar] [CrossRef] - Bouchard, L.S.; Acosta, V.M.; Bauch, E.; Budker, D. Detection of the Meissner effect with a diamond magnetometer. New J. Phys.
**2011**, 13, 025017. [Google Scholar] [CrossRef] [Green Version] - Håkansson, M.; Löfwander, T.; Fogelström, M. Spontaneously broken time-reversal symmetry in high-temperature superconductors. Nat. Phys.
**2015**, 11, 755–760. [Google Scholar] [CrossRef] [Green Version] - Thiel, L.; Rohner, D.; Ganzhorn, M.; Appel, P.; Neu, E.; Müller, B.; Kleiner, R.; Koelle, D.; Maletinsky, P. Quantitative nanoscale vortex imaging using a cryogenic quantum magnetometer. Nat. Nanotechnol.
**2016**, 11, 677–681. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Gruber, A.; Dräbenstedt, A.; Tietz, C.; Fleury, L.; Wrachtrup, J.; von Borczyskowski, C. Scanning Confocal Optical Microscopy and Magnetic Resonance on Single Defect Centers. Science
**1997**, 276, 2012–2014. [Google Scholar] [CrossRef] - Appel, P.; Neu, E.; Ganzhorn, M.; Barfuss, A.; Batzer, M.; Gratz, M.; Tschöpe, A.; Maletinsky, P. Fabrication of all diamond scanning probes for nanoscale magnetometry. Rev. Sci. Instrum.
**2016**, 87, 063703. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Dréau, A.; Lesik, M.; Rondin, L.; Spinicelli, P.; Arcizet, O.; Roch, J.F.; Jacques, V. Avoiding power broadening in optically detected magnetic resonance of single NV defects for enhanced dc magnetic field sensitivity. Phys. Rev. B
**2011**, 84, 195204. [Google Scholar] [CrossRef] - Wu, M.K.; Ashburn, J.R.; Torng, C.J.; Hor, P.H.; Meng, R.L.; Gao, L.; Huang, Z.J.; Wang, Y.Q.; Chu, C.W. Superconductivity at 93 K in a new mixed-phase Y-Ba-Cu-O compound system at ambient pressure. Phys. Rev. Lett.
**1987**, 58, 908–910. [Google Scholar] [CrossRef] [PubMed] - Scharinger, S.; Turad, M.; Stöhr, A.; Leca, V.; Goldobin, E.; Mints, R.G.; Koelle, D.; Kleiner, R. Magnetic field dependence of the critical current in YBa
_{2}Cu_{3}O_{7-δ}/Au/Nb ramp-zigzag Josephson junctions. Phys. Rev. B**2012**, 86, 144531. [Google Scholar] [CrossRef] - Tinkham, M. Introduction to Superconductivity; Dover Publications Inc.: Mineola, NY, USA, 2004. [Google Scholar]
- Doherty, M.W.; Manson, N.B.; Delaney, P.; Jelezko, F.; Wrachtrup, J.; Hollenberg, L.C. The nitrogen-vacancy colour centre in diamond. Phys. Rep.
**2013**, 528, 1–45. [Google Scholar] [CrossRef] [Green Version] - Roth, B.J.; Sepulveda, N.G.; Wikswo, J.P. Using a magnetometer to image a two-dimensional current distribution. J. Appl. Phys.
**1989**, 65, 361–372. [Google Scholar] [CrossRef] - Flokstra, M.G.; Stewart, R.; Satchell, N.; Burnell, G.; Luetkens, H.; Prokscha, T.; Suter, A.; Morenzoni, E.; Langridge, S.; Lee, S.L. Observation of Anomalous Meissner Screening in Cu/Nb and Cu/Nb/Co Thin Films. Phys. Rev. Lett.
**2018**, 120, 247001. [Google Scholar] [CrossRef] [PubMed] - Iniotakis, C.; Dahm, T.; Schopohl, N. Effect of Surface Andreev Bound States on the Bean-Livingston Barrier in d-Wave Superconductors. Phys. Rev. Lett.
**2008**, 100, 037002. [Google Scholar] [CrossRef] [PubMed] - Kresin, V.Z.; Ovchinnikov, Y.N.; Wolf, S.A. Inhomogeneous superconductivity and the “pseudogap” state of novel superconductors. Phys. Rep.
**2006**, 431, 231–259. [Google Scholar] [CrossRef] [Green Version] - Bar-Gill, N.; Pham, L.M.; Belthangady, C.; Le Sage, D.; Cappellaro, P.; Maze, J.R.; Lukin, M.D.; Yacoby, A.; Walsworth, R. Suppression of spin-bath dynamics for improved coherence of multi-spin-qubit systems. Nat. Commun.
**2012**, 3, 858. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Tetienne, J.P.; Hingant, T.; Rondin, L.; Cavaillès, A.; Mayer, L.; Dantelle, G.; Gacoin, T.; Wrachtrup, J.; Roch, J.F.; Jacques, V. Spin relaxometry of single nitrogen-vacancy defects in diamond nanocrystals for magnetic noise sensing. Phys. Rev. B
**2013**, 87, 235436. [Google Scholar] [CrossRef] - Schmid-Lorch, D.; Häberle, T.; Reinhard, F.; Zappe, A.; Slota, M.; Bogani, L.; Finkler, A.; Wrachtrup, J. Relaxometry and Dephasing Imaging of Superparamagnetic Magnetite Nanoparticles Using a Single Qubit. Nano Lett.
**2015**, 15, 4942–4947. [Google Scholar] [CrossRef] [PubMed] [Green Version]

**Figure 1.**(

**a**) Nitrogen-Vacancy (NV) centre ground state spin levels with zero-field frequency splitting ${D}_{0}$ and Zeeman splitting $2{\gamma}_{\mathrm{NV}}{B}_{\mathrm{NV}}$ (with ${\gamma}_{\mathrm{NV}}=28$ GHz/T and ${B}_{\mathrm{NV}}$ the magnetic field along the NV axis). As indicated by the red circles, the |${m}_{s}=0\rangle $ spin sub-level exhibits a higher fluorescence rate than |${m}_{s}=\pm 1\rangle $. (

**b**) Optically detected electron spin resonance (ESR) of a single scanning NV centrer. (

**c**) Schematic cross-section of the sample and the scanning probe hosting the NV centrer. The NV is stabilised at a distance ${z}_{\mathrm{NV}}$ from the superconductor surface using atomic-force distance control. (

**d**) Top view of the micro-structured YBCO sample. Blue (grey) represents regions of YBCO (substrate), respectively. The highlighted disk with 6 μm diameter is used here to study Meissner screening and a nearby four-point bridge to determine sample resistance. The projection of the NV centre axis onto the sample plane is denoted by ${\overrightarrow{e}}_{\mathrm{NV}}$.

**Figure 2.**(

**a**) Quantitative map of the magnetic field ${B}_{\mathrm{NV}}$, measured with the scanning NV spin above the YBCO disk in an external magnetic field of 1.7 mT applied perpendicular to the sample. Low magnetic fields are observed in the centre of the disk due to Meissner screening in the superconductor and maximal fields at the edges of the disk due to compression of the field lines expelled from the disk. The observed absence of rotational symmetry of ${B}_{\mathrm{NV}}$ around the disk centre is a result of the NV orientation being away from the sample normal. The data were acquired with a pixel dwell-time of 12 s resulting in a scan time of 8 h for the entire scan. The green readout laser was set to a power of 350 μW with a microwave power of ∼15 dBm sent into the cryostat. The dashed line indicates the position of the line scan in Figure 3. (

**b**) Calculation of ${B}_{\mathrm{NV}}$ using the numerical model described in the text, with $\lambda =250$ nm and ${z}_{\mathrm{NV}}=100$ nm as manually set input parameters.

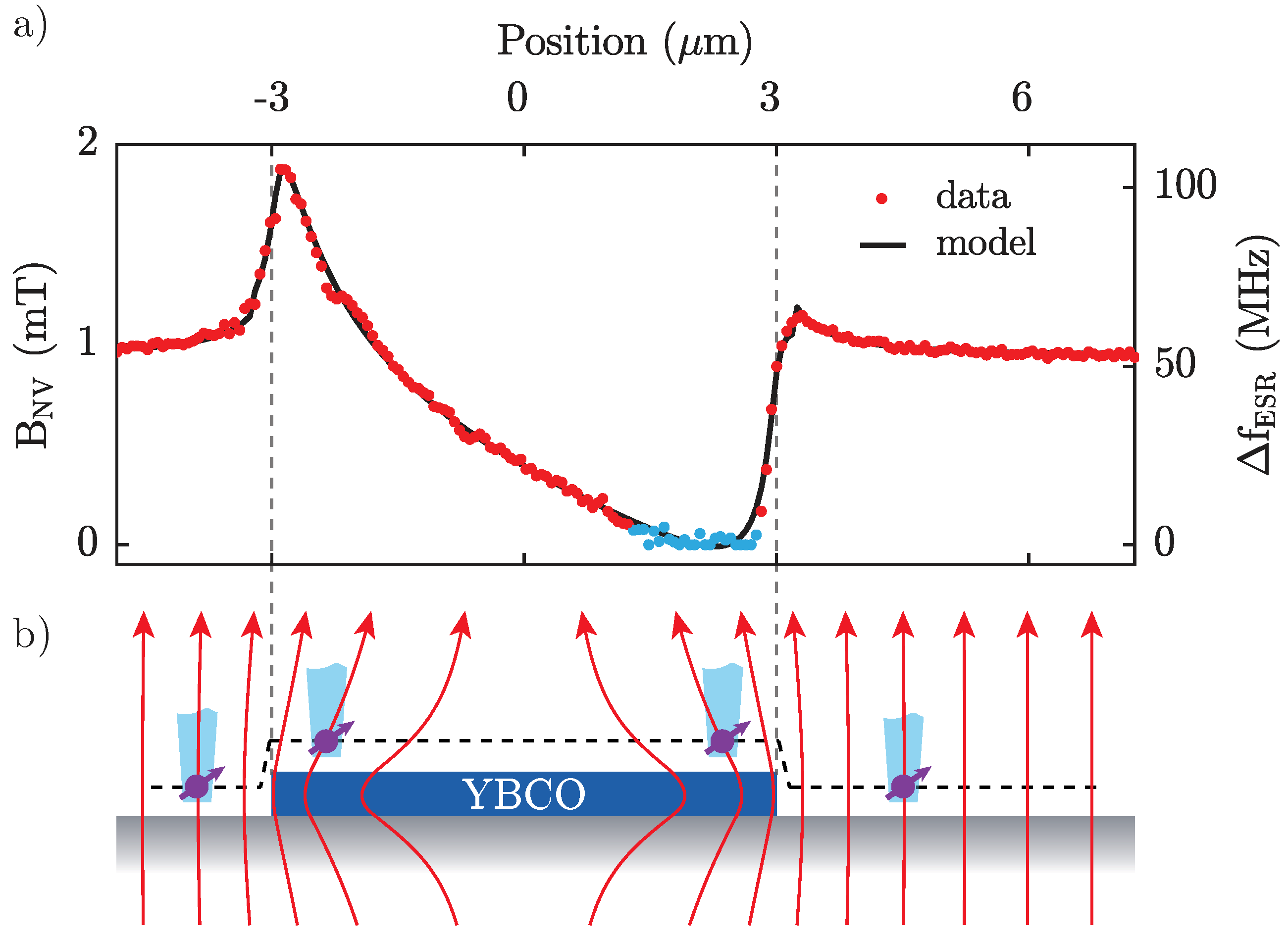

**Figure 3.**(

**a**) Measurement of ${B}_{\mathrm{NV}}$ across the YBCO disk along the trajectory indicated in Figure 2a. The black line in (

**a**) shows the fit with the numerical model which yields a penetration depth of $\lambda =249\pm 5$ nm. Data points marked in blue were excluded from the fit (see text). The data integration time was 24 s per point resulting in 80 min for the entire scan. A laser power of 470 W and a microwave power of ∼15 dBm were applied to the NV spin. (

**b**) Magnetic field lines around the YBCO disk in the Meissner state, along with a sketch of the experimental setup. The field lines together with the NV spin quantisation direction (purple arrows) highlighted for various positions illustrate the asymmetry in ${B}_{\mathrm{NV}}$ observed in the data. The dashed line illustrates the topography of the scan which is taken into account in the calculation of ${B}_{\mathrm{NV}}$.

**Figure 4.**(

**a**) Current density ${j}_{s}$ reconstructed by magnetic field reverse-propagation from the data in Figure 2a. The circular currents generate a magnetic field counteracting the external magnetic field. (

**b**) Azimuthal average of the current density ${j}_{s}\left(r\right)$ as a function of distance to the disk centre, along with the current density calculated in the numerical model.
