Real-Time Straight-Line Detection for XGA-Size Videos by Hough Transform with Parallelized Voting Procedures
Hiroshima University, 1-3-1 Higashi-Hiroshima, Hiroshima 739-8530, Japan
*
Authors to whom correspondence should be addressed.
Sensors 2017, 17(2), 270; https://doi.org/10.3390/s17020270
Received: 31 October 2016
/
Accepted: 20 January 2017
/
Published: 30 January 2017
(This article belongs to the Special Issue Video Analysis and Tracking Using State-of-the-Art Sensors)

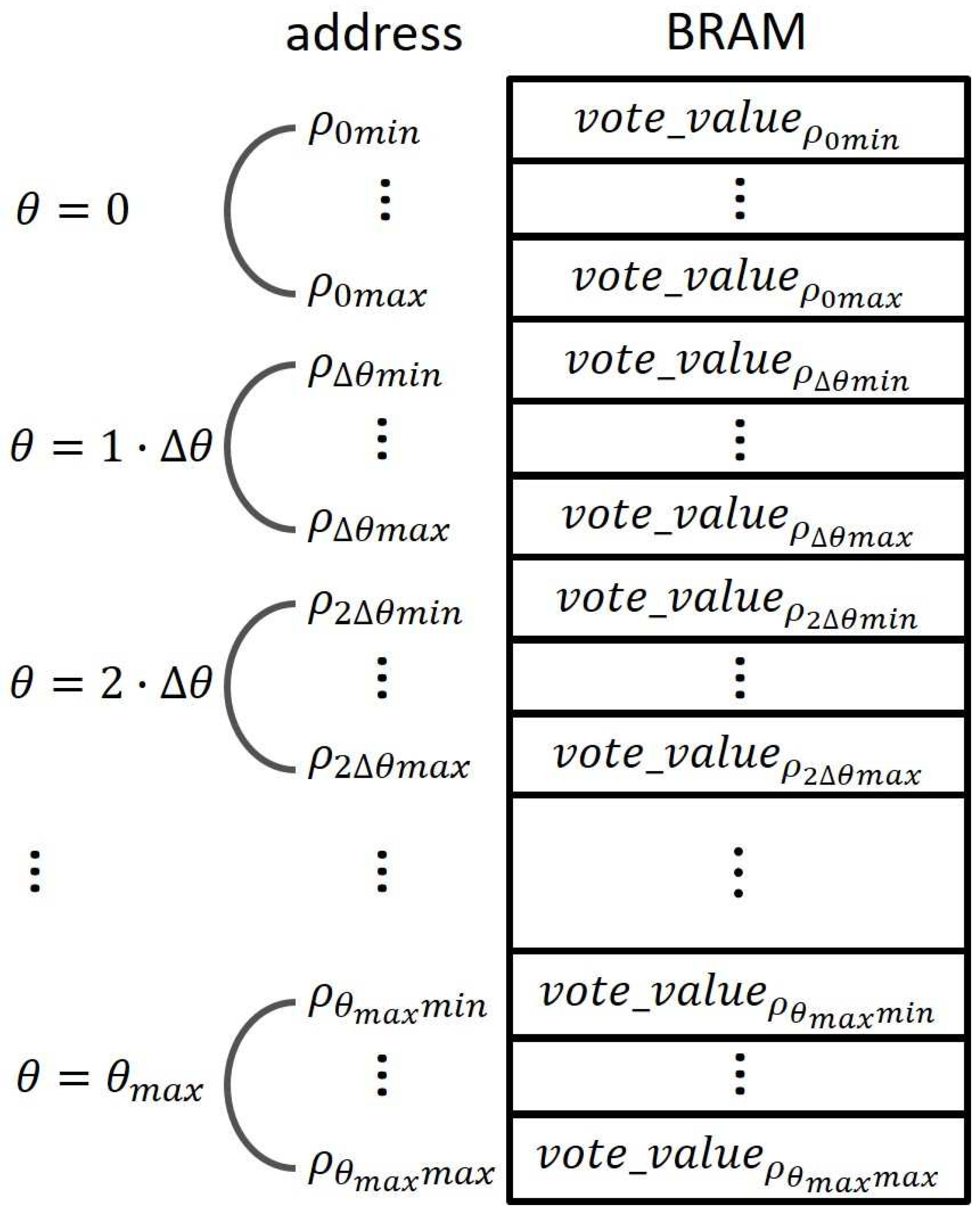

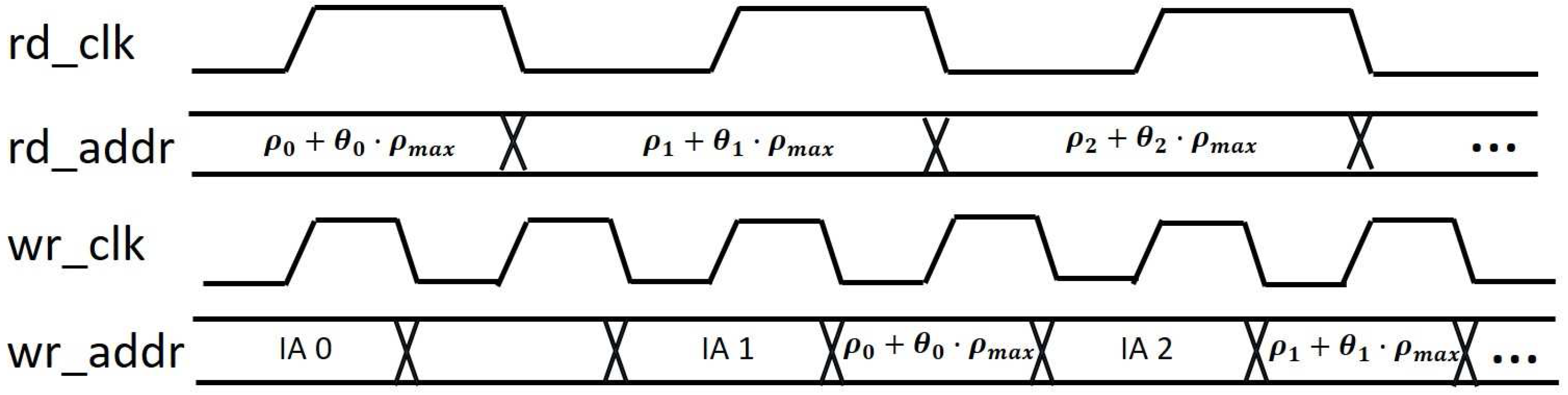

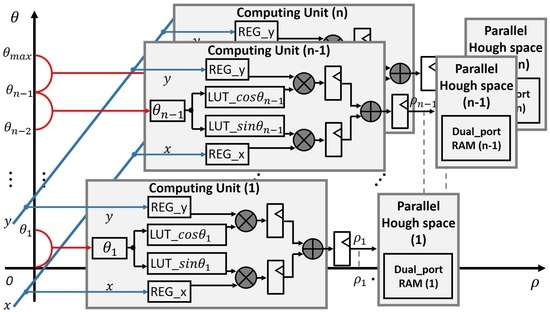

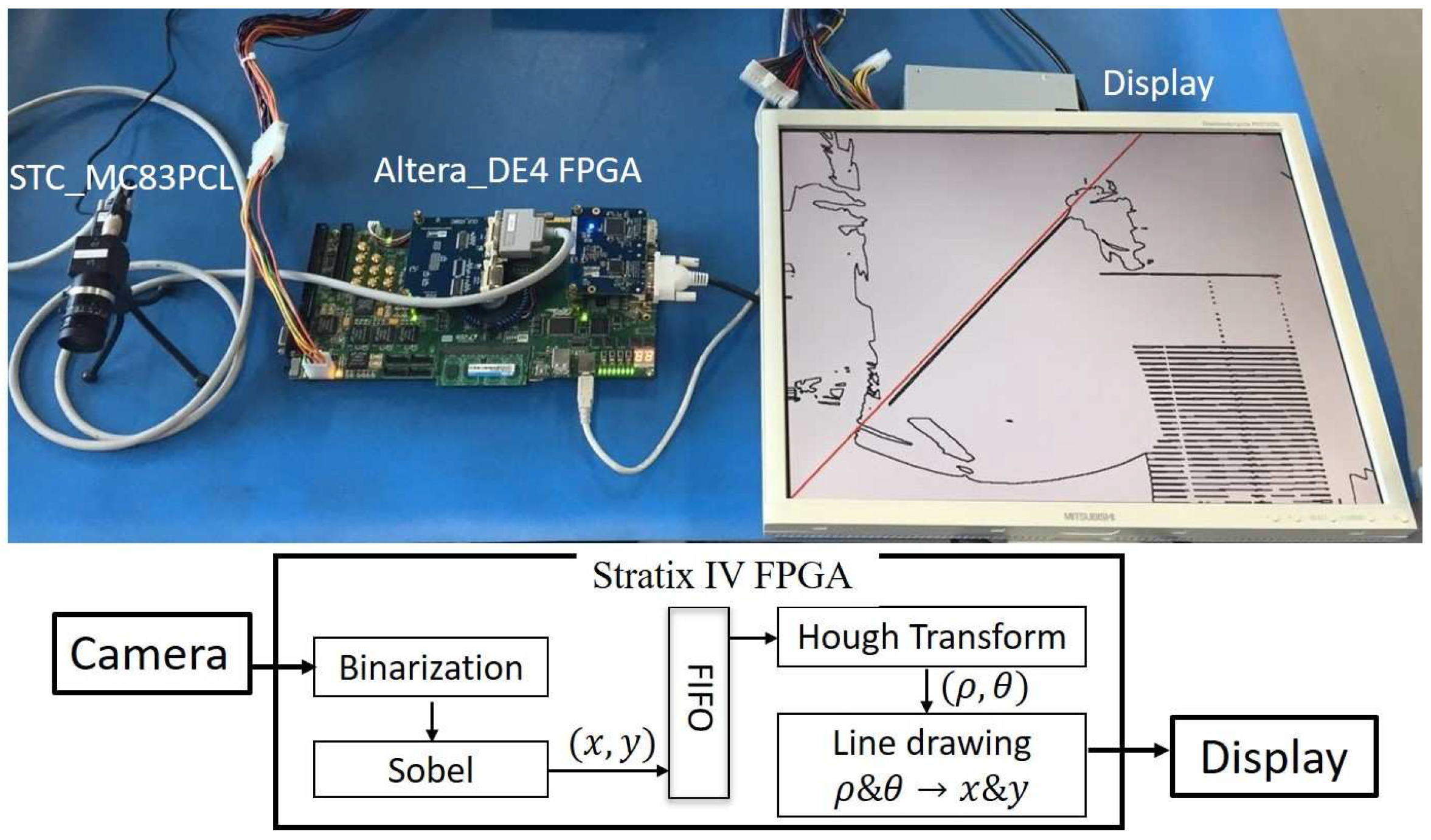

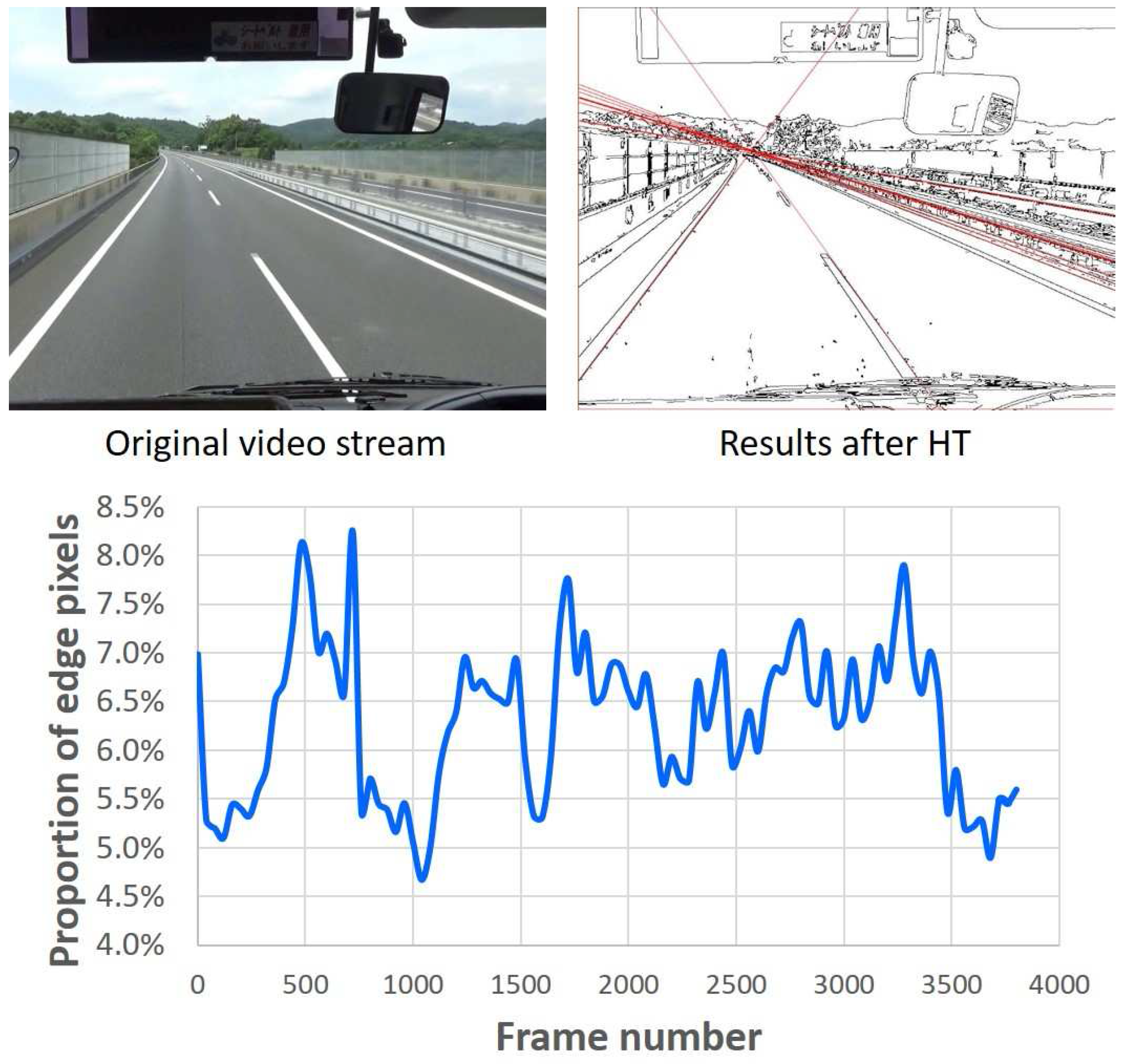

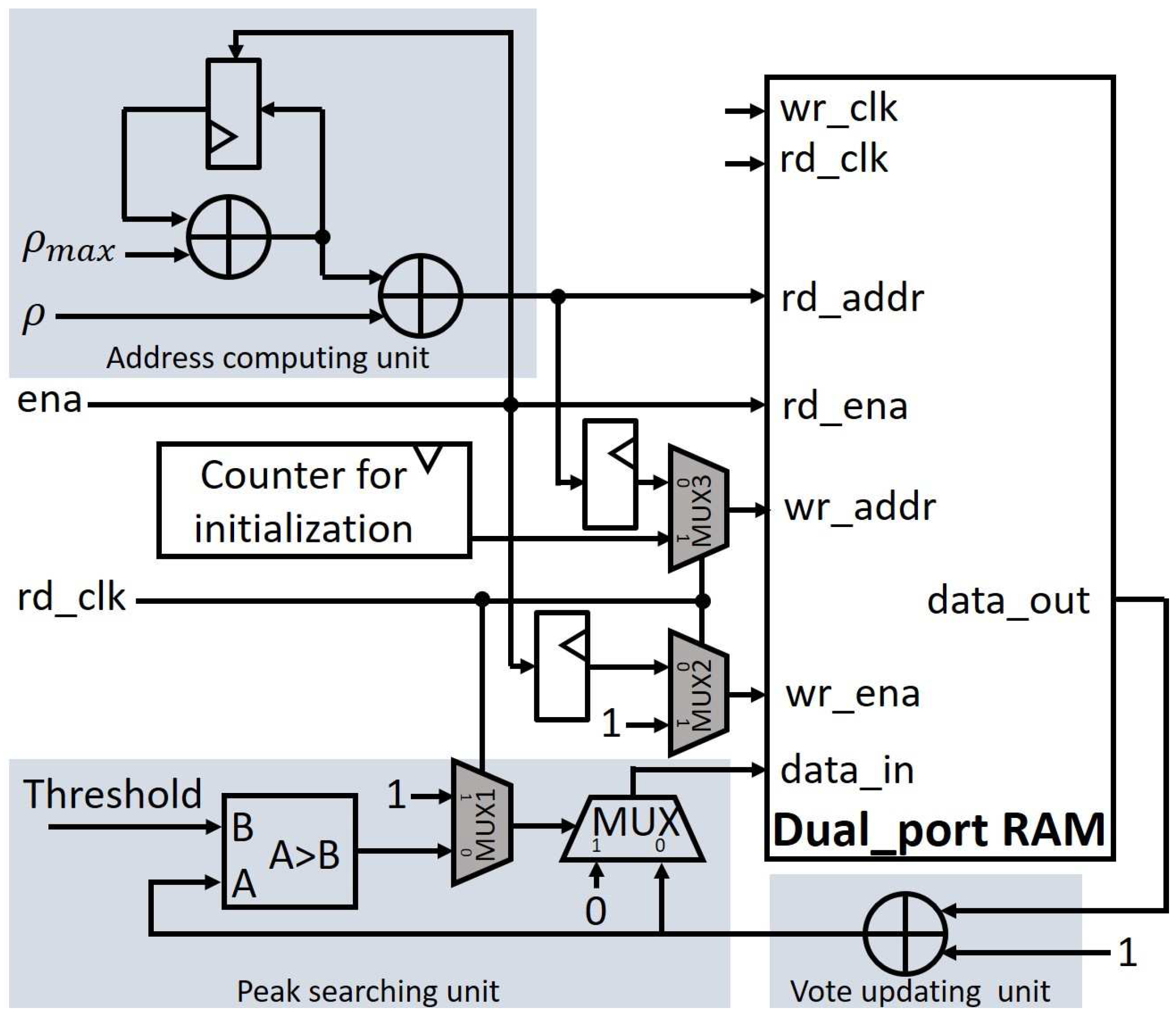

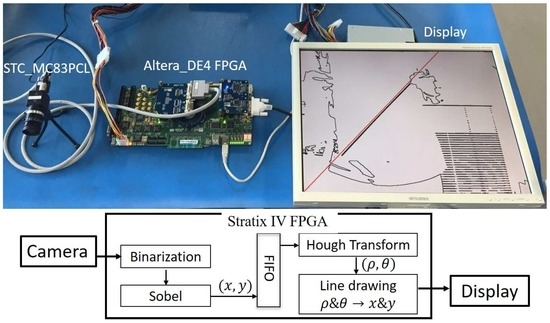

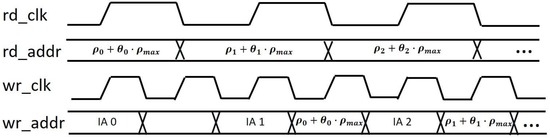

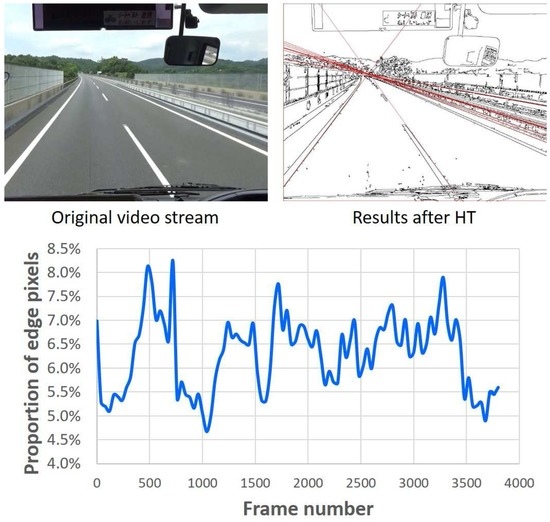

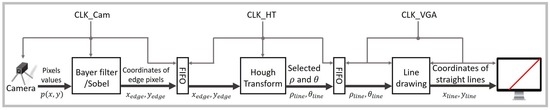

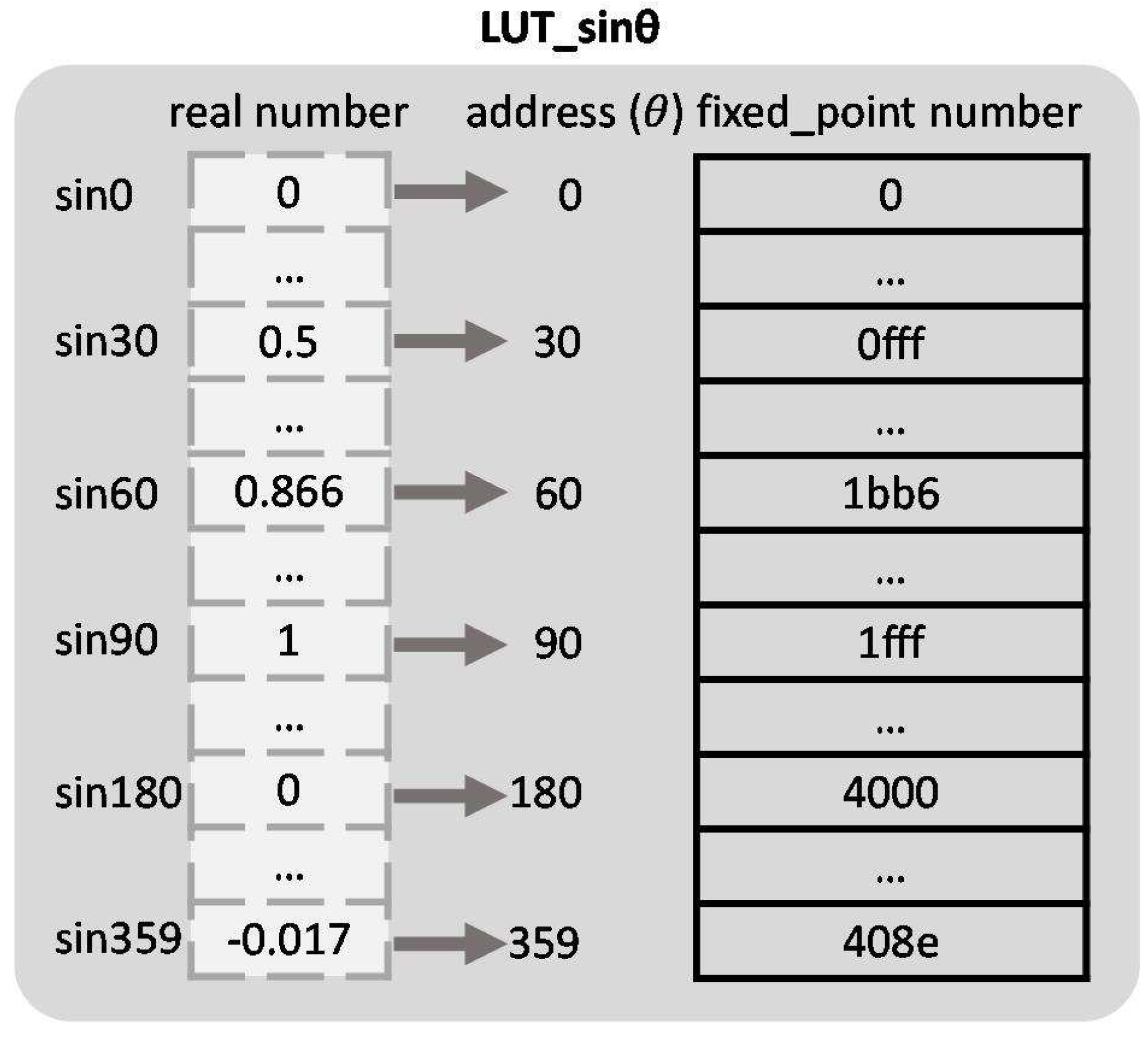

The Hough Transform (HT) is a method for extracting straight lines from an edge image. The main limitations of the HT for usage in actual applications are computation time and storage requirements. This paper reports a hardware architecture for HT implementation on a Field Programmable Gate Array (FPGA) with parallelized voting procedure. The 2-dimensional accumulator array, namely the Hough space in parametric form (ρ, θ), for computing the strength of each line by a voting mechanism is mapped on a 1-dimensional array with regular increments of θ. Then, this Hough space is divided into a number of parallel parts. The computation of (ρ, θ) for the edge pixels and the voting procedure for straight-line determination are therefore executable in parallel. In addition, a synchronized initialization for the Hough space further increases the speed of straight-line detection, so that XGA video processing becomes possible. The designed prototype system has been synthesized on a DE4 platform with a Stratix-IV FPGA device. In the application of road-lane detection, the average processing speed of this HT implementation is 5.4ms per XGA-frame at 200 MHz working frequency.
View Full-Text
Keywords:
Hough Transform; 1-dimensional Hough space; synchronized initialization; video-based straight lines detection
▼
