Marked Object Recognition Multitouch Screen Printed Touchpad for Interactive Applications

Center of Physics, University of Minho, 4710-057 Braga, Portugal
Centro ALGORITMI, University of Minho, Campus de Azurém, 4800-058 Guimarães, Portugal
Basque Center for Materials, Applications and Nanostructures (BCMaterials), 48160 Derio, Spain
engageLab, University of Minho, 4810-453 Guimarães, Portugal
Ikerbasque, Basque Foundation for Science, Maria Diaz de Haro 3, 48013 Bilbao, Spain
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Sensors 2017, 17(12), 2786;
Received: 29 September 2017 / Revised: 23 November 2017 / Accepted: 24 November 2017 / Published: 1 December 2017
(This article belongs to the Special Issue Tactile Sensors and Sensing)


The market for interactive platforms is rapidly growing, and touchscreens have been incorporated in an increasing number of devices. Thus, the area of smart objects and devices is strongly increasing by adding interactive touch and multimedia content, leading to new uses and capabilities. In this work, a flexible screen printed sensor matrix is fabricated based on silver ink in a polyethylene terephthalate (PET) substrate. Diamond shaped capacitive electrodes coupled with conventional capacitive reading electronics enables fabrication of a highly functional capacitive touchpad, and also allows for the identification of marked objects. For the latter, the capacitive signatures are identified by intersecting points and distances between them. Thus, this work demonstrates the applicability of a low cost method using royalty-free geometries and technologies for the development of flexible multitouch touchpads for the implementation of interactive and object recognition applications.

Graphical Abstract

1. Introduction

Innovations in the areas of materials development and production are strongly affecting information and communication technologies, with a strong impact in a large variety of human activities, ranging from industrial processes to entertainment. Ubiquitous computation paradigms, tangible user interfaces, and physical computation have been playing an increasing role in the human–computer interaction field, giving rise to a new perspective of the fusion between computer and materials [1].
Circuit printing methods and sensitive electronics are enabling materials and digital technology to work together as complementing parts of novel devices, allowing to present information in a large variety of forms, colours, and textures [2,3,4] and at the same time allowing for the development of a new generation of sensors and actuators.
In this context, the touch sensors market and applications have experienced a strong growth mostly based on capacitive technologies, since the iPhone® had its debut back in 2007 [5,6].
The projected capacitive technology can be implemented through two reading methods: the self-capacitance method and the mutual-capacitance. The self-capacitance consists in analyzing the capacitance of the electrodes to ground, when a finger is placed close together to the electrode. This allows the detection of just two fingers, though the hardware is of lower cost. On the other hand, the mutual-capacitance is a more robust method based on the mutual capacitance between two electrodes, where one electrode acts as a driver and the other one acts as a sensor. This method allows the detection of several touches, though it implies higher hardware costs. In both methods, the matrix of electrodes is scanned at high frequency [6,7]. Capacitive touch technology and market share is covered quite well in the literature [6,7].
Capacitive surfaces are composed by a dielectric substrate such as glass, acrylic, or polyester, and a coating based on a conductive transparent material. Indium tin oxide (ITO) conductive coating is the most used material in order to achieve the required conductivity and transparency, but the ITO deposition technology is not cost efficient [8,9], paving the way for replacement by printed technology solutions.
Together with transparent capacitive touch surfaces for big monitors, smartphones, and tablets, there is an increasing demand of opaque capacitive applications as well, such as keyboards [10], touchpads [11], position tracking surfaces [12,13], proximity buttons [14], and pen-shaped haptic devices [15].
Other applications that do not require transparency, such as humidity sensors, can also use capacitance variations to measure physical variables. These sensors can be produced by printing conductive ink over a polymer substrate [16,17].
The scientific and technological communities are addressing polymer-based sensors and sensor matrices for an increasing number of applications, as they are characterized by a cost-effective production based on additive manufacturing, being able to be produced on large scale [18,19]. Presenting further advantages, printing electronic components on plastic substrates offers devices the potential of being thin, foldable/rollable, lightweight, and wearable [20]. Thus, there is a growing trend on the development of polymers and polymer composites for the development of new devices [21,22,23].
In this work, we present a method for producing an opaque projected capacitive touch surface, based on the mutual-capacitance method, with the corresponding readout electronics and software data treatment. Using a screen printing method and silver ink, a Melinex® substrate, and an adhesive PET encapsulation, a functional capacitive surface was fabricated. This surface also incorporates an object recognition module and multi-functional touch input for smart books or smart surface applications, among others. These functionalities enhance multimedia interaction content for development purposes and demonstrate the important possibilities offered by polymer-based materials for a new generation of low-cost capacitive touchscreens.

2. Materials and Methods

2.1. Printed Geometry

Capacitive sensors may have many different geometries, each with advantages and disadvantages as it is explored in [24]. In the present work, the selected geometry is based on a diamond pattern, which is one of the most commonly used. In such a pattern, the capacitors are spread over two layers and arranged in a diamond-like structure [9,25,26]. The dielectric material is between rows and columns, thus providing a capacitance between each intersection, providing the possibility to determine the touch location when the capacitance changes with the approximation of any surface with enough conductivity, such as skin. Figure 1 shows the geometries used for the development of the touchpad with an area of 102 × 67 mm2, and the corresponding layers.
Every capacitive square in the electrodes has an area of 16 mm2 except on the borders, which are 8 mm2 triangles, and the corners with an area of 4 mm2. With this resolution, it is possible to detect human fingertip size conductive objects. A similar size matrix with higher resolution would require a capacitive controller with a higher number of channels than the one used in the present work. Lowering the resolution could still be suitable to detect larger conductive areas like hands or feet. For non-transparent printed touchpads, conductive silver ink is a suitable choice, as it can be simply cured in a normal oven at a constant temperature, without temperature curve requirements or special treatments. In this work, the selected silver ink was HPS-21LV from Novacentrix® (Austin, TX, USA), which was cured at 120 °C in a P Selecta oven model 2005165 for 30 min. The used substrate was Melinex® (Lohmann Technologies UK Ltd., Milton Keynes, UK), which is a PET sheet with an ink adhesion treatment for improved printing process.

2.2. Capacitive Detection Circuit

The capacitive variation between the intersections on the matrix can be detected by amplitude [27,28] or frequency [29,30] analysis, methods that can be used to detect single point-to-point variations. However, for a matrix of capacitive sensors, a multiplexing method for rows and columns would be needed in order to sample each intersection. Using a commercial controller, this requirement is bypassed with the high number of reading channels. The capacitive controller used was the IQS550 from Azoteq Ltd. (Paarl, South Africa). According to manufacturer instructions, the complete interface circuit was designed as presented in Figure 2b, to obtain the touch locations of the trackpad. The digital data provided by the controller is sent through a firmware communication via I2C (Inter-Integrated Circuit) to the microcontroller dsPIC33FJ128GP804, from Microchip Technology Inc. (Chandler, ZA, USA).
In order to transmit the data from the IQS550, another Printed Circuit Board (PCB) was built to serve as interface to a USB terminal (Figure 2a). For a direct USB communication, a FT232RL from Future Technology Devices International Ltd. (Glasgow, UK) was used, trading data with the microcontroller through a UART (Universal Asynchronous Receiver/Transmitter) connection.

2.3. Touchpad Fabrication

The printing method was performed by screen printing with a polyester mesh with 62/64 wires. First, the matrix was printed in one side of the polymer (top print) and dried out at room temperature for 6 h. Then, the bottom side of the polymer was printed with the aid of aligning points. The completed matrix was cured then for 30 min at 120 °C in order to evaporate the solvent. The top layer print was not immediately cured in order to avoid mechanical shrinkage or deformation of the substrate, which would highly affect the alignment when printing the bottom layer pattern. Further, an Amphenol FCI connector was used for the electrical connection, and an adhesive PET layer was applied on each side of the film to protect the circuits from corrosion and oxidation, as well as to serve as an isolating layer between the printed circuit and the fingers. The FCI connector to the printed matrix contacts were fabricated by pressure sealing. The connectors perforate the PET substrate and keep a tight connection between the flexible silver traces and rigid tin. The complete system process is summarized in the diagram of the Figure 3a. The matrix was then connected to the capacitive controller board (schematic representation in Figure 2b). The final printed touchpad connected to the PCB is shown in Figure 3b. It is worth noting that the final surface is a ~220 µm thick plastic sheet, so it is a flexible structure to fit in any rigid plane or rounded surface.

3. Results and Discussion

The system performance was first evaluated in the application provided by Azoteq with a CT210 programmer. Thus, it was possible to obtain all the applied signal delays in each intersection and calibrate the sensitivity, approximation threshold, and balance of the capacitive intersections. A header file is generated in order to apply at the IQS550 at system start. The matrix calibration was achieved through a process of trial and error in order to get touch stability and precision.
The surface displayed a suitable response to finger touch, though it was greatly improved with a glass overlay when fixed to a table in a flat disposition (Figure 4a). Removing the glass and folding the surface while fixing to the edge of a table still allowed the detection of the finger touch, demonstrating the flexibility of the touchpad (Figure 4b). Applying a covering glass as an extra overlay gives the system improved mechanical and electrical stability, as fingers cannot reach too close to the capacitors’ dielectric film and will not saturate the sensors as easily. It will also provide more steadiness to the contacts, as the terminals are the most sensitive part of the system in terms of mechanical stability. It worth noting that the use of a glass overlay requires a new software calibration, as the overall physical properties of the sensors are also changed. Any vibration, stretch, or deviation in the contact position can lead to variations of the electrical resistance of the rows and columns, affecting the signal response and unbalancing the capacitances along the matrix. Therefore, special attention must be paid to these connections. Figure 4c shows the capacitance distribution of the matrix with glass overlay with and without touch, based on the injected signal and circuit electrical resistance, revealing a fair distribution among the most part of the 150 channels with small deviations that are handled by the calibration software. The response time is 100 Hz for the 150 channels, though it decreases with every extra touch (a maximum of 5 going as low as 88 Hz). A fair capacitance drift of 40 pF between the extremes of the spectrum is observed, easily calibrated by software. A 30~50 pF variation can be found in the strongest points of the touch, providing good sensitivity for the controller to detect.
A C# application was developed in order to acquire the touch coordinates, using more than one touch position, such as touch identification and touch intensity. The IQS550 provided with 10 rows × 15 columns, a resolution of 2304 × 3584 points, converting into ~36 points/mm, allowing high precision and even the interpretation of the touch intensity, which is measured by the capacitive area triggered by finger expansion, as strength pressure (see Supplementary Materials). As for the reading process, the IC controller applies a high frequency signal in each column while grounding all the other columns (isolating a particular group of points between that column and all the rows simultaneously), then it grounds all other rows except one and measures the signal frequency and checks for delay. The method continues with the next row until the last, and then restarts with another column. The scanning frequency is 100 Hz.
Together with the readout and display software, a module was developed to identify marked objects with the aid of a specific number of points and distance between them that acted as a conductive signature for each object. Thus, a different pattern identified each object, allowing its recognition when in contact with the touchpad. The objects were marked using silver tape as a conductive material with small elevations (fingertip size) in order for the capacitive controller to identify each touching place (Figure 5a).
The application is comprised of a graphical interface in order to select, configure, and connect to the serial COM (communication port) port in order to stream the data of the touches. The system control process is represented in Figure 5b. It is shown that the system can configure the display format, touch drawing refresh rate, number of displayed points, and enable object detection in relation to the different patterns to be recognized, among others.
Two different objects were used as demonstrator (see Supplementary Materials): a cup silver-coated with tape, a base of three points linked as a triangle, and a flat object with two identification points. Touching in the conductive tape of the object closes the circuit to the ground through the human body, allowing the objects to be identifiable through the touching points, as the distances between points fall within a certain range of tolerance, with an error of ~7%. This method is implemented with real-time calculations, as in [13] and it is valid for 2D objects. It is worth noting that the main issue is not the identification of the objects by the touchpad, but to identify the different shapes (patch patterns) by the software.
These results demonstrate the versatility of the printed technologies in the replacement of the traditional rigid and flat interfaces with the user. Furthermore, as long as it is possible to keep contacts well fixed to the rigid parts, there is no commitment with a regular plane surface in a device. This means that we can place the touch panel on a curved surface, but after that it cannot be moved without recalibration to another type of surface.

4. Conclusions

The present work reports on the fabrication and performance of a touch and object detection printed capacitive matrix. The printed matrix was fabricated with a PET substrate and two printed silver layer patterns, one on each side. Adhesive PET was applied on both sides over the printed layers for protection against touches and oxidation. A commercial capacitive controller IC was used in order to convert the capacitance in each intersection to digital values, followed by communication to a microcontroller, which treats the data to be sent to a computer software application. The resolution of 36 points/mm obtained from the digital controller connected to the printed matrix enables handwriting applications, touch buttons, gesture detection, and hovering direction sensors. The inexpensive nature of the materials/quantities required allows the fabrication of larger surfaces (as large as the printed pattern electrical resistance allows). However, it is important to pay attention to the electrical noise introduced by mechanical deformations in the PCB connector through proximity, which can be greatly improved by using flexible ribbon cable connectors.
Printing enables the application in any object and any plain or curved surface, such as in flexible paper sheets of a smart book, curved control touch panels in machines, robots or tubes to control flow/pressure, among others. Finally, its use for object interaction by capacitive pattern recognition has been demonstrated, relying on the number of points and distance between them with an error of ~7%. A good alignment between top and bottom patterns is required to obtain suitable response times and precision. The number of potential object signatures will strongly increase with surface size and number of points, allowing rich multimedia environments. Thus, this work demonstrates the suitability of printed technologies and polymer-based material for developing low-cost smart objects/surfaces for flexible multimedia applications.

Supplementary Materials

The following are available online at


This project has been supported by FCT—Fundação para a Ciência e Tecnologia within project scopes UID/FIS/04650/2013 and PTDC/EEI-SII/5582/2014, and grants SFRH/BPD/97739/2013 (VC), SFRH/BD/110622/2015 (SG), SFRH/BD/131729/2017 (NP), SFRH/BDE/103649/2014 (JN), by POCH—Programa Operacional Capital Humano and by EU—European Union. The authors also acknowledge funding by the Spanish Ministry of Economy and Competitiveness (MINECO) through the project MAT2016-76039-C4-3-R (AEI/FEDER, UE), including the FEDER financial support, and from the Basque Government Industry Department under the ELKARTEK program. The authors thank Nanopaint, Lda. for providing high quality inks.

Author Contributions

J.S.N. and N.C. selected the materials, and developed the printed patterns and the interface software; S.G., N.C. and N.P. developed and optimized the electronic interfaces; J.S.N., N.C., S.G. and N.P. performed experimental tests; V.C. and S.L.-M. analyzed and discussed the data, and conceived and designed the experiments. All authors wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Ishii, H.; Lakatos, D.; Bonanni, L.; Labrune, J.B. Radical atoms: Beyond tangible bits, toward transformable materials. Interactions 2012, 19, 38–51. [Google Scholar] [CrossRef]
  2. Coelho, M.; Zigelbaum, J. Shape-changing interfaces. Pers. Ubiquitous Comput. 2011, 15, 161–173. [Google Scholar] [CrossRef]
  3. Coelho, M.; Maes, P. Shutters: A permeable surface for environmental control and communication. In Proceedings of the 3rd International Conference on Tangible and Embedded Interaction, Cambridge, UK, 16–18 February 2009; ACM: New York, NY, USA. [Google Scholar]
  4. Coelho, M.; Zigelbaum, J.; Kopin, J. Six-forty by four-eighty: The post-industrial design of computational materials. In Proceedings of the Fifth International Conference on Tangible, Embedded, And Embodied Interaction, Funchal, Portugal, 22–26 January 2011; ACM: New York, NY, USA. [Google Scholar]
  5. Luo, C.; Borkar, M.A.; Redfern, A.J.; McClellan, J.H. Compressive sensing for sparse touch detection on capacitive touch screens. IEEE J. Emerg. Sel. Top. Circuits Syst. 2012, 2, 639–648. [Google Scholar] [CrossRef]
  6. Walker, G. A review of technologies for sensing contact location on the surface of a display. J. Soc. Inf. Disp. 2012, 20, 413–440. [Google Scholar] [CrossRef]
  7. Barrett, G.; Omote, R. Projected-capacitive touch technology. Inf. Disp. 2010, 26, 16–21. [Google Scholar]
  8. Kim, W.; Oh, H.; Kwak, Y.; Park, K.; Ju, B.K.; Kim, K. Development of a Carbon Nanotube-Based Touchscreen Capable of Multi-Touch and Multi-Force Sensing. Sensors 2015, 15, 28732–28741. [Google Scholar] [CrossRef] [PubMed]
  9. Ma, S.; Ribeiro, F.; Powell, K.; Lutian, J.; Møller, C.; Large, T.; Holbery, J. Fabrication of Novel Transparent Touch Sensing Device via Drop-on-Demand Inkjet Printing Technique. ACS Appl. Mater. Interfaces 2015, 7, 21628–21633. [Google Scholar] [CrossRef] [PubMed]
  10. Tung, Y.-C.; Cheng, T.Y.; Yu, N.H.; Chen, M.Y. FlickBoard: Enabling trackpad interaction with automatic mode switching on a capacitive-sensing keyboard. In Proceedings of the Adjunct Publication of the 27th Annual ACM Symposium on User Interface Software and Technology, Honolulu, HI, USA, 5–8 October 2014; ACM: New York, NY, USA. [Google Scholar]
  11. Choi, S.; Han, J.; Kim, S.; Heo, S.; Lee, G. ThickPad: A hover-tracking touchpad for a laptop. In Proceedings of the 24th Annual ACM Symposium Adjunct on User Interface Software and Technology, Santa Barbara, CA, USA, 16–19 October 2011; ACM: New York, NY, USA. [Google Scholar]
  12. Valtonen, M.; Vuorela, T.; Kaila, L.; Vanhala, J. Capacitive indoor positioning and contact sensing for activity recognition in smart homes. J. Ambient Intell. Smart Environ. 2012, 4, 305–334. [Google Scholar]
  13. Grosse-Puppendahl, T.; Braun, A.; Kamieth, F.; Kuijper, A. Swiss-cheese extended: An object recognition method for ubiquitous interfaces based on capacitive proximity sensing. In Proceedings of the SIGCHI Conference on Human Factors in Computing Systems, Paris, France, 27 April–2 May 2013; ACM: New York, NY, USA. [Google Scholar]
  14. Kaneswaran, K.; Arshak, K. Capacitive Interfaces for Navigation of Electric Powered Wheelchairs. In 13th International Conference on Biomedical Engineering; Springer: Berlin/Heidelberg, Germany, 2009. [Google Scholar]
  15. Tian, L.; Song, A.; Chen, D. Image-based haptic display via a novel pen-shaped haptic device on touch screens. Multimedia Tools Appl. 2017, 76, 14969–14992. [Google Scholar] [CrossRef]
  16. Rivadeneyra, A.; Salmerón, J.F.; Palma, A.J.; López-Villanueva, J.A.; Agudo-Acemel, M.; Capitan-Vallvey, L.F. Comparative study of printed capacitive sensors. In Proceedings of the 2015 IEEE 10th Spanish Conference on Electron Devices (CDE), Madrid, Spain, 11–13 February 2015. [Google Scholar]
  17. Molina-Lopez, F.; Briand, D.; De Rooij, N. All additive inkjet printed humidity sensors on plastic substrate. Sens. Actuators B Chem. 2012, 166, 212–222. [Google Scholar] [CrossRef]
  18. Song, A.; Han, Y.; Hu, H.; Li, J. A novel texture sensor for fabric texture measurement and classification. IEEE Trans. Instrum. Meas. 2014, 63, 1739–1747. [Google Scholar] [CrossRef]
  19. Reis, S.; Castro, N.; Silva, M.P.; Correia, V.; Rocha, J.G.; Martins, P.; Lanceros-Mendez, S. Fabrication and Characterization of High-Performance Polymer-Based Magnetoelectric DC Magnetic Field Sensors Devices. IEEE Trans. Ind. Electron. 2017, 64, 4928–4934. [Google Scholar] [CrossRef]
  20. Briand, D.; Oprea, A.; Courbat, J.; Bârsan, N. Making environmental sensors on plastic foil. Mater. Today 2011, 14, 416–423. [Google Scholar] [CrossRef]
  21. Reis, S.; Silva, M.P.; Castro, N.; Correia, V.; Gutierrez, J.; Lasheras, A.; Lanceros-Mendez, S.; Martins, P. Optimized anisotropic magnetoelectric response of Fe61.6Co16.4Si10.8B11.2/PVDF/Fe61.6Co16.4Si10.8B11.2 laminates for AC/DC magnetic field sensing. Smart Mater. Struct. 2016, 25, 055050. [Google Scholar] [CrossRef]
  22. Reis, S.; Silva, M.P.; Castro, N.; Correia, V.; Martins, P.; Lasheras, A.; Gutierrez, J.; Barandiarán, J.M.; Rocha, J.G.; Lanceros-Mendez, S. Characterization of Metglas/poly (vinylidene fluoride)/Metglas magnetoelectric laminates for AC/DC magnetic sensor applications. Mater. Des. 2016, 92, 906–910. [Google Scholar] [CrossRef]
  23. Martins, P.; Lopes, A.; Lanceros-Mendez, S. Electroactive phases of poly (vinylidene fluoride): Determination, processing and applications. Prog. Polym. Sci. 2014, 39, 683–706. [Google Scholar] [CrossRef]
  24. Akhtar, H.; Kakarala, R. A methodology for evaluating accuracy of capacitive touch sensing grid patterns. J. Disp. Technol. 2014, 10, 672–682. [Google Scholar] [CrossRef]
  25. Bouman, C.A.; Kakarala, R. Capacitive touch sensing: Signal and image processing algorithms. 2011, 7873, 78730H. [Google Scholar]
  26. Hwang, T.-H.; Cui, W.H.; Yang, I.S.; Kwon, O.K. A highly area-efficient controller for capacitive touch screen panel systems. IEEE Trans. Consum. Electron. 2010, 56, 1115–1122. [Google Scholar] [CrossRef]
  27. Marioli, D.; Sardini, E.; Taroni, A. Measurement of small capacitance variations. In Proceedings of the IEEE CPEM’90 Digest. Conference on Precision Electromagnetic Measurements, Ottawa, ON, Canada, 11–14 June 1990. [Google Scholar]
  28. Baglio, S.; Castorina, S.; Ganci, G.; Savalli, N. A high sensitivity conditioning circuit for capacitive sensors including stray effects compensation and dummy sensors approach. In Proceedings of the 21st IEEE Instrumentation and Measurement Technology Conference (IMTC), Como, Italy, 18–20 May 2004. [Google Scholar]
  29. Pintér, Á.; Dénes, I. Interface circuit for measuring small capacitance changes in sensor networks. IET Sci. Meas. Technol. IET 2015, 9, 570–578. [Google Scholar] [CrossRef]
  30. Yang, C.; Mason, A.; Xi, J.; Zhong, P. Configurable Hardware-Efficient Interface Circuit for Multi-Sensor Microsystems. In Proceedings of the 5th IEEE Conference on Sensors, Daegu, Korea, 22–25 October 2006. [Google Scholar]

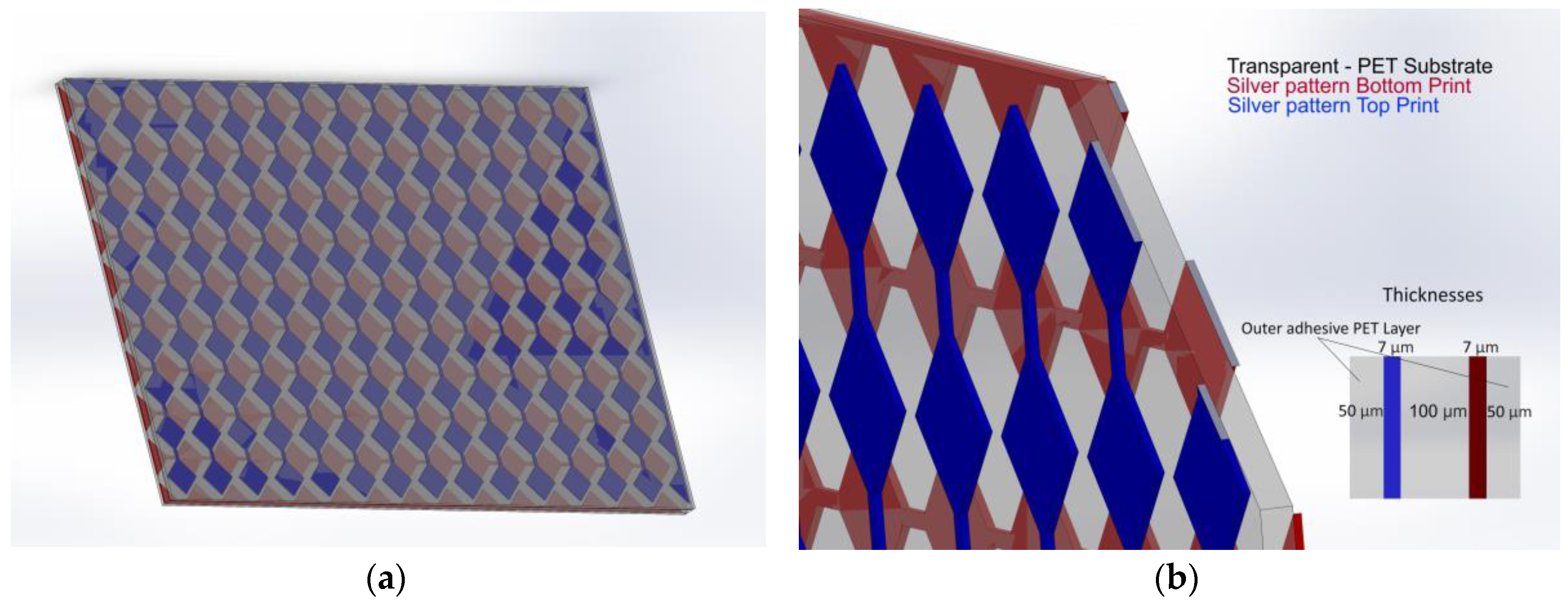

Figure 1. Illustration of the capacitive matrix silver electrodes geometry: (a) diamond electrodes pattern front view; (b) diamond electrodes pattern perspective view.
Figure 1. Illustration of the capacitive matrix silver electrodes geometry: (a) diamond electrodes pattern front view; (b) diamond electrodes pattern perspective view.
Sensors 17 02786 g001

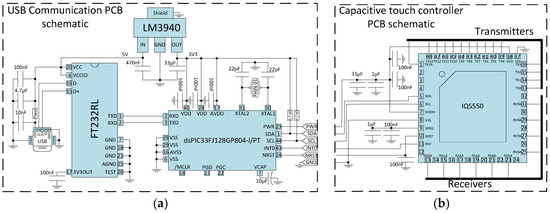

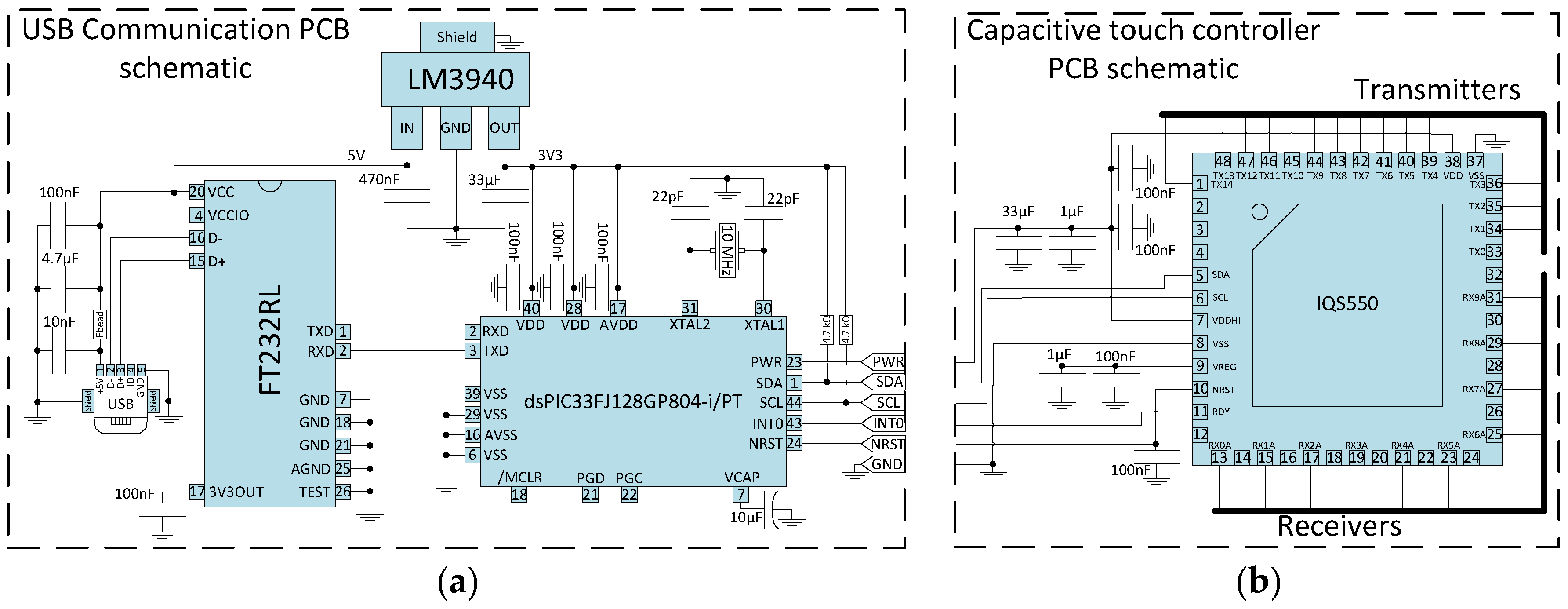

Figure 2. Schematic representation of the hardware: Communication PCB as I2C-USB converter (a) and capacitive controller instrumentation circuit (b).
Figure 2. Schematic representation of the hardware: Communication PCB as I2C-USB converter (a) and capacitive controller instrumentation circuit (b).
Sensors 17 02786 g002

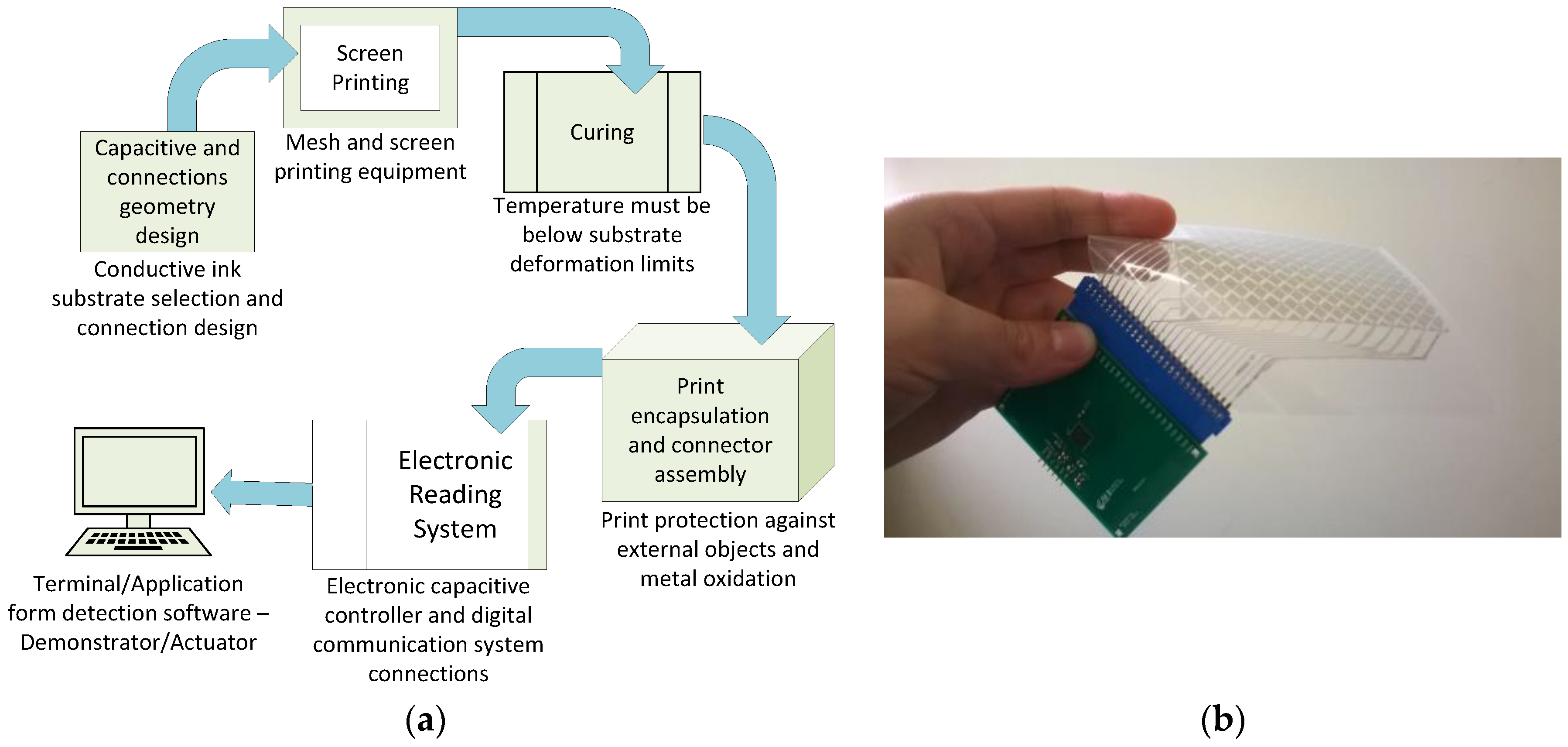

Figure 3. Process fabrication flow diagram (a) and printed capacitive matrix connected to the PCB with the capacitive touch controller IC (b).
Figure 3. Process fabrication flow diagram (a) and printed capacitive matrix connected to the PCB with the capacitive touch controller IC (b).
Sensors 17 02786 g003

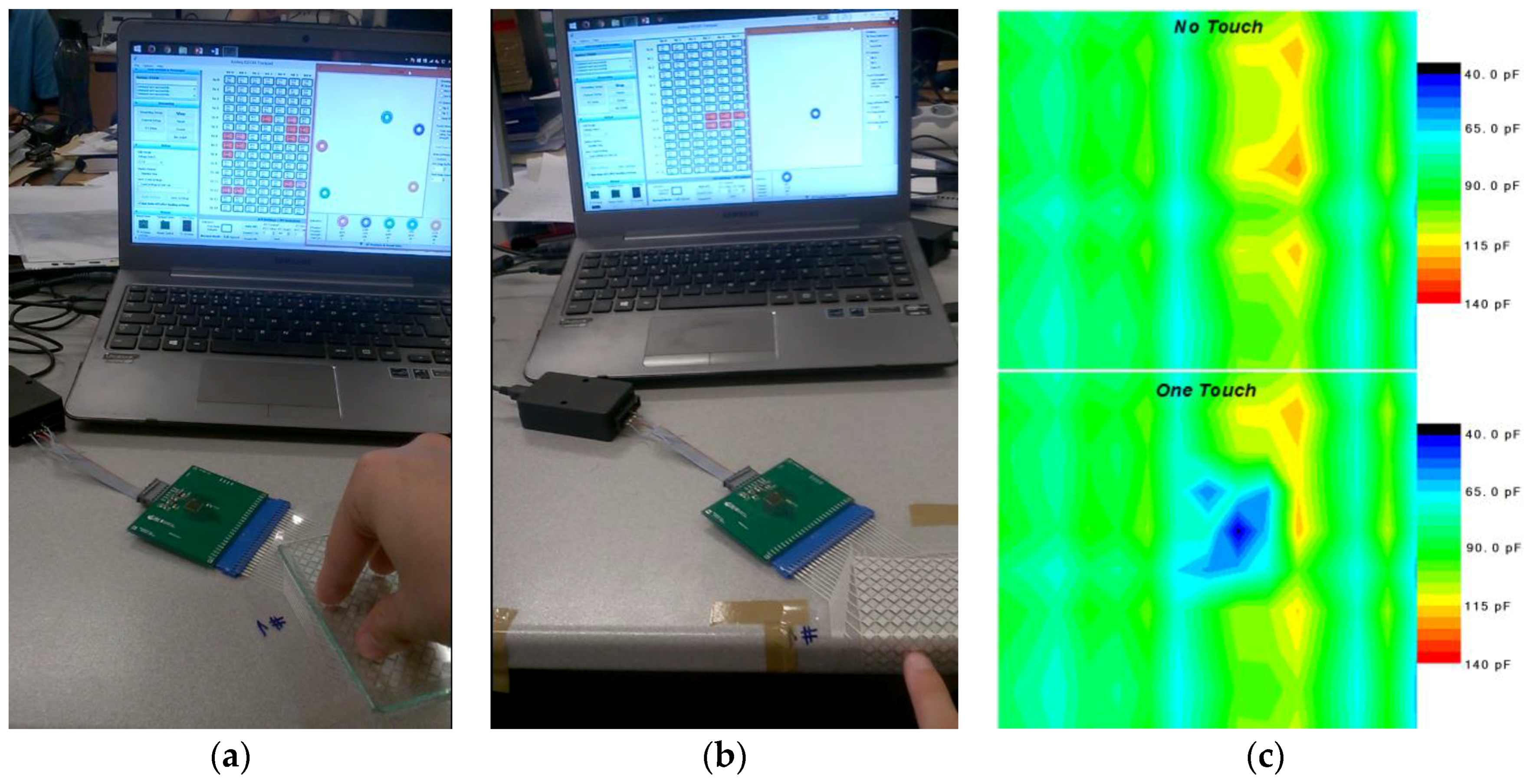

Figure 4. Test were performed with the CT210 programmer for the maximum of possible touches using a 5 mm thick glass as an overlay (a), folded surface finger detection (b) and capacitive distribution with glass overlay of the matrix with and without touch (c).
Figure 4. Test were performed with the CT210 programmer for the maximum of possible touches using a 5 mm thick glass as an overlay (a), folded surface finger detection (b) and capacitive distribution with glass overlay of the matrix with and without touch (c).
Sensors 17 02786 g004

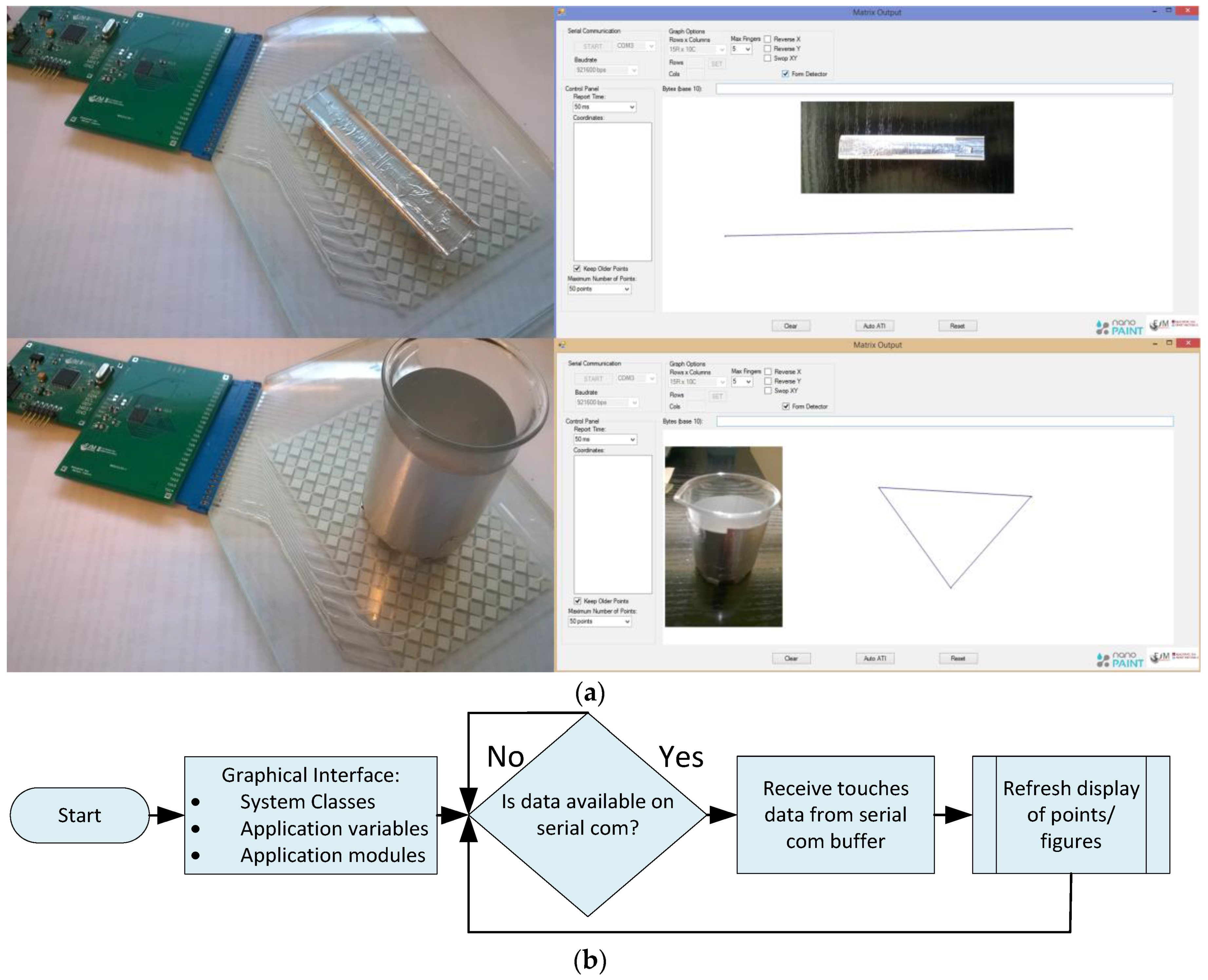

Figure 5. (a) Marked objects can be detected by software with the aid of a specific number of points and distances between then in a C# environment; (b) System process and software processing main algorithm.
