Open AccessArticle
Sensors 2016, 16(9), 1495;

Surface Subsidence Analysis by Multi-Temporal InSAR and GRACE: A Case Study in Beijing

1,2,3,* , 1,3
School of Geodesy and Geomatics, Wuhan University, Wuhan 430079, China
Key Laboratory of Precise Engineering and Industry Surveying of National Administration of Surveying, Mapping and Geoinformation, Wuhan University, Wuhan 430079, China
Guangxi Key Laboratory of Spatial Information and Geomatics, Guilin University of Technology, Guilin 541004, China
Author to whom correspondence should be addressed.
Academic Editor: Scott Palo
Received: 17 May 2016 / Revised: 7 September 2016 / Accepted: 12 September 2016 / Published: 14 September 2016
Full-Text   |   PDF [9407 KB, uploaded 14 September 2016]   |

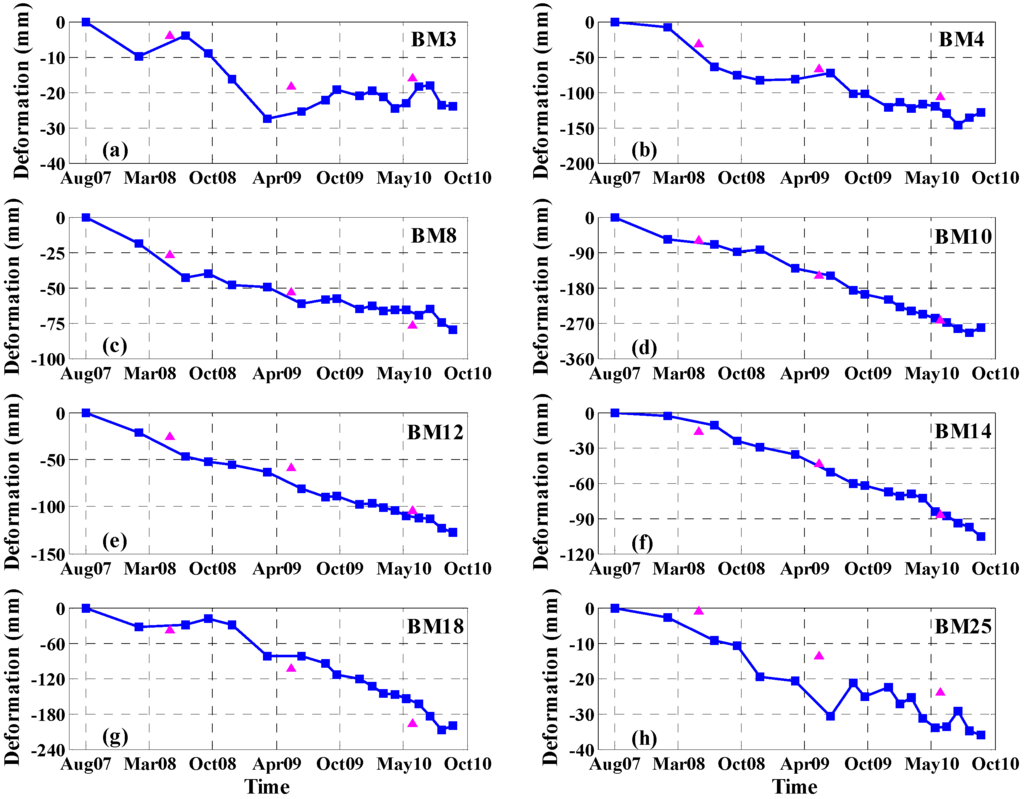

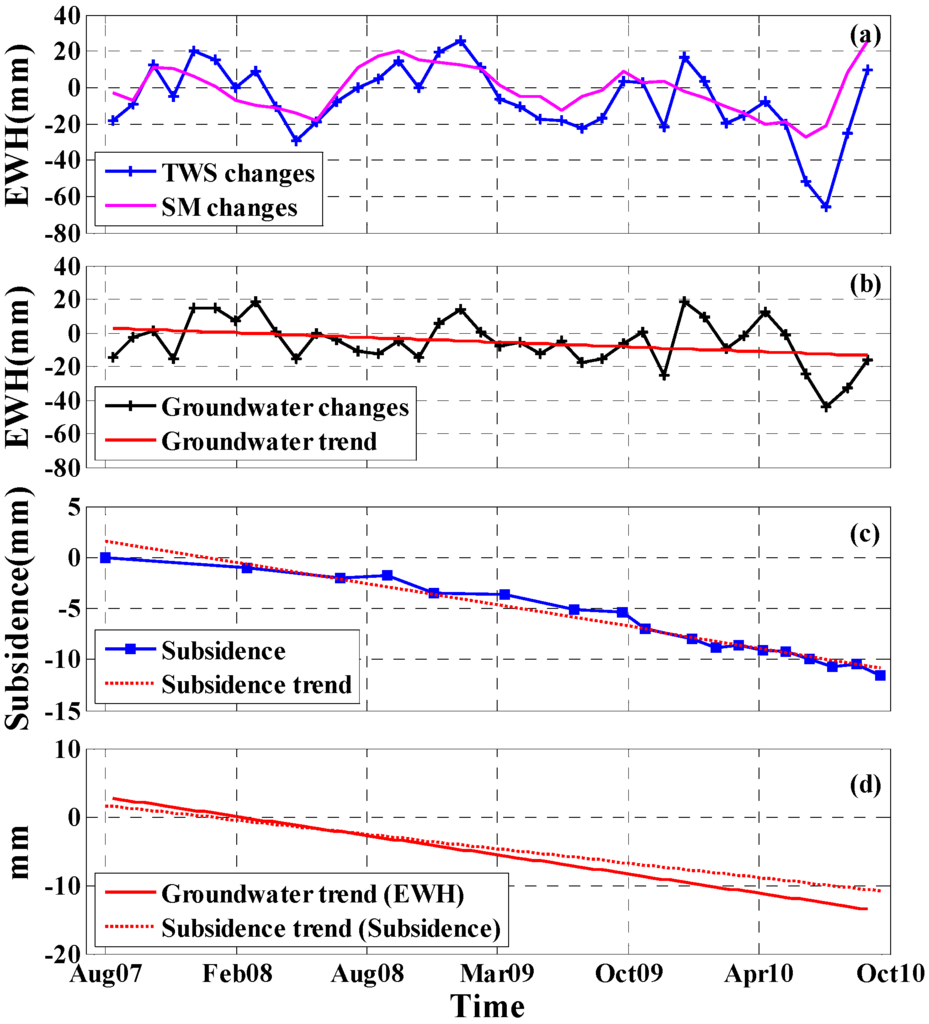

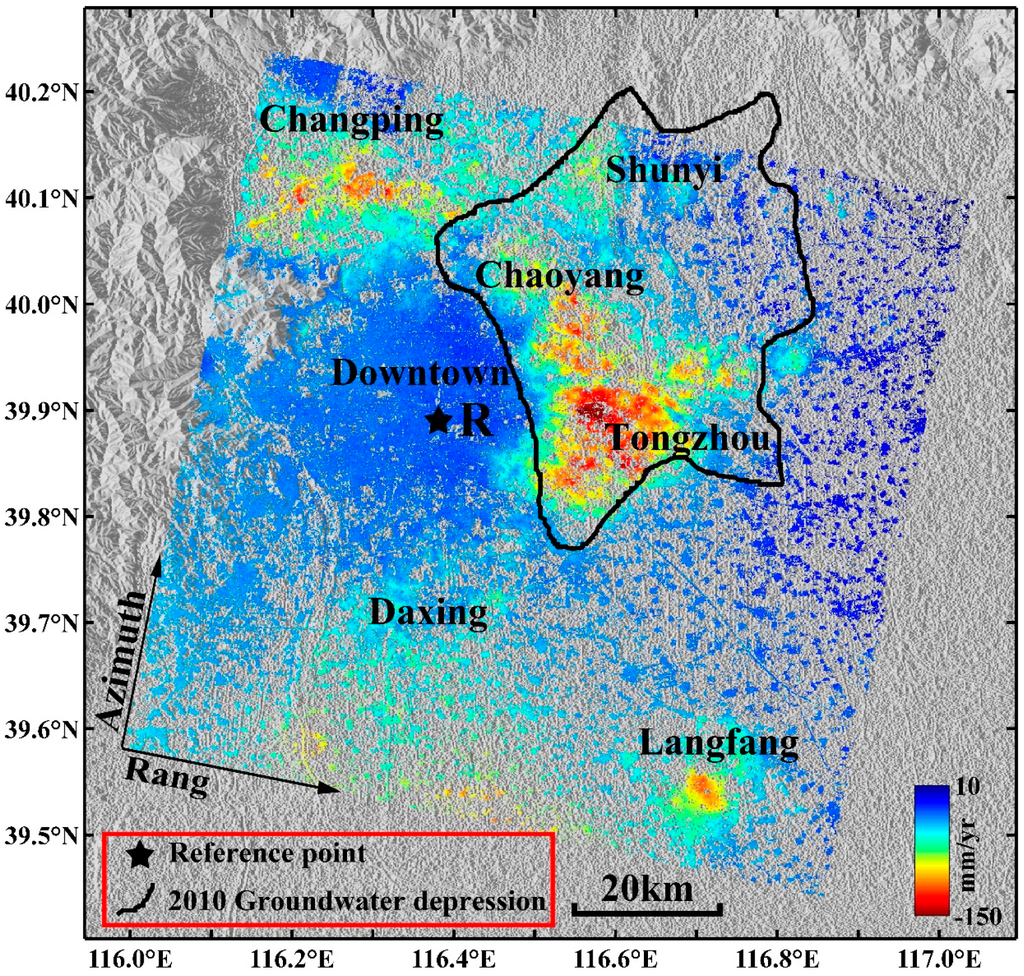

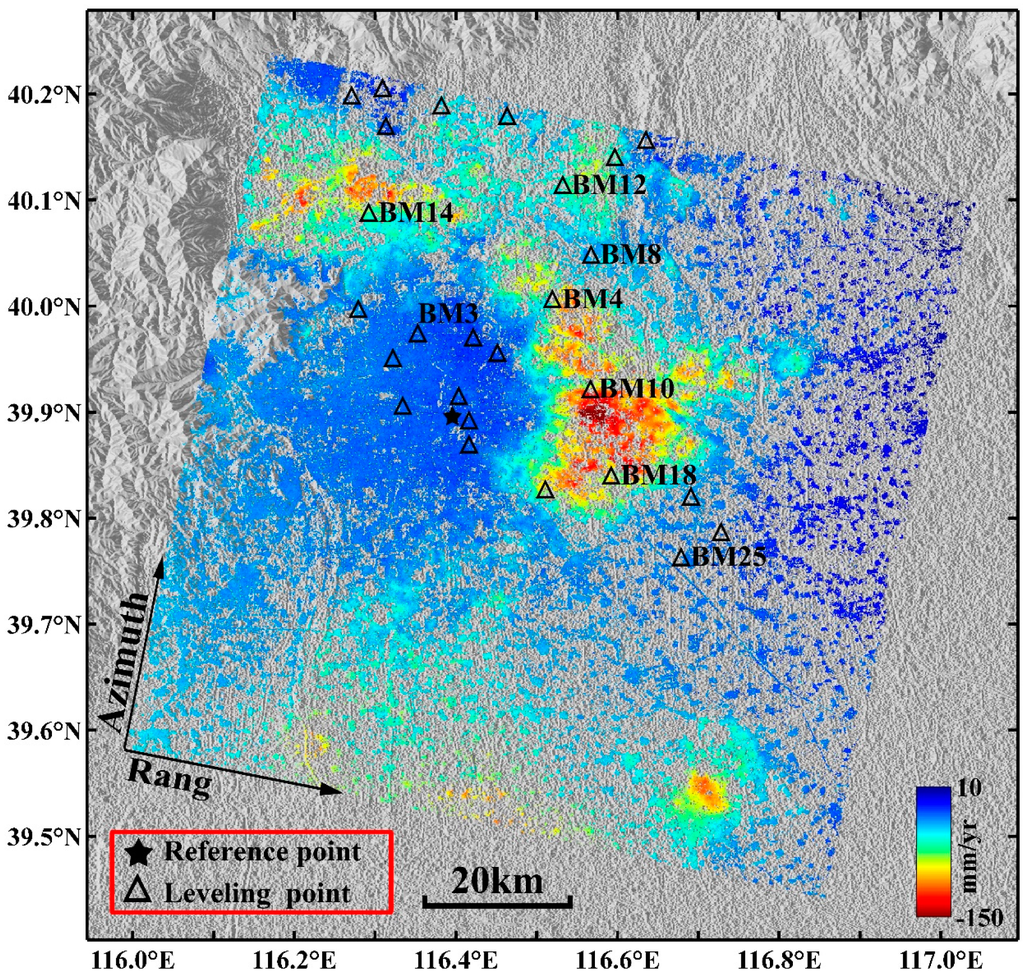

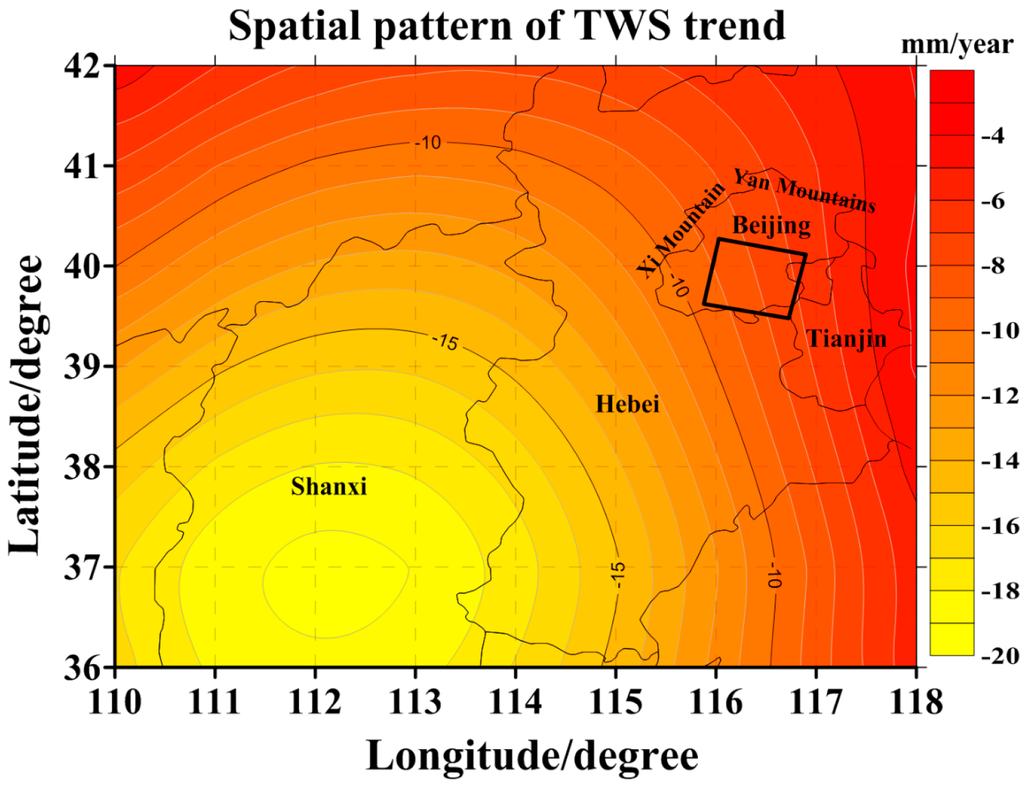

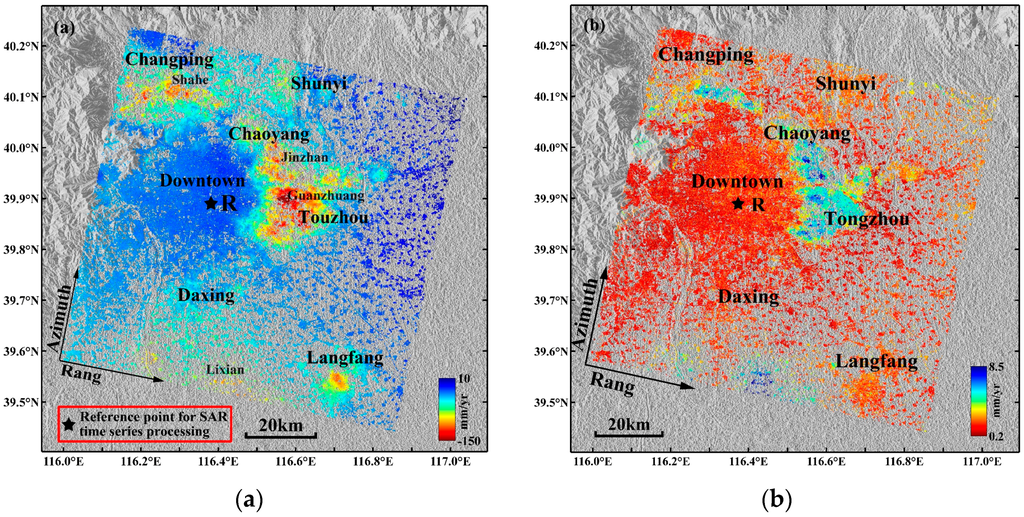

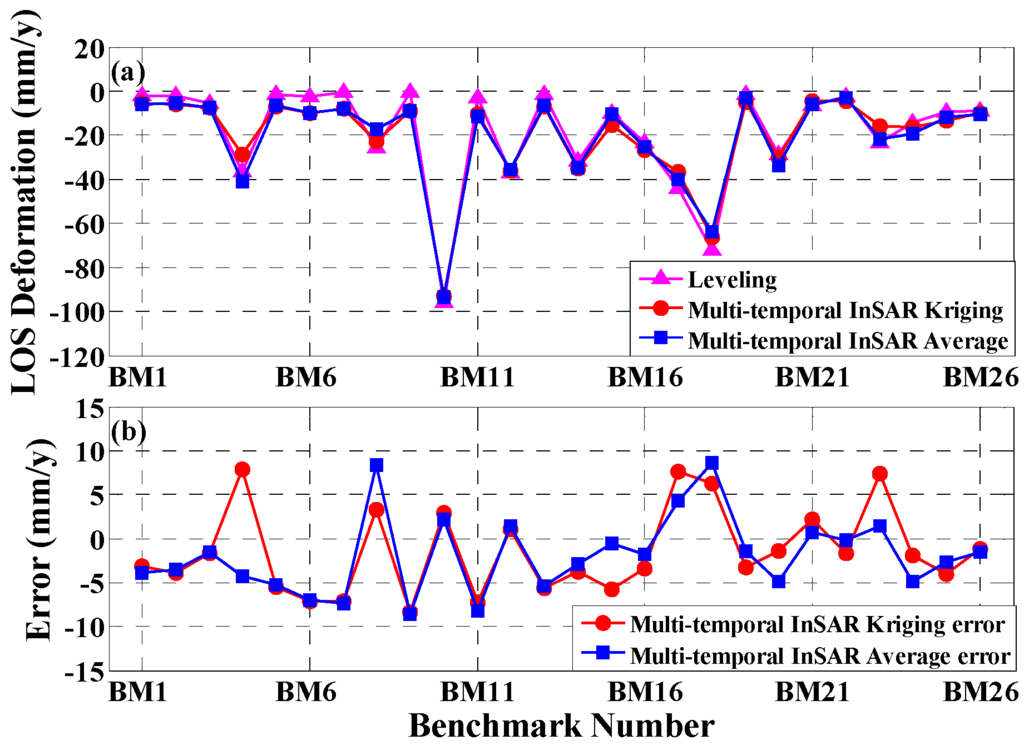

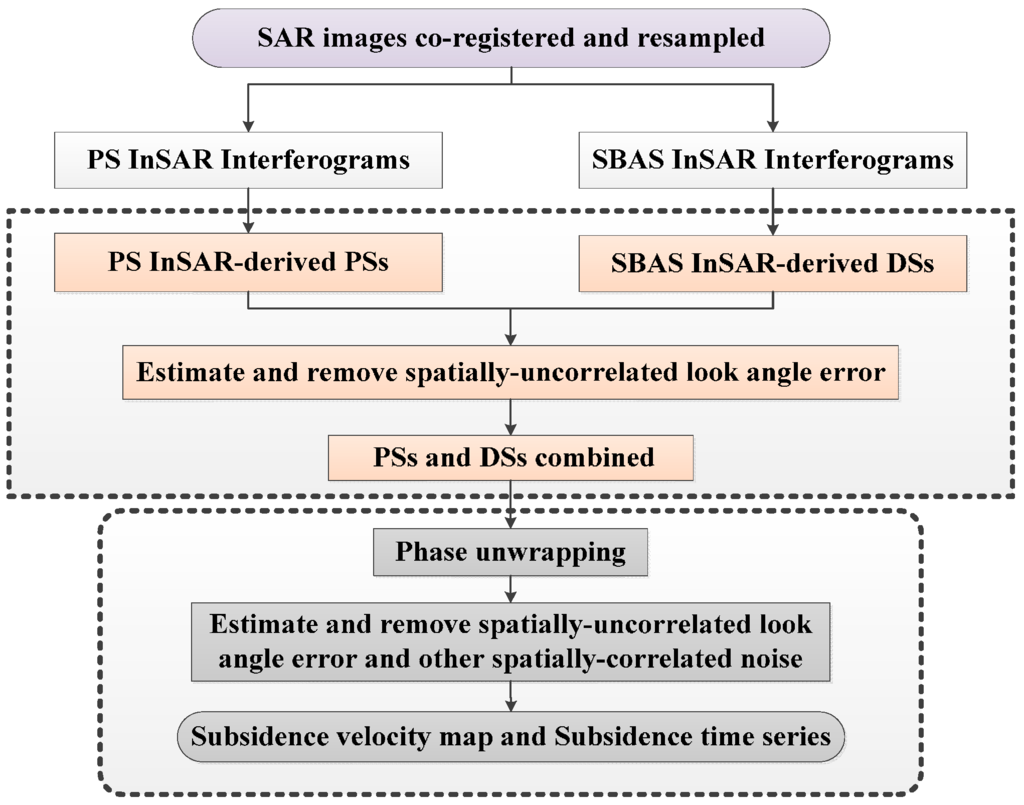

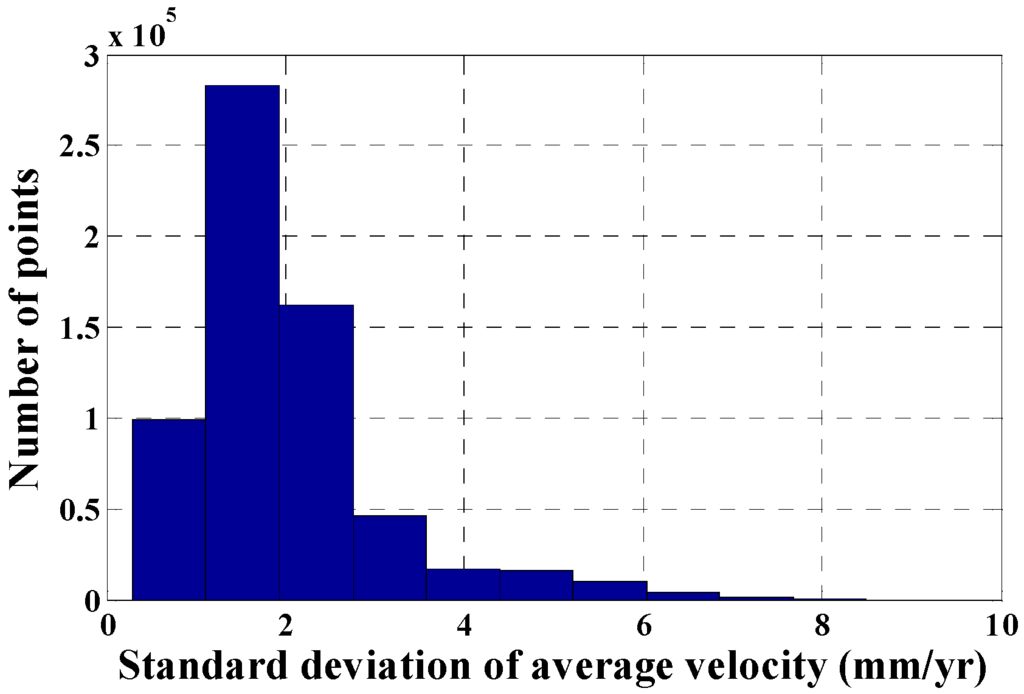

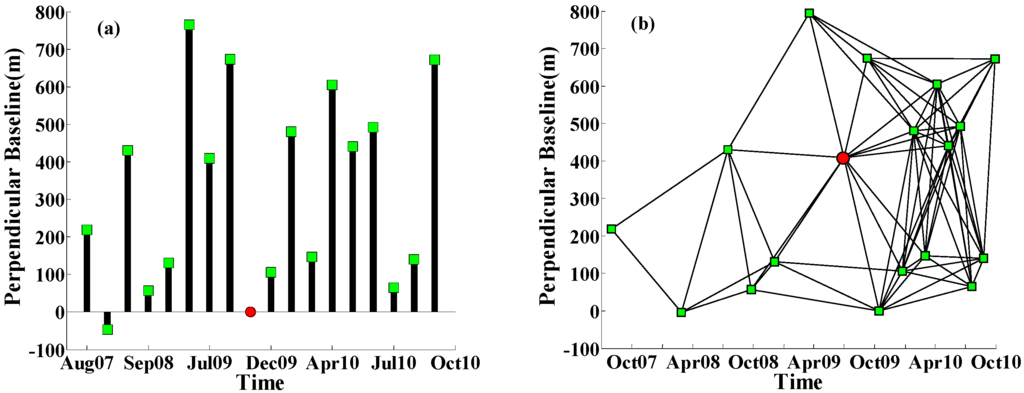

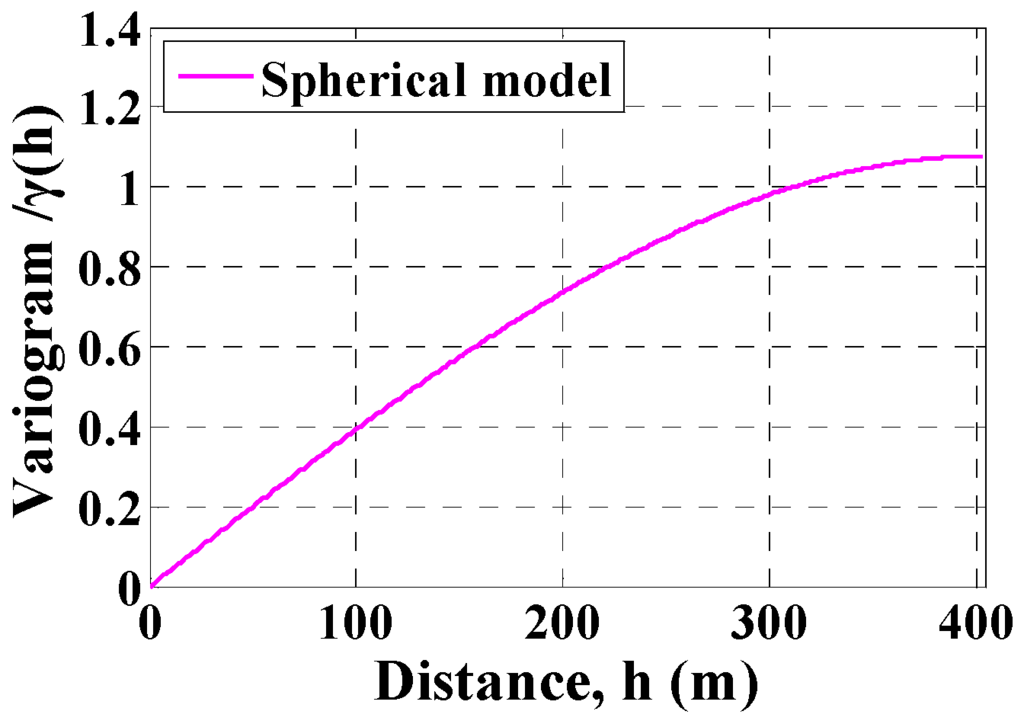

The aim of this study was to investigate the relationship between surface subsidence and groundwater changes. To investigate this relationship, we first analyzed surface subsidence. This paper presents the results of a case study of surface subsidence in Beijing from 1 August 2007 to 29 September 2010. The Multi-temporal Interferometric Synthetic Aperture Radar (multi-temporal InSAR) technique, which can simultaneously detect point-like stable reflectors (PSs) and distributed scatterers (DSs), was used to retrieve the subsidence magnitude and distribution in Beijing using 18 ENVISAT ASAR images. The multi-temporal InSAR-derived subsidence was verified by leveling at an accuracy better than 5 mm/year. Based on the verified multi-temporal InSAR results, a prominent uneven subsidence was identified in Beijing. Specifically, most of the subsidence velocities in the downtown area were within 10 mm/year, and the largest subsidence was detected in Tongzhou, with velocities exceeding 140 mm/year. Furthermore, Gravity Recovery and Climate Experiment (GRACE) data were used to derive the groundwater change series and trend. By comparison with the multi-temporal InSAR-derived subsidence results, the long-term decreasing trend between groundwater changes and surface subsidence showed a relatively high consistency, and a significant impact of groundwater changes on the surface subsidence was identified. Additionally, the spatial distribution of the subsidence funnel was partially consistent with that of groundwater depression, i.e., the former possessed a wider range than the latter. Finally, the relationship between surface subsidence and groundwater changes was determined. View Full-Text
Keywords: multi-temporal InSAR; GRACE; surface subsidence; Beijing; groundwater multi-temporal InSAR; GRACE; surface subsidence; Beijing; groundwater

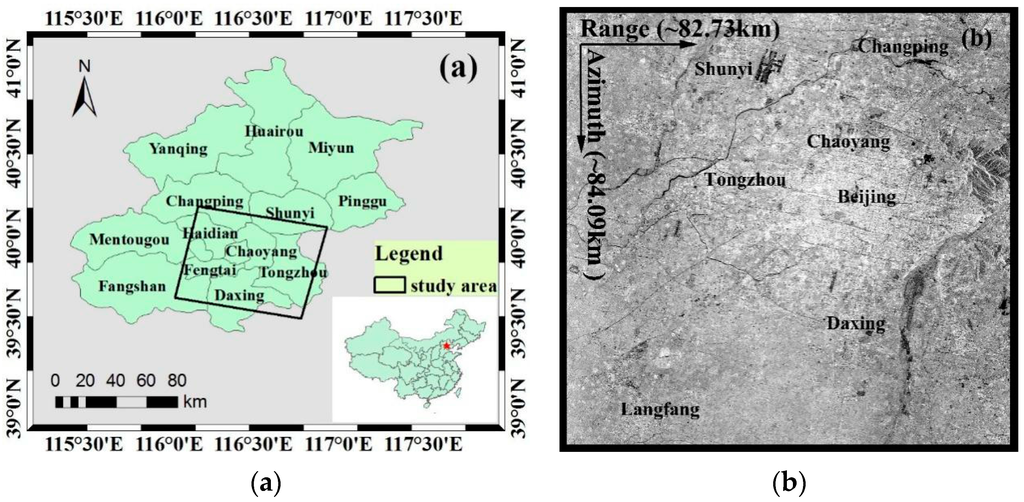

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Guo, J.; Zhou, L.; Yao, C.; Hu, J. Surface Subsidence Analysis by Multi-Temporal InSAR and GRACE: A Case Study in Beijing. Sensors 2016, 16, 1495.
