Sensors 2016, 16(7), 1135; https://doi.org/10.3390/s16071135

Article
Design and Development for Capacitive Humidity Sensor Applications of Lead-Free Ca,Mg,Fe,Ti-Oxides-Based Electro-Ceramics with Improved Sensing Properties via Physisorption
1
Centre for Applied Biomechanics, Department of Biomedical Engineering, University of Malaya, Kuala Lumpur 50603, Malaysia
2
Department of Electronics & Instrumentation Engineering ITER, Siksha ‘O’ Anusandhan University, Bhubaneswar 751030, India
3
Department of Paediatric Dentistry & Orthodontics, Faculty of Dentistry, University of Malaya, Kuala Lumpur 50603, Malaysia
*
Authors to whom correspondence should be addressed.
Academic Editor: Vittorio M. N. Passaro
Received: 25 February 2016 / Accepted: 6 April 2016 / Published: 21 July 2016

Abstract

:
Despite the many attractive potential uses of ceramic materials as humidity sensors, some unavoidable drawbacks, including toxicity, poor biocompatibility, long response and recovery times, low sensitivity and high hysteresis have stymied the use of these materials in advanced applications. Therefore, in present investigation, we developed a capacitive humidity sensor using lead-free Ca,Mg,Fe,Ti-Oxide (CMFTO)-based electro-ceramics with perovskite structures synthesized by solid-state step-sintering. This technique helps maintain the submicron size porous morphology of the developed lead-free CMFTO electro-ceramics while providing enhanced water physisorption behaviour. In comparison with conventional capacitive humidity sensors, the presented CMFTO-based humidity sensor shows a high sensitivity of up to 3000% compared to other materials, even at lower signal frequency. The best also shows a rapid response (14.5 s) and recovery (34.27 s), and very low hysteresis (3.2%) in a 33%–95% relative humidity range which are much lower values than those of existing conventional sensors. Therefore, CMFTO nano-electro-ceramics appear to be very promising materials for fabricating high-performance capacitive humidity sensors.
Keywords:
relative humidity; water absorption; porous; hydrophilicity; response; recovery; stability; mechanism

1. Introduction

Humidity is a physical parameter which describes the degree of dryness of the atmosphere. It is an extremely important factor in many sectors, including hospitals, textile industries, laboratories, storage rooms for computers, food processing industries, art museums, shopping malls, libraries, exhibition centres, and so on. It is thus necessary to develop highly sensitive humidity sensor materials having good reliability, good linearity, long-term stability, rapid response and recovery, and small hysteresis [1]. Recent studies have attempted to develop more sophisticated humidity sensors by manipulating several sensor characteristics such as refractive index, frequency range, capacitance, impedance, and sensing mechanisms [2,3,4]. These characteristics are strictly determined by the sensing medium material, porosity, surface area, and pore size distribution. To date humidity sensors have been produced using various materials, including electrolytes [5], organic polymers [6] and ceramic materials [7]. The most unique properties of ceramic materials are their relatively high thermal, chemical and mechanical stability [8,9], which make them very suitable potential candidates in sensor applications, and the excellent water adsorbing and desorbing properties of metal oxide ceramics such as TiO2 [10], ZnO [11], ferrite [7], Al2O3 [12,13] and (Ba,Sr)TiO3 [14,15] have been extensively utilized in humidity sensors. In particular, some porous ceramic-based capacitive sensors can remain stable under high humidity conditions, even at elevated temperature, while showing good sensitivity [16,17]. Some precision capacitive methods using ceramic materials also have shown rapid dynamic responses and high temperature compensation [18,19]. They can also have nonlinear hysteresis characteristics and require only temporary heating. However, due to the property of water molecule chemisorption over a wide humidity range, many ceramic-based humidity sensors still cannot achieve sufficient sensitivity, reversibility or resistance stability. This limitation hinders their use in the development of advanced applications.
Perovskite-structured (ABO3) oxide materials [20,21] have widely been used as semiconductors, high temperature ionic conductors, ferroelectrics, dielectrics, as well as humidity sensors, for different applications. In perovskite-structured materials, the A-site atoms are susceptible to humidity [22], and by partially substituting the A-site atoms with other elements, e.g., rare earth cations, their humidity sensitivity can be enhanced [23]. The mixed ionic and electronic conducting properties of perovskite-structured oxides provide advantages of higher selectivity, activity and stability than seen with simple transition metal oxides. Their potential applications as cathode materials in oxygen permeation membranes (OPMs) for air separation [24], catalysts for hydrocarbon oxidation reactions [25,26], solid oxide fuel cells (SOFCs) [27] and catalytic membrane reactors (CMRs) for syngas production [28] have also popularized their use among researchers.
Most of these materials are lead (Pb)-based compounds such as lead magnesium niobate (PbMg1/3Nb2/3O3), lead titanate (PbTiO3) and lead zirconate titanate (PbZr1−xTixO3) [29,30,31] and so on. Pb-based ceramics such as PbTiO3, CaxPb1−xTiO3, Li-Ca0.3Pb0.65TiO3 have been used as humidity sensors in many studies [32,33], but despite their substantial advantageous dielectric, capacitive and ferroelectric properties, these Pb-based compounds are toxic and hazardous to environment and human health. Furthermore, the manufacturing and machining wastes of the electronic components of various devices cause lots of pollution; in particular Pb-based materials cannot be easily recycled [34,35]. Emphasis has therefore been placed on finding eco-friendly Pb-free perskovite materials with high humidity sensitive electrical properties comparable to those of Pb-based ones, such as barium titanate (BaTiO3)-based materials or calcium titanate (CaTiO3, CTO). CTO is now a common humidity sensing ceramic widely used in the form of porous sintered bodies [31]. The humidity-dependent electrical properties of CTO can be altered by substituting various either isovalent or heterovalent cations separately or simultaneously at the Ca or Ti sites. In this context, the effect of isovalent substitutions on the electrical properties and transition temperatures of CTO have been investigated [36,37]. To improve the electrical characteristics valence-compensated solid solutions, i.e., simultaneous heterovalent substitutions with equimolar concentrations of other species at the Ca and Ti sites of compounds such as Ca1−xLaxTi1−xCrxO3, and Ca1−xBixTi1−xCrxO3 have also been studied [38,39,40]. However, to our knowledge the performance of heterovalent substitutions with non-equimolar concentration at the Ca and Ti sites of CTO in different humidity environments has not been investigated properly.
The present article therefore aimed to synthesize Mg2+, Fe2+ doped CTO electro-ceramic (Ca,Mg,Fe,Ti-Oxide) (CMFTO)-based humidity sensor nanomaterials with rapid responses and recovery times. The CMFTO electro-ceramics were prepared by an innovative solid-state step-sintering process to get the desired morphology with lower density and high porosity. This facile synthesis process is convenient, eco-friendly and easily controlled, compared to other synthesis techniques [29,30,31,32,33]. In this route, cheap raw materials like solid titania (TiO2) and other metal ions from magnesium carbonate (MgCO3), hematite (Fe2O3), and calcium oxide (CaO) have been taken in solution form. This offers an advantage over other expensive synthesis techniques where the prominent sources of TiO2 are titanium alkoxide, oxynitrate, or chloride. This route is also very useful to obtain a homogeneous and fine precursor powder. In this unique synthesis technique, a rapid heating rate, proper isothermal holding method, and considerably reduced processing time and temperature are the main advantageous features compared to conventional ceramic processing methods. This technique can also be implemented in industrial production to reduce production costs and eliminate hazardous by-products. Additionally, TiO2, MgCO3, Fe2O3, and CaO nanopowders are generally nontoxic, and possibly biocompatible, and thus, they have been used in many different biomedical applications. We therefore aimed to design and develop an improved sensitive humidity sensor using a high pressure treated solid-state step-sintering technique and starting from inexpensive Pb-free nanomaterials.

2. Experimental Section

2.1. Preparation of the Sensing Nanomaterial

A perovskite-structured polycrystalline sample of CMFTO was prepared by our solid-state step-sintering technique using high-purity ingredients such as MgCO3, Fe2O3, TiO2 and CaO (99.9%, Fisher Scientific Ltd., Selangor, Malaysia) in a desired stoichiometry. The dry mixed oxide powders of all the ingredients (CaO, MgCO3, Fe2O3 and TiO2 of 11.59, 17.4, 21.9, and 49.11 wt%, respectively) were milled with 70% alcohol in a ball-mill (PM200, Retsch, Düsseldorf, Germany) with a sample to ball ratio of 1:200 (w/w) for 72 h. After ball-milling, the milled CMTFO slurry was dried at 105 °C in a convection oven (OF-11E, Lab Companion, Seoul, Korea) for 6 h to remove the excess moisture, water and alcohol. The dry-powder was cold pressed into pellets of 10 mm diameter and 1.2 mm of thickness under uniaxial high pressure (450 MPa) at 25 °C into a cylindrical mould using a hydraulic press (GS15011, Graseby Specac, Kent, UK). Polyvinyl alcohol (PVA, <2 wt%) was used as binder to reduce the brittleness of the pellets during pelletization. The binder was burnt out at high temperature during sintering. It also helped the sintered pellets to achieve porous morphology [41]. The step-sintering technique was used to sinter the ceramic pellets at different temperatures such as 450, 650, 850, and 1050 °C in a programmable furnace (XY1600, Nanyang Xinyu Furnaces, He’nan, China) under a normal atmosphere to control the particle size, pore size, as well as porosity up to a desired range. The complete steps of different sintering temperature are illustrated in Table 1.
A schematic flow chart of the synthesis processes is depicted in Figure 1. A probable complete chemical reaction after sintering at 1050 °C is depicted in the following reaction [41]:
CaO + MgCO3 + 4Fe2O3 + 4TiO2 + 0.5O2 ↑ → Fe2MgTi3O10 + CaTiO3 + 2Fe3O4 + O2 ↑ + CO2

2.2. Fabrication of Humidity Sensor

The uniaxially compressed sintered and unsintered pellets were polished with emery paper and cleaned with absolute alcohol, followed by drying at 105 °C before using them as sensors. Thereafter, silver (Ag) electrodes were screen printed on both sides of the each pellet followed by drying at 80 °C for 30 min. Then, copper (Cu) wire was connected to the Ag-electrodes as conducting wire. Finally, the sensor was aged at 150 °C in air for 60 min.

2.3. Physical Characterizations

The microstructural analysis was carried out by field emission scanning electron microscopy (FESEM, AURIGA, Carl Zeiss, Jena, Germany). Pore size distribution (PSD) and relative cumulative frequency (RCF) of the pores were evaluated from the corresponding FESEM images and analyzed with the ImageJ software. An X-ray diffractometer (Empyrean, PANalytical, Almelo, The Netherlands) was used to obtain the different X-ray diffraction (XRD) patterns of the developed electro-ceramics using Cu-Kα radiation in the 2θ range of 20°–50°. Density (ρ, g/cc), open porosity (%), and water absoption (%) ability of electro-ceramics were measured following Equations (1)–(3), respectively, with the help of a modified Archimedes’ principle as highlighted in our previous studies [42,43]:
ρ = W b i W a i W d i × ρ w a t e r 25   ° C
P o p e n = W a i W b i W a i W d i × 100
Absorbed water =   W a i W b i W b i × 100
where Wbi, Wdi and Wai represent the initial dry weights of the samples in air before immersion in water, in water during immersion in water, and in air after immersion in water, respectively. The resolution of the weighing machine was ±0.0005 g. At least five identical specimens were prepared to calculate the standard deviation (SD) of all the sintered samples, where ρ water 25   ° C represents the water density at tested temperature 25 °C. Water contact angle (WCA) of the pellet samples was measured using sessile contact angle meter (OCA15E, Data Physics Instruments GmbH, Filderstadt, Germany) at room temperature.

2.4. Humidity Sensor Measurements

The RH-dependent capacitive response of the CMFTO electro-ceramic was determined at 25 °C while the RH was changed from 33% to 95%. First, the final aged sensors were stabilized at 1 V voltage in 95% RH for 24 h. Ambiences with different humidity levels were then created by silting a series of standard saturated salt solutions (MgCl2, Mg(NO3)2, NaCl, KCl and KNO3) in conical flasks with stoppers, to produce environments with relative humidity (RH) values of 33%, 55%, 75%, 85% and 95% at 25 °C, respectively as described in our previous report [41]. The capacitance response of the CMFTO electro-ceramic with RH was measured by impedance spectroscopy (IS) (3532-50 LCR Hi tester, Hioki, Ueda, Japan) at 25 °C in a temperature controlled chamber (Memmet, Naluri Scientific, Schwabach, Germany) with a resolution of ±5 °C over a frequency range of 102 Hz–106 Hz. All the humidity sensing measurements were carried out under normal atmospheric pressure. The measurement setup is depicted in Figure 2.

3. Results and Discussion

3.1. Structural and Morphological Characterization

Pore size and pore size distribution (PSD) are two of the most important parameters for all humidity sensor nanomaterials. The PSD and the relative cumilative frequency (RCF) of all the CMFTO ceramics are illustrated in Figure 3. The PSD of the unsintered and sintered nanomaterials was calculated from the corresponding FESEM images (see Figure 1 and also Figure S1 in the Supplementary Information) using the ImageJ software. Average particle sizes of all the nanomaterials are given in the Supplementary Information. Most of the pores remained at less than 1.5 μm at sintering temperatures up to 650 °C. Interestingly, at 850 °C and 1050 °C, bimodal and trimodal pores were clearly revealed in PSD plots, suggesting that higher sized open pores are formed at higher sintering temperatures. However, a few large size pores were also found up to 450 °C owing to the collapse of loose bonds on the surface of the pellets. The 50% RCF of the sample sintered at 1050 °C is projected to have a pore size of 1.75 μm, which is significantly higher compared to unsintered and other sintered (<1.4 μm) materials (see the thin projected arrows in Figure 3). This RCF result is clear evidence for selecting the sintering condition at 1050 °C as the nanomaterial with most potential for our futher studies. Furthermore, the main three pore size modes (3 μm, 1.75 μm and less than 1.5 μm) seen in the material under the 1050 °C sintering condition were obtained due to three different types of cluster developed by three different structuresd phases—armalcolite, perovskite and ferrite—which was confirmed by our XRD study (see Figure S2 in the Supplementary Information). A wide pore size distribution can be used to realize a humidity sensor capable of operating over a wider range of humidity. The pore size distribution has also been widely considered as an important function for better sensitivity in a particular humidity range. The advantage of porosity is that at a particular temperature and relative humidity (RH), water condensation occurs in pores [44]. In addition, the lower pore size (nearly 100 nm) of TiO2-based humidity sensor materials formed nanogaps and hence showed worse sensing properties such as long recovery times compared to the larger pore size of 4.5 μm [45]. The presence of crystalline peaks of anatase phase TiO2 (PDF: 98-015-4609) along with Fe2O3 (PDF: 01-084-0308), MgCO3 (PDF: 00-002-0905) and CaCO3 (PDF: 01-072-1650), which was converted from CaO during the wet-ball-milling, in the unsintered nanomaterial has already been reported in our previous study [41]. XRD patterns of all the ceramic samples are depicted in Figure S2. A new armalcolite phase (Fe2MgTi3O10, as PDF: 00-013-0353) was formed after sintering at 450 °C. Then, another phase of perovskite CaTiO3 (PDF: 00-008-0092) with sharp small (400) at 2θ = 23.43° and strong (440) at 2θ = 33.29° crystalline peaks was developed after increasing the temperature above 650 °C. The more intense crystalline peaks (230) at 2θ = 32.71° of Fe2MgTi3O10 and (440) of CaTiO3 become stronger after sintering at 1050 °C. A significant shift of a (110) peak of Fe2O3 (2θ = 35.83°) strongly indicates the formation of magnetic Fe3O4 (2θ = 35.70°), which may further stimulate the use of this material in remote sensing and humidity sensor applications [46].
On the other hand, FESEM images of the materials depicted in Figure S1a–d reveal a uniform submicroporous structure for the ceramic nanomaterials. It has been found that the structure of CMFTO is affected by the sintering temperature. An increase in sintering temperature produced significant changes in the microstructure (Figure S1). The average particle size of the unsintered ceramic was found to increase at the sintering temperatures of 450 °C and 650 °C. However, the growth rate was impeded by changing sintering steps at 850 and 1050 °C without much change in the total pore distribution. A smaller size (typically < 100 nm) of new phase of CaTiO3 particles was noticed in Figure S1d. With an increase in sintering temperature, it was found that the grain size was slightly increased and some grains were colligated together with each other (Figure S1). This interconnected grain texture could have resulted from melting and by a controlled crystal growth mechanism. This would help the present CMFTO material create porous microstructure and thus, form materials to adsorb or desorb water molecules under humid conditions.
The bulk density, open porosity, water absoption and WCA of all the pellet samples are depicted in Figure 4. The WCAs of all the sintered pellets are significantly lower than those of unsintered ones. The open porosity of all these materials, calculated using their bulk density, was found to be lower than their closed porosity. The open porosity of unsintered and sintered at 1050 °C materials were measured to be 73.84% ± 1.24% and 40.26% ± 1.33%, respectively. On the other hand, the density of unsintered material was substantially reduced (by almost half) from 1.989 ± 0.091 g/cc to 0.941 ± 0.035 g/cc after sintering at 1050 °C. This is possible due to a lattice diffusion phenomenon during sintering while maintaining substantial porosity [47]. Lower density values of these pellets compared to their commercial ingredients indicates the presence of a higher amount of porosity. This study also confirms that a new phase, CaTiO3 (see Figure S1) was formed by a lattice diffusion mechanism [41]. The total porosity of the materials was evaluated from their water absorption (see Figure 4). The higher amount of water absorption (nearly 67%) in the material sintered at 1050 °C confirms the presence of uniform porosity that was revealed in the FESEM image (see Figure S1e). This material also showed the lowest density and a larger porosity (compared to the sintering condition at 805 °C) with a wide pore size distribution. A larger pore size (see Figure 3) and high open porosity (see Figure 4) imply a much more active surface towards water vapor and thus, the sensitivity of the capacitance to humidity will be increased. Large pores are necessary for a rapid response to exhibit easy adsorption and desorption or condensation of water vapour [48]. Since the sample sintered at 1050 °C showed a higher amount of water absorption (~67%) and higher porosity with lower density compared to the material unsintered or sintered at or below 850 °C, the material sintered at 1050 °C would be considered a most favourable candidate for humidity sensor analysis in our further studies [49,50,51,52].

3.2. Humidity Sensing Measurements

All the aforementioned physical properties favour considering the porous CMFTO electro-ceramic sintered at 1050 °C to be the best hydrophilic material among the all ceramics developed in the present study. The hydrophilic characteristics of its surface with meso- and submicropores should be helpful for improving the water molecule adsorption/desorption process and hence, enhance the sensitivity of humidity sensors. To investigate the effect of frequency on sensing characteristics of the CMFTO electro-ceramic based sensor, its capacitance values have been calculated under different humidity environments with various test frequencies such as 102, 103, 104, 105 and 106 Hz at 25 °C and the results are depicted in Figure 5. It has been observed that higher frequencies lower the capacitance; for example, at 95% RH the highest capacitance value of 9.974 × 10−10 F at 102 Hz and lowest C of 1.780 × 10−11 F at 106 Hz have been observed. It has also been found that when the RH increases from 33% to 95%, the capacitance value increases monotonically. The plots of the inset image of Figure 5 are a better representation of the change in C-values as a function of % RH (33%–95%) at different frequencies (102–106 Hz). This suggests that the capacitance is an effective physical parameter in order to evaluate the sensor response.
The relations between capacitance and frequency at 25 °C of the present capacitive-type sensor at different RH values are depicted in Figure 6. It has been observed that the capacitance (C)-value decreases with increasing frequency and the rate of decrease is faster at higher RH. The capacitance value increases significantly with % RH in the lower frequency range (below 104 Hz) but in a higher frequency range, the capacitance value is small and hardly changes with humidity. Generally in the ideal capacitive sensor, the C-value is independent of applied frequency. However, in low humidity environments, the sensing material absorbs a small amount of water, which could be considered as an ideal situation. Due to the absorption of water molecules, the sensing material possesses a leak conduction (γ) [53]. The capacitance (C) of the material with leak conduction can be expressed by a relation as shown in Equation (4) [53,54]:
C = є * C 0 = ( є r i γ ω є 0 ) C 0
where є*, C0 and єr are the complex dielectric constant, capacitance and relative dielectric constant of an ideal capacitor, respectively; ω is the angular frequency, γ is the conductance and є0 is the permittivity at free space. From Equation (4), it can be noticed that the capacitance of the sensing material is inversely proportional to frequency ω and directly proportional to γ. Hence, the C-value decreases with increasing frequency and this relation becomes more prominent under higher RH conditions. In addition, γ is attributed to the physisorption of water molecules on the surface of porous CMFTO electro-ceramic. Here, γ increases with increasing of % RH and as a result, C-value increases with rising RH with respect to ω.
To explain the humidity-dependent capacitive characteristics of CMFTO electro-ceramics, the device sensitivity (S) has been calculated by using Equation (5) [55]:
S = C R H C 33 C 33 × 100 %
where C33 and CRH stands for the capacitances measured at 33% RH and at a certain RH level, respectively. Figure 7 shows that the applied test frequency has a high influence on the sensitivity of humidity sensors. It has been also observed that the values of C (Figure 5) and S (Figure 7) with % RH (in the range 33%–95%) increase with decreasing test frequencies (from 106 to 102 Hz). The C-value increased from 3.2183 × 10−11 F to 9.9741 × 10−10 F with a “S” of ~3000% at the signal frequency of 102 Hz but when the test frequency is 105 Hz, the capacitance varied from 1.2832 × 10−11 to 2.8174 × 10−11 F with “S” of ~120% across the RH range of 33%–95%, respectively. The sensitivity of our developed sensor is higher than that of some other ceramic based humidity sensors reported elsewhere (for example, ~2900% for porous ZnAl2O4 spinel nanorod, 85% for silica nanoparticles aerogel thin films, ~966% for SiC nanowires, ~800% for thermally carbonized porous silicon, ~500% for alumina nanowire, 1490% for (PEPC + NiPc + Cu2O) and so on based humidity sensors) [16,56,57,58,59,60]. Therefore, in our further study the 102 Hz would be considered as best test frequency for the analysis of sensor characteristics.
The humidity sensing mechanism of the CMFTO electro-ceramic could be explained by adsorption phenomena of water molecules and their effect on the capacitance variation of the system. The mechanism for humidity-dependent electrical characteristics of the oxide-based nanomaterial is not so clear to date. Therefore, a possible physical adsorption mechanism of water molecules for the humidity dependent electrical characteristics of the oxide based electro-ceramic nanomaterials is explained here. The relationship between the capacitance and the RH, can be interpreted by using Equation (4). On the other hand, the ionic conductivity increases with increasing RH [61], and as a result the capacitance value increases with RH as a function of frequency. In general, under low RH conditions, the water molecules are primarily physisorbed or chemisorbed onto the available active sites of the oxide based CMFTO electro-ceramic surfaces through double hydrogen bonding as indicated by the dotted-line in Figure 8. Due to the double hydrogen bonding, the water molecules are not able to move freely. Thus, more energy is required for the hopping transfer of protons between adjacent hydroxyl groups. Hence, the CMFTO electro-ceramic exhibits very high electrical impedance in the double hydrogen bonding regime. The protons in CMFTO ceramic which are hindered by discontinuous mobile layers, may generate leak conduction and thus increase the capacitance [61]. On the other hand, at higher % RH, second or multi physisorbed layers are formed by physisorption of water molecules onto the available active sites of the surface oxygen of the oxide-based CMFTO electro-ceramic through single hydrogen bonding. Owing to the single bonds, the water molecules become mobile and progressively more identical to those in the bulk liquid. With further increase of RH, the multilayer physical adsorption increases and as a result the physisorbed water molecules are ionized and produce a large number of hydronium ions (H3O+) as charge carriers due to the application of external electric field. In very high humidity conditions, the amount of water content increases and the physisorbed water layers gradually behave like normal condensed liquid. In this condition, the protons require very low energy for hopping between adjacent water molecules; as a result the ionic conductivity increases. This charge transport mechanism can be explained by a Grotthuss chain reaction (H2O + H3O+ → H3O+ + H2O) conductivity [62]. In addition to the above discussion, at higher RH, the physisorbed water penetrates into the interlayer of CMFTO electro-ceramic. As a result, the hydrolysis process becomes more effective with the functional groups of oxide based CMFTO electro-ceramic. Thus, more ions are generated due to the vigorous hydrolysis reaction, and these ions participate in the ionic conduction, and as a result the impedance value decreases [63]. In addition to the impedance, due to increase of water molecules, the capacitance value increases, which significantly alters the dielectric constants of the material. For instance, the dielectric constant of CMFTO electro-ceramic nanomaterial is calculated to be 233 at low RH (33% RH) and 5617 at high RH (95% RH).
The nonlinear characteristics on RH dependent capacitive response (Figure 5) might be a systematic error in standardization for practical applications of the present humidity sensor. Therefore, to overcome this nonlinearity drawback, an exponential function can be introduced to make the nonlinear response more linear [55]. Therefore, in the present study, a transformed logarithmic capacitive-RH response curve was generated and is depicted in Figure 9. It has been observed that two different slope-linear relations revealed in the logC vs. RH response curve intersect. This intersection point at 75% RH is considered as a critical point. It has been analyzed that the data could be well fitted linearly with a slope of 0.0102 and intersect at 10.8148 in negative logC-axis in the RH range from 33% to 75%, but in the higher humidity range (75%–95% RH), the slope of the linear fitted curve was found to increase to 0.0532 (see Figure 9). Here, the regression (R2) values of both the fitted curves were very close to 1 (more than 0.97), representing the best fit of the curves to improve linearity. The two different slopes of logC vs. RH response plot might be contributed to the change of the adsorption mode of water molecules from a monolayer chemisorption and the multilayer physisorption at low and high RH, respectively [9,64,65]. This linearity and sensitivity consideration of the logarithmic response curve represent a breakthrough for the CMFTO electro-ceramic as a suitable humidity sensing material.
The maximum difference in C-value between the humidification and desiccation curve is known as hysteresis. High hysteresis values have long been a major drawback in practical humidity sensor applications. The maximum hysteresis rate (Emax) of our developed sensor has been calculated by using Equation (6) [55]:
E m a x = Δ m Y F S × 100 %
where, Δm stands for the maximum hysteresis and YFS is the full scale output.
The CMFTO electro-ceramic based humidity sensor showed a maximum hysteresis of about 3.2% corresponding to 85% RH (see Figure 10). This result indicates that the hysteresis of our developed CMFTO electro-ceramic based humidity sensor is relatively lower than that of other different capacitive humidity sensors (i.e., ~4.16% for ZnO/Si-based, ~4.5% for SiC nanowire-based, ~4% for alumina nanowire-based, ~5% for graphene oxide-based, ~12% for (PEPC + NiPc + Cu2O)-based and so on) developed by other studies reported elsewhere [16,54,59,60,66]. The lower hysteresis value was obtained owing to the relatively faster adsorption and desorption rate of water molecules on the surface of the CMFTO electro-ceramic in comparison to the other materials [54,55].
The response and recovery time have a significant effect on the performance of humidity sensors. Time taken by a sensor to achieve ~90% of the total capacitance change is defined as the response time in case of adsorption or the recovery time in case of desorption of the water vapors. For a good sensor, the response and recovery time of humidity sensors must be very small. The response (see Figure 11A) and recovery (see Figure 11B) characteristic curves of our CMFTO electro-ceramic based humidity sensor show a change in capacitance with time in seconds. From the plots, it has been observed that the response and the recovery times of the sensor were 14.5 s and 34.27 s, respectively. The obtained response and recovery times of the CMFTO electro-ceramic-based capacitive humidity sensor are better than those of other conventional capacitive sensors. For example, the response time of our present sensor based on CMFTO electro-ceramic is significantly better than some humidity sensors based on other materials such as silicon nanowires (32 s in 11.3%–93% RH), anodic aluminum oxide (188 s in 30%–95% RH), multi-wall carbon nanotubes (45 s in 11%–86% RH), macroporous silicon (20 min in 0%–100% RH), and so on [67,68,69,70]. Both the response and recovery times of the present material are also better than those of Pb-free BaTiO3 based nanomaterials (i.e., 15 and 120 s, respectively, in 33%–98% RH) [71].
Stability is one of the most important parameter for any sensor application. The present CMFTO electro-ceramic-based humidity sensor was tested repeatedly at 102 Hz under fixed humidity levels (33%, 55%, 75%, 85% and 95% RH) for a period of 30 days and its humidity sensing parameters were measured repeatedly every 2 days. The characteristics of the present CMFTO sensor depicted in Figure 12 exhibit a good stability since there is only slight variation in capacitance as time goes by. Therefore, the obtained stability characteristics confirm that CMFTO sensor is a good promising material for practical applications.
Complex impedance spectroscopy is a powerful tool to understand the polarization processes and that take place in a humidity sensor due to absorption of water particles and the conductivity mechanism. The Nyquist/complex impedance plot of the CMFTO-based humidity sensor at different RH (33%–95% RH) was measured over a frequency range of 102 Hz to 106 Hz with 1 V AC signal at 25 °C. The variation in impedance spectra suggests different water absorption mechanisms related to electrical conductivity and polarization occur in the CMFTO electro-ceramic. When the RH is low (33%–75% RH), a half semicircle is observed in the complex impedance plot as depicted in Figure 13A. These semicircle characteristics can be explained by the resistance-capacitance parallel electrical circuits as shown in Figure 13A (inset). Therefore, the intrinsic resistance of the sensing electro-ceramic is responsible for the formation of the semicircle. The curvature of the semicircle decreases with increasing RH and results the decrease in intrinsic impedance, which is mainly due to the interaction between the sensing nanomaterial and water molecules. The polarization processes and conductivity mechanism that take place in a humidity sensor can be expressed by the resistance and capacitance electrical model as well by ionic interface and diffusion phenomena. With increasing RH (85%–95% RH), a straight line is generated in the low-frequency range and the semicircle becomes small (Figure 13B). The ionic as well as electrolytic conductivity are mainly responsible for the formation of a straight line in the complex impedance plot [72,73]. The straight line connected semicircular response curve represents another type of sensing mechanism which can be modelled by a capacitive and resistive equivalent electrical model as depicted in Figure 13B (inset) [72,73]. In these equivalent circuits of such complex impedance plots, Rf stands for the resistance of the CMFTO electro-ceramic, which decreases as RH increases, Cf is the capacitance of the CMFTO electro-ceramic and Zi is the interfacial impedance at the electrodes/CMFTO electro-ceramic [54,74]. At very low RH, the capacitive behaviour is mainly attributed to the conductivity of protons and the resistive characteristic is related to H3O+ ions. When the RH increases gradually, a huge number of water molecules participate in the physisorbed process on the large specific surface area of the CMFTO electro-ceramic. Thus, proton hopping between the adjacent water molecules occurs easily in CMFTO electro-ceramic. This causes a decrease in the intrinsic resistance of the CMFTO electro-ceramic corresponding to the more depressed semicircles and longer straight lines in Figure 13B at higher RH values. As higher the % RH, the line becomes longer and the semicircle becomes smaller. The line represents the Warburg impedance and occurs due to the diffusion of the electroactive species at the electrodes [74]. Hence, the complex impedance plots represent a single semicircle appears at lower humidity (33%–75% RH) (Figure 13A) and a straight line appears just after the 75% RH (Figure 13B). The single semicircle and the semicircle with straight line show completely two different sensing mechanisms. It was also clearly observed in Figure 9 where two different slopes of logC vs. RH plot contributed to the change in adsorption mode of water molecules from a monolayer chemisorption at low RH and a multilayer physisorption at high RH. It is thus indicated that the 75% RH is a critical point for water absorption mechanism of the present CMFTO and it is clearly confirmed that the two different conduction mechanisms take place at the surfaces of CMFTO electro-ceramic.

4. Conclusions

A novel submicroporous Ca,Mg,Fe,Ti-Oxides electro-ceramic-based capacitive humidity sensor has been fabricated from some inexpensive oxide nanomaterials using a solid-state step-sintering process. The presented sintering technique helped get nanomaterials with the desired morphology, lower density and high porosity. This newly developed Pb-free CMFTO electro-ceramic has shown improved capacitive humidity sensing properties via physisorption. It has shown two distinct conduction mechanisms by displaying a critical RH at 75% RH. The capacitance of the sensor of the CMFTO electro-ceramic increased from 3.2183 × 10−11 F to 9.9741 × 10−10 F as the RH changed from 33% to 95% at a testing frequency of 102 Hz. It has shown a high sensitivity (3000%), rapid response (14.5 s) and recovery (34.27), which is much lower than the values of other conventional capacitive humidity sensors. The present capacitive sensor showed a very low hysteresis of 3.2%. Therefore, all the above improved sensing characteristics, together with the good linearity and stability of the CMFTO electro-ceramic indicate that it can be used as a potential humidity sensing material for advanced applications.

Supplementary Materials

Supplementary File 1

Acknowledgments

This study was supported by UM/MOHE/HIR grant (Project number: D000014-16001).

Author Contributions

A.T. and S.P. conceived and designed the experiments; A.T. and A.M. performed the experiments; N.F.A.S. assisted a part of the experiments; A.T. and S.P. analyzed the data; S.B. gave some typical ideas on electrical study; Z.R. contributed some of the analysis tools; N.A.A.O. contributed by providing reagents/materials/analysis tools; A.T. and S.P. wrote the paper; all authors reviewed the entire manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Huang, T.-H.; Chou, J.-C.; Sun, T.-P.; Hsiung, S.-K. A device for skin moisture and environment humidity detection. Sens. Actuators B Chem. 2008, 134, 206–212. [Google Scholar] [CrossRef]
  2. Chen, Z.; Lu, C. Humidity sensors: A review of materials and mechanisms. Sens. Lett. 2005, 3, 274–295. [Google Scholar] [CrossRef]
  3. Kim, S.-J.; Park, J.-Y.; Lee, S.-H.; Yi, S.-H. Humidity sensors using porous silicon layer with mesa structure. J. Phys. D Appl. Phys. 2000, 33, 1781. [Google Scholar] [CrossRef]
  4. Muto, S.; Suzuki, O.; Amano, T.; Morisawa, M. A plastic optical fibre sensor for real-time humidity monitoring. Meas. Sci. Technol. 2003, 14, 746. [Google Scholar] [CrossRef]
  5. Shuk, P.; Greenblatt, M. Solid electrolyte film humidity sensor. Solid State Ionics 1998, 113, 229–233. [Google Scholar] [CrossRef]
  6. Kulkarni, M.V.; Viswanath, A.K.; Khanna, P. Synthesis and humidity sensing properties of conducting poly (N-methyl aniline) doped with different acids. Sens. Actuators B Chem. 2006, 115, 140–149. [Google Scholar] [CrossRef]
  7. Shah, J.; Kotnala, R.; Singh, B.; Kishan, H. Microstructure-dependent humidity sensitivity of porous mgfe 2O4–CeO2 ceramic. Sens. Actuators B Chem. 2007, 128, 306–311. [Google Scholar] [CrossRef]
  8. Kulwicki, B.M. Humidity sensors. J. Am. Ceramic Soc. 1991, 74, 697–708. [Google Scholar] [CrossRef]
  9. Traversa, E. Ceramic sensors for humidity detection: The state-of-the-art and future developments. Sens. Actuators B Chem. 1995, 23, 135–156. [Google Scholar] [CrossRef]
  10. Faia, P.; Furtado, C.; Ferreira, A. Humidity sensing properties of a thick-film titania prepared by a slow spinning process. Sens. Actuators B Chem. 2004, 101, 183–190. [Google Scholar] [CrossRef]
  11. Zhang, Y.; Yu, K.; Ouyang, S.; Luo, L.; Hu, H.; Zhang, Q.; Zhu, Z. Detection of humidity based on quartz crystal microbalance coated with zno nanostructure films. Phys. B Condens. Matter 2005, 368, 94–99. [Google Scholar] [CrossRef]
  12. Sberveglieri, G.; Rinchetti, G.; Groppelli, S.; Faglia, G. Capacitive humidity sensor with controlled performances, based on porous Al2O3 thin film growm on SiO2-Si substrate. Sens. Actuators B Chem. 1994, 19, 551–553. [Google Scholar] [CrossRef]
  13. Cheng, B.; Tian, B.; Xie, C.; Xiao, Y.; Lei, S. Highly sensitive humidity sensor based on amorphous Al2O3 nanotubes. J. Mater. Chem. 2011, 21, 1907–1912. [Google Scholar] [CrossRef]
  14. Agarwal, S.; Sharma, G. Humidity sensing properties of (Ba,Sr)TiO3 thin films grown by hydrothermal-electrochemical method. Sens. Actuators B Chem. 2002, 85, 205–211. [Google Scholar] [CrossRef]
  15. Yuk, J.; Troczynski, T. Sol-gel batio 3 thin film for humidity sensors. Sens. Actuat. B Chem. 2003, 94, 290–293. [Google Scholar] [CrossRef]
  16. Wang, H.Y.; Wang, Y.Q.; Hu, Q.F.; Li, X.J. Capacitive humidity sensing properties of sic nanowires grown on silicon nanoporous pillar array. Sens. Actuators B Chem. 2012, 166, 451–456. [Google Scholar] [CrossRef]
  17. Chang, D.; Tseng, T. Humidity-sensitivity characteristics of catio 3 porous ceramics. J. Mater. Sci. Lett. 1990, 9, 943–944. [Google Scholar] [CrossRef]
  18. Matko, V.; Donlagic, D. Sensor for high-air-humidity measurement. IEEE Trans. Instrum. Meas. 1996, 45, 561–563. [Google Scholar] [CrossRef]
  19. Matko, V. Next generation at-cut quartz crystal sensing devices. Sensors 2011, 11, 4474–4482. [Google Scholar] [CrossRef] [PubMed]
  20. Huang, H.; Zhou, L.M.; Guo, J.; Hng, H.H.; Oh, J.T.; Hing, P. F spots and domain patterns in rhombohedral PbZr0.90Ti0.10O3. Appl. Phys. Lett. 2003, 83, 3692. [Google Scholar] [CrossRef]
  21. Ke, S.; Huang, H.; Fan, H. Relaxor behavior in CaCu3Ti4O12 ceramics. Appl. Phys. Lett. 2006, 89, 2904. [Google Scholar] [CrossRef]
  22. Aria, H.; Ezeki, S.; Shimizu, Y.; Shippo, O.; Seiyama, T. Semiconductive humidity sensor of perovskite-type oxides. Anal. Chem. Symp. Ser. Chem. Sens. 1983, 17, 393–398. [Google Scholar]
  23. Wang, J.; Xu, B.; Liu, G.; Liu, Y.; Wu, F.; Li, X.; Zhao, M. Influence of doping on humidity sensing properties of nanocrystalline batio3. J. Mater. Sci. Lett. 1998, 17, 857–859. [Google Scholar] [CrossRef]
  24. Ito, W.; Nagai, T.; Sakon, T. Oxygen separation from compressed air using a mixed conducting perovskite-type oxide membrane. Solid State Ionics 2007, 178, 809–816. [Google Scholar] [CrossRef]
  25. Alifanti, M.; Kirchnerova, J.; Delmon, B. Effect of substitution by cerium on the activity of LaMnO3 perovskite in methane combustion. Appl. Catal. A Gen. 2003, 245, 231–244. [Google Scholar] [CrossRef]
  26. Musialik-Piotrowska, A.; Syczewska, K. Combustion of volatile organic compounds in two-component mixtures over monolithic perovskite catalysts. Catal. Today 2000, 59, 269–278. [Google Scholar] [CrossRef]
  27. Hui, R.; Sun, C.; Yick, S.; Decès-Petit, C.; Zhang, X.; Maric, R.; Ghosh, D. Ba1−xPrxCo1−yFeyO3−δ as cathode materials for low temperature solid oxide fuel cells. Electrochim. Acta 2010, 55, 4772–4775. [Google Scholar] [CrossRef]
  28. Tian, T.; Wang, W.; Zhan, M.; Chen, C. Catalytic partial oxidation of methane over SrTiO3 with oxygen-permeable membrane reactor. Catal. Commun. 2010, 11, 624–628. [Google Scholar] [CrossRef]
  29. Park, H.B.; Park, C.Y.; Hong, Y.S.; Kim, K.; Kim, S.J. Structural and dielectric properties of plzt ceramics modified with lanthanide ions. J. Am. Ceram. Soc. 1999, 82, 94–102. [Google Scholar] [CrossRef]
  30. Zhai, H.F.; Tang, R.L.; Li, A.D.; Guo, H.R.; Xia, Y.D.; Wu, D. Preparation and characterization of relaxor ferroelectric 0.65Pb(Mg1/3Nb2/3)O3-0.35PbTiO3 by a polymerizable complex method. J. Am. Ceram. Soc. 2009, 92, 1256–1261. [Google Scholar] [CrossRef]
  31. Ranjan, R.; Kumar, R.; Kumar, N.; Behera, B.; Choudhary, R. Impedance and electric modulus analysis of sm-modified Pb(Zr0.55Ti0.45)1−x/4O3 ceramics. J. Alloys Compd. 2011, 509, 6388–6394. [Google Scholar] [CrossRef]
  32. Liu, J.; Li, W.; Zhang, Y.; Wang, Z. Preparation and characterization of Li+-modified CaxPb1−xTiO3 film for humidity sensor. Sens. Actuators B Chem. 2001, 75, 11–17. [Google Scholar]
  33. Jeong, Y.-H.; Lee, S.-H.; Yoo, J.-H.; Park, C.Y. Voltage gain characteristics of piezoelectric transformer using PbTiO3 system ceramics. Sens. Actuators A Phys. 1999, 77, 126–130. [Google Scholar] [CrossRef]
  34. Guo, Y.; Kakimoto, K.-I.; Ohsato, H. Dielectric and piezoelectric properties of lead-free (Na0.5K0.5)NbO3-SrTiO3 ceramics. Solid State Commun. 2004, 129, 279–284. [Google Scholar] [CrossRef]
  35. Chen, L.; Fan, H.; Zhang, M.; Yang, C.; Chen, X. Phase structure, microstructure and piezoelectric properties of perovskite (K0.5Na0.5)0.95Li0.05NbO3-Bi0.5(K0.15Na0.85)0.5TiO3 lead-free ceramics. J. Alloys Compd. 2010, 492, 313–319. [Google Scholar] [CrossRef]
  36. Lin, T.F.; Hu, C.T.; Lin, I.N. Influence of cao addition on the electrical properties of BaTiO3 ceramics. J. Appl. Phys. 1990, 67, 1042–1047. [Google Scholar] [CrossRef]
  37. Tang, X.-G.; Chan, H.L.-W. Effect of grain size on the electrical properties of (Ba,Ca)(Zr,Ti)O3 relaxor ferroelectric ceramics. J. Appl. Phys. 2005, 97, 034109. [Google Scholar] [CrossRef]
  38. Dwivedi, R.; Kumar, D.; Parkash, O. Valence compensated perovskite oxide system Ca1−xLaxTi1−xCrxO3 part I structure and dielectric behaviour. J. Mater. Sci. 2001, 36, 3641–3648. [Google Scholar] [CrossRef]
  39. Chung, C.-C.; Chai, Y.-L.; Chang, Y.-S. Dielectric properties of valence compensated Ca1−xBixTi1−xCrxO3 perovskite prepared using the sol-gel process. J. Phys. Chem. Solids 2008, 69, 1877–1882. [Google Scholar] [CrossRef]
  40. Chung, C.-Y.; Chang, Y.-H.; Chang, Y.-S.; Chen, G.-J. High dielectric permittivity in Ca1−xBixTi1−xCrxO3 ferroelectric perovskite ceramics. J. Alloys Compd. 2004, 385, 298–303. [Google Scholar] [CrossRef]
  41. Tripathy, A.; Pramanik, S.; Manna, A.; Azrin Shah, N.F.; Shasmin, H.N.; Radzi, Z.; Abu Osman, N.A. Synthesis and characterizations of novel Ca-Mg-Ti-Fe-oxides based ceramic nanocrystals and flexible film of polydimethylsiloxane composite with improved mechanical and dielectric properties for sensors. Sensors 2016, 16, 292. [Google Scholar] [CrossRef] [PubMed]
  42. Pramanik, S.; Ataollahi, F.; Pingguan-Murphy, B.; Oshkour, A.A.; Abu Osman, N.A. In vitro study of surface modified poly(ethylene glycol)-impregnated sintered bovine bone scaffolds on human fibroblast cells. Sci. Rep. 2015, 5, 9806. [Google Scholar] [CrossRef] [PubMed]
  43. Pramanik, S.; Mohd Hanif, A.S.; Pingguan-Murphy, B.; Abu Osman, N.A. Morphological change of heat treated bovine bone: A comparative study. Materials 2013, 6, 65–75. [Google Scholar] [CrossRef]
  44. Dickey, E.C.; Varghese, O.K.; Ong, K.G.; Gong, D.; Paulose, M.; Grimes, C.A. Room temperature ammonia and humidity sensing using highly ordered nanoporous alumina films. Sensors 2002, 2, 91–110. [Google Scholar] [CrossRef]
  45. Sun, A.; Huang, H.; Chu, C.; Li, Y. Effect of the pore size of TiO2 porous film on humidity sensitive properties of TiO2/napss composite films. Sens. Actuators B Chem. 2011, 160, 1335–1339. [Google Scholar] [CrossRef]
  46. Morris, R.V.; Lauer, H.V.; Lawson, C.A.; Gibson, E.K.; Nace, G.A.; Stewart, C. Spectral and other physicochemical properties of submicron powders of hematite (α-Fe2O3), maghemite (γ-Fe2O3), magnetite (Fe3O4), goethite (α-FeOOH), and lepidocrocite (γ-FeOOH). J. Geophys. Res. Solid Earth 1985, 90, 3126–3144. [Google Scholar] [CrossRef]
  47. Pramanik, S.; Pingguan-Murphy, B.; Cho, J.; Osman, N.A.A. Design and development of potential tissue engineering scaffolds from structurally different longitudinal parts of a bovine-femur. Sci. Rep. 2014, 4, 5843. [Google Scholar] [CrossRef] [PubMed]
  48. Nitta, T.; Terada, Z.; Hayakawa, S. Humidity-sensitive electrical conduction of MgCr2O4-TiO2 porous ceramics. J. Am. Ceram. Soc. 1980, 63, 295–300. [Google Scholar] [CrossRef]
  49. Tripathy, A.; Pramanik, S.; Cho, J.; Santhosh, J.; Abu Osman, N.A. Role of morphological structure, doping, and coating of different materials in the sensing characteristics of humidity sensors. Sensors 2014, 14, 16343–16442. [Google Scholar] [CrossRef] [PubMed]
  50. Ataollahi, F.; Pramanik, S.; Moradi, A.; Dalilottojari, A.; Pingguan-Murphy, B.; Wan Abas, W.A.B.; Abu Osman, N.A. Endothelial cell responses in terms of adhesion, proliferation, and morphology to stiffness of polydimethylsiloxane elastomer substrates. J. Biomed. Mater. Res. Part A 2014, 103, 2203–2213. [Google Scholar] [CrossRef] [PubMed]
  51. Chuang, S.-H.; Gao, R.-H.; Wang, D.-Y.; Liu, H.-P.; Chen, L.-M.; Chiang, M.Y. Synthesis and characterization of ilmenite-type cobalt titanate powder. J. Chin. Chem. Soc. 2010, 57, 932–937. [Google Scholar] [CrossRef]
  52. Yazawa, Y.; Yamaguchi, A.; Takeda, H. Lunar minerals and their resource utilization with particular reference to solar power satellites and potential roles for humic substances for lunar agriculture. In Moon; Springer: Berlin, Germany; Heidelberg, Germany, 2012; pp. 105–138. [Google Scholar]
  53. Wang, J.; Wang, X.-H.; Wang, X.-D. Study on dielectric properties of humidity sensing nanometer materials. Sens. Actuators B Chem. 2005, 108, 445–449. [Google Scholar] [CrossRef]
  54. Bi, H.; Yin, K.; Xie, X.; Ji, J.; Wan, S.; Sun, L.; Terrones, M.; Dresselhaus, M.S. Ultrahigh humidity sensitivity of graphene oxide. Sci. Rep. 2013, 3. [Google Scholar] [CrossRef] [PubMed]
  55. Wang, W.C.; Tian, Y.T.; Li, K.; Lu, E.Y.; Gong, D.S.; Li, X.J. Capacitive humidity-sensing properties of Zn2SiO4 film grown on silicon nanoporous pillar array. Appl. Surface Sci. 2013, 273, 372–376. [Google Scholar] [CrossRef]
  56. Cheng, B.; Ouyang, Z.; Tian, B.; Xiao, Y.; Lei, S. Porous ZnAl2O4 spinel nanorods: High sensitivity humidity sensors. Ceram. Int. 2013, 39, 7379–7386. [Google Scholar] [CrossRef]
  57. Wang, C.-T.; Wu, C.-L.; Chen, I.-C.; Huang, Y.-H. Humidity sensors based on silica nanoparticle aerogel thin films. Sens. Actuators B Chem. 2005, 107, 402–410. [Google Scholar] [CrossRef]
  58. Björkqvist, M.; Salonen, J.; Paski, J.; Laine, E. Characterization of thermally carbonized porous silicon humidity sensor. Sens. Actuators A Phys. 2004, 112, 244–247. [Google Scholar] [CrossRef]
  59. Feng, Z.-S.; Chen, X.-J.; Chen, J.-J.; Hu, J. A novel humidity sensor based on alumina nanowire films. J. Phys. D Appl. Phys. 2012, 45, 225305. [Google Scholar] [CrossRef]
  60. Ahmad, Z.; Zafar, Q.; Sulaiman, K.; Akram, R.; Karimov, K.S. A humidity sensing organic-inorganic composite for environmental monitoring. Sensors 2013, 13, 3615–3624. [Google Scholar] [CrossRef] [PubMed]
  61. Wang, Z.; Shi, L.; Wu, F.; Yuan, S.; Zhao, Y.; Zhang, M. The sol-gel template synthesis of porous TiO2 for a high performance humidity sensor. Nanotechnology 2011, 22, 275502. [Google Scholar] [CrossRef] [PubMed]
  62. Agmon, N. The grotthuss mechanism. Chem. Phys. Lett. 1995, 244, 456–462. [Google Scholar] [CrossRef]
  63. Gao, W.; Singh, N.; Song, L.; Liu, Z.; Reddy, A.L.M.; Ci, L.; Vajtai, R.; Zhang, Q.; Wei, B.; Ajayan, P.M. Direct laser writing of micro-supercapacitors on hydrated graphite oxide films. Nat. Nanotechnol. 2011, 6, 496–500. [Google Scholar] [CrossRef] [PubMed]
  64. McCafferty, E.; Zettlemoyer, A. Adsorption of water vapour on α-Fe2O3. Discuss. Faraday Soc. 1971, 52, 239–254. [Google Scholar] [CrossRef]
  65. Seiyama, T.; Yamazoe, N.; Arai, H. Ceramic humidity sensors. Sens. Actuators 1983, 4, 85–96. [Google Scholar] [CrossRef]
  66. Wang, L.L.; Wang, H.Y.; Wang, W.C.; Li, K.; Wang, X.C.; Li, X.J. Capacitive humidity sensing properties of ZnO cauliflowers grown on silicon nanoporous pillar array. Sens. Actuators B Chem. 2013, 177, 740–744. [Google Scholar] [CrossRef]
  67. Chen, W.-P.; Zhao, Z.-G.; Liu, X.-W.; Zhang, Z.-X.; Suo, C.-G. A capacitive humidity sensor based on multi-wall carbon nanotubes (MWCNTs). Sensors 2009, 9, 7431–7444. [Google Scholar] [CrossRef] [PubMed]
  68. Chen, X.; Zhang, J.; Wang, Z.; Yan, Q.; Hui, S. Humidity sensing behavior of silicon nanowires with hexamethyldisilazane modification. Sens. Actuators B Chem. 2011, 156, 631–636. [Google Scholar] [CrossRef]
  69. Wang, Y.; Park, S.; Yeow, J.T.; Langner, A.; Müller, F. A capacitive humidity sensor based on ordered macroporous silicon with thin film surface coating. Sens. Actuators B Chem. 2010, 149, 136–142. [Google Scholar] [CrossRef]
  70. Kim, Y.; Jung, B.; Lee, H.; Kim, H.; Lee, K.; Park, H. Capacitive humidity sensor design based on anodic aluminum oxide. Sens. Actuators B Chem. 2009, 141, 441–446. [Google Scholar] [CrossRef]
  71. Wang, J.; Lin, Q.; Zhou, R.; Xu, B. Humidity sensors based on composite material of nano-BaTiO3 and polymer rmx. Sens. Actuators B Chem. 2002, 81, 248–253. [Google Scholar] [CrossRef]
  72. Song, X.; Qi, Q.; Zhang, T.; Wang, C. A humidity sensor based on KCl-doped SnO2 nanofibers. Sens. Actuators B Chem. 2009, 138, 368–373. [Google Scholar] [CrossRef]
  73. Su, M.; Wang, J. Preparation and humidity sensitivity of multi-layered zirconia thin films by sol-gel method. Sens. Lett. 2011, 9, 670–674. [Google Scholar] [CrossRef]
  74. Qi, Q.; Zhang, T.; Yu, Q.; Wang, R.; Zeng, Y.; Liu, L.; Yang, H. Properties of humidity sensing ZnO nanorods-base sensor fabricated by screen-printing. Sens. Actuators B Chem. 2008, 133, 638–643. [Google Scholar] [CrossRef]
Figure 1. Flow chart for sensor fabrication with the morphology at different sintering temperature.
Figure 1. Flow chart for sensor fabrication with the morphology at different sintering temperature.
Sensors 16 01135 g001
Figure 2. Experimental setup for the measurement of the capacitive humidity response of the electro-ceramic based sensors.
Figure 2. Experimental setup for the measurement of the capacitive humidity response of the electro-ceramic based sensors.
Sensors 16 01135 g002

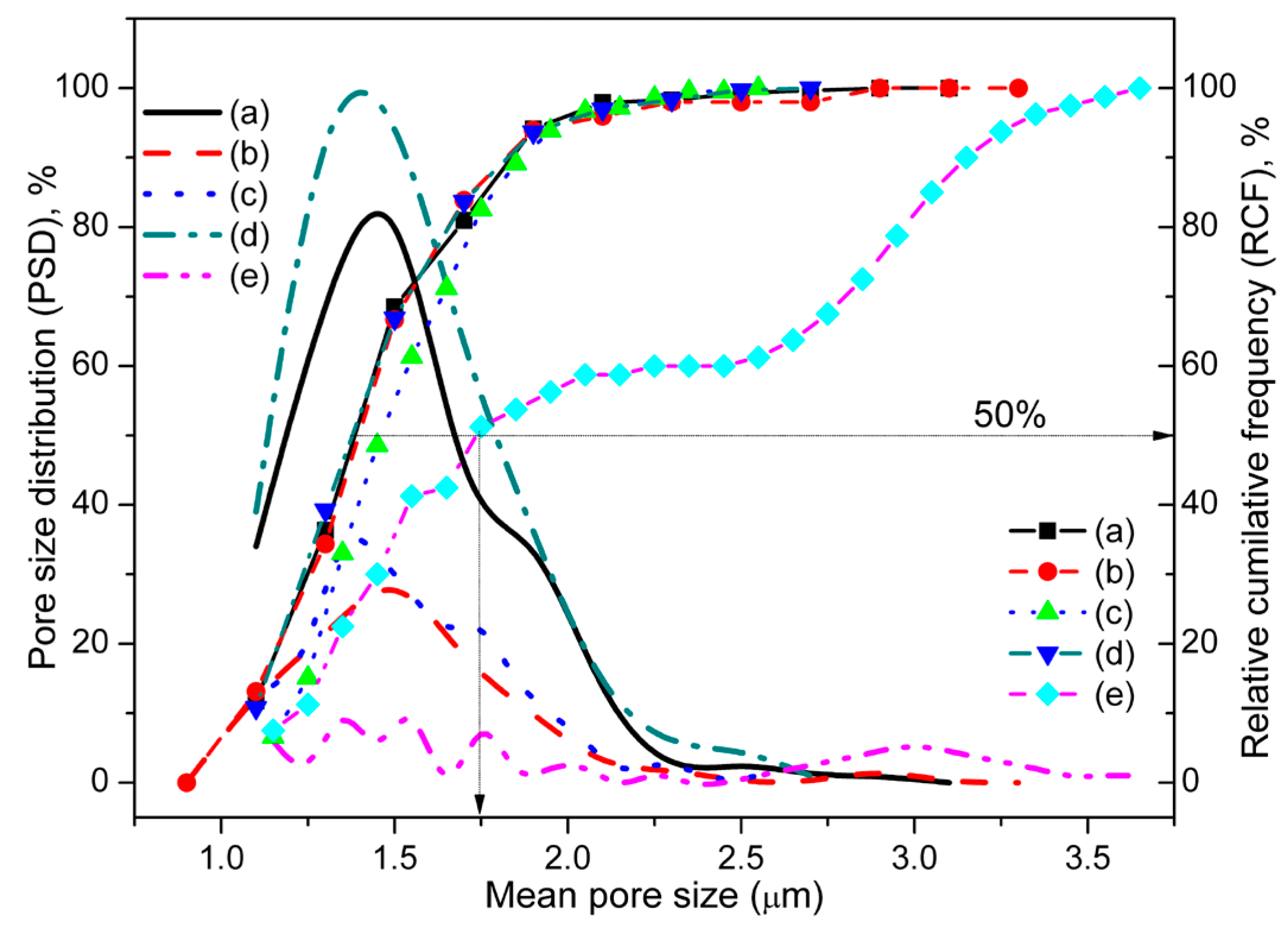

Figure 3. Pore size distribution (PSD) and relative cumulative frequency (RCF) of (a) unsintered and sintered at (b) 450 °C, (c) 650 °C, (d) 850 °C and (e) 1050 °C materials measuring from the electron micrographs using ImageJ.
Figure 3. Pore size distribution (PSD) and relative cumulative frequency (RCF) of (a) unsintered and sintered at (b) 450 °C, (c) 650 °C, (d) 850 °C and (e) 1050 °C materials measuring from the electron micrographs using ImageJ.
Sensors 16 01135 g003

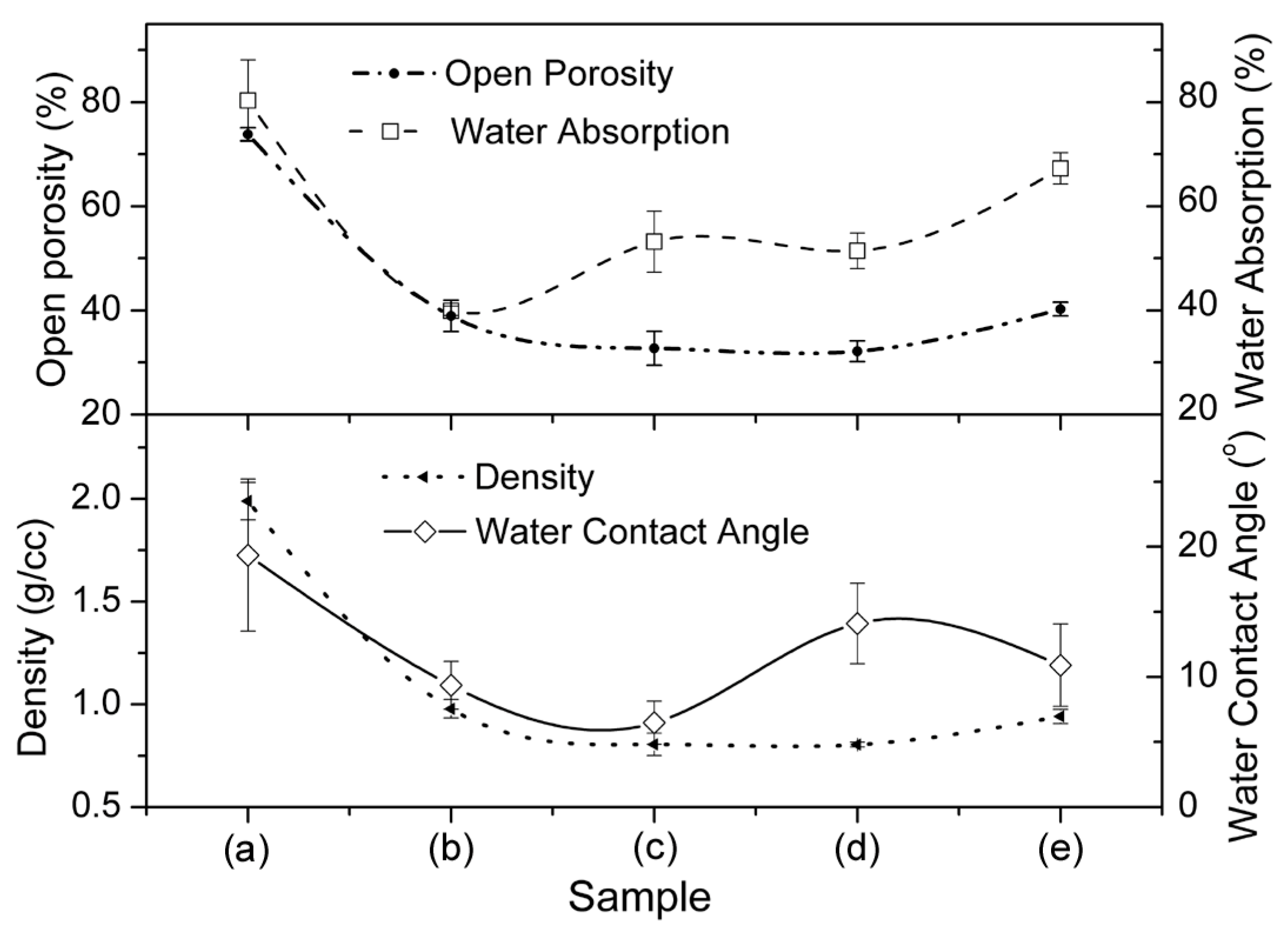

Figure 4. Density, open-porosity, water absorption and water contact angle (WCA) of (a) unsintered and sintered at (b) 450 °C; (c) 650 °C; (d) 850 °C and (e) 1050 °C ceramic samples.
Figure 4. Density, open-porosity, water absorption and water contact angle (WCA) of (a) unsintered and sintered at (b) 450 °C; (c) 650 °C; (d) 850 °C and (e) 1050 °C ceramic samples.
Sensors 16 01135 g004

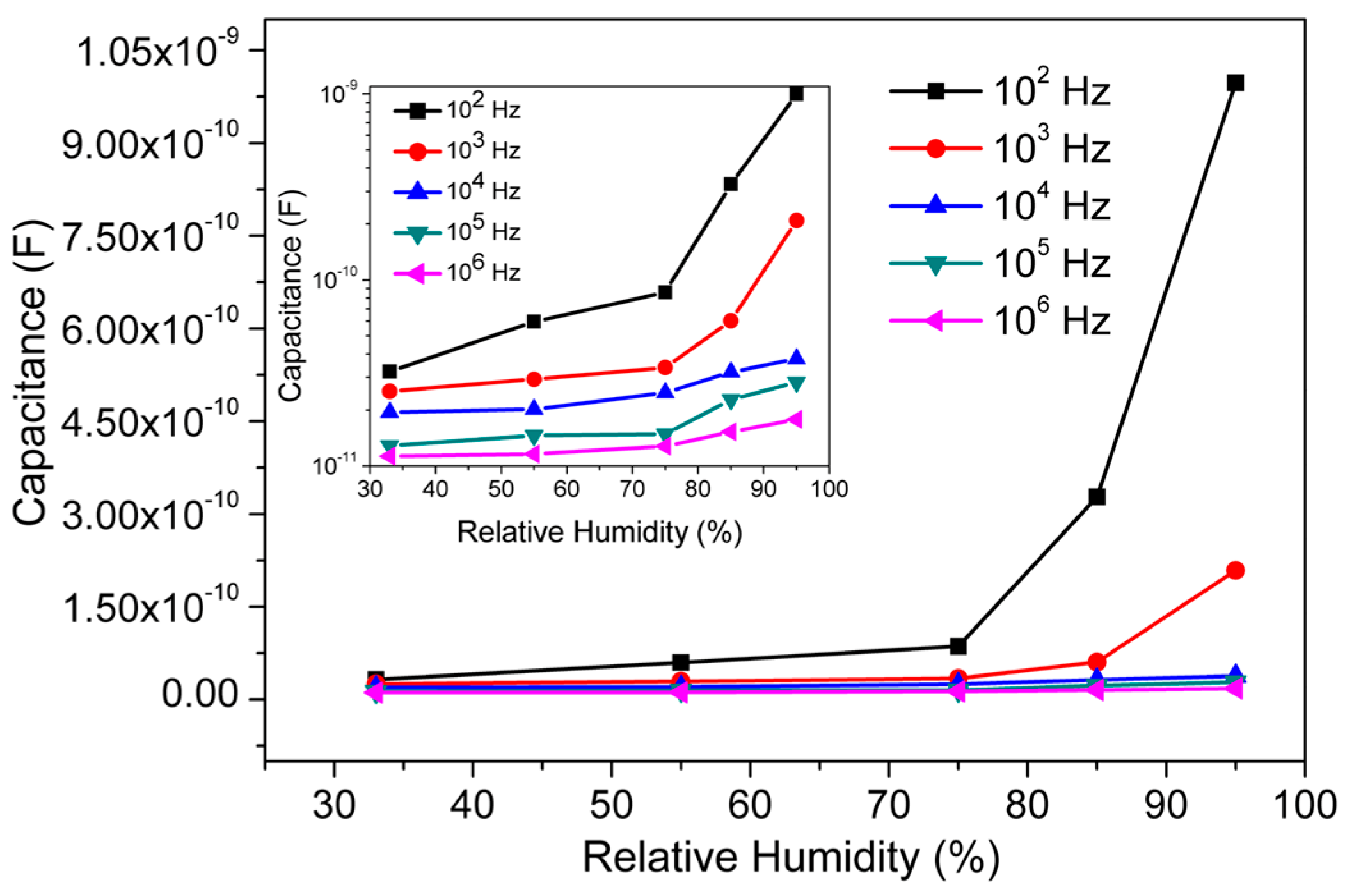

Figure 5. The response curves of the capacitance versus relative humidity (RH) at different frequencies of CMFTO electro-ceramic at 25 °C. Inset image represents the variation of capacitance with RH at 25 °C at different frequency in logarithmic scale (log(C) vs. % RH). Note: the capacitance increases monotonically with % RH at different frequencies, but increased rate is faster at 102 Hz.
Figure 5. The response curves of the capacitance versus relative humidity (RH) at different frequencies of CMFTO electro-ceramic at 25 °C. Inset image represents the variation of capacitance with RH at 25 °C at different frequency in logarithmic scale (log(C) vs. % RH). Note: the capacitance increases monotonically with % RH at different frequencies, but increased rate is faster at 102 Hz.
Sensors 16 01135 g005
Figure 6. The variations of capacitance with frequency at different humidity condition (33%–95% RH) for CMFTO based humidity sensor at 25 °C. Inset image represents the variation of capacitance with frequency at different RH in logarithmic scale (log(C) vs. log(RH)). Note: The value of capacitance increases with increased % RH, but decreases with increased frequency. The decreased rate is faster in lower frequency (<104 Hz) and higher humidity range (>85% RH).
Figure 6. The variations of capacitance with frequency at different humidity condition (33%–95% RH) for CMFTO based humidity sensor at 25 °C. Inset image represents the variation of capacitance with frequency at different RH in logarithmic scale (log(C) vs. log(RH)). Note: The value of capacitance increases with increased % RH, but decreases with increased frequency. The decreased rate is faster in lower frequency (<104 Hz) and higher humidity range (>85% RH).
Sensors 16 01135 g006
Figure 7. The sensitivity (%S) response of CMFTO based capacitive sensor with % RH at different test frequencies at 25 °C. Note: the sensitivity increases monotonically with % RH at different frequencies, but the value of sensitivity is highest (~3000%) at 102 Hz. Hence, 102 Hz is considered as the most suitable frequency for the further analysis.
Figure 7. The sensitivity (%S) response of CMFTO based capacitive sensor with % RH at different test frequencies at 25 °C. Note: the sensitivity increases monotonically with % RH at different frequencies, but the value of sensitivity is highest (~3000%) at 102 Hz. Hence, 102 Hz is considered as the most suitable frequency for the further analysis.
Sensors 16 01135 g007
Figure 8. Schematic representation of the humidity sensing mechanism of CMFTO electro-ceramic at different humidity environment. Note: the adsorption of water molecules on CMFTO nanoceramic is characterized by two processes. The first-layer water molecules (at lower humidity) are attached on the CMFTO electro-ceramic through two hydrogen bonds. As a result, the water molecules are not able to move freely and thus, the impedance value increases. In contrast, from the second layer (at higher humidity), water molecules are adsorbed only through one hydrogen bond. Hence, the water molecules are able to move freely and thus, the impedance value decreases. This insists to increase the capacitance value.
Figure 8. Schematic representation of the humidity sensing mechanism of CMFTO electro-ceramic at different humidity environment. Note: the adsorption of water molecules on CMFTO nanoceramic is characterized by two processes. The first-layer water molecules (at lower humidity) are attached on the CMFTO electro-ceramic through two hydrogen bonds. As a result, the water molecules are not able to move freely and thus, the impedance value increases. In contrast, from the second layer (at higher humidity), water molecules are adsorbed only through one hydrogen bond. Hence, the water molecules are able to move freely and thus, the impedance value decreases. This insists to increase the capacitance value.
Sensors 16 01135 g008
Figure 9. The transformed response curves of logarithmic capacitance (logC) vs. RH of CMFTO electro-ceramic based capacitive sensor. Note: first linear transformation curve (red-line) is well fitted by logC = 0.0102RH − 10.8148 in the RH range from 33% to 75% and the second linear transformation curve (green-line) is well fitted by the formula logC = 0.0532RH − 14.0401 at the higher humidity range (>75% RH). Here, regression, R2 represents a best fit of the curves to improve linearity.
Figure 9. The transformed response curves of logarithmic capacitance (logC) vs. RH of CMFTO electro-ceramic based capacitive sensor. Note: first linear transformation curve (red-line) is well fitted by logC = 0.0102RH − 10.8148 in the RH range from 33% to 75% and the second linear transformation curve (green-line) is well fitted by the formula logC = 0.0532RH − 14.0401 at the higher humidity range (>75% RH). Here, regression, R2 represents a best fit of the curves to improve linearity.
Sensors 16 01135 g009

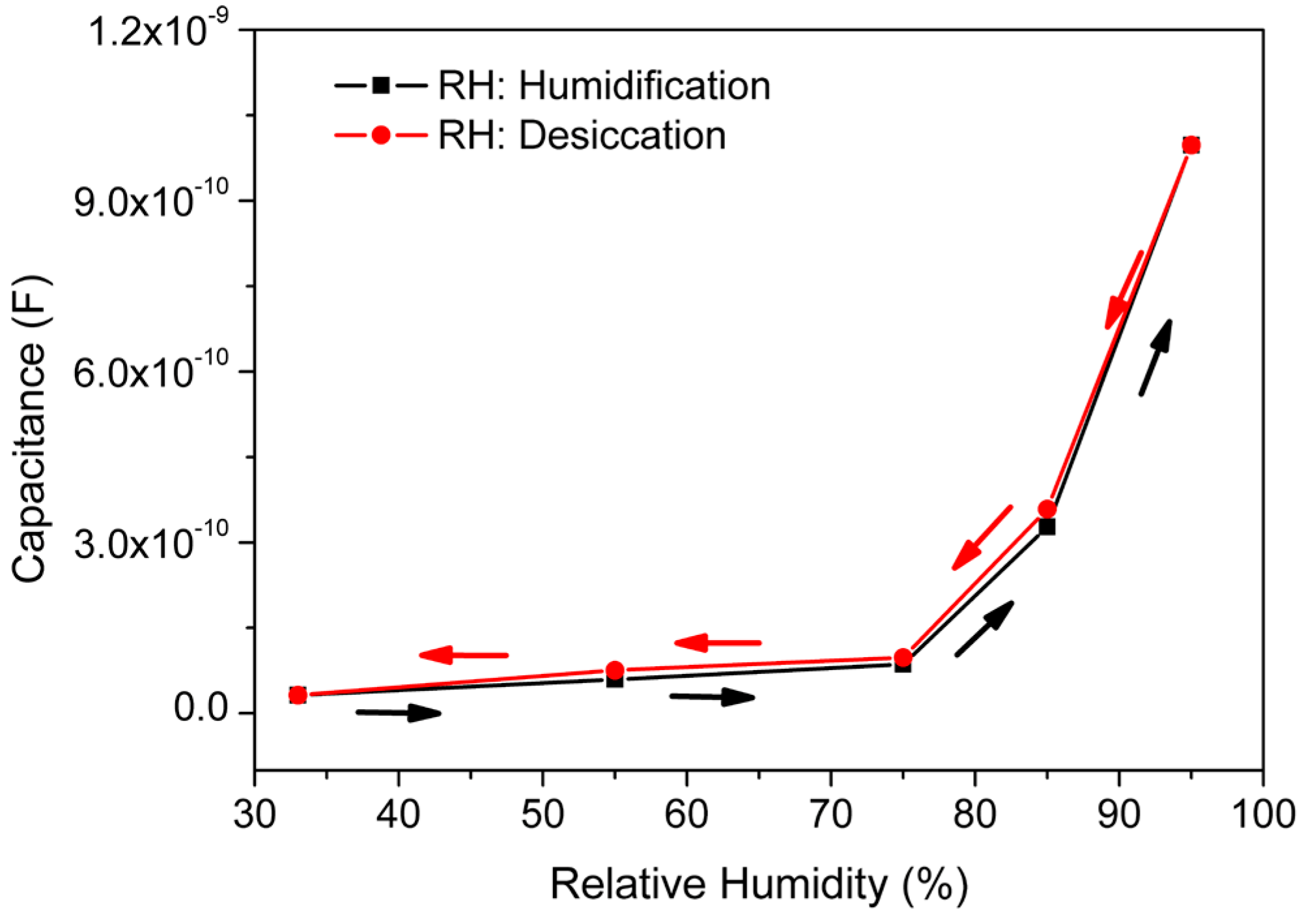

Figure 10. The hysteresis property of CMFTO electro-ceramic-based capacitive humidity sensor at 102 Hz under 25 °C. Note: the value of hysteresis is extremely low (~3.2%) compared to other conventional capacitive sensors. The low hysteresis value is mainly due to the fast adsorption and desorption rate of water particles on the surface of the CMFTO electro-ceramic.
Figure 10. The hysteresis property of CMFTO electro-ceramic-based capacitive humidity sensor at 102 Hz under 25 °C. Note: the value of hysteresis is extremely low (~3.2%) compared to other conventional capacitive sensors. The low hysteresis value is mainly due to the fast adsorption and desorption rate of water particles on the surface of the CMFTO electro-ceramic.
Sensors 16 01135 g010
Figure 11. Response and recovery times of the CMFTO humidity sensors for humidity levels between 33% RH and 95% RH at 102 Hz. (A) Response time (14.5 s); (B) Recovery time (34.27 s).
Figure 11. Response and recovery times of the CMFTO humidity sensors for humidity levels between 33% RH and 95% RH at 102 Hz. (A) Response time (14.5 s); (B) Recovery time (34.27 s).
Sensors 16 01135 g011

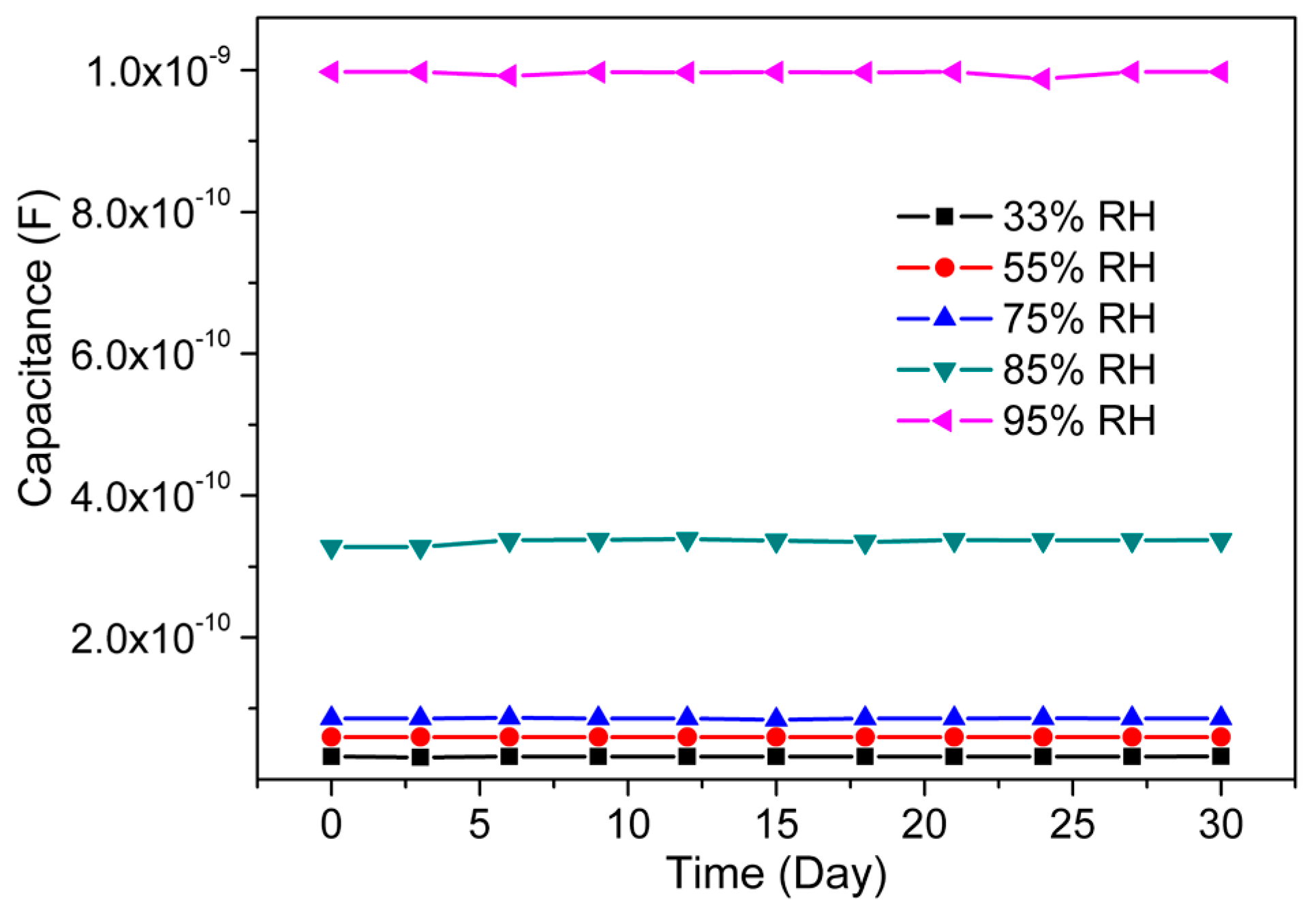

Figure 12. Stability analysis of CMFTO electro-ceramic-based humidity sensor measured at a test frequency 102 Hz at 25 °C. Note: The measurement was conducted repeatedly for 30 days at 2-day interval and very negligible changes are observed.
Figure 12. Stability analysis of CMFTO electro-ceramic-based humidity sensor measured at a test frequency 102 Hz at 25 °C. Note: The measurement was conducted repeatedly for 30 days at 2-day interval and very negligible changes are observed.
Sensors 16 01135 g012

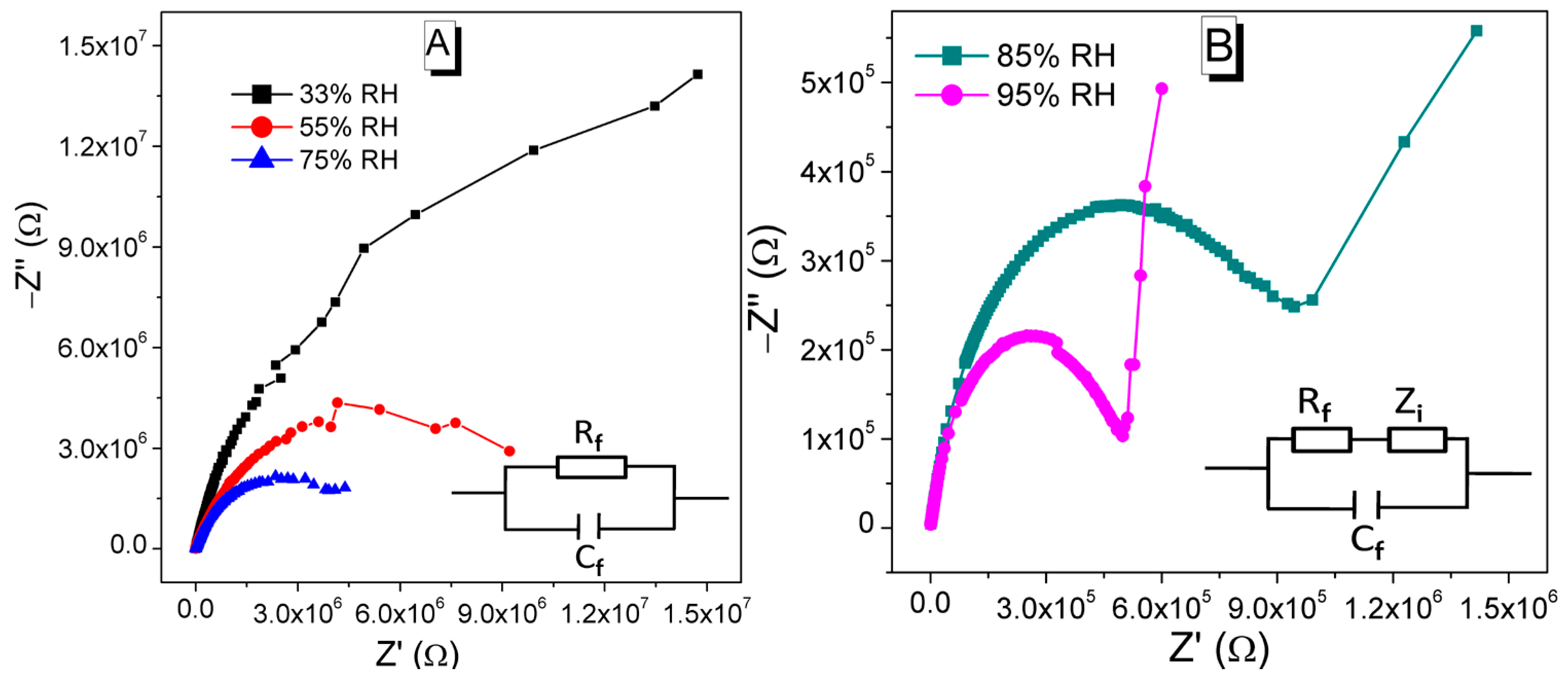

Figure 13. Complex impedance plots and equivalent circuits of CMFTO based electro-ceramic under different humidity levels. (A) At lower humidity range (33%–75% RH), single semicircles are formed; the inset represents an equivalent circuit at lower RH; (B) At higher humidity condition (85%–95% RH), the radii of semicircle decrease and a straight line appears, and the straight lines become longer with increasing of humidity; the inset represents an equivalent circuit at higher RH. Rf and Cf: are the resistance and capacitance of CMFTO electro-ceramics, respectively; Zi: interface impedance between CMFTO electro-ceramic surface and electrode.
Figure 13. Complex impedance plots and equivalent circuits of CMFTO based electro-ceramic under different humidity levels. (A) At lower humidity range (33%–75% RH), single semicircles are formed; the inset represents an equivalent circuit at lower RH; (B) At higher humidity condition (85%–95% RH), the radii of semicircle decrease and a straight line appears, and the straight lines become longer with increasing of humidity; the inset represents an equivalent circuit at higher RH. Rf and Cf: are the resistance and capacitance of CMFTO electro-ceramics, respectively; Zi: interface impedance between CMFTO electro-ceramic surface and electrode.
Sensors 16 01135 g013
Table 1. Schematic sintering steps of the samples 450, 650, 850, and 1050 °C.
Table 1. Schematic sintering steps of the samples 450, 650, 850, and 1050 °C.
StepsParametersSample Details
450 °C650 °C850 °C1050 °C
Step-ITemperature (°C)450250350350
Time (h)3.5111
Ramp rate (°C/min)5555
Step-IITemperature (°C)-650550550
Time (h)-3.53.53.5
Ramp rate (°C/min)-101010
Step-IIITemperature (°C)--8501050
Time (h)--1.31.3
Ramp rate (°C/min)--1515
Step-IVTemperature (°C)--750750
Time (h)--33
Ramp rate (°C/min)--2020
Back to TopTop
