# Valid Probabilistic Predictions for Ginseng with Venn Machines Using Electronic Nose

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Probabilistic Prediction Methods

#### 2.1. Venn Machine

#### 2.2. Naive Bayes Classification

#### 2.3. Softmax Regression

#### 2.4. Platt’s Method

#### 2.5. The Validity of Probabilistic Predictions

#### 2.5.1. Loss Function

#### 2.5.2. Cumulative Probability Values versus Cumulative Correct Predictions

## 3. Materials and Methods

#### 3.1. Sample Preparation

#### 3.2. E-Nose Equipment and Measurement

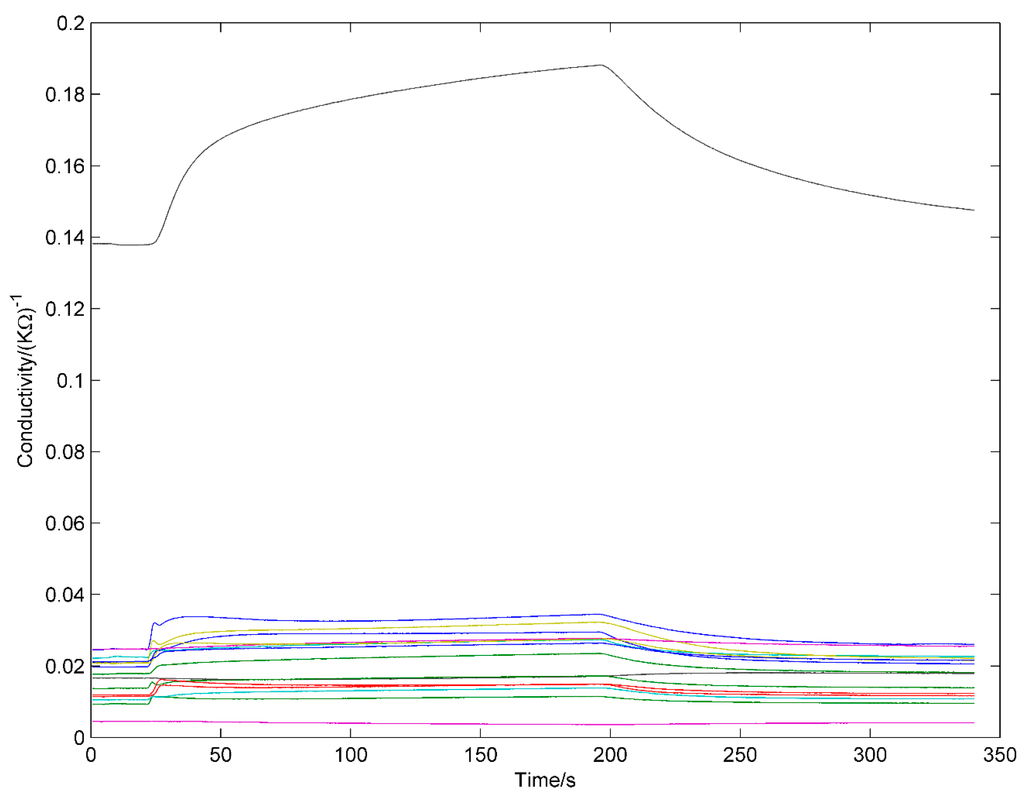

#### 3.3. Data Processing

- 1.
- The maximal absolute response, ${\mathrm{V}}_{\mathrm{max}}=\mathrm{max}(\left|\mathrm{V}\right|)$, which is most efficient and widely-used steady feature.
- 2.
- The area under the full response curve, ${\mathrm{V}}_{\mathrm{int}}={{\displaystyle \int}}_{0}^{\mathrm{T}}\mathrm{V}(\mathrm{t})\mathrm{dt}$, where T (=340 s) is the total measurement time, which is also widely- used steady feature.
- 3–8.
- Exponential moving average of derivative [18,19] of V, ${\mathrm{E}}_{\mathrm{a}}(\mathrm{V})=[\mathrm{min}(\mathrm{y}(\mathrm{k})),\mathrm{max}(\mathrm{y}(\mathrm{k}))$, where the discretely sampled exponential moving average $\mathrm{y}(\mathrm{k})=(1-\mathrm{a})\mathrm{y}(\mathrm{k}-1)+\mathrm{a}(\mathrm{V}(\mathrm{k})-\mathrm{V}(\mathrm{k}-1))$ with smoothing factors $\mathrm{a}=1/(100\times \mathrm{SR}),1/(10\times \mathrm{SR}),1/\mathrm{SR}$. SR is the sampling rate, SR = 10 Hz. $\mathrm{y}(1)=\mathrm{aV}(1)$. For each smoothing factor, two features were extracted. A total of six transient feature were extracted. Besides steady features, transient features were considered to contain much effective information that should be made the best of [20].Finally, 16 × 8 = 128 features are extracted from each sample and all the features are scaled to [0 1]:$${\mathrm{x}}_{\mathrm{i},\mathrm{j}}^{\prime}=\frac{{\mathrm{x}}_{\mathrm{i},\mathrm{j}}-\underset{\mathrm{j}}{\mathrm{min}}({\mathrm{x}}_{\mathrm{i},\mathrm{j}})}{\underset{\mathrm{j}}{\mathrm{max}(}{\mathrm{x}}_{\mathrm{i},\mathrm{j}})-\underset{\mathrm{j}}{\mathrm{min}(}{\mathrm{x}}_{\mathrm{i},\mathrm{j}})}$$

^{2}, 2

^{4}… 2

^{14}] and γ (parameter of kernel RBF) was searched within [2

^{−9}, 2

^{−7}… 2

^{−1}] with 5-fold cross-validation to obtain optimum parameters for the model. Then, the trained model was performed on the testing examples. For Naïve Bayes, the distribution was set to be Gaussian distribution. All algorithm were implemented in MATLAB 2014a.

## 4. Results and Discussion

#### 4.1. Performance of Probabilistic Predictors in Offline Mode

#### 4.2. Performance of Venn Predictors in Online Mode

## 5. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- De Vito, S.; Piga, M.; Martinotto, L.; Di Francia, G. Co, NO
_{2}and NO x urban pollution monitoring with on-field calibrated electronic nose by automatic bayesian regularization. Sens. Actuators B Chem.**2009**, 143, 182–191. [Google Scholar] [CrossRef] - Musatov, V.Y.; Sysoev, V.V.; Sommer, M.; Kiselev, I. Assessment of meat freshness with metal oxide sensor microarray electronic nose: A practical approach. Sens. Actuators B Chem.
**2010**, 144, 99–103. [Google Scholar] [CrossRef] - Baldwin, E.A.; Bai, J.H.; Plotto, A.; Dea, S. Electronic noses and tongues: Applications for the food and pharmaceutical industries. Sensors
**2011**, 11, 4744–4766. [Google Scholar] [CrossRef] [PubMed] - Fu, J.; Huang, C.Q.; Xing, J.G.; Zheng, J.B. Pattern classification using an olfactory model with pca feature selection in electronic noses: Study and application. Sensors
**2012**, 12, 2818–2830. [Google Scholar] [CrossRef] [PubMed] - Schmekel, B.; Winquist, F.; Vikstrom, A. Analysis of breath samples for lung cancer survival. Anal. Chim. Acta
**2014**, 840, 82–86. [Google Scholar] [CrossRef] [PubMed] - Montuschi, P.; Mores, N.; Trove, A.; Mondino, C.; Barnes, P.J. The electronic nose in respiratory medicine. Respiration
**2013**, 85, 72–84. [Google Scholar] [CrossRef] [PubMed] - Chatterjee, S.; Castro, M.; Feller, J.F. An e-nose made of carbon nanotube based quantum resistive sensors for the detection of eighteen polar/nonpolar voc biomarkers of lung cancer. J. Mater. Chem. B
**2013**, 1, 4563–4575. [Google Scholar] [CrossRef] - Moon, J.; Han, H.; Park, S.; Dong, H.; Han, K.-Y.; Kim, H.; Bang, K.-H.; Choi, J.; Noh, B. Discrimination of the origin of commercial red ginseng concentrates using LC-MS/MS and electronic nose analysis based on a mass spectrometer. Food Sci. Biotechnol.
**2014**, 23, 1433–1440. [Google Scholar] [CrossRef] - Lee, D.Y.; Cho, J.G.; Lee, M.K.; Lee, J.W.; Lee, Y.H.; Yang, D.C.; Baek, N.I. Discrimination of panax ginseng roots cultivated in different areas in Korea using hplc-elsd and principal component analysis. J. Ginseng. Res.
**2011**, 35, 31–38. [Google Scholar] [CrossRef] - Lin, H.-T.; Lin, C.-J.; Weng, R. A note on platt’s probabilistic outputs for support vector machines. Mach. Learn.
**2007**, 68, 267–276. [Google Scholar] [CrossRef] - Williams, C.K.I.; Barber, D. Bayesian classification with gaussian processes. IEEE Trans. Pattern Anal.
**1998**, 20, 1342–1351. [Google Scholar] [CrossRef] - Nouretdinov, I.; Devetyarov, D.; Vovk, V.; Burford, B.; Camuzeaux, S.; Gentry-Maharaj, A.; Tiss, A.; Smith, C.; Luo, Z.Y.; Chervonenkis, A.; et al. Multiprobabilistic prediction in early medical diagnoses. Ann. Math. Artif. Int.
**2015**, 74, 203–222. [Google Scholar] [CrossRef] - Vork, V.; Gammerman, A.; Shafer, G. Algorithmic Learning in a Random World; Springer: New York, NY, USA, 2005; p. 16. [Google Scholar]
- Papadopoulos, H. Reliable probabilistic classification with neural networks. Neurocomputing
**2013**, 107, 59–68. [Google Scholar] [CrossRef] - Platt, J.C. Probabilistic outputs for support vector machines and comparison to regularized likelihood methods. In Advances in Large Margin Classiers; MIT Press: Cambridge, MA, USA, 2000. [Google Scholar]
- Vovk, V.; Petej, I. Venn-abers predictors. In Proceedings of the 30th Conference on Uncertainty in Artificial Intelligence, Quebec City, QC, Canada, 23–27 July 2014.
- Miao, J.C.; Zhang, T.L.; Wang, Y.; Li, G. Optimal sensor selection for classifying a set of ginsengs using metal-oxide sensors. Sensors
**2015**, 15, 16027–16039. [Google Scholar] [CrossRef] [PubMed] - Muezzinoglu, M.K.; Vergara, A.; Huerta, R.; Rulkov, N.; Rabinovich, M.I.; Selverston, A.; Abarbanel, H.D.I. Acceleration of chemo-sensory information processing using transient features. Sens. Actuators B Chem.
**2009**, 137, 507–512. [Google Scholar] [CrossRef] - Rodriguez-Lujan, I.; Fonollosa, J.; Vergara, A.; Homer, M.; Huerta, R. On the calibration of sensor arrays for pattern recognition using the minimal number of experiments. Chemometr. Intell. Lab.
**2014**, 130, 123–134. [Google Scholar] [CrossRef] - Fonollosa, J.; Vergara, A.; Huerta, R. Algorithmic mitigation of sensor failure: Is sensor replacement really necessary? Sens. Actuators B Chem.
**2013**, 183, 211–221. [Google Scholar] [CrossRef] - Chang, C.C.; Lin, C.J. Libsvm: A library for support vector machines. ACM Trans. Intell. Syst. Technol.
**2011**, 2, 1–27. [Google Scholar] [CrossRef]

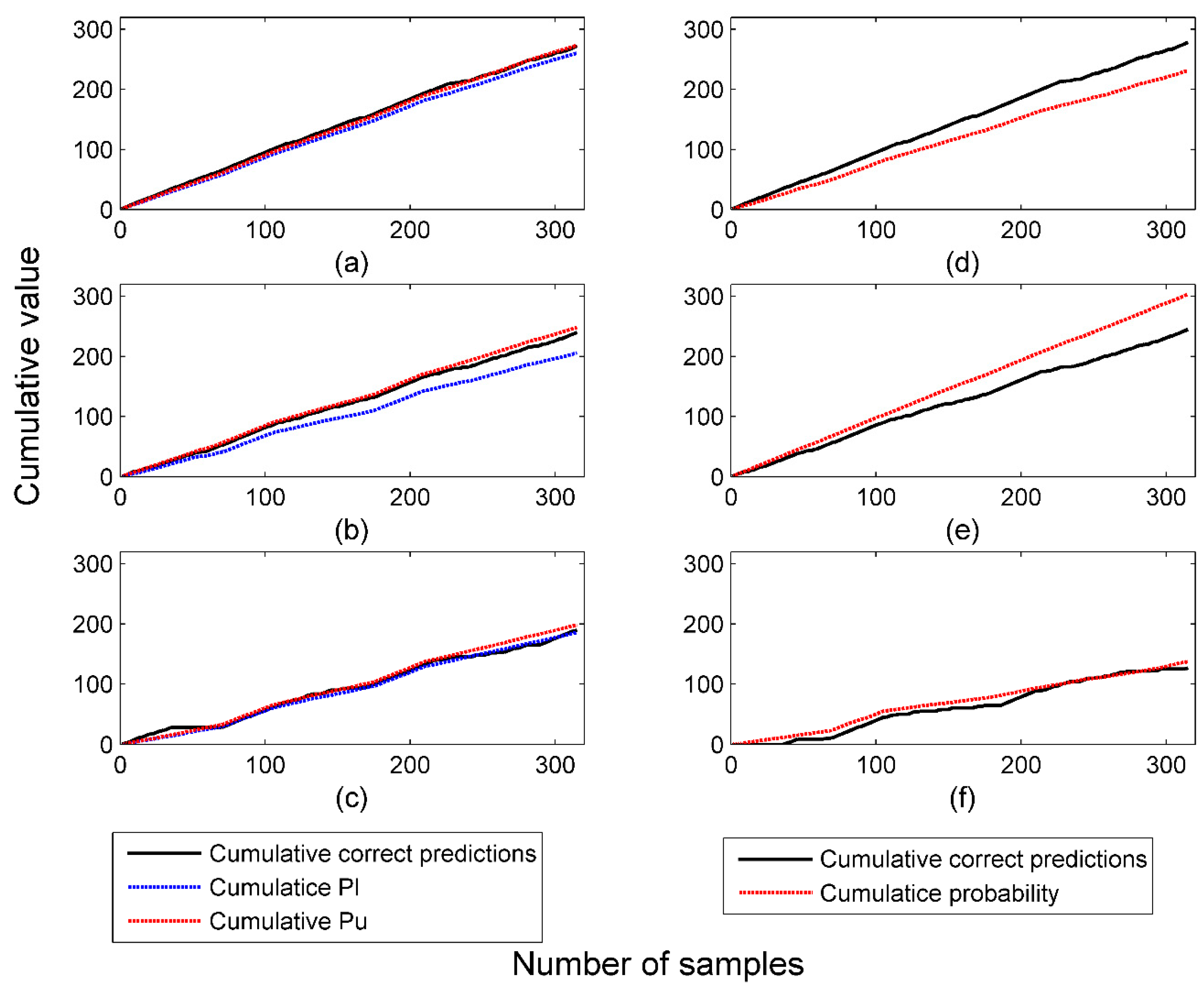

**Figure 2.**Validity of probabilistic predictions by (

**a**) VM-SVM; (

**b**) VM-SR; (

**c**) VM-NB; (

**d**) Platt’s method; (

**e**) Softmax Regression; and (

**f**) Naïve Bayes in offline mode.

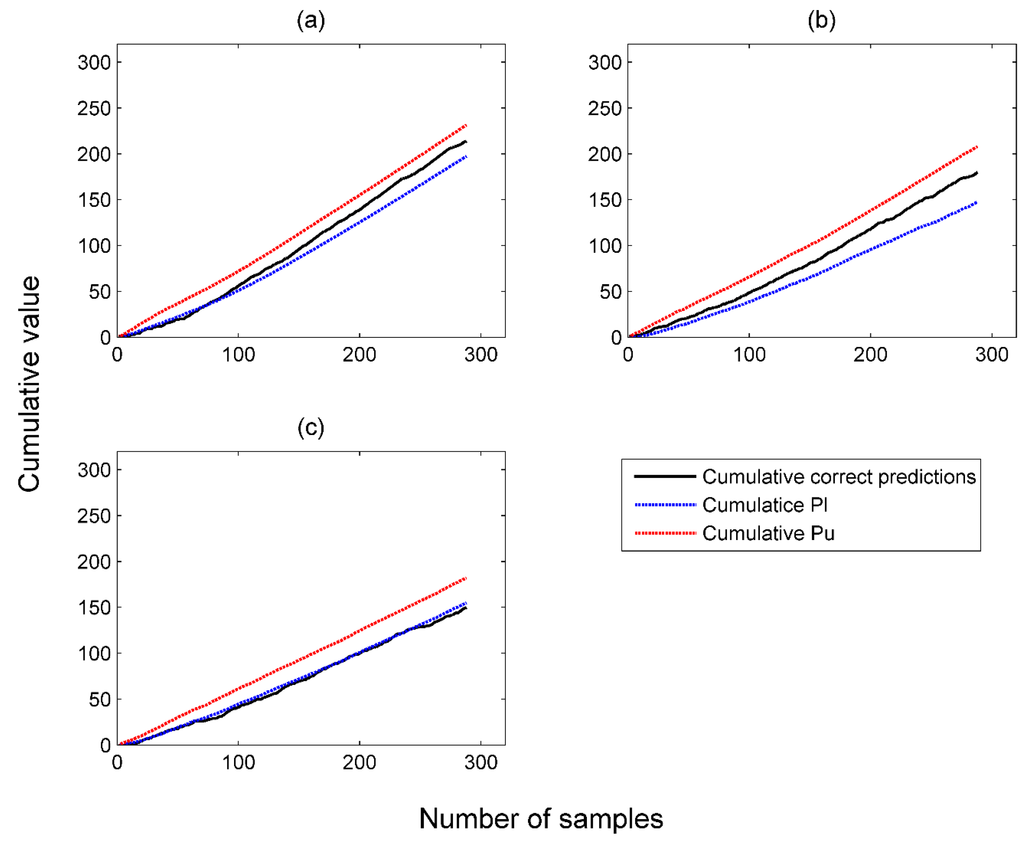

**Figure 3.**Validity of probabilistic predictions by (

**a**) VM-SVM (Venn machine based on SVM); (

**b**) VM-SR (Venn machine based on Softmax Regression); (

**c**) VM-NB (Venn machine based on Naïve Bayes) in online mode.

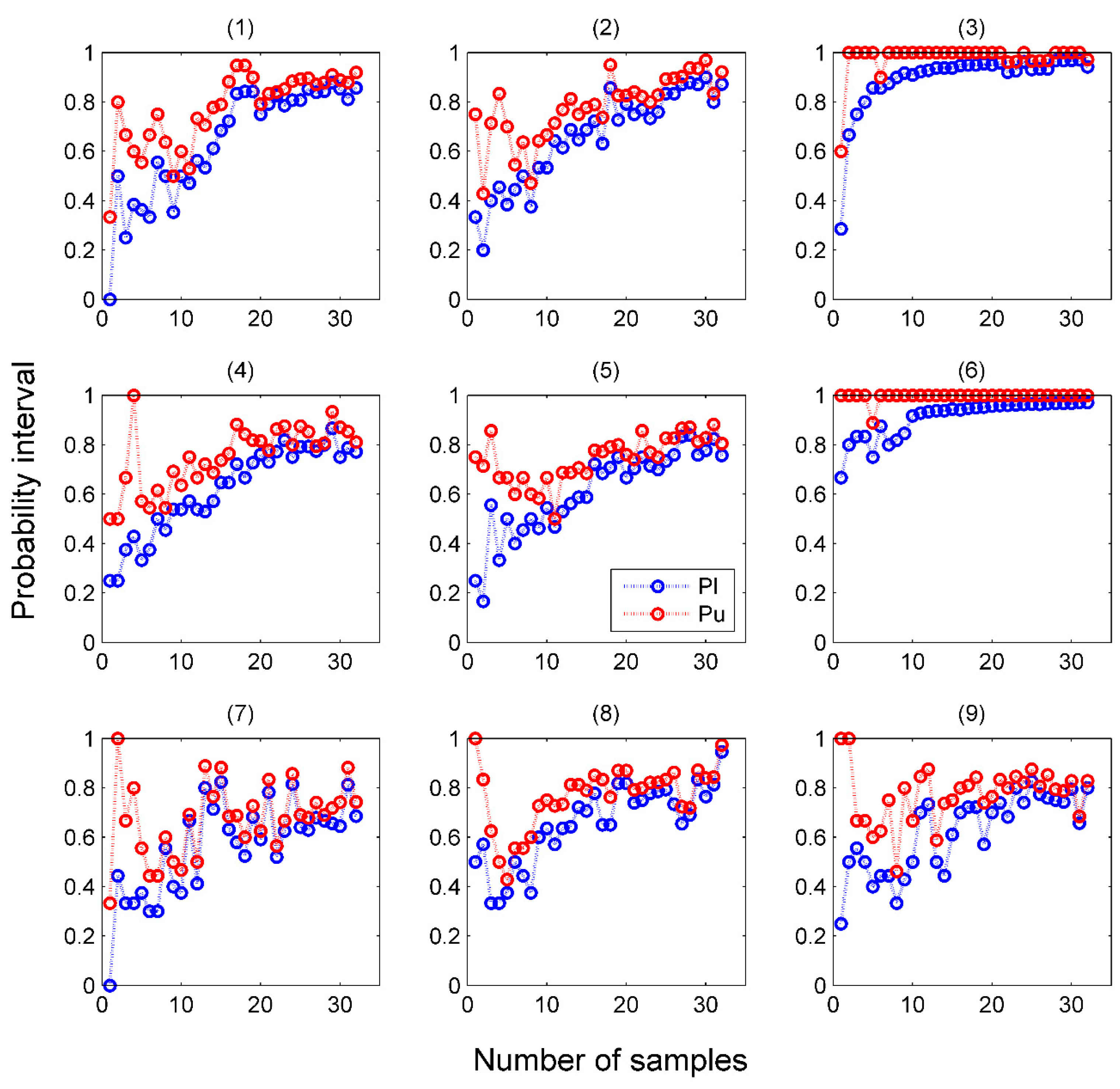

**Figure 4.**Change of precision of predicted probability intervals for samples from category (

**1**–

**9**) during online prediction process with VM-SVM.

No. | Ginseng Species | Places of Production |
---|---|---|

1 | Chinese red ginseng | Ji’an |

2 | Chinese red ginseng | Fusong |

3 | Korean red ginseng | Ji’an |

4 | Chinese white ginseng | Ji’an |

5 | Chinese white ginseng | Fusong |

6 | American ginseng | Fusong |

7 | American ginseng | USA |

8 | American ginseng | Canada |

9 | American ginseng | Tonghua |

**Table 2.**Classification rates and assessment criteria of validity of probabilistic prediction results for ginseng samples by each method.

Methods | Classification Rate | Assessment Criteria of Validity | ||
---|---|---|---|---|

d_{ln} | d_{sq} | d_{1} | ||

VM-SVM | 86.35% | 0.3862 | 0.3419 | 0.0373 |

Platt’s method | 88.57% | 0.3876 | 0.3439 | 0.1480 |

VM-SR | 77.78% | 0.4690 | 0.3938 | 0.1085 |

SR | 76.19% | Inf ^{a} | 0.4376 | 0.1853 |

VM-NB | 60.32% | 0.5683 | 0.4475 | 0.0266 |

NB | 40.32% | 0.5851 | 0.4510 | 0.0332 |

^{a}In the prediction result of SR, predicted probability value of certain sample was 1, whereas the prediction was wrong, which lead this criteria to be infinite.

Method/Category | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | |
---|---|---|---|---|---|---|---|---|---|---|

VM-SVM | Sensitivity | 0.9714 | 0.8857 | 1 | 0.8571 | 0.8286 | 1 | 0.6857 | 0.8286 | 0.7143 |

Specificity | 0.9857 | 0.9893 | 0.9964 | 0.9821 | 0.9786 | 1 | 0.9536 | 0.9857 | 0.9750 | |

Platt’s method | Sensitivity | 0.9714 | 0.8857 | 1 | 0.8571 | 0.8857 | 1 | 0.7143 | 0.8571 | 0.7714 |

Specificity | 0.9857 | 0.9893 | 0.9964 | 0.9893 | 0.9821 | 1 | 0.9607 | 0.9857 | 0.9786 | |

VM-SR | Sensitivity | 0.8000 | 0.8286 | 0.9429 | 0.7429 | 0.5714 | 1 | 0.5143 | 0.8000 | 0.8000 |

Specificity | 0.9714 | 0.9714 | 1 | 0.9536 | 0.9643 | 0.9964 | 0.9571 | 0.9750 | 0.9607 | |

SR | Sensitivity | 0.7429 | 0.7429 | 0.9714 | 0.7143 | 0.6000 | 1 | 0.5429 | 0.8000 | 0.7429 |

Specificity | 0.9714 | 0.9714 | 1 | 0.9536 | 0.9643 | 0.9964 | 0.9571 | 0.9750 | 0.9607 | |

VM-NB | Sensitivity | 0.8000 | 0 | 0.9714 | 0.6571 | 0.4286 | 0.9429 | 0.4286 | 0.4857 | 0.7143 |

Specificity | 0.8464 | 0.9786 | 0.9929 | 0.9500 | 0.9321 | 1 | 0.9429 | 0.9714 | 0.9393 | |

NB | Sensitivity | 0 | 0.3143 | 0.9714 | 0.2857 | 0.286 | 0.6857 | 0.571 | 0.3714 | 0.1429 |

Specificity | 1 | 0.9607 | 0.9929 | 0.8750 | 0.8786 | 0.9107 | 0.8929 | 0.8679 | 0.9500 |
