Article

Taxonomy and Distribution of the Gomphid Dragonfly Orientogomphus minor (Laidlaw, 1931) (Odonata: Gomphidae) in Thailand

Animal Systematics and Ecology Speciality Research Unit (ASESRU), Department of Zoology, Faculty of Science, Kasetsart University, Bangkok 10900, Thailand
*
Author to whom correspondence should be addressed.
Diversity 2022, 14(4), 291; https://doi.org/10.3390/d14040291
Received: 15 March 2022 / Revised: 8 April 2022 / Accepted: 10 April 2022 / Published: 12 April 2022
(This article belongs to the Special Issue Aquatic Insects: Biodiversity, Ecology and Conservation Challenges)

Abstract

:
The taxonomy and distribution of Orientogomphus minor (Laidlaw, 1931) were investigated in Thailand. Gomphid nymphs were collected from 28 sampling sites in streams in eastern, western, and southern Thailand. The nymph of O. minor is described for the first time and the male is re-described and illustrated based on a reared specimen. The taxonomic characteristics of the nymphs of the genus Orientogomphus are discussed. The nymph of O. minor differs from that of O. armatus Chao & Xu, 1987, the only other Orientogomphus species with a described nymphal stage, by the presence of lateral spines on abdominal segments six to nine and by a slender, stick-shaped third antennal segment. Multivariate analyses revealed a strong correlation between the distribution of O. minor and other three gomphid species with restricted distribution in Thailand (Nychogomphus duaricus (Fraser, 1924), Onychogomphus louissiriusi Fleck, 2020 and Stylogomphus thongphaphumensis Chainthong, Sartori & Boonsoong, 2020). Those species were recorded solely in streams in the western part of the country. Nymphs of O. minor were predominantly associated with stony substrates.

1. Introduction

The Gomphidae (clubtail dragonflies), a well-known family in the Odonata, comprise about 87 genera and 1000 species worldwide [1,2]. With the exception of the Libellulidae, the species diversity is likely higher for the Gomphidae than for any other family of Anisoptera [3,4]. The gomphid nymphs have several notable morphological features: (1) the antennae have four segments with the third larger than the others, and the fourth very small, (2) the prementum and palpal lobes of the labium are flattened (not scoop-shaped), and (3) the body is diverse in form, cylindrical, broad and slender to extremely flattened like a leaf. Most gomphid nymphs are lotic species that are commonly components of benthic communities and contribute to ecosystem services (e.g., they are highly predaceous and serve as food for humans and as indicators of environmental changes) [5,6]. In the past decade, taxonomic studies of the Gomphidae in Thailand have continued to increase, and many new taxa have been described. The discovery of gomphid dragonflies adds 54 species and 27 genera (e.g., Anisogomphus [7,8], Burmargomphus [9], Stylogomphus [10], Onychogomphus [11] and Microgomphus [12]) from Thailand to the known species.
To date, most studies of odonates in Thailand have focused on the taxonomy of the adult stage. So far, eight families (Aeshnidae, Chorogomphidae, Cordulegastridae, Corduliidae, Gomphidae, Libellulidae, Macromiidae and Synthemistidae), 97 genera and 207 species of dragonflies have been recorded in Thailand. Studies on their biology and ecology are scarce, and only limited data are available on the nymphal stages and their distributions in lotic ecosystems. However, gomphid nymphs have been continuously described from Thailand [12,13,14,15,16,17,18], and the number of nymphal descriptions of Gomphidae species will steadily increase in the future because the diversity and taxonomy of the adult stage are well known.
The genus Orientogomphus was established by Chao & Xu [19], with species characterised as small to medium-sized, with divergent inferior appendages that are much shorter than the superior appendages (usually about half the length) and with apical margins shallowly concave. The superior appendages are long, bracket-like in dorsal view, and abruptly curved apically in lateral view, with a minute peg-like process at the tip. The prepuce is absent. The genus, distributed in Southeast Asia and China, currently comprises seven known species [20]. Of these, only O. minor (Laidlaw, 1931) has been recorded from Thailand. This small species is distributed throughout Thailand and extends to Peninsular Malaysia. A distribution map of adult specimens has been published [21]; however, knowledge of the distribution of the nymphal stage in Thai streams is sparse [21]. To date, O. armatus Chao & Xu, 1987 is the only species with a described nymph within the genera [22].
This paper provides the first description and illustration of the final stadium nymphs of O. minor, based on reared specimens, and compares and discusses the morphological characteristics of the nymphs of related species and genera. We also investigated the distribution and microhabitat of this species within lotic ecosystems.

2. Materials and Methods

2.1. Study Area and Sampling

The gomphid nymphs were collected from first order to third-order streams (28 sampling sites) in eastern, western, and southern Thailand (Figure 1). The nymphs were collected using a D-frame net in a variety of microhabitats, including sweepings of pool-litter, weeds, roots of riverside trees, mud and margin litter, or kick samples from riffles, sand, gravel, and pebbles. Gomphid nymphs were recorded at all microhabitats. Nymphs were identified to the species level using the published literature [10,11,12,13,14,15,16,17,18,23]. A distribution map was generated with SimpleMappr software (https://simplemappr.net) (accessed on 4 March 2022) [24].

2.2. Rearing and Identification

Nymphs of O. minor were found in three sampling sites. Of these, nymphs were collected from a sandy substrate in one locality at Huai Khayeng, Thong Pha Phum district, Kanchanaburi Province, in western Thailand (Figure 2). Full-grown nymphs were transferred to the laboratory for rearing. The nymphs were reared in potable water in an earthenware pot (a rearing device for a single nymph with a netted cover) with a mixture of sand and gravel as substrate. Each rearing chamber was connected to an air supply via aquarium tubing. Chironomid larvae were offered as prey, which Orientogomphus nymphs fed on readily. The nymphs were reared in the laboratory until they emerged as adults. The exuviae were preserved in 80% ethanol, and the adults were pinned and dried 3 days after their emergence. The species identification was confirmed based on Asahina [25] and Wilson [21]. All drawings were illustrated with the aid of a camera lucida. Measurements (mm) and photographs were taken with a NIKON SMZ800 stereoscopic microscope (NIKON Corporation, Tokyo, Japan). All dragonfly specimens are deposited in the Zoological Museum, Kasetsart University (ZMKU), Bangkok, Thailand (Aquatic Insects Collection section). The terminology for the nymphal mandibular formula followed that of Watson [26].

2.3. Data Analysis

Gomphid nymph assemblages (presence/absence data) in response to spatial change were visualised by performing a principal component analysis (PCA), which identifies independent axes of variability and relates species samples to each axis. The relationship between gomphid nymphal species composition and microhabitat was investigated using two-way cluster analysis (Jaccard distance measure and the Group average linkage method). Multivariate analyses were performed using PC-ORD software version 7.01 [27].

3. Results

3.1. Taxonomy

3.1.1. Description of the Last Stadium Nymph

Material examined. THAILAND: 1 (exuvia) and 5 nymphs, Huai Khayeng, Thong Pha Phum district, Kanchanaburi Province, 14°36′20″ N 98°34′38″ E, 206 m a.s.l., 14.XII.2014, D. Chainthong leg; 3 nymphs, Huai Sat Lek; Kaeng Krachan district, Petchaburi Province, 12°38′14′’ N 99°30′59′’ E; 162 m a.s.l., 25.II.2018, D. Chainthong leg.
The general appearance and detailed structures are shown in Figure 3, Figure 4 and Figure 5.
Colouration. Nymphs uniformly bright yellow. Body broadly lanceolate and covered with hair-like setae, dorsal surface strongly convex, ventral surface flat (Figure 4).
Head. Head broad and flat, frontal part with triangular appearance in dorsal view, posterior lobe of the head shorter than the eye length; eyes large and broadest across, with three large ocelli. Antennae four-segmented, first two segments small and rather circular; third segment slender, stick-shaped, slightly dorso-ventrally flattened and slightly upcurved; fourth segment vestigial, knob-like. All four segments bear long and dense hairs (Figure 5a). Mandibles as in Figure 5b,c, with mandibular formula: L 1234 0 a(m1–3)b/R 1234 y a(m1–2)b with a > b in both mandibles (Figure 5b,c). Maxillae: galeolacinia with seven moderately incurved teeth, three dorsal teeth nearly equal in length, four ventral teeth of different sizes, apical one largest; stipes and palp setose (Figure 5d).
Labium. Flat and not protruding when at rest (Figure 5e). Prementum-postmentum articulation reaching the posterior margin of the procoxa. Prementum subrectangular, longer than wide, in a ratio of 3:2, sides convex, convergent basally, with small teeth and minute setae at lateral margins; apical margin convex, with ventral row of 45–50 short, subquadrate reddish brown teeth, and dorsal rows of whitish piliform setae on apical border; labial palp with uniformly inflexed inner edge, yellowish brown, apical lobe reddish, rounded, internal margin arched inward, feebly serrulate. Movable hook reddish brown, sharp and moderately incurved.
Thorax. Small; prothorax narrower than head, dorsal portion raised at sides forming two mushroom-shaped ridges. Wing sheaths strongly divergent, reaching S4 (inner wing pad length 4.25 mm, outer wing pad length 3.75 mm). Legs short and stout, fore and middle legs strongly curved; protibia (length 2.0 mm) decidedly longer than profemora (length 1.25 mm); mesotibia (length 2.25 mm) slightly longer than mesofemora (length 1.75 mm); metafemur slightly longer than metatibia. Tarsal formula 2-2-3, tarsi yellowish. Rows of minute setae scattered along the femur, tibia, and tarsus of all six legs.
Abdomen. Broadly lanceolate, uniformly bright yellow, mid-dorsal black markings on S7–9. Mid-dorsal spines, absent on S1 and most prominent on S2–9, largest mid-dorsal spine on S8 (Figure 3). Lacking lateral spines on S2–5. Lateral edges of abdomen serrated, with spine projections that become more protrusive on S6–9 (Figure 3). Anal appendages elongated. Epiproct and cerci subequal in length; paraprocts longer than the other appendages (Figure 5f).
Measurements (in mm, n = 9): Length of total body 19.86–20.38; abdomen length 11.06–11.54; abdominal maximum width 4.90–5.08; head maximum width 4.08–4.23; length of hind femur 2.26–2.53; length of antennae third segment 1.50–1.69; length of antennae fourth segment 0.10–0.14; length of epiproct 1.26–1.44; length of cerci 1.18–1.23; length of paraprocts 1.48–1.56.

3.1.2. Taxonomy of the Adult

Material examined. THAILAND: 1 male adult (reared), Huai Khayeng stream, Thong Pha Phum district, Kanchanaburi province, 14°36′20″ N 98°34′38″ E, 206 m a.s.l., nymph collected on 14 July 2014, adult emerged on 18 February 2015, D. Chainthong leg.
In this study, we reared the Orientogomphus nymph until emergence of the male adult. The identification as a male adult of O. minor was confirmed based on Wilson [21], using the following diagnostic characters: head, pterothoracic, and caudal appendages (Figure 6a–d). A brief description of the male adult is presented based on our reared specimen following Wilson [21].
Diagnosis. Wilson [21] revised the known Orientogomphus specimens from northern Myanmar, China, Vietnam and Thailand as four species (O. armatus, O. circularis (Selys, 1894), O. minor and O. naninus (Förster, 1905), respectively). A distributional map has been provided by Wilson [21]. In Thailand, the adults of O. minor were recorded in Sakon Nakhon, Chiang Mai, Tak, Phatthalung, Krabi and Songkhla provinces [21,28,29].
Head (Figure 6a). Black with yellow markings; labrum with a pair of transverse ellipsoid yellow spots; genae black; anteclypeus yellow; postclypeus black, with a large yellow spot laterally; postfrons with a broad yellow band, antefrons black.
Thorax. Pattern of colouration as shown in Figure 6b. Prothorax black with yellow laterally; pterothorax dorsal suture with a yellow streak; mesothoracic collar yellow, except on middle; black stripe along first lateral suture disconnected to humeral, mesepimeron ventral margin yellow; legs black.
Wing. Hyaline, venation dark brown, pterostigmata very dark brown, anal triangle 4-celled with the smallest cell a well-defined rectangle; anal field 2-celled, with A2 arising from the subtriangle rather than directly from anal vein between cu-a and the subtriangle.
Abdomen. Abdomen predominantly black, with bright yellow markings; S1 mostly yellow laterally, S2 yellow around auricle, dorsal yellow spots on S2–S6, S4–S7 with dorso-lateral yellow markings at base, S8–S9 with yellow lateral markings, epiproct black, cerci yellow outside and brownish to the proximal 2/3 and yellowish to the distal 1/3 (Figure 6c–d).
Accessory genitalia. The anterior hamulus is only slightly hooked; the posterior one does not bend caudad, but the anterior one is as high as the posterior one.

3.2. Distribution

3.2.1. Spatial Distribution of Gomphidae Species

Sixteen genera and 18 species of gomphid nymphs were found among the 28 sampling sites in eastern, western, and southern Thailand. PCA analysis revealed that most gomphid nymphs were strongly correlated with axis 1 (20% of the total variance explained). Among the gomphid species, the distribution of O. minor was strongly associated with the distribution of Nychogomphus duaricus (Fraser, 1924), Onychogomphus louissiriusi Fleck, 2020 and Stylogomphus thongphaphumensis Chainthong, Sartori & Boonsoong, 2020 (Figure 7). Those species were recorded solely in streams in the western part of Thailand.

3.2.2. Substrate Preference of O. minor Nymphs

A two-way cluster analysis showed two groups (I and II) of substrate types (microhabitat) and two groups (A and B) of gomphid species (Figure 8). Gomphid species (group A) Megalogomphus sumatranus (Krüger, 1899), Phaenandrogomphus asthenes Lieftinck, 1964, Lamelligomphus castor (Lieftinck, 1941), Paragomphus capricornis (Förster, 1914), O. minor, Nepogomphus walli (Fraser, 1924), N. duaricus, O. louissiriusi, S. thongphaphumensis and S. malayanus Sasamoto, 2001 were found predominantly associated with stony (pebble, gravel, and sand) substrates. In contrast, gomphid species (group B) Heliogomphus selysi Fraser, 1925, Microgomphus svihleri (Asahina, 1969), Gomphidia abbotti Williamson, 1907, Gomphidictinus perakensis (Laidlaw, 1902), Burmagomphus williamsoni Förster, 1914, B. divaricatus Lieftinck, 1964, Merogomphus paviei Martin, 1904 and Macrogomphus kerri Fraser, 1932 were associated with litter (pool/marginal) and mud substrate types. The nymphs of O. minor were found in a substrate with mixture of sand and gravel, together with P. asthenes, L. castor, P. capricornis, N. walli, N. duaricus and O. louissiriusi.

4. Discussion

Based on the description of the nymph of Amphigomphus hansoni Chao, 1954 by Xu [30] and comparison with the nymphs of Nihonogomphus lieftincki Chao, 1954 and O. armatus, Xu [30] concluded that the nymphal morphological characters of the genus Amphigomphus are closer to those of Orientogomphus than of Nihonogomphus. Therefore, we selected two species of the genus Amphigomphus for comparison in this study. The evidence afforded by the characters of four gomphid nymphs species listed in Table 1 shows that the nymphs of O. minor can be distinguished from those of the other three species by a front margin of the median lobe furnished with about 50 finger-shaped serrations and the presence of lateral spines on S6–9. We also found that the O. minor nymph is similar to the O. armatus nymph only in the prementum length-to-width ratio, wing length, and mid-dorsal spines on the abdomen. The nymphs of O. minor share similarities with Amphigomphus nymphs in terms of wing pad length, mid-dorsal position on the abdomen and the shape of the third antennal segment [18,30].
We showed that O. minor nymphs were distributed in the western streams of Thailand and associated with other gomphid species (N. duaricus, O. louissiriusi and S. thongphaphumensis), which are restricted in their geographic distributions [10,11,16]. The nymphs of O. minor were usually found together with those of Lamelligomphus, Nepogomphus, Onychogomphus, Paragomphus and Phaenandrogomphus. These nymphs burrow deeply into the pebble, gravel, and sand substrates in streams. The nymphal microhabitat preference varies for Gomphidae [6], resulting in related morphological adaptations (e.g., burrowers in sand and mud (Anisogomphus, Burmagomphus and Onychogomphus) and in detritus accumulations (Heliogomphus and Microgomphus)).
Anthropogenic threats, such as deforestation, erosion, riparian vegetation removal, channelisation, and flow regulation, have effects on macroinvertebrate communities, including the odonate species composition [6]. Disturbance of the forest status is causing a decline in dragonfly species diversity, community composition, and structure [31]. The spatial distribution is influenced mainly by the presence of coarse detritus and by sediment particle size [32]. Removal of riparian vegetation also has a strong effect on odonate species composition and is associated with the loss of some species (Dicterias atrosanguinea Selys, 1853 and Chalcopteryx scintillans McLachlan, 1870) in Amazonia [33]. In Thailand, the need of protecting rivers and streams is increasing due to increasing human activities. For example, alterations in water flow by damming have affected the characteristics of stream ecosystems, resulting in altered microhabitats, water flows, and even changes from running water to standing water. The changes in microhabitat composition due to check dams also affect the community of dragonflies by changing the types and numbers of prey species, thereby affecting the food chain [34]. Therefore, knowledge of the microhabitat preferences of gomphid genera, which contain one or a few species (e.g., Amphigomphus, Anisogomphus, Asahinagomphus, Asiagomphus, Davidius, Ethygomphus, Heliogomphus, Mattigomphus, Nihonogomphus, Siebodius, Stylogomphus, Sinictiogomphus) can provide insight into the conservation issues of gomphid dragonfly nymphs in Thailand.

5. Conclusions

The taxonomic characteristics of O. minor are presented, and the nymph is described and illustrated for the first time from a reared specimen collected in streams of western Thailand. Morphological characteristics and distribution of Orientogomphus nymphs were discussed and compared to the related species and genera. The geographic distribution of O. minor is restricted to the western streams of Thailand and is associated with several other gomphid species with restricted distribution in the country (i.e., N. duaricus, O. louissiriusi and S. thongphaphumensis). Nymphs of the studied species burrow deeply into the pebble, gravel, and sandy substrates in streams.

Author Contributions

Conceptualization, B.B. and D.C.; methodology, D.C. and B.B.; software, B.B.; validation, D.C. and B.B.; investigation, D.C.; resources, B.B. and D.C.; specimen curation, D.C. and B.B.; data curation, D.C. and B.B.; writing—original draft preparation, D.C.; writing—review and editing, B.B.; funding acquisition, B.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Faculty of Science, Kasetsart University Postgraduate Studentship (ScKUPGS), supported by the Center of Excellence on Biodiversity (BDC) Office of Higher Education Commission (BDC-PG4-160020).

Institutional Review Board Statement

This research was approved by the Institutional Animal Care and Use Committee, Faculty of Science, Kasetsart University, Thailand under Project number ACKU61-SCI-030.

Data Availability Statement

Data is available from the corresponding author upon request.

Acknowledgments

We are most grateful to our colleagues for assistance during field trips. We would like to thank the Department of Zoology and International SciKU Branding (ISB), the Faculty of Science at Kasetsart University in Bangkok for their assistance and use of their facilities. Finally, we are thankful to the guest editors and reviewers of our manuscript for their valuable comments.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Suhling, F.; Sahlén, G.; Gorb, S.; Kalkman, V.J.; Dijkstra, K.D.B.; van Tol, J. Oder Odonata. In Ecology and General Biology: Thorp and Covich’ Freshwater Invertebrates, 4th ed.; Thorp, J.H., Rogers, D.C., Eds.; Academic Press: New York, NY, USA, 2015; pp. 894–932. [Google Scholar]
  2. Novelo-Gutiérrez, R.; Ramírez, A.; González-Soriano, E. Superfamily Gomphidae. In Keys to Neotropical Hexapoda: Thorp and Covich’ Freshwater Invertebrates, 4th ed.; Hamada, N., Thorp, J.H., Rogers, D.C., Eds.; Academic Press: New York, NY, USA, 2018; pp. 367–375. [Google Scholar]
  3. Carle, F.L.; Kjer, K.M.; May, M.L. A molecular phylogeny and classification of Anisoptera (Odonata). Arthropod Syst. Phylog. 2015, 73, 281–301. [Google Scholar]
  4. Kalkman, V.J.; Clausnitzer, V.; Dijkstra, K.D.B.; Orr, A.G.; Paulson, D.R.; van Tol, J. Global diversity of dragonflies (Odonata) in freshwater. Hydrobiologia 2008, 595, 351–363. [Google Scholar] [CrossRef]
  5. May, M.L. Odonata: Who They Are and What They Have Done for Us Lately: Classification and Ecosystem Services of Dragonflies. Insects 2019, 10, 62. [Google Scholar] [CrossRef][Green Version]
  6. Dudgeon, D.D. Tropical Asian Streams Zoobenthos, Ecology and Conservation. Hong Kong University Press: Hong Kong, China, 1999. [Google Scholar]
  7. Sasamoto, A. Anisogomphus yanagisawai sp. nov., a new gomphid dragonfly from northern Thailand (Odonata: Anisoptera: Gomphidae). Zootaxa 2015, 3904, 421–426. [Google Scholar] [CrossRef] [PubMed]
  8. Makbun, N. Anisogomphus yingsaki (Odonata: Gomphidae) sp. nov., a new gomphid species from Thailand. Zootaxa 2017, 4306, 437–443. [Google Scholar] [CrossRef]
  9. Makbun, N. A new species of the genus Burmagomphus Williamson (Odonata: Gomphidae) from Northern Thailand. Zootaxa 2017, 4269, 133–136. [Google Scholar] [CrossRef]
  10. Chainthong, D.; Sartori, M.; Boonsoong, B. Stylogomphus thongphaphumensis (Odonata: Anisoptera: Gomphidae), a new gomphid dragonfly and the first record of S. malayanus Sasamoto, 2001 from Thailand. Zootaxa 2020, 4763, 231–245. [Google Scholar] [CrossRef] [PubMed]
  11. Fleck, G. Onychogomphus (Siriusonychogomphus) louissiriusi, a new species and new subgenus from Thailand (Odonata: Anisoptera: Gomphidae). Faunitaxys 2021, 8, 1–9. [Google Scholar]
  12. Makbun, N.; Fleck, G. Description of Microgomphus farrelli sp. nov. (Odonata: Anisoptera: Gomphidae) based on adults of both sexes and larvae from Northern Thailand. Zootaxa 2018, 4422, 442–450. [Google Scholar] [CrossRef]
  13. Ferro, M.L.; Sites, R.W. Description of the Gomphidictinus perakensis (Laidlaw) (Odonata: Gomphidae) with distributional notes. Proc. Entomol. Soc. Wash. 2006, 108, 76–81. [Google Scholar]
  14. Boonsoong, B.; Chainthong, D. Description of the final-instar larva of Heliogomphus selysi Fraser (Odonata: Gomphidae). Zootaxa 2014, 3764, 482–488. [Google Scholar] [CrossRef] [PubMed][Green Version]
  15. Boonsoong, B.; Chainthong, D. Description of the last stadium larva and female of Microgomphus thailandica Asahina, 1981 (Odonata: Gomphidae). Zootaxa 2014, 3811, 271–279. [Google Scholar] [CrossRef] [PubMed][Green Version]
  16. Chainthong, D.; Boonsoong, B. Description of two final stadium Onychogomphus larvae from Thailand (Odonata: Gomphidae). Zootaxa 2016, 4066, 561–570. [Google Scholar] [CrossRef] [PubMed]
  17. Novelo-Gutiérrez, R.; Sites, R.W. The larvae of Phaenandrogomphus Lieftinck, 1964 in Thailand, including the description of P. tonkinicus (Fraser, 1926) with a larval diagnosis and new province records of P. asthenes Lieftinck, 1964 (Odonata: Gomphidae). Zootaxa 2019, 4700, 377–384. [Google Scholar] [CrossRef] [PubMed]
  18. Novelo-Gutiérrez, R.; Sites, R.W. The larva of Amphigomphus somnuki Hämäläinen, 1996 and the first records of the genus Stylogomphus Fraser, 1922 for Thailand (Odonata: Gomphidae). Zootaxa 2019, 4555, 121–126. [Google Scholar] [CrossRef] [PubMed]
  19. Chao, H.F.; Xu, J.F. Descriptions of a new genus and species of gomphid dragonfly reared from nymph in Fujian Province, with notes on allied species (Gomphidae: Onychogomphinae). J. Fujian Agric. Coll. 1987, 16, 259–266. [Google Scholar]
  20. World Odonata List. Available online: https://www2.pugetsound.edu/academics/academic-resources/slater-museum/biodiversity-resources/dragonflies/world-odonata-list2/ (accessed on 9 March 2022).
  21. Wilson, K.D.P. Crepuscular activity in Orientogomphus minor (Laidlaw) comb. nov. from Thailand and clarification of the taxonomic status of closely related species. Agrion 2008, 12, 15–21. [Google Scholar]
  22. Chao, H.F. The Gomphid Dragonflies of China (Odonata: Gomphidae); The Science and Technology Publishing House: Fuzhou, China, 1990. [Google Scholar]
  23. Lieftinck, M.A. Synonymic notes on East Asiatic Gomphidae with descriptions of two new species (Odonata). Zool. Meded. 1964, 39, 89–110. [Google Scholar]
  24. Shorthouse, D.P. SimpleMappr, an Online Tool to Produce Publication-Quality Point Maps. Available online: https://www.simplemappr.net (accessed on 4 March 2022).
  25. Asahina, S.A. list of the Odonata from Thailand. Thailand. Part XIV. Gomphidae-2. Tombo 1986, 29, 7–53. [Google Scholar]
  26. Watson, M.C. The utilization of mandibular armature in taxonomic studies of anisopterous nymphs. Trans. Am. Entomol. Soc. 1956, 81, 155–202. [Google Scholar]
  27. McCune, B.; Mefford, M.J. PC-ORD. Multivariate Analysis of Ecological Data; MjM Software Design: Gleneden Beach, OR, USA, 2011. [Google Scholar]
  28. Hämäläinen, M.; Pinratana, A. Distribution maps by provinces. In Atlas of the Dragonflies of Thailand; Gabriel in Thailand: Bangkok, Thailand, 1999. [Google Scholar]
  29. Kosterin, O.E. Notes on intraspecific variation of some Gomphidae (Odonata) species in Cambodia. Int. Dragonfly Fund 2014, 68, 1–16. [Google Scholar]
  30. Xu, Q.H. Description of the last instar larva of Amphigomphus hansoni Chao, with notes on the systematic status of the genus Amphigomphus chao (Anisoptera: Gomphidae). Odonatologica 2012, 41, 55–59. [Google Scholar]
  31. Rith-Najarian, J. The influence of forest vegetation variables on the distribution and diversity of dragonflies in a northern Minnesota forest landscape: A preliminary study (Anisoptera). Odonatologica 1998, 27, 335–351. [Google Scholar]
  32. Suhling, F. Spatial distribution of the larvae of Gomphus pulchellus Selys (Anisoptera: Gomphidae). Advan. Odonatol. 1994, 6, 101–111. [Google Scholar]
  33. da Silva Monteiro Júnior, C.; Couceiro, S.R.M.; Hamada, N.; Juen, L. Effect of vegetation removal for road building on richness and composition of Odonata communities in Amazonia, Brazil. Int. J. Odonatol. 2013, 16, 135–144. [Google Scholar] [CrossRef]
  34. Kositpon, T.; Phalaraksh, C. Effects of check dams on water quality and macroinvertebrate diversity of Hom Jom Stream, Lamphun Province, Thailand. Suranaree J. Sci. Technol. 2012, 19, 113–123. [Google Scholar]
Figure 1. Map showing the sampling sites in eastern, western, and southern Thailand.
Figure 1. Map showing the sampling sites in eastern, western, and southern Thailand.
Diversity 14 00291 g001
Figure 2. Nymphal habitat of Orientogomphus minor (Huai Khayeng, Thong Pha Phum district, Kanchanaburi Province).
Figure 2. Nymphal habitat of Orientogomphus minor (Huai Khayeng, Thong Pha Phum district, Kanchanaburi Province).
Diversity 14 00291 g002
Figure 3. Dorsal view of nymph of Orientogomphus minor.
Figure 3. Dorsal view of nymph of Orientogomphus minor.
Diversity 14 00291 g003
Figure 4. Habitus of Orientogomphus minor nymph.
Figure 4. Habitus of Orientogomphus minor nymph.
Diversity 14 00291 g004

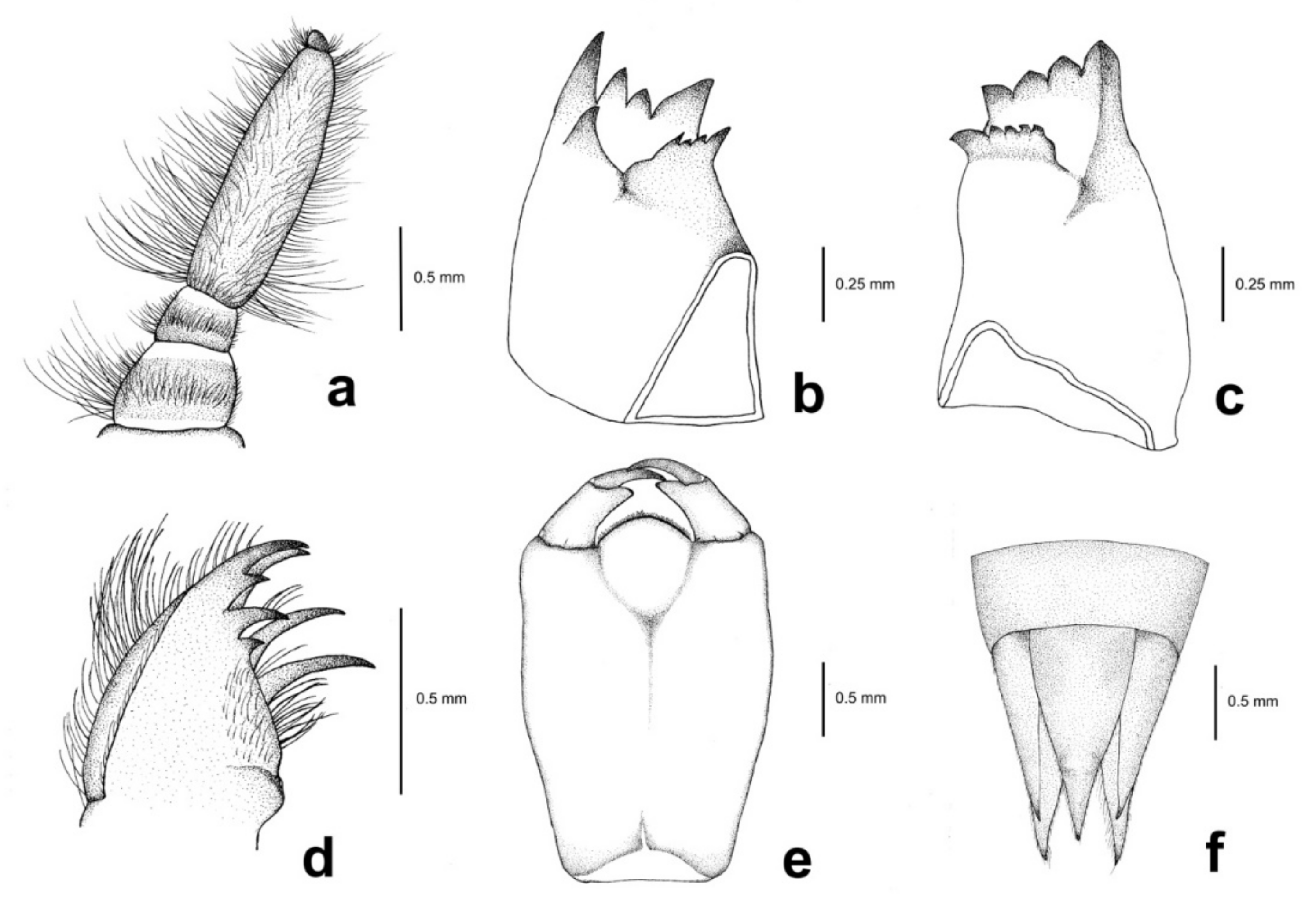

Figure 5. Morphological features of Orientogomphus minor nymph: (a) dorsal view of antenna; (b) ventral view and internal view of right mandible; (c) ventral view and internal view of left mandible; (d) ventral view of right maxilla; (e) ventral view of prementum; (f) dorsal view of anal appendages.
Figure 5. Morphological features of Orientogomphus minor nymph: (a) dorsal view of antenna; (b) ventral view and internal view of right mandible; (c) ventral view and internal view of left mandible; (d) ventral view of right maxilla; (e) ventral view of prementum; (f) dorsal view of anal appendages.
Diversity 14 00291 g005
Figure 6. Morphological features of Orientogomphus minor adult male: (a) frontal view of head; (b) dorsal view of pterothoracic pattern; (c) dorsal view of caudal appendages; (d) lateral view of caudal appendages.
Figure 6. Morphological features of Orientogomphus minor adult male: (a) frontal view of head; (b) dorsal view of pterothoracic pattern; (c) dorsal view of caudal appendages; (d) lateral view of caudal appendages.
Diversity 14 00291 g006
Figure 7. Principal component analysis (PCA) ordination biplots with sample and species scores of Gomphidae species (vectors of S. thongphphumensis, O. louissiriusi and N. duaricus are related to O. minor). Percentages of variance explained on the first two axes are indicated.
Figure 7. Principal component analysis (PCA) ordination biplots with sample and species scores of Gomphidae species (vectors of S. thongphphumensis, O. louissiriusi and N. duaricus are related to O. minor). Percentages of variance explained on the first two axes are indicated.
Diversity 14 00291 g007
Figure 8. Two-way cluster analysis dendrogram of six microhabitats and 18 Gomphidae species. The two groups (I and II) of microhabitats and the two groups (A and B) of Gomphidae species are indicated.
Figure 8. Two-way cluster analysis dendrogram of six microhabitats and 18 Gomphidae species. The two groups (I and II) of microhabitats and the two groups (A and B) of Gomphidae species are indicated.
Diversity 14 00291 g008
Table 1. Comparison of morphological characters of four gomphid species (two Orientogomphus and two Amphigomphus, modified from [18,30]).
Table 1. Comparison of morphological characters of four gomphid species (two Orientogomphus and two Amphigomphus, modified from [18,30]).
Characters/SpeciesO. minorO. armatusA. somnuki
Hämäläinen, 1996
A. hansoni
Third antennal segment of nymphslender, stick-shaped, longer than antennal S1 + 2spindle-shaped, shorter than antennal S1 + 2cylindrical, parallel-sided, longer than antennal S1 + 2stick-shaped, longer than antennal S1 + 2
Prementum length-to-width
ratio
about 3:2about 3:2about 1:0.83about 3:2
Front margin of median lobefurnished with
about 50 finger-shaped serrations
furnished with
about 60 finger-shaped serrations
furnished with
about 27 or 28
small teeth
furnished with about 40 finger-shaped serrations
Wing pads lengthstrongly divergent, reaching middle of S4strongly divergent, reaching middle of S4reaching basal
half and posterior margin of S4,
strongly divergent, reaching middle of S4
Mid-dorsal spines on abdomenpresent on S2–9present on S2–9present on S2–9present on S2–9
Lateral spines on abdomenpresent on S6–9present on S7–9present on S7–9present on S7–9
