A Phylogenomic Supertree of Birds

Abstract

It has long been appreciated that analyses of genomic data (e.g., whole genome sequencing or sequence capture) have the potential to reveal the tree of life, but it remains challenging to move from sequence data to a clear understanding of evolutionary history, in part due to the computational challenges of phylogenetic estimation using genome-scale data. Supertree methods solve that challenge because they facilitate a divide-and-conquer approach for large-scale phylogeny inference by integrating smaller subtrees in a computationally efficient manner. Here, we combined information from sequence capture and whole-genome phylogenies using supertree methods. However, the available phylogenomic trees had limited overlap so we used taxon-rich (but not phylogenomic) megaphylogenies to weave them together. This allowed us to construct a phylogenomic supertree, with support values, that included 707 bird species (~7% of avian species diversity). We estimated branch lengths using mitochondrial sequence data and we used these branch lengths to estimate divergence times. Our time-calibrated supertree supports radiation of all three major avian clades (Palaeognathae, Galloanseres, and Neoaves) near the Cretaceous-Paleogene (K-Pg) boundary. The approach we used will permit the continued addition of taxa to this supertree as new phylogenomic data are published, and it could be applied to other taxa as well.

1. Introduction

Next generation sequencing (NGS) technologies have revolutionized systematics by permitting the collection of genome-scale datasets that can be used for phylogenetic analyses [1]. The availability of large-scale data has led to the genesis of a novel field of study within evolutionary biology that combines high-throughput data collection with evolutionary analysis: phylogenomics [2,3]. While the earliest phylogenomic studies focused on the use of comparative data to infer gene function [4,5], the focus shifted to efforts that used data from traditional Sanger sequencing combined with high-throughput workflows to understand evolutionary history [6,7,8]. Even more recently, the definition of the term has undergone another change; “phylogenomics” is now most often used to refer to studies that leverage NGS technologies to collect large amounts of data to inform phylogenetic reconstruction. NGS is often used for whole-genome sequencing (WGS) [9,10,11], but factors such as the cost of data collection and the computational burden associated with genome assembly have catalyzed the development of reduced-representation sequencing methods. Those methods economize data collection by reducing the amount of DNA targeted for sequencing to a subsample of the genome enriched for specific loci of interest.

Three reduced-representation sequencing methods have been used extensively in evolutionary biology: (1) transcriptome sequencing; (2) RADseq; and (3) sequence capture. All three methods have benefits and drawbacks in the context of specific studies [12]. Transcriptome sequencing has been used for phylogenetics [13,14] but it requires tissues that have been collected and preserved in an appropriate manner [15]. RADseq, which targets sequences located near specific restriction enzyme cut sites [16], is most useful for examining shallow divergences [17] (but see [18]) and requires relatively high molecular weight DNA samples for restriction enzymes to work efficiently [19]. In contrast to these two methods, sequence capture approaches [20] have unique advantages that make them ideal for projects that need to leverage the many tissue types available in natural history collections. For example, sequence capture techniques can be used with older museum specimens that may only yield small amounts of degraded DNA [21,22,23]. Additionally, sequence capture can target many different regions of interest, including loci originally identified in transcriptome sequencing [24] or RADseq [25,26] studies. Overall, sequence capture methods are potentially the best approach for leveraging natural history collections and achieving the dream of constructing a (nearly) complete tree of life with resources already available [27].

Birds are a group for which NGS approaches have been used with great success: to sequence genomes [28], to study adaptation [29], to understand gene function [30], and to clarify phylogenetic relationships (

Table 1. Phylogenomic studies of birds considered for use in this supertree ¹.

Study	Focal Group	# of Species	Used as Source Tree?	Loci Targeted 2
Faircloth et al. [55]	NEORNITHES	9		2.5K UCE probe set
McCormack et al. [36]	NEOAVES	33	YES	2.5K UCE probe set
Baker et al. [56]	PALAEOGNATHAE	7		Subset of Faircloth et al. [55] loci
Jarvis et al. [37]	NEORNITHES	48	YES	Whole genomes
Sun et al. [40]	Phasianidae (peafowl)	15		5k UCE probe set
Prum et al. [38]	NEORNITHES	197	YES	AHE probe set
Bryson et al. [57]	Passerellidae	30	YES	5k UCE probe set
Hosner et al. [58]	Cracidae	23		5k UCE probe set
Hosner et al. [21]	Phasianidae	90		5k UCE probe set
Manthey et al. [59]	Piranga	11	YES	5k UCE probe set
McCormack et al. [22]	Aphelocoma	1 (3)		5k UCE probe set
Meiklejohn et al. [60]	Phasianidae (gallopheasants)	18		5k UCE probe set
Ottenburghs et al. [61]	Anatidae–Anserini	19	YES	Whole genomes
Persons et al. [62]	Phasianidae (grouse)	11		5k UCE probe set
Zarza et al. [63]	Aphelocoma	3	YES	5k UCE probe set
Burga et al. [64]	Phalacrocorax	7	YES	Whole genomes
Hosner et al. [42]	Phasianidae	115	YES	5k UCE probe set
Reddy et al. [39]	NEORNITHES	235	YES	legacy with data mining
Wang et al. [65]	Phasianidae	20	YES	5k UCE probe set
White et al. [66]	Nyctibiidae	12	YES	5k UCE probe set
Yonezawa et al. [67]	PALAEOGNATHAE		YES	legacy with data mining
Andersen et al. [68]	Alcedinidae	21	YES	5k UCE probe set
Bruxaux et al. [69]	Goura	6	YES	Subset of UCE and AHE loci
Campillo et al. [70]	Arachnothera	17	YES	5k UCE probe set
Chen et al. [71]	Phasianidae	27	YES	5k UCE probe set
Musher & Cracraft [72]	Pachyramphus	18	YES	2.5K/5k UCE probe set
Smith et al. 2018 [73]	Psittaculidae–Loriini	54	YES	5k UCE probe set
Younger et al. [74]	Newtonia	4	YES	5k UCE probe set
Sackton et al. [75]	PALAEOGNATHAE	15	YES	Whole genomes

¹ Redundant trees were omitted. ² UCE (Ultraconserved Element) probe sets are described at https://www.ultraconserved.org/; The AHE (Anchored Hybrid Enrichment) probe set was used by Prum et al. (2015).

). As with many other groups, the evolutionary history of birds includes many rapid radiations that occurred at varying times during their evolution, making the avian tree difficult to resolve with small numbers of loci. Of particular importance is the rapid radiation early in the history of Neoaves (the clade comprising 95% of extant avian species) that has made it difficult to generate a well-supported hypothesis of relationships among extant avian orders (reviewed by [31]). A number of other rapid radiations within avian orders have also proven difficult to resolve using data generated by traditional Sanger sequencing [32,33,34,35]. The much larger datasets that NGS can produce [36,37,38] have provided the first evidence for several superordinal avian clades [39]. Similar progress has been made for difficult nodes within orders: in these cases, sequence capture studies targeting ultraconserved element (UCE) loci have provided most of the data [40,41,42]. The successful use of UCE data in many studies (Table 1) suggests they could be the key to building a well-resolved avian phylogeny that includes all extant bird species.

In parallel with ongoing efforts to collect phylogenomic data from birds, there are efforts to build “megaphylogenies” that include most or all extant avian species [43,44]. Most of those efforts are meta-analyses that build taxon-rich trees by synthesizing information generated in previous studies. These studies use two basic methodologies. Supermatrix methods compile as much raw character evidence (typically sequence data) as possible, generate a large data matrix, and use that matrix for large-scale phylogenetic analyses [45,46,47]. Supertree methods combine trees that were estimated in previous studies to yield a larger, more inclusive tree [48,49,50,51]. Unlike supermatrix methods, supertrees can include taxonomic information along with other source trees, making it possible to generate supertrees that include all named taxa in major clades [44,49]. Supermatrix and supertree approaches represent different ways to generate large, synthetic trees, and aspects of both can be combined [52,53]. In fact, the most extensively used avian megaphylogeny [54] was constructed by constraining a supermatrix analysis and then incorporating data-deficient taxa using simulations and taxonomic information. Thus far, limited amounts of phylogenomic data have been used in megaphylogenies, although it is clear that “phylogenomic megaphylogenies” have the potential to yield a strongly supported tree when genome-scale data become available for a sufficient number of species.

As phylogenomic data are rapidly accumulating, a remaining question is how to best leverage those data to build taxon-rich phylogenies for many taxonomic groups, including birds. The supermatrix approach has obvious appeal since it simply involves combining sequence data and conducting standard phylogenetic analyses. However, supermatrix analyses require at least some overlapping loci among studies (Figure 1a). Producing the supermatrices is conceptually straightforward if WGS data are available, since loci of interest can be extracted from the genome assemblies. This is not the case for data generated by reduced-representation sequencing. At this time, most (but not all) avian phylogenomic studies have used ultraconserved element (UCE) sequence capture (Table 1). However, even within UCE studies, two different probe sets targeting different numbers of UCE loci have been used (Table 1). While continued data collection may permit the eventual construction of large data matrices with many overlapping loci, those datasets are currently unavailable for birds (and many other groups of organisms). There is an additional problem that analyzing supermatrices with limited sequence overlap among loci often yields large numbers of equally optimal trees, a phenomenon referred to as “terraces in phylogenetic treespace” [76,77,78]. Finally, the computational burden imposed by phylogenomic supermatrix analyses, both for matrix assembly and for the tree searches, makes it burdensome to update supermatrix phylogenies as additional phylogenomic data become available.

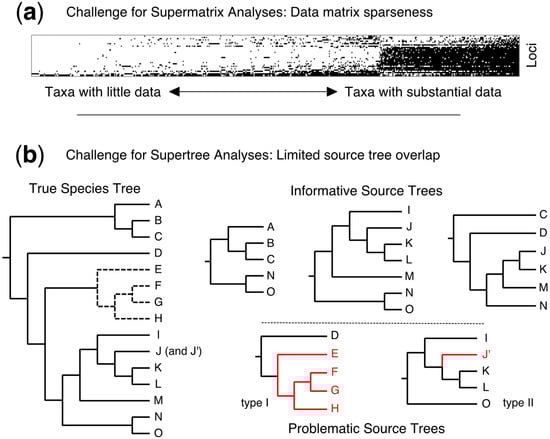

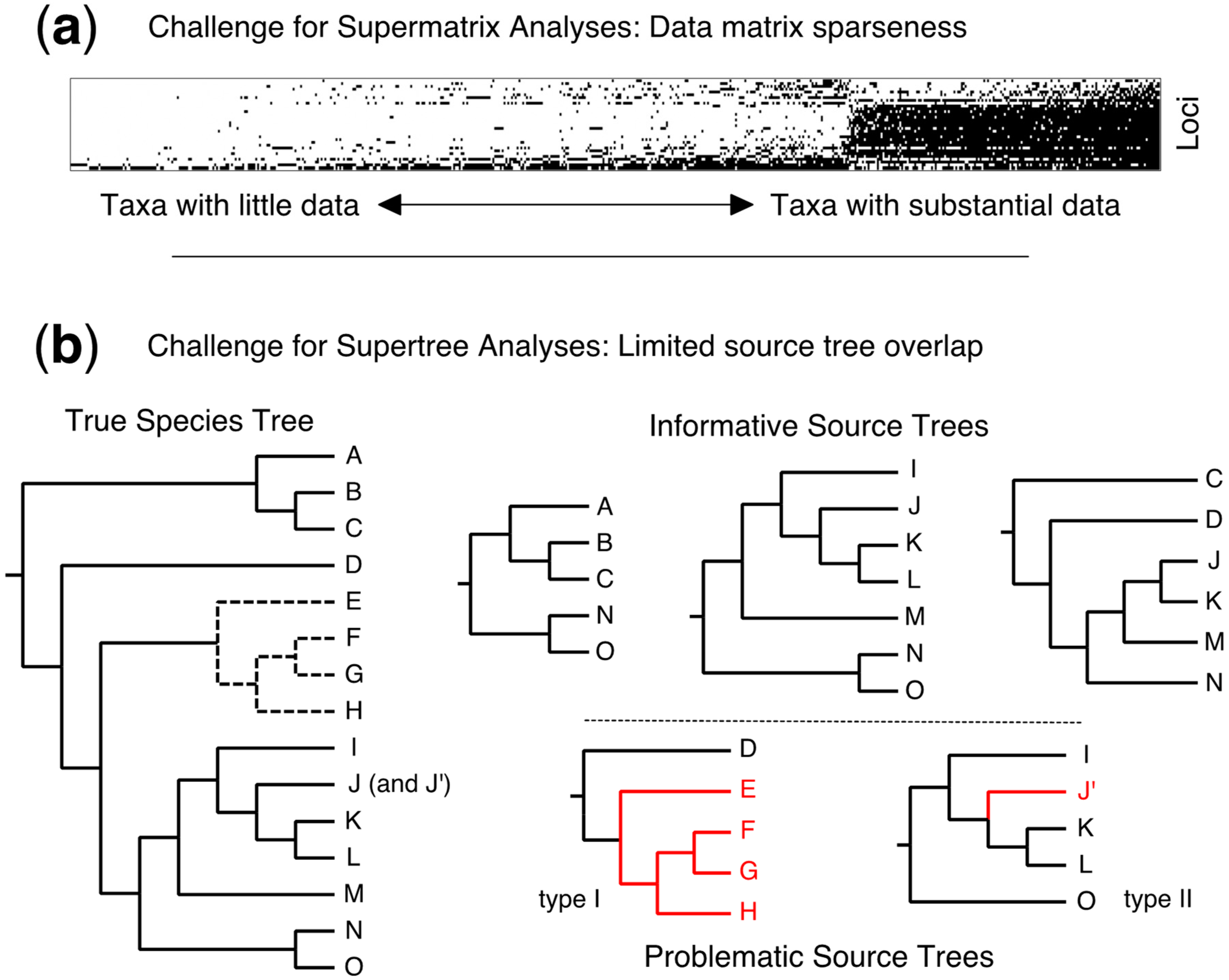

Supertrees get around many of the limitations of supermatrices; they do not require overlapping loci and they can be very computationally efficient. The overarching goal of this study is to examine the feasibility of building a “phylogenomic supertree” of birds that can be updated rapidly as additional trees based on large-amounts of sequence data are published. To accomplish this goal, we identified source trees generated using sequence capture and WGS (Table 1) and we combined those trees using two computationally efficient supertree methods. Supertrees require overlapping taxa (Figure 1b); since the available phylogenomic studies for birds have limited overlap (Figure 2), for this initial attempt we also included three avian megaphylogenies [43,44,54] to “stitch” the phylogenomic studies together into a single tree. Then we compared the supertree to those megaphylogenies to determine the ways in which phylogenomic data have altered our existing hypotheses about avian evolution. Finally, we used a combination of molecular data and the fossil record to establish a temporal framework for our supertree. Our results show that combining data from sequence capture with other sources of phylogenomic data will allow rapid progress toward the goal of a strongly supported phylogenomic supertree of life.

2. Materials and Methods

2.1. Source Tree Selection and Taxonomic Reconciliation

We identified 30 published phylogenomic trees (Table 1), including two studies [39,67] that extracted large amounts of “legacy” data (loci used for older Sanger sequencing studies [79]) from genome assemblies. Those studies allowed us to include taxa with published genome assemblies that were not included in other source trees such as the extinct elephant birds (order Aepyornithiformes; [67]). When studies were redundant (i.e., based on sequence data that overlap extensively with the data used to generate another tree), we chose the most taxon-rich tree as the source tree. Ultimately, we used 22 source trees (Table 1). Taxon names were converted to those in the IOC World Bird List (v. 7.3) [80]. The species names for extinct taxa included in our supertree (elephant birds and moas) were added to our working taxonomy. There were also two cases in which a species recognized by IOC was not monophyletic based on the inclusion of multiple individuals in the source study; we created a new taxon name for those taxa by appending the subspecies (one case) or geographic region (one case) to the original name. This resulted in 707 taxa sampled in these source trees.

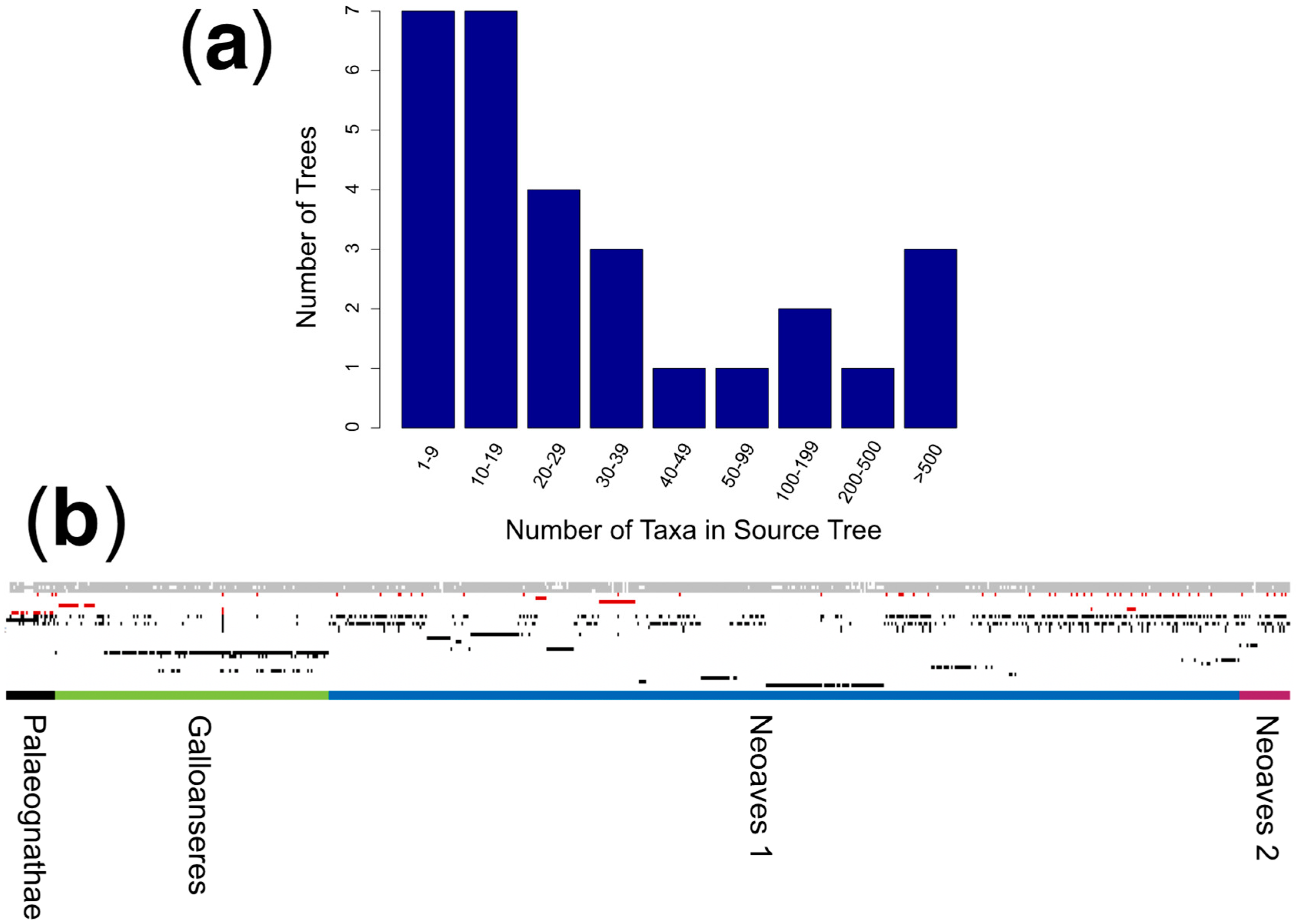

Because the phylogenomic trees included had very few overlapping taxa (Figure 2), we used three avian megaphylogenies [43,44,54] (hereafter called BigBird, Brown, and Jetz) as backbones to link the phylogenomic source trees together. For the Jetz backbone [54], we downloaded 1000 trees with the Hackett et al. [8] constraints (on 27 September 2018) for the 677 taxa that were also present in our source trees from http://birdtree.org and generated the majority rule extended (“greedy”) consensus of those trees. For the BigBird backbone [43], we extracted a subtree of the Burleigh et al. [43] maximum likelihood (ML) tree limited to the 598 taxa that were also in the phylogenomic source trees. For the Brown backbone [44], we extracted the 689 taxa that overlapped with our phylogenomic source trees.

2.2. MRP and MRL Supertree Searches

We used matrix representation with parsimony (MRP) and matrix representation with likelihood (MRL) to generate supertrees. We converted the source trees to binary matrices using the Baum–Ragan coding method [81,82] in CLANN [83] and analyzed those data matrices using PAUP* 4.0a163 [84] for MRP analyses and IQ-TREE 1.6.3 [85] for MRL analyses. We used the parsimony ratchet [86] to search treespace for our MRP analyses; the ratchet is useful when tree searching is slowed by long periods of branch swapping on large islands of equally parsimonious trees. We used “ratchblock” (a program originally used by Yuri et al. [87] that is now available from https://github.com/ebraun68/ratchblock) to generate a PAUP block with instructions for the ratchet searches. The instructions in the PAUP block generated a starting tree by stepwise addition, increased the weights for sets of randomly chosen characters to two, and subjected the reweighted data matrix to branch swapping, holding a single tree at any time (multrees = no). After a short round of branch swapping, the original (equal) weights were restored, another round of branch swapping was conducted, and the tree was saved. The optimal tree from this random reweighting-branch swapping procedure was then used as the starting tree for another cycle of reweighting and branch swapping. The search was completed by conducting a final round of tree bisection and reconnection (TBR) branch swapping (using “set maxtrees = 1000 increase = no”) on the shortest trees identified by all ratchet cycles. For this study, we conducted five searches, each with 100 ratchet replicates, that reweighted different percentages of characters (15%, 20%, 25%, 25%, and 30%). We collapsed branches to form polytomies if the minimum branch length was zero (pset collapse = minBrlen). We viewed the strict consensus of all MP trees as the phylogenomic supertree.

MRL [88] is analogous to MRP, but it uses the symmetric two-state model (the Cavender-Farris-Neyman [CFN] model; [89,90,91]) to analyze the Baum–Ragan matrix. For MRL, we used the options “-st BIN” and “-m JC2+FQ+G4” in IQ-TREE (note that the CFN model is called “JC2” in IQ-TREE).

Several methods to examine support for supertrees have been proposed (e.g., the QS method [92], its variants [93], and bootstrapping methods [94,95]). However, only some are useful for the current problem given the limited degree of overlap among our source trees. We used two approaches on the supertree based on all three backbones: 1) a simple bootstrap approach, and 2) MRL analysis with branch support values. For the bootstrap approach, we built 100 Baum–Ragan data matrices that each included a single tree from the set of bootstrap trees distributed for the BigBird backbone and for three phylogenomic trees (Jarvis [37], Prum [38], and Reddy [39]). For Jetz, birdtree.org distributes samples from a Bayesian Markov chain Monte Carlo (MCMC) chain (not bootstrap trees); we used the first 100 trees that we downloaded (thus, our bootstrap analysis actually includes bootstrap trees and trees sampled from an MCMC chain). The optimal tree was used for all other source trees. Then we analyzed the Baum–Ragan matrices using MRP and MRL. For the second approach, we tested two computationally efficient methods to examine ML branch support in our MRL tree: (1) the approximate likelihood ratio test (aLRT; [96]), and (2) the Bayesian-like transformation of the aLRT (aBayes; [97]). Those tests were conducted in IQ-TREE using the “-alrt 0” and “-abayes” options.

We analyzed seven supertree matrices. All matrices included the phylogenomic trees, but the matrices differed in which backbone trees were included. Three matrices included a single backbone tree, three included two of the three backbone trees, while one included all three backbone trees. Based on initial results, we also generated one constraint tree that enforced monophyly of most IOC orders and uncontroversial groups (e.g., Palaeognathae, Neognathae; the constraint tree is in Supplementary Materials). There are two cases for which monophyly of IOC orders is controversial (Caprimulgiformes and Pelecaniformes); the taxa in these orders were not constrained to be monophyletic in the constraint tree. All source trees, including the megaphylogeny backbone trees and the constraint trees, are available in Supplementary Materials. We used this constraint tree only for an analysis with the BigBird-only backbone (see below).

We weighted the input trees based approximately on the amount of underlying data. We wanted the phylogenomic trees to dominate, so we gave the three backbone trees (Jetz, BigBird, and Brown) a weight of one. All other input trees were weighted more heavily, with input tree weighting scaled to the number of backbone trees in an analysis (i.e., if a matrix contained a single backbone, then the base weights were multiplied by one; if two backbone trees the base weights were doubled, and for the analysis with all three backbone trees the base weights were multiplied by three). The two trees including extensive legacy data (Reddy [39] and Yonezawa [67]) were each given base weights of two, while Prum [38] (which contained 259 loci) was given a base weight of three. The UCE trees were each given a base weight of four, while the WGS trees had a base weight of eight. McCormack et al. [36] reported two UCE trees based on analyses of different (but strongly overlapping) data matrices; both trees were included as source trees, but we assigned each of them a base weight of two (totaling four, equal to other UCE trees). In all cases, we weighted trees by including each source tree the appropriate number of times in the file used as input for CLANN.

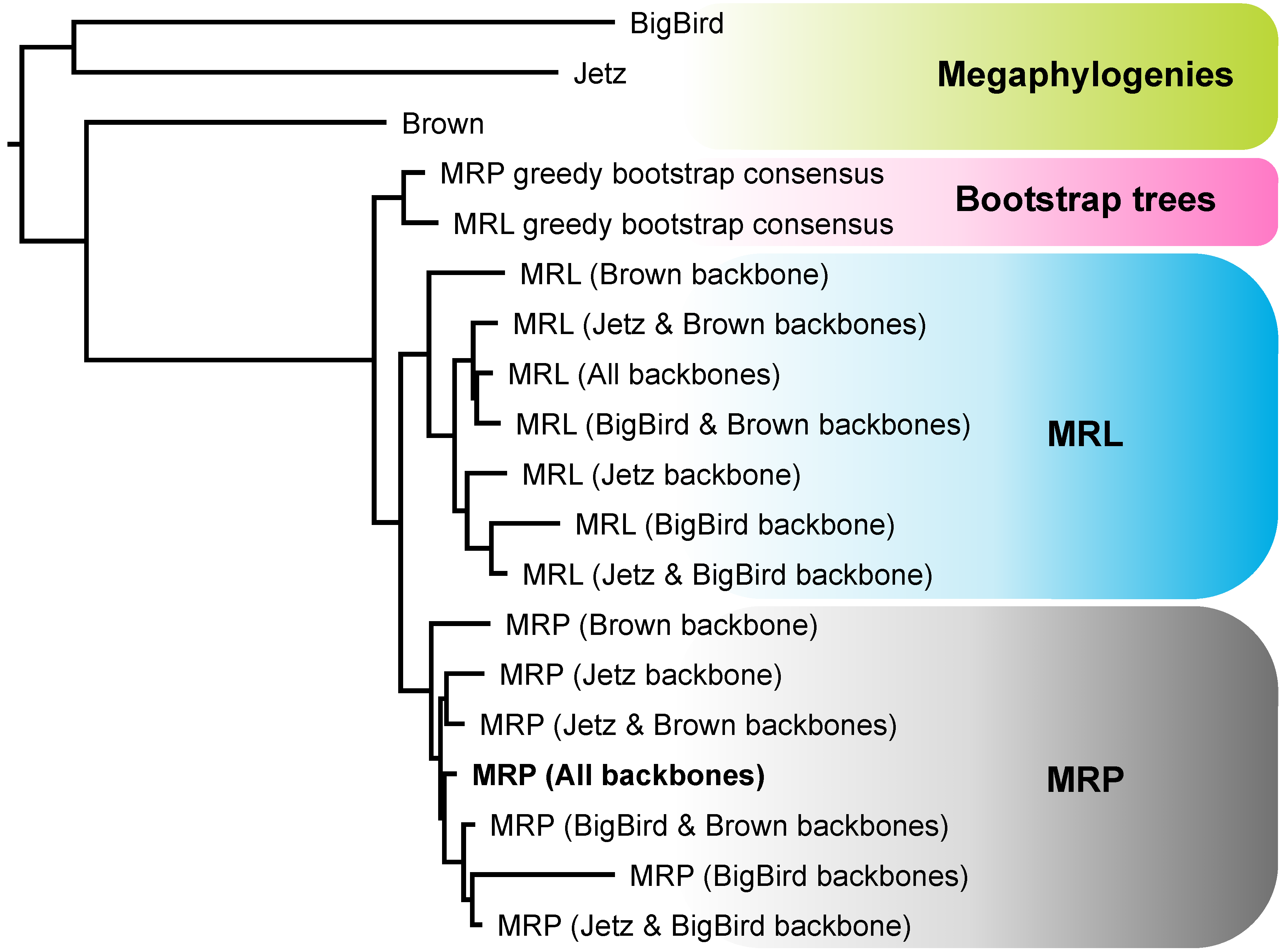

We used normalized Robinson-Foulds (RF) distances [98] to examine differences among consensus trees. Briefly, the “treedist” function in PAUP* was used to calculate symmetric tree distances (=2 × RF), which were then divided by the maximum possible symmetric distance for two fully resolved trees with the same number of taxa as the supertree. For comparisons to the megaphylogenies, we pruned the supertrees to overlapping taxa before calculating normalized RF distances. We also used these RF distances to generate a “tree-of-trees” (a cluster analysis showing the similarities among trees). This was accomplished by converting the RF distance matrix to NEXUS format and then clustering the trees by neighbor joining in PAUP*.

2.3. Estimating Branch Lengths and A Calibrated Time Tree

We estimated branch lengths in IQ-TREE using data matrices that comprise the mitochondrial gene regions cytochrome b (CYB) and NADH dehydrogenase subunit 2 (ND2) (Supplementary Materials). That matrix was generated by extracting those taxa with CYB and ND2 data from the BigBird [43] data matrix, adding additional sequences from GenBank [99], and supplementing the data with new sequences extracted from a large-scale avian sequence capture dataset we are currently analyzing. These new CYB and ND2 sequences were assembled from “off-target” reads from UCE sequence capture efforts as described previously [65,100,101]. This allowed us to construct a data matrix comprising 655 taxa and 2184 aligned base pairs (bp). Since some taxa were represented by a very limited amount of sequence data, we constructed a second mitochondrial alignment that excluded taxa that had less than 1638 bp (less than 75% of the total region); this resulted in an alignment with 367 taxa. For both datasets, we partitioned the data by gene and codon position and estimated the model parameters and branch lengths using linked branch lengths with partition-specific rates (the “-spp” option) assuming our primary supertree topology (the “-m TESTONLY” option).

Molecular branch lengths, even when they exhibit substantial among-lineage variation, can be used to establish divergence times when information from the fossil record is incorporated [102]. Thus, the trees with branch information from mitochondrial data were time-calibrated using autocorrelated penalized likelihood in treePL [103], which implements the penalized likelihood method of Sanderson [104]. We applied 22 fossil calibrations (Appendix A) following best practices proposed by Parham et al. [105]; only 18 of these were used for analysis of the 367 taxa. With both minimum and maximum dates assigned to each calibrated node (i.e., the most recent common ancestor [MRCA] of two chosen species, see Appendix A), we obtained the optimal parameter settings using the “prime” option and dated the tree using the best smoothing value (10 for the analysis using 655 taxa, and 0.01 for the analysis using 367 taxa) determined by random subsample and replicate cross validation (RSRCV).

3. Results

3.1. Meta-Analysis of Phylogenomic Trees Yields A Well-Resolved Supertree

We assessed the impact of each backbone tree on the supertree. Use of BigBird as the sole backbone tree yielded trees that were relatively poorly resolved (Supplementary Materials). BigBird had the fewest overlapping taxa with our phylogenomic trees (598, less than 85% of the total taxa), meaning that some taxa were only present in a single tree and could therefore be placed almost anywhere in the phylogeny. Restricting our analyses to a set of source trees that included only the relatively taxon-poor BigBird backbone resulted in “problematic source trees” (Figure 1b) and the supertree included some radically misplaced taxa (e.g., placement of taxa in Vangidae outside Passeriformes). The relative RF distances from the unconstrained BigBird-only supertree to those supertrees that contained at least one backbone tree other than BigBird ranged from 0.0972 to 0.1433 (Supplementary Materials). In contrast, the relative RF distances for trees with at least one backbone tree other than BigBird did not overlap; they ranged from 0.0071 to 0.0723 (Supplementary Materials). Even when a constraint was applied, the BigBird-only matrix yielded less resolved trees than analyses using other backbones. Use of more taxon-rich backbones (Jetz or Brown), or combinations of backbones, improved resolution (

Table 2. Supertree resolution given different backbone trees ¹.

		Backbone:		Resolved	% Branches
Method	BigBird	Brown	Jetz	Branches	Collapsed
MRP	+	+	+	696	1.28%
MRP	+			642	8.94%
MRP		+		687	2.55%
MRP			+	698	0.99%
MRP	+	+		689	2.27%
MRP	+		+	691	1.99%
MRP		+	+	694	1.56%
MRL	+	+	+	704	0.14%
MRL	+			690	2.13%
MRL		+		698	0.99%
MRL			+	704	0.14%
MRL	+	+		703	0.28%
MRL	+		+	705	0.00%
MRL		+	+	703	0.28%
MRP bootstrap	+	+	+	703	0.28%
MRL bootstrap	+	+	+	705	0.00%

¹ Continued on the next page.

). Analyses based upon the Jetz backbone had the greatest resolution overall, probably reflecting the fact that the topology we used as the Jetz backbone was fully resolved whereas the Brown backbone included polytomies. The slightly reduced resolution in analyses using two or three backbone trees was likely due to conflict among the backbone trees. Given that using all three backbones emphasized uncertainty among relationships in the megaphylogenies, we focused our remaining analyses on the matrix that included all three backbones even though these trees exhibited slightly lower resolution.

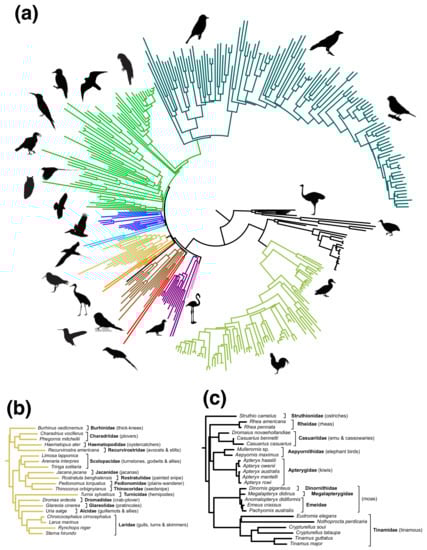

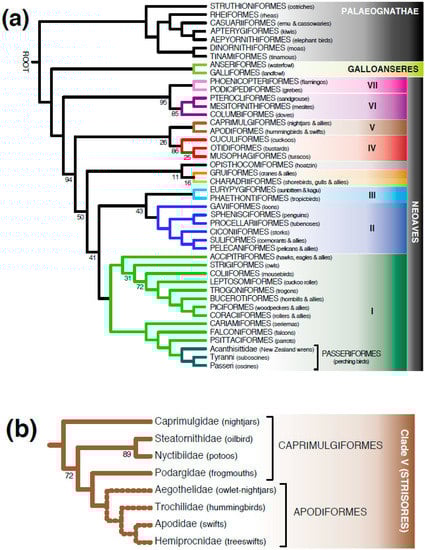

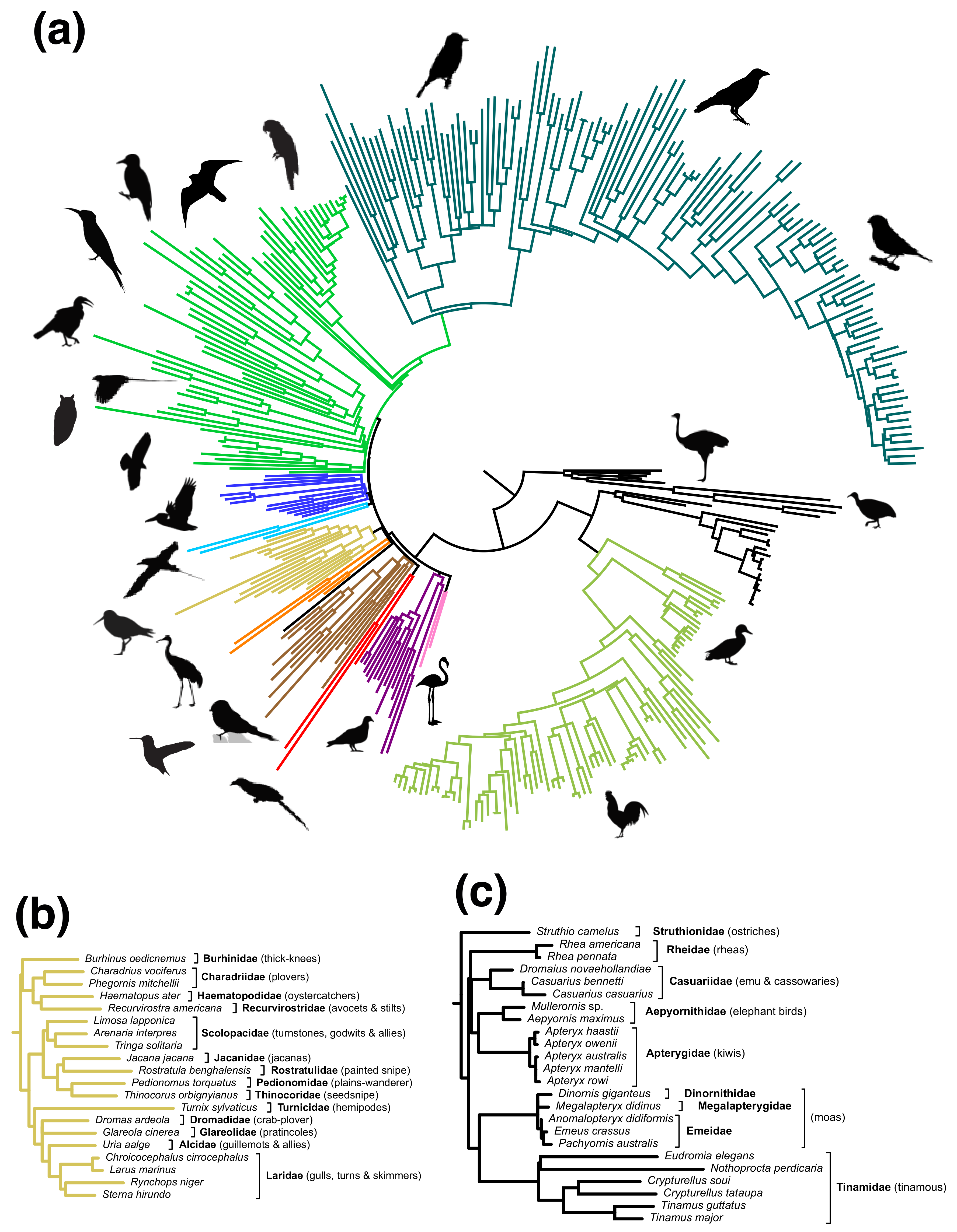

Overall, MRP and MRL trees showed many similarities (Supplementary Materials). All trees contained the seven major higher-level clades identified by Reddy et al. [39], with the exception of the unconstrained analyses that used BigBird as the sole backbone. However, while the higher-level structure of the MRP trees (Figure 3) was identical to the Jarvis et al. [37] “total-evidence nucleotide tree” (TENT), several of the MRL analyses showed a different placement for Gruiformes (cranes, rails, and allies). Despite overall similarities between MRP and MRL supertrees, the optimal MRP trees cluster separately from the optimal MRL trees. (Figure 4).

Our use of megaphylogenies (i.e., BigBird, Jetz, and Brown) as backbones to link phylogenomic trees together into a single supertree raises an important question: to what degree does the phylogenomic supertree simply reflect the backbone trees? If the supertrees simply reflect the backbone trees, then any errors shared among the backbones could be propagated to the supertrees. The megaphylogeny backbones could share errors because they are not strictly independent. For example, the Jetz tree used the Hackett et al. [8] topology as a backbone constraint and BigBird included a large amount of data from Hackett et al. [8]; the Brown tree was a synthesis of prior trees, including Hackett et al. [8] and the Jetz tree. After pruning our trees to the 584 taxa common to all three backbone trees, we found that all of our supertrees were quite similar to each other, and that distances between the supertrees and the backbone trees were much larger (Figure 4; a spreadsheet with RF distances is in Supplementary Materials). Although we cannot rule out the possibility that errors common to all three backbone trees are present in our supertrees, it seems clear that the phylogenomic trees dominate the supertree topologies. This likely reflects the high weight that we gave our phylogenomic trees, acknowledging the large amount of sequence data used to generate those trees and thus the greater likelihood that they reflect the underlying species tree.

There was low bootstrap support for higher level relationships in both MRP and MRL supertrees, though there was much higher support within well-sampled clades and for the seven higher level clades identified in Reddy et al. [39]. Interestingly, the bootstrap consensus trees from both MRP and MRL were more similar to each other than to the optimal MRP or MRL trees (Figure 4). One higher-level relationship shared by the MRP and MRL majority rule extended bootstrap consensus trees was a rearrangement in clade IV (Otidimorphae) that placed Musophagiformes (turacos) sister to an Otidiformes-Cuculiformes (bustard-cuckoo) clade. Use of the rapid MRL support metrics (aLRT and aBayes) resulted in high (and likely inflated; see Discussion) support at all nodes.

3.2. Rapid Branch Length Estimation and Divergence Time Estimation

Most supertree methods (including MRP and MRL) are unable to generate meaningful branch length estimates. However, we were able to identify mitochondrial sequence data for 655 (93%) of the taxa in our matrix that we used for branch length estimation, though only 367 taxa (52%) had at least 1638 sites. Branch length estimates were variable (Figure 5), with average branch lengths being slightly shorter when using reduced numbers of taxa with less missing data (see treefiles in Supplementary Materials). Since large amounts of missing data can alter branch length estimates, we focused on the branch lengths estimated from the taxon-reduced dataset.

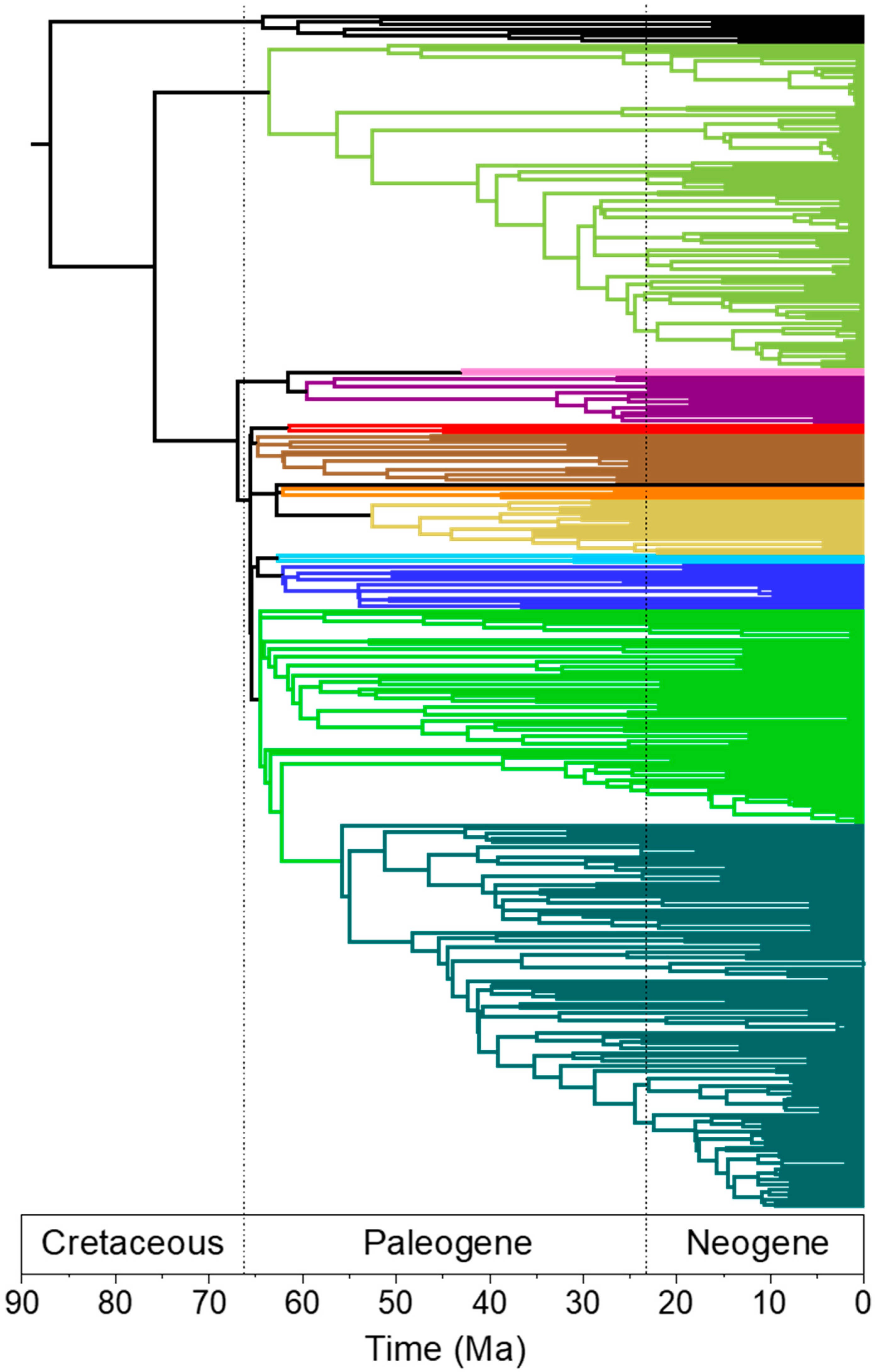

Using branch lengths estimated with the taxon-reduced matrix, our treePL analysis (Figure 6) corroborated the model, now supported in many other studies [37,38,106,107], in which Neoaves underwent an explosive radiation close to the Cretaceous-Paleogene (K-Pg) boundary. Not surprisingly, use of the more taxon-complete sequence matrix that included more missing data resulted in an older estimated radiation of Neoaves (Supplementary Materials).

4. Discussion

Supertree methods provide a computationally efficient means to integrate published phylogenomic studies of birds into a larger synthetic tree. At this point the overlap among phylogenomic trees is relatively limited, making it difficult to use standard supertree methods that use large numbers of source trees. To solve issues of limited overlap, we used megaphylogenies to unite the input trees. As more phylogenomic studies become available, the use of megaphylogeny backbones may become unnecessary and, if megaphylogenies are used, they are likely to have less influence on the overall topology of the supertrees. When sets of bootstrap trees (or samples from a Bayesian MCMC chain) are available for source trees it is also possible to incorporate those bootstrap trees into the supertree analysis and estimate the support for specific relationships. We also show that it is possible to obtain robust branch length estimates and generate a timetree consistent with other recent studies. Although we have focused on birds, which are extensively studied and therefore have relatively large amounts of data available, the resources we used (megaphylogenies and extensively sampled organellar sequence data) are available throughout the tree of life; if the phylogenomic trees are available, similar approaches could be used in other groups.

4.1. Strengths and Weaknesses of the Phylogenomic Supertree Approach

Much has been written regarding the choice among methods for generating large-scale phylogenies [108]. One major advantage that supertree methods offer is that they are very computationally efficient, while supermatrix analyses intrinsically impose a substantial computational burden [109,110]. The analyses for this study were conducted on a desktop computer (a 2.6 GHz Intel Core i5 Mac mini) and a laptop (3.1 GHz Intel Core i5 MacBook Pro) and they used less than one week of total compute time, as opposed to the >400 years used to analyze the Jarvis et al. data [37] (expressed as the equivalent runtime for a single processor). The maximum parsimony criterion (used for MRP) is orders of magnitude faster than analyses using the maximum likelihood (ML) criterion [111,112]. However, supertree analyses using the ML criterion (i.e., the MRL approach) remained quite fast given the sizes of the data matrices used in this study. Given the existence of many other computationally efficient supertree construction algorithms [113,114], we fully expect supertree methods to remain much more computationally efficient than supermatrix methods.

However, the advantages of supertree methods also come with costs (for detailed discussion see [95,115]). Ideally, there should be a direct connection between the results of any phylogenetic analysis and the original character data (e.g., aligned sequences), though using supertrees for meta-analysis (as we have done here) breaks this connection. In addition, supertrees can yield a phylogeny that does not acknowledge “hidden support” for clades. Hidden support is the observation that certain clades can have greater character support in combined analyses than they would in separate analyses of the partitions in the original dataset [116,117].

These arguments might seem to favor the use of supermatrix methods to construct megaphylogenies. However, it is important to emphasize that the sparse supermatrices used in current large-scale supermatrix studies (e.g., Figure 1a) also present analytical difficulties [76]. Moreover, supertree methods have benefits that go beyond their computational efficiency. For instance, supertree approaches can combine trees generated by rigorous phylogenetic analyses with taxonomic information [53]. At this time, there are few large taxonomic groups for which all taxa have associated character data. Thus, the supertree approach is the only method able to build trees including all named taxa in major clades [44,49] or even the entire tree of life [118]. Of course, including taxa using only taxonomic information is a double-edged sword; it can be useful when these are the only available information regarding the placement of a taxon, but there are also many examples of cases where using taxonomies to place data deficient taxa leads to inaccuracies [62,119,120,121]. The obvious next step in our efforts to understand the tree of life is to collect data (ideally phylogenomic data) for all species that remain data deficient. Yet, collecting the data necessary to construct truly phylogenomic megaphylogenies for all named species will present many challenges; the supertree approach that we have provides a useful estimate of that phylogeny for now.

4.2. Different Roles for Backbone Trees and Phylogenomic Trees

We note that the supertree approach we used differs in an important way from many others: we explicitly broke our source trees into “backbone trees” and “phylogenomic trees” whereas many supertree studies simply combine as many source trees as possible. Using a large number of source trees should minimize the problems associated with source tree overlap (Figure 1b). Because our goal was to generate a tree that summarizes phylogenomic studies, we leveraged published avian megaphylogenies (whether they reflect supermatrix and supertree analyses) to link our currently limited pool of source trees. However, there were some challenges associated with using backbone trees. Even a relatively taxon-rich backbone, like the BigBird tree (85% of all taxa sampled in source trees) was not sufficient to produce a well-resolved supertree. While using constraints improved analyses that only included the BigBird backbone, the BigBird-only trees still exhibited relatively large RF distances from the other supertrees that we generated (note the relatively long terminal branches for the BigBird trees in Figure 4), suggesting that the BigBird-only supertrees were relatively incongruent with our other trees. Overall, this indicates that one should use backbone trees with as many taxa as possible or use multiple backbone trees, as we did here. However, the need for backbone trees should diminish as more phylogenomic studies are published because this will increase the taxonomic overlap among source trees; we expect the increasing overlap among phylogenomic trees to make the choice of the backbone trees less challenging (or unnecessary) over time.

Establishing the most appropriate weights for the source trees is also challenging. It was clearly appropriate to use low weights for the backbone trees since they were based on relatively limited data. However, the most appropriate weights for the phylogenomic trees is unclear. For this study we used approximate size of the datasets used to generate weights for the source trees. However, one might argue that other factors should be used to determine weights. For example, if taxon sampling beneficially impacts the estimate of phylogeny, one might wish to weight taxon-rich trees such as the Prum et al. [38] tree higher than relatively taxon-poor trees like the Jarvis et al. [37] TENT. On the other hand, if commonly used analytical methods yield more accurate trees when applied to non-coding data (cf. Reddy et al. [39]), it might be more appropriate to down-weight Prum et al. (2015), which is primarily coding data, and eschew the Jarvis et al. [37] TENT (which is a mixture of coding and non-coding data) in favor of either the intron tree or the UCE tree from the latter study (both of which reflect analyses of largely non-coding data). Other methods to examine data quality, such as phylogenetic informativeness [122] or various metrics of model adequacy [123] could also be applied. Ultimately, weighting source trees requires judgement regarding their accuracy. For this study, we felt that simply weighting the source trees by the approximate size of the underlying dataset was the most objective way to summarize these published avian phylogenomic studies. As more phylogenomic trees become available, with greater overlap among trees, it may be of interest to explore alternative weighting schemes to explore their impact on the supertree estimation.

4.3. MRP and MRL Support Values

Bootstrap support values were relatively low for higher-level relationships in the supertree. The basis for these support values differs from those estimated using sequence data. When aligned DNA sequences are used directly, bootstrap values reflect the spectrum of site patterns in the multiple sequence alignments used in the analysis. By contrast, the supertree bootstrapping approach we used is likely to reflect both the impact of limited overlap among source trees and the limited support of clades in the backbone trees. It is encouraging that the simple approach we used yielded support values that reflect the uncertainty observed in other studies.

It can be challenging to use bootstrapping to examine support in meta-analyses because many studies only provide the optimal tree (typically with a support value included as node labels or branch lengths) or may use methods that do not generate a sample of trees [124]. Our approach requires a set of sampled (e.g., bootstrap or MCMC posterior) trees. Once a larger number of phylogenomic studies are available for birds, it may be possible to simply bootstrap the optimal or summary (e.g., maximum clade credibility) source trees (cf. [94]), but that requires a large number of source trees with substantial overlap. An alternative approach for estimating uncertainty would be to conduct a supertree analysis using gene trees from available studies as source trees. The growing popularity of multispecies coalescent (“species tree”) methods for phylogenomic analyses [125] often results in reporting of gene trees; if those gene trees are available electronically, it would be straightforward to bootstrap them during supertree construction. The observation that some supertree methods appear to be useful estimators of the species tree when collections of gene trees are used as input [126] suggests that using gene trees for some (or all) of the source trees in supertree meta-analyses might have an additional benefit: the supertree could be a reasonable estimate of the species tree. ASTRAL might be especially useful in this context; although it is generally viewed as a multispecies coalescent method it is actually a supertree method with two important properties [126]. First, it is a consistent estimator of the species tree as long as the input trees are gene trees [126]. Second, it provides useful support values (local posterior probabilities [124]) when gene trees are used as input trees. These properties would make it an excellent choice for generating a phylogenomic supertree if gene trees are available. However, if they are not available, it does not have obvious benefits relative to MRP and MRL.

For MRL analyses, the aLRT and aBayes tests [96,97] can also be used to examine support. Both tests are computationally efficient and can be used to rapidly update supertrees as additional phylogenomic trees become available. Support values from both aLRT and aBayes analyses were typically high in our analyses, with most nodes having the maximum support possible (>97% and >94% of nodes have support of 1.0 in the aLRT and aBayes analyses, respectively; Supplementary Materials), failing to reflect the underlying uncertainty in some of these relationships. Branch support in the aLRT and aBayes methods reflects the likelihood difference between the optimal tree and the two nearest neighbor interchanges for that branch. Our hope was that these analyses would provide a rapid means to highlight two different cases: (1) those in which the backbone trees conflict but the phylogenomic trees provide no information, and (2) those in which there is conflict among the phylogenomic trees. However, the small number of nodes with low support relative to those revealed by the bootstrap (>84% and >87% of resolved nodes have support of 100% in the MRP and MRL analyses, respectively; Supplementary Materials) suggests the bootstrap is a better approach. For studies like ours where there is little overlap among trees, there is little potential for conflict, and these support metrics may not yield meaningful results.

4.4. Branch Lengths and Divergence Times

Although methods to assign branch lengths to supertrees without using molecular data have been proposed [127,128,129,130,131], we used mitochondrial data to estimate branch lengths (specifically, ND2 and CYB, which are the best-sampled mitochondrial gene regions [43]). Mitochondrial data have already been collected for many birds [43] and both sequence capture and WGS (even low coverage WGS;) often produce nearly complete mitogenome sequences [65,71,100,101,132,133]. Thus, mitochondrial sequences are available from many taxa for branch length estimation, and additional sequences are expected to accumulate. Our branch lengths were similar (in relative terms) to those estimated by large-scale avian studies using nuclear sequence data [8,37,38,134]. For example, taxa that exhibit exceptionally long branches in our tree include Turnicidae (hemipodes, also known as buttonquails; see Figure 5b) and Tinamiformes (tinamous; see Figure 5c); both of these taxa exhibit long branches in trees based on nuclear data [8,38,107,134]. Our relative branch lengths also align closely with the inferred substitution rates presented by Berv and Field [135] (see their Figure S2), providing additional support for the validity of our approach.

The availability of branch lengths allowed us to estimate divergence times for the major lineages of birds. Since our goal was to explore computationally efficient methods, we used treePL, a fast rate smoothing program that performs well in simulations for as many as 10,000 tips [103]. treePL analysis of the reduced taxon set tree (which had limited missing data) resulted in a timetree that corroborated several recent studies [37,38,106,107], showing that Neoaves underwent an explosive radiation close to the K-Pg boundary. However, our estimates of divergence times appeared to be sensitive to missing data; treePL analysis of the tree including all taxa with mitochondrial sequence yielded estimates for the origin of crown Neoaves that were greater than 70 million years ago (Ma; Supplementary Materials). Missing data appeared to have an even larger impact on the estimated times for the origins of crown Palaeognathae and crown Galloanseres (Supplementary Materials), in sharp contrast to the dates that are tightly clustered near the K-Pg boundary when taxa with limited data are excluded (Figure 6). Estimates of divergence times for avian lineages have varied among studies [37,38,136] and there are indications that divergence time estimates generated using mitochondrial data exhibit systematic differences from those based on nuclear data [136]. However, our divergence time estimates are fairly close to those in other recent publications (e.g., our estimated time for the diversification of Neoaves was very similar to the estimate in Jarvis et al. [37], somewhat older than the estimate in Prum et al. [38], and within the ranges of the estimates from Ksepka and Phillips [136]). Therefore, we do not view our analyses and results, which were chosen for computational efficiency, to be the final word. Neveretheless, it is clear that our results are congruent with recent phylogenomic studies [37,38] in that they contradict estimates that place much of the diversification of Neoaves in the Cretaceous [137,138]. The hypothesis that many lineages in Neornithes (extant birds) arose during the Cretaceous requires mass survival across the K-Pg boundary; that hypothesis has become less tenable in light of recent fossil evidence for a mass extinction of birds across the K-Pg boundary [139,140]. Our timetree can be added to the growing body of molecular evidence that contradicts a Cretaceous radiation of Neornithes.

4.5. Taxonomic Flux—A Fundamental Challenge for Supertrees (and Supermatrices)

During the course of this study, the computational efficiency of supertree methods highlighted the time-consuming nature of another step in phylogenetics: taxonomic reconciliation. Our efforts to convert the taxonomies used in our source trees to a common set of names were challenging and required substantial manual intervention. It is important to recognize that taxonomic reconciliation is also necessary for supermatrix studies (for example, taxonomic difficulties presented a major challenge for the BigBird study; E.L.B., personal observation). There are three types of changes to taxonomic names that occur over time at the species level: (1) simple renaming; (2) lumping of previously separate species; and (3) splitting existing species into two or more new species. The first typically reflects splits or reassignments at the generic level. These changes are relatively straightforward to deal with because they are a one-to-one replacement of names. However, generic reassignment can result in changes to the gender of the specific epithet; this can make it challenging to trace names, especially when one also has to consider the possibility of spelling errors. Changes in species circumscriptions (lumps and splits) are more challenging. We are in a historical phase in avian taxonomy where splitting is more common, due to improved recognition of cryptic species using genetic data and information from fieldwork (e.g., improved equipment for sound recordings). There are suggestions that the number of bird species may increase twofold (or possibly even more; [141,142]). These taxonomic splits create a major problem for meta-analyses since they make it necessary to trace provenance of data at the level of individual samples and assess the proper taxonomic assignment for those samples. This emphasizes the need to make genomic data and tips in trees traceable to vouchered specimens in natural history collections. Without direct links between sequence data and the names in trees that are derived from those data, proper taxonomic assignment is impossible.

4.6. Moving Forward: OpenWings, B10K, and Other Phylogenomic Efforts

The ultimate goal of ongoing phylogenomic efforts is to estimate a phylogeny that includes all extant species and as many recently extinct species as is feasible given available material. Our ability to construct a phylogenomic supertree of birds with approximately 7% of currently named species is certainly encouraging, although we acknowledge that the taxon sampling of our current tree is highly uneven. This is because our supertree reflects the combination of source trees from global efforts to understand the avian tree of life, such as Jarvis et al. [37] and Prum et al. [38], and taxonomically focused phylogenomic source trees generated by focused efforts in specific laboratories (the overrepresentation of Galliformes and Psittaciformes reflects projects in the R.T.K.-E.L.B and B.T.S. laboratories, respectively). It is clear that these efforts need to be expanded, both for birds and for other organisms.

Efforts that will aid in the goal of inferring a species-level avian tree are underway, including many ongoing and parallel phylogenomic studies for various taxonomic groups across the tree of life, both at global scales [143,144,145] and in individual laboratories. Here, we highlight two ongoing efforts to collect large-scale data for birds. The B10K project (described by Zhang [28]) plans to generate complete genome assemblies for all named bird species. This ambitious approach is exciting and will revolutionize our understanding of avian biology, but we expect the limited availability of high-quality tissues to present major challenges for WGS efforts. The OpenWings project (www.openwings.org; described by Pennisi [146]) has the potential to achieve rapid resolution of the avian tree of life, using resources already at hand. OpenWings will focus on sequence capture of nuclear and mitochondrial loci, leveraging genetic resources from frozen tissues or well-preserved study skins of vouchered specimens in natural history collections. The overarching project goal is to collect new genomic data from >8000 bird species and to integrate those data with existing, compatible UCE data sets to infer a complete species-level avian tree of life. Importantly, the data will be openly available to other researchers immediately after they have been generated and subjected to quality control. We expect the rapid availability of data to minimize duplicate efforts among groups and allow the broader ornithological community to maximize the utility of this genome-scale data collection effort for their independent projects. Until the OpenWings project completes its data collection goals we plan to update our phylogenomic supertree of birds regularly.
