3-(Diphenylamino)-4-ethoxycyclobut-3-ene-1,2-dione

Abstract

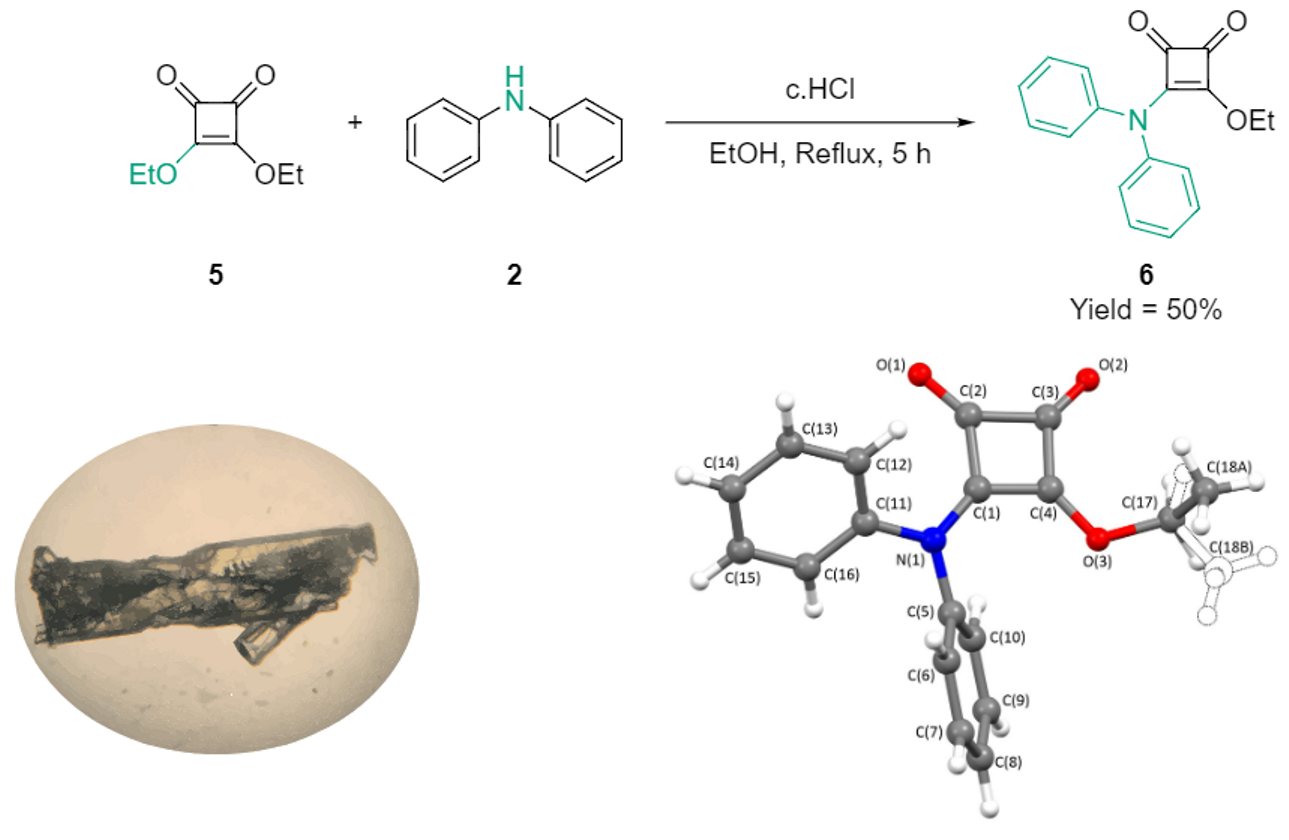

The title compound, 3-(diphenylamino)-4-ethoxycyclobut-3-ene-1,2-dione (6), was prepared by reaction of diphenylamine (2) with diethyl squarate (DES; 5) as part of our ongoing studies on monosquarate-amides. Following purification and recrystallisation, the product was isolated as a green crystalline solid. Its structure was established by spectroscopic methods, including FTIR, ¹H NMR, ¹³C NMR and HRMS, and was unambiguously confirmed by single-crystal X-ray diffraction. This work provides access to a previously unreported diphenylamino-substituted squaric acid derivative.

1. Introduction

Squaric acid (3,4-dihydroxycyclobut-3-ene-1,2-dione) derivatives continue to attract considerable attention because the cyclobut-3-ene-1,2-dione core provides a compact, highly electron-deficient and conjugated scaffold that can be readily derivatised to furnish a vast range of structurally diverse compounds with value in synthetic, coordination, medicinal and materials chemistry [1,2,3]. Due to the poor solubility of squaric acid in traditional organic solvents, they are usually used in synthetic transformations as their squarate esters [4,5,6]. These species can react with nucleophilic 1° and 2° amines to afford monosquarate amides, where 1.0 Equiv. of amine is used, or bis-squaramides (where 2.0 Equiv. of amine are introduced) [7,8,9]. Where monosubstituted derivatives are concerned and the remaining O-alkoxy group is retained, they are called monosquarate-amides. This ‘ester’ group can be hydrolysed under strong acidic or basic conditions to afford monosquaramides that bear a free OH group in place of the OR group [10,11]. We have reported our ongoing interest in the preparation of novel monosquarate-amides functionalised with anilino, benzylamino or heterocyclic amines, as part of a broader research program focused on the synthesis and study of squaric acid-derived building blocks for drug discovery [12,13,14].

As part of our continuing efforts towards the synthesis of novel monosquarate-amides, we sought to extend this chemistry to more highly functionalised aniline-like coupling partners. In this context, diphenylamine was identified as an attractive nucleophile. Beyond its synthetic relevance as an aromatic amine derivative, the diphenylamino group presents an electron-rich system that has been incorporated into a range of squaric acid-derived templates with broad applications [15,16,17]. In particular, diphenylamine-containing squaraines systems have been investigated in materials chemistry and optoelectronic applications where the diphenylamino unit contributes favourable electronic and conjugative properties [15,16,18].

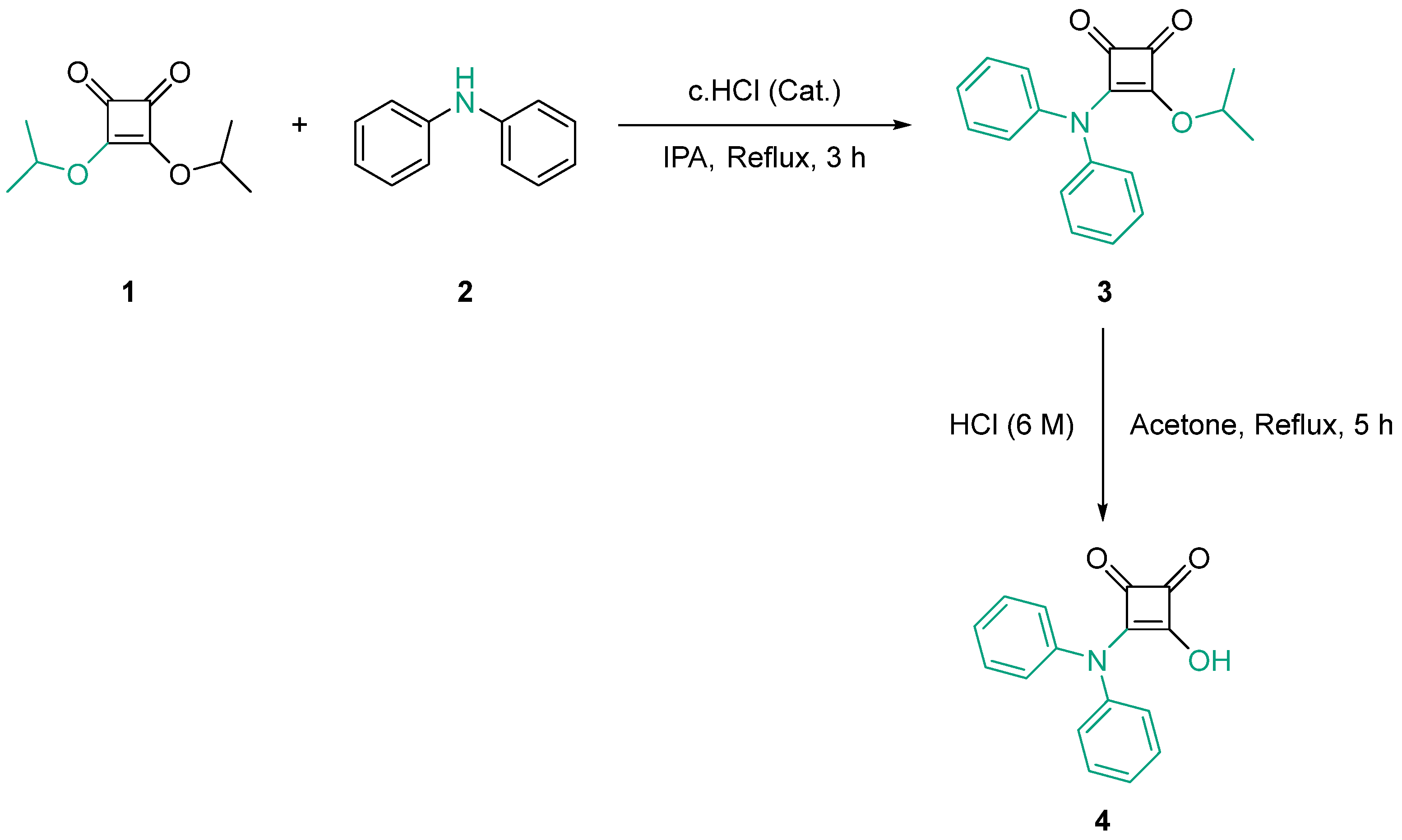

More directly relevant to the present work, literature precedent shows that 3-(diphenylamino)-4-isopropoxycyclobut-3-ene-1,2-dione (3) is a known monosquarate-amide. This compound has served as a useful synthetic precursor to 3-(diphenylamino)-4-hydroxycyclobut-3-ene-1,2-dione (4; Scheme 1) [19]. The hydrolysed product (4) has subsequently been used as a ligand in both lanthanide and first-row transition metal chemistry and has also been considered in related ruthenium coordination studies [16,19,20].

Accordingly, we explored the coupling of diethyl squarate (5; a common precursor observed in squaric acid chemistry) with diphenylamine (2) in order to access the title compound, 3-(diphenylamino)-4-ethoxycyclobut-3-ene-1,2-dione (6). Although the related structures 3 and 4 are known, the corresponding ethoxy derivative (6) has previously been unreported [16,19]. Herein, we describe the synthesis, spectroscopic characterisation and single-crystal X-ray structure determination of compound 6.

2. Results and Discussion

2.1. Chemical Synthesis

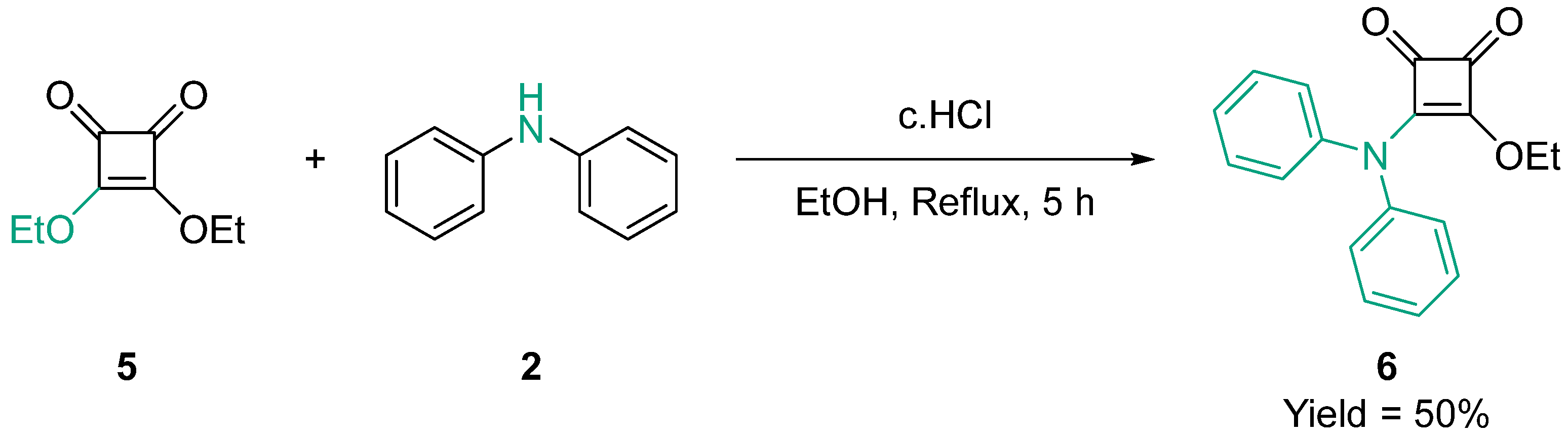

The synthesis of 3-(diphenylamino)-4-ethoxycyclobut-3-ene-1,2-dione (6) was achieved via the coupling of diethyl squarate (5) with diphenylamine (2) according to a modified literature procedure in 50% yield (Scheme 2) [19]. Upon dissolution of the starting materials, the reaction mixture rapidly developed an intense green colour, which became progressively deeper over the course of the reaction. This visual change is indicative of the formation of the highly conjugated diphenylamino monosquarate-amide. The reaction was conducted in EtOH, which is an appropriate solvent for this transformation, as 5 bears two ethoxy substituents, which are regenerated following nucleophilic attack and proton transfer.

Reaction progress was monitored by TLC (55% EtOAc:Hexane), which revealed the presence of a new product spot (R_f = 0.54). This new spot possessed greater polarity than that of DES (5) (R_f = 0.84). Following workup and purification by column chromatography (55% EtOAc:Hexane), the desired product was isolated as a blue/green solid. Subsequent recrystallisation from hot EtOAc afforded the title compound (6) as a green crystalline solid suitable for single-crystal X-ray diffraction (SXD).

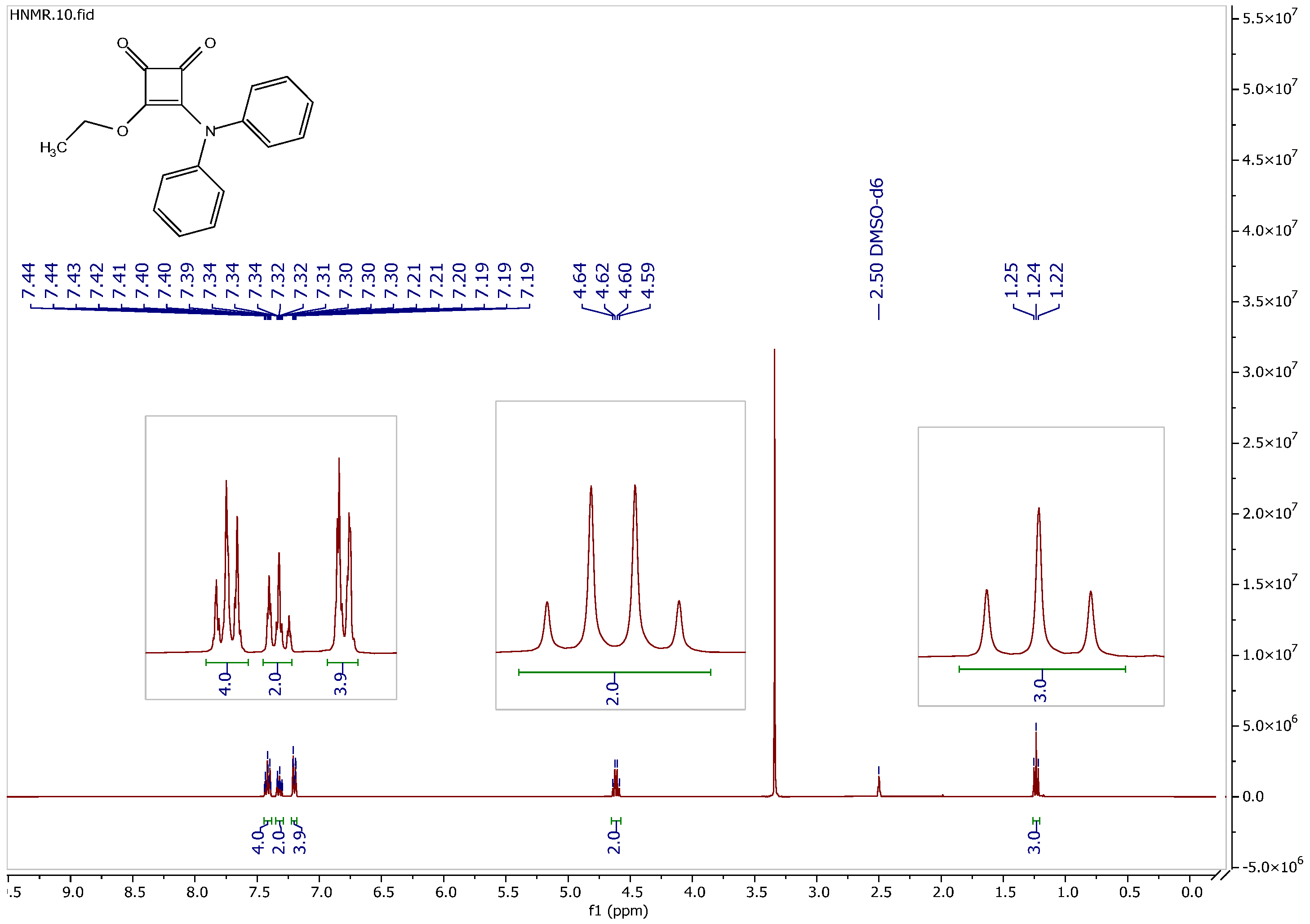

Product formation was confirmed initially by NMR spectroscopy. In the ¹H NMR spectrum (Figure 1), signals attributable to the diphenylamino substituent corresponded to a total of 10 aromatic protons, consistently with the presence of two phenyl rings. In addition, the ¹H NMR spectrum retained the characteristic resonances of a single ethoxy group (a quartet integrating for two protons at 4.61 ppm and a triplet integrating for three protons at 1.24 ppm), confirming that monosubstitution had occurred and that one ethoxy group remained. These signals were observed as a quartet at 4.61 ppm and a triplet at 1.24 ppm, corresponding to the methylene and terminal methyl protons of the OEt group respectively.

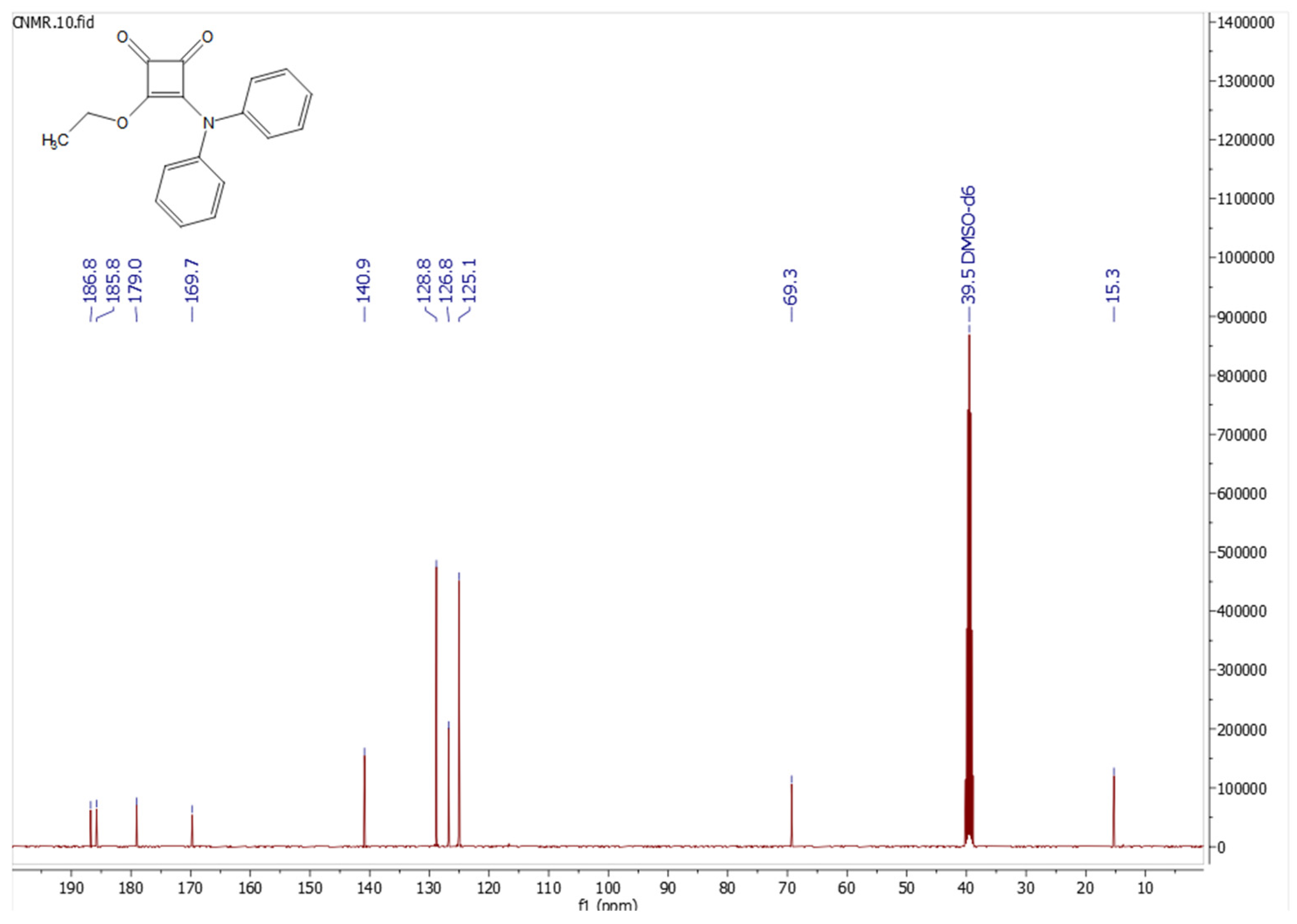

Further support for formation of the monosquarate derivative (6) was provided by the ¹³C NMR spectrum (Figure 2), recorded in DMSO-d₆. In addition to the expected aromatic resonance signals, peaks assignable to the retained ethoxy substituent were observed at 69.3 ppm for the methylene carbon and at 15.3 ppm for the terminal methyl group.

2.2. X-Ray Crystallography

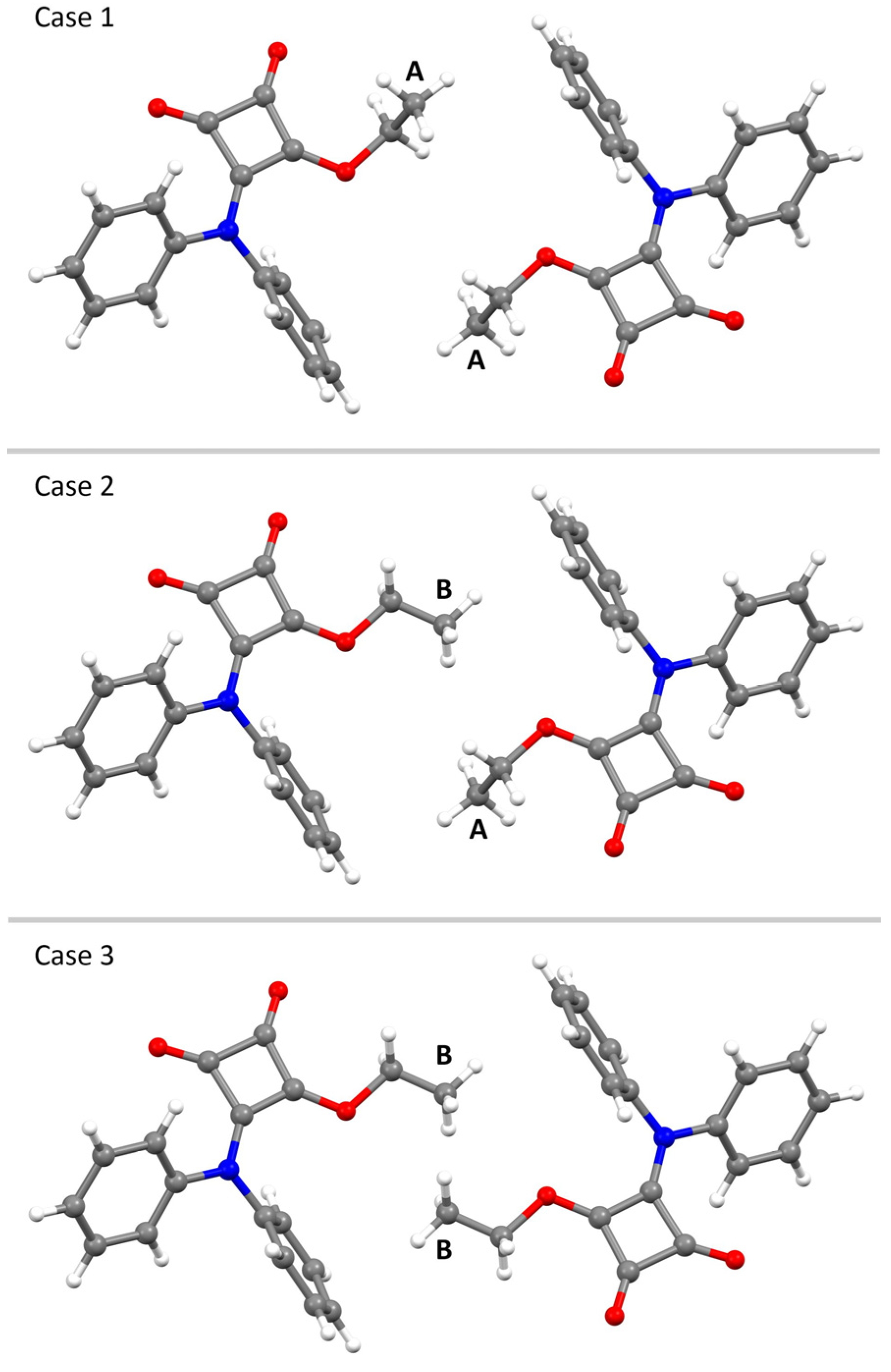

The crystal structure of 3-(diphenylamino)-4-ethoxycyclobut-3-ene-1,2-dione (6) was determined by SXD, experimental details for which are supplied in the Supporting Information. Tables of atomic coordinates and atomic displacement parameters plus derived bond lengths and angles are also supplied (Table S1a–e). The molecules pack in space group P2₁/c with the CH₃ of the OEt group disordered over two positions labelled A and B. The fractional site occupation for A and B refines as 54.7 (4)% and 45.3 (4)%. The site occupations are not equal, as site B cannot be occupied simultaneously by two adjacent molecules, as shown in Figure 3, where Case 1, in which adjacent molecules have the CH₃ group both in position A, occurs with a probability of approximately 28%; Case 2, in which one of the molecules has the CH₃ group in position A and the other in position B, occurs with a probability of approximately 72% (i.e., 36% as AB and 36% as BA); Case 3 occurs with a probability of 0% due to the short distance between positions B and B resulting in unfavourable steric interactions.

A search of the CCDC database for the 3-(Diphenylamino)-cyclobut-3-ene-1,2-dione core motif revealed only a limited number of related structures. For the known structures, analysis of the conformation of the phenyl rings with respect to the plane of the squaric acid for the hydrate, the acid DMSO solvate, a first-row transition metal complex (Zn salt) and a hydrated lanthanide salt revealed only minor variability in the twist of the phenyl rings, comparable to the twist determined from compound 6 [16,19,20]. Torsion angles calculated using Mercury are 38° and 49°, with the difference of about 10° between the two rings being similar to that observed for the other derivatives listed.

3. Materials and Methods

3.1. Synthesis: General Information

The reaction detailed was conducted in oven-dried/flame-dried glassware and under an inert atmosphere. Commercially available reagents purchased from Sigma Aldrich (Doreset, England), Acros Organic (Leicestershire, England) and Fluorochem (Glossop, England) were used without further purification. Analytical thin-layer chromatography (TLC) was performed on silica gel plates (Doreset, England); 60 Å, F₂₅₄, aluminium-backed visualised with the aid of a UV lamp (254 nm). Column chromatography was performed on silica gel (60–230 mesh). Dry loading for chromatography used the aforementioned silica gel. The pure isolated product was dried via a high-vacuum pump (Vacuubrand, Littleborough, England), Rotary vane pump RZ 2.5; 4 × 10⁻⁴ mbar.

¹H NMR spectra were recorded on a Bruker AV400 at 400 MHz in DMSO-d₆ (Coventry, England). Observed signals are reported as follows: chemical shift in parts per million with the solvent as an internal standard, ((CD₃)₂SO δ 2.50 ppm), multiplicity (s = singlet, d = doublet, t = triplet, q = quartet, dd = doublet of doublets, m = multiplet or overlap of non-equivalent resonances, and br = broad), and integration. ¹³C NMR spectra were recorded at 151 MHz in DMSO-d₆, and the observed signals were reported in the same format as that presented for ¹H NMR data: chemical shift in parts per million. Coupling constants (J) are reported in Hertz (Hz). All ¹H NMR spectra were obtained at 297.8 K, and ¹³C NMR experiments when run in (CD₃)₂SO were obtained at 318 K. Sample melting point was determined using Gallenkamp melting point apparatus MPD350.BM2.5. Elemental (CHN) analysis was conducted at London Metropolitan University using a ThermoFisher ThermoFlash 2000 CHNS/O analyser (Leicestershire, England). SXD measurements were made using an Agilent Oxford Diffraction SuperNova (Cheshire, England) equipped with a microfocus Cu Kα X-ray source and the HyPix Arc 100 hybrid pixel detector (Rigaku, Tokyo, Japan).

3.2. Synthesis of 3-(Diphenylamino)-4-ethoxycyclobut-3-ene-1,2-dione (6)

To DES (5) (1.0 g, 0.86 mL, 5.88 mmol, 1.0 Equiv.) dissolved in EtOH (15 mL) was added diphenylamine (995 mg, 5.88 mmol, 1.0 Equiv.) and c.HCl (0.5 mL). The reaction was heated and held at reflux for a period of 5 h. Following this, the reaction was concentrated under reduced pressure, dry loaded onto silica and purified by column chromatography (55% EtOAc:Hexane) to obtain the title compound as a green crystalline solid following recrystallisation from hot EtOAc. M. p. 157–160 °C. FTIR (v_mac/cm⁻¹) 2974 (C-H aromatics), 1799 (C=O), 1573 (C=C) alkene, 1473 (C-C aromatics), 1142 (C-N). ¹H NMR (400 MHz, DMSO-d₆) δ 7.46–7.36 (m, 4H), 7.35–7.27 (m,2H), 7.24–7.16 (m, 4H), 4.61 (q, J = 7.1 Hz, 2H), 1.24 (t, J = 7.1 Hz, 3H). ¹³C NMR (151 MHz, DMSO-d₆) δ 186.8, 185.8, 179.0, 169.7, 140.9, 128.8, 126.8, 125.1, 69.3, 15.3. Anal. Calcd. for C₁₈H₁₅NO₃ (%): C, 73.71; H, 5.15; N, 4.78; found: C, 73.72; H, 5.11; N, 4.59.

3.3. X-Ray Crystallography of 3-(Diphenylamino)-4-ethoxycyclobut-3-ene-1,2-dione (6)

The crystal structure of 3-(diphenylamino)-4-ethoxycyclobut-3-ene-1,2-dione (6) was determined by laboratory single-crystal X-ray diffraction [21,22,23,24]. The full experimental details and crystallographic tables are available in the supporting information.
