# Rapid and Nondestructive Evaluation of Wheat Chlorophyll under Drought Stress Using Hyperspectral Imaging

^{1}

^{2}

^{*}

## Abstract

**:**

^{2}, 0.61). The models established in this study are efficient for evaluating chlorophyll content and provide insight into photosynthesis and drought resistance. This study can provide a reference for high-throughput phenotypic analysis and genetic breeding of wheat and other crops.

## 1. Introduction

## 2. Results

#### 2.1. Chlorophyll Changes in Wheat Leaves under Different Soil Moisture Conditions

#### 2.2. Hyperspectral Characteristics of Wheat Leaves under Different Soil Moisture Conditions

#### 2.2.1. Spectral Reflectance Characteristics under Different Soil Moisture Conditions

#### 2.2.2. Spectral First Derivative Values under Different Soil Moisture Conditions

#### 2.2.3. Spectral Images under Different Soil Moisture Conditions

#### 2.3. Correlation Analysis between Hyperspectral Characteristics and SPAD Values

#### 2.4. The Characteristic Bands Identified with the Successive Projections Algorithm for Estimating SPAD Values

#### 2.5. Principal Component Analysis of Hyperspectral Information

#### 2.6. Estimation of SPAD Values Based on Regression Analysis

#### 2.6.1. Estimation of SPAD Values Based on Spectral Characteristics

^{2}= 0.60, RMSE = 4.495, RE = 7.35%) among all models. The SLR model based on the CA-R had the worst fit (training set, R

^{2}= 0.401, RMSE = 5.549, RE = 9.17%) due to the underfitting of the data (Table 1). The models based on Full-R were better than those based on Full-FD (Table 1, Figure 5E,F); although, the models built with CA-FD and SPA-FD provided better fits than CA-R and SPA-R (Figure 5A–D). The models built with SPA-R, SPA-FD, PCA-R, and PCA-FD were superior to the SLR models but inferior to the Full-R and Full-FD models (Table 1). The LASSO and RR models based on SPA-R, SPA-FD, PCA-R, and PCA-FD exhibited underfitting (Table 1).

^{2}> 0.5; Figure 7). The LASSO model prediction performance of SPAD values under drought stress is the best with R

^{2}0.569, RMSE 5.159, and RE 9.28%. As a result, the hyperspectral reflectance in predicting the SPAD values of the wheat leaves under drought stress can provide a robust result and has the potential to be used in drought resistance identification in the future.

#### 2.6.2. Estimation of SPAD Values Based on Spectral and Image Characteristics

^{2}= 0.61, RMSE = 4.439, RE = 7.35%). Overall, the combination of spectral characteristics and L*a*b* features improve the estimation accuracy for SPAD values (Table 3).

## 3. Discussion

#### 3.1. Feasibility of Estimating Chlorophyll Content of Wheat Leaves Using Hyperspectral Information

#### 3.2. Models for Estimating SPAD Values in Wheat Leaves

^{2}= 0.854, root mean square error of prediction 625.7) had the best stability [55]. In the present study, the LASSO, RR, and RFR models based on Full-R were superior to all other models and had R

^{2}and RMSE values of 0.585 and 4.578, 0.585 and 4.575, and 0.60 and 4.495, respectively (Figure 6A–C, Table 1). These findings demonstrate that models based on Full-R had better stability and accuracy.

^{2}= 0.625, RMSE = 0.048) [56]. A study estimating maize yield found that full-band RR (R

^{2}= 0.54, RMSE = 2.58) and support vector regression (SVR; R

^{2}= 0.53, RMSE = 2.69) models performed better than a full-band first derivative model (R

^{2}= 0.41, RMSE = 3.51 and R

^{2}= 0.49, RMSE = 2.95, respectively); however, RFR models showed the opposite result [57].

#### 3.3. Utility of Hyperspectral Reflectance for Monitoring Wheat Growth and Evaluating Drought Resistance under Drought Stress

^{2}= 0.94, RMSE = 0.201) [49]. Similarly, previous research showed that 617, 675, and 818 nm are the optimal bands for estimating the chlorophyll content of diseased peach fruit [58]. Using the continuous wavelet transform (CWT) to estimate wheat SPAD values under low-temperature stress, a previous study found that 553, 727, 728, 729, and 734 nm are SPAD-sensitive bands, and that spectral reflectance at 553 nm can accurately estimate SPAD values (R

^{2}= 0.7444, RMSE = 7.359) [59]. One study using multiple feature selection methods to determine SPAD values in pepper leaves reported that the characteristic bands were concentrated within the regions of 415.4–431.5, 526.7–676.2, and 839.3–979.2 nm [60]. Furthermore, 548, 718, and 727 nm were the best wave bands for estimating chlorophyll content in grafted cucumber seedling leaves [61]. Taken together, these studies clearly indicate that hyperspectral information is closely related to chlorophyll content; however, it was still necessary to establish a stable, reliable, and universally applicable model for evaluating diverse species, and for within-species analyses, under different growth conditions. In the present study, full-band hyperspectral reflectance of combined L*, a*, and b* accurately estimated SPAD values (R

^{2}= 0.61, RMSE = 4.439, RE = 7.35%; Table 3). The spectral reflectance bands at 536, 549, 596, 674, and 708 nm, and the first derivative bands at 735, 756, and 778 nm, were SPAD characteristic bands (Figure 3A,B and Figure 4A,B). Nonetheless, many bands within the 446–770 nm region were closely related to drought stress (Figure 4E,F). Using SLR based on 549 nm reflectance and 735 nm first derivative to assess SPAD values in the leaf level found that the HSI can monitor leaf chlorophyll content and drought stress reliably (Figure 8). In conclusion, plant HSI has great potential for evaluating leaf chlorophyll content under stress conditions; however, studies including large-scale varieties experiencing different stress conditions are necessary to establish stable and reliable models.

## 4. Materials and Methods

#### 4.1. Plant Material and Growth Conditions

_{2}O5-K

_{2}O) at 750 kg/hm

^{2}prior to sowing. The soil drilling method was used to measure soil water content at a depth of 0.5 m. Beginning at the jointing stage of wheat growth, the relative soil water contents of the control and drought stress treatments were maintained at 75 ± 5% and 50 ± 5%, respectively. The calculation method of relative soil water content is consistent with previous research [64], and uses the formula below:

#### 4.2. Hyperspectral Image Acquisition

#### 4.3. SPAD Values Measurement

#### 4.4. Hyperspectral Image Preprocessing

#### 4.5. Data Processing

^{2}), root mean square error (RMSE), and relative error (RE). Four regression models were tested: simple linear regression (SLR) [71], least absolute shrinkage and selection operator (LASSO) regression [72], ridge regression (RR) [73], and random forest regression (RFR) models [74].

## 5. Conclusions

^{2}= 0.61, RMSE = 4.439, RE = 7.35%). The technical method established in this study has great potential for evaluating chlorophyll content and stress resistance.

## Supplementary Materials

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Fernie, E.; Tan, D.K.Y.; Liu, S.Y.; Ullah, N.; Khoddami, A. Post-Anthesis Heat Influences Grain Yield, Physical and Nutritional Quality in Wheat: A Review. Agriculture
**2022**, 12, 886. [Google Scholar] [CrossRef] - Rane, J.; Singh, A.K.; Kumar, M.; Boraiah, K.M.; Meena, K.K.; Pradhan, A.; Prasad, P.V.V. The Adaptation and Tolerance of Major Cereals and Legumes to Important Abiotic Stresses. Int. J. Mol. Sci.
**2021**, 22, 12970. [Google Scholar] [CrossRef] [PubMed] - Daryanto, S.; Wang, L.; Jacinthe, P.-A. Global synthesis of drought effects on cereal, legume, tuber and root crops production: A review. Agric. Water Manag.
**2017**, 179, 18–33. [Google Scholar] [CrossRef] - Zhang, J.; Zhang, S.; Cheng, M.; Jiang, H.; Zhang, X.; Peng, C.; Lu, X.; Zhang, M.; Jin, J. Effect of Drought on Agronomic Traits of Rice and Wheat: A Meta-Analysis. Int. J. Environ. Res. Public Health
**2018**, 15, 839. [Google Scholar] [CrossRef] - Ali, H.E.; Saad, Z.H.; Elsayed, H. The effect of drought on chlorophyll, proline and chemical composition of three varieties of egyptian rice. J. Biol. Chem.
**2020**, 15, 21–30. [Google Scholar] - Sharifi, P.; Mohammadkhani, N. Effects of Drought Stress on Photosynthesis Factors in Wheat Genotypes during Anthesis. Cereal Res. Commun.
**2016**, 44, 229–239. [Google Scholar] [CrossRef] - Qian, X.; Liu, L.; Croft, H.; Chen, J. Relationship between leaf maximum carboxylation rate and chlorophyll content preserved across 13 species. J. Geophys. Res.-Biogeosciences
**2021**, 126, e2020JG006076. [Google Scholar] [CrossRef] - Pandey, A.; Masthigowda, M.H.; Kumar, R.; Pandey, G.C.; Awaji, S.M.; Singh, G.; Singh, G.P. Physio-biochemical characterization of wheat genotypes under temperature stress. Physiol. Mol. Biol. Plants
**2023**, 29, 131–143. [Google Scholar] [CrossRef] - Makino, A. Photosynthesis, Grain Yield, and Nitrogen Utilization in Rice and Wheat. Plant Physiol.
**2010**, 155, 125–129. [Google Scholar] [CrossRef] - Tanaka, A.; Tanaka, R. Chlorophyll metabolism. Curr. Opin. Plant Biol.
**2006**, 9, 248–255. [Google Scholar] [CrossRef] - Wang, G.; Zeng, F.; Song, P.; Sun, B.; Wang, Q.; Wang, J. Effects of reduced chlorophyll content on photosystem functions and photosynthetic electron transport rate in rice leaves. J. Plant Physiol.
**2022**, 272, 153669. [Google Scholar] [CrossRef] [PubMed] - Li, Y.; He, N.; Hou, J.; Xu, L.; Liu, C.; Zhang, J.; Wang, Q.; Zhang, X.; Wu, X. Factors Influencing Leaf Chlorophyll Content in Natural Forests at the Biome Scale. Front. Ecol. Evol.
**2018**, 6, 64. [Google Scholar] [CrossRef] - Hörtensteiner, S.; Kräutler, B. Chlorophyll breakdown in higher plants. Biochim. Et Biophys. Acta (BBA)-Bioenerg.
**2011**, 1807, 977–988. [Google Scholar] [CrossRef] - Hashimoto, H.; Uragami, C.; Cogdell, R.J. Carotenoids and Photosynthesis. In Carotenoids in Nature: Biosynthesis, Regulation and Function; Stange, C., Ed.; Springer International Publishing: Cham, Switzerland, 2016; pp. 111–139. [Google Scholar]
- Yang, Y.-Z.; Li, T.; Teng, R.-M.; Han, M.-H.; Zhuang, J. Low temperature effects on carotenoids biosynthesis in the leaves of green and albino tea plant (Camellia sinensis (L.) O. Kuntze). Sci. Hortic.
**2021**, 285, 110164. [Google Scholar] [CrossRef] - Nikolaeva, M.K.; Maevskaya, S.N.; Shugaev, A.G.; Bukhov, N.G. Effect of drought on chlorophyll content and antioxidant enzyme activities in leaves of three wheat cultivars varying in productivity. Russ. J. Plant Physiol.
**2010**, 57, 87–95. [Google Scholar] [CrossRef] - Chowdhury, M.K.; Hasan, M.A.; Bahadur, M.M.; Islam, M.R.; Hakim, M.A.; Iqbal, M.A.; Javed, T.; Raza, A.; Shabbir, R.; Sorour, S.; et al. Evaluation of drought tolerance of some wheat (Triticum aestivum L.) genotypes through phenology, growth, and physiological Indices. Agron.-Basel
**2021**, 11, 1792. [Google Scholar] [CrossRef] - Chen, J.L.; Zhao, X.Y.; Zhang, Y.Q.; Li, Y.Q.; Luo, Y.Q.; Ning, Z.Y.; Wang, R.X.; Wang, P.Y.; Cong, A.Q. Effects of drought and rehydration on the physiological responses of artemisia halodendron. Water
**2019**, 11, 793. [Google Scholar] [CrossRef] - Xie, H.Y.; Li, M.R.; Chen, Y.J.; Zhou, Q.P.; Liu, W.H.; Liang, G.L.; Jia, Z.F. Important physiological changes due to drought stress on oat. Front. Ecol. Evol.
**2021**, 9, 644726. [Google Scholar] [CrossRef] - Wasaya, A.; Manzoor, S.; Yasir, T.A.; Sarwar, N.; Mubeen, K.; Ismail, I.A.; Raza, A.; Rehman, A.; Hossain, A.; El Sabagh, A. Evaluation of fourteen bread wheat (Triticum aestivum L.) genotypes by observing gas exchange parameters, relative water and chlorophyll content, and yield attributes under drought stress. Sustainability
**2021**, 13, 4799. [Google Scholar] [CrossRef] - Saha, S.; Begum, H.H.; Nasrin, S.; Samad, R. Effects of drought stress on pigment and protein contents and antioxidant enzyme activities in five varieties of rice (Oryza sativa L.). Bangladesh J. Bot.
**2020**, 49, 997–1002. [Google Scholar] [CrossRef] - Hinge, P.; Kale, A.; Pawar, B.; Jadhav, A.; Chimote, V.; Gadakh, S. Effect of PEG induced water stress on chlorophyll content, membrane injury index, osmoprotectants and antioxidant enzymes activities in sorghum (Sorghum bicolor (L) Moench). Maydica
**2015**, 60, 1–10. [Google Scholar] - Liu, S.; Li, S.; Fan, X.Y.; Yuan, G.D.; Hu, T.; Shi, X.M.; Huang, J.B.; Pu, X.Y.; Wu, C.S. Comparison of two noninvasive methods for measuring the pigment content in foliose macrolichens. Photosynth. Res.
**2019**, 141, 245–257. [Google Scholar] [CrossRef] - Zhao, Y.; Yan, C.; Lu, S.; Wang, P.; Li, R. Estimation of chlorophyll content in intertidal mangrove leaves with different thicknesses using hyperspectral data. Ecol. Indic.
**2019**, 106, 105511. [Google Scholar] [CrossRef] - Asaari, M.S.M.; Mertens, S.; Verbraeken, L.; Dhondt, S.; Inze, D.; Bikram, K.; Scheunders, P. Non-destructive analysis of plant physiological traits using hyperspectral imaging: A case study on drought stress. Comput. Electron. Agric.
**2022**, 195, 106806. [Google Scholar] [CrossRef] - Xia, J.; Cao, H.; Yang, Y.; Zhang, W.; Huang, B. Detection of waterlogging stress based on hyperspectral images of oilseed rape leaves (Brassica napus L.). Comput. Electron. Agric.
**2019**, 159, 59–68. [Google Scholar] [CrossRef] - Huang, Y.B.; Chen, Z.X.; Yu, T.; Huang, X.Z.; Gu, X.F. Agricultural remote sensing big data: Management and applications. J. Integr. Agric.
**2018**, 17, 1915–1931. [Google Scholar] [CrossRef] - Tan, J.Y.; Ker, P.J.; Lau, K.Y.; Hannan, M.A.; Tang, S.G.H. Applications of Photonics in Agriculture Sector: A Review. Molecules
**2019**, 24, 2025. [Google Scholar] [CrossRef] - Mahlein, A.K. Plant Disease Detection by Imaging Sensors—Parallels and Specific Demands for Precision Agriculture and Plant Phenotyping. Plant Dis.
**2016**, 100, 241–251. [Google Scholar] [CrossRef] - Stewart, E.L.; Lucas, G.B.; Campbell, C.L.; Lucas, L.T. Introduction to plant diseases: Identification and management. Mycologia
**1991**, 83, 243. [Google Scholar] [CrossRef] - Mishra, P.; Asaari, M.S.M.; Herrero-Langreo, A.; Lohumi, S.; Diezma, B.; Scheunders, P. Close range hyperspectral imaging of plants: A review. Biosyst. Eng.
**2017**, 164, 49–67. [Google Scholar] [CrossRef] - Carter, G.A.; Knapp, A.K. Leaf optical properties in higher plants: Linking spectral characteristics to stress and chlorophyll concentration. Am. J. Bot.
**2001**, 88, 677–684. [Google Scholar] [CrossRef] - Cui, B.; Zhao, Q.J.; Huang, W.J.; Song, X.Y.; Ye, H.C.; Zhou, X.F. Leaf chlorophyll content retrieval of wheat by simulated RapidEye, Sentinel-2 and EnMAP data. J. Integr. Agric.
**2019**, 18, 1230–1245. [Google Scholar] [CrossRef] - Xie, Q.Y.; Dash, J.; Huang, W.J.; Peng, D.L.; Qin, Q.M.; Mortimer, H.; Casa, R.; Pignatti, S.; Laneve, G.; Pascucci, S.; et al. Vegetation Indices combining the Red and Red-Edge spectral information for leaf area index retrieval. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens.
**2018**, 11, 1482–1493. [Google Scholar] [CrossRef] - Zhao, D.; Raja Reddy, K.; Kakani, V.G.; Read, J.J.; Carter, G.A. Corn (Zea mays L.) growth, leaf pigment concentration, photosynthesis and leaf hyperspectral reflectance properties as affected by nitrogen supply. Plant Soil
**2003**, 257, 205–218. [Google Scholar] [CrossRef] - Carter, G.A.; Spiering, B.A. Optical properties of intact leaves for estimating chlorophyll concentration. J. Environ. Qual.
**2002**, 31, 1424–1432. [Google Scholar] [CrossRef] - Watt, M.S.; Leonardo, E.M.C.; Estarija, H.J.C.; Massam, P.; de Silva, D.; O’Neill, R.; Lane, D.; McDougal, R.; Buddenbaum, H.; Zarco-Tejada, P.J. Long-term effects of water stress on hyperspectral remote sensing indicators in young radiata pine. For. Ecol. Manage.
**2021**, 502, 119707. [Google Scholar] [CrossRef] - Xie, Y.K.; Feng, M.C.; Wang, C.; Yang, W.D.; Sun, H.; Yang, C.B.; Jing, B.H.; Qiao, X.X.; Kubar, M.S.; Song, J.Y. Hyperspectral monitor on chlorophyll density in winter wheat under water stress. Agron. J.
**2020**, 112, 3667–3676. [Google Scholar] [CrossRef] - Zarco-Tejada, P.J.; Hornero, A.; Beck, P.; Kattenborn, T.; Kempeneers, P.; Hernández-Clemente, R. Chlorophyll content estimation in an open-canopy conifer forest with Sentinel-2A and hyperspectral imagery in the context of forest decline. Remote Sens. Environ.
**2019**, 223, 320–335. [Google Scholar] [CrossRef] [PubMed] - Sonobe, R.; Sano, T.; Horie, H. Using spectral reflectance to estimate leaf chlorophyll content of tea with shading treatments. Biosyst. Eng.
**2018**, 175, 168–182. [Google Scholar] [CrossRef] - Zhang, H.C.; Ge, Y.F.; Xie, X.Y.; Atefi, A.; Wijewardane, N.K.; Thapa, S. High throughput analysis of leaf chlorophyll content in sorghum using RGB, hyperspectral, and fluorescence imaging and sensor fusion. Plant Methods
**2022**, 18, 1–17. [Google Scholar] [CrossRef] - Peng, Y.; Fan, M.; Wang, Q.H.; Lan, W.J.; Long, Y.T. Best hyperspectral indices for assessing leaf chlorophyll content in a degraded temperate vegetation. Ecol. Evol.
**2018**, 8, 7068–7078. [Google Scholar] [CrossRef] [PubMed] - Qi, H.X.; Zhu, B.Y.; Kong, L.X.; Yang, W.G.; Zou, J.; Lan, Y.B.; Zhang, L. Hyperspectral inversion model of chlorophyll content in peanut leaves. Appl. Sci.
**2020**, 10, 2259. [Google Scholar] [CrossRef] - Zhang, Y.; Hui, J.; Qin, Q.; Sun, Y.; Zhang, T.; Sun, H.; Li, M. Transfer-learning-based approach for leaf chlorophyll content estimation of winter wheat from hyperspectral data. Remote Sens. Environ.
**2021**, 267, 112724. [Google Scholar] [CrossRef] - Colombo, R.; Meroni, M.; Marchesi, A.; Busetto, L.; Rossini, M.; Giardino, C.; Panigada, C. Estimation of leaf and canopy water content in poplar plantations by means of hyperspectral indices and inverse modeling. Remote Sens. Environ.
**2008**, 112, 1820–1834. [Google Scholar] [CrossRef] - Eitel, J.U.H.; Gessler, P.E.; Smith, A.M.S.; Robberecht, R. Suitability of existing and novel spectral indices to remotely detect water stress in Populus spp. For. Ecol. Manag.
**2006**, 229, 170–182. [Google Scholar] [CrossRef] - Sytar, O.; Brestic, M.; Zivcak, M.; Olsovska, K.; He, X. Applying hyperspectral imaging to explore natural plant diversity towards improving salt stress tolerance. Sci. Total Environ.
**2017**, 578, 90–99. [Google Scholar] [CrossRef] [PubMed] - Wahabzada, M.; Mahlein, A.K.; Bauckhage, C.; Steiner, U.; Oerke, E.C.; Kersting, K. Plant phenotyping using probabilistic topic models: Uncovering the hyperspectral language of plants. Sci. Rep.
**2016**, 6, 22482. [Google Scholar] [CrossRef] - Liu, B.; Yue, Y.M.; Li, R.; Shen, W.J.; Wang, K.L. Plant leaf chlorophyll content retrieval based on a field imaging spectroscopy system. Sensors
**2014**, 14, 19910–19925. [Google Scholar] [CrossRef] - George, R.; Padalia, H.; Sinha, S.K.; Kumar, A.S. Evaluating sensitivity of hyperspectral indices for estimating mangrove chlorophyll in Middle Andaman Island, India. Environ. Monit. Assess.
**2020**, 191, 785. [Google Scholar] [CrossRef] - Niu, L.; Gao, C.; Sun, J.; Liu, Y.; Zhang, X.; Wang, F. Study on hyperspectral estimation model of chlorophyll content in grape leaves. Agric. Blotechnol.
**2018**, 7, 5. [Google Scholar] - Gang, L.; Wan, S.; Jian, Z.; Yang, Z.; Qin, P. Leaf chlorophyll fluorescence, hyperspectral reflectance, pigments content, malondialdehyde and proline accumulation responses of castor bean (Ricinus communis L.) seedlings to salt stress levels. Ind. Crops Prod.
**2010**, 31, 13–19. [Google Scholar] - Sonobe, R.; Hirono, Y.; Oi, A. Non-destructive detection of tea leaf chlorophyll content using hyperspectral reflectance and machine learning algorithms. Plants
**2020**, 9, 368. [Google Scholar] [CrossRef] - Niu, L.; Zhang, X.; Sun, J.; Zheng, J.; Wang, F. Research on estimation models of chlorophyll content in apple leaves based on imaging hyperspectral data. Agric. Biotechnol.
**2018**, 7, 220–223+236. [Google Scholar] - Xie, Y.K.; Wang, C.; Yang, W.D.; Feng, M.C.; Qiao, X.X.; Song, J.Y. Canopy hyperspectral characteristics and yield estimation of winter wheat (Triticum aestivum) under low temperature injury. Sci. Rep.
**2020**, 10, 244. [Google Scholar] [CrossRef] - Li, C.C.; Cui, Y.Q.; Ma, C.Y.; Niu, Q.L.; Li, J.B. Hyperspectral inversion of maize biomass coupled with plant height data. Crop Sci.
**2021**, 61, 2067–2079. [Google Scholar] [CrossRef] - Fan, J.H.; Zhou, J.; Wang, B.W.; de Leon, N.; Kaeppler, S.M.; Lima, D.C.; Zhang, Z. Estimation of maize yield and flowering time using multi-temporal UAV-based hyperspectral data. Remote Sens.
**2022**, 14, 3052. [Google Scholar] [CrossRef] - Sun, Y.; Wang, Y.H.; Xiao, H.; Gu, X.Z.; Pan, L.Q.; Tu, K. Hyperspectral imaging detection of decayed honey peaches based on their chlorophyll content. Food Chem.
**2017**, 235, 194–202. [Google Scholar] [CrossRef] - Wang, H.F.; Huo, Z.G.; Zhou, G.S.; Liao, Q.H.; Feng, H.K.; Wu, L. Estimating leaf SPAD values of freeze-damaged winter wheat using continuous wavelet analysis. Plant Physiol. Biochem.
**2016**, 98, 39–45. [Google Scholar] [CrossRef] - Yuan, Z.R.; Ye, Y.; Wei, L.F.; Yang, X.; Huang, C. Study on the optimization of hyperspectral characteristic bands combined with monitoring and visualization of pepper leaf SPAD value. Sensors
**2022**, 22, 183. [Google Scholar] [CrossRef] - Jang, S.H.; Hwang, Y.K.; Lee, H.J.; Lee, J.S.; Kim, Y.H. Selecting significant wavelengths to predict chlorophyll content of grafted cucumber seedlings using hyperspectral images. Korean J. Remote Sens.
**2018**, 34, 681–692. [Google Scholar] - Rehman, S.U.; Bilal, M.; Rana, R.M.; Tahir, M.N.; Shah, M.K.N.; Ayalew, H.; Yan, G.J. Cell membrane stability and chlorophyll content variation in wheat (Triticum aestivum) genotypes under conditions of heat and drought. Crop Pasture Sci.
**2016**, 67, 712–718. [Google Scholar] [CrossRef] - Rolando, J.L.; Ramirez, D.A.; Yactayo, W.; Monneveux, P.; Quiroz, R. Leaf greenness as a drought tolerance related trait in potato (Solanum tuberosum L.). Environ. Exp. Bot.
**2015**, 110, 27–35. [Google Scholar] [CrossRef] - Hou, D.; Bi, J.; Ma, L.; Zhang, K.; Li, D.; Rehmani, M.I.A.; Tan, J.; Bi, Q.; Wei, Y.; Liu, G.; et al. Effects of Soil Moisture Content on Germination and Physiological Characteristics of Rice Seeds with Different Specific Gravity. Agronomy
**2022**, 12, 500. [Google Scholar] [CrossRef] - Chen, X.Y.; Zhu, Y.; Ding, Y.; Pan, R.M.; Shen, W.Y.; Yu, X.R.; Xiong, F. The relationship between characteristics of root morphology and grain filling in wheat under drought stress. PeerJ
**2021**, 9, e12015. [Google Scholar] [CrossRef] [PubMed] - Farooq, M.; Hussain, M.; Siddique, K.H.M. Drought Stress in Wheat during Flowering and Grain-filling Periods. Crit. Rev. Plant Sci.
**2014**, 33, 331–349. [Google Scholar] [CrossRef] - Du, T.; Meng, P.; Huang, J.; Peng, S.; Xiong, D. Fast photosynthesis measurements for phenotyping photosynthetic capacity of rice. Plant Methods
**2020**, 16, 6. [Google Scholar] [CrossRef] - Liu, Z.A.; Yang, J.P.; Yang, Z.C. Using a chlorophyll meter to estimate tea leaf chlorophyll and nitrogen contents. J. Soil Sci. Plant Nutr.
**2012**, 12, 339–348. [Google Scholar] [CrossRef] - Wakiyama, Y. The Relationship between SPAD Values and Leaf Blade Chlorophyll Content throughout the Rice Development Cycle. Jarq-Jpn. Agric. Res. Q.
**2016**, 50, 329–334. [Google Scholar] [CrossRef] - Shibaeva, T.G.; Mamaev, A.V.; Sherudilo, E.G. Evaluation of a SPAD-502 Plus Chlorophyll Meter to Estimate Chlorophyll Content in Leaves with Interveinal Chlorosis. Russ. J. Plant Physiol.
**2020**, 67, 690–696. [Google Scholar] [CrossRef] - Eberly, L.E. Correlation and simple linear regression. Methods Mol. Biol. (Clifton N.J.)
**2007**, 404, 143–164. [Google Scholar] - Tibshirani, R. Regression Shrinkage and Selection Via the Lasso. J. R. Stat. Soc. Ser. B (Methodol.)
**1996**, 58, 267–288. [Google Scholar] [CrossRef] - Hoerl, A.E.; Kennard, R.W. Ridge regression: Biased estimation for nonorthogonal problems. Technometrics
**2000**, 42, 80–86. [Google Scholar] [CrossRef] - Breiman, L. Random Forests. Mach. Learn.
**2001**, 45, 5–32. [Google Scholar] [CrossRef]

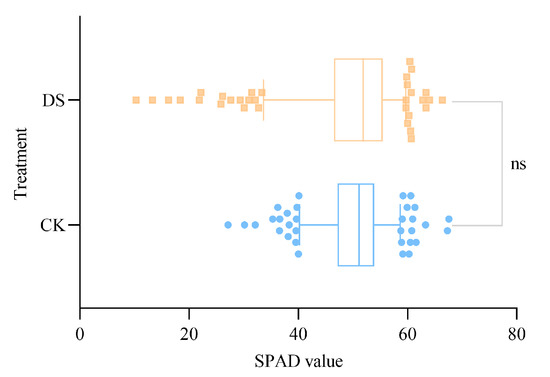

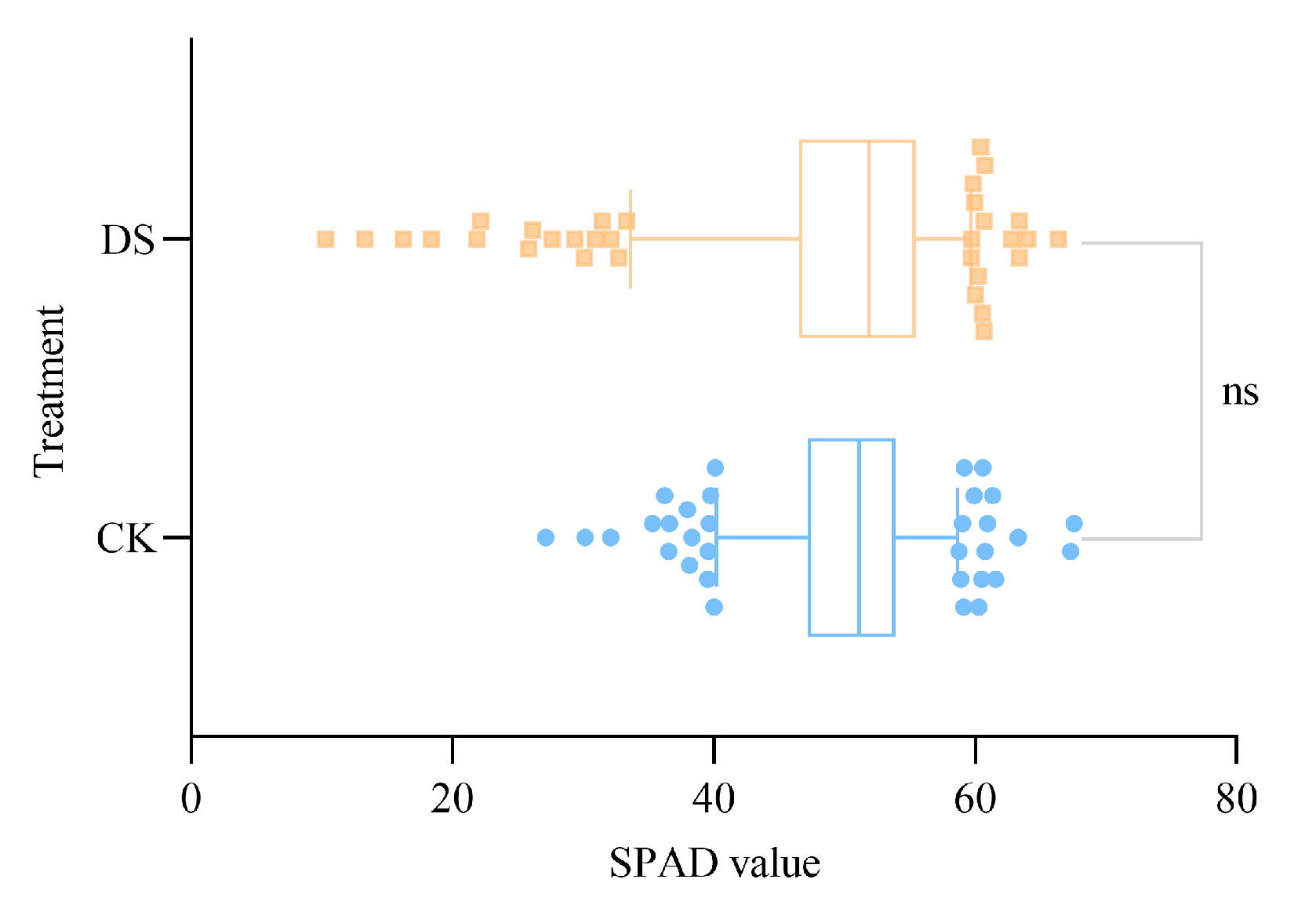

**Figure 1.**SPAD values of 335 varieties of wheat leaves under different soil moisture conditions. CK, control; DS, drought stress; whisker, 5–95%; ns, no statistically significant difference in SPAD values between the CK and DS treatments (p > 0.05).

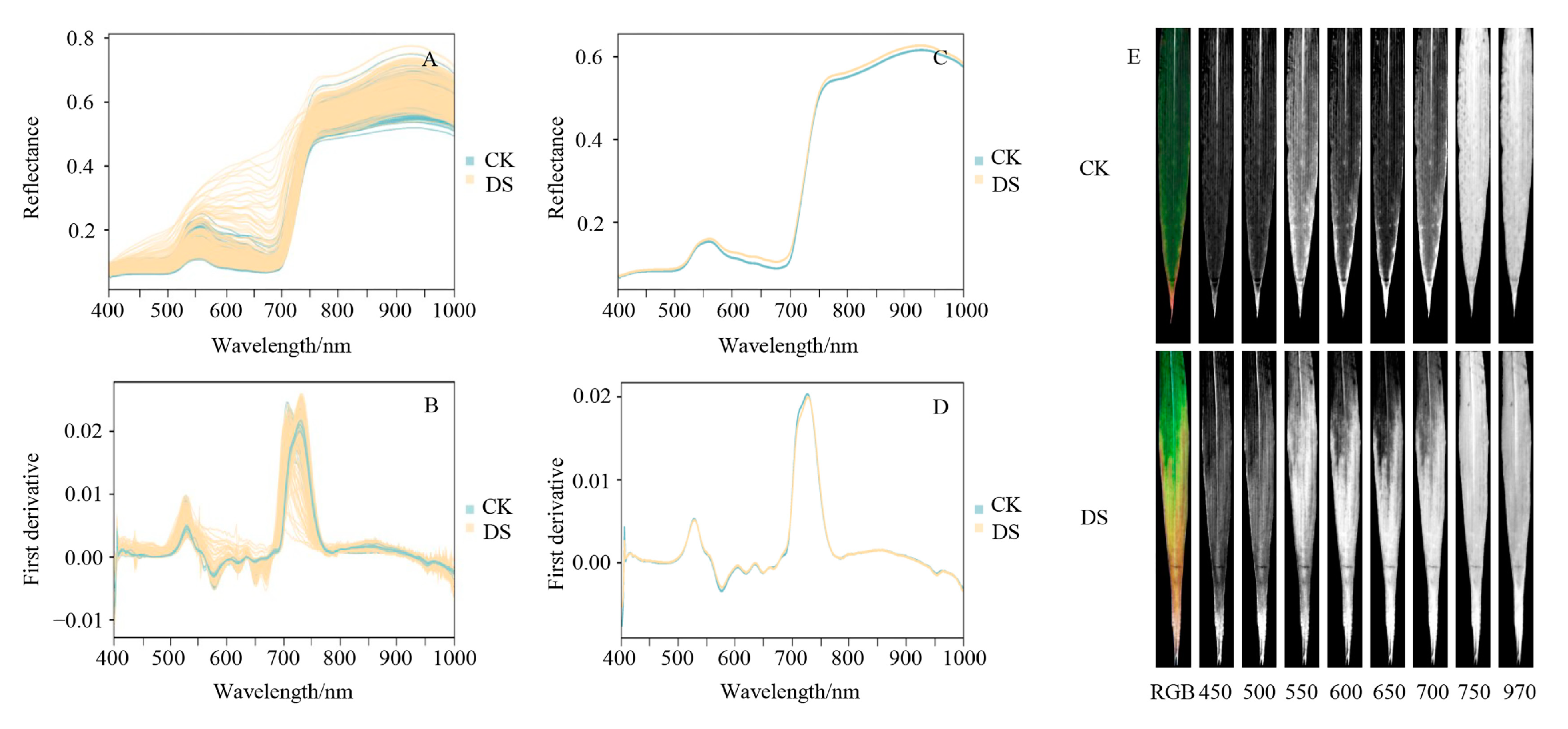

**Figure 2.**Hyperspectral curves and single-band hyperspectral images of wheat leaves under different soil moisture conditions. Hyperspectral reflectance and first derivative curves of leaves from 335 wheat varieties under control (CK) and drought stress (DS) conditions; (

**A**,

**B**) hyperspectral reflectance curves of leaves and first derivative values; (

**C**,

**D**) mean hyperspectral reflectance curves of leaves and first derivative values; (

**E**) single-band hyperspectral images; hyperspectral band region (400–1000 nm); hyperspectral images obtained using the Pika L hyperspectral imaging system; RGB images (red = 640 nm, green = 550 nm, blue = 460 nm).

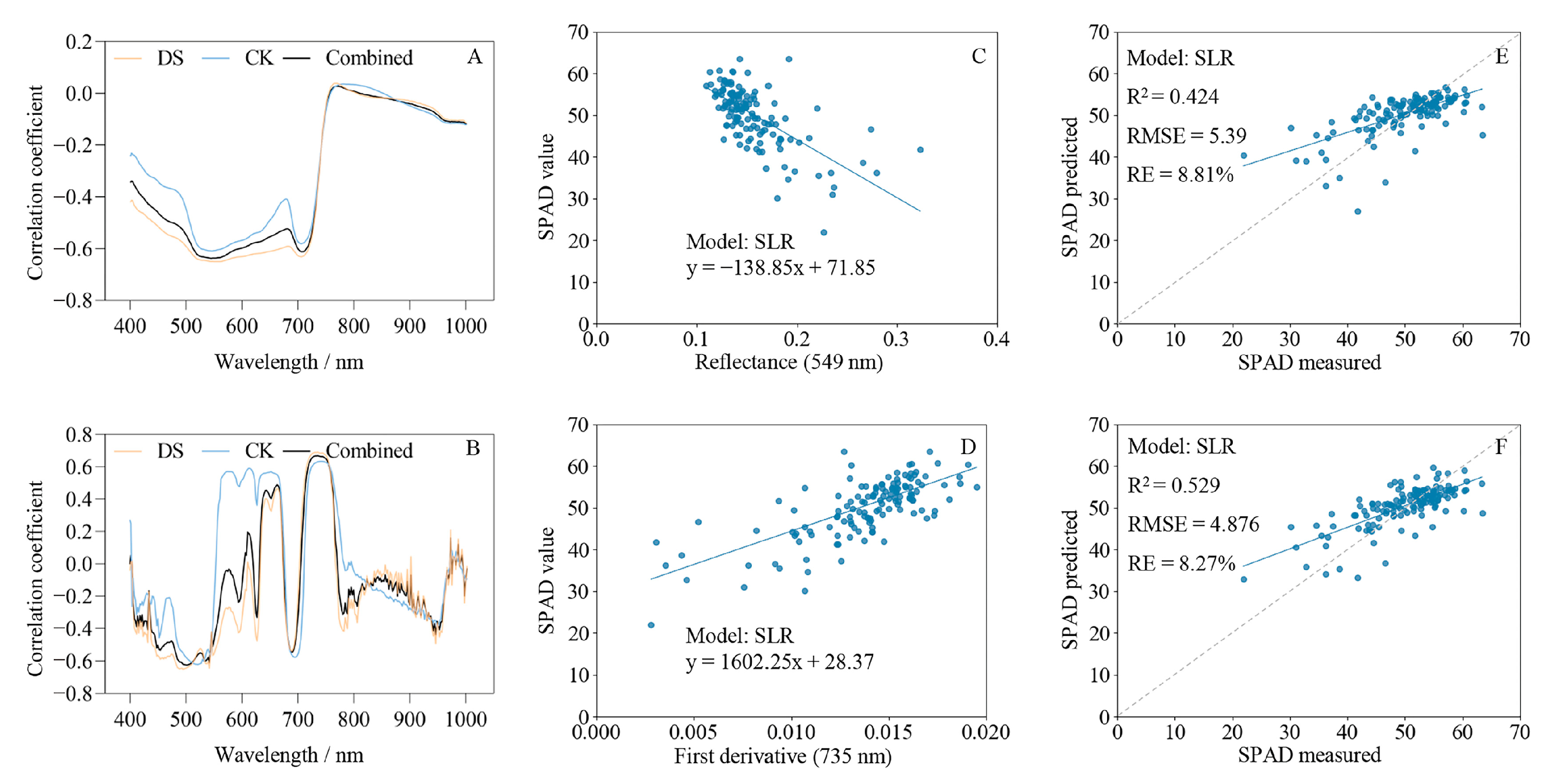

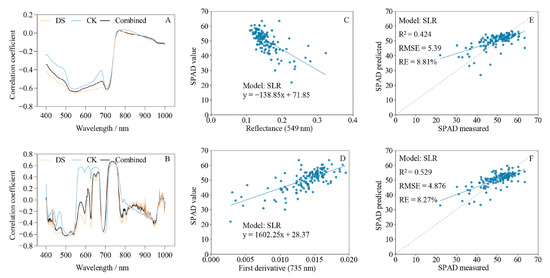

**Figure 3.**Correlation analysis and fitting results between leaf hyperspectral and SPAD values. (

**A**,

**B**) Correlations of spectral reflectance and the first derivative with SPAD values; (

**C**,

**D**) simple linear regression (SLR) analysis based on spectral reflectance at 549 nm and the spectral first derivative at 735 nm; (

**E**,

**F**) fitting results of predicted and measured values of SPAD based on reflectance at 549 nm and the first derivative at 735 nm. The gray dotted line is the 1:1 fit line between the predicted and measured values. Pearson correlation analysis of hyperspectral reflectance and first derivatives with SPAD values in CK, DS, and combined data sets was performed using Prism 9. Python 3.6 was used for SLR analysis of the data. CK, control; DS, drought stress; combined, all data.

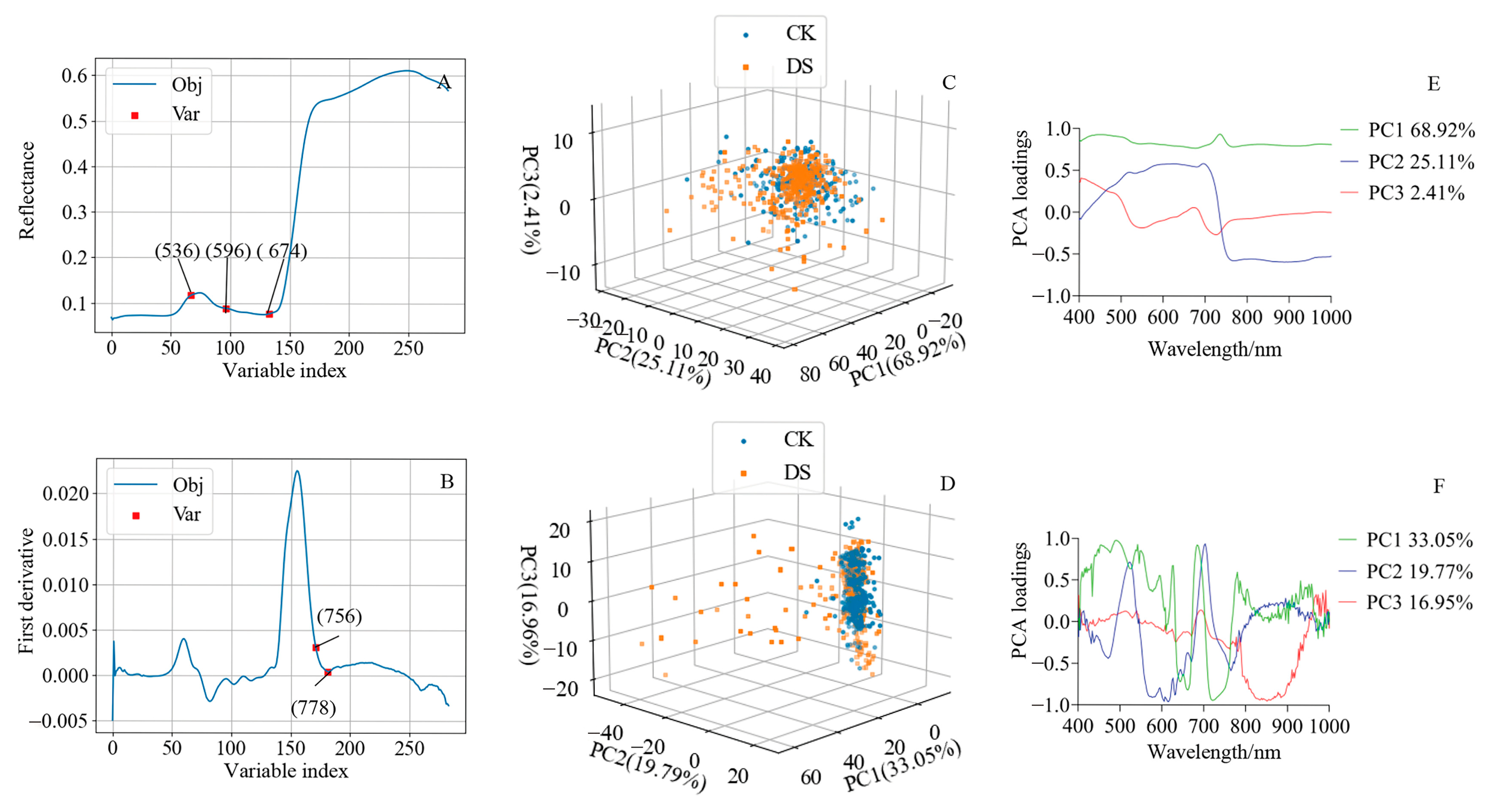

**Figure 4.**SPA feature band selection and PCA dimension reduction. (

**A**,

**B**) Spectral reflectance and first derivative bands extracted by SPA; (

**C**,

**D**) 3D spatial distribution of the first three principal components of spectral reflectance and the first derivative; (

**E**,

**F**) the first three principal components’ loadings of spectral reflectance and the first derivative. Python 3.6 was used to extract SPAD characteristic bands. Prism 9 was used to calculate PCA loadings. The percentage is the proportion of the variance explained by each principal component. SPA, successive projections algorithm; PCA, principal component analysis. Obj, first calibration object; Var, selected variables. CK, control; DS, drought stress.

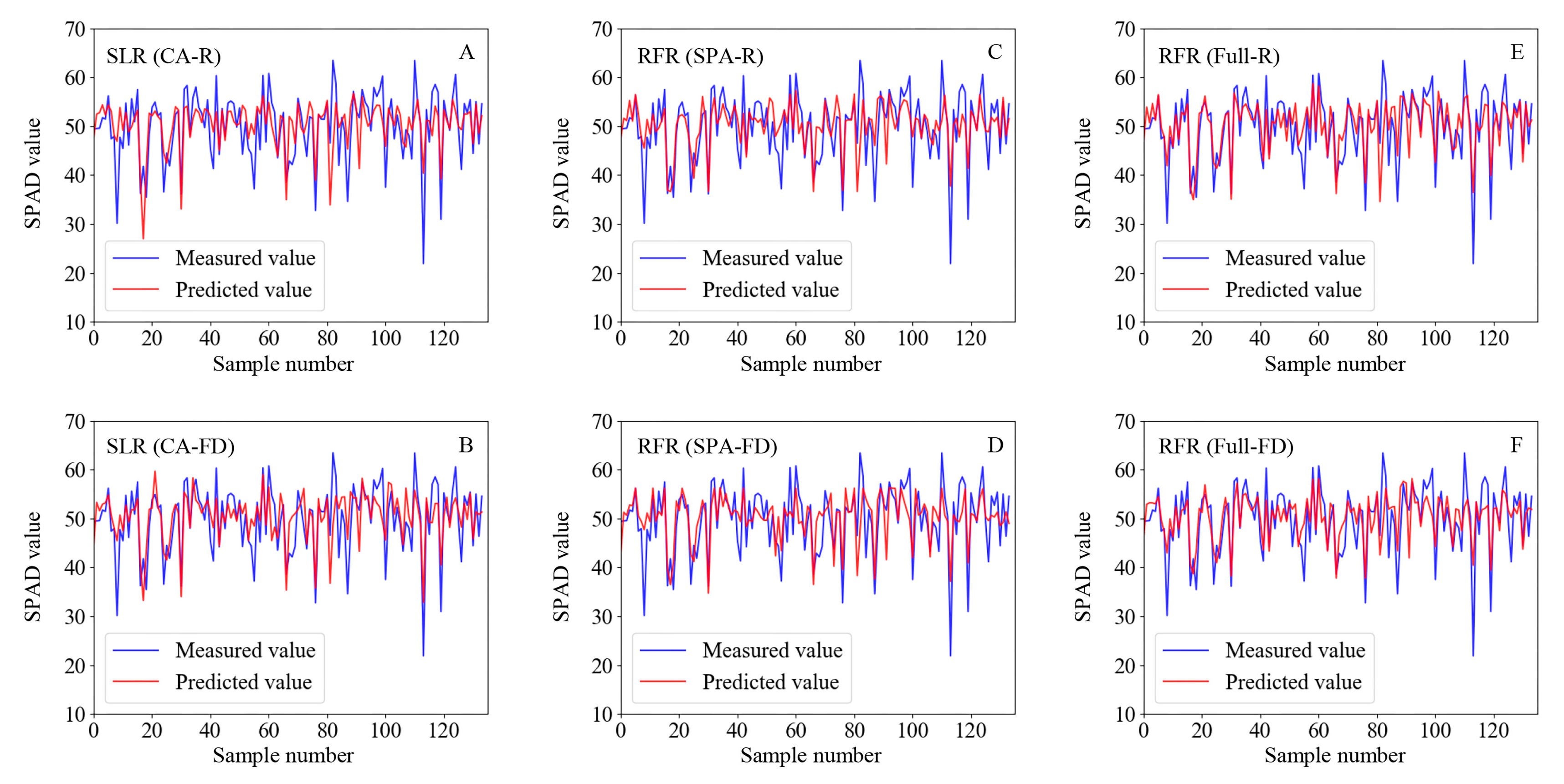

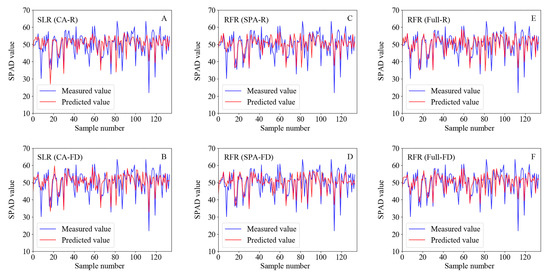

**Figure 5.**Comparison of predicted and measured values SPAD based on different data sets and models. (

**A**,

**B**) Simple linear regression (SLR) model based on CA-R and CA-FD; (

**C**,

**D**) random forest regression (RFR) model based on SPA-R and SPA-FD; (

**E**,

**F**) RFR model based on Full-R and Full-FD. CA-R/FD, reflectance/first derivative with the highest correlation with SPAD values; SPA-R/FD, reflectance/first derivative of a characteristic band extracted through SPA; Full-R/FD, full-band reflectance/first derivative. CK, control; DS, drought stress.

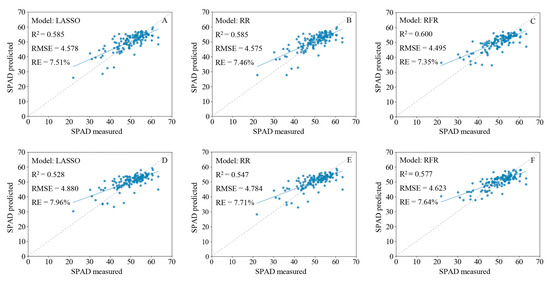

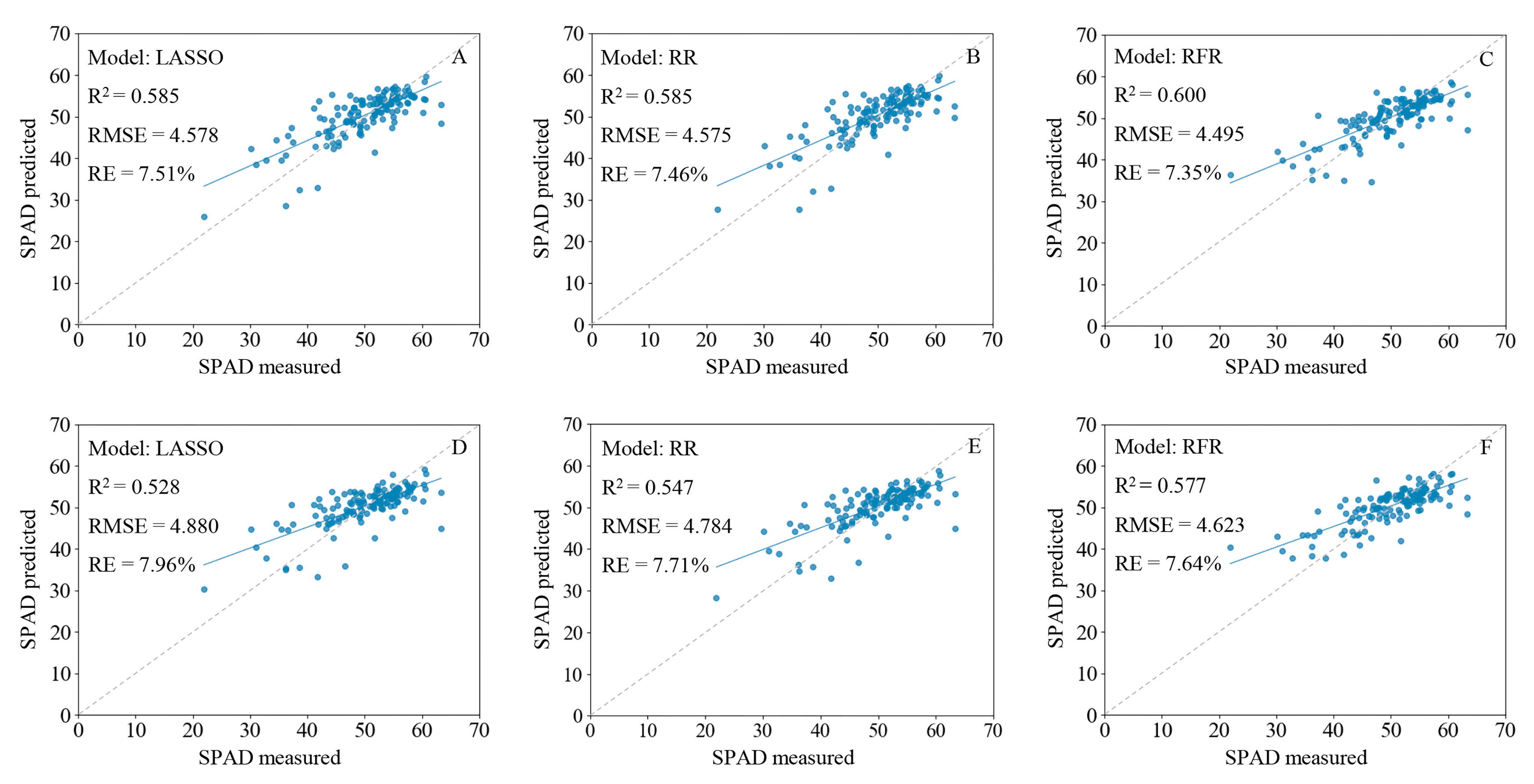

**Figure 6.**Fitting results of predicted and measured SPAD values of wheat leaves based on a full-band hyperspectral reflectance and first derivative model. (

**A**–

**C**) Least absolute shrinkage and selection operator (LASSO) regression, ridge regression (RR), and random forest regression (RFR) models built with full-band hyperspectral reflectance; (

**D**–

**F**) LASSO regression, RR, and RFR models built with full-band hyperspectral first derivative. The gray dotted line is the 1:1 fit between the predicted and measured SPAD values, and the blue solid line is the actual fit between predicted and measured values.

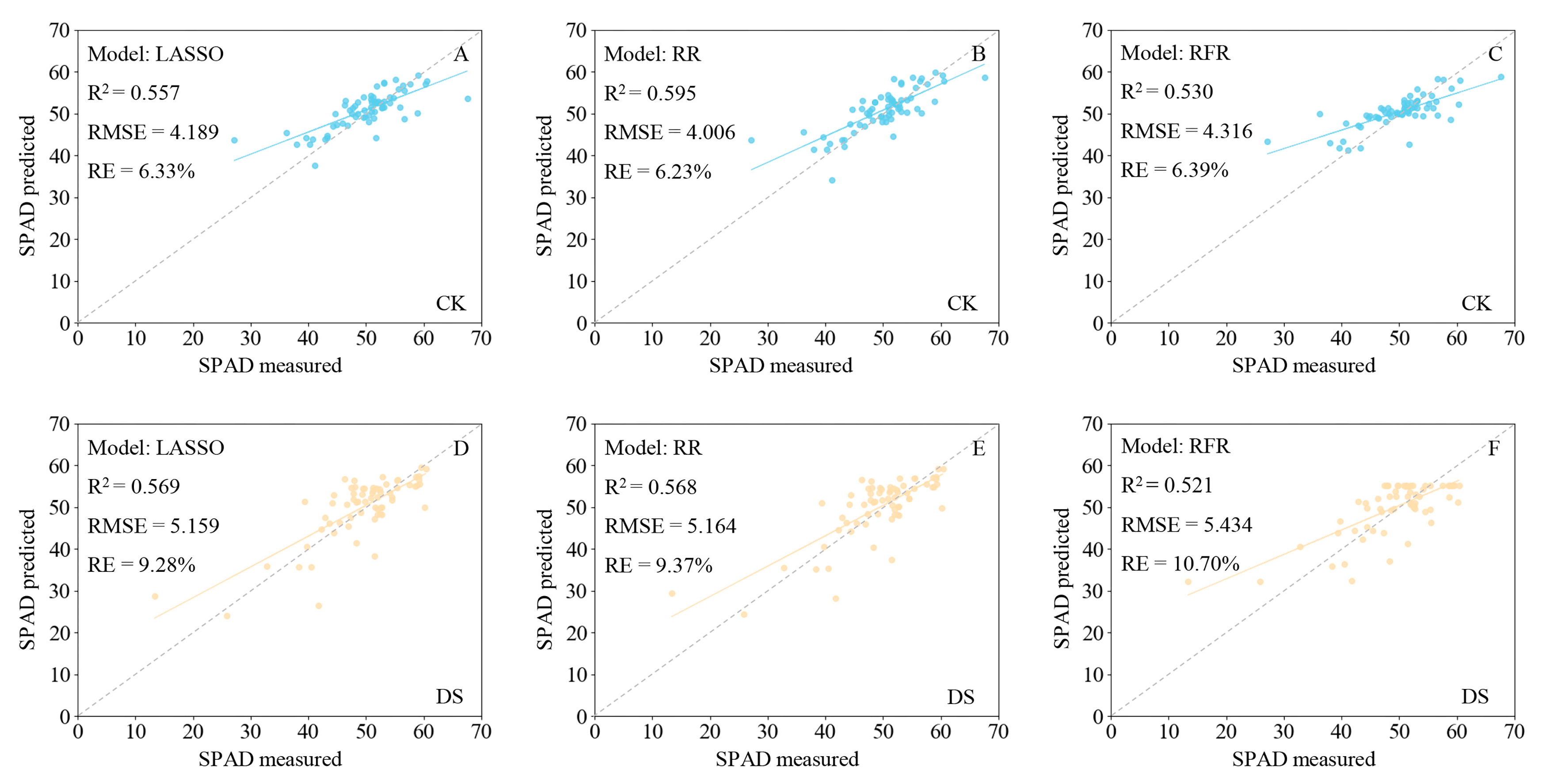

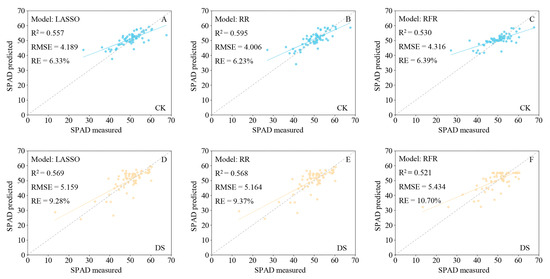

**Figure 7.**Fitting results of predicted and measured SPAD values of wheat leaves based on a full-band hyperspectral reflectance model under different soil moisture conditions. (

**A**–

**C**) Least absolute shrinkage and selection operator (LASSO) regression, ridge regression (RR), and random forest regression (RFR) models under the control condition; (

**D**–

**F**) LASSO regression, RR, and RFR models under the drought stress condition. The blue and yellow solid lines are the actual fit between predicted and measured values, and the gray dotted line is the 1:1 fit between the predicted and measured SPAD values. CK, control; DS, drought stress.

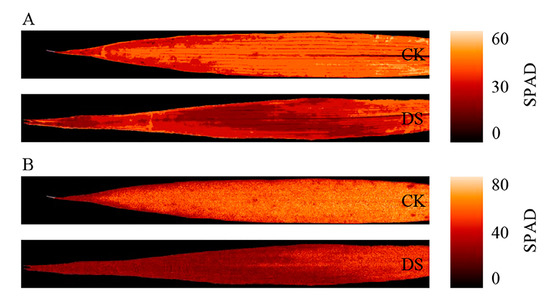

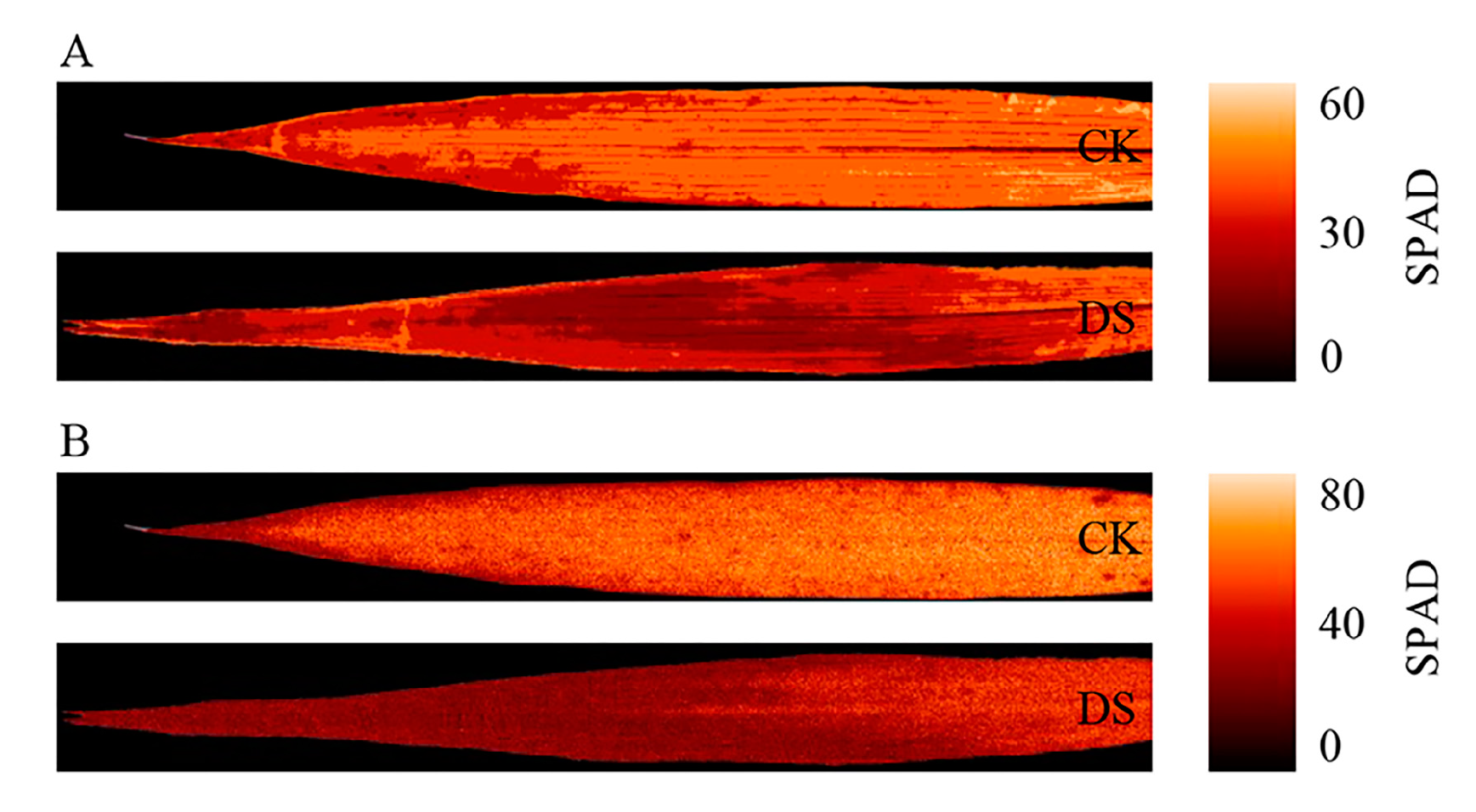

**Figure 8.**SPAD values map at the leaf level estimated by the characteristic reflectance and first derivative. (

**A**,

**B**) SPAD values map at the leaf level estimated by the 549 nm reflectance and 735 nm first derivative. CK, control; DS, drought stress. ENVI 5.3 (ITT, Visual Information Solutions, Boulder, CO, USA) was used to obtain the SPAD values map.

Data Set | Model | Training Set | (n = 536) | Testing Set | (n = 134) | ||
---|---|---|---|---|---|---|---|

R^{2} | RMSE | RE | R^{2} | RMSE | RE | ||

CA-R (549 nm) | SLR | 0.401 | 5.549 | 9.17% | 0.424 | 5.390 | 8.81% |

CA-FD (735 nm) | SLR | 0.426 | 5.434 | 9.01% | 0.529 | 4.876 | 8.27% |

SPA-R | LASSO | 0.405 | 5.532 | 9.12% | 0.417 | 5.430 | 8.86% |

RR | 0.405 | 5.532 | 9.12% | 0.417 | 5.426 | 8.85% | |

RFR | 0.478 | 5.183 | 8.60% | 0.478 | 5.134 | 8.40% | |

SPA-FD | LASSO | 0.407 | 5.523 | 9.25% | 0.518 | 4.934 | 8.49% |

RR | 0.407 | 5.523 | 9.26% | 0.517 | 4.939 | 8.51% | |

RFR | 0.510 | 5.023 | 8.57% | 0.510 | 4.974 | 8.47% | |

PCA-R | LASSO | 0.484 | 5.150 | 8.39% | 0.571 | 4.655 | 7.64% |

RR | 0.488 | 5.130 | 8.20% | 0.580 | 4.607 | 7.47% | |

RFR | 0.555 | 4.788 | 7.87% | 0.555 | 4.739 | 7.89% | |

PCA-FD | LASSO | 0.454 | 5.298 | 8.62% | 0.496 | 5.045 | 7.90% |

RR | 0.454 | 5.298 | 8.64% | 0.497 | 5.039 | 7.99% | |

RFR | 0.560 | 4.755 | 7.74% | 0.560 | 4.714 | 7.62% | |

Full-R | LASSO | 0.587 | 4.609 | 7.43% | 0.585 | 4.578 | 7.51% |

RR | 0.586 | 4.617 | 7.45% | 0.585 | 4.575 | 7.46% | |

RFR | 0.600 | 4.535 | 7.40% | 0.600 | 4.495 | 7.35% | |

Full-FD | LASSO | 0.528 | 4.929 | 8.12% | 0.528 | 4.880 | 7.96% |

RR | 0.548 | 4.824 | 7.81% | 0.547 | 4.784 | 7.71% | |

RFR | 0.579 | 4.653 | 7.63% | 0.577 | 4.623 | 7.64% |

^{2}, coefficient of determination; RMSE, root mean square error; RE, relative error (percentage); SLR, simple linear regression; LASSO, least absolute shrinkage and selection operator; RR, ridge regression; RFR, random forest regression. CA-R/FD, reflectance/first derivative with the highest correlation with SPAD values; SPA-R/FD, reflectance/first derivative of a characteristic band extracted through SPA; PCA-R/FD, principal components of reflectance/first derivative; Full-R/FD, full-band reflectance/first derivative; SPA, successive projections algorithm; PCA, principal component analysis.

Variable | SPAD | L* | a* | b* |
---|---|---|---|---|

SPAD | 1 | |||

L* | −0.591 ** | |||

a* | −0.164 ** | 0.438 ** | ||

b* | −0.600 ** | 0.912 ** | 0.378 ** | 1 |

Data Set | Training Set (n = 536) | Testing Set (n = 134) | ||||
---|---|---|---|---|---|---|

R^{2} | RMSE | RE | R^{2} | RMSE | RE | |

(CA-R) + L*a*b* | 0.486 | 5.14 | 8.52% | 0.486 | 5.095 | 8.23% |

(CA-FD) + L*a*b* | 0.519 | 4.973 | 8.19% | 0.519 | 4.925 | 8.18% |

(SPA-R) + L*a*b* | 0.502 | 5.061 | 8.38% | 0.501 | 5.021 | 8.27% |

(SPA-FD) + L*a*b* | 0.51 | 5.019 | 8.37% | 0.51 | 4.972 | 8.13% |

(PCA-R) + L*a*b* | 0.46 | 5.271 | 8.76% | 0.46 | 5.218 | 8.29% |

(PCA-FD) + L*a*b* | 0.584 | 4.626 | 7.47% | 0.584 | 4.579 | 7.48% |

(Full-R) + L*a*b* | 0.61 | 4.478 | 7.30% | 0.61 | 4.439 | 7.35% |

(Full-FD) + L*a*b* | 0.578 | 4.661 | 7.64% | 0.578 | 4.617 | 7.58% |

L*a*b* | 0.435 | 5.39 | 9.06% | 0.434 | 5.346 | 8.38% |
