Article

Splicing Modulation Results in Aberrant Isoforms and Protein Products of p53 Pathway Genes and the Sensitization of B Cells to Non-Genotoxic MDM2 Inhibition

1
Medical Faculty, Newcastle University Cancer Centre, Newcastle upon Tyne NE2 4AD, UK
2
Department of Haematology, Freeman Hospital, Newcastle upon Tyne NHS Foundation Trust, Newcastle upon Tyne NE7 7DN, UK
3
Department of Haematology, City Hospitals Sunderland NHS Trust, Sunderland SR4 7TP, UK
4
Northern Genetics Service, Institute of Genetic Medicine, Newcastle upon Tyne NE1 4EP, UK
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2023, 24(3), 2410; https://doi.org/10.3390/ijms24032410
Received: 16 December 2022 / Revised: 18 January 2023 / Accepted: 24 January 2023 / Published: 26 January 2023
(This article belongs to the Special Issue p53 Isoforms and Their Functions in Cancer Studies)

Abstract

:
Several molecular subtypes of cancer are highly dependent on splicing for cell survival. There is a general interest in the therapeutic targeting of splicing by small molecules. E7107, a first-in-class spliceosome inhibitor, showed strong growth inhibitory activities against a large variety of human cancer xenografts. Chronic lymphocytic leukaemia (CLL) is a clinically heterogeneous hematologic malignancy, with approximately 90% of cases being TP53 wild-type at diagnosis. An increasing number of studies are evaluating alternative targeted agents in CLL, including MDM2–p53 binding antagonists. In this study, we report the effect of splicing modulation on key proteins in the p53 signalling pathway, an important cell death pathway in B cells. Splicing modulation by E7107 treatment reduced full-length MDM2 production due to exon skipping, generating a consequent reciprocal p53 increase in TP53WT cells. It was especially noteworthy that a novel p21WAF1 isoform with compromised cyclin-dependent kinase inhibitory activity was produced due to intron retention. E7107 synergized with the MDM2 inhibitor RG7388, via dual MDM2 inhibition; by E7107 at the transcript level and by RG7388 at the protein level, producing greater p53 stabilisation and apoptosis. This study provides evidence for a synergistic MDM2 and spliceosome inhibitor combination as a novel approach to treat CLL and potentially other haematological malignancies.

1. Introduction

There are many cancer-relevant genes subject to aberrant alternative splicing, indicating that dysregulation of the splicing machinery is associated with different hallmarks of the cancer phenotype, including the promotion of angiogenesis [1], the induction of cell proliferation [2,3], promoting resistance to cancer-targeted therapy or immunotherapy [4,5], or avoiding apoptosis [6]. Cancer cells carrying heterozygous mutations in splicing factor genes are preferentially dependent on wild-type spliceosome function [7,8,9]; therefore, treating these cells with pre-mRNA spliceosome inhibitors provides a potential therapeutic strategy. Multiple protein/protein and protein/RNA interactions that contribute to the accuracy of splicing can be manipulated for therapeutic purposes [10]. Over the last two decades, multiple natural compounds derived from bacteria and their synthetic analogues have been identified to inhibit or deregulate splicing [11,12,13]. Although these early examples of splicing modulators showed promising anticancer activity in various in vitro and/or in vivo studies with IC50 values in the low nanomolar range, they were chemically unstable and thus unsuitable for clinical use.
E7107, one of the synthetic derivatives of the natural product pladienolide, displayed strong antitumour activities against a large variety of human cancer cell lines and tumour xenografts [14,15]. In preclinical studies, E7107 induced cell cycle arrest at both G1 and G2 phases, and subsequently apoptosis [16,17]. Significant tumour regression was produced by exposure to E7107 in a range of xenograft models tested, including lung, breast, and colon carcinomas [15,18]. In addition, E7107 sensitized primary CLL cells to the BCL2 inhibitor venetoclax by targeting BCL2 family members and remodelling mitochondrial apoptotic dependencies [19].
Inhibiting the p53–MDM2 interaction with synthetic small molecules has been investigated as a therapeutic strategy for the activation of wild-type p53 [20]. One of the compounds developed is RG7388 (idasanutlin), a second-generation MDM2–p53 binding antagonist with enhanced potency (IC50 = 6 nM), selectivity, and bioavailability. Both oral and intravenous formulations have been developed [21]. RG7388 has been shown to activate wild-type p53, evidenced by p53 stabilisation accompanied by the induction of p21 and MDM2 expression and the induction of p53-dependent apoptosis in different cell types [22,23,24,25], including primary CLL cells [26]. It is the first MDM2–p53 binding antagonist to have progressed through phase II and entered into phase III clinical trials (ClinicalTrials.gov Identifier: NCT02545283). According to recently published early clinical trial data, idasanutlin has become a promising targeted therapy agent for single and combined use [27,28,29].
Here, we hypothesized that the altered splicing of p53 pathway genes has a contributory effect on the cytotoxicity of E7107, as p53 is a master regulator of cellular death signalling pathways. The potential for synergistic combination treatment with the spliceosome inhibitor E7107 and the MDM2–p53 antagonist RG7388 was investigated in leukaemia–lymphoma cell lines and primary CLL samples.

2. Results

2.1. B-Cell Lines and Primary CLL Samples Are Sensitive to Spliceosome Inhibition Using E7107

Six out of eight cell lines were notably more sensitive (IC50 < 15 nM) to the spliceosome inhibitor than the other two (IC50 > 60 nM). The mean IC50 values were relatively higher for HEL and HAL-01 cell lines (60.2 ± 2.9 and 203.5 ± 14.3 nM, respectively) (Figure 1A, Supplementary Table S1). E7107 showed concentration-dependent cytotoxicity against a Nalm-6 isogenic SF3B1 wild-type and mutant cell line pair, independently of SF3B1 mutation status (unpaired t-test, p = 0.63). No correlation was evident between E7107 sensitivity and TP53 status (unpaired t-test, p = 0.52) or SF3B1 status (unpaired t-test, p = 0.64) for the primary CLL samples tested (Figure 1A). Findings from both the B-cell line panel and primary CLL samples indicate that the toxicity of E7107 is independent of SF3B1 and TP53 mutational status. Notably, PBMC samples from healthy volunteers were more resistant to E7107 (IC50 > 300 nM) than either the cell lines or primary CLL samples (Figure 1B).

2.2. Splicing Modulation Results in Aberrant Splicing Isoforms and Protein Products of P53 Pathway Genes

One of the goals of this study was to test the combined use of the MDM2–p53 antagonist RG7388, a TP53-dependent targeted therapy agent, with the spliceosome inhibitor E7107. Although the overall single-agent cytotoxic effect of E7107 appears to be independent of TP53 mutational status, we were interested to evaluate its mechanistic effect on key proteins in the p53 signalling pathway, an important cell death pathway in B cells, before testing its combined use with a TP53-dependent agent. The Western blots revealed a marked concentration-dependent decrease in MDM2, a critical negative regulator of p53 [30], in all cell lines tested. Consistent with this was a reciprocal concentration-dependent increase in p53 in TP53WT cells. In addition, a lower molecular weight p53 isoform (~45 kDa) was seen in OCI-Ly3 cells treated with E7107, likely due to alternative splicing, whereas a concomitant novel high molecular weight p21WAF1 isoform (~30 kDa) was evident in TP53WT cells (Figure 1C). p21WAF1 is an important downstream target of p53 and plays key central roles in the negative regulation of the cell division cycle [31,32].
The RT-PCR of MDM2 transcripts spanning exons 1 to 11 revealed an altered MDM2 transcript length of approximately 500 bp in OCI-Ly3 cells treated with 50 nM E7107 instead of the expected full-length sequence of 1303 bp (Figure 1D). The constitutive and altered products were confirmed by Sanger sequencing to be the result of skipping exons 3 to 10 (Figure 1E, Supplementary Figure S1). The RT-PCR of CDKN1A (p21WAF1) transcript with primers spanning the end of exon 3 and beginning of exon 4 revealed the presence of an additional longer transcript product of approximately 1200 bp in OCI-Ly3 cells treated with E7107, which was longer than the RT-PCR product size of 84 bp expected from the processed transcript with the chosen primers (Figure 1F). Sequencing of the longer product, purified from agarose gel, confirmed that the abnormal transcript resulted from retention of the intron between exons 3 and 4 of the CDKN1A (p21WAF1) gene (Figure 1G, Supplementary Figure S2), which was consistent with the abnormal higher molecular weight protein detected by Western blot (Figure 1C).

2.3. The PCNA Binding Site and NLS Are Disrupted in the Intron-Retaining Isoform of P21WAF1

Analysis of the translated amino acid sequences and motifs of wild-type p21WAF1 and the intron-retaining isoform (p21L) revealed that despite retaining the N-terminal CDK binding site, the proliferating cell nuclear antigen (PCNA) interaction site (Figure 1H) and nuclear localization signal (NLS) domain were partially lost in the intron-retained isoform of CDKN1A encoding the p21L protein product (Figure 2). These findings suggested that the alteration in the nuclear localization signal of p21L would prevent its access to the nucleus, resulting in the loss of both CDK and PCNA inhibitory activity in the cellular context.
The expression of the p21L product (Supplementary Figure S3) did not affect the growth rate of Nalm-6 cells (Figure 3A). The p21L intron-retained form was also examined to see if it still prevented RB phosphorylation by cyclin/CDK complexes. Western immunoblots were probed with three different phosphorylated-RB (pRB) antibodies detecting different phosphorylation sites on pRB. The MDM2 inhibitor RG7388 was used for endogenous wild-type p21 induction. The result showed that exogenous p21L expression had no impact on pRB phosphorylation and hence no CDK inhibitory activity in the transduced Nalm-6 cells, in contrast to the clear suppression of RB phosphorylation seen on induction of endogenous p21WAF1 by RG7388 (Figure 3B).
To provide a detailed characterization of the intracellular localization of the high molecular weight p21L protein, particularly to test the hypothesis that the p21L protein was unable to localise to the nucleus, the subcellular distribution of p21L was examined in Nalm-6–p21L transduced cells by immunofluorescence. In the Nalm-6–p21L transduced cells induced using 0.5 µg/mL doxycycline for 24 h to express high molecular weight p21L protein, the p21 signal was detected only in the cytoplasm of the cells. Treatment with the MDM2 inhibitor RG7388 (1 µM; 24 h), however, induced endogenous p21WAF1 expression and the p21WAF1 signal was detected in both cytoplasmic and nuclear compartments (Figure 3C).

2.4. E7107 Sensitizes B-Cell Lines to Non-Genotoxic MDM2 Inhibition with RG7388

RG7388 treatment induced selective cytotoxicity in a panel of TP53WT and TP53MUT B-cell lines, consistent with its mechanism of action (Figure 4A). The combination treatment was encouraged by the observed disruption of the p53 pathway proteins by spliceosome inhibition. The growth inhibition and cytotoxic effect against B-cell lines during a 72 h exposure to RG7388 and E7107 were determined as single agents, and in combination at five equipotent concentrations between 0.25× and 4× of their respective IC50 concentrations (Supplementary Table S3). The combination effect of RG7388 with E7107 varied from synergism with OCI-Ly3 to moderate to slight synergism for Nalm-6 cells depending on drug concentration (Figure 4B,C). Combination treatments in both cell lines led to greater levels of p53 stabilization, as well as p21WAF1 upregulation compared to RG7388 alone (Figure 4D,E).
There was no obvious correlation between sensitivity to E7107 and SF3B1 status in the cell lines tested, including Nalm-6 isogenic cell lines expressing either endogenous SF3B1K700E or SF3B1K700K (Figure 1A). Western blot was also performed on the isogenic Nalm-6 cells exposed to increasing concentrations of E7107 for 24 h. At doses above IC50, the MDM2 protein dramatically disappeared, resulting in dose-dependent p53 protein stabilization. The accumulated p53 protein upregulated its downstream target p21, which at higher doses switched to its intron-retaining isoform (Figure 4F). The effect of RG7388 in combination with E7107 was investigated for Nalm-6 isogenic cell lines using Median-effect analysis. Combined treatment resulted in less synergy or additive effect for Nalm-6 SF3B1K700E, depending on drug concentration, compared to the stronger synergistic effect observed for Nalm-6 SF3B1K700K cells (Figure 4G,H).

2.5. Combination Treatment with E7107 and RG7388 Increases Cell Cycle Arrest and Apoptosis

Given that the combination of RG7388 with E7107 led to greater inhibition of proliferation compared to either agent alone for TP53WT Nalm-6 and OCI-Ly3 cell lines, FACS analysis after 24 h treatment was carried out to investigate how these effects were reflected in early changes in cell cycle distribution. For OCI-Ly3, treatment with E7107 alone resulted in a significant reduction in S phase (p = 0.014) and an increase in G2/M phase (p = 0.0045). Treatment with RG7388 alone, however, resulted in a significant reduction in the S phase (p = 0.011), with increases in the cell population in G0/G1 phase (p = 0.011). E7107 treatment further decreased the proportion of cells in S phase when it was combined with RG7388 (Cells in S phase as % of total events treated with 1xIC50 RG7388 alone vs. combination with E7107 p = 0.043) (Figure 5A,C).
For Nalm-6 cells, unlike OCI-Ly3, treatment with E7107 alone resulted in a significant increase in G0/G1 phase (p = 0.019) and a decrease in the G2/M phase (p = 0.014). Treatment with RG7388 alone resulted in a significant increase in G0/G1 phase (p < 0.0001). E7107 treatment further decreased the proportion of cells in S phase when it was combined with RG7388 (Cells in S phase as % of total events treated with 1xIC50 RG7388 alone vs. combination with E7107 p = 0.002) (Figure 5B,D).
The induction of apoptosis was evaluated by caspase 3/7 enzymatic activity, which is a sensitive and specific indicator of apoptosis [22,23]. Wild-type TP53 Nalm-6 and OCI-Ly3 cells were treated for 24 and 48 h with 1 nM E7107 or 0.2 µM RG7388 as single agents and in combination. E7107 treatment alone had no significant effect on caspase 3/7 activity in either cell line, indicating cytotoxicity by a caspase 3/7-independent mechanism (Figure 5E). Combination treatment, however, induced highly significant increases in caspase 3/7 activation at 24 and 48 h time points compared to either DMSO vehicle control treatment or with either agent alone (Figure 5E).

2.6. Combined Spliceosome Disruption and MDM2 Inhibition Has a Synergistic Cytotoxic Effect on Primary CLL Cells

The effect of E7107 in combination with RG7388 was investigated for p53 functional primary CLL samples using a dose-response matrix assay. Combination matrix analysis was performed for n = 4 CLL patient samples (Supplementary Figure S4) after incubation with a range of E7107 and/or RG7388 concentrations, focusing on clinically relevant well-tolerated dose ranges. According to recently published early clinical trial data, the plasma concentration peaked at 6000 ng/mL in patients following oral administration, corresponding to approximately 100 µM for idasanutlin [27]. The viability of these CLL samples after 48 h exposure to RG7388 and E7107 was determined as single agents (Figure 6A) and in a matrix combination of doses (Figure 6B). To quantify the degree of synergy, the zero potency interaction (ZIP) reference model [33] was used, visualized as a 3D synergy/antagonism landscape (Figure 6C). Similar to the in vitro human B-cell line results, there was considerable synergy (average ZIP synergy score: 9) across a range of concentrations, even at doses that had very low effects on viability when used alone (Figure 6D). The combined treatment with RG7388 and a low concentration of E7107 (1 nM) resulted in higher p53 stabilisation and apoptosis, as indicated by PARP cleavage (Figure 6E).

3. Discussion

Targeted agents have been replacing chemoimmunotherapy in CLL. However, a substantial number of patients still discontinue therapy because of reasons including acquired resistance, the suboptimal durability of response in patients with high-risk disease, and indefinite treatment duration [34]. Therefore, an increasing number of studies are evaluating alternative targeted agents in CLL, including MDM2–p53 binding antagonists. These targeted agents are likely to be most effective in combination with other agents because of the variable response to MDM2 inhibitors and the potential regrowth of any resistant TP53MUT subclones. In this study, experiments were conducted to assess the effect of combination treatments with RG7388 and the spliceosome inhibitor E7107 in B cells of known TP53 status. This was encouraged by the observed disruption of the p53 pathway proteins by E7107 treatment, which, nevertheless, had antiproliferative and cytotoxic effects independent of TP53 status. Overall, the potential clinical benefit of combining MDM2 inhibitors with splicing modulators was demonstrated in a panel of B-cell lines as well as in CLL primary samples. Here we suggest a novel approach to treat CLL, as well as other haematological malignancies, and have elucidated mechanisms that contribute to the cellular response.
Splicing alterations are a characteristic feature of CLL cells, irrespective of SF3B1 mutation status, and affect numerous pathways, including, importantly, the p53 pathway [19]. Because the p53 pathway controls a major growth regulatory and death signalling network, altered splicing of p53 pathway genes may have a contributory effect on the cytotoxicity of spliceosome inhibitors. The effect of E7107 was evaluated for key proteins in the p53 pathway. Cell growth was suppressed in a panel of B-cell lines independent of SF3B1 and TP53 mutational status, with a production of aberrantly spliced transcripts and protein products of p53 pathway genes. MDM2 protein levels decreased in all cell lines, accompanied by a reciprocal concentration-dependent increase in p53 in TP53WT cells. In addition, a lower molecular weight p53 isoform (~45 kDa) was evident in OCI-Ly3 cells treated with E7107, likely due to alternative splicing. Different p53 isoforms were reported in the literature with molecular weights from 26 to 48 kDa, and some of them were shown to exhibit several biological functions, modulating p53 transcriptional activity and tumour-suppressor functions [35,36]. A high molecular weight p21WAF1 isoform (~30 kDa) formed due to intron retention was also evident in TP53WT cells. Intron retention has been shown as a hallmark of cancer stemness and aggressiveness in multiple studies, and splicing modulation reverses this aggressive behaviour and overcomes treatment resistance in cancers [37,38,39,40]. The detection of these new splice variants in B cells, particularly those of CDKN1A and MDM2, may provide insights into the studies with splicing inhibitors in terms of drug resistance/synergies and new drug combination strategies. Sequence analysis revealed that despite retaining the N-terminal CDK binding site, the proliferating cell nuclear antigen (PCNA) interaction site and nuclear localization signal domain were partially lost in the intron-retained isoform of CDKN1A encoding the p21L protein product. The alteration in the nuclear localization signal of p21L prevents its access to the nucleus, resulting in the loss of both CDK and PCNA inhibitory activity in the cellular context. Ectopic expression of the altered p21 in Nalm-6 cells using lentiviral transduction showed that the p21L protein, with an alternative C-terminus, loses its ability to act as a cyclin-dependent kinase inhibitor due to loss of the ability to localise to the nucleus (Figure 7). The protective effect of normal p21-mediated growth inhibition is lost with the switch to the aberrant p21L isoform that is unable to localize to the nucleus, thus in the context of E7107 treated cells, sensitising them to the concomitant p53-dependent accumulation resulting from the MDM2 downregulation due to exon skipping. Another piece of evidence to support this mechanism is that although isogenic Nalm-6-SF3B1K700K cells exposed to E7107 have the same IC50 as SF3B1K700E cells (unpaired t-test, p = 0.63), they form greater levels of p21 aberrant splicing isoform (p21L) at the same concentration of E7107 treatment (Figure 4F). Nalm-6 isogenic cells expressing SF3B1K700K, which are likely to be more sensitive to p53-dependent proapoptotic signals due to the aberrant p21L isoform, benefit more from combined treatment with the MDM2–p53 antagonist RG7388, as shown by the increased synergy (Figure 4H).
Growing evidence has shown that defects of RNA processing factors, including spliceosome components, trigger R-loop accumulation and R-loop-associated genomic instability [41,42]. R-loops are an important source of replication stress and genome instability, which are hallmarks of cancer [43]. Although R-loop accumulation alone is not sufficient to promote widespread genomic instability, mis-splicing-associated R-loops potentiate specific oncogenic events [44]. Splicing modulators create a dependence on ATR to suppress DNA damage. ATR inhibitors induced DNA damage and cell death in cells with heterozygous splice gene mutations were enhanced by splicing modulating compounds Pladienolide B and E7107 [45]. These results might be an alternative reason for the synergy between spliceosome and MDM2 inhibitors that we observed in our experiments. In future studies, it would be important to address the contribution of R-loop accumulation to the synergistic effect of these agents.
Combining splicing modulation with RG7388-sensitized primary CLL cells to RG7388 treatment provided a novel strategy to minimize the chance of acquired resistance to MDM2 inhibitors in CLL. The combination treatment and consequent dose reduction might also reduce the reported side effects of E7107 for a limited number of patients during clinical trials [46] by allowing it to be used at lower doses. The combination treatment also provides an advantage in CLL cases where there may be clonal subpopulations of TP53 mutant CLL cells because the spliceosome inhibitor has a cytotoxic effect independent of TP53 status. Furthermore, based on the results for E7107, the use of a combined treatment may be an option for other novel small-molecule splicing modulators, such as H3B-8800 [47], which has recently gone into early phase trials (ClinicalTrials.gov Identifier: NCT02841540). Taken together, we identified a novel approach that can be explored further to treat CLL and have uncovered potential mechanisms that contribute to the cellular response. This study provides preclinical data to guide future studies and to improve the outcome for CLL patients and potentially other haematological malignancies.

4. Materials and Methods

4.1. Cell Lines and Compounds

All of the cell lines (Supplementary Table S1) were obtained from authenticated cell line resources and routinely cultured using RPMI-1640 medium (Sigma-Aldrich, St. Louis, MO, USA) with 10% foetal calf serum. E7107 (H3 Biomedicine, Cambridge, MA, USA) and idasanutlin were dissolved in DMSO (Sigma-Aldrich) and used at a final concentration of 0.5% DMSO (v/v). Idasanutlin was custom synthesised with >99% purity as part of the Newcastle University/Astex Pharmaceuticals Alliance and CRUK Drug Discovery Programme at the Newcastle University Cancer Centre.

4.2. Patient Samples

Peripheral blood samples were obtained from CLL patients with informed consent, in accordance with institutional guidelines and the Declaration of Helsinki. CLL patient samples were obtained and stored under the auspices of the Newcastle Biobank (Research Ethics Committee (REC) reference 17/NE/0361). CLL diagnosis was made according to IWCLL-164 NCI 2008 criteria [48]. Supplementary Table S2 provides the patient criteria included in the study and the details of the TP53 and SF3B1 mutations, including coding region position and amino acid changes as well as del17p status.

4.3. Cell Viability Assay

4.3.1. Cell Lines

Cells were seeded at 1.6 × 105 cells/mL in 100μL of medium per well of a 96-well plate (Corning) for 24 h before treating with a range of concentrations (from 1 to 104 nM) of E7107 and/or idasanutlin for 72 h. Concentrations are indicated in the figure legends. XTT Assay Kit II (Sigma-Aldrich, Gillingham, UK) was used to measure growth inhibition compared to solvent DMSO control.

4.3.2. PBMCs

5 × 106 cells/mL in 100μL of medium per well of a 96-well were exposed to a range of concentrations (from 1 to 104 nM) of E7107 and/or idasanutlin for 48 h. Concentrations are indicated in the figure legends. Ex vivo cytotoxicity was assessed by XTT Assay Kit II (Sigma-Aldrich, UK). Results were normalised to DMSO controls and expressed as % viability.

4.3.3. Combination Treatment and Median-Effect Analysis

For the combination treatment of idasanutlin and E7107, the wild-type TP53 cell lines were treated for 72 h with each agent alone and in combination simultaneously at constant 1:1 ratios at 0.25×, 0.5×, 1×, 2×, and 4× of their respective IC50 concentrations. Median-effect analysis was used to calculate combination index (CI) values [49] using CalcuSyn software v2 (Biosoft, Cambridge, UK). DMSO solvent concentration used to dissolve drugs was kept constant at 0.5% (v/v) in final volume for single and combined treatments.

4.4. Apoptosis Assay

1.6 × 105 cells/well were seeded in white-walled 96-well plates (Corning, Cat. #3917) and exposed to 1 nM E7107 and/or 0.2 µM idasanutlin for 24 and 48 h. Caspase 3/7 activity was assessed using Caspase-Glo 3/7 Assay (Promega, Southampton, UK). Apoptosis was also determined by examining PARP protein cleavage by Western blot.

4.5. Flow Cytometry

0.5 × 106 cells/mL were seeded in 1 mL per well of a 24-well plate (Corning) and exposed to idasanutlin or E7107 alone and in combination at constant 1:1 ratios at 1× of their respective IC50 concentrations for 24 h. Supplementary Table S3 shows the corresponding concentrations of inhibitors used for the combination treatment of the cell lines OCI-Ly3 and Nalm-6. Cells were harvested by washing once with PBS and then fixed with 1 mL 70% ethanol in PBS and stored at 4 °C. Before the FACS analysis, cells were centrifuged at 500 × g for 5 min and washed with 1 mL PBS, followed by further centrifugation at 500 × g for 5 min, and were then incubated in a 250 µL mixture of DNase-free RNase A (40 µg/mL), propidium iodide (24 µg/mL), and PBS at room temperature for 30 min. Samples were analysed on a FACSCaliburTM flow cytometer using CellQuest Pro software (Becton Dickinson, Oxford, UK). Cyflogic Software Version 1.2.1 (CyFlo Ltd.) was used to manually gate the single cells on the FL2-A vs. FL2-W scatter plot.

4.6. Sanger Sequencing

DNA was extracted using a QIAamp DNA Mini Kit (QIAGEN, 51306) according to the manufacturer’s protocol. PCR reactions were run using Platinum Taq Green Hot Start DNA Polymerase (Invitrogen) in a GeneAmp PCR System 9700 thermal cycler (Applied Biosystems, Waltham, MA, USA) using the following primers:
  • SF3B1 Ex14 F: ACCAACTCATGACTGTCCTTTC, R: ACAACTTACCATGTTCAATG
  • SF3B1 Ex15-16 F: AACTTAGGTAATGTTGGGGCA, R: TCAACTGACCTGAAATGAAGAGA
  • SF3B1 Ex18 F: CCTTGGAAAAGCAGTCTAAAAGG, R: GTCAACCTTTTCTAACCACCCA
A PureLink™ PCR Purification Kit (Invitrogen by Thermo Fisher Scientific, Waltham, MA, USA) was used. The purified PCR products were sent to DBS Genomics (Durham University, UK) for Sanger dideoxy sequencing. Sequencing results were analysed by visual inspection of the chromatograms and alignment with a normal reference sequence using Mutation Surveyor DNA Variant Analysis Software (SoftGenetics).

4.7. RT-PCR and Sanger Sequencing of CDKN1A and MDM2

Total RNA was extracted using an RNeasy Mini Kit (Qiagen, Hilden, Germany) and cDNA was generated using a High-Capacity cDNA Reverse Transcription Kit (4368814, Thermo Fisher Scientific) as described by the manufacturer. A DNase treatment step with on-column digestion was carried out using an RNase-free DNase kit (Qiagen). PCR reactions were run using Platinum Taq Green Hot Start DNA Polymerase (Invitrogen) in a GeneAmp PCR System 9700 thermal cycler (Applied Biosystems) using the following primers:
  • CDKN1A transcript (spanning exons 3 to 4) F: CTGGAGACTCTCAGGGTCGA, R: CTCTTGGAGAAGATCAGCCG
  • MDM2 transcript (spanning exons 1 to 11) F: CTGGGGAGTCTTGAGGGACC, R: CTTTCACATCTTCTTGGCTGC
The constitutive and altered products, purified from agarose gel, were sequenced by Sanger sequencing.

4.8. Immunoblotting

1 × 106 cells/mL (5 × 106 cells/mL for CLL primary cells or healthy PBMCs) were seeded in 2 mL per well of a 6-well plate (Corning) and exposed to a range of concentrations of E7107 and/or idasanutlin. Concentrations are indicated in the figure legends. Protein lysates were harvested using 2% SDS lysis buffer at 24 h, heated at 95 °C for 10 min, and sonicated. Protein concentration was measured using a Pierce™ BCA Protein Assay Kit (Thermo Fisher Scientific, UK). Primary antibodies against p53 (DO-7) (#M7001, Dako), MDM2 (Ab-1) (#OP46, Merck Millipore), p21WAF1 (Calbiochem), PARP (Trevigen), SF3B1 (Sigma), Actin (Sigma), Phospho-Rb (Ser780) (Cell Signalling), Phospho-Rb (Ser807/811) (Cell Signalling), Phospho-Rb (T821) (Abcam) and secondary goat anti-mouse/rabbit horseradish peroxidase-conjugated antibodies (Dako) were used. All antibodies were diluted in 5% (w/v) nonfat milk or BSA in TBS-tween20. Proteins were visualized using enhanced chemiluminescence reagents (GE Healthcare).

4.9. Lentiviral Transduction and Gene-Edited Cell Lines

A tetracycline-inducible (Tet-ON) lentiviral expression system, Q3210 plasmid (SnapFast™, Oxford Genetics Limited UK) was used for the stable expression of the gene of interest. The aberrantly spliced transcript form of P21, P21-Long (P21L) was inserted into the Q3210 plasmid and then the lentiviral particles were produced by lentiviral packaging in HEK293T host cells. The transduced cell line was induced using 0.5 µg/mL doxycycline (Clontech Labs). Pre-B Nalm-6 isogenic cell lines expressing either endogenous SF3B1K700K or mutant SF3B1K700E were provided by H3 Biomedicine.

4.10. Immunofluorescence Microscopy

Suspension cells were fixed on the slides using 100% methanol for immunofluorescence staining with DAPI (VECTASHIELD®, Vector Labs) and anti-p21 (Mouse anti-p21WAF1 (EA10), OP64, Calbiochem; 1:100 in blocking buffer). Alexa Fluor 488®-conjugated anti-mouse IgG (A11001, Thermo Fisher Scientific; 1:500 in blocking buffer) was used as a secondary antibody. A Leica DM6 fully automated widefield fluorescence microscope system with the LAS X software was used to capture images.

4.11. Statistical Analysis

Data are presented as mean ± standard error of the mean (SEM) unless otherwise stated. Statistical tests were carried out using GraphPad Prism 6 software and all p-values represent paired t-tests of at least three independent repeats unless otherwise stated.

4.12. SWISS-MODEL

PCNA/p21 structural information for wild-type and altered p21 was identified using SWISS-MODEL workspace, which is an integrated web-based homology-modelling environment (https://swissmodel.expasy.org/, accessed on 1 September 2021). It searches a library of experimental protein structures to determine suitable templates for a given target protein. Based on a sequence alignment between the target protein and the template structure, a 3D model for the target protein is generated [50].

5. Conclusions

Overall, our data provide in vitro evidence of the use of RG7388 in combination with E7107, a spliceosome inhibitor that has both p53-independent and p53-dependent effects. The TP53-independent effects of E7107 minimize the risk of selecting TP53MUT subclones resistant to MDM2 inhibitors, whereas the p53-dependent effects interact synergistically with MDM2 inhibitors in TP53WT cells. This combined treatment strategy provides a novel additional treatment option for patients with p53-functional CLL and potentially other haematological malignancies.
Mechanistically, the notable finding was that splicing modulation with E7107 differentially affected p53 pathway gene splicing, producing exon skipping for MDM2 and consequent activation of p53, while the effect on CDKN1A (p21WAF1) was intron retention. It was especially noteworthy that the novel p21 isoform lost cell cycle inhibitory activity due to the disruption of motifs for nuclear localisation and CDK binding. The consequent stabilisation of p53 and compromised cyclin-dependent kinase inhibitory activity drives apoptosis and the observed synergy with response to MDM2 inhibitors. A particularly novel aspect of this synergy is the dual inhibition of MDM2; by E7107 at the transcript level and by RG7388 at the protein level, producing greater p53 stabilisation and apoptosis.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms24032410/s1.

Author Contributions

Conceptualization, E.A., E.W. and J.L.; data curation, E.A.; formal analysis, E.A.; funding acquisition, E.W. and J.L.; investigation, E.A.; methodology, E.A. and C.C.; resources, J.P.W., H.M., S.M. and N.B.; supervision, E.W. and J.L.; writing—original draft, E.A.; writing—review and editing, J.L. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by Bloodwise (grant # 13034), the JGW Patterson Foundation (grant # BH152495) and the Newcastle Healthcare Charity (grant # BH152694). The Turkish Ministry of National Education funded the first author’s Ph.D. study.

Institutional Review Board Statement

The study was conducted in accordance with the Declaration of Helsinki, and approved by the Institutional Review Board (or Ethics Committee) of the Newcastle Academic Health Partners Biobank (http://www.ncl.ac.uk/biobanks/collections/nbrtb/, accessed on 1 September 2021). Samples were obtained through the Newcastle Biobank (REC reference 17/NE/0361).

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study. Written informed consent has been obtained from the CLL patients to publish this paper.

Data Availability Statement

Not applicable.

Acknowledgments

The authors gratefully acknowledge Newcastle University and Cancer Research UK for infrastructure funding at the Newcastle University Cancer Centre. We would also like to thank CLL patients for their generous consent and supply of blood samples for research, collected following approved ethical guidelines. The authors would like to acknowledge Newcastle University/Astex Pharmaceuticals Alliance for their support and encouragement. H3 Biomedicine provided the Nalm-6 isogenic cell lines and E7107 compound; and Lynsey McKenzie provided pRb antibodies.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Vorlova, S.; Rocco, G.; Lefave, C.V.; Jodelka, F.M.; Hess, K.; Hastings, M.L.; Henke, E.; Cartegni, L. Induction of antagonistic soluble decoy receptor tyrosine kinases by intronic polyA activation. Mol. Cell 2011, 43, 927–939. [Google Scholar] [CrossRef][Green Version]
  2. Lee, A.R.; Li, Y.; Xie, N.; Gleave, M.E.; Cox, M.E.; Collins, C.C.; Dong, X. Alternative RNA splicing of the MEAF6 gene facilitates neuroendocrine prostate cancer progression. Oncotarget 2017, 8, 27966–27975. [Google Scholar] [CrossRef] [PubMed][Green Version]
  3. Munkley, J.; Rajan, P.; Laferty, N.P.; Dalgliesh, C.; Jackson, R.M.; Robson, C.N.; Leung, H.Y.; Elliott, D.J. A novel androgen-regulated isoform of the TSC2 tumour suppressor gene increases cell proliferation. Oncotarget 2014, 5, 131–139. [Google Scholar] [CrossRef] [PubMed][Green Version]
  4. Lee, T.S.; Ma, W.L.; Zhang, X.; Giles, F.; Cortes, J.; Kantarjian, H.; Albitar, M. BCR-ABL alternative splicing as a common mechanism for imatinib resistance: Evidence from molecular dynamics simulations. Mol. Cancer Ther. 2008, 7, 3834–3841. [Google Scholar] [CrossRef] [PubMed][Green Version]
  5. Avery-Kiejda, K.A.; Zhang, X.D.; Adams, L.J.; Scott, R.J.; Vojtesek, B.; Lane, D.P.; Hersey, P. Small molecular weight variants of p53 are expressed in human melanoma cells and are induced by the DNA-damaging agent cisplatin. Clin. Cancer Res. 2008, 14, 1659–1668. [Google Scholar] [CrossRef][Green Version]
  6. Karni, R.; de Stanchina, E.; Lowe, S.W.; Sinha, R.; Mu, D.; Krainer, A.R. The gene encoding the splicing factor SF2/ASF is a proto-oncogene. Nat. Struct. Mol. Biol. 2007, 14, 185–193. [Google Scholar] [CrossRef][Green Version]
  7. Obeng, E.A.; Chappell, R.J.; Seiler, M.; Chen, M.C.; Campagna, D.R.; Schmidt, P.J.; Schneider, R.K.; Lord, A.M.; Wang, L.; Gambe, R.G.; et al. Physiologic Expression of Sf3b1(K700E) Causes Impaired Erythropoiesis, Aberrant Splicing, and Sensitivity to Therapeutic Spliceosome Modulation. Cancer Cell 2016, 30, 404–417. [Google Scholar] [CrossRef][Green Version]
  8. Fei, D.L.; Motowski, H.; Chatrikhi, R.; Prasad, S.; Yu, J.; Gao, S.J.; Kielkopf, C.L.; Bradley, R.K.; Varmus, H. Wild-Type U2AF1 Antagonizes the Splicing Program Characteristic of U2AF1-Mutant Tumors and Is Required for Cell Survival. PLoS Genet. 2016, 12, e1006384. [Google Scholar] [CrossRef]
  9. Shirai, C.L.; White, B.S.; Tripathi, M.; Tapia, R.; Ley, J.N.; Ndonwi, M.; Kim, S.; Shao, J.; Carver, A.; Saez, B.; et al. Mutant U2AF1-expressing cells are sensitive to pharmacological modulation of the spliceosome. Nat. Commun. 2017, 8, 14060. [Google Scholar] [CrossRef][Green Version]
  10. Lee, S.C.W.; Abdel-Wahab, O. Therapeutic targeting of splicing in cancer. Nat. Med. 2016, 22, 976–986. [Google Scholar] [CrossRef]
  11. Nakajima, H.; Hori, Y.; Terano, H.; Okuhara, M.; Manda, T.; Matsumoto, S.; Shimomura, K. New antitumor substances, FR901463, FR901464 and FR901465. II. Activities against experimental tumors in mice and mechanism of action. J. Antibiot. 1996, 49, 1204–1211. [Google Scholar] [CrossRef]
  12. Kaida, D.; Motoyoshi, H.; Tashiro, E.; Nojima, T.; Hagiwara, M.; Ishigami, K.; Watanabe, H.; Kitahara, T.; Yoshida, T.; Nakajima, H.; et al. Spliceostatin A targets SF3b and inhibits both splicing and nuclear retention of pre-mRNA. Nat. Chem. Biol. 2007, 3, 576–583. [Google Scholar] [CrossRef] [PubMed]
  13. Fan, L.; Lagisetti, C.; Edwards, C.C.; Webb, T.R.; Potter, P.M. Sudemycins, novel small molecule analogues of FR901464, induce alternative gene splicing. ACS Chem. Biol. 2011, 6, 582–589. [Google Scholar] [CrossRef] [PubMed][Green Version]
  14. Kotake, Y.; Sagane, K.; Owa, T.; Mimori-Kiyosue, Y.; Shimizu, H.; Uesugi, M.; Ishihama, Y.; Iwata, M.; Mizui, Y. Splicing factor SF3b as a target of the antitumor natural product pladienolide. Nat. Chem. Biol. 2007, 3, 570–575. [Google Scholar] [CrossRef]
  15. Iwata, M.; Ozawa, Y.; Uenaka, T.; Shimizu, H.; Niijima, J.; Kanada, R.; Fukuda, Y.; Nagai, M.; Kotake, Y.; Yoshida, M. E7107, a new 7-urethane derivative of pladienolide D, displays curative effect against several human tumor xenografts. Cancer Res. 2004, 64, 691. [Google Scholar]
  16. Mizui, Y.; Sakai, T.; Iwata, M.; Uenaka, T.; Okamoto, K.; Shimizu, H.; Yamori, T.; Yoshimatsu, K.; Asada, M. Pladienolides, new substances from culture of Streptomyces platensis Mer-11107. III. In vitro and in vivo antitumor activities. J. Antibiot. 2004, 57, 188–196. [Google Scholar] [CrossRef] [PubMed][Green Version]
  17. Folco, E.G.; Coil, K.E.; Reed, R. The anti-tumor drug E7107 reveals an essential role for SF3b in remodeling U2 snRNP to expose the branch point-binding region. Genes Dev. 2011, 25, 440–444. [Google Scholar] [CrossRef][Green Version]
  18. Chan, S.; Sridhar, P.; Kirchner, R.; Lock, Y.J.; Herbert, Z.; Buonamici, S.; Smith, P.; Lieberman, J.; Petrocca, F. Basal-A Triple-Negative Breast Cancer Cells Selectively Rely on RNA Splicing for Survival. Mol. Cancer Ther. 2017, 16, 2849–2861. [Google Scholar] [CrossRef][Green Version]
  19. Ten Hacken, E.; Valentin, R.; Regis, F.F.D.; Sun, J.; Yin, S.; Werner, L.; Deng, J.; Gruber, M.; Wong, J.; Zheng, M.; et al. Splicing modulation sensitizes chronic lymphocytic leukemia cells to venetoclax by remodeling mitochondrial apoptotic dependencies. JCI Insight 2018, 3, 19. [Google Scholar] [CrossRef][Green Version]
  20. Brown, C.J.; Lain, S.; Verma, C.S.; Fersht, A.R.; Lane, D.P. Awakening guardian angels: Drugging the p53 pathway. Nat. Rev. Cancer 2009, 9, 862–873. [Google Scholar] [CrossRef]
  21. Ding, Q.; Zhang, Z.; Liu, J.J.; Jiang, N.; Zhang, J.; Ross, T.M.; Chu, X.J.; Bartkovitz, D.; Podlaski, F.; Janson, C.; et al. Discovery of RG7388, a potent and selective p53-MDM2 inhibitor in clinical development. J. Med. Chem. 2013, 56, 5979–5983. [Google Scholar] [CrossRef] [PubMed]
  22. Chen, L.D.; Rousseau, R.F.; Middleton, S.A.; Nichols, G.L.; Newell, D.R.; Lunec, J.; Tweddle, D.A. Pre-clinical evaluation of the MDM2-p53 antagonist RG7388 alone and in combination with chemotherapy in neuroblastoma. Oncotarget 2015, 6, 10207–10221. [Google Scholar] [CrossRef][Green Version]
  23. Zanjirband, M.; Edmondson, R.J.; Lunec, J. Pre-clinical efficacy and synergistic potential of the MDM2-p53 antagonists, Nutlin-3 and RG7388, as single agents and in combined treatment with cisplatin in ovarian cancer. Oncotarget 2016, 7, 40115–40134. [Google Scholar] [CrossRef] [PubMed][Green Version]
  24. Wu, C.E.; Esfandiari, A.; Ho, Y.H.; Wang, N.; Mahdi, A.K.; Aptullahoglu, E.; Lovat, P.; Lunec, J. Targeting negative regulation of p53 by MDM2 and WIP1 as a therapeutic strategy in cutaneous melanoma. Br. J. Cancer 2018, 118, 495–508. [Google Scholar] [CrossRef] [PubMed][Green Version]
  25. Chamberlain, V.; Drew, Y.; Lunec, J. Tipping Growth Inhibition into Apoptosis by Combining Treatment with MDM2 and WIP1 Inhibitors in p53(WT) Uterine Leiomyosarcoma. Cancers 2021, 14, 14. [Google Scholar] [CrossRef] [PubMed]
  26. Ciardullo, C.; Aptullahoglu, E.; Woodhouse, L.; Lin, W.Y.; Wallis, J.P.; Marr, H.; Marshall, S.; Bown, N.; Willmore, E.; Lunec, J. Non-genotoxic MDM2 inhibition selectively induces pro-apoptotic p53 gene signature in chronic lymphocytic leukemia cells. Haematologica 2019, 104, 2429. [Google Scholar] [CrossRef][Green Version]
  27. Italiano, A.; Miller, W.H., Jr.; Blay, J.Y.; Gietema, J.A.; Bang, Y.J.; Mileshkin, L.R.; Hirte, H.W.; Higgins, B.; Blotner, S.; Nichols, G.L.; et al. Phase I study of daily and weekly regimens of the orally administered MDM2 antagonist idasanutlin in patients with advanced tumors. Invest. New Drugs 2021, 39, 1587–1597. [Google Scholar] [CrossRef]
  28. Daver, N.G.; Dail, M.; Garcia, J.S.; Jonas, B.A.; Yee, K.W.L.; Kelly, K.R.; Vey, N.; Assouline, S.; Roboz, G.J.; Paolini, S.; et al. Venetoclax and idasanutlin in relapsed/refractory AML: A non-randomized, open-label phase 1b trial. Blood 2022, 1, 6362. [Google Scholar] [CrossRef]
  29. Yee, K.; Papayannidis, C.; Vey, N.; Dickinson, M.J.; Kelly, K.R.; Assouline, S.; Kasner, M.; Seiter, K.; Drummond, M.W.; Yoon, S.S.; et al. Murine double minute 2 inhibition alone or with cytarabine in acute myeloid leukemia: Results from an idasanutlin phase 1/1b study small star, filled. Leuk. Res. 2021, 100, 106489. [Google Scholar] [CrossRef]
  30. Oliner, J.D.; Kinzler, K.W.; Meltzer, P.S.; George, D.L.; Vogelstein, B. Amplification of a gene encoding a p53-associated protein in human sarcomas. Nature 1992, 358, 80–83. [Google Scholar] [CrossRef][Green Version]
  31. el-Deiry, W.S.; Harper, J.W.; O’Connor, P.M.; Velculescu, V.E.; Canman, C.E.; Jackman, J.; Pietenpol, J.A.; Burrell, M.; Hill, D.E.; Wang, Y.; et al. WAF1/CIP1 is induced in p53-mediated G1 arrest and apoptosis. Cancer Res. 1994, 54, 1169–1174. [Google Scholar]
  32. el-Deiry, W.S.; Tokino, T.; Velculescu, V.E.; Levy, D.B.; Parsons, R.; Trent, J.M.; Lin, D.; Mercer, W.E.; Kinzler, K.W.; Vogelstein, B. WAF1, a potential mediator of p53 tumor suppression. Cell 1993, 75, 817–825. [Google Scholar] [CrossRef]
  33. Yadav, B.; Wennerberg, K.; Aittokallio, T.; Tang, J. Searching for Drug Synergy in Complex Dose-Response Landscapes Using an Interaction Potency Model. Comput. Struct. Biotec. 2015, 13, 504–513. [Google Scholar] [CrossRef] [PubMed][Green Version]
  34. Sarraf Yazdy, M.; Mato, A.R.; Cheson, B.D. Combinations or sequences of targeted agents in CLL: Is the whole greater than the sum of its parts (Aristotle, 360 BC)? Blood 2019, 133, 121–129. [Google Scholar] [CrossRef][Green Version]
  35. Surget, S.; Khoury, M.P.; Bourdon, J.C. Uncovering the role of p53 splice variants in human malignancy: A clinical perspective. Oncotargets Ther. 2014, 7, 57–67. [Google Scholar] [CrossRef][Green Version]
  36. Bourdon, J.C.; Fernandes, K.; Murray-Zmijewski, F.; Liu, G.; Diot, A.; Xirodimas, D.P.; Saville, M.K.; Lane, D.P. p53 isoforms can regulate p53 transcriptional activity. Genes Dev. 2005, 19, 2122–2137. [Google Scholar] [CrossRef] [PubMed][Green Version]
  37. Zhang, D.X.; Hu, Q.; Liu, X.Z.; Ji, Y.B.; Chao, H.P.; Liu, Y.; Tracz, A.; Kirk, J.; Buonamici, S.; Zhu, P.; et al. Intron retention is a hallmark and spliceosome represents a therapeutic vulnerability in aggressive prostate cancer. Nat. Commun. 2020, 11, 2089. [Google Scholar] [CrossRef]
  38. Lee, S.C.W.; Dvinge, H.; Kim, E.; Cho, H.; Micol, J.B.; Chung, Y.R.; Durham, B.H.; Yoshimi, A.; Kim, Y.J.; Thomas, M.; et al. Modulation of splicing catalysis for therapeutic targeting of leukemia with mutations in genes encoding spliceosomal proteins. Nat. Med. 2016, 22, 672–678, Erratum in Nat. Med. 2016, 22, 692. [Google Scholar] [CrossRef][Green Version]
  39. Zou, C.; Zhang, D.X. The spliceosome as a new therapeutic vulnerability in aggressive prostate cancer. Mol. Cell. Oncol. 2020, 7, 1778420. [Google Scholar] [CrossRef]
  40. Sciarrillo, R.; Wojtuszkiewicz, A.; El Hassouni, B.; Funel, N.; Gandellini, P.; Lagerweij, T.; Buonamici, S.; Blijlevens, M.; van der Laan, E.A.Z.; Zaffaroni, N.; et al. Splicing modulation as novel therapeutic strategy against diffuse malignant peritoneal mesothelioma. Ebiomedicine 2019, 39, 215–225. [Google Scholar] [CrossRef][Green Version]
  41. Sollier, J.; Cimprich, K.A. Breaking bad: R-loops and genome integrity. Trends Cell Biol. 2015, 25, 514–522. [Google Scholar] [CrossRef][Green Version]
  42. Santos-Pereira, J.M.; Aguilera, A. R loops: New modulators of genome dynamics and function. Nat. Rev. Genet. 2015, 16, 583–597. [Google Scholar] [CrossRef] [PubMed]
  43. Aguilera, A. The connection between transcription and genomic instability. Embo J. 2002, 21, 195–201. [Google Scholar] [CrossRef] [PubMed]
  44. Chen, L.; Chen, J.Y.; Huang, Y.J.; Gu, Y.; Qiu, J.S.; Qian, H.; Shao, C.W.; Zhang, X.; Hu, J.; Li, H.R.; et al. The Augmented R-Loop Is a Unifying Mechanism for Myelodysplastic Syndromes Induced by High-Risk Splicing Factor Mutations. Mol. Cell 2018, 69, 412. [Google Scholar] [CrossRef][Green Version]
  45. Nguyen, H.D.; Leong, W.Y.; Li, W.L.; Reddy, P.N.G.; Sullivan, J.D.; Walter, M.J.; Zou, L.; Graubert, T.A. Spliceosome Mutations Induce R Loop-Associated Sensitivity to ATR Inhibition in Myelodysplastic Syndromes. Cancer Res. 2018, 78, 5363–5374. [Google Scholar] [CrossRef] [PubMed][Green Version]
  46. Hong, D.S.; Kurzrock, R.; Naing, A.; Wheler, J.J.; Falchook, G.S.; Schiffman, J.S.; Faulkner, N.; Pilat, M.J.; O’Brien, J.; LoRusso, P. A phase I, open-label, single-arm, dose-escalation study of E7107, a precursor messenger ribonucleic acid (pre-mRNA) splicesome inhibitor administered intravenously on days 1 and 8 every 21 days to patients with solid tumors. Investig. New Drugs 2014, 32, 436–444. [Google Scholar] [CrossRef]
  47. Seiler, M.; Yoshimi, A.; Darman, R.; Chan, B.; Keaney, G.; Thomas, M.; Agrawal, A.A.; Caleb, B.; Csibi, A.; Sean, E.; et al. H3B-8800, an orally available small-molecule splicing modulator, induces lethality in spliceosome-mutant cancers. Nat. Med. 2018, 24, 497. [Google Scholar] [CrossRef]
  48. Hallek, M.; Cheson, B.D.; Catovsky, D.; Caligaris-Cappio, F.; Dighiero, G.; Dohner, H.; Hillmen, P.; Keating, M.J.; Montserrat, E.; Rai, K.R.; et al. Guidelines for the diagnosis and treatment of chronic lymphocytic leukemia: A report from the International Workshop on Chronic Lymphocytic Leukemia updating the National Cancer Institute-Working Group 1996 guidelines. Blood 2008, 111, 5446–5456. [Google Scholar] [CrossRef][Green Version]
  49. Chou, T.C. Theoretical basis, experimental design, and computerized simulation of synergism and antagonism in drug combination studies. Pharmacol. Rev. 2006, 58, 621–681. [Google Scholar] [CrossRef]
  50. Arnold, K.; Bordoli, L.; Kopp, J.; Schwede, T. The SWISS-MODEL workspace: A web-based environment for protein structure homology modelling. Bioinformatics 2006, 22, 195–201. [Google Scholar] [CrossRef][Green Version]

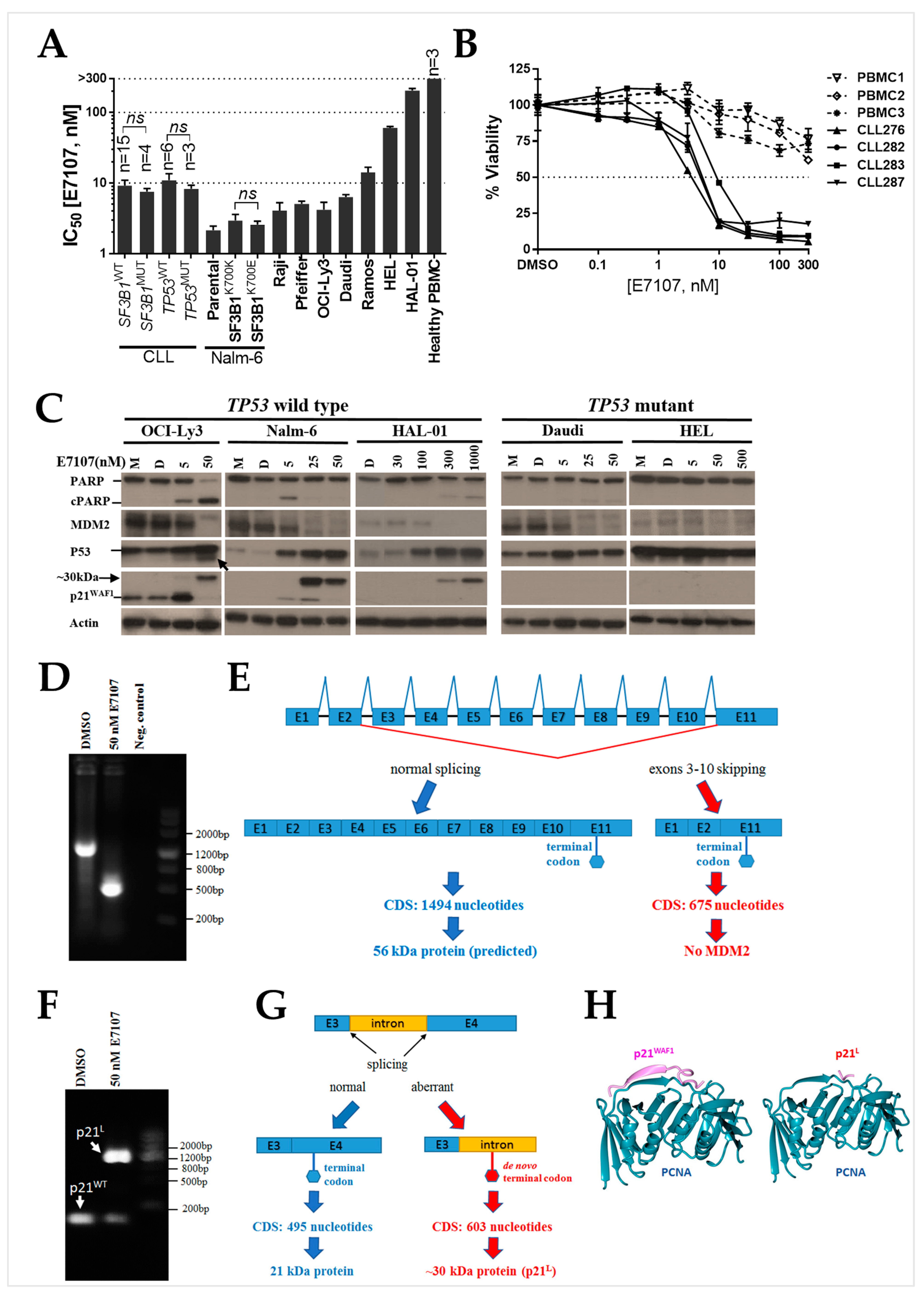

Figure 1. E7107 treatment resulted in aberrantly spliced transcripts and protein products of p53 pathway genes. (A) E7107 IC50 values for 28 primary CLL patient samples of differing TP53 and SF3B1 status and a panel of cell lines, including otherwise isogenic paired SF3B1 mutant and wild-type Nalm-6 cells. Error bars for the cell lines show the mean ± standard error of the mean (SEM) of at least three independent repeats. (B) Dose-dependent inhibition of cell viability using E7107 for four representative CLL primary samples and three PBMC samples from healthy individuals. (C) Immunoblot of p53 and its transcriptional targets for TP53WT OCI-Ly3, Nalm-6 and HAL-01, and TP53MUT Daudi and HEL cells treated with E7107 at concentrations indicated on the figure for 24 h. Actin was used as a loading control. M: No DMSO control cell lysate; D: DMSO solvent control-treated cell lysate. The arrow below the p53 band for OCI-Ly3 points to a lower molecular weight p53 isoform (~45 kDa) likely due to alternative splicing. (D) RT-PCR of MDM2 transcript spanning exons 1 to 11 amplified a shorter product size of approximately 500 bp compared with the expected product size of 1303 bp. OCI-Ly3 cells treated with 50 nM E7107 were compared with untreated DMSO control. Negative control: no template control. (E) Schematic diagram of comparison between normal and E7107 altered splicing of MDM2. Sanger sequencing confirmed the multiexon skipping of exons 3–10. The skipping of the exons did not change the remaining reading frame and the same terminal codon in exon 11 was maintained. (F) RT-PCR of CDKN1A transcript using primers spanning exons 3 to 4 revealed the presence of an additional longer transcript product of approximately 1200 bp in OCI-Ly3 cells treated with 50 nM E7107, which was longer than the expected RT-PCR product size of 84 bp. PCR products were analysed on a 2% agarose gel by electrophoresis at 75 V for 45 min. (G) Sanger sequencing confirmed retention of the intron between exons 3 and 4, with a de novo termination codon (marked red in the right panel) in the retained intron, which would produce a higher molecular weight protein with an alternative C-terminal amino acid sequence. (H) PCNA/p21 structural information. SWISS-MODEL online tool was used. The figure on the left shows the interaction of the part of the p21 protein (139–160) with the PCNA. The figure on the right shows amino acids from 149 to 164 are not present in the altered p21 form with intron retention. Instead, there is a short fragment remaining from the wild-type p21 and a completely new sequence (not shown in the figure).
Figure 1. E7107 treatment resulted in aberrantly spliced transcripts and protein products of p53 pathway genes. (A) E7107 IC50 values for 28 primary CLL patient samples of differing TP53 and SF3B1 status and a panel of cell lines, including otherwise isogenic paired SF3B1 mutant and wild-type Nalm-6 cells. Error bars for the cell lines show the mean ± standard error of the mean (SEM) of at least three independent repeats. (B) Dose-dependent inhibition of cell viability using E7107 for four representative CLL primary samples and three PBMC samples from healthy individuals. (C) Immunoblot of p53 and its transcriptional targets for TP53WT OCI-Ly3, Nalm-6 and HAL-01, and TP53MUT Daudi and HEL cells treated with E7107 at concentrations indicated on the figure for 24 h. Actin was used as a loading control. M: No DMSO control cell lysate; D: DMSO solvent control-treated cell lysate. The arrow below the p53 band for OCI-Ly3 points to a lower molecular weight p53 isoform (~45 kDa) likely due to alternative splicing. (D) RT-PCR of MDM2 transcript spanning exons 1 to 11 amplified a shorter product size of approximately 500 bp compared with the expected product size of 1303 bp. OCI-Ly3 cells treated with 50 nM E7107 were compared with untreated DMSO control. Negative control: no template control. (E) Schematic diagram of comparison between normal and E7107 altered splicing of MDM2. Sanger sequencing confirmed the multiexon skipping of exons 3–10. The skipping of the exons did not change the remaining reading frame and the same terminal codon in exon 11 was maintained. (F) RT-PCR of CDKN1A transcript using primers spanning exons 3 to 4 revealed the presence of an additional longer transcript product of approximately 1200 bp in OCI-Ly3 cells treated with 50 nM E7107, which was longer than the expected RT-PCR product size of 84 bp. PCR products were analysed on a 2% agarose gel by electrophoresis at 75 V for 45 min. (G) Sanger sequencing confirmed retention of the intron between exons 3 and 4, with a de novo termination codon (marked red in the right panel) in the retained intron, which would produce a higher molecular weight protein with an alternative C-terminal amino acid sequence. (H) PCNA/p21 structural information. SWISS-MODEL online tool was used. The figure on the left shows the interaction of the part of the p21 protein (139–160) with the PCNA. The figure on the right shows amino acids from 149 to 164 are not present in the altered p21 form with intron retention. Instead, there is a short fragment remaining from the wild-type p21 and a completely new sequence (not shown in the figure).
Ijms 24 02410 g001

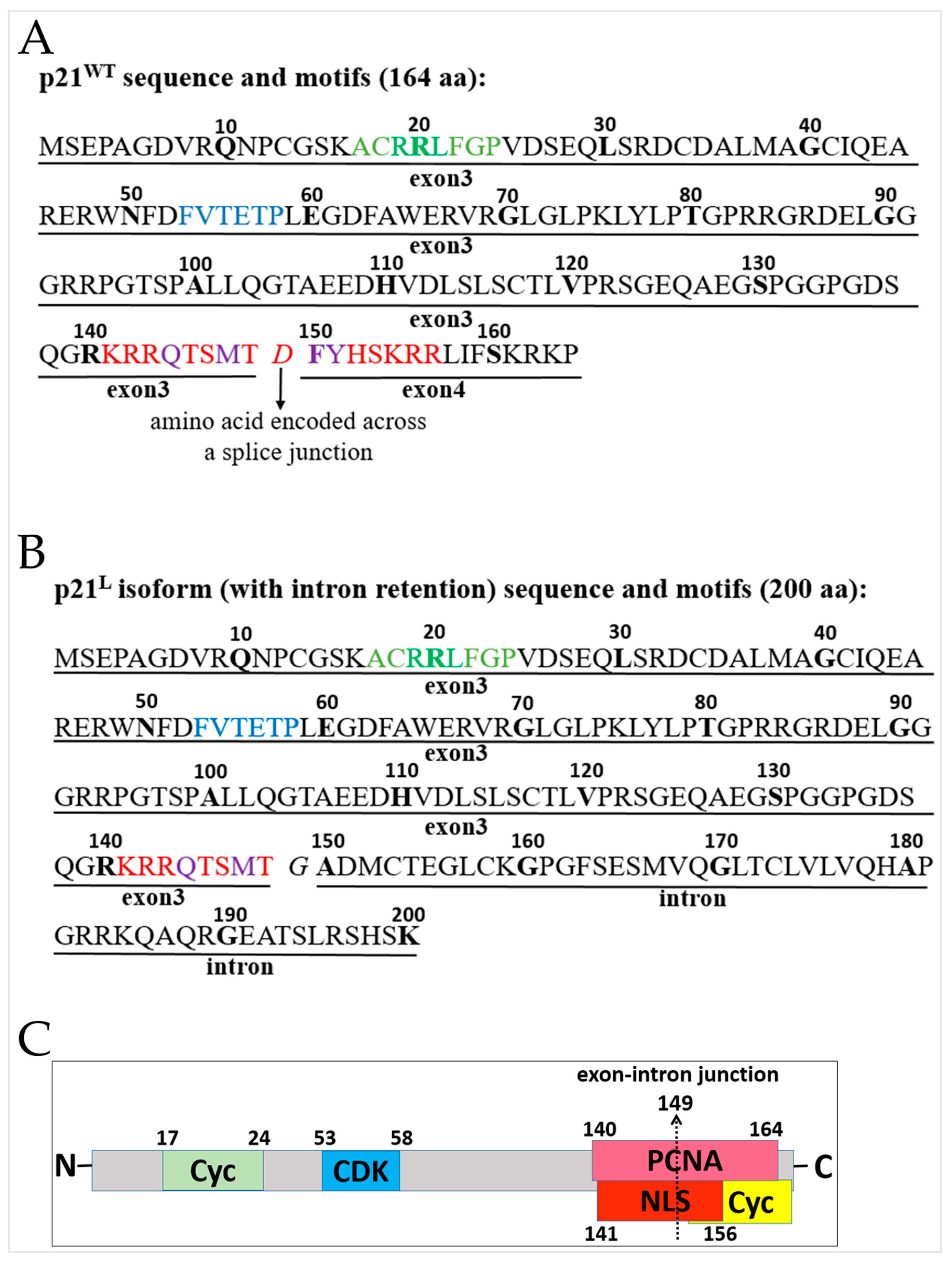

Figure 2. Comparison of the amino acid sequences and colour-highlighted motifs of the wild-type p21 and variant p21L isoforms. (A) Wild-type p21; 17–24: RxL motif cyclin binding site; 53–58: CDK binding domain; 140–164: PIP-box K + 4 motif (Qxx[M/L/I]xx[F/Y][F/Y]) proliferating cell nuclear antigen (PCNA) interaction site; 141–156: nuclear localization signal (NLS). (B) The p21L intron-retaining isoform of p21. The PCNA interaction site and nuclear localization domain are only partially present in the p21L isoform with intron retention between exons 3 and 4. (C) Representation of p21WAF1 protein with its protein-interacting domains; 149–200: novel C-terminal sequence.
Figure 2. Comparison of the amino acid sequences and colour-highlighted motifs of the wild-type p21 and variant p21L isoforms. (A) Wild-type p21; 17–24: RxL motif cyclin binding site; 53–58: CDK binding domain; 140–164: PIP-box K + 4 motif (Qxx[M/L/I]xx[F/Y][F/Y]) proliferating cell nuclear antigen (PCNA) interaction site; 141–156: nuclear localization signal (NLS). (B) The p21L intron-retaining isoform of p21. The PCNA interaction site and nuclear localization domain are only partially present in the p21L isoform with intron retention between exons 3 and 4. (C) Representation of p21WAF1 protein with its protein-interacting domains; 149–200: novel C-terminal sequence.
Ijms 24 02410 g002

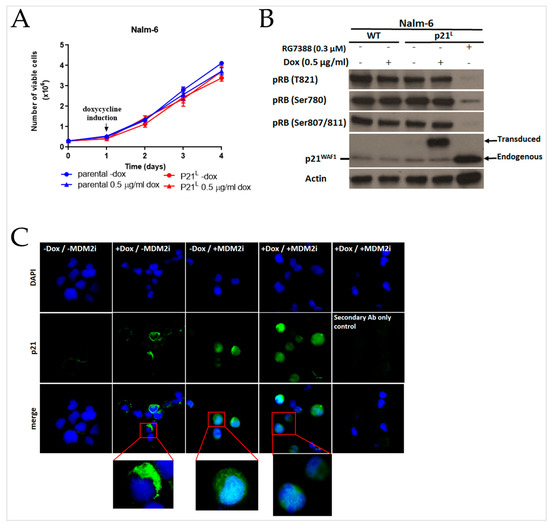

Figure 3. High molecular weight p21L intron-retained isoform with an alternative C-terminus loses its nuclear localisation and consequently its CDK inhibitory activity. (A) Growth curves of Nalm-6 parental and Nalm-6–p21L (transduced) cells with 0.5 µg/mL or without doxycycline (-dox) in the medium. The number of viable cells was assessed by trypan blue exclusion. Error bars show the mean ± standard error of the mean (SEM) of three independent counts of viable cells observed under trypan blue exclusion assay. (B) Western blots of parental Nalm-6 and Nalm-6–p21L (transduced) either noninduced or induced with 0.5 µg/mL doxycycline for 24 h, showing the expression of the intron-retained variant of p21 in the Nalm-6–p21L transduced cells. MDM2 inhibitor RG7388 (0.3 µM) was used to induce endogenous wild-type p21WAF1. RB phosphorylation was suppressed by the induced endogenous p21WAF1, but not by the transduced p21L isoform. Actin was used as a loading control. (C) The aberrant p21L isoform was unable to localize to the nucleus. RG7388 was used to induce endogenous p21, which showed nuclear localisation. Twenty-four hours after doxycycline and RG7388 administration, cells were fixed on slides for immunofluorescence staining with DAPI (blue fluorescence) and anti-p21. Alexa Fluor 488®-conjugated anti-mouse secondary antibody (green fluorescence) was used as a secondary antibody. Fluorescent pictures of each signal, together with the merged images, are shown.
Figure 3. High molecular weight p21L intron-retained isoform with an alternative C-terminus loses its nuclear localisation and consequently its CDK inhibitory activity. (A) Growth curves of Nalm-6 parental and Nalm-6–p21L (transduced) cells with 0.5 µg/mL or without doxycycline (-dox) in the medium. The number of viable cells was assessed by trypan blue exclusion. Error bars show the mean ± standard error of the mean (SEM) of three independent counts of viable cells observed under trypan blue exclusion assay. (B) Western blots of parental Nalm-6 and Nalm-6–p21L (transduced) either noninduced or induced with 0.5 µg/mL doxycycline for 24 h, showing the expression of the intron-retained variant of p21 in the Nalm-6–p21L transduced cells. MDM2 inhibitor RG7388 (0.3 µM) was used to induce endogenous wild-type p21WAF1. RB phosphorylation was suppressed by the induced endogenous p21WAF1, but not by the transduced p21L isoform. Actin was used as a loading control. (C) The aberrant p21L isoform was unable to localize to the nucleus. RG7388 was used to induce endogenous p21, which showed nuclear localisation. Twenty-four hours after doxycycline and RG7388 administration, cells were fixed on slides for immunofluorescence staining with DAPI (blue fluorescence) and anti-p21. Alexa Fluor 488®-conjugated anti-mouse secondary antibody (green fluorescence) was used as a secondary antibody. Fluorescent pictures of each signal, together with the merged images, are shown.
Ijms 24 02410 g003

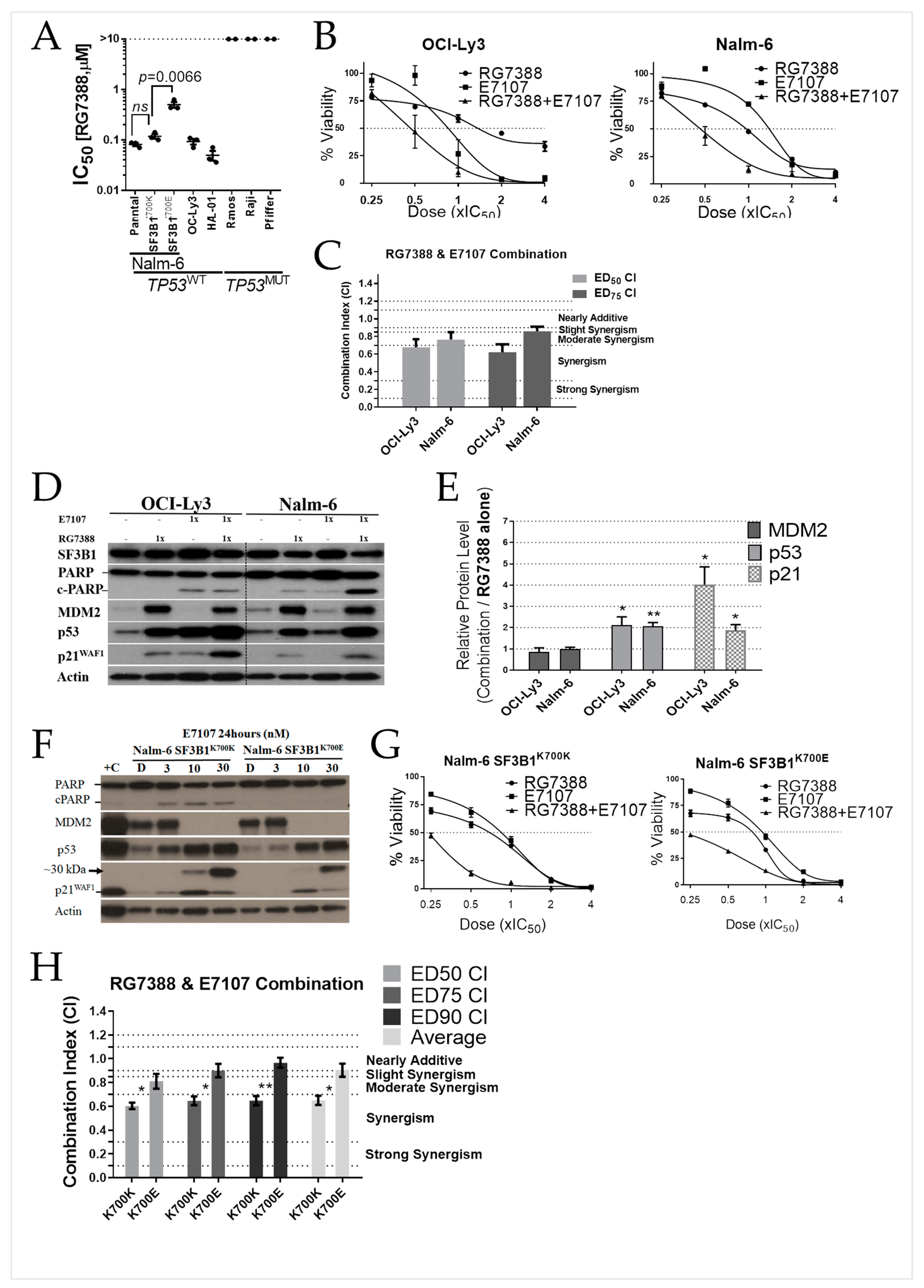

Figure 4. RG7388 synergizes with E7107 for the reduction in TP53WT B-cell line viability. (A) IC50 values of RG7388 for a panel of TP53 wild-type or mutant B-cell lines. (B) Growth inhibition curves for TP53WT B cells treated with RG7388 or E7107, and in combination at constant 1:1 ratios at 0.25×, 0.5×, 1×, 2×, and 4× of their respective IC50 concentrations for 72 h. (C) CI (combination index) values at ED50 and ED75 percentage dose-effect levels for two cell lines. Data are shown as the mean ± standard error of the mean (SEM) of at least three independent repeats. (D) Representative Western blot analysis of SF3B1, p53, p21WAF1, MDM2, and PARP/cPARP 24 h after the commencement of treatment with RG7388 or E7107, and in combination at constant 1:1 ratios at 1× of their respective IC50 concentration for two TP53WT B cells. Actin is used as a loading control. (E) Densitometry analysis of MDM2, p53, and p21WAF1 (combination/RG7388 alone) normalized to the loading control, actin. (F) Western blot was performed on the cells exposed to increasing concentrations (3, 10, and 30 nM) of E7107 for 24 h. Actin was used as a loading control. D: DMSO treated control cell lysate. +C: Control lysate from OCI-Ly3 cells treated with 0.3 μM RG7388 for 24 h. (G) Growth inhibition curves for isogenic SF3B1 mutant and wild-type Nalm-6 cells (SF3B1K700K and SF3B1K700E) treated with RG7388 or E7107, and in combination at constant 1:1 ratios at 0.25×, 0.5×, 1×, 2×, and 4× of their respective IC50 concentrations for 72 h. (H) CI values for RG7388 in combination with E7107 at ED50, ED75 and ED90 for isogenic SF3B1 Nalm-6 cells (wild-type SF3B1K700K and mutant SF3B1K700E). Data are shown as the mean ± SEM of at least three independent repeats. Statistically significant differences between the cell lines (* p < 0.05; ** p < 0.01) are indicated.
Figure 4. RG7388 synergizes with E7107 for the reduction in TP53WT B-cell line viability. (A) IC50 values of RG7388 for a panel of TP53 wild-type or mutant B-cell lines. (B) Growth inhibition curves for TP53WT B cells treated with RG7388 or E7107, and in combination at constant 1:1 ratios at 0.25×, 0.5×, 1×, 2×, and 4× of their respective IC50 concentrations for 72 h. (C) CI (combination index) values at ED50 and ED75 percentage dose-effect levels for two cell lines. Data are shown as the mean ± standard error of the mean (SEM) of at least three independent repeats. (D) Representative Western blot analysis of SF3B1, p53, p21WAF1, MDM2, and PARP/cPARP 24 h after the commencement of treatment with RG7388 or E7107, and in combination at constant 1:1 ratios at 1× of their respective IC50 concentration for two TP53WT B cells. Actin is used as a loading control. (E) Densitometry analysis of MDM2, p53, and p21WAF1 (combination/RG7388 alone) normalized to the loading control, actin. (F) Western blot was performed on the cells exposed to increasing concentrations (3, 10, and 30 nM) of E7107 for 24 h. Actin was used as a loading control. D: DMSO treated control cell lysate. +C: Control lysate from OCI-Ly3 cells treated with 0.3 μM RG7388 for 24 h. (G) Growth inhibition curves for isogenic SF3B1 mutant and wild-type Nalm-6 cells (SF3B1K700K and SF3B1K700E) treated with RG7388 or E7107, and in combination at constant 1:1 ratios at 0.25×, 0.5×, 1×, 2×, and 4× of their respective IC50 concentrations for 72 h. (H) CI values for RG7388 in combination with E7107 at ED50, ED75 and ED90 for isogenic SF3B1 Nalm-6 cells (wild-type SF3B1K700K and mutant SF3B1K700E). Data are shown as the mean ± SEM of at least three independent repeats. Statistically significant differences between the cell lines (* p < 0.05; ** p < 0.01) are indicated.
Ijms 24 02410 g004

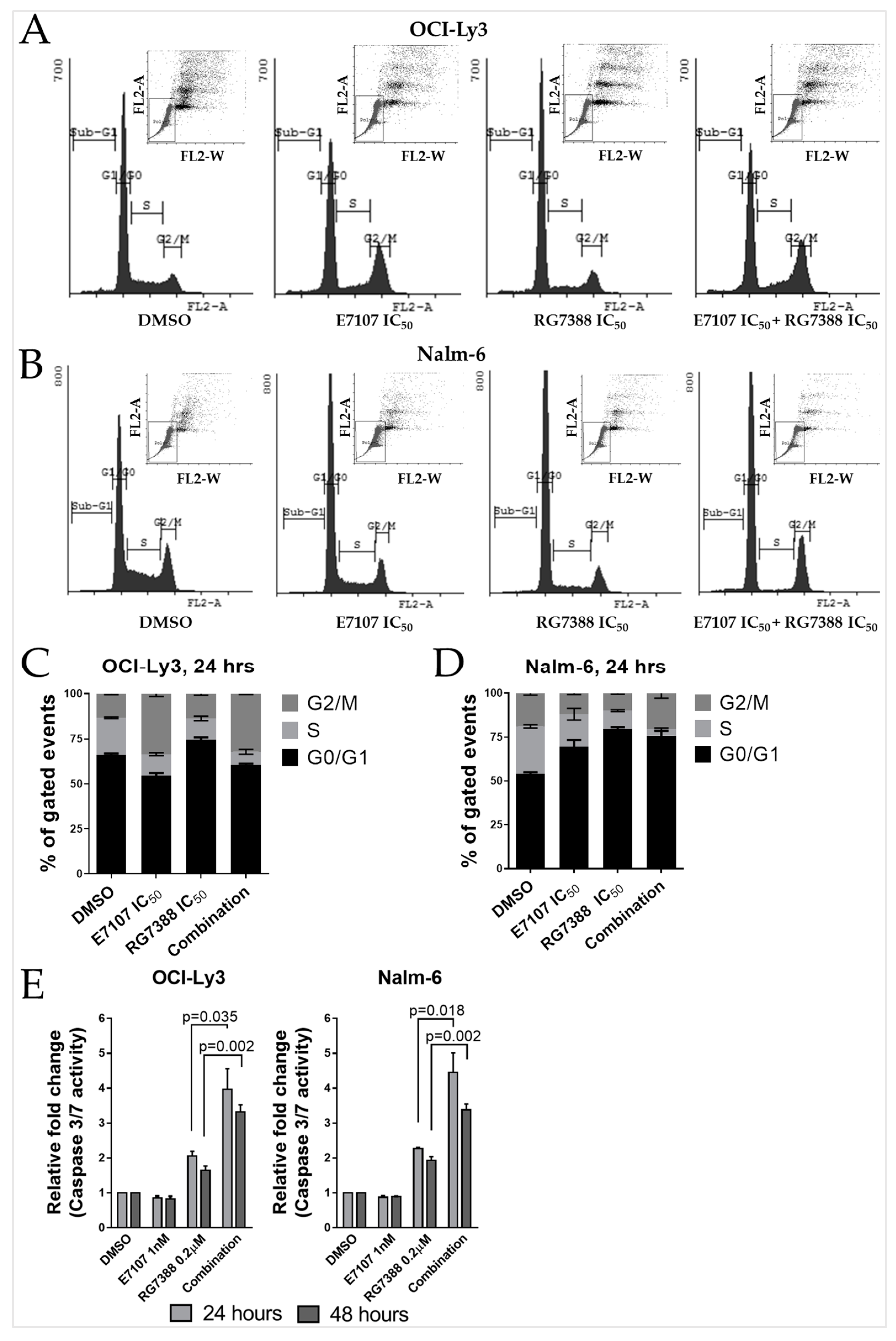

Figure 5. The effect of E7107 on the cell cycle distribution and apoptosis was indicated by caspase 3/7 activity when combined with RG7388. FACS DNA content histograms of TP53WT B-cell lymphoma cell line OCI-Ly3 (A) and B-cell precursor leukaemia cell line Nalm-6 (B) treated with RG7388 or E7107, and in combination at 1x of their respective IC50 concentrations for 24 h. A minimum of 50,000 total cells were analysed per sample. FL2-A vs. FL2-W scatter plots were used to manually gate the single cells as shown in the upper right corner of each histogram. Cell cycle distribution changes by FACS analysis for OCI-Ly3 (C) and Nalm-6 (D). (E) Caspase 3/7 activity as a mechanistic indicator of apoptosis. Caspase 3/7 activity is represented as fold change relative to DMSO solvent control. Data are shown as the mean ± standard error of the mean (SEM) of at least four independent repeats.
Figure 5. The effect of E7107 on the cell cycle distribution and apoptosis was indicated by caspase 3/7 activity when combined with RG7388. FACS DNA content histograms of TP53WT B-cell lymphoma cell line OCI-Ly3 (A) and B-cell precursor leukaemia cell line Nalm-6 (B) treated with RG7388 or E7107, and in combination at 1x of their respective IC50 concentrations for 24 h. A minimum of 50,000 total cells were analysed per sample. FL2-A vs. FL2-W scatter plots were used to manually gate the single cells as shown in the upper right corner of each histogram. Cell cycle distribution changes by FACS analysis for OCI-Ly3 (C) and Nalm-6 (D). (E) Caspase 3/7 activity as a mechanistic indicator of apoptosis. Caspase 3/7 activity is represented as fold change relative to DMSO solvent control. Data are shown as the mean ± standard error of the mean (SEM) of at least four independent repeats.
Ijms 24 02410 g005

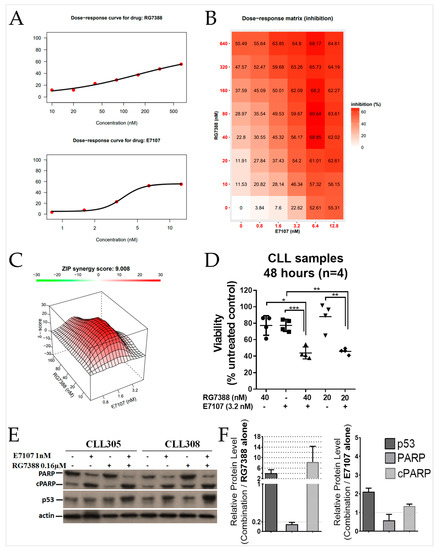

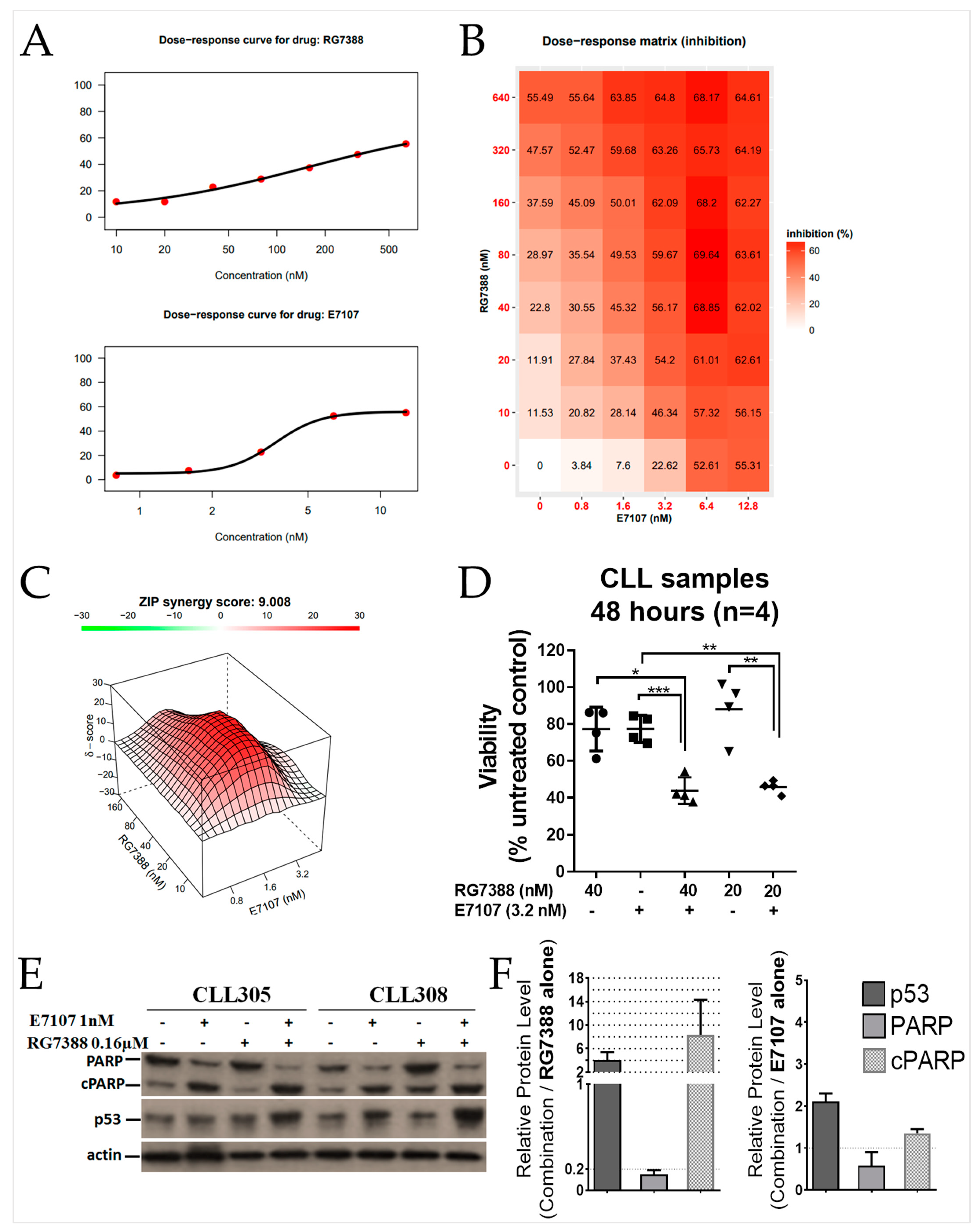

Figure 6. Synergistic effect of RG7388 and E7107 on primary CLL samples. (A) Dose-dependent inhibition of cell viability determined by XTT assay averaged for n = 4 patient CLL samples after 48 h ex vivo treatment. Curve fitting of the single drug dose-response data was performed using a four-parameter log-logistic function. (B) Dose-response matrix heat map showing % inhibition for a range of E7107 and RG7388 dose combinations. (C) The synergy heat map for drug combinations using the zero interaction potency (ZIP) model. (D) Viability as a percentage of the untreated control for n = 4 individual patient CLL samples after 48 h treatment with 3.2 nM E7107 and/or the indicated concentrations of RG7388. Significant differences were calculated by paired t-test (* p < 0.05; ** p < 0.01; *** p < 0.001). 20 nM RG7388 alone vs. combination with 3.2 nM E7107 p = 0.0091; 3.2 nM E7107 alone vs. combination with 20 nM RG7388 p = 0.0051; 40 nM RG7388 alone vs. combination with 3.2 nM E7107 p = 0.010; 3.2 nM E7107 alone vs. combination with 40 nM RG7388 p = 0.0008. (E) Western blot analysis of full-length/cleaved-PARP and p53 proteins 24 h after the commencement of treatment with 0.16 µM RG7388 or 1 nM E7107, or the combination of both for two patient CLL samples (CLL305 and CLL308). (F) Densitometry analysis of p53, PARP, and cPARP shows the normalized changes to the loading control, actin. Error bars show the mean with range (n = 2).
Figure 6. Synergistic effect of RG7388 and E7107 on primary CLL samples. (A) Dose-dependent inhibition of cell viability determined by XTT assay averaged for n = 4 patient CLL samples after 48 h ex vivo treatment. Curve fitting of the single drug dose-response data was performed using a four-parameter log-logistic function. (B) Dose-response matrix heat map showing % inhibition for a range of E7107 and RG7388 dose combinations. (C) The synergy heat map for drug combinations using the zero interaction potency (ZIP) model. (D) Viability as a percentage of the untreated control for n = 4 individual patient CLL samples after 48 h treatment with 3.2 nM E7107 and/or the indicated concentrations of RG7388. Significant differences were calculated by paired t-test (* p < 0.05; ** p < 0.01; *** p < 0.001). 20 nM RG7388 alone vs. combination with 3.2 nM E7107 p = 0.0091; 3.2 nM E7107 alone vs. combination with 20 nM RG7388 p = 0.0051; 40 nM RG7388 alone vs. combination with 3.2 nM E7107 p = 0.010; 3.2 nM E7107 alone vs. combination with 40 nM RG7388 p = 0.0008. (E) Western blot analysis of full-length/cleaved-PARP and p53 proteins 24 h after the commencement of treatment with 0.16 µM RG7388 or 1 nM E7107, or the combination of both for two patient CLL samples (CLL305 and CLL308). (F) Densitometry analysis of p53, PARP, and cPARP shows the normalized changes to the loading control, actin. Error bars show the mean with range (n = 2).
Ijms 24 02410 g006

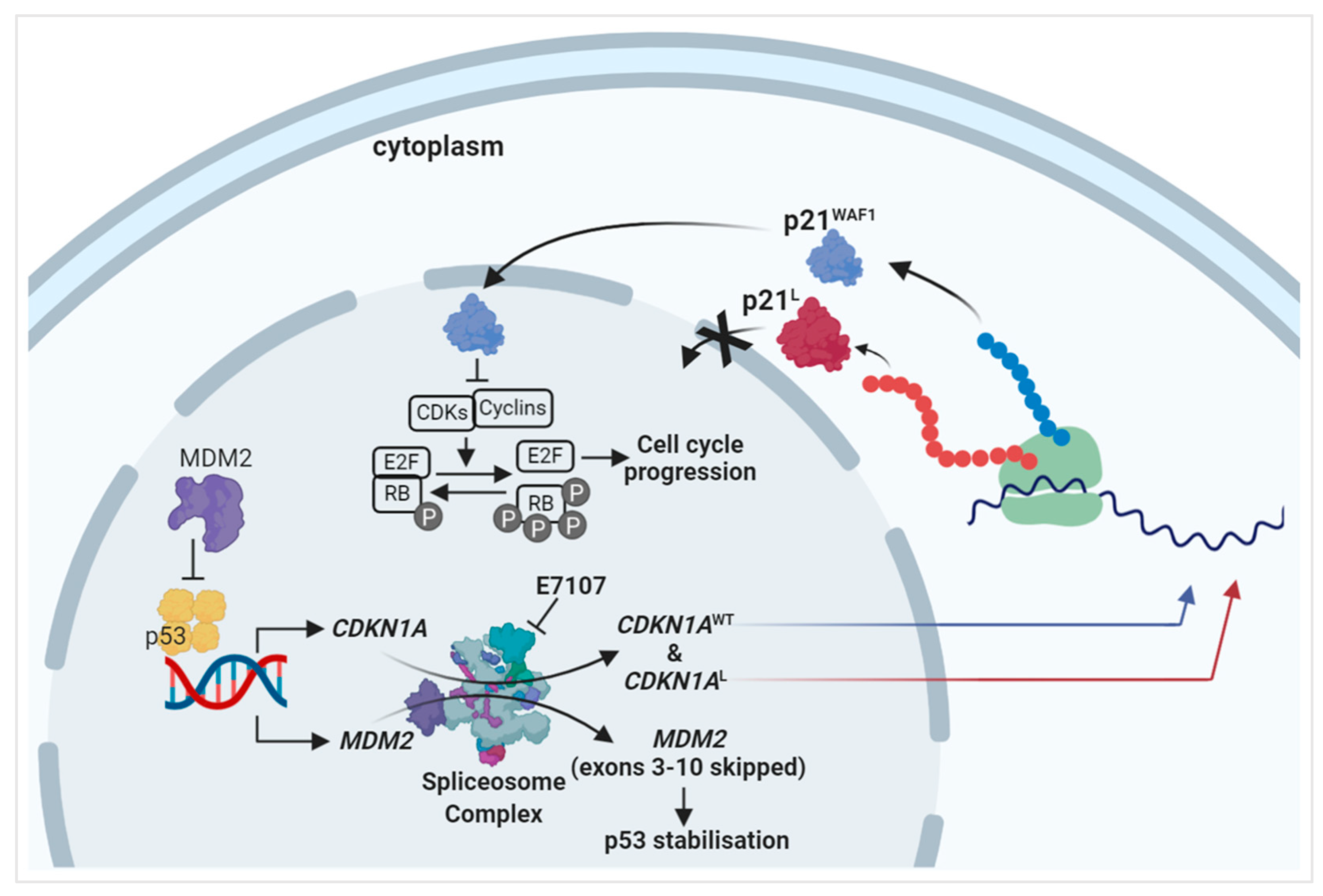

Figure 7. Proposed mechanism for the effect of spliceosome inhibition by E7107 on the p53 pathway and synergy with MDM2 inhibitors. E7107 forces the spliceosome complex to malfunction and produce aberrant products. Reduced full-length MDM2 production due to exon skipping results in enhanced stabilization and the activation of p53. Nuclear p53 induces more CDKN1A transcription, but some of these transcripts are subject to aberrant splicing, in this case in the form of intron retention generating a long form of p21 (p21L). Wild-type p21WAF1 localises to the nucleus to function as a cyclin-dependent kinase inhibitor to arrest the cell cycle. Altered p21 (p21L) protein with an alternative C-terminus, however, loses its ability to act as a cyclin-dependent kinase inhibitor due to the loss of the ability to localise to the nucleus. This loss of the protective effect of normal p21 against apoptosis contributes to the sensitization of the cells to the enhanced p53 stabilisation and p53-dependent proapoptotic signals resulting from the combined effect of MDM2–p53 binding antagonists and MDM2 exon skipping due to E7107 treatment.
Figure 7. Proposed mechanism for the effect of spliceosome inhibition by E7107 on the p53 pathway and synergy with MDM2 inhibitors. E7107 forces the spliceosome complex to malfunction and produce aberrant products. Reduced full-length MDM2 production due to exon skipping results in enhanced stabilization and the activation of p53. Nuclear p53 induces more CDKN1A transcription, but some of these transcripts are subject to aberrant splicing, in this case in the form of intron retention generating a long form of p21 (p21L). Wild-type p21WAF1 localises to the nucleus to function as a cyclin-dependent kinase inhibitor to arrest the cell cycle. Altered p21 (p21L) protein with an alternative C-terminus, however, loses its ability to act as a cyclin-dependent kinase inhibitor due to the loss of the ability to localise to the nucleus. This loss of the protective effect of normal p21 against apoptosis contributes to the sensitization of the cells to the enhanced p53 stabilisation and p53-dependent proapoptotic signals resulting from the combined effect of MDM2–p53 binding antagonists and MDM2 exon skipping due to E7107 treatment.
Ijms 24 02410 g007
