Parallel Synthesis of Piperazine Tethered Thiazole Compounds with Antiplasmodial Activity

by
Ramanjaneyulu Rayala
1,
Prakash Chaudhari
1,
Ashley Bunnell
1,
Bracken Roberts
2,
Debopam Chakrabarti
2 and
Adel Nefzi
1,*
1
Herbert Wertheim College of Medicine, Center for Translational Science, Florida International University, Miami, FL 33199, USA
2
Division of Molecular Microbiology, Burnett School of Biomedical Sciences, University of Central Florida, Orlando, FL 32826, USA
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2023, 24(24), 17414; https://doi.org/10.3390/ijms242417414
Submission received: 16 November 2023 / Revised: 1 December 2023 / Accepted: 7 December 2023 / Published: 12 December 2023
(This article belongs to the Special Issue Small Molecule Drug Design and Research 2.0)
Browse Figures
Review Reports Versions Notes

Abstract

:
Thiazole and piperazine are two important heterocyclic rings that play a prominent role in nature and have a broad range of applications in agricultural and medicinal chemistry. Herein, we report the parallel synthesis of a library of diverse piperazine-tethered thiazole compounds. The reaction of piperazine with newly generated 4-chloromethyl-2-amino thiazoles led to the desired piperazine thiazole compounds with high purities and good overall yields. Using a variety of commercially available carboxylic acids, the parallel synthesis of a variety of disubstituted 4-(piperazin-1-ylmethyl)thiazol-2-amine derivatives is described. the screening of the compounds led to the identification of antiplasmodial compounds that exhibited interesting antimalarial activity, primarily against the Plasmodium falciparum chloroquine-resistant Dd2 strain. The hit compound 2291-61 demonstrated an antiplasmodial EC50 of 102 nM in the chloroquine-resistant Dd2 strain and a selectivity of over 140.

1. Introduction

Combinatorial chemistry is a highly efficient approach for the parallel synthesis of novel small-molecule heterocyclic compounds [1,2,3,4,5]. Due to the well-established protocols set forth for solid-phase synthesis [6,7,8,9], large collections of organic compounds can readily be made available for the purpose of drug discovery [6,10,11,12,13,14]. The focused efforts over the past twenty years for the target-oriented synthesis and diversity-oriented synthesis of low-molecular-weight acyclic and heterocyclic combinatorial libraries for therapeutic applications have been highly fruitful [15]. However, the need for more synthetic pathways for solid-phase synthesis, especially those yielding valuable drugs like heterocyclic-containing compounds such as thiazoles and piperazines, is never satisfied [16,17,18,19,20,21].
Piperazine and thiazole rings are found in a large number of pharmacologically active molecules [16,17,20,21,22,23,24,25,26,27]. Small molecules containing the thiazole moiety have been demonstrated to possess drug-like properties against a variety of diseases, resulting in, so far, 17 FDA-approved drugs containing the thiazole ring. The indications to which thiazole derivatives are prescribed include asthma (Cinalukast) [28], bacterial infections (Ceftizoxime) [29], diarrhea (Nitazoxanide) [30], myelogenous leukemia (Dasatinib) [31], pain (Meloxicam) [32], duodenal ulcers (famotidine) [33], anthelmintics (thiabendazole) [34], CNS neuroprotective and anticonvulsant (riluzole) [35], and vitamin (thiamine) [36].
Furthermore, the piperazine nucleus is one of the most important heterocycles, exhibiting remarkable pharmacological activities [23,24,37,38,39]. Piperazine scaffolds are among the most extensively used backbones in medicinal chemistry, and many bioactive compounds are built upon this template [23,39,40]. The physicochemical properties and the three-dimensional structures of the different piperazine chemotypes are of utmost importance to understanding their biological activities. Small molecules containing the piperazine moiety have been found in different therapeutics, resulting in 39 FDA-approved drugs containing the piperazine ring.

2. Research

Continuing with our work toward the synthesis of drug-like compounds, we developed different strategies toward the synthesis of small-molecule compounds comprising the piperazine and the thiazole pharmacophores. A search of the FDA-approved drugs resulted in only 1 compound that contains both a thiazole and a piperazine group–Dasatinib [31,41] (Figure 1), which is marketed by the name Sprycel® by Brystol-Meyers Squibb. Dasatinib is a 2nd-generation ABL Tyrosine kinase inhibitor (TKI) used for the treatment of chronic myelogenous leukemia and Philadelphia-chromosome-positive acute lymphoblastic leukemia. In contrast to its 1st generation TKI predecessor (Imatinib–Figure 1), it appears to have overcome the treatment resistance problems observed.
Approximately 2-Aminothiazoles are readily obtained by Hantzsch’s cyclocondensation of thiourea with α-haloketones or by the reaction of α-thiocyanate carbonyl compounds with aromatic or aliphatic amine hydrochlorides [42,43,44]. They can also be obtained following a one-pot reaction of ketones with a mixture of N-bromosuccinimide, thiourea, and benzoyl peroxide. We previously reported the use of 1,3-dichloroacetone to generate a methylchloride at C4 of the thiazole ring, which can be used as a center of diversity to incorporate different nucleophiles [20,45,46]. We also used the newly generated 4-chloromethyl thiazole as a cyclative approach for the solid-phase synthesis of thiazole-containing cyclic peptides [43]. In this paper, we describe the parallel synthesis of diverse thiazole-tethered piperazine libraries (2291) (Figure 2) following the displacement of the chloro group with piperazine.
Starting from p-methylbenzhydrylamine hydrochloride resin (MBHA·HCl)-bound Fmoc-L-4-nitrophenylalanine 1 (Scheme 1), a library of arylaminothiazole piperazine compounds was prepared. Thus, following Boc deprotection and neutralization of the amine, the free amine was functionalized with different commercially available carboxylic acids (diversity R1) (Scheme 1). The nitro group was reduced in the presence of tin chloride to generate the corresponding aniline derivative, which was then treated with Fmoc-protected isothiocyanate (Fmoc-NCS) to afford the protected thiourea 3. Upon Fmoc deprotection [47], the thioureas were cyclized with 1,3-dichloroacetone via a Hantzsch cyclization [48] to afford the corresponding resin-bound 4-chloromethyl-thiazole 4 in a clean reaction confirmed by LC-MS. Boc-piperazine was then introduced via nucleophilic displacement of the chloro group. Following Boc deprotection and acylation of the piperazine using four different carboxylic acids (diversity R2) (Scheme 1), a library of 220 different arylaminothiazole-tethered piperazine compounds 5 was prepared in good purity (UV traces were monitored at 214 and 254 nm) and high yields (Table 1).
Continuing with our efforts to screen our small-molecule libraries against a variety of infectious diseases [45,49,50,51], all the compounds were screened against the P. falciparum (Pf) Dd2 strain. Malaria is a life-threatening disease that still afflicts about 300 million individuals worldwide, and half of the global population is at risk [52,53,54,55,56,57,58]. Unfortunately, most of the drugs that are currently being used for malaria treatment were developed more than 30 years ago, and many are derivatives of older drugs [54,55,58,59,60,61,62].

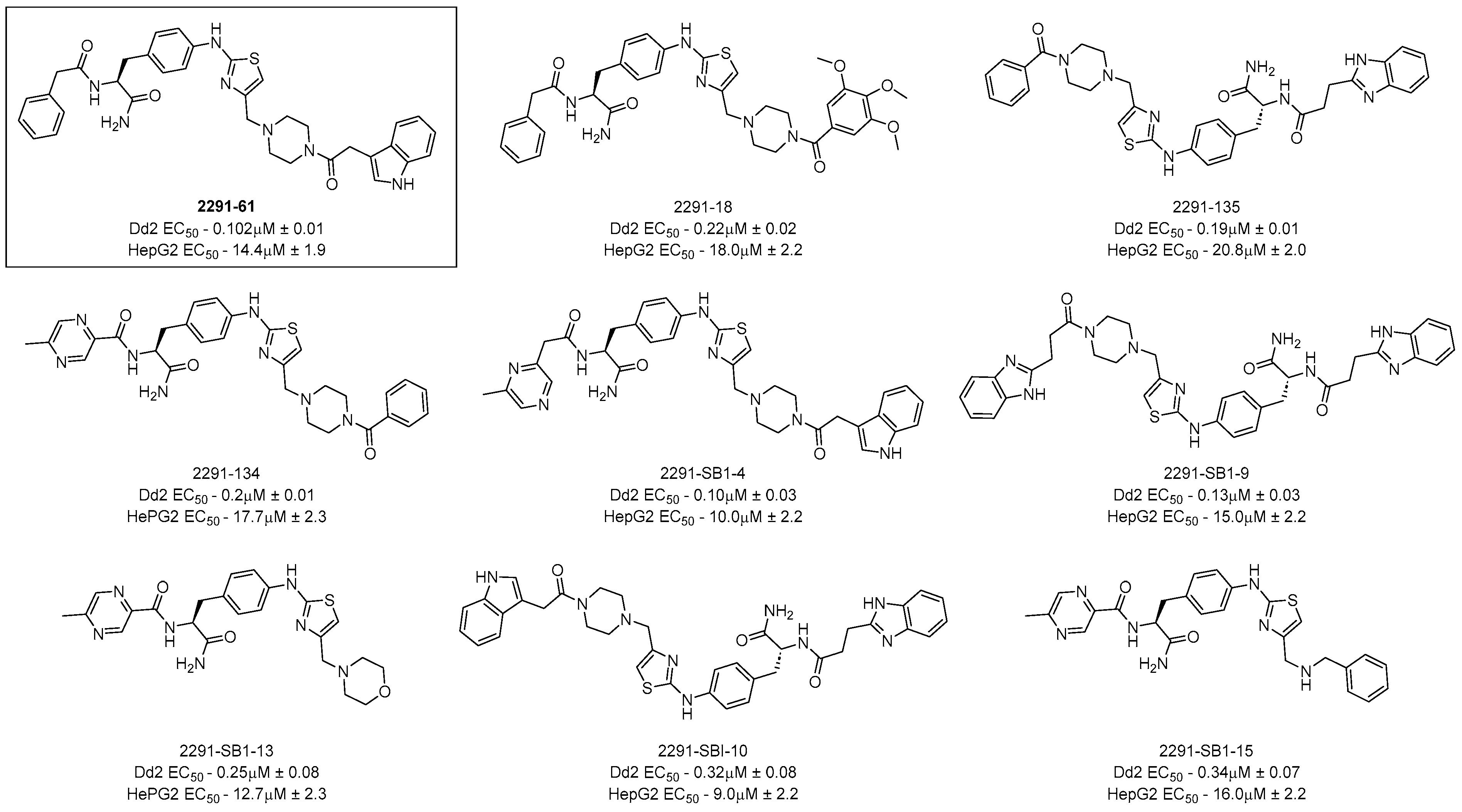

To test if the thiazole-tethered piperazine compounds are active against drug-resistant parasites, we used the multi-drug-resistant Pf Dd2 strain for the assay. The growth inhibition was determined by the SYBR green I fluorescence assay using standard culture conditions for 72 h as described in the experimental section [63,64,65]. Compounds with EC50 values ranging between 100 and 350 nM were identified (Figure 3). As a counterscreen, we evaluated the cytotoxicity of these compounds in the human hepatocyte cell line HepG2 using the MTS cell proliferation assay. The compounds exhibited a very promising selectivity of >60.
To test if our hit compound, 2291-61, has a cellular mechanism of action distinct from known antimalarials, we determined the effect of 2291-61 on intraerythrocytic developmental stages. We analyzed the effect of the compound on tightly synchronized malaria parasite cultures. We noticed that when 2291-61 is added at early ring or late ring stages, it prevents development into the trophozoite stage; however, if given at trophozoite or schizont stages, it prevents schizont development (Figure 4). This demonstrates that 2291-61 is an early-acting compound that can inhibit multiple stages of development.

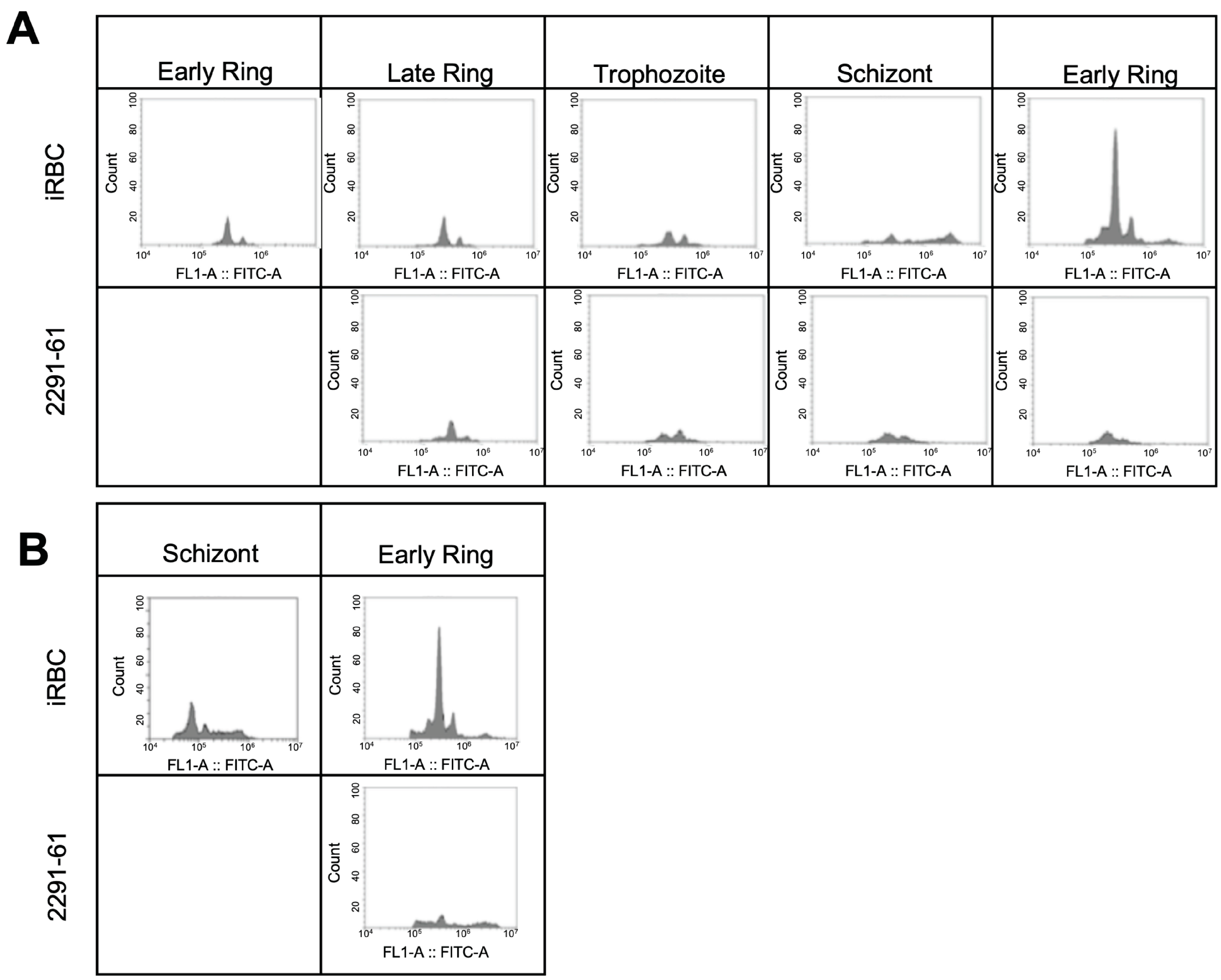

Tightly synchronized cultures were treated with 2291-61 at 6 (early ring), 18 (late ring), 30 (trophozoite), and 42 (schizont) hours post-invasion. Treated cultures were monitored for effect on parasite development at 12 h intervals. Inhibition of cellular growth was assessed in terms of reduction of DNA content as determined by flow cytometric analysis of YOYO-1-stained samples. As shown in Figure 4A, early ring treatment (6 h post-invasion) shows rapid activity of 2291 in blocking ring development. The treatment of 2291-61 developing trophozoites and schizonts results in blocked progression beyond schizont development (Figure 4B).
In conclusion, we have developed an efficient approach for the parallel synthesis of pharmacologically relevant bis-heterocycles containing piperazine and thiazole pharmacophores in the core. Using the strategy outlined in Scheme 1 and a large number of commercially available carboxylic acids, we prepared piperazine-tethered thiazole libraries as part of our drug discovery program. The screening of the piperazine-tethered thiazole compounds led to the identification of antiplasmodial compounds that exhibited interesting antimalarial activity, primarily against the chloroquine-resistant Dd2 strain. Hit compound 2291-61 demonstrated an antiplasmodial EC50 of 102 nM in the chloroquine-resistant Dd2 strain and a selectivity of over 140.

3. Experimental Procedures

3.1. Materials and General Methods

All reagents and solvents were purchased from various commercial sources (Sigma Aldrich (St. Louis, MO, USA), Chemimpex (Wood Dale, IL, USA), VWR (West Chester, PA, USA), Cambridge Isotopes (Tewksbury, MA, USA), etc.) and used without further purification unless otherwise stated. Yields were based on the manufacturer’s reported loading of MBHA resin of 1.15 mmol per gram of resin. 1H NMR spectra were recorded at 500 MHz and 400 MHz, and 13C NMR spectra were recorded at 125 MHz and 100 MHz in deuterated chloroform, and all chemical shifts are reported in δ units relative to TMS. All L-amino acids used were assumed to be enantiomerically pure from the supplier. LC-MS was performed on crude samples dissolved in 50:50 (acetonitrile and water) at a concentration of 1 mg/mL on a Shimadzu LC-MS equipped with a Vydac column with a gradient of 5–95% formic acid in acetonitrile over 7 min with their UV traces monitored at λ = 214 and 254 nm. HPLC purification was performed on a Phenomenex Luna 150 × 21.2 mm 5 micron column with a flow rate of 12 mL/min.

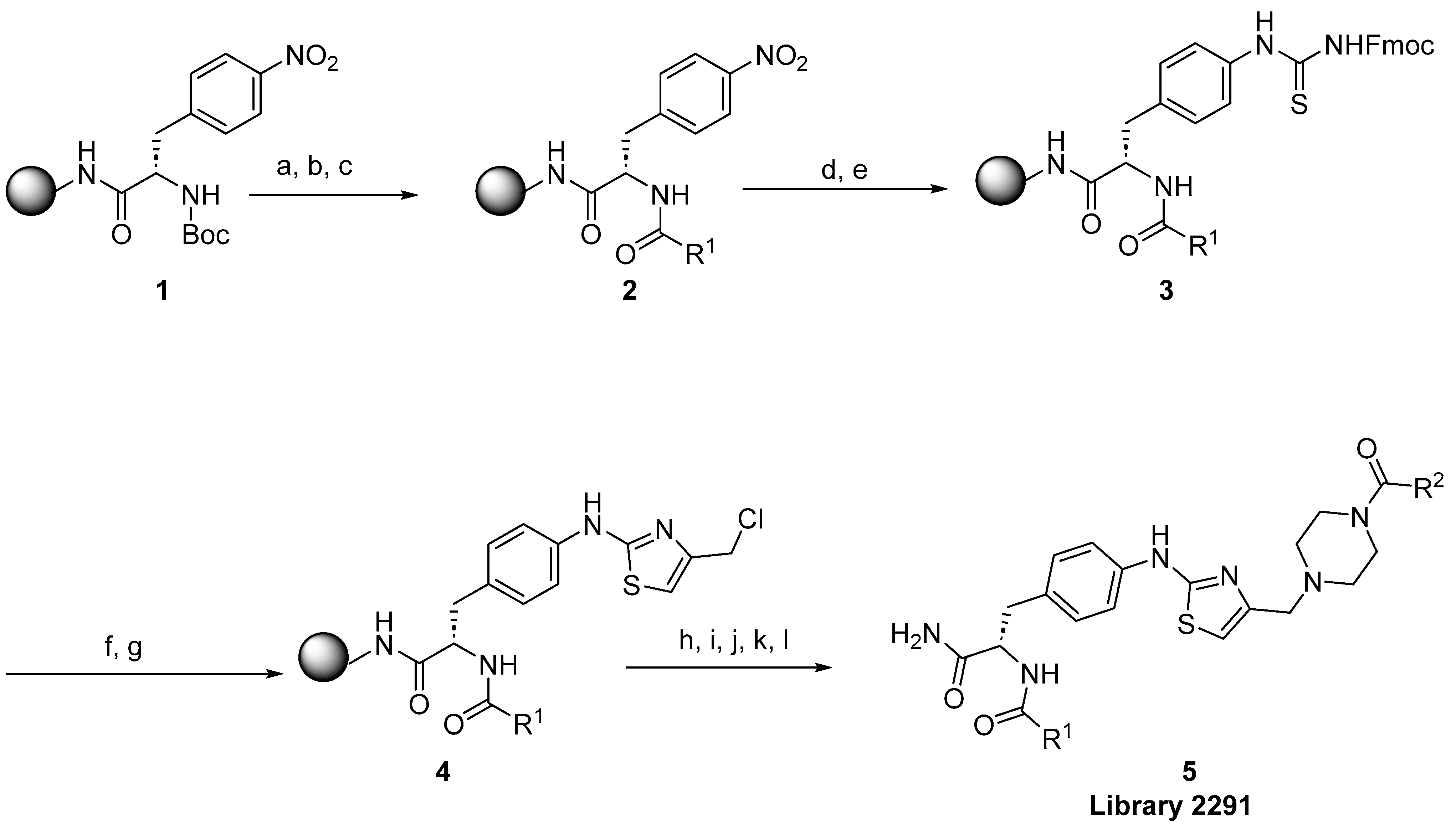

All compounds were synthesized following the strategy outlined in Scheme 1. The parallel solid phase synthesis was performed using the “tea-bag” methodology [66].
General Synthesis of the disubstituted arylaminothiazole-tethered piperazine compounds 5:
A 100 mg sample of p-methylbenzhydrylamine hydrochloride (MBHA·HCl) resin with a molar loading of 1.15 mmole/g and size of 100–200 mesh was thermally sealed into a polypropylene mesh bag per compound. All bags were made and were washed in triplicate with DCM, 5% diisopropylethylamine (DIEA) in DCM, and finally DCM to neutralize the acidic resin. The neutralized resin bags were then treated with 3 equivalents of Boc-Phe(4-NO2)-OH (3.2 g), HOBt (1.6 g), and DIC (2.1 mL) in 75 mL of DMF in a 150 mL polystyrene bottle. The bottle was placed on a mechanical shaker and left for approximately 3 h. A ninhydrin test [67] was used on a few grains of the resin to confirm the complete acylation of the resin amine. The Boc protecting group was removed from the N-terminus by shaking the tea bags in a 55% solution of TFA in DCM for 30 min. Upon completion of the TFA treatment, the bags were thoroughly washed with DCM (×3), neutralized with 5% DIEA in DCM (×4), and washed with DCM (3 times). The N-terminus was acylated with different carboxylic acids (10 equivalents of the acid) in the presence of 10 equivalents of DIC in 25 mL of THF. The reactions were allowed to shake overnight (~15 h) before they were thoroughly washed with DMF, followed by DCM. A ninhydrin test of a few grains of resin confirmed that all the acylation reactions were complete. All bags were combined into a 150 mL polystyrene bottle. Stannous chloride (20 eq, 13.1 g) was added to the bottle along with 69 mL of DMF to afford a concentration of 1.0 M. The bottle was gently sonicated for approximately 20 min to ensure a homogenous solution and then set to shake overnight (~15 h). In the morning, the bags were washed 12 times with DMF, 6 times with MeOH, and 6 times with DCM to ensure complete removal of the tin. A few milligrams of resin were then removed from bag #5 and used as a control to confirm complete reduction by cleavage with HF for 1.5 h. LC-MS of the resulting product confirmed the reduction was complete. All bags were combined in a 150 mL polystyrene bottle. Fmoc-NCS (2.5 equivalents, 2.43 g) was weighed out and added to the polystyrene bottle. The bottle was purged with nitrogen gas for approximately 10 min before anhydrous DMF (~60 mL) was added via canula. The bottle was covered and sealed with parafilm and then sonicated for ~10 min to ensure a homogenous solution. The bottle was shaken on a mechanical shaker overnight. In the morning, the bags were thoroughly washed with DMF and DCM. All bags were combined in a 150 mL polystyrene bottle, and the Fmoc group was deprotected using a 20% solution of piperidine in DMF for 10 min at room temperature. The bags were then thoroughly washed with DMF and DCM to ensure complete removal of the piperidine. The bags were then treated with 10 equivalents of 1,3-dichloroacetone (4.38 g) in 115 mL of anhydrous DMF at 85 °C overnight to undergo Hantzch’s Cyclization. The bags were thoroughly washed with DMF and DCM, and the corresponding chloromethyl thiazole was treated with Boc-piperazine (6 equivalents, 3.86 g) in 100 mL of DMF at room temperature overnight. The Boc protecting group was removed from the piperazine in the presence of a 55% solution of trifluoroacetic acid in dichloromethane for 30 min. The bags were thoroughly washed with DCM (3 times), neutralized with 5% DIEA (×4) in dichloromethane, and washed with DCM (3 times). The generated piperazine was acylated using different carboxylic acids. The reactions were allowed to shake overnight before they were thoroughly washed with DMF, followed by DCM. The dried bags were treated with HF/anisole (95/5) at 0 °C for 1.5 h before the HF was blown off with nitrogen. Following extraction and lyophilization, the crude compounds were purified by RP-HPLC. All compounds were obtained in good yields.
2-(2-phenylacetamido)-3-(4-((4-((4-(3,4,5-trimethoxybenzoyl)piperazin-1-yl)methyl)thiazol-2-yl)amino)phenyl)propanamide (2291-18) 1H NMR (400 MHz, CDCl3, 300 K) 10.29 (s, 1H), 8.24 (d, J = 8 Hz, 2H), 7.51–7.49 (m, 3H), 7.19–7.14 (m, 5H), 6.44 (s, 1H), 7.08–7.06 (m, 4H), 6.73 (s, 2H), 4.45–4.39 (m, 3H), 4.32 (s, 4H), 3.80 (s, 6H), 3.69 (s, 3H), 3.44 (m, 4H), 3.22 (s, 2H), 3.00–2.95 (dd, J = 14, 4 Hz, 1H), 2.74–2.68 (m, 1H), 1.19 (s, 1H); 13C NMR (100 MHz, CDCl3, 300 K) 173.6, 170.3, 169.4, 164.9, 153.3 (2C), 141.1, 139.6, 139.2, 136.8, 131.7 (2CH), 130.4, 130.2 (2CH), 129.4 (2CH), 128.5 (2CH), 126.6 (2CH), 117.4 (2CH), 111.9, 105.2 (2C), 60.5 (2CH3), 56.5 (2CH2), 54.4, 51.2, 42.6 (2CH2), 37.6, 21.50. LCMS: C35H40N6O6S (M calculated) 672.27, C35H38FN6O3S (MH+ found) 673.
5a (1H NMR, 400 MHz, CDCl3, 300 K) 7.30–7.27 (m, 2H), 7.21–7.11 (m, 7H), 7.07–6.98 (m, 4H), 6.44 (s, 1H), 6.16 (d, J = 10.0 Hz, 1H), 5.94 (s(broad), 1H), 5.61 (s(broad), 1H), 4.64 (q, J = 9.3 Hz, 1H), 3.76 (s(broad), 2H), 3.51 (s, 2H), 2.17 (s, 2H), 2.98 (d, J = 8.6 Hz, 2H), 2.54 (s(broad), 2H), 2.24 (s(broad), 2H), 1.42 (m, 2H), 1.18 (m, 2H). (13C NMR, 100 MHz, CDCl3, 300 K) 172.6, 171.0, 170.8, 164.7, 140.6, 139.2, 130.9, 130.8, 130.7, 130.2, 128.7, 126.4, 125.3, 118.2, 116.0, 115.8, 77.2, 58.8, 53.9, 52.5, 42.6, 37.2, 29.3, 15.1. LCMS: C35H37FN6O3S (M calculated) 640.77, C35H38FN6O3S (MH+ found) 641.
5b (1H NMR, 400 MHz, CDCl3, 300 K) 7.18 (d, J = 13.3 Hz, 2H), 7.14 (t, J = 3.7 Hz, 2H), 7.06 (d, J = 8.8 Hz, 2H), 7.01 (t, J = 7.4 Hz, 2H), 6.64 (s, 2H), 6.55 (s(broad), 1H), 6.22 (d, J = 8.1 Hz, 1H), 6.03 (s(broad), 1H), 5.66 (s(broad), 1H), 4.66 (q, J = 9.3 Hz, 1H), 3.87 (s, 12H), 3.63 (s, 2H), 3.53 (s, 2H), 3.00 (d J = 8.1 Hz, 2H), 2.65 (s(broad), 4H). (13C NMR, 100 MHz, CDCl3, 300 K) 172.7, 170.8, 170.1, 164.7, 160.9, 158.8, 153.4, 139.1, 130.9, 130.8, 130.3, 118.2, 116.0, 115.7, 104.6, 77.2, 60.9, 56.3, 53.9, 42.6, 37.2. LCMS: C35H39FN6O6S (M calculated) 690.78, C35H40FN6O6S (MH+ found) 691.
5c (1H NMR, 400 MHz, CDCl3, 300 K) 7.20 (d, J = 7.4 Hz, 2H), 7.15 (t, J = 8.2 Hz, 2H), 7.05 (d, J = 8.2 Hz, 2H), 7.00 (t, J = 8.9 Hz, 2H), 6.50 (s, 1H), 6.25 (d, J = 8.2 Hz, 1H), 6.03 (s(broad), 1H), 5.73 (s(broad), 1H), 4.66 (q, J = 7.4 Hz, 1H), 3.71–3.68 (m, 2H), 3.67–3.58 (m, 2H), 3.56 (d, J = 7.0 Hz, 2H), 3.53 (s, 3H), 3.00 (d, J = 7.8 Hz, 2H), 2.89 (pent. J = 7.0 Hz, 1H), 2.58–2.52 (m, 5H), 1.88–1.64 (m, 8H), 1.62–1.51 (m, 3H). (13C NMR, 100 MHz, CDCl3, 300 K) 174.5, 172.7, 170.8, 164.7, 163.4, 139.2, 130.9, 130.8, 130.6, 130.2, 118.2, 115.9, 115.7, 77.2, 58.2, 53.9, 42.6, 41.0, 37.2, 30.1, 26.0. LCMS: C31H37FN6O3S (M calculated) 592.73, C31H38FN6O3S (MH+ found) 593.
5d (1H NMR, 400 MHz, CDCl3, 300 K) 7.20 (d, J = 8.2 Hz, 2H), 7.15 (t, J = 6.7 Hz, 2H), 7.06 (d, J = 8.2 Hz, 2H), 7.01 (t, J = 7.5 Hz, 2H), 6.50 (s, 1H), 6.25 (d, J = 8.2 Hz, 1H), 6.02 (s(broad), 1H), 5.71 (s(broad), 1H), 4.67 (q, J = 8.2 Hz, 1H), 3.71–3.68 (m, 2H), 3.67–3.58 (m, 4H), 3.53 (s, 3H), 3.00 (d, J = 9.8 Hz, 2H), 2.60–2.51 (m, 5H), 1.86–1.73 (m, 4H), 1.54–1.50 (m, 4H), 0.98 (d, J = 8.9 Hz, 2H), 0.90 (d, J = 7.2 Hz, 2H). (13C NMR, 100 MHz, CDCl3, 300 K) 174.6, 172.7, 170.8, 164.7, 139.2, 130.9, 130.8, 130.7, 130.2, 118.2, 116.0, 115.7, 105.7, 77.2, 53.9, 42.6, 40.1, 38.8, 37.3, 34.5, 32.1, 31.1, 29.3, 28.4, 24.9, 22.6, 18.9. LCMS: C33H41FN6O3S (M calculated) 620.78, C33H42FN6O3S (MH+ found) 621.
5e (1H NMR, 400 MHz, CDCl3, 300 K) 7.30 (t, J = 6.9 Hz, 1H), 7.21 (d, J = 8.4 Hz, 1H), 7.16 (d, J = 8.4 Hz, 4H), 7.08 (d, J = 6.8 Hz, 2H), 7.05 (d, J = 8.4 Hz, 2H), 6.86 (d, J = 8.4 Hz, 2H), 6.45 (s, 1H), 6.14 (d, J = 9.9 Hz, 1H), 6.10 (s(broad), 1H), 5.65 (s(broad), 1H), 4.66 (q, J = 7.6 Hz, 1H), 3.80 (s, 3H), 3.74 (s(broad), 2H), 3.55 (s(broad), 2H), 3.50 (s, 3H), 2.98 (d, J = 6.5 Hz, 2H), 2.55 (s(broad), 2H), 2.26 (s(broad), 2H), 1.44–1.42 (m, 2H), 1.21–1.18 (m, 2H). (13C NMR, 100 MHz, CDCl3, 300 K) 172.8, 171.6, 171.0, 164.9, 159.0, 140.6, 139.1, 130.9, 130.4, 130.3, 128.7, 126.4, 126.2, 125.3, 118.3, 114.5, 77.2, 57.9, 55.3, 53.9, 52.4, 42.7, 37.0, 29.3, 15.1. LCMS: C36H40N6O4S (M calculated) 652.81, C36H41N6O4S (MH+ found) 653.
5f (1H NMR, 400 MHz, CDCl3, 300 K) 7.19 (d, J = 9.1 Hz, 2H), 7.08 (d, J = 6.1 Hz, 2H), 7.06 (d, J = 4.6 Hz, 2H), 6.87 (d, J = 7.6 Hz, 2H), 6.64 (s, 2H), 6.55 (s(broad), 1H), 6.10 (d, J = 5.4 Hz, 1H), 6.07 (s(broad), 1H), 5.58 (s(broad), 1H), 4.66 (q, J = 8.4 Hz, 1H), 3.87 (s, 3H), 3.80 (s, 4H), 3.64 (s(broad), 2H), 3.50 (s(broad), 2H), 3.01–2.96 (m, 2H), 2.66 (s(broad), 6H). (13C NMR, 100 MHz, CDCl3, 300 K) 172.8, 171.6, 170.1, 165.2, 159.0, 153.4, 139.0, 131.1, 130.4, 130.3, 126.2, 118.4, 114.5, 104.6, 77.2, 60.9, 56.3, 55.3, 42.7, 37.0. LCMS: C36H42N6O7S (M calculated) 702.82, C36H43N6O7S (MH+ found) 703.
5g (1H NMR, 400 MHz, CDCl3, 300 K) 7.19 (d, J = 9.1 Hz, 2H), 7.08 (d, J = 6.1 Hz, 2H), 7.06 (d, J = 4.6 Hz, 2H), 6.52 (s(broad), 1H), 6.15 (d, J = 5.4 Hz, 1H), 6.10 (s(broad), 1H), 5.66 (s(broad), 1H), 4.67 (q, J = 8.4 Hz, 1H), 3.80 (s, 3H), 3.73 (s(broad), 2H), 3.66–3.56 (m, 4H), 3.51 (s, 2H), 2.99 (d, J = 6.9 Hz, 2H), 2.88 (pent. J = 7.7 Hz, 1H), 2.64–2.52 (m, 4H), 1.89–1.69 (m, 7H), 1.64–1.52 (m, 3H). (13C NMR, 100 MHz, CDCl3, 300 K) 174.5, 172.8, 171.6, 164.9, 159.0, 139.1, 130.9, 130.4, 130.3, 126.2, 118.3, 114.5, 77.2, 58.0, 55.3, 53.9, 52.7, 45.1, 42.7, 41.0, 37.0, 30.1, 26.0. LCMS: C32H40N6O4S (M calculated) 604.76, C32H41N6O4S (MH+ found) 605.
5h (1H NMR, 400 MHz, CDCl3, 300 K) 7.18 (d, J = 9.1 Hz, 2H), 7.09 (d, J = 6.1 Hz, 2H), 7.06 (d, J = 4.6 Hz, 2H), 6.87 (d, J = 9.0 Hz, 2H), 6.46 (s, 1H), 6.12 (d, J = 5.4 Hz, 1H), 6.06 (s(broad), 1H), 5.64 (s(broad), 1H), 4.66 (q, J = 8.4 Hz, 1H), 3.81 (s, 3H), 3.67 (s(broad), 2H), 3.59–3.51 (m, 4H), 3.51 (s, 2H), 2.98 (d, J = 6.9 Hz, 2H), 2.660–2.46 (m, 5H), 1.85–1.70 (m, 4H), 1.57–1.46 (m, 4H), 0.99 (d, J = 5.4 Hz, 2H), 0.90 (d, J = 5.7 Hz, 2H). (13C NMR, 100 MHz, CDCl3, 300 K) 174.7, 172.8, 171.6, 164.9, 159.0, 139.1, 130.8, 130.4, 130.3, 126.2, 118.3, 114.5, 105.2, 77.2, 58.2, 55.3, 53.9, 42.7, 40.2, 38.8, 37.0, 34.6, 32.1, 29.3, 28.4, 24.9, 22.6, 18.9. LCMS: C34H44N6O4S (M calculated) 632.82, C34H45N6O4S (MH+ found) 633.
5i (1H NMR, 400 MHz, CDCl3, 300 K) 9.24 (s, 1H), 8.41 (s, 1H), 8.30 (d, J = 12.1 Hz, 1H), 8.17 (s, 1H), 7.31–7.27 (m, 4H), 7.24 (d, J = 7.1 Hz, 2H), 7.20 (t, J = 7.1 Hz, 1H), 7.16 (d, J = 10.9 Hz, 2H), 6.46 (s, 1H), 6.02 (s(broad), 1H), 5.69 (s(broad), 1H), 4.88 (q, J = 8.4 Hz, 1H), 3.76 (s(broad), 2H), 3.57 (s(broad), 2H), 3.52 (s, 2H), 3.22 (d, J = 9.1 Hz, 2H), 2.67 (s, 3H), 2.59 (s(broad), 2H), 2.30 (s(broad), 2H), 1.44–1.40 (m, 2H), 1.22–1.16 (m, 2H). (13C NMR, 100 MHz, CDCl3, 300 K) 172.5, 172.2, 171.0, 165.5, 163.4, 157.6, 150.2, 143.3, 142.6, 141.1, 140.5, 139.0, 131.3, 130.4, 128.8, 126.4, 125.3, 118.5, 57.2, 54.2, 52.2, 37.5, 29.3, 21.8, 15.1. LCMS: C33H36N8O3S (M calculated) 624.76, C33H37N8O3S (MH+ found) 625.
5j (1H NMR, 400 MHz, CDCl3, 300 K) 9.15 (s, 1H), 8.32 (s, 1H), 8.22 (d, J = 8.6 Hz, 1H), 7.17 (d, J = 5.9 Hz, 4H), 6.55 (s, 2H), 6.38 (sbroad, 1H), 5.90 (sbroad, 1H), 5.53 (sbroad, 1H), 5.23 (s, 2H), 4.77 (q, J = 7.6 Hz, 1H), 3.79 (s, 9H), 3.78 (s, 2H), 3.46 (s, 2H), 3.12 (d, J = 6.5 HZ, 2H), 2.58 (s, 3H), 2.48 (sv. broad, 4H), 1.80 (sv.broad, 4H). (13C NMR, 100 MHz, CDCl3, 300 K) 172.4, 170.1, 164.8, 163.4, 157.6, 153.3, 143.3, 142.6, 141.2, 139.4, 139.2, 131.1, 130.4, 118.3, 104.6, 60.9, 58.2, 56.3, 54.2, 53.4, 37.5, 21.8. LCMS: C33H38N8O6S (M calculated) 674.77, C33H39N8O6S (MH+ found) 675.
5k (1H NMR, 400 MHz, CDCl3, 300 K) 9.24 (s, 1H), 8.42 (s, 1H), 8.32 (d, J = 8.3 Hz, 1H), 7.26 (d, J = 6.0 Hz, 4H), 6.47 (s, 1H), 5.97 (sbroad, 1H), 5.64 (sbroad, 1H), 5. 32 (s, 2H), 4.87 (q, J = 6.8 Hz, 1H), 3.73–3.66 (m, 2H), 3.62–3.57 (m, 2H), 3.53 (s, 2H), 3.24–3.19 (m, 2H), 2.89 (pent., J = 7.6 Hz, 1H), 2.67 (s, 3H), 2.57–2.49 (m, 4H), 1.97 (sv. broad, 2H), 1.86–1.70 (m, 6H), 1.63–1.53 (m, 2H). (13C NMR, 100 MHz, CDCl3, 300 K) 174.5, 172.3, 164.8, 163.4, 157.6, 143.3, 142.6, 141.2, 139.2, 131.0, 130.4, 118.3, 58.2, 54.2, 53.4, 53.4, 52.9, 41.0, 37.5, 30.1, 26.0, 21.8. LCMS: C29H36N8O3S (M calculated) 576.71, C29H37N8O3S (MH+ found) 577.
5l (1H NMR, 400 MHz, CDCl3, 300 K) 9.14 (s, 1H), 8.32 (s, 1H), 8.23 (d, J = 8.4 Hz, 1H), 7.17 (d, J = 4.9 Hz, 4H), 6.37 (s, 2H), 5.91 (sbroad, 1H), 5.59 (sbroad, 1H), 5.53 (sbroad, 1H), 5.23 (s, 2H), 4.78 (q, J = 8.3 Hz, 1H), 3.59 (sbroad, 2H), 3.47 (sbroad, 2H), 3.43 (s, 2H), 3.14–3.10 (m, 2H), 2.58 (s, 3H), 2.49–2.38 (m, 2H), 1.86 (sv. broad, 4H), 1.76–1.70 (m, 4H), 1.51–1.37 (m, 4H), 0.90 (d, J = 6.8 Hz, 2H), 0.81 (d, J = 6.6 Hz, 2H). (13C NMR, 100 MHz, CDCl3, 300 K) 174.5, 172.4, 164.7, 163.4, 157.6, 143.3, 142.6, 141.2, 139.2, 131.0, 130.4, 118.3, 105.4, 58.3, 54.2, 53.6, 41.4, 40.2, 38.8, 37.5, 34.6, 32.1, 31.1, 29.3, 28.4, 24.9, 22.6, 21.8, 18.9. LCMS: C31H40N8O3S (M calculated) 604.29, C31H41N8O3S (MH+ found) 605.
5m (1H NMR, 400 MHz, CDCl3, 300 K) 7.24–7.05 (m, 10H), 6.32 (s, 1H), 6.17 (d, J = 9.1 Hz, 1H), 5.87 (Sbroad, 1H), 5.46 (sbroad, 1H), 5.23 (s, 2H), 4.56 (q, J = 7.5 Hz, 1H), 3.62 (sbroad, 2H), 3.43 (sbroad, 2H), 3.34 (s, 2H), 2.97 (s, J = 7.1 Hz, 2H), 2.40 (sv. broad, 2H), 2.13 (sv. broad, 2H), 1.95 (sbroad, 2H), 1.72 (m, 6H), 1.62 (q, J = 15.5 Hz, 8H), 1.35–1.32 (m, 2H), 1.12–1.08 (m, 2H). (13C NMR, 100 MHz, CDCl3, 300 K) 178.1, 173.1, 170.9, 164.9, 140.7, 139.2, 131.3, 130.4, 128.7, 126.3, 125.3, 118.4, 105.1. LCMS: C38H46N6O3S (M calculated) 666.88, C38H47N6O3S (MH+ found) 667.
5n (1H NMR, 400 MHz, CDCl3, 300 K) 7.14 (d, J = 5.5 Hz, 4H), 6.55 (s, 2H), 6.38 (s, 1H), 6.18 (d, J = 7.8 Hz, 1H), 5.87 (sbroad, 1H), 5.48 (sbroad, 1H), 5.23 (s, 2H), 4.56 (q, J = 7.7 Hz, 1H), 3.79 (s, 9H), 3.78 (s, 2H), 3.46 (d, J = 2.8 Hz, 2H), 2.98 (d, J = 6.7 Hz, 2H), 2.48 (sv.broad, 2H), 1.95 (sbroad, 2H), 1.72 (sbroad, 7H), 1.63 (q, J = 15.8 Hz, 7H). (13C NMR, 100 MHz, CDCl3, 300 K) 178.1, 173.1, 170.0, 165.0, 153.3, 139.4, 139.1, 131.4, 131.1, 130.4, 118.4, 105.4, 104.6, 60.9, 58.3, 56.3, 53.6, 40.7, 39.1, 37.3, 36.4, 28.0. LCMS: C38H48N6O6S (M calculated) 716.89, C38H48N6O6S (MH+ found) 717.
5o (1H NMR, 400 MHz, CDCl3, 300 K) 7.23 (q, J = 10.6 Hz, 4H), 6.46 (s, 1H), 6.31 (d, J = 8.7 Hz, 1H), 6.05 (sbroad, 1H), 5.69 (sbroad, 1H), 5.32 (s, 1H), 4.67 (q, J = 6.7 Hz, 1H), 3.76–3.65 (m, 2H), 3.62–3.56 (m, 2H), 3.53 (d, J = 6.7 Hz, 2H), 3.01 (d, J = 6.3 Hz, 2H), 2.89 (pent. J = 7.9 Hz, 1H), 2.55 (sbroad, 2H), 2.51 (sbroad, 2H), 2.04 (sbroad, 4H), 1.82 (s, 9H), 1.72 (q, J = 14.1 Hz, 9H), 1.60–1.50 (m, 2H). (13C NMR, 100 MHz, CDCl3, 300 K) 178.1, 174.5, 173.2, 165.0, 139.2, 131.3, 130.4, 118.4, 105.3, 58.3, 53.6, 53.5, 52.9, 45.3, 41.6, 41.0, 40.7, 39.1, 37.4, 36.4, 30.1, 28.0, 26.0. LCMS: C34H46N6O3S (M calculated) 618.83, C34H47N6O3S (MH+ found) 619.
5p (1H NMR, 400 MHz, CDCl3, 300 K) 7.27 (d, J = 15.5 Hz, 4H), 6.46 (s, 1H), 6.23 (d, J = 8.4 Hz, 1H), 5.87 (sbroad, 1H), 5.42 (sbroad, 1H), 4.65 (q, J = 8.4 Hz, 1H), 3.68 (sbroad, 2H), 3.56 (sbroad, 2H), 3.52 (pent., J = 6.9 Hz, 1H), 3.13–3.1 (m, 2H), 2.54 (sbroad, 4H), 2.05 (s, 4H), 1.82 (s, 9H), 1.73 (q, J = 14.7 Hz, 6H), 1.58–1.47 (m, 6H), 1.30 (s, 2H), 1.23 (t, J = 7.3 Hz, 2H), 1.0 (d, J = 5.5 Hz, 3H), 0.94–0.86 (m, 3H). (13C NMR, 100 MHz, CDCl3, 300 K) 178.1, 173.1, 139.1, 131.4, 130.4, 118.5, 105.3, 65.8, 58.3, 53.6, 40.7, 39.1, 38.8, 37.3, 36.4, 31.6, 31.1, 28.4, 28.0, 24.9, 22.6, 18.9, 15.2, 14.1. LCMS: C36H50N6O3S (M calculated) 646.89, C36H51N6O3S (MH+ found) 647.
5q (1H NMR, 400 MHz, CDCl3, 300 K) 7.31 (d, J = 7.5 Hz, 2H), 7.24–7.20 (m, 5H), 7.16 (d, J = 7.3 Hz, 2H), 6.41 (s, 1H), 6.17 (d, J = 7.2 Hz, 1H), 5.96 (sbroad, 1H), 5.60 (sbroad, 1H), 4.69 (q, J = 7.2 Hz, 1H), 3.72 (sbroad, 2H), 3.50 (q, J = 7.7 Hz, 4H), 3.44 (s, 2H), 3.07 (d, J = 8.3 Hz, 2H), 2.50 (sbroad, 2H), 2.51 (sbroad, 2H), 2.16 (dd, JAB = 7.0 Hz, JBC = 7.6 Hz, 1H), 2.03 (dd, JAB = 8.7 Hz, JBC = 6.5 Hz, 1H), 1.89–1.80 (m, 2H), 1.49–1.40 (m, 5H), 1.33–1.26 (m, 3H), 1.23 (t, J = 7.2 Hz, 4H), 1.21–1.16 (m, 3H), 1.15–1.06 (m, 3H), 1.06–0.98 (m, 2H), 0.93–0.86 (m, 3H). (13C NMR, 100 MHz, CDCl3, 300 K) 173.0, 172.6, 171.0, 164.8, 140.7, 139.1, 131.2, 130.3, 128.7, 126.3, 125.3, 118.3, 65.8, 58.1, 53.8, 52.6, 43.5, 41.0, 38.9, 37.7, 37.4, 36.7, 35.2, 31.6, 29.8, 29.4, 28.5, 22.6, 15.2, 15.2, 14.1. LCMS: C36H44N6O3S (M calculated) 640.84, C36H45N6O3S (MH+ found) 641.
5r (1H NMR, 400 MHz, CDCl3, 300 K) 7.23 (d, J = 9.2 Hz, 4H), 6.64 (s, 2H), 6.47 (s, 1H), 6.20 (t, J = 7.4 Hz, 1H), 5.97 (sbroad, 1H), 5.63 (sbroad, 1H), 4.69 (q, J = 8.0 Hz, 1H), 3.88 (s, 9H), 3.87 (s, 2H), 3.55 (q, J = 7.5 Hz, 3H), 3.50 (Q, J = 7.0 Hz, 1H), 3.06 (d, J = 8.0 Hz, 2H), 2.57 (sv.broad, 4H), 2.24–2.18 (m, 1H), 2.16 (dd, JAB = 4.2 Hz, JBC = 3.8 Hz, 1H), 2.13 (s, 1H), 2.04 (dd, JAB = 3.4 Hz, JBC = 4.2 Hz, 1H), 1.95 (s,1H), 1.90–1.80 (m, 4H), 1.51–1.42 (m, 3H), 1.33–1.26 (m, 2H), 1.23 (t, J = 7.2 Hz, 3H), 1.20–0.97 (m, 6H), 0.93–0.86 (m, 1H). (13C NMR, 100 MHz, CDCl3, 300 K) 173.0, 172.6, 170.1, 153.3, 139.4, 139.2, 131.2, 131.1, 130.3, 118.3, 118.2, 105.4, 104.6, 60.9, 58.3, 56.3, 53.8, 43.5, 41.1, 41.0, 38.9, 37.7, 37.5, 36.7, 35.2, 35.2, 29.8, 28.5. LCMS: C36H46N6O6S (M calculated) 690.85, C36H47N6O6S (MH+ found) 691.
5s (1H NMR, 400 MHz, CDCl3, 300 K) 7.24 (q, J = 7.2 Hz, 4H), 6.46 (s, 1H), 6.17 (t, J = 7.7 Hz, 1H), 5.91 (sbroad, 1H), 5.56 (sbroad, 1H), 4.69 (q, J = 7.3 Hz, 1H), 3.73–3.66 (m, 2H), 3.62–3.55 (m, 2H), 3.54–3.78 (m, 3H), 3.10–3.05 (m, 2H), 2.90 (pent J = 7.9 Hz, 1H), 2.58–2.47 (m, 4H), 2.24–2.13 (m, 2H), 2.07–1.99 (m, 1H), 1.95 (sbroad, 1H), 1.90–1.70 (m, 13H), 1.65–1.54 ( m, 2H), 1.52–1.42 (m, 4H), 1.34–1.07 (m, 8H), 0.94–0.86 (m, 1H). (13C NMR, 100 MHz, CDCl3, 300 K) 174.5, 173.0, 139.2, 131.1, 130.3, 118.3, 105.2, 75.0, 65.8, 58.4, 53.8, 53.5, 52.9, 45.4, 43.5, 41.7, 41.1, 41.0, 38.9, 37.7, 37.5, 36.7, 35.2, 31.5, 30.8, 30.1, 29.8, 28.5, 26.0, 15.2, 14.0. LCMS: C32H44N6O3S (M calculated) 592.80, C32H45N6O3S (MH+ found) 593.
5t (1H NMR, 400 MHz, CDCl3, 300 K) 7.23 (q, J = 12.7 Hz, 4H), 6.46 (s, 1H), 6.24 (t, J = 9.5 Hz, 1H), 6.0 (d, J = 7.4 Hz, 1H), 6.68 (sbroad, 1H), 4.70 (q, J = 7.4 Hz, 1H), 3.67 (sv. broad, 2H), 3.59–3.48 (m, 4H), 3.06 (d, J = 7.4 Hz, 2H), 2.54 (sbroad, 2H), 2.50 (sbroad, 2H), 2.23 (sbroad, 2H), 2.19 (s, 2H), 2.17–2.13 (m, 1H), 2.07–1.99 (m, 1H), 1.95 (sborad, 2H), 1.87 (sbroad, 2H), 1.85–1.70 (m, 6H), 1.57–1.42 (m, 8H), 1.32–1.06 (m, 7H), 0.99 (d, J = 7.5 Hz, 3H), 094–0.88 (m, 3H). (13C NMR, 100 MHz, CDCl3, 300 K) 174.5, 173.0, 172.6, 139.2, 131.1, 130.3, 118.3, 118.2, 105.3, 58.3, 53.8, 45.2, 43.5, 41.1, 41.0, 40.2, 39.0, 38.8, 37.7, 37.5, 36.7, 35.2, 31.1, 29.8, 29.3, 28.5, 28.4, 24.9, 22.6, 18.9. LCMS: C34H48N6O3S (M calculated) 620.85, C34H49N6O3S (MH+ found) 621.
5u (1H NMR, 400 MHz, CDCl3, 300 K) 7.29 (d, J = 6.40 Hz, 2H), 7.22 (d, J = 3.4 Hz, 4H), 7.17 (d, J = 7.4 Hz, 2H), 6.41 (s, 1H), 6.22 (d, J = 8.9 Hz, 1H), 5.94 (sbroad, 1H), 5.62 (sbroad, 1H), 4.69 (q, J = 8.9 Hz, 1H), 3.71 (sbroad, 2H), 3.51 (pent, J = 7.8 Hz, 2H), 3.44 (d, J = 4.3 Hz, 2H), 3.06 (t, J = 5.8 Hz, 2H), 2.50 (sbroad, 2H), 2.20 (t, J = 5.3 Hz, 5H), 1.61 (pent, J = 7.3 Hz, 2H), 1.44–1.41 (m, 2H), 1.35–1.22 (m, 6H), 1.22–1.17 (m, 2H), 0.89 (t, J = 6.6 Hz, 4H). (13C NMR, 100 MHz, CDCl3, 300 K) 173.2, 173.0, 170.9, 164.7, 140.7, 139.2, 131.1, 130.3, 128.7, 126.3, 125.3, 118.3, 105.3, 58.2, 53.9, 52.6, 37.6, 36.5, 31.3, 29.4, 25.2, 22.3, 15.2, 13.9. LCMS: C33H42N6O3S (M calculated) 602.79, C33H43N6O3S (MH+ found) 603.
5v (1H NMR, 400 MHz, CDCl3, 300 K) 7.23 (q, J = 7.6 Hz, 4H), 6.64 (s, 2H), 6.46 (s, 1H), 6.22 (d, J = 7.6 Hz, 1H), 5.93 (sbroad, 1H), 5.63 (sbroad, 1H), 4.69 (q, J = 8.1 Hz, 1H), 3.88 (s, 6H), 3.87 (s, 3H), 3.55 (d, J = 4.5 Hz, 2H), 3.53–3.48 (m, 1H), 3.09–3.04 (m, 2H), 2.56 (sv.broad, 4H), 2.20 (t, J = 6.7 Hz, 3H), 1.61 (pent, J = 8.9 Hz, 1H), 1.36–1.21 (m, 6H), 0.89 (t, J = 6.7 Hz, 4H). (13C NMR, 100 MHz, CDCl3, 300 K) 173.2, 173.0, 170.1, 153.3, 139.4, 139.1, 131.2, 131.1, 130.3, 118.3, 104.6, 60.9, 58.2, 56.3, 53.9, 37.5, 36.5, 31.3, 25.2, 22.3, 13.9. LCMS: C33H44N6O6S (M calculated) 652.80, C33H45N6O6S (MH+ found) 653.
5w (1H NMR, 400 MHz, CDCl3, 300 K) 7.27 (d, J = 7.0 Hz, 2H), 7.20 (d, J = 7.7 Hz, 2H), 6.45 (s, 2H), 6.30 (d, J = 9.8 Hz, 1H), 6.02 (sbroad, 1H), 5.76 (sbroad, 1H), 4.70 (q, J = 7.7 Hz, 1H), 3.76–3.65 (m, 2H), 3.61–3.55 (m, 2H), 3.52 (d, J = 11.5 Hz, 2H), 3.09–3.03 (m, 2H), 2.89 (pent, J = 8.5 Hz, 1H), 2.54 (sbroad, 2H), 2.50 (sbroad, 2H), 2.21 (t, J = 7.7 Hz, 2H), 2.19 (s, 2H), 1.88–1.72 (7H), 1.66–1.55 (m, 5H), 1.36–1.21 (m, 5H), 0.89 (t, J = 6.6 Hz, 3H). (13C NMR, 100 MHz, CDCl3, 300 K) 174.5, 173.2, 173.1, 164.7, 148.7, 139.3, 131.0, 130.3, 118.2, 105.3, 58.3, 53.9, 53.5, 52.9, 45.3, 41.6, 41.0, 37.6, 36.5, 31.3, 30.8, 30.1, 26.0, 25.2, 22.3, 13.9. LCMS: C29H42N6O3S (M calculated) 554.75, C29H43N6O3S (MH+ found) 555.
5x (1H NMR, 400 MHz, CDCl3, 300 K) 7.26 (d, J = 8.0 Hz, 2H), 7.20 (d, J = 8.7 Hz, 2H), 6.45 (s, 1H), 6.27 (d, J = 8.0 Hz, 1H), 5.97 (sbroad, 1H), 5.71 (sbroad, 1H), 4.69 (q, J = 9.8 Hz, 1H), 3.67 (svbroad, 2H), 3.59–3.46 (m, 4H), 3.06 (t, J = 5.4 Hz, 2H), 2.55 (sbroad, 2H), 2.50 (sbroad, 2H), 2.21 (d, J = 7.3 Hz, 1H), 2.19 (s, 3H), 1.90 (Sv.broad, 2H), 1.85–1.72 (m, 5H), 1.65–1.47 (m, 7H), 1.34–1.23 (m, 5H), 0.99 (d, J = 7.9 Hz, 3H), 0.89 (t, J = 7.1 Hz, 3H). (13C NMR, 100 MHz, CDCl3, 300 K) 174.5, 173.2, 173.0, 164.7, 148.8, 139.2, 131.1, 130.3, 118.2, 105.3, 58.4, 53.9, 40.2, 38.8, 37.6, 36.5, 34.6, 32.1, 30.9, 29.3, 28.4, 25.2, 24.9, 22.6, 22.3, 18.9, 13.9. LCMS: C31H46N6O3S (M calculated) 582.80, C31H47N6O3S (MH+ found) 583.

3.2. P. falciparum Culture and Antiplasmodial Activity Assay

P. falciparum Dd2 (multi-drug-resistant) cells were cultured using a modified Trager and Jensen method [68] in RPMI 1640 medium containing l-glutamine (Invitrogen, Carlsbad, CA, USA) and supplemented with 25 mM HEPES, pH 7.4, 26 mM NaHCO3, 2% dextrose, 15 mg/L hypoxanthine, 25 mg/L gentamycin, and 0.5% Albumax II in human A+ erythrocytes. Cultures were incubated at 37 °C in a humidified environment of 5% CO2 and 95% air. Serial dilutions of the compound in DMSO were added to the P. falciparum culture at a 1% parasitemia and 2% hematocrit in 96-well plates. The maximum DMSO concentration did not exceed 0.125%. Following incubation for 72 h at 37 °C, the inhibition of parasite growth was determined by a SYBR green I-based fluorescent assay, which measures the DNA content of the parasite [63,64,65]. Plates were frozen at −80 °C and thawed, followed by the addition of the lysis buffer (100 µL, 20 mM Tris-HCl, 0.08% saponin, 5 mM EDTA, 0.8% Triton X-100, and 0.01% SYBR Green I) to each well. Following incubation in the dark for 30 min at 37 °C, the fluorescence emission from the samples was measured using a Synergy H4 multimode plate reader (Biotek, Winooski, VT, USA) at wavelengths of 485 nM for excitation and 530 nM for emission. A reduction in fluorescent signal compared to the control reflects a reduction in DNA content that resulted from inhibition of growth.

3.3. Cytotoxicity Assay

Serial dilutions of compounds were used to determine cytotoxicity [69] in HepG2 human hepatocyte cells (2500 cells/well) in 384 well clear bottom plates (Santa Cruz Biotechnology, Dallas, TX, USA). The plates were incubated for 48 h at 37 °C in a humidified atmosphere (5% CO2, 95% air). Following the addition of 20 µL MTS ((3-(4,5-dimethylthiazol-2-yl)-5-(3-carboxymethoxyphenyl)-2-(4-sulfophenyl)-2H-tetrazolium), CellTiter 96® Aqueous cell proliferation assay, Promega, Tokyo, Japan) reagent to each well, the plates were further incubated for an additional 3 h, and cell viability was determined by measurement of the absorbance at 490 nm using Synergy H4 plate reader (Biotek, Winooski, VT, USA).

3.4. Stage-Specific Inhibition Assays

P. falciparum Dd2 cultures were tightly synchronized employing magnetic separation of schizonts [70], followed by sorbitol lysis [71]. Synchronized cultures were exposed to the hit compound at 5 × EC50 at 6, 18, 30, and 42 h post-invasion. At 12 h time intervals following treatment, samples were collected for flow cytometric cell cycle analysis. Samples were fixed in 0.04% glutaraldehyde in PBS, permeabilized with 0.25% Triton X-100, treated with RNAse (50 µg/mL), and stained with 10.24 µM YOYO-1 DNA-binding dye (Invitrogen) [72]. YOYO-1 is highly fluorescent when intercalated with double-stranded DNA. Flow cytometry acquisition was conducted in a CytoFLEX flow cytometer (Beckman Coulter, Indianapolis, IN, USA) at an excitation wavelength of 488 nM and an optical filter of 530/30. The data were analyzed using the Cytexpert program.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms242417414/s1.

Author Contributions

A.N. was responsible for the design and SAR studies of all compounds. D.C. was responsible for the design and interpretation of all the in vitro studies. B.R. was responsible for all the in vitro screening results. R.R., P.C. and A.B. performed the parallel synthesis, purification, and analytic analysis of all the compounds. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Institute of Allergy and Infectious Diseases [Grant 1R41AI120351-01].

Informed Consent Statement

Not applicable.

Data Availability Statement

Data contained within the article and Supplementary Materials.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

ESI-MSelectron spray ionization mass spectrometry
1H NMRH-nuclear magnetic resonance
13C NMRC (isotope 13)-nuclear magnetic resonance
LC-MSliquid chromatography coupled to mass spectrometry
RP-HPLCreverse phase high-performance liquid chromatography
TFAtrifluoroacetic acid
UVultraviolet
DCMdichloromethane
THFtetrahydrofuran
HFhydrogen fluoride
TKItyrosine kinase inhibitor
DMFdimethylformamide
DIEAdiisopropylethylamine

References

  1. Kennedy, J.P.; Williams, L.; Bridges, T.M.; Daniels, R.N.; Weaver, D.; Lindsley, C.W. Application of combinatorial chemistry science on modern drug discovery. J. Comb. Chem. 2008, 10, 345–354. [Google Scholar] [CrossRef]
  2. Batool, M.; Ahmad, B.; Choi, S. A Structure-Based Drug Discovery Paradigm. Int. J. Mol. Sci. 2019, 20, 2783. [Google Scholar] [CrossRef] [PubMed]
  3. Lee, A.; Breitenbucher, J.G. The impact of combinatorial chemistry on drug discovery. Curr. Opin. Drug Discov. Devel 2003, 6, 494–508. [Google Scholar] [PubMed]
  4. Pina, A.S.; Hussain, A.; Roque, A.C. An historical overview of drug discovery. Methods Mol. Biol. 2009, 572, 3–12. [Google Scholar] [CrossRef] [PubMed]
  5. Guido, R.V.; Oliva, G.; Andricopulo, A.D. Modern drug discovery technologies: Opportunities and challenges in lead discovery. Comb. Chem. High. Throughput Screen. 2011, 14, 830–839. [Google Scholar] [CrossRef]
  6. Labadie, J.W. Polymeric supports for solid phase synthesis. Curr. Opin. Chem. Biol. 1998, 2, 346–352. [Google Scholar] [CrossRef]
  7. Winkler, D.F.H. Automated Solid-Phase Peptide Synthesis. Methods Mol. Biol. 2020, 2103, 59–94. [Google Scholar] [CrossRef]
  8. Long, A. Parallel chemistry in the 21st century. Curr. Protoc. Pharmacol. 2012, 58, 9.16.1–9.16.16. [Google Scholar] [CrossRef] [PubMed]
  9. Meisenbach, M.; Allmendinger, T.; Mak, C.P. Solid-phase supported synthesis: A possibility for rapid scale-up of chemical reactions. Ernst Scher. Found. Symp. Proc. 2006, 2006, 187–203. [Google Scholar] [CrossRef]
  10. Stockwell, B.R. Exploring biology with small organic molecules. Nature 2004, 432, 846–854. [Google Scholar] [CrossRef]
  11. Abdildinova, A.; Kurth, M.J.; Gong, Y.D. Heterocycles as a Peptidomimetic Scaffold: Solid-Phase Synthesis Strategies. Pharmaceuticals 2021, 14, 449. [Google Scholar] [CrossRef] [PubMed]
  12. Nefzi, A.; Dooley, C.; Ostresh, J.M.; Houghten, R.A. Combinatorial chemistry: From peptides and peptidomimetics to small organic and heterocyclic compounds. Bioorg Med. Chem. Lett. 1998, 8, 2273–2278. [Google Scholar] [CrossRef] [PubMed]
  13. Sun, X.; Vilar, S.; Tatonetti, N.P. High-throughput methods for combinatorial drug discovery. Sci. Transl. Med. 2013, 5, 205rv201. [Google Scholar] [CrossRef] [PubMed]
  14. Dombrowski, A.W.; Aguirre, A.L.; Shrestha, A.; Sarris, K.A.; Wang, Y. The Chosen Few: Parallel Library Reaction Methodologies for Drug Discovery. J. Org. Chem. 2022, 87, 1880–1897. [Google Scholar] [CrossRef] [PubMed]
  15. Wender, P.A.; Quiroz, R.V.; Stevens, M.C. Function through synthesis-informed design. Acc. Chem. Res. 2015, 48, 752–760. [Google Scholar] [CrossRef]
  16. Agarwal, S.; Kalal, P.; Gandhi, D.; Prajapat, P. Thiazole Containing Heterocycles with CNS Activity. Curr. Drug Discov. Technol. 2018, 15, 178–195. [Google Scholar] [CrossRef] [PubMed]
  17. Arshad, M.F.; Alam, A.; Alshammari, A.A.; Alhazza, M.B.; Alzimam, I.M.; Alam, M.A.; Mustafa, G.; Ansari, M.S.; Alotaibi, A.M.; Alotaibi, A.A.; et al. Thiazole: A Versatile Standalone Moiety Contributing to the Development of Various Drugs and Biologically Active Agents. Molecules 2022, 27, 3994. [Google Scholar] [CrossRef]
  18. Chhabria, M.T.; Patel, S.; Modi, P.; Brahmkshatriya, P.S. Thiazole: A Review on Chemistry, Synthesis and Therapeutic Importance of its Derivatives. Curr. Top. Med. Chem. 2016, 16, 2841–2862. [Google Scholar] [CrossRef] [PubMed]
  19. Khatik, G.L.; Datusalia, A.K.; Ahsan, W.; Kaur, P.; Vyas, M.; Mittal, A.; Nayak, S.K. A Retrospect Study on Thiazole Derivatives as the Potential Antidiabetic Agents in Drug Discovery and Developments. Curr. Drug Discov. Technol. 2018, 15, 163–177. [Google Scholar] [CrossRef]
  20. Wang, H.; Wang, R.; Lakshmana, M.K.; Nefzi, A. Substituted dithiazole piperazine benzamides as novel amyloid beta peptide reducing agents. Bioorg. Med. Chem. Lett. 2014, 24, 4384–4388. [Google Scholar] [CrossRef]
  21. Petrou, A.; Fesatidou, M.; Geronikaki, A. Thiazole Ring-A Biologically Active Scaffold. Molecules 2021, 26, 3166. [Google Scholar] [CrossRef] [PubMed]
  22. Mishra, C.B.; Kumari, S.; Tiwari, M. Thiazole: A promising heterocycle for the development of potent CNS active agents. Eur. J. Med. Chem. 2015, 92, 1–34. [Google Scholar] [CrossRef] [PubMed]
  23. Patel, R.V.; Park, S.W. An evolving role of piperazine moieties in drug design and discovery. Mini Rev. Med. Chem. 2013, 13, 1579–1601. [Google Scholar] [CrossRef]
  24. Romanelli, M.N.; Manetti, D.; Braconi, L.; Dei, S.; Gabellini, A.; Teodori, E. The piperazine scaffold for novel drug discovery efforts: The evidence to date. Expert. Opin. Drug Discov. 2022, 17, 969–984. [Google Scholar] [CrossRef]
  25. Peng, X.J.; Tian, X.R.; Yu, S.J.; Zhao, T.T.; Bian, Q.; Zhao, W.G. Design, synthesis, and fungicidal activities of novel piperazine thiazole derivatives containing oxime ether or oxime ester moieties. Pest. Manag. Sci. 2023, 79, 1977–1986. [Google Scholar] [CrossRef] [PubMed]
  26. Yücel, N.T.; Osmaniye, D.; Kandemir, Ü.; Evren, A.E.; Can, Ö.D.; Demir Özkay, Ü. Synthesis and Antinociceptive Effect of Some Thiazole-Piperazine Derivatives: Involvement of Opioidergic System in the Activity. Molecules 2021, 26, 3350. [Google Scholar] [CrossRef] [PubMed]
  27. Osmaniye, D.; Sağlık, B.N.; Acar Çevik, U.; Levent, S.; Kaya Çavuşoğlu, B.; Özkay, Y.; Kaplancıklı, Z.A.; Turan, G. Synthesis and AChE Inhibitory Activity of Novel Thiazolylhydrazone Derivatives. Molecules 2019, 24, 2392. [Google Scholar] [CrossRef] [PubMed]
  28. Singh, R.K.; Tandon, R.; Dastidar, S.G.; Ray, A. A review on leukotrienes and their receptors with reference to asthma. J. Asthma 2013, 50, 922–931. [Google Scholar] [CrossRef]
  29. Canadian Medical Association. Ceftizoxime: A third-generation cephalosporin active against anaerobic bacteria. Committee on Antimicrobial Agents, Canadian Infectious Disease Society. Cmaj 1990, 142, 1209–1212. [Google Scholar]
  30. Rossignol, J.F. Nitazoxanide: A first-in-class broad-spectrum antiviral agent. Antivir. Res. 2014, 110, 94–103. [Google Scholar] [CrossRef]
  31. Lindauer, M.; Hochhaus, A. Dasatinib. Recent. Results Cancer Res. 2018, 212, 29–68. [Google Scholar] [CrossRef] [PubMed]
  32. Khalil, N.Y.; Aldosari, K.F. Meloxicam. Profiles Drug Subst. Excip. Relat. Methodol. 2020, 45, 159–197. [Google Scholar] [CrossRef]
  33. Yang, H.; George, S.J.; Thompson, D.A.; Silverman, H.A.; Tsaava, T.; Tynan, A.; Pavlov, V.A.; Chang, E.H.; Andersson, U.; Brines, M.; et al. Famotidine activates the vagus nerve inflammatory reflex to attenuate cytokine storm. Mol. Med. 2022, 28, 57. [Google Scholar] [CrossRef] [PubMed]
  34. Budetić, M.; Kopf, D.; Dandić, A.; Samardžić, M. Review of Characteristics and Analytical Methods for Determination of Thiabendazole. Molecules 2023, 28, 3926. [Google Scholar] [CrossRef]
  35. Blyufer, A.; Lhamo, S.; Tam, C.; Tariq, I.; Thavornwatanayong, T.; Mahajan, S.S. Riluzole: A neuroprotective drug with potential as a novel anti-cancer agent (Review). Int. J. Oncol. 2021, 59, 95. [Google Scholar] [CrossRef] [PubMed]
  36. Tylicki, A.; Siemieniuk, M. Thiamine and its derivatives in the regulation of cell metabolism. Postep. Hig. Med. Dosw. 2011, 65, 447–469. [Google Scholar] [CrossRef] [PubMed]
  37. Rathi, A.K.; Syed, R.; Shin, H.S.; Patel, R.V. Piperazine derivatives for therapeutic use: A patent review (2010-present). Expert. Opin. Ther. Pat. 2016, 26, 777–797. [Google Scholar] [CrossRef] [PubMed]
  38. Brito, A.F.; Moreira, L.K.S.; Menegatti, R.; Costa, E.A. Piperazine derivatives with central pharmacological activity used as therapeutic tools. Fundam. Clin. Pharmacol. 2019, 33, 13–24. [Google Scholar] [CrossRef]
  39. Girase, P.S.; Dhawan, S.; Kumar, V.; Shinde, S.R.; Palkar, M.B.; Karpoormath, R. An appraisal of anti-mycobacterial activity with structure-activity relationship of piperazine and its analogues: A review. Eur. J. Med. Chem. 2021, 210, 112967. [Google Scholar] [CrossRef]
  40. Jain, A.; Chaudhary, J.; Khaira, H.; Chopra, B.; Dhingra, A. Piperazine: A Promising Scaffold with Analgesic and Anti-inflammatory Potential. Drug Res. 2021, 71, 62–72. [Google Scholar] [CrossRef]
  41. Dasatinib Approved for Pediatric CML. Cancer Discov. 2018, 8, OF2. [CrossRef]
  42. Nefzi, A. Hantzsch based macrocyclization approach for the synthesis of thiazole containing cyclopeptides. Methods Mol. Biol. 2013, 1081, 1–11. [Google Scholar] [CrossRef] [PubMed]
  43. Nefzi, A.; Arutyunyan, S.; Fenwick, J.E. Two-Steps Hantzsch Based Macrocyclization Approach for the Synthesis of Thiazole Containing Cyclopeptides. J. Org. Chem. 2010, 75, 7939–7941. [Google Scholar] [CrossRef] [PubMed]
  44. Duc, D.X.; Chung, N.T. Recent Development in the Synthesis of Thiazoles. Curr. Org. Synth. 2022, 19, 702–730. [Google Scholar] [CrossRef] [PubMed]
  45. Chesnokov, O.; Visitdesotrakul, P.; Kalani, K.; Nefzi, A.; Oleinikov, A.V. Small Molecule Compounds Identified from Mixture-Based Library Inhibit Binding between Plasmodium falciparum Infected Erythrocytes and Endothelial Receptor ICAM-1. Int. J. Mol. Sci. 2021, 22, 5659. [Google Scholar] [CrossRef] [PubMed]
  46. Lakshmana, M.K.; Nefzi, A.; Houghten, R.; Minond, D. Compounds and Methods of Treating Neurological Disorders. WO2015168518A1, 30 April 2015. [Google Scholar]
  47. Behrendt, R.; White, P.; Offer, J. Advances in Fmoc solid-phase peptide synthesis. J. Pept. Sci. 2016, 22, 4–27. [Google Scholar] [CrossRef]
  48. Nayak, S.; Gaonkar, S.L. A Review on Recent Synthetic Strategies and Pharmacological Importance of 1,3-Thiazole Derivatives. Mini Rev. Med. Chem. 2019, 19, 215–238. [Google Scholar] [CrossRef]
  49. Dellai, A.; Appel, J.; Bouraoui, A.; Croft, S.; Nefzi, A. Antimalarial and cytotoxic activities of chiral triamines. Bioorg. Med. Chem. Lett. 2013, 23, 4579–4582. [Google Scholar] [CrossRef]
  50. Perry, D.L., Jr.; Roberts, B.F.; Debevec, G.; Michaels, H.A.; Chakrabarti, D.; Nefzi, A. Identification of Bis-Cyclic Guanidines as Antiplasmodial Compounds from Positional Scanning Mixture-Based Libraries. Molecules 2019, 24, 1100. [Google Scholar] [CrossRef]
  51. Nefzi, A.; Appel, J.; Arutyunyan, S.; Houghten, R.A. Parallel synthesis of chiral pentaamines and pyrrolidine containing bis-heterocyclic libraries. Multiple scaffolds with multiple building blocks: A double diversity for the identification of new antitubercular compounds. Bioorg. Med. Chem. Lett. 2009, 19, 5169–5175. [Google Scholar] [CrossRef]
  52. Daily, J.P.; Minuti, A.; Khan, N. Diagnosis, Treatment, and Prevention of Malaria in the US: A Review. JAMA 2022, 328, 460–471. [Google Scholar] [CrossRef] [PubMed]
  53. Varo, R.; Chaccour, C.; Bassat, Q. Update on malaria. Med. Clin. 2020, 155, 395–402. [Google Scholar] [CrossRef] [PubMed]
  54. Plewes, K.; Leopold, S.J.; Kingston, H.W.F.; Dondorp, A.M. Malaria: What’s New in the Management of Malaria? Infect. Dis. Clin. N. Am. 2019, 33, 39–60. [Google Scholar] [CrossRef] [PubMed]
  55. Garcia, L.S. Malaria. Clin. Lab. Med. 2010, 30, 93–129. [Google Scholar] [CrossRef] [PubMed]
  56. Milner, D.A., Jr. Malaria Pathogenesis. Cold Spring Harb. Perspect. Med. 2018, 8, a025569. [Google Scholar] [CrossRef] [PubMed]
  57. Phillips, M.A.; Burrows, J.N.; Manyando, C.; van Huijsduijnen, R.H.; Van Voorhis, W.C.; Wells, T.N.C. Malaria. Nat. Rev. Dis. Primers 2017, 3, 17050. [Google Scholar] [CrossRef]
  58. Siqueira-Neto, J.L.; Wicht, K.J.; Chibale, K.; Burrows, J.N.; Fidock, D.A.; Winzeler, E.A. Antimalarial drug discovery: Progress and approaches. Nat. Rev. Drug Discov. 2023, 22, 807–826. [Google Scholar] [CrossRef]
  59. Lover, A.A.; Baird, J.K.; Gosling, R.; Price, R.N. Malaria Elimination: Time to Target All Species. Am. J. Trop. Med. Hyg. 2018, 99, 17–23. [Google Scholar] [CrossRef]
  60. Tschan, S.; Kremsner, P.G.; Mordmüller, B. Emerging drugs for malaria. Expert. Opin. Emerg. Drugs 2012, 17, 319–333. [Google Scholar] [CrossRef]
  61. Verlinden, B.K.; Louw, A.; Birkholtz, L.M. Resisting resistance: Is there a solution for malaria? Expert. Opin. Drug Discov. 2016, 11, 395–406. [Google Scholar] [CrossRef]
  62. Aggarwal, S.; Karmakar, A.; Krishnakumar, S.; Paul, U.; Singh, A.; Banerjee, N.; Laha, N.; Roy Ball, G.; Srivastava, S. Advances in Drug Discovery based on Genomics, Proteomics and Bioinformatics in Malaria. Curr. Top. Med. Chem. 2023, 23, 551–578. [Google Scholar] [CrossRef]
  63. Bennett, T.N.; Paguio, M.; Gligorijevic, B.; Seudieu, C.; Kosar, A.D.; Davidson, E.; Roepe, P.D. Novel, rapid, and inexpensive cell-based quantification of antimalarial drug efficacy. Antimicrob. Agents Chemother. 2004, 48, 1807–1810. [Google Scholar] [CrossRef] [PubMed]
  64. Johnson, J.D.; Dennull, R.A.; Gerena, L.; Lopez-Sanchez, M.; Roncal, N.E.; Waters, N.C. Assessment and continued validation of the malaria SYBR green I-based fluorescence assay for use in malaria drug screening. Antimicrob. Agents Chemother. 2007, 51, 1926–1933. [Google Scholar] [CrossRef] [PubMed]
  65. Smilkstein, M.; Sriwilaijaroen, N.; Kelly, J.X.; Wilairat, P.; Riscoe, M. Simple and inexpensive fluorescence-based technique for high-throughput antimalarial drug screening. Antimicrob. Agents Chemother. 2004, 48, 1803–1806. [Google Scholar] [CrossRef] [PubMed]
  66. Nefzi, A.; Ostresh, J.M.; Yu, Y.; Houghten, R.A. Combinatorial chemistry: Libraries from libraries, the art of the diversity-oriented transformation of resin-bound peptides and chiral polyamides to low molecular weight acyclic and heterocyclic compounds. J. Org. Chem. 2004, 69, 3603–3609. [Google Scholar] [CrossRef] [PubMed]
  67. Hancock, W.S.; Battersby, J.E. A new micro-test for the detection of incomplete coupling reactions in solid-phase peptide synthesis using 2,4,6-trinitrobenzenesulphonic acid. Anal. Biochem. 1976, 71, 260–264. [Google Scholar] [CrossRef]
  68. Trager, W.; Jensen, J.B. Human malaria parasites in continuous culture. Science 1976, 193, 673–675. [Google Scholar] [CrossRef]
  69. Gupta, P.B.; Onder, T.T.; Jiang, G.; Tao, K.; Kuperwasser, C.; Weinberg, R.A.; Lander, E.S. Identification of selective inhibitors of cancer stem cells by high-throughput screening. Cell 2009, 138, 645–659. [Google Scholar] [CrossRef]
  70. Ribaut, C.; Berry, A.; Chevalley, S.; Reybier, K.; Morlais, I.; Parzy, D.; Nepveu, F.; Benoit-Vical, F.; Valentin, A. Concentration and purification by magnetic separation of the erythrocytic stages of all human Plasmodium species. Malar. J. 2008, 7, 45. [Google Scholar] [CrossRef]
  71. Lambros, C.; Vanderberg, J.P. Synchronization of Plasmodium falciparum erythrocytic stages in culture. J. Parasitol. 1979, 65, 418–420. [Google Scholar] [CrossRef]
  72. Bouillon, A.; Gorgette, O.; Mercereau-Puijalon, O.; Barale, J.C. Screening and evaluation of inhibitors of Plasmodium falciparum merozoite egress and invasion using cytometry. Methods Mol. Biol. 2013, 923, 523–534. [Google Scholar] [CrossRef] [PubMed]
Ijms 24 17414 g001
Figure 1. The 1st and 2nd generation ABL Tyrosine Kinase Inhibitors. The arrows indicate the key points of hydrogen and heteroatom interactions with ABL Tyrosine Kinase.
Figure 1. The 1st and 2nd generation ABL Tyrosine Kinase Inhibitors. The arrows indicate the key points of hydrogen and heteroatom interactions with ABL Tyrosine Kinase.
Ijms 24 17414 g001
Ijms 24 17414 g002

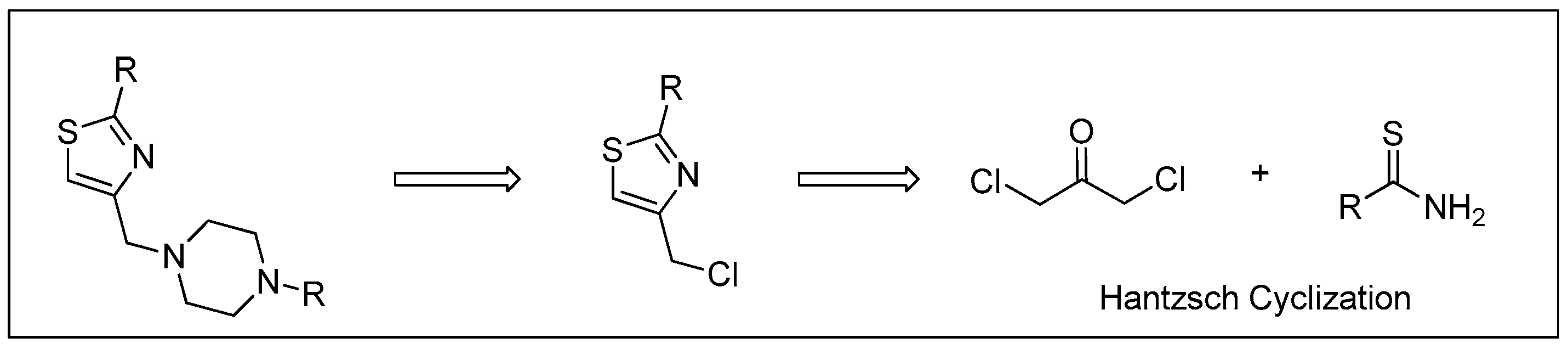

Figure 2. Retrosynthesis of piperazine-thiazoles via Hantzsch cyclization and nucleophilic displacement.
Figure 2. Retrosynthesis of piperazine-thiazoles via Hantzsch cyclization and nucleophilic displacement.
Ijms 24 17414 g002
Ijms 24 17414 sch001
Scheme 1. (a) TFA (55% in DCM); (b) 5% DIPEA in DCM; (c) R1COOH (10 eq.), DIC (10 eq.), DMF, R.T.; overnight; (d) SnCl2-2H2O (1M) in DMF, R.T.; overnight; (e) Fmoc-NCS, DMF, R.T.; (f) Piperidine (20% in DMF); (g) 1,3-dichloroacetone, DMF, 85 °C, overnight; (h) Boc-piperazine, DIPEA in DMF; (i) TFA (55% in DCM); (j) 5% DIPEA in DCM; (k) R2COOH, DIC, DMF, R.T.; overnight; (l) HF (95:5), 0 °C, 90 min.
Scheme 1. (a) TFA (55% in DCM); (b) 5% DIPEA in DCM; (c) R1COOH (10 eq.), DIC (10 eq.), DMF, R.T.; overnight; (d) SnCl2-2H2O (1M) in DMF, R.T.; overnight; (e) Fmoc-NCS, DMF, R.T.; (f) Piperidine (20% in DMF); (g) 1,3-dichloroacetone, DMF, 85 °C, overnight; (h) Boc-piperazine, DIPEA in DMF; (i) TFA (55% in DCM); (j) 5% DIPEA in DCM; (k) R2COOH, DIC, DMF, R.T.; overnight; (l) HF (95:5), 0 °C, 90 min.
Ijms 24 17414 sch001
Ijms 24 17414 g003
Figure 3. Structures and activity of identified antiplasmodial hits.
Figure 3. Structures and activity of identified antiplasmodial hits.
Ijms 24 17414 g003
Ijms 24 17414 g004
Figure 4. Stage-Specific Activity of TPIMS 2291-61.
Figure 4. Stage-Specific Activity of TPIMS 2291-61.
Ijms 24 17414 g004
Table 1. Solid-phase Synthesis of aminothiazole tethered piperazines. Representative examples.
Table 1. Solid-phase Synthesis of aminothiazole tethered piperazines. Representative examples.
Entry
Library 2291		R1R2Yield (mg) aPurity (%) b
5aIjms 24 17414 i001Ijms 24 17414 i0028292%
5bIjms 24 17414 i003Ijms 24 17414 i0047594%
5cIjms 24 17414 i005Ijms 24 17414 i0067076%
5dIjms 24 17414 i007Ijms 24 17414 i00877100%
5eIjms 24 17414 i009Ijms 24 17414 i0107386%
5fIjms 24 17414 i011Ijms 24 17414 i0128090%
5gIjms 24 17414 i013Ijms 24 17414 i0147671%
5hIjms 24 17414 i015Ijms 24 17414 i01679100%
5iIjms 24 17414 i017Ijms 24 17414 i0188789%
5jIjms 24 17414 i019Ijms 24 17414 i0207988%
5kIjms 24 17414 i021Ijms 24 17414 i0227785%
5lIjms 24 17414 i023Ijms 24 17414 i0247488%
5mIjms 24 17414 i025Ijms 24 17414 i02672100%
5nIjms 24 17414 i027Ijms 24 17414 i0288996%
5oIjms 24 17414 i029Ijms 24 17414 i0308175%
5pIjms 24 17414 i031Ijms 24 17414 i03279100%
5qIjms 24 17414 i033Ijms 24 17414 i0347986%
5rIjms 24 17414 i035Ijms 24 17414 i0368290%
5sIjms 24 17414 i037Ijms 24 17414 i0388886%
5tIjms 24 17414 i039Ijms 24 17414 i0408283%
5uIjms 24 17414 i041Ijms 24 17414 i04283100%
5vIjms 24 17414 i043Ijms 24 17414 i0448095%
5wIjms 24 17414 i045Ijms 24 17414 i0468390%
5xIjms 24 17414 i047Ijms 24 17414 i0487695%
a based on crude yield. b Crude samples were analyzed on a Vydac column with a gradient of 5–95% formic acid in MeCN over 7 min. The purity was based on the analytical traces at λ = 214 and 254 nm.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Rayala, R.; Chaudhari, P.; Bunnell, A.; Roberts, B.; Chakrabarti, D.; Nefzi, A. Parallel Synthesis of Piperazine Tethered Thiazole Compounds with Antiplasmodial Activity. Int. J. Mol. Sci. 2023, 24, 17414. https://doi.org/10.3390/ijms242417414

AMA Style

Rayala R, Chaudhari P, Bunnell A, Roberts B, Chakrabarti D, Nefzi A. Parallel Synthesis of Piperazine Tethered Thiazole Compounds with Antiplasmodial Activity. International Journal of Molecular Sciences. 2023; 24(24):17414. https://doi.org/10.3390/ijms242417414

Chicago/Turabian Style

Rayala, Ramanjaneyulu, Prakash Chaudhari, Ashley Bunnell, Bracken Roberts, Debopam Chakrabarti, and Adel Nefzi. 2023. "Parallel Synthesis of Piperazine Tethered Thiazole Compounds with Antiplasmodial Activity" International Journal of Molecular Sciences 24, no. 24: 17414. https://doi.org/10.3390/ijms242417414

APA Style

Rayala, R., Chaudhari, P., Bunnell, A., Roberts, B., Chakrabarti, D., & Nefzi, A. (2023). Parallel Synthesis of Piperazine Tethered Thiazole Compounds with Antiplasmodial Activity. International Journal of Molecular Sciences, 24(24), 17414. https://doi.org/10.3390/ijms242417414

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
