Article

New Insights into Acylhydrazones E/Z Isomerization: An Experimental and Theoretical Approach †

by
Sara Fernández-Palacios
1,
Esther Matamoros
2,3,
Isabel Morato Rojas
2,
Juan T. López Navarrete
1,
M. Carmen Ruiz Delgado
1,*,
Yolanda Vida
2,3,* and
Ezequiel Perez-Inestrosa
2,3
1
Departamento de Química Física, Universidad de Málaga, Campus Teatinos s/n, 29071 Málaga, Spain
2
Departamento de Química Orgánica, Universidad de Málaga, Campus Teatinos s/n, 29071 Málaga, Spain
3
Instituto de Investigación Biomédica de Málaga y Plataforma en Nanomedicina—IBIMA, Plataforma Bionand, Parque Tecnológico de Andalucía, 29590 Málaga, Spain
*
Authors to whom correspondence should be addressed.
†
Dedicated to the memory of Daniel Collado, died in July 2023.
Int. J. Mol. Sci. 2023, 24(19), 14739; https://doi.org/10.3390/ijms241914739
Submission received: 26 August 2023 / Revised: 23 September 2023 / Accepted: 27 September 2023 / Published: 29 September 2023
(This article belongs to the Special Issue Noncovalent Interactions: New Developments in Experiment and Theory)
Browse Figures
Versions Notes

Abstract

:
A family of acylhydrazones have been prepared and characterized with the aim of investigating their potential as information storage systems. Their well-established synthetic methodologies allowed for the preparation of seven chemically stable acylhydrazones in excellent yields that have been photophysically and photochemically characterized. In addition, DFT and TD-DFT calculations have been performed to gain more insights into the structural, energetic and photophysical properties of the E/Z isomers. Our results reveal that E/Z configurational isomerization upon irradiation is highly dependent on the stabilization of the E or Z isomers due to the formation of intramolecular H bonds and the electronic/steric effects intrinsically related to their structures. In addition, Raman spectroscopy is also used to confirm the molecular structural changes after the formation of hydrogen bonds in the isomers.

1. Introduction

The chemical properties and biological activity of hydrazones have attracted much attention from chemists in recent years. Hydrazones containing an azometine –C=N–NH– moiety are not only intermediates in the synthesis of various heterocyclic compounds; they are also effective organic compounds in their own right because of their biological activities and chemical and industrial versatility [1,2,3,4,5,6]. Hydrazones are easily synthetized, highly stable and possess unique chemical and structural properties due to their –C=N–NH– group, with a nucleophilic imine nitrogen, a imine carbon with both electrophilic and nucleophilic character and the possibility of configurational isomerism due to the carbon–nitrogen double bond [7]. Of particular interest are acylhydrazones, Schiff bases containing the –C=N–NH–CO– moiety, that possess a wide range of biological properties [8]. In addition, these compounds have been found to be an important class of organic materials used as hole-transporting materials [4] or sensors [9]. It has also been shown that acylhydrazones form stable chelate complexes with transition metal cations, using their oxygen and imine nitrogen as donor atoms [10]. Accordingly, additional donor sites (i.e., methoxy groups) can be introduced into their structure to increase the number of coordination sites of the resulting ligand and thus their affinity for metal ions [11,12].
Photochemical cis–trans isomerization of C=C, N=N and C=N double bonds have been investigated thoroughly [13,14]. Compounds containing the C=N group, such as imines and their derivatives, can undergo syn–anti isomerization, both photochemically and thermally [15,16]. In the case of hydrazones, the presence of an additional nitrogen atom that diminishes the double-bond character of the system favors E/Z isomerization [17]. However, the (Z)-isomer is often very unstable and is not observed, which precludes its application as a photoswitch [7,18].
An additional stabilization in the (Z)-isomer—for example, by introducing an intramolecular hydrogen bonding interaction—promotes a controllable isomerization [19,20]. Moreover, proper stabilization of the (Z)-isomer can lead to isomerization reactions controlled by pH changes or even to (Z)-isomers with an extremely long half-life [21,22].
On the other hand, it is also known that acylhydrazones show dynamic responses to various types of physical and chemical stimuli, showing a more feasible photochemical isomerization around the C=N double bond than hydrazones [23]. The ability of acylhydrazones to undergo constitutional, conformational and configurational dynamics makes them excellent candidates for dynamic constitutional chemistry applications [24,25]. Nevertheless, a high E/Z isomerization is only achieved when the thermodynamically less-favored (Z)-isomer is stabilized (i.e., via H-bond formation) or the thermodynamically favored (E)-isomer is destabilized [9,16,18,26]. In this regard, density functional theory (DFT) calculations have proven to be very useful for the investigation of acylhydrazones, providing a good understanding of their different conformational structures and relative stabilities [27,28,29]. On the other hand, the formation of metal complexes of related acylhydrazones with Mn(II), Fe(II), Zn(II), Co(II), Ni(II), Cu(II) and Ru(II) through the tridentate coordination site NNO has been previously described [11,30,31,32,33]. This feature, together with the C=N isomerization capabilities, allows acylhydrazones to exhibit coordination dynamics via constitutional changes of the coordination sites in the chemical structure of the E/Z isomers. This leads to locking and unlocking, controlled by metal ions, and therefore to the reversible transformation of different states [20].
Acylhydrazones combine all the interesting properties described above with effective synthesis, chemical stability and a modular approach to their design. All these factors brought our attention to the study of acylhydrazones. In this work, we report the synthesis, photophysical properties and photochemical behavior of a series of substituted acylhydrazones with two ring systems (denoted as A- and B-ring systems) (see Figure 1). Different aromatic A rings have been inserted in the structure (pyridyl in 1–5, pyrrolyl in 6 and benzyl in 7) with different abilities to stabilize the (Z)-isomer. Benzyl groups are used as B rings in all cases, except for compound 5, where quinoline groups are inserted instead. Different substituents have been included in the benzoyl B ring in order to evaluate the influence of the following factors on the photochemical properties of 1–7 molecules: (i) the presence of acceptor (i.e., CN groups) or donor units (i.e., methoxy groups); and (ii) the stabilization of the (E)-isomer via the formation of the intramolecular H-bond. Furthermore, we demonstrate how the E and Z configurational states of these molecules, which may undergo photochemical interconversion, can be blocked via interactions between a metal cation and the acylhydrazones. In summary, we describe how acylhydrazones 1–7 are affected by physical (light) and chemical (metal cations) stimuli using a combined experimental and theoretical approach, linking various spectroscopic techniques, such as FT-Raman, UV–Vis and NMR, with DFT and time-dependent (TD-DFT) calculations.

2. Results and Discussion

The synthesis of acylhydrazones is based on condensation reactions between the corresponding hydrazide and aldehyde, after which the desired compounds were isolated and purified in good yields [20,34,35]. The corresponding hydrazides were prepared using adequate carboxylic acids as starting materials, which were reacted with hydrazine hydrate after esterification with methanol (Figure 2 and Figure S1). The condensation between the obtained hydrazides with pyridine-2-carboxaldehyde (for 1, 2, 3, 4 and 5), 1H-pyrrole-2-carboxaldehyde (for 6) or benzaldehyde (for 7) give the desired compound as (E)-isomers.
The DFT-optimized geometries of the configurational (E)-isomers of 1–7 compounds in acetonitrile solution were obtained at both CAM-B3LYP and B3LYP levels. Similar trends in the molecular structural description and molecular orbital energies and topologies were obtained with the two functionals; thus, the results obtained at the CAM-B3LYP are shown in the main text, while those obtained at the B3LYP level are displayed in the Supporting Information. We have tested the two dispositions (i.e., anti- and syn-) of the amide groups, with the anti-amide configurations found to be slightly more stable than the syn ones, probably due to less steric repulsion (Figure S46 and Tables S1 and S2). Then, unless otherwise indicated, all the calculations shown here in the text refer to (E)-isomers with anti-amide configurations. In all systems, the aromatic A ring is almost coplanar with the C=N double-bond planes, while the B ring is twisted with respect to the hydrazide group, except for 5E (see Figure 3). The intramolecular H-bond formed between the quinoline nitrogen and the adjacent amide N-H proton (with a distance of 2.08 Å) is responsible for the perfectly coplanar conformation obtained for 5E (Figure 3b). Interestingly, the formation of an H-bond between the N-H group and the methoxy group in ortho (R1 in Figure 1) is also found in 3E (Figure 3b).
The photophysical properties of all acylhydrazones were analyzed in different solvents. The UV–Vis spectra of 1–4, recorded in acetonitrile, exhibit an intense absorption band in the UV region at ~290–330 nm, with absorption coefficients of ε ~ 104 M−1cm−1 typical for (hetero)aromatic highly conjugated systems (Figure 4 and Table 1). By comparing molecules 1–4, the inclusion of donor (methoxy) or acceptor (CN) groups in the phenyl A ring slightly affects the absorption maxima, producing a small redshift (i.e., 6 and 4 nm when comparing 1 with 3 and 4, respectively (see Table 1)). However, changing the type of the aromatic ring produces more significant changes. For instance, the replacement in the A ring of pyridyl in 1 by pyrrolidine in 6 produces a 20 nm bathochromic shift, while the modification of the ring B from a phenyl group in 1 to a quinoline in 5 results in a 30 nm bathochromic shift (Figure 4 and Table 1). A similar behavior was observed in methanol solutions (Figure S16 and Table 1), with a slight effect via the A-ring substituents and a moderate bathochromic shift when the B ring was modified. As expected, no significant fluorescence emission was observed in either case [36].
For all 1–7 (E)-isomers, TD-DFT calculations predict that the lowest-energy band (~290–330 nm) is associated to the S0→S1 electronic transition, which is assigned to a HOMO-LUMO one-electron excitation (Figure 5a). As seen in Figure 5b, the HOMOs are delocalized on the B ring and on the hydrazide group, except for 2E–3E and 5E, where they also extend on the A ring due to the insertion of methoxy donor groups on the phenyl in the former case or substitution of the phenyl by quinoline in the latter. On the other hand, the LUMOs are delocalized over the whole π-conjugated backbone (A ring + hydrazide + B ring) in all systems. Therefore, the transition towards the S1 state display a π–π * character.
Interestingly, TD-DFT calculations nicely reproduce the evolution of the experimental lowest-energy absorption bands with the different substitution pattern (Figure 5a). For instance, a slight bathochromic shift was found upon the insertion of methoxy or CN groups in the A ring (i.e., 5 and 4 nm when compared 1E with 3E and 4E, respectively), while a moderate bathochromic shift was predicted by changing the aromatic A ring from pyridyl to pyrrolidine or the B ring from phenyl to quinoline (i.e., 9 and 23 nm when compared 1E with 6E and 5E, respectively).
Coordination abilities of those compounds towards metal cations are expected through a tridentate NNO binding site [20]; indeed, acylhydrazone 1E has been reported to form supramolecular assemblies in the presence of potassium thiocyanate [35]. Note that in 1–5 (E)-systems, three coordination sites are properly located (namely, NNO: two sp2-nitrogen and a sp2-oxigen); thus, the planar ligand can coordinate a metal cation, forming two five-membered chelate rings. In the case of 6 and 7 (E)-isomers, one of the sp2-nitrogen is lost, and only two coordination sites remain: the imine-N and the amide-O atoms.
The coordination properties of compounds 1–7 (E)-isomers with alkaline earth cations have been evaluated in acetonitrile and methanol solutions. The absorption spectra of all acylhydrazones were slightly affected by the presence of magnesium perchlorate, showing a bathochromic shift, while other cations did not produce significant variations (Figures S17–S30). In the emission profile, for acylhydrazones 1–4 and 7 (E)-isomers, the presence of Mg2+ induced the appearance of an extremely weak emission band with maxima at 410 nm for 1E, 3E, 4E and 7E or 491 nm for 2E, but with depreciable quantum yields. The insertion of electron donor groups (–OCH3) into the B ring (Figure 1) would be expected to increase the electron density in the carbonyl groups, thus increasing the metal cation binding ability of the corresponding acylhydrazones [24]; however, no substantial changes in the absorption or emission spectra have been observed.
Acylhydrazones differ from other classes of compounds containing the C=N double bond by the presence of the carbonyl group. Although one of the main photochemical reactions in carbonyl-containing aromatic compounds is photoreduction, previous work has shown that the photo- and thermal transformation of compound 7 are independent of the presence or absence of oxygen and the polarity of the solvent used, suggesting that the main photochemical process was the E/Z isomerization of the C=N group [36]. The configurational E/Z isomerization may take place by means of two processes, namely, photochemically or thermally. It has been shown that irradiation leads to conversion of the most thermodynamically stable E form to the less stable Z isomer [13,37,38,39], and that the direction and quantum yield of the reaction, as well as the generation of a given photostationary state, depends on the nature of the substituents [16,40].
The isomerization process of 2E has been evaluated in acetonitrile. The UV spectra of a 10−5 M solution showed important changes after 5 min of UV irradiation (Figure S31), indicating the formation of 2Z. Analyzing the 1H NMR spectra, we observed the formation of 24% of 2Z after 5 min of UV irradiation, which increased to 78% after 45 min (Figure 6b and Figure S32 and Table 2); however, a reconversion to 2E was observed after longer irradiation times (Supplementary Materials Figure S32). This back-isomerization from 2Z to 2E is probably due to the nature of the light used [23]. In this work, all irradiations were carried out using a 150W medium pressure mercury lamp without filter. Since both absorptions (2E and 2Z) fall within the wavelength range of the used lamp, both isomerization processes were accelerated by irradiation. Therefore, an equilibrium state between the two isomers was reached, and neither the 100% of 2Z isomer was obtained nor was the complete reconversion to 2E possible, since longer irradiation times did not modify the observed E/Z isomers ratio.
The presence of Mg+2 in the media significantly affected the 1H-NMR of 2E, indicating the formation of a coordination complex (Figure 6c). The most-affected signals were those corresponding to the pyridine ring (A ring in Figure 1), which is consistent with the 180º rotation that this ring undergoes when cation coordination occurs. Then, the ligand adopts a planar conformation, allowing coordination of the cation via the N-pyridine, N-imine and the O-amide atoms. The most significant displacements correspond to the so called H4E, H5E and H6E, which are displaced at low field (marked in blue in Figure 6c). The isomerization process was also affected as no conversions higher than 11% were observed when similar experiments were performed in the presence of Mg+2 (Figure 6 and Table 2), even with longer irradiations times, demonstrating cation-controlled locking.
As it is well-established, photochemical isomerization depends strongly on solvent polarity and its capacity to stabilize the photoinduced transition state [16]. When a solution of 2E in methanol has been placed under UV light, a complete E-to-Z isomerization is observable after 45 min (Figure S33). Contrary to what was observed in acetonitrile solutions, irradiation of the sample for a longer time did not result in reconversion to 2E or the formation of new products. Furthermore, no side products were observed after irradiating for more than one week, and 100 % of 2Z was obtained even under preparative conditions. This indicates a high stabilization of the (Z)-isomer in methanol.
The presence of Mg+2 in the medium affects the isomerization by slowing down the conversion; however, this blocking effect is less pronounced in methanol than in acetonitrile solution. Note that the formation of the coordination complex is less favored in a protonic polar solvent, where, in addition, no appreciable differences were observed in the 1H-NMR spectra of a methanolic solutions of 2E after the addition of MgClO4 (Figure S34). Therefore, the use of acetonitrile as a solvent favored the formation of the coordination complex with Mg+2, blocking the isomerization process more effectively, although the isomerization process in the absence of a metal cation was less effective, not reaching 100% conversions to the (Z)-isomer (Table 2).
At this point, we decided to use methanolic solutions to evaluate the isomerization of all acylhydrazones, since the conversions can reach 100%. As seen in Table 3, conversion to the Z configuration was evaluated via 120 min of UV irradiation to the E form.
Compound 4E showed similar behavior to 2E, as irradiation of a 13 mM methanol solution under UV light induced a complete E-to-Z isomerization (Figure 7 and Table 3). However, this was not observed for the other compounds, even with longer irradiation times. For 1E and 3E, approximately 80% of the (Z)-isomer was observed, and no further conversion was obtained with time (Figures S35 and S37 and Table 3). Nevertheless, both compounds behave differently, since for 3, a Z-to-E reconversion was observed after longer irradiation times. On the other hand, the presence of Mg+2 in the medium affected the isomerization of 1, 2 and 3, slowing the conversion, with this blocking effect being more pronounced for 2 (Figures S34, S36, S38 and S39 and Table 3).
As confirmed via DFT-optimized (Z)-isomers of compounds 1–4, the presence of the pyridine A ring allows for the formation of a six-membered intramolecular H-bond between the 2-piridyne and the amide N-H of the hydrazide moiety after isomerization (Figures S53 and S54), increasing the thermodynamic stability of the (Z)-isomer. Furthermore, substitution at the para position of the aromatic ring (B ring in Figure 1) enhances the C=N isomerization process, with 100% of (Z)-isomer observed for 2 and 4 (instead of 80% in the case of no substitution).
However, a different behavior was observed for compound 3E, where lower isomerization yields were obtained. This is due to the formation of an intramolecular H-bond between the N-H group and the methoxy group in the ortho position in the (E)-isomer (Figure 3 and Figure 8). This stabilization of the (E)-isomer makes conversion to the (Z)-isomer somewhat more difficult as the process requires additional activation energy, as well as promoting a partial reconversion to the (E)-isomer at longer irradiation times. Nevertheless, an equilibrium state between the two isomers was reached, similar to that observed for 2 in acetonitrile solution, since longer irradiation times did not modify the observed E/Z isomers ratio.
The electronic nature of the substituent also plays an important role. While both the electron donor (–OCH3) and acceptor (–CN) p-substituent promotes a complete E/Z interconversion in 2 and 4, the behavior of both compounds in the presence of Mg+2 differs considerably. While the blocking of the E configuration was important for 2 (donor p-substituent), with a decrease in the percentage of (Z)-isomer reached, in the case of 4 (p-substituent acceptor), a complete conversion was always observed. This indicates the formation of a more effective coordination complex in the case of 2. However, for 1 and 3 compounds, no considerable effects are observed in the presence of Mg+2, indicating that the formation of the complex was not successful for those compounds.
For compound 5, the E/Z conversion was lower than that of the previous compounds (Figure S40 and Table 3). In this case, the quinoline ring promotes the formation of an intramolecular H-bond in the (E)-isomer (Figure 3 and Figure 8), and as in the case of 3, the conversion to the (Z)-isomer is less favored [36]. However, both compounds evolve differently after irradiation, with 5 showing a slower isomerization, with conversions of 66% only after long irradiation times. Furthermore, no reconversion to the (E)-isomer was observed. This could indicate a higher stabilization for 5Z than for 3Z, probably due to steric hindrance in 3Z due to the bulky ortho substitutes. Surprisingly, the presence of Mg+2 improved the yield, with a conversion of 55% instead of 35% in the absence of the cation (Figure S41 and Table 3). This seems to indicate that the presence of the cation breaks up or hinders the formation of the intramolecular H-bond in 5E.
For compounds 6 and 7, which differ from the rest in the A ring (Figure 1), no isomerization was observed (Figures S42–S45 and Table 3). In both cases, the absence of a stabilization in the (Z)-isomer has a strong influence in the process (Figures S55 and S56). However, in the case of compound 6, the pyrrolyl group promotes the stabilization of 6E via the formation of an intramolecular H-bond, which, together with the lack of stabilization of 6Z, makes the isomerization process almost negligible (Figure 9). In addition, longer irradiation times lead to the formation of undesirable side-products instead of the (Z)-isomer (Figure S42). In the case of 7, no isomerization or side product formation was observed, even at longer irradiation times (Figure S44). However, it has been previously reported that irradiations at 297 nm of 7E give rise to 7Z, and irradiations to the thermodynamically less stable 7Z at 365 nm regenerate 7E. In fact, 7Z is thermally unstable [23]. In our case, the nature of the light used in our experiments promotes isomerization in both directions, and the life time of 7Z was not long enough to be detected under the conditions used.
As irradiation of acylhydrazones 2 and 4 results in a complete E-to-Z photosiomerization, we now investigate in more detailed the E/Z interconversion in these two compounds. As seen in Figure 10a, the lowest energy absorption band is bathochromically shifted upon UV light irradiation, going from the E to the Z isomer (i.e., 16 nm for 2 and 9 nm in 4). This bathochromic shifting of the (Z)-isomer’s absorption with respect to the more stable (E)-isomer leads to so-called negative photochromism [41], which has already been observed in other acylhydrazone systems [23]. This absorption maxima redshift is well reproduced by TD-DFT calculations (Figures S57 and S58) and can be ascribed to a more extended π-conjugation in the (Z)-isomer as a result of the formation of a six-membered H-bonded network (HN-N=C-C=N), as seen in Figure 8. Moreover, we aim to inspect the influence of temperature on the E→Z configurational isomerization. To this end, the solution of (Z)-isomer obtained after UV irradiation was heated up to 150 °C, generating the (E)-isomer (Figure 10b), and thus showing the reversibility of the E/Z interconversion in compounds 2 and 4.
Finally, we investigate the molecular structural changes associated with the E→Z interconversion using Raman spectroscopy. Bond length changes and π-electron density redistribution are expected to occur upon E/Z isomerization, which might result in changes to the Raman spectral profile (i.e., changes in peak position and relative peak intensities). Please note that despite the interesting properties that can be retrieved from the Raman analysis, there are only a few papers in the literature investigating the Raman spectroscopic properties of photochromic hydrazones or acylhydrazones [42,43]. Figure 11 compares the FT-Raman spectrum of E and Z isomers for 2 and 4. As a result of the E/Z interconversion, the following changes in the Raman spectral features were observed: (i) the frequency of the C=N stretching (denoted with a purple circle) shifts towards lower values in the (Z)-isomers due to an increased pi-delocalization when compared to the (E)-isomers; (ii) a new intense band appears at around 1560 cm−1 in the Z form, marked with a red circle, which is associated with pyridine ring stretching coupled with C=N stretching and the NH bending normal modes; this is ascribed to the formation of a H-bond six-membered fragment (HN-N=C-C-N) in the (Z)-isomer; and iii) the bending of the NH group (denoted with a yellow circle) is shifted to higher frequencies upon E/Z interconversion due to the presence of the intramolecular H-bonding interaction, which also results in a different structural environment around this link; note that this mode is mixed with C-N and phenyl ring stretching in the case of the (Z)-isomer, while in the (E)-isomer, it is coupled with pyridine ring stretching. This vibrational assignment has been achieved thanks to the good agreement found between the theoretical and experimental Raman spectra (see Figure S59).

3. Conclusions

Several acylhydrazones have been prepared and characterized with structural differences that may stabilize their E or Z form. DFT calculations demonstrate the formation of intramolecular H-bonds which, in turn, would affect the stability of the isomers. Studies of E/Z configurational isomerization via UV–Vis, NMR and Raman spectroscopy show that although the stabilization of the E or Z isomers is a determining factor, the process is also strongly influenced by electronic and steric factors. While p-substitution in the B ring undergoes a complete isomerization to the Z form, the insertion of a bulky group (o-position substituent or a bigger-size B ring) affects the process due to the steric hindrance slowing down the conversion. In addition, E/Z isomerization is also affected by solvent effects and intermolecular interactions since, in the presence of Mg+2, the cation locking effect on isomerization is clear, although no major influence on the UV–Vis spectra has been observed. In summary, acylhydrazones are very interesting compounds capable of combining efficient synthesis, chemical stability and a modular approach in their design, with extraordinary properties such as the ability to undergo constitutional, conformational or configurational dynamics, thus constituting an excellent scaffold for the design of more complex functional materials. The exhaustive experimental and computational study carried out in this work could be of great help in better understanding the E/Z isomerization process in acylhydrazones, with the aim of identifying new molecular design strategies of acylhydrazone-based switches with potential use in different fields of science.

4. Materials and Methods

4.1. General Consideration

All reagents and solvents were used without further purification (except 2-pyridinecarbaldehyde via distillation). Preparative thin-layer chromatography was made using silica plates (60 F254) and revealed with UV light (254 nm). Melting points were recorded on a Gallenkamp apparatus. 1H NMR spectra were performed in a Bruker WP-200 SY at 200 MHz for 1H and 50.3 MHz for 13C or in a Bruker Biospin Avance III 400 at 400 MHz for 1H and 100.6 MHz for 13C, with the solvent peak used as the internal reference. Mass spectra were recorded in a mass spectrometer with electronic impact ionization (70 eV) Thermo Scientific DSQ II single Quadrupole GC/MS with focus GC. Absorption spectra were measured with an HP 8452 Diode Array Spectrophotometer. Emission spectra were measured with a Jasco FP-750 Spectrophotometer. Fluorescence quantum yields, ɸF, were measured for all the solutions using as reference quinine sulphate in 0.1 M H2SO4 (ɸF = 0.55). Irradiations were carried out using a water-cooled 150W medium-pressure mercury lamp in an immersion reactor. The FT-Raman spectra for for E and Z isomers of 2 and 4 compounds were recorded using an FT-Raman accessory kit (RamII)) linked to a Bruker Vertex70 spectrometer and a Nd-YAG laser source with excitation at λ = 1064 nm, with a germanium detector operating at liquid-nitrogen temperature. The operating power for the exciting laser radiation was kept at a level lower than 100 mW in all experiments. Raman scattering radiation was collected by averaging 1000 scans with 4 cm−1 spectral resolution of 4 cm−1.

4.2. DFT and TD-DFT Calculations

The ground-state molecular geometries, vibrational frequencies and Raman intensities of E and Z isomers for acylhydrazones 1–7 were optimized within the framework of the density functional theory (DFT) using the hybrid, generalized gradient approximation (GGA) functional B3LYP [44,45] and the CAM-B3LYP [45] long-range corrected hybrid functional together with the 6-31G** basis set [46,47], as implemented in the GAUSSIAN16 program [48]. All geometrical parameters were allowed to vary independently, and no imaginary harmonic modes were observed in the spectrum, indicating that each optimized structure is a local minimum on the corresponding structural potential-energy surface. The effects of solvents were taken into account in order to reproduce more accurately the experiments carried out in solution. For this purpose, the SCRF (self-consistent-reaction-field) theory and the PCM (polarized continuum model [49]) approach were applied to simulate the interaction between the molecules and the solvent (chloroform).
The time-dependent DFT (TD-DFT) [50,51] approach was used on the resulting optimized geometries to compute the vertical electronic excitation energies. Absorption spectra were modeled by the convolution of the vertical transition energies and oscillator strengths with Gaussian functions (by using 0.3 eV width at the half-height) through the GaussSum 3.0 software [52]. Molecular orbital distributions were plotted using the ChemCraft 1.8 molecular modeling software [53].
Interestingly, both CAM-B3LYP and B3LYP functionals give similar trends in the description of the molecular structure (Figure 3 and Figure S47), the HOMO and LUMO energies and topologies (Figure 5 and Figures S48–S50) and the characterization of the vertical electronic transitions (Figures S51 and S52) for the whole family of acylhydrazones under study.

4.3. General Procedure for the Synthesis of Esters

Carboxylic acids (10 mmol) were dissolved in methanol (20 mL) and H2SO4 was added. The reaction mixture was heated to reflux for 24 h under N2 atmosphere. The solvent was removed and the obtained crude mixture was dissolved in dichloromethane and washed with NaHCO3 5%. The aqueous layer was extracted with dichloromethane. The combined organic layers were dried over MgSO4, and the solvent was evaporated to obtain the corresponding ester: Methyl benzoate: Benzoic acid (25mmol, 3g) and H2SO4 (19 mmol, 1 mL); colorless oil (3g, 88% yield). Methyl 4-methoxybenzoate: 4-methoxybenzoic acid 1 (9.8 mmol, 1.5g) and H2SO4 (7.35 mmol, 0.4 mL); white solid (1.31g, 80% yield). Methyl 2,3,4-trimethoxybenzoate: 2,3,4-trimethoxybenzoic acid 3 (7 mmol, 1.5 g) and H2SO4 (5.3 mmol, 0.3 mL); colorless oil (1.45g, 90% yield). Methyl 4-cyanobenzoate: 4-cyanobenzoic acid 5 (13 mmol, 2 g) and H2SO4 (10 mmol, 0.6 mL); yellow solid (2g, 96% yield). Methyl isoquinoline-1-carboxylate: isoquinoline-1-carboxylic acid 2 (4 mmol, 0.7 g) and H2SO4 (3 mmol, 0.2 mL); yellow solid (0.53 g, 70% yield).

4.4. General Procedure for the Synthesis of Hydrazides

Methyl esters (6 mmol) were dissolved in methanol (5 mL), and hydrazine hydrate was added (60 mmol). The reaction mixture was heated to reflux for 24 h. The solvent was removed, and the obtained crude mixture was dissolved in dichloromethane and washed with water. The organic layer was dried over MgSO4, and the solvent was removed to obtain the corresponding hydrazides [54]: Benzohydrazide: ethyl benzoate (22 mmol, 3g) and hydrazine hydrate (44 mmol, 2.1 mL); white solid (2.64 g, 88% yield). 4-Methoxybenzohydrazide: methyl 4-methoxybenzoate (16 mmol, 2.63 g) and hydrazine hydrate (32 mmol, 1 mL); white solid (1.22 g, 46% yield). 2,3,4-Trimethoxybenzohydrazide: methyl 2,3,4-trimethoxybenzoate (6mmol, 1.4 g) and hydrazine hydrate (60 mmol, 1.9 mL); a yellow solid was obtained after recrystallization in ethyl acetate (1.19 g, 85% yield). 4-Cyanobenzohydrazide: methyl 4-cyanobenzoate (0.62 mmol, 0.1 g) and hydrazine hydrate (47 mmol, 1.5 mL); a white solid was obtained after recrystallization in ethanol/water (0.074g, 75% yield). Isoquinoline-1-carbohydrazide: methyl isoquinoline-1-carboxylate (2.8 mmol, 0.53 g) and hydrazine hydrate (28 mmol, 0.8 mL); white solid (0.43 g, 82% yield).

4.5. General Procedure for the Synthesis of Acylhydrazones [20]

Hydrazides (1.89 mmol) were placed in a two-necked round-bottom flask under Ar atmosphere and dissolved in 10 mL of absolute ethanol. Corresponding aldehyde (1.89 mmol) was added, and the reaction mixture was stirred for 24 h at reflux. After this time, the solvent was removed, and the reaction crude was purified via recrystallization or flash column chromatography. In all cases, the E isomer was obtained. NMR spectra are shown in Supplementary Materials Figures S2–S15.
(E)-N’-(pyridin-2-ylmethylene)benzohydrazide (1) [20]: Benzohydrazide (7.4 mmol, 1 g) and pyridine-2-carboxaldehyde freshly distilled (7.4 mmol, 0.7 mL); 1 was obtained after recrystallization in ethyl acetate/methanol (0.84 g, 50% yield); colorless solid. M.p.: 120–121 °C. UV–Vis (CH3CN) λmax nm (ε): 298 (28000). 1H-NMR (400 MHz, CD3OD): δ 7.46 (m, 1H), 7.55 (t, J = 8 Hz, 2H), 7.63 (t, J = 8 Hz, 1H), 7.92 (m, 1H), 7.97 (m, 2H), 8.32 (d, J = 8 Hz, 1H), 8.42 (s, 1H), 8.59 (m, 1H). 13C-NMR (100 MHz, CD3OD): δ 114.3, 118.3, 120.1, 124.7, 128.6, 132.7, 137.0, 137.3, 149.1, 149.6, 153.1, 162.1. MS-EI m/z (%): 226 (M+1, 2), 225 (M+, 4), 121 (11), 120 (100), 105 (70), 92 (37), 77 (43), 65 (14).
(E)-4-methoxy-N’-(pyridin-2-ylmethylene)benzohydrazide (2) [20]: 4-Methoxybenzohydrazide (1.89 mmol, 0.31 g) and pyridine-2-carboxaldehyde freshly distilled (1.89 mmol, 0.2 mL). 2 was obtained after recrystallization in ethyl acetate/methanol (0.29 g, 60% yield); colorless solid. M.p.: 130–131 °C. UV–Vis (CH3CN) λmax nm (ε): 302 (29100). 1H-NMR (400 MHz, CD3OD): δ 3.90 (s, 3H, -OCH3), 7.08 (d, J = 9 Hz, 2H), 7.45 (m, 1H), 7.92 (t, J = 8 Hz, 1H), 7.97 (d, J = 9 Hz, 2H), 8.34 (d, J = 8 Hz, 1H), 8.39 (s, 1H), 8.58 (d, J = 8 Hz, 1H). 13C-NMR (100 MHz, CD3OD): δ 55.8, 114.6, 121.8, 125.3, 125.5, 130.6, 138.2, 148.3, 149.7, 154.2, 164.2, 166.5. MS-EI m/z (%): 255 (M+, 18), 135 (100), 120 (42), 92 (21), 77 (15).
(E)-2,3,4-trimethoxy-N’-(pyridin-2-ylmethylene)-benzohydrazide (3): 2,3,4-Trimethoxybenzohydrazide (0.44 mmol, 0.1 g) and pyridine-2-carboxaldehyde freshly distilled (0.44 mmol, 0.05 mL); 3 was obtained (0.56 g, 40% yield) after purification via column chromatography (ethyl acetate/methanol 9:0.3); colorless solid. M.p.: 160–161 °C. UV–Vis (CH3CN) λmax nm (ε): 306 (23828). 1H-NMR (400 MHz, CDCl3): δ 3.88 (s, 3H), 3.92 (s, 3H), 4.04 (s, 3H), 6.81 (d, J = 9 Hz, 1H), 7.27 (m, 1H), 7.74 (m, 1H), 8.00 (d, J = 9 Hz, 1H), 8.21 (m, 2H), 8.59 (d, J = 5 Hz, 1H). 13C-NMR (100 MHz, CDCl3): δ 56.2, 61.1, 62.1, 108.0, 117.2, 121.4, 124.3, 127.5, 136.6, 141.7, 147.8, 149.3, 152.3, 153.2, 157.4, 161.8. MS-EI m/z (%): 316 (M+1, 2), 315 (M+, 9), 196 (11), 195 (100), 152 (11), 120 (50).
(E)-4-cyano-N’-(pyridin-2-ylmethylene)benzohydrazide (4): 4-cyanobenzohydrazide (1.86 mmol, 0.3 g) and pyridine-2-carboxaldehyde freshly distilled (1.86 mmol, 0.18 mL); 4 was obtained (0.25 g, 53% yield) after purification via column chromatography (dichloromethane/methanol 9:0.2); colorless solid. M.p.: 215–218 °C. UV–Vis (CH3CN) λmax nm (ε): 242 (16600), 306 (21700), 380 (4590). 1H-NMR (400 MHz, DMSO): δ 7.45 (m, 1H), 7.91 (t, J = 7 Hz, 1H), 8.00 (d, J = 7 Hz, 1H), 8.07 (m, 4H), 8.48 (s, 1H), 8.64 (d, J = 7 Hz, 1H). 13C-NMR (100 MHz, DMSO): δ 114.7, 118.8, 120.5, 125.1, 129.1, 133.1, 137.4, 137.7, 149.5, 150.1, 153.5, 162.5. MS-EI m/z (%): 250 (M+, 2), 130 (28), 120 (100), 102 (33), 92 (52), 65 (24).
(E)-N’-(pyridin-2-ylmethylene)isoquinoline-1-carbohydrazide (5). Isoquinoline-1-carbohydrazide (1.07 mmol, 200 mg) and pyridine-2-carboxaldehyde freshly distilled (1.07 mmol, 0.1 mL); 5 was obtained after recrystallization in ethyl acetate/ethanol (0.14 g, 40% yield); yellow solid. M.p.: 184–185 °C. UV–Vis (CH3CN) λmax nm (ε):332 (19580). 1H-NMR (400 MHz, CDCl3): δ 7.31 (dd, J = 7 Hz, 5 Hz; 1H), 7.77 (m, 3H), 7.90 (m, 2H), 8.30 (d, J = 8 Hz, 1H), 8.36 (s, 1H), 8.54 (d, J = 6 Hz, 1H), 8.64 (d, J = 5 Hz, 1H), 9.67 (m, 1H), 11.40 (s, 1H). 13C-NMR (100 MHz, CDCl3): δ 121.3, 124.4, 125.3, 126.9, 127.0, 127.6, 129.3, 130.7, 130.8, 136.5, 137.5, 140.1, 148.4, 149.4, 153.1. MS-EI m/z (%): 277 (M+1, 10), 276 (M+, 38), 248 (52), 220 (56), 219 (41), 157 (20), 129 (100), 128 (58), 120 (48), 92 (42).
(E)-4-methoxy-N’-(1H-pyrrol-2-ylmethylene)-benzohydrazide (6). 4-Methoxybenzohydrazide (1.2 mmol, 0.2 g) and 1H-pyrrole-2-carboxaldehyde (1.2 mmol, 0.12 g); 6 was obtained (0.22 g, 82% yield) after purification via chromatography (ethyl acetate/cyclohexane 1:1); colorless solid. M.p.: 125–126 °C. UV–Vis (CH3CN) λmax nm (ε):320 (9820). 1H-NMR (400 MHz, CDCl3): δ 3.86 (s, 3H), 6.24 (m, 1H), 6.49 (m, 1H), 6.95 (m, 3H), 7.83 (d, J = 8 Hz, 2H), 8.04 (s, 1H), 9.31 (bs, 1H), 10.05 (bs, 1H). 13C-NMR (100 MHz, CD3OD): δ 54.6, 109.1, 113.6, 114.2, 122.2, 124.6, 127.5, 129.1, 139.8, 163.0, 165.2. MS-EI m/z (%): 244 (M+1, 3), 243 (M+, 24), 151 (20), 135 (100), 107 (11), 77 (12).
(E)-N’-benzylidenebenzohydrazide (7) [35]. Benzohydrazide (7.4 mmol, 1 g) and benzaldehyde freshly distilled (7.4 mmol, 0.75 mL); 7 was obtained after recrystallization in ethyl acetate/methanol (1.37 g, 83% yield); colorless solid. M.p.: 120–121 °C. UV–Vis (CH3CN) λmax nm (ε): 300 (27500). 1H-NMR (400 MHz, CD3OD): δ 7.45 (m, 3H), 7.54 (t, J = 8 Hz, 2H), 7.63 (t, J = 8 Hz, 1H), 7.86 (m, 2H), 7.96 (d, J = 8 Hz, 2H), 8.37 (s, 1H). 13C-NMR (100 MHz, CD3OD): δ 129.0, 130.1, 131.9, 133.6, 134.4, 135.7, 151.0, 167.4. MS-EI m/z (%): 225 (M+1, 2), 224 (M+, 7), 121 (46), 105 (100), 77 (34).

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/1422-0067/24/19/14739/s1.

Author Contributions

Conceptualization, E.P.-I., M.C.R.D. and Y.V.; formal analysis, S.F.-P., E.M. and I.M.R.; writing—original draft preparation, S.F.-P., Y.V. and M.C.R.D.; writing—review and editing, E.P.-I., M.C.R.D. and Y.V.; supervision, M.C.R.D. and Y.V.; project administration, J.T.L.N., E.P.-I., M.C.R.D. and Y.V.; funding acquisition, J.T.L.N., E.P.-I., M.C.R.D. and Y.V. All authors have read and agreed to the published version of the manuscript.

Funding

This research at the University of Málaga was funded by the Junta de Andalucía (FQM-159 and FQM-017) projects, Ministerio de Ciencia e Innovación (PID2019-110305GB-I00, PID2019-104293GB-I00, PID2022-139548NB-I00 and PID2022-136705NB-I00) and “Plan Propio Universidad de Málaga” (UMA-Andalucía-TECH).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data is contained within the article or Supplementary Materials.

Acknowledgments

The authors thankfully acknowledge the computer resources, technical expertise and assistance provided by the SCBI (Supercomputing and Bioinformatics) centre of the University of Malaga. We thank the Vibrational spectroscopy (EVI) and Electronic Spectroscopy labs of the Research Central Services (SCAI) of the University of Málaga. NMR experiments have been performed in the ICTS “NANBIOSIS”; more specifically, by the U28 Unit at the Andalusian Centre for Nanomedicine and Biotechnology (BIONAND).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Betancourth, J.G.; Castaño, J.A.; Visbal, R.; Chaur, M.N. Versatility of the Amino Group in Hydrazone-Based Molecular and Supramolecular Systems. Eur. J. Org. Chem. 2022, 28, e202200228. [Google Scholar] [CrossRef]
  2. Bismillah, A.N.; Aprahamian, I. Boron Difluoride Hydrazone (BODIHY) Complexes: A New Class of Fluorescent Molecular Rotors. J. Phys. Org. Chem. 2023, 36, e4485. [Google Scholar] [CrossRef]
  3. Verma, S.; Lal, S.; Narang, R.; Sudhakar, K. Quinoline Hydrazide/Hydrazone Derivatives: Recent Insights on Antibacterial Activity and Mechanism of Action. ChemMedChem 2023, 18, e202200571. [Google Scholar] [CrossRef]
  4. Lygaitis, R.; Getautis, V.; Grazulevicius, J.V. Hole-Transporting Hydrazones. Chem. Soc. Rev. 2008, 37, 770–788. [Google Scholar] [CrossRef] [PubMed]
  5. Rollas, S.; Küçükgüzel, S.G. Biological Activities of Hydrazone Derivatives. Molecules 2007, 12, 1910–1939. [Google Scholar] [CrossRef]
  6. Mohareb, R.M.; Ibrahim, R.A.; Moustafa, H.E. Hydrazide-Hydrazones in the Synthesis of 1,3,4-Oxadiazine, 1,2,4-Triazine and Pyrazole Derivatives with Antitumor Activities. Open Org. Chem. J. 2010, 4, 8–14. [Google Scholar] [CrossRef]
  7. Su, X.; Aprahamian, I. Hydrazone-Based Switches, Metallo-Assemblies and Sensors. Chem. Soc. Rev. 2014, 43, 1963–1981. [Google Scholar] [CrossRef]
  8. Belyaeva, E.R.; Myasoedova, Y.V.; Ishmuratova, N.M.; Ishmuratov, G.Y. Synthesis and Biological Activity of N-Acylhydrazones. Russ. J. Bioorganic Chem. 2022, 48, 1123–1150. [Google Scholar] [CrossRef]
  9. Ratjen, L.; Lehn, J.-M. Reversible Photo-, Metallo- and Thermo-Induced Morphological Dynamics of Bis-Acylhydrazones. RSC Adv. 2014, 4, 50554–50557. [Google Scholar] [CrossRef]
  10. Zheng, H.W.; Yang, D.D.; Shi, Y.S.; Xiao, T.; Tan, H.W.; Zheng, X.J. Conformation- and Coordination Mode-Dependent Stimuli-Responsive Salicylaldehyde Hydrazone Zn(II) Complexes. Inorg. Chem. 2023, 62, 6323–6331. [Google Scholar] [CrossRef]
  11. Bernhardt, P.V.; Chin, P.; Sharpe, P.C.; Richardson, D.R. Hydrazone Chelators for the Treatment of Iron Overload Disorders: Iron Coordination Chemistry and Biological Activity. Dalt. Trans. 2007, 57, 3232–3244. [Google Scholar] [CrossRef] [PubMed]
  12. Bernhardt, P.V. Coordination Chemistry and Biology of Chelators for the Treatment of Iron Overload Disorders. Dalt. Trans. 2007, 30, 3214–3220. [Google Scholar] [CrossRef] [PubMed]
  13. Padwa, A. Photochemistry of the Carbon-Nitrogen Double Bond. Chem. Rev. 1977, 77, 37–68. [Google Scholar] [CrossRef]
  14. Pratt, A.C. The Photochemistry of Imines. Chem. Soc. Rev. 1977, 6, 63–81. [Google Scholar] [CrossRef]
  15. Landge, S.M.; Tkatchouk, E.; Benítez, D.; Lanfranchi, D.A.; Elhabiri, M.; Goddard, W.A.; Aprahamian, I. Isomerization Mechanism in Hydrazone-Based Rotary Switches: Lateral Shift, Rotation, or Tautomerization? J. Am. Chem. Soc. 2011, 133, 9812–9823. [Google Scholar] [CrossRef]
  16. Lehn, J.-M. Conjecture: Imines as Unidirectional Photodriven Molecular Motors-Motional and Constitutional Dynamic Devices. Chemistry 2006, 12, 5910–5915. [Google Scholar] [CrossRef]
  17. Dugave, C.; Demange, L. Cis−Trans Isomerization of Organic Molecules and Biomolecules: Implications and Applications. Chem. Rev. 2003, 103, 2475–2532. [Google Scholar] [CrossRef]
  18. Tatum, L.A.; Su, X.; Aprahamian, I. Simple Hydrazone Building Blocks for Complicated Functional Materials. Acc. Chem. Res. 2014, 47, 2141–2149. [Google Scholar] [CrossRef]
  19. Courtot, P.; Pichon, R.; Le Saint, J. Photochromisme Par Isomerisation Syn-Anti de Phenylhydrazones-2- de Tricetones-1,2,3 et de Dicetones-1,2 Substituees. Tetrahedron Lett. 1976, 17, 1181–1184. [Google Scholar] [CrossRef]
  20. Chaur, M.N.; Collado, D.; Lehn, J.-M. Configurational and Constitutional Information Storage: Multiple Dynamics in Systems Based on Pyridyl and Acyl Hydrazones. Chem.-A Eur. J. 2011, 17, 248–258. [Google Scholar] [CrossRef]
  21. Landge, S.M.; Aprahamian, I. A PH Activated Configurational Rotary Switch: Controlling the E/Z Isomerization in Hydrazones. J. Am. Chem. Soc. 2009, 131, 18269–18271. [Google Scholar] [CrossRef] [PubMed]
  22. Qian, H.; Pramanik, S.; Aprahamian, I. Photochromic Hydrazone Switches with Extremely Long Thermal Half-Lives. J. Am. Chem. Soc. 2017, 139, 9140–9143. [Google Scholar] [CrossRef] [PubMed]
  23. Van Dijken, D.J.; Kovaříček, P.; Ihrig, S.P.; Hecht, S. Acylhydrazones as Widely Tunable Photoswitches. J. Am. Chem. Soc. 2015, 137, 14982–14991. [Google Scholar] [CrossRef] [PubMed]
  24. Vantomme, G.; Jiang, S.; Lehn, J.M. Adaptation in Constitutional Dynamic Libraries and Networks, Switching between Orthogonal Metalloselection and Photoselection Processes. J. Am. Chem. Soc. 2014, 136, 9509–9518. [Google Scholar] [CrossRef] [PubMed]
  25. Men, G.; Lehn, J.M. Multiple Adaptation of Constitutional Dynamic Networks and Information Storage in Constitutional Distributions of Acylhydrazones. Chem. Sci. 2018, 10, 90–98. [Google Scholar] [CrossRef] [PubMed]
  26. Yuan, Y.X.; Zheng, Y.S. New Acylhydrazone Photoswitches with Quantitative Conversion and High Quantum Yield but without Hydrogen Bond Stabilizing (Z)-Isomer. ACS Appl. Mater. Interfaces 2019, 11, 7303–7310. [Google Scholar] [CrossRef]
  27. Hagar, M.; Soliman, S.M.; Ibid, F.; El Ashry, E.S.H. Quinazolin-4-Yl-Sulfanylacetyl-Hydrazone Derivatives; Synthesis, Molecular Structure and Electronic Properties. J. Mol. Struct. 2013, 1049, 177–188. [Google Scholar] [CrossRef]
  28. Hamzi, I.; Barhoumi-Slimi, T.M.; Abidi, R. Synthesis, Characterization, and Conformational Study of Acylhydrazones of α,β-Unsaturated Aldehydes. Heteroat. Chem. 2016, 27, 139–148. [Google Scholar] [CrossRef]
  29. Sarigöl, D.; Yüksel, D.; Okay, G.; Uzgören-Baran, A. Synthesis and Structural Studies of Acyl Hydrazone Derivatives Having Tetrahydrocarbazole Moiety. J. Mol. Struct. 2015, 1086, 146–152. [Google Scholar] [CrossRef]
  30. Choudhury, A.; Geetha, B.; Sangeetha, N.R.; Kavita, V.; Susila, V.; Pal, S. Synthesis, Structure and Properties of Manganese(II) Complexes with Aroylhydrazones of 2-Pyridine-Carboxaldehyde. J. Coord. Chem. 1999, 48, 87–95. [Google Scholar] [CrossRef]
  31. Choudhary, S.; Morrow, J.R. Dynamic Acylhydrazone Metal Ion Complex Libraries: A Mixed–Ligand Approach to Increased Selectivity in Extraction. Angew. Chemie Int. Ed. 2002, 41, 4096–4098. [Google Scholar] [CrossRef]
  32. Cao, X.-Y.; Harrowfield, J.; Nitschke, J.; Ramírez, J.; Stadler, A.-M.; Kyritsakas-Gruber, N.; Madalan, A.; Rissanen, K.; Russo, L.; Vaughan, G.; et al. Generation of [2×2] Grid Metallosupramolecular Architectures from Preformed Ditopic Bis(Acylhydrazone) Ligands and through Component Self-Assembly. Eur. J. Inorg. Chem. 2007, 2007, 2944–2965. [Google Scholar] [CrossRef]
  33. Raveendran, R.; Pal, S. Some Trans-Chlorobis(Triphenylphosphine)Ruthenium(II) Complexes with N,N,O-Donor N-(Aroyl)-N′-(Picolinylidene)Hydrazines. Polyhedron 2005, 24, 57–63. [Google Scholar] [CrossRef]
  34. Day, A.C.; Whiting, M.C. Acetone Hydrazone [2-Propanone, hydrazone]. Org. Synth. 1970, 50, 3. [Google Scholar]
  35. Vantomme, G.; Lehn, J.-M. Photo- and Thermoresponsive Supramolecular Assemblies: Reversible Photorelease of K+ Ions and Constitutional Dynamics. Angew. Chem. Int. Ed. Engl. 2013, 52, 3940–3943. [Google Scholar] [CrossRef]
  36. Belov, D.G.; Rogachev, B.G.; Tkachenko, L.I.; Smirnov, V.A.; Aldoshin, S.M. Photochemistry of Arylhydrazides in Solution. Russ. Chem. Bull. 2000, 49, 666–668. [Google Scholar] [CrossRef]
  37. Becker, R.S.; Chagneau, F. Comprehensive Investigation of the Photophysics, Photochemistry and Kinetics of a Wide Variety of Photochromic Hydrazones in Various Solvents. J. Am. Chem. Soc. 1992, 114, 1373–1381. [Google Scholar] [CrossRef]
  38. Kawamura, Y.; Takayama, R.; Nishiuchi, M.; Tsukayama, M. Curious Oxygen Effect on Photosensitized Electron-Transfer Reactions of Benzophenone Oxime O-Methyl Ethers: One-Way Photoisomerization of an Iminic Double Bond. Tetrahedron Lett. 2000, 41, 8101–8106. [Google Scholar] [CrossRef]
  39. Arai, T.; Furuya, Y.; Tokumaru, K. Photochemical Isomerization around the C N Double Bonds of N-Methoxy-1-(1-Pyrenyl)Methanimine in the Excited State. J. Photochem. Photobiol. A Chem. 1996, 97, 133–138. [Google Scholar] [CrossRef]
  40. Gordillo, M.A.; Soto-Monsalve, M.; Gutiérrez, G.; D’vries, R.F.; Chaur, M.N. Theoretical and Experimental Comparative Study of a Derivative from 2-Pyridinecarboxaldehyde Which Exhibits Configurational Dynamics. J. Mol. Struct. 2016, 1119, 286–295. [Google Scholar] [CrossRef]
  41. Bouas-Laurent, H.; Dürr, H. Organic Photochromism (IUPAC Technical Report). Pure Appl. Chem. 2001, 73, 639–665. [Google Scholar] [CrossRef]
  42. Zheng, L.Q.; Yang, S.; Lan, J.; Gyr, L.; Goubert, G.; Qian, H.; Aprahamian, I.; Zenobi, R. Solution Phase and Surface Photoisomerization of a Hydrazone Switch with a Long Thermal Half-Life. J. Am. Chem. Soc. 2019, 141, 17637–17645. [Google Scholar] [CrossRef] [PubMed]
  43. Galić, N.; Dijanošić, A.; Kontrec, D.; Miljanić, S. Structural Investigation of Aroylhydrazones in Dimethylsulphoxide/Water Mixtures. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2012, 95, 347–353. [Google Scholar] [CrossRef]
  44. Lee, C.; Yang, W.; Parr, R.G. Development of the Colle-Salvetti Correlation-Energy Formula into a Functional of the Electron Density. Phys. Rev. B 1988, 37, 785. [Google Scholar] [CrossRef] [PubMed]
  45. Becke, A.D. Density-functional Thermochemistry. III. The Role of Exact Exchange. J. Chem. Phys. 1993, 98, 5648–5652. [Google Scholar] [CrossRef]
  46. Hehre, W.J.; Ditchfield, R.; Pople, J.A.; Wall, F.T.; Hiller, L.A.; Wheeler, D.J.; Chern Phys, J.; Hammersley, J.M.; Morton, K.W.; Roy Stat Soc, J.; et al. Self—Consistent Molecular Orbital Methods. XII. Further Extensions of Gaussian—Type Basis Sets for Use in Molecular Orbital Studies of Organic Molecules. J. Chem. Phys. 1972, 56, 2257–2261. [Google Scholar] [CrossRef]
  47. Francl, M.M.; Pietro, W.J.; Hehre, W.J.; Binkley, J.S.; Gordon, M.S.; DeFrees, D.J.; Pople, J.A. Self-consistent Molecular Orbital Methods. XXIII. A Polarization-type Basis Set for Second-row Elements. J. Chem. Phys. 1982, 77, 3654–3665. [Google Scholar] [CrossRef]
  48. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, R.J.; Scalmani, G.; Barone, V.; Petersson, G.A.; Nakatsuji, H.; et al. Gaussian 09, Revision B.01; Gaussian Inc.: Wallingford, CT, USA, 2016. [Google Scholar]
  49. Tomasi, J.; Persico, M. Molecular Interactions in Solution: An Overview of Methods Based on Continuous Distributions of the Solvent. Chem. Rev. 1994, 94, 2027–2094. [Google Scholar] [CrossRef]
  50. Runge, E.; Gross, E.K.U. Density-Functional Theory for Time-Dependent Systems. Phys. Rev. Lett. 1984, 52, 997. [Google Scholar] [CrossRef]
  51. Heinze, H.H.; Görling, A.; Rösch, N. An Efficient Method for Calculating Molecular Excitation Energies by Time-Dependent Density-Functional Theory. J. Chem. Phys. 2000, 113, 2088–2099. [Google Scholar] [CrossRef]
  52. O’Boyle, N.M.; Tenderholt, A.L.; Langner, K.M. Cclib: A Library for Package-Independent Computational Chemistry Algorithms. J. Comput. Chem. 2008, 29, 839–845. [Google Scholar] [CrossRef] [PubMed]
  53. Chemcraft—Graphical Program for Visualization of Quantum Chemistry Computations. Available online: https://www.chemcraftprog.com/ (accessed on 19 June 2023).
  54. Ono, K.; Ezaka, S.; Higashibata, A.; Hosokawa, R.; Ohkita, M.; Saito, K.; Suto, M.; Tomura, M.; Matsushita, Y.; Naka, S.; et al. Macrocyclic and Acyclic Bis(2,5-Diphenyl-1,3,4-Oxadiazole)s with Electron-Transporting and Hole-Blocking Ability in Organic Electroluminescent Devices. Macromol. Chem. Phys. 2005, 206, 1576–1582. [Google Scholar] [CrossRef]
Ijms 24 14739 g001
Figure 1. Chemical structures of the acylhydrazones 1–7 under study.
Figure 1. Chemical structures of the acylhydrazones 1–7 under study.
Ijms 24 14739 g001
Ijms 24 14739 g002
Figure 2. General synthesis of the acylhydrazones: 1 (B=phenyl; A=2-pyridine); 2 (B=4-methoxyphenyl; A=2-pyridine); 3 (B=2,3,4-trimethoxyphenyl; A=2-pyridine); 4 (B=4-cyanophenyl; A=2-pyridine); 5 (B=1-isoquinoline; A=2-pyridine); 6 (B=4-methoxyphenyl; A=2-pyrrolidine); 7 (R=phenyl; A=phenyl).
Figure 2. General synthesis of the acylhydrazones: 1 (B=phenyl; A=2-pyridine); 2 (B=4-methoxyphenyl; A=2-pyridine); 3 (B=2,3,4-trimethoxyphenyl; A=2-pyridine); 4 (B=4-cyanophenyl; A=2-pyridine); 5 (B=1-isoquinoline; A=2-pyridine); 6 (B=4-methoxyphenyl; A=2-pyrrolidine); 7 (R=phenyl; A=phenyl).
Ijms 24 14739 g002
Ijms 24 14739 g003
Figure 3. (a) DFT-calculated (PCM-CAM-B3LYP/6-31G** using acetonitrile as solvent) dihedral angles (°) between the B-ring and the hydrazide group of 1–7 (E)-isomers; and (b) top views of optimized geometries of 3 and 5 (E)-isomers, with the intramolecular H-bond distances shown in orange.
Figure 3. (a) DFT-calculated (PCM-CAM-B3LYP/6-31G** using acetonitrile as solvent) dihedral angles (°) between the B-ring and the hydrazide group of 1–7 (E)-isomers; and (b) top views of optimized geometries of 3 and 5 (E)-isomers, with the intramolecular H-bond distances shown in orange.
Ijms 24 14739 g003
Ijms 24 14739 g004

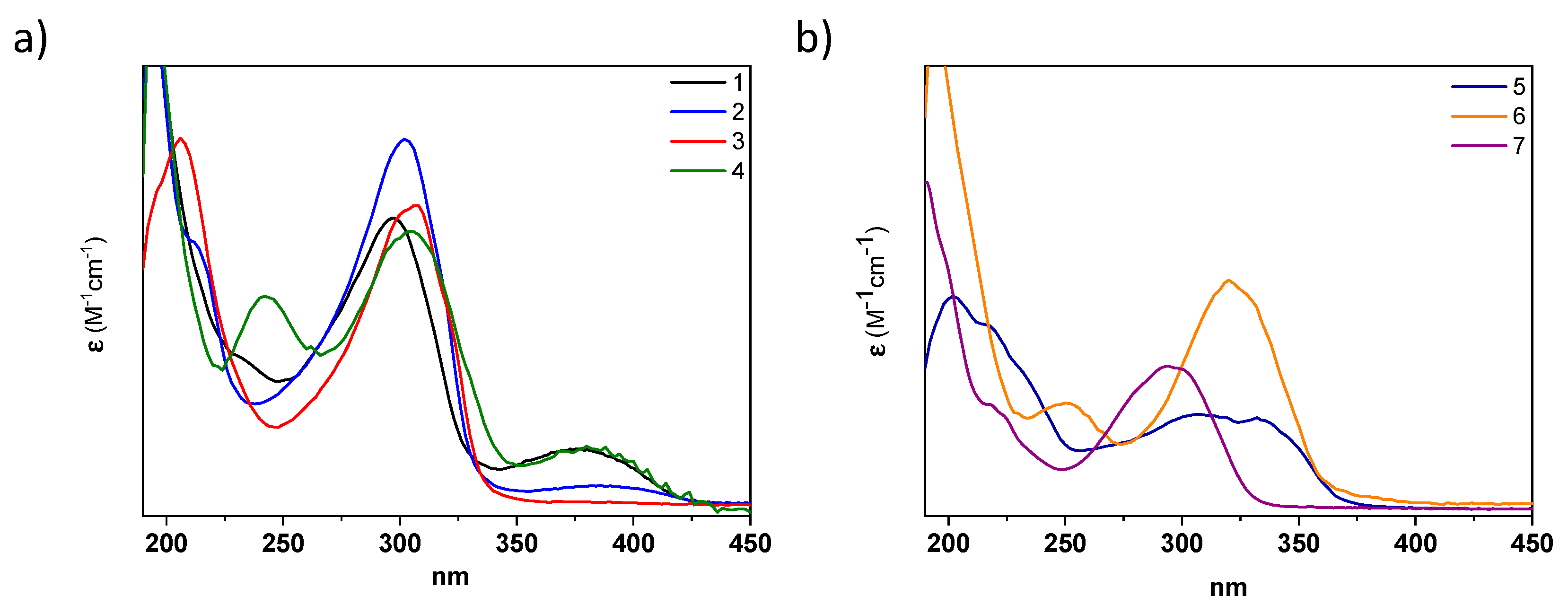

Figure 4. UV spectra of (a) 1 (black), 2 (blue), 3 (red) and 4 (green); and (b) 5 (dark blue), 6 (orange) and 7 (purple) (E)-isomers in CH3CN at a concentration of 5 × 10−6 M.
Figure 4. UV spectra of (a) 1 (black), 2 (blue), 3 (red) and 4 (green); and (b) 5 (dark blue), 6 (orange) and 7 (purple) (E)-isomers in CH3CN at a concentration of 5 × 10−6 M.
Ijms 24 14739 g004
Ijms 24 14739 g005
Figure 5. (a) DFT-calculated (PCM-CAM-B3LYP/6-31G** using acetonitrile as a solvent) HOMO and LUMO energies of 1-7 (E)-isomers. TD-DFT-calculated electronic absorption wavelengths (nm) for the lowest-energy electronic transitions are also shown. (b) The HOMO and LUMO topologies of 1E and 3E (for the rest of compounds, see Figure S48).
Figure 5. (a) DFT-calculated (PCM-CAM-B3LYP/6-31G** using acetonitrile as a solvent) HOMO and LUMO energies of 1-7 (E)-isomers. TD-DFT-calculated electronic absorption wavelengths (nm) for the lowest-energy electronic transitions are also shown. (b) The HOMO and LUMO topologies of 1E and 3E (for the rest of compounds, see Figure S48).
Ijms 24 14739 g005
Ijms 24 14739 g006

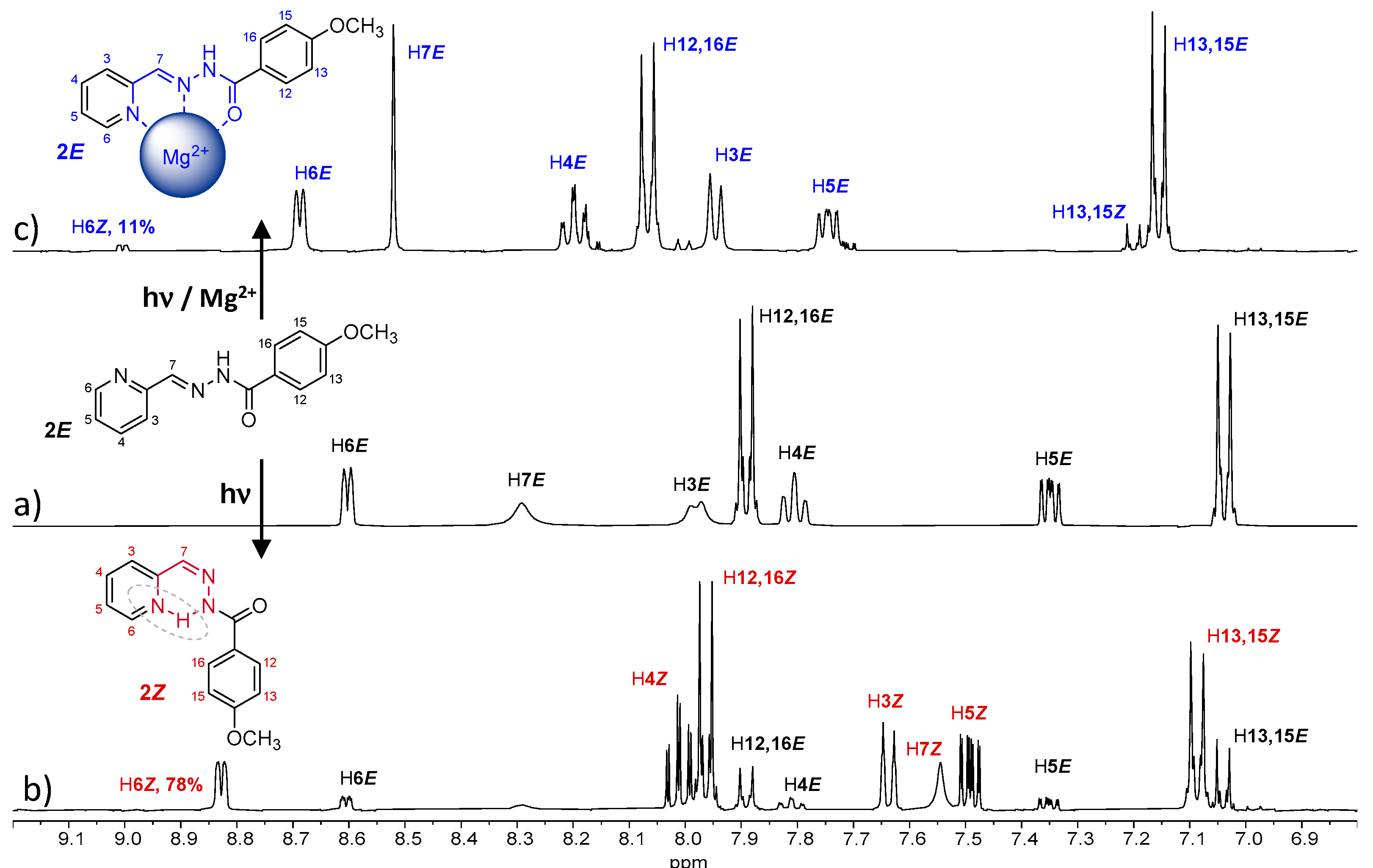

Figure 6. 1H NMR spectra (400 MHz) in CD3CN of a solution of (a) 2E and (b) 2E after 45 min of UV irradiation, and (c) 2E + 10 eq. of MgClO4 after 45 min of UV irradiation. The initial concentration of 2E was 13 mM.
Figure 6. 1H NMR spectra (400 MHz) in CD3CN of a solution of (a) 2E and (b) 2E after 45 min of UV irradiation, and (c) 2E + 10 eq. of MgClO4 after 45 min of UV irradiation. The initial concentration of 2E was 13 mM.
Ijms 24 14739 g006
Ijms 24 14739 g007

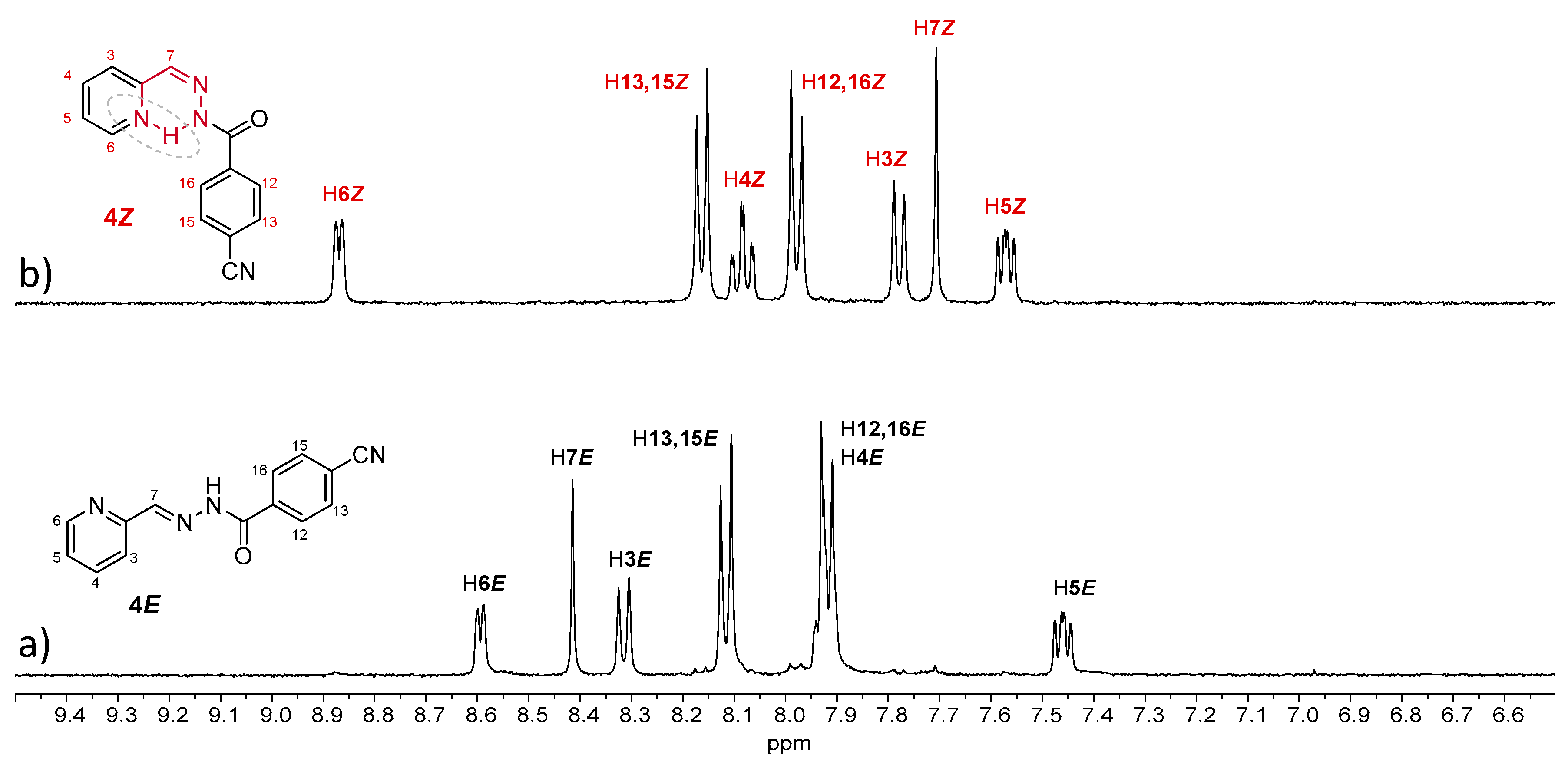

Figure 7. 1H NMR spectra (400 MHz) in CD3OD of a solution of (a) 4E and (b) 4E after 45 min of UV irradiation. The initial concentration of 4E was 13 mM.
Figure 7. 1H NMR spectra (400 MHz) in CD3OD of a solution of (a) 4E and (b) 4E after 45 min of UV irradiation. The initial concentration of 4E was 13 mM.
Ijms 24 14739 g007
Ijms 24 14739 g008

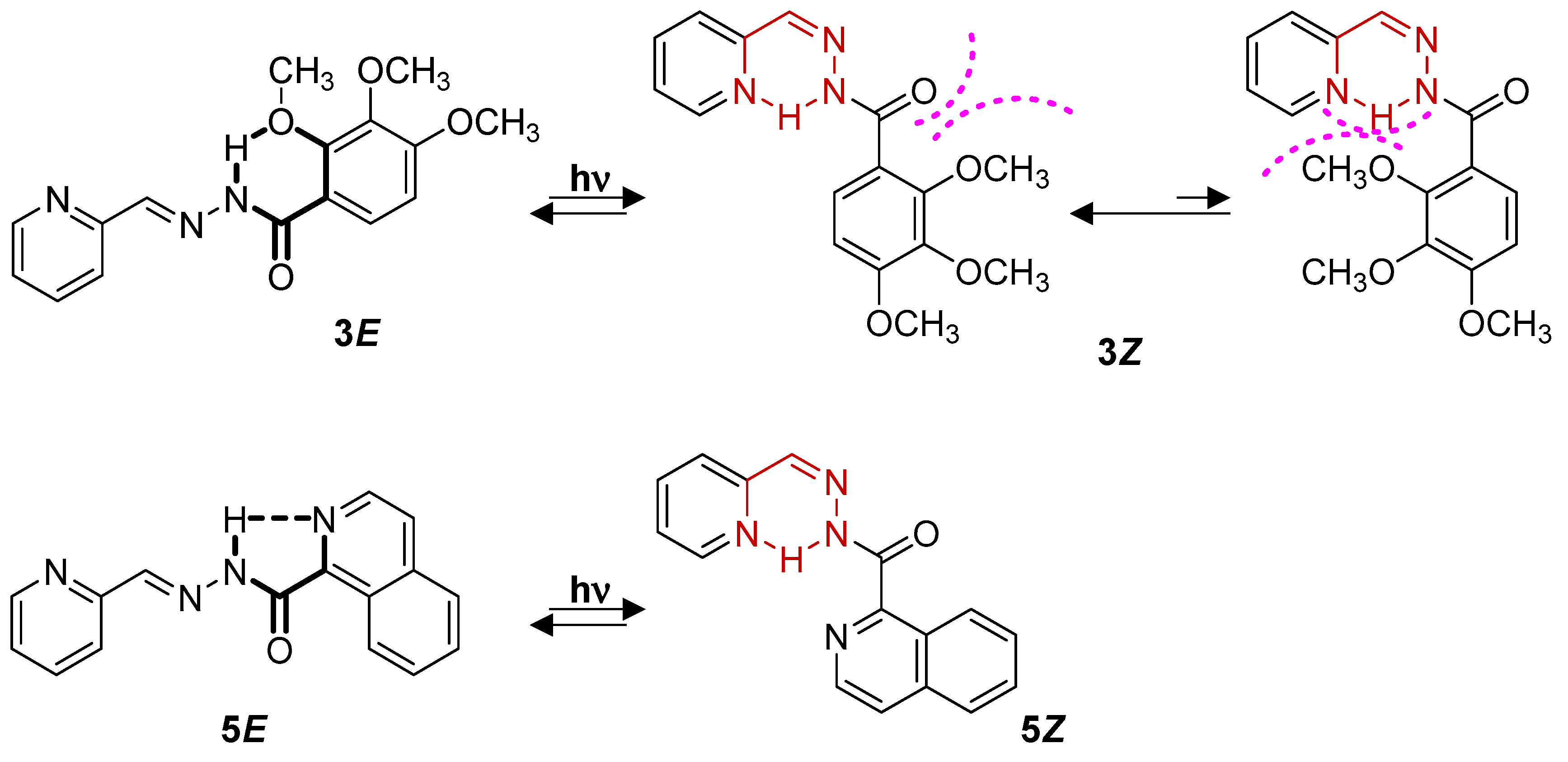

Figure 8. E/Z isomerization process for acylhydrazones 3 and 5.
Figure 8. E/Z isomerization process for acylhydrazones 3 and 5.
Ijms 24 14739 g008
Ijms 24 14739 g009
Figure 9. E/Z isomerization process for acylhydrazones 6 and 7.
Figure 9. E/Z isomerization process for acylhydrazones 6 and 7.
Ijms 24 14739 g009
Ijms 24 14739 g010

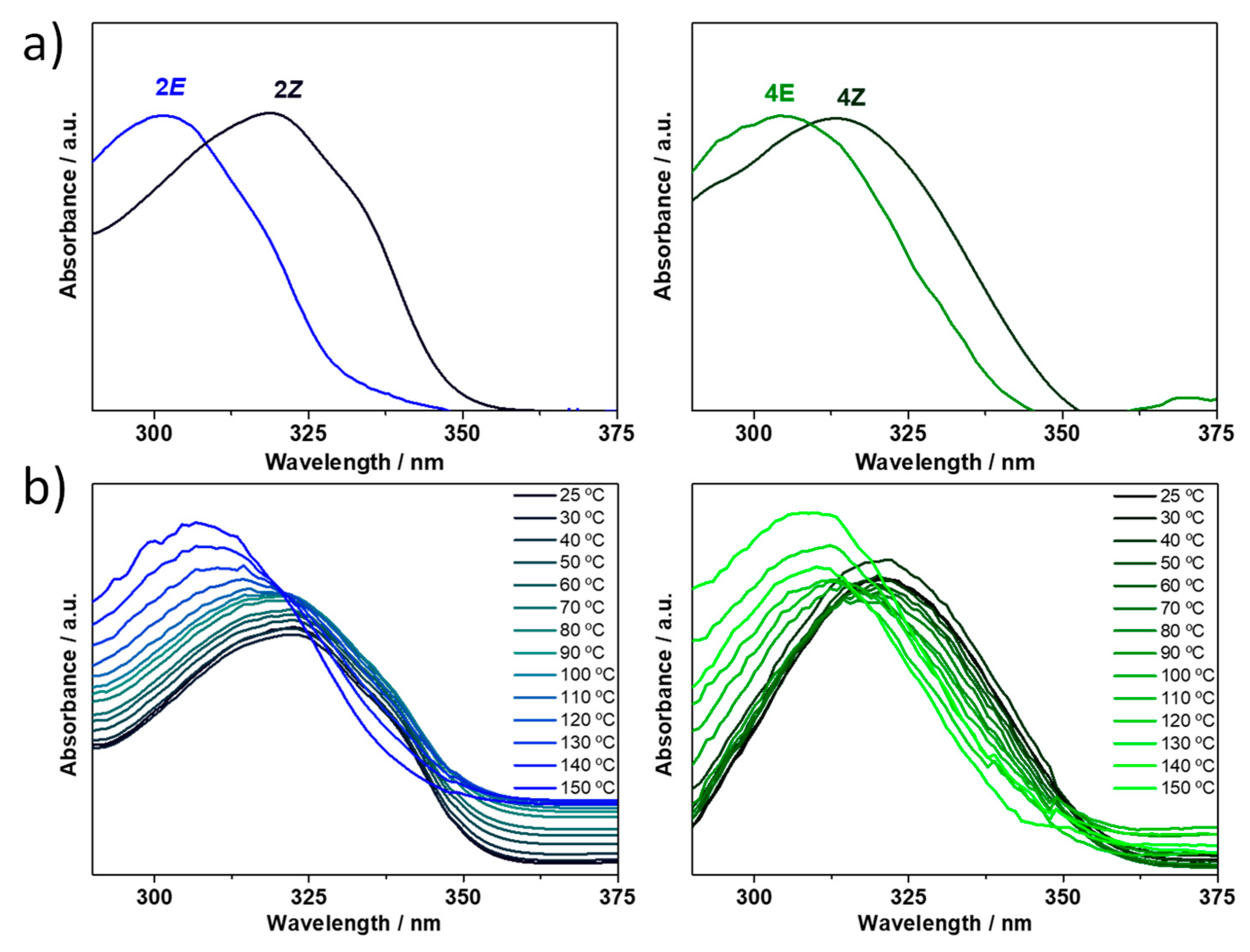

Figure 10. (a) UV–Vis absorption spectra of the photoisomerization experiment of acylhydrazones 2 (left) and 4 (right) in CHCl3 performed via UV irradiation with λ = 365 nm for 45 min. (b) UV–Vis spectral changes accompanying the thermal conversion of the (Z)-isomer to the (E)-isomer in DMSO upon heating for 2 (left) and 4 (right) compounds.
Figure 10. (a) UV–Vis absorption spectra of the photoisomerization experiment of acylhydrazones 2 (left) and 4 (right) in CHCl3 performed via UV irradiation with λ = 365 nm for 45 min. (b) UV–Vis spectral changes accompanying the thermal conversion of the (Z)-isomer to the (E)-isomer in DMSO upon heating for 2 (left) and 4 (right) compounds.
Ijms 24 14739 g010
Ijms 24 14739 g011
Figure 11. Solid-state FT-Raman ((λexc = 1064 nm) spectra for E and Z isomers of 2 (a) and 4 (b) compounds. (c) PCM-CAM-B3LYP/6-31G** vibrational eigenvectors associated with the Raman features discussed in the text, taking 2E and 2Z isomers as representative examples. The experimental and theoretical (in parentheses) wavenumbers are also shown.
Figure 11. Solid-state FT-Raman ((λexc = 1064 nm) spectra for E and Z isomers of 2 (a) and 4 (b) compounds. (c) PCM-CAM-B3LYP/6-31G** vibrational eigenvectors associated with the Raman features discussed in the text, taking 2E and 2Z isomers as representative examples. The experimental and theoretical (in parentheses) wavenumbers are also shown.
Ijms 24 14739 g011
Table 1. Absorption maxima and molar absorption coefficient of the acylhydrazones in CH3CN and CH3OH.
Table 1. Absorption maxima and molar absorption coefficient of the acylhydrazones in CH3CN and CH3OH.
CH3CN1234567
λmax *300, 378302306242, 304, 380300, 330250, 320294
ε2.25, 4.402.912.381.66, 2.18, 4.591.952.27, 4.913.06
CH3OH1234567
λmax *305274, 319319, 361319, 365327, 370327298
ε4.423.38, 4.043.44, 1.192.82, 2.002.47, 2.835.143.08
* λ abs max (nm); ε (104 M−1cm−1).
Table 2. % of 2Z isomer after UV light irradiation of the corresponding 2E form (13 mM acetonitrile solutions).
Table 2. % of 2Z isomer after UV light irradiation of the corresponding 2E form (13 mM acetonitrile solutions).
Irradiation Time (min)5 15304575120
CH3CN24%54%73%78%74%69%
CH3CN + [Mg+2] *11%11%11%11%11%11%
* In the presence of 10 equivalents of Mg(ClO4)2.
Table 3. Percentage of Z isomer after UV-light irradiation of the corresponding E form (13 mM methanol solutions).
Table 3. Percentage of Z isomer after UV-light irradiation of the corresponding E form (13 mM methanol solutions).
Irradiation Time1234567
45 min80%100%80%100%35%0%0%
120 min80%100%67%100%66%--0%
45 min + [Mg+2] *75%63%80%100%55%0%0%
* In the present of 10 equivalents of Mg(ClO4)2.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Fernández-Palacios, S.; Matamoros, E.; Morato Rojas, I.; López Navarrete, J.T.; Ruiz Delgado, M.C.; Vida, Y.; Perez-Inestrosa, E. New Insights into Acylhydrazones E/Z Isomerization: An Experimental and Theoretical Approach. Int. J. Mol. Sci. 2023, 24, 14739. https://doi.org/10.3390/ijms241914739

AMA Style

Fernández-Palacios S, Matamoros E, Morato Rojas I, López Navarrete JT, Ruiz Delgado MC, Vida Y, Perez-Inestrosa E. New Insights into Acylhydrazones E/Z Isomerization: An Experimental and Theoretical Approach. International Journal of Molecular Sciences. 2023; 24(19):14739. https://doi.org/10.3390/ijms241914739

Chicago/Turabian Style

Fernández-Palacios, Sara, Esther Matamoros, Isabel Morato Rojas, Juan T. López Navarrete, M. Carmen Ruiz Delgado, Yolanda Vida, and Ezequiel Perez-Inestrosa. 2023. "New Insights into Acylhydrazones E/Z Isomerization: An Experimental and Theoretical Approach" International Journal of Molecular Sciences 24, no. 19: 14739. https://doi.org/10.3390/ijms241914739

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
