Two Sweet Sorghum (Sorghum bicolor L.) WRKY Transcription Factors Promote Aluminum Tolerance via the Reduction in Callose Deposition

by
Kexing Guan
,
Zhenming Yang
,
Meiqi Zhan
,
Meihui Zheng
,
Jiangfeng You
,
Xiangxiang Meng
,
He Li
* and
Jie Gao
*
Jilin Province Engineering Laboratory of Plant Genetic Improvement, College of Plant Science, Jilin University, Changchun 130062, China
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2023, 24(12), 10288; https://doi.org/10.3390/ijms241210288
Submission received: 17 May 2023 / Revised: 14 June 2023 / Accepted: 15 June 2023 / Published: 17 June 2023
(This article belongs to the Section Molecular Plant Sciences)
Browse Figures
Versions Notes

Abstract

:
Aluminum (Al) toxicity is a primary limiting factor for crop production in acidic soils. The WRKY transcription factors play important roles in regulating plant growth and stress resistance. In this study, we identified and characterized two WRKY transcription factors, SbWRKY22 and SbWRKY65, in sweet sorghum (Sorghum bicolor L.). Al induced the transcription of SbWRKY22 and SbWRKY65 in the root apices of sweet sorghum. These two WRKY proteins were localized in the nucleus and exhibited transcriptional activity. SbWRKY22 showed the significant transcriptional regulation of SbMATE, SbGlu1, SbSTAR1, SbSTAR2a, and SbSTAR2b, which are major known Al tolerance genes in sorghum. Interestingly, SbWRKY65 had almost no effect on the aforementioned genes, but it significantly regulated the transcription of SbWRKY22. Therefore, it is speculated that SbWRKY65 might indirectly regulate Al-tolerance genes mediated by SbWRKY22. The heterologous expression of SbWRKY22 and SbWRKY65 greatly improved the Al tolerance of transgenic plants. The enhanced Al tolerance phenotype of transgenic plants is associated with reduced callose deposition in their roots. These findings suggest the existence of SbWRKY22- and SbWRKY65-mediated Al tolerance regulation pathways in sweet sorghum. This study extends our understanding of the complex regulatory mechanisms of WRKY transcription factors in response to Al toxicity.

1. Introduction

Nearly 30% of the total land area and more than 50% of the world’s potentially arable land is covered by acidic soils [1]. In soils with pH levels below 5.0, Al is released from clay minerals and oxides and absorbed by plant roots in the form of soluble trivalent Al ions (Al3+) [2]. Studies have shown that micromolar concentrations of Al3+ can rapidly inhibit plant root growth [3,4]; thus, Al stress has long been regarded as one of the most significant limiting factors for agricultural productivity in acidic soils [5]. Therefore, improving crop tolerance to Al has become a key concern in increasing crop yields on acidic soils.
During the long process of evolution, plants have developed two main defense mechanisms against Al toxicity. One is the exclusion mechanism that stops Al from entering root cells [6,7,8]. SbMATE in sorghum (Sorghum bicolor L.) and HvAACT1 in barley (Hordeum vulgare L.), which belong to the MATE family, were the first Al resistance genes to be identified. These genes encode citric acid transporters that promote citric acid secretion to chelate Al3+ ions, thereby blocking their entry into the root cells [9,10]. Another is the tolerance mechanism, such as adjusting the root cell walls characteristics to change its Al-binding capacity and compartmentalizing Al after it enters the root symplast [11]. Many genes regulate plant Al resistance by altering the polysaccharide content of the cell wall. For example, the protein complex encoded by OsSTAR1/OsSTAR2 in rice functions as an ATP-binding cassette transporter and could be involved in the mediation of the translocation of UDP-glucaric acid from the cytoplasm to the cell wall, thereby altering the cell wall composition and relieving Al toxicity [12]. Through regulating xyloglucan endo-transglycosylase (XET) activity, which in turn affects xyloglucan content in the cell wall and the Al-binding ability, AtXTH31 modulates Al resistance in Arabidopsis thaliana (L.) Heynh. [13]. Callose is a cell-wall-associated polysaccharide. Its deposition is not only a sensitive indicator of Al toxicity but is also a toxicity pathway itself [14]. The SbGlu1 gene in sorghum, encoding β-1,3-glucanase, catalyzes callose degradation, thereby improving plant Al tolerance [14,15].
Studies on the mechanisms of Al tolerance in plants have delved into the level of transcriptional regulation. A number of transcription factors were revealed in Al resistance in plants. AtSTOP1 and OsART1 were crucial Cys2His2 zinc finger transcription factors that were first identified in Arabidopsis and rice, separately [16]. AtSTOP1 positively regulates the expression of several Al tolerance genes, including AtALMT1, AtMATE, and AtALS3, in Arabidopsis [16,17,18]. Similar to AtSTOP1, OsART1 also controls the expression of a large number of Al tolerance genes (e.g., OsSTAR1, OsSTAR2, OsNrat1, OsFRDL4, OsMGT1, OsCDT3, and OsEXPA10) [19,20,21,22]. However, both AtSTOP1 and OsART1 are constitutively expressed in plants, rather than as a result of Al induction. Meanwhile, in sweet sorghum, which is a variant of grain sorghum, Al stress induces the positive transcription of SbSTOP1. SbSTOP1 then regulates the expression of Al tolerance genes such as SbMATE, SbSTAR1, SbSTAR2, and SbGlu1 [15,23,24].
The WRKY transcription factors are a class of proteins found in plants that contain one or two highly conserved WRKY domains. The WRKY domain includes an N-terminal WRKYGQK motif and a C-terminal C2H2 or C2HC-type zinc finger motif that can normally bind Zn2+ to facilitate the recognition and binding to DNA. WRKY proteins can be categorized into three groups (I, II, and III) based on the number of WRKY domains and the type of zinc finger motif (C2H2 or C2HC) they contain. Members of group I have two WRKY domains with C2H2-type zinc finger. Members of group II have only one WRKY domain with one C2H2-type zinc finger motif. Members of groups III have a WRKY domain with a C2HC-type zinc finger. The majority of WRKY family members are group II WRKY proteins [25]. WRKY transcription factors can specifically bind to the W-box cis-element ((T)TGAC(C/T)) in the promoter, thereby regulating the expression of W-box-containing genes and controlling numerous physiological and biochemical responses in plants [26]. Thus, WRKY transcription factors play an important role in regulating plant growth and development, as well as their resistance to biotic and abiotic stresses.
Recent research has demonstrated that WRKY transcription factors can affect plant Al tolerance ability by regulating the expression of Al resistance genes. AtWRKY46 negatively regulates the transcriptional expression of AtALMT1. The functional deficiency of AtWRKY46 leads to increased malic acid secretion from the root tip, which in turn reduces Al content in the root tip and enhances Al tolerance in Arabidopsis [27]. The direct interaction of SlWRKY42 with the W-box cis-acting element in the promoter region of the Al tolerance gene, SlALMT9, reduces the expression of SlALMT9, which has a negative regulatory effect on tomato’s response to Al [28]. By controlling the secretion of citric acid through OsFRDL4re, OsWRKY22 regulates Al tolerance in rice [29]. AtWRKY47 overexpression in Arabidopsis increases Al tolerance, and a loss-of-function mutation in this gene significantly reduces Al tolerance in plants [30]. Some WRKY transcription factors exhibit self-regulation and cross-regulation properties. For example, OsWRKY42 negatively influences resistance in rice to the rice blast disease, while OsWRKY13 suppresses the expression of OsWRKY42, thus enhancing rice resistance to rice blast disease. OsWRKY45 can induce self-expression and the expression of OsWRKY13 [31]. A WRKY-like transcription factor, SbWRKY1, was identified in sorghum, which responds to Al stress by regulating the expression of SbMATE [32]. This indicates that under Al stress, WRKY transcription factors may play a regulatory role in sorghum. However, SbWRKY1 is a WRKY-like transcription factor with a WRKY motif (WRKYGEK) which is not identical to the typical conserved WRKY motif (WRKYGQK) in plants. In addition to SbWRKY1, it is not yet known whether there are other typical WRKY transcription factors that are involved in sorghum Al tolerance.
In this study, we identified two Al-stress-induced WRKY transcription factors, SbWRKY22 and SbWRKY65, in sweet sorghum. The purpose of this study was to investigate their functions in response to Al stress and to reveal the mechanisms that underly their efficacy in enhancing Al tolerance in sweet sorghum.

2. Results

2.1. Sequence and Structure Analysis of SbWRKY22 and SbWRKY65

A total of 94 putative WRKY transcription factors were retrieved from the sorghum (Sorghum bicolor L.) database, among which, SbWRKY22 (Sobic.002G418500.1) and SbWRKY65 (Sobic.003G285500.1) were found to be induced at the transcriptional level under Al stress. Therefore, the function of SbWRKY22 and SbWRKY65 was systematically examined in this study. SbWRKY22 and SbWRKY65 were cloned from sweet sorghum, which contained 1065 bp and 960 bp coding sequences, as well as encoding proteins with 354 and 319 amino acids, respectively. The amino acid sequence of SbWRKY22 or SbWRKY65 and their homologous proteins in other plant species were analyzed via multiple sequence alignment, and the results are shown in Figure 1 and Figure 2, respectively. Both SbWRKY22 and SbWRKY65 contain a conserved WRKY domain. The WRKY domain in SbWRKY22 contains a WRKYGQK motif and a C2HC-type zinc finger motif (Figure 1A), indicating that SbWRKY22 belongs to the group III WRKY transcription factor category. Phylogenetic analysis showed that SbWRKY22 was most closely related to ZmWRKY46 with 54.9% identity, while it was related to AtWRKY54 with 29.4% identity (Figure 1B). Correspondingly, the WRKY domain in SbWRKY65 also contains a WRKYGQK motif but with a C2H2-type zinc finger domain (Figure 2A), showing that SbWRKY65 belongs to the group II WRKY transcription factor category. Phylogenetic analysis showed that SbWRKY65 was most closely related to ZmWRKY69 with 76.9% identity, while it was related to AtWRKY65 with 31.7% identity (Figure 2B).
To clarify the structural properties of the WRKY domains in SbWRKY22 and SbWRKY65, molecular simulations were performed for them. The 3D structures of the WRKY domains in SbWRKY22 and SbWRKY65 (Figure 1C and Figure 2C) revealed that their zinc finger motif is highly spatially correlated with their WRKY motif. The WRKY motif contains more hydrophilic residues, and its sequence and the H-bond network it forms (only the H-bonds between K133 and Q136 in SbWRKY22 and between K85 and Q88 in SbWRKY65) directly affect the spatial orientation of the WRKY motif and the overall conformation of the zinc finger domain, which may influence the functions of SbWRKY22 and SbWRKY65 (Figure 1C and Figure 2C). On the other hand, there were some differences in the overall conformation of the WRKY domains, particularly the “finger” conformation of the zinc finger motif, between SbWRKY22 and SbWRKY65, which inevitably led to their binding to distinct DNA deep grooves, indicating that SbWRKY22 and SbWRKY65 might have different target DNA.

2.2. Detection of SbWRKY22 and SbWRKY65 Expression Patterns under Al Stress

Real-time fluorescence quantitative polymerase chain reaction (PCR) was applied to determine the expression patterns of SbWRKY22 and SbWRKY65 in sweet sorghum under Al stress. Time-course studies revealed that Al stress induced a gradual increase in SbWRKY22 expression in root apices (0–1 cm) throughout 24 h of Al treatment, with a significantly higher transcription level of SbWRKY22 after 6 h of Al treatment than the control (0 h treatment) (Figure 3A). Likewise, the expression of SbWRKY65 increased with increasing Al treatment duration and differed significantly from that in the control (0 h) after 3 h of Al treatment; it peaked at 12 h and then fell to a level comparable to that in the control (Figure 3A). These results showed that as compared to SbWRKY22, SbWRKY65 responded to Al stress more quickly but for a shorter duration, implying that SbWRKY65 may function during the early stage of sorghum response to Al stress, while SbWRKY22 may function continuously in response to Al stress.
The expression of SbWRKY22 and SbWRKY65 in root apices was examined after treating sweet sorghum seedlings with various doses of AlCl3. As shown in Figure 3B, the transcript levels of both SbWRKY22 and SbWRKY65 were up-regulated in an AlCl3 concentration-dependent manner and were significantly different from those in the control samples (0 μM) when the AlCl3 concentration reached 15 μM. Furthermore, the induced expression of both SbWRKY22 and SbWRKY65 appeared to be specific to Al stress as compared to Cu and La stress (Figure 3C). Both SbWRKY22 and SbWRKY65 were mostly expressed in roots, rather than in the shoots, with or without Al treatment. Meanwhile, under Al stress, their expression levels were significantly improved at the root apices (0–1 cm), which is the key target site for the occurrence of Al toxicity (Figure 3D).

2.3. The Subcellular Localization and Transcriptional Ability of SbWRKY22 and SbWRKY65

To evaluate the transcriptional functions of SbWRKY22 and SbWRKY65, their subcellular localization in Arabidopsis protoplasts was investigated, and their transcriptional activity was examined using the yeast expression system. As shown in Figure 4A, the GFP-SbWRKY22 and GFP-SbWRKY65 fusion proteins were found to be strictly localized in the nucleus, whereas the control GFP protein was distributed throughout the cells. Moreover, the recombinant plasmids were transformed into Y2HGold yeast strains with His dystrophic markers. The results are shown in Figure 4B. In SD/-Trp media, all transfected yeast cells grew well. However, yeast cells expressing GAL4 DNA-BD alone were unable to grow normally in SD/-Trp/-His media, in contrast to yeast cells that harbored BD-SbWRKY22 and BD-SbWRKY65. These results indicate that SbWRKY22 and SbWRKY65 both have active transcriptional activity. The aforementioned results demonstrate that SbWRKY22 and SbWRKY65 feature the characteristics and effectiveness of conventional transcription factors.

2.4. SbWRKY22 and SbWRKY65 Overexpression in Arabidopsis Confers Aluminum Tolerance

The rapid inhibition of plant root growth is the most apparent symptom of Al toxicity [33]. To examine the contribution of the up-regulation of SbWRKY22 and SbWRKY65 to plant root growth under Al stress, SbWRKY22 and SbWRKY65 were overexpressed under the control of the CaMV 35S promoter in Arabidopsis. SbWRKY22 was also overexpressed in an Atwrky54 mutant, as AtWRKY54 shares the highest identity with SbWRKY22 among the WRKY proteins in Arabidopsis. The transcript levels of SbWRKY22 and SbWRKY65 in the transgenic lines were examined via RT-PCR, which were then selected for phenotypic analysis (Figure 5A and Figure 6A). None of the homozygous transgenic plants differed from the wild-type (WT) control in the absence of Al, while both of them showed inhibited root elongation to varying degrees in the presence of Al (Figure 5B and Figure 6B). The relative root elongation (RRE) of WT roots was inhibited under Al treatment conditions, with an RRE of 55%. Atwrky54, which is sensitive to Al, had only 33% RRE, and in contrast, the two SbWRKY22-complemented lines greatly recovered the Al sensitivity characteristic of the Atwrky54 mutant, with 60% and 58% RRE, respectively. All overexpression lines had significantly higher RREs than the WT, showing strong Al tolerance. The two SbWRKY22-overexpressing lines had 80% and 79% RRE (Figure 5C). SbWRKY65-overexpressing lines had 78% and 76% RRE (Figure 6C). We also observed the root morphology in all transgenic plants under Al treatment (Figures S1A and S2A). The integrity of the apical region of Atwrky54 mutant was damaged under Al treatment, while that of Col-0 was relatively mild. The injury to the apical region of SbWRKY22 transgenic lines (Figure S1A) or SbWRKY65 overexpression lines (Figure S2A) was minimal. These results indicated the positive role of SbWRKY22 and SbWRKY65 in plant Al tolerance.

2.5. The Discovery of Downstream Genes Regulated by SbWRKY22 and SbWRKY65

SbMATE (Sb03g043890.1) is the first gene reported to be associated with Al tolerance in sorghum [10]. Al tolerance genes, such as SbGlu1 (Sb03g045630.1), SbSTAR1 (Sb10g028530.1), SbSTAR2a (Sb09g002000.1), and SbSTAR2b (Sb09g001990.1), have also been discovered in sorghum in recent years [14,24]. In this study, we investigated whether these Al-tolerant genes could potentially function as downstream targets of SbWRKY22 and SbWRKY65. The SbMATE/SbGlu1/SbSTAR1/SbSTAR2a/SbSTAR2b promoter was individually introduced into a reporter vector to drive the firefly luciferase reporter gene (LUC). The CaMV 35S-promoter-driven expression of the Renilla luciferase reporter gene (REN) was applied as the internal control. The CaMV 35S promoter guided the insertion of SbWRKY22 into an effector vector (Figure 7A). A dual-luciferase reporter test was conducted after co-transfecting each constructed reporter and effector into Arabidopsis protoplast cells. As shown in Figure 7B–F, all reporters driven by the promoters of the indicated Al-tolerant genes exhibited significantly higher luciferase activity in the presence of the SbWRKY22 effectors than the vector-only control. Furthermore, the ability of SbWRKY22 to regulate the transcript expression of the indicated Al-tolerant genes was examined in the yeast one-hybrid system. The results showed that GAD-SbWRKY22 fusion protein activated the LacZ reporter genes driven by the promoters of the indicated Al-tolerant genes (Figure 7G). These results demonstrated that SbWRKY22 regulates the transcription of SbMATE, SbGlu1, SbSTAR1, SbSTAR2a, and SbSTAR2b. The same assay was also used to evaluate the transcriptional effectiveness of SbWRKY65 for these Al-tolerant genes, and the results revealed that SbWRKY65 had few transcriptional effects on the above Al tolerance genes (Figure S3).
WRKY transcription factors can sometimes regulate other WRKY transcription factors through cross-regulation [34]. Therefore, a dual-luciferase reporter assay was performed to investigate whether SbWRKY22 could potentially function as the downstream targets of SbWRKY65. As shown in Figure 8A, the SbWRKY22-promoter-driven reporter exhibited significantly higher luciferase activity in the presence of the SbWRKY65 effector as compared to the vector-only control. Furthermore, the ability of SbWRKY65 to regulate the transcript expression of SbWRKY22 was examined in the yeast one-hybrid system. The results showed that GAD-SbWRKY65 fusion protein activated the LacZ reporter gene driven by the promoter of SbWRKY22 (Figure 8B). The above results indicated that SbWRKY65 transcriptionally regulated the expression of SbWRKY22. Hence, it could be speculated that SbWRKY65 may indirectly regulate the expression of the above Al-resistant genes by promoting the transcription of SbWRKY22.

2.6. Enhanced Al Tolerance Phenotype of SbWRKY22/SbWRKY65 Overexpression Plant Is Associated with Reduced Callose Deposition in Roots

Al-induced callose buildup or deposition has been utilized as a practical and quick screening parameter for Al damage as it is a sensitive indicator of Al toxicity in addition to measuring root elongation [35,36]. We previously found that the expression of the β-1,3-glucanase I gene (SbGlu1) was greatly up-regulated in sweet sorghum under Al stress. In the case of Al treatment, SbGlu1 efficiently lowers the buildup of callose at the root apices of sweet sorghum, improving its tolerance to Al [14]. AtBG2 (β-1,3-glucanase 2, AT3G57260.1), a homolog of SbGlu1 in Arabidopsis, shares 46% identity with SbGlu1. The transcript levels of AtBG2 in WT and two independent SbWRKY22 overexpression lines were determined with or without Al stress. As shown in Figure 8A, Al induced a significant increase in AtBG2 expression in the WT and two SbWRKY22 overexpression lines, while on the other hand, AtBG2 expression was significantly higher in both SbWRKY22 overexpression lines than in the WT. This result demonstrated that SbWRKY22 was able to enhance AtBG2 expression in Arabidopsis, which potentially regulates callose degradation. Therefore, callose accumulation in SbWRKY22 transgenic lines was subsequently determined. The callose content in the roots of the WT and the overexpression lines of SbWRKY22 was low and comparable in the absence of Al stress. However, under Al stress, the callose content in the roots of SbWRKY22 overexpression lines was significantly lower than that in the WT (Figure 9B), suggesting that SbWRKY22 promotes callose degradation and thereby relieves Al toxicity in plants.
Since SbWRKY65 positively regulated the expression of SbWRKY22 (Figure 8), we assumed that SbWRKY65 may participate in some of the SbWRKY22-dependent pathways to resist Al toxicity. Thus, the transcript levels of the SbWRKY22 homologous gene in Arabidopsis, AtWRKY54, were investigated in SbWRKY65 overexpression lines. The results showed that SbWRKY65 was able to enhance AtWRKY54 expression in Arabidopsis (Figure 9C). Meanwhile, callose accumulation in SbWRKY65 transgenic lines with or without Al stress exhibited similar results to the SbWRKY22 transgenic lines (Figure 9D), which verified the hypothesis that SbWRKY65 may at least participate in the SbWRKY22-dependent pathway to promote callose degradation. Callose formation in the root apex was also detected via aniline blue staining (Figures S1B and S2B), which was induced by Al and mainly distributed in the cell wall and intercellular space. SbWRKY22 transgenic lines (Figure S1B) and SbWRKY65 overexpression lines (Figure S2B) showed reductions in callose deposition.
All of the above results demonstrated that SbWRKY22 and SbWRKY65 could effectively reduce the accumulation of callose in plant roots when sorghum is exposed to Al stress, which has contributed to the enhanced Al tolerance phenotype of SbWRKY22/SbWRKY65 overexpression lines.

3. Discussion

Transcription factors are widely present in various signaling pathways in plants and are involved in the regulation of downstream functional genes. In acidic soils, Al toxicity is a major factor affecting crop yield. Transcription factors play crucial roles in regulating the expression of Al tolerance genes to cope with Al stress in plants. For instance, AtSTOP1 and OsART1, two homologous zinc finger transcription factors in Arabidopsis and rice, respectively, regulate the expression of a number of Al-tolerance-related genes [16,37]. Some other transcription factors involved in regulating Al-tolerance-related genes have also been discovered. AtCAMTA2 regulates the secretion of apoplastic malate in roots by activating the transcriptional expression of AtALMT1, thereby enhancing Al tolerance in plants [38]. By working complementarily, OsASR1 and OsASR5 regulate the transcriptional expression of OsSTAR1, leading to cell wall changes that reduce Al binding sites on the cell wall and increase Al tolerance in rice [39]. Sweet sorghum, a variant of grain sorghum, has a variety of strong stress resistance. However, there are only a few studies on Al tolerance in sorghum due to limited genetic transformation techniques for this species. SbSTOP1 and SbWRKY1 are the two transcription factors currently known to regulate the transcription of Al tolerance genes in sorghum, and no other transcription factors have been reported to be involved in the Al stress response [15,32]. In this study, two WRKY transcription factors, SbWRKY22 and SbWRKY65, were identified in sweet sorghum and were found to be efficient in enhancing plant tolerance to Al (Figure 5 and Figure 6).
WRKY transcription factors are one of the largest families of transcription factors in plants and are essential for regulating plant growth and development. They regulate a variety of biological processes, including responses to biotic and abiotic stresses. Based on the number of WRKY domains and the type of zinc finger motif (C2H2 or C2HC), SbWRKY22 belongs to group III WRKY transcription factors, while SbWRKY65 belongs to group II (Figure 1A and Figure 2A). Conserved domains in SbWRKY22 and SbWRKY65 share an identical N-terminal WRKYGQK motif but have different types of C-terminal zinc finger motifs (Figure 1A and Figure 2A). The conformation of the zinc finger structure often determines its selectivity for the target DNA sequence and its binding ability to the deep groove of the target DNA double helix [40,41]. Therefore, the difference in the type and conformation of zinc finger motifs between SbWRKY22 and SbWRKY65 may imply a difference in their target DNA, either in sequence or in conformation.
The levels of Al-induced WRKY transcription factors in plants can be positively or negatively correlated with Al toxicity. For example, in Arabidopsis, the expression level of AtWRKY46 is significantly down-regulated after 3 h of Al treatment and remains almost unchanged until 24 h [27]; OsWRKY22 responds to Al, whereby its expression level rises rapidly after Al treatment, peaks at 3 h and then rapidly decreases to its pre-Al treatment level [29]. However, research on WRKY transcription factors associated with Al stress in sorghum has been very limited thus far. In this study, both SbWRKY22 and SbWRKY65 displayed Al-induced expression but with distinct expression patterns during 24 h. SbWRKY65 exhibited a quick but short response to Al stress, compared with that of SbWRKY22 (Figure 3A). Under Al treatment, the expression level of SbWRKY65 was significantly improved at 3 h but returned to the control level at 24 h. In contrast, the response of SbWRKY22 to Al stress lagged behind that of SbWRKY65, as its response significantly increased at 6 h but continued to rise thereafter for 24 h. These differences between them in response to Al stress might reflect differences in their targets and their functional mechanisms. The expression of SbWRKY22 and SbWRKY65 was not only induced by Al, but also exhibited some tissue specificity, as they were mainly expressed in roots but not in shoots. These results are reasonable considering that the damage to root apices and the suppression of root extension are the initial and most visible symptoms of Al toxicity in plants [33]. Thus, both SbWRKY22 and SbWRKY65 may mainly be effective in roots. Both SbWRKY22 overexpression lines and complemented lines showed improved Al tolerance phenotypes (Figure 5). AtWRKY65 shares the highest identity with SbWRKY65; however, the Atwrky65 mutant did not show an Al sensitivity phenotype, which may have been due to the function redundancy in the WRKY family. Thus, only SbWRKY65 overexpression lines were constructed, which also exhibited Al tolerance phenotypes (Figure 6).
SbWRKY22 and SbWRKY65 showed the typical characteristics of transcription factors, which are localized in the nucleus and perform transcriptional activity (Figure 4). Thus, the downstream genes regulated by them were further investigated. Recent research has demonstrated that WRKY transcription factors can affect Al tolerance in plants by regulating the expression of Al resistance genes. AtWRKY46 negatively regulates the expression of AtALMT1 [27]. SlWRKY42 directly binds to the cis-element W-box in the upstream region of SlALMT9, leading to a decrease in its expression [28]. OsWRKY22 regulates the secretion of root citric acid mediated by OsFRDL4, increasing the Al tolerance in rice [29]. Certain transcription factors can also regulate numerous Al-resistant genes at once. For example, OsART1 regulates the expression of 31 genes, including OsNrat1 and OsSTAR1 [37]. The heterologous expression of Glycine soja GsMAS1 in Arabidopsis resulted in a significant up-regulation of six Al tolerance genes, including AtALMT1 and AtSTOP2 [42]. AtWRKY47 regulates the expression of cell wall modification genes, ELP and XTH17 [30]. In this study, we found that SbWRKY22 positively regulates the expression of SbMATE, SbGlu1, SbSTAR1, SbSTAR2a, and SbSTAR2b (Figure 7). These results suggest that SbWRKY22 may influence the Al tolerance of sorghum via a variety of pathways, including the secretion of citric acid, degradation of callose, and modification of cell wall components. SbWRKY65 has almost no regulatory effect on the aforementioned Al tolerance genes, while its overexpression transgenic lines still showed increased Al tolerance ability (Figure 6), implying that SbWRKY65 exerts its Al-tolerant function through additional pathways.
In Petroselinum crispum (Mill.) Fuss, PcWRKY1 binds to promoters of itself and PcWRKY3, demonstrating the self- and cross-regulation of WRKY transcription factors [43]. Most of the genes regulated by WRKY transcription factors contain at least two W-box elements in their promoters, which are very concentrated and can sometimes be placed in reverse. By binding to these W-boxes, WRKY transcription factors can regulate the expression of their target genes [34]. The SbWRKY22 promoter (−1680 to −1 bp) is rich in the W-box; specifically, it contains 16 W-boxes. The dual-luciferase reporter assay and the yeast one-hybrid experiment both supported the conclusion that SbWRKY65 transcriptionally regulates SbWRKY22 (Figure 8). Thus, it could be inferred that the quick rise in SbWRKY65 expression under Al treatment (Figure 3A) may promote the following transcription of SbWRKY22, ensuring sufficient SbWRKY22 to quickly regulate the transcription of downstream Al-tolerant genes. SbWRKY65 exhibited an indirect transcriptional effect on known sorghum Al tolerance genes. These findings imply that sorghum may have a very sophisticated and complex system for tolerating Al stress. Further research is required to explore whether SbWRKY65 directly regulates any additional Al-tolerant genes or regulates some unknown Al-tolerant genes. The expression of SbWRKY65 in roots was higher or closer to that of SbWRKY22, providing evidence for SbWRKY65 regulating the transcription of SbWRKY22. The expression of SbWRKY22 in roots (2–3 cm) was slightly induced by Al, whereas that of SbWRKY65 was not, implying that the existence of other transcription factors regulating the expression of SbWRKY22 besides SbWRKY65 (Figure S4).
Al-induced root apices callose accumulation is not only an indicator of Al toxicity but also a mechanism of Al toxicity in plants [44,45]. Al stress affects the transcriptional expression of a number of genes that encode enzymes to catalyze callose synthesis and degradation. The sweet sorghum gene SbGlu1, encoding β-1,3-glucanase to catalyze callose degradation, is overexpressed in Arabidopsis, thereby improving its Al tolerance via reducing callose deposition in the root [14]. The transcription factor SbSTOP1 regulates the expression of SbGlu1, therefore promoting the degradation of callose, leading to enhanced Al tolerance in transgenic plants [23]. These findings imply a major Al tolerance pathway in sweet sorghum via increasing the transcriptional expression of SbGlu1 and promoting callose degradation in the root. In this study, SbWRKY22 and SbWRKY65 reduced callose accumulation in plants by up-regulating the expression of the SbGlu1 homolog (AtBG2) and SbWRKY22 homolog (AtWRKY54) in Arabidopsis under Al treatment (Figure 9). These results indicate that SbWRKY22 and SbWRKY65 could at least enhance plant Al tolerance by directly or indirectly promoting callose degradation in the root.
In summary, we identified and characterized two WRKY transcription factors, SbWRKY22 and SbWRKY65, in sweet sorghum, which are closely associated with plant Al tolerance in acidic soils. The findings of this study demonstrate that SbWRKY22 significantly up-regulates the expression of some typical Al-tolerance genes, SbMATE, SbGlu1, SbSTAR1, SbSTAR2a, and SbSTAR2b. The overexpression of SbWRKY22 could reduce the accumulation of root callose, thus improving the Al tolerance of plants under Al stress. Interestingly, we also found that SbWRKY65 significantly regulates the expression of SbWRKY22. We speculate that SbWRKY65, via regulating the transcription of SbWRKY22, may indirectly regulate Al tolerance genes. Our findings reveal the function of WRKY transcription factors in regulating Al tolerance in sweet sorghum and extend our understanding of the functions and mechanisms of various WRKY transcription factor members in response to abiotic stress.

4. Materials and Methods

4.1. Plant Material and Growing Conditions

The sweet sorghum (Sorghum bicolor L.) cultivar POTCHETSTRM was used and cultured as described previously [15]. Briefly, seeds were surface sterilized, germinated for two days, and then were transplanted into a 0.5 mM CaCl2 solution (pH 4.5) for three days, followed by various treatments. The seedlings were raised in a growth chamber with a photoperiod of 14 h of light (100 µmol/m2 s)/10 h of darkness and a relative humidity level of 60%.
In the time-course assay, 15 root apices (0–1 cm) were excised from seedlings after the seedlings were exposed to the 0.5 mM CaCl2 solution (pH 4.5) containing AlCl3 (15 μM) for the indicated durations. The Al dose-dependent assay followed a similar procedure, except that seedlings were treated with the indicated concentrations of AlCl3 for 12 h. In the spatial expression assay, seedlings were exposed to a 0.5 mM CaCl2 solution (pH 4.5) with or without AlCl3 (15 μM), followed by the excision of roots (0–1 cm, 1–2 cm, or 2–3 cm) and shoots. In the metal treatment assay, the root apices (0–1 cm) of seedlings were excised after exposure to solutions of AlCl3 (15 μM), CuCl2 (0.5 μM), or LaCl3 (10 μM) for 12 h.

4.2. Sequence Analysis

The amino acid sequences of SbWRKY22/SbWRKY65 and its homologs were analyzed using BLAST in NCBI (https://www.ncbi.nlm.nih.gov/ (accessed on 26 November 2022)), the sorghum genome database (http://pgsb.helmholtzmuenchen.de/plant/sorghum/index.jsp (accessed on 9 September 2018)), and the plant transcription factor database version 4 (http://planttfdb.cbi.pku.edu.cn/ (accessed on 26 November 2022)). Sequence alignment was performed in DNASTAR and displayed in GeneDoc. The phylogenetic tree was built using the neighbor-joining approach in MEGA 7.

4.3. Molecular Simulation

The crystal structure of the WRKY transcription factor (PDB ID: 2AYD) was downloaded from the Protein Data Bank (http://www.rcsb.org (accessed on 18 December 2022)) for conformational analysis. The 3D structures of SbWRKY22 and SbWRKY65 were built from crystal structures of the WRKY transcription factor using the AutoDock 4.0 program and were optimized through energy minimization and molecular dynamics simulation using the program Insight II, respectively. Finally, the 3D structures of SbWRKY22 and SbWRKY65 were visually examined through Discovery studio Visualizer 3.1 (http://accelrys.com/products/discoverystudio/visualization-download.php (accessed on 18 December 2022)), and images were obtained.

4.4. Expression Assays

RNA isolation, reverse transcription, and quantitative real-time PCR (qRT-PCR) were carried out as described previously [14,15]. The expression of SbWRKY22/SbWRKY65 was detected using primer pairs, as shown in Table S1. The qRT-PCR was performed using SYBR Premix ExTaq (Takara) in an Mx3005P qPCR system (Stratagene, San Diego, CA, USA) with the housekeeping gene β-actin (GenBank ID: X79378) as an internal control. The relative expression levels of target genes were calculated using the 2−ΔΔCT approach [46].

4.5. Subcellular Localization Assays

The coding sequence of SbWRKY22/SbWRKY65 was inserted into a pGWB5 vector under the control of the cauliflower mosaic virus 35S (CaMV 35S) promoter via the GATEWAY recombination system using primers in Table S2. These transient plant expression vectors (35s::GFP-SbWRKY22/SbWRKY65) and a vector alone (35s::GFP) were transformed into Arabidopsis protoplasts that were extracted from 4-week-old plants using a PEG-mediated technique, as reported in [23]. Following this, the protoplasts were incubated in the dark for approximately 16 h at room temperature, and fluorescent images were taken under a fluorescence microscope (Axio Observer A1, Zeiss, Oberkochen, Germany).

4.6. Aluminum Tolerance Phenotype Analysis

The coding sequence of SbWRKY22/SbWRKY65 was cloned into the pEGAD-GFP vector at the EcoRI site under the control of the CaMV 35S promoter (35S::GFP- SbWRKY22/SbWRKY65) using primers in Table S2. The vector was transformed into wild-type Arabidopsis (WT, Columbia-0) or an Atwrky54 mutant using the Agrobacterium tumefaciens-mediated floral dip technique [47]. Transgenic seedlings were first screened with the herbicide Basta and then examined via RT-PCR. Transgenic seeds (T3) were sterilized and germinated vertically on MS medium (pH 5.8) for five days, and then, seedlings were transplanted to a medium containing 1 mM CaCl2 and 1% (w/v) sucrose, pH 4.5, and incubated with or without 50 μM AlCl3 for five days. Root growth was measured, and the relative root elongation was calculated as the ratio of elongation of roots with and without Al treatment.

4.7. Transfermation of DNA to Protoplasts and Dual-Luciferase Reporter Assay

The reporter plasmid and effector plasmid were constructed as described previously, with a little modification [48]. The reporter plasmid (CaMV 35S::REN-pSbMATE/pSbGlu1/pSbSTAR1/pSbSTAR2a/pSbSTAR2b-CaMV 35S (−46)::LUC) encodes two luciferases, of which the Renilla luciferase (REN) was controlled by the CaMV 35S promoter and the firefly luciferase (LUC) by the promoter indicated. CaMV 35S minimal promoter (−46) was synthesized [49] and inserted into the HindIII/BamHI sites of the vector pGreen-0800-LUC. The effector plasmid (CaMV 35S::Myc-SbWRKY22/SbWRKY65) was created by cloning the DNA fragment encoding SbWRKY22/SbWRKY65 into the vector pEGAD-Myc at the EcoRI site under the control of the CaMV 35S promoter. Primers are shown in Table S2. Arabidopsis protoplasts were isolated from 4-week-old plants. The protoplast/DNA mixture was incubated for 12–16 h in the dark at room temperature after the protoplasts were transformed using the PEG-mediated protoplast transformation method [23]. Finally, the transformed protoplasts were used for the dual-luciferase reporter assay according to the technical manual (Promega, E1910, Madison, WI, USA). The luminescent signal was measured with a luminometer (Berthold LB960, Bad Wildbad, Germany).

4.8. Yeast One-Hybrid Assay

The coding sequence of SbWRKY22/SbWRKY65 was inserted into EcoRI and XhoI sites of a pJG4-5 vector under the control of the GAL1 promoter, coding GAD-SbWRKY22/SbWRKY65 fusion protein (GAD, GAL4 transcriptional activation domain). The indicated promoters were inserted into EcoRI and SalI sites of a pLacZi-2u vector to promote the expression of the LacZ reporter gene. Primers are shown in Table S2. Both constructed vectors were transformed into the yeast strain EGY48 cells. First, the co-transformation cells were plated on SD/-Leu/-Ura medium for two days, and then, they were grown on proper drop-out plates containing X-gal (5-bromo-4-chloro-3-indolyl-β-D-galactopyranoside) for blue color development [50].

4.9. Measurement of Callose Content in Arabidopsis Roots

Callose was extracted from Arabidopsis roots as described previously [23]. The callose was quantified via fluorescence spectrophotometry with an excitation wavelength of 400 nm and an emission wavelength of 500 nm, using laminarin (LE) as a standard callose source.

4.10. Statistical Analysis

Data collected regarding gene expression, transcriptional regulation, and callose content were the means of three replicates. The RRE of transgenic plants represent the means of more than 20 replicates. Data were analyzed for statistical comparison with IBM SPSS (version 22.0), using Tukey’s test or Dunnett’s test, where p < 0.05 or p < 0.01 as indicated was considered to be statistically significant.

Supplementary Materials

The supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms241210288/s1.

Author Contributions

Z.Y., J.G. and H.L. designed the research. K.G., J.G., M.Z. (Meiqi Zhan) and M.Z. (Meihui Zheng). conducted the experiments. K.G., J.Y., X.M. and H.L. analyzed the data. K.G. wrote the original draft. J.G., H.L. and Z.Y. revised the manuscript. All authors contributed to the article and approved the submitted version. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Natural Science Foundation of China (31972508).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

No new data were created or analyzed in this study. Data sharing is not applicable to this article.

Acknowledgments

We thank Charlesworth Author Services (https://www.cwauthors.com (accessed on 6 May 2023)) for its linguistic assistance during the preparation of this manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kochian, L.V.; Hoekenga, O.A.; Piñeros, M.A. How do crop plants tolerate acid soils? Mechanisms of aluminum tolerance and phosphorous efficiency. Annu. Rev. Plant Biol. 2004, 55, 459–493. [Google Scholar] [CrossRef]
  2. Bojórquez-Quintal, E.; Escalante-Magaña, C.; Echevarría-Machado, I.; Martínez-Estévez, M. Aluminum, a friend or foe of higher plants in acid soils. Front. Plant Sci. 2017, 8, 1767. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Kochian, L.V. Cellular mechanisms of aluminum toxicity and resistance in plants. Annu. Rev. Plant Physiol. Plant Mol. Biol. 1995, 46, 237–260. [Google Scholar] [CrossRef]
  4. Ma, J.F. Syndrome of aluminum toxicity and diversity of aluminum resistance in higher plants. Int. Rev. Cytol. 2007, 264, 225–252. [Google Scholar] [PubMed]
  5. Uexküll, H.R.V.; Mutert, E. Global extent, development and economic impact of acid soils. Plant Soil 1995, 171, 1–15. [Google Scholar] [CrossRef]
  6. Ma, J.F. Role of organic acids in detoxification of aluminum in higher plants. Plant Cell Physiol. 2000, 41, 383–390. [Google Scholar] [CrossRef] [Green Version]
  7. Ryan, P.R.; Delhaize, E.; Jones, D.L. Function and mechanism of organic anion exudation from plant roots. Annu. Rev. Plant Physiol. Plant Mol. Biol. 2001, 52, 527–560. [Google Scholar] [CrossRef]
  8. Kochian, L.V.; Piñeros, M.A.; Liu, J.; Magalhaes, J.V. Plant adaptation to acid soils: The molecular basis for crop aluminum resistance. Annu. Rev. Plant Biol. 2015, 66, 571–598. [Google Scholar] [CrossRef]
  9. Furukawa, J.; Yamaji, N.; Wang, H.; Mitani, N.; Murata, Y.; Sato, K.; Katsuhara, M.; Takeda, K.; Ma, J.F. An aluminum-activated citrate transporter in barley. Plant Cell Physiol. 2007, 48, 1081–1091. [Google Scholar] [CrossRef] [Green Version]
  10. Magalhaes, J.V.; Liu, J.; Guimarães, C.T.; Lana, U.G.P.; Alves, V.M.C.; Wang, Y.H.; Schaffert, R.E.; Hoekenga, O.A.; Piñeros, M.A.; Shaff, J.E.; et al. A gene in the multidrug and toxic compound extrusion (MATE) family confers aluminum tolerance in sorghum. Nat. Genet. 2007, 39, 1156–1161. [Google Scholar] [CrossRef] [PubMed]
  11. Liu, J.; Piñeros, M.A.; Kochian, L.V. The role of aluminum sensing and signaling in plant aluminum resistance. J. Integr. Plant Biol. 2014, 56, 221–230. [Google Scholar] [CrossRef] [PubMed]
  12. Huang, C.F.; Yamaji, N.; Mitani, N.; Yano, M.; Nagamura, Y.; Ma, J.F. A bacterial-type ABC transporter is involved in aluminum tolerance in rice. Plant Cell 2009, 21, 655–667. [Google Scholar] [CrossRef] [Green Version]
  13. Zhu, X.F.; Shi, Y.Z.; Lei, G.J.; Fry, S.C.; Zhang, B.C.; Zhou, Y.H.; Braam, J.; Jiang, T.; Xu, X.Y.; Mao, C.Z.; et al. XTH31, encoding an in vitro XEH/XET-active enzyme, regulates aluminum sensitivity by modulating in vivo XET action, cell wall xyloglucan content, and aluminum binding capacity in Arabidopsis. Plant Cell 2012, 24, 4731–4747. [Google Scholar] [CrossRef] [Green Version]
  14. Zhang, H.; Shi, W.L.; You, J.F.; Bian, M.D.; Qin, X.M.; Yu, H.; Liu, Q.; Ryan, P.R.; Yang, Z.M. Transgenic Arabidopsis thaliana plants expressing a beta-1,3-glucanase from sweet sorghum (Sorghum bicolor L.) show reduced callose deposition and increased tolerance to aluminium toxicity. Plant Cell Environ. 2015, 38, 1178–1188. [Google Scholar] [CrossRef] [PubMed]
  15. Huang, S.; Gao, J.; You, J.; Liang, Y.; Guan, K.; Yan, S.; Zhan, M.; Yang, Z. Identification of STOP1-like proteins associated with aluminum tolerance in sweet sorghum (Sorghum bicolor L.). Front. Plant Sci. 2018, 9, 258. [Google Scholar] [CrossRef] [Green Version]
  16. Iuchi, S.; Koyama, H.; Iuchi, A.; Kobayashi, Y.; Kitabayashi, S.; Kobayashi, Y.; Ikka, T.; Hirayama, T.; Shinozaki, K.; Kobayashi, M. Zinc finger protein STOP1 is critical for proton tolerance in Arabidopsis and coregulates a key gene in aluminum tolerance. Proc. Natl. Acad. Sci. USA 2007, 104, 9900–9905. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Liu, J.; Magalhaes, J.V.; Shaff, J.; Kochian, L.V. Aluminum-activated citrate and malate transporters from the MATE and ALMT families function independently to confer Arabidopsis aluminum tolerance. Plant J. 2009, 57, 389–399. [Google Scholar] [CrossRef] [Green Version]
  18. Sawaki, Y.; Iuchi, S.; Kobayashi, Y.; Kobayashi, Y.; Ikka, T.; Sakurai, N.; Fujita, M.; Shinozaki, K.; Shibata, D.; Kobayashi, M. STOP1 regulates multiple genes that protect Arabidopsis from proton and aluminum toxicities. Plant Physiol. 2009, 150, 281–294. [Google Scholar] [CrossRef] [Green Version]
  19. Xia, J.; Chrispeels, M.J.; Tomonari, K.; Feng, M.J. Plasma membrane-localized transporter for aluminum in rice. Proc. Natl. Acad. Sci. USA 2010, 107, 18381. [Google Scholar] [CrossRef] [Green Version]
  20. Yokosho, K.; Yamaji, N.; Ma, J.F. An Al-inducible MATE gene is involved in external detoxification of Al in rice. Plant J. 2011, 68, 1061–1069. [Google Scholar] [CrossRef]
  21. Xia, J.; Yamaji, N.; Ma, J.F. A plasma membrane-localized small peptide is involved in rice aluminum tolerance. Plant J. 2013, 76, 345–355. [Google Scholar] [CrossRef]
  22. Chen, X.; Yao, Q.; Gao, X.; Jiang, C.; Harberd, N.P.; Fu, X. Shoot-to-Root mobile transcription factor HY5 coordinates plant carbon and nitrogen acquisition. Curr. Biol. 2016, 26, 640–646. [Google Scholar] [CrossRef] [Green Version]
  23. Gao, J.; Yan, S.; Yu, H.; Zhan, M.; Guan, K.; Wang, Y.; Yang, Z. Sweet sorghum (Sorghum bicolor L.) SbSTOP1 activates the transcription of a β-1,3-glucanase gene to reduce callose deposition under Al toxicity: A novel pathway for Al tolerance in plants. Biosci. Biotechnol. Biochem. 2018, 83, 446–455. [Google Scholar] [CrossRef]
  24. Gao, J.; Liang, Y.; Li, J.; Wang, S.; Zhan, M.; Zheng, M.; Li, H.; Yang, Z. Identification of a bacterial-type ATP-binding cassette transporter implicated in aluminum tolerance in sweet sorghum (Sorghum bicolor L.). Plant Signal. Behav. 2021, 16, 1916211. [Google Scholar] [CrossRef]
  25. Baillo, E.H.; Hanif, M.S.; Guo, Y.; Zhang, Z.; Xu, P.; Algam, S.A. Genome-wide Identification of WRKY transcription factor family members in sorghum (Sorghum bicolor (L.) moench). PLoS ONE 2020, 15, e0236651. [Google Scholar] [CrossRef]
  26. Eulgem, T.; Rushton, P.J.; Robatzek, S.; Somssich, I.E. The WRKY superfamily of plant transcription factors. Trends Plant Sci. 2000, 5, 199–206. [Google Scholar] [CrossRef] [PubMed]
  27. Ding, Z.J.; Yan, J.Y.; Xu, X.Y.; Li, G.X.; Zheng, S.J. WRKY46 functions as a transcriptional repressor of ALMT1, regulating aluminum-induced malate secretion in Arabidopsis. Plant J. 2013, 76, 825–835. [Google Scholar] [CrossRef]
  28. Ye, J.; Wang, X.; Hu, T.; Zhang, F.; Wang, B.; Li, C.; Yang, T.; Li, H.; Lu, Y.; Giovannoni, J.J.; et al. An InDel in the promoter of Al-Activated Malate Transporter9 selected during tomato domestication determines fruit malate contents and aluminum tolerance. Plant Cell 2017, 29, 2249–2268. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  29. Li, G.Z.; Wang, Z.Q.; Yokosho, K.; Ding, B.; Fan, W.; Gong, Q.Q.; Li, G.X.; Wu, Y.R.; Yang, J.L.; Ma, J.F. Transcription factor WRKY22 promotes aluminum tolerance via activation of OsFRDL4 expression and enhancement of citrate secretion in rice (Oryza sativa). New Phytol. 2018, 219, 149–162. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  30. Li, C.X.; Yan, J.Y.; Ren, J.Y.; Sun, L.; Xu, C.; Li, G.X.; Ding, Z.J.; Zheng, S.J. A WRKY transcription factor confers aluminum tolerance via regulation of cell wall modifying genes. J. Integr. Plant Biol. 2020, 62, 1176–1192. [Google Scholar] [CrossRef] [PubMed]
  31. Cheng, H.; Liu, H.; Deng, Y.; Xiao, J.; Li, X.; Wang, S. The WRKY45-2 WRKY13 WRKY42 transcriptional regulatory cascade is required for rice resistance to fungal pathogen. Plant Physiol. 2015, 167, 1087–1099. [Google Scholar] [CrossRef] [Green Version]
  32. Melo, J.O.; Martins, L.G.C.; Barros, B.A.; Pimenta, M.R.; Lana, U.G.P.; Duarte, C.E.M.; Pastina, M.M.; Guimaraes, C.T.; Schaffert, R.E.; Kochian, L.V.; et al. Repeat variants for the SbMATE transporter protect sorghum roots from aluminum toxicity by transcriptional interplay in cis and trans. Proc. Natl. Acad. Sci. USA 2019, 116, 313–318. [Google Scholar] [CrossRef] [Green Version]
  33. Ryan, P.R.; Ditomaso, J.M.; Kochian, L.V. Aluminium toxicity in roots: An investigation of spatial sensitivity and the role of the root cap. J. Exp. Bot. 1993, 2, 437–446. [Google Scholar] [CrossRef]
  34. Tao, Z.; Kou, Y.; Liu, H.; Li, X.; Xiao, J.; Wang, S. OsWRKY45 alleles play different roles in abscisic acid signalling and salt stress tolerance but similar roles in drought and cold tolerance in rice. J. Exp. Bot. 2011, 62, 4863–4874. [Google Scholar] [CrossRef]
  35. Horst, W.J.; Puschel, A.-K.; Schmohl, N. Induction of callose formation is a sensitive marker for genotypic aluminium sensitivity in maize. Plant Soil 1997, 192, 23–30. [Google Scholar] [CrossRef]
  36. Hirano, Y.; Walthert, L.; Brunner, I. Callose in root apices of European chestnut seedlings: A physiological indicator of aluminum stress. Tree Physiol. 2006, 26, 431–440. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Yamaji, N.; Huang, C.F.; Nagao, S.; Yano, M.; Sato, Y.; Nagamura, Y.; Ma, F.J. A zinc finger transcription factor ART1 regulates multiple genes implicated in aluminum tolerance in rice. Plant Cell 2009, 21, 3339–3349. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Tokizawa, M.; Kobayashi, Y.; Saito, T.; Kobayashi, M.; Iuchi, S.; Nomoto, M.; Tada, Y.; Yamamoto, Y.Y.; Koyama, H. Sensitive To Proton Rhizotoxicity1, Calmodulin Binding Transcription Activator2, and other transcription factors are involved in Aluminum-Activated Malate Transporter1 expression. Plant Physiol. 2015, 167, 991–1003. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Arenhart, R.A.; Schunemann, M.; Bucker Neto, L.; Margis, R.; Wang, Z.Y.; Margis-Pinheiro, M. Rice ASR1 and ASR5 are complementary transcription factors regulating aluminium responsive genes. Plant Cell Environ. 2016, 39, 645–651. [Google Scholar] [CrossRef]
  40. Gupta, S.K.; Rai, A.K.; Kanwar, S.S.; Sharma, T.R. Comparative analysis of zinc finger proteins involved in plant disease resistance. PLoS ONE 2012, 7, e42578. [Google Scholar] [CrossRef] [Green Version]
  41. Gupta, A.; Christensen, R.G.; Bell, H.A.; Goodwin, M.; Patel, R.Y.; Pandey, M.; Enuameh, M.S.; Rayla, A.L.; Zhu, C.; Thibodeau-Beganny, S.; et al. An improved predictive recognition model for Cys2-His2 zinc finger proteins. Nucleic Acids Res. 2014, 42, 4800–4812. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Zhang, X.; Li, L.; Yang, C.; Cheng, Y.; Han, Z.; Cai, Z.; Nian, H.; Ma, Q. GsMAS1 encoding a MADS-box transcription factor enhances the tolerance to aluminum stress in Arabidopsis thaliana. Int. J. Mol. Sci. 2020, 21, 2004. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Turck, F.; Zhou, A.; Somssich, I.E. Stimulus-dependent, promoter-specific binding of transcription factor WRKY1 to its native promoter and the defense-related gene PcPR1-1 in Parsley. Plant Cell 2004, 16, 2573–2585. [Google Scholar] [CrossRef] [Green Version]
  44. Sivaguru, M.; Fujiwara, T.; Samaj, J.; Baluska, F.; Yang, Z.M.; Osawa, H.; Maeda, T.; Mori, T.; Volkmann, D.; Matsumoto, H. Aluminum-induced 1→3-beta-D-glucan inhibits cell-to-cell trafficking of molecules through plasmodesmata: A new mechanism of aluminum toxicity in plants. Plant Physiol. 2000, 124, 991–1005. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Sivaguru, M.; Horst, W.J.; Eticha, D.; Matsumoto, H. Aluminum inhibits apoplastic flow of high–molecular weight solutes in root apices of Zea mays L. J. Plant Nutr. Soil Sci. 2006, 169, 679–690. [Google Scholar] [CrossRef]
  46. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2−ΔΔCT Method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef]
  47. Clough, S.J.; Bent, A.F. Floral dip: A simplified method for Agrobacterium-mediated transformation of Arabidopsis thaliana. Plant J. 1998, 16, 735–743. [Google Scholar] [CrossRef] [Green Version]
  48. Liu, H.; Yu, X.; Li, K.; Klejnot, J.; Yang, H.; Lisiero, D.; Lin, C. Photoexcited CRY2 interacts with CIB1 to regulate transcription and floral initiation in Arabidopsis. Science 2008, 322, 1535–1539. [Google Scholar] [CrossRef] [Green Version]
  49. Fang, R.X.; Nagy, F.; Sivasubramaniam, S.; Chua, N.H. Multiple cis regulatory elements for maximal expression of the cauliflower mosaic virus 35S promoter in transgenic plants. Plant Cell 1989, 1, 141–150. [Google Scholar]
  50. Lin, R.; Ding, L.; Claudio, C.; Ripoll, D.R.; Feschott, C.; Wang, H. Transposase-derived transcription factors regulate light signaling in Arabidopsis. Science 2007, 318, 1302–1305. [Google Scholar] [CrossRef] [Green Version]
Ijms 24 10288 g001 550

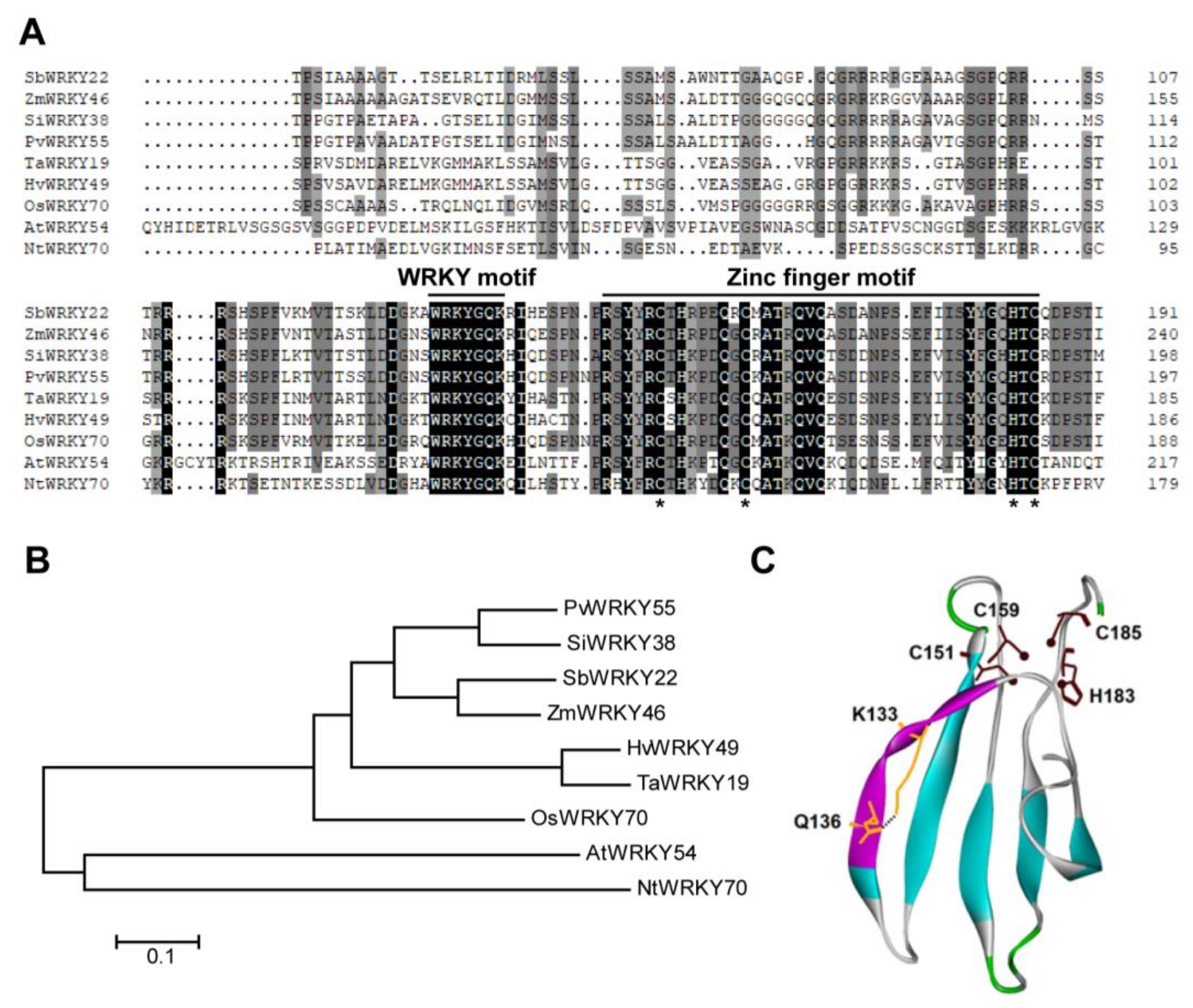

Figure 1. Amino acid sequence and structure analysis of SbWRKY22. (A) Sequence alignment of SbWRKY22 and its homologous proteins from other species, including Zea mays L. (ZmWRKY46, PWZ15446.1), Setaria italica (L.) Beauv. (SiWRKY38, XP_004958704.1), Panicum virgatum L. (PvWRKY55, XP_039797241.1), Triticum aestivam L. (TaWRKY19, XP_044327678.1), Hordeum vulgare L. (HvWRKY49, KAE8789191.1), Oryza sativa L. (OsWRKY70, XP_015646872.1), Arabidopsis thaliana (L.) Heynh. (AtWRKY54, AT2G40750), and Nicotiana tabacum L. (NtWRKY70, XP_016436463.1). Horizontal lines indicate the WRKY motif and zinc finger motif. The asterisks indicate conserved Cys2HisCys amino acids in zinc finger motif. (B) Phylogenic analysis of SbWRKY22 and the aforementioned homologous proteins. The phylogenetic tree was constructed according to the neighbor-joining method using MEGA 7. (C) Ribbon display model of the WRKY domain (WRKY motif and zinc finger motif) of SbWRKY22. Purple ribbon on the left: WRKY motif with the residues (yellow) forming a H-bond (black dashed line). Brown sticks at the top: Cys or His residues with S or N atoms (brown balls) bound to a Zn2+ ion.
Figure 1. Amino acid sequence and structure analysis of SbWRKY22. (A) Sequence alignment of SbWRKY22 and its homologous proteins from other species, including Zea mays L. (ZmWRKY46, PWZ15446.1), Setaria italica (L.) Beauv. (SiWRKY38, XP_004958704.1), Panicum virgatum L. (PvWRKY55, XP_039797241.1), Triticum aestivam L. (TaWRKY19, XP_044327678.1), Hordeum vulgare L. (HvWRKY49, KAE8789191.1), Oryza sativa L. (OsWRKY70, XP_015646872.1), Arabidopsis thaliana (L.) Heynh. (AtWRKY54, AT2G40750), and Nicotiana tabacum L. (NtWRKY70, XP_016436463.1). Horizontal lines indicate the WRKY motif and zinc finger motif. The asterisks indicate conserved Cys2HisCys amino acids in zinc finger motif. (B) Phylogenic analysis of SbWRKY22 and the aforementioned homologous proteins. The phylogenetic tree was constructed according to the neighbor-joining method using MEGA 7. (C) Ribbon display model of the WRKY domain (WRKY motif and zinc finger motif) of SbWRKY22. Purple ribbon on the left: WRKY motif with the residues (yellow) forming a H-bond (black dashed line). Brown sticks at the top: Cys or His residues with S or N atoms (brown balls) bound to a Zn2+ ion.
Ijms 24 10288 g001
Ijms 24 10288 g002 550

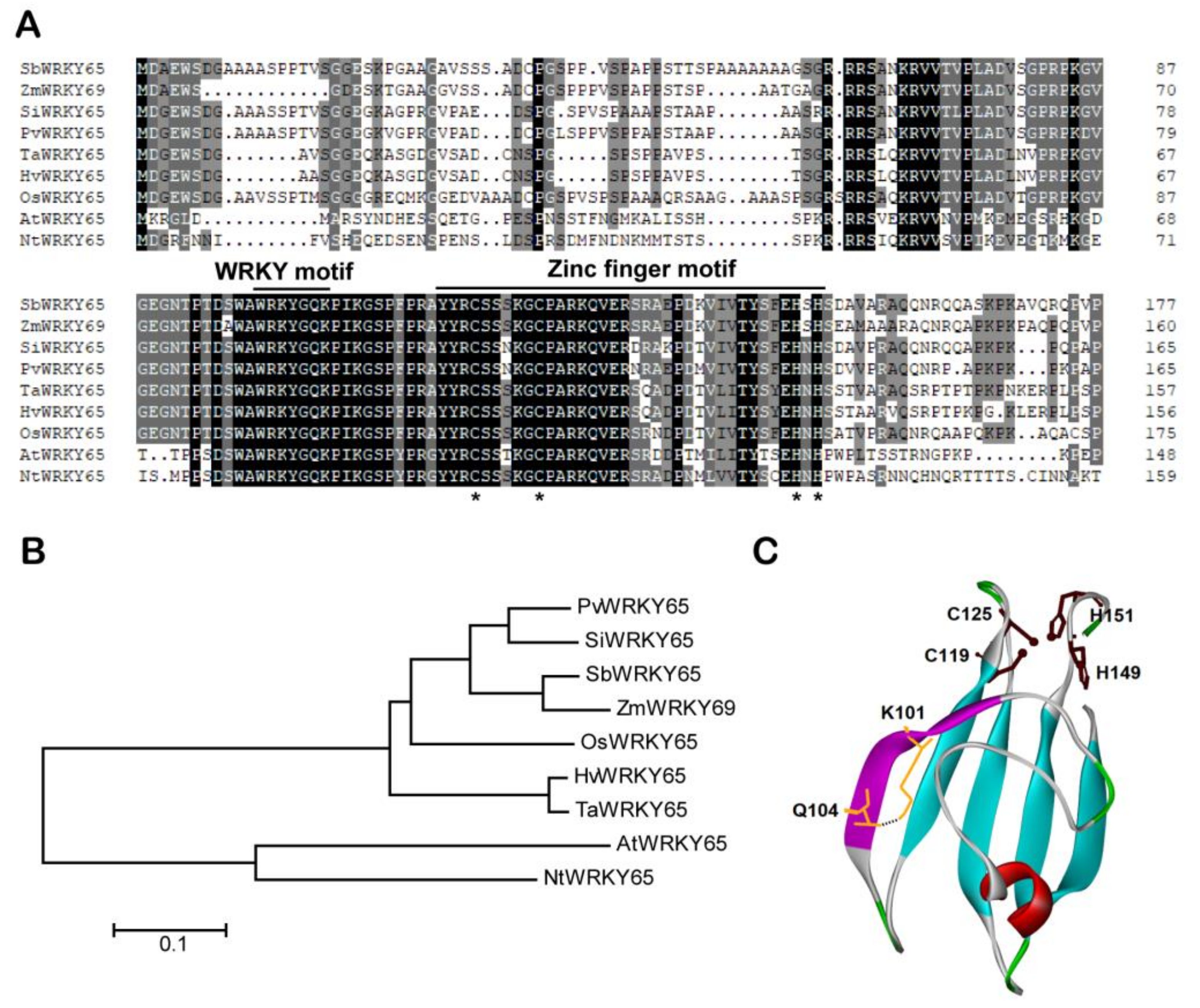

Figure 2. Amino acid sequence and structure analysis of SbWRKY65. (A) Sequence alignment of SbWRKY65 and homologous proteins from other species, including Zea mays L. (ZmWRKY69, ONM38198.1), Setaria italica (L.) Beauv. (SiWRKY65, XP_004969837.1), Panicum virgatum L. (PvWRKY65, XP_039813594.1), Triticum aestivam L. (TaWRKY65, XP_044344816.1), Hordeum vulgare L. (HvWRKY65, XP_044972707.1), Oryza sativa L. (OsWRKY65, XP_015624912.1), Arabidopsis thaliana (L.) Heynh. (AtWRKY65, AT1G29590), and Nicotiana tabacum L. (NtWRKY65, XP_016511600.1). Horizontal lines indicate the WRKY motif and zinc finger motif. The asterisks indicate conserved Cys2His2 amino acids in zinc finger motif. (B) Phylogenic analysis of SbWRKY65 and the aforementioned homologous proteins. The phylogenetic tree was constructed according to the neighbor-joining method using MEGA 7. (C) Ribbon display model of WRKY domain (WRKY motif and zinc finger motif) of SbWRKY65. Purple ribbon on the left: WRKY motif with the residues (yellow) forming a H-bond (black dashed line). Brown sticks at the top: Cys or His residues with S or N atoms (brown balls) bound to a Zn2+ ion.
Figure 2. Amino acid sequence and structure analysis of SbWRKY65. (A) Sequence alignment of SbWRKY65 and homologous proteins from other species, including Zea mays L. (ZmWRKY69, ONM38198.1), Setaria italica (L.) Beauv. (SiWRKY65, XP_004969837.1), Panicum virgatum L. (PvWRKY65, XP_039813594.1), Triticum aestivam L. (TaWRKY65, XP_044344816.1), Hordeum vulgare L. (HvWRKY65, XP_044972707.1), Oryza sativa L. (OsWRKY65, XP_015624912.1), Arabidopsis thaliana (L.) Heynh. (AtWRKY65, AT1G29590), and Nicotiana tabacum L. (NtWRKY65, XP_016511600.1). Horizontal lines indicate the WRKY motif and zinc finger motif. The asterisks indicate conserved Cys2His2 amino acids in zinc finger motif. (B) Phylogenic analysis of SbWRKY65 and the aforementioned homologous proteins. The phylogenetic tree was constructed according to the neighbor-joining method using MEGA 7. (C) Ribbon display model of WRKY domain (WRKY motif and zinc finger motif) of SbWRKY65. Purple ribbon on the left: WRKY motif with the residues (yellow) forming a H-bond (black dashed line). Brown sticks at the top: Cys or His residues with S or N atoms (brown balls) bound to a Zn2+ ion.
Ijms 24 10288 g002
Ijms 24 10288 g003 550

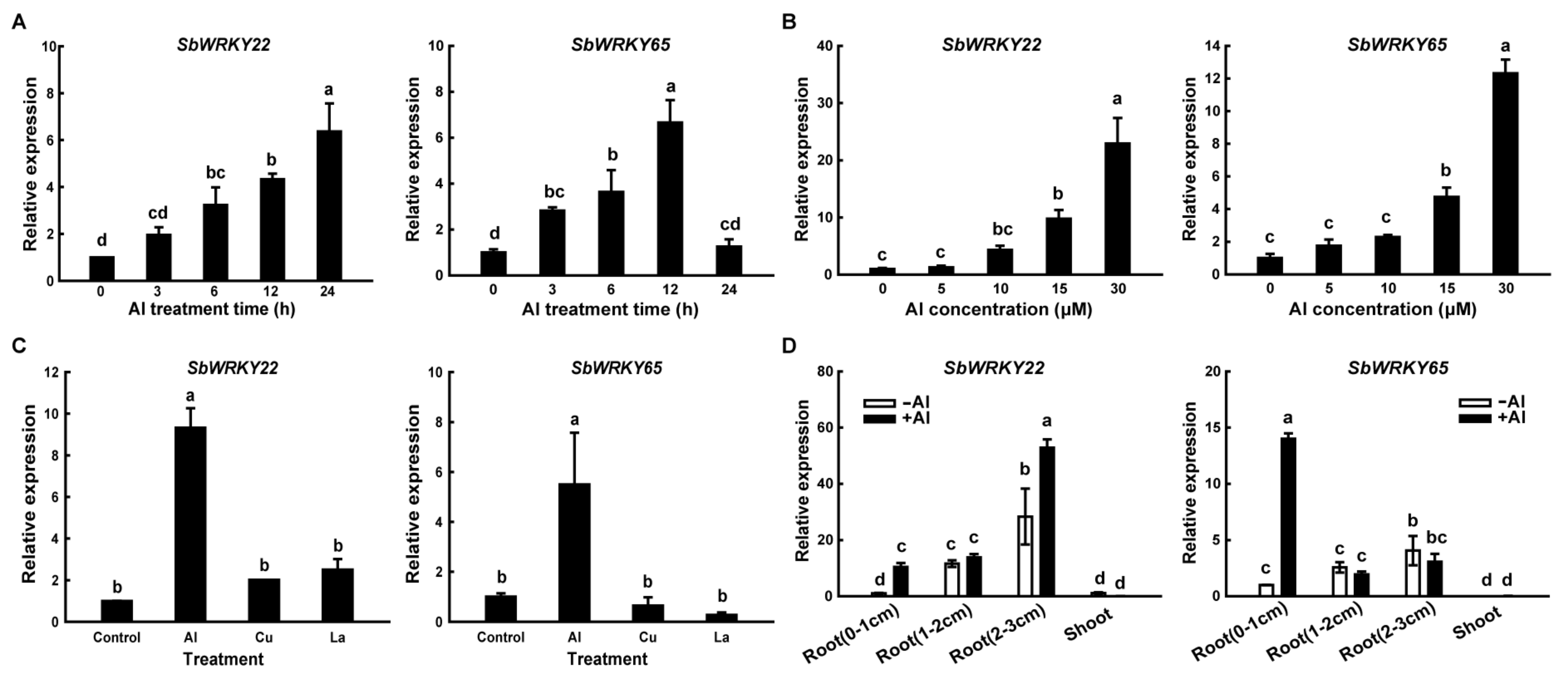

Figure 3. Quantitative real-time PCR analysis of SbWRKY22 and SbWRKY65 expression profiles. (A) Relative expression of SbWRKY22 and SbWRKY65 in sweet sorghum root apices (0–1 cm) in response to 15 μM Al stress with different treatment times. (B) Relative expression of SbWRKY22 and SbWRKY65 in root apices exposed to different Al concentrations for 12 h. (C) Relative expression of SbWRKY22 and SbWRKY65 in root apices in response to AlCl3 (15 μM), CuCl2 (0.5 μM) and LaCl3 (10 μM) for 12 h. (D) Relative expression of SbWRKY22 and SbWRKY65 in root apices (0–1 cm), roots (1–2 cm), roots (2–3 cm), and shoot sections in the absence (−Al) or presence (+Al, 15 μM) of Al treatment for 12 h. Data represent the means ± SD from three independent biological replicates. Columns with different letters are significantly different according to Tukey’s test (p < 0.05).
Figure 3. Quantitative real-time PCR analysis of SbWRKY22 and SbWRKY65 expression profiles. (A) Relative expression of SbWRKY22 and SbWRKY65 in sweet sorghum root apices (0–1 cm) in response to 15 μM Al stress with different treatment times. (B) Relative expression of SbWRKY22 and SbWRKY65 in root apices exposed to different Al concentrations for 12 h. (C) Relative expression of SbWRKY22 and SbWRKY65 in root apices in response to AlCl3 (15 μM), CuCl2 (0.5 μM) and LaCl3 (10 μM) for 12 h. (D) Relative expression of SbWRKY22 and SbWRKY65 in root apices (0–1 cm), roots (1–2 cm), roots (2–3 cm), and shoot sections in the absence (−Al) or presence (+Al, 15 μM) of Al treatment for 12 h. Data represent the means ± SD from three independent biological replicates. Columns with different letters are significantly different according to Tukey’s test (p < 0.05).
Ijms 24 10288 g003
Ijms 24 10288 g004 550
Figure 4. Analysis of subcellular localization and transcriptional activity of SbWRKY22 and SbWRKY65. (A) Subcellular localization of SbWRKY22 and SbWRKY65. Transient expression of GFP-SbWRKY22 and GFP-SbWRKY65 fusion proteins or GFP control in Arabidopsis protoplasts. DAPI, nuclear signal; GFP, GFP fluorescence; Bright, bright field. The scale bar is 20 μm. (B) Transcriptional activity of SbWRKY22 and SbWRKY65 in yeast. Y2HGold yeast strains carrying fused protein of GAL4 DNA-binding domain and SbWRKY22 (BD-SbWRKY22), SbWRKY65 (BD-SbWRKY65), or BD alone (vector) were cultured in SD/-Trp or SD/-Trp/-His medium.
Figure 4. Analysis of subcellular localization and transcriptional activity of SbWRKY22 and SbWRKY65. (A) Subcellular localization of SbWRKY22 and SbWRKY65. Transient expression of GFP-SbWRKY22 and GFP-SbWRKY65 fusion proteins or GFP control in Arabidopsis protoplasts. DAPI, nuclear signal; GFP, GFP fluorescence; Bright, bright field. The scale bar is 20 μm. (B) Transcriptional activity of SbWRKY22 and SbWRKY65 in yeast. Y2HGold yeast strains carrying fused protein of GAL4 DNA-binding domain and SbWRKY22 (BD-SbWRKY22), SbWRKY65 (BD-SbWRKY65), or BD alone (vector) were cultured in SD/-Trp or SD/-Trp/-His medium.
Ijms 24 10288 g004
Ijms 24 10288 g005 550

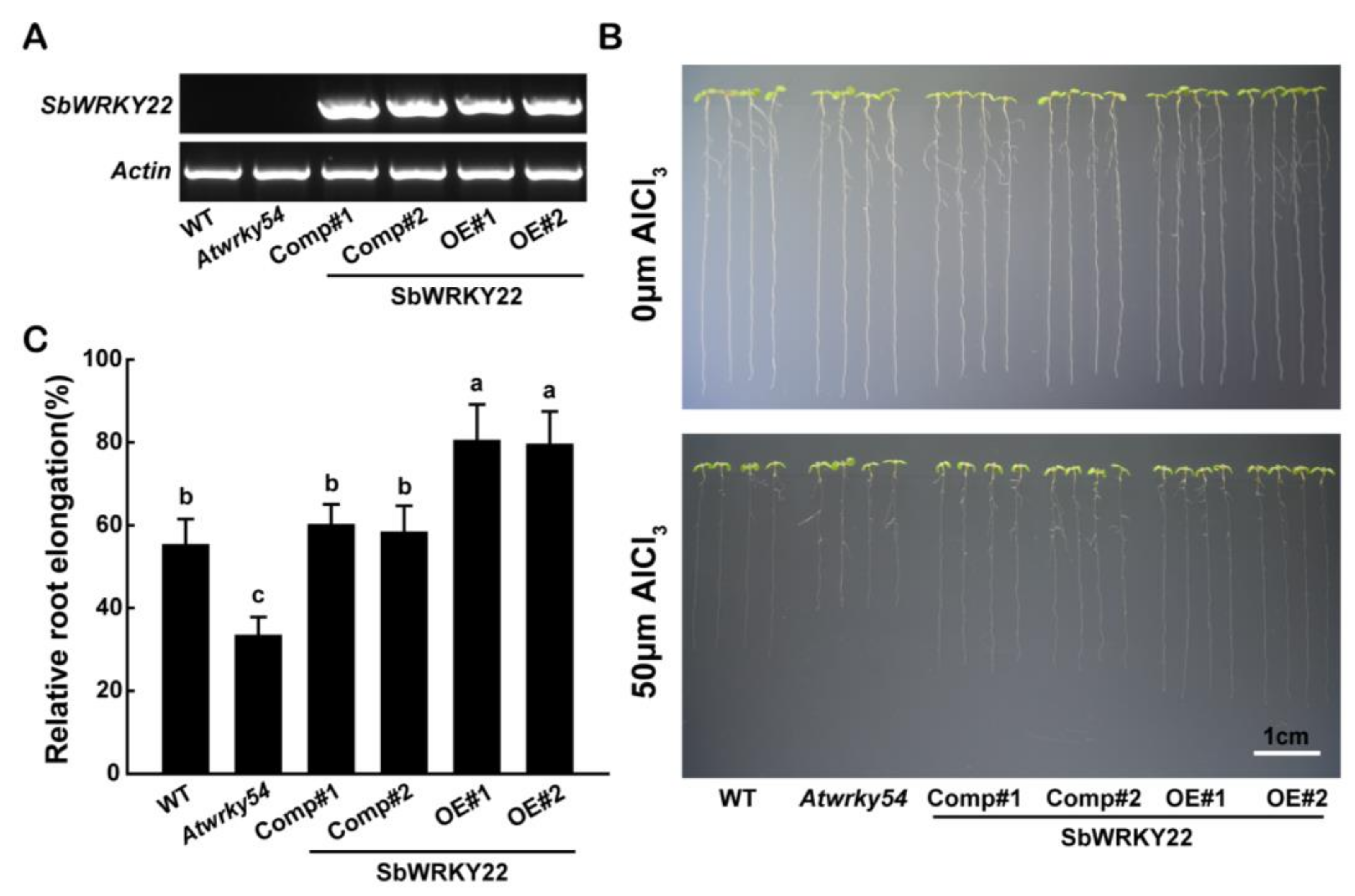

Figure 5. Overexpression of SbWRKY22 in transgenic Arabidopsis shows improved tolerance to Al stress. (A) Reverse transcription polymerase chain reaction characterization of SbWRKY22 expression in complimented lines and overexpression lines. (B) The Al-sensitive phenotype of WT (Col-0), Atwrky54 mutant, and the transgenic lines. Five-day-old seedlings were precultured on a solid MS medium at pH 5.8, then transferred to a solid medium containing 1 mM CaCl2 and 1% (w/v) sucrose at pH 4.5, with or without 50 μM AlCl3 for 5 d. Scale bar, 1 cm. (C) Relative root elongation (root elongation with Al treatment/root elongation without Al treatment) of WT and transgenic lines. Data are shown as means with SD (n ≥ 20). Columns with different letters indicate significant differences between plants according to Tukey’s test (p < 0.05). Experiments were repeated three times.
Figure 5. Overexpression of SbWRKY22 in transgenic Arabidopsis shows improved tolerance to Al stress. (A) Reverse transcription polymerase chain reaction characterization of SbWRKY22 expression in complimented lines and overexpression lines. (B) The Al-sensitive phenotype of WT (Col-0), Atwrky54 mutant, and the transgenic lines. Five-day-old seedlings were precultured on a solid MS medium at pH 5.8, then transferred to a solid medium containing 1 mM CaCl2 and 1% (w/v) sucrose at pH 4.5, with or without 50 μM AlCl3 for 5 d. Scale bar, 1 cm. (C) Relative root elongation (root elongation with Al treatment/root elongation without Al treatment) of WT and transgenic lines. Data are shown as means with SD (n ≥ 20). Columns with different letters indicate significant differences between plants according to Tukey’s test (p < 0.05). Experiments were repeated three times.
Ijms 24 10288 g005
Ijms 24 10288 g006 550

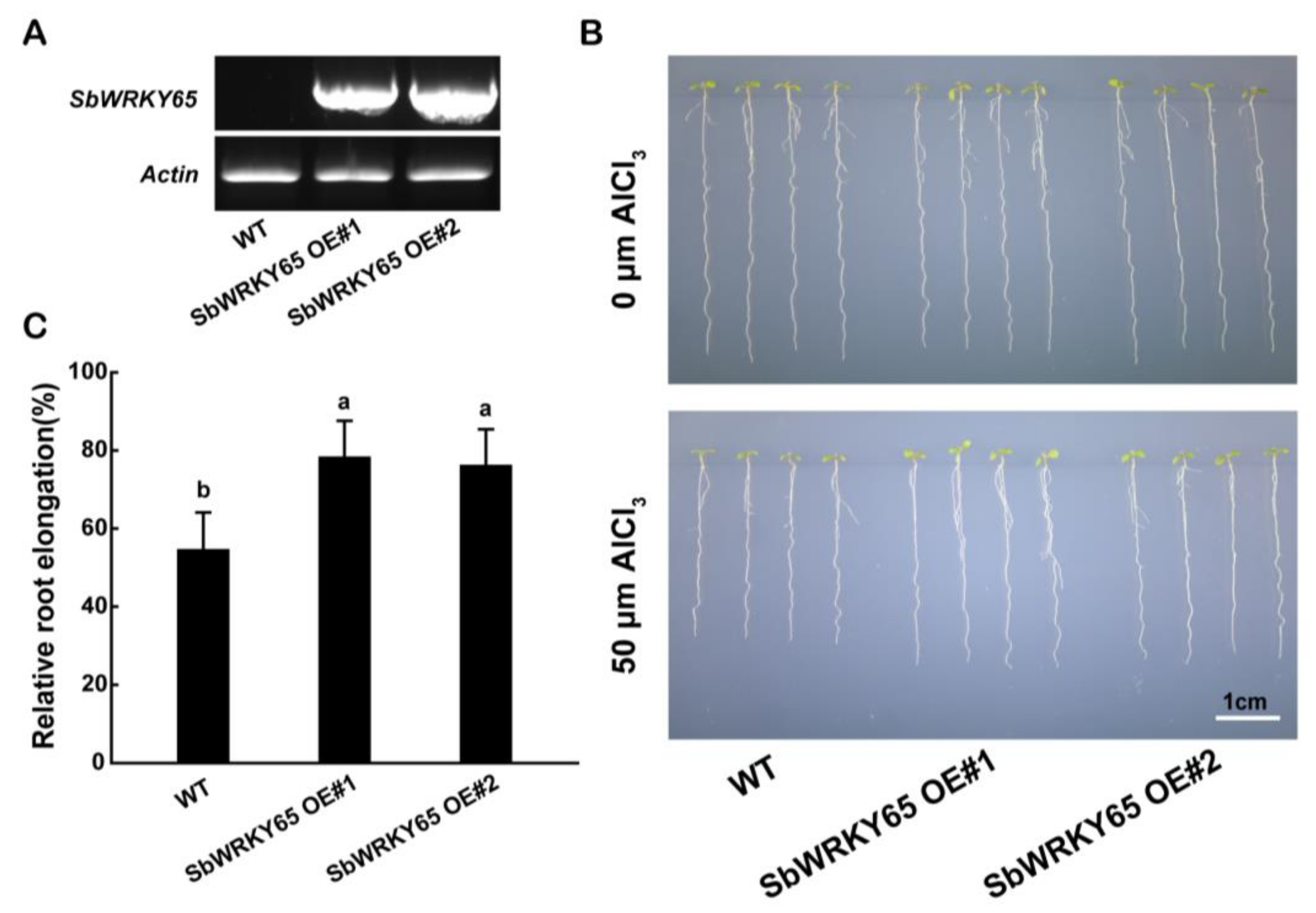

Figure 6. Overexpression of SbWRKY65 in transgenic Arabidopsis shows improved tolerance to Al stress. (A) Reverse transcription polymerase chain reaction characterization of SbWRKY65 expression in the overexpression lines. (B) The Al-sensitive phenotype of WT (Col-0) and the overexpression lines. Five-day-old seedlings were precultured on a solid MS medium at pH 5.8, then transferred to a solid medium containing 1 mM CaCl2 and 1% (w/v) sucrose at pH 4.5, with or without 50 μM AlCl3 for 5 d. Scale bar, 1 cm. (C) Relative root elongation (root elongation with Al treatment/root elongation without Al treatment) of WT and the overexpression lines. Data are shown as the means with SD (n ≥ 20). Columns with different letters indicate significant differences between plants according to Tukey’s test (p < 0.05). Experiments were repeated three times.
Figure 6. Overexpression of SbWRKY65 in transgenic Arabidopsis shows improved tolerance to Al stress. (A) Reverse transcription polymerase chain reaction characterization of SbWRKY65 expression in the overexpression lines. (B) The Al-sensitive phenotype of WT (Col-0) and the overexpression lines. Five-day-old seedlings were precultured on a solid MS medium at pH 5.8, then transferred to a solid medium containing 1 mM CaCl2 and 1% (w/v) sucrose at pH 4.5, with or without 50 μM AlCl3 for 5 d. Scale bar, 1 cm. (C) Relative root elongation (root elongation with Al treatment/root elongation without Al treatment) of WT and the overexpression lines. Data are shown as the means with SD (n ≥ 20). Columns with different letters indicate significant differences between plants according to Tukey’s test (p < 0.05). Experiments were repeated three times.
Ijms 24 10288 g006
Ijms 24 10288 g007 550

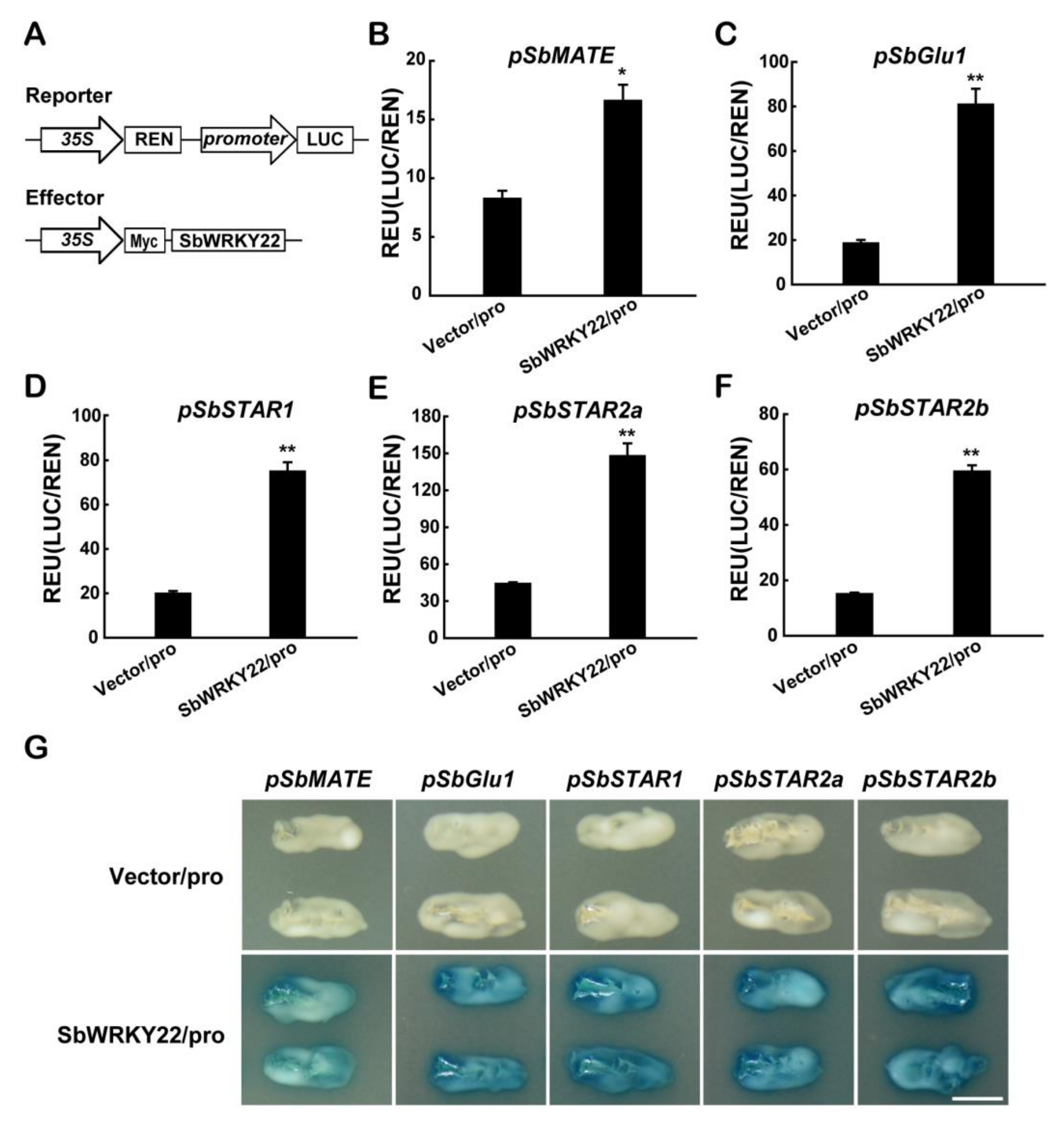

Figure 7. Transcriptional characteristic analysis of SbWRKY22. (A) Schematic diagram of the reporter and effector used in the dual-luciferase reporter system. pSbMATE, SbMATE promoter −2000 bp to −1 bp); pSbGlu1, SbGlu1 promoter (−2000 bp to −1 bp); pSbSTAR1, SbSTAR1 promoter (−1494 bp to −1 bp); pSbSTAR2a, SbSTAR2a promoter (−1678 bp to −1 bp); pSbSTAR2b, SbSTAR2b promoter (−1963 bp to −1 bp); LUC, firefly luciferase reporter; REN, Renilla luciferase reporter as an internal control; 35S, CaMV 35S promoter; Myc, protein tag. (B–F) Transcriptional regulation of SbMATE (B), SbGlu1 (C), SbSTAR1 (D), SbSTAR2a (E), and SbSTAR2b (F) by SbWRKY22 in the dual-luciferase reporter system. Luciferase activity of the reporter (LUC) driven by the promoters (pro) was normalized to the internal control reporter (REN). (G) Transcriptional regulation of SbMATE, SbGlu1, SbSTAR1, SbSTAR2a, and SbSTAR2b by SbWRKY22 in the yeast one-hybrid system. Scale bar, 0.5 cm. Data represent the means ± SD from three independent biological replicates. Asterisk (*) represents significant differences from the vector-only control according to Dunnett’s t test (p < 0.05). Asterisks (**) represent significant differences from the vector-only control according to Dunnett’s t test (p < 0.01).
Figure 7. Transcriptional characteristic analysis of SbWRKY22. (A) Schematic diagram of the reporter and effector used in the dual-luciferase reporter system. pSbMATE, SbMATE promoter −2000 bp to −1 bp); pSbGlu1, SbGlu1 promoter (−2000 bp to −1 bp); pSbSTAR1, SbSTAR1 promoter (−1494 bp to −1 bp); pSbSTAR2a, SbSTAR2a promoter (−1678 bp to −1 bp); pSbSTAR2b, SbSTAR2b promoter (−1963 bp to −1 bp); LUC, firefly luciferase reporter; REN, Renilla luciferase reporter as an internal control; 35S, CaMV 35S promoter; Myc, protein tag. (B–F) Transcriptional regulation of SbMATE (B), SbGlu1 (C), SbSTAR1 (D), SbSTAR2a (E), and SbSTAR2b (F) by SbWRKY22 in the dual-luciferase reporter system. Luciferase activity of the reporter (LUC) driven by the promoters (pro) was normalized to the internal control reporter (REN). (G) Transcriptional regulation of SbMATE, SbGlu1, SbSTAR1, SbSTAR2a, and SbSTAR2b by SbWRKY22 in the yeast one-hybrid system. Scale bar, 0.5 cm. Data represent the means ± SD from three independent biological replicates. Asterisk (*) represents significant differences from the vector-only control according to Dunnett’s t test (p < 0.05). Asterisks (**) represent significant differences from the vector-only control according to Dunnett’s t test (p < 0.01).
Ijms 24 10288 g007
Ijms 24 10288 g008 550

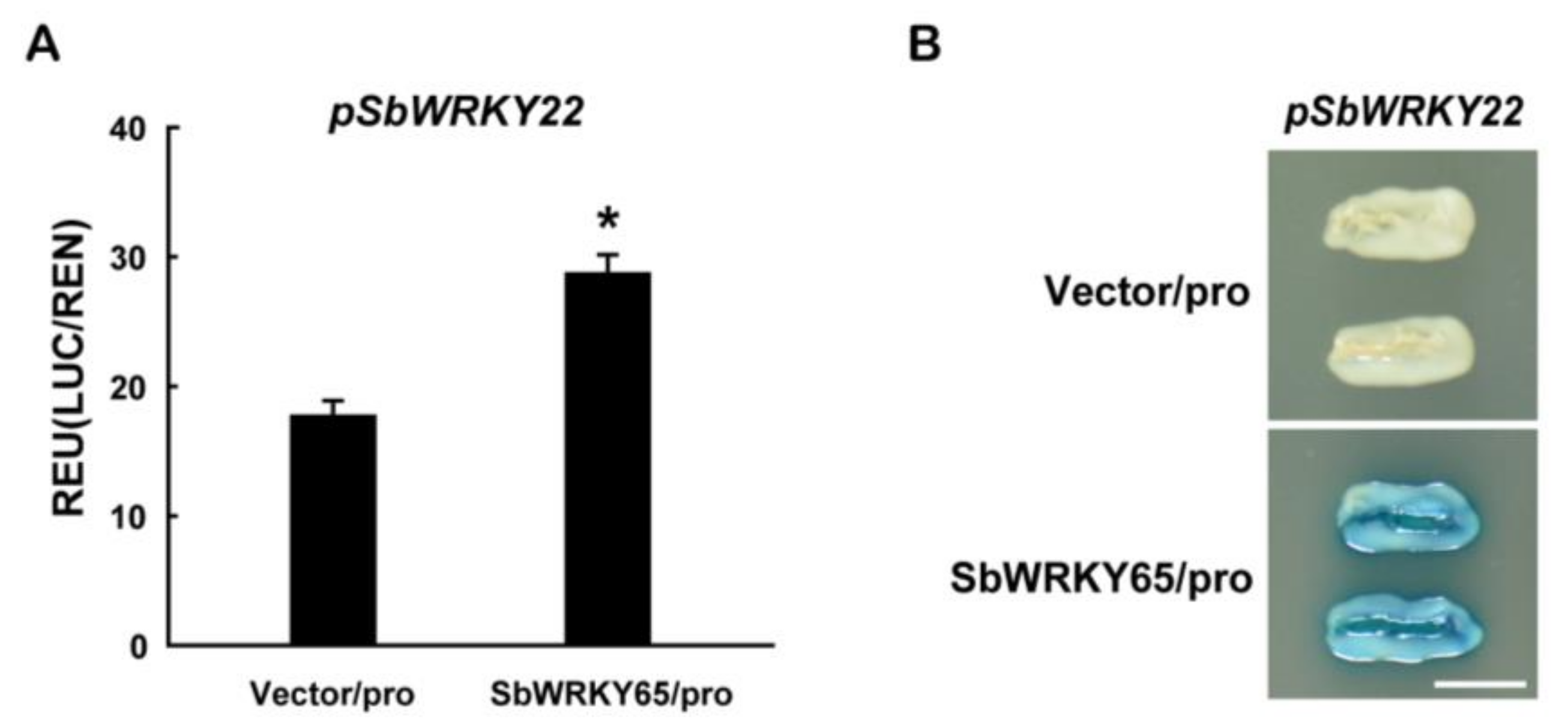

Figure 8. Transcriptional characteristic analysis of SbWRKY65. (A) Transcriptional regulation of SbWRKY22 via SbWRKY65 in the dual-luciferase reporter system. pSbWRKY22, SbWRKY22 promoter (−1680 bp to −1 bp). (B) Transcriptional regulation of SbWRKY22 by SbWRKY65 in the yeast one-hybrid system. Scale bar, 0.5 cm. Data represent the means ± SD from three independent biological replicates. Asterisks (*) represent significant differences in comparison to the control according to Dunnett’s t test (p < 0.05).
Figure 8. Transcriptional characteristic analysis of SbWRKY65. (A) Transcriptional regulation of SbWRKY22 via SbWRKY65 in the dual-luciferase reporter system. pSbWRKY22, SbWRKY22 promoter (−1680 bp to −1 bp). (B) Transcriptional regulation of SbWRKY22 by SbWRKY65 in the yeast one-hybrid system. Scale bar, 0.5 cm. Data represent the means ± SD from three independent biological replicates. Asterisks (*) represent significant differences in comparison to the control according to Dunnett’s t test (p < 0.05).
Ijms 24 10288 g008
Ijms 24 10288 g009 550

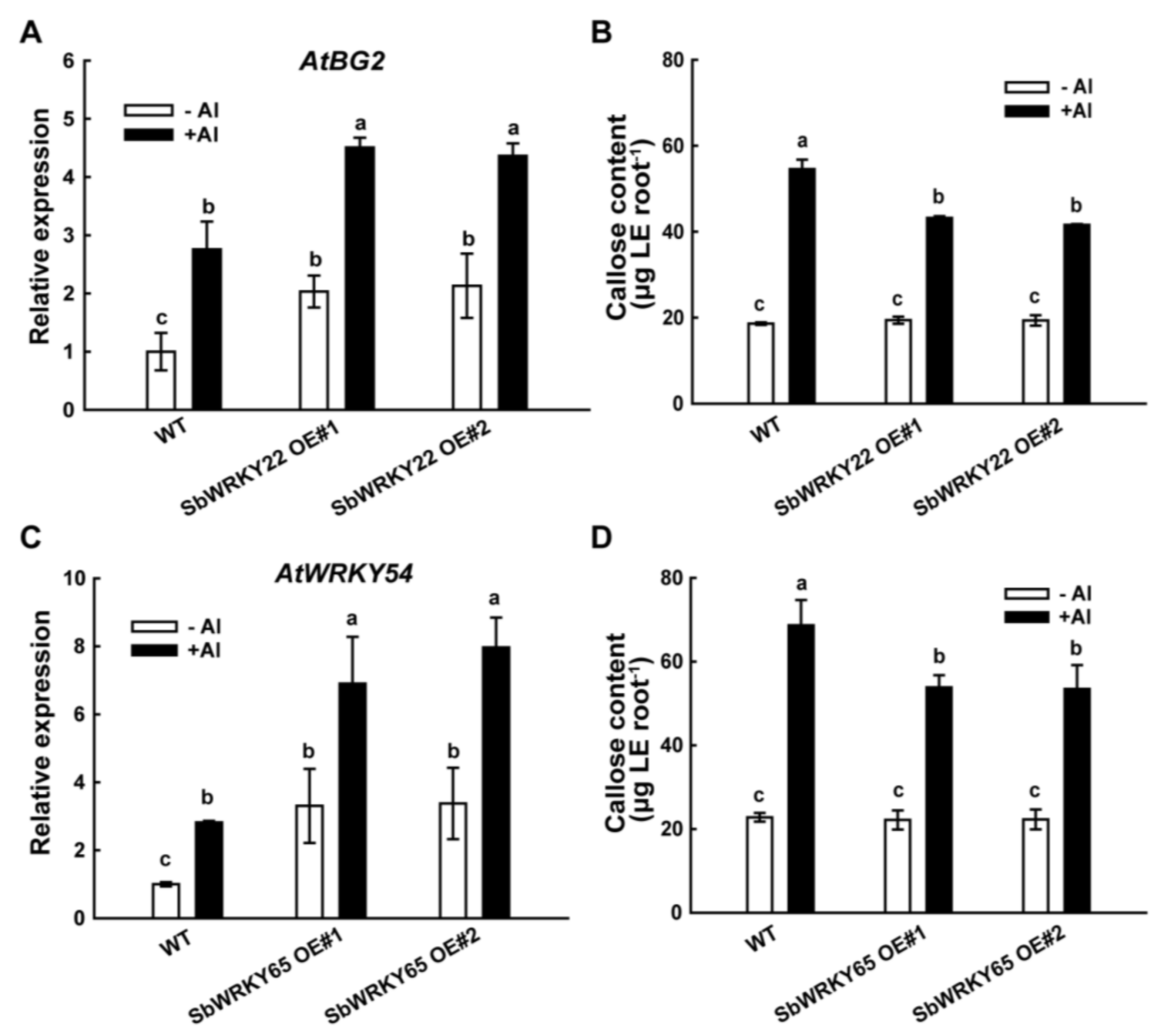

Figure 9. Overexpression lines of SbWRKY22/SbWRKY65 show enhanced AtBG2/AtWRKY54 expression and reduced callose accumulation. (A,C) Quantitative real-time PCR analysis of the expression of AtBG2/AtWRKY54 in WT (Col-0) and two independent SbWRKY22/SbWRKY65 overexpression lines. Seven-day-old seedlings were pre-cultured on a solid MS medium vertically and then transferred to a liquid medium containing 0.5 mM CaCl2 at pH 5.0 without AlCl3 or with 15 μM AlCl3 for 6 h. (B,D) Callose content in the roots of WT (Col-0) and two independent SbWRKY22/SbWRKY65 overexpression lines without or with 15 μM AlCl3 for 6 h. Data represent the means ± SD for three independent biological replicates. Columns with different letters are significantly different according to Tukey’s test (p < 0.05).
Figure 9. Overexpression lines of SbWRKY22/SbWRKY65 show enhanced AtBG2/AtWRKY54 expression and reduced callose accumulation. (A,C) Quantitative real-time PCR analysis of the expression of AtBG2/AtWRKY54 in WT (Col-0) and two independent SbWRKY22/SbWRKY65 overexpression lines. Seven-day-old seedlings were pre-cultured on a solid MS medium vertically and then transferred to a liquid medium containing 0.5 mM CaCl2 at pH 5.0 without AlCl3 or with 15 μM AlCl3 for 6 h. (B,D) Callose content in the roots of WT (Col-0) and two independent SbWRKY22/SbWRKY65 overexpression lines without or with 15 μM AlCl3 for 6 h. Data represent the means ± SD for three independent biological replicates. Columns with different letters are significantly different according to Tukey’s test (p < 0.05).
Ijms 24 10288 g009
