Cellulose Acetate-Supported Copper as an Efficient Sustainable Heterogenous Catalyst for Azide-Alkyne Cycloaddition Click Reactions in Water

Instituto de Ciencia Molecular/ICMol, Universidad de Valencia, C/Catedrático José Beltrán 2, 46980 Paterna, Valencia, Spain
Laboratoire de Chimie Analytique et Moléculaire (LCAM), Faculté Polydisciplinaire de Safi, Université Cadi Ayyad, Safi 46030, Morocco
Département de Chimie, Faculté des Sciences d’El Jadida, Université Chouaïb Doukkali, El Jadida 24000, Morocco
Laboratoire de Recherche en Développement Durable et Santé, Faculté des Sciences et Techniques de Marrakech, Université Cadi Ayyad, Marrakech 40000, Morocco
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2023, 24(11), 9301;
Received: 13 April 2023 / Revised: 22 May 2023 / Accepted: 24 May 2023 / Published: 26 May 2023
(This article belongs to the Special Issue Recent Advances in Cellulose Chemistry)


A new sustainable heterogeneous catalyst for copper-catalyzed azide-alkyne cycloaddition reaction (CuAAC) was investigated. The preparation of the sustainable catalyst was carried out through the complexation reaction between the polysaccharide cellulose acetate backbone (CA) and copper(II) ions. The resulting complex [Cu(II)-CA] was fully characterized by using different spectroscopic methods such as Fourier-transform infrared spectroscopy (FTIR), Scanning Electron Microscopy (SEM), Energy Dispersive X-ray (EDX), Ultraviolet-visible (UV-vis), and Inductively Coupled Plasma (ICP) analyses. The Cu(II)-CA complex exhibits high activity in the CuAAC reaction for substituted alkynes and organic azides, leading to a selective synthesis of the corresponding 1,4-isomer 1,2,3-triazoles in water as a solvent and working at room temperature. It is worth noting that this catalyst has several advantages from the sustainable chemistry point of view including no use of additives, biopolymer support, reactions carried out in water at room temperature, and easy recovery of the catalyst. These characteristics make it a potential candidate not only for the CuAAC reaction but also for other catalytic organic reactions.

1. Introduction

Recently, the preparation, characterization, and catalytic activity of heterogeneously catalyzed reactions have been reviewed focusing on their positive and negative points as well as on using bio-heterogeneous catalytic systems that involve biological macromolecules, such as cellulose, alginate, chitosan, etc. as bio-supports for metal catalysts [1,2]. The great interest in sustainable chemistry has led to the investigation of natural resources such as biopolymers. Among the most abundant naturally occurring and biodegradable polymers, cellulose known for its large number of interesting structure-related properties was utilized in various industrial applications, specifically in water treatment, cosmetics, and the industry of paper [3,4,5]. The introduction of functional groups on the cellulose structure has attracted great attention due to the possibility of modification of the chemical and physical properties of the cellulose surface [6,7,8], and their ability to catch metal ions is one of the best methods to introduce the eco-friendly character of the heterogeneous catalysts [9,10,11,12]. Since its introduction by Sharpless, the click chemistry concept is reported to feature high regioselectivity, high yields, and only low reaction times for the synthesis of a great variety of organic molecules with a potential application [13].
The copper-catalyzed azide-alkyne cycloaddition reaction (CuAAC) is the most popular reaction in the click chemistry regime. It is an excellent ligation process between azides and alkynes for the selective synthesis of 1,4-disubstituted-1,2,3-triazoles [14,15]. Triazole derivatives are excellent candidates in medicinal chemistry [16], biological science [17], and material chemistry [18]. The development of new heterogeneous catalytic systems respecting all reported green chemistry principles has experienced a significant increase in the last decade due to their easy recovery and high reusability [19,20,21,22]. Heterogeneous catalysis with metal ions on bio-supports is one of the most developed and efficient methods with an eco-friendly character [23,24,25,26,27]. In this regard, the development of new catalysts to afford 1,2,3-triazole moiety with high yields under sustainable conditions has attracted a lot of attention in the last decades [28,29,30]. We report here the heterogenization of copper(II) ions on cellulose acetate (CA) via the coordination of copper(II) by carbonyl and other oxygen-containing groups on the CA surface. The obtained catalyst (Cu(II)-CA) is highly active and regioselective in the synthesis of the corresponding 1,4-disubstituted-1,2,3-triazoles at room temperature using water as solvent. The heterogeneity and reusability of the prepared sustainable catalyst have also been investigated.

2. Results and Discussion

The immobilization of copper(II) ions on the cellulose acetate (CA) surface was conducted via a simple complexation process by using copper(II) chloride dihydrate as a source of copper(II) and water as solvent at room temperature. In fact, this immobilization reaction occurs through a complexation reaction between Cu(II) ions and both carbonyl oxygen and hydroxyl groups as donors on the CA surface (Scheme 1). The Inductively Coupled Plasma (ICP) analysis was performed to determine the contents of copper(II) ions in the Cu(II)-CA catalyst which was found to be 1.37% w/w. The morphology and structural investigations of the prepared Cu(II)-CA catalyst were carried out by means of Fourier-transform infrared spectroscopy (FTIR), UV-Vis, Scanning Electronic Microscopy (SEM), and Energy dispersive X-ray (EDX) spectroscopy.

2.1. Characterization of the Cu(II)-Catalyst

Cellulose acetate (CA) before and after its complexation reaction with copper(II) ions was analyzed by FTIR in order to gain more insights into the chemical structure of the prepared catalyst. The obtained results are summarized in Figure 1. The FTIR spectrum of the pure CA in the high-frequency region shows a broad band centered at ca. 3500 cm−1 which is related to OH groups plus other absorption peaks at 2948 and 2880 cm−1 due to C-H asymmetric stretching vibrations. The peaks at 1733 and 1431 cm−1 are assigned to the C=O stretching and C-O-H in-plane bending at C6, respectively. Other absorptions around 1366 cm−1 are attributed to C-O-H bending at C2 or C3. C=O bending vibration was observed in the FTIR spectrum at 1029 cm−1. Finally, the absorption peaks at 1215 and 902 cm−1 are attributed to C-O-C stretching of the β-(1-4) glycosidic linkage, which is the characteristic link in the cellulose structure. As far as the infrared spectrum of Cu(II)-CA is concerned, no new bands appeared, the only change being the intensity of all characteristic bands of CA (see Figure 1), suggesting that the possible interactions of functional ester and hydroxyl groups from CA with copper(II) ions in the Cu(II)-CA catalyst are weak, and also keeping in mind that the copper contents therein is very small.
The morphology and surface analysis of the obtained Cu(II)-CA catalyst was performed through SEM and EDX techniques (see Figure 2). The SEM image for the pure cellulose acetate shows no homogeneous surface with the presence of a microporous pattern, indicating the ability of this material to adsorb metal ions (Figure 2a) [31,32,33]. In the case of the Cu(II)-CA catalyst, the SEM image shows a low dispersity of copper (Figure 2b) and the absence of the metal aggregate which is due to the high solubility of copper(II) chloride in water, reducing the interaction of copper(II) ions with the functional groups on the cellulose acetate surface. The amount of copper on the surface of the polysaccharide cellulose acetate was examined by EDX analysis. The obtained result confirms the presence of copper in the Cu-CA catalyst and the copper loading of 1.87 wt% (Figure 2c). The difference between the obtained copper loading by ICP and EDX analyses is that EDX analysis can measure only the copper which is present on the surface of the cellulose acetate but it is unable to detect the copper loading inside of this polysaccharide polymer.
The optical characteristics of the Cu(II)-CA catalyst were also investigated by UV-Vis spectroscopy in the solid state. As shown in Figure 3, no absorption was located in the case of the pure cellulose acetate between 200 to 1000 nm. Meanwhile, the UV-Vis analysis of the Cu(II)-CA catalyst shows the occurrence of two new bands. The first one which is located in the UV domain at around 290 nm (Figure 3) is attributed to the presence of the Cu2+–O charge-transfer transitions [34,35,36,37]. The other one is a broad band located around 800 nm, and it is attributed to d-d transitions of copper(II) ions immobilized on the cellulose acetate polysaccharide.

2.2. Catalytic Tests

The prepared material, Cu(II)-CA, was then tested in CuAAC reactions under strict click reaction conditions. As a model reaction, the one between phenylacetylene (1a) and benzyl azide (2a) was selected for a systematic evaluation under various conditions (Scheme 2).
The experimental results show that the use of CuCl2 only affords a moderate yield of the desired product (3a) after 24 h at room temperature (Table 1). Importantly, the Cu(II)-CA catalyst leads to selective synthesis of one regioisomer triazole derivative, 1,4-disubstituted 1,2,3-triazole, in an excellent yield (99%) at room temperature using water as solvent. Subsequently, the effect of the amount of the catalyst on the efficiency of the catalyzed CuAAC reaction was also investigated (Table 1). The use of 5 mol% of Cu(II)-CA leads to an excellent yield after only 8 h, and the decrease in catalyst loading is not good for CuAAC reactions—see entries 7–9. However, no significant promotion in the yield was observed increasing the amount of catalyst to 20 mol%. Additionally, when the reaction temperature was increased to 60 °C, the results showed that this Cu(II)-CA catalyst led to an excellent yield (>90%) within 4 h (Table 1, entries 10–12). The long reaction time (~8 h) in the CuAAC reaction using Cu(II)-CA catalyst is due to the reaction rate for the formation of copper(I), the catalytic species for the CuAAC reaction, which is generated by the reduction of Cu(II) by terminal alkyne via the oxidative alkyne homocoupling reaction [38].
The ligation of various alkyne and azide derivatives was then investigated under the optimized CuAAC reaction conditions by using the Cu(II)-CA catalyst (Table 2). In all cases, the electron-donating, electron-withdrawing, or heterocycle substituents on the studied azides and terminal alkynes have no significant effects when using this catalyst. In fact, the final 1,2,3-triazole derivatives were obtained in excellent yields without further purification by conventional methods as confirmed by their analysis through 1H and 13C NMR spectroscopy (see Supplementary Materials).

2.3. Reusability of Cu(II)-CA Catalyst

To examine the recyclability and stability of the prepared catalyst in the CuAAC reaction, a model reaction was chosen between phenylacetylene (1a) and benzyl azide (2a) under the optimized reaction conditions (Scheme 3). The results showed that a moderate yield was obtained after three cycles (62%) (Table 3). The morphology of the reused catalyst was examined by SEM and EDX analyses after four cycles (Figure 4). The results show that the morphology of the fresh and reused Cu(II)-CA catalyst are almost similar. Moreover, the copper percentage in the reused catalyst was also investigated by EDX analysis and the results show a low amount of copper on the surface of the recovered Cu(II)-CA catalyst which can explain the low yield achieved after four cycles. The reusability, catalytic activity, and biocompatibility of this Cu(II)-CA catalyst make it a potential candidate not only for CuAAC reactions but also for other copper-catalyzed organic reactions.

2.4. Heterogeneity Test

The heterogeneity test of the prepared catalyst for the CuAAC reaction was also investigated through a hot filtration test (Figure 5). The cycloaddition reaction between benzyl azide and phenylacetylene in the presence of the prepared catalyst was performed in a reaction tube at 60 °C using water as solvent. At reaction halftime, the CuAAC reaction was stopped, and then, the catalyst was removed by hot filtration. The reaction filtrate was then stirred at the same reaction temperature for a further reaction time of 2 h. The results confirm that no corresponding 1,2,3-triazole was obtained after the hot filtration of the catalyst, unveiling the heterogeneous nature of the Cu(II)-CA catalyst.

2.5. Mechanistic Studies

The reaction mechanism for the CuAAC reaction catalyzed by Cu(II)-CA is reported in Scheme 4. Based on the previously reported mechanism of CuAAC [39,40,41,42,43,44,45], the first step is the formation of the catalytic copper(I) species by the reduction of the copper(II) ions in the presence of terminal alkyne via the homocoupling process [46]. The coordination of the obtained copper(I) species with alkynes conducts to the formation of the dinuclear acetylide-copper complex. This dinuclear copper(I) species reacts with the organic azides, resulting in a six-membered ring formation. The rearrangements of this intermediate lead to the formation of the 1,4-disubstituted 1,2,3-triazole and subsequent regeneration of the Cu(II)-CA complex in the presence of dioxygen (Scheme 4).

2.6. Comparison with Other Catalytic Methods

To illustrate the merits of the Cu(II)-CA catalyst in the CuAAC reaction, its catalytic activity was compared with other reported catalytic systems. The CuAAC reaction between phenylacetylene (1a) and benzyl azide (2a) was chosen as the model reaction to gain more light on the efficiency of our catalytic system. As shown in Table 4, the Cu(II)-CA catalyst is similar to the Cu(II) ions complexed with the naturally occurring biopolymers as well as with the modified biopolymer. Excellent results were observed compared to the Cu(II)-polyethyleneimine both in the reactivity and reaction time. Moreover, the formation of copper(I), which is the catalytic species for the CuAAC reaction, does not require an external reducing reagent in our case. All these qualities confirm that this catalyst is a good eco-friendly candidate for other organic synthesis reactions catalyzed by Cu(II)/Cu(I) ions.

3. Materials and Methods

3.1. General Experimental Information

All used reagents in this investigation were purchased from Sigma-Aldrich. The thin layer chromatography (TLC) plate (Merck Kieselgel 60 F254, Darmstadt, Germany) was used to monitor the catalytic reactions. All obtained products were characterized through 1H and 13C NMR analysis by using the BRUKER DRX-300 AVANCE spectrometer (University of Valencia, Valencia, Spain) and CDCl3, DMSO, and MeOD as solvents. FT-IR spectra were taken on a Nicolet spectrophotometer 5700. The scanning electron microscopy (SEM) images were obtained by means of an electron microscopy Philips XL-30 ESEM coupled to Tescan Vega-3 w/EDX (University of Valencia, Valencia, Spain).

3.2. Preparation of the Cu(II)-Catalyst

The complexation process between cellulose acetate and copper(II) ions was achieved by the addition of cellulose acetate (1 g) to an aqueous solution of copper(II) chloride dihydrate ([CuCl2] = 0.093 mol/L in 10 mL of water). The resulting mixture was stirred overnight at room temperature, and the obtained biomaterial was filtered off, washed with water, and then dried overnight. The copper(II)-containing cellulose acetate was characterized by FT-IR, SEM-EDX, UV-Vis, and ICP spectroscopy.

3.3. Catalytic Synthesis of 1,2,3-Triazole Derivatives

The corresponding azides (0.6 mmol) and alkyne (0.5 mmol) derivatives plus 3 mol% of Cu(II)-CA catalyst were added to 3 mL of water under continuous magnetic stirring at room temperature, and the reaction was monitored by TLC. After the reaction completion, the resulting mixture was then diluted by adding ethyl acetate. The catalyst was recovered by simple filtration and then washed, dried, and stored for the next cycle. The solvent of the organic phase was then removed under vacuum to afford the pure corresponding 1,2,3-triazole derivatives (3a–i).

4. Conclusions

In conclusion, the preparation and the characterization via the immobilization of copper(II) ions on the cellulose acetate (CA) (Cu(II)-CA) were investigated. The Cu(II)-CA catalyst was characterized by FT-IR, UV-Vis, SEM, EDX, and ICP analyses. Such a catalyst exhibits high catalytic activity and selectivity for the synthesis of 1,4-disubstituted-1,2,3-triazoles via CuAAC reaction using water as solvent at room temperature. The stability and heterogeneity of this catalyst were explained by the coordination of carbonyl and hydroxyl groups of the cellulose acetate with copper(II) ions. The simple separation of 1,2,3-triazoles, the reusability and heterogeneity of this catalyst, the various substrate scope, and the use of water as a reaction medium make this catalyst sustainable for CuAAC reactions. In light of these features, one can anticipate that this Cu(II)-CA material will be a very useful catalytic system for other copper-mediated organic reactions under mild eco-friendly reaction conditions.

Supplementary Materials

The following supporting information can be downloaded at:

Author Contributions

Conceptualization, L.B. and S.-E.S.; methodology, L.B. and S.-E.S.; investigation, and analysis, L.B., K.O., E.B. and M.T.; supervision, L.B. and M.T.; writing original draft, L.B., M.J. and S.-E.S.; writing—review and editing, L.B., M.J. and S.-E.S. All authors have read and agreed to the published version of the manuscript.


This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Dong, K.; Sun, Q.; Tang, Y.; Shan, C.; Aguila, B.; Wang, S.; Meng, X.; Ma, S.; Xiao, F.-S. Bio-Inspired Creation of Heterogeneous Reaction Vessels via Polymerization of Supramolecular Ion Pair. Nat. Commun. 2019, 10, 3059. [Google Scholar] [CrossRef] [PubMed]
  2. Hu, X.; Yip, A.C.K. Heterogeneous Catalysis: Enabling a Sustainable Future. Front. Catal. 2021, 1, 667675. [Google Scholar] [CrossRef]
  3. Chaouf, S.; El Barkany, S.; Amhamdi, H.; Jilal, I.; El Ouardi, Y.; Abou-salama, M.; Loutou, M.; El-Houssaine, A.; El Ouarghi, H.; El Idrissi, A. Low Degree of Substitution of Cellulose Acrylate Based Green Polyelectrolyte: Synthesis, Characterization and Application to the Removal of Cu (II) Ions and Colloidal Fe(OH)3 Turbidity. Mater. Today Proc. 2020, 31, S175–S182. [Google Scholar] [CrossRef]
  4. Essaghraoui, A.; Khatib, K.; Hamdaoui, B.; Brouillette, F.; Ablouh, E.-H.; Belfkira, A. Handsheet Coated by Polyvinyl Acetate as a Drug Release System. J. Pharm. Innov. 2021, 17, 599–609. [Google Scholar] [CrossRef]
  5. Athukoralalage, S.S.; Balu, R.; Dutta, N.K.; Choudhury, N.R. 3D Bioprinted Nanocellulose-Based Hydrogels for Tissue Engineering Applications: A Brief Review. Polymers 2019, 11, 898. [Google Scholar] [CrossRef] [PubMed]
  6. Du, C.; Li, H.; Li, B.; Liu, M.; Zhan, H. Characteristics and Properties of Cellulose Nanofibers Prepared by TEMPO Oxidation of Corn Husk. BioResources 2016, 11, 5276–5284. [Google Scholar] [CrossRef]
  7. Huang, T.; Kuboyama, K.; Fukuzumi, H.; Ougizawa, T. PMMA/TEMPO-Oxidized Cellulose Nanofiber Nanocomposite with Improved Mechanical Properties, High Transparency and Tunable Birefringence. Cellulose 2018, 25, 2393–2403. [Google Scholar] [CrossRef]
  8. Koga, H.; Saito, T.; Kitaoka, T.; Nogi, M.; Suganuma, K.; Isogai, A. Transparent, Conductive, and Printable Composites Consisting of TEMPO-Oxidized Nanocellulose and Carbon Nanotube. Biomacromolecules 2013, 14, 1160–1165. [Google Scholar] [CrossRef]
  9. Ahmad, H. Celluloses as Green Support of Palladium Nanoparticles for Application in Heterogeneous Catalysis: A Brief Review. J. Clust. Sci. 2021, 33, 421–438. [Google Scholar] [CrossRef]
  10. Kamel, S.; Khattab, T.A. Recent Advances in Cellulose Supported Metal Nanoparticles as Green and Sustainable Catalysis for Organic Synthesis. Cellulose 2021, 28, 4545–4574. [Google Scholar] [CrossRef]
  11. Riva, L.; Lotito, A.D.; Punta, C.; Sacchetti, A. Zinc- and Copper-Loaded Nanosponges from Cellulose Nanofibers Hydrogels: New Heterogeneous Catalysts for the Synthesis of Aromatic Acetals. Gels 2022, 8, 54. [Google Scholar] [CrossRef] [PubMed]
  12. Tang, Z.-E.; Lim, S.; Pang, Y.-L.; Ong, H.-C.; Lee, K.-T. Synthesis of Biomass as Heterogeneous Catalyst for Application in Biodiesel Production: State of the Art and Fundamental Review. Renew. Sustain. Energy Rev. 2018, 92, 235–253. [Google Scholar] [CrossRef]
  13. Kolb, H.C.; Finn, M.G.; Sharpless, K.B. Click Chemistry: Diverse Chemical Function from a Few Good Reactions. Angew. Chem. Int. Ed. 2001, 40, 2004–2021. [Google Scholar] [CrossRef]
  14. Lutz, J.-F.; Zarafshani, Z. Efficient Construction of Therapeutics, Bioconjugates, Biomaterials and Bioactive Surfaces Using Azide-Alkyne “Click” Chemistry. Adv. Drug Deliv. Rev. 2008, 60, 958–970. [Google Scholar] [CrossRef]
  15. Seath, C.P.; Burley, G.A.; Watson, A.J.B. Determining the Origin of Rate-Independent Chemoselectivity in CuAAC Reactions: An Alkyne-Specific Shift in Rate-Determining Step. Angew. Chem. Int. Ed. 2017, 56, 3314–3318. [Google Scholar] [CrossRef] [PubMed]
  16. Thirumurugan, P.; Matosiuk, D.; Jozwiak, K. Click Chemistry for Drug Development and Diverse Chemical–Biology Applications. Chem. Rev. 2013, 113, 4905–4979. [Google Scholar] [CrossRef]
  17. Katerina, I.S.; Lozan, T.T.; Nataliya, P.B.; Mauricio, A.P.; Irena, P.K. Developments in the Application of 1,2,3-Triazoles in Cancer Treatment. Recent Pat. Anti-Cancer Drug Discov. 2020, 15, 92–112. [Google Scholar]
  18. Nandikolla, A.; Srinivasarao, S.; Khetmalis, Y.M.; Kumar, B.K.; Murugesan, S.; Shetye, G.; Ma, R.; Franzblau, S.G.; Sekhar, K.V.G.C. Design, Synthesis and Biological Evaluation of Novel 1,2,3-Triazole Analogues of Imidazo-[1,2-a]-Pyridine-3-Carboxamide against Mycobacterium Tuberculosis. Toxicol. Vitr. 2021, 74, 105137. [Google Scholar] [CrossRef]
  19. Dumesic, J.A.; Huber, G.W.; Boudart, M. Principles of Heterogeneous Catalysis. In Handbook of Heterogeneous Catalysis; American Cancer Society: Atlanta, GA, USA, 2008; ISBN 978-3-527-61004-4. [Google Scholar]
  20. Norouzi, F.; Javanshir, S. Magnetic γFe2O3@[email protected]2O: An Efficient Solid-Phase Catalyst for Reducing Agent and Base-Free Click Synthesis of 1,4-Disubstituted-1,2,3-Triazoles. BMC Chem. 2020, 14, 1. [Google Scholar] [CrossRef]
  21. Sheldon, R.A.; Arends, I.W.C.E.; Hanefeld, U. Introduction: Green Chemistry and Catalysis. In Green Chemistry and Catalysis; John Wiley & Sons, Ltd.: Hoboken, NJ, USA, 2007; pp. 1–47. ISBN 978-3-527-61100-3. [Google Scholar]
  22. Singh, R.; Singh, G.; George, N.; Singh, G.; Gupta, S.; Singh, H.; Kaur, G.; Singh, J. Copper-Based Metal–Organic Frameworks (MOFs) as an Emerging Catalytic Framework for Click Chemistry. Catalysts 2023, 13, 130. [Google Scholar] [CrossRef]
  23. Schätz, A.; Grass, R.N.; Stark, W.J.; Reiser, O. TEMPO Supported on Magnetic C/Co-Nanoparticles: A Highly Active and Recyclable Organocatalyst. Chem. A Eur. J. 2008, 14, 8262–8266. [Google Scholar] [CrossRef] [PubMed]
  24. Fihri, A.; Cha, D.; Bouhrara, M.; Almana, N.; Polshettiwar, V. Fibrous Nano-Silica (KCC-1)-Supported Palladium Catalyst: Suzuki Coupling Reactions Under Sustainable Conditions. ChemSusChem 2012, 5, 85–89. [Google Scholar] [CrossRef] [PubMed]
  25. Madhavan, N.; Jones, C.W.; Weck, M. Rational Approach to Polymer-Supported Catalysts: Synergy between Catalytic Reaction Mechanism and Polymer Design. Acc. Chem. Res. 2008, 41, 1153–1165. [Google Scholar] [CrossRef] [PubMed]
  26. García-Garrido, S.E.; Francos, J.; Cadierno, V.; Basset, J.-M.; Polshettiwar, V. Chemistry by Nanocatalysis: First Example of a Solid-Supported RAPTA Complex for Organic Reactions in Aqueous Medium. ChemSusChem 2011, 4, 104–111. [Google Scholar] [CrossRef]
  27. Vafaeezadeh, M.; Schaumlöffel, J.; Lösch, A.; De Cuyper, A.; Thiel, W.R. Dinuclear Copper Complex Immobilized on a Janus-Type Material as an Interfacial Heterogeneous Catalyst for Green Synthesis. ACS Appl. Mater. Interfaces 2021, 13, 33091–33101. [Google Scholar] [CrossRef]
  28. Chassaing, S.; Bénéteau, V.; Pale, P. When CuAAC ‘Click Chemsitry’ goes heterogenous. Catal. Sci. Technol. 2016, 6, 923–957. [Google Scholar] [CrossRef]
  29. Bystrzanowska, M.; Petkov, P.; Tobiszewski, M. Ranking of Heterogeneous Catalysts Metals by Their Greenness. ACS Sustain. Chem. Eng. 2019, 7, 18434–18443. [Google Scholar] [CrossRef]
  30. Ablouh, E.-H.; Bahsis, L.; Sehaqui, H.; Anane, H.; Julve, M.; Stiriba, S.-E.; El Achaby, M. TEMPO-Oxidized-Cellulose Nanofibers-Immobilized Copper(II) Foam as an Efficient Heterogeneous Catalyst for the Azide-Alkyne Reaction in Water. Sustain. Chem. Pharm. 2022, 30, 100837. [Google Scholar] [CrossRef]
  31. Reis, D.T.; Ribeiro, I.H.S.; Pereira, D.H. DFT Study of the Application of Polymers Cellulose and Cellulose Acetate for Adsorption of Metal Ions (Cd2+, Cu2+ and Cr3+) Potentially Toxic. Polym. Bull. 2020, 77, 3443–3456. [Google Scholar] [CrossRef]
  32. Tian, Y.; Wu, M.; Liu, R.; Li, Y.; Wang, D.; Tan, J.; Wu, R.; Huang, Y. Electrospun Membrane of Cellulose Acetate for Heavy Metal Ion Adsorption in Water Treatment. Carbohydr. Polym. 2011, 83, 743–748. [Google Scholar] [CrossRef]
  33. Atmani, H.; Zazouli, S.; Ezzahra Bakkardouch, F.; Laallam, L.; Jouaiti, A. Insights into Interactions of Cellulose Acetate and Metal Ions (Zn2+, Cu2+, and Ag+) in Aqueous Media Using DFT Study. Comput. Theor. Chem. 2021, 1202, 113322. [Google Scholar] [CrossRef]
  34. Khan, J.; Siddiq, M.; Akram, B.; Ashraf, M.A. In-Situ Synthesis of CuO Nanoparticles in P(NIPAM-Co-AAA) Microgel, Structural Characterization, Catalytic and Biological Applications. Arab. J. Chem. 2018, 11, 897–909. [Google Scholar] [CrossRef]
  35. Culica, M.E.; Chibac-Scutaru, A.L.; Melinte, V.; Coseri, S. Cellulose Acetate Incorporating Organically Functionalized CeO2 NPs: Efficient Materials for UV Filtering Applications. Materials 2020, 13, 2955. [Google Scholar] [CrossRef] [PubMed]
  36. Mahapatra, O.; Bhagat, M.; Gopalakrishnan, C.; Arunachalam, K.D. Ultrafine Dispersed CuO Nanoparticles and Their Antibacterial Activity. J. Exp. Nanosci. 2008, 3, 185–193. [Google Scholar] [CrossRef]
  37. Kong, A.; Wang, H.; Yang, X.; Hou, Y.; Shan, Y. A Facile Direct Route to Synthesize Large-Pore Mesoporous Silica Incorporating High CuO Loading with Special Catalytic Property. Microporous Mesoporous Mater. 2009, 118, 348–353. [Google Scholar] [CrossRef]
  38. Sindhu, K.S.; Anilkumar, G. Recent Advances and Applications of Glaser Coupling Employing Greener Protocols. RSC Adv. 2014, 4, 27867–27887. [Google Scholar] [CrossRef]
  39. Kuang, G.-C.; Michaels, H.A.; Simmons, J.T.; Clark, R.J.; Zhu, L. Chelation-Assisted, Copper(II)-Acetate-Accelerated Azide−Alkyne Cycloaddition. J. Org. Chem. 2010, 75, 6540–6548. [Google Scholar] [CrossRef] [PubMed]
  40. Brotherton, W.S.; Michaels, H.A.; Simmons, J.T.; Clark, R.J.; Dalal, N.S.; Zhu, L. Apparent Copper(II)-Accelerated Azide−Alkyne Cycloaddition. Org. Lett. 2009, 11, 4954–4957. [Google Scholar] [CrossRef]
  41. Iacobucci, C.; Reale, S.; Gal, J.-F.; De Angelis, F. Dinuclear Copper Intermediates in Copper(I)-Catalyzed Azide–Alkyne Cycloaddition Directly Observed by Electrospray Ionization Mass Spectrometry. Angew. Chem. Int. Ed. 2015, 54, 3065–3068. [Google Scholar] [CrossRef]
  42. Himo, F.; Lovell, T.; Hilgraf, R.; Rostovtsev, V.V.; Noodleman, L.; Sharpless, K.B.; Fokin, V.V. Copper(I)-Catalyzed Synthesis of Azoles. DFT Study Predicts Unprecedented Reactivity and Intermediates. J. Am. Chem. Soc. 2005, 127, 210–216. [Google Scholar] [CrossRef]
  43. Nolte, C.; Mayer, P.; Straub, B.F. Isolation of a Copper(I) Triazolide: A “Click” Intermediate. Angew. Chem. Int. Ed. 2007, 46, 2101–2103. [Google Scholar] [CrossRef] [PubMed]
  44. Albano, G.; Aronica, L.A. Acyl Sonogashira Cross-Coupling: State of the Art and Application to the Synthesis of Heterocyclic Compounds. Catalysts 2020, 10, 25. [Google Scholar] [CrossRef]
  45. Berg, R.; Straub, B.F. Advancements in the Mechanistic Understanding of the Copper-Catalyzed Azide–Alkyne Cycloaddition. Beilstein J. Org. Chem. 2013, 9, 2715–2750. [Google Scholar] [CrossRef] [PubMed]
  46. Jin, L.; Tolentino, D.R.; Melaimi, M.; Bertrand, G. Isolation of Bis(Copper) Key Intermediates in Cu-Catalyzed Azide-Alkyne “Click Reaction”. Sci. Adv. 2015, 1, e1500304. [Google Scholar] [CrossRef]
  47. Bahsis, L.; Ablouh, E.-H.; Anane, H.; Taourirte, M.; Julve, M.; Stiriba, S.-E. Cu(II)-Alginate-Based Superporous Hydrogel Catalyst for Click Chemistry Azide–Alkyne Cycloaddition Type Reactions in Water. RSC Adv. 2020, 10, 32821–32832. [Google Scholar] [CrossRef]
  48. Rajender Reddy, K.; Rajgopal, K.; Lakshmi Kantam, M. Copper-Alginates: A Biopolymer Supported Cu(II) Catalyst for 1,3-Dipolar Cycloaddition of Alkynes with Azides and Oxidative Coupling of 2-Naphthols and Phenols in Water. Catal. Lett. 2007, 114, 36–40. [Google Scholar] [CrossRef]
  49. Bahsis, L.; El Ayouchia, H.B.; Anane, H.; Benhamou, K.; Kaddami, H.; Julve, M.; Stiriba, S.-E. Cellulose-copper as Bio-Supported Recyclable Catalyst for the Clickable Azide-Alkyne [3+2] Cycloaddition Reaction in Water. Int. J. Biol. Macromol. 2018, 119, 849–856. [Google Scholar] [CrossRef]
  50. Mandal, B.H.; Rahman, M.L.; Yusoff, M.M.; Chong, K.F.; Sarkar, S.M. Bio-Waste Corn-Cob Cellulose Supported Poly(Hydroxamic Acid) Copper Complex for Huisgen Reaction: Waste to Wealth Approach. Carbohydr. Polym. 2017, 156, 175–181. [Google Scholar] [CrossRef]
  51. Baig, R.B.N.; Varma, R.S. Copper on Chitosan: A Recyclable Heterogeneous Catalyst for Azide–Alkyne Cycloaddition Reactions in Water. Green Chem. 2013, 15, 1839–1843. [Google Scholar] [CrossRef]
  52. Ben El Ayouchia, H.; El Mouli, H.; Bahsis, L.; Anane, H.; Laamari, R.; Gómez-García, C.J.; Julve, M.; Stiriba, S.-E. Hyperbranched Polyethylenimine-Supported Copper(II) Ions as a Macroliganted Homogenous Catalyst for Strict Click Reactions of Azides and Alkynes in Water. J. Organomet. Chem. 2019, 898, 120881. [Google Scholar] [CrossRef]

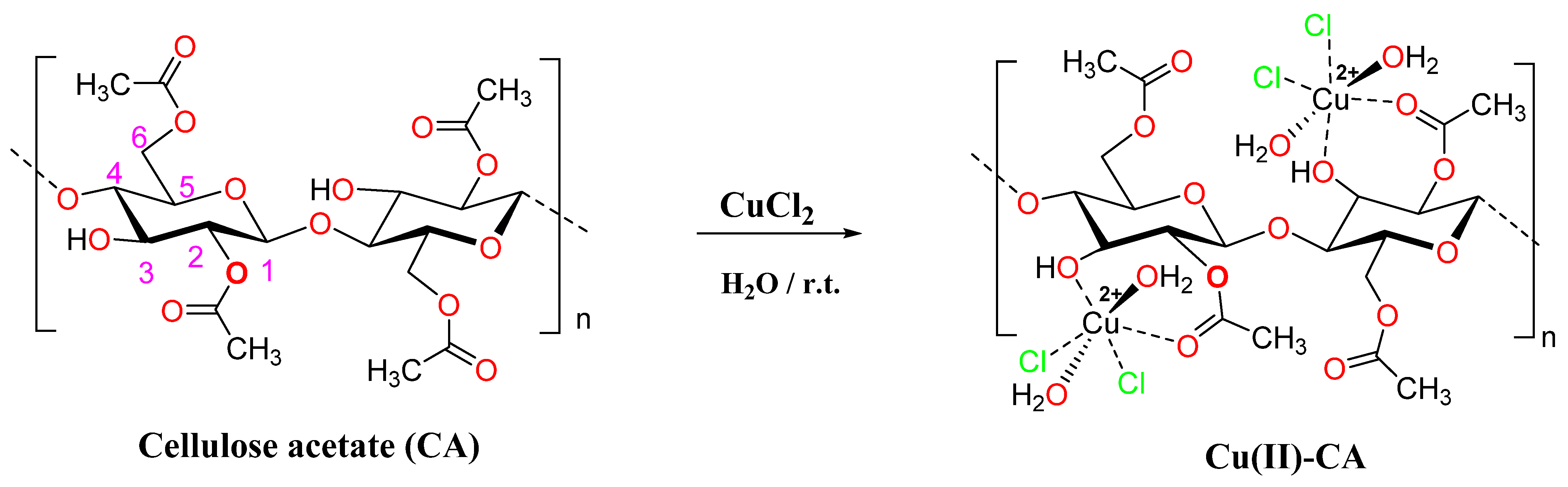

Scheme 1. Preparative route of the Cu(II)-CA catalyst.
Scheme 1. Preparative route of the Cu(II)-CA catalyst.
Ijms 24 09301 sch001
Figure 1. FTIR spectra of the pure cellulose acetate (CA, avocado trace) and Cu(II)-CA catalyst (pink trace).
Figure 1. FTIR spectra of the pure cellulose acetate (CA, avocado trace) and Cu(II)-CA catalyst (pink trace).
Ijms 24 09301 g001

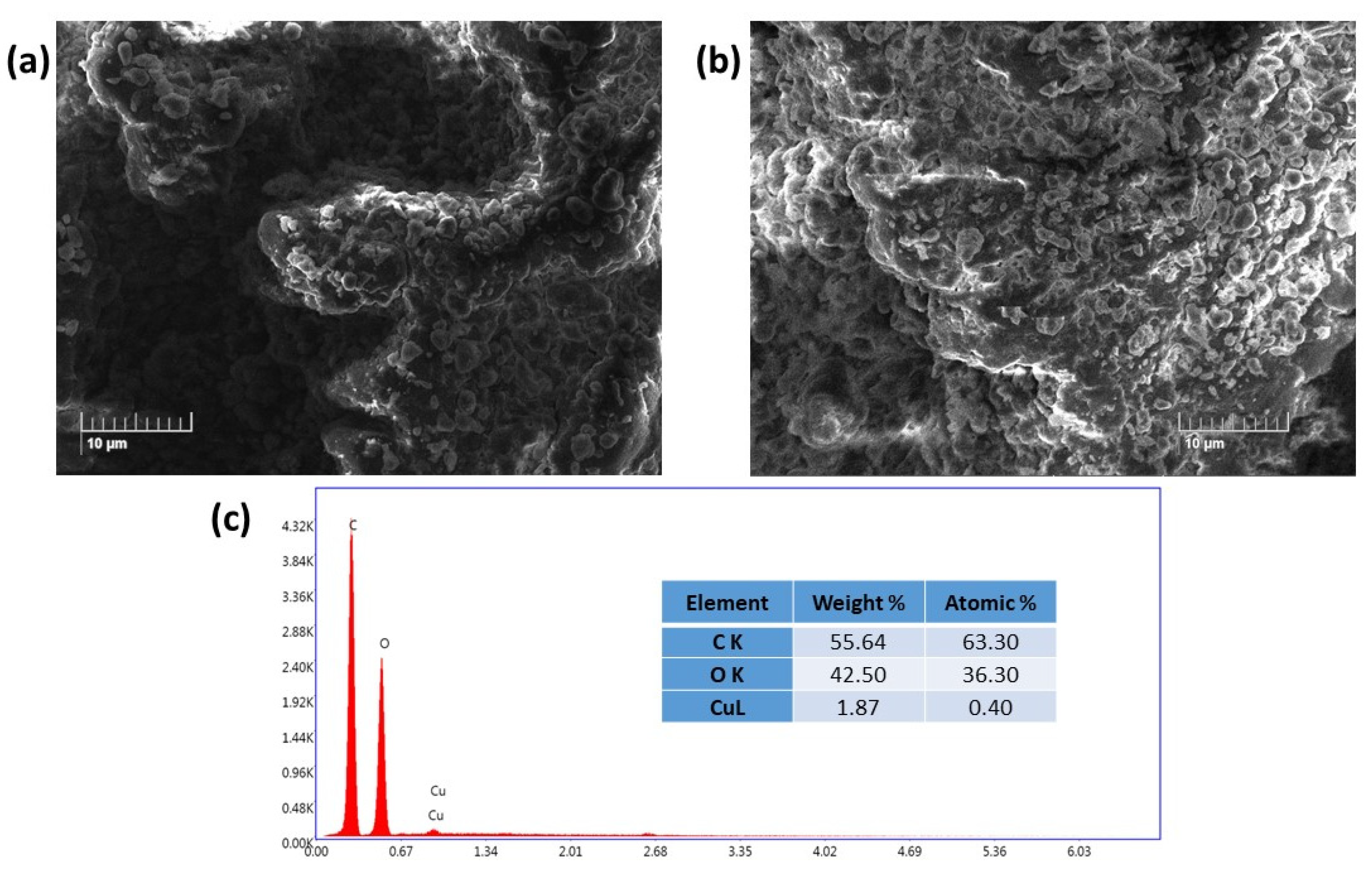

Figure 2. SEM images of the (a) cellulose acetate (CA) and (b) Cu(II)-CA. (c) EDX analysis of the Cu(II)-CA catalyst.
Figure 2. SEM images of the (a) cellulose acetate (CA) and (b) Cu(II)-CA. (c) EDX analysis of the Cu(II)-CA catalyst.
Ijms 24 09301 g002

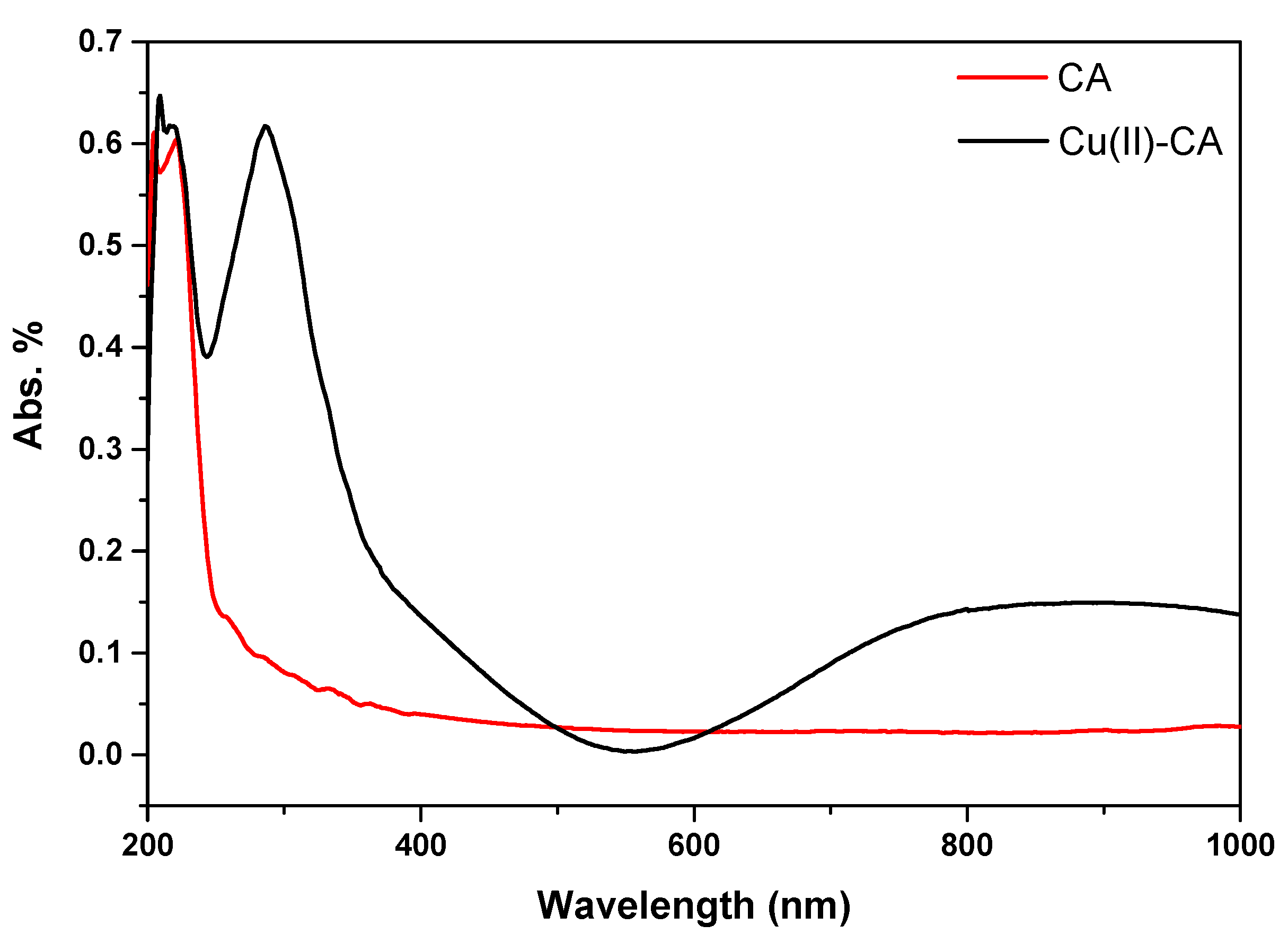

Figure 3. UV-Vis spectra of the pure CA (red trace) and Cu(II)-CA catalyst (black trace).
Figure 3. UV-Vis spectra of the pure CA (red trace) and Cu(II)-CA catalyst (black trace).
Ijms 24 09301 g003
Scheme 2. The CuAAC reaction of phenylacetylene and benzyl azide catalyzed by Cu(II)-CA.
Scheme 2. The CuAAC reaction of phenylacetylene and benzyl azide catalyzed by Cu(II)-CA.
Ijms 24 09301 sch002

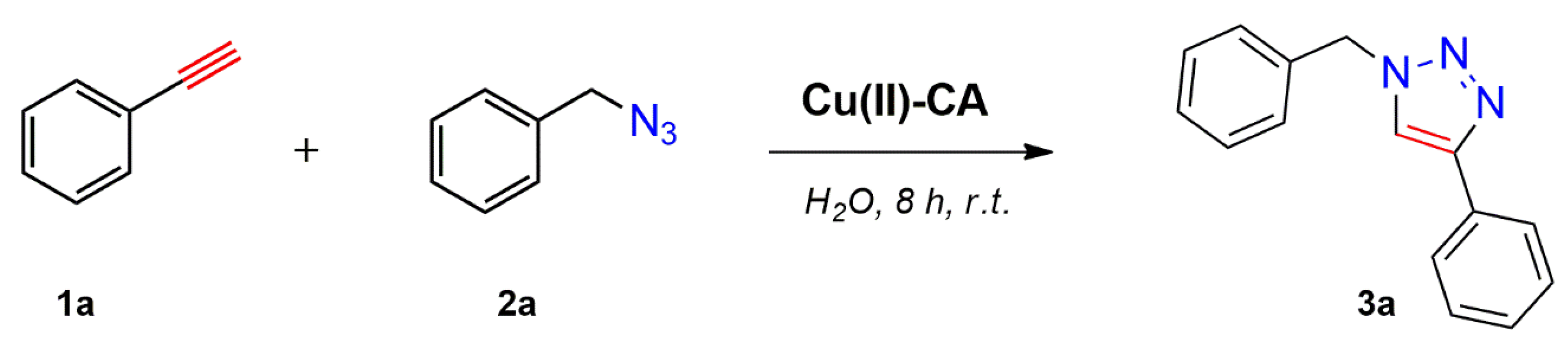

Scheme 3. Reusability test of the Cu(II)-CA catalyst in the CuAAC reaction.
Scheme 3. Reusability test of the Cu(II)-CA catalyst in the CuAAC reaction.
Ijms 24 09301 sch003

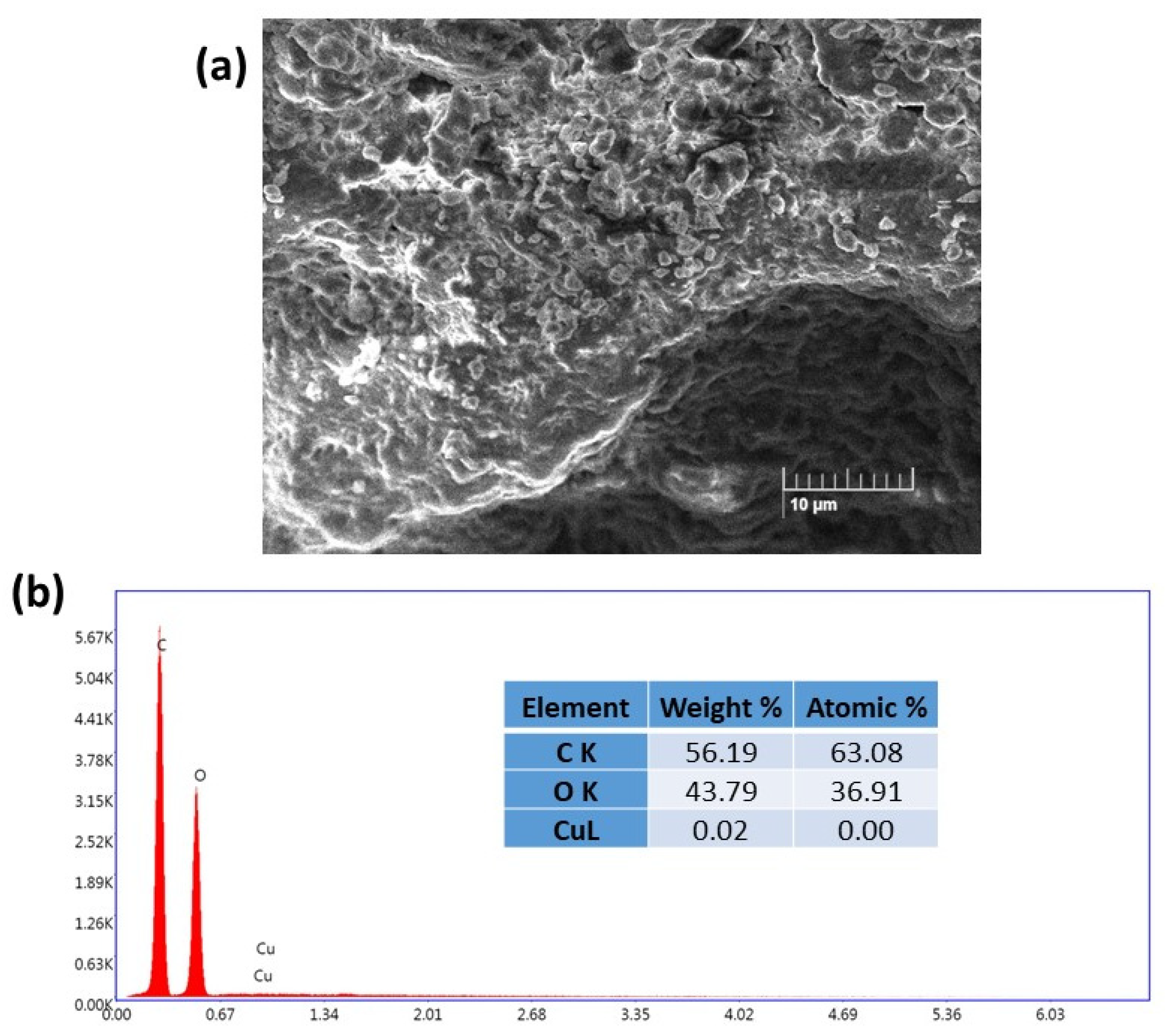

Figure 4. (a) SEM and (b) EDX analyses of the recovered Cu(II)-CA catalyst after 4 cycles.
Figure 4. (a) SEM and (b) EDX analyses of the recovered Cu(II)-CA catalyst after 4 cycles.
Ijms 24 09301 g004

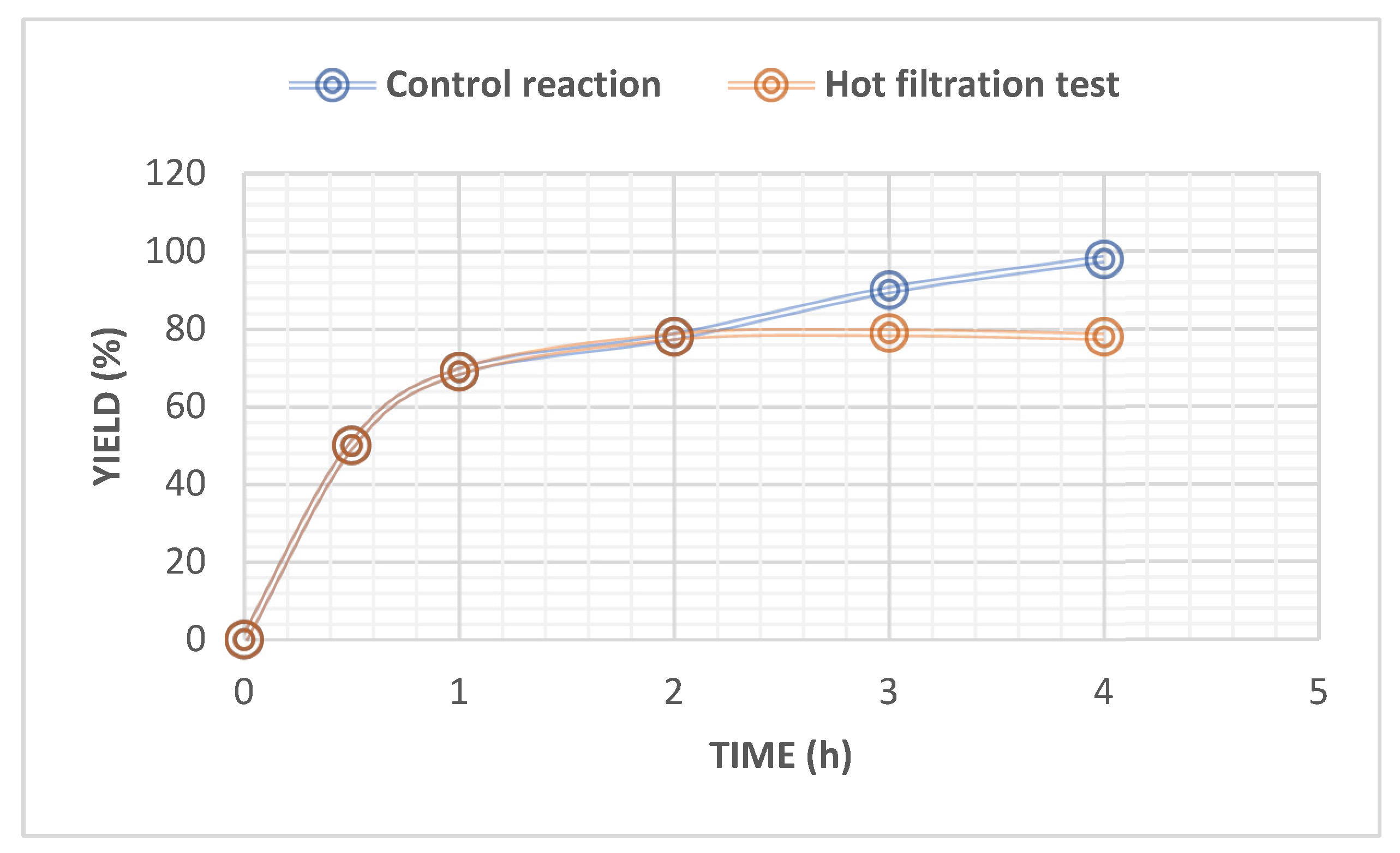

Figure 5. Heterogeneity test via hot filtration of the Cu(II)-CA catalyst in the CuAAC reaction.
Figure 5. Heterogeneity test via hot filtration of the Cu(II)-CA catalyst in the CuAAC reaction.
Ijms 24 09301 g005

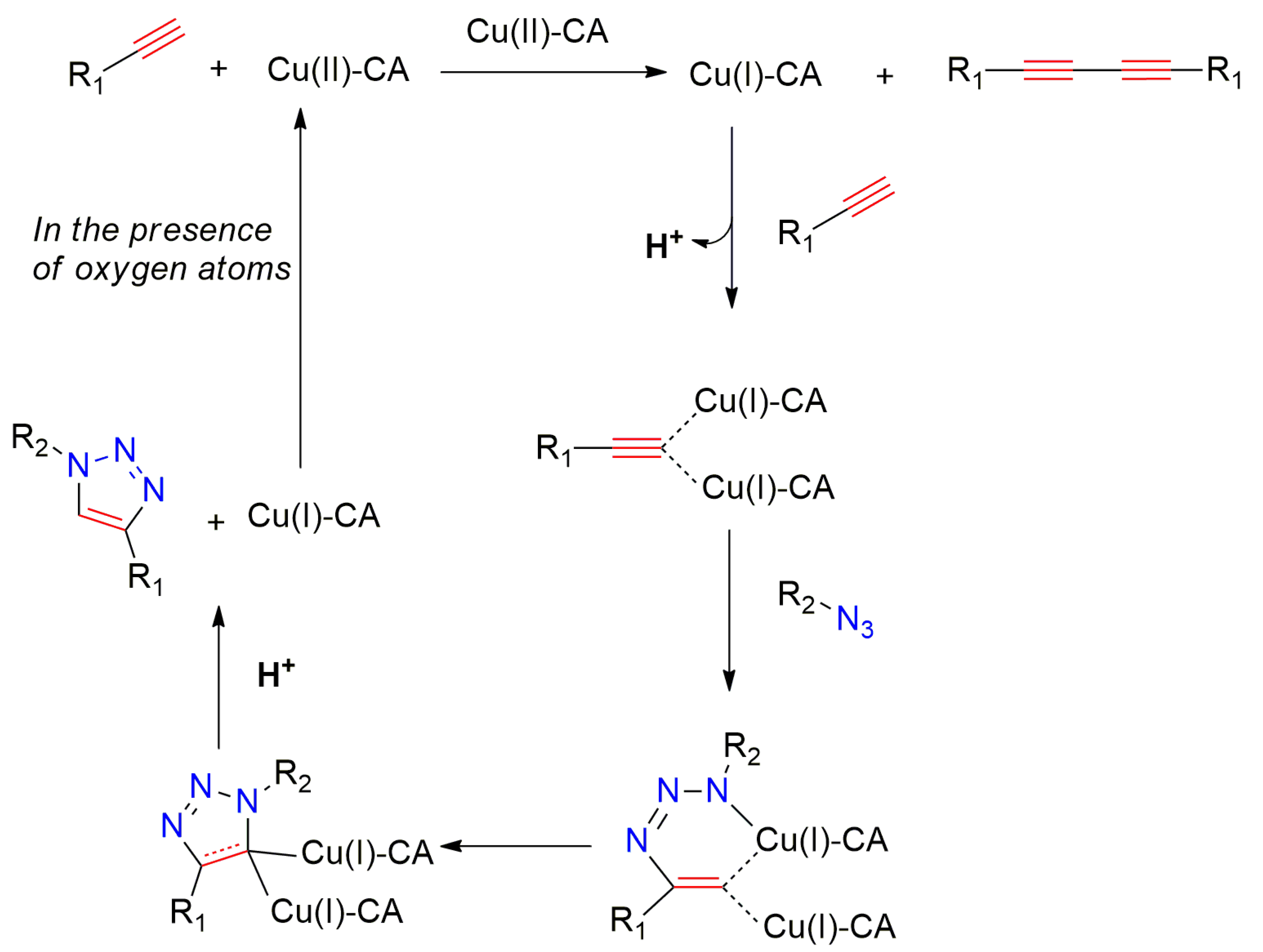

Scheme 4. Proposed mechanism of the CuAAC process catalyzed by Cu(II)-CA.
Scheme 4. Proposed mechanism of the CuAAC process catalyzed by Cu(II)-CA.
Ijms 24 09301 sch004
Table 1. Scope of click reaction catalyzed by Cu(II)-CA a.
Table 1. Scope of click reaction catalyzed by Cu(II)-CA a.
EntryCatalystLoading (mol%)Time (h)Yield (%) b
3CA20 c240
10 cCu(II)-CA50.550
11 dCu(II)-CA5278
12 cCu(II)-CA5498
a Reaction conditions: phenylacetylene (0.5 mmol); benzyl azide (0.6 mmol); H2O (3 mL); room temperature. b Isolated yields; c in mg; d Reaction temperature equal to 60 °C.
Table 2. Synthesis of the 1,2,3-triazole derivatives 3a–i using the Cu(II)-CA catalyst a.
Table 2. Synthesis of the 1,2,3-triazole derivatives 3a–i using the Cu(II)-CA catalyst a.
EntryAlkynesAzidesProductYield (%) b
1Ijms 24 09301 i001Ijms 24 09301 i0023a91
2Ijms 24 09301 i003Ijms 24 09301 i0043b93
3Ijms 24 09301 i005Ijms 24 09301 i0063c97
4Ijms 24 09301 i007Ijms 24 09301 i0083d97
5Ijms 24 09301 i009Ijms 24 09301 i0103e90
6Ijms 24 09301 i011Ijms 24 09301 i0123f94
7Ijms 24 09301 i013Ijms 24 09301 i0143g94
8Ijms 24 09301 i015Ijms 24 09301 i0163h91
9Ijms 24 09301 i017Ijms 24 09301 i0183i92
a Reaction conditions: azide (0.6 mmol), alkyne (0.5 mmol), H2O (3 mL), catalyst (5 mol% Cu), room temperature. b Isolated yield.
Table 3. Reusability test of the Cu(II)-CA catalyst in the CuAAC reaction a.
Table 3. Reusability test of the Cu(II)-CA catalyst in the CuAAC reaction a.
RunCu(II)-CA b
a Reaction conditions: azide (0.6 mmol), alkyne (0.5 mmol), H2O (3 mL), catalyst (5 mol% Cu), room temperature. b Isolated yield after 8 h.

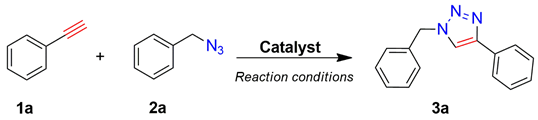

Table 4. Comparison of the Cu(II)-CA catalyst with other catalytic systems.
Table 4. Comparison of the Cu(II)-CA catalyst with other catalytic systems.
Ijms 24 09301 i019
EntryCatalyst[Cu] Loading (mol%)ConditionsTime (h)TON dTOF eYield (%)Ref.
1Cu(II)-AHG a2H2O, r.t.2424195[47]
2Cu(II)-AD b2H2O, r.t.48230.4893
3Cu(II)-Alginate21H2O, r.t.184.60.2698[48]
4Cu(II)-Cellulose1.2H2O, r.t.12403.3396[49]
5Cu(II)-Poly(hydroxamic acid)0.1H2O, 50 °C4910227.591[50]
6CuSO4-Chitosann.d cH2O, r.t.4--99[51]
7Cu(II)-Polyethylenimine5H2O, r.t.24120.598[52]
8Cu(II)-CA5H2O, r.t.818.22.2891This work
a Alginate hydrogel. b Alginate dried. c Not determined in mol%, given as CuSO4-Chitosan (5 mg). d TON: Turnover number. e TOF: Turnover frequency.
