# Signal Deconvolution and Noise Factor Analysis Based on a Combination of Time–Frequency Analysis and Probabilistic Sparse Matrix Factorization

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

_{2}* relaxation time. Noise factor analysis of NMR datasets identified correlations between SNR and acquisition parameters, identifying major experimental factors that can lower SNR.

## 1. Introduction

_{2}relaxation time, a physical parameter independent of field inhomogeneity. In reality, however, because of the effect of magnetic field inhomogeneity, the decay constant of the FID is defined as T

_{2}*, an instrument-dependent parameter, rather than T

_{2}. STFT has the ability to extract time-varying behavior from FIDs, allowing for the analysis of dynamic chemical shifts of atoms in flexible proteins [26]. In addition, it has been reported that STFT can extract T

_{2}* information from FIDs and improve the results of discriminant analysis [27]. Applying the same idea to covariance NMR [28], T

_{2}*-weighted covariance NMR improves the sensitivity and resolution of signals based on the difference in T

_{2}*, determined by dividing each FID in the t

_{1}dimension of 2D-NMR to create a series of sub-FIDs [29]. In an alternative approach, matrix factorization (MF) is commonly used to extract signal components and separate peaks in spectra [30]. For example, a noise reduction method using principal component analysis (PCA), which is one of the most commonly used multivariate analysis methods for extracting features of data, has been applied to solid CP-MAS NMR data measured by various parameters [31]. Therefore, the quality and amount of information from FIDs can be maximized by applying corrections based on different characteristics. Nevertheless, all these methods require multiple FIDs obtained by adding either spectral dimensions or multiple conditions of samples or parameters. There is also a computational approach such as CORE (COmponent-REsolved; a multi-component spectral separation approach previously introduced method). It focuses on diffusion coefficients to separate the NMR signals of different compounds in PFG-NMR [32,33,34]. However, this technique requires a specific NMR probe with a coil for generating PFG.

_{2}* on the time axis determined by performing STFT for each frequency component is useful to separate signals based on MF instead of ROI [22,23,24]. Our method that focuses on the relaxation time utilizes the attenuation behavior of the FID signal without any hardware upgrade for NMR research field. Lastly, we have developed a function for collecting acquisition parameters as a measurement of experimental factors from a directory of NMR data, and investigated the relationship between signal-to-noise ratio (SNR) and acquisition parameters. A researcher performing NMR must select parameters for each experiment, and normally chooses a reasonable set of parameters based on their experience. We show that these parameters can be characterized in terms of their correlation with SNR by a statistical analysis of accumulated NMR datasets. Therefore, this method will be useful to determine the optimal conditions of acquisition parameters.

## 2. Results and Discussion

#### 2.1. Signal Deconvolution Method

_{signal}(t) and S

_{noise}(t) are sets of ideal signals and signals from different types of noise, respectively (Equation (1) and Supplementary Equation (S1)) [45]. The relaxation process can then be described as the exponential decay of the transverse magnetization $S\left(t\right)$ (Supplementary Equation (S2)) [46]. The shorter the relaxation time T

_{2}*, the more rapid the decay. If an FID has more than one component, it will be the sum of contributions from each component (Supplementary Equation (S3)).

_{denoised}) to the original SNR (SNR

_{original}), which is calculated as follows (Equation (6) and Supplementary Equation (S18)):

^{1}H-NMR. STFT of the original FID adds a time axis to the frequency axis of the conventional FT spectrum (Figure 1a). The STFT spectrogram is three-dimensional, showing the frequency, time, and intensity of signal and noise. The matrix of the spectrogram was separated into signal and noise components based on the patterns of relaxation time using PSMF (Figure 1b). Each component was then converted into a signal FID and time-domain noise data by using inverse STFT (Figure 1c). Lastly, the time-region data were converted into the denoised spectrum and noise by using standard FT (Figure 1d). Regarding the noise reduction of the sucrose data, SNR of the denoised spectrum was improved about tenfold relative to the original data. In other words, for the sucrose sample, a 100-fold longer acquisition time would be required to obtain the same SNR without denoising. We compared signal and spectral quality between the original FT and noise reduction data (Supplementary Figure S2 and Table S1). There was almost no difference between them.

_{2}*, it will not be possible to choose an optimal filter for all lines simultaneously by applying commonly used apodization. The apodization such as exponential filtering decreases both signal and noise. In contrast, the method that we propose enables signal and noise to be extracted from an FID based on each pattern of T

_{2}* relaxation time.

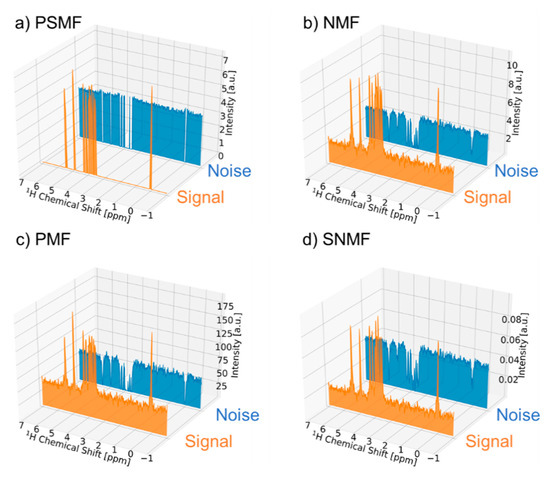

^{1}H-NMR data. We also examined the effect of the number of components in PMSF on signal deconvolution, which showed that it was possible to properly extract signal components when there were two components (Supplementary Figure S5). When the number of components was increased, only noise components were separated more finely. Based on this result, the number of components was set to 2 in the signal deconvolution method for noise reduction. In the case of more complex data, such as the NMR signal of a mixture, it may be possible to apply the method to the characterization of multiple components by separating them with an arbitrary number of components.

#### 2.2. Noise Reduction in NMR Data Measured by Various Pulse Sequences

_{2}*, diffusion-edited, which detects proteins and lipids with relatively short T

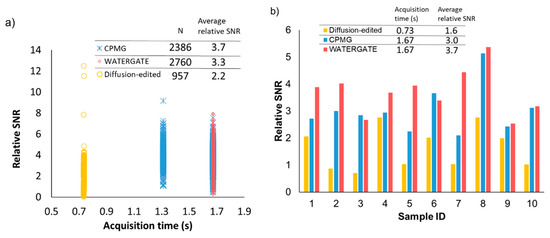

_{2}*, and WATERGATE, which detects both of these. For the analysis of extensive data, percentages of the time width to FID lengths were set to 6.3% for CPMG and WATERGATE, 12.5% for diffusion-edited (1024 points for 16384 and 8192 points), and the initial three values of the noise component were added as a signal component. For CPMG and WATERGATE, the improvement rate was 3.7-fold and 3.3-fold, respectively. On the other hand, it was only 2.2-fold for diffusion-edited NMR data (Figure 3a). As a result of comparing the relative SNRs of three typical pulse sequences for 10 representative samples, the data of diffusion-edited tended to be lower than those of CPMG and WATERGATE as in the case of large-scale data (Figure 3b, Supplementary Table S2) since the time width for diffusion-edited (12.5%) is higher than that of the other two pulse sequences (6.3%). The SNR of any NMR data set is related to the acquisition parameters (Supplementary Figures S6–8). In NMR data using CPMG and WATERGATE, the SNR is related to several acquisition parameters, such as receiver gain (RG), number of scans (NS), relaxation delay time (D1), spectral width (SW), and offset of the transmitter frequency (O1), whereas in diffusion-edited NMR, the SNR is particularly related to the gradient pulse in the z-axis (GPZ). In diffusion-edited NMR, signals from small molecules with long T

_{2}* relaxation times are suppressed. We therefore considered that, if the GPZ setting was insufficient, signals of small molecules would remain, resulting in a difference in relative SNR. As expressed, the peak SNR depends on T

_{2}* because an FID with large T

_{2}* yields a sharp line with higher SNR at the peak [38]. Thus, it seems likely that the diffusion-edited NMR data contain a lot of broad signals derived from macromolecules, resulting in less improvement as compared with CPMG and WATERGATE which have many sharp signals.

#### 2.3. Application of Signal Deconvolution Method in Diffusion-Edited NMR

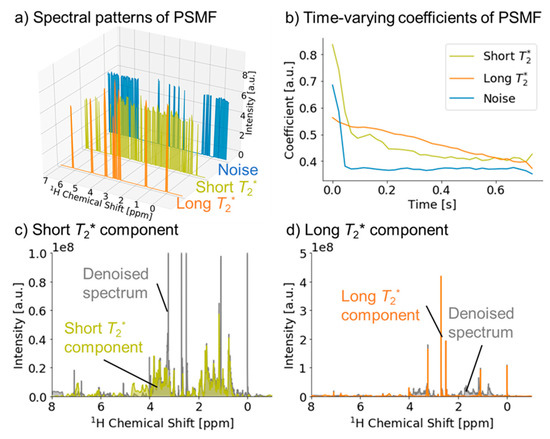

_{2}* (Figure 4a,b). By extracting each component and performing standard FT, the SNR of the denoised spectrum was improved about threefold as compared with the original data. In addition, we obtained individual spectra for the short and long components of T

_{2}* (Figure 4c,d). Thus, the diffusion-edited spectrum was separated into signals from macromolecules and small molecules by the length of the T

_{2}* relaxation time. The composition of molecules in these signals is related to the GPZ value of the acquisition parameters (Supplementary Figures S8 and S9). We consider that insufficient GPZ is the main factor affecting the relative SNR of diffusion-edited NMR data because, if GPZ is insufficient, relatively more signals from small molecules are contained in the measured signals. Knowing this composition will help to evaluate the data quality of diffusion-edited NMR.

#### 2.4. Noise Factor Analysis in Data Measured by Low- and High-Field NMR at Multiple Institutions

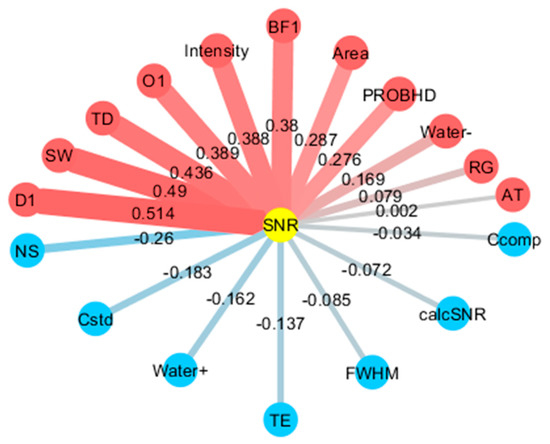

_{2}* gives, on Fourier transformation, a line width of 1/πT

_{2}* or approximately 1/3T

_{2}*. Thus, data acquisition beyond about 3T

_{2}* provides little gain in resolution, but causes a considerable deterioration in SNR. In addition, the spectral width may be set high enough to prevent aliasing of NMR signals. If not, there may be still other signals that fold, namely noise, meaning that the final SNR in the spectrum deteriorates.

## 3. Materials and Methods

#### 3.1. Signal Deconvolution Method

#### 3.2. Noise Factor Analysis Method

#### 3.3. NMR Data Acquisition

^{1}H-NMR data were by recorded using an Avance II 700 Bruker spectrometer equipped with a 5-mm inverse CryoProbe operating at 700.153 MHz for

^{1}H. In the

^{1}H -NMR data, the number of data using CPMG pulse sequence was 2386, the number of data using WATERGATE pulse sequence was 2760, and the number of data in the 1D LED experiment using bipolar gradients (diffusion-edited) pulse sequence was 975 [58,59,60,61]. Regarding these large data sets, a summary of information on the sample and acquisition parameters (the sample title, solvent, acquisition time, acquisition point, and the original SNR) is available at http://dmar.riken.jp/NMRinformatics/. Data sets for comparing the relative SNRs of three typical pulse sequences for 10 representative samples are shown in Supplementary Table S2. To demonstrate the denoising method, data for sucrose and citric acid were acquired by using the presaturation (program name; “zgpr”) pulse sequence. To demonstrate the method of separating signals in the diffusion-edited spectrum,

^{1}H-NMR data for fish muscle were measured by a diffusion-edited pulse sequence. Lastly, 48 sets of

^{1}H-NMR data (glucose, sucrose, citric acid, and lactic acid) were collected from the following five sites; RIKEN, NUIS, BMRB, BML, and HMDB. The data were measured with NMR spectrometers of 60, 500, 600, and 700 MHz manufactured by Bruker, Varian, and Nanalysis (Supplementary Table S3).

## 4. Conclusions

_{2}* length, recycle delay, sample molecular weight, or measurement temperature. The percentage of the time width against the effective average signal region of FIDs must be adjusted according to T

_{2}* length. Therefore, when using this method for fast relaxation systems such as solid-state NMR and quadrupole nucleus, additional efforts are needed. In the case of 2D-NMR, it is necessary to use this method by splitting each t

_{1}-dimensional FID and creating a series of sub-FIDs. Noise factor analysis of accumulated NMR datasets might facilitate the investigation of experimental factors related to a lower SNR. Therefore, these methods will help to determine optimal acquisition parameters, to cleanse data, including data management and noise reduction in accumulated NMR datasets, and to promote data-driven studies of molecular complexity using NMR.
