Current Biomedical Use of Copper Chelation Therapy

Silvia Baldari
Giuliana Di Rocco
1 and
Gabriele Toietta
Department of Research, Advanced Diagnostic, and Technological Innovation, IRCCS Regina Elena National Cancer Institute, via E. Chianesi 53, 00144 Rome, Italy
Department of Medical Surgical Sciences and Biotechnologies, University of Rome “La Sapienza”, della Repubblica 79, 04100 Latina, Italy
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2020, 21(3), 1069;
Submission received: 9 January 2020 / Revised: 3 February 2020 / Accepted: 4 February 2020 / Published: 6 February 2020
(This article belongs to the Special Issue Advances on Chelation in Medicine)


Copper is an essential microelement that plays an important role in a wide variety of biological processes. Copper concentration has to be finely regulated, as any imbalance in its homeostasis can induce abnormalities. In particular, excess copper plays an important role in the etiopathogenesis of the genetic disease Wilson’s syndrome, in neurological and neurodegenerative pathologies such as Alzheimer’s and Parkinson’s diseases, in idiopathic pulmonary fibrosis, in diabetes, and in several forms of cancer. Copper chelating agents are among the most promising tools to keep copper concentration at physiological levels. In this review, we focus on the most relevant compounds experimentally and clinically evaluated for their ability to counteract copper homeostasis deregulation. In particular, we provide a general overview of the main disorders characterized by a pathological increase in copper levels, summarizing the principal copper chelating therapies adopted in clinical trials.

Graphical Abstract

1. Introduction

Copper is an essential trace element involved in a plethora of biological processes in living cells. Analysis of human proteome identified 54 copper-binding proteins—of which, 12 are copper transporters, approximately half are enzymes and one (Antioxidant 1 Copper Chaperone, ATOX1) is a transcription factor [1]. Copper-binding proteins include cytochrome oxidase, copper-zinc-superoxide dismutase, lysyl oxidase, tyrosinase, and dopamine-beta-monooxygenase, which are involved in pivotal biological processes like mitochondrial respiration, antioxidant defense, extracellular matrix cross-linking, pigmentation and neurotransmitter biosynthesis, respectively [2,3]. For an accurate list of copper-requiring enzymes, with particular emphasis on enzymes involved in genetic disorders of copper homeostasis, refer to Horn et al. [4]. The majority of copper in the body is located in organs with high metabolic activity, such as liver, kidneys, heart and brain; approximately 5% of total copper is in the serum—of which, up to 95% is bound to ceruloplasmin (Cp). Unbound copper behaves as a potent oxidant, catalyzing the formation of highly reactive hydroxyl radicals leading to DNA, protein and lipid damage [5]. Therefore, cellular copper concentration needs to be finely regulated by complex homeostatic mechanisms of absorption, excretion and bioavailability [6]. Upon absorption in the gastrointestinal tract, copper reaches the blood, where it is mostly bound to Cp. Copper transporter 1 (CTR1, SLC31A1), located on the cell membrane, is the main copper import protein; within the cell various metallochaperones receive and deliver copper to specific locations. ATPase copper-transporting alpha (ATP7A) and ATPase copper-transporting beta (ATP7B) are key players in copper homeostasis being required for copper delivery to the secretory pathway and for efflux of excess copper from the cell. Deregulation of this delicate balance that maintains copper homeostasis has been associated with the pathogenesis of several diseases [7,8]. Consequently, a continuously growing number of in vitro and in vivo studies suggest that copper-involving mechanisms may represent a potential therapeutic target for different pathologies.

2. Clinical Application of Copper Chelation Therapy

A chelator is a chemical compound able to selectively bind, due to its structure, a particular atom/ion, with the formation of a stable complex ring-like structure. Metal chelating agents are used as nutritional supplements, for designing radiopharmaceuticals, as additives for cleaning chemicals, cosmetics, plastics, fertilizers, growth supplements in aquaculture, and to remove toxic metals from soil and in the body (chelation therapy) [9]. For a detailed biochemical description of several copper chelating agents, the reader is directed to a previously published review [10]. Copper overload toxicity as well as clinically significant copper deficiency are rare and mostly associated with genetic defects of copper transport such as Wilson’s disease (copper overload) and Menkes disease (copper deficiency). On the other hand, copper is an essential catalytic cofactor in redox biochemistry; consequently, copper dyshomeostasis leading to its unpaired distribution has been linked with several disorders including diabetes, neurological disorders and cancer [11]. Different chelating drugs have been shown to modulate copper levels by different mechanisms; in particular, penicillamine, trientine, and dimercaptosuccinic acid form complexes which are excreted in the urine, while tetrathiomolybdate promotes copper biliary excretion (Table 1). In addition, administration of zinc salts has been suggested as maintenance treatment for Wilson’s disease; zinc interferes with the gastrointestinal copper uptake by inducing metallothionein, which chelates copper, preventing absorption and allowing for its excretion in the feces. The use of copper chelating drugs such as trientine in Wilson’s disease and in cancer patients has been considered safe [12,13]; nonetheless, the specific risk–benefit ratio for each therapeutic indication should be carefully evaluated by additional randomized clinical trials.
The aim of the present review is to provide a global overview on the main different chelation therapy approaches which have been evaluated for the treatment of the diseases in which copper imbalance has a key role in the onset of the pathology, including genetic diseases of copper metabolism such as Wilson’s diseases [8], neurodegenerative diseases such as Alzheimer’s and Parkinson’s diseases [14], idiopathic pulmonary fibrosis [15], diabetes [16], and different forms of cancer [17].

2.1. Wilson’s Disease

Wilson’s disease [18], Menkes disease [19] and occipital horn syndrome [20] are human genetic disorders associated with the deregulation of copper-transporting ATPases. Menkes disease and occipital horn syndrome are due to mutations in the ATP7A gene, resulting in reduced levels of serum copper and ceruloplasmin [21,22]. The current treatment for Menkes disease is mainly based on parenteral administration of copper-histidine [23]. In contrast, Wilson’s disease is an autosomal recessive disease caused by mutations in both copies of the ATP7B gene [18,24] leading to excess copper in the body and characterized by a series of clinical manifestations which include liver failure, tremors and other neurological symptoms [25]. Therefore, to manage increased copper levels, Wilson’s disease patients have been treated with different chelating agents, including D-penicillamine, trientine hydrochloride and tetrathiomolybdate [26,27] (Table 2). The goal of copper chelating therapy for Wilson’s disease is to remove copper accumulated in tissues (de-coppering phase) and to prevent re-accumulation (maintenance phase). Introduced in 1956, D-penicillamine (DPA) [28], a dimethylated cysteine, mobilizes tissue copper stores and promotes efficient excretion of excess copper into urine, but this amelioration of copper balance is not followed by improvements in the neurological symptoms. Instead, DPA treatment may be responsible for worsening patients’ neurological symptoms, due to a putative increase in brain copper level [29]. Furthermore, the use of DPA has been limited by hematologic and renal toxicities [30]. Therefore, DPA was replaced by alternative anti-copper agents such as zinc salt, introduced in 1960 [31] and trientine in 1980 [32]. Zinc salts decrease intestinal dietary copper absorption by inducing the synthesis of intestinal copper chelating peptide metallothionein. Copper is therefore sequestered within the enterocytes and ultimately excreted into feces [33]. Zinc has been added in 1997 by US Food and Drug Administration (FDA) to the list of Wilson’s treatments as maintenance drug [34]. Dimercaptosuccinic acid (DMSA), an antidote to heavy metal poisoning, and DMSA analogues have been extensively used for Wilson’s disease therapy in China because of local availability and affordability [35]. The reported toxic side effects are reduced compared to that of penicillamine [36]; one of the major limitations of DMSA is associated with its inability to cross the cell membrane.
Triethylenetetramine (TETA), also known as trientine, was specifically introduced for the treatment of Wilson’s patients showing DPA intolerance [32]. Trientine has improved safety profile but lower cupreuremic effect compared to DPA. An additional copper chelating agent is ammonium tetrathiomolybdate (TM), which is also able to significantly reduce copper absorption when administered with food [37]. Preclinical studies performed with TM have led to FDA approval for a clinical trial for the treatment of Wilson’s neurological disorders [37,38,39]. In a comparative clinical trial, a clear reduction of the number of patients with neurodegenerative disease in the group treated with TM was determined with respect to the TETA treated group [40]. Despite the potential efficiency and limited toxicity, the clinical use of TM is limited by instability of the ammonium formulation [4] and to low compliance due to frequency of dosing (6 times/day). For these limitations, a derivative of TM, the bis-choline-tetrathiomolybdate, has been recently introduced and a new multicenter phase II study has been performed, demonstrating the efficiency of the drug with no cases of paradoxical drug-related neurological worsening [41]. Moreover, a phase III study comparing bis-choline TM with other copper chelating compounds has been started in 2018 [42]. In recent years, other compounds have been tested in animal models. Among them, DMP-1001 {methyl 4-[7-hydroxy-10,13-dimethyl-3-({4-[(pyridin-2-ylmethyl)amino]butyl}amino)hexadecahydro-1H-cyclopenta[a]phenanthren-17-yl]pentanoate} [43]; methanobactin [44], trientine delivered through liposomes [45] and curcumin [46]. These drugs, however, need further studies both in vitro and in vivo as they have not been used in clinical trials so far. An updated overview on the currently approved treatments for Wilson’s clinical manifestation is reported in several recently published reviews [27,47,48] focused on the efficiency, the side efaafects and possible combination therapies.

2.2. Neurological Diseases

2.2.1. Alzheimer’s Disease

Alzheimer’s disease (AD) is the most common form of dementia, characterized by progressive memory loss, language difficulties, disorientation along with recognizable pathological markers including senile plaques and neurofibrillary tangles [49]. From a molecular point of view, AD is characterized by extracellular deposits of β-amyloid protein accumulated in the brain, ultimately leading to neuronal loss [50]. Condensation of β-amyloid in plaques is linked to high concentrations of Cu(II) and Zn(II) in the neocortical tissue, therefore suggesting a role of metal imbalance in the onset of AD [51,52,53]. Moreover, β-amyloid binds and reduces Cu(II) to Cu(I), inducing electron transfer to molecular oxygen with the formation of H2O2, leading to apoptotic cell death [51]. Copper levels in cerebrospinal fluid of AD patients are 2.2 fold higher than in controls; moreover, increased levels of ceruloplasmin in the brain and in cerebrospinal fluid have been also observed [54]. On the other hand, other studies reveal a significant reduction of copper in hippocampus and amygdala areas, suggesting that abnormal copper compartmentalization in different tissues and organs may be associated with AD [55]. This discrepancy is, at least in part, due to an increase in the free pool of copper with a corresponding reduction in protein-bound copper [56,57]. Interestingly, post-mortem analysis performed on a transgenic mouse model of AD demonstrated that metal chelating agents can attenuate β-amyloid protein excess [58,59]. Clinical trials on AD patients using D-penicillamine [60] and the ionophore PBT2 [61] have been performed (Table 2). Nonetheless, whether copper chelating agents or metal protein attenuating compounds [62] may represent a potential therapeutic solution in AD patients is still a matter for debate [63,64].

2.2.2. Parkinson’s Disease

Parkinson’s disease (PD) is among the most common neurodegenerative disorders, affecting approximately 2–3% of the population over 65 years. The principal hallmark of PD is represented by the typical dopamine-producing neuronal loss in the substantia nigra, accompanied by α-synuclein aggregates usually termed as Lewy bodies, leading to the characteristic symptoms of bradykinesia, muscular rigidity, tremors and other non-motor symptoms. Copper binding to the α-synuclein protein is an important event in the development of PD, triggering protein fibrillation and increased oxidative stress [65,66]. Moreover, the binding of copper to ceruloplasmin is reduced in PD patients, leading to an increase in the levels of free copper, associated with oxidative stress and neurodegeneration [67]. Therefore, copper homeostasis alteration plays a role in PD [68]; however, it remains controversial whether this is the primary cause or a secondary consequence of the disease. Moreover, no consensus has been reached on the possibility to modulate copper content to alleviate PD manifestation since some studies suggest that copper level should be lowered while other studies show the opposite. Several approaches have been tested in the direction of increasing brain copper levels, both regulating copper transporters and administrating copper compounds [69], or “attenuating” copper dysregulation by chelation therapy, recently reviewed by Tosato et al. [70]. In addition to copper, other metals are deregulated in PD, including Fe, Zn and Mn. Accordingly, a wide range of compounds have been proposed for PD therapy [70], including iron chelators [71]. For instance, deferiprone has been widely used for the treatment of systemic iron-related diseases and for neurological pathologies, including PD [72], due to its low molecular weight and ability to cross the blood–brain barrier. Different studies demonstrated deferiprone’s ability to chelate not only iron but also copper, aluminum and zinc [73], reducing their free radical catalytic activity [74]. Moreover, multifunctional iron/copper chelating agents have been evaluated even if their clinical translation has not yet progressed [75].

2.3. Idiopathic Pulmonary Fibrosis

Idiopathic pulmonary fibrosis (IPF) is a form of chronic lung disease, usually affecting people between the ages of 50 and 80 years, in which fibrosis progressively build up in the lungs, leading to impairment of lung functions [76]. The wide heterogeneity of clinical manifestations and symptoms leads to a high variability in therapy course and response. The exact mechanism of IPF pathogenesis has not been clarified yet [77]; different biological and molecular factors may be involved including lysyl oxidases, a group of copper-dependent enzymes involved in covalent cross-linking of type I collagen [78]. In particular, LOXL2 may represent a potential therapeutic target, being pro-fibrotic and highly expressed in IPF lung biopsies [79,80]. A study, performed in 2003 [81], demonstrated that administration of TM induced a reduction in serum ceruloplasmin leading to a corresponding reduction of lung fibrosis in a mouse model of bleomycin-induced IPF, paving the way for a clinical trial on IPF patients unresponsive to other therapies (NCT00189176) (Table 2). It has been proved that TM exerts its beneficial effect on IPF by reducing collagen-I expression and accumulation, acting on the expression of the copper-dependent lysyl oxidases [82].

2.4. Diabetes Mellitus

Diabetes mellitus (DM) is a group of heterogeneous metabolic diseases mainly characterized by a hyperglycemic condition, with a defect in insulin secretion or action. Three are three main types of diabetes: type I, type II and gestational diabetes [83]. DM patients have higher levels of copper in plasma or serum compared to healthy individuals [84,85]. The development and progression of DM have been associated with an increase in oxidative stress [86] and with imbalance of several metals [87], including copper. Transition between Cu(I) and Cu(II) leads to the production of reactive oxygen species (ROS) and to consequent peroxidation of lipids, DNA damage leading to cell death. Therefore, copper homeostasis maintenance using copper chelators may represent a strategy for diabetes treatment [16]. A series of pre-clinical and clinical studies demonstrated the potential of trientine in reducing some of the clinical and pathological consequences of diabetes, such as heart failure [88]. Another putative therapeutic compound with chelating abilities is metformin, a first-line drug for treatment of type II diabetes which reduces diabetes-related vascular risk. Metformin binds a series of different transitional metals, having a higher affinity for copper [89]. In particular, the interaction of metformin with mitochondrial copper, resulting in the alteration of cellular energy metabolism via inhibition of mitochondrial respiratory chain complex 1, has been proposed as a putative mechanism of action of the drug [90]. Treatment with TM has been described to promote a significant reduction of insulin resistance in the mouse model of type II diabetes C57BL/KsJ-db/db [91]. Two clinical trials employing copper chelating agents for DM have been described, both evaluating trientine treatment effects on macular edema after cataract surgery and diabetic retinopathy: the first (NCT01295073) has been withdrawn and the second (NCT01213888) terminated, with only a few patients enrolled (Table 2). Additional studies are needed to provide definitive conclusions on the utility of copper chelation therapy for DM.

2.5. Cancer

Increased copper content has been determined in serum [92] and tissue samples [93] from patients with different types of cancer, including laryngeal squamous cell carcinoma [94], non-Hodgkin’s lymphoma [95], multiple myeloma [96], chronic lymphocytic leukemia [97], hepatocellular carcinoma [98], gynecological carcinoma [99], colorectal [100], lung [101], primary brain [102], and breast [103] cancers. Serum copper levels return to normal upon successful tumor surgical removal or on remission. In addition, gene expression analysis revealed multiple alterations in a variety of copper-binding or copper-sensitive proteins in colorectal [104] and breast cancers [105], suggesting that deregulation of copper homeostasis might contribute to cancer pathogenesis, development and metastasis. Collectively these indications provide support for copper chelation [106,107,108] and inhibition of copper -transporting ATPases [109] as potential strategies for cancer therapy.

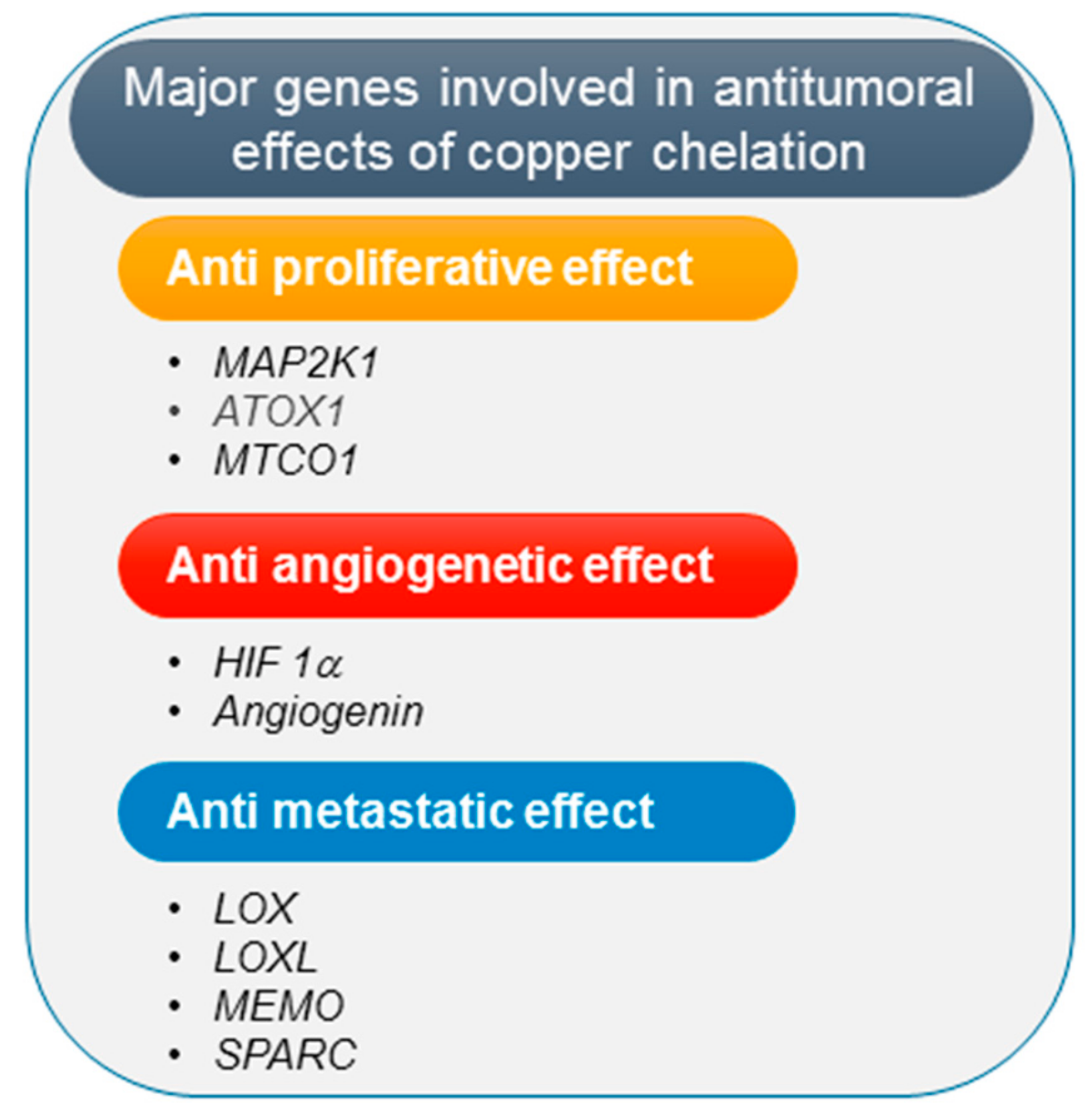

As a matter of fact, copper chelating agents used to treat Wilson’s disease such as trientine, penicillamine, and tetrathiomolybdate (both ammonium tetrathiomolybdate, TM, and choline tetrathiomolybdate, ATN-224), revealed chemotherapeutic properties in experimental preclinical cancer models (Table 3) leading to several clinical trials (Table 4). These trials have proved that copper chelation therapy is generally well tolerated, for the reason that copper chelation agents act selectively on cancer cells, which have increased copper content, exerting little toxicity to normal cells [110,111].

2.5.1. Copper Chelation and Tumor Angiogenesis

Neoangiogenesis is essential to support cancer cells growth and tumor metastasis. The mechanism of cancer inhibition by copper chelating agents is commonly attributed to their inhibitory effect on tumor angiogenesis [106]. In fact, copper stimulates proliferation and migration of endothelial cells [112] and affects mobilization of bone marrow-derived endothelial progenitor cells which promote angiogenesis [113]. Significantly, copper can either directly or indirectly influence different proangiogenetic pathways. In particular, copper can bind angiogenin promoting its biological activity to stimulate formation of blood vessels [114]; moreover, copper is required for the binding of hypoxia-inducible factor (HIF-1) to the hypoxia-response elements, thus modulating expression of some key proangiogenic factors [115], such as vascular endothelial growth factor (VEGF), fibroblast growth factor (FGF), interleukin (IL)-1α and IL-8 (Figure 1).

2.5.2. Copper Chelation and Inhibition of Tumor Proliferation

As an essential catalytic cofactor for proteins, copper is implicated in fundamental biological functions including cellular energy metabolism, growth and development [116]. In particular, among the identified copper-binding proteins [1], the transcriptional factor ATOX1 promotes the expression of the proliferation protein cyclin D1 [117]; accordingly, inhibition of the copper binding protein ATOX1 without depleting the extracellular copper has a critical effect on cancer cell proliferation [118]. Moreover, copper modulates oxidative phosphorylation via cytochrome c oxidase activity, affecting cellular growth [119]. Interestingly, it has been demonstrated that copper binding to the mitogen-activated protein kinase kinase 1 (MAP2K1) promotes the activation of the mitogen-activated kinase (MAPK) pathway, which has a prominent role in promoting tumor growth [120]. Accordingly, BRAFV600E cancers, which are characterized by increased MAPK pathway activation, have been observed to be sensitive to copper chelation therapy approaches. Preclinical results have been obtained in different tumors, including melanoma [121], lung adenocarcinoma [120], colon carcinoma [122] and papillary thyroid cancer [123], suggesting that copper-chelation therapy could represent a therapeutic option to treat cancers containing the BRAFV600E mutation. On these premises, a clinical trial (NCT02068079) to test a copper chelating therapy using TETA in combination with a BRAF inhibitor (Vemurafenib) on BRAFV600E, late stage melanoma patients has been proposed, but it has been subsequently withdrawn.

2.5.3. Copper Chelation and Tumor Spread

Elevated serum copper levels have been detected in breast cancer patients with distant metastasis [124], suggesting that copper may support the migration/invasion process and increase the metastatic potential of cancer cells. Differential copper levels modulate the activity of the copper-binding enzymes Lysyl Oxidase (LOX) and Lysyl Oxidase-Like (LOXL) which are involved in the crosslinking of collagen and elastin in the extracellular matrix and whose deregulation has been associated with metastatic progression [125]. In particular, these enzymes are involved in tumor microenvironment remodeling, creating a scaffold for tumor cells as they spread. Moreover, copper binds and activates the Mediator of Cell Motility protein (MEMO) which facilitates the migratory capacity of breast cancer cells, thus facilitating metastasis [126]. In addition, copper has also a role in the process of epithelial mesenchymal transition (EMT), in which cancer cells acquire mobility and invasive properties via the HIF1-α-Snail/Twist signaling pathway [127]. Another copper-dependent protein involved in promoting tumor metastasis and invasion is the Secreted Protein Acidic and Rich in Cysteine (SPARC) [128,129] (Figure 1). Taken together, these data indicate that copper depletion, acting on the molecular pathways involved in EMT, migration, formation of the tumor microenvironment and pre-metastatic niche, may represent a therapeutic strategy in the treatment of metastatic cancer. Therefore, several clinical trials using copper chelation therapy for metastatic cancers such as colon, breast, lung, prostate cancers and melanoma, have been performed, providing evidence of reduced progression of micrometastases to macroscopic nodules [130,131].

2.5.4. Copper Chelation Combination Therapy Regimens

Several studies suggest that combination therapy strategies for solid tumors based on copper chelation therapy might result in a more effective multimodal approach. In the following section, we review some of the strategies which have been explored.

Copper Chelation and Chemotherapy

Chemotherapy drugs are widely used against solid cancers, but although many cancer cells are initially sensitive to chemotherapy, they may develop resistance over time. One of the mechanisms responsible for drug resistance is decreased cellular drug accumulation. Patients not responding to platinum-based chemotherapy have increased serum copper content up to 160% compared to responding patients [132], suggesting a link between maintenance of copper homeostasis and drug resistance. Copper transport proteins play a role in cisplatin, the most used platinum based chemotherapeutic drug [133,134]. Cellular copper homeostasis is accurately regulated by the CTR1, responsible for specific copper cellular uptake into cells, and the copper-transporting P-type ATPases (ATP7A and ATP7B), which are mainly responsible for supplying copper to cuproenzymes and for the removal of excess copper out of the cell. Albeit highly selective, copper transport proteins may also facilitate platinum-drugs cellular influx, accumulation and efflux. As a matter of fact, CTR1 can also transport platinum drugs into the cell and its expression has been associated with cisplatin sensitivity [135]. Conversely, ATP7A and ATP7B may promote cisplatin cellular efflux, reducing drug cellular accumulation and leading to reduced efficacy; accordingly, increased expression of ATP7A and ATP7B correlates with platinum drug resistance [133]. Importantly, expression and activity of CTR1, ATP7A and ATP7B are modulated by intracellular Cu levels. Therefore, copper chelation therapy, reducing cellular copper content and, in turn, increasing CRT1 and reducing ATP7A levels, enhances cellular accumulation and efficacy of chemotherapy drugs [136]. Therefore, different clinical trials have been performed to evaluate copper chelation therapy as a tool to overcome platinum-based drug resistance in cancer patients [137,138,139] (Table 4). In addition, selenium compounds, used both as cytotoxic agents and as adjuvants in chemotherapy [140], exhibit the ability to chelate copper [141]. Another promising class of metal complexes suitable for anticancer therapy is represented by Cu(II) chelate complexes [142]. Although the precise mechanisms of action are yet unclear, there is evidence that copper chelate complexes may act as proteasome inhibitors, superoxide dismutase mimetics, DNA intercalating agents, apoptosis inducers and by promoting ROS production [143]. Clinical translation using this class of compounds is still limited [144,145].

Copper Chelation and Radiotherapy

Increased efficacy of radiotherapy against primary tumors with reduced side effects can be achieved when combined with antiangiogenic agents [146]. Along these lines, an additive effect of radiotherapy and copper chelation therapy has been observed in a Lewis lung high metastatic carcinoma mouse tumor model [147].

Copper Chelation and Immunotherapy

Immunotherapy treatments have been designed to modulate patient’s own immune system to fight against cancer. There are several immunotherapy strategies, including the use of monoclonal antibodies, immune cell activators, immune checkpoint inhibitors and oncolytic viral vectors. In the following subsections we review the main copper chelation and immunotherapy combination strategies.

Copper Chelation and Monoclonal Antibodies Immunotherapy

The monoclonal antibody Cetuximab, which binds specifically to the epidermal growth factor receptor (EGFR) thereby blocking transmission the relative proliferative signaling pathways, is an example of an immunotherapeutic agent. Combination of TM and Cetuximab has been evaluated in a murine model of head and neck squamous cell carcinoma but no statistically significant differences were observed between single and combined treatments [148]. Therefore, further investigations are needed to determine the clinical significance of combining copper chelation and monoclonal antibodies-mediated immunotherapy.

Copper Chelation and Immune Activation

Copper chelation has been proposed in conjunction with immune activation for cancer immunotherapy. In particular, Zhou et al. recently developed a copper chelator used to prepare nanoparticles suitable for loading and delivery to the tumor the Toll-like receptor agonist R848, in order to stimulate antitumor immunity by dendritic cells activation. This strategy of nanoparticle-based copper chelation and immune stimulation effectively inhibits breast tumor growth and metastasis in experimental models both in vitro and in vivo [149].

Copper Chelation and Immune Checkpoint Inhibitors

An important strategy for cancer immunotherapy targets the interactions between the immune checkpoints programmed cell death protein 1 (PD-1) and the programmed cell death ligand 1 (PD-L1) using specific antibodies. A positive correlation between the copper transport protein CTR1 and PD-L1 expression has been observed in neuroblastoma and glioblastoma tumor cells. Interestingly, copper chelation reduces PD-L1 expression, promoting a significant increase in tumor-infiltrating lymphocytes in a syngeneic mouse model of neuroblastoma [150]. Therefore, copper chelation therapy may promote the efficacy of PD-1/PD-L1 based immunotherapy.

Copper Chelation and Oncolytic Virotherapy

Oncolytic vectors selectively replicate and promote lysis of cancer cells triggering the patient’s immune system against tumor antigens. Changes in the tumor microenvironment in response to induced oncolysis may limit the efficacy of oncolytic virotherapy. Therefore, is has been hypothesized that combination of copper chelation therapy, which affects both tumor microenvironment and angiogenesis, may promote the efficacy of oncolytic virotherapy. In addition, serum copper levels have a detrimental effect on herpes virus infection. Based on these premises, it has been described that concomitant copper chelation therapy increases antitumor effect of herpes simplex virus–derived oncolytic viruses [151,152].

2.5.5. Copper Depletion and Autophagy Inhibition

Autophagy has complex role in cancer development, progression and response to therapy. Autophagy inhibition is emerging as an effective approach for tumor therapy, particularly in cancers with increased levels of basal autophagy [153]. Different lines of evidence suggest that increased copper content activates a series of autophagy-related genes [154]. Accordingly, copper chelation using TM has been shown to inhibit the Unc-51-like autophagy activating kinase 1 and 2 (Ulk1/2) in lung adenocarcinoma cells [155]. Recently, the combination of copper chelation with TM and autophagy inhibition by chloroquine has been evaluated to promote pancreatic cancer cells death [156].
Table 3. Major preclinical studies on copper chelation therapy for cancer.
Table 3. Major preclinical studies on copper chelation therapy for cancer.
Tumor typeDrug/InterventionReference
Breast cancerTM[157]
BRAFV600E melanomaTM[121,158]
BRAFV600E papillary thyroid cancerTM[123]
BRAFV600E colon cancerTM[122]
Head and neckTM[159,160,161]
Endothelial and tumor cellsATN-224[162]
Lung cancer and head and neck carcinomaTM + radiotherapy[147,163]
Esophageal squamous cell carcinomaTM + cisplatin[164]
Gynecologic cancersTM + cisplatin[165]
Head and neck carcinomaTM + OV[151,152]
Head and neck carcinomaTM + cetuximab[148]
Colorectal cancerDisulfiram + oxaliplatin[166]
Hepatocellular carcinomaTETA[167]
Brain tumorDPA[168]
MesotheliomaDPA, TETA or TM[169]
Pancreatic duct adenocarcinomaTM + CQ[156]
Abbreviations: ATN-224: choline tetrathiomolybdate; CQ: chloroquine; DPA: D-penicillamine; OV: Oncolytic virotherapy; TETA: triethylenetetramine dihydrochloride, trientine; TM: Tetrathiomolybdate.
Table 4. Copper chelation therapy clinical trials for cancer.
Table 4. Copper chelation therapy clinical trials for cancer.
Tumor TypeTrial PhasePatients EnrolledDrug/InterventionReference
Metastatic solid tumors including breast, colon, lung, and prostate cancersI18TM[131]
Renal cancerII15TM[170]
Breast cancerII75 + 40TM[113,171,172]
MesotheliomaII30TM (poa)[174]
Esophageal cancerII69TM (poa)[175]
BRAF melanomaIwdVemurafenib + TETANCT02068079
Metastatic colorectal cancerI24TM + irinotecan, 5-FU, and IFL[130]
Platinum-resistant epithelial ovarian cancerI5TETA plus carboplatin[137]
Head and neck, non-small cell lung and epithelial ovarianI55TETA plus carboplatin[138]
Relapse of epithelial ovarian, tubal, and peritoneal cancerI18TETA plus carboplatin and PLD[139]
Solid tumors including melanoma and breast, colon, kidney cancersI18ATN-224[177]
Relapsed prostate cancerII47ATN-224[178]
Abbreviations: 5-FU: 5-fluorouracil; ATN-224: choline tetrathiomolybdate; DPA: D-penicillamine; IFL: leucovorin; poa: post-operative administration; NCT number: Identifier; PLD: pegylated liposomal doxorubicin; TETA: triethylenetetramine dihydrochloride, trientine; TM: tetrathiomolybdate.

3. Conclusions

Copper imbalance in Wilson’s disease has been well investigated, leading to the introduction of copper chelation therapy as a primary therapeutic tool which has significantly reduced morbidity, making Wilson’s disease a treatable disorder. Current efforts are focused on evaluating new chelating compounds and formulations to reduce toxic side effects, enhance ability to pass through the blood–brain barrier and improve patient’s compliance. A state of systemic or tissue-specific copper increase can occur through multiple mechanisms in addition to the genetic defects of copper metabolism observed in Wilson’s disease. Dysregulation of copper homeostasis has been observed in a wide spectrum of neurological, fibrotic pulmonary and vascular diseases as well as in different types of cancers. In these conditions, copper chelation should be ideally able to restore ionic balance by precise modulation of copper homeostasis. Unfortunately, the limited current knowledge of the complex mechanisms regulating neurodegenerative diseases, including Alzheimer’s and Parkinson’s diseases, and of the precise role or consequences of the mechanisms specifically dysregulated by copper imbalance in these brain pathologies have led to a minor success of the use of copper chelating agents for the treatment of these diseases. Similarly, the effect of deregulation of copper homeostasis in cancer seems to be multifaceted embracing tumor development, progression, angiogenesis, tumor microenvironment remodeling and metastasis. Copper chelating therapy has been proved to have antitumor effects mainly via disruption of angiogenesis and impaired migration, but further randomized clinical trials are necessary to confirm the benefit observed in preclinical models.

Author Contributions

S.B and G.T. conceived and designed the review. S.B., G.D.R. and G.T. have read and agreed to the published version of the manuscript. All authors have read and agreed to the published version of the manuscript.


This research was funded in part by the Italian Ministry of Health (Ricerca Corrente – IRCCS IRE) and Istituto Regina Elena Cinque per Mille (5 × 1000 2015 to Gabriele Toietta).


Support from ERAB is acknowledged. We apologize to authors whose contributions could not be cited owing to space limitations.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.


ADAlzheimer’s Disease
ATN-224Choline tetrathiomolybdate
ATP7A/7BCopper-transporting P-type ATPases 7A and 7B
BRAFV-Raf Murine Sarcoma Viral Oncogene Homolog B1
CNSCentral Nervous System
CTR1Copper transport protein 1
EMTEpithelial mesenchymal transition
IPFIdiopathic pulmonary fibrosis
DMDiabetes mellitus
LOXLysyl Oxidase
LOXLLysyl Oxidase-Like
MAP2K1Mitogen-activated protein kinase kinase 1
PDParkinson’s disease
ROSReactive oxygen species
SPARCSecreted Protein Acidic and Rich in Cysteine


  1. Blockhuys, S.; Celauro, E.; Hildesjö, C.; Feizi, A.; Stål, O.; Fierro-González, J.C.; Wittung-Stafshede, P. Defining the human copper proteome and analysis of its expression variation in cancers. Metallomics 2017, 9, 112–123. [Google Scholar] [CrossRef] [Green Version]
  2. Kim, B.E.; Nevitt, T.; Thiele, D.J. Mechanisms for copper acquisition, distribution and regulation. Nat. Chem. Biol. 2008, 4, 176–185. [Google Scholar] [CrossRef]
  3. Linder, M.C.; Hazegh-Azam, M. Copper biochemistry and molecular biology. Am. J. Clin. Nutr. 1996, 63, 797S–811S. [Google Scholar] [CrossRef]
  4. Horn, N.; Møller, L.B.; Nurchi, V.M.; Aaseth, J. Chelating principles in Menkes and Wilson diseases: Choosing the right compounds in the right combinations at the right time. J. Inorg. Biochem. 2019, 190, 98–112. [Google Scholar] [CrossRef] [PubMed]
  5. Uriu-Adams, J.Y.; Keen, C.L. Copper, oxidative stress, and human health. Mol. Asp. Med. 2005, 26, 268–298. [Google Scholar] [CrossRef] [PubMed]
  6. Kaplan, J.H.; Maryon, E.B. How mammalian cells acquire copper: An essential but potentially toxic metal. Biophys. J. 2016, 110, 7–13. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Brewer, G.J. Copper in medicine. Curr. Opin. Chem. Biol. 2003, 7, 207–212. [Google Scholar] [CrossRef]
  8. Bandmann, O.; Weiss, K.H.; Kaler, S.G. Wilson’s disease and other neurological copper disorders. Lancet Neurol. 2015, 14, 103–113. [Google Scholar] [CrossRef] [Green Version]
  9. Kim, J.J.; Kim, Y.S.; Kumar, V. Heavy metal toxicity: An update of chelating therapeutic strategies. J. Trace Elem. Med. Biol. 2019, 54, 226–231. [Google Scholar] [CrossRef]
  10. Ding, X.; Xie, H.; Kang, Y.J. The significance of copper chelators in clinical and experimental application. J. Nutr. Biochem. 2011, 22, 301–310. [Google Scholar] [CrossRef]
  11. Peña, M.M.; Lee, J.; Thiele, D.J. A delicate balance: Homeostatic control of copper uptake and distribution. J. Nutr. 1999, 129, 1251–1260. [Google Scholar] [CrossRef] [Green Version]
  12. Weiss, K.H.; Thurik, F.; Gotthardt, D.N.; Schäfer, M.; Teufel, U.; Wiegand, F.; Merle, U.; Ferenci-Foerster, D.; Maieron, A.; Stauber, R.; et al. Efficacy and safety of oral chelators in treatment of patients with Wilson disease. Clin. Gastroenterol. Hepatol. 2013, 11. [Google Scholar] [CrossRef] [PubMed]
  13. Lu, J. Triethylenetetramine pharmacology and its clinical applications. Mol. Cancer 2010, 9, 2458–2467. [Google Scholar] [CrossRef] [Green Version]
  14. Tisato, F.; Marzano, C.; Porchia, M.; Pellei, M.; Santini, C. Copper in diseases and treatments, and copper-based anticancer strategies. Med. Res. Rev. 2010, 30, 708–749. [Google Scholar] [CrossRef] [PubMed]
  15. Janssen, R.; de Brouwer, B.; von der Thüsen, J.H.; Wouters, E.F.M. Copper as the most likely pathogenic divergence factor between lung fibrosis and emphysema. Med. Hypotheses 2018, 120, 49–54. [Google Scholar] [CrossRef] [PubMed]
  16. Lowe, J.; Taveira-da-Silva, R.; Hilário-Souza, E. Dissecting copper homeostasis in diabetes mellitus. Iubmb Life 2017, 69, 255–262. [Google Scholar] [CrossRef] [Green Version]
  17. De Luca, A.; Barile, A.; Arciello, M.; Rossi, L. Copper homeostasis as target of both consolidated and innovative strategies of anti-tumor therapy. J. Trace Elem. Med. Biol. 2019, 55, 204–213. [Google Scholar] [CrossRef]
  18. Brewer, G.J. Recognition, diagnosis, and management of Wilson’s disease. Proc. Soc. Exp. Biol. Med. 2000, 223, 39–46. [Google Scholar] [CrossRef]
  19. Bertini, I.; Rosato, A. Menkes disease. Cell Mol. Life Sci. 2008, 65, 89–91. [Google Scholar] [CrossRef]
  20. Lazoff, S.G.; Rybak, J.J.; Parker, B.R.; Luzzatti, L. Skeletal dysplasia, occipital horns, diarrhea and obstructive uropathy- a new hereditary syndrome. Birth Defects Orig. Artic. Ser. 1975, 11, 71–74. [Google Scholar]
  21. Vulpe, C.; Levinson, B.; Whitney, S.; Packman, S.; Gitschier, J. Isolation of a candidate gene for Menkes disease and evidence that it encodes a copper-transporting ATPase. Nat. Genet. 1993, 3, 7–13. [Google Scholar] [CrossRef] [PubMed]
  22. Das, S.; Levinson, B.; Vulpe, C.; Whitney, S.; Gitschier, J.; Packman, S. Similar splicing mutations of the Menkes/mottled copper-transporting ATPase gene in occipital horn syndrome and the blotchy mouse. Am. J. Hum. Genet. 1995, 56, 570–576. [Google Scholar] [PubMed]
  23. Vairo, F.P.E.; Chwal, B.C.; Perini, S.; Ferreira, M.A.P.; de Freitas Lopes, A.C.; Saute, J.A.M. A systematic review and evidence-based guideline for diagnosis and treatment of Menkes disease. Mol. Genet. Metab. 2019, 126, 6–13. [Google Scholar] [CrossRef]
  24. Bull, P.C.; Thomas, G.R.; Rommens, J.M.; Forbes, J.R.; Cox, D.W. The Wilson disease gene is a putative copper transporting P-type ATPase similar to the Menkes gene. Nat. Genet. 1993, 5, 327–337. [Google Scholar] [CrossRef]
  25. Roberts, E.A.; Schilsky, M.L. A practice guideline on Wilson disease. Hepatology 2003, 37, 1475–1492. [Google Scholar] [CrossRef]
  26. Roberts, E.A.; Schilsky, M.L. Diagnosis and treatment of Wilson disease: An update. Hepatology 2008, 47, 2089–2111. [Google Scholar] [CrossRef]
  27. Mohr, I.; Weiss, K.H. Current anti-copper therapies in management of Wilson disease. Ann. Transl. Med. 2019, 7, S69. [Google Scholar] [CrossRef]
  28. Walshe, J.M. Penicillamine, a new oral therapy for Wilson’s disease. Am. J. Med. 1956, 21, 487–495. [Google Scholar] [CrossRef]
  29. Brewer, G.J.; Terry, C.A.; Aisen, A.M.; Hill, G.M. Worsening of neurologic syndrome in patients with Wilson’s disease with initial penicillamine therapy. Arch. Neurol. 1987, 44, 490–493. [Google Scholar] [CrossRef]
  30. Brewer, G.J.; Yuzbasiyan-Gurkan, V. Wilson disease. Med. (Baltim.) 1992, 71, 139–164. [Google Scholar] [CrossRef]
  31. Hoogenraad, T.U.; Van Hattum, J.; Van den Hamer, C.J. Management of Wilson’s disease with zinc sulphate. Experience in a series of 27 patients. J. Neurol. Sci. 1987, 77, 137–146. [Google Scholar] [CrossRef]
  32. Walshe, J.M. Treatment of Wilson’s disease with trientine (triethylene tetramine) dihydrochloride. Lancet 1982, 1, 643–647. [Google Scholar] [CrossRef]
  33. Menard, M.P.; McCormick, C.C.; Cousins, R.J. Regulation of intestinal metallothionein biosynthesis in rats by dietary zinc. J. Nutr. 1981, 111, 1353–1361. [Google Scholar] [CrossRef] [PubMed]
  34. Brewer, G.J.; Dick, R.D.; Johnson, V.D.; Brunberg, J.A.; Kluin, K.J.; Fink, J.K. Treatment of Wilson’s disease with zinc: XV long-term follow-up studies. J. Lab. Clin Med. 1998, 132, 264–278. [Google Scholar] [CrossRef]
  35. Li, W.J.; Chen, C.; You, Z.F.; Yang, R.M.; Wang, X.P. Current drug managements of Wilson’s disease: From West to East. Curr. Neuropharmacol. 2016, 14, 322–325. [Google Scholar] [CrossRef] [Green Version]
  36. Ren, M.S.; Zhang, Z.; Wu, J.X.; Li, F.; Xue, B.C.; Yang, R.M. Comparison of long lasting therapeutic effects between succimer and penicillamine on hepatolenticular degeneration. World J. Gastroenterol. 1998, 4, 530–532. [Google Scholar] [CrossRef]
  37. Brewer, G.J.; Dick, R.D.; Yuzbasiyan-Gurkin, V.; Tankanow, R.; Young, A.B.; Kluin, K.J. Initial therapy of patients with Wilson’s disease with tetrathiomolybdate. Arch. Neurol. 1991, 48, 42–47. [Google Scholar] [CrossRef]
  38. Brewer, G.J.; Dick, R.D.; Johnson, V.; Wang, Y.; Yuzbasiyan-Gurkan, V.; Kluin, K.; Fink, J.K.; Aisen, A. Treatment of Wilson’s disease with ammonium tetrathiomolybdate. I. Initial therapy in 17 neurologically affected patients. Arch. Neurol. 1994, 51, 545–554. [Google Scholar] [CrossRef]
  39. Brewer, G.J.; Johnson, V.; Dick, R.D.; Kluin, K.J.; Fink, J.K.; Brunberg, J.A. Treatment of Wilson disease with ammonium tetrathiomolybdate. II. Initial therapy in 33 neurologically affected patients and follow-up with zinc therapy. Arch. Neurol. 1996, 53, 1017–1025. [Google Scholar] [CrossRef]
  40. Brewer, G.J.; Askari, F.; Lorincz, M.T.; Carlson, M.; Schilsky, M.; Kluin, K.J.; Hedera, P.; Moretti, P.; Fink, J.K.; Tankanow, R.; et al. Treatment of Wilson disease with ammonium tetrathiomolybdate: IV. Comparison of tetrathiomolybdate and trientine in a double-blind study of treatment of the neurologic presentation of Wilson disease. Arch. Neurol. 2006, 63, 521–527. [Google Scholar] [CrossRef]
  41. Weiss, K.H.; Askari, F.K.; Czlonkowska, A.; Ferenci, P.; Bronstein, J.M.; Bega, D.; Ala, A.; Nicholl, D.; Flint, S.; Olsson, L.; et al. Bis-choline tetrathiomolybdate in patients with Wilson’s disease: An open-label, multicentre, phase 2 study. Lancet Gastroenterol. Hepatol. 2017, 2, 869–876. [Google Scholar] [CrossRef]
  42. Weiss, K.H.; Członkowska, A.; Hedera, P.; Ferenci, P. WTX101–An investigational drug for the treatment of Wilson disease. Expert Opin. Investig. Drugs 2018, 27, 561–567. [Google Scholar] [CrossRef]
  43. Krishnan, N.; Felice, C.; Rivera, K.; Pappin, D.J.; Tonks, N.K. DPM-1001 decreased copper levels and ameliorated deficits in a mouse model of Wilson’s disease. Genes Dev. 2018, 32, 944–952. [Google Scholar] [CrossRef] [Green Version]
  44. Lichtmannegger, J.; Leitzinger, C.; Wimmer, R.; Schmitt, S.; Schulz, S.; Kabiri, Y.; Eberhagen, C.; Rieder, T.; Janik, D.; Neff, F.; et al. Methanobactin reverses acute liver failure in a rat model of Wilson disease. J. Clin. Investig. 2016, 126, 2721–2735. [Google Scholar] [CrossRef]
  45. Tremmel, R.; Uhl, P.; Helm, F.; Wupperfeld, D.; Sauter, M.; Mier, W.; Stremmel, W.; Hofhaus, G.; Fricker, G. Delivery of Copper-chelating Trientine (TETA) to the central nervous system by surface modified liposomes. Int. J. Pharm. 2016, 512, 87–95. [Google Scholar] [CrossRef]
  46. Farzaei, M.H.; Zobeiri, M.; Parvizi, F.; El-Senduny, F.F.; Marmouzi, I.; Coy-Barrera, E.; Naseri, R.; Nabavi, S.M.; Rahimi, R.; Abdollahi, M. Curcumin in liver diseases: A systematic review of the cellular mechanisms of oxidative stress and clinical perspective. Nutrients 2018, 10, 855. [Google Scholar] [CrossRef] [Green Version]
  47. Hedera, P. Clinical management of Wilson disease. Ann. Transl. Med. 2019, 7, S66. [Google Scholar] [CrossRef]
  48. Litwin, T.; Dzieżyc, K.; Członkowska, A. Wilson disease-treatment perspectives. Ann. Transl. Med. 2019, 7, S68. [Google Scholar] [CrossRef]
  49. Schachter, A.S.; Davis, K.L. Alzheimer’s Disease. Curr. Treat. Options Neurol. 2000, 2, 51–60. [Google Scholar] [CrossRef]
  50. Glenner, G.G.; Wong, C.W. Alzheimer’s disease: Initial report of the purification and characterization of a novel cerebrovascular amyloid protein. Biochem. Biophys. Res. Commun. 1984, 120, 885–890. [Google Scholar] [CrossRef]
  51. Atwood, C.S.; Huang, X.; Moir, R.D.; Tanzi, R.E.; Bush, A.I. Role of free radicals and metal ions in the pathogenesis of Alzheimer’s disease. Met. Ions Biol. Syst. 1999, 36, 309–364. [Google Scholar]
  52. Sensi, S.L.; Granzotto, A.; Siotto, M.; Squitti, R. Copper and zinc dysregulation in Alzheimer’s disease. Trends Pharm. Sci. 2018, 39, 1049–1063. [Google Scholar] [CrossRef]
  53. Kepp, K.P.; Squitti, R. Copper imbalance in Alzheimer’s disease: Convergence of the chemistry and the clinic. Coord. Chem. Rev. 2019, 397, 168–187. [Google Scholar] [CrossRef]
  54. Basun, H.; Forssell, L.G.; Wetterberg, L.; Winblad, B. Metals and trace elements in plasma and cerebrospinal fluid in normal aging and Alzheimer’s disease. J. Neural. Transm. Park Dis. Dement. Sect. 1991, 3, 231–258. [Google Scholar]
  55. Bagheri, S.; Squitti, R.; Haertlé, T.; Siotto, M.; Saboury, A.A. Role of copper in the onset of Alzheimer’s disease compared to other metals. Front. Aging Neurosci. 2017, 9, 446. [Google Scholar] [CrossRef]
  56. Squitti, R.; Siotto, M.; Arciello, M.; Rossi, L. Non-ceruloplasmin bound copper and ATP7B gene variants in Alzheimer’s disease. Metallomics 2016, 8, 863–873. [Google Scholar] [CrossRef]
  57. James, S.A.; Volitakis, I.; Adlard, P.A.; Duce, J.A.; Masters, C.L.; Cherny, R.A.; Bush, A.I. Elevated labile Cu is associated with oxidative pathology in Alzheimer disease. Free Radic Biol. Med. 2012, 52, 298–302. [Google Scholar] [CrossRef]
  58. Cherny, R.A.; Atwood, C.S.; Xilinas, M.E.; Gray, D.N.; Jones, W.D.; McLean, C.A.; Barnham, K.J.; Volitakis, I.; Fraser, F.W.; Kim, Y.; et al. Treatment with a copper-zinc chelator markedly and rapidly inhibits beta-amyloid accumulation in Alzheimer’s disease transgenic mice. Neuron 2001, 30, 665–676. [Google Scholar] [CrossRef] [Green Version]
  59. Dedeoglu, A.; Cormier, K.; Payton, S.; Tseitlin, K.A.; Kremsky, J.N.; Lai, L.; Li, X.; Moir, R.D.; Tanzi, R.E.; Bush, A.I.; et al. Preliminary studies of a novel bifunctional metal chelator targeting Alzheimer’s amyloidogenesis. Exp. Gerontol. 2004, 39, 1641–1649. [Google Scholar] [CrossRef]
  60. Squitti, R.; Rossini, P.M.; Cassetta, E.; Moffa, F.; Pasqualetti, P.; Cortesi, M.; Colloca, A.; Rossi, L.; Finazzi-Agró, A. D-penicillamine reduces serum oxidative stress in Alzheimer’s disease patients. Eur. J. Clin. Investig. 2002, 32, 51–59. [Google Scholar] [CrossRef]
  61. Lannfelt, L.; Blennow, K.; Zetterberg, H.; Batsman, S.; Ames, D.; Harrison, J.; Masters, C.L.; Targum, S.; Bush, A.I.; Murdoch, R.; et al. Safety, efficacy, and biomarker findings of PBT2 in targeting Abeta as a modifying therapy for Alzheimer’s disease: A phase IIa, double-blind, randomised, placebo-controlled trial. Lancet Neurol. 2008, 7, 779–786. [Google Scholar] [CrossRef]
  62. Sampson, E.L.; Jenagaratnam, L.; McShane, R. Metal protein attenuating compounds for the treatment of Alzheimer’s dementia. Cochrane Database Syst. Rev. 2014, CD005380. [Google Scholar] [CrossRef]
  63. Drew, S.C. The case for abandoning therapeutic chelation of copper ions in Alzheimer’s disease. Front. Neurosci. 2017, 11, 317. [Google Scholar] [CrossRef] [Green Version]
  64. Squitti, R.; Salustri, C.; Rongioletti, M.; Siotto, M. Commentary: The case for abandoning therapeutic chelation of copper ions in Alzheimer’s disease. Front. Neurol. 2017, 8, 503. [Google Scholar] [CrossRef] [Green Version]
  65. Miotto, M.C.; Rodriguez, E.E.; Valiente-Gabioud, A.A.; Torres-Monserrat, V.; Binolfi, A.; Quintanar, L.; Zweckstetter, M.; Griesinger, C.; Fernández, C.O. Site-specific copper-catalyzed oxidation of α-synuclein: Tightening the link between metal binding and protein oxidative damage in Parkinson’s disease. Inorg. Chem. 2014, 53, 4350–4358. [Google Scholar] [CrossRef]
  66. Okita, Y.; Rcom-H’cheo-Gauthier, A.N.; Goulding, M.; Chung, R.S.; Faller, P.; Pountney, D.L. Metallothionein, Copper and Alpha-Synuclein in Alpha-Synucleinopathies. Front. Neurosci. 2017, 11, 114. [Google Scholar] [CrossRef]
  67. Ajsuvakova, O.P.; Tinkov, A.A.; Willkommen, D.; Skalnaya, A.A.; Danilov, A.B.; Pilipovich, A.A.; Aschner, M.; Skalny, A.V.; Michalke, B.; Skalnaya, M.G. Assessment of copper, iron, zinc and manganese status and speciation in patients with Parkinson’s disease: A pilot study. J. Trace Elem. Med. Biol. 2019, 126423. [Google Scholar] [CrossRef]
  68. Bjorklund, G.; Stejskal, V.; Urbina, M.A.; Dadar, M.; Chirumbolo, S.; Mutter, J. Metals and Parkinson’s disease: Mechanisms and biochemical processes. Curr. Med. Chem. 2018, 25, 2198–2214. [Google Scholar] [CrossRef]
  69. Montes, S.; Rivera-Mancia, S.; Diaz-Ruiz, A.; Tristan-Lopez, L.; Rios, C. Copper and copper proteins in Parkinson’s disease. Oxid. Med. Cell Longev. 2014, 2014, 147251. [Google Scholar] [CrossRef] [Green Version]
  70. Tosato, M.; Di Marco, V. Metal chelation therapy and Parkinson’s disease: A critical review on the thermodynamics of complex formation between relevant metal ions and promising or established drugs. Biomolecules 2019, 9, 269. [Google Scholar] [CrossRef] [Green Version]
  71. Devos, D.; Moreau, C.; Devedjian, J.C.; Kluza, J.; Petrault, M.; Laloux, C.; Jonneaux, A.; Ryckewaert, G.; Garçon, G.; Rouaix, N.; et al. Targeting chelatable iron as a therapeutic modality in Parkinson’s disease. Antioxid. Redox Signal. 2014, 21, 195–210. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  72. Maher, P.; Kontoghiorghes, G.J. Characterization of the neuroprotective potential of derivatives of the iron chelating drug deferiprone. Neurochem. Res. 2015, 40, 609–620. [Google Scholar] [CrossRef] [PubMed]
  73. Pashalidis, I.; Kontoghiorghes, G.J. Molecular factors affecting the complex formation between deferiprone (L1) and Cu(II). Possible implications on efficacy and toxicity. Arzneimittelforschung 2001, 51, 998–1003. [Google Scholar] [CrossRef] [PubMed]
  74. Timoshnikov, V.A.; Kobzeva, T.; Selyutina, O.Y.; Polyakov, N.E.; Kontoghiorghes, G.J. Effective inhibition of copper-catalyzed production of hydroxyl radicals by deferiprone. J. Biol. Inorg. Chem. 2019, 24, 331–341. [Google Scholar] [CrossRef]
  75. Nuñez, M.T.; Chana-Cuevas, P. New perspectives in iron chelation therapy for the treatment of neurodegenerative diseases. Pharmaceuticals (Basel) 2018, 11, 109. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  76. Raghu, G.; Collard, H.R.; Egan, J.J.; Martinez, F.J.; Behr, J.; Brown, K.K.; Colby, T.V.; Cordier, J.F.; Flaherty, K.R.; Lasky, J.A.; et al. An official ATS/ERS/JRS/ALAT statement: Idiopathic pulmonary fibrosis: Evidence-based guidelines for diagnosis and management. Am. J. Respir. Crit. Care Med. 2011, 183, 788–824. [Google Scholar] [CrossRef]
  77. Clarke, D.L.; Murray, L.A.; Crestani, B.; Sleeman, M.A. Is personalised medicine the key to heterogeneity in idiopathic pulmonary fibrosis? Pharm. Ther. 2017, 169, 35–46. [Google Scholar] [CrossRef]
  78. Kagan, H.M.; Li, W. Lysyl oxidase: Properties, specificity, and biological roles inside and outside of the cell. J. Cell Biochem. 2003, 88, 660–672. [Google Scholar] [CrossRef]
  79. Barry-Hamilton, V.; Spangler, R.; Marshall, D.; McCauley, S.; Rodriguez, H.M.; Oyasu, M.; Mikels, A.; Vaysberg, M.; Ghermazien, H.; Wai, C.; et al. Allosteric inhibition of lysyl oxidase-like-2 impedes the development of a pathologic microenvironment. Nat. Med. 2010, 16, 1009–1017. [Google Scholar] [CrossRef]
  80. Chen, L.; Li, S.; Li, W. LOX/LOXL in pulmonary fibrosis: Potential therapeutic targets. J. Drug Target. 2019, 27, 790–796. [Google Scholar] [CrossRef]
  81. Brewer, G.J.; Ullenbruch, M.R.; Dick, R.; Olivarez, L.; Phan, S.H. Tetrathiomolybdate therapy protects against bleomycin-induced pulmonary fibrosis in mice. J. Lab. Clin. Med. 2003, 141, 210–216. [Google Scholar] [CrossRef]
  82. Ovet, H.; Oztay, F. The copper chelator tetrathiomolybdate regressed bleomycin-induced pulmonary fibrosis in mice, by reducing lysyl oxidase expressions. Biol. Trace Elem. Res. 2014, 162, 189–199. [Google Scholar] [CrossRef]
  83. Association, A.D. Diagnosis and classification of diabetes mellitus. Diabetes Care 2014, 37 (Suppl. 1), S81–S90. [Google Scholar] [CrossRef] [Green Version]
  84. Qiu, Q.; Zhang, F.; Zhu, W.; Wu, J.; Liang, M. Copper in diabetes mellitus: A meta-analysis and systematic review of plasma and serum studies. Biol. Trace Elem. Res. 2017, 177, 53–63. [Google Scholar] [CrossRef]
  85. Li, P.; Yin, J.; Zhu, Y.; Li, S.; Chen, S.; Sun, T.; Shan, Z.; Wang, J.; Shang, Q.; Li, X.; et al. Association between plasma concentration of copper and gestational diabetes mellitus. Clin. Nutr. 2019, 38, 2922–2927. [Google Scholar] [CrossRef]
  86. Evans, J.L.; Goldfine, I.D.; Maddux, B.A.; Grodsky, G.M. Oxidative stress and stress-activated signaling pathways: A unifying hypothesis of type 2 diabetes. Endocr. Rev. 2002, 23, 599–622. [Google Scholar] [CrossRef] [Green Version]
  87. Zheng, Y.; Li, X.K.; Wang, Y.; Cai, L. The role of zinc, copper and iron in the pathogenesis of diabetes and diabetic complications: Therapeutic effects by chelators. Hemoglobin 2008, 32, 135–145. [Google Scholar] [CrossRef]
  88. Cooper, G.J.; Phillips, A.R.; Choong, S.Y.; Leonard, B.L.; Crossman, D.J.; Brunton, D.H.; Saafi, L.; Dissanayake, A.M.; Cowan, B.R.; Young, A.A.; et al. Regeneration of the heart in diabetes by selective copper chelation. Diabetes 2004, 53, 2501–2508. [Google Scholar] [CrossRef] [Green Version]
  89. Repiščák, P.; Erhardt, S.; Rena, G.; Paterson, M.J. Biomolecular mode of action of metformin in relation to its copper binding properties. Biochemistry 2014, 53, 787–795. [Google Scholar] [CrossRef]
  90. Foretz, M.; Guigas, B.; Viollet, B. Understanding the glucoregulatory mechanisms of metformin in type 2 diabetes mellitus. Nat. Rev. Endocrinol. 2019, 15, 569–589. [Google Scholar] [CrossRef] [Green Version]
  91. Tanaka, A.; Kaneto, H.; Miyatsuka, T.; Yamamoto, K.; Yoshiuchi, K.; Yamasaki, Y.; Shimomura, I.; Matsuoka, T.A.; Matsuhisa, M. Role of copper ion in the pathogenesis of type 2 diabetes. Endocr. J. 2009, 56, 699–706. [Google Scholar] [CrossRef] [Green Version]
  92. Coates, R.J.; Weiss, N.S.; Daling, J.R.; Rettmer, R.L.; Warnick, G.R. Cancer risk in relation to serum copper levels. Cancer Res. 1989, 49, 4353–4356. [Google Scholar]
  93. Margalioth, E.J.; Schenker, J.G.; Chevion, M. Copper and zinc levels in normal and malignant tissues. Cancer 1983, 52, 868–872. [Google Scholar] [CrossRef]
  94. de Jorge, F.B.; Paiva, L.; Mion, D.; da Nova, R. Biochemical studies on copper, copper oxidase, magnesium, sulfur, calcium and phosphorus in cancer of the larynx. Acta Otolaryngol. 1966, 61, 454–458. [Google Scholar] [CrossRef]
  95. Shah-Reddy, I.; Khilanani, P.; Bishop, C.R. Serum copper levels in non-Hodgkin’s lymphoma. Cancer 1980, 45, 2156–2159. [Google Scholar] [CrossRef]
  96. Khadem-Ansari, M.H.; Asoudeh, M.; Gheshlaghi, H.F.K.; Nozari, S.; Zarringol, M.; Maroufi, N.F.; Faridvand, Y. Copper and zinc in stage I multiple myeloma: Relation with ceruloplasmin, lipid peroxidation, and superoxide dismutase activity. Horm. Mol. Biol. Clin. Investig. 2018, 37. [Google Scholar] [CrossRef]
  97. Kaiafa, G.D.; Saouli, Z.; Diamantidis, M.D.; Kontoninas, Z.; Voulgaridou, V.; Raptaki, M.; Arampatzi, S.; Chatzidimitriou, M.; Perifanis, V. Copper levels in patients with hematological malignancies. Eur. J. Intern. Med. 2012, 23, 738–741. [Google Scholar] [CrossRef]
  98. Fang, A.P.; Chen, P.Y.; Wang, X.Y.; Liu, Z.Y.; Zhang, D.M.; Luo, Y.; Liao, G.C.; Long, J.A.; Zhong, R.H.; Zhou, Z.G.; et al. Serum copper and zinc levels at diagnosis and hepatocellular carcinoma survival in the Guangdong Liver Cancer Cohort. Int. J. Cancer 2019, 144, 2823–2832. [Google Scholar] [CrossRef]
  99. Zowczak, M.; Iskra, M.; Torliński, L.; Cofta, S. Analysis of serum copper and zinc concentrations in cancer patients. Biol. Trace Elem. Res. 2001, 82, 1–8. [Google Scholar] [CrossRef]
  100. Gupta, S.K.; Shukla, V.K.; Vaidya, M.P.; Roy, S.K.; Gupta, S. Serum and tissue trace elements in colorectal cancer. J. Surg. Oncol. 1993, 52, 172–175. [Google Scholar] [CrossRef]
  101. Zhang, X.; Yang, Q. Association between serum copper levels and lung cancer risk: A meta-analysis. J. Int. Med. Res. 2018, 46, 4863–4873. [Google Scholar] [CrossRef] [Green Version]
  102. Turecký, L.; Kalina, P.; Uhlíková, E.; Námerová, S.; Krizko, J. Serum ceruloplasmin and copper levels in patients with primary brain tumors. Klin. Wochenschr. 1984, 62, 187–189. [Google Scholar] [CrossRef]
  103. Dabek, J.T.; Hyvönen-Dabek, M.; Härkönen, M.; Adlercreutz, H. Evidence for increased non-ceruloplasmin copper in early-stage human breast cancer serum. Nutr. Cancer 1992, 17, 195–201. [Google Scholar] [CrossRef] [PubMed]
  104. Barresi, V.; Trovato-Salinaro, A.; Spampinato, G.; Musso, N.; Castorina, S.; Rizzarelli, E.; Condorelli, D.F. Transcriptome analysis of copper homeostasis genes reveals coordinated upregulation of SLC31A1,SCO1, and COX11 in colorectal cancer. FEBS Open Bio. 2016, 6, 794–806. [Google Scholar] [CrossRef] [Green Version]
  105. Nagaraja, G.M.; Othman, M.; Fox, B.P.; Alsaber, R.; Pellegrino, C.M.; Zeng, Y.; Khanna, R.; Tamburini, P.; Swaroop, A.; Kandpal, R.P. Gene expression signatures and biomarkers of noninvasive and invasive breast cancer cells: Comprehensive profiles by representational difference analysis, microarrays and proteomics. Oncogene 2006, 25, 2328–2338. [Google Scholar] [CrossRef] [Green Version]
  106. Goodman, V.L.; Brewer, G.J.; Merajver, S.D. Copper deficiency as an anti-cancer strategy. Endocr. Relat. Cancer 2004, 11, 255–263. [Google Scholar] [CrossRef] [Green Version]
  107. Lopez, J.; Ramchandani, D.; Vahdat, L. Copper depletion as a therapeutic strategy in cancer. Met. Ions Life Sci. 2019, 19. [Google Scholar] [CrossRef]
  108. Garber, K. Cancer’s copper connections. Science 2015, 349, 129. [Google Scholar] [CrossRef]
  109. Petruzzelli, R.; Polishchuk, R.S. Activity and Trafficking of Copper-Transporting ATPases in Tumor Development and Defense against Platinum-Based Drugs. Cells 2019, 8, 1080. [Google Scholar] [CrossRef] [Green Version]
  110. Denoyer, D.; Masaldan, S.; La Fontaine, S.; Cater, M.A. Targeting copper in cancer therapy: ‘Copper That Cancer’. Metallomics 2015, 7, 1459–1476. [Google Scholar] [CrossRef]
  111. Gupte, A.; Mumper, R.J. Elevated copper and oxidative stress in cancer cells as a target for cancer treatment. Cancer Treat. Rev. 2009, 35, 32–46. [Google Scholar] [CrossRef] [PubMed]
  112. Hu, G.F. Copper stimulates proliferation of human endothelial cells under culture. J. Cell Biochem. 1998, 69, 326–335. [Google Scholar] [CrossRef]
  113. Jain, S.; Cohen, J.; Ward, M.M.; Kornhauser, N.; Chuang, E.; Cigler, T.; Moore, A.; Donovan, D.; Lam, C.; Cobham, M.V.; et al. Tetrathiomolybdate-associated copper depletion decreases circulating endothelial progenitor cells in women with breast cancer at high risk of relapse. Ann. Oncol. 2013, 24, 1491–1498. [Google Scholar] [CrossRef]
  114. Soncin, F.; Guitton, J.D.; Cartwright, T.; Badet, J. Interaction of human angiogenin with copper modulates angiogenin binding to endothelial cells. Biochem. Biophys. Res. Commun. 1997, 236, 604–610. [Google Scholar] [CrossRef] [Green Version]
  115. Wu, Z.; Zhang, W.; Kang, Y.J. Copper affects the binding of HIF-1α to the critical motifs of its target genes. Metallomics 2019, 11, 429–438. [Google Scholar] [CrossRef]
  116. Turski, M.L.; Brady, D.C.; Kim, H.J.; Kim, B.E.; Nose, Y.; Counter, C.M.; Winge, D.R.; Thiele, D.J. A novel role for copper in Ras/mitogen-activated protein kinase signaling. Mol. Cell Biol. 2012, 32, 1284–1295. [Google Scholar] [CrossRef] [Green Version]
  117. Itoh, S.; Kim, H.W.; Nakagawa, O.; Ozumi, K.; Lessner, S.M.; Aoki, H.; Akram, K.; McKinney, R.D.; Ushio-Fukai, M.; Fukai, T. Novel role of antioxidant-1 (Atox1) as a copper-dependent transcription factor involved in cell proliferation. J. Biol. Chem. 2008, 283, 9157–9167. [Google Scholar] [CrossRef] [Green Version]
  118. Wang, J.; Luo, C.; Shan, C.; You, Q.; Lu, J.; Elf, S.; Zhou, Y.; Wen, Y.; Vinkenborg, J.L.; Fan, J.; et al. Inhibition of human copper trafficking by a small molecule significantly attenuates cancer cell proliferation. Nat. Chem. 2015, 7, 968–979. [Google Scholar] [CrossRef] [Green Version]
  119. Ishida, S.; Andreux, P.; Poitry-Yamate, C.; Auwerx, J.; Hanahan, D. Bioavailable copper modulates oxidative phosphorylation and growth of tumors. Proc. Natl. Acad. Sci. USA 2013, 110, 19507–19512. [Google Scholar] [CrossRef] [Green Version]
  120. Brady, D.C.; Crowe, M.S.; Turski, M.L.; Hobbs, G.A.; Yao, X.; Chaikuad, A.; Knapp, S.; Xiao, K.; Campbell, S.L.; Thiele, D.J.; et al. Copper is required for oncogenic BRAF signalling and tumorigenesis. Nature 2014, 509, 492–496. [Google Scholar] [CrossRef] [Green Version]
  121. Sammons, S.; Brady, D.; Vahdat, L.; Salama, A.K. Copper suppression as cancer therapy: The rationale for copper chelating agents in BRAF V600 mutated melanoma. Melanoma Manag. 2016, 3, 207–216. [Google Scholar] [CrossRef] [PubMed]
  122. Baldari, S.; Di Rocco, G.; Heffern, M.C.; Su, T.A.; Chang, C.J.; Toietta, G. Effects of copper chelation on BRAF(V600E) positive colon carcinoma cells. Cancers 2019, 11, 659. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  123. Xu, M.; Casio, M.; Range, D.E.; Sosa, J.A.; Counter, C.M. Copper chelation as targeted therapy in a mouse model of oncogenic BRAF-driven papillary thyroid cancer. Clin. Cancer Res. 2018, 24, 4271–4281. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  124. Choi, R.; Kim, M.J.; Sohn, I.; Kim, S.; Kim, I.; Ryu, J.M.; Choi, H.J.; Kim, J.M.; Lee, S.K.; Yu, J.; et al. Serum trace elements and their associations with breast cancer subgroups in Korean breast cancer patients. Nutrients 2018, 11, 37. [Google Scholar] [CrossRef] [Green Version]
  125. Wang, T.H.; Hsia, S.M.; Shieh, T.M. Lysyl oxidase and the tumor microenvironment. Int. J. Mol. Sci. 2016, 18, 62. [Google Scholar] [CrossRef] [Green Version]
  126. MacDonald, G.; Nalvarte, I.; Smirnova, T.; Vecchi, M.; Aceto, N.; Dolemeyer, A.; Frei, A.; Lienhard, S.; Wyckoff, J.; Hess, D.; et al. Memo is a copper-dependent redox protein with an essential role in migration and metastasis. Sci. Signal. 2014, 7, ra56. [Google Scholar] [CrossRef]
  127. Li, S.; Zhang, J.; Yang, H.; Wu, C.; Dang, X.; Liu, Y. Copper depletion inhibits CoCl2-induced aggressive phenotype of MCF-7 cells via downregulation of HIF-1 and inhibition of Snail/Twist-mediated epithelial-mesenchymal transition. Sci. Rep. 2015, 5, 12410. [Google Scholar] [CrossRef] [Green Version]
  128. Blockhuys, S.; Wittung-Stafshede, P. Roles of copper-binding proteins in breast cancer. Int. J. Mol. Sci. 2017, 18, 871. [Google Scholar] [CrossRef] [Green Version]
  129. Morrissey, M.A.; Jayadev, R.; Miley, G.R.; Blebea, C.A.; Chi, Q.; Ihara, S.; Sherwood, D.R. SPARC promotes cell invasion in vivo by decreasing type IV collagen levels in the basement membrane. Plos Genet. 2016, 12, e1005905. [Google Scholar] [CrossRef] [Green Version]
  130. Gartner, E.M.; Griffith, K.A.; Pan, Q.; Brewer, G.J.; Henja, G.F.; Merajver, S.D.; Zalupski, M.M. A pilot trial of the anti-angiogenic copper lowering agent tetrathiomolybdate in combination with irinotecan, 5-flurouracil, and leucovorin for metastatic colorectal cancer. Investig. New Drugs 2009, 27, 159–165. [Google Scholar] [CrossRef] [Green Version]
  131. Brewer, G.J.; Dick, R.D.; Grover, D.K.; LeClaire, V.; Tseng, M.; Wicha, M.; Pienta, K.; Redman, B.G.; Jahan, T.; Sondak, V.K.; et al. Treatment of metastatic cancer with tetrathiomolybdate, an anticopper, antiangiogenic agent: Phase I study. Clin. Cancer Res. 2000, 6, 1–10. [Google Scholar] [PubMed]
  132. Majumder, S.; Chatterjee, S.; Pal, S.; Biswas, J.; Efferth, T.; Choudhuri, S.K. The role of copper in drug-resistant murine and human tumors. Biometals 2009, 22, 377–384. [Google Scholar] [CrossRef] [PubMed]
  133. Li, Y.Q.; Yin, J.Y.; Liu, Z.Q.; Li, X.P. Copper efflux transporters ATP7A and ATP7B: Novel biomarkers for platinum drug resistance and targets for therapy. Iubmb Life 2018, 70, 183–191. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  134. Kilari, D.; Guancial, E.; Kim, E.S. Role of copper transporters in platinum resistance. World J. Clin. Oncol. 2016, 7, 106–113. [Google Scholar] [CrossRef] [Green Version]
  135. Kuo, M.T.; Fu, S.; Savaraj, N.; Chen, H.H. Role of the human high-affinity copper transporter in copper homeostasis regulation and cisplatin sensitivity in cancer chemotherapy. Cancer Res. 2012, 72, 4616–4621. [Google Scholar] [CrossRef] [Green Version]
  136. Chen, H.H.; Kuo, M.T. Overcoming platinum drug resistance with copper-lowering agents. Anticancer Res. 2013, 33, 4157–4161. [Google Scholar]
  137. Fu, S.; Naing, A.; Fu, C.; Kuo, M.T.; Kurzrock, R. Overcoming platinum resistance through the use of a copper-lowering agent. Mol. Cancer 2012, 11, 1221–1225. [Google Scholar] [CrossRef] [Green Version]
  138. Fu, S.; Hou, M.M.; Wheler, J.; Hong, D.; Naing, A.; Tsimberidou, A.; Janku, F.; Zinner, R.; Piha-Paul, S.; Falchook, G.; et al. Exploratory study of carboplatin plus the copper-lowering agent trientine in patients with advanced malignancies. Investig. New Drugs 2014, 32, 465–472. [Google Scholar] [CrossRef]
  139. Huang, Y.F.; Kuo, M.T.; Liu, Y.S.; Cheng, Y.M.; Wu, P.Y.; Chou, C.Y. A dose escalation study of trientine plus carboplatin and pegylated liposomal doxorubicin in women with a first relapse of epithelial ovarian, tubal, and peritoneal cancer within 12 months after platinum-based chemotherapy. Front. Oncol. 2019, 9, 437. [Google Scholar] [CrossRef]
  140. Spengler, G.; Gajdács, M.; Marć, M.A.; Domínguez-Álvarez, E.; Sanmartín, C. Organoselenium compounds as novel adjuvants of chemotherapy drugs-A promising approach to fight cancer drug resistance. Molecules 2019, 24, 336. [Google Scholar] [CrossRef] [Green Version]
  141. Kuria, A.; Fang, X.; Li, M.; Han, H.; He, J.; Aaseth, J.O.; Cao, Y. Does dietary intake of selenium protect against cancer? A systematic review and meta-analysis of population-based prospective studies. Crit. Rev. Food Sci. Nutr. 2020, 60, 684–694. [Google Scholar] [CrossRef] [PubMed]
  142. Wehbe, M.; Leung, A.W.Y.; Abrams, M.J.; Orvig, C.; Bally, M.B. A Perspective - can copper complexes be developed as a novel class of therapeutics? Dalton Trans. 2017, 46, 10758–10773. [Google Scholar] [CrossRef] [PubMed]
  143. Denoyer, D.; Clatworthy, S.A.S.; Cater, M.A. Copper complexes in cancer therapy. Met. Ions Life Sci. 2018, 18. [Google Scholar] [CrossRef]
  144. Hedley, D.; Shamas-Din, A.; Chow, S.; Sanfelice, D.; Schuh, A.C.; Brandwein, J.M.; Seftel, M.D.; Gupta, V.; Yee, K.W.; Schimmer, A.D. A phase I study of elesclomol sodium in patients with acute myeloid leukemia. Leuk Lymphoma 2016, 57, 2437–2440. [Google Scholar] [CrossRef] [PubMed]
  145. Galindo-Murillo, R.; García-Ramos, J.C.; Ruiz-Azuara, L.; Cheatham, T.E.; Cortés-Guzmán, F. Intercalation processes of copper complexes in DNA. Nucleic Acids Res. 2015, 43, 5364–5376. [Google Scholar] [CrossRef] [Green Version]
  146. Wachsberger, P.; Burd, R.; Dicker, A.P. Tumor response to ionizing radiation combined with antiangiogenesis or vascular targeting agents: Exploring mechanisms of interaction. Clin. Cancer Res. 2003, 9, 1957–1971. [Google Scholar]
  147. Khan, M.K.; Mamou, F.; Schipper, M.J.; May, K.S.; Kwitny, A.; Warnat, A.; Bolton, B.; Nair, B.M.; Kariapper, M.S.; Miller, M.; et al. Combination tetrathiomolybdate and radiation therapy in a mouse model of head and neck squamous cell carcinoma. Arch. Otolaryngol. Head Neck Surg. 2006, 132, 333–338. [Google Scholar] [CrossRef] [Green Version]
  148. Morisawa, A.; Okui, T.; Shimo, T.; Ibaragi, S.; Okusha, Y.; Ono, M.; Nguyen, T.T.H.; Hassan, N.M.M.; Sasaki, A. Ammonium tetrathiomolybdate enhances the antitumor effects of cetuximab via the suppression of osteoclastogenesis in head and neck squamous carcinoma. Int. J. Oncol. 2018, 52, 989–999. [Google Scholar] [CrossRef] [Green Version]
  149. Zhou, P.; Qin, J.; Zhou, C.; Wan, G.; Liu, Y.; Zhang, M.; Yang, X.; Zhang, N.; Wang, Y. Multifunctional nanoparticles based on a polymeric copper chelator for combination treatment of metastatic breast cancer. Biomaterials 2019, 195, 86–99. [Google Scholar] [CrossRef]
  150. Voli, F.; Lerra, L.; Kimpton, K.; Saletta, F.; Shen, S.; Cirillo, G.; Kavallaris, M.; Vittorio, O. Copper homeostasis: A new player in anti-tumor immune response. Cancer Res. 2019, 79. [Google Scholar] [CrossRef]
  151. Yoo, J.Y.; Pradarelli, J.; Haseley, A.; Wojton, J.; Kaka, A.; Bratasz, A.; Alvarez-Breckenridge, C.A.; Yu, J.G.; Powell, K.; Mazar, A.P.; et al. Copper chelation enhances antitumor efficacy and systemic delivery of oncolytic HSV. Clin. Cancer Res. 2012, 18, 4931–4941. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  152. Yoo, J.Y.; Yu, J.G.; Kaka, A.; Pan, Q.; Kumar, P.; Kumar, B.; Zhang, J.; Mazar, A.; Teknos, T.N.; Kaur, B.; et al. ATN-224 enhances antitumor efficacy of oncolytic herpes virus against both local and metastatic head and neck squamous cell carcinoma. Mol. Oncolytics 2015, 2, 15008. [Google Scholar] [CrossRef] [PubMed]
  153. Amaravadi, R.K.; Kimmelman, A.C.; Debnath, J. Targeting autophagy in cancer: Recent advances and future directions. Cancer Discov. 2019, 9, 1167–1181. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  154. Polishchuk, E.V.; Merolla, A.; Lichtmannegger, J.; Romano, A.; Indrieri, A.; Ilyechova, E.Y.; Concilli, M.; De Cegli, R.; Crispino, R.; Mariniello, M.; et al. Activation of autophagy, observed in liver tissues from patients with Wilson disease and from ATP7B-deficient animals, protects hepatocytes from copper-induced apoptosis. Gastroenterology 2019, 156, 1173–1189.e1175. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  155. Tsang, T.; Posimo, J.M.; Gudiel, A.A.; Cicchini, M.; Feldser, D.M.; Brady, D.C. Copper is an essential regulator of the autophagic kinases ULK1/2 to drive lung adenocarcinoma. bioRxiv 2019, 816587. [Google Scholar] [CrossRef]
  156. Yu, Z.; Zhou, R.; Zhao, Y.; Pan, Y.; Liang, H.; Zhang, J.S.; Tai, S.; Jin, L.; Teng, C.B. Blockage of SLC31A1-dependent copper absorption increases pancreatic cancer cell autophagy to resist cell death. Cell Prolif. 2019, 52, e12568. [Google Scholar] [CrossRef] [Green Version]
  157. Pan, Q.; Kleer, C.G.; van Golen, K.L.; Irani, J.; Bottema, K.M.; Bias, C.; De Carvalho, M.; Mesri, E.A.; Robins, D.M.; Dick, R.D.; et al. Copper deficiency induced by tetrathiomolybdate suppresses tumor growth and angiogenesis. Cancer Res. 2002, 62, 4854–4859. [Google Scholar]
  158. Brady, D.C.; Crowe, M.S.; Greenberg, D.N.; Counter, C.M. Copper chelation inhibits BRAF V600E-driven melanomagenesis and counters resistance to BRAF V600E and MEK1/2 inhibitors. Cancer Res. 2017, 77, 6240–6252. [Google Scholar] [CrossRef] [Green Version]
  159. Cox, C.; Merajver, S.D.; Yoo, S.; Dick, R.D.; Brewer, G.J.; Lee, J.S.; Teknos, T.N. Inhibition of the growth of squamous cell carcinoma by tetrathiomolybdate-induced copper suppression in a murine model. Arch. Otolaryngol. Head Neck Surg. 2003, 129, 781–785. [Google Scholar] [CrossRef] [Green Version]
  160. Teknos, T.N.; Islam, M.; Arenberg, D.A.; Pan, Q.; Carskadon, S.L.; Abarbanell, A.M.; Marcus, B.; Paul, S.; Vandenberg, C.D.; Carron, M.; et al. The effect of tetrathiomolybdate on cytokine expression, angiogenesis, and tumor growth in squamous cell carcinoma of the head and neck. Arch. Otolaryngol. Head Neck Surg. 2005, 131, 204–211. [Google Scholar] [CrossRef] [Green Version]
  161. Hassouneh, B.; Islam, M.; Nagel, T.; Pan, Q.; Merajver, S.D.; Teknos, T.N. Tetrathiomolybdate promotes tumor necrosis and prevents distant metastases by suppressing angiogenesis in head and neck cancer. Mol. Cancer 2007, 6, 1039–1045. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  162. Juarez, J.C.; Betancourt, O.; Pirie-Shepherd, S.R.; Guan, X.; Price, M.L.; Shaw, D.E.; Mazar, A.P.; Doñate, F. Copper binding by tetrathiomolybdate attenuates angiogenesis and tumor cell proliferation through the inhibition of superoxide dismutase 1. Clin. Cancer Res. 2006, 12, 4974–4982. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  163. Khan, M.K.; Miller, M.W.; Taylor, J.; Gill, N.K.; Dick, R.D.; Van Golen, K.; Brewer, G.J.; Merajver, S.D. Radiotherapy and antiangiogenic TM in lung cancer. Neoplasia 2002, 4, 164–170. [Google Scholar] [CrossRef] [Green Version]
  164. Liu, H.; Zhang, X.; Fan, T.; Li, Y.; Zhang, K.; Ma, S.; Song, Y.; Xu, J.; Wang, X.; Wang, F.; et al. Enhanced efficacy of combined TM with cisplatin targeting esophageal squamous cell carcinoma via suppressing Stat3 signaling pathway. 2018, 13, 808–815. [Google Scholar] [CrossRef]
  165. Kim, K.K.; Han, A.; Yano, N.; Ribeiro, J.R.; Lokich, E.; Singh, R.K.; Moore, R.G. Tetrathiomolybdate mediates cisplatin-induced p38 signaling and EGFR degradation and enhances response to cisplatin therapy in gynecologic cancers. Sci. Rep. 2015, 5, 15911. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  166. Calderon-Aparicio, A.; Cornejo, A.; Orue, A.; Rieber, M. Anticancer response to disulfiram may be enhanced by co-treatment with MEK inhibitor or oxaliplatin: Modulation by tetrathiomolybdate, KRAS/BRAF mutations and c-MYC/p53 status. Ecancermedicalscience 2019, 13, 890. [Google Scholar] [CrossRef] [PubMed]
  167. Yoshii, J.; Yoshiji, H.; Kuriyama, S.; Ikenaka, Y.; Noguchi, R.; Okuda, H.; Tsujinoue, H.; Nakatani, T.; Kishida, H.; Nakae, D.; et al. The copper-chelating agent, trientine, suppresses tumor development and angiogenesis in the murine hepatocellular carcinoma cells. Int. J. Cancer 2001, 94, 768–773. [Google Scholar] [CrossRef]
  168. Brem, S.S.; Zagzag, D.; Tsanaclis, A.M.; Gately, S.; Elkouby, M.P.; Brien, S.E. Inhibition of angiogenesis and tumor growth in the brain. Suppression of endothelial cell turnover by penicillamine and the depletion of copper, an angiogenic cofactor. Am. J. Pathol. 1990, 137, 1121–1142. [Google Scholar]
  169. Crowe, A.; Jackaman, C.; Beddoes, K.M.; Ricciardo, B.; Nelson, D.J. Rapid copper acquisition by developing murine mesothelioma: Decreasing bioavailable copper slows tumor growth, normalizes vessels and promotes T cell infiltration. Plos ONE 2013, 8, e73684. [Google Scholar] [CrossRef] [Green Version]
  170. Redman, B.G.; Esper, P.; Pan, Q.; Dunn, R.L.; Hussain, H.K.; Chenevert, T.; Brewer, G.J.; Merajver, S.D. Phase II trial of tetrathiomolybdate in patients with advanced kidney cancer. Clin. Cancer Res. 2003, 9, 1666–1672. [Google Scholar]
  171. Sahota, S.; Willis, A.; Kornhauser, N.; Ward, M.; Cobham, M.; Cigler, T.; Moore, A.; Andreopoulou, E.; Fitzpatrick, V.; Schneider, S.; et al. A phase II study of copper-depletion using tetrathiomolybdate in patients with breast cancer at high risk for recurrence: Updated results. Cancer Res. 2018, 78, P1-10-02. [Google Scholar] [CrossRef]
  172. Chan, N.; Willis, A.; Kornhauser, N.; Ward, M.M.; Lee, S.B.; Nackos, E.; Seo, B.R.; Chuang, E.; Cigler, T.; Moore, A.; et al. Influencing the tumor microenvironment: A phase II study of copper depletion using tetrathiomolybdate in patients with breast cancer at high risk for recurrence and in preclinical models of lung metastases. Clin. Cancer Res. 2017, 23, 666–676. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  173. Henry, N.L.; Dunn, R.; Merjaver, S.; Pan, Q.; Pienta, K.J.; Brewer, G.; Smith, D.C. Phase II trial of copper depletion with tetrathiomolybdate as an antiangiogenesis strategy in patients with hormone-refractory prostate cancer. Oncology 2006, 71, 168–175. [Google Scholar] [CrossRef] [PubMed]
  174. Pass, H.I.; Brewer, G.J.; Dick, R.; Carbone, M.; Merajver, S. A phase II trial of tetrathiomolybdate after surgery for malignant mesothelioma: Final results. Ann. Thorac. Surg. 2008, 86, 383–389. [Google Scholar] [CrossRef] [PubMed]
  175. Schneider, B.J.; Lee, J.S.; Hayman, J.A.; Chang, A.C.; Orringer, M.B.; Pickens, A.; Pan, C.C.; Merajver, S.D.; Urba, S.G. Pre-operative chemoradiation followed by post-operative adjuvant therapy with tetrathiomolybdate, a novel copper chelator, for patients with resectable esophageal cancer. Investig. New Drugs 2013, 31, 435–442. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  176. Brem, S.; Grossman, S.A.; Carson, K.A.; New, P.; Phuphanich, S.; Alavi, J.B.; Mikkelsen, T.; Fisher, J.D. Phase 2 trial of copper depletion and penicillamine as antiangiogenesis therapy of glioblastoma. Neuro. Oncol. 2005, 7, 246–253. [Google Scholar] [CrossRef] [PubMed]
  177. Lowndes, S.A.; Adams, A.; Timms, A.; Fisher, N.; Smythe, J.; Watt, S.M.; Joel, S.; Donate, F.; Hayward, C.; Reich, S.; et al. Phase I study of copper-binding agent ATN-224 in patients with advanced solid tumors. Clin. Cancer Res. 2008, 14, 7526–7534. [Google Scholar] [CrossRef] [Green Version]
  178. Lin, J.; Zahurak, M.; Beer, T.M.; Ryan, C.J.; Wilding, G.; Mathew, P.; Morris, M.; Callahan, J.A.; Gordon, G.; Reich, S.D.; et al. A non-comparative randomized phase II study of 2 doses of ATN-224, a copper/zinc superoxide dismutase inhibitor, in patients with biochemically recurrent hormone-naïve prostate cancer. Urol. Oncol. 2013, 31, 581–588. [Google Scholar] [CrossRef] [Green Version]
Figure 1. Schematic representation of the main genes involved in the antitumoral effects of copper chelation therapy [1].
Figure 1. Schematic representation of the main genes involved in the antitumoral effects of copper chelation therapy [1].
Ijms 21 01069 g001
Table 1. Main copper chelating drugs.
Table 1. Main copper chelating drugs.
Compound NameAbbreviationChemical FormulaStructural Formula
D-penicillamine: (S)-2-amino-3-mercapto-3-methylbutanoic acidDPAC5H11NO2S Ijms 21 01069 i001
TetrathiomolybdateTMMoS4 Ijms 21 01069 i002
Trientine: triethylenetetramine dihydrochlorideTETAC6H18N4 Ijms 21 01069 i003

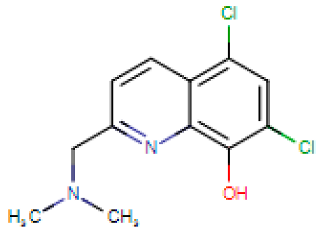

5,7-Dichloro-2[(dimethylamino)methyl]quinolin-8-olPBT2C12H12Cl2N2O Ijms 21 01069 i004
2,3-Dimercaptosuccinic acidDMSAC4H6O4S2 Ijms 21 01069 i005
Structural formulas collected from the DrugBank public database (
Table 2. Copper chelation therapy clinical trials for non-tumoral disorders.
Table 2. Copper chelation therapy clinical trials for non-tumoral disorders.
ConditionNCT Number/ReferenceTrial PhasePatients EnrolledDrug/InterventionStatus
Wilson’s DiseaseNCT02273596II28WTX101completed
NCT01378182n.a.10MSC transplantcompleted
Alzheimer’s disease[60]n.a.34DPAterminated
NCT00471211 [61]n.a.78PBT2completed
Idiopathic pulmonary fibrosisNCT00189176I/II23TMcompleted
Diabetes MellitusNCT01295073II0TETAwithdrawn
Abbreviations: DPA: D-penicillamine; MSC: mesenchymal stem cells; n.a.: not available; NCT number: Identifier; PBT2: 5,7-dichloro-2-[(dimethylamino)methyl]quinolin-8-ol; TETA: trientine tetrahydrochloride; TM: tetrathiomolybdate; WTX101: bis-choline tetrathiomolybdate.

Share and Cite

MDPI and ACS Style

Baldari, S.; Di Rocco, G.; Toietta, G. Current Biomedical Use of Copper Chelation Therapy. Int. J. Mol. Sci. 2020, 21, 1069.

AMA Style

Baldari S, Di Rocco G, Toietta G. Current Biomedical Use of Copper Chelation Therapy. International Journal of Molecular Sciences. 2020; 21(3):1069.

Chicago/Turabian Style

Baldari, Silvia, Giuliana Di Rocco, and Gabriele Toietta. 2020. "Current Biomedical Use of Copper Chelation Therapy" International Journal of Molecular Sciences 21, no. 3: 1069.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
