The Wnt Signalling Pathway: A Tailored Target in Cancer

Department of Medical Sciences, University of Turin, Corso Dogliotti 14, 10126 Turin, Italy
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2020, 21(20), 7697;
Submission received: 29 September 2020 / Revised: 15 October 2020 / Accepted: 16 October 2020 / Published: 18 October 2020
(This article belongs to the Special Issue The Wnt Signaling Pathway in Cancer)


Cancer is one of the greatest public health challenges. According to the World Health Organization (WHO), 9.6 million cancer deaths have been reported in 2018. The most common cancers include lung, breast, colorectal, prostate, skin (non-melanoma) and stomach cancer. The unbalance of physiological signalling pathways due to the acquisition of mutations in tumour cells is considered the most common cancer driver. The Wingless-related integration site (Wnt)/β-catenin pathway is crucial for tissue development and homeostasis in all animal species and its dysregulation is one of the most relevant events linked to cancer development and dissemination. The canonical and the non-canonical Wnt/β-catenin pathways are known to control both physiological and pathological processes, including cancer. Herein, the impact of the Wnt/β-catenin cascade in driving cancers from different origin has been examined. Finally, based on the impact of Extracellular Vesicles (EVs) on tumour growth, invasion and chemoresistance, and their role as tumour diagnostic and prognostic tools, an overview of the current knowledge linking EVs to the Wnt/β-catenin pathway is also discussed.

1. Introduction

The human wingless-related integration site (Wnt) genes encode 19 evolutionarily conserved glycoproteins with 22-24 Cys residues. In the endoplasmic reticulum (ER), the Wnt ligands are post-translationally acetylated by porcupine, a membrane associated O-acyl transferase. Acetylation leads to palmitoylation, which is required for the release and binding of Wnt to the frizzled (FZD) receptors. This, in turn, drives the biological response [1].
The Wnt signalling pathway regulates crucial cellular processes including cell fate determination, organogenesis during embryonic development, normal adult homeostasis, motility, polarity and stem cell renewal [2]. Moreover, its contribution in cancer has been extensively investigated [3].
The Wnt pathway has been widely studied and reviewed, and a general understanding of the transduction cascade has been clarified. The Wnt cascade has been subdivided into different branches due to its complexity [4,5]. They include the canonical Wnt/β-catenin (Wnt/β-catenin dependent pathway) and the non-canonical Wnt/β-catenin pathway (β-catenin-independent pathway). The latter was further allocated into two additional branches, the planar cell polarity (PCP) and the Wnt/calcium pathways [2]. Both of them contribute to cancer development and dissemination.
The aim of the present review is to provide an overview of the current knowledge about the Wnt signalling pathway in tumour development and progression. Tumours from different origin are discussed. Although the canonical and the non-canonical Wnt/β-catenin pathway work together to control physiological and pathological processes [2], data related to each one are independently debated. Finally, the contribution of extracellular vesicles (EVs) in triggering the Wnt/β-catenin cascade is also analyzed.

2. Wnt Canonical Pathway: β-Catenin Dependent

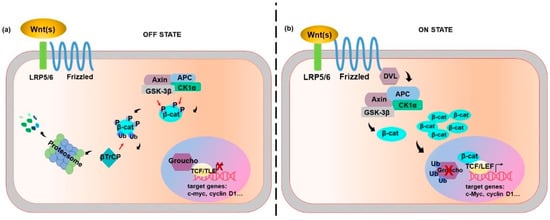

The canonical pathway turns around the β-catenin intracellular level (Figure 1). In the absence of Wnt proteins, the β-catenin “destruction complex” keeps low β-catenin in the cell. The “destruction complex” mainly consists of two kinases: casein kinase 1α (CK1α), glycogen synthase kinase 3 β (GSK-3β) and two scaffolds: axis inhibition (Axin), and adenomatous polyposis coli (APC). Firstly, β-catenin undergoes phosphorylation by CK1α at serine 45 (Ser45), Ser33, Ser37 and threonine 41 (Thr41) by GSK-3β. Then, the E3 ubiquitin ligase, denoted as β-transducin repeat-containing protein (βTrCP), marks β-catenin ubiquitination and degradation [1]. This prevents β-catenin nuclear translocation while allowing histone deacetylation and chromatin compaction by the Groucho repressor, translating into the inhibition of gene transcription [6] (Figure 1a).
The activation of the canonical Wnt signal requires both the FZD family receptors and the low-density-lipoprotein-related protein 5/6 (LRP5/LRP6) co-receptors, phosphorylation of which is essential for receptor activation. Wnt binding to its receptor results in dishevelled (DVL) phosphorylation, leading to Axin de-phosphorylation and decline of its cytoplasmic content [7]. Thereby, β-catenin can be released from the “destruction complex”, and its degradation prevented while stabilization is allowed. Accumulation of β-catenin turns into its nuclear translocation [7].
Although several nuclear β-catenin binding partners have been involved in the control of gene transcription, the most relevant β-catenin partners are the members of the T-cell factor/lymphoid enhancer factor (TCF/LEF) family of transcription factors [7]. This complex binds to the promoter region of target genes and regulates their transcription.
Once in the nucleus, the engagement of β-catenin transiently converts the TCF/LEF into transcriptional activators, which displace Groucho and induce chromatin remodelling and transcriptional activity (Figure 1b).
A number of genes are targeted by Wnt-β-catenin. Among them, genes involved in positive- and negative-feedback regulation, cell-cycle progression, and stem cell homeostasis are the most commonly included genes.

3. Wnt Non-Canonical Pathways: Wnt/Planar Cell Polarity (PCP) and Wnt/Calcium

To date, the canonical Wnt/β-catenin pathway is much better characterized than the non-canonical one (Figure 2).

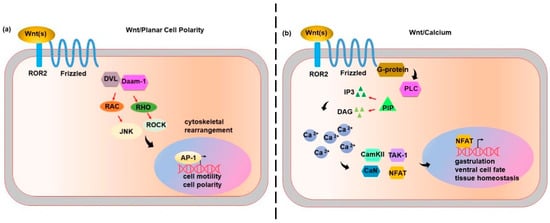

In the non-canonical PCP pathway, Wnt ligands bind to FZD receptors and co-receptor protein tyrosine kinase 7 (PTK7), RAR-related orphan receptor (ROR) or the receptor like tyrosine kinase (RYK) and convey the signal to DVL. On the one side, DVL forms the disheveled associated activator of morphogenesis 1 (DVL-Daam-1) complex, which triggers a small guanosine-5’-triphosphate (GTP) GTPase, such as ras homolog gene family member A (RhoA), RHO and RHO-associated kinase (ROCK). DVL also triggers ras-related C3 botulinum toxin substrate (RAC), JUN-N-terminal kinase (JNK) and the activator protein-1 (AP-1). [7] The PCP pathway is involved in the cytoskeletal rearrangement, cell motility and co-ordinates cell polarity. In vertebrates, the PCP pathway is also required for morphology and migration of dorsal mesodermal cells undergoing gastrulation, hair follicle organization, and orientation of stereocilia in the sensory epithelium of the inner ear [8] (Figure 2a).
In the calcium-dependent pathway, Wnt ligands bind to FZD and activate the phospholipase C (PLC), which hydrolyses the phosphatidylinositol (4,5)-biphosphates (PIP2) to inositol (1,4,5)-triphosphates (IP3) and diacylglycerol (DAG). This translates into the release of the intracellular calcium and the activation of both calcineurin (CaN) and calcium/calmodulin-dependent kinase II (CamKII). Moreover, the activation of calmodulin promotes the activation of the TGF-β-Activated kinase 1 (TAK-1) and nemo-like kinase (NLK), thereby antagonizing and neutralizing the canonical Wnt/β-catenin cascade. CaN activates the nuclear factor of activated T-cells (NFAT), which moves to the nucleus and regulates the expression of target genes [7] (Figure 2b). The calcium-dependent pathway plays a crucial role in several processes, including early pattern formation during gastrulation [2], ventral cell fate [9], dorsal axis formation [10], and tissue homeostasis [11].

4. Colorectal Cancer

Colorectal cancer (CRC) is one of most common cancers worldwide and represents a deep cause of cancer mortality [12] with a rapid increase in incidence and death rate [13]. Dienstmann et al. [14] established a new classification of CRCs into four consensus molecular subtypes (CMSs). Among them CMS2, CMS3, and CMS4 have a higher rate of APC mutations (over 50%) compared to CMS1. Each CMS has unique features: CMS1 (MSI Immune, 14%): hyper- mutated, microsatellite instability, strong immune activation; CMS2 (Canonical, 37%): epithelial, chromosomally unstable, marked Wnt and myc signalling activation; CMS3 (Metabolic, 13%): epithelial, metabolic dysregulation; and CMS4 (Mesenchymal, 23%): a prominent transforming growth factor β (TGFβ) activation, stromal invasion, and angiogenesis. Samples with combined features (13%) represent transition phenotypes or are supposed to reflect the intra-tumour heterogeneity [14].
The heterogeneous genetic ground underlying CRC initiation and progression mainly involves gene fusion, deletion or amplification, somatic gene mutations and epigenetic alterations. Wnt/β-catenin signalling has emerged as one of the most significant biological pathways in both the physiological setting and in CRC development. Almost all CRCs are characterized by a hyper-active Wnt/β-catenin pathway, which, in many cases, is considered the most critical cancer initiating and driving event. Proteins and miRNAs guiding the Wnt/β-catenin pathway and proposed as potential CRC therapeutic targets are discussed.

5. Canonical Wnt/β-Catenin Pathway and CRC

Ring finger protein 6 (RNF6) is an oncogene frequently upregulated by gene amplification in primary CRC. Moreover, APC mutation and RNF6 copy number amplification were commonly found in CRC patients. RNF6 is a RING-domain E3 ubiquitin ligase and exerts its pro-metastatic effects by promoting CRC cell growth, cell-cycle progression, and epithelial to mesenchymal transition (EMT). Furthermore, RNF6 expression and its gene amplification have been considered independent patients‘ prognostic factors. RNF6 mediates the polyubiquitination of the transducin-like enhancer of split 3 (TLE3), a transcriptional repressor of the β-catenin/TCF4 complex, and its proteasome degradation. The lack of TLE3/TCF4/LEF interaction enhances the Wnt/β-catenin transcriptional activity, and the expression of its downstream target genes [15] (Table 1).
The leucine-rich repeat-containing G-protein coupled receptor 5 (LGR5) is a Wnt/β-catenin target gene implicated in cancer cell proliferation and migration. It has been reported that LGR5 is highly expressed in CRC tissues compared to the healthy ones. A decline in β-catenin and c-myc mRNA expression were detected by knocking-down LGR5 expression, suggesting that it may regulate the Wnt/β-catenin activity by modulating the expression of β-catenin. Furthermore, since targeting LGR5 improves the response to chemotherapy, LGR5 has been proposed as a novel therapeutic target in CRC [16] (Table 1).
The β-catenin and RAS signalling pathways are frequently associated with the development and progression of several different cancers. They mainly act on cancer stem cell (CSC) expansion. High levels of β-catenin and RAS proteins are considered the major drivers of CSC expansion and cancer dissemination and are associated with poor patient’s outcome [55].
Targeting the CSC pool without affecting the somatic stem cell (SSC) niche is one of the major goals of recent decades. As reported by Lenz et al. [56], the β-catenin antagonist molecule, ICG-001, effectively prevented the interplay between β-catenin and its coactivator cAMP response element binding protein (CREB)-binding protein (CBP). Moreover, ICG-001 effectively and without side effects abrogated drug-resistant cells. On the same line, PRI-724, a second generation of CBP/β-catenin antagonist, was found safe in pre-clinical studies and displayed an acceptable toxicity profile.
Yu et al. [18] investigated the traf2- and nck-interacting kinase (TNIK) amplification and its role in tumor progression by applying siRNA technology, while Masuda et al. [19] have generated a small molecule denoted as NCB-0846 acting as TNIK inhibitor. TNIK selectively binds both to TCF4 and β-catenin in order to promote cancer cell growth via Wnt/β-catenin cascade and drives colorectal CSC expansion. The NCB-0846 inhibitor was effective in interfering with TNIK activity tumour growth.
KYA1797K, a small molecule identified by Cha et al. [57], was found effective in suppressing CRC growth due to the activation of GSK-3β via Axin binding and β-catenin/RAS destabilization. In line with this observation, treatment with KYA1797K abrogated CRC stem cell features both in vitro and in vivo. Mechanistically, KYA1797K pushes β-catenin and RAS towards the Axin binding [20] (Table 1).
In the last decade, miRNAs have gained particular attention in cancer [58]. miRNA profiling has been linked to cancer types, stage, and invasion [59]. Moreover, oncogenic or tumour suppressive actions have been linked to miRNA expression. For these reasons, miRNAs are considered valuable tools for cancer diagnosis and prognosis and therefore useful therapeutic targets (Table 2).
Sun and co-workers [21] identified miR-144-3p as a new biomarker for CRC diagnosis and response to treatment. miR-144-3p was found downregulated and associated with CRC pathological stages in CRC patients. Interestingly, miR-144-3p overexpression reduced CRC cell proliferation by delaying G1/S phase transition in tumour cells. On the contrary, the B-cell lymphoma 6 protein (BCL6), a nuclear protein belonging to the BTB/POZ/zinc finger (ZF) family of transcription factors, was found upregulated and surprisingly post-transcriptionally regulated by miR-144-3p. Previous studies revealed that BCL6 is involved in the control of cell cycle progression and differentiation [22,23]. Indeed, miR-144-3p/BCL6 co-operate to inhibit cellular proliferation, development, and progression of CRC by interfering with c-myc and cyclin D1 expression [21] (Table 1).
miR-377-3p displays an ambiguous role in CRC. Liu and colleagues [60] uncovered that upregulation of miR-377-3p promotes G1-S phase transition, cell expansion and EMT, while repressing apoptosis in CRC patients. Moreover, GSK-3β, a direct miR-377-3p target, was found upregulated upon miR-377-3p overexpression. These data suggest that a complex regulatory network boosting tumour progression is associated with the expression of miR-377-3p in CRC.
Conversely, in a recent study, Huang et al. [61] have shown that miR-377-3p, significantly reduced in CRC patients, is involved in the control of proliferation, migration and chemo resistance, particularly at advanced tumour stage. The authors investigated miR-377 functions and mechanism of action in CRC cells. The zinc finger E-box binding homeobox 2 (ZEB2) and the X-linked inhibitor of apoptosis protein (XIAP) are two positive regulators of the Wnt/β-catenin cascade [24,25]. In CRC, ZEB2 enables tumour progression and invasion, whereas XIAP promotes cell proliferation and chemoresistance. De facto, miR-377-3p overexpression was found to suppress the malignant CRC phenotype, as well as cell proliferation, invasion and drug resistance by directly targeting the 3’ UTR sequence of both ZEB2 and XIAP mRNAs. Since miR-377-3p/ZEB2-XIAP inhibited CRC progression by reducing Wnt/β-catenin-associated gene expression (e.i. cyclin D1, Axin2, TCF1, SOX2, c-myc, matrix metalloproteinase-2 (MMP-2), MMP-9, CD44, vascular endothelial growth factor (VEGF), and Twist), approaches involving increasing its expression have been proposed for novel therapeutic options (Table 1).
Functional experiments showed that miR-520e plays a pivotal role in regulating CRC cell proliferation, colony formation and invasion [62]. Moreover, it has been reported that low miR-520e expression is associated with the increased CRC growth and migration. The astrocyte elevated gene-1 (AEG-1), which acts as an oncogene [63], is a direct miR-520e target in CRC. Cells overexpressing miR-520e displayed lower GSK-3β phosphorylation and β-catenin expression. Mechanistically, it was found that miR-520e regulates cancer cell behaviour by targeting AEG-1, which in turn inactivates the Wnt/β-catenin signalling and the transcription of its downstream genes. Hence, miR-520e overexpression could represent a promising therapeutic target in CRC by AEG-1 suppression.
Approximately 40–50% of CRC patients develop metastasis, mostly to the liver and lung. In cancer patients, metastases are associated with 90% of all cancer-related death; thereby, the mechanisms accounting for the metastatic spread have been deeply investigated. Zhang et al. [27] demonstrated that the rhomboid domain containing 1 (RHBDD1) plays a crucial role in driving metastasis formation in CRC patients, via the Wnt/β-catenin pathway. It has been shown that RHBDD1 is able to influence the Wnt/β-catenin cascade by increasing the phosphorylation of β-catenin at the Ser552 and Ser675 residue without affecting its nuclear translocation. Moreover, it promotes EMT, stemness, migration and invasiveness. RHBDD1 also improves the expression of the β-catenin target gene, ZEB1. Furthermore, the protein level of RHBDD1 positively correlated with ZEB1. Thereby, RHBDD1 has been proposed as a novel therapeutic target and/or a clinically useful biomarker for metastatic CRC (Table 1).
SLC35C1, or GDP-fucose transporter 1, is a member of the solute carrier (SLC) superfamily of solute carriers. Deng’s group [28] explored the mechanism throughout SLC35C1 that regulates the canonical Wnt/β-catenin pathway in CRC. They demonstrated a reduction in SLC35C1 and an increase in β-catenin at all tumour stages. Indeed, silencing SLC35C1 resulted in the increased release of Wnt3a and c-myc, Axin2 and cyclin-D1 expression. This suggests that SLC35C1 is involved in the control of the canonical Wnt/β-catenin pathway, and thereby in tumour cell proliferation and tumour progression (Table 1).
Neuronal pentraxin 2 (NPTX2) is a member of the neuronal pentraxin family and is essential for the formation of synapsis. NPTX2 was found overexpressed at both mRNA and protein level in CRC, particularly in metastatic lesions [29]. NPTX2, which was found to positively correlate with tumour stages, lymphatic invasion, distant metastasis, and poor patients’ outcome, promotes β-catenin nuclear translocation and the expression of c-myc, cyclin D1, Snail, and N-cadherin. No NPTX2 receptors have been identified in CRC; however, its cellular internalization was found mediated by the Wnt/β-catenin receptor, FZD6. Additionally, it has been reported that NPTX2/FZD6 interaction translates in cancer cell proliferation and metastasis formation by triggering the Wnt/β-catenin pathway [29] (Table 1).
Aberrant gene expression and DNA methylation profiles are considered hallmarks of CRC initiation and progression [77]. Due to the APC inactivating mutations, the Wnt/β-catenin pathway plays a key role in CRC metastatic spread [78]. Bruschi el al. [79] investigated the early transcriptional and epigenetic changes resulting from APC inactivation in intestinal crypts in crypt base columnar (CBC) cells. The authors have found that APC disruption rapidly induces changes in DNA methylation, indicating that focal remodelling of the DNA methylation profile occurs early and concomitantly with the first oncogenic event. Moreover, it has been demonstrated that the hyper-activation of the Wnt/β-catenin pathway associated with the APC loss-of-function turns out in a rapid increase in intestinal stem cell commitment towards differentiation. Again, it was correlated with the remodelling of the DNA methylation profile. This study unveils that early changes in DNA methylation are crucial for the impaired fate decision program associated with APC loss-of-function.
The kelch-like family member 22 (KLHL22) is a tumour suppressor protein involved in the development/progression of several cancers [30]. Low expression of KLHL22 was found in CRC tissues. KLHL22 overexpression was associated with decreased migration, invasion and reduced expression of the EMT markers, vimentin, N-cadherin, Twist1 and Snail1. Intriguingly, KLHL22 knockdown led to increased expression of β-catenin and LEF, while KLHL22 overexpression translates into GSK-3β upregulation and β-catenin downregulation [30] (Table 1).

6. Non-Canonical Wnt Pathway and CRC

The canonical and non-canonical Wnt family members play discrete roles in CRC. The activation of the Wnt/calcium pathway turns into stimulation of sensitive proteins such as CamKII and PKC [80]. A Ror family of receptor tyrosine kinases, the ROR2 has been shown to act as a Wnt5a receptor or co-receptor [81]. Wnt5a has different roles in CRC. It can act as an antagonist or agonist of the canonical Wnt/β-catenin pathway, depending on the cellular context. Lee et al. [82] noticed that the antagonism between the canonical and the non-canonical Wnt/β-catenin signalling pathways is linked to Wnt5a. Mechanistically, Wnt5a suppressed the canonical Wnt/β-catenin cascade by acting as a ligand on the RORα [81]. After PKCα-mediated phosphorylation, RORα modifies its affinity and interacts with the armadillo repeat domains of β-catenin, thus supressing its transcriptional activity.
Three relevant goals have been recently achieved by Voloshanenko et al. [83] supporting the role of Wnt5a/b in cell growth, via the non-canonical β-catenin pathway. First, they identified the procollagen-lysine,2-oxoglutarate 5-dioxygenase 2 (PLOD2), the hydroxyacyl-CoA dehydrogenase (HADH), ligand-dependent corepressor (LCOR) and the receptor expression-enhancing protein 1 (REEP1) as candidate genes regulated by the non-canonical Wnt/β-catenin pathway. Second, these genes were found regulated by Wnt5a/b, as well as by ROR2, the DVL2, the activating transcription factor 2 (ATF2) and ATF4 in a non-canonical Wnt/β-catenin independent manner. Lastly, Wnt5a/b silencing was found to impair cancer cell proliferation.
Among several soluble Wnt proteins, Wnt11 was found to be upregulated in CRC patients [84]. Recently, Gorroño-Etxebarria and colleagues [85] have shown that increased Wnt11, and its FZD6, RYK, PTK7 receptors, positively correlate with poor prognosis. Additionally, Wnt11 downregulated β-catenin transcriptional activity and increased ATF2 via the non-canonical Wnt signalling pathway. Thereby, Wnt11 has been proposed as a prognostic biomarker and therapeutic target in CRC patients.
Tumour micro environment (TME) has a pivotal role in cancer development [86]. Liu et al. [31] reported that, unlike CRC cells, tumour associate macrophages (TAMs), and, in particular, M2-like cells, express Wnt5a. Furthermore, it has been shown that Wnt5a positive TAMs regulate macrophages infiltration, tumour cell proliferation and migration. Wnt5a pro-tumour activity was found to be associated with the overexpression of the C-C motif chemokine ligand 2 (CCL2) in Wnt5a-treated macrophages. Consistently, Wnt5a knockdown reduced CCL2 expression in TAMs and their cancer-promoting activity. In Wnt5a-treated macrophages, both CaMKII and ERK1/2 undergo phosphorylation and lead to CCL2 secretion. This study provided evidence for a new role of Wnt5a in CRC and describes a potential novel therapeutic target (Table 1).

7. Breast Cancer

Breast cancer (BC) is the most diagnosed cancer in women [87], the first cause of cancer death in women worldwide [88], and one of the most expensive in terms of health care costs [87]. Both the canonical and non-canonical Wnt/β-catenin pathways are essential for mammary gland development [89] and for BC growth and dissemination [90]. Hyper-active Wnt/β-catenin was reported in breast tumours [91]. In human BC, elevated intracellular β-catenin level has been associated with high tumour grade [92] and poor prognosis. In addition, up to 90% of metaplastic carcinomas and non-metastasizing fibromatosis have been associated with the highest β-catenin expression level [93]. Moreover, proteins such as Wnt3a [94] and xenopus frizzled 7 (Xfz7) [95] have been involved in the activation of both the canonical and the non-canonical Wnt signalling pathways.

8. Canonical Wnt Pathway and BC

Dysregulation of the Wnt/β-catenin cascade has been associated with cancer initiation and metastasis formation [96]. Moreover, high β-catenin expression has been reported in basal-like BC subtype [91]. Additionally, it has been demonstrated that loss of secreted frizzled-related protein 1 (sFRP1) is an early event in BC patients and is associated with poor prognosis [97]. Furthermore, the activation of the Wnt/β-catenin cascade has been associated with radio resistance of progenitor cells. Thereby, the Wnt/β-catenin pathway has been proposed as a target to harm the self-renewal potential of stem/progenitors [98].
A recent study demonstrated that high β-catenin level is associated with miR106a overexpression and involved in BC cell growth. Additionally, high levels of miR106a were reported to reduce cisplatin sensitivity. Major results were obtained exploiting the Wnt inhibitor, FH535. In fact, FH535 treatment reduced the expression of β-catenin, cyclin D1, c-myc and Ki67, impaired tumour growth and induced apoptosis [64].
In a different study [99], the impact of the Wnt/β-catenin canonical pathway in cisplatin resistance was investigated by silencing β-catenin via small interfering RNA (siRNA). The authors demonstrated that upon β-catenin silencing, the cells become more sensitive to cisplatin treatment. These effects were associated with the increased expression of the apoptotic proteins caspase 3/9.
A recent study demonstrated that miR-5188, aberrantly expressed in breast cancer patients, positively correlates with poor prognosis. The molecular analyses revealed that miR-5188 directly targets the forkhead box protein O1 (FOXO1). In the physiological setting, FOXO1 binds β-catenin and induces its degradation. This implies that miR-5188 overexpression leads to β-catenin nuclear accumulation and transcription of its downstream target genes, mainly involved in EMT, tumour cell proliferation, metastasis formation and chemo resistance. Moreover, the authors elegantly showed that miR-5188 expression is under the control of c-Jun, which directly binds to its promoter region. This in turn generates a positive loop, accelerating tumour progression. Clinically, miR-5188 has been proposed as a diagnostic or prognostic factor and/or a direct target for anti-cancer therapy [65].
The upregulation of the lncRNA hoxa transcript at the distal tip (HOTTIP) has also been linked to poor prognosis in BC patients. Overexpression of HOTTIP correlates with the expansion of breast CSCs (BCSCs) and the expression of the stem cell markers, OCT4 and SOX2. Han et al. [66] demonstrated a reduced expression of differentiation markers, such as CK18 and CK14 and that miR-148a inhibits BC cell migration and invasion by directly targeting Wnt1. Moreover, it has been reported that HOTTIP controls miR-148a-3p by acting as a competing endogenous RNA (ceRNA). Thereby, HOTTIP promotes expansion of CSCs in vitro and tumorigenesis in vivo by regulating the miR-148a-3p/Wnt1/β-catenin axis [66]. These data are summarized in Table 2.
The LGR4 was identified as a prognostic marker in breast tumours displaying poor prognosis [32]. A tight molecular interplay between LGR4 and Wnt/β-catenin signalling has been reported to control stemness. Indeed, LGR4 binding to the soluble R-spondin proteins eases the Wnt/β-catenin cascade [33]. Previous studies have proven that upregulation of ZEB1 by SLUG (the protein product of SNAI2), increased EMT [26]. As a matter of fact, LGR4 knockdown leads to SLUG and ZEB1 downregulation, thereby impairing invasion and metastasis [17]. A correlation with poor outcome and the expression of the LGR4 homolog LGR5 was also reported. LGR5 maintains the pool of BCSCs and promotes tumour progression and invasiveness by activating the Wnt/β-catenin canonical pathway [17] (Table 1).
Wang et al. [34] first demonstrated that the expression of the suppression of tumorigenicity 7 like (ST7L) is downregulated in BC cells, and more importantly, that ST7L acts as an antitumor supervisor by reducing GSK-3β phosphorylation and inducing β-catenin degradation. However, the mechanisms through which ST7L controls GSK-3β phosphorylation are still missing (Table 1).
A recent study [35] reported the overexpression of the transmembrane emp24 domain (TMED) in BC and its correlation to poor prognosis. An aberrant level of TMED boosts cell cycle progression, colony formation, migration and invasion and the expression of CDK2, CDK4, CDK6, cyclin E, β-catenin, cyclin D1, c-myc, MMP-7 and TCF4. Conversely, silencing TMED3 drastically reduced migration and invasion. Moreover, the observation that β-catenin knockdown translates in the reduction of its regulated genes supports the notion that the oncogenic effect of TMED goes through the Wnt/β-catenin pathway (Table 1).
Cryptotanshinone (CTS) is an herbal medicine derived from roots of salvia miltiorrhiza, which displays anti-tumour properties. It has been shown that in vitro CTS reduces tumour cell growth, migration and invasion by downregulating the pyruvate kinase muscle isozyme M2 (PKM2), a protein involved in glycolysis, and more importantly in β-catenin activation [100].

9. Wnt Non-Canonical Pathway and BC

Among the Wnt ligands, the most extensively studied ligand, activating the β-catenin independent pathway, is Wnt5a. However, its different biological actions are enlightened by the observation that it can also initiate the canonical β-catenin signalling cascade [101].
Wnt5a is an evolutionarily conserved Wnt ligand, which plays an important role in developmental processes. Wnt5a-/- knockout mice showed perinatal lethality, due to developmental defects [102].
In tumorigenesis, Wnt5a signalling is central and displays multiple intriguing and opposite roles, mainly acting as a β-catenin antagonist. These data are discussed.
The Wnt5a suppressive properties detected in tumours connoted by β-catenin hyper-activation have been linked to the shift towards the stimulation of the β-catenin independent signalling pathway.
Foxy5 is a Wnt5a mimicking hexapeptide able to decrease BC cell migration and invasion [103]. More recently, Prasad et al. [36] confirmed these data and added new information on the role of Wnt5a in the regulation of the expression of the phosphofructokinase platelet-type (PFKP). They have shown that low PFKP level correlates to cancer cell migration and poor patients’ survival. The growth and expansion of tumour cells also rely on glucose consumption, resulting in the accumulation of lactate. Cancer cell metabolism was also associated with β-catenin activation [37]. In this regard, it has been shown that Wnt5a affects the aerobic glycolysis by inhibiting the activation of β-catenin. Therefore, an onco-suppressive role was proposed for PFKP.
According to the study of Borcherding et al. [104], Roarty et al. [105] demonstrated that the paracrine activity of Wnt5a suppresses the expression of both β-catenin and cyclin D1. The authors have shown that Wnt5a supports TGF-β-mediated tumour suppressive functions by antagonising Wnt/β-catenin signalling and limiting tumour cell proliferation.
Moreover, Leris and colleagues [38] proved that Wnt5a mRNA level was significantly lower in tumour than in normal tissues, particularly in those displaying a more aggressive behaviour. Again, this observation has suggested a suppressive role of Wnt5a in cancers. It has also been reported that loss of Wnt5a is associated with a higher histological tumour grade, increased risk of recurrence, and a shorter recurrence-free survival in invasive BC [39] (Table 1).
On the contrary, Kobayashi et al. [40] reported that Wnt5a is expressed in ER-positive BC cells and positively associates to vessel invasion, tumour size and migration. Mechanistically, Wnt5a induces the expression of the activated leukocyte cell adhesion molecule (ALCAM), a protein involved in migration and invasion. Knockdown of either Wnt5a or ALCAM inhibited tumour cell migration, confirming the role of the Wnt5a/ALCAM axis in the migratory phenotype of ER-positive BC (Table 1).
A relevant role of Wnt5a in reprogramming the TME was also described [106]. It has been shown that under pro-inflammatory conditions the non-canonical Wnt protein induces the expansion of the CD163(+) immunosuppressive macrophages translating in the release of IL-10 and the inhibition of the classical TLR4-NF-kB signalling pathway [106].
Moreover, higher level of Wnt5a was found in human monocyte-derived myeloid dendritic cells (Mo-mDCs) than in normal monocytes and macrophages. Wnt5a was found to inhibit the generation of Mo-mDCs by stimulating BC cells to produce IL-6. In addition, the presence of IL-6 in the conditioned media of Wnt5a stimulated BC cells was found to be involved in the inhibition of Mo-mDC differentiation [107]. Consistently, overexpression of Wnt5a mRNA was detected in metastases derived from primary BC cells and in BC cell lines [108].
Wnt5a signalling is also able to modify the CD44-AKT signalling pathway, leading to a reduced BC cell migration and invasion. In epithelial BC cells, silencing of Wnt5a drives EMT-like changes without altering the expression of common EMT markers. On the contrary, it interferes with CD44 expression and induces pAKT downregulation, thereby acting via a EMT-independent mechanism [109].
The dual activity of Wnt5a has also been ascribed to the Wnt5a isoforms. Bauer et al. [110] have shown that the Wnt5a gene encodes for two distinct isoforms: the Wnt5a-long (Wnt5a-L) and Wnt5a-short (Wnt5a-S) isoform. When analysed in several cell lines, Wnt5a-L reduced tumour progression, while Wnt5a-S promoted tumour growth.
Overall, Wnt5a may play multiple roles. Whether it acts as a tumour suppressor or a tumour promoter remains elusive and depends on the availability of essential receptors, the TME, and the activation of discrete signalling pathways.

10. Triple-Negative Breast Cancer

Triple-Negative Breast Cancer (TNBC) is an invasive type of breast carcinoma that lacks the expression of estrogen and progesteron receptor as well of the human epidermal growth factor receptor 2 (HER2) [111] and accounts from 10 to 15% of all BC [112].
TNBC patients have poor outcome due to the high grade of proliferation, early tumour dissemination, and the lack of targeting approaches [113,114]. The malignancy is associated with earlier age of onset, aggressive clinical course, and dismal prognosis [112]. TNBC gained attention due to the aggressiveness and the lack of effective treatment options. Therefore, the most relevant data on this breast cancer subtype are independently discussed.
Gene expression omnibus (GEO) databases were applied by Shen et al. [41] to gather gene expression data in TNBC patients who underwent chemotherapy. They reported that co-expression of NIMA-related kinase 2 (Nek2) and β-catenin correlated with patients’ poor prognosis. β-catenin binds to and is phosphorylates by the Nek2B isomer. Thereby, in TNBC, Nek2B functions as a β-catenin regulator by activating the Wnt signalling pathway and its downstream target genes. In addition, it has been suggested that Nek2B and β-catenin may synergize to promote resistance to chemotherapy. However, further studies are required to better elucidate the relationship between β-catenin and Nek2 and its possible implications in cancer development (Table 1).
TNBC aggressiveness also relies on the activation of the non-canonical Wnt/PCP pathway. Indeed, the aberrant activation of downstream genes activated by the non-canonical Wnt/PCP pathway has been implicated in tumour growth and poor prognosis. Results from Puvirajesinghe and colleagues [42] revealed that Van Gogh-like 2 (VANGL2), a core Wnt/PCP component, plays a crucial role in cancer cell migration, anchorage-dependent and independent cell proliferation, as well as in tumour growth. Since the scaffold p62/SQSTM1 protein, a VANGL2-binding partner, has a key role in the VANGL2–p62/SQSTM1–JNK pathway, the possibility to exploit p62/SQSTM1 as a potential therapeutic target has been proposed. This would be of particular relevance since the JNK targeting approaches are associated with major side effects in the clinical setting (Table 1).
Yu and colleagues [43] demonstrated that the hematopoietic protein tyrosine phosphatase (HePTP) stabilizes β-catenin in the cytoplasm and allows its nuclear translocation by regulating the phosphorylation of GSK-3β. This results in the transcriptional activation of target genes, leading to cell migration and invasion. Since knockdown of HePTP significantly suppresses metastases formed by TNBC cells, HePTP has also been proposed for therapeutic approaches in TNBC (Table 1).
Recently, Kong et al. [44] have shown that a Rho-GTPase-activating protein, the deleted in liver cancer gene 3 (DLC-3), is downregulated in TNBC and its expression is linked to lymphatic metastases. DLC-3 overexpression leads to β-catenin and c-myc downregulation as well as in reduced in vitro cell proliferation, colony formation, migration, and invasion. Hence, a tumour-suppressor role related to the inhibition of the Wnt/β-catenin signalling pathway has been postulated (Table 1).
Liu and colleagues [67] have reported a low expression of miR-6838-5p in TNBC compared to normal cells. miR-6838-5p overexpression reduced cell invasion, migration, EMT, β-catenin, c-myc and cyclin D1 expression by post-transcriptionally controlling Wnt3a expression.
Recently, miR-27a-3p was found overexpressed in tumour cells and linked to poor prognosis in TNBC patients. miR-27a-3p leads to the activation of Wnt/β-catenin cascade and enhances cell proliferation and migration by directly targeting the 3ʹ-UTR region of GSK-3β [68] (Table 2).

11. Ovarian Cancer

Ovarian Cancer (OC) is a global issue representing the fourth most common cancer in the female population, particularly in developed countries [115]. The poor survival rate is mainly due to the lack of screening methods at the early stages along with the absence of effective treatment options for advanced stages [116]. Among different OC subtypes, the epithelial subtype (EOC) holds about 90% of the overall ovarian malignancies [117].

12. Canonical Wnt Pathway and OC

The Wnt/β-catenin signalling pathways play a crucial role in carcinogenesis of all OC subtypes [118]. In particular, several transcription factors, proteins and miRNAs acting on this pathway have been explored [119].
Chen and co-workers [45] investigated the role of the Wnt/β-catenin pathway antagonist dickkopf-related protein 1 (DKK1). They showed that DKK1 is involved in the control of OC stemness. Mechanistically, it has been shown that STAT3 directly activates the transcription of miRNA-92a, translating in DKK1 downregulation [45]. Moreover, overexpression of miR-1207 was found to correlate with high nuclear β-catenin level [46]. Wu et al. [46] investigated the effects of miR-1207 on the expression of the SFRP1-AXIN2 and the inhibitor of β-catenin and T cell factor 4 (ICAT). They found that miR-1207 overexpression was associated with a reduced SFRP1-AXIN2 and ICAT expression and the appearance of a stem-like phenotype (Table 1).
Salem et al. [69] proved that miR-590-3p promotes OC growth and metastasis, by targeting FOXA2. Moreover, it has been shown that miR-590-3p upregulation significantly increases cell growth, migration, and invasion in EOC cells, both in vitro and in vivo [70]. Similarly, FOXA2, which exhibits suppressive activity on EOC cells, has been identified as a miR-590-3p target [70]. The cyclin G2 gene (CCNG2) has also been reported to display several repressive actions on EOC-derived tumour cell lines. It inhibits cell proliferation, migration, invasion and EMT. Thereby, since miR-590-3p post-transcriptionally regulates FOXA2, FOXO3, CCNG2 and DDK1 expression, miR-590-3p has been proposed as a potential target in EOC patients [70]. A crucial role of SFRP1 in OC growth has also been proposed. Since miR-1180 is highly expressed in neoplastic tissues, Hu et al. [71] explored the relationship between miR-1180 and the SFRP1/Wnt/β-catenin signalling pathway in this context, demonstrating that miR-1180 triggers the activation of the Wnt/β-catenin cascade by targeting SFRP1.
The members of the R-spondin ligand family have been reported as positive effectors of Wnt/β-catenin signalling [47]. LGR4-6 plays crucial roles in the activation of the Wnt/β-catenin cascade [47,48]. Moreover, Ruan et al. [47] have reported that LGR6 induces stemness and chemo resistance via the Wnt/β-catenin pathway in OC cells. Restrain of the stem phenotype and increased sensitivity to chemotherapy have been proved by LGR6 silencing (Table 1).
A recent study established that the overexpression of the Rab GTPase family member, Rab14, regulates GSK-3β phosphorylation and β-catenin nuclear accumulation [49,50]. Moreover, high levels of Rab14 were found to be associated with higher expression of Wnt/β-catenin target genes including MMP-7 and c-myc [50] (Table 1).
Jiang et al. [115] have demonstrated that tetrandrine (TET) enhances the anti-tumour effect of paclitaxel (PTX) by decreasing c-myc and cyclin D1 and increasing p21 expression, resulting in cell cycle arrest. The pro-apoptotic effects of PTX+TET have also been investigated. TET was found to inhibit β-catenin downstream target genes by enhancing PTX activity and conferring sensitivity to PTX in resistant cells [115].
Barghout and co-workers [120] demonstrated a more active Wnt/β-catenin signalling in carboplatin-resistant cells than in sensitive ones. Unlike the Wnt ligands, the negative Wnt regulators DKK1, SFRP1, and the FRZB have been found downregulated in cisplatin-resistant cells. These findings suggest that Wnt/β-catenin blockade may be effective on resistant EOC.

13. Non-Canonical Wnt Pathway and OC

FZD7 is highly expressed in OC [51], and its overexpression in mesenchymal (Mes) and Stem-A OC subtypes has been associated with the induction of EMT. The PCP pathway, which activates the Rho–ROCK axis, was found to be involved in the activation of actomyosin contractility, cadherin-based cell-cell adhesion and migration, while the Wnt/calcium pathway in the metastatic spread and cytoskeleton changes in this clinical setting [51]. Therefore, it has been proposed that the FZD7 controls both cell cycle progression and cell migration via the non-canonical Wnt/PCP pathway (Table 1).
The integrin beta like 1 subunit (ITGBL1) was found to be highly overexpressed in OC [52]. It has been shown that ITGBL1 promotes cell migration and adhesion via Wnt/PCP, RhoA, the focal adhesion kinase, and the steroid receptor coactivator (FAK/src) pathway (Table 1).
The PTK7, which interacts with Wnt5A, LRP6 and FZD7 [121,122], may act as a tumour suppressor or oncogene [123,124]. In EOC, PTK7 downregulation is indeed associated with a poor prognosis [123].
Luo and colleagues [53] have investigated the role of the alkaline phosphatase (ALPL) in OC. They demonstrated that ALPL overexpression inhibits EMT, migration and invasion of high grade serous OCs (HGSOC) and FZD2 correlates with a poor survival rate [53]. Mechanistically, they have shown that ALPL overexpression represses Wnt5a/FZD2–mediated EMT activation, possibly by interfering with STAT3 activation [53] (Table 1).

14. Wnt Pathway and Other Cancers

Glioma is an aggressive tumour of the nervous system displaying rapid progression and poor prognosis. Zhao et al. [125] have found that overexpression of β-catenin and cyclin D1 is associated with high level of the long noncoding RNA, FGD5 antisense RNA 1 (lncRNA FGD5-AS1). A close relationship between them was straitened by the observations that inhibition of FGD5-AS1 reduced β-catenin and cyclin D1 expression while β-catenin downregulation decrease lncRNA FGD5-AS1 expression. This results in the impaired tumour cell migration and invasion.
Prostate cancer (PCa) is among the most common tumour in male. A recent study by Situ et al. [72] provided evidence for the involvement of the microRNA-939 (miR-939) in PCa. Downregulation of miR-939 was found in tumour tissues at advanced tumour stage, in distant lesions, as well as being associated with poor prognosis. Molecularly, it was demonstrated that miR-939 upregulation interferes with the Wnt/β-catenin cascade by directly targeting the hepatoma-derived growth factor (HDGF).
Osteosarcoma (OS) is a common bone paediatric tumour displaying high rates of lung metastasis. The inhibition of β-catenin activation, metastasis formation and chemo-resistance were found modulated by tegavivint (a Wnt/β-catenin inhibitor), which has been proposed as an alternative therapeutic option in OS [126].
Melanoma is among the most immunogenic tumours displaying increased lymphocytic infiltration. Low 1α,25-dihydroxyvitamin D3 and vitamin D receptor (VDR) level correlates to increased cancer incidence and melanoma progression, respectively. Recently, it has been shown that high VDR expression correlated with the inhibition of tumour growth, low Wnt/β-catenin activation and the induction of the immune response [54] (Table 1).
The long non-coding RNA00261 (Linc00261) has been shown to display onco-suppressor properties in Pancreatic Cancer (PC). Linc00261 overexpression inhibits PC cell proliferation, invasion, EMT and metastasis. Bioinformatics analysis revealed that Linc0026 inhibits the activation of the β-catenin/TCF4 cascade and the metastatic spread by regulating the miR-552 5p/FOXO3 axis [127].

15. Extracellular Vesicles and the Wnt Pathway

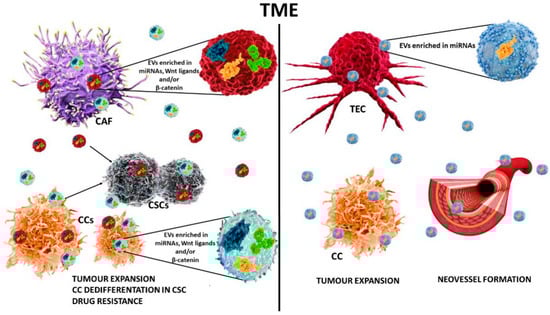

EVs are heterogeneous small membrane-bound carriers with complex cargoes released under both physiological and pathological conditions. Almost any cell can release EVs, which act as inter-cellular mediators modifying target cell fate at closed or distant sites [128].
Based on the biogenesis, size, content, mechanisms of release and function, three discrete EV subtypes are recognized: microvesicles (MVs), exosomes, and apoptotic bodies [128].
EVs-mediated transfers of specific molecules are known to dictate the phenotype of the recipient cell. They can act on proliferation, motility, EMT, migration, invasion, immune evasion, chemo-resistance, and TME reprogramming (Figure 3).
Moreover, EVs derived from serum or other biological fluids have been proposed as tumour biomarkers. More importantly, EVs have gained attention as anti-cancer tools. Indeed, EVs can be used as drug delivery systems or potential cancer vaccines. Moreover, the transfer of Wnt ligands or β-catenin via EVs has been proposed as a Wnt signalling activation mechanism.
Kalra et al. [129] have shown that EVs released by CRC cells and containing the mutant β-catenin and high Wnt/β-catenin activity boost the expression of target genes as c-myc and cyclin D1 when transferred to recipient cells (Table 3).
The 14-3-3 are conserved molecules displaying regulatory functions and promoting cancer progression [130]. The 14-3-3ζ isoform, which binds both β-catenin and GSK-3β, leads to the nuclear translocation and accumulation of β-catenin and enhances cell motility. Moreover, EVs enriched in 14-3-3ζ and β-catenin, after internalization, promote cell survival and migration by activating the Wnt/β-catenin cascade [130] (Table 3).
Hu et al. [131] have investigated the mechanism of drug resistance in CRC and have proven that EVs released by fibroblasts drive dedifferentiation of CRC cells towards CSCs (Figure 3a). Additionally, they found that EVs derived from fibroblasts contain the Wnt ligands that activate the Wnt/β-catenin pathway in target cells, induce transdifferentiation of CRC cells into CSCs and increase drug resistance. Furthermore, it has been reported that collagen accumulation and the APC mutation in CRC cells stimulate the release of EVs and, under hypoxia conditions, fibroblast derived EVs boost CRC colony formation [132] (Table 3).
Accumulating evidence shows that EVs enriched in miRNAs are key determinants of human cancer cell growth, invasion and metastasis [73]. CAF-derived EVs enclose miR-92a-3p, which contributes to cancer progression, stemness, EMT, and drug resistance. Moreover, miR-92a-3p enriched EVs correlated with the activation of the Wnt/β-catenin pathway [73] (Figure 3a).
Long non-coding RNA-APC1 (lncRNA-APC1) is a negative regulator of CRC. Low levels of lncRNA-APC1 correlate with metastasis, advanced clinical stage and poor prognosis in CRC patients. APC, via lncRNA-APC1, promotes cell-cycle arrest and suppresses angiogenesis by lowering the release of CRC cell-derived EVs. Finally, it has been shown that EV-derived from CRC are enriched in Wnt1 and enhance CRC cell proliferation and migration via non-canonical Wnt/PCP signalling [139].
Hepatocellular carcinoma (HCC) is one of the most common causes of cancer-related deaths worldwide. Constitutive activation of the Wnt/β-catenin pathway turns into the expression of the epithelial cell adhesion molecule (EpCAM) [133]. Ishiguro et al. [134] provided evidence that loss in β-catenin and reduced proliferation and invasion can be obtained by EpCAM positive liver cancer stem cells (LCSC) targeted by EVs engineered with a β-catenin specific siRNA (Table 3).
Multiple myeloma (MM) is a hematopoietic malignancy associated with an altered homeostasis of bone formation/resorption. MM-derived EVs enriched in DKK-1 were found to boost the Wnt/β-catenin signalling and contribute to the abnormal osteogenesis. The inhibition of EV shedding, combined to chemotherapy, was found to impair tumour load, angiogenesis and osteolysis [135] (Table 3).
Furthermore, a recent study noticed that the release of EVs from HCC cells is increased in hypoxic conditions and linked to cancer cell proliferation, migration, invasiveness and EMT. Mechanistically, they have shown that miR-1273f enriched in EVs activates the Wnt/β-catenin signalling cascade by targeting the Wnt/β-catenin inhibitor LHX6 [74].
Chen et al. [136] proved that EVs released from oral squamous cell carcinoma (OSCC) cells correlate with an increased level of β-catenin, the expression of several oncogenic markers, the reprogramming of normal gingival fibroblasts into CAFs, increased metastasis, stemness reprogramming, chemoresistance, and poor patients’ survival (Table 3).
Xia et al. [75] have demonstrated the uptake of EVs and the delivery of functional miRNAs in different cell lines. The exosomal-miR-1260b was found to be crucial for the activation of the Wnt/β-catenin signalling and the invasivness of lung adenocarcinoma cells.
Harada et al. [137] purified and characterized Wnt5b-associated EVs. In pancreatic PANC-1 and colorectal Caco-2 cell lines, Wnt5a carried by EVs displays the ability to enhance cancer progression (Table 3).
Luga et al. [138] demonstrated that EV shedding by fibroblasts boosts BC cell growth and motility via Wnt/PCP signalling. CAF-derived EVs were found to be crucial drivers of cell migration during metastasis formation. Moreover, they found that EVs secreted from fibroblast L cells promote the autocrine Wnt11-PCP cascade in tumour cells, increasing their motility and metastatic properties (Table 3).
Lombardo et al. [76] provided evidence that EVs released by tumour-derived endothelial cells (TECs-EVs) boost in vivo TEC-derived neovessels. Mechanistically, they showed that EVs released by naive TECs-EVs regulate the expression of APC, GSK-3β and drive β-catenin nuclear accumulation via miR-214-3p and miR-24-3p (Figure 3b). Overall, this study revealed a key role of the Wnt/β-catenin cascade in TEC-derived neovessel formation. Moreover, they recently showed that naïve TEC-EVs were also able to boost TNBC metastatic spread and lung metastasis formation when injected intravenously [140] (Table 2).
Overall, these data indicate a crucial contribution of EVs released by different cell sources in driving tumor development and dissemination. Several data suggest that these effects mainly rely on the transfer of their specific cargo into target cells. Therefore, approaches able to modify their cargo, particularly miRs and proteins involved in their tumor promoting action, have been proposed as useful therapeutic options. EV engineering by using siRNA for mutated protein has been tested and its effectiveness demonstrated in pancreatic cancer [141]. This suggests that using siRNA for mutant β catenin should be considered as an alternative option for CRC. Likewise, siRNA for different Wnt proteins or rearrangement of dysregulated EV miRs can be used to target the Wnt/β catenin cascade. Alternatively, EVs loaded with Wnt/β catenin inhibitors can be used as natural delivery tools.

16. Conclusions

Cell-to cell communication is part of the evolutional processes. Wnt ligands are essential for homeostasis and, in the last 30 years, genetic, biochemical, and molecular investigations have uncovered several Wnt signalling components [2,3]. Driving interest on this topic mainly relies on dysregulation of the Wnt/β-catenin signalling and cancer development/progression [3]. Moreover, Wnt/β-catenin cascade seems to contribute to the TME shape, which plays a crucial role in the control of tumour progression and immune regulation. Many different Wnt proteins have been described, and, among them, Wnt5a plays a critical role, taking part in both the canonical and the non-canonical Wnt/β-catenin pathway [104,105].
The identification of specific tools able to interfere with the Wnt/β-catenin cascade has been a hotspot for many years. This is particularly true for CRC, in which almost 70% of CRC patients display APC mutations [15]. Apart from CRC, the Wnt/β-catenin pathway is gaining attention in several malignancies, such as breast, ovarian, melanoma, prostate and paediatric osteosarcoma [53,124,125]. In this regard, BC and in particular TNBC are featured by the abnormal activation of both the canonical and non-canonical Wnt/β-catenin pathway [113,114]. Likewise, a hyper-active Wnt/β-catenin cascade has been shown to play a crucial role in the progression, stemness, and drug resistance in OC [70,119]. Several miRNAs have been identified to modulate this cascade and thereby widely studied as screening markers or targets in different tumour settings [142].
In the TME, intercellular communication has been recently reported as mediated by the transfer of EV molecular cargo and revised in [143]. Their cargo also includes a number of Wnt components. Of note, wild-type and mutant β-catenin, able to promote survival and proliferation of recipient cells and, in several instances, dedifferentiation towards a CSC phenotype, have been detected in EVs (Figure 3a). Moreover, their role in mediating drug resistance has been reported. Furthermore, since EVs are released within the TME, their contribution in cancer growth and progression has been extensively investigated [144]. EV shedding, blockade, or engineering have been proposed as innovative anti-tumour instruments for fine-tuning the Wnt/β catenin pathway [142,145].
In recent decades, several efforts have been directed to the development of Wnt/β catenin targeting approaches in order to interfere with tumour progression. However, these efforts have been limited by the crucial role of the Wnt/β catenin pathway in preserving tissue homeostasis. Therefore, future energies should be directed to clearly dissect the mechanisms driving the unbalanced Wnt/β catenin pathway in cancer, and the EV mechanism of action should be considered amid them. Should they be identified, targeting approaches would become a suitable anti-cancer option.

Author Contributions

M.K.: contributed to data curation and writing the original draft; V.P.: contributed to data curation and writing the original draft; M.F.B.: contributed to writing, visualization, founding and editing the manuscript. All authors have read and agreed to the published version of the manuscript.


This work has been supported by grants obtained by MFB from the Associazione Italiana per la Ricerca sul Cancro (AIRC) project IG 2015.17630, and by grants obtained by MFB from Ministero dell’Istruzione, Università e Ricerca (MIUR) ex 60%.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Jackstadt, R.; Hodder, M.C.; Sansom, O.J. WNT and β-Catenin in Cancer: Genes and Therapy. Annu. Rev. Cancer Biol. 2020, 4, 177–196. [Google Scholar] [CrossRef] [Green Version]
  2. Komiya, Y.; Habas, R. Wnt signal transduction pathways. Organogenesis 2008, 4, 68–75. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Duchartre, Y.; Kim, Y.M.; Kahn, M. The Wnt signaling pathway in cancer. Crit. Rev. Oncol. Hematol. 2016, 99, 141–149. [Google Scholar] [CrossRef] [Green Version]
  4. Thrasivoulou, C.; Millar, M.; Ahmed, A. Activation of intracellular calcium by multiple Wnt ligands and translocation of β-catenin into the nucleus: A convergent model of Wnt/Ca2+and Wnt/β-catenin pathways. J. Biol. Chem. 2013, 288, 35651–35659. [Google Scholar] [CrossRef] [Green Version]
  5. Florian, M.C.; Nattamai, K.J.; Dörr, K.; Marka, G.; Überle, B.; Vas, V.; Eckl, C.; Andrä, I.; Schiemann, M.; Oostendorp, R.A.J.; et al. A canonical to non-canonical Wnt signalling switch in haematopoietic stem-cell ageing. Nature 2013, 503, 392–396. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. MacDonald, B.T.; Tamai, K.; He, X. Wnt/β-Catenin Signaling: Components, Mechanisms, and Diseases. Dev. Cell 2009, 17, 9–26. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Gajos-Michniewicz, A.; Czyz, M. WNT Signaling in Melanoma. Int. J. Mol. Sci. 2020, 21, 4852. [Google Scholar] [CrossRef]
  8. Wang, Y.; Nathans, J. Tissue/planar cell polarity in vertebrates: New insights and new questions. Development 2007, 134, 647–658. [Google Scholar] [CrossRef] [Green Version]
  9. Saneyoshi, T.; Kume, S.; Amsaki, Y.; Mikoshiba, K. The wnt/calcium pathway activates nf-at and promotes ventral cell fate in xenopus embryos. Nature 2002, 417, 295–299. [Google Scholar] [CrossRef]
  10. Tao, Q.; Yokota, C.; Puck, H.; Kofron, M.; Birsoy, B.; Yan, D.; Asashima, M.; Wylie, C.C.; Lin, X.; Heasman, J. Maternal Wnt11 activates the canonical Wnt signaling pathway required for axis formation in Xenopus embryos. Cell 2005, 120, 857–871. [Google Scholar] [CrossRef] [Green Version]
  11. Steinhart, Z.; Angers, S. Wnt signaling in development and tissue homeostasis. Development 2018, 145, 1–8. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Rawla, P.; Sunkara, T.; Barsouk, A. Epidemiology of colorectal cancer: Incidence, mortality, survival, and risk factors. Prz. Gastroenterol. 2019, 14, 89–103. [Google Scholar] [CrossRef]
  13. Bhandari, A.; Woodhouse, M.; Gupta, S. Colorectal cancer is a leading cause of cancer incidence and mortality among adults younger than 50 years in the USA: A SEER-based analysis with comparison to other young-onset cancers. J. Investig. Med. 2017, 65, 311–315. [Google Scholar] [CrossRef] [Green Version]
  14. Dienstmann, R.; Wang, X.; de Reyni, A.; Schlicker, A.; Soneson, C.; Marisa, L.; Roepman, P.; Nyamundanda, G.; Angelino, P.; Bot, B.M.; et al. The consensus molecular subtypes of colorectal cancer. Nat. Med. 2015. [Google Scholar] [CrossRef]
  15. Liu, L.; Zhang, Y.; Wong, C.C.; Zhang, J.; Dong, Y.; Li, X.; Kang, W.; Chan, F.K.L.; Sung, J.J.Y.; Yu, J. RNF6 promotes colorectal cancer by activating the Wnt/b-catenin pathway via ubiquitination of TLE3. Cancer Res. 2018, 78, 1958–1971. [Google Scholar] [CrossRef] [Green Version]
  16. Study of the Role of Leucine-rich Repeat-Containing g-protein Coupled Receptor 5 (LGR5) and WNT Pathway in Colon Cancer. Egypt. J. Biochem. Mol. Biol. Available online: (accessed on 11 September 2020).
  17. Yang, L.; Xie, X.; Tang, H.; Kong, Y.; Xie, X.; Chen, J.; Song, C.; Liu, X.; Ye, F.; Li, N.; et al. LGR5 promotes breast cancer progression and maintains stem-like cells through activation of wnt/β-catenin signaling. Stem Cells 2015, 33, 2913–2924. [Google Scholar] [CrossRef]
  18. Yu, D.H.; Zhang, X.; Wang, H.; Zhang, L.; Chen, H.; Hu, M.; Dong, Z.; Zhu, G.; Qian, Z.; Fan, J.; et al. The essential role of TNIK gene amplification in gastric cancer growth. Oncogenesis 2014, 3. [Google Scholar] [CrossRef] [Green Version]
  19. Masuda, M.; Uno, Y.; Ohbayashi, N.; Ohata, H.; Mimata, A.; Kukimoto-Niino, M.; Moriyama, H.; Kashimoto, S.; Inoue, T.; Goto, N.; et al. TNIK inhibition abrogates colorectal cancer stemness. Nat. Commun. 2016, 7, 1–7. [Google Scholar] [CrossRef] [Green Version]
  20. Cho, Y.H.; Ro, E.J.; Yoon, J.S.; Kwak, D.K.; Cho, J.; Kang, D.W.; Lee, H.Y.; Choi, K.Y. Small molecule-induced simultaneous destabilization of β-catenin and RAS is an effective molecular strategy to suppress stemness of colorectal cancer cells. Cell Commun. Signal. 2020, 18, 1–11. [Google Scholar] [CrossRef] [Green Version]
  21. Sun, N.; Zhang, L.; Zhang, C.; Yuan, Y. MiR-144-3p inhibits cell proliferation of colorectal cancer cells by targeting BCL6 via inhibition of Wnt/β-catenin signaling. Cell. Mol. Biol. Lett. 2020, 25. [Google Scholar] [CrossRef] [PubMed]
  22. Polo, J.M.; Dell’Oso, T.; Ranuncolo, S.M.; Cerchietti, L.; Beck, D.; Da Silva, G.F.; Prive, G.G.; Licht, J.D.; Melnick, A. Specific peptide interference reveals BCL6 transcriptional and oncogenic mechanisms in B-cell lymphoma cells. Nat. Med. 2004, 10, 1329–1335. [Google Scholar] [CrossRef]
  23. Shaffer, A.L.; Yu, X.; He, Y.; Boldrick, J.; Chan, E.P.; Staudt, L.M. BCL-6 represses genes that function in lymphocyte differentiation, inflammation, and cell cycle control. Immunity 2000, 13, 199–212. [Google Scholar] [CrossRef] [Green Version]
  24. Qi, S.; Song, Y.; Peng, Y.; Wang, H.; Long, H.; Yu, X.; Li, Z.; Fang, L.; Wu, A.; Luo, W.; et al. ZEB2 mediates multiple pathways regulating cell proliferation, migration, invasion, and apoptosis in glioma. PLoS ONE 2012, 7, 1–12. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Ng, V.H.; Hang, B.I.; Sawyer, L.M.; Neitzel, L.R.; Crispi, E.E.; Rose, K.L.; Popay, T.M.; Zhong, A.; Lee, L.A.; Tansey, W.P.; et al. Phosphorylation of XIAP at threonine 180 controls its activity in Wnt signaling. J. Cell Sci. 2018. [Google Scholar] [CrossRef] [Green Version]
  26. Wels, C.; Joshi, S.; Koefinger, P.; Bergler, H. Transcriptional Activation of ZEB1 by Slug Leads to Cooperative Regulation of the EMT like Phenotype in Melanoma. J. Invest. Dermatol. 2011, 131, 1877–1885. [Google Scholar] [CrossRef] [Green Version]
  27. Zhang, M.; Miao, F.; Huang, R.; Liu, W.; Zhao, Y.; Jiao, T.; Lu, Y.; Wu, F.; Wang, X.; Wang, H.; et al. RHBDD1 promotes colorectal cancer metastasis through the Wnt signaling pathway and its downstream target ZEB1. J. Exp. Clin. Cancer Res. 2018, 37, 1–14. [Google Scholar] [CrossRef]
  28. Deng, M.; Chen, Z.; Tan, J.; Liu, H. Down-regulation of SLC35C1 induces colon cancer through over-activating Wnt pathway. J. Cell. Mol. Med. 2020, 24, 3079–3090. [Google Scholar] [CrossRef] [Green Version]
  29. Xu, C.; Tian, G.; Jiang, C.; Xue, H.; Kuerbanjiang, M.; Sun, L.; Gu, L.; Zhou, H.; Liu, Y.; Zhang, Z.; et al. NPTX2 promotes colorectal cancer growth and liver metastasis by the activation of the canonical Wnt/β-catenin pathway via FZD6. Cell Death Dis. 2019, 10. [Google Scholar] [CrossRef] [PubMed]
  30. Song, Y.; Yuan, H.; Wang, J.; Wu, Y.; Xiao, Y.; Mao, S. KLHL22 regulates the EMT and proliferation in colorectal cancer cells in part via the Wnt/β-catenin signaling pathway. Cancer Manag. Res. 2020, 12, 3981–3993. [Google Scholar] [CrossRef]
  31. Liu, Q.; Song, J.; Pan, Y.; Shi, D.; Yang, C.; Wang, S.; Xiong, B. Wnt5a/caMKII/ERK/CCL2 axis is required for tumor-associated macrophages to promote colorectal cancer progression. Int. J. Biol. Sci. 2020, 16, 1023–1034. [Google Scholar] [CrossRef]
  32. Yue, Z.; Yuan, Z.; Zeng, L.; Wang, Y.; Lai, L.; Li, J.; Sun, P.; Xue, X.; Qi, J.; Yang, Z.; et al. LGR4 modulates breast cancer initiation, metastasis, and cancer stem cells. FASEB J. 2018, 32, 2422–2437. [Google Scholar] [CrossRef] [Green Version]
  33. Ruffner, H.; Lle Sprunger, J.; Charlat, O.; Leighton-Davies, J.; Grosshans, B.; Salathe, A.; Zietzling, S.; Rie Beck, V.; Therier, M.; Isken, A.; et al. R-Spondin Potentiates Wnt/b-Catenin Signaling through Orphan Receptors LGR4 and LGR5. PLoS ONE 2012. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Wang, H.; Sun, L.; Jiang, J.; Yu, S.; Zhou, Q. Suppression of the proliferation and invasion of breast cancer cells by ST7L occurs through inhibition of activation of Wnt/GSK-3β/β-catenin signalling. Clin. Exp. Pharmacol. Physiol. 2020, 47, 119–126. [Google Scholar] [CrossRef]
  35. Zhang, X.; Luo, Y.; Li, Q. TMED3 promotes proliferation and migration in breast cancer cells by activating Wnt/β-catenin signaling. Onco. Targets. Ther. 2020, 13, 5819–5830. [Google Scholar] [CrossRef]
  36. Prasad, C.P.; Södergren, K.; Andersson, T. Reduced production and uptake of lactate are essential for the ability of WNT5A signaling to inhibit breast cancer cell migration and invasion. Oncotarget 2017, 8, 71471–71488. [Google Scholar] [CrossRef]
  37. Lee, S.Y.; Jeon, H.M.; Ju, M.K.; Kim, C.H.; Yoon, G.; Han, S.I.; Park, H.G.; Kang, H.S. Wnt/snail signaling regulates cytochrome c oxidase and glucose metabolism. Cancer Res. 2012, 72, 3607–3617. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Leris, A.C.A.; Roberts, T.R.; Jiang, W.G.; Newbold, R.F.; Mokbel, K. WNT5A expression in human breast cancer. Anticancer Res. 2005, 25, 731–734. [Google Scholar]
  39. Jönsson, M.; Dejmek, J.; Bendahl, P.O.; Andersson, T. Loss of Wnt-5a protein is associated with early relapse in invasive ductal breast carcinomas. Cancer Res. 2002, 62, 409–416. [Google Scholar] [PubMed]
  40. Kobayashi, Y.; Kadoya, T.; Amioka, A.; Hanaki, H.; Sasada, S.; Masumoto, N.; Yamamoto, H.; Arihiro, K.; Kikuchi, A.; Okada, M. Wnt5a-induced cell migration is associated with the aggressiveness of estrogen receptor-positive breast cancer. Oncotarget 2018, 9, 20979–20992. [Google Scholar] [CrossRef] [Green Version]
  41. Shen, H.; Yan, W.; Yuan, J.; Wang, Z.; Wang, C. Nek2B activates the wnt pathway and promotes triple-negative breast cancer chemothezrapy-resistance by stabilizing β-catenin. J. Exp. Clin. Cancer Res. 2019, 38, 1–17. [Google Scholar] [CrossRef]
  42. Puvirajesinghe, T.M.; Bertucci, F.; Jain, A.; Scerbo, P.; Belotti, E.; Audebert, S.; Sebbagh, M.; Lopez, M.; Brech, A.; Finetti, P.; et al. Identification of p62/SQSTM1 as a component of non-canonical Wnt VANGL2-JNK signalling in breast cancer. Nat. Commun. 2016, 7. [Google Scholar] [CrossRef]
  43. Yu, L.; Wang, C.; Pan, F.; Liu, Y.; Ren, X.; Zeng, H.; Shi, Y. HePTP promotes migration and invasion in triple-negative breast cancer cells via activation of Wnt/β-catenin signaling. Biomed. Pharmacother. 2019, 118. [Google Scholar] [CrossRef] [PubMed]
  44. Kong, B.; Lv, Z.-D.; Xia, J.; Jin, L.-Y.; Yang, Z.-C. DLC-3 suppresses cellular proliferation, migration, and invasion in triple-negative breast cancer by the Wnt/β-catenin pathway. Int. J. Clin. Exp. Pathol. 2019, 12, 1224–1232. [Google Scholar] [PubMed]
  45. Chen, M.W.; Yang, S.T.; Chien, M.H.; Hua, K.T.; Wu, C.J.; Hsiao, S.M.; Lin, H.; Hsiao, M.; Su, J.L.; Wei, L.H. The STAT3-miRNA-92-Wnt signaling pathway regulates spheroid formation and malignant progression in ovarian cancer. Cancer Res. 2017, 77, 1955–1967. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Wu, G.; Liu, A.; Zhu, J.; Lei, F.; Wu, S.; Zhang, X.; Ye, L.; Cao, L.; He, S. MiR-1207 overexpression promotes cancer stem cell-like traits in ovarian cancer by activating the Wnt/β-catenin signaling pathway. Oncotarget 2015, 6, 28882–28894. [Google Scholar] [CrossRef] [Green Version]
  47. Ruan, X.; Liu, A.; Zhong, M.; Wei, J.; Zhang, W.; Rong, Y.; Liu, W.; Li, M.; Qing, X.; Chen, G.; et al. Silencing LGR6 Attenuates Stemness and Chemoresistance via Inhibiting Wnt/β-Catenin Signaling in Ovarian Cancer. Mol. Ther. Oncolytics 2019, 14, 94–106. [Google Scholar] [CrossRef] [Green Version]
  48. Park, S.; Cui, J.; Yu, W.; Wu, L.; Carmon, K.S.; Liu, Q.J. Differential activities and mechanisms of the four r-spondins in potentiating wnt/-catenin signaling. J. Biol. Chem. 2018, 293, 9759–9769. [Google Scholar] [CrossRef] [Green Version]
  49. Nguyen, V.H.L.; Hough, R.; Bernaudo, S.; Peng, C. Wnt/β-catenin signalling in ovarian cancer: Insights into its hyperactivation and function in tumorigenesis. J. Ovarian Res. 2019, 12, 1–17. [Google Scholar] [CrossRef] [Green Version]
  50. Hou, R.; Jiang, L.; Yang, Z.; Wang, S.; Liu, Q. Rab14 is overexpressed in ovarian cancers and promotes ovarian cancer proliferation through Wnt pathway. Tumor Biol. 2016, 37, 16005–16013. [Google Scholar] [CrossRef]
  51. Asad, M.; Wong, M.K.; Tan, T.Z.; Choolani, M.; Low, J.; Mori, S.; Virshup, D.; Thiery, J.P.; Huang, R.Y.J. FZD7 drives in vitro aggressiveness in stem-A subtype of ovarian cancer via regulation of non-canonical wnt/PCP pathway. Cell Death Dis. 2014, 5, e1346. [Google Scholar] [CrossRef] [Green Version]
  52. Sun, L.; Wang, D.; Li, X.; Zhang, L.; Zhang, H.; Zhang, Y. Extracellular matrix protein ITGBL1 promotes ovarian cancer cell migration and adhesion through Wnt/PCP signaling and FAK/SRC pathway. Biomed. Pharmacother. 2016, 81, 145–151. [Google Scholar] [CrossRef] [PubMed]
  53. Luo, M.; Zhou, L.; Zhan, S.J.; Cheng, L.J.; Li, R.N.; Wang, H.; Liu, B.; Linghu, H. ALPL regulates the aggressive potential of high grade serous ovarian cancer cells via a non-canonical WNT pathway. Biochem. Biophys. Res. Commun. 2019, 513, 528–533. [Google Scholar] [CrossRef] [PubMed]
  54. Muralidhar, S.; Filia, A.; Nsengimana, J.; Pozniak, J.; O’Shea, S.J.; Diaz, J.M.; Harland, M.; Randerson-Moor, J.A.; Reichrath, J.; Laye, J.P.; et al. Vitamin D–VDR signaling inhibits Wnt/b-catenin–mediated melanoma progression and promotes antitumor immunity. Cancer Res. 2019, 79, 5986–5998. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Moon, B.S.; Jeong, W.J.; Park, J.; Kim, T.I.; Min, D.S.; Choi, K.Y. Role of oncogenic K-Ras in cancer stem cell activation by aberrant wnt/β-catenin signaling. J. Natl. Cancer Inst. 2014, 106, 1–10. [Google Scholar] [CrossRef] [Green Version]
  56. Lenz, H.J.; Kahn, M. Safely targeting cancer stem cells via selective catenin coactivator antagonism. Cancer Sci. 2014, 105, 1087–1092. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Cha, P.H.; Cho, Y.H.; Lee, S.K.; Lee, J.; Jeong, W.J.; Moon, B.S.; Yun, J.H.; Yang, J.S.; Choi, S.; Yoon, J.; et al. Small-molecule binding of the axin RGS domain promotes β-catenin and Ras degradation. Nat. Chem. Biol. 2016, 12, 593–600. [Google Scholar] [CrossRef] [PubMed]
  58. Tan, W.; Liu, B.; Qu, S.; Liang, G.; Luo, W.; Gong, C. MicroRNAs and cancer: Key paradigms in molecular therapy (Review). Oncol. Lett. 2018, 15, 2735–2742. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  59. Lee, Y.S.; Dutta, A. MicroRNAs in Cancer Contents. Annu. Rev. Pathol. 2009, 4, 199–227. [Google Scholar] [CrossRef]
  60. Liu, W.Y.; Yang, Z.; Sun, Q.; Yang, X.; Hu, Y.; Xie, H.; Gao, H.J.; Guo, L.M.; Yi, J.Y.; Liu, M.; et al. miR-377-3p drives malignancy characteristics via upregulating GSK-3β expression and activating NF-κB pathway in hCRC cells. J. Cell. Biochem. 2018, 119, 2124–2134. [Google Scholar] [CrossRef]
  61. Huang, L.; Liu, Z.; Hu, J.; Luo, Z.; Zhang, C.; Wang, L.; Wang, Z. MiR-377-3p suppresses colorectal cancer through negative regulation on Wnt/β-catenin signaling by targeting XIAP and ZEB2. Pharmacol. Res. 2020, 156, 104774. [Google Scholar] [CrossRef]
  62. Lv, S.; Zhang, J.; He, Y.; Liu, Q.; Wang, Z.; Liu, B.; Shi, L.; Wu, Y. MicroRNA-520e targets AEG-1 to suppress the proliferation and invasion of colorectal cancer cells through Wnt/GSK-3β/β-catenin signalling. Clin. Exp. Pharmacol. Physiol. 2020, 47, 158–167. [Google Scholar] [CrossRef]
  63. Hu, G.; Wei, Y.; Kang, Y. The multifaceted role of MTDH/AEG-1 in cancer progression. Clin. Cancer Res. 2009, 15, 5615–5620. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. You, F.; Li, J.; Zhang, P.; Zhang, H.; Cao, X. MiR106a promotes the growth of transplanted breast cancer and decreases the sensitivity of transplanted tumors to cisplatin. Cancer Manag. Res. 2020, 12, 233–246. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  65. Zou, Y.; Lin, X.; Bu, J.; Lin, Z.; Chen, Y.; Qiu, Y.; Mo, H.; Tang, Y.; Fang, W.; Wu, Z. Timeless-Stimulated miR-5188-FOXO1/β-Catenin-c-Jun Feedback Loop Promotes Stemness via Ubiquitination of β-Catenin in Breast Cancer. Mol. Ther. 2019, 28, 313–327. [Google Scholar] [CrossRef]
  66. Han, L.; Yan, Y.; Zhao, L.; Liu, Y.; Lv, X.; Zhang, L.; Zhao, Y.; Zhao, H.; He, M.; Wei, M. LncRNA HOTTIP facilitates the stemness of breast cancer via regulation of miR-148a-3p/WNT1 pathway. J. Cell. Mol. Med. 2020, 24, 6242–6252. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  67. Liu, G.; Wang, P.; Zhang, H. MiR-6838-5p suppresses cell metastasis and the EMT process in triple-negative breast cancer by targeting WNT3A to inhibit the Wnt pathway. J. Gene Med. 2019, 21, 1–8. [Google Scholar] [CrossRef]
  68. Wu, R.; Zhao, B.; Ren, X.; Wu, S.; Liu, M.; Wang, Z.; Liu, W. Mir-27a-3p targeting gsk3β promotes triple-negative breast cancer proliferation and migration through wnt/β-catenin pathway. Cancer Manag. Res. 2020, 12, 6241–6249. [Google Scholar] [CrossRef] [PubMed]
  69. Salem, M.; Shan, Y.; Bernaudo, S.; Peng, C. miR-590-3p Targets Cyclin G2 and FOXO3 to Promote Ovarian Cancer Cell Proliferation, Invasion, and Spheroid Formation. Int. J. Mol. Sci. 2019, 20, 1810. [Google Scholar] [CrossRef] [Green Version]
  70. Salem, M.; O’brien, J.A.; Bernaudo, S.; Shawer, H.; Ye, G.; Brki, J.; Amleh, A.; Vanderhyden, B.C.; Refky, B.; Yang, B.B.; et al. miR-590-3p Promotes Ovarian Cancer Growth and Metastasis via a Novel FOXA2-Versican Pathway. Cancer Res. 2018. [Google Scholar] [CrossRef] [Green Version]
  71. Hu, J.; Zhao, W.; Huang, Y.; Wang, Z.; Jiang, T.; Wang, L. MiR-1180 from bone marrow MSCs promotes cell proliferation and glycolysis in ovarian cancer cells via SFRP1/Wnt pathway. Cancer Cell Int. 2019, 19, 66. [Google Scholar] [CrossRef]
  72. Situ, J.; Zhang, H.; Jin, Z.; Li, K.; Mao, Y.; Huang, W. MicroRNA-939 directly targets HDGF to inhibit the aggressiveness of prostate cancer via deactivation of the WNT/β-catenin pathway. Onco. Targets. Ther. 2020, 13, 4257–4270. [Google Scholar] [CrossRef] [PubMed]
  73. Hu, J.L.; Wang, W.; Lan, X.L.; Zeng, Z.C.; Liang, Y.S.; Yan, Y.R.; Song, F.Y.; Wang, F.F.; Zhu, X.H.; Liao, W.J.; et al. CAFs secreted exosomes promote metastasis and chemotherapy resistance by enhancing cell stemness and epithelial-mesenchymal transition in colorectal cancer. Mol. Cancer 2019, 18, 1–15. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  74. Yu, Y.; Min, Z.; Linhong, M.; Tao, R.; Yan, L.; Song, H. Hypoxia-induced exosomes promote hepatocellular carcinoma proliferation and metastasis via miR-1273f transfer. Exp. Cell Res. 2019, 385. [Google Scholar] [CrossRef] [PubMed]
  75. Xia, Y.; Wei, K.; Hu, L.Q.; Zhou, C.R.; Lu, Z.B.; Zhan, G.S.; Pan, X.L.; Pan, C.F.; Wang, J.; Wen, W.; et al. Exosome-mediated transfer of miR-1260b promotes cell invasion through Wnt/β–catenin signaling pathway in lung adenocarcinoma. J. Cell. Physiol. 2020, 235, 6843–6853. [Google Scholar] [CrossRef]
  76. Lombardo, G.; Gili, M.; Grange, C.; Cavallari, C.; Dentelli, P.; Togliatto, G.; Taverna, D.; Camussi, G.; Brizzi, M.F. IL-3R-alpha blockade inhibits tumor endothelial cell-derived extracellular vesicle (EV)-mediated vessel formation by targeting the β-catenin pathway. Oncogene 2018, 37, 1175–1191. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  77. Vymetalkova, V.; Vodicka, P.; Vodenkova, S.; Alonso, S.; Schneider-Stock, R. DNA methylation and chromatin modifiers in colorectal cancer. Mol. Aspects Med. 2019, 69, 73–92. [Google Scholar] [CrossRef] [PubMed]
  78. Tanaka, N.; Mashima, T.; Mizutani, A.; Sato, A.; Aoyama, A.; Gong, B.; Yoshida, H.; Muramatsu, Y.; Nakata, K.; Matsuura, M.; et al. APC mutations as a potential biomarker for sensitivity to tankyrase inhibitors in colorectal cancer. Mol. Cancer Ther. 2017, 16, 752–762. [Google Scholar] [CrossRef] [Green Version]
  79. Bruschi, M.; Garnier, L.; Cleroux, E.; Giordano, A.; Dumas, M.; Bardet, A.F.; Kergrohen, T.; Quesada, S.; Cesses, P.; Weber, M.; et al. Loss of Apc Rapidly Impairs DNA Methylation Programs and Cell Fate Decisions in Lgr5+ Intestinal Stem Cells. Cancer Res. 2020, 80. [Google Scholar] [CrossRef] [Green Version]
  80. Proto, M.C.; Fiore, D.; Piscopo, C.; Franceschelli, S.; Bizzarro, V.; Laezza, C.; Lauro, G.; Feoli, A.; Tosco, A.; Bifulco, G.; et al. Inhibition of Wnt/β-Catenin pathway and Histone acetyltransferase activity by Rimonabant: A therapeutic target for colon cancer. Sci. Rep. 2017, 7, 1–14. [Google Scholar] [CrossRef]
  81. Liu, Y.; Rubin, B.; Bodine, P.V.N.; Billiard, J. Wnt5a induces homodimerization and activation of Ror2 receptor tyrosine kinase. J. Cell. Biochem. 2008, 105, 497–502. [Google Scholar] [CrossRef]
  82. Lee, J.M.; Kim, I.S.; Kim, H.; Lee, J.S.; Kim, K.; Yim, H.Y.; Jeong, J.; Kim, J.H.; Kim, J.Y.; Lee, H.; et al. RORα Attenuates Wnt/β-Catenin Signaling by PKCα-Dependent Phosphorylation in Colon Cancer. Mol. Cell 2010, 37, 183–195. [Google Scholar] [CrossRef]
  83. Voloshanenko, O.; Schwartz, U.; Kranz, D.; Rauscher, B.; Linnebacher, M.; Augustin, I.; Boutros, M. β-catenin-independent regulation of Wnt target genes by RoR2 and ATF2/ATF4 in colon cancer cells. Sci. Rep. 2018, 8, 1–14. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  84. Nishioka, M.; Ueno, K.; Hazama, S.; Okada, T.; Sakai, K.; Suehiro, Y.; Okayama, N.; Hirata, H.; Oka, M.; Imai, K.; et al. Possible involvement of Wnt11 in colorectal cancer progression. Mol. Carcinog. 2013, 52, 207–217. [Google Scholar] [CrossRef] [PubMed]
  85. Gorroño-Etxebarria, I.; Aguirre, U.; Sanchez, S.; González, N.; Escobar, A.; Zabalza, I.; Quintana, J.M.; dM Vivanco, M.; Waxman, J.; Kypta, R.M. Wnt-11 as a potential prognostic biomarker and therapeutic target in colorectal cancer. Cancers (Basel) 2019, 11, 1–19. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  86. Vitale, I.; Manic, G.; Coussens, L.M.; Kroemer, G.; Galluzzi, L. Macrophages and Metabolism in the Tumor Microenvironment. Cell Metab. 2019, 30, 36–50. [Google Scholar] [CrossRef]
  87. Bray, F.; Ferlay, J.; Soerjomataram, I.; Siegel, R.L.; Torre, L.A.; Jemal, A. Global cancer statistics 2018: GLOBOCAN estimates of incidence and mortality worldwide for 36 cancers in 185 countries. CA. Cancer J. Clin. 2018, 68, 394–424. [Google Scholar] [CrossRef] [Green Version]
  88. Du, X.L.; Fox, E.E.; Lai, D. Competing Causes of Death for Women With Breast Cancer and Change Over Time From 1975 to 2003 NIH Public Access. Am. J. Clin. Oncol. 2008, 31, 105–116. [Google Scholar] [CrossRef] [Green Version]
  89. Yu, Q.C.; Verheyen, E.M.; Zeng, Y.A. Mammary development and breast cancer: A Wnt perspective. Cancers 2016, 8, 65. [Google Scholar] [CrossRef] [Green Version]
  90. Katoh, M. Canonical and non-canonical WNT signaling in cancer stem cells and their niches: Cellular heterogeneity, omics reprogramming, targeted therapy and tumor plasticity (Review). Int. J. Oncol. 2017, 51, 1357–1369. [Google Scholar] [CrossRef] [Green Version]
  91. Khramtsov, A.I.; Khramtsova, G.F.; Tretiakova, M.; Huo, D.; Olopade, O.I.; Goss, K.H. Wnt/β-catenin pathway activation is enriched in basal-like breast cancers and predicts poor outcome. Am. J. Pathol. 2010, 176, 2911–2920. [Google Scholar] [CrossRef] [PubMed]
  92. Sormunen, R.T.; Leong, A.S.Y.; Vääräniemi, J.P.; Fernando, S.S.E.; Eskelinen, S.M. Immunolocalization of the fodrin, E-cadherin, and β-catenin adhesion complex in infiltrating ductal carcinoma of the breast—Comparison with an in vitro model. J. Pathol. 1999, 187, 416–423. [Google Scholar] [CrossRef]
  93. Lacroix-Triki, M.; Geyer, F.C.; Lambros, M.B.; Savage, K.; Ellis, I.O.; Lee, A.H.S.; Reis-Filho, J.S. β-Catenin/Wnt signalling pathway in fibromatosis, metaplastic carcinomas and phyllodes tumours of the breast. Mod. Pathol. 2010, 23, 1438–1448. [Google Scholar] [CrossRef]
  94. Samarzija, I.; Sini, P.; Schlange, T.; MacDonald, G.; Hynes, N.E. Wnt3a regulates proliferation and migration of HUVEC via canonical and non-canonical Wnt signaling pathways. Biochem. Biophys. Res. Commun. 2009, 386, 449–454. [Google Scholar] [CrossRef] [PubMed]
  95. Medina, A.; Reintsch, W.; Steinbeisser, H. Xenopus frizzled 7 can act in canonical and non-canonical Wnt signaling pathways: Implications on early patterning and morphogenesis. Mech. Dev. 2000, 92, 227–237. [Google Scholar] [CrossRef]
  96. Michaelson, J.S.; Leder, P. β-catenin is a downstream effector of Wnt-mediated tumorigenesis in the mammary gland. Oncogene 2001, 20, 5093–5099. [Google Scholar] [CrossRef] [Green Version]
  97. Klopocki, E.; Kristiansen, G.; Wild, P.J.; Klaman, I.; Castanos-Velez, E.; Singer, G.; Stöhr, R.; Simon, R.; Sauter, G.; Leibiger, H.; et al. Loss of SFRP1 is associated with breast cancer progression and poor prognosis in early stage tumors. Int. J. Oncol. 2004, 25, 641–649. [Google Scholar] [CrossRef]
  98. Woodward, W.A.; Chen, M.S.; Behbod, F.; Alfaro, M.P.; Buchholz, T.A.; Rosen, J.M. WNT/β-catenin mediates radiation resistance of mouse mammary progenitor cells. Proc. Natl. Acad. Sci. USA 2007, 104, 618–623. [Google Scholar] [CrossRef] [Green Version]
  99. Zhu, X.; Feng, J.; Fu, W.; Shu, X.; Wan, X.; Liu, J. Effects of cisplatin on the proliferation, invasion and apoptosis of breast cancer cells following β-catenin silencing. Int. J. Mol. Med. 2020, 45, 1838–1850. [Google Scholar] [CrossRef]
  100. Zhou, J.; Su, C.M.; Chen, H.A.; Du, S.; Li, C.W.; Wu, H.; Tsai, S.H.; Yeh, Y.T. Cryptanshinone inhibits the glycolysis and inhibits cell migration through PKM2/β-catenin axis in breast cancer. Onco. Targets. Ther. 2020, 13, 8629–8639. [Google Scholar] [CrossRef] [PubMed]
  101. Mikels, A.J.; Nusse, R. Purified Wnt5a protein activates or inhibits β-catenin-TCF signaling depending on receptor context. PLoS Biol. 2006, 4, 570–582. [Google Scholar] [CrossRef] [PubMed]
  102. Yamaguchi, T.P.; Bradley, A.; McMahon, A.P.; Jones, S. A Wnt5a pathway underlies outgrowth of multiple structures in the vertebrate embryo. Development 1999, 126, 1211–1223. [Google Scholar] [PubMed]
  103. Säfholm, A.; Tuomela, J.; Rosenkvist, J.; Dejmek, J.; Härkönen, P.; Andersson, T. The wnt-5a-derived hexapeptide Foxy-5 inhibits breast cancer metastasis in vivo by targeting cell motility. Clin. Cancer Res. 2008, 14, 6556–6563. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  104. Borcherding, N.; Kusner, D.; Kolb, R.; Xie, Q.; Li, W.; Velez, G.; Askeland, R.; Weigel, R.J.; Zhang, W.; City, I. Paracrine WNT5A signaling inhibits expansion of tumor-initiating cells. Cancer Res. 2015, 75, 1972–1982. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  105. Roarty, K.; Baxley, S.E.; Crowley, M.R.; Frost, A.R.; Serra, R. Loss of TGF-β or Wnt5a results in an increase in Wnt/β-catenin activity and redirects mammary tumour phenotype. Breast Cancer Res. 2009, 11, 1–11. [Google Scholar] [CrossRef] [PubMed]
  106. Bergenfelz, C.; Medrek, C.; Ekström, E.; Jirström, K.; Janols, H.; Wullt, M.; Bredberg, A.; Leandersson, K. Wnt5a Induces a Tolerogenic Phenotype of Macrophages in Sepsis and Breast Cancer Patients. J. Immunol. 2012, 188, 5448–5458. [Google Scholar] [CrossRef] [Green Version]
  107. Bergenfelz, C.; Janols, H.; Wullt, M.; Jirström, K.; Bredberg, A.; Leandersson, K. Wnt5a Inhibits Human Monocyte-Derived Myeloid Dendritic Cell Generation. Scand. J. Immunol. 2013, 78, 194–204. [Google Scholar] [CrossRef]
  108. Fernandez-Cobo, M.; Zammarchi, F.; Mandeli, J.; Holland, J.F.; Pogo, B.G.T. Expression of Wnt5A and Wnt10B in non-immortalized breast cancer cells. Oncol. Rep. 2007, 17, 903–907. [Google Scholar] [CrossRef] [Green Version]
  109. Prasad, C.P.; Chaurasiya, S.K.; Guilmain, W.; Andersson, T. WNT5A signaling impairs breast cancer cell migration and invasion via mechanisms independent of the epithelial-mesenchymal transition. J. Exp. Clin. Cancer Res. 2016, 35, 1–15. [Google Scholar] [CrossRef] [Green Version]
  110. Bauer, M.; Bénard, J.; Gaasterland, T.; Willert, K.; Cappellen, D. WNT5A encodes two isoforms with distinct functions in cancers. PLoS ONE 2013, 8, 1–14. [Google Scholar] [CrossRef] [Green Version]
  111. Abramson, V.G.; Lehmann, B.D.; Ballinger, T.J.; Pietenpol, J.A. Subtyping of triple-negative breast cancer: Implications for therapy. Cancer 2015, 121, 8–16. [Google Scholar] [CrossRef] [Green Version]
  112. Marra, A.; Viale, G.; Curigliano, G. Recent advances in triple negative breast cancer: The immunotherapy era. BMC Med. 2019, 17, 1–9. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  113. Dent, R.; Trudeau, M.; Pritchard, K.I.; Hanna, W.M.; Kahn, H.K.; Sawka, C.A.; Lickley, L.A.; Rawlinson, E.; Sun, P.; Narod, S.A. Triple-negative breast cancer: Clinical features and patterns of recurrence. Clin. Cancer Res. 2007, 13, 4429–4434. [Google Scholar] [CrossRef] [Green Version]
  114. Geyer, F.C.; Pareja, F.; Weigelt, B.; Rakha, E.; Ellis, I.O.; Schnitt, S.J.; Reis-Filho, J.S. The Spectrum of Triple-Negative Breast Disease: High- and Low-Grade Lesions. Am. J. Pathol. 2017, 187, 2139–2151. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  115. Jiang, L.; Hou, R. Tetrandrine Reverses Paclitaxel Resistance in Human Ovarian Cancer via Inducing Apoptosis, Cell Cycle Arrest Through β-Catenin Pathway. Onco. Targets. Ther. 2020, 13, 3631–3639. [Google Scholar] [CrossRef] [PubMed]
  116. Nagaraj, A.B.; Joseph, P.; Kovalenko, O.; Singh, S.; Armstrong, A.; Redline, R.; Resnick, K.; Zanotti, K.; Waggoner, S.; Di Feo, A. Critical role of Wnt/ß-catenin signaling in driving epithelial ovarian cancer platinum resistance. Oncotarget 2015, 6, 23720–23734. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  117. Sauriol, A.; Simeone, K.; Portelance, L.; Meunier, L.; Leclerc-Desaulniers, K.; De Ladurantaye, M.; Chergui, M.; Kendall-Dupont, J.; Rahimi, K.; Carmona, E.; et al. Modeling the diversity of epithelial ovarian cancer through ten novel well characterized cell lines covering multiple subtypes of the disease. Cancers 2020, 12, 2222. [Google Scholar] [CrossRef]
  118. Jeong, J.W.; Lee, H.S.; Franco, H.L.; Broaddus, R.R.; Taketo, M.M.; Tsai, S.Y.; Lydon, J.P.; DeMayo, F.J. Β-Catenin Mediates Glandular Formation and Dysregulation of Β-Catenin Induces Hyperplasia Formation in the Murine Uterus. Oncogene 2009, 28, 31–40. [Google Scholar] [CrossRef] [Green Version]
  119. Ryland, G.L.; Bearfoot, J.L.; Doyle, M.A.; Boyle, S.E.; Choong, D.Y.H.; Rowley, S.M.; Tothill, R.W.; Gorringe, K.L.; Campbell, I.G. MicroRNA Genes and Their Target 3′-Untranslated Regions Are Infrequently Somatically Mutated in Ovarian Cancers. PLoS ONE 2012, 7, e35805. [Google Scholar] [CrossRef]
  120. Barghout, S.H.; Zepeda, N.; Xu, Z.; Steed, H.; Lee, C.H.; Fu, Y. Elevated β-catenin activity contributes to carboplatin resistance in A2780cp ovarian cancer cells. Biochem. Biophys. Res. Commun. 2015, 468, 173–178. [Google Scholar] [CrossRef]
  121. Shin, W.S.; Gim, J.; Won, S.; Lee, S.T. Biphasic regulation of tumorigenesis by PTK7 expression level in esophageal squamous cell carcinoma. Sci. Rep. 2018, 8, 1–9. [Google Scholar] [CrossRef]
  122. Berger, H.; Breuer, M.; Peradziryi, H.; Podleschny, M.; Jacob, R.; Borchers, A. PTK7 localization and protein stability is affected by canonical Wnt ligands. J. Cell Sci. 2017. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  123. Wang, H.; Li, G.; Yin, Y.; Wang, J.; Wang, H.; Wei, W.; Guo, Q.; Ma, H.; Shi, Q.; Zhou, X.; et al. PTK7 protein is decreased in epithelial ovarian carcinomas with poor prognosis. Int. J. Clin. Exp. Pathol. 2014, 7, 7881–7889. [Google Scholar] [PubMed]
  124. Golubkov, V.S.; Chekanov, A.V.; Cieplak, P.; Aleshin, A.E.; Chernov, A.V.; Zhu, W.; Radichev, I.A.; Zhang, D.; Dong, P.D.; Strongin, A.Y. The Wnt/planar cell polarity protein-tyrosine kinase-7 (PTK7) is a highly efficient proteolytic target of membrane type-1 matrix metalloproteinase: Implications in cancer and embryogenesis. J. Biol. Chem. 2010, 285, 35740–35749. [Google Scholar] [CrossRef] [Green Version]
  125. Zhao, J.B.; Xue, J.F.; Zhang, W.Z.; Ren, Y.L.; Yan, D.M. Long noncoding RNA FGD5-AS1 promotes glioma cell proliferation, migration and invasion by regulating wnt/β-catenin pathway. Cancer Manag. Res. 2020, 12, 6187–6193. [Google Scholar] [CrossRef]
  126. Nomura, M.; Rainusso, N.; Lee, Y.C.; Dawson, B.; Coarfa, C.; Han, R.; Larson, J.L.; Shuck, R.; Kurenbekova, L.; Yustein, J.T. Tegavivint and the β-Catenin/ALDH Axis in Chemotherapy-Resistant and Metastatic Osteosarcoma. J. Natl. Cancer Inst. 2019, 111, 1216–1227. [Google Scholar] [CrossRef]
  127. Chen, T.; Lei, S.; Zeng, Z.; Zhang, J.; Xue, Y.; Sun, Y.; Lan, J.; Xu, S.; Mao, D.; Guo, B. Linc00261 inhibits metastasis and the WNT signaling pathway of pancreatic cancer by regulating a miR-552-5p/FOXO3 axis. Oncol. Rep. 2020, 43, 930–942. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  128. Joshi, B.S.; De Beer, M.A.; Giepmans, B.N.G.; Zuhorn, I.S. Endocytosis of Extracellular Vesicles and Release of Their Cargo from Endosomes. ACS Nano 2020, 14, 4444–4455. [Google Scholar] [CrossRef] [Green Version]
  129. Kalra, H.; Gangoda, L.; Fonseka, P.; Chitti, S.V.; Liem, M.; Keerthikumar, S.; Samuel, M.; Boukouris, S.; Al Saffar, H.; Collins, C.; et al. Extracellular vesicles containing oncogenic mutant β-catenin activate Wnt signalling pathway in the recipient cells. J. Extracell. Vesicles 2019, 8. [Google Scholar] [CrossRef] [Green Version]
  130. Dovrat, S.; Caspi, M.; Zilberberg, A.; Lahav, L.; Firsow, A.; Gur, H.; Rosin-Arbesfeld, R. 14-3-3 and β-catenin are secreted on extracellular vesicles to activate the oncogenic Wnt pathway. Mol. Oncol. 2014, 8, 894–911. [Google Scholar] [CrossRef]
  131. Hu, Y.B.; Yan, C.; Mu, L.; Mi, Y.L.; Zhao, H.; Hu, H.; Li, X.L.; Tao, D.D.; Wu, Y.Q.; Gong, J.P.; et al. Exosomal Wnt-induced dedifferentiation of colorectal cancer cells contributes to chemotherapy resistance. Oncogene 2019, 38, 1951–1965. [Google Scholar] [CrossRef] [Green Version]
  132. Szvicsek, Z.; Oszvald, Á.; Szabó, L.; Sándor, G.O.; Kelemen, A.; Soós, A.Á.; Pálóczi, K.; Harsányi, L.; Tölgyes, T.; Dede, K.; et al. Extracellular vesicle release from intestinal organoids is modulated by Apc mutation and other colorectal cancer progression factors. Cell. Mol. Life Sci. 2019, 76, 2463–2476. [Google Scholar] [CrossRef] [Green Version]
  133. Yamashita, T.; Budhu, A.; Forgues, M.; Xin, W.W. Activation of hepatic stem cell marker EpCAM by Wnt-β-catenin signaling in hepatocellular carcinoma. Cancer Res. 2007, 67, 10831–10839. [Google Scholar] [CrossRef] [Green Version]
  134. Ishiguro, K.; Yan, I.K.; Lewis-Tuffin, L.; Patel, T. Targeting Liver Cancer Stem Cells Using Engineered Biological Nanoparticles for the Treatment of Hepatocellular Cancer. Hepatol. Commun. 2020, 4, 298–313. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  135. Faict, S.; Muller, J.; De Veirman, K.; De Bruyne, E.; Maes, K.; Vrancken, L.; Heusschen, R.; De Raeve, H.; Schots, R.; Vanderkerken, K.; et al. Exosomes play a role in multiple myeloma bone disease and tumor development by targeting osteoclasts and osteoblasts. Blood Cancer J. 2018, 8. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  136. Chen, J.H.; Wu, A.T.H.; Bamodu, O.A.; Yadav, V.K.; Chao, T.Y.; Tzeng, Y.M.; Mukhopadhyay, D.; Hsiao, M.; Lee, J.C. Ovatodiolide suppresses oral cancer malignancy by down-regulating exosomal mir-21/STAT3/β-catenin cargo and preventing oncogenic transformation of normal gingival fibroblasts. Cancers (Basel) 2020, 12. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  137. Harada, T.; Yamamoto, H.; Kishida, S.; Kishida, M.; Awada, C.; Takao, T.; Kikuchi, A. Wnt5b-associated exosomes promote cancer cell migration and proliferation. Cancer Sci. 2017, 108, 42–52. [Google Scholar] [CrossRef] [PubMed]
  138. Luga, V.; Zhang, L.; Viloria-Petit, A.M.; Ogunjimi, A.A.; Inanlou, M.R.; Chiu, E.; Buchanan, M.; Hosein, A.N.; Basik, M.; Wrana, J.L. Exosomes mediate stromal mobilization of autocrine Wnt-PCP signaling in breast cancer cell migration. Cell 2012, 151, 1542–1556. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  139. Wang, F.W.; Cao, C.H.; Han, K.; Zhao, Y.X.; Cai, M.Y.; Xiang, Z.C.; Zhang, J.X.; Chen, J.W.; Zhong, L.P.; Huang, Y.; et al. APC-activated long noncoding RNA inhibits colorectal carcinoma pathogenesis through reduction of exosome production. J. Clin. Investig. 2019, 129, 727–743. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  140. Lopatina, T.; Grange, C.; Cavallari, C.; Navarro-Tableros, V.; Lombardo, G.; Rosso, A.; Cedrino, M.; Pomatto, M.A.C.; Koni, M.; Veneziano, F.; et al. Targeting IL-3Rα on tumor-derived endothelial cells blunts metastatic spread of triple-negative breast cancer via extracellular vesicle reprogramming. Oncogenesis 2020, 9, 90. [Google Scholar] [CrossRef] [PubMed]
  141. Kamerkar, S.; Lebleu, V.S.; Sugimoto, H.; Yang, S.; Ruivo, C.F.; Melo, S.A.; Lee, J.J.; Kalluri, R. Exosomes facilitate therapeutic targeting of oncogenic KRAS in pancreatic cancer. Nature 2017, 546, 498–503. [Google Scholar] [CrossRef]
  142. Matsuda, A.; Ishiguro, K.; Yan, I.K.; Patel, T. Extracellular Vesicle-Based Therapeutic Targeting of β-Catenin to Modulate Anticancer Immune Responses in Hepatocellular Cancer. Hepatol. Commun. 2019, 3, 525–541. [Google Scholar] [CrossRef] [Green Version]
  143. Cavallari, C.; Camussi, G.; Brizzi, M.F. Extracellular Vesicles in the Tumour Microenvironment: Eclectic Supervisors. Int. J. Mol. Sci. 2020, 21, 6768. [Google Scholar] [CrossRef] [PubMed]
  144. Han, L.; Lam, E.W.F.; Sun, Y. Extracellular vesicles in the tumor microenvironment: Old stories, but new tales. Mol. Cancer 2019, 18, 1–14. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  145. Lucchetti, D.; Tenore, C.R.; Colella, F.; Sgambato, A. Extracellular Vesicles and Cancer: A Focus on Metabolism, Cytokines, and Immunity. Cancers 2020, 12, 171. [Google Scholar] [CrossRef] [Green Version]
Figure 1. The Canonical Wnt signalling pathway. (a) OFF STATE. In the absence of Wnt ligands, β-catenin moves to the “destruction complex” consisting of casein kinase 1α (CK1α), glycogen synthase kinase 3 β (GSK-3β) and two scaffolds: axis Inhibition (Axin), and adenomatous polyposis coli (APC). β-catenin undergoes phosphorylation at Ser45 residue by CK1α and at Ser33, Ser37 and Thr41 residues by GSK-3β. Then, the E3 ubiquitin ligase β-transducin repeat-containing protein (βTrCP) marks β-catenin ubiquitination and proteasomal degradation. This prevents β-catenin nuclear accumulation while allowing chromatin compaction and Groucho-mediated promoter repression. (b) ON STATE. The Wnt ligands bind to frizzled (FZD) receptor and the low-density-lipoprotein-related protein 5/6 (LRP5/LRP6); this results in dishevelled (DVL) phosphorylation and β-catenin release from the “destruction complex”, allowing β-catenin accumulation and nuclear translocation. In the nucleus, the Groucho repressor undergoes displacement, allowing β-catenin to interact with T-cell factor/lymphoid enhancer factor (TCF/LEF), chromatin remodeling and transcription of genes such as c-myc and cyclin D1.
Figure 1. The Canonical Wnt signalling pathway. (a) OFF STATE. In the absence of Wnt ligands, β-catenin moves to the “destruction complex” consisting of casein kinase 1α (CK1α), glycogen synthase kinase 3 β (GSK-3β) and two scaffolds: axis Inhibition (Axin), and adenomatous polyposis coli (APC). β-catenin undergoes phosphorylation at Ser45 residue by CK1α and at Ser33, Ser37 and Thr41 residues by GSK-3β. Then, the E3 ubiquitin ligase β-transducin repeat-containing protein (βTrCP) marks β-catenin ubiquitination and proteasomal degradation. This prevents β-catenin nuclear accumulation while allowing chromatin compaction and Groucho-mediated promoter repression. (b) ON STATE. The Wnt ligands bind to frizzled (FZD) receptor and the low-density-lipoprotein-related protein 5/6 (LRP5/LRP6); this results in dishevelled (DVL) phosphorylation and β-catenin release from the “destruction complex”, allowing β-catenin accumulation and nuclear translocation. In the nucleus, the Groucho repressor undergoes displacement, allowing β-catenin to interact with T-cell factor/lymphoid enhancer factor (TCF/LEF), chromatin remodeling and transcription of genes such as c-myc and cyclin D1.
Ijms 21 07697 g001
Figure 2. The Wnt non-canonical signalling pathways. (a) Wnt/planar cell polarity (PCP) pathway. Wnt ligands bind to FZD receptors and co-receptor RAR-related orphan receptor (ROR) and convey the signal to DVL. DVL forms the Disheveled associated activator of morphogenesis 1 (DVL-Daam-1) complex, which triggers RhoA, RHO and ROCK to control cytoskeletal rearrangement. On the other hand, DVL triggers RAC, JNK and AP-1 involved in cell motility and polarity. (b) Wnt/Calcium pathway. Wnt ligands bind to FZD and activate the phospholipase C (PLC), which hydrolyses the phosphatidylinositol (4,5)-biphosphates (PIP2) to inositol (1,4,5)-triphosphates (IP3) and diacylglycerol (DAG). This translates into intracellular calcium release and the activation of CaN and CamKII. The calmodulin activation stimulates TAK-1 and NLK activity. CaN activates the NFAT, which moves to the nucleus and modulates the expression of genes involved in the control of gastrulation, ventral cell fate and tissue homeostasis.
Figure 2. The Wnt non-canonical signalling pathways. (a) Wnt/planar cell polarity (PCP) pathway. Wnt ligands bind to FZD receptors and co-receptor RAR-related orphan receptor (ROR) and convey the signal to DVL. DVL forms the Disheveled associated activator of morphogenesis 1 (DVL-Daam-1) complex, which triggers RhoA, RHO and ROCK to control cytoskeletal rearrangement. On the other hand, DVL triggers RAC, JNK and AP-1 involved in cell motility and polarity. (b) Wnt/Calcium pathway. Wnt ligands bind to FZD and activate the phospholipase C (PLC), which hydrolyses the phosphatidylinositol (4,5)-biphosphates (PIP2) to inositol (1,4,5)-triphosphates (IP3) and diacylglycerol (DAG). This translates into intracellular calcium release and the activation of CaN and CamKII. The calmodulin activation stimulates TAK-1 and NLK activity. CaN activates the NFAT, which moves to the nucleus and modulates the expression of genes involved in the control of gastrulation, ventral cell fate and tissue homeostasis.
Ijms 21 07697 g002
Figure 3. Schematic representation of cell-to-cell communication in the TME by EVs. EVs are released by almost all cell types in the TME. EVs serve as inter-cellular mediators transferring specific molecules (proteins including Wnt ligands and β-catenin, and miRNAs) to recipient cells, thus promoting tumour expansion, cancer cell dedifferentiation in CSCs, chemo-resistance, and neovessel formation. CCs: cancer cells; CSCs: cancer stem cells; TEC: tumour-derived endothelial cell; CAF: cancer associated fibroblasts.
Figure 3. Schematic representation of cell-to-cell communication in the TME by EVs. EVs are released by almost all cell types in the TME. EVs serve as inter-cellular mediators transferring specific molecules (proteins including Wnt ligands and β-catenin, and miRNAs) to recipient cells, thus promoting tumour expansion, cancer cell dedifferentiation in CSCs, chemo-resistance, and neovessel formation. CCs: cancer cells; CSCs: cancer stem cells; TEC: tumour-derived endothelial cell; CAF: cancer associated fibroblasts.
Ijms 21 07697 g003
Table 1. Proteins involved in several tumours, their alteration, targets, and impact on tumours.
Table 1. Proteins involved in several tumours, their alteration, targets, and impact on tumours.
ProteinRelated CancersExpression LevelPathway InteractionImpact on Tumour Ref.
RNF6CRCUpregulatedβ-catenincell growth
cell cycle progression
LGR5CRC, BCUpregulatedβ-cateninproliferation
TNIKGastricUpregulatedβ-catenincell growth[18,19]
KYA1797KCRCUpregulatedβ-catenintumour growth
stem cell features
BCL6CRCUpregulatedβ-catenincellular proliferation
tumour development
tumour progression
ZEB2 and ZEB1CRCUpregulatedβ-catenintumour progression
SLC35C1CRCDownregulatedβ-catenincell proliferation
cell progression
NPTX2CRCUpregulatedβ-catenintumour stages
lymphatic invasion
CSC maintenance
TMEDBCUpregulatedβ-catenincell cycle progression
colony formation
lactate production
-cyclin D1
cell proliferation
Wnt5aBCUpregulatedALCAMvessel invasion
tumour size
VANGL2TNBCUpregulatedp62/SQSTM1 (PCP)migration
anchorage-dependent and independent cell proliferation
colony formation
SFRP1OCDownregulatedβ-catenincell growth
stem-like phenotype
AXIN2OCDownregulatedβ-cateninstem-like phenotype[46]
cell cycle progression
VDRMelanomaUpregulatedβ-catenintumour growth
immune response
Table 2. miRNAs involved in the tumours, their alteration and tumour impact.
Table 2. miRNAs involved in the tumours, their alteration and tumour impact.
miRNARelated CancerExpression LevelImpact on TumourRef.
miR-144-3pCRCDownregulatedcell proliferation[21,22,23]
miR-377-3pCRCUpregulatedcell expansion
repression of apoptosis
miR-520eCRCDownregulatedcell proliferation
colony formation
miR106aBCUpregulatedcell growth
cisplatin sensitivity
miR-5188BCUpregulatedtumour cell proliferation
metastasis formation
miR-148aBCDownregulatedcell migration
miR-6838-5pBCDownregulatedcell invasion
stem cell-like traits
miR-590-3pOCUpregulatedcell growth
miR-1180OCUpregulatedcell proliferation
miR-939PCaDownregulatedtumour stage
miR-92a-3pCRC EVsUpregulatedcancer progression
drug resistance
miR-1273fHCC EVsUpregulationcell proliferation
miR-1260bLAC EVsUpregulationcell invasion
miR-214-3pTEC EVsUpregulationneovessel formation[76]
miR-24-3pTEC EVsDownregulationneovessel formation[76]
Table 3. EVs involved in several tumours, their alteration, targets, and impact on tumours.
Table 3. EVs involved in several tumours, their alteration, targets, and impact on tumours.
EV CargoEV Source Target Cells Related Cancers Expression LevelPathway InteractionImpact on Tumour CellsRef.
Mutant β-catenin in EVsLIM1215RKOCRCUpregulatedβ-cateninmigration,
tumour growth
14-3-3ζ in EVsHEK293TCOS-7,
Wnt ligands in EVsCAFsCRCCRCUpregulatedβ-catenindedifferentiation
drug resistance
colony formation
β-catenin in EVsmilkHCCHCCSilencedβ-cateninproliferation
tumour growth
DKK-1 in EVsMMMMMMUpregulatedβ-cateninosteoclast activity
osteoblast differentiation
Wnt5b in EVsCaco-2 and
Upregulatedβ-catenin dependent and independent pathwaysproliferation
EVsCAFsBCBCUpregulatedWnt-PCPcell growth and motility[138]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Koni, M.; Pinnarò, V.; Brizzi, M.F. The Wnt Signalling Pathway: A Tailored Target in Cancer. Int. J. Mol. Sci. 2020, 21, 7697.

AMA Style

Koni M, Pinnarò V, Brizzi MF. The Wnt Signalling Pathway: A Tailored Target in Cancer. International Journal of Molecular Sciences. 2020; 21(20):7697.

Chicago/Turabian Style

Koni, Malvina, Veronica Pinnarò, and Maria Felice Brizzi. 2020. "The Wnt Signalling Pathway: A Tailored Target in Cancer" International Journal of Molecular Sciences 21, no. 20: 7697.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
