Modeling the Effect of Composition on Formation of Aerosolized Nanoemulsion System Encapsulating Docetaxel and Curcumin Using D-Optimal Mixture Experimental Design

Integrated Chemical BioPhysics Research, Department of Chemistry, Faculty of Science, Universiti Putra Malaysia, Serdang 43400, Selangor, Malaysia
UPM-MAKNA Cancer Laboratory, Institute of Bioscience, Universiti Putra Malaysia, Serdang 43400, Selangor, Malaysia
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2020, 21(12), 4357;
Received: 8 May 2020 / Revised: 7 June 2020 / Accepted: 11 June 2020 / Published: 19 June 2020
(This article belongs to the Special Issue The Self-Assembly and Design of Polyfunctional Nanosystems)


The synergistic anticancer effect of docetaxel (DTX) and curcumin (CCM) has emerged as an attractive therapeutic candidate for lung cancer treatment. However, the lack of optimal bioavailability because of high toxicity, low stability, and poor solubility has limited their clinical success. Given this, an aerosolized nanoemulsion system for pulmonary delivery is recommended to mitigate these drawbacks. In this study, DTX- and CCM-loaded nanoemulsions were optimized using the D-optimal mixture experimental design (MED). The effect of nanoemulsion compositions towards two response variables, namely, particle size and aerosol size, was studied. The optimized formulations for both DTX- and CCM-loaded nanoemulsions were determined, and their physicochemical and aerodynamic properties were evaluated as well. The MED models achieved the optimum formulation for DTX- and CCM-loaded nanoemulsions containing a 6.0 wt% mixture of palm kernel oil ester (PKOE) and safflower seed oils (1:1), 2.5 wt% of lecithin, 2.0 wt% mixture of Tween 85 and Span 85 (9:1), and 2.5 wt% of glycerol in the aqueous phase. The actual values of the optimized formulations were in line with the predicted values obtained from the MED, and they exhibited desirable attributes of physicochemical and aerodynamic properties for inhalation therapy. Thus, the optimized formulations have potential use as a drug delivery system for a pulmonary application.

1. Introduction

Cancer is one of the leading causes of death globally, and lung cancer tops the mortality rate with the lowest survival rate among all the cancers [1]. Chemotherapy remains a major option for the treatment of lung cancer. Among the most potent of chemotherapeutic drugs used for lung cancer treatment are taxanes, which comprise docetaxel (DTX). Nevertheless, this type of treatment is always riddled with dose-limiting side effects and drug resistance issues [2,3]. Recent progress in natural products has paved the way for the discovery of a novel chemotherapy adjunct for cancer treatment. It has been seen that a compound with medicinal properties known as curcumin (CCM) can synergistically improve the anticancer activity of DTX [4,5,6]. Hence, the synergistic anticancer effect exhibited by DTX and CCM may potentiate the treatment of lung cancer and make them attractive therapeutic drug candidates. However, due to their hydrophobic nature, both DTX and CCM are usually associated with slow drug absorption and low stability leading to inadequate maximum bioavailability for the therapeutic response [7,8].
At this juncture, the parenteral administration of chemotherapeutics is a common route for treating lung cancer. The mechanism of chemotherapeutic drugs is based on systemic circulation, which requires the drugs to pass through several natural defense mechanisms before reaching the lungs. The non-specific distribution of the drugs across the human body may result in rapid clearance and poor pharmacokinetics [9]. Consequently, the focus of the present research was on an alternative route via the pulmonary, to mitigate the disadvantages of the current course. Direct deposition of drugs at the targeted region of the lungs can be achieved via inhalation therapy, which may be far more effective with increased local drug concentration. These contribute to the high systemic bioavailability, evasion of first-pass metabolism, and quick onset of drug action. Adverse effects caused by excessive dosing of drugs can also be avoided. Several types of respiratory diseases such as chronic obstructive pulmonary diseases (COPD), bronchitis, and asthma also have been conventionally treated via this route [10].
Nevertheless, due to the complexity of lung structure and its clearance mechanisms, inhalation of drug solution may not be efficiently delivered to the deep lung region, where the tumors are typically found. Besides, the lack of optimal DTX and CCM bioavailability due to low aqueous solubility and stability has hampered their progress towards better development and clinical use. The appropriate drug carrier system to encapsulate the drugs without affecting the drugs primary bioactive is, therefore, highly required for exploiting the nature of respiratory transportation. The availability of safe and biocompatible lipids as per safety standards along with the potential to enhance drug bioavailability makes nanoemulsion an ideal carrier for these hydrophobic drugs. The focal interest in formulating this aerosolized nanoemulsion system is on the presence of lipophilic core in the nanosized system, which can improve the solubility, stability, dissolution rate, and uniform distribution of drugs in the alveoli region because of the increased surface contact area [11,12].
A large number of compositions used in a formulation may result in irritancy problems and dose-related toxicity when applied for pulmonary delivery. Somehow, screening of random formulations is inadequate to produce nanoemulsion at the minimal optimal concentration with the desired properties, and hence, optimizing the nanoemulsion system is equally important. D-optimal mixture experimental design (MED) utilizes a modeling technique that considers the interaction effects. It consists of a collection of mathematical and statistical methods that match the experimental data with polynomial equations [13,14], thereby explaining the dataset’s behavior. Additionally, the evaluation of the model’s interaction involves a minimum number of experimental runs, which can reduce the time consumption and expense. This work aims to determine the optimized formulation of aerosolized DTX- and CCM-loaded nanoemulsions based on the best-fitted model suggested by MED. The optimization models presented in this study allow us to understand how the independent and response variables interact to form the nanoemulsion system and offer insight into the degree to which model terms have significantly influenced the formation process.

2. Results and Discussion

2.1. Fitting the Models

The effects of five independent variables, namely palm kernel oil ester (PKOE): safflower seed oil (A), lecithin (B), Tween 85:Span 85 (C), glycerol (D), and water (E), on particle size and volume median diameter (VMD) were explored using the D-optimal mixture experimental design (MED) for both DTX- and CCM-loaded nanoemulsions. The upper and lower limits of the independent variables were obtained from previous data collected during the preliminary study [15], while the software automatically calculated the amount of water. The candidate points referring to the design space and response values for both DTX- and CCM-loaded nanoemulsions are depicted in Table 1. The obtained data were fitted into three models, namely linear, quadratic, and special cubic models. Among them, the quadratic polynomial model was found to be the best-fitted to the experimental data of particle size. In contrast, the linear polynomial model matched with the experimental data of volume median diameter (VMD) for both DTX- and CCM-loaded nanoemulsion formulations.
The correlation coefficient (R2) values for the particle size of the DTX- and CCM-loaded nanoemulsions were 0.9922 and 0.9984, respectively, while the R2 values for VMD were 0.6894 and 0.7610, respectively. These values specified that the model could be predicted up to 99.22 and 99.84%, respectively, of the particle size observed value, leading to a strong correlation between the predicted data and actual values. The VMD observed value could only be predicted up to 68.94 and 76.10% for the DTX- and CCM-loaded nanoemulsions, respectively. These findings are illustrated by the linearity plot between the predicted and actual values of particle size and the VMD. Good-fitting regression models for particle size were obtained compared to the VMD for both formulations (Figure 1). The adequate precision for the particle size of the DTX- and CCM-loaded nanoemulsions were 35.58 and 64.87, respectively, whereas the adequate precision for VMD was 11.80 and 13.36, respectively. The signal-to-noise ratio of the models was appropriate because of the high value of adequate precision (>4.00), which indicated adequate model discrimination, as it compared the range of the predicted values at the design points to the average prediction error [16,17].
The predicted values for each response in both formulations were derived using regression Equations (1) and (2) for DTX-loaded nanoemulsion and regression Equations (3) and (4) for CCM-loaded nanoemulsion, as suggested by ANOVA. The generated mathematical models were proven to be significant and valid for the responses, as they had small p-values (p < 0.0001) and large F-values, which stipulated a good match between the regression models and experimental data. The models are significant if the p-value is below 0.05, suggesting that the model is significant at the probability level of 95% [13,18]. Other than that, a lack of fitness of the models was not significantly related to pure error (p > 0.05). Following p-values of <0.05, the interactions of AB, AC, AD, AE, CD, and CE harbored significant effects on the particle size of a DTX-loaded nanoemulsion, while interactions of AB, AC, AD, AE, BC, BD, BE, CE, and DE showed a significant effect on the particle size of a CCM-loaded nanoemulsion. The ANOVA results for both formulations are summarized in Table 2.
DTX-loaded nanoemulsion:
Particle   size =   128.29 A + 208.83 B 219.77 C + 133.96 D + 114.30 E 191.85 AB +   350.39 AC 96.55 AD 54.91 AE + 115.41 BC 79.11 BD 126.94 BE +   349.42 CD + 336.19 CE 49.55 DE
Aerosol   size   ( VMD ) = 5.55 A + 5.99 B + 4.60 C + 5.17 D + 5.21 E
CCM-loaded nanoemulsion:
Particle   size =   168.39 A + 244.63 B + 149.55 C + 28.09 D + 118.53 E 184.49 AB   327.76 AC + 90.15 AD 99.98 AE 438.80 BC 168.24 BD   129.62 BE + 29.91 CD 102.07 CE + 123.59 DE
Aerosol   size   ( VMD ) = 5.48 A + 6.06 B + 5.29 C + 4.91 D + 5.10 E

2.2. Influence of Independent Variables on Particle Size

The DTX- and CCM-loaded nanoemulsions showed an increase in the particle size when there was an increase in the amount of oil (Figure 2). This effect was attributed to the increase of the dispersed phase’s viscosity in conjunction with the increase of oil content, which subsequently resulted in the increase of flow resistance and restriction on the droplet breakup rate [19]. This effect could be correlated with increased frequency of collision between the nanoemulsion particles, accompanied by an increase in the frequency of coalescence, resulting in a higher chance of coalescence between the particles [20]. Moreover, adding emulsifiers, including lecithin and Tween 85:Span 85 in the two formulations showed the opposite effect, whereby the particle size decreased when the surfactant and co-surfactant were increased. Other researchers have observed similar results, stating that the decrease of particle size could be due to the availability of free emulsifier to spontaneously enclose the surface of any new oil droplet formed during homogenization [18,20,21]. Moreover, the interfacial tension between water and oil may get decreased, which can reduce the stress for droplet breakup.
The addition of glycerol in the nanoemulsion system could decrease the particle size, as it contained both hydrophilic and lipophilic components in the structure that could invade the surfactant monolayer, resulting in a change in the system’s packing geometry, interfacial tension and surfactant flexibility [22,23]. However, if compared with the CCM-loaded nanoemulsion plot, the particle size for the DTX-loaded nanoemulsion was slightly increased initially, as the concentration of emulsifiers and glycerol increased, and the concentration of oil decreased. It started to decline when the concentration of emulsifiers was set to increase, whereby the DTX-loaded nanoemulsion would reach a consistent level of CCM-loaded nanoemulsion in the graphical plot. This finding might be attributed to the higher lipophilicity of DTX (logPO/W = 4.1) compared to CCM (logPO/W ~ 3.0), which observed a reduction of emulsification efficiency at low concentration of emulsifiers and high concentration of oil.

2.3. Influence of Independent Variables on Aerosol Size

The aerodynamic diameter of nanoemulsion aerosols is the determinant of the deposition site in the lungs, as large particles (>6 μm) tend to deposit mainly in the upper airways. The production of aerosol with an aerodynamic diameter between 2 and 6 μm is found to be best-suited to treat central and small airways [24]. In this work, both models for DTX- and-CCM loaded nanoemulsions showed VMD values in the range of 5.0–5.6 μm. As illustrated in Figure 3, the VMD value decreased as the amount of Tween 80:Span 80 (9:1, w/w) and glycerol increased in both the DTX- and CCM-loaded nanoemulsions. This effect was obtained due to incorporation of surfactant and co-solvent in the system, which reduced the interfacial tension at the interface of oil and water by improving optimal curvature and lowering elasticity of the surfactant monolayer. Consequently, it decreased the viscosity of the system, as well [22]. However, the VMD value increased as the amount of glycerol increased and the amount of Tween 80:Span 80 (9:1, w/w) decreased because of the difficulty in breaking up the oil-water interface without decreasing interfacial tension [25].
Characteristics of the nanoemulsion system like viscosity and the overall surface tension would notably affect the system’s aerosolization efficiency. Increasing the viscosity or surface tension would need higher energy to atomize the nanoemulsion into aerosols, leading to an increase in aerosol size [26,27]. Arbain et al. and Shah et al. report nearly the same observations wherein decreasing the surface tension and viscosity of the nebulized nanoemulsion resulted in effective aerosolization using the Omron nebulizer [11,28]. Remarkably, the VMD value increased as the amount of oil and lecithin increased in DTX-loaded nanoemulsion. In contrast, the VMD value decreased as the amount of oil increased, and the amount of lecithin increased in the CCM-loaded nanoemulsion. This phenomenon might be due to lower lipophilicity and molecular weight of CCM compared to DTX, which permits a minimum packing geometry and requires less surfactant (lecithin) to reduce the surface tension. Besides, a higher molecular weight of lipophilic drugs has been reported to increase the viscosity of the solution and generate a larger-size of aerosols [29].
As shown in Table 3, the experimental response values for randomized and optimized formulations, as suggested by the MED, were juxtaposed with the predicted values to verify the generated models. The results showed that predicted values of all formulations in both the DTX- and CCM-loaded nanoemulsions resembled the experimental values closely. Moreover, the percentage of residual standard error (RSE) values were small with less than 2.2% for particle size and less than 3.8% for the VMD. These results were correlated reasonably well with the models’ regression correlation between the predicted and actual values, as higher R2 values were obtained for particle size compared to that of the VMD. The RSE values for both responses fell within the acceptable limits of model validation. It could be concluded that the postulated models were acceptable for use in predicting the response accurately.

2.4. Physicochemical and Aerodynamic Properties of Optimized Nanoemulsions

It is widely understood that nanoemulsion systems with a high quantity of oil, surfactants, and co-solvent may increase the safety issues in pulmonary application [30]. Therefore, it is necessary to use a minimal and optimal concentration of these components in the nanoemulsion formulation to allow the formation of a stable, safe, and fine nanoemulsion. In this study, the optimal formulation for a DTX-loaded nanoemulsion (DNEOpt) and CCM-loaded nanoemulsion (CNEOpt) were selected based on their minimum value of response variables at a minimal amount of nanoemulsion compositions for maximizing the effectiveness on the delivery and treatment of inhalable drugs. The optimized formulations for both DNEOpt and CNEOpt could be attained with a 6.0 wt% mixture of PKOE and safflower seed oils (1:1), 2.5 wt% of lecithin, 2.0 wt% mixture of Tween 85 and Span 85 (9:1), and 2.5 wt% of glycerol in the aqueous phase as suggested by MED.
Table 4 summarizes the overview of the physicochemical properties of the optimized formulations. The mean particle size of DNEOpt and CNEOpt was found to be 95.80 and 96.94 nm, respectively, with an RSE of less than 4%. The obtained particle size of the optimized formulations was further ascertained by the TEM micrographs, as depicted in Figure 4. The particles of the nanoemulsions were spherical, and the average particle size measured using TEM was in line with the average size determined from the photon correlation spectroscopy. The stability of the nanoemulsion system would increase when the polydispersity index (PDI) value was minimized, whereas the Ostwald ripening due to repulsive interaction between the particles during storage could be reduced when the ζ-potential value was maximized [31]. The PDI and ζ-potential values for both optimized formulations were in the range 0.22–0.25 and greater than −30 mV, respectively. These results suggest that the systems are slightly polydisperse but still adequate for pulmonary administration and they possess a sufficiently high negative surface charge to maintain stability due to the presence of anionic groups of fatty acids and glycol in the oils and lecithin [32,33].
Administration of too acidic or basic and hypo- or hyperosmotic formulations via the pulmonary route is known to cause cough and irritation of the lung linings, which can increase drug loss and reduce the carrier efficiency [34,35]. The formulation’s pH for liquid preparation intended for pulmonary administration should resemble closely with the pH of lung fluid at around 7.0 and 8.0 [36], while for human red blood cells, the normal osmotic pressure in the range of 280–320 mOsm/kg was measured at pH 7.40 [37]. The pH and osmolality values of the optimized formulations fell within the acceptable range for pulmonary delivery. On top of that, both formulations exhibited low viscosity values between 2.05 and 2.22 cP, which serve as a key parameter in influencing the effective delivery of drugs via the pulmonary route. The aerosolization efficiency of the formulations will be reduced at high viscosity as it contributes to an increase in aerodynamic diameter [26,27].
The laser diffraction method was used during the stage of aerosolization to assess the quality of the aerosol, while the Anderson cascade impaction (ACI) method was applied for summative aerosolization for inhalation. As given in Table 5, the optimized formulations had produced aerosol size within the respirable range, with the VMD (DV50) and mass median aerodynamic diameter (MMAD) falling within the optimal respirable range (2–6 µm). However, the size of the aerosol from the analysis of laser diffraction was relatively greater than that of the cascade impaction method, which was similar to the results obtained from other findings [28,38]. This effect was attributed to the loss of small particles during aerosolization through evaporation during the laser diffraction analysis, which led to a significant shift in the particle size distribution, causing a larger aerosol size than in the ACI method. Both DNEOpt and CNEOpt exhibited relatively narrow size distribution (<2.00) with span values of 1.64 and 1.69 and geometric standard deviation (GSD) values of 1.71 and 1.67, respectively.
For both the optimized formulations, the values of percent inhaled (PI) and percent dispersed (PD) were determined to be high since drug inhalation and emission into the lungs were more than 70%, while the rest of the drug may settle on the sampling apparatus. Similarly, a high percentage of fine particle fraction (FPF > 75%) was obtained, which indicated that the majority of the aerosol particles could be predominated in the deep lung region. The results appeared to conform with the in vitro deposition of optimized formulations on the ACI (Figure 5a). It was found that most of the nebulized aerosols were deposited on stages 3, 4, 5, and 6, which represented lower parts of respiratory airways with the aerodynamic cut-off diameters of 3.3–4.70, 2.10–3.3, 1.10–2.10, and 0.65–1.10 µm, respectively. Additionally, the in vitro drug release profile (Figure 5b) showed that the optimized formulations were able to release the DTX and CCM up to 48 h steadily. This was due to the additional time needed for the drug to permeate from the core of the oil droplet through the interfacial layer of surfactants before it could reach into the dissolution medium. The sustained release of encapsulated DTX and CCM can offer prolonged exposure at the target site and further enhance the efficacy of the pulmonary application.
Moreover, the drug release profiles of the encapsulated drugs were found to be relatively faster compared to the free drug solubilized in an aqueous solution, as reported by several studies [39,40,41], due to their poor water solubility. The drug release was lower in simulated lung fluid (SLF) at pH 7.4 compared to pH 6.5. These results were in agreement with previous studies on DTX and CCM, where the release was accelerated significantly under an intracellular tumor environment (pH~6.5) than an intracellular healthy environment (pH 7.4) [42,43]. The DNEOpt was able to release the drug faster compared to CNEOpt due to a lower degree of ionization in the CCM compared to DTX when tested at pH 6.5 and 7.4. According to the passive diffusion barrier concept, the drug in nonionized form could passively be diffused through the barriers effectively [44]. In contrast, the drug at a high degree of ionization state was deemed to be difficult in passing through the membranes, as it carried charge [45]. The result of optimized nanoemulsions with appropriate physicochemical and aerodynamic properties for inhalation and a sustained drug release manner might suggest the nanoemulsions great potential in pulmonary application.

3. Materials and Methods

3.1. Materials

Docetaxel (DTX, 98% purity) and trifluoroacetic acid (TFA, 99% extra purity) were purchased from Acros Organics (Fair Lawn, NJ, USA), while curcumin (CCM, 90% purity) and methanol (99.9% purity) were purchased from Merck (Darmstadt, Hesse, Germany). Safflower seed oil, Tween 80, Span 85, and α-tocopherol were purchased from Sigma-Aldrich (Steinheim, North Rhine-Westphalia, Germany). Lecithin Lipoid S75 was purchased from Lipoid GmbH (Ludwigshafen, Rhineland-Palatinate, Germany). Tween 85 was purchased from Fluka Chemie GmbH (Buchs, St. Gallen, Switzerland), and glycerol was purchased from J.T. Baker (Phillipsburg, NJ, USA). Acetonitrile (HPLC grade) and simulated lung fluid were purchased from Fisher Scientific (Loughborough, UK) and R&M Chemicals (Petaling Jaya, Selangir, Malaysia), respectively. Palm kernel oil ester (PKOE) was synthesized directly in our lab using the enzymatic alcoholysis method [46]. Deionized water was obtained using the Milli-Q gradient water system (Billerica, MA, USA). All chemicals were used as received (AR grade) without additional purification unless otherwise stated.

3.2. Nanoemulsion Preparation

In general, an oil phase containing lecithin was stirred in a mixture of PKOE and safflower seed oil (1:1, w/w) at 250 rpm using a magnetic hotplate stirrer (C-MAG HS 7, IKA®, Wilmington, NC, USA) for 30 min at 40 °C. 1 mM of the active ingredient and Tween 85 and Span 85 (9:1, w/w) was added into the mixture and stirred for another 30 min or until all the ingredients were fully dissolved. Approximately 0.05 wt% of α-tocopherol was then added into the mixture and stirred for 5 min at 40 ± 1 °C. The prepared oil phase was then slowly added dropwise to an aqueous phase containing deionized water and glycerol and stirred at 350 rpm with an overhead stirrer (Stirrer RW16 Basic IKA®, Wilmington, NC, USA) for 30 min to form a pre-mixed emulsion. The emulsion was homogenized further using a high shear homogenizer (PT3100, Kinematica AG, Lucerne, Switzerland) at 15 min at 12,000 rpm.

3.3. Experimental Design

The effect of five independent variables, including oils (wt%) (A), lecithin (wt%) (B), Tween 85 and Span 85 (9:1) (wt%) (C), glycerol (wt%) (D), and water (wt%) (E), on the response variables of particle size and volume median diameter (VMD) was studied. The design matrix was generated based on the D-optimal criterion to select the candidate points using the Design-Expert software (v. 7, Stat-Ease Inc., Minneapolis, MN, USA) with a total of 24-candidate experiments. The upper (Uj) and lower (Lj) limits for each formulation components (Xj) were restricted to a specific range, to prevent the process from covering the entire simplex area [47]. In this design, the general form of constraints is as follows: LjXjUj, where Σ Xj = 1. The lower and upper limits for each formulation independent variables were determined from a previous study [15], as summarized in Table 6.

3.4. Evaluation of the Fitted Models

To model the influence of formulation components (independent variables) towards the responses (dependent variables), three-dimensional (3D) surface response and contour plots were constructed by fitting the experimental data to the polynomial equations via multiple regression analysis. The analysis of variance (ANOVA) was conducted to evaluate the significance of coefficients between the variables and to generate the polynomial equation based on the fitted model. Three random formulations and a recommended optimum formulation for each DTX- and CCM-loaded nanoemulsion were subjected for validation of the generated model by comparing the predicted response value against the obtained value. An optimized formulation was suggested based on the smallest value of the response variable at a minimal amount of independent variables. The percentage of residual standard error (RSE%) for each response was determined using the following equation [47]:
RSE ( % ) = Experimental   value     Predicted   value Predicted   value   × 100

3.5. Particle Size Distribution and ζ-Potential Determination

The mean particle size, polydispersity index (PDI), and ζ-potential of nanoemulsion formulations were determined using a Zetasizer (Nano ZS90, Malvern Instruments, Worcestershire, UK). Deionized water was used to dilute the sample (1:1000, v/v) to overcome the effect of multiple scattering [48]. The diluted sample was gradually loaded to full (~1.5 mL) in a folded capillary cell to prevent the formation of air bubbles before being inserted into the sample chamber. Measurements were carried out at controlled room temperature (25 ± 1 °C) after being equilibrated for 120 s to stabilize the cell area temperature. Each sample was measured three times, and the data were expressed in the mean.

3.6. Laser Diffraction Analysis

Laser diffraction method using a Spraytech (Malvern Instruments Ltd., Worcestershire, UK) was used to study the quality of the nebulized nanoemulsion aerosols. This method was reported to be consistent with many in-vivo findings on lung deposition [28,48]. An aliquot of 3 mL of nanoemulsion was added into a medication chamber of an OMRON MicroAIR nebulizer (NE-U22V1, Shimogyo-ku, Kyoto, Japan). The nebulizer was positioned perpendicular to the Spraytech laser lens axis and 20 mm away from the laser beam. The sample was then nebulized at 15 L/min flow rate by adjusting the suction of the vacuum pump located on the opposite side of the instrument. This suction is essential to make the aerosol pass through the laser beam at a normal inspiratory flow rate for aerosol size analysis.
The data were then analyzed using RTSizer software (v. 5.51, Malvern Instruments Ltd. Worcestershire, UK). This was done to determine the nanoemulsion aerosolization properties, including the DV50 (50% of the undersized particle distribution curve) and also known as the volume median diameter (VMD), DV10 (10% undersize particle distribution curve), DV90 (90% undersize particle distribution curve), and span which indicated how far the 10% and the 90% points were apart, normalized with the midpoint. The measurements were conducted in triplicate, and the mean data were presented.

3.7. pH Measurement

The pH measurement of the optimized nanoemulsions was measured using a pH meter (Delta 320, Mettler Toledo, Ota-ku, Tokyo, Japan). An electrode with a glass membrane that is sensitive to hydrogen ions was used to measure the pH value. The value was dependent on the hydrogen ion concentration, which was used to determine the acidity of the formulation [49]. The calibration of the pH meter was carried out using pH 4, 7, and 10. The glass electrode was dipped into the sample without dilution, and the sample pH value was then recorded. The measurement was conducted in triplicate at ambient temperature (28 ± 1 °C).

3.8. Viscosity Measurement

The viscosity of the optimized nanoemulsions was determined directly via a viscometer (Brookfield DV-II+, Middleboro, MA, USA) without dilution. Spindle SC4-18 was attached to the viscometer, and 2 mL of nanoemulsion sample was added into the sample cup. The sample cup was then connected to the viscometer and adjusted until the hit point (the desired gap between cone and cup) was satisfactorily reached. The sample was incubated for 10 min at 25 ± 1 °C to reach equilibrium, and the viscosity was measured in centipoise (cP). Upon rotation of the spindle, the viscous sample moved counter to the spindle wall. The viscosity was quantified based on the deflection amount of a calibrated spring. The measurement was repeated in triplicate, and the mean of viscosity value was calculated.

3.9. Osmolality Measurement

The osmolality value of the optimized nanoemulsions was determined using an osmometer (model 3320, Advance Instruments, Norwood, MA, USA) according to the freezing point principle. The osmometer was calibrated with a reference standard 100 and 3000 mOsm/kg (Advance Instruments, USA) at room temperature (25 ± 1 °C). Approximately 0.25 mL of sample was aspirated into the sampler tip, and the sampler was placed into the instrument’s cradle and then inserted into the system. The measurement was analyzed in triplicate, and the average of the osmolality value was calculated.

3.10. Transmission Electron Microscope Analysis

The morphology of freshly prepared optimized nanoemulsions was analyzed using TEM (H7100, Chiyoda-ku, Tokyo, Japan). The conventional negative staining method using uranyl acetate (1%, w/v) was applied. The samples were diluted 50 times with deionized water and vortexed for 10 s to prevent particle agglomeration. A 300 mesh formvar coated grid, stabilized with evaporated carbon film (FCF300-Cu, Radnor, PA, USA), was placed on a sample droplet and incubated at room temperature (28 ± 1 °C) for 5 min. Uranyl acetate solution was used to negatively stain the copper grid by placing the grid on the solution, and it was incubated for another 5 min at room temperature. Then, filter paper was used to remove excess uranyl acetate solution. The grid was then air-dried in a petri dish for 24 h before being analyzed.

3.11. In Vitro Deposition Test

The inhalation performance of both the DTX and CCM-loaded nanoemulsions (DTXopt and CNEopt) was tested using an eight-stage Anderson cascade impactor (ACI) (Copley Scientific Ltd., Nottingham, UK) based on a method described by Arbain et al. [11]. Briefly, the ACI fitted with an adapter, mouthpiece, inlet cone, induction port, and stage 0 to filter was attached to a vacuum pump and operated at a 15 L/min flow rate to simulate the normal respiration of a healthy adult [28]. An aliquot of 3 mL DNEopt was added into the medication chamber of the OMRON MicroAIR nebulizer and was nebulized continuously into the ACI until dry. The deposited drug on each stage of the ACI together with the medication chamber, adapter, mouthpiece, inlet cone and induction port were collected. The steps were repeated with CNEopt, and the test was performed in triplicate.
The drug content in the collected samples was then analyzed by high-performance liquid chromatography (HPLC) (Waters 1525, Milford, MA, USA) using a C18 column (150.0 × 4.6 mm) (Eclipse plus, Agilent Technologies, Santa Clara, CA, USA), which was filled with particles size of 5 μm. The mobile phase ratio for detection of the DTX and CCM was 50:50 (v/v) and 36:64 (v/v), respectively, comprising filtered acetonitrile and deionized water at pH 3. The analysis was performed at a flow rate of 1 mL/min and an injection volume of 10 μL, at a detection wavelength of 228 nm for DTX, and 430 nm for CCM, using a UV/Vis detector. The polyvinylidene difluoride (PVDF) with a 0.45 µm pore size was used to filter the collected samples prior to injection.
The percent dispersed (PD) was calculated in percentage by dividing the total amount of drug collected from all parts of the ACI, including the inlet cone, induction port, adapter, mouthpiece, and stage 0 to filter, also known as the emitted dose (ED), over the total dose (TD) loaded in the nebulizer. The percent inhaled (PI) was calculated by dividing the total drug content in stages 0 to 7, over the TD. The mass median aerodynamic diameter (MMAD) was determined at the 50th percentile on the cumulative particle size distribution curve. In contrast, the geometric standard deviation (GSD) was determined by dividing the square root of the size obtained at the 84.13th percentile, over the square root of the size obtained at the 15.87th percentile. The fine particle fraction (FPF) was calculated in percentage by dividing the total amount of drug deposited on stage 4 to filter, over the ED.

3.12. In Vitro Drug Release Study

A dialysis membrane diffusion method [50] was utilized to study the in vitro drug release from the optimized nanoemulsion systems. Simulated lung fluids (SLF) at pH 6.5 and 7.4 comprising 0.2% (w/v) Tween 80 were used as dissolution media to simulate the lung interstitial fluid in tumor (pH 6.5) and healthy (pH 7.4) environments. Cellulose dialysis tubing with 12 kDa molecular weight cut-off (FisherbrandTM, Loughborough, UK) was loaded with DNEopt equivalent to 2 mg of DTX. The dialysis tube was immersed in the dissolution media at 37 ± 1 °C and continuously stirred using a magnetic bar at 250 rpm. An aliquot of 1 mL sample was collected at specified time intervals and was replaced by an equivalent volume of fresh medium to maintain the sink conditions. The amount of DTX in the collected samples was then determined using the HPLC method, as outlined in Section 3.11. The methods were repeated with CNEopt, and the analysis was conducted in triplicate. The average of the drug release content at each time interval was then calculated.

4. Conclusions

The present study highlights the D-optimal mixture experimental design (MED) as being a potent tool to study optimization, which involved in the formulation of DTX and CCM-loaded nanoemulsions to attain small particle size and VMD. In general, the MED model predicted that the mean particle size of the nanoemulsion systems was directly proportional to the oil content and was inversely proportional to the amount of lecithin, Tween 85:Span 85 (9:1, w/w) and glycerol, while the VMD of the nanoemulsion systems was directly proportional to the oil and lecithin, and was inversely proportional to the Tween 85:Span 85 (9:1, w/w), and glycerol concentrations. The observed value of the suggested optimum formulations for particle size was in good agreement with the predicted value (RSE < 1.6%), which displayed better performance in model fitting than the VMD (RSE < 3.8). The optimized formulations exhibited desirable pH, viscosity, and osmolality attributes for pulmonary administration. The nebulized formulations exhibited a high percentage of fine particle fractions (FPF > 75%) and were predicted to mainly deposit in the lower airways of the lungs with an aerodynamic diameter less than 5.5 μm. These characteristics are responsible for making the optimized nanoemulsion system a great potential candidate for the delivery DTX and CCM via the pulmonary route.

Author Contributions

Conceptualization, A.A.A., M.B.A.R., N.S. and E.A.; methodology, A.A.A.; software, A.A.A.; validation, A.A.A.; formal analysis, A.A.A.; investigation, A.A.A.; resources, M.B.A.R. and N.S.; data curation, A.A.A.; writing—original draft preparation, A.A.A.; writing—review and editing, M.B.A.R., N.S. and E.A.; visualization, A.A.A.; supervision, M.B.A.R., N.S. and E.A.; project administration, A.A.A.; funding acquisition, M.B.A.R. All authors have read and agreed to the published version of the manuscript.


The Ministry of Higher Education, Malaysia funded this research under LRGS NanoMITe grant number RU029-2014/5526306 and the APC was funded by Universiti Putra Malaysia.


Sincere appreciation to Universiti Putra Malaysia (UPM) for the facilities provided throughout this research and to Wong Tin Wui from Universiti Teknologi MARA (UiTM), Puncak Alam for the facilities and guidance on the aerodynamic studies.

Conflicts of Interest

The authors declare no conflict of interest.


ACIAnderson cascade impactor
EDEmitted dose
FPFFine particle fraction
GSDGeometric standard deviation
MEDMixture experimental design
MMADMass median aerodynamic diameter
PDPercent dispersed
PDIPolydispersity Index
PIPercent inhaled
PKOEPalm kernel oil ester
RSEResidual standard error
SLFSimulated lung fluid
TDTotal dose
TEMTransmission electron microscopy
VMDVolume median diameter


  1. Bray, F.; Ferlay, J.; Soerjomataram, I.; Siegel, R.L.; Torre, L.A.; Jemal, A. Global cancer statistics 2018: GLOBOCAN estimates of incidence and mortality worldwide for 36 cancers in 185 countries. CA Cancer J. Clin. 2018, 68, 394–424. [Google Scholar] [CrossRef] [PubMed][Green Version]
  2. Mansoori, B.; Mohammadi, A.; Davudian, S.; Shirjang, S.; Baradaran, B. The different mechanisms of cancer drug resistance: A brief review. Adv. Pharm. Bull. 2017, 7, 339–348. [Google Scholar] [CrossRef] [PubMed]
  3. Sosa Iglesias, V.; Giuranno, L.; Dubois, L.J.; Theys, J.; Vooijs, M. Drug resistance in non-small cell lung cancer: A potential for NOTCH targeting? Front. Oncol. 2018, 8, 1–23. [Google Scholar] [CrossRef] [PubMed][Green Version]
  4. Hong, J.M.; Park, C.S.; Nam-Goong, I.S.; Kim, Y.S.; Lee, J.C.; Han, M.W.; Choi, J.I.; Kim, Y.I.; Kim, E.S. Curcumin enhances docetaxel-induced apoptosis of 8505C anaplastic thyroid carcinoma cells. Endocrinol. Metab. 2014, 29, 54–61. [Google Scholar] [CrossRef][Green Version]
  5. Banerjee, S.; Singh, S.K.; Chowdhury, I.; Lillard, J.W.; Singh, R. Combinatorial effect of curcumin with docetaxel modulates apoptotic and cell survival molecules in prostate cancer. Front. Biosci. (Elite Ed.) 2017, 9, 235–245. [Google Scholar]
  6. Yin, H.; Guo, R.; Xu, Y.; Zheng, Y.; Hou, Z.; Dai, X.; Zhang, Z.; Zheng, D.; Xu, H. Synergistic antitumor efficiency of docetaxel and curcumin against lung cancer. Acta Biochim. Biophys. Sin. (Shanghai) 2012, 44, 147–153. [Google Scholar] [CrossRef][Green Version]
  7. Varshosaz, J.; Taymouri, S.; Hassanzadeh, F.; Javanmard, S.H.; Rostami, M. Self-assembly micelles with lipid core of cholesterol for docetaxel delivery to B16F10 melanoma and HepG2 cells. J. Liposome Res. 2015, 25, 157–165. [Google Scholar] [CrossRef]
  8. Chidambaram, M.; Krishnasamy, K. Drug-drug/drug-excipient compatibility studies on curcumin using non-thermal methods. Adv. Pharm. Bull. 2014, 4, 309–312. [Google Scholar] [CrossRef]
  9. Mangal, S.; Gao, W.; Li, T.; Zhou, Q.T. Pulmonary delivery of nanoparticle chemotherapy for the treatment of lung cancers: Challenges and opportunities. Acta Pharmacol. Sin. 2017, 38, 782–797. [Google Scholar] [CrossRef]
  10. Borghardt, J.M.; Kloft, C.; Sharma, A. Inhaled therapy in respiratory disease: The complex interplay of pulmonary kinetic processes. Can. Respir J. 2018, 2018, 1–11. [Google Scholar] [CrossRef][Green Version]
  11. Arbain, N.H.; Salim, N.; Masoumi, H.R.F.; Wong, T.W.; Basri, M.; Abdul Rahman, M.B. In vitro evaluation of the inhalable quercetin loaded nanoemulsion for pulmonary delivery. Drug Deliv. Transl. Res. 2019, 9, 497–507. [Google Scholar] [CrossRef] [PubMed]
  12. Agrawal, N.; Maddikeri, G.L.; Pandit, A.B. Sustained release formulations of citronella oil nanoemulsion using cavitational techniques. Ultrason. Sonochem. 2017, 36, 367–374. [Google Scholar] [CrossRef] [PubMed]
  13. Samson, S.; Basri, M.; Fard Masoumi, H.R.; Abedi Karjiban, R.; Abdul Malek, E. Design and development of a nanoemulsion system containing copper peptide by D-optimal mixture design and evaluation of its physicochemical properties. RSC Adv. 2016, 6, 17845–17856. [Google Scholar] [CrossRef]
  14. Wahgiman, N.A.; Salim, N.; Rahman, M.B.A.; Ashari, S.E. Optimization of nanoemulsion containing gemcitabine and evaluation of its cytotoxicity towards human fetal lung fibroblast (MRC5) and human lung carcinoma (A549) cells. Int. J. Nanomed. 2019, 14, 7323–7338. [Google Scholar] [CrossRef] [PubMed][Green Version]
  15. Asmawi, A.A.; Salim, N.; Ngan, C.L.; Ahmad, H.; Abdulmalek, E.; Masarudin, M.J.; Abdul Rahman, M.B. Excipient selection and aerodynamic characterization of nebulized lipid-based nanoemulsion loaded with docetaxel for lung cancer treatment. Drug Deliv. Transl. Res. 2019, 543–554. [Google Scholar] [CrossRef] [PubMed]
  16. Kunnan Singh, J.; Ching, Y.; Abdullah, L.; Ching, K.; Razali, S.; Gan, S. Optimization of mechanical properties for polyoxymethylene/glass fiber/polytetrafluoroethylene composites using Response Surface Methodology. Polymers 2018, 10, 338. [Google Scholar] [CrossRef][Green Version]
  17. Mortazavian, S.; Saber, A.; James, D.E. Optimization of photocatalytic degradation of acid blue 113 and acid red 88 textile dyes in a UV-C/TiO2 suspension system: Application of Response Surface Methodology (RSM). Catalysts 2019, 9, 360. [Google Scholar] [CrossRef][Green Version]
  18. Zainol, S.; Basri, M.; Basri, H.; Shamsuddin, A.F.; Abdul-Gani, S.S.; Karjiban, R.A.; Abdul-Malek, E. Formulation optimization of a palm-based nanoemulsion system containing Levodopa. Int. J. Mol. Sci. 2012, 13, 13049–13064. [Google Scholar] [CrossRef]
  19. Dias, D.d.O.; Colombo, M.; Kelmann, R.G.; Kaiser, S.; Lucca, L.G.; Teixeira, H.F.; Limberger, R.P.; Veiga, V.F.; Koester, L.S. Optimization of Copaiba oil-based nanoemulsions obtained by different preparation methods. Ind. Crop. Prod. 2014, 59, 154–162. [Google Scholar] [CrossRef]
  20. Ngan, C.L.; Basri, M.; Lye, F.F.; Fard Masoumi, H.R.; Tripathy, M.; Abedi Karjiban, R.; Abdul-Malek, E. Comparison of Box-Behnken and central composite designs in optimization of fullerene loaded palm-based nano-emulsions for cosmeceutical application. Ind. Crop. Prod. 2014, 59, 309–317. [Google Scholar] [CrossRef]
  21. Qian, C.; McClements, D.J. Formation of nanoemulsions stabilized by model food-grade emulsifiers using high-pressure homogenization: Factors affecting particle size. Food Hydrocoll. 2011, 25, 1000–1008. [Google Scholar] [CrossRef]
  22. Chong, W.-T.; Tan, C.-P.; Cheah, Y.-K.; Lajis, A.F.B.; Habi Mat Dian, N.L.; Kanagaratnam, S.; Lai, O.-M. Optimization of process parameters in preparation of tocotrienol-rich red palm oil-based nanoemulsion stabilized by Tween80-Span 80 using response surface methodology. PLoS ONE 2018, 13, e0202771. [Google Scholar] [CrossRef][Green Version]
  23. Komaiko, J.S.; McClements, D.J. formation of food-grade nanoemulsions using low-energy preparation methods: A review of available methods. Compr. Rev. Food Sci. Food Saf. 2016, 15, 331–352. [Google Scholar] [CrossRef]
  24. Darquenne, C. Aerosol deposition in health and disease. J. Aerosol Med. Pulm. Drug Deliv. 2012, 25, 140–147. [Google Scholar] [CrossRef] [PubMed][Green Version]
  25. Su, R.; Yang, L.; Wang, Y.; Yu, S.; Guo, Y.; Deng, J.; Zhao, Q.; Jin, X. Formulation, development, and optimization of a novel octyldodecanol-based nanoemulsion for transdermal delivery of ceramide IIIB. Int. J. Nanomed. 2017, 12, 5203–5221. [Google Scholar] [CrossRef] [PubMed][Green Version]
  26. Nasr, M.; Nawaz, S.; Elhissi, A. Amphotericin B lipid nanoemulsion aerosols for targeting peripheral respiratory airways via nebulization. Int. J. Pharm. 2012, 436, 611–616. [Google Scholar] [CrossRef]
  27. Amani, A.; York, P.; Chrystyn, H.; Clark, B.J. Evaluation of a nanoemulsion-based formulation for respiratory delivery of budesonide by nebulizers. AAPS Pharmscitech 2010, 11, 1147–1151. [Google Scholar] [CrossRef][Green Version]
  28. Shah, K.; Chan, L.W.; Wong, T.W. Critical physicochemical and biological attributes of nanoemulsions for pulmonary delivery of rifampicin by nebulization technique in tuberculosis treatment. Drug Deliv. 2017, 24, 1631–1647. [Google Scholar] [CrossRef][Green Version]
  29. Mensah, R.A.; Kirton, S.B.; Cook, M.T.; Styliari, I.D.; Hutter, V.; Chau, D.Y.S. Optimising poly (lactic-co-glycolic acid) microparticle fabrication using a Taguchi orthogonal array design-of-experiment approach. PLoS ONE 2019, 14, e0222858. [Google Scholar] [CrossRef]
  30. Justo, O.R.; Simioni, P.U.; Gabriel, D.L.; Tamashiro, W.M.; Rosa Pde, T.; Moraes, A.M. Evaluation of in vitro anti-inflammatory effects of crude ginger and rosemary extracts obtained through supercritical CO2 extraction on macrophage and tumor cell line: The influence of vehicle type. BMC Complement. Altern. Med. 2015, 15, 390. [Google Scholar] [CrossRef][Green Version]
  31. Moreira, J.B.; Goularte, P.G.; de Morais, M.G.; Costa, J.A.V. Preparation of beta-carotene nanoemulsion and evaluation of stability at a long storage period. Food Sci. Technol. 2019, 39, 599–604. [Google Scholar] [CrossRef][Green Version]
  32. Mouzouvi, C.R.A.; Umerska, A.; Bigot, A.K.; Saulnier, P. Surface active properties of lipid nanocapsules. PLoS ONE 2017, 12, e0179211. [Google Scholar] [CrossRef] [PubMed][Green Version]
  33. Sahafi, S.M.; Goli, S.A.H.; Kadivar, M.; Varshosaz, J. Preparation and characterization of bioactive oils nanoemulsions: Effect of oil unsaturation degree, emulsifier type and concentration. J. Dispers. Sci. Technol. 2018, 39, 676–686. [Google Scholar] [CrossRef]
  34. Gorguner, M.; Akgun, M. Acute inhalation injury. Eurasion J. Med. 2010, 42, 28–35. [Google Scholar] [CrossRef] [PubMed]
  35. Arbain, N.H.; Basri, M.; Salim, N.; Wui, W.T.; Abdul Rahman, M.B. Development and characterization of aerosol nanoemulsion system encapsulating low water soluble Quercetin for lung cancer treatment. Mater. Today Proc. 2018, 5, S137–S142. [Google Scholar] [CrossRef]
  36. Council of Europe. European Directorate for the Quality of Medicines and Healthcare, 8th ed.; Council of Europe: Strasbourg, France, 2014; pp. 363–365. [Google Scholar]
  37. Hahr, J.Y. Physiology of aging. Med. Hypotheses 2019, 123, 83–85. [Google Scholar] [CrossRef]
  38. Saleem, I.Y.; Smyth, H.D.C. Tuning aerosol particle size distribution of metered dose inhalers using co-solvents and surfactants. Biomed. Res. Int. 2013, 2013, 1–8. [Google Scholar] [CrossRef]
  39. Ahmad, N.; Ahmad, R.; Al-Qudaihi, A.; Alaseel, S.E.; Fita, I.Z.; Khalid, M.S.; Pottoo, F.H. Preparation of a novel curcumin nanoemulsion by ultrasonication and its comparative effects in wound healing and the treatment of inflammation. RSC Adv. 2019, 9, 20192–20206. [Google Scholar] [CrossRef][Green Version]
  40. Sajjad, M.; Khan, M.I.; Naveed, S.; Ijaz, S.; Qureshi, O.S.; Raza, S.A.; Sohail, M.F. Folate-functionalized thiomeric nanoparticles for enhanced docetaxel cytotoxicity and improved oral bioavailability. AAPS Pharmscitech. 2019, 20, 81. [Google Scholar] [CrossRef]
  41. Ferrati, S.; Nicolov, E.; Bansal, S.; Hosali, S.; Landis, M.; Grattoni, A. Docetaxel/2-hydroxypropyl β -cyclodextrin inclusion complex increases docetaxel solubility and release from a nanochannel drug delivery system. Curr. Drug Targets 2015, 16, 1645–1649. [Google Scholar] [CrossRef]
  42. Cui, T.; Sihao, Z.; Sun, H. Co-delivery of doxorubicin and pH-sensitive curcumin prodrug by transferrin-targeted nanoparticles for breast cancer treatment. Oncol. Rep. 2017, 37, 1253–1260. [Google Scholar] [CrossRef] [PubMed]
  43. Zhang, L.; Tan, L.; Chen, L.; Chen, X.; Long, C.; Peng, J.; Qian, Z. A simple method to improve the stability of docetaxel micelles. Sci. Rep. 2016, 6, 36957. [Google Scholar] [CrossRef] [PubMed]
  44. Maheshwari, R.; Kuche, K.; Mane, A.; Chourasiya, Y.; Tekade, M.; Tekade, R.K. Manipulation of physiological processes for pharmaceutical product development. In Advances in Pharmaceutical Product Development and Research; Tekade, R.K., Ed.; Academic Press: Cambridge, MA, USA, 2018; Volume 1, pp. 701–729. [Google Scholar]
  45. Allegaert, K.; Van Den Anker, J.N. Physicochemical and structural properties regulating placental drug transfer. In Fetal and Neonatal Physiology, 5th ed.; Polin, R.A., Rowitch, D.H., Fox, W.W., Abman, S.H., Benitz, W.E., Eds.; Elsevier: Amsterdam, The Netherlands, 2017; Volume 1, pp. 208–221. [Google Scholar]
  46. Keng, P.S.; Basri, M.; Zakaria, M.R.S.; Rahman, M.B.A.; Ariff, A.B.; Rahman, R.N.Z.A.; Salleh, A.B. Newly synthesized palm esters for cosmetics industry. Ind. Crop. Prod. 2009, 29, 37–44. [Google Scholar] [CrossRef]
  47. Arbain, N.H.; Salim, N.; Wui, W.T.; Basri, M.; Rahman, M.B.A. Optimization of quercetin loaded palm oil ester based nanoemulsion formulation for pulmonary delivery. J. Oleo Sci. 2018, 67, 933–940. [Google Scholar] [CrossRef] [PubMed][Green Version]
  48. Che Sulaiman, I.S.; Basri, M.; Fard Masoumi, H.R.; Ashari, S.E.; Ismail, M. Design and development of a nanoemulsion system containing extract of Clinacanthus nutans (L.) leaves for transdermal delivery system by D-optimal mixture design and evaluation of its physicochemical properties. RSC Adv. 2016, 6, 67378–67388. [Google Scholar] [CrossRef]
  49. Nesamony, J.; Kalra, A.; Majrad, M.S.; Boddu, S.H.S.; Jung, R.; Williams, F.E.; Schnapp, A.M.; Nauli, S.M.; Kalinoski, A.L. Development and characterization of nanostructured mists with potential for actively targeting poorly water-soluble compounds into the lungs. Pharm. Res. 2013, 30, 2625–2639. [Google Scholar] [CrossRef] [PubMed]
  50. Chen, G.; Das, S. Electrostatics of soft charged interfaces with pH-dependent charge density: Effect of consideration of appropriate hydrogen ion concentration distribution. Rsc Adv. 2015, 5, 4493–4501. [Google Scholar] [CrossRef]

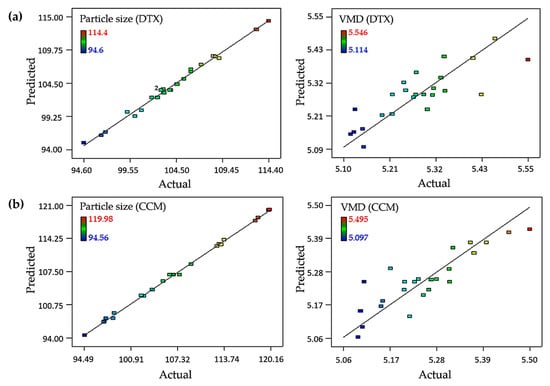

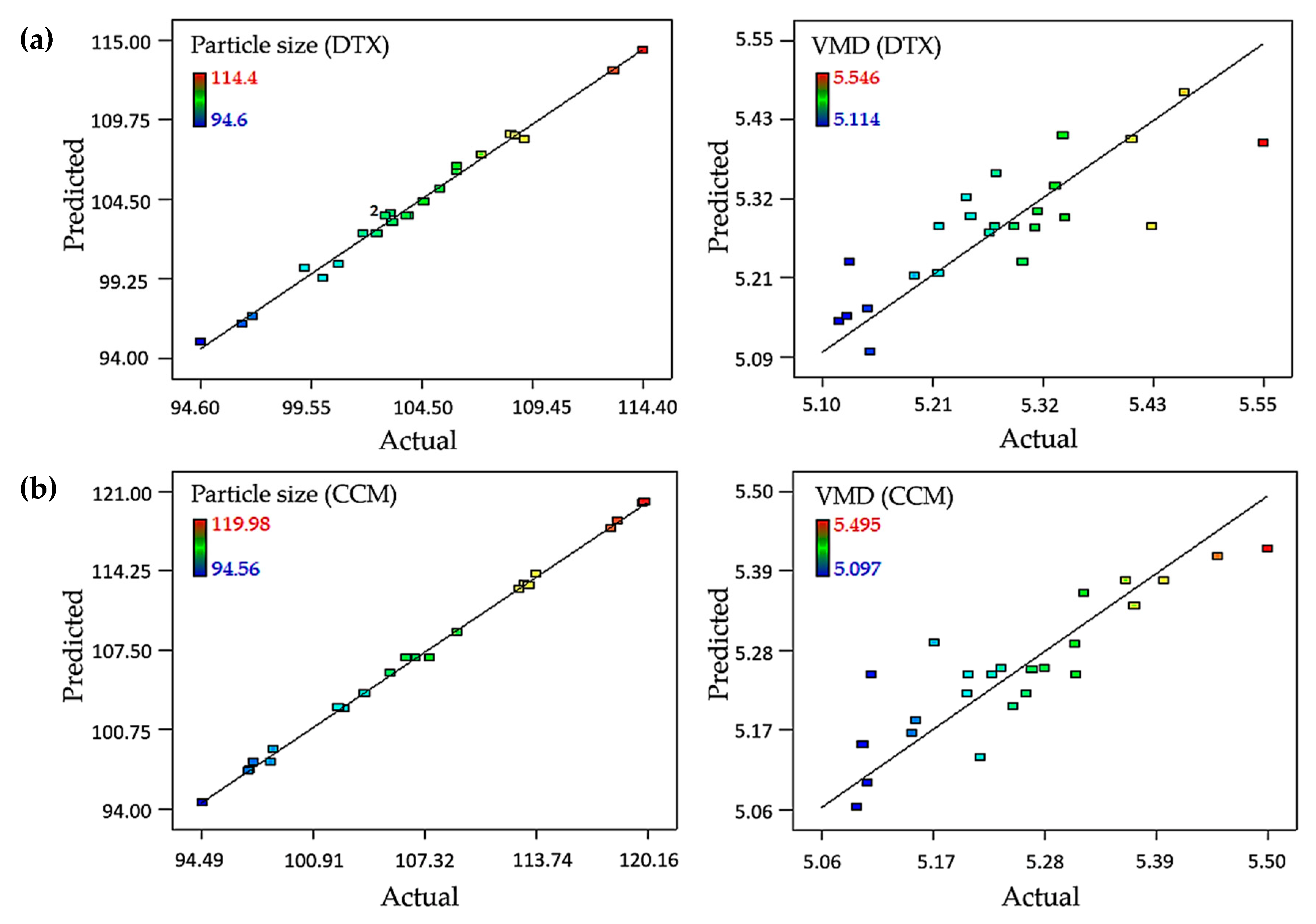

Figure 1. Scatter plot of predicted versus actual for (a) DTX-loaded nanoemulsion and (b) CCM-loaded nanoemulsion towards particle size and aerosol size (VMD).
Figure 1. Scatter plot of predicted versus actual for (a) DTX-loaded nanoemulsion and (b) CCM-loaded nanoemulsion towards particle size and aerosol size (VMD).
Ijms 21 04357 g001

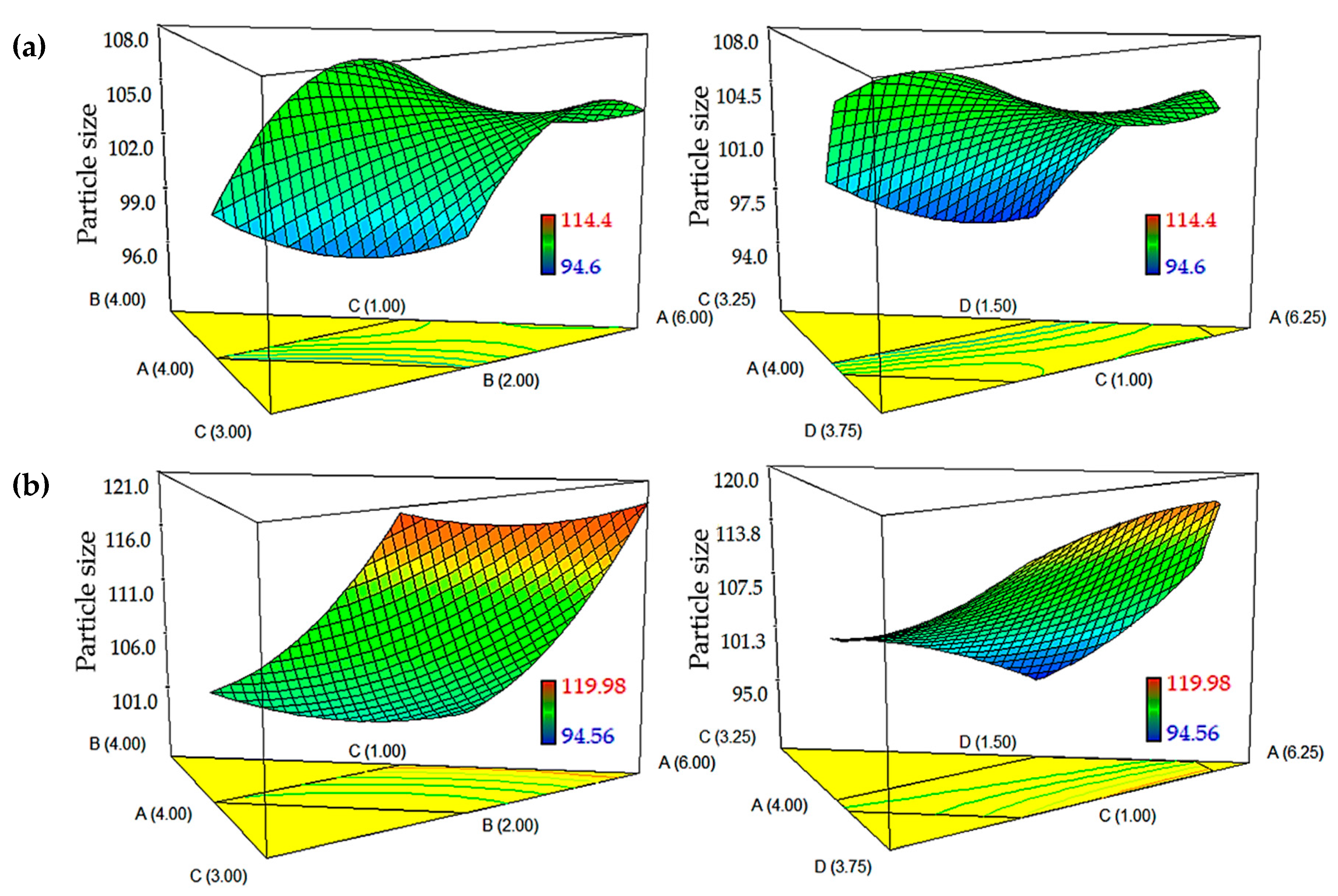

Figure 2. Graphical plots of (a) DTX-loaded nanoemulsion and (b) CCM-loaded nanoemulsion compositions toward particle size. The models show the interaction between independent variables including A: PKOE and Safflower seed oil mixture (1:1; w/w), B: lecithin, C: surfactant mixture of Tween 85 and Span 85 (9:1; w/w), and D: glycerol, while water was kept constant.
Figure 2. Graphical plots of (a) DTX-loaded nanoemulsion and (b) CCM-loaded nanoemulsion compositions toward particle size. The models show the interaction between independent variables including A: PKOE and Safflower seed oil mixture (1:1; w/w), B: lecithin, C: surfactant mixture of Tween 85 and Span 85 (9:1; w/w), and D: glycerol, while water was kept constant.
Ijms 21 04357 g002

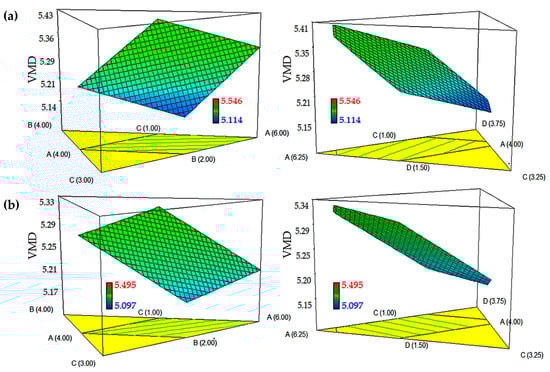

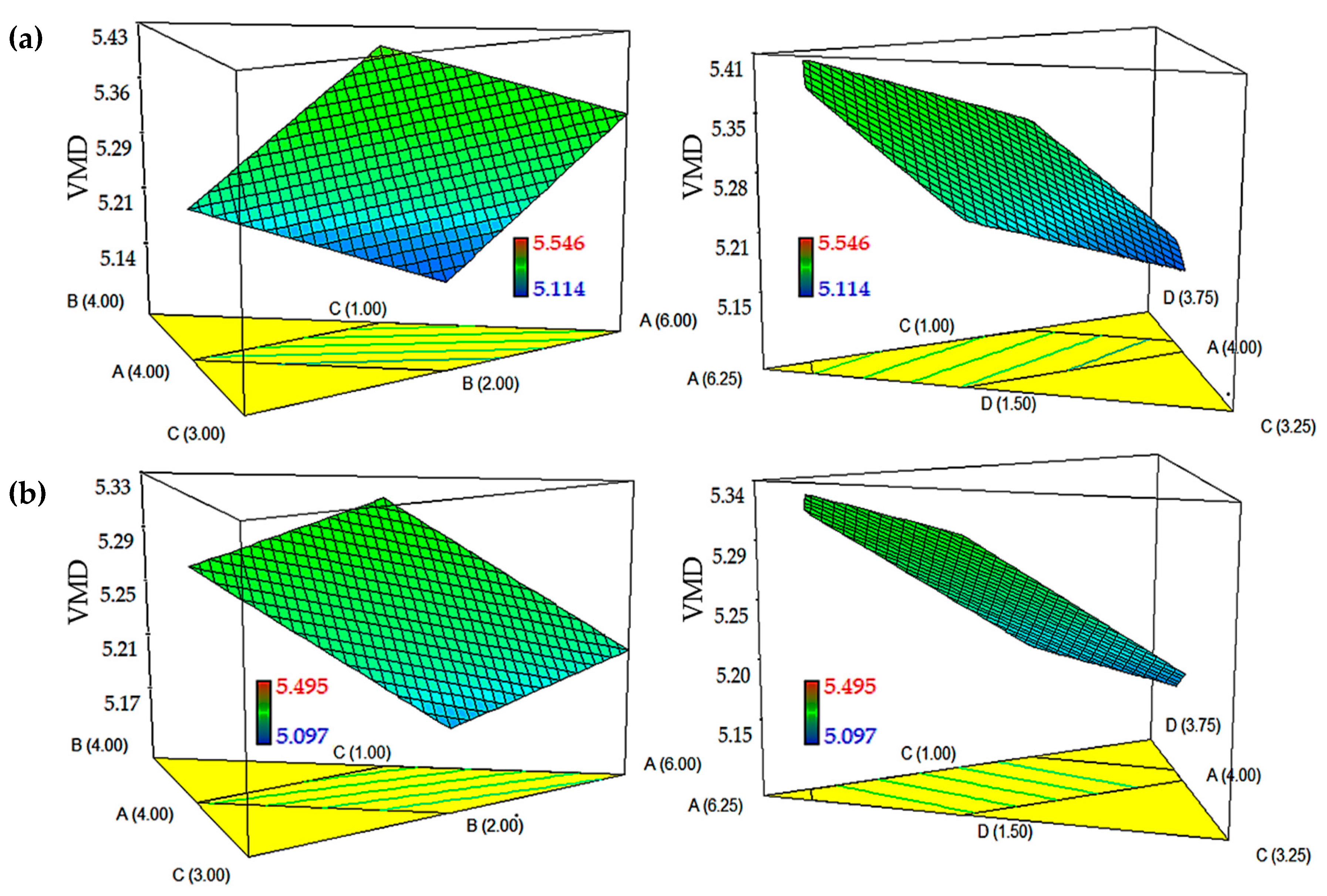

Figure 3. Graphical plots of (a) DTX-loaded nanoemulsion and (b) CCM-loaded nanoemulsion compositions toward VMD. The models show the interaction between independent variables including A: PKOE and Safflower seed oil mixture (1:1; w/w), B: lecithin, C: surfactant mixture of Tween 85 and Span 85 (9:1; w/w), and D: glycerol, while water was kept constant.
Figure 3. Graphical plots of (a) DTX-loaded nanoemulsion and (b) CCM-loaded nanoemulsion compositions toward VMD. The models show the interaction between independent variables including A: PKOE and Safflower seed oil mixture (1:1; w/w), B: lecithin, C: surfactant mixture of Tween 85 and Span 85 (9:1; w/w), and D: glycerol, while water was kept constant.
Ijms 21 04357 g003
Figure 4. TEM images of (a) optimized DTX-loaded nanoemulsion (DNEOpt) and (b) optimized CCM-loaded nanoemulsion (CNEOpt) stained with uranyl acetate at 28 ± 1 °C. Images were observed under 50,000× magnification with scale bar = 50 nm.
Figure 4. TEM images of (a) optimized DTX-loaded nanoemulsion (DNEOpt) and (b) optimized CCM-loaded nanoemulsion (CNEOpt) stained with uranyl acetate at 28 ± 1 °C. Images were observed under 50,000× magnification with scale bar = 50 nm.
Ijms 21 04357 g004

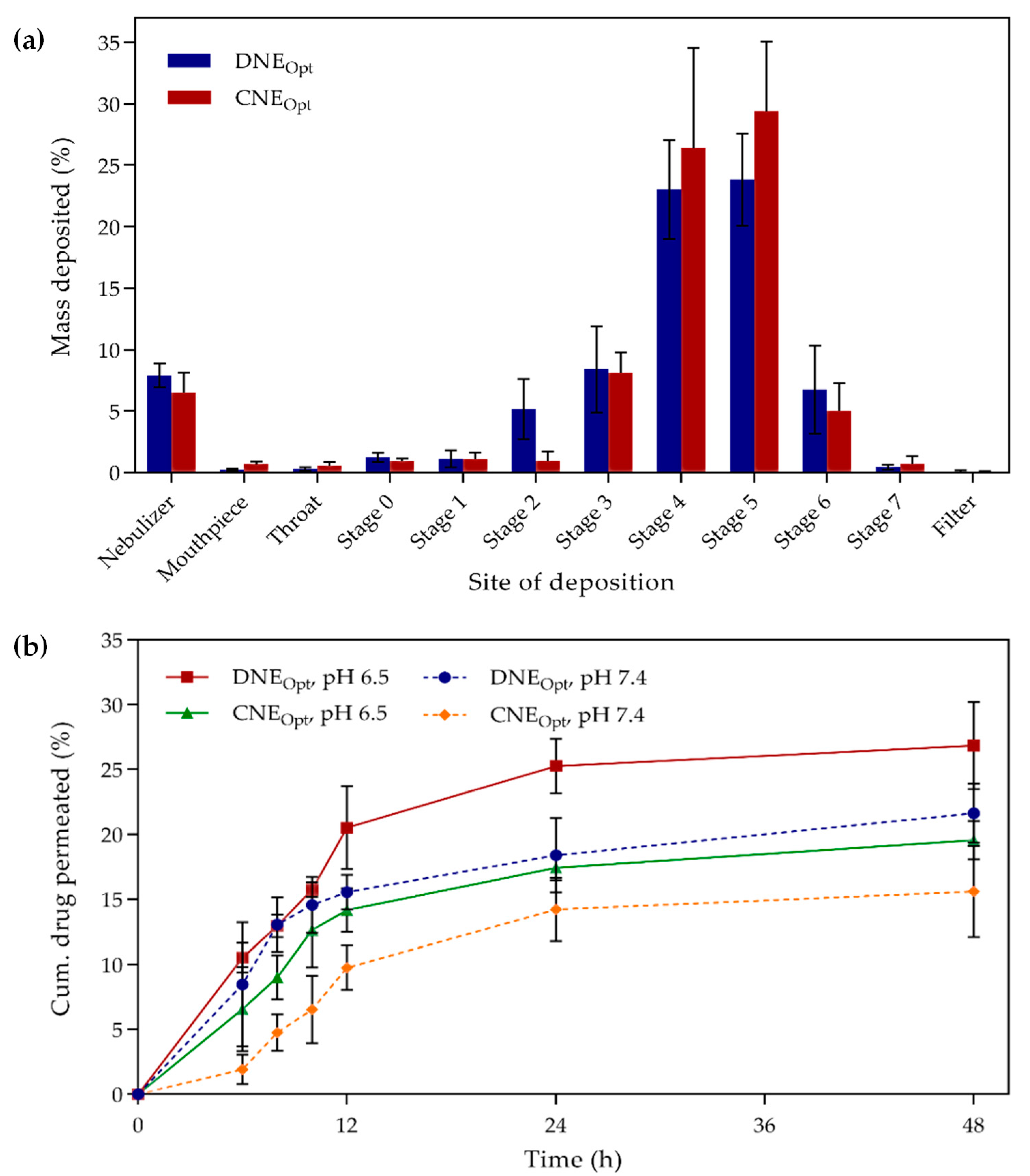

Figure 5. In vitro studies of (a) drug deposition using eight-stage Anderson cascade impactor and (b) drug release using the dialysis membrane diffusion method in simulated lung fluid (SLF) solution of pH 6.5 and 7.4 at a constant temperature of 37 ± 1 °C. Error bars denote standard deviation (n = 3).
Figure 5. In vitro studies of (a) drug deposition using eight-stage Anderson cascade impactor and (b) drug release using the dialysis membrane diffusion method in simulated lung fluid (SLF) solution of pH 6.5 and 7.4 at a constant temperature of 37 ± 1 °C. Error bars denote standard deviation (n = 3).
Ijms 21 04357 g005
Table 1. Candidate points of D-optimal mixture experimental design together with the obtained particle size and aerosol size (VMD) of the docetaxel (DTX)- and curcumin (CCM)-loaded nanoemulsions.
Table 1. Candidate points of D-optimal mixture experimental design together with the obtained particle size and aerosol size (VMD) of the docetaxel (DTX)- and curcumin (CCM)-loaded nanoemulsions.
RunComponents (wt%)Particle Size (nm)VMD (µm)
A: amount of PKOE: Safflower seed oils (1:1); B: amount of lecithin; C: amount of Tween 85:Span 85 (9:1); D: amount of glycerol; E: amount of water.
Table 2. Analysis of variance of the fitted quadratic model for particle size and the linear model for aerosol size (VMD) of the DTX- and CCM-loaded nanoemulsion.
Table 2. Analysis of variance of the fitted quadratic model for particle size and the linear model for aerosol size (VMD) of the DTX- and CCM-loaded nanoemulsion.
Particle SizeDTXCCM
Mean SquareF-Valuep-ValueMean SquareF-Valuep-Value
Lack of fit0.602.280.22190.120.280.9043
Pure error0.27--0.42--
Lack of fit<0.010.340.9431<0.010.560.8135
Pure error<0.01--<0.01--
Table 3. Actual and predicted response values for randomized and optimized formulations.
Table 3. Actual and predicted response values for randomized and optimized formulations.
FormulationComponents (wt%)Particle Size (nm)RSE (%)VMD (μm)RSE (%)
DTX-Loaded Nanoemulsion
CCM-Loaded Nanoemulsion
RSE: residual standard error; Act: actual; Pre: predicted.
Table 4. Physicochemical characteristics of the optimized formulations.
Table 4. Physicochemical characteristics of the optimized formulations.
Particle size (nm)95.80 ± 1.1396.94 ± 0.88
Polydispersity index0.25 ± 0.020.22 ± 0.02
ζ-potential (mV)−36.23 ± 1.25−33.40 ± 2.11
pH7.12 ± 0.017.14 ± 0.02
Viscosity (cP)2.22 ± 0.092.05 ± 0.10
Osmolality (mOsm/kg)297.00 ± 1.00283.00 ± 1.00
DNEOpt—optimized DTX-loaded nanoemulsion; CNEOpt—optimized CCM-loaded nanoemulsion.
Table 5. Aerosolization and inhalation performances of optimized formulations.
Table 5. Aerosolization and inhalation performances of optimized formulations.
Spraytech Laser Diffraction Method
DV10 (μm)2.50 ± 0.052.38 ± 0.08
DV50 (μm)5.48 ± 0.145.40 ± 0.16
DV90 (μm)11.48 ± 0.8311.53 ± 0.92
Span1.64 ± 0.121.69 ± 0.14
Anderson Cascade Impaction Method
PD (%)70.82 ± 10.6673.89 ± 4.03
PI (%)70.13 ± 10.6172.67 ± 3.89
MMAD (μm)3.19 ± 0.153.08 ± 0.15
GSD1.71 ± 0.081.67 ± 0.15
FPF (%)76.85 ± 6.0183.30 ± 2.81
PD: percent dispersed; PI: percent inhaled; MMAD: median mass aerodynamic diameter; GSD: geometric standard deviation; FPF: fine particle fraction.
Table 6. Limits of the formulation of independent variables.
Table 6. Limits of the formulation of independent variables.
Independent Variable, XjLower Limit, LjUpper Limit, Uj
PKOE and Safflower oils (1:1), A4.06.0
Lecithin, B2.03.0
Tween 85 and Span 85 (9:1), C1.02.0
Glycerol, D1.53.0
Water, E86.091.5
A: PKOE: Safflower seed oils (1:1); B: lecithin; C: Tween 85:Span 85 (9:1); D: glycerol; E: water.

Share and Cite

MDPI and ACS Style

Asmawi, A.A.; Salim, N.; Abdulmalek, E.; Abdul Rahman, M.B. Modeling the Effect of Composition on Formation of Aerosolized Nanoemulsion System Encapsulating Docetaxel and Curcumin Using D-Optimal Mixture Experimental Design. Int. J. Mol. Sci. 2020, 21, 4357.

AMA Style

Asmawi AA, Salim N, Abdulmalek E, Abdul Rahman MB. Modeling the Effect of Composition on Formation of Aerosolized Nanoemulsion System Encapsulating Docetaxel and Curcumin Using D-Optimal Mixture Experimental Design. International Journal of Molecular Sciences. 2020; 21(12):4357.

Chicago/Turabian Style

Asmawi, Azren Aida, Norazlinaliza Salim, Emilia Abdulmalek, and Mohd Basyaruddin Abdul Rahman. 2020. "Modeling the Effect of Composition on Formation of Aerosolized Nanoemulsion System Encapsulating Docetaxel and Curcumin Using D-Optimal Mixture Experimental Design" International Journal of Molecular Sciences 21, no. 12: 4357.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
