Structural Mechanisms of Store-Operated and Mitochondrial Calcium Regulation: Initiation Points for Drug Discovery

Abstract

Calcium (Ca²⁺) is a universal signaling ion that is essential for the life and death processes of all eukaryotes. In humans, numerous cell stimulation pathways lead to the mobilization of sarco/endoplasmic reticulum (S/ER) stored Ca²⁺, resulting in the propagation of Ca²⁺ signals through the activation of processes, such as store-operated Ca²⁺ entry (SOCE). SOCE provides a sustained Ca²⁺ entry into the cytosol; moreover, the uptake of SOCE-mediated Ca²⁺ by mitochondria can shape cytosolic Ca²⁺ signals, function as a feedback signal for the SOCE molecular machinery, and drive numerous mitochondrial processes, including adenosine triphosphate (ATP) production and distinct cell death pathways. In recent years, tremendous progress has been made in identifying the proteins mediating these signaling pathways and elucidating molecular structures, invaluable for understanding the underlying mechanisms of function. Nevertheless, there remains a disconnect between using this accumulating protein structural knowledge and the design of new research tools and therapies. In this review, we provide an overview of the Ca²⁺ signaling pathways that are involved in mediating S/ER stored Ca²⁺ release, SOCE, and mitochondrial Ca²⁺ uptake, as well as pinpoint multiple levels of crosstalk between these pathways. Further, we highlight the significant protein structures elucidated in recent years controlling these Ca²⁺ signaling pathways. Finally, we describe a simple strategy that aimed at applying the protein structural data to initiating drug design.

1. Cytosolic and Stored Calcium

Regulating cytosolic calcium ion (Ca²⁺) levels is fundamental for cellular life. Under resting conditions, intracellular Ca²⁺ concentrations are maintained at ~100 nM by effectively segregating Ca²⁺ into the extracellular fluid and within intracellular stores, such as the mitochondria and sarco/endoplasmic reticulum (S/ER). Under basal conditions, Ca²⁺ levels within the cytosol and mitochondria are similar; conversely, in times of cellular stress or injury, mitochondria can uptake Ca²⁺ [1,2,3,4] in order to prevent cytosolic Ca²⁺ overload [5,6,7]. Persistently high levels of mitochondrial Ca²⁺ would lead to a cycle of higher respiratory chain activity and the generation of reactive oxygen species (ROS), resulting in oxidative stress, apoptosis, and/or necrosis [8,9]. Ca²⁺ is a cofactor that is required for mitochondrial dehydrogenase function, which are enzymes integral to the electron transport chain [10,11]. The primary mode of mitochondrial Ca²⁺ uptake is via the low affinity, high capacity mitochondrial Ca²⁺ uniporter (MCU) complex [1,12,13]. However, recent evidence suggests that the bi-directional leucine-zipper EF-hand containing transmembrane protein-1 (LETM1) Ca²⁺/proton (H⁺) antiporter is involved in fine-tuning these levels [14,15]. Thus, the MCU complex and LETM1 are emerging as two critical regulators of mitochondrial Ca²⁺ uptake, dictating both mitochondrial and cellular function.

The S/ER is the largest intracellular Ca²⁺ store, maintaining free Ca²⁺ in the ~400–700 µM range (depending on cell-type) [16,17,18,19,20,21], which can be released into the cytosol in order to mediate and/or trigger a multitude of downstream cellular processes [22]. In excitable and non-excitable cells, ER-membrane bound ryanodine receptors (RyRs) and inositol 1,4,5-trisphosphate receptors (IP₃Rs), respectively, serve as the predominant channels that release Ca²⁺ into the cytosol from the S/ER stores [23,24,25]. A subsequent entry of extracellular Ca²⁺ is critical for the activation of Ca²⁺-dependent signaling cascades that require more chronic elevations in cytosolic Ca²⁺ because S/ER Ca²⁺ stores are limited in capacity. Store-operated Ca²⁺ entry (SOCE) is the process whereby S/ER Ca²⁺ store depletion leads to the activation of plasma membrane (PM) Ca²⁺ channels for a sustained Ca²⁺ entry into the cytosol from the extracellular space [26,27,28,29]. The principal molecular machinery mediating SOCE include the Ca²⁺-sensing S/ER-membrane inserted stromal interaction molecules (STIMs) [30,31] and the pore-forming Orai1 channels on the PM [32,33,34,35,36]. The elevated cytosolic Ca²⁺ levels that are driven by SOCE not only signal downstream physiological and pathophysiological cellular responses, but also replenish the depleted intracellular Ca²⁺ stores.

1.1. Mobilization of S/ER Calcium Stores

Across human cell types, several mechanisms of extracellular signaling exist, which ultimately culminate in the stimulation or sensitization of IP₃Rs and/or RyRs, leading to the depletion of the S/ER Ca²⁺ stores [23,24,37]. Such extracellular signaling pathways can involve G-protein-coupled receptors (GPCRs), receptor tyrosine kinases (RTKs), T- and B-cell receptors (TCRs, BCRs), or voltage-gated ion channels (VGICs), presenting a variety of mechanisms for S/ER Ca²⁺ store release (

Table 1. Various signaling mechanisms leading to sarco/endoplasmic reticulum (S/ER) Ca²⁺ store release.

Surface Receptor or Channel	Extracellular Signal	Immediate Effect of Receptor Activation	Downstream S/ER Ca2+ Release Channel	References
GPCR (e.g., PAR1)	Protein and small molecule ligands (e.g., thrombin)	PLCβ activation	IP3R	[38,39,40,41,42]
a Polymodal GPCR (e.g., M3R and PTHR1)	Protein and small molecule ligands (e.g., carbachol/PTH)	PLCβ and adenylyl cyclase activation	IP3R	[43,44,45]
RTK (e.g., IGF-1R)	Protein ligands (e.g., IGF-1)	PLCγ activation	IP3R	[46,47,48]
b BCR	IgM-binding antigens	PLCγ activation	IP3R	[49,50,51,52]
b TCR	Antigen presenting cell (MHC)	PLCγ activation	IP3R	[16,17,53,54]
Fc	Antigen-antibody complex	PLCγ activation	IP3R	[16,17,55,56]
VGIC (e.g., L-type Ca2+ channel)	Membrane depolarization	Ca2+ influx from the extracellular space	RyR	[57,58,59,60,61]

^a Simultaneous distinct GPCR stimuli can lead to the production of IP₃ (via PLC) and cAMP (via adenylyl cyclase). cAMP sensitizes a subset of high affinity IP₃Rs in a discrete S/ER Ca²⁺ store to IP₃, which would otherwise remain inactive in the absence of cAMP. ^b TCR and BCR activation can also lead to the generation cyclic adenosine diphosphate ribose (cADPr), resulting in S/ER Ca²⁺ release via RyR activation [16,17,62,63,64]. PTH, parathyroid hormone; PTHR1, PTH receptor type-1; cAMP, 3′,5′-cyclic adenosine monophosphate; M3R, muscarinic type-3 acetylcholine receptor.

), which activate Ca²⁺-dependent transcription factors, structural proteins, and enzymes that are critical for cellular function.

GPCRs constitute a major family of PM receptors that, when activated by the appropriate extracellular ligand, can serve to mediate the release of Ca²⁺ from the S/ER into the cytosol via IP₃Rs [37,42]. Upon extracellular ligand binding-induced activation, GPCRs activate intracellular phospholipases, such as Cβ or Cγ, which cleave phosphatidylinositol 4,5-bisphosphate into diacylglycerol and inositol 1,4,5-trisphosphate (IP₃) [42]. IP₃ is a small diffusible second messenger that binds and activates IP₃Rs, causing S/ER Ca²⁺ store release into the cytosol [65]. This IP₃R-driven Ca²⁺ signaling mechanism is critical in platelets where thrombin binding to protease activated receptor (PAR)-1 or PAR4 mediates thrombosis [41], in vascular endothelial cells where bradykinin binding to the bradykinin receptors (BR)-1 or BR2 causes vasodilation [66], and in airway smooth muscle cells where histamine binding to the histamine H₁ receptor (H₁R) leads to bronchoconstriction [67], to name a few examples.

Nevertheless, it is not only GPCRs that can induce S/ER Ca²⁺ release through IP₃R activation. RTKs, such as insulin growth factor-1 receptor in skeletal myoblasts activate phospholipase C and IP₃ production upon binding insulin-like growth factor-1, leading to ER Ca²⁺ release necessary for differentiation in myogenesis [68,69]. In similar mechanisms, when the membrane immunoglobulin (Ig) component of a BCR, such as IgM-BCR, interacts with an antigen or when T-cells bind self-antigen presented by thymic epithelial cells via TCRs, phosphorylation cascades result in phospholipase C and IP₃R activation, enabling humoral immunity signaling and apoptosis/elimination of self-reactive T-cells, respectively [51,70]. Likewise, this TCR signaling pathway is vital to mediating immune responses after interacting with foreign antigens [16,17]. Immunologically, antigen-antibody complexes can also bind to different types of Fc receptors on mast cells, macrophages, dendritic cells or natural killer cells, inducing phospholipase C-mediated IP₃ generation and S/ER Ca²⁺ release [16,17,55,56].

RyRs are much larger structural homologues of IP₃Rs and similarly function to release S/ER Ca²⁺ [24]. For example, in cardiomyocytes, VGICs on the PM (i.e., L-type Ca²⁺ channels) open in response to membrane depolarization, resulting in the entry of Ca²⁺ into the cytosol from the extracellular space [60,61]. This cytosol entered Ca²⁺ binds to S/ER RyRs, opening these channels, in contrast to IP₃Rs, which require IP₃. Remarkably, the RyR-mediated release of S/ER Ca²⁺ can propagate to adjacent channels and promote additional RyR activation in a process that is known as Ca²⁺-induced Ca²⁺ release [60,61].

1.2. Store-Operated Calcium Entry

SOCE is a ubiquitous Ca²⁺ signaling pathway that has evolved to use S/ER Ca²⁺ depletion as an activation signal, facilitating further and more sustained extracellular Ca²⁺ influx in response to the release of intracellular S/ER Ca²⁺ [26,27,28,29]. Stromal interaction molecule-1 (STIM1) is a single pass, type 1 transmembrane protein of 685 amino acids and the S/ER luminal Ca²⁺ sensor and SOCE activator [30,31] (Figure 1A). The luminal amino (N)-terminal region of STIM1 contains an ER signal peptide, EF-hand domain, and a sterile-alpha motif (SAM) domain. Included in the cytosolic segment of STIM1 is a long stretch of coiled-coil domains, a Pro-Ser-rich region, and a polybasic tail [71]. The EF-hand, together with the SAM domain, sense S/ER Ca²⁺ changes (Figure 1B–E). At resting S/ER Ca²⁺ concentrations, EF-SAM is bound to Ca²⁺ and in a quiescent monomeric state [72,73]. Upon the dissociation of Ca²⁺ from EF-SAM, destabilization and dimerization of this luminal domain occurs, causing conformational changes that propagate through to the cytosolic region of the molecule [74,75,76]. These Ca²⁺-depletion-induced structural changes lead to STIM1 oligomerization and trapping at S/ER-PM junctions [77,78,79,80]. At these junctions, a region of the STIM1 coiled-coil domains directly interacts with and gates Orai1 protein-composed Ca²⁺ channels on the PM, permitting Ca²⁺ influx into the cytosol from the extracellular space [81,82,83,84] (Figure 2).

A process known as Ca²⁺-dependent inactivation (CDI) deactivates Orai1 channels to terminate SOCE [85,86]. Multiple sites on STIM1 and Orai1 have been suggested to provide a negative feedback signal to SOCE, both dependent and independent of calmodulin function [87,88,89,90]. STIMs, like many proteins that are involved in mediating signaling cascades, are often subject to post-translational modifications, which affect both structure and function [27,91,92,93,94,95,96,97,98,99,100,101,102,103]. S-Glutathionylation, for example, is the covalent attachment of a glutathione (GSH) moiety to free cysteine (Cys) thiols. GSH modification of STIM1 at Cys56 has been shown to evoke constitutive Orai1 channel activation and Ca²⁺ entry independent of luminal Ca²⁺ concentrations [104]. It is worth speculating that the thiols are vital regulatory sites evolved for receiving distinct inputs depending on specific environmental cues given the high conservation of the luminal STIM Cys residues among vertebrates (Figure 1A).

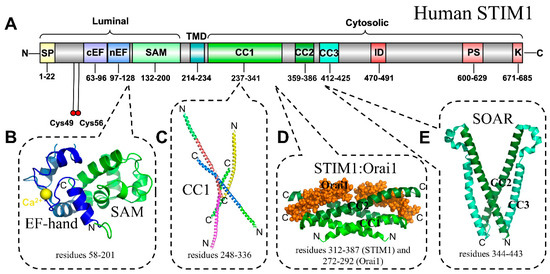

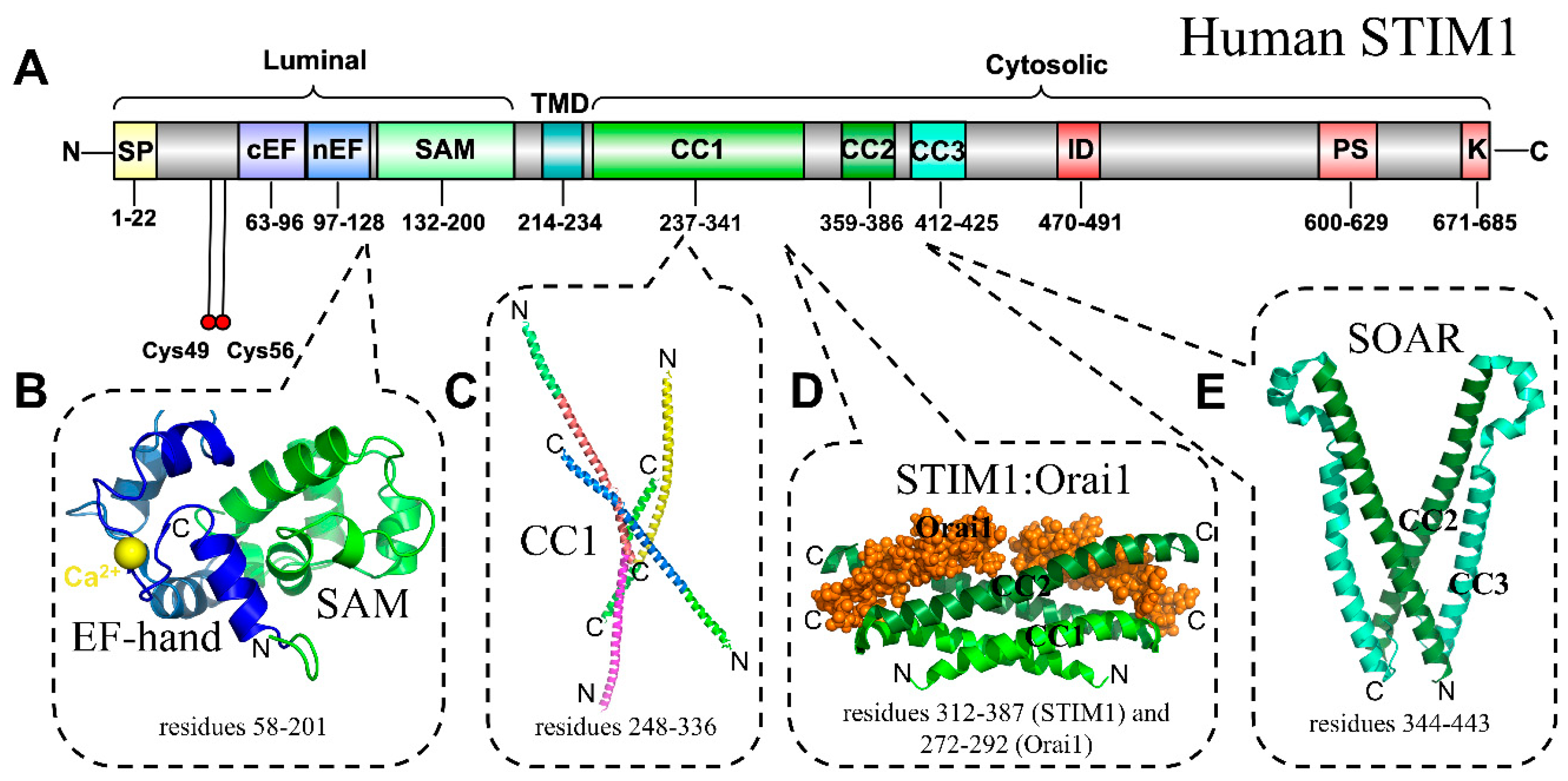

Figure 1. Structural elucidation of individual human STIM1 domains. (A) Domain architecture of human STIM1 [National Center for Biotechnology Information (NCBI) accession AFZ76986]. The highly conserved domains and regions with well-defined functional roles are indicated with residue ranges shown below the respective segment. The residue ranges for EF-SAM and the coiled-coils are from the solution structure and Coils analysis (using a 0.1 probability cutoff and 14, 21, and 28 residue combination) [105], respectively. All other residue range annotations are from Uniprot accession Q13586. The location of the luminal Cys residues that undergo post-translation modifications to modify Ca²⁺-sensing function are indicated (red spheres). The topological orientation relative to the S/ER is indicated above the diagram. (B) Solution NMR structure of Ca²⁺ loaded STIM1 EF-SAM. (C) Cluster of four CC1 monomers showing several different interfaces revealed by STIM1 CC1 crystallization. (D) Solution structure of the CC1-CC2 dimer in complex with two Orai1 C-terminal peptides (orange spheres). (E) Crystal structure of the dimerized STIM1-Orai activation region (SOAR). In B–E, colours are shaded, as depicted in (A), and overlapping coiled-coil region colours are preserved between structures. The pdb coordinate files for STIM1 EF-SAM, CC1, CC1-CC2:Orai1, and SOAR are from 2K60 [75], 4O9B [106], 2MAK [107], and 3TEQ [108], respectively. SP, signal peptide; cEF, canonical EF-hand; nEF, non-canonical EF-hand; SAM, sterile alpha motif; TMD, transmembrane domain; CC1 -2 -3, coiled-coil -1 -2 -3; ID, inhibitory domain; PS, pro/ser-rich region; K, Lys-rich (polybasic) region; N, amino terminus; C, carboxyl terminus.

Figure 1. Structural elucidation of individual human STIM1 domains. (A) Domain architecture of human STIM1 [National Center for Biotechnology Information (NCBI) accession AFZ76986]. The highly conserved domains and regions with well-defined functional roles are indicated with residue ranges shown below the respective segment. The residue ranges for EF-SAM and the coiled-coils are from the solution structure and Coils analysis (using a 0.1 probability cutoff and 14, 21, and 28 residue combination) [105], respectively. All other residue range annotations are from Uniprot accession Q13586. The location of the luminal Cys residues that undergo post-translation modifications to modify Ca²⁺-sensing function are indicated (red spheres). The topological orientation relative to the S/ER is indicated above the diagram. (B) Solution NMR structure of Ca²⁺ loaded STIM1 EF-SAM. (C) Cluster of four CC1 monomers showing several different interfaces revealed by STIM1 CC1 crystallization. (D) Solution structure of the CC1-CC2 dimer in complex with two Orai1 C-terminal peptides (orange spheres). (E) Crystal structure of the dimerized STIM1-Orai activation region (SOAR). In B–E, colours are shaded, as depicted in (A), and overlapping coiled-coil region colours are preserved between structures. The pdb coordinate files for STIM1 EF-SAM, CC1, CC1-CC2:Orai1, and SOAR are from 2K60 [75], 4O9B [106], 2MAK [107], and 3TEQ [108], respectively. SP, signal peptide; cEF, canonical EF-hand; nEF, non-canonical EF-hand; SAM, sterile alpha motif; TMD, transmembrane domain; CC1 -2 -3, coiled-coil -1 -2 -3; ID, inhibitory domain; PS, pro/ser-rich region; K, Lys-rich (polybasic) region; N, amino terminus; C, carboxyl terminus.

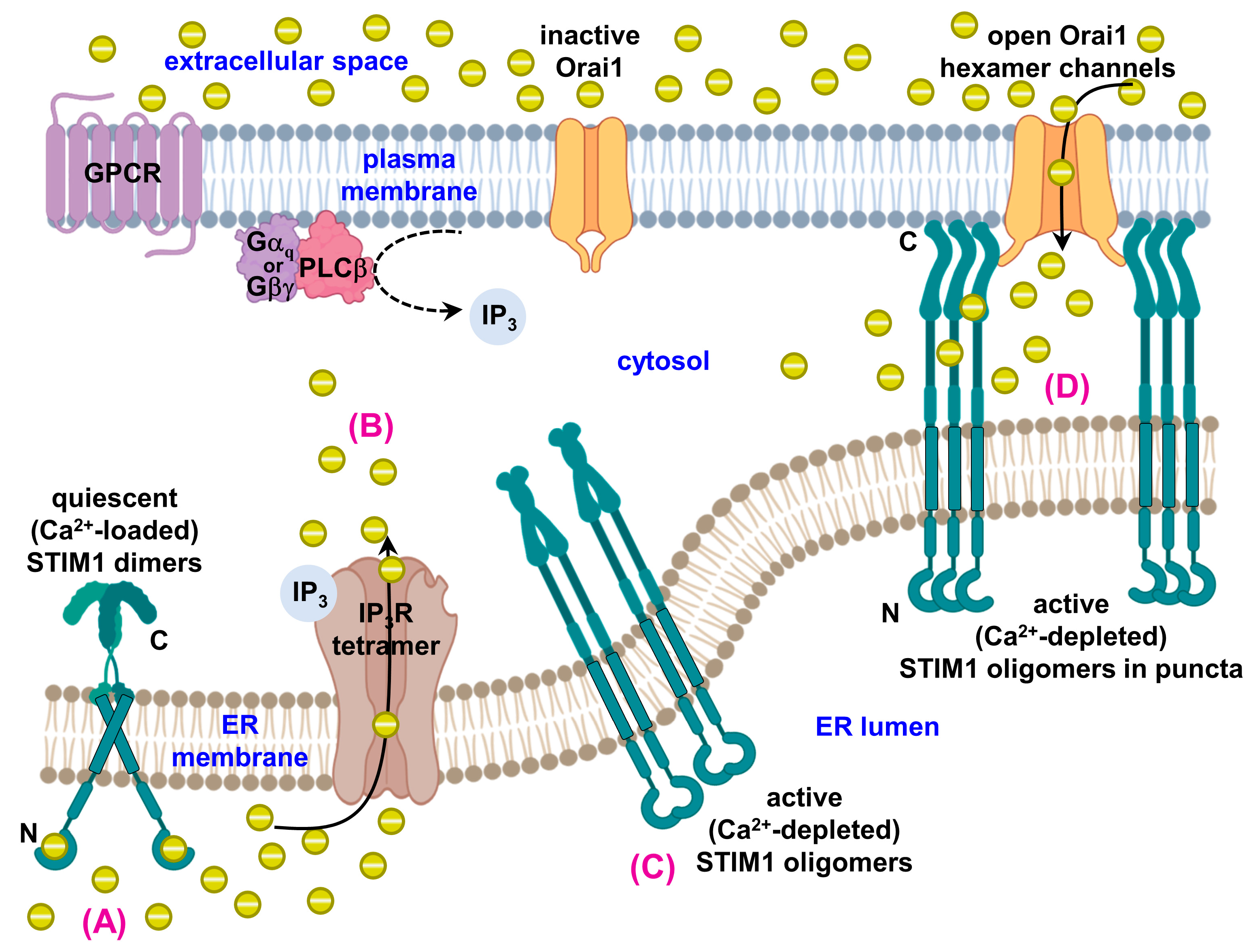

Figure 2. Molecular mechanism of store-operated Ca²⁺ entry (SOCE) signaling. (A) With replete S/ER luminal Ca²⁺ stores, STIM1 (green cartoon) adopts a quiescent conformation. Quiescent STIM1 is dimerized via interactions between cytosolic domains [108,109,110] and remains in a compact conformation due to Ca²⁺ (yellow spheres) binding by EF-SAM, which keeps these luminal domains in monomeric states [72,73,75]. (B) Upon cell stimulation, via G protein-mediated PLC activation for example, IP₃ is generated and diffuses to the IP₃Rs (brown cartoon) on the S/ER membrane. IP₃ binding to IP₃Rs, opens these receptor Ca²⁺ channels, depleting the S/ER Ca²⁺ stores [28,111,112]. (C) Ca²⁺ unbinding from EF-SAM causes luminal domain dimerization [73,75,113], which rearranges the transmembrane regions [114] and promotes coiled-coil-1 interactions, culminating in a conformational extension of the STIM1 cytosolic region [74,76,115]. This structural change also promotes further oligomerization of STIMs via the cytosolic domains [110,115]. (D) Extended/oligomerized STIM1 gets trapped at S/ER-PM junctions [18,77,78,80] via interactions between the polybasic C-terminal regions and PM [78,95,116,117] as well as interactions between the STIM1 SOAR/CAD and Orai1 (orange cartoon) [82,83,107,118]. The direct interactions between STIM1 and Orai1 gate Orai1-composed hexameric Ca²⁺ release-activated Ca²⁺ (CRAC) channels [119,120], allowing Ca²⁺ to move from the extracellular space into the cytosol in SOCE. GPCR, G-protein coupled receptor; Gα_q, G-alpha subunit; Gβγ, G-beta-gamma subunits; PLCβ, phospholipase Cβ; IP₃, inositol trisphosphate; IP₃R, IP₃ receptor; STIM1, stromal interaction molecule-1; N, amino terminus; C, carboxyl terminus. This figure and the organelles depicted in the graphical abstract were created with BioRender.com.

Figure 2. Molecular mechanism of store-operated Ca²⁺ entry (SOCE) signaling. (A) With replete S/ER luminal Ca²⁺ stores, STIM1 (green cartoon) adopts a quiescent conformation. Quiescent STIM1 is dimerized via interactions between cytosolic domains [108,109,110] and remains in a compact conformation due to Ca²⁺ (yellow spheres) binding by EF-SAM, which keeps these luminal domains in monomeric states [72,73,75]. (B) Upon cell stimulation, via G protein-mediated PLC activation for example, IP₃ is generated and diffuses to the IP₃Rs (brown cartoon) on the S/ER membrane. IP₃ binding to IP₃Rs, opens these receptor Ca²⁺ channels, depleting the S/ER Ca²⁺ stores [28,111,112]. (C) Ca²⁺ unbinding from EF-SAM causes luminal domain dimerization [73,75,113], which rearranges the transmembrane regions [114] and promotes coiled-coil-1 interactions, culminating in a conformational extension of the STIM1 cytosolic region [74,76,115]. This structural change also promotes further oligomerization of STIMs via the cytosolic domains [110,115]. (D) Extended/oligomerized STIM1 gets trapped at S/ER-PM junctions [18,77,78,80] via interactions between the polybasic C-terminal regions and PM [78,95,116,117] as well as interactions between the STIM1 SOAR/CAD and Orai1 (orange cartoon) [82,83,107,118]. The direct interactions between STIM1 and Orai1 gate Orai1-composed hexameric Ca²⁺ release-activated Ca²⁺ (CRAC) channels [119,120], allowing Ca²⁺ to move from the extracellular space into the cytosol in SOCE. GPCR, G-protein coupled receptor; Gα_q, G-alpha subunit; Gβγ, G-beta-gamma subunits; PLCβ, phospholipase Cβ; IP₃, inositol trisphosphate; IP₃R, IP₃ receptor; STIM1, stromal interaction molecule-1; N, amino terminus; C, carboxyl terminus. This figure and the organelles depicted in the graphical abstract were created with BioRender.com.

1.3. STIM1, Orai1 and Disease

Several heritable mutations in STIM1 and Orai1 cause disease. The loss of function mutations in STIM1 occur as frameshift (i.e., E128RfsX9 [121]) and intronic (i.e., NM_003156.3:c.1538-1G>A [122]) variations leading to protein abrogation. Missense mutations exist that do not eliminate STIM1 protein (i.e., R429C [123] and P165Q [124]), but similarly lead to a loss of STIM1 function [125]. Orai1 loss of function mutations include missense (i.e., R91W [32] and A103E/L194P [126]) and frameshift (i.e., A88SfsX25 [126] and H165PfsX1 [127]), which can abrogate protein expression or disrupt the function of fully expressed protein. STIM1 and Orai1 loss of function mutations both lead to CRAC channelopathy syndrome. CRAC channelopathies are characterized by combined immunodeficiency with chronic infections in the central nervous system, respiratory tract, and gastrointestinal tracts, often leading to death. These channelopathies also present autoimmune hemolytic anemia and thrombocytopenia, muscular hypotonia and atrophy, anhidrosis, and defects in dental enamel development (reviewed in [128,129]). CRAC channelopathy due to STIM1 or Orai1 mutations is autosomal recessive.

Gain of function mutations occur in STIM1 (i.e., R304W [130], I115F [129], D84G, H109N, H109R, H72Q [131], N180T, L96V, F108I, F108L [132], and G81D [133]) and Orai1 (i.e., P245L [134], G98S and L138F [135]). All these variations are missense mutations that do not abrogate protein expression, but constitutively activate SOCE. The diseases that are caused by these mutations are autosomal dominant and include York platelet syndrome, Stormorken syndrome and tubular aggregate myopathy. Symptoms of tubular aggregate myopathy include muscle weakness, myalgia, and cramps; Stormorken and York platelet syndromes present with muscle weakness, miosis, thrombocytopenia, hyposplenism, ichthyosis, dyslexia, and short stature (reviewed in [128,129,136]).

1.4. Mitochondrial Calcium Uptake and SOCE Crosstalk

The first link between mitochondrial Ca²⁺ uptake and SOCE was identified well before the molecules that are involved in mediating these processes. It was demonstrated that the pharmacological disruption of the inner mitochondrial membrane (IMM) potential or depletion of sodium (Na⁺) could inhibit SOCE [137]. Indeed, the physiological relevance of this mitochondria-SOCE link was shown in studies comparing nuclear factor of activated T-cells (NFAT) translocation after T-cell activation in the presence and absence of mitochondrial Ca²⁺ uptake diminishers [138]. Mitochondrial Ca²⁺ uptake near store-operated Ca²⁺ channels is believed to prevent Ca²⁺-dependent inactivation by limiting the formation of high Ca²⁺ level domains. Interestingly, one study showed that the distance between mitochondria and PM SOCE channels decreases upon SOCE activation, allowing for a more sustained Ca²⁺ entry due to reduced CDI [139]. In contrast, follow-up work suggested that mitochondrial Ca²⁺ uptake, but not mitochondrial translocation/motility, was required for STIM1 and Orai1-mediated SOCE [140]. Furthermore, respiring mitochondria were independently shown to be required for SOCE activation and were found to regulate slow CDI of SOCE by buffering cytosolic Ca²⁺ levels [141].

Specific links between SOCE and MCU have also been established with MCU knockdown studies showing reduced mitochondrial Ca²⁺ uptake following SOCE [142]. MCU is not the only recently identified mitochondrial protein that has been directly linked to SOCE regulation. The Na⁺/Ca²⁺/lithium (Li⁺) exchanger (NCLX) on the IMM has been shown to be vital for clearance of mitochondrial Ca²⁺ (reviewed in [143]). SOCE is accompanied by a rise in cytosolic Na⁺, which is used by NCLX in order to drive Ca²⁺ efflux from the matrix. The removal of extracellular Na⁺ during SOCE activation inhibits NCLX and SOCE [144]. The activity of NCLX is tightly linked to Orai1 channel inactivation. In the absence of NCLX activity, the loss of Ca²⁺ efflux from the matrix enhances ROS-dependent oxidation of a Cys residue on Orai1, which inhibits SOCE [144]. It is becoming clear that the crosstalk between SOCE and mitochondria involve several different molecules that can both positively and negatively regulate Orai1 channel function [145].

2. Mitochondrial Calcium Uniporter (MCU)

Mitochondria are primarily recognized for their role in adenosine triphosphate (ATP) production, a process that requires an electrochemical gradient across the IMM [146]. Mitochondrial Ca²⁺ uptake plays a central role in regulating this energy production and it is also instrumental in regulating apoptosis and shaping cytosolic Ca²⁺ transients [147]. While Ca²⁺ can readily move through the voltage dependent anion channel (VDAC) of the outer mitochondrial membrane, Ca²⁺ uptake into the mitochondrial matrix is more precisely controlled [148]. MCU plays a major role in mediating Ca²⁺ uptake into the matrix, functioning as a multimeric protein complex that forms a Ca²⁺ selective pore through the IMM [12,13]. Under resting conditions, the MCU complex minimally permits the movement of Ca²⁺ into the matrix, despite the highly negative IMM potential (~−180 mV); following a rise in cytosolic Ca²⁺ levels, the MCU channel open probability increases, allowing for Ca²⁺ to move into the matrix, being driven by the IMM potential [146,149,150]. The MCU complex is composed of the channel-forming protein, MCU, which tetramerizes to form a functional pore [151,152,153,154,155], and several additional regulatory protein components. The best studied protein regulators include a family of EF-hand containing proteins, mitochondrial Ca²⁺ uptake 1, 2, and 3 (MICU1, MICU2 and MICU3) [149,156,157]; a small protein that is involved in bridging MICU proteins to the MCU pore, essential MCU regulator (EMRE) [158]; an MCU paralog, MCU dominant negative beta subunit (MCUb) [159]; and a complex stabilizing protein, MCU regulator 1 (MCUR1) [160].

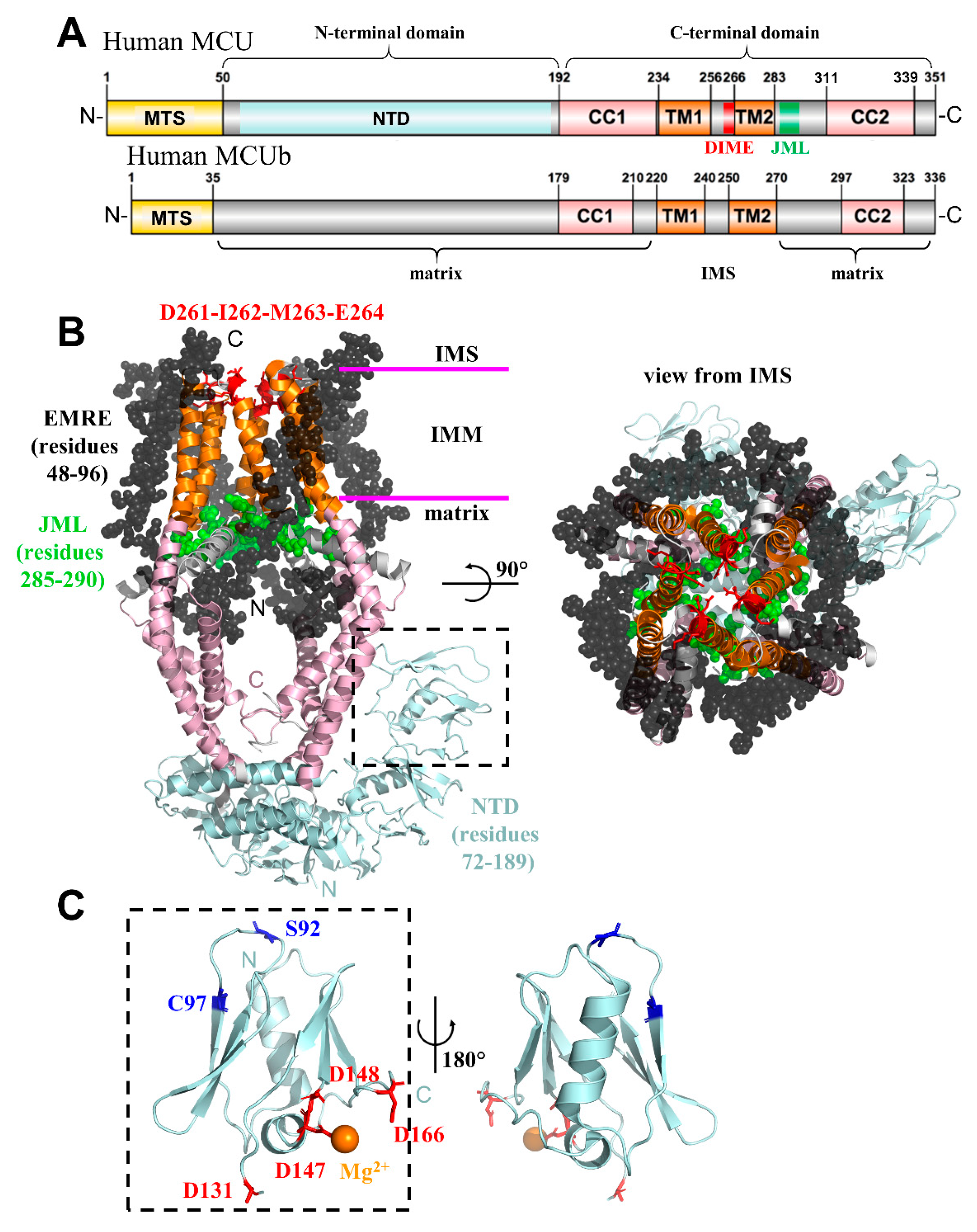

The MCU pore forming subunit is an ~40 kDa protein (including the mitochondrial targeting sequence; NCBI accession NP_612366.1) composed of two transmembrane domains spanning the IMM, with both the N- and carboxyl (C)-termini localized in the mitochondrial matrix [12,13,161] (Figure 3A). An Asp-Ile-Met-Glu (DIME) motif confers Ca²⁺ selectivity and controls permeability through the channel due to binding of Ca²⁺ to the acidic residues [12,13]. Amino acid substitutions at D261 and E264 lead to a loss of Ca²⁺ uptake, which is likely due to the removal of these negative charges [12,13]. MCU subunits homo-oligomerize to form a functioning Ca²⁺-permeable pore [13]. Initially, a solution nuclear magnetic resonance (NMR)-driven model of Caenorhabditis elegans MCU was suggested to exist as a pentamer, with the DIME motifs forming an unstructured loop at the opening of the channel [162]. Several resolved structures since the C. elegans NMR model have established metazoan MCU as a tetramer with the DIME motifs lining the pore as part of the helical transmembrane regions [151,152,154] (Figure 3B).

Interestingly, the C-terminal domain of MCU alone can form a channel, because it contains the TM1 and TM2 helices that create the IMM channel pore [151,154,162,163]; however, the N-terminal domain (NTD) of human MCU, which resides in the matrix, has been demonstrated to be an important hub for inputs that regulate the channel function (Figure 3C). For example, the self-association of MCU-NTD promotes channel assembly and activation [164], oxidative modification of C97 within MCU-NTD alters the channel architecture and function [165], and the S92A mutation within MCU-NTD dominant negatively disrupts mitochondrial Ca²⁺ uptake [163]. It is noteworthy that MCU-NTD from lower order organisms assembles as a dimer of dimers directly under the pore [151,152,153,155] and a dimer of crescent-arranged tetramers across two human MCU channels, as revealed by cryo-electron microscopy (cryo-EM) [154].

2.1. Essential Mitochondrial Calcium Uniporter Regulator (EMRE)

EMRE is a metazoan-specific ~11 kDa (including the mitochondrial targeting sequence; (NCBI accession NP_201575.3) single-pass membrane protein that spans the IMM [158]. EMRE interacts with MCU at the IMM and with the MICU1/MICU2 heterodimer in the intermembrane space (IMS) [158,166]. Thus, EMRE acts to bridge the MICU1/MICU2 Ca²⁺-sensing properties to MCU channel activity. The presence of an Asp-rich C-terminus is thought to be important in MCU complex regulation [158,166]; however, the specific topology of EMRE has been debated in the past [166,167]. The most recent human MCU complex structure has shown that the EMRE C-terminus is positioned in the IMS [154] (Figure 3B). EMRE is ubiquitously expressed in all tissues, and the knockdown of EMRE leads to the loss of MCU-mediated Ca²⁺ uptake in mammals; subsequent overexpression of MCU is unable to recover the channel function [158,166]. The knockdown of MCU concomitantly reduces EMRE expression levels, indicating a mechanism of co-stabilization [158]. It is important to note that EMRE also plays an integral role in gating MCU by stabilizing the position of an MCU juxta-membrane loop away from the pore exit [154] (Figure 3B).

2.2. Mitochondrial Calcium Uptake (MICU) Proteins

MICU1 was the first component of the MCU complex discovered [156]. MICU1 is an ~55 kDa (including the mitochondrial targeting sequence; NCBI accession NP_001350442.1) membrane associated protein, containing two conserved EF-hand Ca²⁺-binding domains [156]. MICU1 is localized to the IMS and indirectly modulates MCU activity via interactions with EMRE [156,158,168]. The initial findings suggested MICU1 functions independently to alter MCU-facilitated Ca²⁺ uptake; however, two additional MICU isoforms, MICU2 and MICU3, have since been discovered to play a role in this Ca²⁺-dependent regulation [157,169]. MICU2 and MICU3 contain the EF-hand Ca²⁺-binding domains that are similarly found in MICU1, despite only sharing 25% sequence identity [157]. MICU1 and MICU2 are ubiquitously expressed in all tissues, while MICU3 appears to be more enriched in the nervous system and skeletal muscle [157,170,171]. MICU1 and MICU2 play synergistic roles in MCU regulation and, together in a complex, function as gatekeepers of the channel [170]. It has been proposed that, at low cytosolic Ca²⁺ levels, MICU1 and MICU2 form a loose dimer, which inactivates MCU [172,173,174,175,176]. Following a rise in cytosolic and IMS Ca²⁺ concentrations, Ca²⁺ binds to the MICU EF-hands and triggers a conformational rearrangement that promotes tighter MICU1/MICU2 interactions and relieves MCU inhibition [172,173,174,175,176]. MICU3 appears to have a specific role in regulating neuronal function and synaptic activity. Specifically, MICU3 is believed to dimerize with MICU1 via disulfide bonds, functioning as a potent enhancer of mitochondrial Ca²⁺ uptake that is controlled by MCU in skeletal muscle and the central nervous system [171].

Several high-resolution crystal structures of MICU1, MICU2, and MICU3 have been elucidated alone or co-complexed and in the presence and absence of Ca²⁺ [173,175,176,177,178]. However, a super-complex cryo-EM structure of human MCU-EMRE-MICU1-MICU2 recently submitted to bioRxiv has suggested that a single MICU1-MICU2 heterodimer regulates the pore exit gate on each channel via Ca²⁺-sensitive MICU1-EMRE contacts [179]. Further, each heterodimer is observed to bridge separate channels via MICU2-MICU2 interactions [179].

2.3. Mitochondrial Calcium Uniporter Dominant Negative Beta (MCUb) Subunit

MCUb, an MCU paralog, is an ~39 kDa protein (including the mitochondrial targeting sequence; NCBI accession NP_060388.2) that shares ~50% sequence identity with MCU [159] (Figure 3A). Much like MCU, MCUb has two transmembrane domains, two coiled-coil domains, and matrix-oriented N- and C-termini. Although MCUb contains a similar DIME motif as MCU, MCUb has two key amino acid substitutions (i.e., R251W and E256V) in the pore lining region, which might underlie the inability of MCUb to function as a Ca²⁺-permeable pore [159]. Interestingly, MCU pore subunits have been shown to hetero-oligomerize with MCUb [159]. Mechanistically, MCUb might displace an MCU subunit from the complex to dominant negatively inhibit the channel function [180]. Once incorporated into the MCU pore, MCUb leads to a drastic decrease in mitochondrial Ca²⁺ uptake by diminishing the open probability of the channel and Ca²⁺ permeability [159,180]. Nevertheless, the precise atomic basis by which MCUb inhibits MCU function remains elusive.

2.4. Mitochondrial Calcium Uniporter Regulator-1 (MCUR1)

MCUR1 has been identified as a positive regulator of MCU, functioning as a scaffold factor that binds to both MCU and EMRE [149,181]. MCUR1 is an ~40 kDa protein (including the mitochondrial targeting sequence; NCBI accession NCBI: NP_001026883.1), which has two transmembrane domains, two conserved coiled-coil domains, and N- and C-termini residing in the IMS. The interaction between MCU and MCUR1 likely occurs in the mitochondrial matrix, stabilizing the MCU complex [181]. MCUR1 knockdown decreases mitochondrial Ca²⁺ uptake, reduces the IMM potential, and disrupts oxidative phosphorylation [181,182]. Collectively, these data suggest that MCUR1 not only regulates MCU-dependent Ca²⁺ uptake, but also plays a key role in controlling cellular bioenergetics.

2.5. MCU and Disease

Mitochondrial Ca²⁺ signaling has been implicated in a variety of pathophysiological disorders. Aberrant mitochondrial Ca²⁺ uptake not only affects processes reliant on maintaining tight cytosolic Ca²⁺ concentrations, but also impacts oxidative metabolism and can trigger cell death pathways [146,147,183]. Under cell stress conditions, mitochondrial Ca²⁺ overload and/or oxidative stress results in an opening of the mitochondrial permeability transition pore (mPTP) [183,184]. High conductance mPTP allows the free movement of ions and small molecules less than ~1.5 kDa, dissipating the IMM potential and aberrating ATP production [185,186]. Ultimately, this type of mPTP opening leads to the swelling and rupture of mitochondria and release of larger pro-apoptotic factors [183,184]. Thus, dysregulated mitochondrial Ca²⁺ uptake has dire implications for cell survival and has been associated with various diseases, including cancer, neurodegenerative pathologies, diabetes, and learning and muscular disorders, among others [187,188,189,190,191].

Patients have been identified with heritable MICU1 mutations (i.e., NM_006077.3:c.1078-1G>C and NM_006077.3:c.741+1G>A in splice donor and acceptor sites, respectively), which result in intronic insertions causing frameshifts, nonsense mediated mRNA decay, and loss of MICU1 protein [187,192,193]. Patient cohorts harboring MICU1 exon 1 deletions (2,776 nucleotides) [194] and MICU1 nonsense mutations (i.e., NM_006077.3:c.553C>T:p.Q185* [195]) have been identified, also abolishing the MICU1 protein. Similarly, a heritable MICU2 nonsense mutation (i.e., NM_152726:c.42G>A:p.W14*) has been discovered, which eliminates full-length MICU2 protein [196]. All of these heritable mutations lead to loss of function MICU disorders, characterized by muscle weakness, fatigue, lethargy, developmental delay, and learning disabilities [193,194,195,196]. Patient fibroblasts with MICU1 protein abrogation have conflictingly demonstrated both increased [193] and decreased [194] rates of mitochondrial Ca²⁺ uptake. Further, MICU2 protein abrogation also suppressed mitochondrial Ca²⁺ uptake rates [196]. Nevertheless, all of the patient studies have shown enhanced resting mitochondrial Ca²⁺ levels due to either MICU1 or MICU2 protein downregulation [193,194,196], which is likely caused by the absence of MCU gatekeeping.

Enhanced mitochondrial Ca²⁺ uptake can suppress cytosolic Ca²⁺ signals in fibroblasts from MICU1-deficient patients [193], which is consistent with past studies showing mitochondria can suppress cytosolic Ca²⁺ signals [197,198,199,200]. Further, this enhanced mitochondrial Ca²⁺ uptake may be related to work showing deletion of MICU1 in mouse hepatocytes causes sensitization to Ca²⁺-overload-induced mPTP opening [201]. The identification of heritable mutations in MCU complex components that lead to disease underscore the importance of not only the MCU channel, but also the diverse regulatory controls of MCU function.

3. Leucine Zipper EF-Hand Containing Transmembrane Protein-1 (LETM1)

LETM1 is an essential IMM protein linked to mitochondrial ion transport, regulation of cell cycle, mitochondrial oxidative stress and bioenergetic function [202]. Interestingly, LETM1 has been shown to play a role in mitochondrial Ca²⁺ and K⁺ ion homeostasis, regulating key facets of mitochondrial physiology, such as osmotic balance and ATP production [14,203,204,205,206,207,208]. While the molecular mechanisms by which LETM1 functions remain incompletely understood, it is clear that LETM1 is pivotal in mitochondrial function and cellular health. The deletion of the LETM1 homologue in yeast, MDM38, results in mitochondrial swelling, loss of cristae, and disruption of cellular respiration [205]. Homozygous LETM1 deletion is embryonically lethal within ~6 days in mice [204]. Clinically, LETM1 haploinsufficiency in humans is thought to be responsible for seizures in patients with Wolf–Hirschhorn syndrome (WHS) [209,210] (see below). Consistent with these findings, two independent studies identified LETM1 as one of ~2000 essential genes in human cell cultures [211,212].

In the context of mitochondrial Ca²⁺ ion transport, while MCU facilitates low affinity/high throughput Ca²⁺ uptake triggered at ~µM cytosolic Ca²⁺ levels (see above), LETM1 has been shown to transport Ca²⁺ at ~nM cytosolic Ca²⁺ levels, suggesting that LETM1 provides cells with a high affinity/low capacity pathway necessary for precise mitochondrial Ca²⁺ homeostasis [208,213,214,215]. Indeed, liposome reconstitution assays and cell culture work have shown that LETM1 directly facilitates selective bidirectional Ca²⁺/H⁺ exchange, independent of MCU [203,206,208]. Congruently, LETM1 knockdown decreases mitochondrial Ca²⁺ uptake, decreases ATP production, and increases ROS production [203,216].

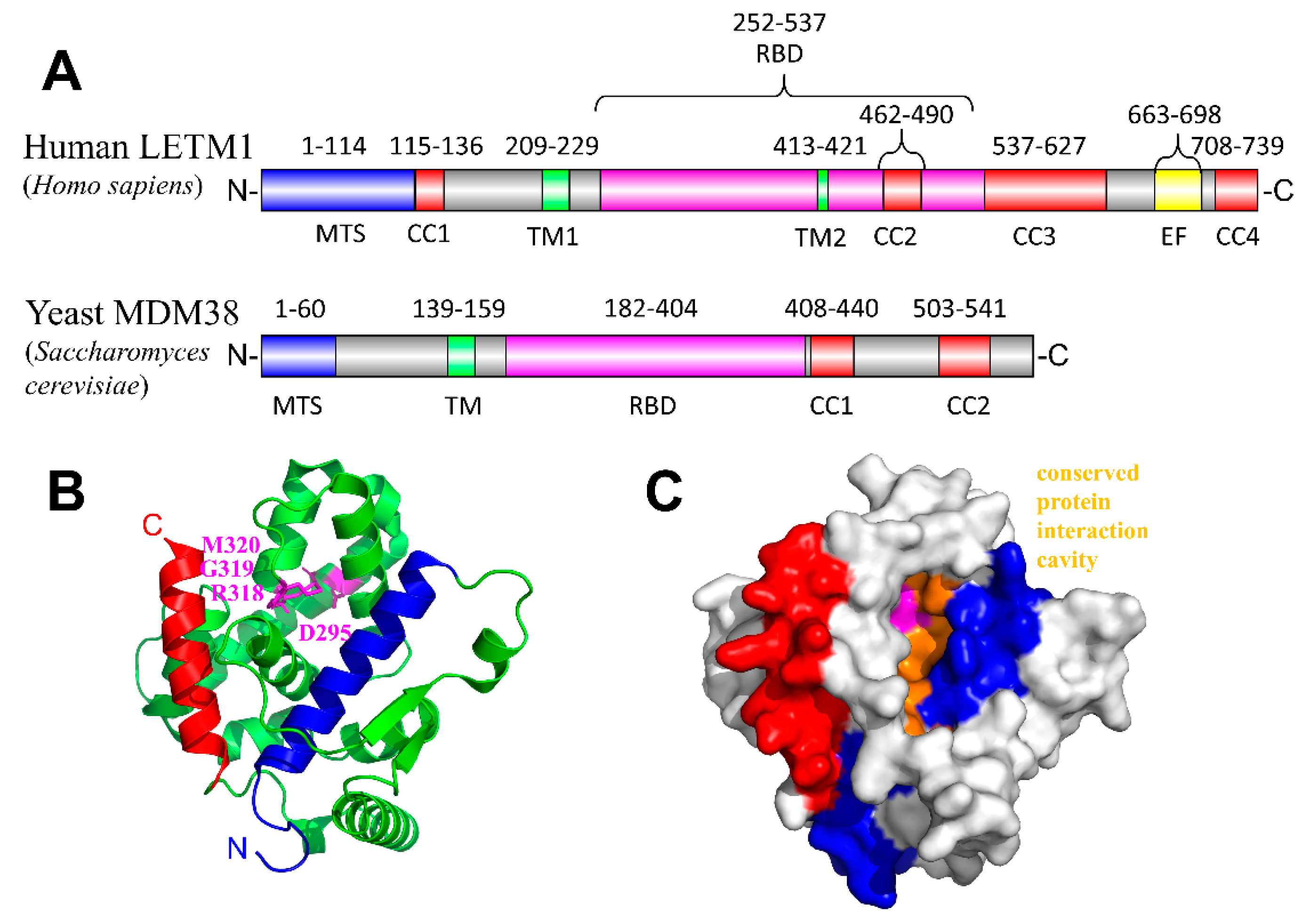

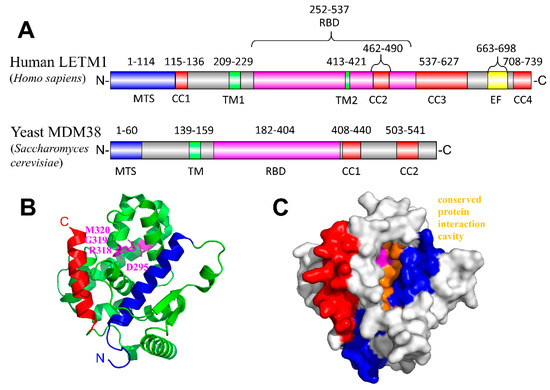

Human LETM1 is an ~83 kDa transmembrane protein (including the mitochondrial targeting sequence; NCBI accession NP_036450.1) that localizes in the IMM [206,207] (Figure 4A). LETM1 is thought to topologically orient with the N-terminus facing the IMS. This IMS region includes a putative coiled-coil domain and a notable PTEN-induced kinase 1 (PINK1) mediated threonine phosphorylation site [217]. LETM1 contains a single sequence-identifiable transmembrane domain and a large matrix-oriented C-terminal region, which includes a putative ribosome binding domain, coiled-coil domains, and a Ca²⁺-binding EF-hand motif [15]. This topology for LETM1 is consistent with restricted proteinase K digestion studies [204,206,207]. However, a recent study using probes targeting tyrosine residues has proposed a new topology for LETM1, where two transmembrane domains exist and both the N- and C-termini are located in the matrix [218] (Figure 4A).

LETM1 self-oligomerizes and directly facilitates selective Ca²⁺/H⁺ exchange within liposomes without any accessory proteins [204,206,208]. A low-resolution EM study suggests human LETM1 forms a hexamer, and pH may modulate the conformation [206]. Interestingly, the crystal structure of the C-terminal domain of the yeast homologue MDM38 has been solved and exhibits a 14-3-3 like protein interaction domain, which might indicate potential sites for inter- or intra-protomer binding [219,220] (Figure 4B,C). It is tempting to speculate that these interfaces could be targeted by drugs and small molecules aimed at modulating LETM1 assembly and function.

LETM1 and Disease

Located on the chromosome band 4p16.3, LETM1 is included in one of two critical regions lost in almost all patients exhibiting the full phenotype of WHS, which causes delayed growth and development, microcephaly, distinctive facial abnormalities, and seizures [204,209]. Deficiency in mitochondrial Ca²⁺ transport, decreased ATP levels, and particularly increased ROS may be key determinants of the neurodegeneration linked to seizures in this disease [210]. Given that loss of LETM1 suppresses ATP production, enhances ROS, and inhibits cell proliferation [221], it is no surprise the overexpression of LETM1 has been found in many cancers, including ovarian, rectal, stomach, esophagus, breast, colon, and lung non-small cell carcinoma [222,223,224].

4. Generating New Therapeutics and Diagnostics from Protein Structures

Over the past ~15 years, a number of protein structures involved in regulating cytosolic and stored Ca²⁺ have been elucidated. This surge of structural information has not only been fueled by high throughput proteomic and genomic approaches that have solved decades old mysteries regarding the molecular identities of proteins that are involved in mediating ubiquitous cellular processes, such as SOCE [30,31] and mitochondrial Ca²⁺ uptake [12,13], but also by improving technologies aimed at revealing protein structures, such as cryo-EM, solution NMR, and X-ray crystallography. For example, several high-resolution structures of the molecular machinery involved in mediating SOCE have been elucidated, including the STIM Ca²⁺-sensing domains by solution NMR [75,113], the cytosolic coiled-coil domains by solution NMR [107], and X-ray crystallography [106,108] (Figure 1), as well as the Orai1 Ca²⁺ channel itself by cryo-EM and X-ray crystallography [120,225,226]. Cryo-EM has driven medium/high-resolution structures of MCU from lower order and metazoan organisms, including humans [151,152,153,154,155] (Figure 3). Importantly, X-ray crystallography has also contributed to understanding the underlying mechanisms of MCU regulation with elucidations of the important gatekeeping proteins [173,175,176,177,178], environment-specific conformations [163,164,227], and scaffolds [154,228]. The first elucidations of IP₃Rs by crystallography dates back almost two decades with structures of the N-terminal domain [229,230]. The analogous N-terminal region in RyR has also been studied by both crystallography and NMR [231,232]. In fact, crystal structures of the full N-terminal domains of both IP₃Rs and RyRs revealed a remarkable structural and functional conservation between these receptor cousins at the apical positions of the receptors [233,234]. These tetrameric channels have also been excellent candidates for cryo-EM, due to their inherently large size [235,236,237]. Other Ca²⁺ toolkit components, such as Na⁺/Ca²⁺ exchangers (NCX) [238], S/ER Ca²⁺ ATPase (SERCA) pumps [239,240], and VGICs, have also been structurally resolved [241,242]. This list of structures only scratches the surface of the available Ca²⁺ toolkit structural data, yet reinforces a major question at the nexus of the structural biology, cell biology, and clinical research fields. How can we use this wealth of protein structural information to design new diagnostic tools and drugs for research and treatment of disease?

Indeed, while obtaining structural information has been invaluable for informing the broad scientific community on the molecular and structural basis for the function of hundreds or thousands of Ca²⁺ signaling proteins, there is a disconnect between applying this protein structural knowledge and rationally developing research tools or drugs. Perhaps this disconnect exists due to the relatively static insights provided by many of the resolved structures. Most (if not all) protein function involves dynamic changes in conformation and stability. Rationalizing effective drugs without a detailed understanding of the conformational ensembles present in the inactive, transition, and active states of proteins is practically challenging.

4.1. Store-Operated and Mitochondrial Ca²⁺ Entry Proteins as Drug Targets

The SOCE and mitochondrial Ca²⁺ uptake protein machinery are appealing drug targets for several reasons. First, mutations causing disease have been identified in the proteins mediating these processes (see above). Second, complexes of multiple different proteins regulate SOCE and mitochondrial Ca²⁺ uptake; hence, the modulation of function, in some cases, could be achieved by targeting native protein interaction partner components. Third, drugs targeting ion channels are demonstrated to be effective at treating a wide range of human diseases and acute conditions [243,244,245]. Fourth, clinically approved immunosuppressive drugs already exist that block signaling processes that are directly mediated by SOCE (e.g., cyclosporin [246,247]). Finally, the acute administration of MCU inhibitors is known to protect cells from hypoxia/ischemia-induced injury [248,249,250,251]. The specific structures available for the SOCE and mitochondrial Ca²⁺ uptake molecular machinery provide a unique opportunity for the development of new diagnostics and/or therapeutics that can biasedly target different aspects of these pathways.

Small molecule screens targeting MCU function have already been performed. An initial study employed Saccharomyces cerevisiae as an MCU-null organism to screen for small molecule modulators of MCU function. Human MCU, human EMRE, and a mitochondrial-targeted Ca²⁺ indicator (i.e., aequorin) were expressed in these yeasts to establish a reporter system for the screening of ~600 clinically approved drugs [252]. In a second approach, HEK293A cells expressing mitochondrial aequorin were used to screen a 120,000 compound library, successfully identifying an MCU inhibitor [253]. In the most recently published screen, HeLa cells expressing mitochondrially-targeted aequorin were used to identify two MCU inhibitors from a library of 44,000 compounds [254]. All of these in cellulo screens used genetically encoded aequorin, reliably targeted to the matrix, for luminescence readout of changes in Ca²⁺.

Since the identification of STIM1 and Orai1, published drug screens targeting SOCE have largely involved the over-expression of STIM1 and Orai1 in mammalian cells or the use of cells with endogenous levels of STIM1 and Orai1, in combination with indicator dyes or proteins monitoring cytosolic Ca²⁺ or NFAT translocation to the nucleus [255,256,257,258]. One in vitro study used recombinant functional domains to screen for binding to immobilized small molecules by immunofluorescence [259]. In silico tools have also been used, but only to identify drug candidates through small molecule homology to known SOCE inhibitors [260,261].

Thus, while drug screens targeting the protein machinery that mediates both store-operated and mitochondrial Ca²⁺ uptake have been performed, these published approaches have not used the available protein structure information as initiation points to drug discovery.

4.2. Initiating Protein Structure-based Drug Discovery

A starting point for drug development could be initiated by a simple high-throughput small molecule in silico screen of millions of compounds. This computational screen would use available protein structures and knowledge of the vital interfaces modulating activity. The structures of the small molecules/drugs would also need to be known. Such small molecule databases and computational docking programs exist and are freely available (e.g., see ZINC15 [262] and AUTODOCK [263]). The major bottleneck for this initial step is computing the resources that are required to dock millions of compounds in a relatively short time. Nevertheless, once top leads are identified, subsequent wet laboratory experiments are required in order to validate the interaction and physiological effect(s). Downstream structure-activity-relationship studies could be subsequently used to better understand the small molecule chemical groups that are required for binding and eliciting a cellular effect and improving the compound [264].

Of course, there are limitations to these large-scale computational screens. For example, the protein structures are generally treated as rigid bodies, unless using higher level molecular dynamics simulations. Water and/or lipid molecules are typically not modeled in these fast docking schemes, even though these molecules play integral roles in biological interactions. Most critically, default scoring schemes may not be optimal for a system under study, since not all of the interactions equally rely on specific stabilization forces (e.g., H-bonding, hydrophobic, charge, shape complementarity).

High resolution structural information can also be used to develop tools for high-throughput drug discovery. For example, fluorescence-resonance energy transfer (FRET)-based biosensors can be rationalized based on proximity information that is revealed by isolated and co-complexed structures. With respect to Ca²⁺ signaling, these types of FRET-based sensors have been engineered and used in screens for the identification of SERCA and RyR modulators. A green fluorescent protein (GFP) and red fluorescent protein (RFP) FRET pair was fused into the cytosolic headpiece of SERCA, which undergoes large scale structural changes during pump activity. This intramolecular FRET sensor was successfully used to identify the small molecule modulators of SERCA function [265,266]. Since the sensor is genetically encoded, the cell lines stably expressing this sensor could be used in the screening. An analogous approach was used by the same group to identify modulators of RyR function. However, the RyR screen relied on FRET between FK binding protein 12.6 (FKBP12) and calmodulin, which co-complex with RyR and show different FRET signals that are based on RyR conformation [267,268]. In these RyR experiments, Alexa Fluors were chemically linked to FKBP12 and calmodulin in vitro, and vesicles containing RyRs were prepared from muscle tissues. Two aspects of STIM/Orai and MCU signaling make this approach to identifying drugs particularly appealing: (i) these proteins function in large complexes that are amenable to intermolecular FRET monitoring and (ii) STIMs are known to undergo large conformational changes, making them amenable to intramolecular FRET monitoring.

4.3. Concluding Remarks

Not discussed herein are the countless additional experimental (involving molecules, cells, animals, and humans), logistical, and administrative hurdles that are required to move any small molecule lead into clinical use. Nevertheless, we provide a simple strategy for applying high-resolution structural knowledge of proteins as a starting point to drug development. Excitingly, several key protein structures are available that inform on the mechanisms regulating the SOCE-mitochondrial Ca²⁺ signaling axis, providing several possible initiating points to protein structure-based drug design. The elucidation of Ca²⁺ signaling protein structures is vital for understanding the fundamental mechanisms underlying cellular processes that are integral to life and death. The structural information can also provide an entry point for the development of tools and therapeutics targeting these pathways.
