Int. J. Mol. Sci. 2019, 20(2), 367; https://doi.org/10.3390/ijms20020367

Article
Novel DnaJ Protein Facilitates Thermotolerance of Transgenic Tomatoes
1
College of Biological Science, Jining Medical University, Ri’zhao 276800, Shandong, China
2
College of Life Science, Nanjing University, Nan’jing 210046, Jiangshu, China
3
College of Life Science, State Key Laboratory of Crop Biology, Shandong Agricultural University, Tai’an 271018, Shandong, China
*
Authors to whom correspondence should be addressed.
Received: 18 December 2018 / Accepted: 13 January 2019 / Published: 16 January 2019

Abstract

:
DnaJ proteins, which are molecular chaperones that are widely present in plants, can respond to various environmental stresses. At present, the function of DnaJ proteins was studied in many plant species, but only a few studies were conducted in tomato. Here, we examined the functions of a novel tomato (Solanum lycopersicum) DnaJ protein (SlDnaJ20) in heat tolerance using sense and antisense transgenic tomatoes. Transient conversion assays of Arabidopsis protoplasts showed that SlDnaJ20 was targeted to chloroplasts. Expression analysis showed that SlDnaJ20 expression was induced by chilling, NaCl, polyethylene glycol, and H2O2, especially via heat stress. Under heat stress, sense plants showed higher fresh weights, chlorophyll content, fluorescence (Fv/Fm), and D1 protein levels, and a lower accumulation of reactive oxygen species (ROS) than antisense plants. These results suggest that SlDnaJ20 overexpression can reduce the photoinhibition of photosystem II (PSII) by relieving ROS accumulation. Moreover, higher expression levels of HsfA1 and HsfB1 were observed under heat stress in sense plants, indicating that SlDnaJ20 overexpression contributes to HSF expression. The yeast two-hybrid system proved that SlDnaJ20 can interact with the chloroplast heat-shock protein 70. Our results indicate that SlDnaJ20 overexpression enhances the thermotolerance of transgenic tomatoes, whereas suppression of SlDnaJ20 increases the heat sensitivity of transgenic tomatoes.
Keywords:
DnaJ; heat stress; HSP70; SlDnaJ20; tomato

1. Introduction

Global agricultural production is affected by various environmental factors. With the gradual warming of global temperature, heat stress becomes more and more serious. The Intergovernmental Panel on Climate Change (2012) predicted that the global average temperature would rise by 2–5 °C at the end of the century. By then, many plants will not grow normally as a consequence of heat stress; therefore, cultivating new varieties resistant to heat stress and further studying the molecular mechanisms of plant response to heat stress are necessary. Heat-shock proteins (HSPs) are a kind of protein commonly found in plants in response to heat stress. Heat-resistant plants often enhance heat tolerance by overexpressing HSPs [1,2]. These proteins can generally be used in a number of processes to protect cells from heat stress, such as protein folding, protein export, DNA replication, and stress response [3,4].
DnaJ proteins, also known as heat-shock protein 40 (HSP40), perform the function of molecular chaperones independently or as the co-chaperone of HSP70 [5,6]. DnaJ protein generally contains four conserved domains, namely a J domain at the N-terminal, a glycine- and phenylalanine-rich region (G/F domain), a zinc finger(CxxCxGxG)4 domain, and a C-terminal domain [7,8]. Among them, the spatial structure of the J domain is composed of four helices, in which the second helix and the third helix are reverse parallel spatial structures, and the His/Pro/Asp (HPD) tripeptide with extremely conservative structure is located between the second and third helix. The G/F domain is a flexible linear structure, which may affect the function specificity of the J-protein. The most typical feature of zinc finger domain is that there are four CxxCxGxG repeat modules, which can interact with zinc ions and participate in the interaction between the J-protein and the target peptide. The most unconserved domain of the four domains is that at the C-terminal region, but this region has a similar three-dimensional structure consisting mainly of two β folds and a shorter α helix [9,10]. According to their conserved domains, DnaJ proteins are mainly divided into three groups: type I J-proteins contain all four domains (the J, G/F, zinc finger, and C-terminal domain), type II J-proteins do not contain a zinc-finger domain, and type III J-proteins only have a J domain [11,12]. Previous studies showed that J-proteins are involved in heat stress response in plants. Overexpression of both AtDjA2 and AtDjA3 enhances the heat resistance of Arabidopsis seedlings [13]. Thermosensitive male-sterile 1, as a J-protein, is important for the regular growth of Arabidopsis pollen tubes under heat stress [14]. AtDjB1 plays an important role in preventing cells from heat-induced oxidative damage in A. thaliana [15]. LeCDJ1 contributes to improving the heat tolerance of transgenic tomatoes [16]. Solanum lycopersicum chloroplast-targeted DnaJ protein (SlCDJ2) facilitates thermotolerance by maintaining Rubisco activity in transgenic tomato [17].
Heat stress often causes excessive accumulation of reactive oxygen species (ROS) in plants. Chloroplast is one of the important parts where ROS is produced in plants. However, excessive ROS can significantly suppress the de novo synthesis of D1 protein and, thus, affect the normal process of photosynthesis [18]. The enzymatic reaction and non-enzymatic reaction systems are the two main mechanisms that enable plants to remove excessive ROS. The non-enzymatic reaction system mainly refers to some non-enzymatic antioxidants, such as flavonoids, tocopherol, ascorbic acid, glutathione, carotene, mannitol, and so on. These substances can not only react with ROS and reduce them, but also act as a substrate of enzymes in the ROS clearance process. The enzymatic reaction system mainly includes three antioxidant enzymes, namely superoxide dismutase (SOD), ascorbate peroxidase (APX), and catalase (CAT). SOD, as the first line of defense in the plant antioxidant system, removes the superoxide anion in cells. SOD is divided into three types according to the different metal ions bound by its auxiliary base in plants: Cu/Zn-SOD, Mn-SOD, and Fe-SOD. Chloroplast mainly contains Cu/Zn-SOD and Fe-SOD. APX removes H2O2 and is divided into four types according to its location in plant cells: cytosolic APX (cAPX), microbody membrane-bound APX (mAPX), stromal APX (sAPX), and thylakoid membrane-bound APX (tAPX), where sAPX and tAPX exist in chloroplasts. CAT is mainly found in plant peroxidases, which also remove excess H2O2. Previous studies showed that the DnaJ protein plays an important role in protecting antioxidant enzyme activity and removing excess ROS [16,19].
The expression of many genes is changed in plants under heat stress. Heat stress transcriptional factors (HSFs) are some of the most important genes involved in response to heat stress, and they can recognize and bind specifically to the conserved motif of heat-shock element in the HSP gene promoter subregion to regulate the expression of the HSP gene. Plant HSF genes were first cloned in tomato [20]. At least 16 kinds of HSFs were found in tomatoes according to previous studies [21,22,23]. Among them, HsfA1, HsfA2, and HsfB1 are the three most representative and well-studied HSFs [20]. HsfA1a is the main regulatory factor in the expression of heat-induced genes and in the synthesis of HsfA2 and HsfB1 in tomatoes, which is essential in tomato heat resistance [24,25]. Hahn et al. demonstrated the direct interaction between Hsp70/Hsp90 and HSFs through yeast hybridization and immune co-precipitation experiments [26]. However, the role between DnaJ and HSFs in plant thermotolerance needs to be elucidated.
Therefore, we cloned and characterized a novel J-protein from tomato (SlDnaJ20), which is located in the chloroplast. SlDnaJ20 belongs to the simplest type III J-proteins characterized specifically by the typical J-domain. SlDnaJ20 transcription was proven to be affected by heat stress. Moreover, SlDnaJ20 overexpression in tomato reduced heat stress-induced photosystem damage, whereas SlDnaJ20 suppression increased heat sensitivity.

2. Results

2.1. Identification and Bioinformatics Analysis of SlDnaJ20

SlDnaJ20 was isolated and cloned from tomato leaves. The full length of SlDnaJ20 complementary DNA (cDNA) is 1019 bp and contains a 591-bp open reading frame, which encodes a protein with 196 amino acids, with a calculated molecular weight of ∼22.7 kDa and a isoelectric point (pI) of 9.18 (https://web.expasy.org/cgi-bin/compute_pi/pi_tool). SlDnaJ20 is located on tomato chromosome 5 according to the Sol Genomics Network (the number: SGN-U570442). The homologous comparison with reported LeCDJ1 and SlCDJ2 verified that SlDnaJ20 has typical HPD (His/Pro/Asp) motifs and belongs to the J-protein family (Figure 1A). However, according to the analysis from the phylogenetic tree of reported plant J-proteins and the characteristics of the SlDnaJ20 amino-acid sequence (Figure S1), SlDnaJ20 belongs to the simplest type III J-protein family (Figure 1B). SlDnaJ20 amino-acid sequence identities with LeCDJ1 and SlCDJ2 are 11.55% and 16.25%, respectively, indicating that the physiological function of SlDnaJ20 may be different from that of LeCDJ1 and SlCDJ2.

2.2. Subcellular Localization of SlDnaJ20

The databases TargetP 1.1 (http://www.cbs.dtu.dk/services/TargetP/) and ChloroP 1.1 (http://www.cbs.dtu.dk/services/ChloroP/) predicted that SlDnaJ20 may be a chloroplast protein (Tables S1 and S2). To confirm this prediction, transient conversion assays were conducted in vivo in Arabidopsis protoplasts extracted from leaf tissue with expressing 35S::enhanced GFP (EGFP) and 35S::SlDnaJ20-EGFP fusion protein (Figure 2A). As a contrast, not surprisingly, the green fluorescence of 35S::EGFP protein was dispersed in all parts of the protoplasts except the vacuoles (Figure 2B, upper panels). However, when the protoplasts were transfected with 35S::SlDnaJ20-EGFP fusion protein, green fluorescence signal was distinctly co-localized with the auto-fluorescent signal of chlorophyll in the chloroplasts (Figure 2B, lower panels). These results indicated that SlDnaJ20 is a chloroplast protein.

2.3. Expression Analysis of SlDnaJ20 in Tomato

SlDnaJ20 was obtained from a gene tomato library whose gene expression patterns could be affected by heat stress. Therefore, the expression of SlDnaJ20 under heat stress was studied firstly via qPCR and Western blot methods. SlDnaJ20 transcription levels were analyzed using qPCR at different temperatures (30 °C, 35 °C, 38 °C, 42 °C, and 45 °C) after 6 h of heat treatment. The expression of SlDnaJ20 was the highest after the 42 °C treatment (Figure 3A). Therefore, the expression levels of SlDnaJ20 during the study were determined with 42 °C for 24 h (Figure 3D). The transcription level reached its maximum at 6 h, which then decreased but recovered slowly to the original level after recovery at 25 °C for 6 h. Western blot results suggested that the change in protein signals of SlDnaJ20 was similar to that in the transcription levels (Figure 3B,E). Similarly, quantitative image analysis of SlDnaJ20 protein contents (Figure 3B,E) showed a similar profile (Figure 3C,F).
The expression level of SlDnaJ20 was measured via qPCR analysis under chilling (4 °C), salt (400 mM NaCl), drought (25% polyethylene glycol (PEG-6000)), and oxidative (20 mM H2O2) stresses at different time points (Figure 4). The expression of SlDnaJ20 was induced to different degrees under the abovementioned stress environments. The expression of SlDnaJ20 induced via chilling stress first increased and then decreased, with the highest expression level at 12 h (Figure 4A). Salt stress induced the expression of SlDnaJ20 similar to chilling stress, but the highest transcription level was observed at 9 h (Figure 4B). For osmotic stress, the expression of SlDnaJ20 was induced gradually (Figure 4C). Moreover, the expression of SlDnaJ20 induced via oxidative stress first decreased and then increased, with the highest expression level at 24 h (Figure 4D). These results indicated that SlDnaJ20 is a multiple stress response gene.
The expression profiles of SlDnaJ20 in different organs were analyzed via qPCR. Figure 4F shows that SlDnaJ20 was constitutively expressed in various organs collected and preferentially in the leaves. Thus, these results suggested that SlDnaJ20 might play its role mainly in chlorophyllous tissues.

2.4. Identification of Transgenic Plants

A total of 28 individual phosphinothricin-resistant transgenic tomato lines (T2) were collected from tissue culture, including 16 sense lines and 12 antisense lines. Six sense (S1, S2, S4, S6, S8, and S9) and antisense (A1, A3, A4, A5, A7, and A8) T2 lines were selected for qPCR to detect the expression level of SlDnaJ20 in transgenic lines. Compared with wild-type (WT) plants, the SlDnaJ20 transcription level in the tested sense pants increased by 12.9-, 65.0-, 44.9-, 32.2-, 25.7-, and 10.6-fold, whereas that in the antisense plants decreased by 0.37-, 0.20-, 0.47-, 0.27-, 0.30-, and 0.67-fold (Figure 5A). Among these transgenic lines, S2, S6, S9, A3, A5, and A8 were selected for Western blot analysis. The profile of SlDnaJ20 protein levels was similar to that of the transcript levels (Figure 5B,C). Therefore, S2, S6, S9, A3, A5, and A8 were selected for subsequent studies.

2.5. SlDnaJ20 Overexpression Enhanced Heat Stress Resistance

Given that SlDnaJ20 expression was obviously induced by high temperature, growth performance of ten-day-old seedlings and six-week-old mature plants was observed under heat stress. Under natural conditions, both seedlings and mature plants grew normally, and there was no obvious difference in phenotype and physiological parameters among sense, WT, and antisense lines (Figure 6). After 42 °C treatment for two days, the growth of all seedlings was inhibited at varying degrees. The growth phenotype of seedlings showed a slight difference among sense, WT, and antisense lines (Figure 6A). However, compared with WT lines, leaf withering was more serious in antisense mature lines and less serious in sense mature lines after 42 °C treatment for 24 h (Figure 6B). Therefore, compared with WT lines, the sense lines had higher chlorophyll content and fresh weight, while the antisense lines had lower chlorophyll content and fresh weight (Figure 6C,D). Similarly, after heat treatment, compared with the WT, the net photosynthetic rate (Pn) of antisense plants decreased significantly, while that of sense plants showed a slight decrease (Figure 6E). These results suggested that SlDnaJ20 overexpression could enhance the thermotolerance of transgenic plants, while its suppression increased the thermal sensitivity of plants.

2.6. SlDnaJ20 Overexpression Alleviates ROS Accumulation by Maintaining High Levels of SOD and APX Activities

Heat stress usually causes the generation of ROS. H2O2 and O2•−, two main ROS species, were evaluated using 3′,3-diaminobenzidine (DAB) and nitroblue tetrazolium (NBT) staining, respectively. As Figure 7 shows, before treatment, H2O2 and O2•− accumulations were relatively low and no obvious difference was observed between WT and transgenic lines. However, after heat stress for 12 h, the accumulation of brown polymerization product (DAB staining) increased, especially in WT and antisense lines, and the antisense plants had the deepest color (Figure 7A). Similar results were observed in O2•− accumulation (Figure 7B). Quantitative determination of H2O2 and O2•− revealed a similar result (Figure 7C,D). The above results showed that SlDnaJ20 overexpression alleviates the accumulation of H2O2 and O2•−.
Under normal conditions, no obvious difference in SOD and APX activities was detected between WT and transgenic lines. After 42 °C treatment for 12 h, SOD and APX activities decreased in different degrees. However, compared with WT lines, the decrease range in SOD and APX activities in the sense lines was smaller, whereas that in antisense lines was larger (Figure 8A,B). To investigate the reason for changes in enzyme activity, the expressions of SlCuZnSOD, SlFeSODSl, SlAPX1, SlAPX2, and SltAPX were detected via qPCR. As shown in Figure 8C–G, under normal conditions, the expression levels of SlCuZnSOD, SlFeSODSl, SlAPX1, SlAPX2, and SltAPX showed no obvious difference among sense, WT, and antisense lines. After heat treatment for 12 h, the expression levels of SlCuZnSOD, SlFeSODSl, SlAPX1, SlAPX2, and SltAPX were drastically reduced, but there was also no obvious difference among sense, WT, and antisense lines. These results indicate that the low ROS accumulation in the sense plants was due to the high levels of SOD and APX activities via SlDnaJ20 overexpression.

2.7. SlDnaJ20 Overexpression Alleviates Photoinhibition of Photosystem II (PSII) under Heat Stress

As a core protein subunit of photosystem II (PSII), D1 protein shows a rapid turnover and directly reflects the degree of photoinhibition. Western blot results suggested that D1 protein levels were not obviously different between WT and transgenic lines under natural growth conditions. After 24 h of heat stress, the protein contents of all the lines decreased; however, the decrease range was smaller in sense lines and larger in antisense lines compared with WT lines (Figure 9A,B). Fluorescence (Fv/Fm) was used to evaluate PSII photoinhibition. With the extension of heat processing time, the decrease in amplitude of Fv/Fm in antisense lines was significantly greater than that of WT, while the decrease in amplitude of Fv/Fm was the minimum in sense lines. In the recovery stage, the recovery rate of Fv/Fm in sense lines was significantly faster than that of WT lines, while the recovery rate of Fv/Fm was the slowest in antisense lines (Figure 9C). These results indicated that SlDnaJ20 overexpression can alleviate PSII photoinhibition under heat stress.

2.8. SlDnaJ20 Overexpression Promotes Expression of HSFs under Heat Stress

HSFs are possibly involved in heat stress response. Therefore, the transcription levels of HsfA1, HsfA2, and HsfB1 were evaluated via qPCR. As shown in Figure 10, the expression levels of HsfA1, HsfA2, and HsfB1 showed no obvious difference among sense, WT, and antisense lines under natural conditions. After 12 h of heat stress, compared with WT, sense lines showed higher expression levels of HsfA1 and HsfA2 in response to heat stress, whereas no obvious difference was observed in antisense lines, indicating that SlDnaJ20 overexpression may further enhance resistance to heat stress by promoting the expression of HSFs.

2.9. Interaction between SlDnaJ20 and Chloroplast Hsp70 (cpHsp70)

DnaJ proteins are the co-chaperones of Hsp70. However, LeCDJ1 and SlCDJ2 also interact with cpHsp70 [16,17]. Therefore, we postulated that SlDnaJ20 may also interact with cpHsp70. The interaction between SlDnaJ20 and cpHsp70 (GenBank No. EU195057.1) was analyzed using a yeast two-hybrid assay. The interaction between pGADT7-T and pGBKT7-53 proteins acted as a positive control. All yeast transformants grew normally on selective medium lacking Leu and Trp (SM-LW). The interaction between SlDnaJ20 and pGADT7 or cpHsp70 and pGBKT7 empty vectors was the negative control, and all yeast cells did not grow on SM-LWHA. However, when SlDnaJ20 was co-transformed with cpHsp70, blue colonies grew normally on selective medium lacking Leu, Trp, His, and adenine (SM-LWHA) (Figure 11), indicating that SlDnaJ20 interacted with cpHsp70.

3. Discussion

DnaJ protein is a widespread molecular chaperone in plants, which can maintain the homeostasis of proteins in plants under stress. So far, the function of J-proteins was identified in many plant species [27,28,29,30]. Approximately 63 J-proteins are found in tomato, of which only a few were studied in terms of their biological functions. LeCDJ1, a chloroplast J-protein, was proven to play an important role in maintaining PSII function under chilling stress, and LeCDJ1 overexpression can enhance the heat resistance of transgenic tomatoes [16,31]. LeCDJ2 overexpression could enhance drought tolerance and resistance to Pseudomonas solanacearum in transgenic tobacco [19]. In our study, a novel J-protein gene (SlDnaJ20) was identified from tomato. The results of amino-acid sequencing and phylogenetic tree analysis showed that SlDnaJ20 belongs to the simplest type III J-protein family (Figure 1). Transient transformation in Arabidopsis protoplasts proved that SlDnaJ20 was a chloroplast protein (Figure 2). However, SlDnaJ20, LeCDJ1, and LeCDJ2 were not highly homologous, which indicates that the biological function of SlDnaJ20 may be different from that of the two reported J-proteins. Expression pattern analysis showed that SlDnaJ20 could respond to various abiotic stresses, especially heat stress (Figure 3 and Figure 4). The present study proved that SlDnaJ20 contributes to enhancing the heat tolerance of transgenic tomatoes.
Global warming brought great challenges to the survival of many plants, which need to evolve highly complex mechanisms to cope with heat stress. Sustained heat stress can disrupt cellular homeostasis, leading to the retardation of plant growth and development, and even death [32]. Photosynthesis is long considered as one of the most heat-sensitive processes in plants [33,34]. Heat stress inhibits photosynthetic activity because it breaks the redox balance and affects electron transfer [35]. The extra electrons bond with oxygen to form ROS, which are potentially dangerous for plants under heat stress. The experimental data in this study indicate that SlDnaJ20 contributed to alleviating the accumulation of ROS in transgenic plants under heat stress. After heat stress, sense plants exhibited not only lowered ROS content, but also higher chlorophyll content and Pn value compared with WT and antisense plants (Figure 6 and Figure 7). The low accumulation of ROS in sense plants may be due to their increased SOD and APX activities. Moreover, the difference in SOD and APX gene expression among sense, WT, and antisense lines was not obvious after heat treatment (Figure 8). Therefore, the relatively high APX and SOD activities in the sense lines were not necessarily dependent on their transcription levels, and SlDnaJ20 as chaperone proteins may play a role in folding, unfolding, or assembly of these proteins. Chloroplasts are a main site of reactive oxygen products in higher green plants during abiotic stress [36]. Surplus ROS could damage the sensitive site of PSII and inhibit the de novo synthesis of D1 protein by suppressing the peptide elongation process [37]. Western blot results of D1 protein indicated that its decrease was the most serious in antisense plants after heat stress (Figure 9A,B). In addition to the D1 protein, Fv/Fm was also used to evaluate PSII photoinhibition. The experimental data showed that the Fv/Fm value of the sense plants decreased significantly with the prolonged heat treatment time, but the decrease in amplitude was smaller than that of WT and antisense plants (Figure 9C). The above results strongly suggest that the overexpression of SlDnaJ20 can alleviate the photoinhibition of PSII by relieving ROS accumulation.
HSFs are key transcription factors in heat stress response, and they can directly activate HSPs, sHSPs, and other heat response proteins under heat stress. Increased expression of these genes can enhance the heat tolerance of plants [38,39,40,41]. This study revealed that the expressions of HsfA1 and HsfA2 in response to heat stress is higher in sense plants than in WT and antisense plants (Figure 10). These results indicate that SlDnaJ20 overexpression enhances the heat tolerance of transgenic plants, probably because it promotes the expression of HSFs under heat stress. Moreover, Hahn et al. (2011) reported that a direct interaction exists between HSP70 and HSFs. As the co-chaperones of Hsp70, DnaJ proteins play an important role in stimulating Hsp70 ATPase activity. In this study, the yeast two-hybrid system proved that SlDnaJ20 can interact with tomato cpHSP70 (Figure 11). These findings suggest that the SlDnaJ20/cpHsp70 machinery possibly plays an important role in response to heat stress.
In conclusion, we isolated and cloned the novel tomato DnaJ gene SlDnaJ20. We found that the overexpression of SlDnaJ20 contributed to alleviating ROS accumulation under heat stress, thereby reducing the photoinhibition of PSII. In addition, the overexpression of SlDnaJ20 promoted the expression of HSFs to enhance the heat tolerance of transgenic plants, whereas its suppression increased the heat sensitivity of transgenic plants.

4. Materials and Methods

4.1. Plant Materials, Growth Conditions, and Stress Treatments

Wild-type (WT, Solanum lycopersicum cv. L-402) and six T2 transgenic lines (three sense lines, S2, S6, and S9; three antisense lines, A3, A5, and A8) were grown in sterilized soil in the following conditions: 55–65% relative humidity, 25 °C, 16 h/8 h (light/dark), and 250 µmol⋅m−2⋅s−1 photon flux density (PFD). These plants were watered with Hoagland’s nutrient solution twice a week. When they grew to about six weeks and the sixth leaf was fully unfolded, the plants were transferred to the illuminated growth chamber (GXZ-500C) for 2–3 days before treatment.
In order to investigate the expression of SlDnaJ20 under different stresses, six-week-old tomato WT plants were treated under different stresses. For 4 °C treatments, the plants were treated under 4 °C for 0, 3, 6, 9, 12, and 24 h under a 16-h (light)/8-h (dark) regime. For NaCl, polyethylene glycol (PEG), and H2O2 treatments, the roots of WT plants were dipped in Hoagland’s nutrient solution containing 400 mM NaCl, 25% PEG 6000 (w/v), and 20 mM H2O2 for 0, 3, 6, 9, 12, and 24 h, whereas the control plants were only watered with Hoagland’s nutrient solution. For heat treatments, WT plants were subjected to 30 °C, 35 °C, 38 °C, 42 °C, and 45 °C for 6 h, and then the plants were also treated under 42 °C for 0, 3, 6, 9, 12, and 24 h. Meanwhile, ten-day-old seedlings were treated at 42 °C for two days, and six-week-old WT and transgenic plants were subjected to 42 °C for 12 and 24 h in an illuminated growth chamber with approximately 250 µmol⋅m−2⋅s −1 PFD for physiological parameter detection.

4.2. Isolating and Sequencing of SlDnaJ20

The coding sequence (CDS) of SlDnaJ20 was amplified with cDNA from WT tomato leaves using specific primers (forward 5′–ATGTGTTGCAACTCCAATGG–3′ and reverse 5′–TTATGCATCATCATCCCTTT–3′) according to the messenger RNA (mRNA) sequence (GenBank No. XM_004239806) by polymerase chain reaction (PCR). Thereafter, the PCR amplification products were connected to pMD19-T vector (TaKaRa, Beijing, China) and sequenced. Protein multiple sequence alignments were performed using ClustalW (http://www.genome.jp/tools/clustalw/). The phylogenetic relationship of SlDnaJ20 protein was made using MAGE 5.1 software (https://mega.software.informer.com/5.1b).

4.3. Subcellular Localization of SlDnaJ20

The complete CDS of SlDnaJ20 was amplified with specific primers (forward 5′–CTCGAGATGTGTTGCAACTCCAATGG–3′ and reverse 5′–GGTACCGTTGCATCATCATCCCTTTGCT–3′). Subsequently, the SlDnaJ20 coding region was ligated into the reconstructed binary vector pEZS-NL digested with XhoI/KpnI, which generated a SlDnaJ20-EGFP (enhanced green fluorescent protein) construct. The EGFP alone and SlDnaJ20::EGFP (recombinant plasmids) were transformed into Arabidopsis mesophyll protoplasts, and then laser confocal microscopy (LSM510 META; Zeiss, Oberkochen, Germany) was used to examine the fluorescent.

4.4. Tomato Genetic Transformation and Identification

We inserted the CDS of SlDnaJ20 into the pCAMBIA3301 binary expression vector under the control of the CaMV 35S promoter. The CDS of SlDnaJ20 was also inserted into the expression vector pCAMBIA3301 inversely. The recombinant plastids were transferred into Agrobacterium tumefaciens LBA4404 via freezing transformation method and confirmed using PCR and sequencing analyses. The genetic transformation of tomato plants was performed following the A. tumefaciens-mediated leaf disc method. T0 phosphinothricin-resistant transgenic tomato plants were generated by the A. tumefaciens mediated leaf disk method. After selection for phosphinothricin-resistant T0 transgenic plants, PCR-based genotyping was performed to further identify the sense and antisense T0 transgenic plants. T2 progeny homozygotes with 100% phosphinothricin resistance were used in the following experiments.

4.5. Real-Time Quantitative PCR (qPCR) Analysis

Total RNA was isolated from transgenic and WT tomato leaves using Trizol reagent (TIANGEN, Beijing, China). Quantitative PCR was performed following the method described by Zhang et al. [42]. EF-1α (GenBank No. LOC544055) acted as an actin control. The primers used for qPCR are listed in Table S3.

4.6. Antibody Production, Protein Acquisition, and Protein Level Analysis

The CDS of SlDnaJ20 was ligated into the pET-30a (+) vector digested with BamHI/SacI. SlDnaJ20 antibody was produced as described previously [19]. Total protein was isolated from the leaves according to the method described previously [31]. Thylakoid membranes were isolated following the method described by Zhang et al. [43]. Western blot analysis was performed following the method described previously [17].

4.7. Measurement of Net Photosynthetic Rate (Pn) and Chlorophyll Fluorescence

Pn was detected using a CIRAS-3 Portable Photosynthesis System (PP Systems, Amesbury, MA, USA) under ambient 380 µL·L−1 CO2 conditions, 80% relative humidity, 800 µmol·m−2·s−1 PFD and 25 °C leaf temperature.
The chlorophyll fluorescence was detected with an FMS-2 pulse-modulated fluorometer (Hansatech Instruments, Norfolk, UK). Before testing, plants needed to be dark-adapted for 30 minutes. The measurement was conducted as described in Jiang et al. [44]. The Fv/Fm of PSII was calculated as follows: Fv/Fm = (Fm–Fo)/Fm.

4.8. Histochemical Staining and Measurements of H2O2 and O2•−

Hydrogen peroxide (H2O2) and superoxide radical (O2•−) were stained with 3′,3-diaminobenzidine (DAB) and nitroblue tetrazolium (NBT), respectively. The staining protocols were performed as described in Pan et al. [45]. The contents of H2O2 and O2•− in WT and transgenic plant leaves were detected following previous research methods [31].

4.9. Measurements of Chlorophyll Content and Antioxidative Enzyme Activities

The chlorophyll content of the WT and transgenic plant leaves was detected following the method described in Kong et al. [31]. SOD and APX were measured in the leaves following the method described in Zong et al. [46].

4.10. Yeast Two-Hybrid Assays

The CDS of SlDnaJ20 was ligated to pGADT7 (Clontech, Palo Alto, CA, USA) digested with EcoRI/SacI. The CDS of cpHsp70 (GenBank No. EU195057.1) was amplified with cDNA from tomato leaves and inserted to pGBKT7 (Clontech, Palo Alto, CA, USA) digested with BamHI/XhoII. Then, the pGADT7-SlDnaJ20 recombinant plasmid was co-transformed with pGBKT7-cpHsp70 into the yeast strain Y187 (Clontech, Palo Alto, CA, USA) via the lithium acetate transformation method (Clontech Yeast Two-Hybrid User Manual). Yeast cells were coated onto a selective medium lacking Leu and Trp (SM-LW). Putative transformants were transferred to a selective medium lacking Leu, Trp, His, and adenine, but with the addition of X-α-Gal and aureobasidin (SM-LWHA/X/A). The interaction between pGADT7-T and pGBKT7-53 proteins was used as a positive control. The result was based on three independent biological repeats.

4.11. Statistical Analysis

SigmaPlot 12.5 (Systat Software, San Jose, CA, USA) and SPSS13.0 (Chicago, IL, USA) were used for statistical analyses. The mean values ± SD of at least three replicates are presented, and * p < 0.05 and ** p < 0.01 indicate significant differences compared with the control.

Supplementary Materials

Supplementary materials can be found at https://www.mdpi.com/1422-0067/20/2/367/s1.

Author Contributions

G.W. performed most of the experiments and wrote the manuscript. G.C. and N.X. analyzed the data; L.Z. and X.S. helped obtain the experimental data. J.G. helped design and prepare the manuscript. Q.M. designed the overall study. All authors discussed the results and commented on the manuscript.

Funding

This work was supported by the National Natural Science Foundation Cultivation Project of Jining Medical University (JYP201718), the Doctor Startup Foundation of Jining Medical University (600492001), the Natural Science Foundation of Shandong (ZR2018BC032), the Natural Science Foundation of China (31700211), and the State Key Basic Research and Development Plan of China (2015CB150105).

Conflicts of Interest

The authors declare no conflicts of interest.

Abbreviations

APXascorbate peroxidase
CaMV35 Scauliflower mosaic virus 35 S
DAB3,3′-diaminobenzidine
EGFPenhanced green fluorescent protein
H2O2hydrogen peroxide
HSFheat-shock transcription factor
HSPheat-shock protein
NBTnitroblue tetrazolium
O2•−superoxide anion radical
PSIIphotosystem II
qPCRquantitative real-time polymerase chain reaction
ROSreactive oxygen species
sHSPsmall heat-shock protein
SlDnaJ20Solanum lycopersicum DnaJ protein 20
SODsuperoxide dismutase

References

  1. Xue, Y.; Xiong, A.; Li, X.; Zha, D.; Yao, Q. Overexpression of heat shock protein gene Hsp26 in Arabidopsis thaliana enhances heat tolerance. Biol. Plant 2010, 54, 105–111. [Google Scholar] [CrossRef]
  2. Sun, L.P.; Liu, Y.; Kong, X.P.; Zhang, D.; Pan, J.W.; Zhou, Y.; Wang, L.D.; Li, Q.; Yang, X.H. ZmHSP16.9, a cytosolic class I small heat shock protein in maize (Zea mays), confers heat tolerance in transgenic tobacco. Plant Cell Rep. 2012, 31, 1473–1484. [Google Scholar] [CrossRef] [PubMed]
  3. Lindquist, S.; Craig, E.A. The heat-shock proteins. Annu. Rev. Genet. 1988, 22, 631–677. [Google Scholar] [CrossRef]
  4. Hendrick, J.P.; Hartl, F.U. Molecular chaperone functions of heat-shock proteins. Annu. Rev. Biochem. 1993, 62, 349–384. [Google Scholar] [CrossRef] [PubMed]
  5. Hennessy, F.; Nicoll, W.S.; Zimmermann, R.; Cheetham, M.E.; Blatch, G.L. Not all J domains are created equal: Implications for the specificity of Hsp40-Hsp70 interactions. Protein Sci. 2005, 14, 1697–1709. [Google Scholar] [CrossRef] [PubMed][Green Version]
  6. Craig, E.A.; Huang, P.; Aron, R.; Andrew, A. The diverse roles of J proteins, the obligate Hsp70 co-chaperone. Rev. Physiol. Biochem. Pharmacol. 2006, 156, 1–21. [Google Scholar] [PubMed]
  7. Caplan, A.J.; Cyr, D.M.; Douglas, M.G. Eukaryotic homologues of Escherichia coli dnaJ: A diverse protein family that functions with hsp70 stress proteins. Mol. Biol. Cell 1993, 4, 555–563. [Google Scholar] [CrossRef]
  8. Silver, P.A.; Way, J.C. Eukaryotic DnaJ homologs and the specificity of Hsp70 activity. Cell 1993, 74, 5–6. [Google Scholar] [CrossRef]
  9. Kelley, W.L. The J-domain family and the recruitment of chaperone power. Trends Biochem. Sci. 1998, 23, 222–227. [Google Scholar] [CrossRef]
  10. Martinez-Yamout, M.; Legge, G.B.; Zhang, O.; Wright, P.E.; Dyson, H.J. Solution structure of the cysteine-rich domain of the Escherichia coli chaperone protein DnaJ. J. Mol. Biol. 2000, 300, 805–818. [Google Scholar] [CrossRef]
  11. Bork, P.; Sander, C.; Valencia, A.; Bukau, B. A module of the DnaJ heat shock proteins found in malaria parasites. Trends Biochem. Sci. 1992, 17, 129. [Google Scholar] [CrossRef]
  12. Cheetham, M.E.; Caplan, A.J. Structure, function and evolution of DnaJ: Conservation and adaptation of chaperone function. Cell Stress Chaperon. 1998, 3, 28–36. [Google Scholar] [CrossRef]
  13. Li, G.L.; Chang, H.; Li, B.; Zhou, W.; Sun, D.Y.; Zhou, R.G. The roles of the atDjA2 and atDjA3 molecular chaperone proteins in improving thermotolerance of Arabidopsis thaliana seedlings. Plant Sci. 2007, 173, 408–416. [Google Scholar] [CrossRef]
  14. Yang, K.Z.; Xia, C.; Liu, X.L.; Dou, X.Y.; Wang, W.; Chen, L.Q.; Zhang, X.Q.; Xie, L.F.; He, L.Y.; Ma, X.; et al. A mutation in Thermosensitive Male Sterile 1, encoding a heat shock protein with DnaJ and PDI domains, leads to thermosensitive gametophytic male sterility in Arabidopsis. Plant J. 2009, 57, 870–882. [Google Scholar] [CrossRef] [PubMed]
  15. Zhou, W.; Zhou, T.; Li, M.X.; Zhao, C.L.; Jia, N.; Wang, X.X.; Sun, Y.Z.; Li, G.L.; Xu, M.; Zhou, R.G.; et al. The Arabidopsis J-protein AtDjB1 facilitates thermotolerance by protecting cells against heat-induced oxidative damage. New Phytol. 2012, 194, 364–378. [Google Scholar] [CrossRef]
  16. Kong, F.Y.; Deng, Y.S.; Wang, G.D.; Wang, J.R.; Liang, X.Q.; Meng, Q.W. LeCDJ1, a chloroplast DnaJ protein, facilitates heat tolerance in transgenic tomatoes. J. Integr. Plant Biol. 2014, 56, 63–74. [Google Scholar] [CrossRef]
  17. Wang, G.D.; Kong, F.Y.; Zhang, S.; Meng, X.; Wang, Y.; Meng, Q.W. A tomato chloroplast-targeted DnaJ protein protects Rubisco activity under heat stress. J. Exp. Bot. 2015, 66, 3027–3040. [Google Scholar] [CrossRef][Green Version]
  18. Murata, N.; Takahashi, S.; Nishiyama, Y.; Allakhverdiev, S.I. Photoinhibition of photosystem II under environmental stress. Biochim. Biophys. Acta 2007, 1767, 414–421. [Google Scholar] [CrossRef][Green Version]
  19. Wang, G.D.; Cai, G.H.; Kong, F.Y.; Deng, Y.S.; Ma, N.; Meng, Q.W. Overexpression of tomato chloroplast-targeted DnaJ protein enhances tolerance to drought stress and resistance to Pseudomonas solanacearum in transgenic tobacco. Plant Physiol. Bioch. 2014, 82, 95–104. [Google Scholar] [CrossRef]
  20. Scharf, K.D.; Rose, S.; Zott, W.; Schoff, F.; Nover, L. Three tomato genes code for heat stress transcription factors with a region of remarkable homology to the DNA binding domain of the yeast HSF. EMBO J. 1990, 9, 4495–4501. [Google Scholar] [CrossRef]
  21. Czarnecka-Verner, E.; Yuan, C.X.; Fox, P.C.; Gurley, W.B. Isolation and characterization of six heat shock transcription factor cDNA clones from soybean. Plant Mol. Biol. 1995, 29, 37–51. [Google Scholar] [CrossRef] [PubMed]
  22. Nover, L.; Bharti, K.; Doring, P.; Mishra, S.K.; Ganguli, A.; Scharf, K.D. Arabidopsis and the heat stress transcription factor world: How many heat stress transcription factors do we need. Cell Stress Chaperon. 2001, 6, 177–189. [Google Scholar] [CrossRef]
  23. Kotak, S.; Port, M.; Ganguli, A.; Bicker, F.; Koskull-Döring, P. Characterization of C-terminal domains of Arabidopsis heat stress transcription factors (Hsfs) and identification of a new signature combination of plant class A Hsfs with AHA and NES motifs essential for activator function and intracellular localization. Plant J. 2004, 39, 98–112. [Google Scholar] [CrossRef] [PubMed]
  24. Baniwal, S.K.; Bharti, K.; Chan, K.Y.; Fauth, M.; Ganguli, A.S.; Kotak, S.K.; Mishra, L.; Nover, M.; Port, K.D.; Scharf, K.D.; et al. Heat stress response in plants: A complex game with chaperones and more than twenty heat stress transcription factors. J. Biosci. 2004, 29, 471–487. [Google Scholar] [CrossRef] [PubMed]
  25. Chan-Schaminet, K.Y.; Baniwal, S.K.; Bublak, D.; Nover, L.; Scharf, K.D. Specific interaction between tomato HsfA1 and HsfA2 creates hetero-oligomeric superactivator complexes for synergistic activation of heat stress gene expression. J. Biol. Chem. 2009, 284, 20848–20857. [Google Scholar] [CrossRef] [PubMed]
  26. Hahn, A.; Bublak, D.; Schleiff, E.; Scharf, K.D. Crosstalk between Hsp90 and Hsp70 chaperones and heat stress transcription factors in tomato. Plant Cell 2011, 23, 741–755. [Google Scholar] [CrossRef] [PubMed]
  27. Miernyk, J.A. The J-domain proteins of Arabidopsis thaliana: An unexpectedly large and diverse family of chaperones. Cell Stress Chaperon. 2001, 6, 209–218. [Google Scholar] [CrossRef]
  28. Qiu, X.B.; Shao, Y.M.; Miao, S.; Wang, L. The diversity of the DnaJ/Hsp40 family, the crucial partners for Hsp70 chaperones. Cell. Mol. Life Sci. 2006, 63, 2560–2570. [Google Scholar] [CrossRef]
  29. Bekh-Ochir, D.; Shimada, S.; Yamagami, A.; Kanda, S.; Ogawa, K.; Nakazawa, M.; Matsui, M.; Sakuta, M.; Osada, H.; Asami, T.; et al. A novel mitochondrial DnaJ/Hsp40 family protein BIL2 promotes plant growth and resistance against environmental stress in brassinosteroid signaling. Planta 2013, 237, 1509–1525. [Google Scholar] [CrossRef][Green Version]
  30. Fristedt, R.; Williams-Carrie, R.; Merchant, S.S.; Barkan, A. A thylakoid membrane protein harboring a DnaJ-type zinc finger domain is required for photosystem I accumulation in plants. J. Biol. Chem. 2014, 289, 30657–30667. [Google Scholar] [CrossRef]
  31. Kong, F.Y.; Deng, Y.S.; Zhou, B.; Wang, G.D.; Wang, Y.; Meng, Q.W. A chloroplast-targeted DnaJ protein contributes to maintenance of photosystem II under chilling stress. J. Exp. Bot. 2014, 65, 143–158. [Google Scholar] [CrossRef]
  32. Timperio, A.M.; Egidi, M.G.; Zolla, L. Proteomics applied on plant abiotic stresses: Role of heat shock proteins (HSP). J. Proteomics 2008, 71, 391–411. [Google Scholar] [CrossRef]
  33. Salvucci, M.E. Association of Rubisco activase with chaperonin-60b: A possible mechanism for protecting photosynthesis during heat stress. J. Exp. Bot. 2008, 59, 1923–1933. [Google Scholar] [CrossRef]
  34. Sharkey, T.D.; Schrader, S.M. High temperature stress. In Physiology and Molecular Biology of Stress Tolerance in Plants; Rao, K.V.M., Raghavendra, A.S., Reddy, K.J., Eds.; Springer: Dordrecht, The Netherlands, 2008; pp. 101–130. [Google Scholar]
  35. Zhang, R.; Sharkey, T.D. Photosynthetic electron transport and proton flux under moderate heat stress. Photosynth. Res. 2009, 100, 29–43. [Google Scholar] [CrossRef] [PubMed]
  36. Vandenabeele, J.; Dat, S.; Vranová, E.; Van Montagu, M.; Inzé, D.; Van Breusegem, F. Dual action of the active oxygen species during plant stress responses. CMLS Cell. Mol. Life Sci. 2000, 57, 779–795. [Google Scholar]
  37. Pospíšil, P. Production of reactive oxygen species by photosystem II. Biochim. Biophys. Acta 2009, 1787, 1151–1160. [Google Scholar] [CrossRef] [PubMed][Green Version]
  38. Mishra, S.K.; Tripp, J.; Winkelhaus, S.; Tschiersch, B.; Theres, K.; Nover, L.; Scharf, K.D. In the complex family of heat stress transcription factors, HsfA1 has a unique role as master regulator of thermotolerance in tomato. Gene Dev. 2002, 16, 1555–1567. [Google Scholar] [CrossRef] [PubMed][Green Version]
  39. Hermosa, M.R.; Cardoza, R.E.; Gutierrez, S.; Nicolas, C.; Monte, E. Transgenic expression of the trichoderma harzianum hsp70 gene increases Arabidopsis resistance to heat and other abiotic stresses. J. Plant Physiol. 2010, 167, 659–665. [Google Scholar]
  40. Chauhan, H.; Khurana, N.; Nijhavan, A.; Khurana, J.P.; Khurana, P. The wheat chloroplastic small heat shock protein (sHSP26) is involved in seed maturation and germination and imparts tolerance to heat stress. Plant Cell Environ. 2012, 35, 1912–1931. [Google Scholar] [CrossRef]
  41. Wang, J.; Wang, J.Z.; Lu, Y.Z.; Fang, Y.; Gao, X.; Wang, Z.H.; Zheng, W.J.; Xu, S.B. The heat responsive wheat TaRAD23 rescues developmental and thermotolerant defects of the rad23b mutant in Arabidopsis thaliana. Plant Sci. 2018, 274, 23–31. [Google Scholar] [CrossRef]
  42. Zhang, W.; Zhou, R.G.; Gao, Y.J.; Zheng, S.Z.; Xu, P.; Zhang, S.Q.; Sun, D.Y. Molecular and genetic evidence for the key role of AtCaM3 in heat-shock signal transduction in Arabidopsis. Plant Physiol. 2009, 149, 1773–1784. [Google Scholar] [CrossRef] [PubMed]
  43. Zhang, L.X.; Paakkarinen, V.; van Wijk, K.J.; Aro, E.M. Cotranslational assembly of the D1 protein into photosystem II. J. Biol. Chem. 1999, 274, 16062–16067. [Google Scholar] [CrossRef] [PubMed]
  44. Jiang, C.D.; Gao, H.Y.; Zou, Q.; Jiang, G.M.; Li, L.H. Leaf orientation, photorespiration and xanthophyll cycle protect young soybean leaves against high irradiance in field. Environ. Exp. Bot. 2006, 55, 87–96. [Google Scholar] [CrossRef]
  45. Pan, J.W.; Zhang, M.Y.; Kong, X.P.; Xing, X.; Liu, Y.; Zhou, Y.; Li, D.Q. ZmMPK17, a novel maize group D MAP kinase gene, is involved in multiple stress responses. Planta 2012, 235, 661–676. [Google Scholar] [CrossRef] [PubMed]
  46. Zong, X.J.; Li, D.P.; Gu, L.K.; Liu, L.X.; Hu, X.L.; Li, D.Q. Abscisic acid and hydrogen peroxide induce a novel maize group C MAP kinase gene, ZmMPK7, which is responsible for the removal of reactive oxygen species. Planta 2009, 229, 485–495. [Google Scholar] [CrossRef]
Figure 1. Multiple sequence alignment and phylogenetic tree analysis of Solanum lycopersicum DnaJ protein (SlDnaJ20). (A) Multiple sequence alignment between SlDnaJ20 and other J-proteins in tomato. Black and gray refer to identical and similar amino acids, respectively. The His/Pro/Asp (HPD) motifs are marked by stars. The protein sequence of SlDnaJ20 only contains a J-domain (red box). (B) Phylogenetic tree analysis of SlDnaJ20 with other J-proteins. Roman numerals I–III on the right represent different types of J-proteins. SlDnaJ20 is underlined. The phylogenetic tree of various J-proteins generated with the ClustalW2 program using the Neighbor-Joining method in MEGA (version 5.1) (https://mega.software.informer.com/5.1b). Bootstrap analyses were computed with 1000 replicates, the percentage values larger than 80 are shown in the branches. The gene names and GenBank accession numbers are as follows: PmDnaJ, YP_001013845; SynDnaJ, ZP_01084411; CrCDJ1, AAU06580; AtDjA52, AAD55483; PsPCJ1, CAA96305; AtDjA24, NP_568076; AtDjA26, NP_565533; AtDjA54, NP_188410; atDjA30, BAB11067; AtDjB1, At1g28210; CrDNJ1, EDP04706; AtDjA2, At5g22060; AtDjA3, At3g44110; ARG1, AEE34786; ARL2, At1g59980; ARL1, At1g24120; AtJ11, At4 g36040; AtJ20, At4g13830; SlDnaJ20, XM_004239806; SlCDJ2, AK323942; DJC65, At1g77930; GmDnaJ8, ACU18989; LeCDJ1, AK323422; VvDnaJ8, XP_002263153; AtJ8, At1g80920; RcDnaJ8, EEF49240; PsJ8b, ADL32216; and MtDnaJ8, ACJ83936.
Figure 1. Multiple sequence alignment and phylogenetic tree analysis of Solanum lycopersicum DnaJ protein (SlDnaJ20). (A) Multiple sequence alignment between SlDnaJ20 and other J-proteins in tomato. Black and gray refer to identical and similar amino acids, respectively. The His/Pro/Asp (HPD) motifs are marked by stars. The protein sequence of SlDnaJ20 only contains a J-domain (red box). (B) Phylogenetic tree analysis of SlDnaJ20 with other J-proteins. Roman numerals I–III on the right represent different types of J-proteins. SlDnaJ20 is underlined. The phylogenetic tree of various J-proteins generated with the ClustalW2 program using the Neighbor-Joining method in MEGA (version 5.1) (https://mega.software.informer.com/5.1b). Bootstrap analyses were computed with 1000 replicates, the percentage values larger than 80 are shown in the branches. The gene names and GenBank accession numbers are as follows: PmDnaJ, YP_001013845; SynDnaJ, ZP_01084411; CrCDJ1, AAU06580; AtDjA52, AAD55483; PsPCJ1, CAA96305; AtDjA24, NP_568076; AtDjA26, NP_565533; AtDjA54, NP_188410; atDjA30, BAB11067; AtDjB1, At1g28210; CrDNJ1, EDP04706; AtDjA2, At5g22060; AtDjA3, At3g44110; ARG1, AEE34786; ARL2, At1g59980; ARL1, At1g24120; AtJ11, At4 g36040; AtJ20, At4g13830; SlDnaJ20, XM_004239806; SlCDJ2, AK323942; DJC65, At1g77930; GmDnaJ8, ACU18989; LeCDJ1, AK323422; VvDnaJ8, XP_002263153; AtJ8, At1g80920; RcDnaJ8, EEF49240; PsJ8b, ADL32216; and MtDnaJ8, ACJ83936.
Ijms 20 00367 g001

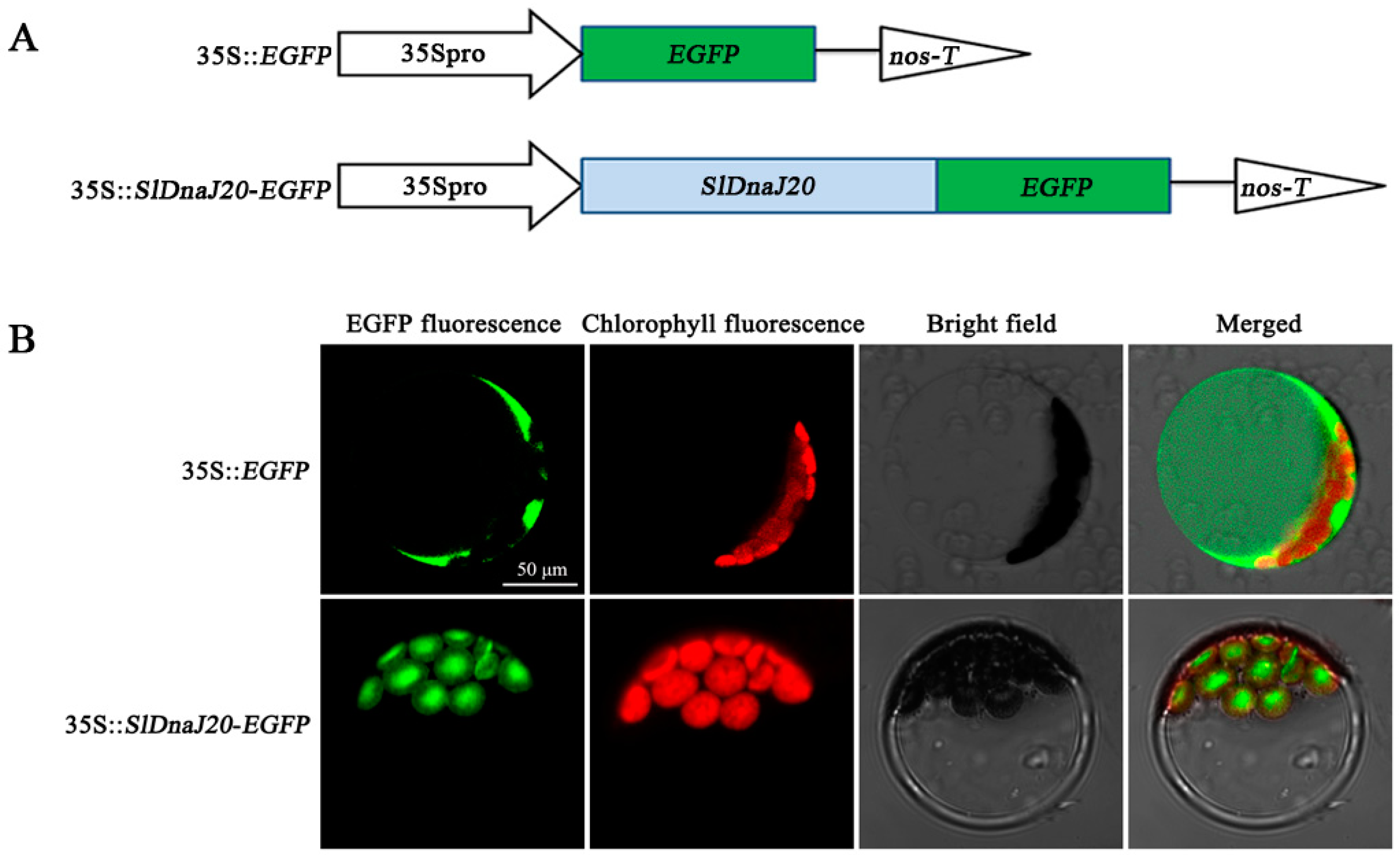

Figure 2. Subcellular localization of SlDnaJ20. (A) Pattern of enhanced GFP (EGFP) fusion protein structure. 35Spro, CaMV35S promoter. nos-T, nopaline synthase terminator. (B) 35S::EGFP (upper panels) and 35S::SlDnaJ20-EGFP (lower panels) were transiently expressed in Arabidopsis protoplast. Protoplasts were examined under laser confocal microscopy.
Figure 2. Subcellular localization of SlDnaJ20. (A) Pattern of enhanced GFP (EGFP) fusion protein structure. 35Spro, CaMV35S promoter. nos-T, nopaline synthase terminator. (B) 35S::EGFP (upper panels) and 35S::SlDnaJ20-EGFP (lower panels) were transiently expressed in Arabidopsis protoplast. Protoplasts were examined under laser confocal microscopy.
Ijms 20 00367 g002

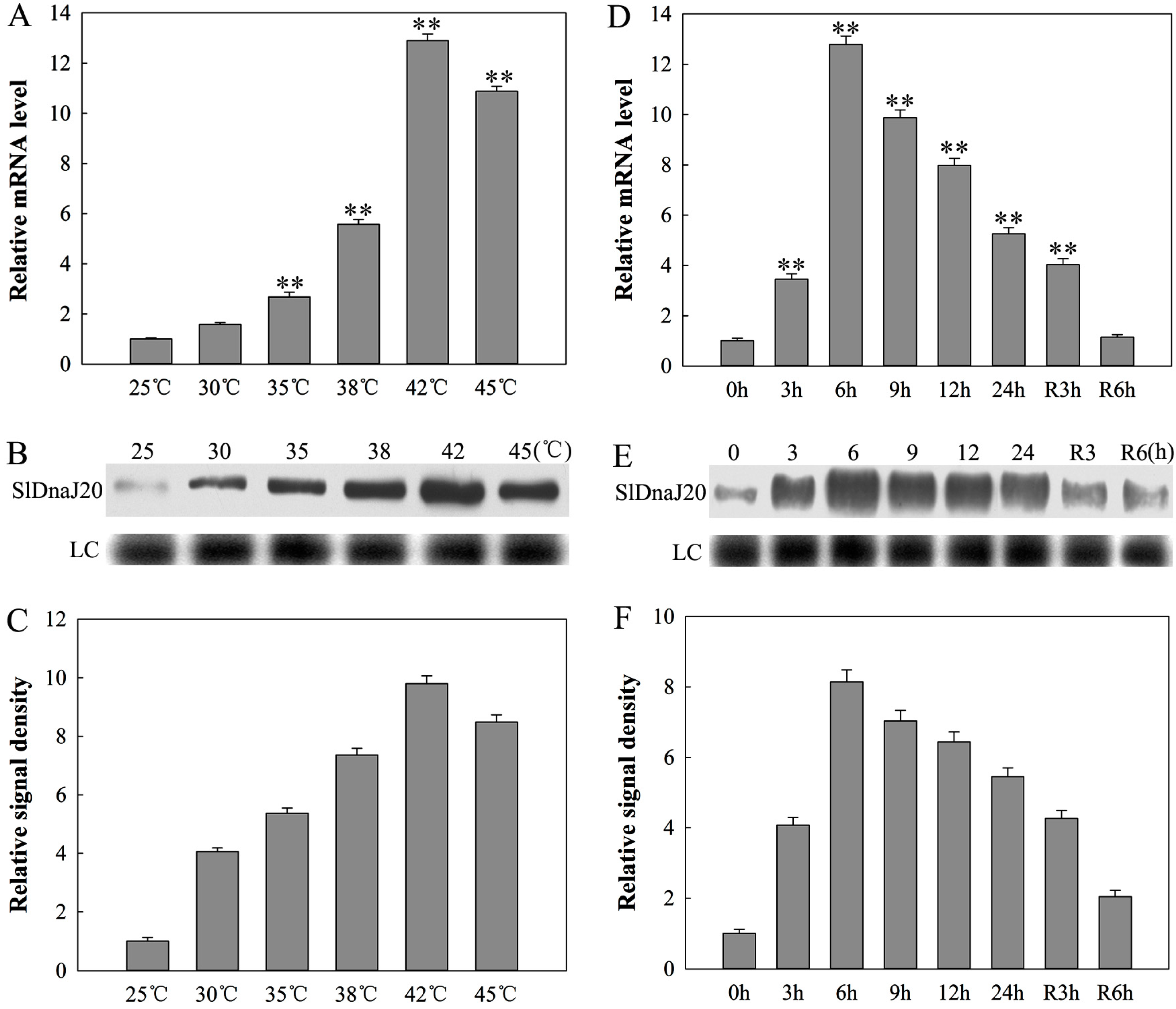

Figure 3. Expression of SlDnaJ20 was induced by heat stress. (A) Quantitative PCR analysis of SlDnaJ20 expression under different temperatures for 6 h. (B) Western blot analysis of SlDnaJ20 protein levels under different temperatures for 6 h. LC, loading control (part of a Coomassie-stained total protein SDS polyacrylamide gel). (C) Image quantification of protein content in (B). (D) Quantitative PCR analysis of SlDnaJ20 expression in leaves subjected to 42 °C for 0, 3, 6, 9, 12, and 24 h, and recovered for 3 and 6 h. (E) Western blot analysis of SlDnaJ20 protein levels in leaves subjected to 42 °C for 0, 3, 6, 9, 12, and 24 h, and recovered for 3 and 6 h. LC, loading control (part of a Coomassie-stained total protein SDS polyacrylamide gel). (F) Image quantification of the protein content in (E). Columns (A) and (D) represent the mean ± SD of three replicates. Statistically significant differences with respect to the control are indicated as: ** p < 0.01.
Figure 3. Expression of SlDnaJ20 was induced by heat stress. (A) Quantitative PCR analysis of SlDnaJ20 expression under different temperatures for 6 h. (B) Western blot analysis of SlDnaJ20 protein levels under different temperatures for 6 h. LC, loading control (part of a Coomassie-stained total protein SDS polyacrylamide gel). (C) Image quantification of protein content in (B). (D) Quantitative PCR analysis of SlDnaJ20 expression in leaves subjected to 42 °C for 0, 3, 6, 9, 12, and 24 h, and recovered for 3 and 6 h. (E) Western blot analysis of SlDnaJ20 protein levels in leaves subjected to 42 °C for 0, 3, 6, 9, 12, and 24 h, and recovered for 3 and 6 h. LC, loading control (part of a Coomassie-stained total protein SDS polyacrylamide gel). (F) Image quantification of the protein content in (E). Columns (A) and (D) represent the mean ± SD of three replicates. Statistically significant differences with respect to the control are indicated as: ** p < 0.01.
Ijms 20 00367 g003

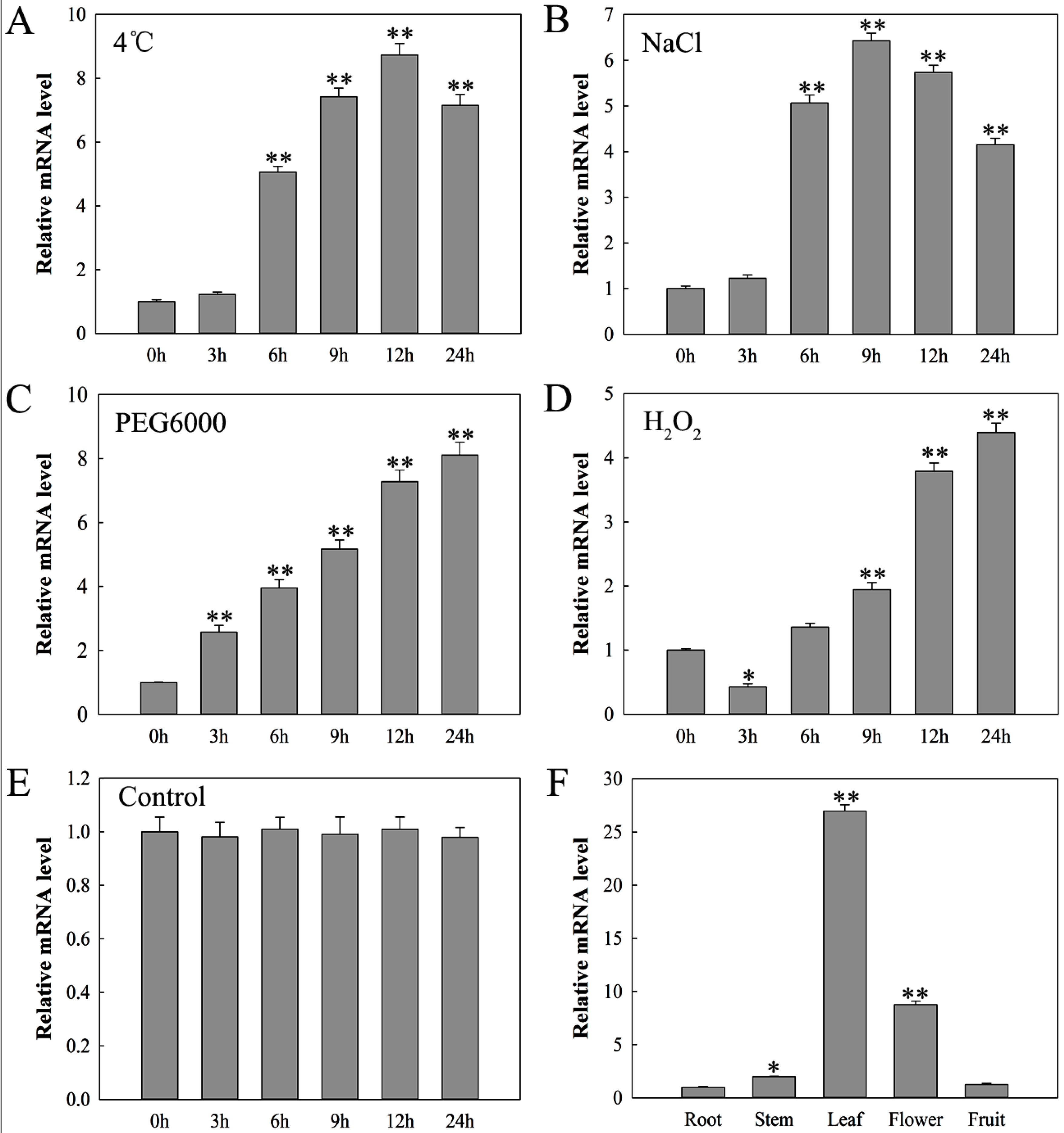

Figure 4. Quantitative PCR analysis of the expression profiles of SlDnaJ20 in tomato: (A) 4 °C, (B) 250 mM NaCl, (C) 20% polyethylene glycol (PEG), (D) 10 mM H2O2, (E) control, (F) expression of SlDnaJ20 in different tomato tissues. The mean values ± SD of at least three replicates are presented, and * p < 0.05 and ** p < 0.01 indicate significant differences compared with the control.
Figure 4. Quantitative PCR analysis of the expression profiles of SlDnaJ20 in tomato: (A) 4 °C, (B) 250 mM NaCl, (C) 20% polyethylene glycol (PEG), (D) 10 mM H2O2, (E) control, (F) expression of SlDnaJ20 in different tomato tissues. The mean values ± SD of at least three replicates are presented, and * p < 0.05 and ** p < 0.01 indicate significant differences compared with the control.
Ijms 20 00367 g004

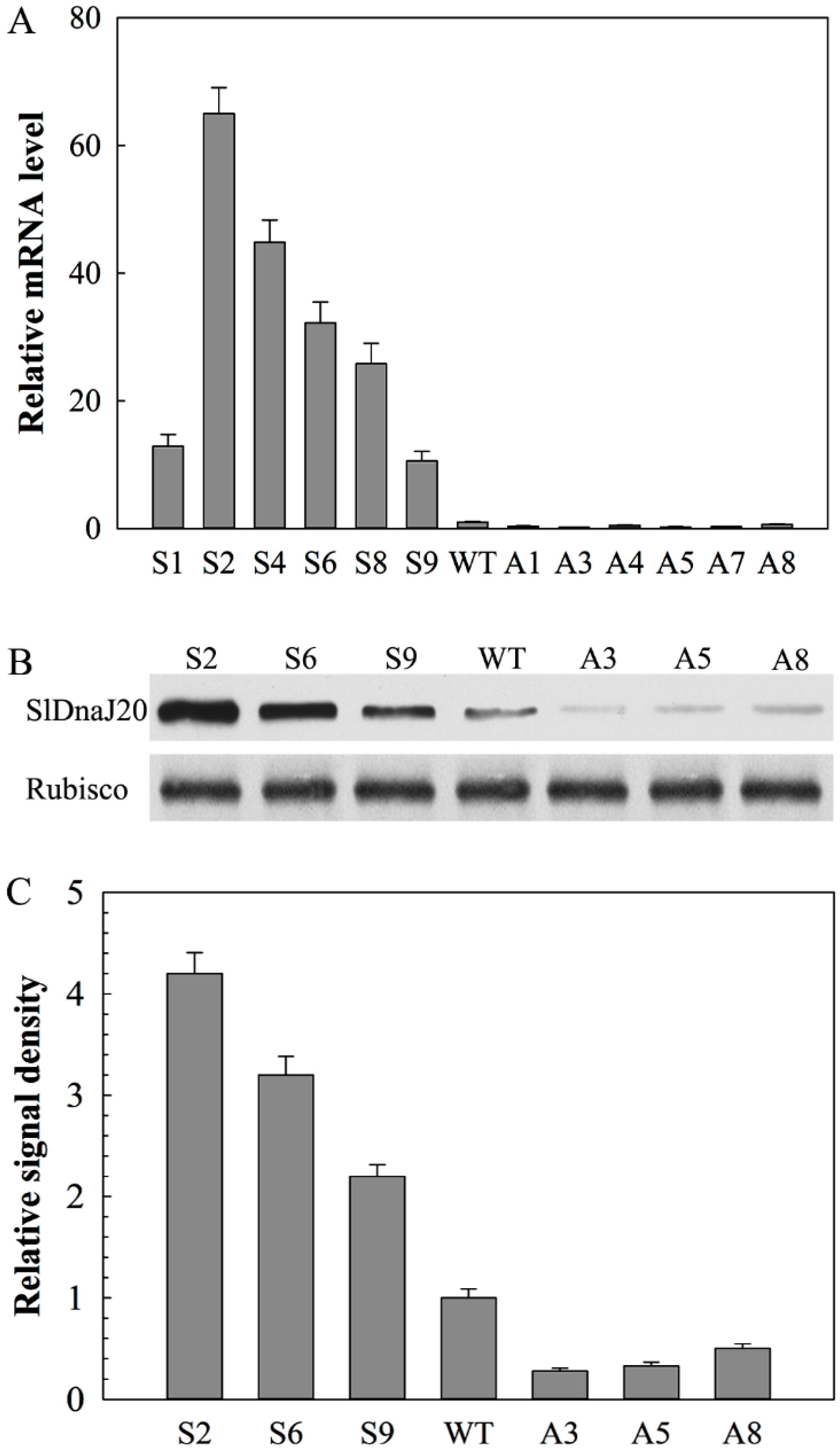

Figure 5. Identification of transgenic plants via qPCR and Western blot analysis. (A) SlDnaJ20 transcript levels in wild-type (WT), sense, and antisense plants. (B) SlDnaJ20 protein levels in WT, sense, and antisense plants. The loading control is the large subunit of Rubisco. (C) Image quantification of protein contents in (B).
Figure 5. Identification of transgenic plants via qPCR and Western blot analysis. (A) SlDnaJ20 transcript levels in wild-type (WT), sense, and antisense plants. (B) SlDnaJ20 protein levels in WT, sense, and antisense plants. The loading control is the large subunit of Rubisco. (C) Image quantification of protein contents in (B).
Ijms 20 00367 g005
Figure 6. Heat tolerance of ten-day-old seedlings and six-week-old plants. (A) Phenotype of ten-day-old seedlings under 25 °C and 42 °C for two days; (B) phenotype of six-week-old plants under 25 °C and 42 °C for 24 h; (C) total chlorophyll content in grown plants; (D) fresh weight of grown plants. (E) net photosynthetic rate (Pn) in the grown plants. The mean values ± SD of at least three replicates are presented, and * p < 0.05 and ** p < 0.01 indicate significant differences compared with the control.
Figure 6. Heat tolerance of ten-day-old seedlings and six-week-old plants. (A) Phenotype of ten-day-old seedlings under 25 °C and 42 °C for two days; (B) phenotype of six-week-old plants under 25 °C and 42 °C for 24 h; (C) total chlorophyll content in grown plants; (D) fresh weight of grown plants. (E) net photosynthetic rate (Pn) in the grown plants. The mean values ± SD of at least three replicates are presented, and * p < 0.05 and ** p < 0.01 indicate significant differences compared with the control.
Ijms 20 00367 g006
Figure 7. Reactive oxygen species (ROS) analysis in WT and transgenic lines: (A) 3′,3-diaminobenzidine (DAB) staining for H2O2; (B) nitroblue tetrazolium (NBT) staining for O2•−. The upper layer represents plants grown at 25 °C and the lower layer represents plants subjected to 42 °C for 12 h. (C) H2O2 content; (D) O2•− content. The mean values ± SD of at least three replicates are presented, and * p < 0.05 indicate significant differences compared with the control.
Figure 7. Reactive oxygen species (ROS) analysis in WT and transgenic lines: (A) 3′,3-diaminobenzidine (DAB) staining for H2O2; (B) nitroblue tetrazolium (NBT) staining for O2•−. The upper layer represents plants grown at 25 °C and the lower layer represents plants subjected to 42 °C for 12 h. (C) H2O2 content; (D) O2•− content. The mean values ± SD of at least three replicates are presented, and * p < 0.05 indicate significant differences compared with the control.
Ijms 20 00367 g007

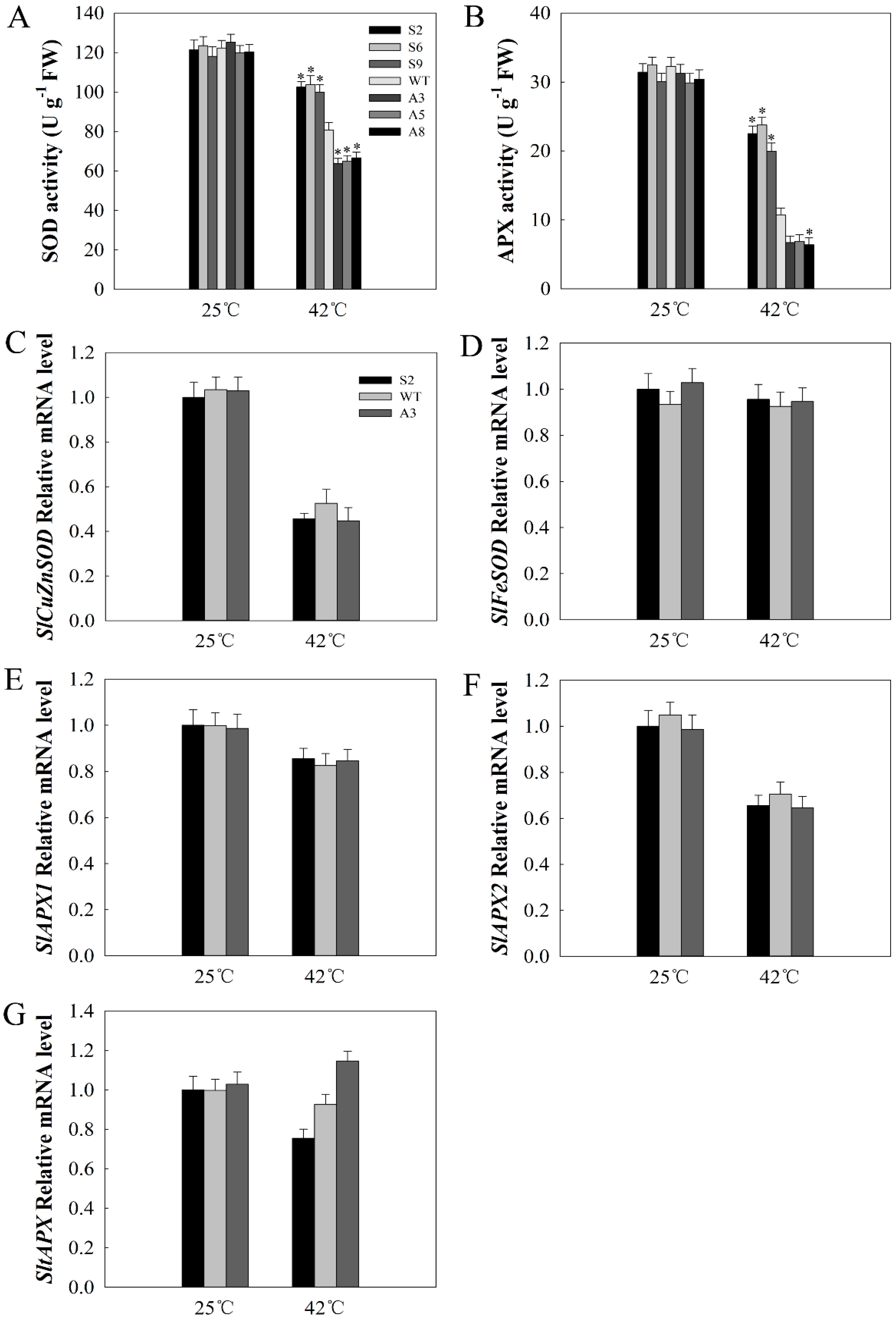

Figure 8. Analysis of antioxidant enzyme activity and related gene expression. (A) Superoxide dismutase (SOD) activity; (B) ascorbate peroxidase (APX) activity; (C) SlCuZnSOD expression; (D) SlFeSOD expression; (E) SlAPX1 expression; (F) SlAPX2 expression; (G) SlTAPX expression. The mean values ± SD of at least three replicates are presented, and * p < 0.05 indicate significant differences compared with the control.
Figure 8. Analysis of antioxidant enzyme activity and related gene expression. (A) Superoxide dismutase (SOD) activity; (B) ascorbate peroxidase (APX) activity; (C) SlCuZnSOD expression; (D) SlFeSOD expression; (E) SlAPX1 expression; (F) SlAPX2 expression; (G) SlTAPX expression. The mean values ± SD of at least three replicates are presented, and * p < 0.05 indicate significant differences compared with the control.
Ijms 20 00367 g008

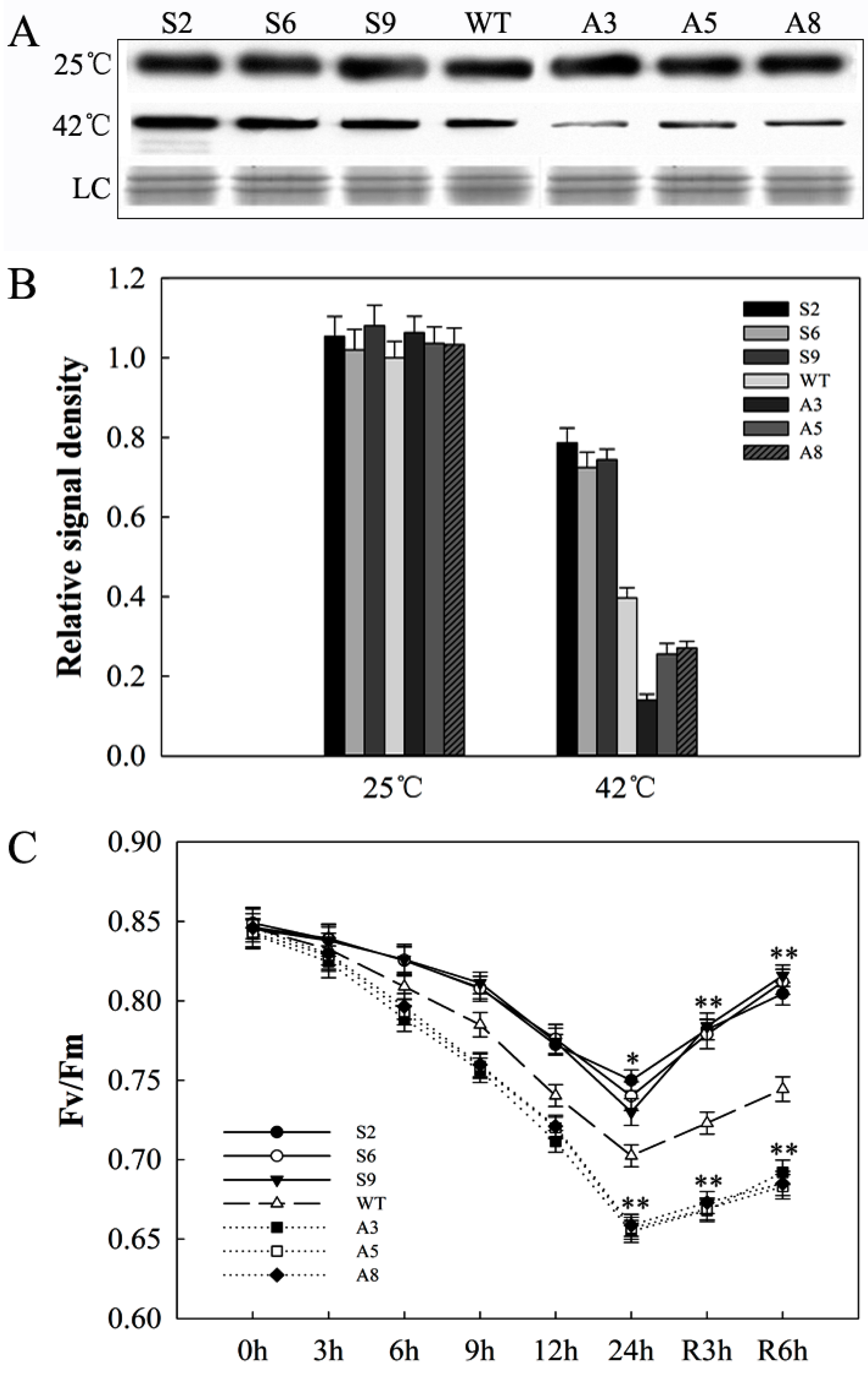

Figure 9. Changes in D1 protein levels and fluorescence (Fv/Fm) in WT and transgenic plants under heat stress. (A) D1 protein content. LC, loading control (part of a Coomassie-stained thylakoid membrane protein SDS polyacrylamide gel). (B) Image quantification of protein contents in (B). (C) Changes in Fv/Fm during heat stress and recovery. The mean values ± SD of at least three replicates are presented, and * p < 0.05 and ** p < 0.01 indicate significant differences compared with the control.
Figure 9. Changes in D1 protein levels and fluorescence (Fv/Fm) in WT and transgenic plants under heat stress. (A) D1 protein content. LC, loading control (part of a Coomassie-stained thylakoid membrane protein SDS polyacrylamide gel). (B) Image quantification of protein contents in (B). (C) Changes in Fv/Fm during heat stress and recovery. The mean values ± SD of at least three replicates are presented, and * p < 0.05 and ** p < 0.01 indicate significant differences compared with the control.
Ijms 20 00367 g009

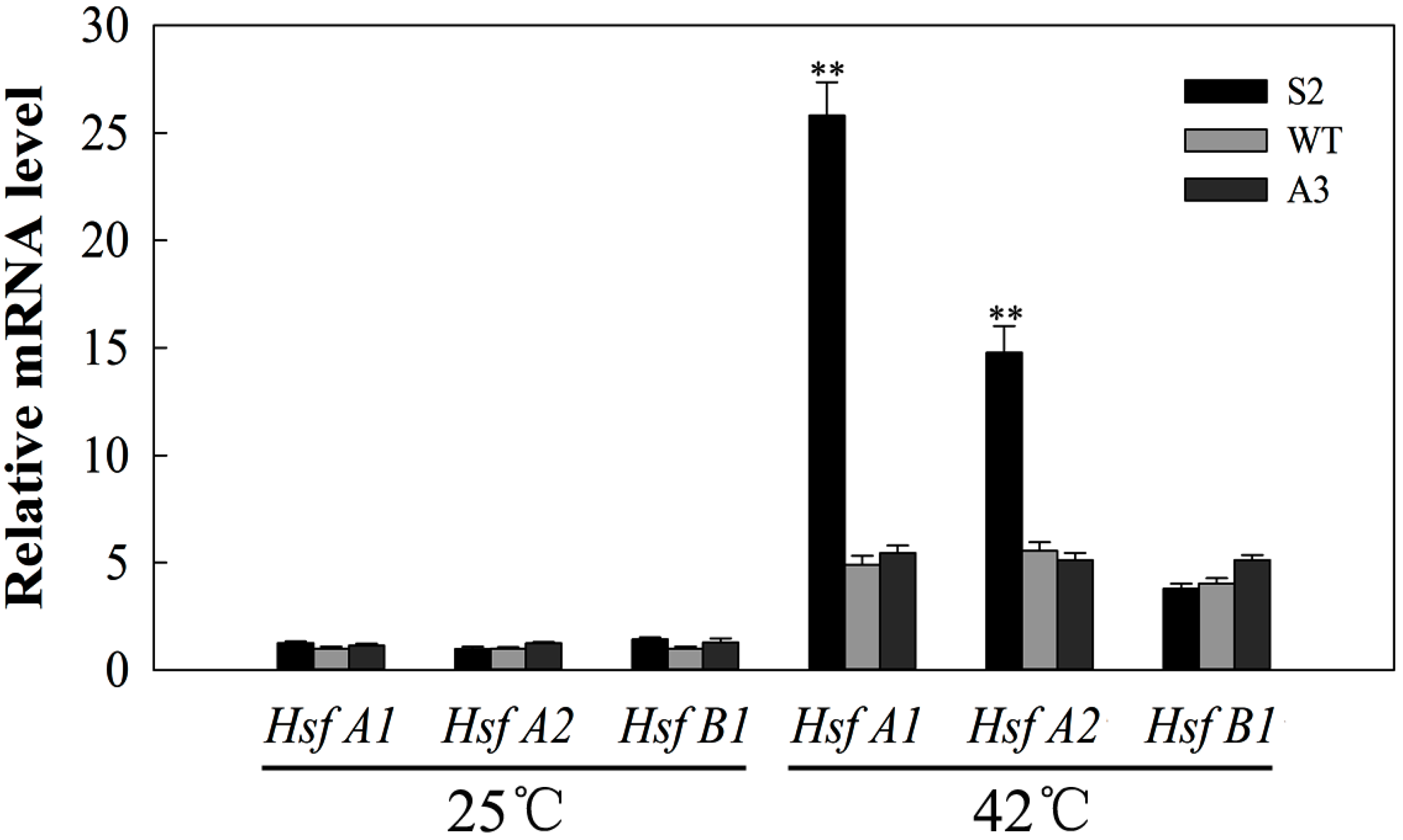

Figure 10. Quantitative PCR analysis of HsfA1, HsfA2, and HsfB1 expression before and after heat stress. Six-week-old WT and transgenic plants were used for treatment under 42 °C for 12 h. The mean values ± SD of at least three replicates are presented, and ** p < 0.01 indicate significant differences compared with the control.
Figure 10. Quantitative PCR analysis of HsfA1, HsfA2, and HsfB1 expression before and after heat stress. Six-week-old WT and transgenic plants were used for treatment under 42 °C for 12 h. The mean values ± SD of at least three replicates are presented, and ** p < 0.01 indicate significant differences compared with the control.
Ijms 20 00367 g010
Figure 11. The interaction between SlDnaJ20 and chloroplast heat-shock protein 70 (cpHsp70) was analyzed using a yeast two-hybrid system. pGADT7-T and pGBKT7-53 proteins were co-transformed as a positive control. SlDnaJ20/pGADT-AD and cpHsp70/pGBK7-BD were used as negative controls. SM-LW indicates selective medium lacking Leu and Trp, and SM-LWHA indicates medium lacking Leu, Trp, His, and adenine with X-α-Gal.
Figure 11. The interaction between SlDnaJ20 and chloroplast heat-shock protein 70 (cpHsp70) was analyzed using a yeast two-hybrid system. pGADT7-T and pGBKT7-53 proteins were co-transformed as a positive control. SlDnaJ20/pGADT-AD and cpHsp70/pGBK7-BD were used as negative controls. SM-LW indicates selective medium lacking Leu and Trp, and SM-LWHA indicates medium lacking Leu, Trp, His, and adenine with X-α-Gal.
Ijms 20 00367 g011
