Review

Regulated Assembly of LPS, Its Structural Alterations and Cellular Response to LPS Defects

Unit of Bacterial Genetics, Gdansk University of Technology, Narutowicza 11/12, 80-233 Gdansk, Poland
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2019, 20(2), 356; https://doi.org/10.3390/ijms20020356
Submission received: 19 December 2018 / Revised: 11 January 2019 / Accepted: 13 January 2019 / Published: 16 January 2019
(This article belongs to the Special Issue Lipopolysaccharides (LPSs) 2018)

Abstract

:
Distinguishing feature of the outer membrane (OM) of Gram-negative bacteria is its asymmetry due to the presence of lipopolysaccharide (LPS) in the outer leaflet of the OM and phospholipids in the inner leaflet. Recent studies have revealed the existence of regulatory controls that ensure a balanced biosynthesis of LPS and phospholipids, both of which are essential for bacterial viability. LPS provides the essential permeability barrier function and act as a major virulence determinant. In Escherichia coli, more than 100 genes are required for LPS synthesis, its assembly at inner leaflet of the inner membrane (IM), extraction from the IM, translocation to the OM, and in its structural alterations in response to various environmental and stress signals. Although LPS are highly heterogeneous, they share common structural elements defining their most conserved hydrophobic lipid A part to which a core polysaccharide is attached, which is further extended in smooth bacteria by O-antigen. Defects or any imbalance in LPS biosynthesis cause major cellular defects, which elicit envelope responsive signal transduction controlled by RpoE sigma factor and two-component systems (TCS). RpoE regulon members and specific TCSs, including their non-coding arm, regulate incorporation of non-stoichiometric modifications of LPS, contributing to LPS heterogeneity and impacting antibiotic resistance.

1. Introduction

The cell envelope of Gram-negative bacteria, including Escherichia coli, contains two distinct membranes, an inner (IM) and an outer (OM) membrane separated by the periplasm, a hydrophilic compartment that includes a layer of peptidoglycan. The OM is an asymmetric bilayer with phospholipids forming the inner leaflet and lipopolysaccharide (LPS) forming the outer leaflet. LPS is essential for bacterial viability. Because of the strong lateral chemical interactions, LPS provides the essential permeability barrier function. It is a complex glycolipid, a major component of the OM and highly heterogeneous in composition. Bacteria, like E. coli and Salmonella, contain approximately 2-3 × 106 molecules of LPS that cover more than 75% of the OM [1]. The biosynthesis, translocation and various modifications of LPS requires the function of more than 100 genes. Several of them are essential and unique to bacteria and hence they are excellent targets for the identification of their inhibitors for the development of new antibiotics.
The biosynthesis of LPS begins with the acylation of UDP-GlcNAc with R-3-hydroxymyristate derived from R-3-hydroxymyristoyl-ACP by LpxA [2]. R-3-Hydroxymyristoyl-ACP also serves as a precursor for the synthesis of phospholipids. The second reaction of the lipid A biosynthesis is catalysed by LpxC [UDP-3-O-(R-3-hydroxymyristoyl)-N-acetylglucosamine deacetylase] a Zn2+-dependent deacetylase, constituting the first committed step in the LPS synthesis, as the equilibrium constant for the first reaction catalysed by LpxA is unfavourable. Following deacetylation, a second R-3-hydroxymyristate chain is added by LpxD leading to the synthesis of UDP-2,3-diacyl-GlcN. This serves as a substrate for LpxH to generate 2,3-diacyl-GlcN-1-phosphate, also called lipid X [3]. The next steps involve a condensation reaction generating the β,1′-6-linked disaccharide by LpxB, followed by its phosphorylation at 4′ position by LpxH. This generates the lipid IVA precursor, which serves as an acceptor for the WaaA-mediated incorporation of two 3-deoxy-α-d-manno-oct-2-ulsonic acid (Kdo) residues. Up to the synthesis of Kdo2-lipid IVA, all the required seven enzymes are essential for the bacterial viability [4]. Kdo2-lipid IVA comprises a key intermediate in LPS biosynthesis that acts 2-fold as a specific substrate: (i) for acyltransferases that generate Kdo2-lipid A moiety by the transfer of two additional fatty acids to the (R)-3-hydroxyl groups of both acyl chains, which are directly bound to position 2′ and 3′ of the non-reducing GlcN residue and (ii) for glycosyltransferases catalyzing further steps of the core oligosaccharide biosynthesis. The E. coli K-12 genome encodes three paralogous acyltransferases (LpxL, LpxM and LpxP), which catalyze acylation reactions using acyl carrier protein-activated fatty acids as co-substrates [5]. At ambient temperatures, a lauroyl residue is first transferred by LpxL to the OH group of the amide-bound (R)-3-hydroxymyristate residue at position 2′. This catalytic step is partially replaced at low temperature (12 °C) by LpxP, which transfers palmitoleate to the same position in approximately 80% of LPS molecules [6]. The free OH group of the ester-bound (R)-3-hydroxymyristate residue at position 3′ within both pentaacylated intermediates is then myristoylated by LpxM to give a hexaacylated lipid A moiety. However, it is noteworthy that under slow growth conditions and at low temperatures, the lipid IVA precursor without the Kdo incorporation can be the substrate for a secondary acylation by LpxP, LpxL, and LpxM, as observed in ΔwaaA grown at 21–23 °C [7].
In Enterobacteriaceae members, the core region of LPS is always attached to lipid A via a Kdo residue. The inner core usually contains residue(s) of Kdo and l-glycero-d-manno-heptose (l,d-Hep) [4,8]. Several of lipid A biosynthesis enzymes and core biosynthetic glycosyltransferases are either inner membrane-anchored or membrane-associated and hence the LPS synthesis occurs at the IM leaflet. After the completion of LPS synthesis on the inner leaflet of the IM, LPS is flipped by the essential IM-located MsbA transporter to the periplasmic side of the IM, where it is a substrate for the LptB2FG ABC transporter for translocation, using ATP as the energy, potentially in complex with LapA/B proteins.

2. Regulatory Steps in LPS Biosynthesis

Until recent discoveries, it was presumed that LPS biosynthesis occurs in a constitutive manner. However, recent studies have revealed regulatory controls exerted right from early steps in LPS biosynthesis till its final delivery in the OM as highlighted below: (a) Regulation of GlmS expression for the synthesis of UDP-GlcNAc, an essential metabolic precursor for LPS and peptidoglycan, by recruiting GlmZ/Y noncoding small regulatory RNAs (sRNAs). (b) Balanced synthesis of phospholipids and LPS by regulated turnover of LpxC by FtsH/LapB proteins, since they use R-3-hydroxymyristoyl-ACP as a common precursor [9]. (c) Bacteria also ensure that only completely synthesized LPS is delivered to the Lpt translocation system by preferential selectivity of hexaacylated LPS by the MsbA transporter and by recruiting LapA and LapB proteins as a scaffold for various LPS biosynthetic enzymes in the IM. (d) The transcriptional control by RfaH of the large waaQ operon encoding various LPS core biosynthetic enzymes and the rfb operon whose products are required for O-antigen biosynthesis [10,11,12]. (e) Regulation of the incorporation of non-stoichiometric modifications of LPS by the induction of genes, whose expression is controlled by BasS/R, PhoP/Q and PhoB/R two-component systems (TCSs) (Figure 1). The expression of some of these genes is regulated either at a transcriptional or post-transcriptional level or both [13]. (f) Some of the genes, whose products are involved in either lipid A biosynthesis, LPS translocation or phospholipid biosynthesis, are transcriptionally regulated by the RpoE sigma factor and the CpxA/R TCS [14]. (g) The LPS assembly in the OM requires a correctly folded outer membrane protein LptD. Its correct folding is SurA- and DsbA-dependent, which can be further fine-tuned by BepA for the removal of misfolded LptD.

3. Essentiality of LPS and the Minimal LPS Structure

Generally, LPS is essential for the viability of vast majority of Gram-negative bacteria with few exceptions. Few limited exceptions include viable LPS-lacking mutants of Acinetobacter baumannii that have mutations in either lpxA or lpxC or lpxD genes [15]. However, in such mutant strains, the absence of LPS is compensated by increased expression of the Lol lipoprotein transport system to increase phospholipid export, enhanced expression of poly-β-1,6-N-acetylglucosamine and elevated expression Mla-retrograde phospholipid migration from the OM to the IM to maintain a balance in the essential constituents of the OM [15]. Another well-studied example of dispensability of LPS include construction of viable LPS deficient mutants of Neisseria meningitides [16].
It is well established that in bacteria, like E. coli and Salmonella, the minimal structure of LPS that can sustain the bacterial viability up to 42 °C is composed of hexaacylated lipid A-Kdo2 (Re LPS “deep-rough mutants”). Thus, ΔwaaC (lacking heptosyltransferase I) or ΔgmhD (absence of ADP-l-glycero-d-manno-heptose-6-epimerase) mutants are viable, although they exhibit temperature sensitive growth (unable to grow at temperatures above 43 °C), permeability defects, hypersensitivity to detergents, hyperactivated RpoE-regulated stress response, inability to colonize the host, sensitivity to antimicrobial peptides, defects in flagellar biosynthesis, compromised growth at low pH, and a constitutive induction of Rcs-dependent exopolysaccharide [7,17,18,19,20,21]. Consistent with the requirement of inner core heptose attachment to Kdo2-lipid A for cell envelope integrity, a Δ(waaC surA) mutational combination confers synthetic lethality [7]. SurA is a major periplasmic folding factor required for the folding of outer membrane proteins (OMPs), including LptD [17,22]. Furthermore, the lack of other conserved core biosynthetic genes like waaG, waaF or genes involved in the pathway of synthesis of molecules of l-glycero-α-d-manno-heptose (heptose) such as gmhA and gmhE, also results in impairment of growth at high temperatures [23]. A deep-rough phenotype accompanied by hypersensitivity to detergents and antibiotics is also associated with the lack of WaaP kinase, which mediates phosphorylation of HepI and completion of core biosynthesis [24] (Figure 1). Underacylation of lipid A due to a lack of the LpxL lauroyl transferase is known to confer temperature sensitivity above 33 °C and strains lacking all three acyltransferases Δ(lpxL lpxP lpxM) cannot grow at even 30 °C on rich medium [5]. Moreover, Δ(lpxL lpxP lpxM) strains exhibit gross alterations in terms of accumulation of primarily glycoform IV/V with three Kdo residues and truncation of the terminal disaccharide [7]. Thus, complete synthesis of LPS is a requirement for bacterial fitness and survival.
During the detailed genetic construction of strains to define the minimal LPS structure in the absence of any suppressors, it was shown that strains with LPS composed of either Kdo2-lipid IVA Δ(waaC lpxL lpxM lpxP) or only lipid IVA (absence of WaaA Kdo transferase) can be constructed under slow growth conditions on minimal medium at low temperatures (21–23 °C) [7]. Since lipid IVA is a poor substrate for the MsbA IM LPS flippase, suppressor mutations that improved growth characteristics of Δ(waaC lpxL lpxM lpxP) or ΔwaaA were found to map to the msbA gene [7]. It is likely that such MsbA variants exhibit altered binding properties of lipid A and might be more relaxed in substrate selectivity or changes in ATP binding/hydrolysis. Interestingly, ΔwaaA suppressor-free strains synthesizing lipid IVA were found to accumulate excess of phospholipids consistent with a balanced synthesis of LPS and phospholipids [7]. Moreover, such ΔwaaA strains under slow growth conditions were also found to accumulate pentaacylated and hexaacylated species of lipid IVA without any requirement for the Kdo presence. Thus, lipid IVA derivatives with myristoyl, lauroyl, palmitolyl or palmitoleate chains could be identified from ΔwaaA strains, indicating that under such conditions late acyltransferases can use lipid IVA as a precursor without requirement for Kdo [7]. Consistent with these results, overexpression of the lpxL gene suppress the lethality of waaA deletions on nutrient broth up to 37 °C without the need for MsbA overproduction [25].

4. Regulation of Synthesis of UDP-GlcNAc-Precursor for LPS Biosynthesis

UDP-N-acetyl-d-glucosamine (UDP-GlcNAc) is a common metabolic precursor for LPS and peptidoglycan synthesis. Thus, regulation of biosynthesis of UDP-GlcNAc serves as an essential branch point in controlling and coupling the synthesis of major essential constituents of the cell envelope [13]. GlmS catalyzes the synthesis of glucosamine-6-phosphate (GlcN6P) from fructose-6-phosphate and glutamine, which constitutes the first committed step in the synthesis of UDP-GlcNAc. The amount of glmS transcript is regulated by a feedback mechanism in response to the GlcN6P level using homologous GlmZ and GlmY sRNAs [26,27]. These sRNAs act in a hierarchical manner to activate the glmS expression. Under GlcN6P limiting conditions, the GlmY sRNA accumulates and sequesters RNase adaptor protein RapZ, preventing GlmZ processing [26,27]. The GlmZ sRNA facilitates translation of the glmS mRNA through an anti-antisense mechanism and prevents the formation of an inhibitory structure that occludes the ribosome-binding site of glmS. Interestingly, transcription of the glmY gene is regulated by RpoN and RpoD sigma factors using the same transcription start site in an analogous manner to the transcriptional regulation of rpoEP2 and rpoEP3 promoters [11,28]. RpoN-regulated promoters of glmY and rpoE genes use QseF as an activator and thus this mode of regulation may be important to sense common signals and ensure cellular homeostasis in response to envelope stress.

5. Coupled Regulation of LPS and Phospholipids–Regulation of Amounts of Kdo2-Lipid A Synthesis

Regulation of LpxC occurs by regulated proteolysis mediated by FtsH [29,30]. This proteolysis by FtsH requires the LPS assembly factor LapB [9,31]. Both FtsH and LapB are essential for bacterial growth and their depletion causes increased synthesis of LPS at the expense of phospholipids. This is due to stabilization of LpxC in either an ftsH or a lapB mutant, which causes diversion of a common precursor R-3-hydroxymyristoyl-ACP towards the LPS synthesis, since LpxC and FabZ compete for the same precursor, limiting the availability of phospholipids (Figure 1). Consistent with the notion of coupling of phospholipid and LPS synthesis, suppressors mapping to the fabZ gene, like sfhC21 that encodes a hyperactive variant of FabZ, can bypass the essentiality of either ftsH or lapB genes [9]. Additional evidence supporting this model is based on observations that inhibition of LpxC can be compensated by mutations that compromise the FabZ activity [32]. Similarly, overexpression of the fabZ gene is accompanied by an upregulation of the LpxC activity and vice versa [32]. Further supporting regulated LPS and phospholipid biosynthesis, an overexpression of noncoding sRNA slrA can bypass the lethality of the essential lapB gene [9]. The molecular basis of this suppression was attributed to translational repression of the gene encoding the most abundant protein Lpp, also called Braun’s lipoprotein, with an abundance of 7 × 105 molecules per cell. Hence, SlrA is also called MicL [33]. Each Lpp molecule has three acyl chains {phosphatidylglycerol moieties (PG)} and therefore, when the Lpp amount is reduced due to overexpression of slrA sRNA, it causes an increase in the amount of PG that can restore a balance between phospholipids and LPS (Figure 1). SlrA can also act as a negative regulator of RpoE in a feedback manner, as its overproduction reduces the RpoE activity elevated due to LPS defects in ΔlapB mutants [9]. The gene encoding SlrA sRNA is transcribed from the RpoE-regulated promoter located within the cutC gene. This 80-nt sRNA is synthesized as a 307 nt precursor mRNA that is processed and is located within the 3′ end of the coding region of the cutC gene [9,33].
Although a role for LapB and FtsH for LpxC is now known, however how the proteolytic activity of FtsH is regulated remains to be elucidated. It is likely that proteolytic activity of FtsH might be regulated by concentration or forms of acyl-ACPs or lipid A disaccharide. Since LpxC stability is increased in a fabI(ts) mutant suggests that membrane fatty acids might influence proteolytic activity or add additional checkpoints in regulating lipid A and phospholipid amounts [29]. Although not fully elaborated, regulation at the level of LpxB and LpxK may serve as additional pathways of this co-regulation. Consistent with such a notion, LpxB has been shown earlier to co-purify with phospholipids [34]. A regulatory checkpoint has been postulated on the basis of a reduced LpxK activity upon reduced membrane fluidity when more saturated fatty acids are present [35]. LpxK mediates the last essential step that completes lipid IVA biosynthesis [4]. LpxK catalyzes the phosphorylation of the 4′ hydroxyl of the distal glucosoamine of lipid A disaccharide. Under conditions like compromised function of either LapB or FtsH, which stabilize LpxC leads to depletion of R-3-hydroxymyristoyl-ACP. This in turn decreases the synthesis of unsaturated fatty acids, which can decrease the LpxK activity, leading to accumulation of lipid A disaccharide [9,35]. This accumulation of lipid A disaccharide intermediate by the feedback mechanism causes increased proteolysis of LpxC, thereby decreasing flux of R-3-hydroxymyristoyl-ACP into a lipid A biosynthesis pathway, thus again to regain a balance between phospholipid and lipid A biosynthesis. WaaA is also one of the substrates of FtsH protease [36]. Regulation of WaaA turnover by FtsH may be yet another step in preventing an excessive synthesis of LPS over phospholipids. However, a direct impact of changes in WaaA concentration on either LPS synthesis or accumulation of different glycoforms remains to be understood.

6. Assembly of LPS Requires LapB

Besides a role for turnover of LpxC in concert with FtsH, LapB has been implicated in the assembly of LPS at the IM presumably along with LapA [9]. Genes encoding lapA and lapB are co-transcribed from three promoters, the distal promoter located upstream of the pgsB gene, the middle promoter recognized by the RpoH heat shock sigma factor and the last one resembling house-keeping promoters [9]. Overall, such a transcriptional organization suggests coupling of transcription with phospholipid metabolism using pgpB co-transcription. PgpB encodes phosphatidylglycerophosphatase, an enzyme that is part of the phosphatidylglycerol biosynthesis pathway, which is itself part of phospholipid metabolism. Transcription from the heat shock promoter ensures transcription of lapA/B genes at high temperatures, hence belonging to heat shock regulon, which comprises several chaperones and proteases.
The evidence that LapB plays a role for LPS assembly in the IM comes from experimental evidence that include: (a) The lapB gene is essential for bacterial growth and a deletion of the lapB gene can be constructed in the presence of suppressor that either restore phospholipid synthesis like sfhC21, or decrease the LPS synthesis like in the presence of mutations in an early lipid A biosynthesis pathway (lpxA, lpxC, lpxD) or when LPS is composed mostly of Kdo2-lipid A derivatives like (waaC lapB) combination [9]. (b) The lack of LapB leads to accumulation of LPS precursor forms. These precursor forms represent pentaacylated lipid A species, the presence of Kdo2-dilauroyl-lipid IVA. (c) ΔlapB mutants have defects in the folding of LPS-specific enzymes like LpxM and conserved glycosyltransferases like WaaC, WaaO. A large proportion of these enzymes is present in aggregate form and hence LPS-specific enzymes like LpxM and core glycosyltransferase could be limiting explaining the accumulation of LPS precursor species [9]. (d) LapB also co-purifies with heptosyltransferase I. (e) LapA/B could function synergistically with classical chaperones like DnaK/DnaJ based on LapA/LapB co-purification with DnaK/J, multicopy suppression of growth defects of Δ(lap lapB) mutants, even more pronounced defects in the LPS composition when Δ(lapA lapB dnaK/J) were examined. (f) LapA/B co-purify with LPS, Lpt proteins and FtsH. (g) A Δ(lapA-lapB) mutation is synthetically lethal with a compromised LptD variant or when SurA is absent. (h) The absence of LapB induces a strong envelope stress response regulated by RpoE, Cpx and Rcs systems by inducing transcription of genes, whose products are required to maintain homeostasis in the cell envelope. LapB contains nine tetratricopeptide repeat (TPR) motifs and a C-terminal rubredoxin domain [9,37]. Mutations in the either rubredoxin domain or TPR/interface impair cell growth [9]. Thus, based on the essentiality of TPR repeats in LapB, which can mediate protein-protein interactions (interaction of LapA/B with LPS-specific enzymes) a model was presented wherein LapA/B could form a scaffold-like structure for delivery of various acyltransferases and glycosyltransferases to the site in IM where LPS is assembled and delivered to the Lpt complex. At such an assembly site, proteolysis of LpxC can occur given co-purification of LapA/B with FtsH to prevent excessive LPS buildup. This may serve as an essential purpose of preventing wasteful transfer of incompletely synthesized LPS. This model draws support from the IM association of LpxC in Neisseria meningitidis, which requires the presence of LapB counterpart called Ght [38]. Consistent with a broad essential function of LapB, a suppressor mutation lapBV43G in the lapB gene that confers protection against prolonged exposure to phosphate starvation and also suppresses the mlaA-dependent hyperproduction of LPS have been reported [39,40]. Thus, LapB plays an important role in maintaining cell envelope homeostasis and assembly of LPS.

7. Transport of LPS

7.1. MsbA-Mediated Transport of LPS Across the Inner Membrane

After the completion of core-lipid A synthesis, LPS is flipped across the IM by the essential ATP-binding cassette MsbA transporter. Several structures have been determined, which show that MsbA exists as a functional dimer, wherein core-lipid A binds the cytoplasmic open conformation [41,42]. Upon ATP binding, conformational change in transmembrane (TM) domains results into change from the cytoplasmic open to the periplasmic open state causing flipping of core-lipid A into the periplasmic leaflet of the IM. MsbA can return to the cytoplasmic open state after release of phosphate [42]. MsbA has a higher preference for hexaacylated lipid A derivatives, thereby providing an early checkpoint to prevent transport of early intermediates of LPS biosynthesis. Recent structural analysis of MsbA-core lipid A revealed that MsbA recognizes a bivalent phosphoglucosamine headgroup and correct acylation of lipid A to achieve substrate selectivity over competing bulk membrane phospholipids [43]. The tight packing of hexaacaylated LPS in the hydrophobic pocket suggests that MsbA packs acyl chains of correct length and number, providing the basis of this selectivity [43].

7.2. LPS Translocation and Assembly in the Outer Membrane

After the flipping of LPS by MsbA to the periplasmic side of IM, LPS is transported for its final localization in the OM which requires a complex of seven essential conserved proteins LptA-LptG, whose components reside in every cell compartment and form a single transenvelope complex spanning from the IM to the OM. Here, we briefly summarise key elements, as this topic has been aptly reviewed recently [44,45,46,47]. The Lpt system is organized into the IM complex comprised of LptB2CFG and the OM component of 1:1 complex of LptDE, which are bridged by a periplasmic protein component LptA. This transenvelope complex acts as a single unit to transport LPS, since depletion of any component leads to LPS accumulation at the IM [44,45,46,47]. Mechanistically, the ABC transporter LptB2FG extracts LPS from the IM in an ATP-dependent manner to deliver to LptC, and LPS transfer from LptC to LptA requires additional ATP hydrolysis [44,45,46,47], allowing LPS transit across the aqueous periplasm for its final delivery to LptD. The evidence from co-sedimentation, pull-down experiments, photo-cross-linking, mutational and structural analyses, assembly of liposomes from IM components and OM components in the presence or absence of LptA, shows that, while the N-terminus of LptA interacts with LptC at the IM, the C-terminus of LptA interacts with the periplasmic domain of the OM LptD, creating a continuous bridge of antiparallel β-strands between the IM and the OM [44,45,46,47]. The presence of β-jellyroll domains in LptG, LptF, LptC, LptA and LptD can sequester the acyl chains of LPS from the aqueous periplasm, using ATPase activity of LptB to transfer LPS over transenvelope bridge [48]. In support of the single stable bridge model of LPS transport, it was shown that LptA can promote association of liposomes containing the IM complex of LptBCFG with OM liposomes containing the OM LptDE [49]. Furthermore, ATP-dependent transfer of LPS from LptBFG to LptC and LptA has been demonstrated in liposomes and transfer to LptA was shown to be increased when LptC was present [49].
Structural studies of LptD and LptE revealed that LptD folds into two domains: a β-jellyroll and a β-barrel [50,51]. The β-jellyroll extends away from the OM and interacts with the β-jellyroll domain of LptA suitable for binding to lipid A, while leaving the LPS oligosaccharide exposed. LPS could be delivered directly into the cavity of the larger domain of LptD β-barrel, which is composed of 26 membrane-spanning β-strands. LptE adopts a roll-like structure located inside the barrel of LptD to form a unique two-protein ‘barrel and plug’ architecture [50,51]. The plugging of LptE inside of the LptD barrel causes a diminished lumen size to 45Å × 35Å on the periplasmic side. However, such a space is sufficient to accommodate LPS. In these structures, β-strands 1 and 2 are distorted and weak hydrogen bonding between β-strands 1 and 26 could support a lateral opening for LPS migration. In this process, positioning of the lipid A part could be assisted by LptE, as it is known to bind LPS and oligosaccharide could be placed in the hydrophilic cavity of LptD chamber.
Finally, LptD folding into the functional state can be a rate-limiting step. Several periplasmic folding catalysts like DsbA, DsbC, SurA, FkpA are known to play important roles in the folding of OMPs and periplasmic proteins [52]. Folding of LptD requires the SurA periplasmic folding catalyst and other periplasmic folding factors, like Skp and FkpA, could further modulate efficient folding of LptD [22]. LptD has two disulfide bridges between four non-consecutive cysteine residues, which require the periplasmic DsbA disulfide oxidoreductase and interaction of LptD with LptE to achieve correct folding with native disulfide bridges [53]. Additional factors like BepA may also be required for stimulating disulfide rearrangement of LptD and degradation of misfolded LptD [54]. From the transcriptional point of view, the lptD gene is transcribed by EσE [14] and this discovery was the beginning of series of studies that led to subsequent elucidation of the Lpt system.

8. Regulated Structural Alterations in LPS

The LPS composition is highly heterogeneous and dynamically altered in response to various challenges like exposure to different stress conditions or changes in growth medium. Heterogeneity of LPS can be due to: modification of the lipid A part by the incorporation of phosphoethanolamine (P-EtN) and 4-amino-4-deoxy-l-arabinose (l-Ara4N) that mask negative charges, the addition or removal of acyl chains, changes in the inner core due to the incorporation of additional Kdo residue, rhamnose (Rha), uronic acid and P-EtN and changes in number of phosphate residues, and truncation of the outer core [55]. All these structural changes are highly regulated, important for resistance to cationic antimicrobial peptides, for bacterial virulence in pathogenic bacteria and may have adaptive significance in specific environmental niches. Certain modifications in the LPS structure can also contribute to biofilm tolerance of antimicrobial compounds [56]. Lipid A of E. coli under standard growth conditions is bisphosphorylated carbohydrate backbone disaccharide β-d-GlcpN4P-(1→6)-α-d-GlcpN1P, which is hexaacylated without any modifications. However, exposure to low pH, excess of Fe3+, Zn2+, Al3+, change in divalent cations concentrations, challenge by antimicrobial peptides, treatment with the non-specific phosphatase inhibitor ammonium metavanadate (AMV), treatment with agents that disturb the OM symmetry like exposure to chelating agents like EDTA or genetic alterations that lead to the synthesis of tetraacylated derivatives can cause profound changes in the lipid A composition [7,55,57]. Some of these modifications are regulated at the transcriptional level, while some are subjected to a post-transcriptional control and certain modification occur at post-translational level [13].

8.1. Regulation of Lipid A Modifications

Most prevalent non-stoichiometric modifications that occur in the lipid A part involve either reducing the net negative charges of lipid A by modifying the 1 and/or 4′ ends of phosphate residues, or the addition or removal of acyl chains. Most commonly observed modifications of lipid A include the incorporation of P-EtN and l-Ara4N at 1 and/or 4′ ends, respectively [57]. Such substitutions are known to confer resistance to cationic antimicrobial peptides like polymyxin B. This non-stoichiometric incorporation of P-EtN and l-Ara4N residues requires IM-located EptA and ArnT transferases, respectively with active site facing the periplasm [57]. Genes encoding these transferases are part of operons, whose transcription is positively regulated by the BasS/R (PmrA/B) TCS with an overlap with the PhoP/Q system. These systems specifically respond to changes in Fe3+ and divalent cationic concentrations, respectively. The PhoP/Q system in Salmonella and in some pathogenic Gram-negative bacteria regulates the expression of virulence genes, including those encoded in pathogenic islands. Lipid A of strains synthesizing tetraacylated lipid A can have phosphate residues at 1 and/or 4′ ends modified by P-EtN, since they do not incorporate l-Ara4N due to defects in translocation and such lipid A species could be poor substrates for ArnT. Such modifications occur after the translocation at the periplasmic side and often serve as markers for LPS translocation with l-Ara4N incorporation as a more stringent signature [7]. In E. coli and Salmonella, the activation of PhoP/Q TCS upon depletion of Mg2+ and Ca2+ also leads to the BasS/R induction, which requires PmrD as the adaptor protein [58]. Such a cross talk between BasS/R and PhoP/Q TCSs allows integration of signals from different environmental cues and amplification of output response.
The majority of lipid A in E. coli K-12 contains monophosphate at positions 1 and 4′. Approximately one-third of lipid A molecules in the E. coli K-12 outer membrane contains a diphosphate unit at the 1 position. The enzyme LpxT is responsible for this phosphorylation at 1′ position, generating hexaacylated lipid A with two phosphate residues under ambient growth conditions in the absence of induction of lipid A modification systems increasing the negative charge [59]. However, upon induction of the BasS/R system, P-EtN is incorporated at 1′ position due to inhibition of the LpxT activity. This inhibition of LpxT activity upon BasS/R-inducing conditions is due to the expression of a short peptide PmrR, which directly bind to LpxT [60] and hence constitutes a post-translational control [13]. In Salmonella, PhoP activation can also positively regulate lpxT transcription. The PhoP-dependent lpxT expression induced in low Mg2+ results in 1-PP lipid A, favors further modification of lipid A phosphates with l-Ara4N and the exclusion of P-EtN. Thus, Salmonella favors lipid A modified with l-Ara4N under low Mg2+ and with both l-Ara4N and P-EtN when exposed to a mildly acidic pH [61].
As RpoE and LPS structural alterations are intricately linked, an interesting regulatory control of lipid A alteration by RpoE-regulated sRNAs has emerged. Structural analysis of LPS obtained from several different strains under simultaneous RpoE- and BasS/R-inducing conditions shows the absence of LpxT-dependent phosphorylation of lipid A, presumably due to the transcriptional induction of micA [62]. The RpoE-regulated MicA sRNA can also exert an influence on lipid A composition by connecting regulation of PhoP/Q TCS as well as LpxT to RpoE. Analysis of MicA targets revealed that besides known OMP-encoding genes, MicA represses PhoP synthesis by base pairing in the translation initiation region of phoP mRNA and inhibits its translation [63]. MicA sRNA could as well regulate the LpxT synthesis at a post-transcriptional level, since a base-paring region between the seed sequence in the micA sRNA and the lpxT mRNA has been predicted [64]. Another sRNA GcvB also represses phoP mRNA translation by base-pairing [65].
The lipid A part can also undergo non-stoichiometric modification by PagP-dependent palmitoylation due to the incorporation of a palmitate chain linked to the hydroxyl group of 3-hydroxymyristic acid at C-2 position of reducing-end [66]. Transcription of the pagP gene is positively regulated by the PhoP/Q TCS and via RcsB in biofilm environment or increase in osmolarity that requires the GadE auxiliary regulator independently of the Rcs phosphorelay cascade [56]. The PagP enzyme is usually inactive in the OM and is post-transcriptionally activated when the OM permeability is breached and this modification can dampen recognition by host immune responses. Another PhoP/Q-regulated modification is PagL-dependent deacylation. The pagL gene encodes a lipid A 3-O-deacylase and this deacylation of lipid A modifies its ability to induce immune response [67]. The PagL-dependent modification also occurs post-translationally after LPS is incorporated in the OM [13]. It is noteworthy that in Pseudomonas aeruginosa the expression of pagL is positively regulated by sRNA (Sr006) [68]. Regulation of another deacylase LpxR with a 3′-O-deacylase activity of relevance to pathogenicity is of interest and this modification also occurs in the OM [69,70]. The expression of LpxR is subjected to negative regulation by MicF trans-acting base-pairing RNA. The base-pairing of MicF within the coding sequence of the lpxR mRNA decreases its stability by promoting its degradation by RNase E [71]. Thus, variety of mechanisms exist to modify lipid A part of LPS which involve TCSs, the RpoE sigma factor and sRNAs and this regulation can occur at different steps of LPS biosynthesis transcriptionally or post-transcriptionally.

8.2. Regulation of Inner Core Modifications and Switches Between Different Glycoforms

The inner core of LPS in the majority of cases generally contains an α-(2-4)-linked Kdo disaccharide, to which l-glycero-d-manno-heptose residue (Hep) is attached at position 5 of KdoI. In E. coli, the inner core contains three Hep residues. Although the composition of the inner core is relatively conserved, Kdo, as well as Hep residues, can be non-stoichiometrically modified. These modifications are regulated by the RpoE sigma factor, PhoP/Q, PhoB/R TCSs, by alarmone ppGpp and recruitment of specific sRNAs, whose expression is regulated by these transcription factors (Figure 1). Like lipid A modifications, they are often important for antibiotic resistance OM permeability and contribute to diversity in the LPS composition [10,13,62]. Quite well studied modifications include the non-stoichiometric incorporation of a P-EtN residue on the second Kdo by EptB transferase, incorporation of a third Kdo by WaaZ transferase, the addition of Rha, which can be linked to either the second Kdo or the third Kdo, modification of phosphorylated HepI by P-EtN using the PhoB/R-regulated EptC and incorporation of glucuronic acid (GlcUA) by the PhoB/R-inducible WaaH glycosyltransferase with a concomitant loss of phosphate residue on HepII [55,62].
Transcription of the eptB gene encoding P-EtN transferase specific to the second Kdo is positively regulated by the RpoE sigma factor [7,72]. Hence, this modification of the second Kdo is quite pronounced when the RpoE activity is induced either in the absence of RseA anti-sigma factor or when LPS is defective as in ΔwaaC or ΔwaaF mutants [7,11,62]. Consistent with the induction of RpoE and regulation of the eptB transcription, the lipid A part of ΔwaaC or ΔwaaF strains were found to lack P-EtN even under eptA-inducing conditions, but preferentially incorporating P-EtN on the second Kdo [7,11]. However, this incorporation requires the presence of Ca2+ in the growth medium. Furthermore, the synthesis of EptB is negatively regulated by two Hfq-dependent sRNAs MgrR and ArcZ, although in response to different environmental signals [72,73]. Under normal growth conditions, the PhoP-regulated MgrR sRNA via base-pairing with the eptB mRNA silences its expression due to translational repression of the eptB mRNA. Activation of PhoP/Q induces transcription of the mgrR sRNA. The EptB-dependent P-EtN modification of the second Kdo upon high Ca2+ concentration can be explained by the repression of transcription of PhoP/Q-regulated mgrR and promote the synthesis of active EptB under RpoE-inducing conditions. The Hfq-dependent ArcZ sRNA also inhibits translation and expression of eptB by base-pairing in an ArcA/B-dependent manner in response to oxygen concentration [72]. Quite like the P-EtN modification of lipid A, the incorporation of P-EtN on the second Kdo confers resistance to polymyxin B. Thus, RpoE regulon members like eptB and MicA sRNA, PhoP-regulated MgrR sRNA contribute to the incorporation of P-EtN on the second Kdo, lipid A and regulation of glycoform switches.

8.3. Modifications in the Heptose Region of the LPS Inner Core

The inner core of LPS exhibits the limited structural diversity, since it plays a crucial role in maintaining the OM stability. However, some non-stoichiometric substitutions have been demonstrated in this region of LPS. These include the incorporation or loss of phosphate residues and the addition of P-EtN, GlcN, or GlcUA. Among these, the phosphorylation of the HepI residue by WaaP is critical for the OM permeability and also provides the attachment sites for the other substituents and ensures the completion of core synthesis [11,24,55]. Accordingly, in E. coli K-12, phosphorylated HepI serves as an acceptor for P-EtN, which requires the EptC phosphoethanolamine transferase [55]. Furthermore, the HepIII residue, whose incorporation requires prior phosphorylation of HepI by WaaP, can be modified by GlcN (in E. coli R1 and R3 isolates) or by GlcUA (in Salmonella and E. coli B, K-12, R2 and R4 core types). Importantly, the modification of the HepIII residue is always accompanied by loss of phosphate residue at the HepII, thereby maintaining a net negative charge [55,74]. Structural studies revealed that GlcUA is attached to O-7 of the side-chain Hep, with the phosphate residue found at position O-4 of the HepII being absent [55] (Figure 2). WaaH shares 20% amino acid sequence similarity with WabO of Klebsiella pneumoniae. However, WabO in K. pneumoniae is responsible for the galacturonic acid (GalA) incorporation [75]. In E. coli K-12, waaH and eptC genes, whose products mediate transfer of GlcUA and P-EtN modifications of the Hep I and Hep III residues respectively, are positively regulated by the PhoB/R TCS [55]. However, the P-EtN-modification of HepI can also occur at the basal level without a requirement for induction of either PhoB/R or BasS/R systems. The EptC-dependent modification of HepI is important for the permeability function, as ΔeptC mutants exhibit sensitivity to exposure to sub-lethal Zn2+ concentration or the presence of SDS [55].

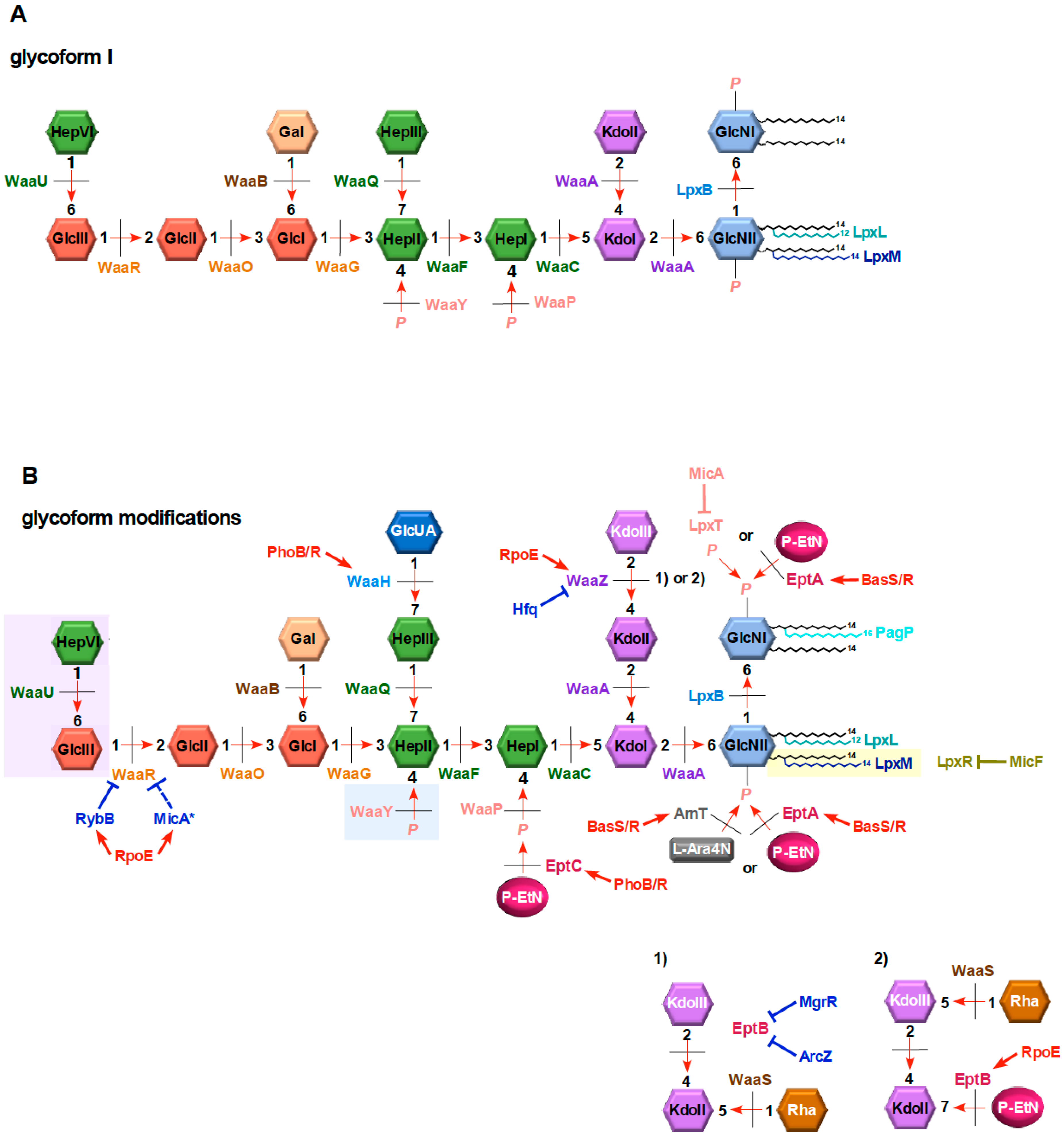

8.4. Glycoform Switches

Up to now, at least seven structurally different glycoforms of E. coli K-12 have been characterized, whose relative abundance varies on growth conditions such as exposure to phosphate-limiting growth conditions, the induction of RpoE-regulated envelope stress response and activation of specific TCSs. These glycoforms differ due to the non-stoichiometric modifications such as P-EtN transfer to the second Kdo, incorporation of a third Kdo, addition of sugars like Rha, GlcN, uronic acids, alterations in the numbers of phosphate residues in the LPS core and truncation of outer core terminal disaccharide. In initial studies using optimal growth conditions, the wild-type E. coli K-12 was found to contain majority of LPS corresponding to glycoform I structure and only minor amounts of three additional glycoforms II, III and IV could be observed [76]. Glycoform I contains two Kdo residues in the inner core, and four heptoses and four hexoses attached in specific order in the inner core and the outer core (Figure 2). However, using strains or growth conditions that exhibit the induction of RpoE sigma factor or employing phosphate-limiting growth conditions supplemented with Fe3+ and Zn2+ (induction of PhoB/R and BasS/R TCSs) or treatment with AMV (induction of RpoE and non-specific induction of TCSs) revealed major shifts in the LPS composition and prevalence of different glycoforms not only in E. coli K-12 but also in E. coli strains with different core type and in Salmonella [55,62]. Using growth medium that induces BasS/R and PhoB/R TCSs, wild-type E. coli strains synthesize more glycoform IV/V derivatives as compared to glycoform I. However, when the RpoE induction is maximal, a near-exclusive synthesis of glycoform V and its derivatives are observed (Figure 2). This molecular switch to the synthesis of glycoform V derivatives requires ppGpp alarmone, induction of the RpoE-transcribed genes eptB, sRNAs micA and rybB, and the transcriptional upregulation of waaZ with a concomitant repression of WaaR synthesis [62] (Figure 2). waaZ and waaS genes encode the Kdo transferase required for the incorporation of the third Kdo and rhamnosyl transferase, respectively, while as the eptB gene encodes P-EtN transferase specific to the second Kdo [62,77] (Figure 2). Glycoforms IV and V have the same molecular masses, but are structurally different due to the incorporation of P-EtN on the second Kdo by the RpoE-regulated EptB and attachment of Rha to the terminal third Kdo defining glycoform V. Without RpoE induction, EptB synthesis is silenced by the PhoP/Q-dependent MgrR sRNA (no incorporation of P-EtN on the second Kdo, instead the attachment of Rha on the second Kdo) and hence the synthesis of glycofom IV derivatives.
One of the interesting structural features of glycoform V derivatives with a third Kdo is the concomitant truncation of the terminal disaccharide and the incorporation of P-EtN on the second Kdo with Rha on the third Kdo. The minimal LPS structure that can support incorporation of a third Kdo requires WaaO-mediated addition of glucose and hence serves as a branch point in determining switches between glycoform I and glycoform IV/V derivatives [62]. Primarily this switch is regulated by levels of WaaR and WaaZ, whose expression are regulated by induction of RpoE and PhoB/R TCS. Truncation of the terminal disaccharide suggested that the WaaR glycosyltransferase is limiting under RpoE-inducing conditions. This was indeed experimentally validated by observed repression of WaaR synthesis due to the RpoE-regulated RybB sRNA and to some extent by another RpoE-regulated sRNA MicA (Figure 2). At the same time, transcription of the waaZ gene is induced under such conditions. Physiologically, switch to the synthesis of glycoform derivatives with a truncation in the outer core, hence lacking terminal heptose, might be important for escaping detection by host, since such derivatives cannot incorporate O-antigen. Importance of the O-antigen incorporation can be critical, as it becomes essential for survival in Salmonella in the absence of the rpoE gene [78]. Thus, a coordinated molecular programming ensures increased synthesis of the WaaZ Kdo transferase under RpoE-inducing conditions, and the EptB P-EtN transferase, the induction of BasS/R-dependent WaaS synthesis with a simultaneous repression of WaaR and MgrR synthesis.

8.5. Transcriptional Regulation of Major LPS Biosynthetic Operons by RfaH

RfaH is a paralog of NusG family of universally conserved transcription factors. RfaH is unique in its specificity for recognition of only those operons that contain a short 8-nt conserved sequence (GGCGGTAG) in the 5′ UTR called the ops (operon polarity suppressor) pause site. Thus, RfaH regulates the expression of genes that play important functions in virulence such as the synthesis of LPS core, O-antigen, haemolysin, capsule and for conjugation [11,12]. Recruitment of RfaH prevents transcriptional termination and enhances transcriptional elongation of long waaQ and rfb operons. Consistent with a role for regulation of expression of waaQ and rfb operons, they contain an 8-nt conserved ops site and the JUMPstart site in their 5′ UTR and also lack a ribosome-binding site. In the absence of RfaH, LPS is truncated, since the expression of the waaQ operon is severely compromised and ΔrfaH mutants exhibit permeability defects, the induction of RpoE-dependent envelope stress response and are avirulent in pathogenic bacteria [11]. RfaH without interaction with the ops site exists in an inactive form with a closed conformation with its C-terminal domain (CTD) folded in an α helical hairpin tightly packed against its N-terminal domain (NTD). In this conformation, the NTD of RfaH is not accessible for DNA-RNA polymerase interaction [79]. However, upon encountering the ops site in the presence of RNA polymerase, the CTD of RfaH folds into a β-barrel allowing recruitment of S10 ribosomal protein to couple transcription with translation and also enhance transcriptional elongation. Recently, a new RirA sRNA (RfaH interacting RNA) was identified while analyzing factors that induce transcription of the rpoE gene [11]. Overexpression of the 73-nt RirA sRNA, located in the 5′ UTR of the waaQ operon, increases transcription from the rpoEP3 promoter that specifically responds to LPS defects. RirA overexpression abrogates the synthesis of O-antigen, causes reduction of LPS amounts and truncation in the LPS core, thus mimicking the ΔrfaH phenotype. Indeed, RirA directly interacts with RfaH in the presence of RNA polymerase and this interaction is dependent on the presence of the ops site within the rirA RNA [11]. This RirA-RfaH interaction could lead to loss of the specificity for recognition of ops-containing operons, like waaQ and rfb operons, needed for LPS core and O-antigen biosynthesis.

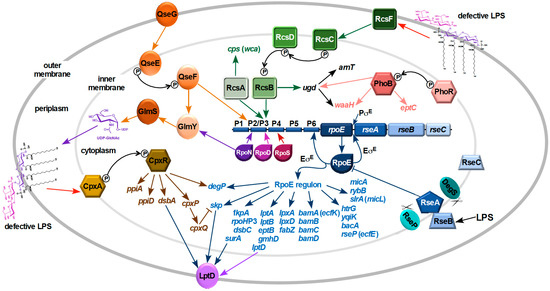

9. Signal Transduction in Response to LPS Defects

Integrity of the OM and homeostasis of various overall cell envelope components is critical for growth and the viability of bacteria. This requires correct assembly of OMPs, a balance between synthesis of peptidoglycan, phospholipids and LPS. This in bacteria requires function of various regulon members of RpoE and Cpx TCS. Severe defects in LPS biogenesis in response to underacylation, defects in LPS when the LPS assembly factor LapB is missing or depletion of Lpt translocation system, truncation in the inner core or when LPS synthesis is compromised particularly when bacteria synthesize minimal LPS derivatives like Kdo2-lipid A, Kdo2 lipid IVA or only lipid IVA derivatives, cause major cell envelope perturbations leading to a signal response that causes activation of the RpoE sigma factor, induction of the Rcs phosphorelay and activation of the Cpx TCS [7,9,10,11]. The extent of induction of these stress responses varies depending upon the severity of defects. Early work addressing activation of RpoE, when the OMP assembly is compromised, revealed that strains lacking GmhD (HtrM), which synthesize Kdo2-lipid A Re LPS, overexpress exopolysaccharide and have a constitutive elevation of RpoE response with a concomitant decrease in OMP content [17]. The exopolysaccharide synthesis is known to be positively regulated by the Rcs TCS by increasing transcription of wca genes [80]. Subsequently, during deciphering of the RpoE regulon, it was revealed that some of the genes involved in either LPS biosynthesis, LPS modifications, LPS transport and factors involved in OMP folding and insertion in the OM are part of this regulon [14]. In further studies, detailed mutational analysis of various genes, whose products are either involved in LPS biosynthesis or LPS modifications, coupled with mass spectrometric analysis of LPS of all such mutant derivatives and an impact on envelope stress response was undertaken in series of studies [7,9,11]. These studies reveal a full circuit wherein defects in LPS cause a major induction of RpoE and RpoE induction without any mutations in LPS biosynthetic/assembly pathways lead to several alterations leading to the accumulation of specific LPS glycoforms and various modifications (Figure 3). Some of the major conclusions and major pathways of stress response are discussed here. These studies showed that underacylation of LPS, when the core biosynthetic pathway is intact, does not cause any major induction of either RpoE or Cpx systems [7]. Only when all three acyltransferases are deleted, as in a strain Δ(lpxL lpxM lpxP), a modest induction of RpoE-dependent pathway is induced. In contrast, ΔwaaC strains synthesizing Kdo2-lipid A LPS exhibit a nearly 3-fold induction of RpoE pathway without impacting the Cpx system. However, tetraacylated derivatives synthesizing Kdo2-lipid IVA like Δ(waaC lpxL) or Δ(waaC lpxL lpxM lpxP) exhibit a 3-4-fold induction of both RpoE and Cpx pathways even under permissive growth conditions. Consistent with these are the findings that ΔwaaA mutants synthesizing lipid IVA precursor species exhibit maximal induction of RpoE and Cpx pathways. Given much higher induction of RpoE in ΔwaaC mutants and lipid IVA synthesizing strains, as compared to its modest induction in Δ(lpxL lpxM lpxP) mutants, suggests an acute requirement for the incorporation of Kdo and initial steps in LPS core biosynthesis for cell envelope integrity. Interestingly, a Δ(lpxL lpxM lpxP) strain was found to synthesize LPS primarily of glycoform with a third Kdo residue and a truncation of outer core disaccharide, when grown in lipid A modifying conditions [7]. Furthermore, mutations in some of the conserved early glycosyltransferases encoding genes, like waaF, waaG, waaO or waaP whose product phosphorylates Heptose I, or in the absence of RfaH transcriptional factor whose product is required to ensure transcription/translation and prevent premature termination of transcription of the waaQ operon also induce the rpoE transcription [11].
Consistent with sensing of correct assembly of LPS by RpoE, such a phenotype was used to identify LapA and LapB assembly factors, since the lack of LapB causes increased constitutive induction of RpoE and Cpx regulons quite like ΔwaaA mutants [9]. As mentioned above, Δ(lapA lapB) mutants produce more LPS due to stabilization of LpxC, accumulate precursor species of LPS with incomplete core, defects in acylation of lipid A and reduced amounts of LptD in the OM. Thus, given the overwhelming evidence, it is fair to conclude that severe defects in either early steps in LPS core biogenesis or when LPS is composed of only Kdo2-lipid IVA or when LPS assembly is defective lead to the induction of RpoE envelope stress response.

10. Mechanism of Signal Transduction

Here, we will discuss the activation of RpoE regulon in response to LPS defects with an overlap in the activation of the Rcs phosphorelay system, which jointly respond to LPS defects (Figure 3). We do not know how the Cpx system senses LPS defects as it can respond to several envelope stress signals in the IM, periplasm and OM. One of the main observations has been that only those structural LPS changes/defects that induce the Rcs system also induce RpoE. Thus, induction of PhoB/R-dependent GlcUA incorporation, BasS/R-dependent lipid A modifications, lack of either WaaY, or WaaZ or WaaS or truncation of outer core neither induce the Rcs system nor the RpoE-regulated stress response [11,55]. In a comprehensive study, a systematic approach of dissection of the transcriptional regulation of the rpoE gene and stimuli that induce or repress was taken based on previously observed RpoE induction in ΔwaaA or strains synthesizing Kdo2-lipid IVA derivatives [7,11]. When the rpoE gene was initially identified, two complementary studies showed that transcription of the rpoE gene is positively autoregulated from one of its promoters since it is recognized by EσE polymerase and its activity is induced when OMP maturation is dysfunctional or due to an imbalance in OMP expression [81,82]. However, the regulation of distal promoter or promoter region (previously called the rpoEP1 promoter) remained elusive. Besides positive transcriptional regulation, RpoE is negatively regulated by RseA and RseB proteins, whose encoding genes are co-transcribed with the rpoE gene [83]. The RseA inner membrane protein associates via its cytoplasmic N-terminal domain with RpoE, thereby sequestering RpoE in the IM under non-stress conditions [83]. This inhibitory effect of RseA is relieved upon OMP misfolding or overexpression of some OMPs by sequential degradation of RseA initiated by DegS in the periplasm, followed by the second site inner membrane proteolysis by RseP (EcfE) and subsequent degradation of the N-terminal RseA in the cytoplasm [84]. The periplasmic C-terminal domain of RseA associates with RseB and prevents RseA degradation. Since the autoregulated rpoE promoter (P6 promoter), previously called rpoEP2 promoter, responds to effective concentration of available RpoE that complexes with core RNA polymerase, its activity reflects both transcriptional increase in the rpoE expression and its release from RseA and hence its activity or activity of reporter promoters of its regulon members (rpoHP3) does not directly reflect response to LPS defects.
During the studies aimed to understand the mechanism of rpoE induction in response to LPS defects and examination of transcriptional regulation of upstream element, it turned out that the rpoE gene is transcribed from six promoters and, among these, activity of rpoEP2 and rpoEP3 promoters is specifically induced when LPS is defective (Figure 3). Among these, transcription from the rpoEP3 promoter is significantly induced when either the LPS core biogenesis is defective or when LPS assembly is compromised or by challenge with LPS-binding antibiotic like polymyxin B or treatment with agents like AMV that induce non-specifically different TCS [11]. Global mutational screen identified insertion/deletion mutations mapping to genes involved in the early steps of LPS core biosynthesis such as waaC, waaF, waaG, waaO and waaP. Among these, maximal 7-fold induction of the rpoEP3 promoter was observed in ΔwaaC mutants synthesizing Kdo2-lipid IVA [11]. This activation was nearly abrogated in Δ(waaC rcsB) mutants suggesting that the signal of activation due to defective LPS requires the RcsB response regulator [11]. Interestingly, mutations in either waaC or waaF or waaP exhibit deep-rough phenotype accompanied by the induction of Rcs-regulated exopolysaccharide synthesis. Analysis of various other response regulators did not show any direct participation [11]. The activity of the same rpoEP3 promoter was found to be induced nearly 3–4 fold in ΔrfaH background and by the overexpression of rirA sRNA [11]. The 73 nt RirA sRNA contains ops element, located in the 5′ UTR of waaQ operon and acts by decreasing the RfaH activity, by directly binding to RfaH in the presence of RNA polymerase. The overexpression of rirA causes a reduction in the expression of operons that require the RfaH activity. When RirA is in excess, it causes a decrease in the expression of waaQ operon members leading to truncation of the LPS core and abolishes the incorporation of O-antigen, explaining the specific induction of LPS responsive rpoEP3 promoter [11]. Additional evidence that the rpoEP3 promoter responds to LPS-specific alterations is based on an increase in transcription from this promoter when bacteria are challenged in early growth phase by either polymyxin B or AMV. The induction of RpoE regulon concomitant with Rcs pathway activation is also observed when any component of Lpt is depleted, since under such conditions LPS is modified by the Rcs-regulated colanic acid exopolysaccharide [85].
A direct proof that the rpoEP3 promoter is positively regulated by the Rcs system comes from in vitro DNA binding assays with purified RcsB, establishing the presence of conserved RcsB motif in the rpoEP3 promoter region [11]. This was supported by deletion and mutational analysis of RcsB-binding motif. Run-off assays established the authenticity of recognition by the house-keeping sigma factor and mutational analysis reinforced that RcsB acts as a positive regulator in response to LPS defects. Transcription from the rpoEP3 promoter is also activated in Δ(lapA-lapB) which also requires RcsB. It should be noted that the RpoN-regulated rpoEP2 promoter also responds to LPS defects albeit to a much-reduced extent (only a 70% to 2-fold increase as compared to the 7-fold induction by ΔwaaC) and that too mainly upon entry into the stationary phase. Since the rpoEP2 promoter requires QseF as an activator [11], it will be interesting to know how the Qse TCS senses LPS.
A role for sensing of LPS defects by the Rcs signalling pathway was proposed in earlier studies by examining a mutant strain carrying rfa-1 mutation. Such a strain synthesizes LPS composed of only two heptose residues lacking any glucose in the core region and exhibits induction of cps genes leading to overexpression of exopolysaccharide [80]. Furthermore, it was shown that this LPS defect requires the outer membrane lipoprotein RcsF, since induction of cps transcription in rfa-1 mutant was abolished in ΔrcsF mutants [80]. Interestingly, overexpression of cps genes due to LPS defects did not occur due to the increased rcsF transcription, rather could be the consequence of other mechanisms of the RcsF activation. More recent studies on RcsF revealed that it exists in complex with many OMPs [86] and such RcsF complex uses its positively charged, surface-exposed N-terminal domain to detect alterations in lateral interactions between LPS molecules (changes in phosphorylation status of the LPS core), which lead to the induction of Rcs system. This activation of Rcs pathway in turn can activate RcsB to induce the rpoEP3 promoter when LPS defects are encountered (Figure 3).
Another model postulates that the periplasmic RseB binds to LPS that might be released in an off pathway during translocation via the Lpt system [84]. Usually, RseB association with RseA inhibits its proteolysis. However, LPS binding to RseB relives inhibition of proteolysis by disassociation of the RseA-RseB complex (Figure 3). In support of this model, authors show that RseA-RseB dissociation by LPS is inhibited in the presence of LptA, suggesting that the periplasmic accumulation of LPS, due to release from Lpt proteins in the periplasmic bridge, can promote the dissociation of RseB from RseA and cause RpoE induction. However, the validity of this model needs further studies as free LPS is not known to accumulate when the LPS core is truncated and severe defects in LPS, particularly upon accumulation in the IM when the Lpt system is depleted, also induce RpoE. Analysis of distribution of free RpoE vs. RpoE bound to the IM in ΔwaaA has revealed that the elevated RpoE activity can be attributed to increased release of RpoE from the IM in such mutants [87]. However, a joint signaling when LPS is defective via the Rcs system and RseB can amplify RpoE induction and hence these models are not mutually exclusive.
In summary, comprehensive analysis of various LPS defects has revealed that RpoE activity is specifically induced when LPS biosynthesis or assembly is compromised by the activation of the rpoEP3 promoter with phosphorylated RcsB acting as an activator and the sensing of LPS defects occurs via the Rcs phosphorelay system (Figure 3).

11. Conclusions

The LPS synthesis is subjected to a tight regulation at variety of steps. Regulation of LpxC amounts by FtsH and LapB constitutes an essential step to maintain a balanced synthesis of LPS and phospholipids. Further, MsbA by preferential selectivity of hexaacylated LPS provides an early checkpoint, preventing transport of precursor underacylated LPS species. LapB recruits LpxC, FtsH, glycosyltransferases, myristoyltrasferase LpxM and other proteins that are required for LPS synthesis at the IM, presumably acting as a scaffold to deliver completely synthesized LPS to its other interacting partners in the Lpt transport system. LPS is heterogeneous in composition and its composition is dynamically altered by a host of factors. These LPS alterations are regulated by the RpoE sigma factor, TCS like BasS/R, PhoP/Q, PhoB/R and Rcs system with an overwhelming role played by noncoding sRNAs. The Rcs system senses LPS defects resulting into phosphorylation of RcsB, which leads to activation of transcription from rpoEP3 promoter leading to RpoE induction. Finally, the transenvelope Lpt complex of seven essential proteins acts as a single unit and in an ATP-dependent manner ferries LPS across the periplasmic bridge comprised of LptA for delivery to the OM component of LptD/E in a continuous manner. Although tremendous progress has been achieved in the recent past, it is still unknown how the LptB cytoplasmic component of Lpt system is localized to the IM and how the proteolytic activity of FtsH is regulated by LapB protein and other factors. Further studies are also needed to demonstrate that LapB acts as the scaffold for LPS assembly and its coordination with the Lpt transport system, although LapA/LapB proteins have been demonstrated to co-purify with Lpt components. As LPS is essential, its essential steps in biosynthetic pathway and Lpt transport have been validated targets of discovery of new antibiotics. Already inhibitors of LpxC and a peptidomimetic POL7080 based on the cationic antimicrobial peptide that inhibits the LptD activity are in advanced clinical trails and many additional antimicrobial compounds using LPS synthesis/assembly are bound to be discovered in future.

Author Contributions

G.K. and S.R. participated in draft preparation, review and editing. All authors read and approved the final manuscript.

Funding

This research was funded by National Science Center (NCN) 2017/25/B/NZ6/02021 to SR.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

AMVammonium metavanadate
GlcUAglucuronic acid
IMinner membrane
Kdo3-deoxy-α-d-manno-oct-2-ulsonic acid
l-Ara4N4-amino-4-deoxy-l-arabinose
LPSlipopolysaccharide
OMouter membrane
OMPouter membrane protein
opsoperon polarity suppressor
P-EtNphosphoethanolamine
sRNAnoncoding small regulatory RNA
TCStwo-component system
TPRtetratricopeptide repeats
UTRuntranslated region

References

  1. Nikaido, H. Outer membrane. In Escherichia coli and Salmonella: Cellular and Molecular Biology, 2nd ed.; Neidhardt, F.C., Curtiss, R., Ingraham, J.L., Eds.; American Society for Microbiology Press: Washington, DC, USA, 1996; Volume 1, pp. 29–47. [Google Scholar]
  2. Anderson, M.S.; Bulawa, C.E.; Raetz, C.R.H. The biosynthesis of Gram-negative endotoxin. Formation of lipid A precursors from UDP-GlcNAc in extracts of Escherichia coli. J. Biol. Chem. 1985, 260, 15536–15541. [Google Scholar]
  3. Babinski, K.J.; Kanjilal, S.J.; Raetz, C.R.H. Accumulation of the lipid A precursor UDP-2,3-diacylglucosamine in an Escherichia coli mutant lacking the lpxH gene. J. Biol. Chem. 2002, 277, 25947–25956. [Google Scholar] [CrossRef] [PubMed]
  4. Raetz, C.R.H.; Whitfield, C. Lipopolysaccharide endotoxins. Annu. Rev. Biochem. 2002, 71, 635–700. [Google Scholar] [CrossRef]
  5. Vorachek-Warren, M.K.; Ramirez, S.; Cotter, R.J.; Raetz, C.R.H. A triple mutant of Escherichia coli lacking secondary acyl chains on lipid A. J. Biol. Chem. 2002, 277, 14194–14205. [Google Scholar] [CrossRef] [PubMed]
  6. Carty, S.M.; Sreekumar, K.R.; Raetz, C.R.H. Effect of cold shock on lipid A biosynthesis in Escherichia coli. Induction at 12 °C of an acyltransferase specific for palmitoleoyl-acyl carrier protein. J. Biol. Chem. 1999, 274, 9677–9685. [Google Scholar] [CrossRef] [PubMed]
  7. Klein, G.; Lindner, B.; Brabetz, W.; Brade, H.; Raina, S. Escherichia coli K-12 suppressor-free mutants lacking early glycosyltransferases and late acyltransferases. Minimal lipopolysaccharide structure and induction of envelope stress response. J. Biol. Chem. 2009, 284, 15369–15389. [Google Scholar] [CrossRef]
  8. Holst, O. The structures of core regions from enterobacterial lipopolysaccharides—An update. FEMS Microbiol. Lett. 2007, 271, 3–11. [Google Scholar] [CrossRef]
  9. Klein, G.; Kobylak, N.; Lindner, B.; Stupak, A.; Raina, S. Assembly of lipopolysaccharide in Escherichia coli requires the essential LapB heat shock protein. J. Biol. Chem. 2014, 289, 14829–14853. [Google Scholar] [CrossRef]
  10. Klein, G.; Raina, S. Small regulatory bacterial RNAs regulating the envelope stress response. Biochem. Soc. Trans. 2017, 45, 417–425. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  11. Klein, G.; Stupak, A.; Biernacka, D.; Wojtkiewicz, P.; Lindner, B.; Raina, S. Multiple transcriptional factors regulate transcription of the rpoE gene in Escherichia coli under different growth conditions and when the lipopolysaccharide biosynthesis is defective. J. Biol. Chem. 2016, 291, 22999–23019. [Google Scholar] [CrossRef]
  12. Bailey, M.J.; Hughes, C.; Koronakis, V. RfaH and the ops element, components of a novel system controlling bacterial transcription elongation. Mol. Microbiol. 1997, 26, 845–851. [Google Scholar] [CrossRef]
  13. Klein, G.; Raina, S. Regulated control of the assembly and diversity of LPS by noncoding sRNAs. Biomed. Res. Int. 2015, 2015, 153561. [Google Scholar] [CrossRef]
  14. Dartigalongue, C.; Missiakas, D.; Raina, S. Characterization of the Escherichia coli σE regulon. J. Biol. Chem. 2001, 276, 20866–20875. [Google Scholar] [CrossRef] [PubMed]
  15. Henry, R.; Vithanage, N.; Harrison, P.; Seemann, T.; Coutts, S.; Moffatt, J.H.; Nation, R.L.; Li, J.; Harper, M.; Adler, B.; et al. Colistin-resistant, lipopolysaccharide-deficient Acinetobacter baumannii responds to lipopolysaccharide loss through increased expression of genes involved in the synthesis and transport of lipoproteins, phospholipids, and poly-β-1,6-N-acetylglucosamine. Antimicrob. Agents Chemother. 2012, 56, 59–69. [Google Scholar] [CrossRef] [PubMed]
  16. Steeghs, L.; den Hartog, R.; den Boer, A.; Zomer, B.; Roholl, P.; van der Ley, P. Meningitis bacterium is viable without endotoxin. Nature 1998, 392, 449–450. [Google Scholar] [CrossRef] [PubMed]
  17. Missiakas, D.; Betton, J.M.; Raina, S. New components of protein folding in extracytoplasmic compartments of Escherichia coli SurA, FkpA and Skp/OmpH. Mol. Microbiol. 1996, 21, 871–884. [Google Scholar] [CrossRef] [PubMed]
  18. Crhanova, M.; Malcova, M.; Mazgajova, M.; Karasova, D.; Sebkova, A.; Fucikova, A.; Bortlicek, Z.; Pilousova, L.; Kyrova, K.; Dekanova, M.; et al. LPS structure influences protein secretion in Salmonella enterica. Vet. Microbiol. 2011, 152, 131–137. [Google Scholar] [CrossRef]
  19. Ebbensgaard, A.; Mordhorst, H.; Aarestrup, F.M.; Hansen, E.B. The role of outer membrane proteins and lipopolysaccharides for the sensitivity of Escherichia coli to antimicrobial peptides. Front. Microbiol. 2018. [Google Scholar] [CrossRef]
  20. Vivijs, B.; Aertsen, A.; Michiels, C.W. Identification of genes required for growth of Escherichia coli MG1655 at moderately low pH. Front. Microbiol. 2016, 7, 1672. [Google Scholar] [CrossRef]
  21. Wang, Z.; Wang, J.; Ren, G.; Li, Y.; Wang, X. Deletion of the genes waaC, waaF, or waaG in Escherichia coli W3110 disables the flagella biosynthesis. J. Basic Microbiol. 2016, 56, 1021–1035. [Google Scholar] [CrossRef]
  22. Schwalm, J.; Mahoney, T.F.; Soltes, G.R.; Silhavy, T.J. Role for Skp in LptD assembly in Escherichia coli. J. Bacteriol. 2013, 195, 3734–3742. [Google Scholar] [CrossRef] [PubMed]
  23. Murata, M.; Fujimoto, H.; Nishimura, K.; Charoensuk, K.; Nagamitsu, H.; Raina, S.; Kosaka, T.; Oshima, T.; Ogasawara, N.; Yamada, M. Molecular strategy for survival at a critical high temperature in Escherichia coli. PLoS ONE 2011, 6, e20063. [Google Scholar] [CrossRef] [PubMed]
  24. Yethon, J.A.; Heinrichs, D.E.; Monteiro, M.A.; Perry, M.B.; Whitfield, C. Involvement of waaY, waaQ, and waaP in the modification of Escherichia coli lipopolysaccharide and their role in the formation of a stable outer membrane. J. Biol. Chem. 1998, 273, 26310–26316. [Google Scholar] [CrossRef]
  25. Reynolds, C.M.; Raetz, C.R.H. Replacement of lipopolysaccharide with free lipid A molecules in Escherichia coli mutants lacking all core sugars. Biochemistry 2009, 48, 9627–9640. [Google Scholar] [CrossRef]
  26. Urban, J.H.; Vogel, J. Two seemingly homologous noncoding RNAs act hierarchically to activate glmS mRNA translation. PLoS Biol. 2008, 6, e64. [Google Scholar] [CrossRef] [PubMed]
  27. Göpel, Y.; Papenfort, K.; Reichenbach, B.; Vogel, J.; Görke, B. Targeted decay of a regulatory small RNA by an adaptor protein for RNase E and counteraction by an anti-adaptor RNA. Genes Dev. 2013, 27, 552–564. [Google Scholar] [CrossRef] [Green Version]
  28. Reichenbach, B.; Göpel, Y.; Görke, B. Dual control by perfectly overlapping σ54- and σ70-promoters adjusts small RNA GlmY expression to different environmental signals. Mol. Microbiol. 2009, 74, 1054–1070. [Google Scholar] [CrossRef] [PubMed]
  29. Ogura, T.; Inoue, K.; Tatsuta, T.; Suzaki, T.; Karata, K.; Young, K.; Su, L.H.; Fierke, C.A.; Jackman, J.E.; Raetz, C.R.H.; et al. Balanced biosynthesis of major membrane components through regulated degradation of the committed enzyme of lipid A biosynthesis by the protease FtsH (HflB) in Escherichia coli. Mol. Microbiol. 1999, 31, 833–844. [Google Scholar] [CrossRef]
  30. Führer, F.; Langklotz, S.; Narberhaus, F. The C-terminal end of LpxC is required for degradation by the FtsH protease. Mol. Microbiol. 2006, 59, 1025–1036. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  31. Mahalakshmi, S.; Sunayana, M.R.; Saisree, L.; Reddy, M. yciM is an essential gene required for regulation of lipopolysaccharide synthesis in Escherichia coli. Mol. Microbiol. 2014, 91, 145–157. [Google Scholar] [CrossRef] [PubMed]
  32. Zeng, D.; Zhao, J.; Chung, H.S.; Guan, Z.; Raetz, C.R.H.; Zhou, P. Mutants resistant to LpxC inhibitors by rebalancing cellular homeostasis. J. Biol. Chem. 2013, 288, 5475–5486. [Google Scholar] [CrossRef] [PubMed]
  33. Guo, M.S.; Updegrove, T.B.; Gogol, E.B.; Shabalina, S.A.; Gross, C.A.; Storz, G. MicL, a new σE-dependent sRNA, combats envelope stress by repressing synthesis of Lpp, the major outer membrane lipoprotein. Genes Dev. 2014, 28, 1620–1634. [Google Scholar] [CrossRef] [PubMed]
  34. Metzger IV, L.E.; Raetz, C.R.H. Purification and characterization of the lipid A disaccharide synthase (LpxB) from Escherichia coli, a peripheral membrane protein. Biochemistry 2009, 48, 11559–11571. [Google Scholar] [CrossRef] [PubMed]
  35. Emiola, A.; Andrews, S.S.; Heller, C.; George, J. Crosstalk between the lipopolysaccharide and phospholipid pathways during outer membrane biogenesis in Escherichia coli. Proc. Natl. Acad. Sci. USA 2016, 113, 3108–3113. [Google Scholar] [CrossRef]
  36. Katz, C.; Ron, E.Z. Dual role of FtsH in regulating lipopolysaccharide biosynthesis in Escherichia coli. J. Bacteriol. 2008, 190, 7117–7122. [Google Scholar] [CrossRef] [PubMed]
  37. Prince, C.; Jia, Z. An unexpected duo: Rubredoxin binds nine TPR motifs to form LapB, an essential regulator of lipopolysaccharide synthesis. Structure 2015, 23, 1500–1506. [Google Scholar] [CrossRef]
  38. Putker, F.; Grutsch, A.; Tommassen, J.; Bos, M.P. Ght protein of Neisseria meningitidis is involved in the regulation of lipopolysaccharide biosynthesis. J. Bacteriol. 2014, 196, 780–789. [Google Scholar] [CrossRef] [PubMed]
  39. Moreau, P.L.; Loiseau, L. Characterization of acetic acid-detoxifying Escherichia coli evolved under phosphate starvation conditions. Microb. Cell Fact. 2016, 15, 42. [Google Scholar] [CrossRef]
  40. Sutterlin, H.A.; Shi, H.; May, K.L.; Miguel, A.; Khare, S.; Huang, K.C.; Silhavy, T.J. Disruption of lipid homeostasis in the Gram-negative cell envelope activates a novel cell death pathway. Proc. Natl. Acad. Sci. USA 2016, 113, E1565–E1574. [Google Scholar] [CrossRef]
  41. Ward, A.; Reyes, C.L.; Yu, J.; Roth, C.B.; Chang, G. Flexibility in the ABC transporter MsbA: Alternating access with a twist. Proc. Natl. Acad. Sci. USA 2007, 104, 19005–19010. [Google Scholar] [CrossRef]
  42. Mi, W.; Li, Y.; Yoon, S.H.; Ernst, R.K.; Walz, T.; Liao, M. Structural basis of MsbA-mediated lipopolysaccharide transport. Nature 2017, 549, 233–237. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Ho, H.; Miu, A.; Alexander, M.K.; Garcia, N.K.; Oh, A.; Zilberleyb, I.; Reichelt, M.; Austin, C.D.; Tam, C.; Shriver, S.; et al. Structural basis for dual-mode inhibition of the ABC transporter MsbA. Nature 2018, 557, 196–201. [Google Scholar] [CrossRef]
  44. Hicks, G.; Jia, Z. Structural basis for the lipopolysaccharide export activity of the bacterial lipopolysaccharide transport system. Int. J. Mol. Sci. 2018, 19, 2680. [Google Scholar] [CrossRef] [PubMed]
  45. Sperandeo, P.; Martorana, A.M.; Polissi, A. The lipopolysaccharide transport (Lpt) machinery: A nonconventional transporter for lipopolysaccharide assembly at the outer membrane of Gram-negative bacteria. J. Biol. Chem. 2017, 292, 17981–17990. [Google Scholar] [CrossRef] [PubMed]
  46. Bohl, T.E.; Aihara, H. Current progress in the structural and biochemical characterization of proteins involved in the assembly of lipopolysaccharide. Int. J. Microbiol. 2018, 2018, 5319146. [Google Scholar] [CrossRef] [PubMed]
  47. Okuda, S.; Sherman, D.J.; Silhavy, T.J.; Ruiz, N.; Kahne, D. Lipopolysaccharide transport and assembly at the outer membrane: The PEZ model. Nat. Rev. Microbiol. 2016, 14, 337–345. [Google Scholar] [CrossRef] [PubMed]
  48. Luo, Q.; Yang, X.; Yu, S.; Shi, H.; Wang, K.; Xiao, L.; Zhu, G.; Sun, C.; Li, T.; Li, D.; et al. Structural basis for lipopolysaccharide extraction by ABC transporter LptB2FG. Nat. Struct. Mol. Biol. 2017, 24, 469–474. [Google Scholar] [CrossRef]
  49. Sherman, D.J.; Xie, R.; Taylor, R.J.; George, A.H.; Okuda, S.; Foster, P.J.; Needleman, D.J.; Kahne, D. Lipopolysaccharide is transported to the cell surface by a membrane-to-membrane protein bridge. Science 2018, 359, 798–801. [Google Scholar] [CrossRef]
  50. Qiao, S.; Luo, Q.; Zhao, Y.; Zhang, X.C.; Huang, Y. Structural basis for lipopolysaccharide insertion in the bacterial outer membrane. Nature 2014, 511, 108–111. [Google Scholar] [CrossRef]
  51. Dong, H.; Xiang, Q.; Gu, Y.; Wang, Z.; Paterson, N.G.; Stansfeld, P.J.; He, C.; Zhang, Y.; Wang, W.; Dong, C. Structural basis for outer membrane lipopolysaccharide insertion. Nature 2014, 511, 52–56. [Google Scholar] [CrossRef]
  52. Missiakas, D.; Raina, S. Protein folding in the bacterial periplasm. J. Bacteriol. 1997, 179, 2465–2471. [Google Scholar] [CrossRef] [PubMed]
  53. Chng, S.S.; Xue, M.; Garner, R.A.; Kadokura, H.; Boyd, D.; Beckwith, J.; Kahne, D. Disulfide rearrangement triggered by translocon assembly controls lipopolysaccharide export. Science 2012, 337, 1665–1668. [Google Scholar] [CrossRef] [PubMed]
  54. Narita, S.; Masui, C.; Suzuki, T.; Dohmae, N.; Akiyama, Y. Protease homolog BepA (YfgC) promotes assembly and degradation of β-barrel membrane proteins in Escherichia coli. Proc. Natl. Acad. Sci. USA 2013, 110, E3612–E3621. [Google Scholar] [CrossRef] [PubMed]
  55. Klein, G.; Müller-Loennies, S.; Lindner, B.; Kobylak, N.; Brade, H.; Raina, S. Molecular and structural basis of inner core lipopolysaccharide alterations in Escherichia coli: Incorporation of glucuronic acid and phosphoethanolamine in the heptose region. J. Biol. Chem. 2013, 288, 8111–8127. [Google Scholar] [CrossRef] [PubMed]
  56. Szczesny, M.; Beloin, C.; Ghigo, J.M. Increased osmolarity in biofilm triggers RcsB-dependent lipid A palmitoylation in Escherichia coli. mBio 2018, 9, e01415–e01418. [Google Scholar] [CrossRef] [PubMed]
  57. Raetz, C.R.; Reynolds, C.M.; Trent, M.S.; Bishop, R.E. Lipid A modification systems in Gram-negative bacteria. Annu. Rev. Biochem. 2007, 76, 295–329. [Google Scholar] [CrossRef]
  58. Rubin, E.J.; Herrera, C.M.; Crofts, A.A.; Trent, M.S. PmrD is required for modifications to Escherichia coli endotoxin that promote antimicrobial resistance. Antimicrob. Agents Chemother. 2015, 59, 2051–2061. [Google Scholar] [CrossRef]
  59. Herrera, C.M.; Hankins, J.V.; Trent, M.S. Activation of PmrA inhibits LpxT-dependent phosphorylation of lipid A promoting resistance to antimicrobial peptides. Mol. Microbiol. 2010, 76, 1444–1460. [Google Scholar] [CrossRef]
  60. Kato, A.; Chen, H.D.; Latifi, T.; Groisman, E.A. Reciprocal control between a bacterium’s regulatory system and the modification status of its lipopolysaccharide. Mol. Cell 2012, 47, 897–908. [Google Scholar] [CrossRef]
  61. Hong, X.; Chen, H.D.; Groisman, E.A. Gene expression kinetics governs stimulus-specific decoration of the Salmonella outer membrane. Sci. Signal. 2018, 11, eaar7921. [Google Scholar] [CrossRef]
  62. Klein, G.; Lindner, B.; Brade, H.; Raina, S. Molecular basis of lipopolysaccharide heterogeneity in Escherichia coli: Envelope stress-responsive regulators control the incorporation of glycoforms with a third 3-deoxy-α-d-manno-oct-2-ulosonic acid and rhamnose. J. Biol. Chem. 2011, 286, 42787–42807. [Google Scholar] [CrossRef] [PubMed]
  63. Coornaert, A.; Lu, A.; Mandin, P.; Springer, M.; Gottesman, S.; Guillier, M. MicA sRNA links the PhoP regulon to cell envelope stress. Mol. Microbiol. 2010, 76, 467–479. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Gogol, E.B.; Rhodius, V.A.; Papenfort, K.; Vogel, J.; Gross, C.A. Small RNAs endow a transcriptional activator with essential repressor functions for single-tier control of a global stress regulon. Proc. Natl. Acad. Sci. USA 2012, 108, 12875–12880. [Google Scholar] [CrossRef] [PubMed]
  65. Coornaert, A.; Chiaruttini, C.; Springer, M.; Guillier, M. Post-transcriptional control of the Escherichia coli PhoQ-PhoP two-component system by multiple sRNAs involves a novel pairing region of GcvB. PLoS Genet. 2013, 9, e1003156. [Google Scholar] [CrossRef]
  66. Bishop, R.E.; Gibbons, H.S.; Guina, T.; Trent, M.S.; Miller, S.I.; Raetz, C.R.H. Transfer of palmitate from phospholipids to lipid A in outer membranes of Gram-negative bacteria. EMBO J. 2000, 19, 5071–5080. [Google Scholar] [CrossRef] [Green Version]
  67. Trent, M.S.; Pabich, W.; Raetz, C.R.H.; Miller, S.I. A PhoP/PhoQ-induced lipase (PagL) that catalyzes 3-O-deacylation of lipid A precursors in membranes of Salmonella typhimurium. J. Biol. Chem. 2001, 276, 9083–9092. [Google Scholar] [CrossRef]
  68. Han, K.; Tjaden, B.; Lory, S. GRIL-seq provides a method for identifying direct targets of bacterial small regulatory RNA by in vivo proximity ligation. Nat. Microbiol. 2016, 2, 16239. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  69. Kawano, M.; Manabe, T.; Kawasaki, K. Salmonella enterica serovar Typhimurium lipopolysaccharide deacylation enhances its intracellular growth within macrophages. FEBS Lett. 2010, 584, 207–212. [Google Scholar] [CrossRef] [PubMed]
  70. Reynolds, C.M.; Ribeiro, A.A.; McGrath, S.C.; Cotter, R.J.; Raetz, C.R.H.; Trent, M.S. An outer membrane enzyme encoded by Salmonella typhimurium lpxR that removes the 3′-acyloxyacyl moiety of lipid A. J. Biol. Chem. 2006, 281, 21974–21987. [Google Scholar] [CrossRef]
  71. Corcoran, C.P.; Podkaminski, D.; Papenfort, K.; Urban, J.H.; Hinton, J.C.D.; Vogel, J. Superfolder GFP reporters validate diverse new mRNA targets of the classic porin regulator, MicF RNA. Mol. Microbiol. 2012, 84, 428–445. [Google Scholar] [CrossRef] [Green Version]
  72. Moon, K.; Six, D.A.; Lee, H.J.; Lee, C.R.; Raetz, C.R.H.; Gottesman, S. Complex transcriptional and post-transcriptional regulation of an enzyme for lipopolysaccharide modification. Mol. Microbiol. 2013, 89, 52–64. [Google Scholar] [CrossRef] [Green Version]
  73. Moon, K.; Gottesman, S. A PhoQ/P-regulated small RNA regulates sensitivity of Escherichia coli to antimicrobial peptides. Mol. Microbiol. 2009, 74, 1314–1330. [Google Scholar] [CrossRef]
  74. Müller-Loennies, S.; Holst, O.; Lindner, B.; Brade, H. Isolation and structural analysis of phosphorylated oligosaccharides obtained from Escherichia coli J-5 lipopolysaccharides. Eur. J. Biochem. 1999, 260, 235–249. [Google Scholar] [CrossRef] [PubMed]
  75. Fresno, S.; Jiménez, N.; Canals, R.; Merino, S.; Corsaro, M.M.; Lanzetta, R.; Parrilli, M.; Pieretti, G.; Regué, M.; Tomás, J.M. A second galacturonic acid transferase is required for core lipopolysaccharide biosynthesis and complete capsule association with the cell surface in Klebsiella pneumoniae. J. Bacteriol. 2007, 189, 1128–1137. [Google Scholar] [CrossRef]
  76. Müller-Loennies, S.; Lindner, B.; Brade, H. Structural analysis of oligosaccharides from lipopolysaccharide (LPS) of Escherichia coli K12 strain W3100 reveals a link between inner and outer core LPS biosynthesis. J. Biol. Chem. 2003, 278, 34090–34101. [Google Scholar] [CrossRef] [PubMed]
  77. Reynolds, C.M.; Kalb, S.R.; Cotter, R.J.; Raetz, C.R.H. A phosphoethanolamine transferase specific for the outer 3-deoxy-d-manno-octulosonic acid residue of Escherichia coli lipopolysaccharide. Identification of the eptB gene and Ca2+ hypersensitivity of an eptB deletion mutant. J. Biol. Chem. 2005, 280, 21202–21211. [Google Scholar] [CrossRef]
  78. Amar, A.; Pezzoni, M.; Pizarro, R.A.; Costa, C.S. New envelope stress factors involved in σE activation and conditional lethality of rpoE mutations in Salmonella enterica. Microbiology 2018, 164, 1293–1307. [Google Scholar] [CrossRef]
  79. Burmann, B.M.; Knauer, S.H.; Sevostyanova, A.; Schweimer, K.; Mooney, R.A.; Landick, R.; Artsimovitch, I.; Rösch, P. An α helix to β barrel domain switch transforms the transcription factor RfaH into a translation factor. Cell 2012, 150, 291–303. [Google Scholar] [CrossRef] [PubMed]
  80. Majdalani, N.; Heck, M.; Stout, V.; Gottesman, S. Role of RcsF in signaling to the Rcs phosphorelay pathway in Escherichia coli. J. Bacteriol. 2005, 187, 6770–6778. [Google Scholar] [CrossRef] [PubMed]
  81. Raina, S.; Missiakas, D.; Georgopoulos, C. The rpoE gene encoding the σE24) heat shock sigma factor of Escherichia coli. EMBO J. 1995, 14, 1043–1055. [Google Scholar] [CrossRef] [PubMed]
  82. Rouvière, P.E.; De Las Peñas, A.; Mecsas, J.; Lu, C.Z.; Rudd, K.E.; Gross, C.A. rpoE, the gene encoding the second heat-shock sigma factor, σE, in Escherichia coli. EMBO J. 1995, 14, 1032–1042. [Google Scholar] [CrossRef] [PubMed]
  83. Missiakas, D.; Mayer, M.P.; Lemaire, M.; Georgopoulos, C.; Raina, S. Modulation of the Escherichia coli σE (RpoE) heat-shock transcription-factor activity by the RseA, RseB and RseC proteins. Mol. Microbiol. 1997, 24, 355–371. [Google Scholar] [CrossRef] [PubMed]
  84. Lima, S.; Guo, M.S.; Chaba, R.; Gross, C.A.; Sauer, R.T. Dual molecular signals mediate the bacterial response to outer-membrane stress. Science 2013, 340, 837–841. [Google Scholar] [CrossRef] [PubMed]
  85. Sperandeo, P.; Lau, F.K.; Carpentieri, A.; De Castro, C.; Molinaro, A.; Dehò, G.; Silhavy, T.J.; Polissi, A. Functional analysis of the protein machinery required for transport of lipopolysaccharide to the outer membrane of Escherichia coli. J. Bacteriol. 2008, 190, 4460–4469. [Google Scholar] [CrossRef]
  86. Konovalova, A.; Mitchell, A.M.; Silhavy, T.J. A lipoprotein/β-barrel complex monitors lipopolysaccharide integrity transducing information across the outer membrane. eLife 2016, 5, e15276. [Google Scholar] [CrossRef] [PubMed]
  87. Noor, R.; Murata, M.; Nagamitsu, H.; Klein, G.; Raina, S.; Yamada, M. Dissection of σE-dependent cell lysis in Escherichia coli: Roles of RpoE regulators RseA, RseB and periplasmic folding catalysts PpiD. Genes Cells 2009, 14, 885–899. [Google Scholar] [CrossRef]

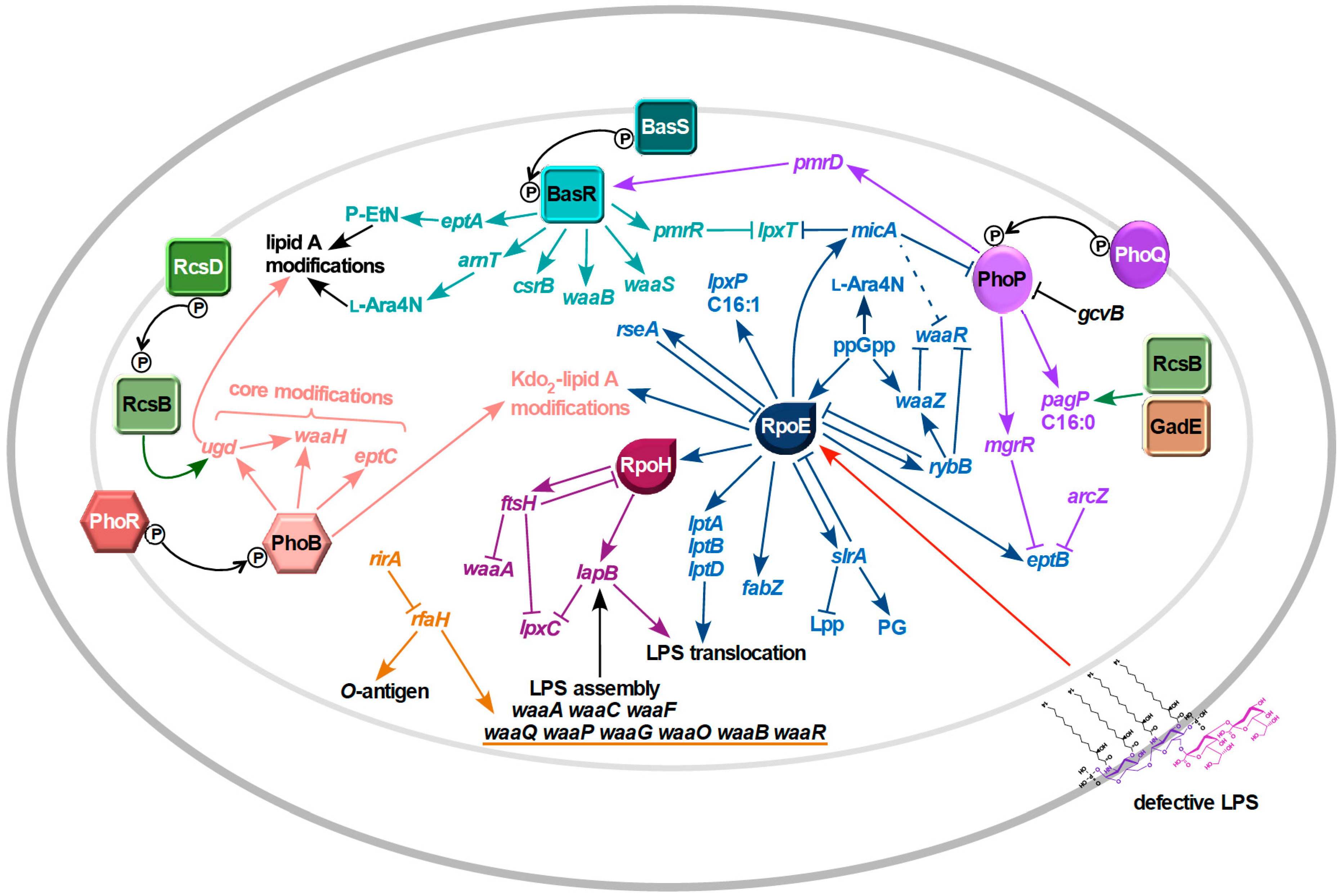

Figure 1. Networks of regulatory pathways that control the lipopolysaccharide (LPS) assembly and its non-stoichiometric modifications. The RpoE sigma factor responds to severe defects in LPS biosynthesis and is also required for transcription of genes involved in LPS biosynthesis/translocation and modifications via sRNAs like rybB and micA. RpoE also transcribes the slrA (micL) sRNA, which represses the Lpp synthesis and acts in a feedback manner to repress RpoE. Other regulatory controls involve two-component systems like BasS/R, PhoP/Q, PhoB/R and Rcs system, which are required for transcription of genes whose products are involved in lipid A and inner core modifications. The RpoH heat shock sigma factor transcribes lapB and ftsH genes, whose products control balanced biosynthesis of LPS and phospholipid by regulating LpxC levels. The unique transcriptional factor RfaH is required for overcoming antitermination, enhance transcriptional elongation and couple transcription/translation of waaQ and rfb LPS biosynthetic operons. The sRNA RirA binds to RfaH and abrogates its activity to maintain a balanced biosynthesis of LPS.
Figure 1. Networks of regulatory pathways that control the lipopolysaccharide (LPS) assembly and its non-stoichiometric modifications. The RpoE sigma factor responds to severe defects in LPS biosynthesis and is also required for transcription of genes involved in LPS biosynthesis/translocation and modifications via sRNAs like rybB and micA. RpoE also transcribes the slrA (micL) sRNA, which represses the Lpp synthesis and acts in a feedback manner to repress RpoE. Other regulatory controls involve two-component systems like BasS/R, PhoP/Q, PhoB/R and Rcs system, which are required for transcription of genes whose products are involved in lipid A and inner core modifications. The RpoH heat shock sigma factor transcribes lapB and ftsH genes, whose products control balanced biosynthesis of LPS and phospholipid by regulating LpxC levels. The unique transcriptional factor RfaH is required for overcoming antitermination, enhance transcriptional elongation and couple transcription/translation of waaQ and rfb LPS biosynthetic operons. The sRNA RirA binds to RfaH and abrogates its activity to maintain a balanced biosynthesis of LPS.
Ijms 20 00356 g001
Figure 2. Schematic depiction of unmodified hexaacylated glycoform I and glycoform derivatives with various non-stoichiometric substitutions with a third Kdo-Rha disaccharide. Various genes whose products mediate different steps in LPS biosynthesis and incorporation of different modifications are indicated. Glycoform I constitutes the major LPS species under non-stress conditions (A). Upon the induction of RpoE sigma factor and conditions inducing BasS/R and PhoB/R TCSs, the lipid A part is modified by P-EtN and l-Ara4N at 1 and 4′ position by EptA and ArnT, respectively (B). The induction of RpoE causes increased synthesis of EptB overcoming MgrR silencing and incorporation of P-EtN on the second Kdo (panels B1 and B2). The induction of RpoE favors pathway of the third Kdo incorporation by increased synthesis of WaaZ and repression of WaaR by the RybB sRNA, leading to synthesis of glycoforms with a third Kdo with attachment of Rha on the third Kdo with a concomitant truncation of the terminal GlcIII-HepIV disaccharide shown in violet background. The PhoB/R induction leads to the incorporation of GlcUA at the expense of HepII phosphorylation (blue background). Lipid A can also be modified by PagP generating heptaacylated lipid A and by the removal of acyl chains by LpxR in the OM after translocation (light brown background). Various sRNA-mediated controls are shown in blue color.
Figure 2. Schematic depiction of unmodified hexaacylated glycoform I and glycoform derivatives with various non-stoichiometric substitutions with a third Kdo-Rha disaccharide. Various genes whose products mediate different steps in LPS biosynthesis and incorporation of different modifications are indicated. Glycoform I constitutes the major LPS species under non-stress conditions (A). Upon the induction of RpoE sigma factor and conditions inducing BasS/R and PhoB/R TCSs, the lipid A part is modified by P-EtN and l-Ara4N at 1 and 4′ position by EptA and ArnT, respectively (B). The induction of RpoE causes increased synthesis of EptB overcoming MgrR silencing and incorporation of P-EtN on the second Kdo (panels B1 and B2). The induction of RpoE favors pathway of the third Kdo incorporation by increased synthesis of WaaZ and repression of WaaR by the RybB sRNA, leading to synthesis of glycoforms with a third Kdo with attachment of Rha on the third Kdo with a concomitant truncation of the terminal GlcIII-HepIV disaccharide shown in violet background. The PhoB/R induction leads to the incorporation of GlcUA at the expense of HepII phosphorylation (blue background). Lipid A can also be modified by PagP generating heptaacylated lipid A and by the removal of acyl chains by LpxR in the OM after translocation (light brown background). Various sRNA-mediated controls are shown in blue color.
Ijms 20 00356 g002
Figure 3. Pathways of sensing defects in LPS biosynthesis/assembly: sensing via the Rcs phosphorelay system, which leads to the induction of transcription from the sigma 70-regulated rpoEP3 promoter requiring RcsB as activator and the activation of Qse TCS induces the rpoEP2 promoter with QseF acting as an activator of RpoN. Severe defects in LPS induce the Rcs phosphorelay cascade leading to phosphorylation of RcsB. Phosphorylated RcsB acts as an activator for the transcription directed from the rpoEP3 promoter leading to the induction of RpoE-mediated stress response. The overlapping rpoEP2 promoter also responds to LPS defects albeit to a lower extent. Severe defects in LPS also induce the CpxR/A TCS. EσE is required to maintain envelope integrity by regulating expression of genes whose products are involved in protein folding in the periplasm, assembly of OMPs (bam genes) and certain genes whose products are involved in LPS biosynthesis/modifications. Release of LPS from the Lpt system can lead to association of LPS with RseB, which relieves inhibition of RseA proteolysis and can lead to accumulation of free RpoE without RseA.
Figure 3. Pathways of sensing defects in LPS biosynthesis/assembly: sensing via the Rcs phosphorelay system, which leads to the induction of transcription from the sigma 70-regulated rpoEP3 promoter requiring RcsB as activator and the activation of Qse TCS induces the rpoEP2 promoter with QseF acting as an activator of RpoN. Severe defects in LPS induce the Rcs phosphorelay cascade leading to phosphorylation of RcsB. Phosphorylated RcsB acts as an activator for the transcription directed from the rpoEP3 promoter leading to the induction of RpoE-mediated stress response. The overlapping rpoEP2 promoter also responds to LPS defects albeit to a lower extent. Severe defects in LPS also induce the CpxR/A TCS. EσE is required to maintain envelope integrity by regulating expression of genes whose products are involved in protein folding in the periplasm, assembly of OMPs (bam genes) and certain genes whose products are involved in LPS biosynthesis/modifications. Release of LPS from the Lpt system can lead to association of LPS with RseB, which relieves inhibition of RseA proteolysis and can lead to accumulation of free RpoE without RseA.
Ijms 20 00356 g003

Share and Cite

MDPI and ACS Style

Klein, G.; Raina, S. Regulated Assembly of LPS, Its Structural Alterations and Cellular Response to LPS Defects. Int. J. Mol. Sci. 2019, 20, 356. https://doi.org/10.3390/ijms20020356

AMA Style

Klein G, Raina S. Regulated Assembly of LPS, Its Structural Alterations and Cellular Response to LPS Defects. International Journal of Molecular Sciences. 2019; 20(2):356. https://doi.org/10.3390/ijms20020356

Chicago/Turabian Style

Klein, Gracjana, and Satish Raina. 2019. "Regulated Assembly of LPS, Its Structural Alterations and Cellular Response to LPS Defects" International Journal of Molecular Sciences 20, no. 2: 356. https://doi.org/10.3390/ijms20020356

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
