Review

Unique Features of Entamoeba Sulfur Metabolism; Compartmentalization, Physiological Roles of Terminal Products, Evolution and Pharmaceutical Exploitation

Division of Molecular and Cellular Immunoscience, Department of Biomolecular Sciences, Faculty of Medicine, Saga University, 5-1-1 Nabeshima, Saga 849-8501, Japan
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2019, 20(19), 4679; https://doi.org/10.3390/ijms20194679
Received: 30 August 2019 / Revised: 18 September 2019 / Accepted: 19 September 2019 / Published: 21 September 2019
(This article belongs to the Collection Feature Papers in Molecular Microbiology)

Abstract

Sulfur metabolism is essential for all living organisms. Recently, unique features of the Entamoeba metabolic pathway for sulfated biomolecules have been described. Entamoeba is a genus in the phylum Amoebozoa and includes the causative agent for amoebiasis, a global public health problem. This review gives an overview of the general features of the synthesis and degradation of sulfated biomolecules, and then highlights the characteristics that are unique to Entamoeba. Future biological and pharmaceutical perspectives are also discussed.
Keywords: amoebiasis; mitosome; lipid metabolism; encystation; lateral gene transfer amoebiasis; mitosome; lipid metabolism; encystation; lateral gene transfer

1. Introduction

1.1. Sulfur Metabolism

Sulfur is an essential element for life in all living organisms. Sulfate in the environment is typically activated as a prerequisite step for both sulfation and sulfate assimilation pathways. Sulfate activation is broadly found throughout the Bacteria, Protista, Fungi, Plantae, and Metazoa kingdoms [1,2]; KEGG (see Box 1).
Box 1. Databases.
Sulfur metabolism research has greatly benefited from ever-expanding databases, such as the Kyoto Encyclopedia of Genes and Genomes (KEGG) (https://www.genome.jp/kegg/), The National Center for Biotechnology Information (NCBI) (https://www.ncbi.nlm.nih.gov/), and AmoebaDB (https://amoebadb.org/amoeba/). The information available in such databases is, therefore, cited in this review where necessary.
Sulfate taken up from the external milieu is activated by two sequential reactions to provide adenosine 5′-phosphosulfate (APS) and 3′-phosphoadenosine 5′-phosphosulfate (PAPS), respectively. PAPS then acts as a sulfate donor in a sulfotransferase (SULT) reaction, in which sulfate is transferred to a variety of acceptors, to generate sulfated sugars, proteins, lipids, glycolipids and small organic molecules [3,4]. The various products generated are often hydrolyzed by sulfatase (SF) [4,5]. Meanwhile, some organisms, such as plants, APS and PAPS, serve as intermediates in branched pathways and in sulfate assimilation pathways for synthesizing a wide array of sulfur-containing biomolecules crucial for living organisms, such as thiol-containing amino acids (cysteine and methionine) and sulfur-containing cofactors (Fe-S clusters, thiamine, and coenzyme A (CoA)) [2,3,4]. An overview of the metabolic pathways that are functionally linked to sulfate activation is illustrated in Figure 1.

1.2. Entamoeba Histolytica Infection Causes Amoebiasis

E. histolytica belongs to the phylum Amoebozoa in the kingdom Protista. E. histolytica infection causes amoebiasis, a parasitic disease that is prevalent worldwide [6,7,8,9]. The infection usually occurs by the oral ingestion of cysts. The ingested cysts then travel to the small intestine where they hatch into trophozoites. Trophozoites then descend to the large intestine and proliferate there. Some proliferating trophozoites invade the mucosal tissue and can be transported via the blood stream to other organs apart from the intestine where they can form abscesses, most commonly in the liver. Meanwhile, some trophozoites in the large intestine differentiate into dormant cysts, which are then excreted in feces (Figure 2) [10]. The water or food contaminated by feces from infected individuals is the principal source of amoebiasis [8,9]. Therefore, the parasitic life cycle of E. histolytica is essentially maintained by alternating its proliferative trophozoite and dormant cyst forms. The proliferative and invasive capabilities of trophozoites cause typical amoebiasis symptoms, such as dysentery and hepatic abscess. Meanwhile, disease transmission requires the dormancy of cysts and the high occurrence of asymptomatic patients who unconsciously spread the disease is a serious public health problem [9]. Current clinical options are inadequate. Available drugs are limited and an effective vaccine has not been developed [6,8]. Hence, new measures for killing trophozoites and halting cyst formation, such as anti-amoebic and amoebiasis transmission-blocking drugs, are urgently needed.
This review focuses on Entamoeba sulfur metabolism and highlights its unique features of spatial compartmentalization, the terminal products produced and their roles in physiology and evolution. Entamoeba sulfur metabolism from pharmaceutical and biological perspectives is also discussed.

2. Biosynthesis and Degradation of Sulfated Biomolecules That Are Crucial for Homeostasis

2.1. General Features of Sulfate Activation

Sulfate activation is a highly conserved and pivotal step in the sulfation pathway [4]. This step consists of two sequential reactions mediated by ATP sulfurylase (AS) and APS kinase (APSK) [3,4]. AS reversibly catalyzes adenylyl-transfer from ATP to sulfate to produce APS and inorganic pyrophosphate (PPi). However, the direction toward APS generation is thermodynamically reversible, while APSK irreversibly catalyzes phosphate-transfer from ATP to APS to produce PAPS and ADP. These two enzymes are linked by inorganic pyrophosphatase (IPP), which overcomes the thermodynamic barrier of the AS-catalyzed reaction, resulting in the facilitation of sulfate activation. IPP hydrolyzes PPi to two inorganic phosphates, which lowers the level of PPi generated from the energetically unfavorable AS-catalyzed reaction. Consequently, the AS-catalyzed reaction favors APS production. Overall, a high level of APS promotes sulfate activation toward producing PAPS, a versatile metabolite in sulfation (see Figure 1).

2.2. Sulfotransferases (SULTs)

SULT catalyzes sulfate-transfer from PAPS to an acceptor. The genes encoding this enzyme are widely distributed in the genomes of organisms in all three domains, Archaea, Bacteria, and Eukarya ([11]; KEGG; NCBI). However, SULTs have only been studied in a small number of organisms. In humans, large numbers of SULTs have been characterized and they have participated in a variety of processes of medical importance [5,12]. Compared with studies of mammalian SULTs, the investigations of SULTs in other organisms, such as plants and bacteria, are relatively recent [4,13].
A remarkable array of substrates is sulfated by members of the human SULT superfamily. Sulfated substrates include small molecules (cholesterol and catecholamine), steroids (estrogen and dehydroepiandrosterone), peptide hormones (gastrin, cholestocystokinin, and thyroid-stimulating and -luteinizing hormones), glycosaminoglycans (heparan sulfate, chondroitin sulfate, and ketaran sulfate), and proteins (chemokine receptor, P-selectin glycoprotein ligand 1, and sialyl Lewisx glycoprotein). For peptide and protein substrates, hydroxyl groups of certain tyrosine residues are sulfated. The products have a broad array of functions, such as xenobiotic detoxification, cell differentiation and development, and immune response actions [12,14,15].
Plant SULTs are similar to mammalian enzymes and also utilize a broad range of substrates as the sulfate acceptor. The sulfated products are suggested to play important roles in homeostasis. The substrates characterized to date are mostly plant hormones and their precursors, which are small molecules and peptides. In some plants, sulfated polysaccharides, which are likely synthesized by putative SULTs, are also found [13].
In contrast to the wide variety of sulfated molecules that have been identified and characterized as products of mammalian and plant SULTs, a relatively limited number of sulfated molecules have been identified in bacteria and are mostly sulfated glycolipids [16]. For instance, Mycobacterium tuberculosis, the causative agent for tuberculosis, synthesizes a structurally determined sulfated glycolipid, termed SL-1, and sulfated glycopeptide lipids [17]. Their involvement in virulence was also shown [16,18].

2.3. Sulfatases (SFs)

SFs hydrolyze sulfated molecules and also play crucial roles in many organisms [4,5,19,20,21,22]. Human SFs are involved in inherited metabolic diseases, such as multiple SF deficiency, mucopolysaccharoidoses, and metachromatic mukodystrophy [19]. In addition, SFs are involved in diseases, such as breast cancer, gynecological diseases, arteriosclerosis, and angiogenesis [23,24]. Furthermore, the SF family in microbes that colonize the human gut, known as the gut microbiota, has emerged as a key factor in the symbiotic interaction between gut microbiota and the host [21,22]. This interaction plays a crucial role in human physiology and an imbalance in this symbiotic interaction (called dysbiosys) potentially causes metabolic and immune diseases, such as obesity, inflammatory bowel disease, diabetes, hepatic diseases, Crohn’s disease, colorectal cancer, and allergy [21].
SFs are classified into three mechanistically and structurally distinct groups: The alkylSFs from the α-ketoglutarate-dependent dioxygenase family; the Zn-dependent alkylSFs, and the formylglycine-dependent SFs, which are highly prevalent among organisms and are active on a broad range of substrates [19,20,22].

3. Unique Features of Sulfated Molecule Metabolism in Entamoeba

This section highlights the uniqueness of Entamoeba sulfated molecule synthesis and degradation, in which three enzymes crucial for sulfate activation, AS, APSK, and IPP, and SULT and SF families cooperate in sulfolipid metabolism (Figure 3). These unique features include sulfate activation atypically localized in mitochondria-related organelles (MROs) known as mitosomes in Entamoeba, terminal metabolites and their roles in the maintenance of the parasitic lifestyle, and pathways linked to sulfolipid metabolism and evolution.

3.1. Atypical Localization of Sulfate Activation in Mitosomes

Typically, enzymes responsible for sulfate activation are localized in the cytosol and/or plastids. Cytosolic localization is seen in non-photosynthetic and some plastidial organisms, whereas localization in plastids is seen in photosynthetic organisms. However, two exceptions have been reported: One is the nuclear localization of a human APSK-AS bifunctional protein, PAPS synthase 1 [4,25]; the other is mitochondrial localization of enzymes responsible for PAPS production in Euglena gracilis, a photosynthetic protozoan [2,26,27].
Entamoeba sulfate activation is atypically localized in MROs [28,29]. MROs are generally possessed by anaerobic eukaryotes. The retained functions have diversified from those of canonical mitochondria to different degrees during the course of evolution [30,31,32]. MROs in Entamoeba, known as mitosomes, are among the most degenerated types [30,33].
The localization of sulfate activation in MROs was also found in Mastigamoeba, a free-living close relative of Entamoeba [34]. Nevertheless, unlike in Entamoeba (see Section 3.2), the biological role of sulfate activation in Mastigamoeba is unknown. The atypical localization of sulfate activation in MROs in these organisms raises intriguing questions: What is the biological benefit of this unique compartmentalization for these organisms? What molecule is responsible for trafficking sulfate, the initial substrate, from the external milieu through the cytosol to the matrix of MROs? Furthermore, in Entamoeba, PAPS, the product of sulfate activation, must be exported from the matrix of mitosomes to the cytosol because all SULTs, the enzyme catalyzing the sulfate transfer from PAPS to an acceptor, are localized in the cytosol in E. histolytica [28,35] (Figure 3). Therefore, what is the molecule responsible for PAPS trafficking? In Entamoeba mitosomes, this molecule was identified by a biochemical approach. A member of the mitochondrial carrier family was shown to act as a PAPS/ATP antiporter that imports ATP from, and exports PAPS to, the cytosol [35] (Figure 3). The molecule responsible for sulfate trafficking is probably a sodium/sulfate symporter. Five sodium/sulfate symporters are encoded in Entamoeba genomes (AmoebaDB) and at least one sodium/sulfate symporter is localized in mitosomes [28]. However, the determination of membrane localization and biochemical characterization of the five sodium/sulfate symporters is required.

3.2. Sulfolipids Are the Major Products Synthesized by Entamoeba SULTs

A SULT family was deduced to be present in Entamoeba from the available databases (AmoebaDB) but its functional characterization remains to be performed. The chromatography of metabolically-radiolabeled sulfated molecules showed a major fraction of sulfated molecules that were sulfolipids, and not sulfated proteins or water-soluble molecules [28]. However, a comprehensive analysis, for example using sulfated lipid-based lipidomics, needs to confirm that sulfolipids are exclusively synthesized by the sulfation pathway in Entamoeba.
Among sulfolipids (SL-I-VII) detected in E. histolytica, SL-I was identified as cholesteryl sulfate and SL-IV and -V were a mixture of C16–20 fatty alcohol disulfates [11,36]. It is worth mentioning that fatty alcohol disulfates are previously unrecognized natural compounds [36]. The sulfolipids (SL-I-VII) that have so far been detected in E. histolytica were determined to be related to EhSULTs (EhSULT1-10) by a combination of single and multiple gene knockdown (Box 2) [11,36] (see Figure 3). SL-I (cholesteryl sulfate) synthesis is mediated by EhSULT6 [11]. SL-II-IV, the structures of which have not been identified, are synthesized by EhSULT1-5 and -7-9. SL-V and -VI (fatty alcohol disulfates) are synthesized by EhSULT1, -3-5 and -7-9. SL-VII, the structure of which has not been identified, is synthesized by EhSULT10. EhSULT1-5 and -7-9 are functionally redundant [36].
Box 2. Multiple Gene Knockdown.
Entamoeba, like humans and plants, has SULT and SF gene families. Therefore, a single gene knockdown does not always produce a phenotype. To overcome this limitation, a multiple gene knockdown system in E. histolytica [36] was developed, which is based on a standard single gene knockdown system [29,37]. It should be mentioned that this new genetic system can reproducibly knockdown up to six genes using a single vector [36].
Moreover, gene knockdown in E. histolytica trophozoites that decreased the synthesis of fatty alcohol disulfates retarded growth, while the knockdown of genes that significantly decreased cholesteryl sulfate synthesis produced no distinct phenotype, indicating cholesteryl sulfate to be dispensable in trophozoites. Eventually, cholesteryl sulfate was demonstrated to play an important role in encystation of Entamoeba. The addition of cholesteryl sulfate to in vitro cultured Entamoeba invadens dose-dependently elevated the number of cysts formed. Conversely, the dose-dependent impairment of cyst formation was observed when cholesteryl sulfate synthesis in E. invadens was reduced by treatment with different concentrations of chlorate, an inhibitor for AS [11]. Note that the in vitro culture of E. invadens, a reptilian parasite, has been adopted as a model system for the study of Entamoeba encystation [10,38]. Entamoeba can survive severe environmental changes, e.g., exposure to high acidic conditions of the human stomach, and nutrient deprivation and dehydration outside the host, by alternating its form between proliferative trophozoites and dormant cysts (see Figure 2). Therefore, Entamoeba utilizes sulfate metabolism to synthesize appropriate sulfolipids for the maintenance of the parasitic lifestyle, i.e., fatty alcohol disulfates for trophozoite proliferation and cholesteryl sulfate for cyst formation (Figure 3). Furthermore, like fatty alcohol disulfates and cholesteryl sulfate, the structural identification and functional characterization of the other terminal metabolites, SL-II-IV and -VII, can provide new insights for chemical biology as well as parasitology.

3.3. Two Previously Unrecognized Entamoeba Enzymes Responsible for Fatty Alcohol Disulfate Synthesis

Entamoeba relies on the host for its supply of cholesterol and fatty acids because Entamoeba does not possess these de novo synthetic pathways [39]. 14C-stearic acid was incorporated into radiolabeled bands corresponding to fatty alcohol disulfates [36], indicating that E. histolytica synthesizes fatty alcohol disulfates from environmental fatty acids. To complete the synthesis of fatty alcohol disulfates, at least two distinct enzymes are required that catalyze fatty alcohol production and hydroxylation at the omega position of the fatty acid, fatty alcohol and/or fatty alcohol sulfate (Figure 3). The former reaction forms fatty alcohol from fatty acid, which is usually mediated by fatty acyl-CoA reductase [40]. The latter reaction is mediated by cytochrome P450 family member proteins in animals and plants [41,42]. However, neither enzyme is encoded in Entamoeba genomes ([40]; AmoebaDB). Hence, the identification and characterization of the enzymes involved in fatty alcohol disulfate synthesis represents new avenues in enzymology.

3.4. SF

The AmoebaDB database shows the presence of an SF family in Entamoeba, but it has not been characterized. The evidence provided by the different types of analysis indicates several features of Entamoeba SFs [36]. E. histolytica possesses five SFs (EhSF1-5), all of which are atypically classified as Zn-dependent alkylSFs, and not the more frequent formylglycine-dependent SFs. A combination of phylogenetic, bioinformatic and cell biological analyses indicates that all five EhSFs are localized in the E. histolytica cytosol. These five EhSFs are suggested to be responsible for the degradation of SL-II-IV in E. histolytica by metabolic labeling in gene knockdown strains (Box 2) (Figure 3).
The evidence described in this Section (Section 3.1, Section 3.2, Section 3.3 and Section 3.4) for Entamoeba sulfated molecule synthesis and degradation, and the terminal metabolites and their physiological roles is provided using E. histolytica and E. invadens. As compared to E. histolytica and E. invadens studies, the biochemical and cell biological evidence is very limited in the study for Entamoeba dispar. However, E. dispar possesses the genes encoding three enzymes crucial for sulfate activation, AS, APSK, and IPP, and SULT and SF families ([11,36]; AmoebaDB). E. dispar is morphologically identical to E. histolytica and parasitizes human intestines but is avirulent [43]. Taken together, Entamoeba sulfated biomolecule synthesis and degradation cooperatively function as sulfolipid metabolism, which is necessary for the organism’s parasitism (see Section 3.1, Section 3.2, Section 3.3 and Section 3.4).

3.5. Lateral Gene Transfer (LGT) Acquisition of Unique Sulfolipid Metabolism in Entamoeba

The compartmentalization of Entamoeba sulfate activation in mitosomes is unique and consists of AS, a nonfunctional AS-APSK fusion protein, and IPP [28,29]. Furthermore, another unique feature of Entamoeba sulfate activation is that the gene encoding AS was transferred into Entamoeba via lateral gene transfer (LGT). Interestingly, Mastigamoeba, a non-parasitic close relative of Entamoeba, also has similar unique sulfate activation features of LGT acquisition [34] and domain structures (AS and a nonfunctional AS-APSK fusion protein), as well as the compartmentalization in MROs. The evidence for LGT acquisition was provided by several studies [1,28,34,44]. Phylogenetic trees for AS from different groups consistently showed that Entamoeba AS is more closely related to ASs in δ-proteobacteria than to those in other eukaryotes [28,34], and that Entamoeba AS clustered with Mastigamoeba AS [34]. These findings indicate that LGT acquisition of AS occurred in a common ancestor of Entamoeba and Mastigamoeba. The phylogenetic relationship of IPP, an enzyme functionally linked to sulfate activation [4], was also shown [34]. Entamoeba IPP clustered with Mastigamoeba IPP-1, both of which are localized in MROs [28,34], and this cluster located within the clade for eukaryotic IPPs. These findings indicate that all eukaryotic IPPs, including those of Entamoeba and Mastigamoeba, are diversified from a common ancestral IPP. In contrast to the phylogenetic trees for AS and IPP, those for APSK inferred by separate groups were inconclusive [28,34]. Therefore, its evolutionary history cannot be predicted. Nevertheless, similarity was found between Entamoeba and Mastigamoeba for a nonfunctional AS-like domain fused to a catalytic APSK domain in this order. A similar domain structure that retains a bifunctional AS-APSK protein was also present in Dictyostelium discoideum, a cellular slime mold belonging to the phylum Amoebozoa, [1], indicating that the gene encoding an AS-APSK fusion protein could have been present in the common ancestor of the lineage [34]. The sulfate activation is compartmentalized in MROs in both Entamoeba and Mastigamoeba [11,28,34]. Therefore, it is also important to unravel the evolutionary advantages of sulfate activation compartmentalization in MROs for these two lineages after a common ancestor of Entamoeba and Mastigamoeba acquired the gene encoding AS by LGT (see Figure 4).
Unlike protozoan parasites belonging to the genus Entamoeba, those in the genera Plasmodium, Trypanosoma, Leishmania, Giardia, and Trichomonas, but not Toxoplasma, do not possess the genes for sulfate activation [1]. A possible explanation for this finding is that these parasites may be able to salvage sulfated biomolecules from the host because similar to these parasites, there are several symbiotic genera, including Encephalitozoon, Mycoplasma, and Symbiobacterium, that lack sulfate activation [1].
Notably, the novel Entamoeba hallmark of sulfolipid metabolism, is not conserved in Mastigamoeba, a non-parasitic close relative of Entamoeba. Sulfolipid synthesis could not be detected in Mastigamoeba by metabolic labeling using radiolabeled sulfate and SULT and SF are not encoded in the Mastigamoeba genome ([11], NCBI). Furthermore, phylogenetic trees independently inferred by different groups show that LGT acquisition of SULTs and SFs occurred only in the Entamoeba lineage [11,36,44,45], while the acquisition of AS took place in a common ancestor of Entamoeba and Mastigamoeba [1,11,34]. The origin of Entamoeba SFs is demonstrated to be an ancestor of Bacteroides sp., which belongs to a different Proteobacteria phylum, although the origin of Entamoeba SULTs remains unknown because of low resolution of the inferred phylogenetic tree [11,36,44,45]. Bacteroides sp. is a commensal microorganism of the human gut microbiota [46], and shares a habitat with E. histolytica, a parasitic microorganism. Hence, these findings indicate that after branching from the common Entamoeba and Mastigamoeba lineage, LGT acquisition of catabolic SF and anabolic SULT enzymes occurred in an ancestor of Entamoeba, which promoted sulfur metabolism to evolve as sulfolipid metabolism, enabling the ancestor to thrive as a parasitic lineage, Entamoeba (Figure 4). It is worth mentioning that these findings provide evidence to substantiate LGT, which is a process that generates new genes, and can drive adaptive evolution [47], contributing to the establishment of a parasitic lineage by conferring a novel hallmark in ubiquitous sulfur metabolism.

4. Pharmaceutical Exploitation of Entamoeba Sulfolipid Metabolism

As described in Section 3.1, Section 3.2, Section 3.3 and Section 3.4, Entamoeba sulfolipid metabolism has pleiotropic roles in the maintenance of the life cycle, which consists of trophozoite and cyst stages. The capabilities of E. histolytica trophozoites and cysts are clinically linked to amoebiasis [8,9]. E. histolytica sulfolipid metabolism is, therefore, an ideal target for developing new preventive measures against amoebiasis, such as anti-amoebic and amoebiasis transmission-blocking drugs. Among enzymes directly involved in the synthesis and degradation of sulfolipids, E. histolytica AS and APSK (EhAS and EhAPSK) are more suitable targets than EhSULT1-10 and EhSF1-5 because the two enzymes fulfill the requirements of a target for drug development. They are the sole enzymes that function at an early step in the pertinent metabolism and do not show functional redundancy.
A recent study focusing on E. histolytica sulfolipid metabolism presented distinct lines of evidence that E. histolytica APSK (EhAPSK), the enzyme catalyzing the latter step of sulfate activation, is a rational target for amoebiasis therapy. Further, 2-(3-fluorophenoxy)-N-[4-(2-pyridyl)thiazol-2-yl]-acetamide (A-D-11), 3-phenyl-N-[4-(2-pyridyl)thiazol-2-yl]-imidazole-4-carboxamide (A-H-11), and auranofin, are leads for developing new drugs against amoebiasis [48]. An EhAPSK-based combination approach of an in silico molecular docking analysis and an in vitro enzyme activity assay enabled the screening of 400 chemicals in the Pathogen Box of the Medicines for Malaria Venture (MMV; https://www.pathogenbox.org/), from which 15 compounds were identified that inhibit EhAPSK activity. Among them, the above three compounds dose-dependently impaired sulfolipid synthesis in live Entamoeba cells, resulting in the inhibited trophozoite proliferation and cyst formation. These results indicate that A-D-11, A-H-11, and auranofin all halt biological processes essential to the Entamoeba life cycle by targeting EhAPSK, which impairs the synthesis of sulfolipids, including fatty alcohol disulfates and cholesteryl sulfate (Figure 3). Furthermore, A-D-11 and A-H-11 showed almost no cytotoxic activity against a human cell line, indicating that they are promising leads for the development of new drugs against amoebiasis. In contrast, auranofin showed an adverse effect on human cells in vitro [48,49]. Nevertheless, auranofin was approved as an orally administered compound for the treatment of rheumatoid arthritis by the FDA in 1985, and was shown to be effective in vitro and in vivo against E. histolytica [50]. Furthermore, phase I clinical trial results of auranofin support auranofin safety and provide important pharmacokinetics data that support its potential use as an anti-amoebic drug [51].
The evidence, which is apparently paradoxical to the above EhAPSK-based study [48], has been reported, indicating that auranofin targets thioredoxin reductase (TrxR) in E. histolytica (EhTrxR) [50]. Consistently, EhTrxR was inhibited by auranofin during the turnover of Trx in an in vitro assay using a purified recombinant enzyme. However, the x-ray structure analysis was not available for either the binding of auranofin to cysteine thiol groups in the catalytic C(X)2C motif or to a substrate (Trx)-binding site of EhTrxR [52]. The authors, therefore, hypothesize that auranofin targets two distinct enzymes in Entamoeba: APSK and TrxR, which explains this apparent discrepancy [48].

5. Concluding Remarks and Future Perspectives

Sulfur metabolism is ubiquitous among and crucial for living organisms. Organisms usually synthesize sulfated biomolecules from sulfate available in their habitats via sulfur metabolism, and some organisms degrade sulfur-containing products. Entamoeba synthesizes and degrades sulfolipids, indicating that the biosynthesis and degradation pathways uniquely constitute sulfolipid metabolism. Importantly, cholesteryl sulfate and fatty alcohol disulfates, the terminal metabolites, play separate, important roles in the Entamoeba life cycle. The remaining synthesized sulfolipids, the structures of which have not been determined, also contribute to the parasitic lifestyle. Ultimately, the molecular mechanisms by which the sulfolipids synthesized participate in Entamoeba physiology need to be uncovered.
As well as the terminal products, Entamoeba sulfolipid metabolism shows unique features, as described in this review. These raise important and intriguing questions: What is the biological and evolutionary benefit for Entamoeba to limit the terminal metabolites to sulfolipids? What is the evolutionary advantage for both parasitic Entamoeba and free-living Mastigamoeba to compartmentalize sulfate activation into MROs? What are the enzymes involved in the synthesis of fatty alcohol disulfates? Answering these issues will not only give new insights in sulfur metabolism in conjunction with other lipid metabolism, but also open new paradigms linked to chemical and evolutionary mitochondrial biology, and biochemistry.
Entamoeba sulfolipid metabolism is also important as a therapeutic subject. EhAPSK, an enzyme that only functions in the early steps in Entamoeba sulfolipid metabolism, is a rational target for amoebiasis therapy. Meanwhile, from a chemical biology aspect, searching for inhibitors of AS, SULTs, SFs and APSK potentially provides useful inhibitors to investigate Entamoeba physiology because they exert specific or pleiotropic roles in the Entamoeba life cycle. However, some enzymes show functional redundancy, which hampers the search for inhibitors. The inhibitors obtained may not only be advantageous for the basic study of Entamoeba, in which a gene knockout system has not been developed, but may also be leads for developing new anti-amoebic and amoebiasis transmission-blocking drugs, the combined administration of which can potentially lead to amoebiasis eradication.
In conclusion, sulfur metabolism is not a traditionally studied area of the metabolism. The study of Entamoeba sulfolipid metabolism can be broadened by linking it to other ever-expanding fields, such as mitochondrial evolution and the human gut microbiome.

Author Contributions

Conceptualization, F.M.; writing—original draft preparation, F.M.; writing—review & editing, F.M. and H.Y.; funding acquisition, F.M. and H.Y.

Funding

This research was funded by Grants-in-Aid for Scientific Research from the Ministry of Education, Culture, Sports, Science and Technology of Japan (18H04675, and 18K07087) to F.M. and (16K08842) to H.Y., AMED-J-PRIDE (JP19fm0208025) to F.M. and H.Y. This research was funded by the Naito Foundation to F.M. and H.Y., respectively, by the Ohyama Health Foundation Inc. to F.M., by the Mochida Memorial Foundation to F.M., and by the Takeda Science Foundation to F.M.

Acknowledgments

We thank Jeremy Allen, from Edanz Group (www.edanzediting.com/ac) for editing a draft of this manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bradley, M.E.; Rest, J.S.; Li, W.H.; Schwartz, N.B. Sulfate activation enzymes: phylogeny and association with pyrophosphatase. J. Mol. Evol. 2009, 68, 1–13. [Google Scholar] [CrossRef] [PubMed]
  2. Patron, N.J.; Durnford, D.G.; Kopriva, S. Sulfate assimilation in eukaryotes: fusions, relocations and lateral transfers. BMC Evol. Biol. 2008, 8, 39. [Google Scholar] [CrossRef] [PubMed]
  3. Lensmire, J.M.; Hammer, N.D. Nutrient sulfur acquisition strategies employed by bacterial pathogens. Curr. Opin. Microbiol. 2019, 47, 52–58. [Google Scholar] [CrossRef] [PubMed]
  4. Gunal, S.; Hardman, R.; Kopriva, S.; Mueller, J.W. Sulfation pathways from red to green. J. Biol. Chem. 2019, 294, 12293–12312. [Google Scholar] [CrossRef] [PubMed]
  5. Mueller, J.W.; Gilligan, L.C.; Idkowiak, J.; Arlt, W.; Foster, P.A. The regulation of steroid action by sulfation and desulfation. Endocr. Rev. 2015, 36, 526–563. [Google Scholar] [CrossRef]
  6. Quach, J.; St-Pierre, J.; Chadee, K. The future for vaccine development against Entamoeba histolytica. Hum. Vaccines Immunother. 2014, 10, 1514–1521. [Google Scholar] [CrossRef] [PubMed]
  7. Lozano, R.; Naghavi, M.; Foreman, K.; Lim, S.; Shibuya, K.; Aboyans, V.; Abraham, J.; Adair, T.; Aggarwal, R.; Ahn, S.Y.; et al. Global and regional mortality from 235 causes of death for 20 age groups in 1990 and 2010: A systematic analysis for the global burden of disease study 2010. Lancet 2012, 380, 2095–2128. [Google Scholar] [CrossRef]
  8. Haque, R.; Huston, C.D.; Hughes, M.; Houpt, E.; Petri, W.A., Jr. Amebiasis. N. Engl. J. Med. 2003, 348, 1565–1573. [Google Scholar] [CrossRef]
  9. Watanabe, K.; Petri, W.A., Jr. Molecular biology research to benefit patients with Entamoeba histolytica infection. Mol. Microbiol. 2015, 98, 208–217. [Google Scholar] [CrossRef]
  10. Mi-Ichi, F.; Yoshida, H.; Hamano, S. Entamoeba Encystation: New Targets to Prevent the Transmission of Amebiasis. PLoS Pathog. 2016, 12, e1005845. [Google Scholar] [CrossRef]
  11. Mi-ichi, F.; Miyamoto, T.; Takao, S.; Jeelani, G.; Hashimoto, T.; Hara, H.; Nozaki, T.; Yoshida, H. Entamoeba mitosomes play an important role in encystation by association with cholesteryl sulfate synthesis. Proc. Natl. Acad. Sci. USA 2015, 112, E2884–E2890. [Google Scholar] [CrossRef] [PubMed]
  12. Chapman, E.; Best, M.D.; Hanson, S.R.; Wong, C.H. Sulfotransferases: structure, mechanism, biological activity, inhibition, and synthetic utility. Angew. Chem. 2004, 43, 3526–3548. [Google Scholar] [CrossRef] [PubMed]
  13. Hirschmann, F.; Krause, F.; Papenbrock, J. The multi-protein family of sulfotransferases in plants: composition, occurrence, substrate specificity, and functions. Front. Plant Sci. 2014, 5, 556. [Google Scholar] [CrossRef] [PubMed]
  14. Leung, A.W.; Backstrom, I.; Bally, M.B. Sulfonation, an underexploited area: from skeletal development to infectious diseases and cancer. Oncotarget 2016, 7, 55811–55827. [Google Scholar] [CrossRef] [PubMed]
  15. Elias, P.M.; Williams, M.L.; Choi, E.H.; Feingold, K.R. Role of cholesterol sulfate in epidermal structure and function: lessons from X-linked ichthyosis. Biochim. Biophys. Acta 2014, 1841, 353–361. [Google Scholar] [CrossRef] [PubMed]
  16. Mougous, J.D.; Green, R.E.; Williams, S.J.; Brenner, S.E.; Bertozzi, C.R. Sulfotransferases and sulfatases in mycobacteria. Chem. Biol. 2002, 9, 767–776. [Google Scholar] [CrossRef]
  17. Geerdink, D.; Minnaard, A.J. Total synthesis of sulfolipid-1. Chem. Commun. 2014, 50, 2286–2288. [Google Scholar] [CrossRef] [PubMed]
  18. Okamoto, Y.; Fujita, Y.; Naka, T.; Hirai, M.; Tomiyasu, I.; Yano, I. Mycobacterial sulfolipid shows a virulence by inhibiting cord factor induced granuloma formation and TNF-alpha release. Microb. Pathog. 2006, 40, 245–253. [Google Scholar] [CrossRef]
  19. Diez-Roux, G.; Ballabio, A. Sulfatases and human disease. Annu. Rev. Genomics Hum. Genet. 2005, 6, 355–379. [Google Scholar] [CrossRef] [PubMed]
  20. Toesch, M.; Schober, M.; Faber, K. Microbial alkyl- and aryl-sulfatases: Mechanism, occurrence, screening and stereoselectivities. Appl. Microbiol. Biotechnol. 2014, 98, 1485–1496. [Google Scholar] [CrossRef] [PubMed]
  21. Claus, S.P.; Guillou, H.; Ellero-Simatos, S. The gut microbiota: a major player in the toxicity of environmental pollutants? NPJ Biofilms Microbiomes 2016, 2, 16003. [Google Scholar] [CrossRef] [PubMed]
  22. Benjdia, A.; Berteau, O. Sulfatases and radical SAM enzymes: Emerging themes in glycosaminoglycan metabolism and the human microbiota. Biochem. Soc. Trans. 2016, 44, 109–115. [Google Scholar] [CrossRef] [PubMed]
  23. Dallinga, M.G.; Dallinga-Thie, G.M. Role of sulfatase 2 in lipoprotein metabolism and angiogenesis. Curr. Opin. Lipidol. 2016, 27, 181–186. [Google Scholar] [CrossRef] [PubMed]
  24. Rizner, T.L. The Important Roles of Steroid Sulfatase and Sulfotransferases in Gynecological Diseases. Front. Pharmacol. 2016, 7, 30. [Google Scholar] [CrossRef] [PubMed]
  25. Besset, S.; Vincourt, J.B.; Amalric, F.; Girard, J.P. Nuclear localization of PAPS synthetase 1: A sulfate activation pathway in the nucleus of eukaryotic cells. FASEB J. 2000, 14, 345–354. [Google Scholar] [CrossRef] [PubMed]
  26. Saidha, T.; Na, S.Q.; Li, J.Y.; Schiff, J.A. A sulphate metabolizing centre in Euglena mitochondria. Biochem. J. 1988, 253, 533–539. [Google Scholar] [CrossRef]
  27. Brunold, C.; Schiff, J.A. Studies of sulfate utilization of algae: 15. Enzymes of assimilatory sulfate reduction in euglena and their cellular localization. Plant Physiol. 1976, 57, 430–436. [Google Scholar] [CrossRef] [PubMed]
  28. Mi-ichi, F.; Abu Yousuf, M.; Nakada-Tsukui, K.; Nozaki, T. Mitosomes in Entamoeba histolytica contain a sulfate activation pathway. Proc. Natl. Acad. Sci. USA 2009, 106, 21731–21736. [Google Scholar] [CrossRef]
  29. Mi-ichi, F.; Makiuchi, T.; Furukawa, A.; Sato, D.; Nozaki, T. Sulfate activation in mitosomes plays an important role in the proliferation of Entamoeba histolytica. PLoS Negl. Trop. Dis. 2011, 5, e1263. [Google Scholar] [CrossRef]
  30. Santos, H.J.; Makiuchi, T.; Nozaki, T. Reinventing an Organelle: The Reduced Mitochondrion in Parasitic Protists. Trends Parasitol. 2018, 34, 1038–1055. [Google Scholar] [CrossRef]
  31. Stairs, C.W.; Leger, M.M.; Roger, A.J. Diversity and origins of anaerobic metabolism in mitochondria and related organelles. Philos. Trans. R. Soc. B 2015, 370, 20140326. [Google Scholar] [CrossRef] [PubMed]
  32. Shiflett, A.M.; Johnson, P.J. Mitochondrion-related organelles in eukaryotic protists. Annu. Rev. Microbiol. 2010, 64, 409–429. [Google Scholar] [CrossRef] [PubMed]
  33. van der Giezen, M. Hydrogenosomes and mitosomes: conservation and evolution of functions. J. Eukaryot. Microbiol. 2009, 56, 221–231. [Google Scholar] [CrossRef] [PubMed]
  34. Nyvltova, E.; Stairs, C.W.; Hrdy, I.; Ridl, J.; Mach, J.; Paces, J.; Roger, A.J.; Tachezy, J. Lateral gene transfer and gene duplication played a key role in the evolution of Mastigamoeba balamuthi hydrogenosomes. Mol. Biol. Evol. 2015, 32, 1039–1055. [Google Scholar] [CrossRef] [PubMed]
  35. Mi-ichi, F.; Nozawa, A.; Yoshida, H.; Tozawa, Y.; Nozaki, T. Evidence that the Entamoeba histolytica, itochondrial carrier family links mitosomal and cytosolic pathways through exchange of 3′-phosphoadenosine 5′-phosphosulfate and ATP. Eukaryot. Cell 2015, 14, 1144–1150. [Google Scholar] [CrossRef] [PubMed]
  36. Mi-Ichi, F.; Miyamoto, T.; Yoshida, H. Uniqueness of Entamoeba sulfur metabolism: sulfolipid metabolism that plays pleiotropic roles in the parasitic life cycle. Mol. Microbiol. 2017, 106, 479–491. [Google Scholar] [CrossRef] [PubMed]
  37. Bracha, R.; Nuchamowitz, Y.; Anbar, M.; Mirelman, D. Transcriptional silencing of multiple genes in trophozoites of Entamoeba histolytica. PLoS Pathog. 2006, 2, e48. [Google Scholar] [CrossRef] [PubMed]
  38. Eichinger, D. Encystation in parasitic protozoa. Curr. Opin. Microbiol. 2001, 4, 421–426. [Google Scholar] [CrossRef]
  39. Clark, C.G.; Alsmark, U.C.; Tazreiter, M.; Saito-Nakano, Y.; Ali, V.; Marion, S.; Weber, C.; Mukherjee, C.; Bruchhaus, I.; Tannich, E.; et al. Structure and content of the Entamoeba histolytica genome. Adv. Parasitol. 2007, 65, 51–190. [Google Scholar]
  40. Eirin-Lopez, J.M.; Rebordinos, L.; Rooney, A.P.; Rozas, J. The birth-and-death evolution of multigene families revisited. Genome Dyn. 2012, 7, 170–196. [Google Scholar]
  41. Pinot, F.; Beisson, F. Cytochrome P450 metabolizing fatty acids in plants: characterization and physiological roles. FEBS J. 2011, 278, 195–205. [Google Scholar] [CrossRef] [PubMed]
  42. Bjelica, A.; Haggitt, M.L.; Woolfson, K.N.; Lee, D.P.; Makhzoum, A.B.; Bernards, M.A. Fatty acid omega-hydroxylases from Solanum tuberosum. Plant Cell Rep. 2016, 35, 2435–2448. [Google Scholar] [CrossRef] [PubMed]
  43. Wilson, I.W.; Weedall, G.D.; Lorenzi, H.; Howcroft, T.; Hon, C.C.; Deloger, M.; Guillen, N.; Paterson, S.; Clark, C.G.; Hall, N. Genetic diversity and gene family expansions in members of the genus Entamoeba. Genome Biol. Evol. 2019, 11, 688–705. [Google Scholar] [CrossRef] [PubMed]
  44. Loftus, B.; Anderson, I.; Davies, R.; Alsmark, U.C.; Samuelson, J.; Amedeo, P.; Roncaglia, P.; Berriman, M.; Hirt, R.P.; Mann, B.J.; et al. The genome of the protist parasite Entamoeba histolytica. Nature 2005, 433, 865–868. [Google Scholar] [CrossRef] [PubMed]
  45. Hagelueken, G.; Adams, T.M.; Wiehlmann, L.; Widow, U.; Kolmar, H.; Tummler, B.; Heinz, D.W.; Schubert, W.D. The crystal structure of SdsA1, an alkylsulfatase from Pseudomonas aeruginosa, defines a third class of sulfatases. Proc. Natl. Acad. Sci. USA 2006, 103, 7631–7636. [Google Scholar] [CrossRef] [PubMed]
  46. Qin, J.; Li, R.; Raes, J.; Arumugam, M.; Burgdorf, K.S.; Manichanh, C.; Nielsen, T.; Pons, N.; Levenez, F.; Yamada, T.; et al. A human gut microbial gene catalogue established by metagenomic sequencing. Nature 2010, 464, 59–65. [Google Scholar] [CrossRef] [PubMed]
  47. Chen, S.; Krinsky, B.H.; Long, M. New genes as drivers of phenotypic evolution. Nat. Rev. Genet. 2013, 14, 645–660. [Google Scholar] [CrossRef] [PubMed]
  48. Mi-Ichi, F.; Ishikawa, T.; Tam, V.K.; Deloer, S.; Hamano, S.; Hamada, T.; Yoshida, H. Characterization of Entamoeba histolytica adenosine 5′-phosphosulfate (APS) kinase; validation as a target and provision of leads for the development of new drugs against amoebiasis. PLoS Negl. Trop. Dis. 2019, 13, e0007633. [Google Scholar] [CrossRef] [PubMed]
  49. Andrade, R.M.; Chaparro, J.D.; Capparelli, E.; Reed, S.L. Auranofin is highly efficacious against Toxoplasma gondii in vitro and in an in vivo experimental model of acute toxoplasmosis. PLoS Negl. Trop. Dis. 2014, 8, e2973. [Google Scholar] [CrossRef]
  50. Debnath, A.; Parsonage, D.; Andrade, R.M.; He, C.; Cobo, E.R.; Hirata, K.; Chen, S.; Garcia-Rivera, G.; Orozco, E.; Martinez, M.B.; et al. A high-throughput drug screen for Entamoeba histolytica identifies a new lead and target. Nat. Med. 2012, 18, 956–960. [Google Scholar] [CrossRef]
  51. Capparelli, E.V.; Bricker-Ford, R.; Rogers, M.J.; McKerrow, J.H.; Reed, S.L. Phase I clinical trial results of auranofin, a novel antiparasitic agent. Antimicrob. Agents Chemother. 2017, 61, e01947-16. [Google Scholar] [CrossRef] [PubMed]
  52. Parsonage, D.; Sheng, F.; Hirata, K.; Debnath, A.; McKerrow, J.H.; Reed, S.L.; Abagyan, R.; Poole, L.B.; Podust, L.M. X-ray structures of thioredoxin and thioredoxin reductase from Entamoeba histolytica and prevailing hypothesis of the mechanism of Auranofin action. J. Struct. Biol. 2016, 194, 180–190. [Google Scholar] [CrossRef] [PubMed]

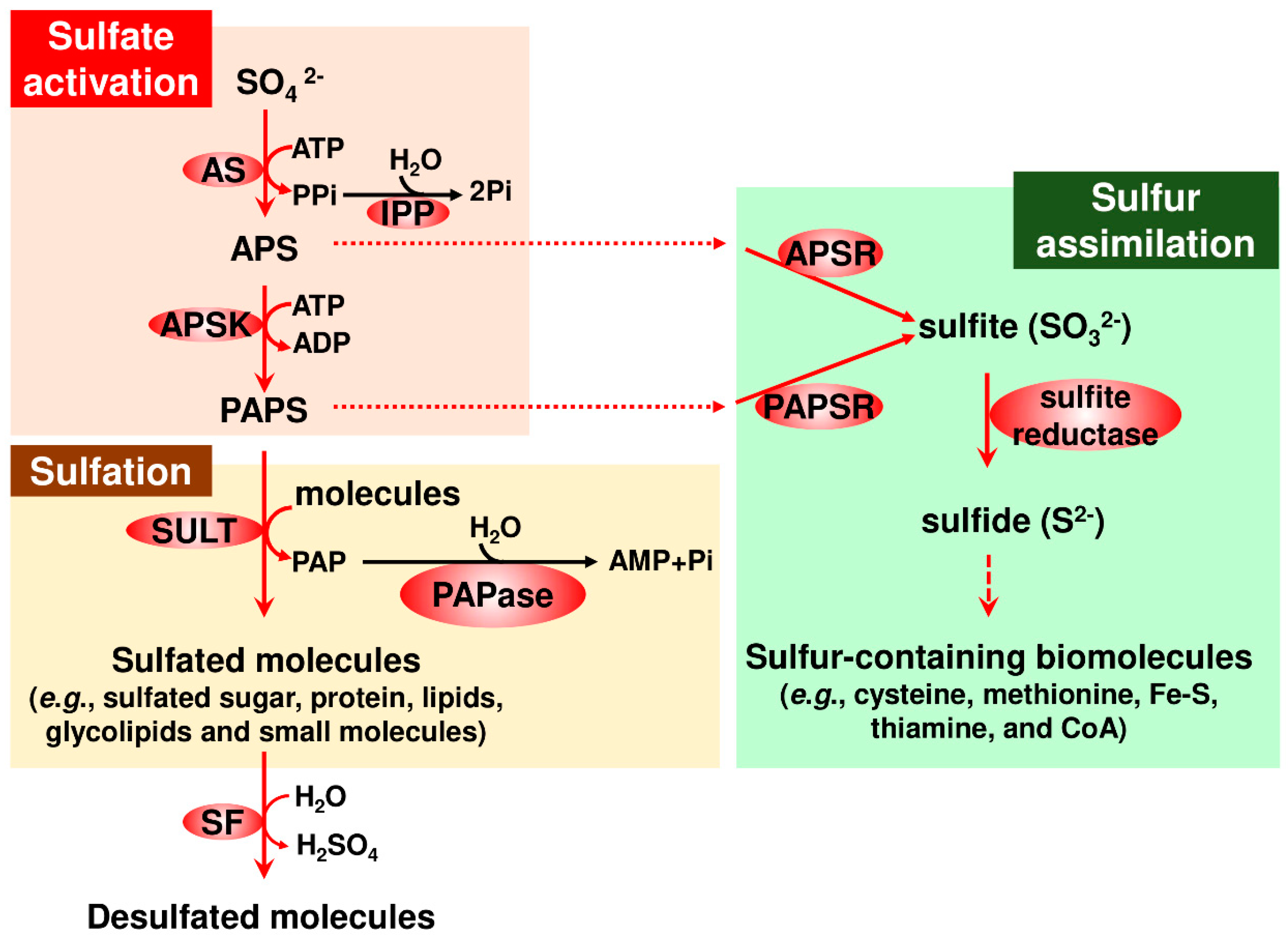

Figure 1. Overview of sulfate metabolism functionally linked to sulfate activation. An overall metabolic pathway is depicted, in which information from bacterial to human studies is integrated. Note that Entamoeba does not possess genes encoding APS and PAPS reductases (AmoebaDB; KEGG). The enzyme responsible for each step is shown by a filled oval. Abbreviations used: APS, adenosine 5′-phosphosulfate; APSK, APS kinase; AS, ATP sulfurylase; IPP, inorganic pyrophosphatase; PAP, adenosine 3′,5′-bisphosphate; PAPase, 3′(2′),5′-bisphosphate nucleotidase; PAPS, 3′-phosphoadenosine 5′-phosphosulfate; Pi, inorganic phosphate; PPi, inorganic pyrophosphate; SF, sulfatase; and SULT, sulfotransferase. Enzymatic reactions are indicated by arrows. Multiple steps for synthesizing sulfur-containing biomolecules is simplified by dashed arrow. Fine dotted lines indicate molecular transfer of APS and PAPS.
Figure 1. Overview of sulfate metabolism functionally linked to sulfate activation. An overall metabolic pathway is depicted, in which information from bacterial to human studies is integrated. Note that Entamoeba does not possess genes encoding APS and PAPS reductases (AmoebaDB; KEGG). The enzyme responsible for each step is shown by a filled oval. Abbreviations used: APS, adenosine 5′-phosphosulfate; APSK, APS kinase; AS, ATP sulfurylase; IPP, inorganic pyrophosphatase; PAP, adenosine 3′,5′-bisphosphate; PAPase, 3′(2′),5′-bisphosphate nucleotidase; PAPS, 3′-phosphoadenosine 5′-phosphosulfate; Pi, inorganic phosphate; PPi, inorganic pyrophosphate; SF, sulfatase; and SULT, sulfotransferase. Enzymatic reactions are indicated by arrows. Multiple steps for synthesizing sulfur-containing biomolecules is simplified by dashed arrow. Fine dotted lines indicate molecular transfer of APS and PAPS.
Ijms 20 04679 g001
Figure 2. Entamoeba histolytica, the causative agent for amoebiasis. Schematic illustration of the main route of infection and behavior inside the human host is shown. The life cycle of E. histolytica essentially consists of proliferative trophozoite and dormant cyst stages.
Figure 2. Entamoeba histolytica, the causative agent for amoebiasis. Schematic illustration of the main route of infection and behavior inside the human host is shown. The life cycle of E. histolytica essentially consists of proliferative trophozoite and dormant cyst stages.
Ijms 20 04679 g002

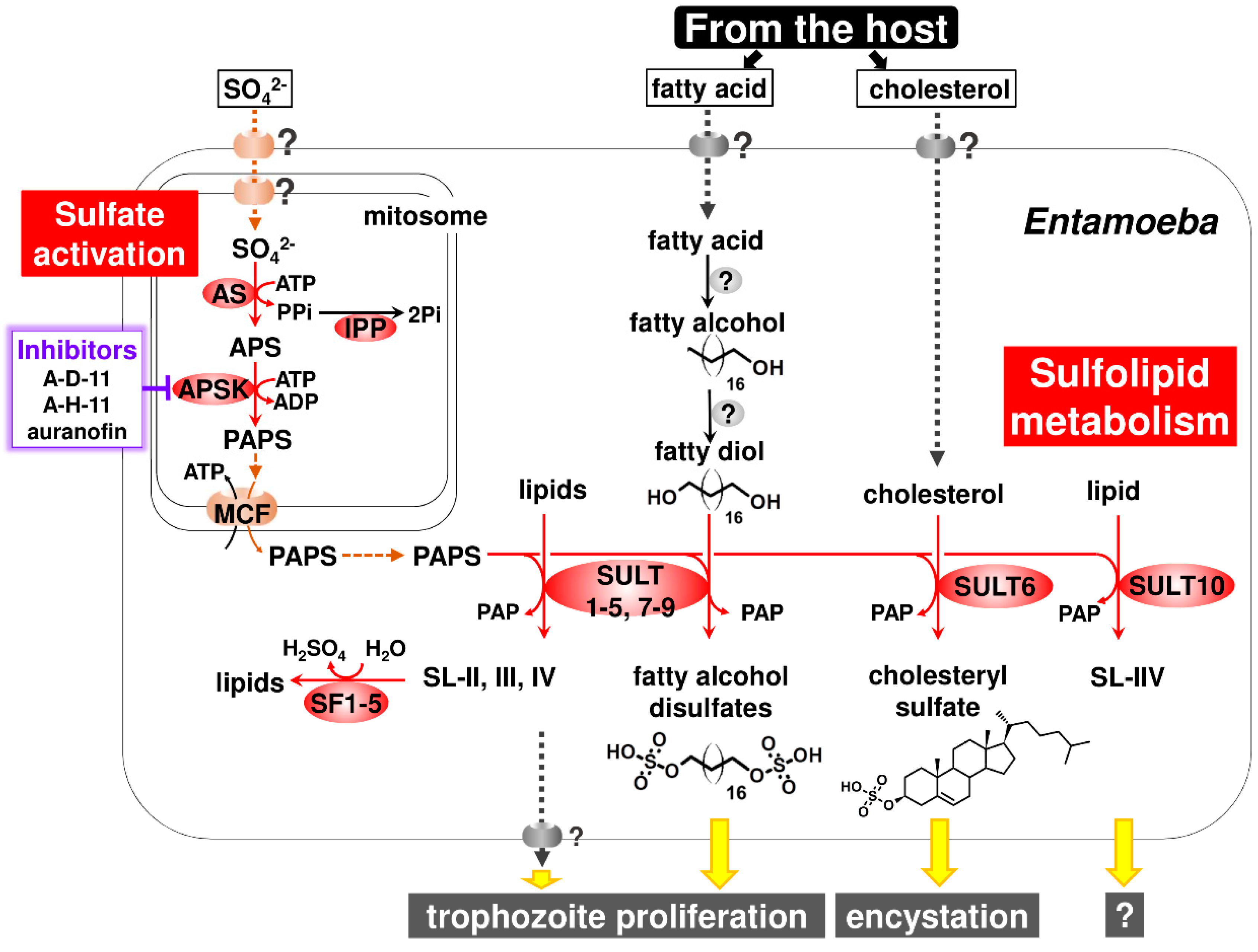

Figure 3. Entamoeba sulfolipid metabolism. The entire pathway for the synthesis and degradation of sulfolipids, the pleiotropic roles of sulfolipids, the terminal metabolites for maintenance of the parasitic lifestyle, and rational targets for amoebiasis therapy are shown. Abbreviations used; APS, adenosine 5′-phosphosulfate; APSK, APS kinase; AS, ATP sulfurylase; IPP, inorganic pyrophosphatase; MCF, mitochondrial carrier family; PAP, adenosine 3′,5′-bisphosphate; PAPase, 3′(2′),5′-bisphosphate nucleotidase; PAPS, 3′-phosphoadenosine 5′-phosphosulfate; Pi, inorganic phosphate; PPi, inorganic pyrophosphate; SF, sulfatase; and SULT, sulfotransferase. Predicted roles of sulfolipids in Entamoeba life cycle are indicated by yellow arrows. Putative transporters, the presence of which is unknown, are illustrated on the membrane.
Figure 3. Entamoeba sulfolipid metabolism. The entire pathway for the synthesis and degradation of sulfolipids, the pleiotropic roles of sulfolipids, the terminal metabolites for maintenance of the parasitic lifestyle, and rational targets for amoebiasis therapy are shown. Abbreviations used; APS, adenosine 5′-phosphosulfate; APSK, APS kinase; AS, ATP sulfurylase; IPP, inorganic pyrophosphatase; MCF, mitochondrial carrier family; PAP, adenosine 3′,5′-bisphosphate; PAPase, 3′(2′),5′-bisphosphate nucleotidase; PAPS, 3′-phosphoadenosine 5′-phosphosulfate; Pi, inorganic phosphate; PPi, inorganic pyrophosphate; SF, sulfatase; and SULT, sulfotransferase. Predicted roles of sulfolipids in Entamoeba life cycle are indicated by yellow arrows. Putative transporters, the presence of which is unknown, are illustrated on the membrane.
Ijms 20 04679 g003

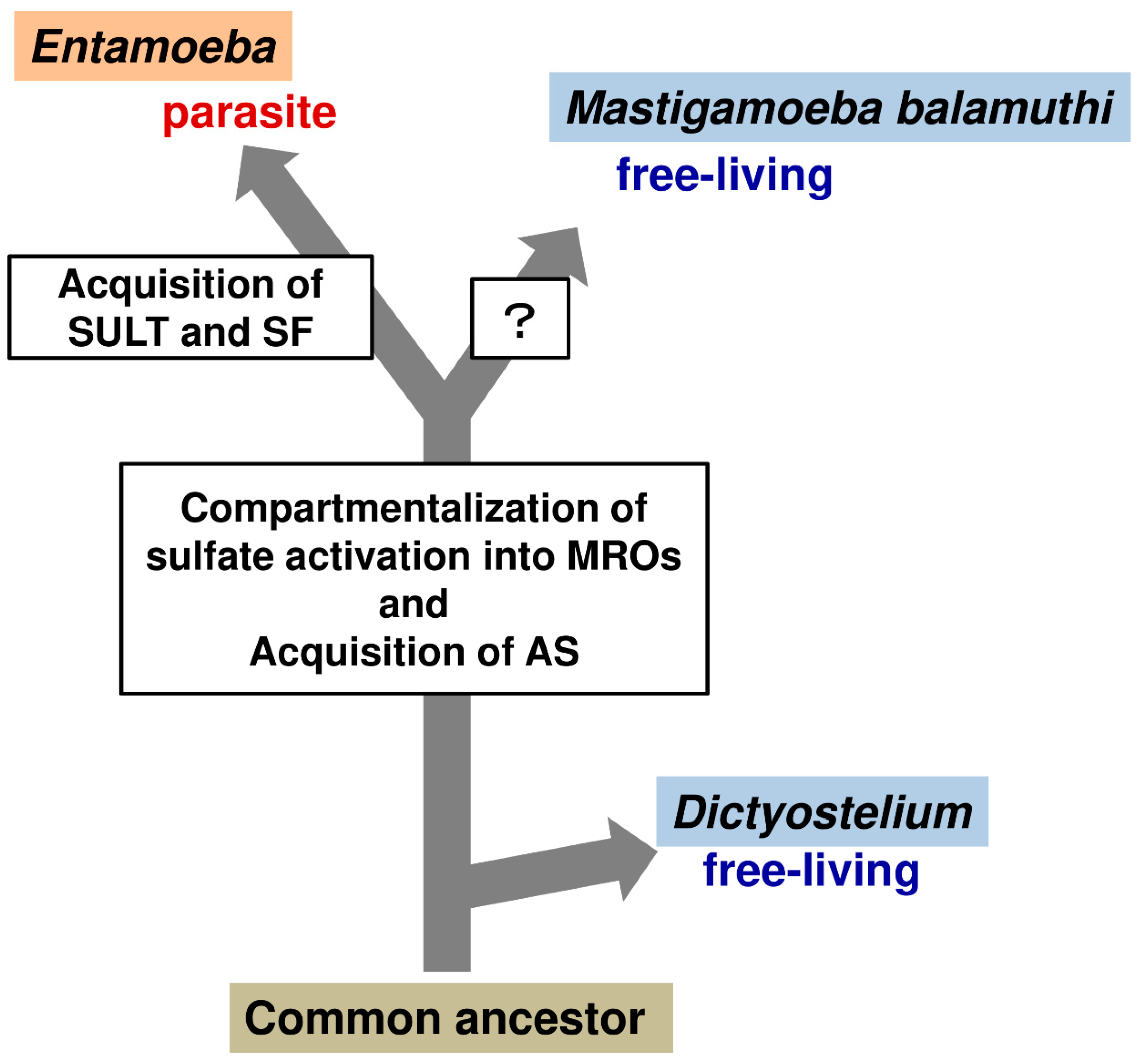

Figure 4. A plausible scenario for Amoebozoan lineage evolution. Schematic illustration of the evolutionary relationship among Entamoeba, Mastigamoeba, and Dictyostelium is drawn based on evidence described in this review.
Figure 4. A plausible scenario for Amoebozoan lineage evolution. Schematic illustration of the evolutionary relationship among Entamoeba, Mastigamoeba, and Dictyostelium is drawn based on evidence described in this review.
Ijms 20 04679 g004
