Review

Signal Transduction in Ribosome Biogenesis: A Recipe to Avoid Disaster

1
Istituto di Genetica Molecolare-Luigi Luca Cavalli Sforza, UOS Bologna, Consiglio Nazionale delle Ricerche (IGM-CNR), 40136 Bologna, Italy
2
IRCCS, Istituto Ortopedico Rizzoli, 40136 Bologna, Italy
3
RNA Editing Laboratory, Dipartimento di Oncoematologia, IRCCS, Ospedale Pediatrica Bambino Gesù, 00146 Rome, Italy
4
Dipartimento di Scienze Biomediche e Neuromotorie, Università di Bologna, 40126 Bologna, Italy
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2019, 20(11), 2718; https://doi.org/10.3390/ijms20112718
Submission received: 8 May 2019 / Revised: 29 May 2019 / Accepted: 30 May 2019 / Published: 3 June 2019
(This article belongs to the Special Issue Structure, Function and Evolution of the Ribosome)

Abstract

:
Energetically speaking, ribosome biogenesis is by far the most costly process of the cell and, therefore, must be highly regulated in order to avoid unnecessary energy expenditure. Not only must ribosomal RNA (rRNA) synthesis, ribosomal protein (RP) transcription, translation, and nuclear import, as well as ribosome assembly, be tightly controlled, these events must be coordinated with other cellular events, such as cell division and differentiation. In addition, ribosome biogenesis must respond rapidly to environmental cues mediated by internal and cell surface receptors, or stress (oxidative stress, DNA damage, amino acid depletion, etc.). This review examines some of the well-studied pathways known to control ribosome biogenesis (PI3K-AKT-mTOR, RB-p53, MYC) and how they may interact with some of the less well studied pathways (eIF2α kinase and RNA editing/splicing) in higher eukaryotes to regulate ribosome biogenesis, assembly, and protein translation in a dynamic manner.

Graphical Abstract

1. Introduction

Ribosome biogenesis is the process by which the 47S and 5S ribosomal RNAs (runes) are transcribed, processed, and assembled with the necessary ribosomal proteins to form the small (40S) and large (60S) ribosomal subunits. Once exported to the cytoplasm, the two subunits join, in the presence of mRNA and initiator tRNA to form the pre-initiation complex (PIC) [1]. Further processing results in a mature ribosome. Ribosome biogenesis represents the most expensive, complex, finely tuned, multi-step process that the cell must carry-out; therefore, it happens to be one of the most intricately regulated and controlled. In the case of eukaryotes, the process involves the input of all three RNA polymerases (RNA pol I, RNA pol II, and RNA pol III), 79 ribosomal proteins (33 in the 40S subunit and 46 in the 60S subunit), and well over 200 proteins (helicases, splicing factors, and chaperone proteins) and non-coding RNA (ncRNA) species (miRNAs, scaRNAs, and snoRNAs) [1]. The process initiates in the nucleoli and is followed step-by-step with sequential rounds of assembly and modification of the maturing ribonucleoprotein (RNP) complexes as they migrate from the nucleoli to the nucleoplasm and ultimately to the cytoplasm, where the final assembly and maturation steps take place. Mutations in any of the necessary proteins or alterations at practically any of the maturation steps can result in dire consequences to the organism, depending on both the penetrance of the alteration and the tissue involved. Thus, ribosome biogenesis is highly regulated with diverse checkpoints to limit the production of altered ribosomes [1,2].
Additionally, the process of ribosome biogenesis is energetically expensive for the cell; its regulation must coincide with the environmental conditions in which the cell finds itself and with other cellular processes, such as cell division and differentiation. Under low nutrient conditions, ribosome biogenesis and protein synthesis would not be energetically favorable to the cell. Similarly, initiating ribosome biogenesis and protein synthesis at the same moment as cell division rather than prior to or following cellular division would be catastrophic to the cell [3,4]. This review aims to examine the major signal transduction events controlling ribosome biogenesis and the initiation of protein synthesis in higher eukaryotes. The role of well-studied pathways in ribosome biogenesis, such as the avian myelocytomatosis viral oncogene homolog (MYC)/MYC-associated factor X (MAX), mouse/human double minute 2 homolog (M/HDM2)-p53, and the phosphotidylinositol-3 kinase (PI3K)-AKR mouse thyoma homologue (AKT)-mammalian target of rapamycin (mTOR) pathways, will be reviewed as well as the roles of the less well studied eukaryotic initiation factor (eIF)-2α kinase (namely protein kinase R (PKR)) and RNA editing/alternate splicing, and how these pathways cross-talk to regulate ribosome biogenesis. Pathologies resulting from perturbations in these pathways will also be discussed.

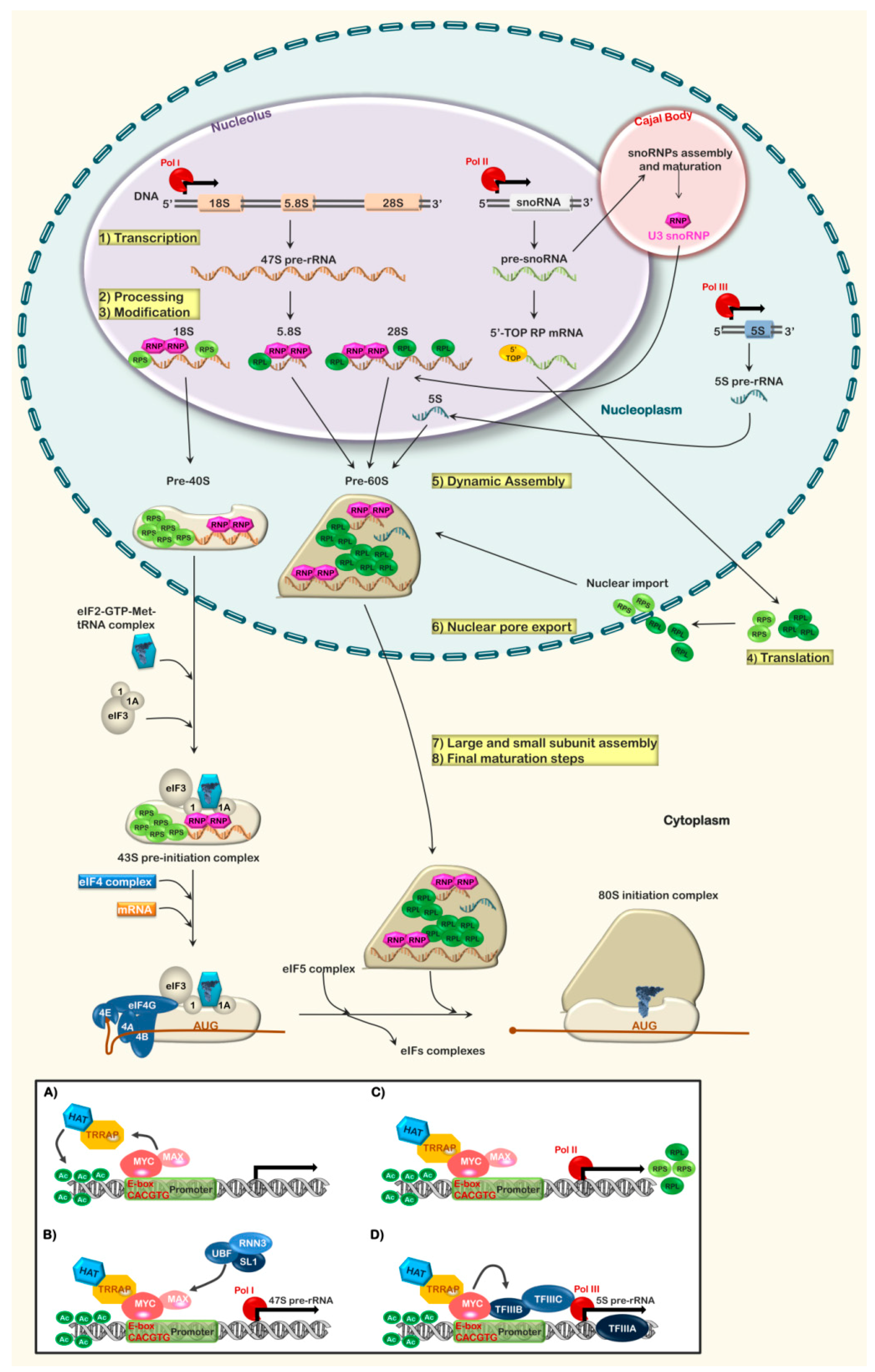

2. Ribosome Biogenesis: An Overview

Ribosome biogenesis is a highly dynamic process in which transcription of the runes, processing/modification of the runes, association of ribosomal proteins (RPs) to the pre-runes, proper folding of the pre-runes, and transport of the maturing ribosomal subunits to the cytoplasm are all combined [2,5,6]. In addition to the RPs that represent the structural component of the ribosome, over 200 other non-ribosomal proteins and 75 snoRNAs are required for ribosome biogenesis. The final product is a functional ribosome, which, in eukaryotes, consists of 40S and 60S subunits that contain 4 species of processed ribosomal RNAs (18S, 28S, 5.8S, and 5S) and 79 ribosomal proteins (RPs) [2,5,6,7]. The mature 40S subunit consists of 18S rRNA and 33 RPs, while the 60S subunit consists of 28S, 5.8S, and 5S runes and 43 RPs.
Ribosome biogenesis initiates around nucleolar organizing regions, which contain several hundred copies of the ribosomal DNA (rDNA) genes. In humans, these genes are arranged as head-to-tail palindromes on chromosomes 13, 14, 15, 21, and 22 and encode the 47S pre-rRNA transcripts that will later be processed into 28S, 18S, and 5.8S runes [1]. In addition, on a portion of chromosome 1 (human), in association with the nucleoplasm, there are several hundred copies of the 5S rDNA gene [1]. The process begins with the association of the upstream binding factor (UBF) and selectivity factor (SL)-1 to the 47S rDNA promoter. This recruits the RNA polymerase I-specific initiation factor RNN3 (TIF-IA) and RNA pol I to the promoter. The RNA pol I complex formation is assisted by the association of the MYC:MAX heterodimer to upstream E-box elements and the binding of additional regulatory factors, which recruit the histone acetyltransferase (HAT) complex, and can be inhibited by the association of p53 or the pRB/p130 complex to key proteins of the RNA pol I initiation complex [1,8,9]. At the same time, TF-IIIA, TF-IIIB, TF-IIIC, and RNA pol III associate with the 5S rDNA promoter. The association of TF-IIIA represents the first step in the assembly of the pol III complex, by both inducing a minor bend in the DNA as well as assisting in the incorporation of TF-IIIC into the polymerase complex. TF-IIIB, in turn, induces a major bend in the DNA at the transcriptional start site [10,11]. Again, this complex formation is assisted by the association of MYC with TF-IIIB, in the absence of MAX, and the recruitment of the HAT complex, and either p53 or the pRB/p130 complex can suppress RNA pol III-mediated transcription (Figure 1) [8,9]. The 18S, 5.8S, and 28S runes are transcribed by RNA pol I as a single precursor RNA from tandem repeats of the gene into the nucleolus, while the 5S rRNA, which is transcribed by RNA pol III from multiple genes into the nucleoplasm, migrates to the nucleolus. RNA pol III is also responsible for the transcription of tRNA genes needed later for translation initiation and elongation. In contrast, the ribosomal proteins, which are present throughout the genome (present on 20/23 chromosomes counting the sex chromosomes) are transcribed by RNA pol II in association with MYC:MAX and the recruitment of the HAT complex to the promoter [1,8,9]. The mRNAs encoding the RPs are processed and transported to the cytoplasm for translation. RNA splicing of these transcripts also produces the scaRNAs and snoRNAs later needed for the formation of diverse heterogeneous ribonucleoprotein (hnRNP) complexes, C/D snoRNPs, and H/ACA snoRNPs that function in mRNA splicing and rRNA modification/maturation (Figure 1) [2,12]. Alternative splicing of RP transcripts also produces “pseudogenes” that regulate the expression/accumulation of RPs (see section on RNA editing and splicing) [13]. Newly translated RPs are then actively imported from the cytoplasm to the nucleolus and nucleoplasm where they are incorporated into the assembling ribosome. This process requires the presence of diverse chaperone proteins that serve several functions: (1) Protect the RPs from degradation, (2) facilitate their active nuclear import, and (3) assume the correct incorporation of the RPs into the maturing ribosome subunits. Recent developments in cryogenic-electron microscopy (cryo-EM) have shed a tremendous amount of light on the process of RP nuclear import and their incorporation into the ribosome. For further information on this aspect of ribosome biogenesis, the reader is encouraged to see the following publications: [12,14,15,16,17,18,19] (Figure 1).
The initial 47S pre-rRNA transcript maintains a secondary structure at the newly synthesized 5′-end that acts as a platform for the binding and association of an initial set of RPs forming the 90S RNP. As the 5’ portion of the pre-rRNA contains what will become 18S rRNA of the 40S subunit, the RPs associating with the 5′-end are small subunit RPs or RPSs. Two of the first RPs to associate with the pre-rRNA at the 5′-end are RPS7 and RPS24, which are required to initiate processing and cleavage of the pre-rRNA at the 5′-external transcribed spacer (ETS) (Figure 1). The initial binding of the RPSs and the processing at the 5’-ETS, as well as modifications of the rRNA by ribose methylases (C/D box snoRNPs) and polyuridylases (H/ACA box snoRNPs), energetically favors an rRNA structure that forms a platform for the next round of RPs to associate [2,5,6]. At the same time that processing of the 5′-end of the 18S rRNA is being conducted, association of RPS17 and RPS19 facilitate the processing and cleavage at the 3′-end of the 18S rRNA within the internal transcribed sequence (ITS1), liberating the assembling 40S subunit from the 60S subunit [2,5,6]. Low levels of RPS7 or RPS24 block or retard rRNA processing, resulting in failed maturation of the 5′-end of the 18S rRNA. Similarly, depletion of RPS17 or RPS19 result in failed processing of the 3’-end of the 18S rRNA. Virtually the same process occurs for the formation of the maturing 5.8S and 28S with the ITS2 (between 5.8S and 28S sequences). At this point, the associating RPs are RPLs as they will become part of the 60S subunit. The process, marked by rounds of rRNA processing and folding and rounds of RP association, continues to occur until the last of the RPs for each subunit are finally incorporated in the cytoplasm [2]. Due to the ability of RNA to assume diverse energy structures at equilibrium, diverse modes of RNP assembly can be occurring simultaneously, including the synthesis of kinetically dead-end products that are aborted and targeted for degradation and recycling by the TRAMP4/5 complex [2,6]. The enzymes and proteins that modify and cleave the 47S rRNA are numerous and the process complex; we invite the reader, for more detail in this aspect of rRNA processing, to refer to the following reviews: Turowski and Tollervey, 2015; Fernandez-Pevida et al., 2015; and Mullineux and Lafontaine, 2012 [20,21,22].
Several lines of evidence indicate that the main purpose of the RPs is to stabilize rRNA folding and structure, thus assisting in processing; (i) the RPs are RNA-binding proteins that are dependent on RNA structure and conformation, (ii) there are very few protein–protein interactions between the RPs, (iii) while many of the RPs possess a tail that inserts into the ribosome core, the core is, proteically speaking, mostly hollow, with the exception of the rRNA species; and the RP tails apparently do not interact with the mRNA substrate that will later occupy the core [2,5]. In addition to the RPs incorporated into the ribosome and the rRNA modifying proteins, a number of proteins associate with the maturing ribosome in the nucleus to ensure that the ribosome does not prematurely assemble, including the Shwachman–Diamond Syndrome associated protein, SBDS, and eukaryotic initiation factor 6 (eIF6). Once exported into the cytoplasm, these chaperons disassociate from the ribosomal subunits, allowing for ribosomal subunit assembly and the association of mRNA and translation initiation factors (IFs) to form the PIC [2,5,6,23,24]. Final steps involving the eIF2, eIF4, and eIF5 complexes result in mature ribosomes and the initiation of protein synthesis. Alteration at any step of this process can have mild to dire consequences depending on the defect and its penetrance. Tissues, which have the greatest rates of proliferation and turn-over, such as the skin and hematopoietic precursors, especially of the erythroid lineage, are often the most affected (Figure 1).
Many RPs also have other trans-regulatory functions [2,25]. Processing of the 60S subunit requires the incorporation of the 5S rRNA, which initially associates with RPL5 and RPL11 to form the 5S RNP. Under the conditions of RP haploinsufficiency or disturbances in ribosome biogenesis as a result of altered signaling or stress, the process of pre-rRNA maturation is arrested, resulting in an increasing pool of unassimilated RPs. The accumulation of free RPs, namely the 5S RNP, results in the inhibition of protein synthesis and cell cycle arrest through the activation of p53 [2,25,26]. Other than enhanced p53 expression, other mechanisms may explain the pro-apoptotic and poor proliferative state observed, following the loss or reduced expression of RPs. Loss of RPL5 or RPL11 was shown to lead to reduced cyclin expression, and therefore, reduced proliferation. Additionally, cells deficient in RPS19 and RPL11 were demonstrated to be predisposed to oxidative stress [2,25]. In addition, an innate immune component has been observed. RP loss/reduction enhances the expression of innate immune genes including interferon and TNFα, which is known to contribute to the hematopoietic failure in RPS19 deficiency, likely through IRES-mediated translation [2,26].
Technological advances in microscopy have made it clear that the cell goes to great lengths in order to compartmentalize the phases of ribosome biogenesis. The nucleolus contains several sub-compartments: The fibrillar centers (FCs), the dense fibrillar centers (DFCs), and the granular compartments (GCs). In addition, on the nucleolus/nucleoplasm border there are the Cajal bodies, a distinct subcellular component responsible for non-coding RNA maturation [27,28]. The rDNA clusters are located at the FC/DFC interface and thus 47S rRNA synthesis takes place here, while 5S rRNA synthesis occurs in the nucleoplasm, but is then transported to the nucleolus. Many of the early steps in pre-rRNA maturation and pre-RNP (90S and 5S RNPs) assembly occur in the DFC, with later assembly steps requiring the incorporation of additional RPs and rRNA modification by snoRNAs, occurring in the GC. The final RPs are incorporate to form the 40S and 60S subunits in the nucleoplasm, prior to the export of the individual subunits to the cytoplasm. Interestingly, the Cajal bodies have no role in direct ribosome biogenesis but provide an environment for the maturation/modification of the snRNPs (later required for splicing) and snoRNPs (later required for rRNA processing). These sub-nuclear compartments are defined by their respective protein content with the fibrillar centers (FC/DFC) containing the methyltransferase, fibrillarin, and the Cajal bodies containing coilin. It has been proposed that the exchange between these compartments is free (no active transport necessary), as no membrane exists to define or separate them [27,28]. In this “free exchange model” the composition and ratio of water-soluble nucleic acids to insoluble nucleic acid binding proteins produces a semi-solid plasma state allowing for the free movement of protein–nucleic acid complexes between these compartments. Thus, it would be predicted that much of the order of these compartments is dictated by the localized protein content.

3. MYC a Global Regulator of Ribosome Biogenesis

It is estimated that approximately 15% of genes in higher eukaryotes contain MYC-responsive regulatory elements; thus, it is no wonder that overexpression of MYC can induce uncontrolled protein synthesis and cell proliferation. MYC is one of the only transcription factors known to regulate all three of the RNA polymerases (pol I, pol II, and pol III) and, therefore, has the capacity to induce the expression of all required rRNAs, ribosomal proteins, and co-factors necessary for ribosome biogenesis [8,29]. In complex with the MAX protein, MYC binds to E-box elements upstream of the transcriptional start site in the promoter of MYC-responsive genes. Binding of the MYC:MAX heterodimer results in the recruitment of co-regulatory proteins, such as the transformation/transcription domain-associated protein (TRRAP) to the promoter. TRRAP is part of the histone acetyltransferase (HAT) complex, which is responsible for targeting acetylation of histones (H3 and H4) through the activity of the GCN5 acetyltransferase, thereby opening the DNA for transcription (Figure 1, bottom panel a,c). In the case of rDNA, MYC also results in the recruitment of RNA pol I co-factors UBF and SL-1 to the promoter, thus stimulating the transcription of the 47S pre-rRNA (Figure 1, bottom panel b) [8,30,31]. In contrast, MYC influences the transcription of the 5S rRNA and that of tRNAs in a diverse manner. Rather than forming a heterodimer with MAX, MYC associates directly with TF-IIIB in the nucleoplasm to stimulate RNA pol III-mediated transcription of theses RNAs (Figure 1, bottom panel d) [8,32]. Beyond the direct association with rDNA promoters, MYC is also known to influence the expression of the RNA pol I transcriptional co-factor UBP, a MYC-responsive gene product [8,33].
MYC is also known to induce the expression of both the small and large subunit ribosomal proteins, in an RNA pol II-dependent manner. Interestingly, several of these targets RPL5 and RPL11 have been found to be extremely important in sensing ribosomal stress (see below). RPL11 has been shown not only to induce p53 transactivation, but also to bind MYC within the MYC box II domain and inhibit its association with TRRAP, thereby reducing histone acetylation and MYC-dependent transcription [8,34]. Thus, the MYC-RPL11 circuit functions in a negative-feedback mode. In addition, MYC also induces a number of proteins that are either involved in rRNA processing and transport or in translation initiation. MYC controls the expression of nucleolin (NCL) and nucleophosmin (NPM), two proteins that are involved in multiple processes in the nucleus, including the processing of the 47S rRNA to 18S, 5.8S, and 28S rRNAs; as well as the expression of the nucleolar protein 56 (NOP56), a core component of the C/D box snoRNP complex, block of proliferation 1 (BOP1), part of the PeBoW complex required for 28S and 5.S rRNA maturation, and dyskerin (DKC), a H/ACA snoRNP complex subunit responsible for the pseudouridylation of rRNA species [8,35,36]. Moreover, NPM has additional roles in the cytoplasmic-nuclear import of newly synthesized ribosomal proteins and the nuclear-cytoplasmic export of the assembling ribosomal subunits. MYC also enhances expression of the translation initiation factors eIF2α, eIF4A-I, eIF4E, and eIF4G, which regulate CAP-dependent translation and may also promote methylation of the mRNA CAP through RNA guaine-7-methytransferase [8,37].
It is now well established that MYC transformation is heavily dependent on an altered rate of protein synthesis. Studies document enhanced protein synthesis in Eμ-MYC transgenic mice, which rapidly develop tumors. When these mice were crossed with mice containing haplodeficiencies of the genes encoding RPL24 or RPL38, the rate of lymphogenesis was substantially reduced, indicating that reduced protein synthesis, due to the reduce expression of a necessary RP, was able to contrast MYC transformation [38].
Under certain circumstances, MYC is also known to promote apoptosis. Diverse forms of MYC can be expressed by alternate translation initiation. Two main forms, p64 and p67, result from alternate start codon usage. MYC p64 initiates from a standard AUG start codon; in contrast, MYC p67 initiates from a non-canonical upstream start codon (a CUG), which produces a protein that is 15 amino acids longer. Both these forms can associate with E-box elements, while MYC p67 can also associate with CAAT-enhancer binding elements as well, thus affecting the transcription of an additional set of genes [39,40]. It has been proposed that the ration of p64 MYC to p67 MYC dictates whether MYC promotes growth/proliferation or apoptosis.

4. The PI3K-AKT-mTOR Pathway, Linking Ribosome Biogenesis to Extracellular Signaling

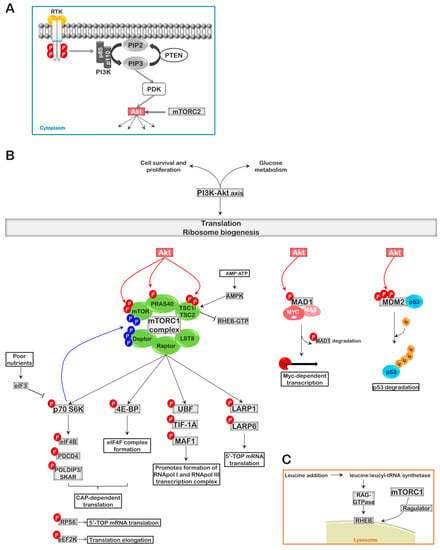

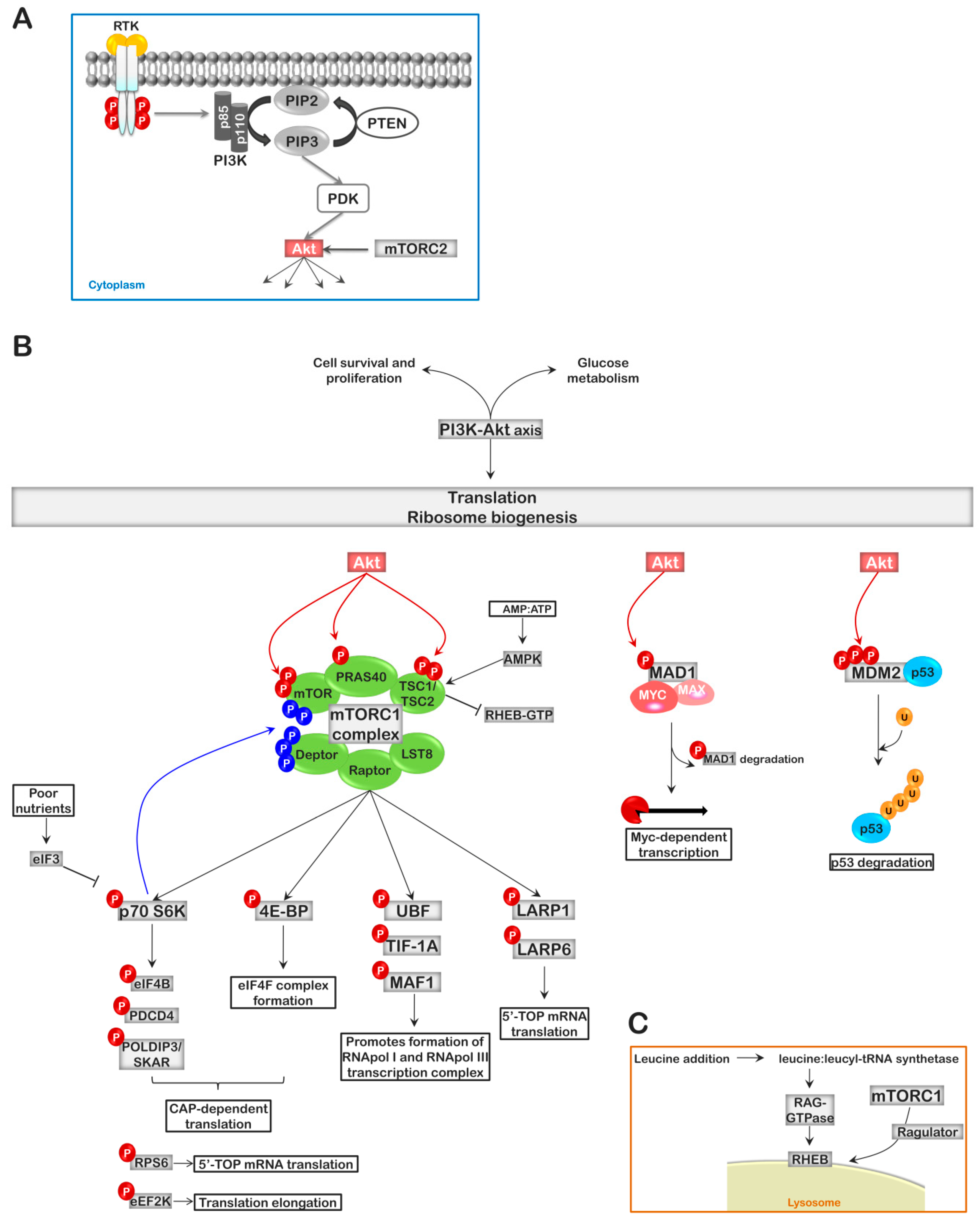

The PI3K/AKT pathway has become one of the most studied and best characterized signal transduction pathways, due to its involvement in cell survival and proliferation, glucose metabolism, and translation [41]. A large number of cytokine and growth factor receptors, such as the epidermal growth factor receptor (EGFR), the insulin-like growth factor receptor (IGFR), the granulocyte macrophage-colony stimulating factor receptor (GM-CSFR), and the tumor necrosis factor (TNF)-α receptors (TNFR1 and TNFR2) transduce part of their signal through the PI3K-AKT-mTOR pathway. These receptors inform the cell of the surrounding environment, whether to undergo self-renewal or differentiation. In the classical scenario, following ligand binding to its cognate receptor, the regulatory and catalytic domains of the phosphatidylinositol-3 kinase (PI3K) are recruited to the cytoplasmic domain of the receptor and activated. Activated PI3Ks catalyzes the phosphorylation of phosphatidylinositol (PtdIns), PtdIns(4)P, PtdIns(5)P, or PtdIns(4,5)P2 at the 3-position of the inositol ring to form PtdIns(3)P, PtdIns(3,4)P2, PtdIns(3,5)P2, and PtdIns(3,4,5)P3 [41,42]. PtdIns(3,4,5)P3 is the main form involved in AKT activation, and its level in cells is regulated by the phosphatase and tensin homolog (PTEN), the product of the mmac1 gene, which quickly dephosphorylates PtdIns (3,4,5)P3 to PtdIns(4,5)P2. It is not surprising that the gene encoding PTEN is one of the genes most often mutated or lost in cancer [43]. PtdIns(3,4,5)P3 results in the recruitment of the AKT kinase (AKT1, -2, or -3) via the N-terminal and negative regulatory plekstrin homology (PH) domain. This association not only results in the localization of AKT to membrane components of the cell, but it also causes a conformational change in AKT, removing the negative regulation imposed by the PH domain, opening up AKT for two phosphorylation events required for its kinase activity. The phosphatidylinositol-dependent kinase, PDK1 is responsible for phosphorylating AKT1 on Thr308 (Thr309 on AKT2 and Thr308 on AKT3). Like AKT, it is recruited to the membrane via its PH domain. Phosphorylation on Thr308 is assisted by phosphorylation of Ser473 in AKT1 (Ser474 in AKT2 and Ser472 in AKT3), which is carried-out by the mTORC2 complex (Figure 2A) [44].
While the AKT kinases show some redundancy in their activity, several major differences have been noticed. AKT1 and AKT2 are ubiquitously expressed, and both are present and have enzymatic roles in the nucleus and cytoplasm. In contrast, the localization of AKT3 is predominantly nuclear, with expression limited to the brain, lung, and kidney in adults; and heart, liver, and brain in fetus. AKT1 is associated more closely with anti-apoptotic/survival effects of PI3K activation, while AKT2 has been shown to be responsible for AKT-dependent insulin signaling. AKT3 is still poorly understood with few substrates identified [45,46].
Multiple substrates of AKT have been identified, but the best understood and most critical by far to ribosome biogenesis is the mTORC1 complex. The mTORC1 and mTORC2 complexes differ in several ways. First, mTORC1 serves as a substrate for AKT, while mTORC2 is responsible for the phosphorylation of AKT on Ser473. Second, mTORC1 is a rapamycin-sensitive complex while mTORC2 is not. This difference in susceptibility to rapamycin is due to the third major difference in these complexes; the protein components. Both mTORC1 and mTORC2 contain the mammalian target of rapamycin protein (mTOR), the positive/negative regulator G protein β-subunit-like (GβL or LST8), and the DEP-domain containing mTOR-interacting protein (Deptor), a negative regulator of the mTORC complexes; but while mTORC1 contains the scaffolding protein Raptor, mTORC2 contains Rictor, Sin1 (MAPKAP1), and proline-rich protein 5 (PRR5). The mTORC2 complex is nutrient insensitive, acts upstream of Rho-GTPases, and has a role in modifying the actin cytoskeleton. In contrast, the mTORC1 complex is nutrient sensitive and regulates a major part of ribosome biogenesis and CAP-dependent translation (Figure 2B) [42].
The AKT kinases can directly phosphorylate mTOR (Thr2446, Ser2448), which increases the activity of the catalytic subunit, mTOR, but is not sufficient for mTORC1 activation. Activation of the mTORC1 complex occurs through its GTPase Rheb when in the GTP bound state. Rheb is inhibited by its GAP protein(s), the tuberous sclerosis heterodimer (TSC1/TSC2). In addition, the mTORC1 complex is also inhibited by the association of the proline-rich AKT substrate (PRAS40) in a 14-3-3 protein-dependent manner. AKT activates the mTORC1 complex by phosphorylating both PRAS40 (Thr246) and the TSC1/TSC2 (Ser939, Ser981, and Thr1462 of TSC2) complex to free Rheb and stimulate the activation of mTORC1 (Figure 2B) [42,47].
Amino acid activation of mTORC1 is also possible. This involves the recruitment of mTORC1 by the Ragulator protein complex to the lysosomal membrane, following stimulation with amino acids, where mTORC1 interacts with its activator Rheb, bringing the mTORC1 complex in contact with the Rag GTPases. The heterodimeric Rag GTPases, consisting of RagA or RagB pairing with RagC or RagD, become loaded with GTP in the presence of amino acids, favoring their interaction with Raptor and the activation of mTORC1 [48,49,50]. Nicklin et al. demonstrated that it was glutamine uptake and its subsequent efflux in the presence of essential amino acids, which is the limiting step in this process [48,51]. The uptake of glutamine by the cell establishes an internal reservoir of glutamine that can be exported by the heterodimeric SLC7A5-SLC3A2 antiporter. The efflux of glutamine by the antiporter promotes the import of branched-chain amino acids such as leucine [48,51]. This increased presence of intracellular leucine favors the interaction of leucine with leucyl-tRNA synthetase. The leucine:leucyl-tRNA synthetase complex then acts as a GTPase-activating protein stimulating the Rag GTPases [48,52]. So why leucine? Leucine happens to be the amino acid most frequently used in proteins, thus, its deficiency should set-off alarms for the cell. For this reason, it has been observed that some ribosomopathy patients can be treated with leucine supplements (see below). Moreover, the presence of Raptor in the complex assists in the recruitment of mTORC1 substrates (Figure 2C).
Finally, the activity of the mTORC1 complex can be regulated directly by the energy level of the cell. Low cellular ATP levels result in the activation of the adenosine monophosphate activated kinase (AMPK), which can phosphorylate and activate TSC2, of the TSC1–TSC2 inhibitory complex, on Thr1227 and S1345; and/or phosphorylate Raptor on Ser722 and Ser792, promoting its interaction with 14-3-3 proteins and the inhibition of mTORC1 (Figure 2) [53,54]. In addition, AKT has the ability to autoregulate its phosphorylation at Ser473 through the phosphorylation Sin1 (Thr86) to down-regulate mTORC2 activity [55].
The mTORC1 complex phosphorylates two main targets of ribosome biogenesis, the S6 kinases (p70 S6K1/p70 S6K2) and the eIF4E-binding protein (4E-BP). Recruitment of the 40S ribosomal subunit to the 5′ N7-methyl guanosine CAP [m7G(5’)ppp(5’)N] of mRNA is facilitated by the eIF4F translation initiation complex, which is composed of the cap-binding protein eIF4E, the scaffold protein eIF4G, and the RNA helicase eIF4A. Unphosphorylated 4E-BP associates with eIF4E, blocking the association of eIF4E with eIF4G. Phosphorylation of 4E-BP, mediated by mTORC1, frees eIF4E, facilitating its association with eIF4G and the formation of the eIF4F complex; thus, favoring CAP-dependent translation. The reduced efficiency of the eIF4F complex to recognize and promote the translation of 5′ N7-methyl guanosine CAPed mRNAs favors internal ribosome entry site (IRES)-mediated translation, which is often observed during inflammation and stress [42,56]. On the other hand, phosphorylation of the p70 S6 kinase, results in its activation and the subsequent downstream phosphorylation of PDCD4 (Ser67; an inhibitor of eIF4A), causing its ubiquitination and proteolysis, and eIF4B (Ser422; an activator of the eIF4A helicase), thus, favoring CAP-dependent translation of mRNAs with complex secondary structure at the 5′-end [57,58,59]. Additionally, p70 S6K also phosphorylates polymerase delta-interacting protein 3 (POLDIP3/SKAR) on Ser383 and Ser385, favoring nuclear export and translation of spliced over non-spliced mRNAs [60]. Under poor nutrient conditions, the eIF3 initiation complex associates with p70S6K and sequesters it in an inactive state. Following the appropriate stimulus, eIF3 is released and p70 S6K phosphorylates its targets (Figure 2B) [61].
Beyond CAP-dependent translation initiation, the AKT-mTORC1-p70 S6 kinase pathway has been demonstrated to target other effectors of ribosome biogenesis. AKT has been shown to phosphorylate MAD1 on S145, resulting in its release from the MYC/MAX/MAD1 heterotrimer, and its degradation to form the active MYC/MAX heterodimer; thus, promoting MYC-dependent transcription [9,62]. AKT also phosphorylates and stabilizes MDM2 (S166, S186, and S188), favoring the degradation of p53, a major repressor of ribosome biogenesis (see below). In addition, AKT may regulate the type of mRNA translated based on its 5′ UTR through phosphorylation of LARP6 (S451), a protein that associates with stem-loops in the 5′UTR to stabilize mRNA. Phosphorylation of LARP6 at S451 results in LARP6 degradation [63]. Likewise, mTOR phosphorylates LARP6 (S340, S409) and its family member LARP1 (S766, S774), but in contrast to AKT-dependent phosphorylation, mTOR-dependent phosphorylation promotes the stability and sequestering of these proteins; thus, favoring the translation of mRNAs containing the 5′terminal oligopyrimidine (TOP) motif, a 5’-cytidine followed by a short pyrimidine tract (4-14 nucleotides) immediately downstream of the methyl guanidine cap (m7Gppp) (Figure 2B). The 5’TOP mRNAs encode components of ribosome biogenesis such as the RPS and RPL proteins [64,65]. Moreover, mTORC1 is able to stimulate RNA pol I-dependent transcription of the 47S rRNA by activation of UBF and TIF-1A; and RNA pol III-dependent transcription of 5S rRNA and tRNA through its direct recruitment to the promoter, by TF-IIIB, and subsequent phosphorylation of MAF1 (S60, S68, and S75), an inhibitor of the TF-IIIB complex formation; thus, establishing a role for mTORC1 as a transcription factor. Use of the mTOR inhibitor rapamycin blocks the synthesis of rDNA by inhibiting the formation of the RNA pol I and RNA pol III transcription complexes on their respective promoters [9,66,67]. It is also apparent that mTOR may also regulate the balance between mTORC1 and mTORC2 complex formation by phosphorylating diverse components of the mTORC complexes, including itself. Finally, the p70 S6 kinases also phosphorylate RPS6 and the eukaryotic elongation factor 2α (eEF2α) kinase (eEF2K) [68,69]. Phosphorylation of RPS6 results in the enhanced translation of 5′TOP RNAs, while phosphorylation of eEF2K results in inhibition of its catalytic activity and the activation of eEF2α, favoring translation elongation. RPS6 can also be phosphorylated by p90RSK, which is activated downstream of the RAS-RAF-ERK pathway activation [70]. In addition to these, p70 S6K appears to also regulate AKT and mTORC1 activity through phosphorylation of Thr2446 and Ser2448 of mTOR and the phosphorylation and targeted degradation of Deptor (Ser286, Ser287, and Ser291) and Rictor (Thr1135). The phosphorylation of Rictor is considered a negative feedback modification as it results in decreased mTORC2 phosphorylation of AKT [71,72,73].
Recently, Bavelloni et al. reported a study in which they sought to identify novel nuclear AKT substrates. Using phospho-AKT substrate specific antibodies coupled with mass spectrometery analysis, the authors identified a set of proteins present in the nuclear lysates of two hematopoietic cell lines that were immunoprecipitated with antibodies recognizing the following epitopes: K/R-x-K/R-x-x-S*/T* or R-x-x-S*/T*; where “x” represents any amino acid and the asterisk represents a phosphorylated amino acid. The authors then analyzed the identified proteins to determine if they actually contained sites that could be recognized by the antibodies employed in the study. Both AKT and p70 S6K belong to the AGC kinase family and have similar phosphorylation consensus sites; thus, the identified proteins may represent both AKT and p70 S6K substrates (Table 1). Many of the identified proteins are intimately related to ribosome biogenesis [74]. Thus, it is possible AKT-mTOR-p70 S6K signaling has additional targets that influence ribosome biogenesis and translation initiation that have yet to be characterized.

5. Cell Cycle Regulators and Ribosomal Stress

Coordination between cell division and proteins synthesis is imperative for cell survival; thus, it is not surprising that multiple regulators of the cell cycle also have a significant role in controlling ribosome biogenesis. Unphosphorylated retinoblastoma protein (Rb) family members not only regulate the cell cycle by associating with the E2F transcription factor, but their hypophosphorylated forms also directly associate with UBF of the RNA pol I complex and TF-IIIB of the RNA pol III complex, inhibiting the synthesis of the 47S and 5S rRNAs, as well as the necessary snoRNAs and tRNAs (Figure 3A). Loss of Rb expression or hyperphosphorylation of Rb, due to the activation of the cyclin-dependent kinase (CDK)-cyclin complex, results in the removal of this level of control [9,75,76,77]. Additionally, the smaller of the products of the ink4a tumor suppressor gene, p14ARF (p19ARF in mice) also associates with proteins of the RNA pol I complex affecting both 47S rRNA transcriptional initiation and termination [78]. More interestingly, p14ARF has a significant role in regulating both rRNA processing, as well as p53-dependent transcription through its association with nucleophosmin (NPM1). NPM1 is a highly expressed nuclear phosphoprotein involved in diverse cellular processes (rRNA processing, ribosome protein nuclear import, ribosome assembly, and ribosome subunit nuclear export). NPM1 associates with diverse proteins, influencing their activity; among these are the p53 ubiquitinase MDM2 and the dsRNA-dependent inflammatory/stress activated kinase, PKR. When bound to NPM, these proteins are sequestered to the nucleus. Enhanced expression of p14ARF results in its association with NPM and the formation of an MDM2 inhibitory complex, thus stabilizing p53 [79,80,81,82,83]. Similarly, the sequestration of PKR, by NPM, keeps it localized to the nucleus where its localization is associated with cell growth and DNA repair (Figure 3B). Garcia et al. reported that, following viral infection, enhanced expression of p14ARF promoted its association with NPM, resulting in the release of PKR and the translocation of PKR to the cytoplasm, where it phosphorylates eIF2α, resulting in the inhibition of protein synthesis (see below) [84].

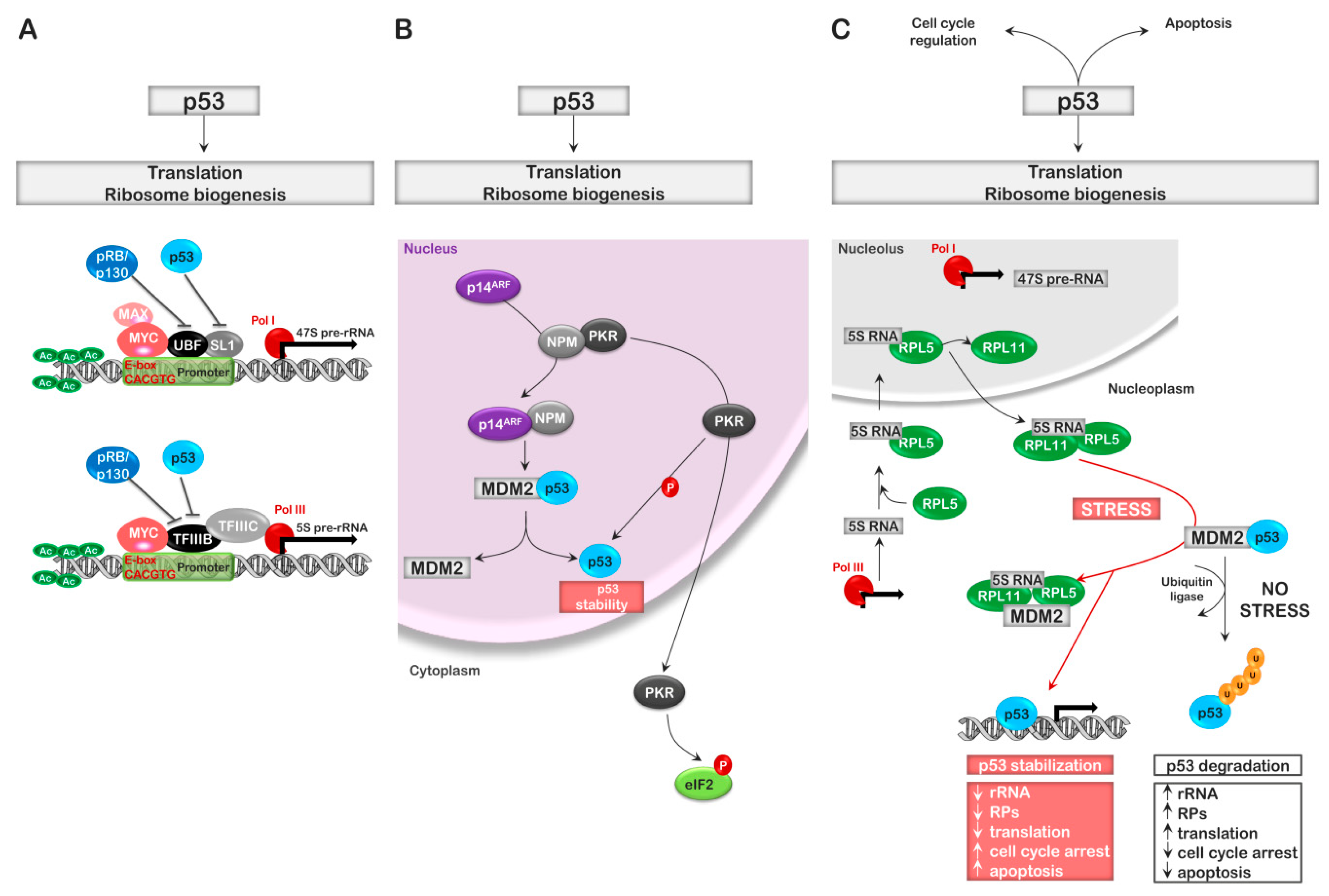

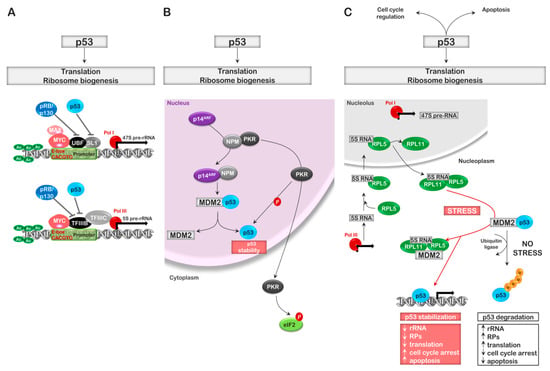

The p53 transcription factor is a master regulator of the cell. Most of the genes induced by p53 are involved in cell cycle regulation (arrest) and apoptosis; therefore, stimulation of p53 leads to cell cycle arrest and repair or subsequent cell death in most cases. In addition, p53 shares the stage with two closely related family members, p63 and p73. These family members may cooperate with or antagonize one another, depending on the promoter and the gene in question [85]. Approximately 50% of human tumors contain mutant p53. These mutations are known to affect the transactivation capacity of p53, p53 stability, and the ability of p53 to interact with additional cofactors [9,85].
The status of p53 is also extremely important in the regulation of ribosome biogenesis. The association of p53 with SL-1 complex of RNA pol I or TF-IIIB of the RNA pol III complex results in transcriptional repression of these rRNA, tRNA, and snoRNA genes. The interaction of p53 with RNA pol II-dependent promoters can either stimulate or repress their transcription [9,86,87]. As stated above, p53 protein levels are chiefly regulated at the level of protein stability. The E3 ubiquitin ligase MDM2 associates with p53 and ubiquitinates it, thereby targeting it for degradation by the proteosome. Interestingly, p53 binding of the mdm2 gene stimulates the synthesis of its transcript, thus p53 can autoregulate its expression through the induction of MDM2. The mechanisms that regulate ribosome biogenesis have taken advantage of the MDM2-p53 relationship as a checkpoint for ribosomal stress. Alterations in the levels of proteins required for rRNA synthesis, processing, and transport can influence the MDM2-p53 interaction [79,88]. Thus, alterations that may impinge on the early steps of ribosomal biogenesis also influence p53 stability, favoring the accumulation of p53. Among these proteins are NPM1 (see above) and nucleostemin (NS). Overexpression of NS causes its accumulation in the nucleoplasm and its association with MDM2 via interaction of the coiled–coiled domains of NS with the acidic domain of MDM2, thus inhibiting p53 ubiquitination and enhancing p53 stability. In contrast, depletion of NS activates p53 through the ribosomal protein pathway [79,89].
Additionally, the accumulation of rRNAs must match the level of rRNA processing protein complexes, which must match the synthesis of ribosomal proteins to be incorporated into the assembling ribosome, which must match the transport/chaperone proteins available. A certain amount of leeway must be inherent in the system and controlled or “tweaked” through transient activation stimulation of key signal transduction pathways. The system must also have the ability to alter the assembly of the ribosome to favor the translation of certain mRNAs over others when necessary for the cell. The obvious disproportion of the necessary RNA or protein intermediates results in the stimulation of p53 transcriptional activity, arresting the process of ribosome biogenesis. This safety switch for the organism impedes the production of ribosomes that possess altered activity, which could be deleterious to the organism (constitutive p53 activity can also contribute to disease—see below). Several ribosomal proteins are known to bind to MDM2 and inhibit its activity toward p53; these include RPS3, RPS7, RPL5, RPL11, and RPL23 (Figure 3C) [79,88].
The ribosome proteins are produced in excess in the cytoplasm. The stability of these proteins is dependent on their interaction with chaperones and nuclear import proteins. Those RPs not associated with chaperones and directed to the nucleus for ribosome assembly are quickly degraded by the ubiquitin proteosome complex (UPC). Thus, free nucleolar/nucleoplasm accumulation of these RPs would signal a failure in the maturation process of the 40S and 60S subunits and stimulate p53. One of the more interesting complexes is the RPL5-RPL11-5S rRNA (5S RNP). This complex, which has an early and critical role in rRNA processing, is an early sentinel for defects in ribosome biogenesis. Bursac et al. and Sloan et al. demonstrated that RPL5-RPL11-5S rRNA accumulation and association with MDM2 could take place in both the nucleolus and nucleoplasm [90,91]. Interestingly, the RPL5-RPL11-5SRNP complex is also likely responsible for p53 accumulation in response to the deficiency of many of the additional ribosomal proteins that do not directly interact with MDM2 (Figure 3C).

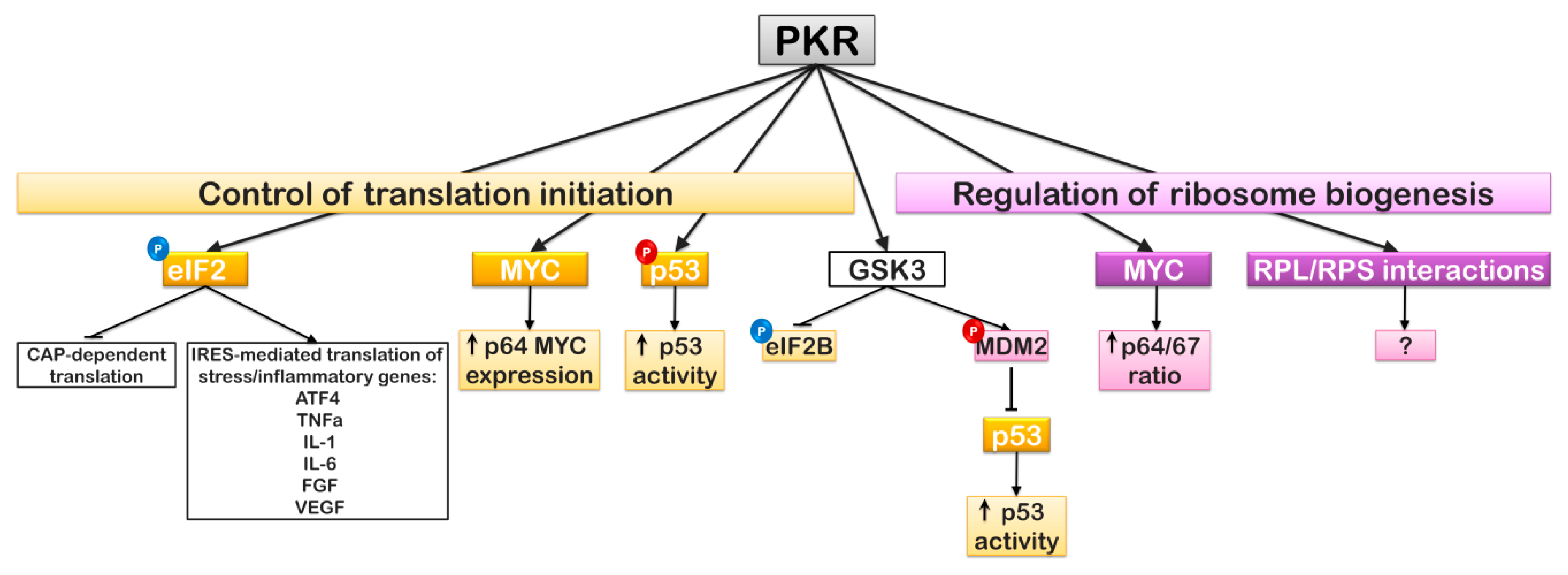

6. EIF2α Regulation and Translation Initiation: The PKR Story

The ultimate goal of ribosome biogenesis is to produce ribosomes capable of accurately and successfully translating mRNAs into protein. Like ribosome biogenesis, the process of translation has a rate-limiting step, which is initiation; therefore, in addition to the eIF4F translation initiation complex, which is under the control of the AKT-mTOR and RAS-RAF-MAPK pathways, two additional initiation factors represent major points of translation control, eIF2 and eIF2B. These complexes bare both the GTP and the Met-tRNA necessary for pre-initiation complex (PIC) formation and translation initiation, as well as the proteins for the GDP to GTP exchange required to initiate the next round of translation [92,93,94]. Regulation of eIF2 is via the α-subunit (eIF2α) and is probably the best understood mechanism regulating translation initiation. One of four different kinases (PKR, PERK, GCN2, or HRI) leads to the phosphorylation of eIF2α. Phosphorylation of eIF2α on Ser51 results in eIF2 being locked in the GDP bound state with eIF2B, unable to catalyze the initiation of protein synthesis. As the eIF2 complex is limited compared to eIF2B, it does not take much phosphorylated eIF2α to soon result in a complete block of general translation. Although each of these kinases phosphorylates eIF2α on the same serine residue, they do so in response to differing stresses [56,95]. The PKR-like endoplasmic reticulum kinase (PERK) is mainly activated following ER stress, as part of the unfolded protein response (UPR) and has been shown in mice to be inhibited by AKT1-dependent phosphorylation [96,97,98]. The general control nonderepressable-2 (GCN2) is part of the nutrient sensing pathway and responds to amino acid starvation; lack of amino acids results in uncharged tRNAs, which stimulate GCN2 kinase activation [99]. Heme-regulated eukaryotic initiation factor-2-alpha kinase (HRI), which is expressed mainly in cells of erythroid lineage and the first of the eIF2α kinases to be identified, is activated in response to low heme concentrations [100]. The double-strand RNA-dependent kinase PKR, on the other hand, is activated in response to the most diverse types of stresses; among these are: viral infection, dsRNA, peroxidation, mitochondrial stress, DNA damage, ER stress, inflammatory cytokines, growth factor deprivation, and Toll-like receptor activation [101,102]. Together, these kinases form a network that can regulate translation initiation under a myriad of stress conditions [103,104,105]. Interestingly, while each of these kinases can be found in the cytoplasm, PKR is the only eIF2α kinase that is also present in the nucleolus and nucleoplasm [56,106].
From prokaryotes to mammals, ribosome biogenesis and subsequent translation are highly regulated by the surrounding environment to limit energy expenditure under conditions that are unfavorable for growth, as well as limit the possibility of producing mutant proteins [107,108]. While phosphorylation of eIF2α was long thought to be strictly pro-apoptotic, this is not the case. Phosphorylation of eIF2α results in a shut-down of general CAP-dependent translation but, at the same time, it allows for efficient translation of upstream open reading frames (uORFs) in particular mRNAs that contain complex secondary structure at the 5’ end and an IRES element upstream [109,110,111]. Short-term inhibition of general translation through eIF2α phosphorylation establishes a pro-survival state by allowing for cellular repair and time for the cell to adjust following a particular stress [112]. If this stress cannot be resolved and general translation remains inhibited, the cell will likely die through apoptotic means; thus, a coordinated interaction between the eIF2α kinases and the AKT-mTOR-p70 S6K pathway must be present. In contrast, under other conditions, the phosphorylation of eIF2α has been shown to inhibit IRES-mediated translation [113]. These differences may be due, in part, to the presence of specific regulator proteins that differ between IRES elements and are, therefore, specific to the being mRNAs translated (Figure 4).
Many of the mRNAs translated under conditions where eIF2α is phosphorylated encode inflammatory cytokines such as TNFα, IL-1, FGF, VEGF, IL-6; or transcription factors, such as the cyclic AMP-dependent transcription factor, ATF4 [114,115,116,117,118,119]. Significantly, prolonged expression of each of these inflammatory mediators is associated with angiogenesis and tumor progression. ATF4 leads to increased synthesis of ATF3, which was shown to be a significant factor in low-risk MDS [120]. This aspect of chronic inflammation is noteworthy as ATF3 is considered a pro-apoptotic transcription factor. The anti-apoptotic effect mediated by PI3K-AKT-mTOR pathway inhibition in colorectal cancer was correlated to enhanced ATF3 expression [121]. In contrast, several lines of evidence argue against ATF3 being strictly pro-apoptotic. Ectopic overexpression of ATF3 in breast tissue led to breast carcinoma in mice [122]. Moreover, ATF3 was found to be highly overexpressed in classic Hodgkin’s lymphoma and contributes to the progression of this disease [123]. Whether constitutive overexpression of inflammatory cytokines like ATF4 is a secondary characteristic of these tumors, due to a ribosomal stress response that favors IRES-mediated translation or due to unrelated events has not been determined [56].
Phosphorylation of eIF2α also favors translation of the full-length isoforms of the CAAT-enhancer binding proteins, C/EBPα and C/EBPβ, which are both critical to hematopoietic development and differentiation [124]. Two isoforms of C/EBPα have been observed in cells, a full-length protein of approximately 40 kDa (p42) and a truncated protein of about 30 kDa (p30) [125]. While both p42 and p30 C/EBPα can interact with additional transcription factors, only p42 contains the entire transactivation domain [125]. Targeted deletion of C/EBPα in mice results in the inhibition of myeloid differentiation with subsequent blast accumulation [125,126]. Therefore, it is not surprising that C/EBPα has been found to be mutated or repressed in several hematologic malignancies where blast accumulation is a factor [125,127,128]. Interestingly, p30 C/EBPα can regulate the expression/accumulation of p42 C/EBPα through Ubc9 ubiquitin ligase-mediate ubiquitination of p42 C/EBPα, resulting in p42 degradation; thus, blocking differentiation in CD34+ hematopoietic stem cells, favoring self-renewal [56,129].
C/EBPβ is expressed as one of three forms: p38, p33, and p20, and in many ways is similar to C/EBPα [125]. But, whereas the loss of C/EBPα transcriptional activity is associated with tumorigenesis, loss of C/EBPβ is not [56,125,130,131].
Similarly, PKR is also known to regulate the expression of MYC. Diverse groups have demonstrated that PKR influences the expression of c-myc through the stimulation of the transcription factors nuclear factor (NF)-κB and signal transducers and activators of transcription (STAT) [132,133]. Blalock et al. demonstrated that pharmacological inhibition of PKR activity in an acute lymphoblastic leukemia cell line, where AKT activation was constitutively-active, resulted in enhanced expression of MYC. Not only did inhibition of PKR kinase activity enhance MYC expression, but it also influenced the isoform expression of MYC. Overexpression of PKR expression was shown to favor p64 MYC expression while siRNA-mediated knock-down of PKR favored p67 MYC expression [39]. The p64 isoform of MYC is initiated from a standard AUG start codon; in contrast, the p67 isoform is produced from a non-canonical CUG start codon and encodes an additional 15 amino acids at the amino terminus. Both p64 and p67 target E-box sites in MYC responsive promoters, but p67 can also target C/EBP elements, thus leading to the transcription of an additional set of responsive genes [39,40]. It has been suggested that the ratio p64/p67 dictates whether MYC expression favors growth and proliferation or stimulates the expression of pro-apoptotic factors, with p64 favoring proliferation and p67 favoring growth arrest [39,40]. This might suggest that the loss of PKR may stimulate a feedback control through MYC isoform expression to limit growth and proliferation of cells that do not have the necessary safeguards in place to monitor translation initiation (Figure 4).
The glycogen synthase kinase (GSK)-3β, which is inhibited by AKT under growth conditions but whose activity can be stimulated by the eIF2α kinases PKR and PERK through the action of phosphatases, phosphorylates diverse targets to inhibit growth and energy storage programs. Data from both hematological and neuronal models, in which AKT was constitutively-active, as a result of PTEN deletion, demonstrated that the inhibition of PKR in this genetic background, leads to increased inhibitory phosphorylation of GSK-3α/β on Ser21/9, and eventual cell cycle arrest [134,135]. Among the targets of GSK-3β is the eIF2B ε-subunit. eIF2B serves to exchange GTP for GDP bound to the eIF2 complex [136]. The eIF2B GTP exchange factor is composed of α, β, γ, δ, and ε subunits, of which the 82 kDa ε-subunit is the most critical to eIF2B regulation and is enzymatically responsible for the GDP to GTP exchange. The α-, β-, and δ-subunits associate with Ser51 phosphorylated eIF2α and inhibit eIF2Bε activity, locking eIF2B with eIF2 in the GDP-bound state while the γ-subunit, which is phosphorylated and regulated by casein kinase (CK)-II, promotes the activity of the ε-subunit. Phosphorylation of eIF2Bε on Ser535 by GSK-3β, following amino acid starvation, inhibits eIF2B activity [56,136,137]. For GSK-3β phosphorylation to occur, eIF2Bε must first be phosphorylated on Ser540 by one of the DYRK family kinases. The phosphorylation of these residue is thought to result in translation of a set of mRNAs that is different from those translated when only eIF2α is phosphorylated; thus, regulation of translation can give rise to proteins that are most efficiently translated under one of three (or more) different conditions [56,137,138]. Additional information on alternate translation can be found in the following reviews ([114,139,140,141]).
Stress signaling through PKR is also a critical component of p53 regulation. PKR directly phosphorylates Ser392 of p53, resulting in enhanced stability and transcriptional activity of p53. It has been observed that pharmacological inhibition of PKR in an active AKT background leads to the rapid degradation of p53 (unpublished results). Moreover, the activator of PKR, RAX/PACT, stimulates the sumoylation of p53 enhancing its activity, yet Baltzis et al. demonstrated that PKR and PERK lead to p53 degradation through GSK-3α/β-mediated phosphorylation and activation of MDM2. Under the conditions examined, GSK-3α/β resulted in enhanced ubiquitination of p53 and its subsequent nuclear export and degradation [142]. As GSK-3α/β was active in this study, it would stand to reason that a significant level AKT activity was not present in these cells under the conditions of the study. Thus, one might postulate that the fate of p53 relies on a balance between the eIF2α kinases (PKR and PERK) and AKT-mTOR activation (Figure 4). This would actually make sense as under stress conditions where AKT-mTOR still favored ribosome biogenesis and translation, PKR (or PERK in the case of ER stress) would result in p53 stabilization. In contrast, under conditions where a stress or insult occurs in the absence of a growth-promoting signal through AKT-mTOR, it may not be advantageous for the stress response through the interested eIF2α kinases to promote p53-dependent transcription.
Being associated with the 40S subunit, 60S subunit, 80S PIC, and polysomes, PKR is in the perfect position to respond to any cellular stress and regulate translation [143]. With the presence of PKR in the nucleus and the recent finding that it is associated with diverse proteins involved in ribosome biogenesis, it would not be surprising if PKR has other direct roles in the mechanisms responsible for protein synthesis other than simply that of eIF2α and p53 phosphorylation. A recent study by Blalock et al. reported that PKR isolated from nuclear lysates was associated with a number of ribosomal proteins of the 40S and 60S ribosomal subunits; the majority of which were found associated when PKR was active [39]. Treatment with a pharmacological inhibitor of PKR resulted in the dissociation of all but two of these RPs (RPS10 and RPS10-like) and the association of an additional four RPs (RPS19, RPS26, RPL23, and RPL36) (Figure 4). Interestingly, haplosufficiency of several of these proteins, RPS10, RPS19, and RPS26, is associated with Diamond–Blackfan Anemia (DBA; see below). Additional proteins found to associate with PKR were involved in nuclear protein import, rRNA synthesis/modification/processing, mRNA nuclear export, ribosome assembly, PIC assembly, MYC expression, and IRES-dependent translation. In all, approximately 60% of the proteins associated with PKR in the nucleus play a significant role in ribosome biogenesis and translation initiation (for a full list of the identified proteins, see Table 2). What was not determined in this study was which of the identified proteins was directly associated with PKR and/or a substrate of PKR; and if an associated protein did represent a substrate of PKR, what were the site(s) and significance of PKR-dependent phosphorylation of the protein [39].

7. RNA Editing/Splicing and Its Potential Role in Ribosome Biogenesis

RNA editing and alternative splicing of RNA are fundamental cellular processes that enhance the possibility of gene expression and increase protein diversity. Any impairment of these mechanisms is associated with the failure of normal cellular homeostasis resulting in disease [2,144]. The importance of RNA editing and/or splicing in coding RNAs (mRNAs) has become increasingly evident, but it may very well be the affect these processes have on non-coding RNAs (miRNAs, long non-coding RNAs, etc.) that is most critical to an organisms development and maintenance; and whose aberrant regulation may be responsible for diverse pathogenic conditions.
In coding mRNAs, alternative splicing can alter the amino acid sequence of the resulting protein, which can affect its function/activity or localization. It can also influence the translation efficiency and stability of the encoding mRNA and, thus, regulate protein expression post-transcriptionally (but pre-translationally) when it occurs in the 5′- and 3′-untranslated regions of the mRNA. Numerous interacting components of the spliceosome complex and associated heterogeneous nuclear RNPs (hnRNPs) are involved along with cis-acting elements in the primary transcript. This mechanism is finely regulated at developmental stages in different tissues, and an alteration in regulation of alternative splicing is now linked with several human diseases, including leukemia and pre-leukemic states such as MDS [2,145]. Splicing factor 3B subunit 1 (SF3B1), U2 small nuclear RNA auxiliary factor 1 (U2AF1), serine/arginine-rich splicing factor (SRSF2), and zinc finger CCCH-type, RNA binding motif and serine/arginine-rich 2 (ZRSR2) are splicing factors that carry recurrent somatic mutations in MDS and are components of the E/A splicing complex that coordinates 3′ splice site recognition during the early phase of pre-mRNA processing [2,146,147,148]. With regards to ribosomal proteins and regulators of ribosome biogenesis, the presence of alternatively spliced forms and their influence is just beginning to gain ground. Recent studies by Mei et al. and Rendleman et al. have demonstrated the presence of alternately spliced forms of p70 S6K1 and aminoacyl-tRNA synthetases, respectively. While the p70 S6K1 variant was found to be highly expressed in non-small cell lung cancer (NSCLC), the splice variants of aminoacyl-tRNA synthetases were observed under stress conditions and likely represent part of the cellular stress response [149,150]. Likewise, Mrvovà et al. reported the identification of diverse alternatively spliced forms of eIF4E family members in acute lymphoblastic leukemia cell lines [151]. These alternatively spliced mRNAs were shown to either contain different polyadenylation sites, affecting the stability of the mRNA, or encode diverse C-termini, potentially altering the function of the protein. Additionally, alternatively spliced transcripts of the DNA polymerase delta-interacting protein 3 (POLDIP3), a direct target of p70 S6K1, have been reported [152]. Most recently, the presence of alternatively spliced ribosomal proteins has been documented. Data across species agree that alternate forms of the ribosomal proteins due to alternative splicing are extremely rare; most alternative forms such as RPL10 versus RPL10-like (RPL10L) are instead due to tissue specific expression of one gene over another. Gupta and Warner reported that in the ENCODE database, of the 376 introns from RPs catalogued, only one was alternatively spliced [153]. Interestingly, this does not indicate that RP expression is not regulated by alternative splicing. Diverse groups have found that many RP mRNAs are alternatively spliced leading mRNAs termed “pseudogenes” that are targeted for non-sense mediated degradation. Plocik and Guthrie demonstrated in Drosophila, with RPS9, that the alternative spliced RPS9 mRNAs serve to regulate the accumulation and expression of RPS9, providing a clear example of how alternative splicing may influence RP expression without producing alternative protein isoforms [154]. Carlston et al. described in a recent case report, a 2-year-old boy with Diamond–Blackfan anemia resulting from a maternally inherited mutation that led to alternative splicing of RPL11 mRNA. The authors state that the resulting protein was susceptible to missense-mediated decay, accounting for the haploinsufficiency of RPL11 in this individual [155]. Two additional studies have suggested a role for the hnRNP complexes in RP alternative splicing. A study by Aviner et al. identified the hnRNP C, a protein–RNA complex involved in splicing, as being critical to the translation of mRNAs encoding ribosomal proteins and translation factors [156]. More importantly, Liu et al. recently reported that hnRNP K directly enhances the alternative splicing of mitochondrial RPL33 (MRPL33) producing MRPL33-L, which has increased tumor promoting potential and is associated with colorectal cancer [157]. Findings of frequent mutations in genes involved in RNA splicing in myelodysplasia and other diseases have resulted in the grouping of several pathologies as “spliceopathies” [158]. Furthermore, the activity of many splicing factors is regulated by phosphorylation through kinases such as AKT, CLKs, NEK2, PRP4, and TOP1. Alternative splicing may be a point of departure for the discovery of novel diagnostic and prognostic biomarkers as well as new therapeutic strategies to disease (for more detail, see [2]).
Other than nucleotide modifications to the RNA or the direct alteration and regulation of the splicing complex components, alternate splicing also involves sequence specific cis-elements that can be modified by a process known as “RNA editing”; thereby changing the splice acceptor/donor sites to generate alternatively spliced mRNAs. “RNA editing” is an important post-transcriptional mechanism, occurring in a wide range of organisms, which alters the primary RNA sequence through the insertion/deletion or modification of specific nucleotides. By far the most important mechanism is through the deamination of cytosine or adenosine residues. Three families of enzymes are primarily responsible for this type modification: The apolipoprotein B mRNA editing enzyme, catalytic polypeptide-like (APOBEC) family of cytidine deaminase members, APOBEC1, APOBEC2, and APOBEC4; the adenosine deaminase acting on tRNA family (ADAT1, ADAT2, and ADAT3), and the adenosine deaminase acting on double-strand RNA (dsRNA) family (ADAR1, ADAR2, and ADAR3).

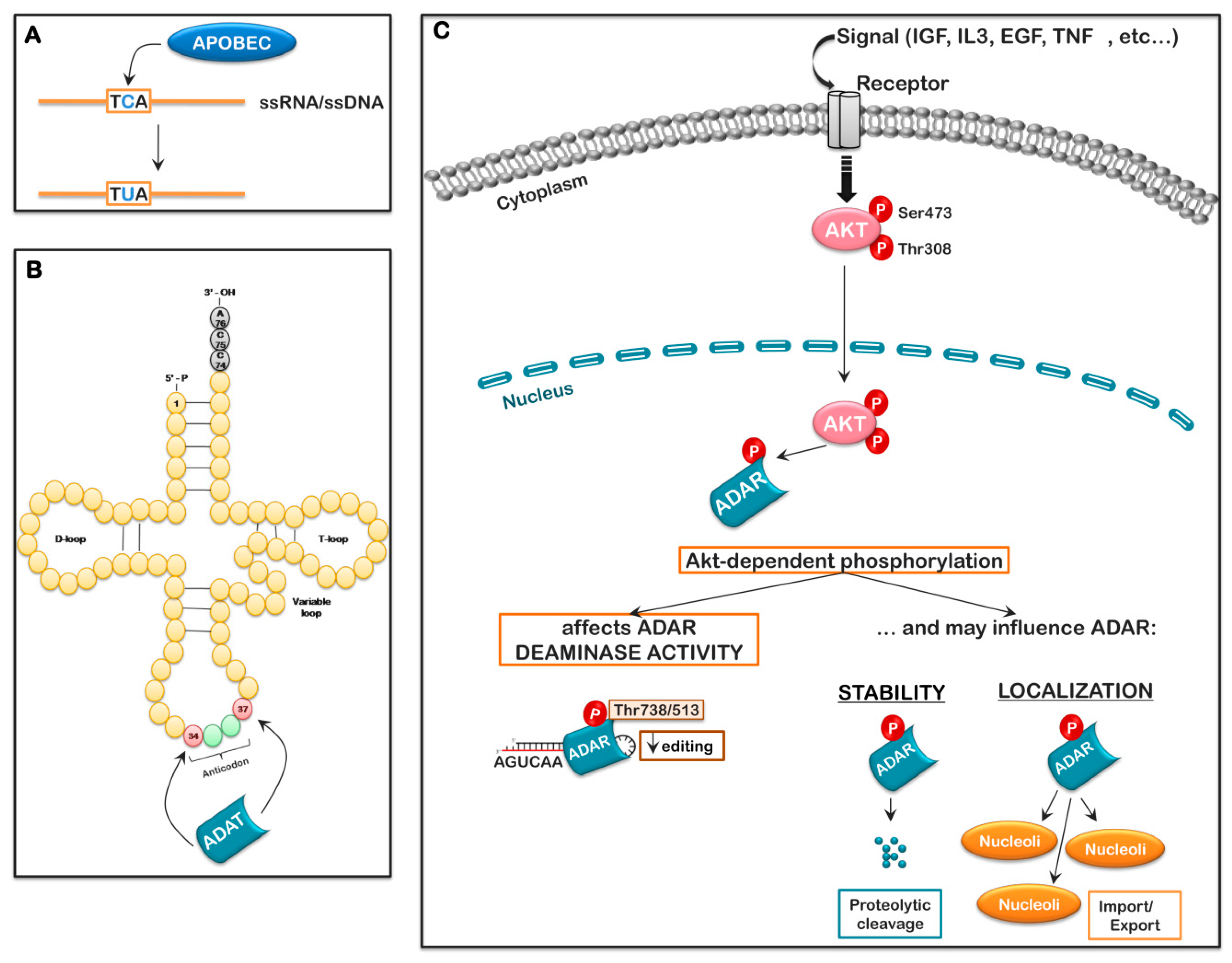

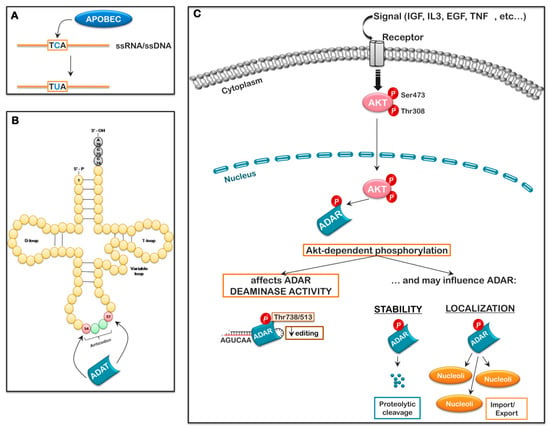

The APOBEC family (APOBEC1, APOBEC2, APOBEC3A-H, APOBEC4, and activation-induced adenosine deaminase (AID)) is thought to be an innate immune-related gene cluster. Members of this family deaminate cytidine (C) or deoxycytidine (dC) to form uracil (U) or deoxyuracil (dU), respectively, in their targets, which vary greatly depending on the enzyme, tissue, and cellular localization [159]. The APOBEC3 members and AID target ssDNA. In contrast, APOBEC1, APOBEC2, and APOBEC4 are the only members of the cytidine deaminases to specifically target RNA. These enzymes work as homodimers or homotetramers, and their expression is tissue/organ specific: Small intestine (APOBEC1), heart and skeletal muscle (APOBEC2), or testes (APOBEC4) [159]. Although cytidine deaminases account for a minority of RNA editing events in the cell, mutations in several of these enzymes are associated with disease (Figure 5).
Adenosine deaminations to inosine (A-to-I editing), in contrast, account for the majority of RNA editing events in the cell. Inosine is interpreted by the cellular machinery as guanine, thus A-to-I RNA editing within mRNAs and ncRNAs (long ncRNA and miRNAs) increase the human RNA/protein landscape [160]. In pre-mRNAs, A-to-I editing can generate or destroy splice sites and alter codons, thus increasing proteome diversity. In addition, the modification of RNA transcripts at the 5′ and 3′ untranslated regions (UTRs) can alter translation and stability of the mRNA, respectively. Moreover, modifications of ncRNAs (miRNAs, long ncRNAs, snoRNAs, and scaRNAs) can alter their target specificity or function [160,161]. Recently, it has been reported that the A-to-I RNA editing frequency is massively increased from mouse to human [162]. In humans, most A-to-I RNA editing events (≥90%) occur within Alu inverted repeats, located preferentially in gene-rich regions. The majority of identified adenosine to inosine modifications in the cell have been linked to one of two families of adenosine deaminases: The ADAR family or the ADAT family. Ironically, both families consist of three members, with two members being active enzymes (ADAT-1 and -2; ADAR-1 and -2) and the third (ADAT3; ADAR3) demonstrated to be catalytically inactive.
The adenosine deaminase acting on tRNA (ADAT) family consists of ADAT1, ADAT2, and ADAT3 and is responsible for deamination within tRNAs, which represents a minor fraction of the A-to-I editing in the cell. The targets of ADAT1 and ADAT2 known to date are rather specific. ADAT1 specifically deaminates adenosine 37 in the anti-codon loop of tRNA-Ala. On the other hand, ADAT2 specifically deaminates adenosine 34 in a variety of tRNAs. To date, 7–8 different tRNAs containing I34 have been identified. ADAT3, which is highly homologous to ADAT2 over 120 amino acids of the deaminase motif, is believed to be catalytically inactive [163]. Editing of A-34-I is associated with the heterodimetric ADAT (hetADAT), which is composed of ADAT2/ADAT3; thus, ADAT3 regulates the activity of ADAT2. Cellular localization of the ADAT enzymes is strictly cytoplasmic [163,164]. The consequences of the modifications catalyzed by these enzymes have not been fully elucidated, but likely influence translation elongation under stress conditions, the possible use of altered initiation codons, premature termination of translation, or possibly allow codon slipping of the elongating ribosome to favor a shift in the reading frame [164,165,166]. The regulation of theses protein has not been thoroughly investigated (Figure 5).
In higher mammals, the most common type of RNA editing is mediated by the ADAR family within dsRNA regions of coding and non-coding primary transcripts. Like the ADATs, there are three highly conserved members of the ADAR family: ADAR1 (or DSRAD), ADAR2, and ADAR3. Both ADAR1 and ADAR2 are ubiquitously expressed (ADAR2 being most abundant in the brain), while ADAR3 expression is restricted to neural tissue, namely the brain [167]. Each of these enzymes contain dsRNA-binding domains (dsRBDs), three in ADAR1, and two in both ADAR2 and ADAR3, which allow them to bind/localize with their substrates, and a catalytic deaminase domain at the C-terminus. While ADAR1 and ADAR2 are active enzymes, ADAR3 is catalytically inactive [168]. Since these enzymes work as homo- or heterodimers, the presence of ADAR3 may serve to regulate ADAR1- and ADAR2-dependent editing or sequester substrates of ADAR1 and ADAR2. Unlike the ADAT deaminases, the localization of the ADARs is for the most part restricted to the nucleus, nucleoli, and nucleoplasm with the exception of ADAR1 [167]. Two main isoforms of ADAR1 are generated by alternate transcriptional initiation from exons 1A, 1B, or 1C. As exons 1B and 1C do not contain a start codon, translation of mRNAs beginning with these alternate exons initiates in exon 2, producing a protein of 103 kDa, known as ADAR1p110, which is mainly nuclear. In contrast, transcriptional initiation at exon 1A is strictly interferon-inducible, and, due to the presence of a translational start codon in exon 1A, the transcript produces a protein 295 amino acids longer (136 kDa), known as ADAR1p150, which can shuttle between the cytoplasm and nucleus [169,170]. On the other hand, two main forms of ADAR2 have been described, a result of alternative splicing, which are referred to as ADAR2 long (81 kDa) or the more enzymatically active ADAR2 short (ADAR2a; Δaa466-605; 77 kDa) [171].
Over the years, diverse targets of ADAR-mediated editing have been reported. Due to limited availability of high-throughput technology, many of the first RNA substrates identified were those in mRNAs that produce an identifiable change in the cDNA (as compared to the corresponding genomic sequences) and, in some cases, the amino acid sequence of the encoded protein. Advancements in technology and next generation sequencing have allowed for more large-scale analyses and identification of RNA editing sites within introns, Alu repeats, and non-coding RNAs, including many that play a role in ribosome biogenesis [168]. The function of many of these A-to-I modifications has not been examined. Of particular interest is the fact that while ADAR1p110 and ADAR2 are believed to localize to the nucleolus through interactions with the structural transcribed spacer regions of the rRNA, to date, in mammals, no known sites of A-to-I editing in rRNA have been reported [168,172]. The reason is likely two-fold: 1) rRNAs possess a very low adenosine content, thus limiting the available substrates for modification and 2) many current whole transcriptome studies use an rRNA depletion step to reduce background noise and non-specificity. In contrast, Eifler et al. reported that ADAR2 was able to modify the 25S rRNA as well as the splicing complex RNAs U1 snRNA and U2 snRNA in yeast [161]. Whether the ADARs directly modify rRNAs or not, their presence in the nucleolus and nucleoplasm likely has significant consequences on ribosome biogenesis through recruitment and/or modification of secondary proteins and RNAs necessary for rRNA synthesis and maturation.
As stated, little information exists on the regulation of these enzymes beyond their expression and the fact that multiple splice variants are reported. Multiple studies have identified post-translational modifications on numerous residues in ADAR1 and ADAR2 in vivo (https://www.phosphosite.org/proteinAction.action?id=10051&showAllSites=true and https://www.phosphosite.org/proteinAction.action?id=5859&showAllSites=true), and several recent publications have demonstrated the importance of phosphorylation to ADAR activity. Sakurai et al. demonstrated that stress-induced phosphorylation of ADAR1p110 in the disorganized region between dsRNA-binding domain III and the editase domain by the MKK6-p38-MSK MAPK pathway resulted in the association of Exportin-5 with ADAR1p110 and the export of ADAR1p110 from the nucleus to the cytosol, where it blocks Staufen 1-mediated decay, promoting apoptosis [173]. Likewise, Shelton et al. demonstrated that ADAR2 was phosphorylated at two sites between the dsRNA-binding domains, Ser211 and Ser216, by PKCξ. Phosphorylation at these sites was demonstrated to regulate ADAR2 RNA editing activity toward miR-200, and the subsequent secretion of this miRNA [174]. Bavelloni et al. recently reported that both ADAR1p110 and ADAR2 are substrates for the AKT kinase family. Inhibition AKT with either the allosteric inhibitor, MK2206, or the ATP binding site inhibitor, AZD5363, resulted in enhanced ADAR1- and ADAR2-dependent editing of known substrates in treated U-87MG cells. AKT1 was found to primarily phosphorylate S738 in ADAR1p110 and S553 in ADAR2, within the catalytic domain. Expression of either phosphomimic mutant, ADAR1p110-S738D or ADAR2-S553D, resulted in reduced ADAR1- and ADAR2-dependent editing [74]. A full analysis of the effects of this regulation on global ADAR-dependent editing is still needed. Thus, not only can downstream signaling of the PI3K-AKT pathway influence ribosome biogenesis through mTOR and p70 S6K, it potentially has a significant role in regulating global regulators of RNA metabolism/processing (Figure 5).
Additionally, ADAR1 has a strict relation with PKR in stress granules. Stress granules are cytoplasmic aggregates of stalled 40S ribosomal subunit-containing translation initiation complexes linked to eIF2α Ser51 phosphorylation and are a hallmark of negative-strand RNA virus infection. ADAR1p150 was shown to co-localize with PKR in stress granules in the cytoplasm and inhibit PKR activity. George et al. demonstrated that in cells lacking ADAR1 (ADAR1-/-), treatment with IFN lead to increased eIF2α Ser51 phosphorylation and PKR-dependent stress granule formation [175]. Interestingly, similar to other components of ribosome biogenesis, it has been shown that ADAR1 expression and editase activity are required for normal erythropoiesis, as cells deficient in ADAR1 undergo enhanced apoptosis. [176] In the nucleus, PKR is known to directly bind ADAR1p110, but the significance of this interaction has not yet been elucidated [39]. Seeing that PKR and AKT often play a tug-of-war, it is possible that nuclear PKR activity is also regulated by ADAR1 or that ADAR1p110 may represent a substrate for active nuclear PKR. Given the biological relevance of RNA editing in mammals, it has been postulated that its deregulation could be linked to a variety of human disorders.

8. Ribosome Biogenesis and Disease (Ribosomopathies)

Several pathologies have their etiology founded in altered ribosome biogenesis and result from both acquired as well as hereditary mutations. Interestingly, while hereditary germline alterations are present in every nucleated cell of the organism, the associated pathologies strictly affect tissues and cells that have a high demand for protein synthesis or proliferation/cell turnover. Almost all these pathologies exhibit a large hematological component and patients with ribosomopathies almost always present with hematopoietic abnormalities, due to bone marrow failure. Erythroid progenitors are particularly sensitive due to the high demand for globin synthesis and rapid cell turnover. Thus, it is no wonder a number of the ribosomopathies are also termed bone marrow failure disorders (BMFDs). Patients with ribosomopathies/BMFDs often have clinical signs of a chronic, overactive innate immune/inflammatory response with elevated levels of circulating inflammatory mediators, such as TNFα, IL-1α, and IFNγ, which suppress the growth of progenitors and stimulate apoptosis in the bone marrow and other hypersensitive tissues [2,177,178]. Interestingly, while ribosomopathies appear to have a pro-apoptotic effect on the affected tissues, individuals who suffer from these pathologies have an increased incidence of developing cancers. One hypothesis is linked to the association between chronic inflammation and cancer. Ribosomopathies may represent the classic case of a chronic inflammatory state affecting tissues with an elevated necessity for protein synthesis and cell turnover. Prolonged ribosomal stress, like chronic inflammation, may place a selective pressure on the affected cells. Progenitor cells that are able to escape this selective pressure and proliferate are cells that have, over time, acquired random gain of function mutations, leaving them with characteristics of cancer stem cells [2,56,179].

8.1. Acquired Ribosomopathies: 5q-Syndrome

As far as acquired ribosomopathies go, only one pathology currently stands-out, 5q- myelodysplastic syndrome (MDS; 5q- syndrome). Myelodysplastic syndromes are a heterogeneous group of hematological malignancies that result in cytopenias in one or more of the hematologic lineages, with or without cytogenetic abnormalities. De novo MDS typically occurs in later life (>60 years of age) and is, thus, considered an age-related disorder. In contrast, MDS can also arise from the progression of other hematological malignancies, including other BMFDs. Moreover, therapy-related MDS (tMDS) is known to occur in individuals previously treated with chemotherapeutic agents for diverse types of cancer [2,180].
MDS is categorized by the International Prognostic Scoring System (IPSS) as low, intermediate-1, intermediate-2, and high, based on the risk of the disease progressing to acute leukemia. In low-risk disease, there is a propensity for hematologic stem cells and progenitors to undergo apoptosis with few blasts observed in the peripheral blood. This is gradually replaced during disease progression from low- to high-risk, where there is hypercellularity of the bone marrow and the appearance of blasts in the periphery [2,180,181].
Diverse groups have demonstrated a role for stress/inflammatory signaling during progression of MDS to AML [56,134,182]. More recently, significant alterations in DNA methylation, chromatin modification, transcriptional regulation, DNA repair, signal transduction, sister chromatid cohesion and RNA splicing, and ribosome biogenesis associated genes have been observed. Certain mutations are specific to particular subtypes of myelodysplasia [2,148,183,184]. In the case of 5q- syndrome, a deletion of the long arm of chromosome 5, which encodes rps14, results in a haploinsufficiency of RPS14 [48]. Loss of RPS14 results in defective ribosome biogenesis and translation, the stimulation of p53 transcriptional activation, cell cycle arrest, and enhanced apoptosis especially in erythroid progenitors, resulting in anemia [185]. To date, 5q- syndrome is the only myelodysplastic disease to be labeled a ribosomopathy. This is not to say that other types of MDS or other acquired BMFDs might not, in fact, be ribosomopathies, but currently, data does not exist to conclusively suggest that these other acquired BMFDs result from an altered ribosome component.

8.2. Acquired Ribosomopathies (Potential): T-Cell Acute Lympoblastic Leukemia

A number of cancers that are not currently classified as ribosomopathies have been found to contain mutations in ribosomal proteins, which result in defective or altered ribosome synthesis; these include glioma, colorectal cancers, chronic lymphocytic leukemia (CLL), and T-cell acute lymphoblastic leukemia (T-ALL) [186]. In the case of T-ALL, mutations in RPL5, RPL10, and RPL11 have been identified, with mutations in RPL5 or RPL10 being found in about 10% of pediatric T-ALL patients [187]. One of the original driver mutations observed in T-ALL was that of the NOTCH1 receptor. Activating NOTCH1 mutations are present in more than 50% of T-ALL cases. Pioneering work by Palomero et al. identified the loss of PTEN function and subsequent PI3K-AKT-mTOR pathway activation as critical to mutant NOTCH1 effects [188]. Suppression of PTEN function has been demonstrated to occur by both genetic and non-genetic mechanisms. Anywhere from 11%–27% of pediatric T-ALL patients show deletions, insertion, or point mutations in the PTEN gene, accounting for reduced activity [189]. Reduced PTEN activity has also been linked to alternate splicing of PTEN mRNA, phosphorylation of PTEN by casein kinase 2 (CK2), and miRNA targeted decay of the transcript [189]. In addition, aberrant NOTCH1 activity results in the activation of the downstream transcription factor target, hairy and enhancer of split-1 (HES1), which suppress PTEN expression [188,189]. Thus, aberrant NOTCH1 signaling and PTEN suppression are critical to T-ALL clonality and maintenance. What remains elusive though is, do these alterations favor mutations in the observed ribosomal proteins or do mutations in the observed ribosomal proteins favor the alterations of NOTCH1 and PTEN. A case could be made for either.
It is evident in most ribosomopathies that defective ribosome biogenesis presents a selective pressure on the cell that over time leads to the development of a population of cells that have acquired the potential to overcome this obstacle, giving these cells a selective advantage. Two recent publications could make the argument that this is at play in T-ALL. Chronic inflammation is known to play a role in diverse metabolic pathologies. Villegas et al. found that the pro-inflammatory enzymes, nitric oxide synthase (NOS) and lipoxygenase (LOX), stimulated NOTCH-PI3K/AKT oncogenesis and that inhibition of these pro-inflammatory enzymes was able to suppress NOTCH-PI3K/AKT signaling, resulting in leukemic cell death [190]. These data link NOTCH-PI3K/AKT signaling directly to inflammation. Interestingly, while oncogenic transformation can induce inflammation, one of the definitive side-effects of altered ribosome biogenesis observed in ribosomopathies is a pro-inflammatory phenotype. Even more interesting was the finding by Grzes et al. that primary T-ALL cells have an increased capacity for leucine uptake and transport [191]. As stated previously, the uptake of leucine can stimulate mTORC1 activity at the lysosome, and treatment of patients with certain hereditary ribosomopathies with L-leucine is able to alleviate the pro-apoptotic phenotype and resulting anemia. Interestingly, the authors found that PTEN deletion alone could not result in L-leucine uptake; NOTCH1 signaling was required. NOTCH1 signaling resulted in enhance expression of the sodium-independent solute carrier family 7, member 5 transport protein, which is involved in leucine uptake and transport [191]. Thus, one might argue that alterations in ribosome biogenesis may favor NOTCH1 mutations. Data from Sulima et al. might also support this scenario [192]. Their data has demonstrated that the most common RPL10 mutation observed in pediatric T-ALL, Arg98Ser, can induce a ribosome deficiency that results in a hypoproliferative state. Over time, these ribo-deficient cells acquire the ability to produce sufficient ribosomes and proliferate normally. While these cells can proliferate normally in the long-run, they produce defective ribosomes that result in both genomic and mRNA transcript instability, alterations often observed in advanced cancers, including T-ALL [192].

8.3. Hereditary Ribosomopathies

Hereditary ribosomopathies include: Diamond–Blackfan anemia (DBA), Shwachman–Diamond syndrome (SDS), Dyskeratosis congenital (DC), and Treacher–Collins syndrome (TCS). All involve the presence of an inherited mutation in one particular gene (SDS, TCS) or one member of a set of genes involved in a common cellular process (DBA, DC), which is ultimately responsible for the observed disease phenotype [178]. In ribosomopathies, where a mutation in more than one gene can cause the same disease, the pattern of inheritance and the penetrance of the disease phenotype may vary greatly. The involvement of particular tissues also depends at what point ribosome biogenesis and/translation is affected [2,177].

8.4. Diamond–Blackfan Anemia (DBA)

Diamond–Blackfan Anemia (DBA) is a rare congenital bone marrow failure disorder often noted within the first year or two after birth. DBA is characterized by a profound anemia, with growth retardation, cranialfacial abnormalities, and defects in the heart and urinary system being observe in up to 50% of patients. Affected individuals have an increased incidence of developing MDS and AML, as well as some other forms of cancer [2,178,193]. DBA results from altered ribosomal RNA (rRNA) processing which, in turn, affects ribosome biogenesis of the 40S and 60S ribosomal subunits and alters mRNA processing/transport and translation; thus, having pleiotropic effects on cellular growth and survival [2,193].
DBA, to date, has been associated with diverse mutations in the following ribosomal proteins: RPS7, RPS10, RPS17, RPS19, RPS24, RPS26, RPS27, RPS29, RPL5, RPL11, RPL26, RPL27, RPL35A, and the deletion of RPL15. Other novel mutations have been reported in RPL3L, RPL6, RPL7L1T, RPL8, RPL13, RPL14, RPL18A, and RPL31. Approximately 50% of DBA patients contain mutations in RPS7, RPS10, RPS17, RPS19, RPS24, RPS26, RPS29, RPL5, RPL11, RPL26, RPL35A, or GATA. Of these, mutations in RPS19 alone account for ~25% of these patients [2,194]. The other 50% of cases have, as of yet, no identified causative mutation, but are almost assuredly mutations associated with pre-rRNA processing and ribosome assembly.
There is some evidence that altered ribosome biogenesis may induce an inflammatory component. In patients bearing a RPS19 deficiency, the levels of GATA1 were found to be reduced in the erythroid progenitor population while p53 and TNFα expression were increased in the non-erythroid progenitors [26,193]. Inhibition of TNFα in a zebrafish model of RPS19-deficiency was able to rescue the observed anemia, suggesting TNFα expression has a significant role in the observed phenotype [2,26]. Similarly, stimulation of protein translation through the use of supplemental leucine has been reported to rescue the observed anemia [48].

8.5. Shwachman–Diamond Syndrome (SDS)

Shwachman–Diamond syndrome is an autosomal recessive disorder which initially manifests as an exocrine pancreatic dysfunction, but then results in bone marrow failure and skeletal abnormalities. Approximately 20% of SDS patients will progress to MDS while another 25% will develop AML [2,178]. In almost all cases (~90%), patients carry a mutation in the Shwachman–Blackfan-Diamond syndrome (SBDS) gene. The gene encoding SBDS is located on chromosome 7q11 and is immediately adjacent to its pseudogene, SBDSP, which is 97% identical to SBDS but contains deletions and nucleotide changes that prevent the expression of a functional protein. Interestingly, it is a recombination with this pseudogene that results in SBDS mutations in 75% of patients [2,23]. The SBDS gene encodes a 250 amino acid (29 kDa) protein that contains no known structural domains. SBDS is expressed ubiquitously in tissues and is localized throughout the cell with a particular preference for the nucleolus where ribosome biogenesis occurs. Mouse knock-out models and the fact that a common early truncation mutation at nucleotide 183 (TA > CT) is observed only in individuals heterozygous for the defect, suggest that loss of SBDS is embryonic lethal [2,23].
As is the case for most bone marrow failure disorders, the number of CD34+ hematopoietic cells in the bone marrow is reduced, and these cells show a reduced proliferative and colony forming capacity when compared to normal CD34+ hematopoietic cells. In addition, elevated p53 expression and increased apoptosis are observed in the bone marrow of SDS patients [2,23].
SBDS associates with Nip7, a 60S ribosomal subunit assembly factor and eIF6 associated with the 60S ribosome. In the assembling 60S ribosomal subunit, eIF6 serves in the proper maturation of the subunit and to inhibit the premature assembly of the 40S and 60S subunits to form the 80S ribosome. Mutational rescue data suggest that SBDS serves to disassociate eIF6 from the 60S subunit once it reaches the cytoplasm. This occurs by the SDBS-dependent recruitment of the cytoplasmic GTPase EFL1 to the eIF6-60S subunit complex. EFL1 promotes the dissociation of eIF6 from the 60S subunit, allowing for 80S assembly [2,23,24]. Thus, during ribosome biogenesis, reduced expression of SBDS hampers the dissociation of eIF6. In addition to the 60S ribosomal subunit, SBDS has also been found in association with 28S rRNA and NPM1, so that, depending on the mutation in this gene, the observed phenotype may vary greatly [2,23]. SBDS has also been shown to associate with microtubules during mitosis. SBS patients often show increased incidence of mitotic abnormalities, with multi-polar spindles and centrosomal amplifications, but the general consensus is that disease-causing mutations in SBDS result in altered 60S ribosome biogenesis and an enhanced sensitivity to stress [2,23].

8.6. Dyskeratosis Congenita (DC)

Dyskeratosis congenital (DC) is a highly rare multi-system progressive bone marrow failure disorder that can either present an autosomal dominant, autosomal recessive, or X-linked inheritance pattern base or the causative mutation. Its penetrance can vary widely extending from barely detectible to severe as in the case of Hoyeraal Hreidarson syndrome [2,178,195]. Dyskeratosis presents with a triad of symptoms that include reticulated skin hyperpigmentation, nail dystrophy, and mucosal leukoplakia and results in premature death resulting from bone marrow failure, respiratory dysfunction, or malignancy.
While dyskeratin (DKC1), which encodes for a protein involved both in the small nucleolar ribonucleoprotein (H/ACA snoRNP) and in the telomere complexes, and whose mutation is responsible for the X-linked form of DC, is by far the better studied; other proteins involved in the H/ACA snoRNP complex (NOP10 and NHP2), the telomerase ribonucleoprotein complex shelterin (TINF2); TERT, the telomerase reverse transcriptase; TERC, which encodes the RNA component of TERT and whose mutation is responsible for the autosomal dominant form of DC; WRAP53, which delivers TERC to the telomerase as well as binds Cajal body RNAs (scaRNAs) and regulates p53 mRNA levels post-transcriptionally; RTEL1, which is involved in telomere elongation; and CTC1, a subunit of the CTC complex which terminates TERT activity and recruits DNA polymerase for complement strand synthesis, are also implicated [2,178,195]. All these proteins are involved in telomere maintenance, while several are also directly involved in small ribonuclear RNA processing, resulting in pseudouridylation of the snRNAs. Consensus seems to hold that the underlying cause of DC is the effect these mutations have on the telomeres and not the ribosomal effects per se. Although it should be stated that the transcription of the rDNA genes is closely related to genome stability, alterations in the telomerase complex would be expected to suppress rRNA transcription, while alterations in the H/ACA snoRNPs would be expected to influence rRNA processing [2,196,197]. As might be expected, tissues with the greatest proliferative/turnover rates are the most affected by DC.

8.7. Treacher–Collins Syndrome (TCS)

Treacher–Collins syndrome is an autosomal dominant disorder arising from an alteration in the tcof1 gene, which encodes the Treacle protein. A deletion of 5 bps in exon 24 accounts for about 20% of the cases. Individuals have midface hypoplasia, an underdeveloped outer ear structure, inner ear abnormalities, and developmental brain defects. Treacle co-localizes with UBF and RNA pol I to stimulate the transcription of the 47S pre-rRNA. Mouse models of TCS have demonstrated the upregulation of p53 and pronounced apoptosis of neural crest cells [177].

9. Conclusions

The cell has gone to great lengths to place multiple checks or ribosome biogenesis and translation initiation to avoid useless energy expenditure under unfavorable conditions (both intracellular and extracellular). Technological advances in next-generation sequencing and cryo-EM have begun to open the door on many aspects of ribosome biogenesis. Studies have demonstrated the order of RP incorporation into the maturing ribosome subunits and where in the cell these events take place. DNA/RNA sequencing studies have also begun to identify mutations in the many proteins, mRNAs, and ncRNAs related to ribosome biogenesis and translation initiation that are associated with ribosomopathies. It is well evident that the notion of one kinase phosphorylating one substrate to regulate a particular process is past. Omics technologies have revealed a variety of modifications that take place on the same protein, ranging from sumoylations, ubiquitinations, acetylations, and the most wide-spread post-translational modification, phosphorylation. Certainly, some of these modifications are determinant in the activity of the protein, and many key modifications are already known; but, the purpose/function of the majority of these modifications and their consequences are unknown. This is no more evident than in the processes of ribosome biogenesis and translation initiation. While research to date has given a basic understanding of the processes, omics technology has revealed how complex the regulation of these processes really is. The combination of modifications and the possible outcomes is infinite along with the possibility of disease-causing alterations. The evolutionary relevance of these modifications allows the cell the possibility to respond to an infinite number of environmental stresses, much the same as the immune system is designed to recognize an infinite number of antigens. This review has touched upon two key regulation pathways, PI3K-AKT-mTORC1 and PKR in ribosome biogenesis and translation, and how these pathways interact with transcription factors (MYC and p53) and splicing/RNA editing enzymes. From the data, it is evident that our knowledge of both these pathways is only touching the tip of the iceberg. Combining the information gleaned from omics studies with biochemical/molecular studies to identify the function of these modifications will be paramount to our complete understanding of these processes and the future development of therapies to a variety of diseases, many with causes that at the present remain unknown.

Author Contributions

M.P. designed the figures. W.L.B. wrote the manuscript. M.P., A.B., A.G., and I.F. checked and critiqued the manuscript.

Funding

This work was supported by grants from the Leukemia Research Foundation (to WLB), the Associazione Italiana per la Ricerca sul Cancro (AIRC-IG2015; Grant Numbers: 17137 and 22080) (to WLB and AG, respectively), Fondazione Neri (to AG), and the Del Monte Foundation (to IF).

Conflicts of Interest

The authors declare not conflict of interest.
