Article

Electrochemical Detection of Dopamine at a Gold Electrode Modified with a Polypyrrole–Mesoporous Silica Molecular Sieves (MCM-48) Film

by
Izabela Zablocka
,
Monika Wysocka-Zolopa
and
Krzysztof Winkler
*
Institute of Chemistry, University of Bialystok, Ciolkowskiego 1K, 15-245 Bialystok, Poland
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2019, 20(1), 111; https://doi.org/10.3390/ijms20010111
Submission received: 23 November 2018 / Revised: 13 December 2018 / Accepted: 20 December 2018 / Published: 29 December 2018
(This article belongs to the Special Issue Mesoporous Materials: From Synthesis to Applications)
Browse Figures
Review Reports Versions Notes

Abstract

:
A gold electrode modified with a polypyrrole–mesoporous silica molecular sieves (polypyrrole—MCM-48) nanostructure film was used for the electrochemical determination of small concentrations of dopamine (DA) by cyclic voltammetry and square-wave voltammetry techniques. This electrode showed good electrocatalytic activity for the oxidation of dopamine. The oxidation potential of dopamine was decreased significantly compared with that obtained at the bare gold electrode. The observed linear range for the determination of the dopamine concentration, without interferents through cyclic voltammetry measurements, was from 10 μM to 1.2 mM (R2 = 0.9989) for the gold electrode modified with the polypyrrole—MCM-48 nanostructure, with a detection limit of 2.5 μM. In the case of square-wave voltammetry, the linear range was 2–250 μM, with a correlation coefficient of 0.9996, and the detection limit was estimated to be 0.7 μM. The effects of interferents, such as ascorbic acid (AA) and uric acid (UA), on the electrochemical detection of dopamine were also examined. The modified electrode can successfully separate the oxidation potentials for ascorbic acid and dopamine, shifting the oxidation peak potential of ascorbic acid to a more positive potential, and significantly decreasing the peak current. The presence of ascorbic acid increased the sensitivity of dopamine determination at the modified electrode, and the detection limit was estimated to be 0.5 μM with 0.1 mM ascorbic acid to imitate physiological solutions. Additionally, studies showed that the presence of uric acid does not affect the electrochemical detection of dopamine. The modified electrode can be successfully applied for the quantitative analysis of dopamine both with and without interferents.

1. Introduction

Dopamine is one of the most important neurotransmitters in the central nervous, renal, and hormonal systems, as well as in drug addiction and Parkinson’s disease [1,2]. Dopamine usually exists in blood serum. Therefore, the determination of the concentration of this neurochemical is important. Dopamine is a type of catecholamine that can be detected electrochemically upon its oxidation on an electrode surface [3]. This electrochemical method has been widely used as a direct measurement technique for dopamine because it has several advantages, such as small dimensions, a fast response, high accuracy, and easy operation. The main problem with electrochemical detection is the interference due to ascorbic acid and uric acid, because they have similar oxidation potentials, close to that of dopamine on the bare working electrode [4]. However, various approaches have been applied to overcome these difficulties. As is well known, modified electrodes may offer higher selectivity, sensitivity, and stability than the bare electrodes. Therefore, several modifier materials such as polymers [5,6,7,8,9,10,11,12], metal nanoparticle arrays [13,14,15,16,17,18], carbon materials [19,20,21,22,23,24], and metal oxides [25,26,27,28] have been used to overcome the problem of interference. For example, Oshaka and co-workers studied the voltammetric behavior of dopamine in the presence of ascorbic acid at an electropolymerized film of N,N-dimethylaniline, coated on a glassy carbon electrode [7]. This electrode showed a stable response without fouling of the electrode surface by the adsorption of the oxidized product of ascorbic acid. Graphene was also used for the electrochemical determination of dopamine [21,22]. It can be used as material for the selective detection of dopamine because ascorbic acid is completely eliminated under these conditions. The voltammetric separation of dopamine and ascorbic acid occurred when a graphite electrode was modified with ultrafine TiO2 powder [27]. Ramanavicius and co-workers reported that modification of glassy carbon electrodes with copper nanoparticlesallows for dopamine determination in the presence of ascorbic acid, uric acid, and p-acetamidophenol [13]. They observed very high sensitivity of dopamine determination at such an electrode.
Recently, conductive polymers and their composites have been used to modify electrodes to detect dopamine [29,30,31,32,33,34,35,36,37]. Polypyrrole is one of the most important conducting polymers, and it has been an extensively studied material during the last decade because it can be used in a neutral pH region and its stable film can be easily deposited, both chemically and electrochemically, in the form of various structures onto a variety of substrate materials [38,39,40,41]. The formation of the polypyrrole film and nanocomposites with polypyrrole is extremely attractive in the field of electrochemical sensors because these materials increase the surface area of the electrode, enhance conductivity, and facilitate electron transfer [42,43,44,45].
MCM-48 is a cubic form of mesoporous silica molecular sieves with a three-dimensional pore structure. Such a system exhibits high specific surface area, large pore volume, and high thermal stability [46,47,48]. These materials can be combined with conducting polymers to form composites. In the porous silica templates, conducting polymers are deposited in the pores as tubular or fibrous structures.
In this paper, we report the electrochemical behavior of dopamine at the surface of a polypyrrole—MCM-48 nanostructure-modified Au electrode, both in the presence and absence of ascorbic acid and/or uric acid. The modified electrode shows electrochemical activity for the oxidation of dopamine. The nature of the polypyrrole film is also very important and affects the determination of dopamine. In addition, we discuss the suitability of these modified electrodes in the voltammetric determination of dopamine in a phosphate buffer solution.

2. Results and Discussion

2.1. Formation and Electrochemical Properties of the Modified Electrodes

The polypyrrole—MCM-48 nanocomposite powder was dispersed by sonication in dichloromethane solution to form a homogenous mixture. Ten microliters of a 1.5 mg/mL mixture was dropped onto the surface of the Au electrode, and the solvent was evaporated. The morphology of the gold electrode surface modified with polypyrrole—MCM-48 nanocomposite is shown in Figure 1. The composite films formed a uniform layer composed of spherical particles of silica. This modified electrode was characterized by cyclic voltammetric measurements. Figure 2 shows the voltammetric behavior of a thin film of the polypyrrole—MCM-48 composite in the 0.1 M phosphate buffer solution. In this case, the material was electrochemically active at positive potentials due to polypyrrole oxidation. This composite exhibited electrochemical reversibility with one oxidation (O1) peak and one reduction (R1) peak. The morphology of the polypyrrole—MCM-48 composite is shown in the inset of Figure 2.

2.2. Voltammetric Behaviors of Dopamine at the Bare Gold Electrode

The cyclic voltammograms obtained for dopamine oxidation at the bare gold electrode in 0.1 M of phosphate buffer solution are shown in Figure 3. The electrochemical oxidation of dopamine in aqueous solution goes through three steps according to the ECE mechanism presented in Scheme 1, where E and C indicate the electrochemical and chemical steps, respectively [49,50]. In the first scan (Figure 3, curve 1) dopamine is oxidized to dopaquinone (peak a1), and next, it is reduced in part to dopamine (peak b1). Part of dopaquinone undergoes a cyclization reaction to form leucodopaminechrome, which is immediately oxidized to dopaminechrome, and next, this dopaminechrome is reduced back to form leucodopaminechrome (peak b2). Therefore, in the second scan (Figure 3, curve 2) an a2 peak appears, corresponding to the oxidation of leucodopaminechrome to dopaminechrome, while the dopamine oxidation peak, a1, decreases at the expense of the peak pair, a2 and b2.

2.3. Electrochemical Detection of Dopamine at the Gold Electrode Modified with the Polypyrrole—MCM-48 Nanocomposite

In the case of the polypyrrole—MCM-48-modified electrode, the analyte has to enter the pores of the mesoporous material before electrochemical measurements. Therefore, the effect of the time of preconcentration was examined. Figure 4 shows the cyclic voltammograms recorded for different preconcentration times at the electrode modified with the polypyrrole—MCM-48 nanocomposite in the phosphate buffer solution containing dopamine. The mediated oxidation peak current of dopamine depends on the preconcentration time. Namely, the oxidation peak current rapidly increases with prolonging the preconcentration time of the modified electrode, from one to 10 min in solution, and then, it reaches an almost constant value for a longer time. The optimum current was obtained for a preconcentration time of 10 min (curve 5 in Figure 4). Therefore, for all practical measurements, 10 min of preconcentration time was found to be sufficient for the determination of dopamine.
The influence of the pH of the solution on dopamine oxidation was studied by cyclic voltammetry in the presence of 0.1 mM of dopamine in an aqueous buffer solution, with increasing pH values, from 4.2 to 9.0. The potential of the anodic peak shifted in the negative direction as the pH increased. The linear dependence on pH, with a slope of −0.056 V/pH, indicates that the oxidation of dopamine at the polypyrrole—MCM-48 nanocomposite-modified electrode had been inferred to be a double electron transfer reaction. It was also observed that both the oxidation and reduction peak currents obtained maximum values at a pH of 7.4. Considering the physiological environment, a phosphate buffer solution at a pH of 7.4 was chosen as the supporting electrolyte for the experiments.
Figure 5 presents the cyclic voltammograms recorded at the gold electrode modified with the polypyrrole—MCM-48 nanocomposite (Figure 5a, curve 2) and, for comparison, on the bare gold electrode (Figure 5a, curve 1) in 0.1 M of phosphate buffer solution containing 1 mM of dopamine. Under these conditions, the potential of the polypyrrole oxidation peak corresponds to the potential for the oxidation of dopamine. This observation demonstrates that the polypyrrole—MCM-48 nanocomposite has high electrocatalytic activity towards the oxidation of dopamine. This peak current increased almost three-fold compared with the bare gold electrode. The increase in the sensitivity of the analytical determination of dopamine is a clear indication of the enlargement of the active surface area of the electrode modified by the polypyrrole—MCM-48 nanocomposite. The effect of the sweep rate on the anodic peak current of dopamine was also studied. As the sweep rate increased, the oxidation peak current (Ipa) also increased (Figure 5b). The oxidation peak current was directly proportional to the sweep rate over the range of 0.01–0.2 V s−1 (inset of Figure 5b). The results showed that the polypyrrole—MCM-48 film was stable and electrochemically active in the phosphate buffer solution, showing a typical surface adsorption behavior.
The influence of the concentration of dopamine at the gold electrode modified with the polypyrrole—MCM-48 nanocomposite in 0.1 M of phosphate buffer solution, using cyclic voltammetry and square-wave voltammetry, is shown in Figure 6 and Figure 7, respectively. These results show that the peak currents of dopamine oxidation and reduction increased with the increase of the dopamine concentration. The dependence of the anodic peak current on the concentration of dopamine for cyclic voltammetry and square-wave voltammetry is shown in Figure 8. In the case of cyclic voltammetry, a linear relationship for the dopamine concentration is observed in the range of 10 μM to 1.2 mM (inset of Figure 8a), and the linear regression equation is y = 9.7984x + 0.6143, with a R2 = 0.9989. The limit of detection (LOD) of dopamine determination was calculated from the following relationship [51]:
LOD = 3s/m
where s is the standard deviation of the peak current of the blank signal and m is the slope of the calibration plot. The LOD was found to be 2.5 μM. The plot of the peak current as a function of the concentration for square-wave voltammetry gave a linear line in the range from 2 μM to 0.25 mM (inset of Figure 8b), and the linear regression equation was y = 0.0058x + 0.0383, with R2 = 0.9996. The limit of detection was determined to be 0.7 μM. Thus, the prepared electrode allows for the sensitive determination of dopamine in a relatively large concentration range. The comparison of the results for the determination of dopamine using different polypyrrole composite-modified electrodes is summarized in Table 1. For the method based on the square-wave voltammetry, the linear peak current, concentration range, and detection limit were comparable or better in comparison to the electrochemical procedures of dopamine determination at the electrodes modified with polypyrrole-containing composites presented in the literature. Only Qian and co-workers reported better sensitivity of dopamine determination at an electrode modified with core-shell microspheres of polypyrrole and reduced graphite oxide [32]. The gold electrode modified with polypyrrole—MCM-48 nanocomposite shows comparable analytical performance of dopamine determination to electrodes modified with carbon nanomaterials [20] and metallic nanoparticles [14,15,16,17,18].

2.4. Interference by Ascorbic Acid and Uric Acid

An important property of the composite that is useful for the evaluation of high-performance sensors is its selectivity, which is a measurement of the ability to reject major interferents, such as ascorbic acid and uric acid. These compounds are presented in physiological solutions at concentrations of 0.1 mM for ascorbic acid and 0.05 mM for uric acid [57,58]. Additionally, the basal dopamine concentration is very low (0.01–1 μM), and thus, the concentration of ascorbic acid is generally much higher [58].
The cyclic voltammetric responses of dopamine, uric acid, and ascorbic acid recorded in 0.1 M of phosphate buffer solution at the bare gold electrode and the polypyrrole—MCM-48-modified gold electrode are shown in Figure 9. At the bare electrode (Figure 9a), dopamine and ascorbic acid showed oxidation peaks at approximately 0.25 and 0.3 V, respectively. As expected, it was very difficult to distinguish between them because their oxidation peak potentials were very close. However, uric acid showed irreversible oxidation peaks at approximately 0.5 V. Under these conditions, the oxidation peaks of dopamine and uric acid were very well separated, and the peaks of ascorbic acid and dopamine were not separated.
In the case of the gold electrode modified with the polypyrrole—MCM-48 (Figure 9b), the potentials of dopamine and uric acid oxidation were very similar to those observed at the bare gold electrode. However, the oxidation potential of ascorbic acid was shifted to more a positive potential, by 200 mV, in comparison to the gold electrode. The shift in the peak potential was due to a kinetic effect [59]. Therefore, both uric acid and ascorbic should not disturb the detection of dopamine, as the oxidation peak for ascorbic acid shifted significantly toward a more positive potential, thus separating it from the oxidative peak of dopamine. Furthermore, the peak current of dopamine increased almost three-fold, but the peak current of ascorbic acid decreased almost five-fold compared to those on the bare electrode. The repulsion of negatively-charged ascorbic acid from the electrode due to the negatively-charged layer of nanocomposite was responsible for shifting its electrochemical oxidation to a more positive potential. The modified electrode could also inhibit the redox current of ascorbic acid, significantly reducing the current response. As the difference in the oxidation peak potentials for ascorbic acid and dopamine at the modified electrode was approximately 0.2 V, it can be expected that this electrode could separate the oxidation of dopamine and ascorbic acid, coexisting in the same solution, well.

2.5. The Influence of Ascorbic Acid or Uric Acid on the Determination of Dopamine

The influence of ascorbic acid and uric acid on the determination of dopamine was examined using both cyclic and square-wave voltammetry. Figure 10 presents the effect of the ascorbic acid concentration on the process of dopamine oxidation at the gold electrode modified with the polypyrrole—MCM-48. Ascorbic acid influences the dopamine oxidation process only when the concentration of ascorbic acid is 40 times higher than the concentration of dopamine. The fact that the concentration of ascorbic acid is one order of magnitude higher than dopamine, in the biological environment, results in high selectivity for the detection of dopamine at this modified electrode. When this ratio of the ascorbic acid to dopamine concentration was smaller, only the anodic peak for the oxidation of dopamine was observed, but the presence of ascorbic acid increased the sensitivity of dopamine determination. The detection limit for dopamine using square-wave voltammetry was 0.5 μM, in a solution containing 0.1 mM of ascorbic acid to imitate physiological solution, while without ascorbic acid, the limit of detection was 0.7 μM. The fact that the coexistence of ascorbic acid in the measurement solution notably enhanced the current signal for dopamine oxidation is probably due to ascorbic acid’s ability to reduce dopaquinone to dopamine, thus amplifying the oxidation current of dopamine at the surface electrode. This effect results in the improvement of the sensitivity of dopamine determination [60].
The electrooxidation of dopamine in the presence of uric acid under similar conditions was also studied. Typical cyclic and square-wave voltammograms are shown in Figure 11. The oxidation peaks were obtained at approximately 0.17 V for dopamine and 0.55 V for uric acid using the electrode modified with the polypyrrole—MCM-48. As can be seen for the mixture of dopamine and uric acid, the oxidation peak for dopamine was shifted towards a more negative potential than in the solution containing only dopamine. Therefore, better peak separation was observed. At the electrode modified with polypyrrole—MCM-48, the presence of uric acid did not affect the electrochemical detection of dopamine.

2.6. Simultaneous Detection of Dopamine, Ascorbic Acid, and Uric Acid

The simultaneous determination of the mixture of dopamine, ascorbic acid, and uric acids at the bare gold electrode and modified electrode were studied by cyclic voltammetry. Figure 12 shows the cyclic voltammetry responses for the solution containing relatively high concentrations of ascorbic acid, uric acid, and dopamine, recorded at the bare electrode and the electrode modified with the polypyrrole—MCM-48 nanocomposite. Voltammograms recorded at the bare electrode showed two peaks (curve 1 in Figure 12). The oxidation peaks of dopamine and ascorbic acid completely overlapped at 0.4 V, making the simultaneous determination of these compounds impossible. The oxidation peak of uric acid appearred at about 0.55 V. Curve 2 in Figure 12 was obtained in the mixture of dopamine and a high concentration of ascorbic acid at the modified electrode with polypyrrole—MCM-48 film. Cyclic voltammograms recorded in the solution containing a mixture of dopamine, ascorbic acid, and uric acid at the modified electrode are shown on the curves 3, 4, and 5 in Figure 12, for the same concentration of dopamine and ascorbic acid, and three different concentration of uric acid. In this case, the oxidation currents of ascorbic and uric acids overlapped, leading to the formation of a large oxidation peak current at 0.55 V. The peak of dopamine oxidation was separated from the peak current corresponding to ascorbic acid and uric acid oxidation, by ca. 250 mV, and appeared at 0.30 V on the cyclic voltammograms. A slight shift of dopamine oxidation peak potential, toward more positive values, was observed with the increase of uric acid concentration in the solution.

3. Conclusions

The electrochemical behavior of the polypyrrole—MCM-48 nanocomposite was studied in the presence of dopamine, both without and with interferents such as ascorbic acid and uric acid. The experimental results show that the oxidation of dopamine is catalyzed at the surface of the modified gold electrode. These materials have been also used to compare their abilities to detect small concentrations of dopamine, both without and with interferents. The larger oxidation peak separations, between dopamine, ascorbic acid, and uric acid, on the modified gold electrode make it suitable for the determination of dopamine in the presence interferents. The modified electrode showed good selectivity and high sensitivity, even in the presence of interferents.

4. Experimental Section

4.1. Materials

Dopamine, ascorbic acid, and uric acid were purchased from Aldrich and were used as received. The 0.1 M phosphate buffer solution with a pH of 7.4 was prepared with KH2PO4 and Na2HPO4. Freshly prepared solutions of dopamine were used in all experiments. Pyrrole and FeCl3 were used as received from Aldrich Inc. The n-hexadecyltrimethylammonium bromide template, tetraethyl orthosilicate, aqueous ammonia, and ethanol were used as received from the Aldrich Chemical Co. These were used for the synthesis of MCM-48 spheres. Pure deionized water, with a resistivity of 18.2 MΩ cm, was obtained from a Milli-Q Millipore system.

4.2. Instrumentation

Voltammetric experiments were performed on an AUTOLAB Model 283 Potentiostat/Galvanostat (EG&G Princeton Applied Research, Oak Ridge, TN, USA) with a three-electrode cell. The AUTOLAB system was controlled with GPES 4.9 software by the same manufacturer. A gold disk electrode with a diameter of 1.5 mm (Bioanalytical Systems Inc., West Lafayette, IN, USA) was used as the working electrode. Prior to each experiment, the electrode was washed with acetone and dried. An Ag/AgCl/saturated KCl electrode was used as the reference electrode. The counter electrode was a platinum tab with an area of approximately 0.5 cm2.
Scanning electron microscopy (SEM) images were obtained using an Inspect S50 microscope (FEI Company, Hillsboro, OR, USA). The accelerating voltage of the electron beam was either 20 or 25 kV and the average working distance was 10 mm.
Transmission electron microscopy (TEM) images were recorded with a FEI Tecnai TF20 (Thermo Fisher Scientific, Waltham, MA, USA) instrument using an accelerating voltage of 200 kV. The films for the TEM studies were prepared by constant potential electrodeposition on a gold grid with a diameter of 3 mm (300 square mesh).

4.3. Preparation of the Polypyrrole—MCM-48 Nanocomposite

The mesoporous silica MCM-48 was synthesized according to the procedure proposed by Schumacher et al. [46]. This synthesis leads to the formation of spherical particles with diameters in the range of 400 to 800 nm. Polypyrrole was deposited in the mesopores of the MCM-48 host by pyrrole wetting due to the capillary effect, followed by chemical polymerization in the presence of FeCl3 [47]. For this purpose, first MCM-48 and 0.1 M pyrrole were added to a solution of dichloromethane and stirred for 2 h at room temperature. After this time, the precipitate was washed with pure dichloromethane 4 times to remove the pyrrole from the surface of the silica and dried at room temperature. In this manner, pyrrole-filled mesopores of MCM-48 were obtained. Next, this product was dissolved in deionized water, and FeCl3 was added and stirred for 2 h at room temperature. The composite of polypyrrole@MCM-48 was washed with pure water and methanol 4 times and dried at 80 °C. The color of the silica changed from white for pure MCM-48 to beige for the composite. Morphological parameters of these materials were obtained by nitrogen sorption measurements [47]. Both samples, pure MCM-48 and polypyrrole@MCM-48 composite, showed a BET surface of 1520 m g−1 and 1270 m g−1, respectively. The incorporation of polypyrrole into the pores of MCM-48 resulted in a decrease in the average pore diameter, from 3.2 nm for MCM-48 to 2.7 nm for the composite. These changes in the pore diameter corresponded to changes in the pore volume, from 0.74 to 0.70 cm3 g−1, respectively. The small changes of pore volume indicated that polymer only partially fills the MCM-48 pores. Namely, this polymer is deposited only on the walls of mesopores [47].

Author Contributions

Conceptualization, K.W.; Methodology, K.W., M.W.-Z.; Investigation, I.Z., M.W.-Z.; Formal Analysis, I.Z.; Writing-Original Draft Preparation, M.W.-Z., I.Z.; Writing-Review & Editing, K.W.; Visualization, I.Z.; Supervision, K.W.; Project Administration, K.W.; Funding Acquisition, K.W.

Funding

This research was funded by Polish National Center of Science grant number 2016/21/B/ST5/02496 to K.W.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sarkar, C.; Basu, B.; Chakroborty, D.; Dasgupta, P.S.; Basu, S. The immunoregulatory role of dopamine: An update. Brain Behav. Immun. 2010, 24, 525–528. [Google Scholar] [CrossRef] [Green Version]
  2. Stocchi, F. The therapeutic concept of continuous dopaminergic stimulation (CDS) in the treatment of Parkinson’s disease. Parkinsonism Relat. Disord. 2009, 15, 68–71. [Google Scholar] [CrossRef]
  3. Adams, R.N. Probing Brain chemistry with Electrosnslytical. Anal. Chem. 1976, 48, 1130A–1138A. [Google Scholar] [CrossRef]
  4. Raj, C.R.; Tokuda, K.; Ohsaka, T. Electroanalytical applications of cationic self-assembled monolayers: Square-wave voltammetric determination of dopamine and ascorbate. Bioelectrochemistry 2001, 53, 183–191. [Google Scholar] [CrossRef]
  5. Fabregat, G.; Cordova-Mattteo, E.; Armelin, E.; Bertran, O.; Aleman, C. Ultrathin films of polypyrrole derivatives for dopamine detection. J. Phys. Chem. 2011, 115, 14933–14941. [Google Scholar] [CrossRef]
  6. Jiang, L.; Xie, Q.; Li, Z.; Li, Y.; Yao, S. A study on tannic acid-doped polypyrrole films on gold electrodes for selective electrochemical detection of dopamine. Sensor 2005, 5, 199–208. [Google Scholar] [CrossRef]
  7. Roy, P.R.; Okajima, T.; Ohsaka, T. Simultaneous electroanalysis of dopamine and ascorbic acid using poly (N,N-dimethylaniline)-modified electrodes. Bioelectrochemistry 2003, 59, 11–19. [Google Scholar] [CrossRef]
  8. Jin, G.; Zhang, Y.; Cheng, W. Poly(p-aminobenzene sulfonic acid)-modified glassy carbon electrode for simultaneous detection of dopamine and ascorbic acid. Sens. Actuators B 2005, 107, 528–534. [Google Scholar] [CrossRef]
  9. Ates, M.; Castillo, J.; Sarac, A.S.; Schuhmann, W. Carbon fiber microelectrodes electrocoated with polycarbazole and poly(carbazole-co-p-tolylsulfonyl pyrrole) films for the detection of dopamine in presence of ascorbic acid. Microchim. Acta 2008, 160, 247–251. [Google Scholar] [CrossRef]
  10. Fabre, B.; Taillebois, L. Poly(aniline boronic acid)-based conductimetric sensor of dopamine. Chem. Commun. 2003, 2982–2983. [Google Scholar] [CrossRef]
  11. Lin, X.; Zhang, Y.; Chen, W.; Wu, P. Electrocatalytic oxidation and determination of dopamine in the presence of ascorbic acid and uric acid at a poly(p-nitrobenzenazoresorcinol) modified glassy carbon electrode. Sens. Actuators B 2007, 122, 309–314. [Google Scholar] [CrossRef]
  12. Kalimuthu, P.; John, S.A. Electropolymerized film of functionalized thiadiazole on glassy carbon electrode for the simultaneous determination of ascorbic acid, dopamine and uric acid. Bioelectrochemistry 2009, 77, 13–18. [Google Scholar] [CrossRef] [PubMed]
  13. Oztekin, Y.; Tok, M.; Bilici, E.; Mikoliunaite, L.; Yazicigil, Z.; Ramanaviciena, A.; Ramanavicius, A. Copper nanoparticle modified carbon electrode for determination of dopamine. Electrochim. Acta 2012, 76, 201–207. [Google Scholar] [CrossRef]
  14. Tashkhourian, J.; Nezhad, M.R.H.; Khodavesi, J.; Javadi, S. Silver nanoparticles modified carbon nanotube paste electrode for simultaneous determination of dopamine and ascorbic acid. J. Electroanal. Chem. 2009, 633, 85–91. [Google Scholar] [CrossRef]
  15. Li, J.; Yang, J.; Yang, Z.; Li, Y.; Yu, S.; Xu, Q.; Hu, X. Graphene–Au nanoparticles nanocomposite film for selective electrochemical determination of dopamine. Anal. Methods 2012, 4, 1725–1728. [Google Scholar] [CrossRef]
  16. Huang, J.; Liu, Y.; Hou, H.; You, T. Simultaneous electrochemical determination of dopamine, uric acid and ascorbic acid using palladium nanoparticle-loaded carbon nanofibers modified electrode. Biosens. Bioelectron. 2008, 24, 632–637. [Google Scholar] [CrossRef] [PubMed]
  17. Yau, J.; Liu, S.; Zhang, Z.; He, G.; Zhou, P.; Liang, H.; Tian, L.; Zhou, X.; Jiang, H. Simultaneous electrochemical detection of ascorbic acid, dopamine and uric acid based on graphene anchored with Pd–Pt nanoparticles. Colloids Surf. B Biointerfaces 2013, 111, 392–397. [Google Scholar]
  18. Li, L.; Liu, H.; Shen, Y.; Zhang, J.; Zhu, J.J. Electrogenerated chemiluminescence of Au nanoclusters for the detection of dopamine. Anal. Chem. 2011, 83, 661–665. [Google Scholar] [CrossRef]
  19. Goyal, R.N.; Gupta, V.K.; Bachhetin, N.; Sharma, R.A. Electrochemical sensor for the determination of dopamine in presence of high concentration of ascorbic acid using a fullerene-C60 coated gold electrode. Electroanalysis 2008, 20, 757–764. [Google Scholar] [CrossRef]
  20. Wang, Z.; Liu, J.; Liang, Q.; Wang, Y.; Luo, G. Carbon nanotube-modified electrodes for the simultaneous determination of dopamine and ascorbic acid. Analyst 2002, 127, 653–658. [Google Scholar] [CrossRef]
  21. Wang, Y.; Li, Y.; Tang, L.; Lu, J.; Li, J. Application of graphene-modified electrode for selective detection of dopamine. Electrochem. Commun. 2009, 11, 889–892. [Google Scholar] [CrossRef]
  22. Kim, Y.R.; Bong, S.; Kang, Y.J.; Yang, Y.; Mahajan, R.K.; Kim, J.S.; Kim, H. Electrochemical detection of dopamine in the presence of ascorbic acid using graphene modified electrodes. Biosens. Bioelectron. 2010, 25, 2366–2369. [Google Scholar] [CrossRef] [PubMed]
  23. Zhao, Y.; Gao, Y.; Zhan, D.; Liu, H.; Zhao, Q.; Kou, Y.; Shao, Y.; Li, M.; Zhuang, Q.; Zhu, Z. Selective detection of dopamine in the presence of ascorbic acid and uric acid by a carbon nanotubes-ionic liquid gel modified electrode. Talanta 2005, 66, 51–57. [Google Scholar] [CrossRef] [PubMed]
  24. Wang, Z.; Liang, Q.; Wang, Y.; Luo, G. Carbon nanotube-intercalated graphite electrodes for simultaneous determination of dopamine and serotonin in the presence of ascorbic acid. J. Electroanal. Chem. 2003, 540, 129–134. [Google Scholar] [CrossRef]
  25. Reddy, S.; Swamy, B.E.K.; Jayadevappa, H. CuO nanoparticle sensor for the electrochemical determination of dopamine. Electrochim. Acta 2012, 61, 78–86. [Google Scholar] [CrossRef]
  26. Reddy, S.; Swamy, B.E.K.; Chandra, U.; Sherigara, B.S.; Jayadevappa, H. Synthesis of CdO nanoparticles and their modified carbon paste electrode for determination of dopamine and ascorbic acid by using cyclic voltammetry. Int. J. Electrochem. Sci. 2010, 5, 10–17. [Google Scholar]
  27. Li, Q.; Wang, Y.; Luo, G. Voltammetric separation of dopamine and ascorbic acid with graphite electrodes modified with ultrafine TiO2. Mater. Sci. Eng C 2000, 11, 71–74. [Google Scholar] [CrossRef]
  28. Elhag, S.; Ibupoto, Z.H.; Liu, X.; Nur, O.; Willander, M. Dopamine wide range detection sensor based on modified Co3O4 nanowires electrode. Sens. Actuators B 2014, 203, 543–549. [Google Scholar] [CrossRef] [Green Version]
  29. Yang, L.; Liu, S.; Zhang, Q.; Li, F. Simultaneous electrochemical determination of dopamine and ascorbic acid using AuNPs@ polyaniline core–shell nanocomposites modified electrode. Talanta 2012, 89, 136–141. [Google Scholar] [CrossRef]
  30. Manivel, P.; Dhakshnamoorthy, M.; Balamurugan, A.; Ponpandian, N.; Mangalaraj, D.; Viswanathan, C. Conducting polyaniline-graphene oxide fibrous nanocomposites: Preparation, characterization and simultaneous electrochemical detection of ascorbic acid, dopamine and uric acid. RSC Adv. 2013, 3, 14428–14437. [Google Scholar] [CrossRef]
  31. Zhuang, Z.; Li, J.; Xu, R.; Xiao, D. Electrochemical detection of dopamine in the presence of ascorbic acid using overoxidized polypyrrole/graphene modified electrodes. Int. J. Electrochem. Sci. 2011, 6, 2149–2161. [Google Scholar]
  32. Qian, T.; Wu, S.; Shen, J. Facilely prepared polypyrrole-reduced graphite oxide core–shell microspheres with high dispersibility for electrochemical detection of dopamine. Chem. Commun. 2013, 49, 4610–4612. [Google Scholar] [CrossRef] [PubMed]
  33. Min, K.; Yoo, Y.J. Amperometric detection of dopamine based on tyrosinase–SWNTs–Ppy composite electrode. Talanta 2009, 80, 1007–1011. [Google Scholar] [CrossRef] [PubMed]
  34. Ulubay, S.; Dursun, Z. Cu nanoparticles incorporated polypyrrole modified GCE for sensitive simultaneous determination of dopamine and uric acid. Talanta 2010, 80, 1461–1466. [Google Scholar] [CrossRef] [PubMed]
  35. Saha, S.; Sarkar, P.; Turner, A.P.F. Interference-free electrochemical detection of nanomolar dopamine using doped polypyrrole and silver nanoparticles. Electroanalysis 2014, 26, 2197–2206. [Google Scholar] [CrossRef]
  36. Li, J.; Lin, X. Simultaneous determination of dopamine and serotonin on gold nanocluster/overoxidized-polypyrrole composite modified glassy carbon electrode. Sens. Actuators B 2007, 124, 486–493. [Google Scholar] [CrossRef]
  37. Qian, T.; Yu, C.; Wu, S.; Shen, J. In situ polymerization of highly dispersed polypyrrole on reduced graphite oxide for dopamine detection. Biosens. Bioelectron. 2013, 50, 157–160. [Google Scholar] [CrossRef]
  38. Ramanavičius, A.; Ramanavičienė, A.; Malinauskas, A. Electrochemical sensors based on conducting polymer-polypyrrole. Electrochim. Acta 2006, 51, 6025–6037. [Google Scholar] [CrossRef]
  39. Duchet, J.; Legras, R.; Demoustier-Champagne, S. Chemical synthesis of polypyrrole: Structure–properties relationship. Synth. Met. 1998, 98, 113–122. [Google Scholar] [CrossRef]
  40. Liu, J.; Wan, M. Synthesis, characterization and electrical properties of microtubules of polypyrrole synthesized by a template-free method. J. Mater. Chem. 2001, 11, 404–407. [Google Scholar] [CrossRef]
  41. Pringle, J.M.; Efthimiadis, J.; Howlett, P.C.; Efthimiadis, J.; MacFarlane, D.R.; Chaplin, A.B.; Hall, S.B.; Officer, D.L.; Wallace, G.G.; Forsyth, M. Electrochemical synthesis of polypyrrole in ionic liquids. Polymer 2004, 45, 1447–1453. [Google Scholar] [CrossRef]
  42. Gong, J.; Wang, L.; Zhang, L. Electrochemical biosensing of methyl parathion pesticide based on acetylcholinesterase immobilized onto Au–polypyrrole interlaced network-like nanocomposite. Biosens. Bioelectron. 2009, 24, 2285–2288. [Google Scholar] [CrossRef] [PubMed]
  43. Zhang, J.; Kong, L.B.; Cai, J.J.; Luo, Y.C.; Kang, L. Nano-composite of polypyrrole/modified mesoporous carbon for electrochemical capacitor application. Electrochim. Acta 2010, 55, 8067–8073. [Google Scholar] [CrossRef]
  44. Qu, L.; Shi, G.; Chen, F.; Zhang, J. Electrochemical growth of polypyrrole microcontainers. Macromolecules 2003, 36, 1063–1067. [Google Scholar] [CrossRef]
  45. Qu, L.; Shi, G. Hollow microstructures of polypyrrole doped by poly(styrene sulfonic acid). J. Poly. Sci. A Polym. Chem. 2004, 42, 3170–3177. [Google Scholar] [CrossRef]
  46. Schumacher, K.; Grun, M.; Unger, K.K. Novel synthesis of spherical MCM-48. Microporous Mesoporou Mater. 1999, 27, 201–206. [Google Scholar] [CrossRef]
  47. Wysocka-Zolopa, M.; Zablocka, I.; Basa, A.; Winkler, K. Formation and characterization of mesoporous silica MCM-48 and polypyrrole composite. Chem. Heterocycl. Compd. 2017, 53, 78–86. [Google Scholar] [CrossRef]
  48. Kim, J.M.; Kim, S.K.; Ryoo, R. Synthesis of MCM-48 single crystals. Chem. Commun. 1998, 2, 259–260. [Google Scholar] [CrossRef]
  49. He, H.; Xie, Q.; Yao, S. An electrochemical quartz crystal impedance study on anti-human immunoglobulin G immobilization in the polymer grown during dopamine oxidation at an Au electrode. J. Colloid Interface Sci. 2005, 289, 446–454. [Google Scholar] [CrossRef] [PubMed]
  50. Majewska, U.E.; Chmurski, K.; Biesiada, K.; Olszyna, A.R.; Bilewicz, R. Dopamine oxidation at per (6-deoxy-6-thio)-α-cyclodextrin monolayer modified gold electrodes. Electroanalysis 2006, 18, 1463–1470. [Google Scholar] [CrossRef]
  51. Hegde, R.N.; Swamy, B.E.S.; Shetti, N.P.; Nandibewoor, S.T. Electro-oxidation and determination of gabapentin at gold electrode. J. Electroanal. Chem. 2009, 635, 51–57. [Google Scholar] [CrossRef]
  52. Raoof, J.B.; Ojani, R.; Rashid-Nadimi, S. Voltammetric determination of ascorbic acid and dopamine in the same sample at the surface of a carbon paste electrode modified with polypyrrole/ferrocyanide films. Electrochim. Acta 2005, 50, 4694–4698. [Google Scholar] [CrossRef]
  53. Feng, X.; Huang, H.; Ye, Q.; Zhu, J.J.; Hou, W. Ag/polypyrrole core–shell nanostructures: Interface polymerization, characterization, and modification by gold nanoparticles. J. Phys. Chem. C 2007, 111, 8463–8468. [Google Scholar] [CrossRef]
  54. Izaoumen, N.; Bouchta, D.; Zejli, H.; El Kaoutit, M.; Temsamani, K.R. The Electrochemical behavior of neurotransmitters at a poly(pyrrole-β-cyclodextrin) modified glassy carbon electrode. Anal. Lett. 2005, 38, 1869–1885. [Google Scholar] [CrossRef]
  55. Ghanbari, K.; Hajheidari, N. ZnO–CuxO/polypyrrole nanocomposite modified electrode for simultaneous determination of ascorbic acid, dopamine, and uric acid. Anal. Biochem. 2015, 473, 53–62. [Google Scholar] [CrossRef] [PubMed]
  56. Harley, C.C.; Rooney, A.D.; Breslin, C.B. The selective detection of dopamine at a polypyrrole film doped with sulfonated β-cyclodextrins. Sens. Actuators B Chem. 2010, 150, 498–504. [Google Scholar] [CrossRef] [Green Version]
  57. Carelli, I.; Chiarotto, I.; Curulli, A.; Palleschi, G. Electropolymerization of hydroxybenzene and aminobenzene isomers on platinum electrodes to assemble interference-free electrochemical biosensors. Electrochim. Acta 1996, 41, 1793–1800. [Google Scholar] [CrossRef]
  58. Zen, J.M.; Chen, P.J. A selective voltammetric method for uric acid and dopamine detection using clay-modified electrode. Anal. Chem. 1997, 69, 5087–5093. [Google Scholar] [CrossRef]
  59. Malem, F.; Mandler, D. Self-assembled monolayers in electroanalytlcal chemistry: Application of -mercapto carboxylic acid monolayers for the electrochemical detection of dopamine in the presence of a high concentration of ascorbic acid. Anal. Chem. 1993, 65, 37–41. [Google Scholar] [CrossRef]
  60. Rubianes, M.D.; Rivas, G.A. Highly selective dopamine quantification using a glassy carbon electrode modified with a melanin-type polymer. Anal. Chim. Acta 2001, 440, 99–108. [Google Scholar] [CrossRef]
Ijms 20 00111 g001 550
Figure 1. SEM images of the gold electrode surface modified with the polypyrrole—MCM-48 composite, at (a) 20,000× magnification and (b) 2000× magnification.
Figure 1. SEM images of the gold electrode surface modified with the polypyrrole—MCM-48 composite, at (a) 20,000× magnification and (b) 2000× magnification.
Ijms 20 00111 g001
Ijms 20 00111 g002 550

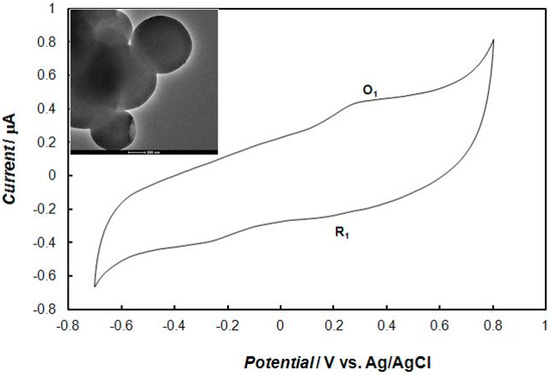

Figure 2. Cyclic voltammogram that was recorded at the gold electrode modified with the polypyrrole—MCM-48 nanocomposite in 0.1 M of phosphate buffer solution (pH = 7.4). The potential sweep rate was 0.1 V s−1. The inset in figure shows TEM image of the polypyrrole—MCM-48.
Figure 2. Cyclic voltammogram that was recorded at the gold electrode modified with the polypyrrole—MCM-48 nanocomposite in 0.1 M of phosphate buffer solution (pH = 7.4). The potential sweep rate was 0.1 V s−1. The inset in figure shows TEM image of the polypyrrole—MCM-48.
Ijms 20 00111 g002
Ijms 20 00111 sch001 550

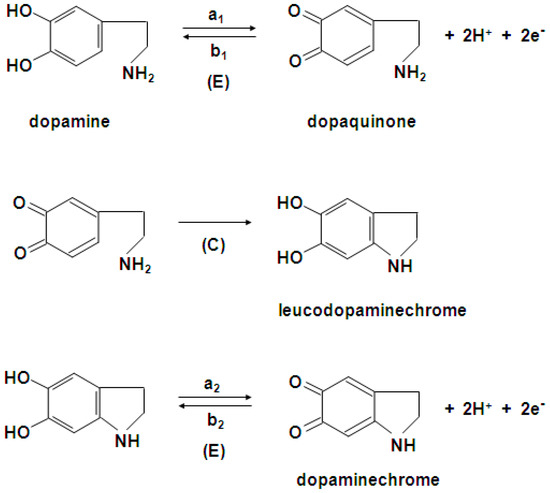

Scheme 1. Mechanism of dopamine oxidation.
Scheme 1. Mechanism of dopamine oxidation.
Ijms 20 00111 sch001
Ijms 20 00111 g003 550
Figure 3. Cyclic voltammograms: (1) First and (2) second scans recorded onto the bare gold electrode in 0.1 M of phosphate buffer solution (pH 7.4) containing 1 mM of dopamine. The potential sweep rate was 0.1 V s−1.
Figure 3. Cyclic voltammograms: (1) First and (2) second scans recorded onto the bare gold electrode in 0.1 M of phosphate buffer solution (pH 7.4) containing 1 mM of dopamine. The potential sweep rate was 0.1 V s−1.
Ijms 20 00111 g003
Ijms 20 00111 g004 550

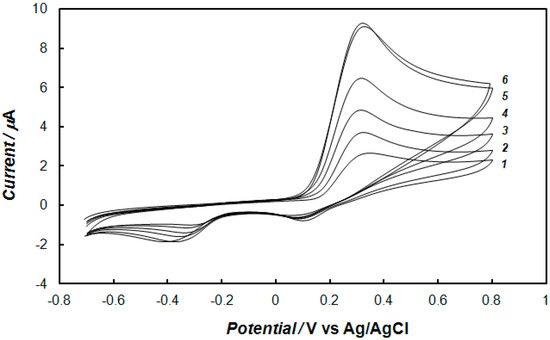

Figure 4. Cyclic voltammograms recorded at the gold electrode modified with the polypyrrole—MCM-48 nanocomposite after (1) 0, (2) 1, (3) 3, (4) 5, (5) 10, and (6) 15 min of preconcentration in 0.1 M of phosphate buffer solution (pH 7.4) containing 1 mM of dopamine, and at a potential sweep rate of 0.1 V s−1.
Figure 4. Cyclic voltammograms recorded at the gold electrode modified with the polypyrrole—MCM-48 nanocomposite after (1) 0, (2) 1, (3) 3, (4) 5, (5) 10, and (6) 15 min of preconcentration in 0.1 M of phosphate buffer solution (pH 7.4) containing 1 mM of dopamine, and at a potential sweep rate of 0.1 V s−1.
Ijms 20 00111 g004
Ijms 20 00111 g005 550

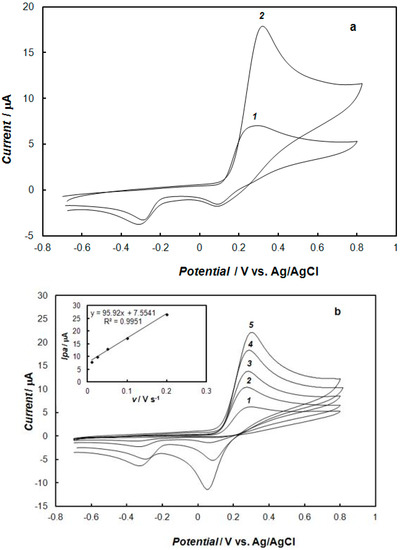

Figure 5. Cyclic voltammograms recorded: (a) At the bare gold electrode (curve 1) and at the gold electrode modified with the polypyrrole—MCM-48 nanocomposite (curve 2) in 0.1 M of phosphate buffer solution (pH 7.4) containing 1 mM of dopamine, and at a potential sweep rate of 0.1 V s−1; (b) at the gold electrode modified with the polypyrrole—MCM-48 nanocomposite in 0.1 M of phosphate buffer solution (pH 7.4) containing 1 mM of dopamine, and for different potential sweep rates, being (1) 0.01 V s−1, (2) 0.025 V s−1, (3) 0.05 V s−1, (4) 0.1 V s−1, and (5) 0.2 V s−1. The inset in panel (b) shows the dependence of the dopamine oxidation peak current on the square root of the sweep rate.
Figure 5. Cyclic voltammograms recorded: (a) At the bare gold electrode (curve 1) and at the gold electrode modified with the polypyrrole—MCM-48 nanocomposite (curve 2) in 0.1 M of phosphate buffer solution (pH 7.4) containing 1 mM of dopamine, and at a potential sweep rate of 0.1 V s−1; (b) at the gold electrode modified with the polypyrrole—MCM-48 nanocomposite in 0.1 M of phosphate buffer solution (pH 7.4) containing 1 mM of dopamine, and for different potential sweep rates, being (1) 0.01 V s−1, (2) 0.025 V s−1, (3) 0.05 V s−1, (4) 0.1 V s−1, and (5) 0.2 V s−1. The inset in panel (b) shows the dependence of the dopamine oxidation peak current on the square root of the sweep rate.
Ijms 20 00111 g005
Ijms 20 00111 g006 550

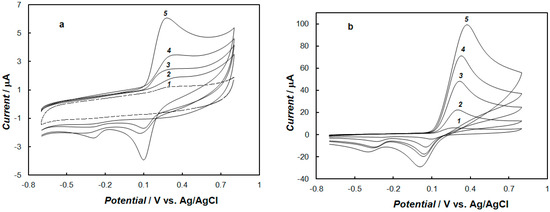

Figure 6. Cyclic voltammograms recorded at the gold electrode modified with the polypyrrole—MCM-48 nanocomposite in 0.1 M of phosphate buffer solution (pH = 7.4) containing dopamine with concentrations: (a) 0 mM (curve 1), 0.01 mM (curve 2), 0.05 mM (curve 3), 0.1 mM (curve 4), and 0.2 mM (curve 5); (b) 0.5 mM (curve 1), 1 mM (curve 2), 3 mM (curve 3), 5 mM (curve 4), and 10 mM (curve 5). The potential sweep rate was 0.1 V s−1.
Figure 6. Cyclic voltammograms recorded at the gold electrode modified with the polypyrrole—MCM-48 nanocomposite in 0.1 M of phosphate buffer solution (pH = 7.4) containing dopamine with concentrations: (a) 0 mM (curve 1), 0.01 mM (curve 2), 0.05 mM (curve 3), 0.1 mM (curve 4), and 0.2 mM (curve 5); (b) 0.5 mM (curve 1), 1 mM (curve 2), 3 mM (curve 3), 5 mM (curve 4), and 10 mM (curve 5). The potential sweep rate was 0.1 V s−1.
Ijms 20 00111 g006
Ijms 20 00111 g007 550

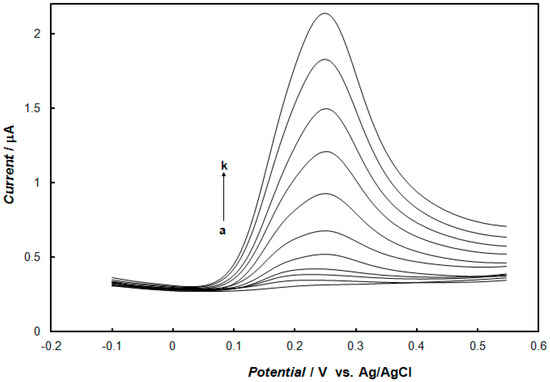

Figure 7. Square-wave voltammograms recorded at the gold electrode modified with the polypyrrole—MCM-48 nanocomposite in 0.1 M of phosphate buffer solution (pH 7.4) containing dopamine with concentrations: (a) 0 μM, (b) 2 μM, (c) 6 μM, (d) 10 μM, (e) 25 μM, (f) 50 μM, (g) 100 μM, (h) 150 μM, (i) 200 μM, (j) 250 μM, and (k) 300 μM. Square wave amplitude was 25 mV, frequency was 25 Hz, and step potential was 4 mV.
Figure 7. Square-wave voltammograms recorded at the gold electrode modified with the polypyrrole—MCM-48 nanocomposite in 0.1 M of phosphate buffer solution (pH 7.4) containing dopamine with concentrations: (a) 0 μM, (b) 2 μM, (c) 6 μM, (d) 10 μM, (e) 25 μM, (f) 50 μM, (g) 100 μM, (h) 150 μM, (i) 200 μM, (j) 250 μM, and (k) 300 μM. Square wave amplitude was 25 mV, frequency was 25 Hz, and step potential was 4 mV.
Ijms 20 00111 g007
Ijms 20 00111 g008 550

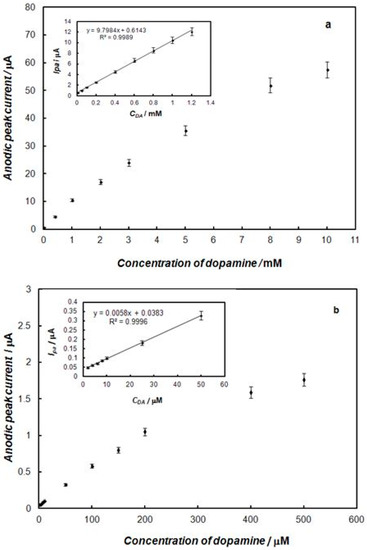

Figure 8. Effect of concentration of dopamine on the oxidation peak current using: (a) cyclic voltammetry, and (b) square-wave voltammetry, recorded at the gold electrode modified with the polypyrrole—MCM-48 nanocomposite. The inset in figures show a linear relationship for dopamine concentration.
Figure 8. Effect of concentration of dopamine on the oxidation peak current using: (a) cyclic voltammetry, and (b) square-wave voltammetry, recorded at the gold electrode modified with the polypyrrole—MCM-48 nanocomposite. The inset in figures show a linear relationship for dopamine concentration.
Ijms 20 00111 g008
Ijms 20 00111 g009 550
Figure 9. Cyclic voltammograms recorded: (a) at the bare gold electrode, (b) at the gold electrode modified with the polypyrrole—MCM-48 nanocomposite in 0.1 M of phosphate buffer solution (pH 7.4) containing 1mM dopamine, 1mM ascorbic acid, and 1 mM uric acid The potential sweep rate was 0.1 V s−1.
Figure 9. Cyclic voltammograms recorded: (a) at the bare gold electrode, (b) at the gold electrode modified with the polypyrrole—MCM-48 nanocomposite in 0.1 M of phosphate buffer solution (pH 7.4) containing 1mM dopamine, 1mM ascorbic acid, and 1 mM uric acid The potential sweep rate was 0.1 V s−1.
Ijms 20 00111 g009
Ijms 20 00111 g010 550

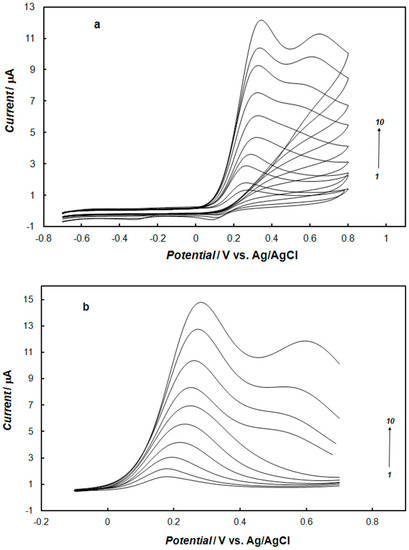

Figure 10. Cyclic (a) and square-wave (b) voltammograms recorded at the gold electrode modified with the nanocomposite of polypyrrole—MCM-48 in 0.1 M of phosphate buffer solution (pH 7.4) containing 0.1 mM of dopamine, and ascorbic acid with concentrations: (1) 0 mM, (2) 0.1 mM, (3) 0.5 mM (4) 1 mM, (5) 2 mM, (6) 3 mM, (7) 4 mM, (8) 5 mM, (9) 6 mM, and (10) 7 mM. The potential sweep rate was 0.1 V s−1. The square wave amplitude was 25 mV, frequency was 25 Hz, and step potential was 4 mV.
Figure 10. Cyclic (a) and square-wave (b) voltammograms recorded at the gold electrode modified with the nanocomposite of polypyrrole—MCM-48 in 0.1 M of phosphate buffer solution (pH 7.4) containing 0.1 mM of dopamine, and ascorbic acid with concentrations: (1) 0 mM, (2) 0.1 mM, (3) 0.5 mM (4) 1 mM, (5) 2 mM, (6) 3 mM, (7) 4 mM, (8) 5 mM, (9) 6 mM, and (10) 7 mM. The potential sweep rate was 0.1 V s−1. The square wave amplitude was 25 mV, frequency was 25 Hz, and step potential was 4 mV.
Ijms 20 00111 g010
Ijms 20 00111 g011 550

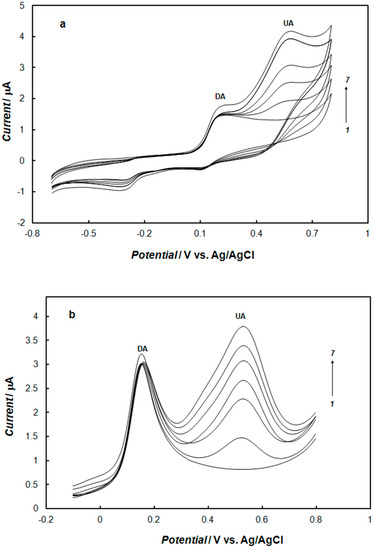

Figure 11. Cyclic (a) and square-wave (b) voltammograms recorded at the gold electrode modified with the nanocomposite of polypyrrole—MCM-48 in 0.1 M of phosphate buffer solution (pH 7.4) containing 0.1 mM of dopamine, and uric acid with concentrations: (1) 0 mM, (2) 0.1 mM, (3) 0.2 mM (4) 0.3 mM, (5) 0.4 mM, (6) 0.5 mM, and (7) 0.6 mM. The potential sweep rate was 0.1 V s−1. The square wave amplitude was 25 mV, frequency was 25 Hz, and step potential was 4 mV.
Figure 11. Cyclic (a) and square-wave (b) voltammograms recorded at the gold electrode modified with the nanocomposite of polypyrrole—MCM-48 in 0.1 M of phosphate buffer solution (pH 7.4) containing 0.1 mM of dopamine, and uric acid with concentrations: (1) 0 mM, (2) 0.1 mM, (3) 0.2 mM (4) 0.3 mM, (5) 0.4 mM, (6) 0.5 mM, and (7) 0.6 mM. The potential sweep rate was 0.1 V s−1. The square wave amplitude was 25 mV, frequency was 25 Hz, and step potential was 4 mV.
Ijms 20 00111 g011
Ijms 20 00111 g012 550

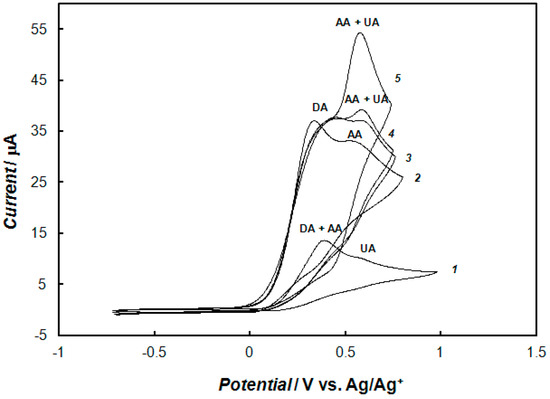

Figure 12. Cyclic voltammograms recorded at the bare gold electrode (curve 1), and at the gold electrode modified with the polypyrrole—MCM-48 nanocomposite in 0.1 M of phosphate buffer solution (pH 7.4) containing a mixture of 0.1 mM of dopamine and 10 mM of ascorbic acid (curve 2); containing a mixture of 0.1 mM dopamine, 10 mM ascorbic acid, and 0.5 mM uric acid (curve 3); containing a mixture of 0.1 mM dopamine, 10 mM ascorbic acid, and 1.5 mM uric acid (curve 4); and containing a mixture of 0.1 mM dopamine, 10 mM ascorbic acid, and 5 mM uric acid (curve 5). The potential sweep rate was 0.1 V s−1.
Figure 12. Cyclic voltammograms recorded at the bare gold electrode (curve 1), and at the gold electrode modified with the polypyrrole—MCM-48 nanocomposite in 0.1 M of phosphate buffer solution (pH 7.4) containing a mixture of 0.1 mM of dopamine and 10 mM of ascorbic acid (curve 2); containing a mixture of 0.1 mM dopamine, 10 mM ascorbic acid, and 0.5 mM uric acid (curve 3); containing a mixture of 0.1 mM dopamine, 10 mM ascorbic acid, and 1.5 mM uric acid (curve 4); and containing a mixture of 0.1 mM dopamine, 10 mM ascorbic acid, and 5 mM uric acid (curve 5). The potential sweep rate was 0.1 V s−1.
Ijms 20 00111 g012
Table
Table 1. The comparison of the results for the determination of dopamine using different polypyrrole composite-modified electrodes.
Table 1. The comparison of the results for the determination of dopamine using different polypyrrole composite-modified electrodes.
Modified ElectrodeMethodLinear RelationshipCorrelation CoefficientLimit DetectionReference
PPyox/graphene/GCECV0.5–10 μM
25 μM–1.0 mM		0.997
0.996		0.1 μM[31]
PPy-RGO core-shell microspheres/GCEDPV10 μM–10 mM0.99961 nM[32]
PPy/ferrocyanide/carbon paste electrodeLSV
DPV		0.1–1.2 mM
0.2–0.95 mM		0.9984
0.9998		38.6 μM
15.1 μM		[52]
Au/PPy/Ag/GCEAmperometric response0.1–5 mM-50 μM[53]
PPy/-cyclodextrin/GCECV2–10 μM-6 μM[54]
ZnO-CuxO-PPy/GCEDPV0.1–130 μM0.99220.04 μM[55]
PPy doped with sulfonated-cyclodextrin/GCEConstant potential amperometry7.5–40 μM0.9993.2 μM[56]
PPy—MCM-48/Au electrodeCV
SWV		10 μM–1.2 mM
2–250 μM		0.9989
0.9996		2.5 μM
0.7 μM		This work
GCE—glassy carbon electrode; CV—cyclic voltammetry; DPV—differential pulse voltammetry; LSV—linear sweep voltammetry; PPy—polypyrrole: PPyox—overoxidized polypyrrole; RGO—reduced graphene oxide.

Share and Cite

MDPI and ACS Style

Zablocka, I.; Wysocka-Zolopa, M.; Winkler, K. Electrochemical Detection of Dopamine at a Gold Electrode Modified with a Polypyrrole–Mesoporous Silica Molecular Sieves (MCM-48) Film. Int. J. Mol. Sci. 2019, 20, 111. https://doi.org/10.3390/ijms20010111

AMA Style

Zablocka I, Wysocka-Zolopa M, Winkler K. Electrochemical Detection of Dopamine at a Gold Electrode Modified with a Polypyrrole–Mesoporous Silica Molecular Sieves (MCM-48) Film. International Journal of Molecular Sciences. 2019; 20(1):111. https://doi.org/10.3390/ijms20010111

Chicago/Turabian Style

Zablocka, Izabela, Monika Wysocka-Zolopa, and Krzysztof Winkler. 2019. "Electrochemical Detection of Dopamine at a Gold Electrode Modified with a Polypyrrole–Mesoporous Silica Molecular Sieves (MCM-48) Film" International Journal of Molecular Sciences 20, no. 1: 111. https://doi.org/10.3390/ijms20010111

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
