Alternative Respiratory Pathway Component Genes (AOX and ND) in Rice and Barley and Their Response to Stress

by
Vajira R. Wanniarachchi
†,
Lettee Dametto
†,
Crystal Sweetman
,
Yuri Shavrukov
,
David A. Day
,
Colin L. D. Jenkins
and
Kathleen L. Soole
*
College of Science and Engineering, Flinders University of South Australia, GPO Box 5100, Adelaide, SA 5001, Australia
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Int. J. Mol. Sci. 2018, 19(3), 915; https://doi.org/10.3390/ijms19030915
Submission received: 14 February 2018 / Revised: 15 March 2018 / Accepted: 16 March 2018 / Published: 20 March 2018
(This article belongs to the Special Issue Plant Mitochondria)
Browse Figures
Versions Notes

Abstract

:
Plants have a non-energy conserving bypass of the classical mitochondrial cytochrome c pathway, known as the alternative respiratory pathway (AP). This involves type II NAD(P)H dehydrogenases (NDs) on both sides of the mitochondrial inner membrane, ubiquinone, and the alternative oxidase (AOX). The AP components have been widely characterised from Arabidopsis, but little is known for monocot species. We have identified all the genes encoding components of the AP in rice and barley and found the key genes which respond to oxidative stress conditions. In both species, AOX is encoded by four genes; in rice OsAOX1a, 1c, 1d and 1e representing four clades, and in barley, HvAOX1a, 1c, 1d1 and 1d2, but no 1e. All three subfamilies of plant ND genes, NDA, NDB and NDC are present in both rice and barley, but there are fewer NDB genes compared to Arabidopsis. Cyanide treatment of both species, along with salt treatment of rice and drought treatment of barley led to enhanced expression of various AP components; there was a high level of co-expression of AOX1a and AOX1d, along with NDB3 during the stress treatments, reminiscent of the co-expression that has been well characterised in Arabidopsis for AtAOX1a and AtNDB2.

1. Introduction

The alternative respiratory pathway of plant mitochondria is an important bypass of the energy-conserving classical electron transport (ETC) pathway [1]. In the classical ETC, oxidation of mitochondrial NADH occurs via rotenone-sensitive Complex I and cytochrome c (cyt c) oxidase, concomitantly generating a proton motive force that drives ATP synthesis via ATP synthase. Plants have a non-phosphorylating (non-energy conserving) bypass of the cyt c pathway, evading adenylate control of cellular redox poise [2,3,4]. This bypass, known as the alternative respiratory pathway (AP), involves rotenone-insensitive type II NAD(P)H dehydrogenases (NDs) on both the outer and inner surface of the mitochondrial inner membrane, ubiquinone, and the alternative oxidase (AOX). Activity of the AP, however, does not generate a proton gradient and excess energy is released as heat. There is strong evidence that operation of the AP prevents over-reduction of the ETC [5,6,7,8], thereby minimizing the generation of reactive oxygen species (ROS) and allowing a degree of metabolic flexibility in the cell. A large number of publications have reported that this pathway responds to temperature, nutrients, heavy metals, high light, drought and oxidative stress [4].
In Arabidopsis, members of the AP include seven type II NDs (NDB1–4, NDA1–2, and NDC1) and five AOXs (AOX1a–d and AOX2) [9]. NDB1-4 have been localized to the external face of the mitochondrial inner membrane, while NDA1 and 2, and NDC1 were determined to be internal (facing the matrix), based on import assays [10,11]. Transcript, protein and activity levels of NDs and AOX appear to be regulated in a tissue, developmental, and stress-inducible manner [11,12,13,14,15]. This suggests specialization of function and possible formation of specific ND/AOX pathways in response to particular stimuli and there is evidence that an alternative electron transport chain of NDA2, NDB2 and AOX1a forms in Arabidopsis during many stresses [14].
The majority of studies to date on the response of the AP to stresses have focussed on Arabidopsis and other dicot plants, while there have been few studies on monocots, including crops such as rice and barley. In rice, Oryza sativa, Ito, et al. [16] first identified OsAOX1a and OsAOX1b isoforms, which were up-regulated in whole seedlings during cold stress. Considine, et al. [17] and Saika, et al. [18] identified a third isoform OsAOX1c, which showed developmentally regulated expression patterns and was not stress-responsive. Considine, et al. [17] also identified an additional gene OsAOX1d that was thought to be not expressed, but more recently Costa, et al. [19] reported a number of corresponding ESTs found in germinating tissue. OsAOX genes have been shown to respond to different stresses such as cold, drought, dehydration, and salt [16,20,21,22,23], but not all studies have assessed all three isoforms and very few have assessed the corresponding protein and activity levels. In contrast, while rice orthologues for the ND family have been described [3,24] there have been no studies on this gene family’s response to stress.
Even less is known about the AP components in barley, Hordeum vulgare. The HvAOX gene family has been described by Costa et al. [19], identifying four isoforms, HvAOX1a, HvAOX1c, HvAOX1d1 and HvAOX1d2, but the orthologues/homologues of the ND family are as yet unidentified. There are two reports showing that AOX responds to stress in barley. An AOX-like gene in H. spontaneum (wild barley) was up-regulated in leaves during cold stress, and HvAOX1a in H. vulgare, cv. Golden Promise during short-term heat stress in spikes at anthesis, and AOX protein levels were up-regulated under nutrient stress and UVB stress in highland barley [25,26]. Clearly, the stress-responsiveness of AP components needs further examination in this important crop.
It has been suggested that AOX sequence variability has the potential to be used as a marker for selective breeding [27], but it is likely that other components such as the NDs, which are required for better oxidative stress responses, also need to be considered. AOX has been well studied in many species, especially in Arabidopsis, but the NDs have received less attention. In this study, we expand these studies into the cereal crops, rice and barley, identifying the alternative respiratory pathway components in O. sativa and H. vulgare, and investigate the expression of AOX and ND genes in different tissue types at both the transcript and protein level under mitochondrial ETC-inhibiting and ROS-generating conditions. The results provide a platform for investigations of these genes as potential selective markers for rice and barley breeding.

2. Results

2.1. Identification of the Genes Encoding Alternative Respiratory Pathway (AP) Components in Rice and Barley

2.1.1. Alternative Oxidase

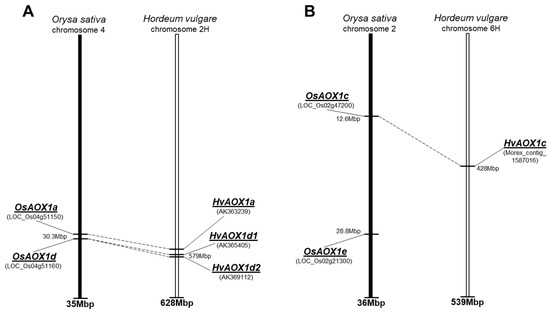

Previous studies have identified the gene family encoding AOX in rice [16,17,18] and recently Costa et al. [19] have reclassified these genes as OsAOX1a, OsAOX1c, OsAOX1d (previously OsAOX1b) and OsAOX1e. This nomenclature was based on the fact that OsAOX1b was more like an orthologue of the eudicot AOX1d gene. Sequence searching (BLAST) of the Rice Genome Annotation Project database (http://rice.plantbiology.msu.edu) identified four gene sequences homologous to Arabidopsis: OsAOX1a (LOC_Os04g51150), OsAOX1d (LOC_Os04g51160), OsAOX1c, (LOC_Os02g47200), and OsAOX1e (LOC_Os02g21300) in agreement with Costa et al. [19]. Homologous sequences for all OsAOX genes identified in japonica rice were also present in indica rice (Table S1). Pairwise alignment of CDS sequences revealed that all OsAOX isoforms from japonica rice were very similar or identical to those of indica rice (Table S1) consistent with them being closely related.
The isoforms of HvAOX in barley, H. vulgare, were recently reported in the AOX phylogeny study of Costa et al. [19], where four AOX partial genomic sequences were identified from a few ESTs. Prior to this, only one report of an AtAOX1a-like gene had been identified during a microarray analysis of high temperature stress in barley floral tissue [28]. To confirm these findings, the three cDNA sequences of OsAOX (Table S1) were used as queries to conduct BLASTN searches within H. vulgare mRNA sequence databases, using NCBI (https://www.ncbi.nlm.nih.gov) and IPK (http://webblast.ipk-gatersleben.de/barley_ibsc); four putative cDNAs were found in H. vulgare, cv. Haruna Nijo (Table 1). These were of similar size except for HvAOX1c. The putative HvAOX cDNA sequences were used to conduct BLASTN search against the assembly WGS-Morex database on IPK to confirm correct identification. Genomic contig sequences from cv. Morex demonstrate high sequence identity with sequences identified by Costa et al. [19] and provide an estimation of chromosomal location (Table 1). Two of the rice genes are located on the same chromosome, where a common tandem position for OsAOX1a and OsAOX1d genes was identified in rice chromosome 4 (Figure 1A, [19]). A strong colinearity with rice chromosome 4 was found in barley chromosome 2H with an additional likely duplication leading to tandem repeat HvAOX1d1 and HvAOX1d2 in close proximity on the chromosome (Figure 1A). In contrast, two other AOX genes in rice, OsAOX1c and OsAOX1e, were localised on different arms of rice chromosome 2 (Table S1), while only a single HvAOX1c was identified on barley chromosome 6H, in a strongly colinear genetic region to those for rice OsAOX1c (Figure 1B, Table 1). No barley gene was identified homologous to rice OsAOX1e.

2.1.2. Type-II NADH Dehydrogenase Family

The gene family of Type-II NAD(P)H dehydrogenases in plants is divided into three subfamilies: NDA, NDB and NDC [10,29], with NDA and NDC proteins located on the inside of the inner mitochondrial membrane, facing the matrix space, and NDB proteins on the outside of the inner membrane, facing the intermembrane space [11]. Orthologues of these genes in rice have been identified previously [3,24] and their designations correspond to the gene sequences used in this study (Table S1). Sequence alignment studies showed that, similarly to the AOX genes, the ND genes from japonica rice are nearly identical to those from indica rice except for NDB3, which in japonica appears to have a shorter sequence compared to that in indica rice. An analysis of the gene structure for rice ND genes shows that generally they contain a similar number of exons, however the intronic regions are often longer than members of the ND gene family in Arabidopsis [29]. Importantly, the discrepancy between japonica and indica can be explained by an additional intron present in exon 5 in the japonica OsNDB3 gene, which has been documented incorrectly in current databases (http://rice.plantbiology.msu.edu/cgi-bin/ORF_infopage.cgi) as a coding region. The reading of this intronic region as coding sequence results in a premature termination codon, giving a 357 aa protein rather than the 580 aa protein predicted from the indica OsNDB3 gene (Figure 2 and Figure S1). Evidence for this insertion region being an intron comes from its absence in rice ESTs found in NCBI for this region of the genome.

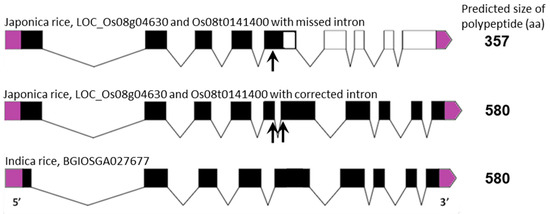

The O. sativa ND cDNA sequences (Table S1) were used to conduct BLASTN searches on NCBI revealing 6 barley ND sequences (Table 1). A BLASTP search of the predicted O. sativa protein sequences against NCBI and IPK databases revealed the corresponding protein sequences. All ND genes are predicted to encode proteins in the range of 54 to 65 kDa, similarly to Arabidopsis. Chromosome location was also identified for these genes (Table 1).

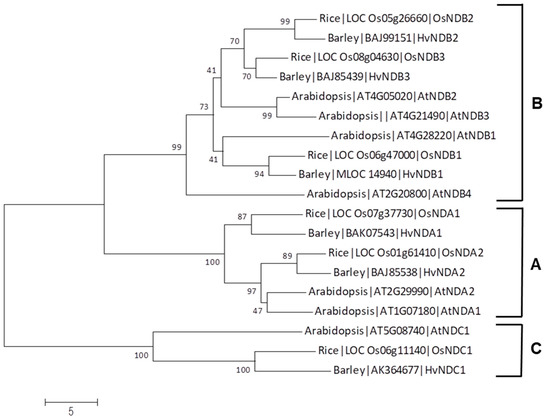

An analysis of the sequence identity between Arabidopsis and rice ND genes revealed that OsNDB2 and OsNDB3 have highest identity with AtNDB3 (Table S2); however, a previous study [24] used OsNDB2 notation for the gene (LOC_05g26660), so we have retained this designation here. A relationship tree of sequences from Arabidopsis, rice and barley grouped the corresponding proteins into three clades, NDA, NDB and NDC, but it also confirmed the close sequence relationship between NDB2 and NDB3 in both rice and barley (Figure 3). No orthologue for AtNDB4 was apparent in these monocots.

2.2. Subcellular Localisation and Structural Similarities

Using a bioinformatics approach, the subcellular location of rice and barley AOX was confirmed to be mitochondrial. The situation with the ND proteins is not so clear. Arabidopsis NDs contain signals in their sequences that can target these proteins to subcellular compartments other than the mitochondria; for example, AtNDC1 can be targeted to both the chloroplast and the mitochondrion [30]. More recently, Xu et al. [24] indicated that OsNDB1 and OsNDB2 contain both mitochondrial and peroxisomal (PTS1) targeting signals, and showed that when the C-terminal sequence of these proteins was fused to GFP they were targeted to the peroxisome in vivo. OsNDB3 was not included in that study and so its location remains uncertain. We used a number of bioinformatic targeting programs to reassess the putative subcellular location of all the rice and barley ND proteins (Table S3); all contained mitochondrial targeting information and HvNDB1 and HvNDB2, like their rice counterparts, were predicted also to contain a PTS1 sequence, a small amino acid sequence found at the C-terminal end of peroxisomal proteins [11,30]. Since the rice proteins have been demonstrated to be targeted to the peroxisome [24], it is likely that this is also true for HvNDB1 and HvNDB2. Interestingly, OsNDB3 and HvNDB3 were not predicted to target to the peroxisome, reminiscent of AtNDB2 and AtNDB4 that are also confined to the mitochondria [30].

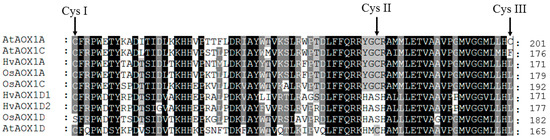

AOX proteins are characterised by conserved cysteine residues (CysI and CysII), four helical regions, and conserved glutamine and histidine residues that act as iron ligands [31]. The cysteines have been linked to post-translational regulation of AOX, being involved in the formation of an inactive dimer via a disulphide bond, which when reduced allows the enzyme to be active ([31] and references therein). CysI and CysII [31,32,33,34] and more recently CysIII [35], have been shown also to be important in the response of these AOX isoforms to metabolites that activate AOX, such as pyruvate and glyoxylate [36]. As previously reported, OsAOX1d (formerly OsAOX1b) has a serine substitution at CysI and CysII positions [16], indicating that it cannot form a covalent disulphide-linked dimer and therefore may not be inactivated in vivo. However, it may have a rather low activity. When AtAOX1a was mutated to replace CysI with a serine, it no longer responded to pyruvate but was instead activated by succinate [34,35]. This is also true of a naturally occurring tomato AOX [37]. However, when serine was substituted for CysI in AtAOX1c or d, succinate did not stimulate [35], presumably because of other sequence differences in these proteins. Whether OsAOX1d is activated by succinate is not known and has to be experimentally determined before we can judge whether it is regulated in vivo.
Interestingly, while no AOX isoform in barley has a serine substitution at the CysI position, HvAOX1d1 and HvAOX1d2 have serine at the CysII position. This is not expected to affect the enzyme’s regulation by dimerization via oxidation-reduction, but it may affect its stimulation by glyoxylate [31]. All AOX isoforms in rice and barley have leucine at the CysIII position, which is similar to AtAOX1d, not AtAOX1a (Figure 4).
HvAOX1d1 and 2 are particularly interesting because they have a C, S, L (CysI, CysII, CysIII) configuration (Figure 4). This configuration has not been reported for any other AOX protein to date, but when AtAOX1d was mutated to a C, S, L form, its basal activity (i.e., without an organic acid activator) increased quite dramatically [35]. It is possible, therefore, that the HvAOX1d isoforms are also super active, but again, this needs to be experimentally proven in a heterologous assay system.

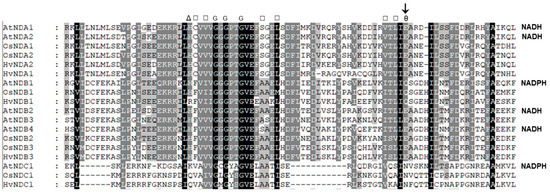

An alignment of the rice and barley ND protein sequences showed that they all contain both of the conserved dinucleotide folds (DNF) that are involved in Flavin and NAD(P)H binding. It has been shown that the DNF sequence at the C-terminal end of these proteins is involved in NADH and NADPH binding and an analysis of this DNF structure, which has a βαβ motif, has shown that a residue at the end of the second β-pleated sheet can influence substrate specificity and the key residues involved have been denoted in Figure 5 [38]. A glutamate (E) in this position enables NADH binding and repels the phosphate on NADPH. Isoforms that show specificity for NADPH have either an uncharged glutamine (Q) or asparagine (N) at this position. These residues have been experimentally confirmed to be involved in NADPH binding via recombinant expression of the Arabidopsis NDs [39]. On this basis, a structural analysis of the rice and barley ND sequences suggests that NDB1 and NDC1 are NADPH specific, while all the others are likely to be NADH specific (Figure 5). Recently, it has been shown that AtNDC1 encodes an enzyme involved in vitamin K synthesis in the chloroplast [40]. Its role in mitochondria is unknown, but it is targeted to the matrix side of the IM and may be the protein responsible for matrix NADPH oxidation, detected in some plant mitochondria [41].
The NDB proteins, when aligned with NDAs and NDC, contain additional amino acid sequence in which are located EF-hand motifs that have been linked to calcium binding. The conserved N-terminal EF-hand motif has been shown to be conserved in Arabidopsis NDB where it has been experimentally demonstrated to bind calcium [39,43]. All rice and barley NDBs contained this EF hand, which suggests that these dehydrogenases may be regulated by calcium. In Arabidopsis, AtNDB4 lacks critical key residues in its EF-hand motif and has been shown to not bind calcium [39], but rice and barley do not appear to have this calcium-independent NDB protein (Table 1, Figure 2).

2.3. Expression of AP Components under Chemical-Induced Stress

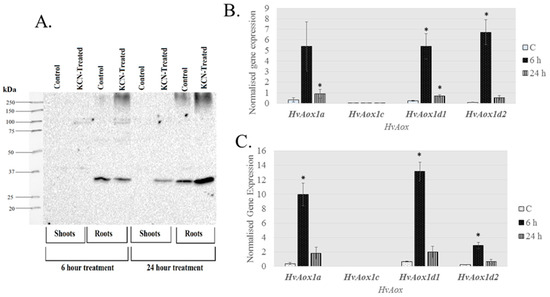

A focus of this work was to determine the stress responsive components of the AP in the monocots rice and barley. Initially, plants were exposed to KCN and transcript abundance of AP component genes determined and compared to untreated controls. KCN inhibits cytochrome oxidase leading to an over-reduction of the electron transport chain and accumulation of ROS [44]. In this study, OsAOX1e expression was not assessed. While Costa et al. [19] found a small number of ESTs with partial sequence corresponding to this gene, they were isolated from germinating seeds and are more likely to be linked to development. In untreated tissues, OsAOX1c was the most highly expressed AOX gene in shoots but not roots (Table S4). In contrast, in untreated barley, HvAOX1c, was the lowest expressed gene in both shoots (not detectable) and root tissue (Table S4). After 6 h of KCN treatment, all AOX isoforms in both rice and barley increased in expression in both shoots and roots, except for AOX1c (Table 2 and Table 3). In KCN-treated rice, OsAOX1d was the most responsive of the AP genes, in both roots and shoots. OsAOX1a transcript returned to lower levels 24 h after treatment, whereas the increase in expression was sustained for OsAOX1d in shoots (Table 2). HvAOX1a, HvAOX1d1 and HvAOX1d2 were expressed at similar levels in control roots and shoots (Table S4), and were very responsive to KCN treatment, but this was not sustained at 24 h in any tissue (Table 3 and Figure 6). An analysis of AOX protein levels in barley tissue total protein extracts showed that AOX protein was detectable in control root samples, but not in shoot tissue. However, AOX protein increased in both shoot and root tissue after 24 h exposure to KCN (Figure 6).
Prior to KCN treatment, OsNDA1, OsNDB2, OsNDB3 were the most highly expressed of the ND genes in both roots and shoots (Table S4). In contrast, in untreated barley tissue the most highly expressed ND genes were HvNDA2, HvNDB3 and HvNDB1, while HvNDA1 was not detectable (Table S4). In rice, OsNDA1 and OsNDB3 expression was upregulated within 6 h of KCN treatment in shoots and roots, but was not sustained at 24 h. OsNDB2 was upregulated in shoots after 6 h and in root tissue after 24 h. OsNDA2 expression also increased in roots (Table 2). After KCN treatment, HvNDA2 and HvNDB3 were upregulated in shoots and roots and HvNDB2 to a lesser extent in shoots after 6 h (Table 3). Again, the HvNDB2 response was sustained in shoots at 24 h. HvNDA1 was not detectable in control tissue, but showed a little expression, at the limit of detection after KCN treatment, therefore a fold-change could not be calculated although this gene may also be stress-responsive (Table 3).

2.4. Expression of Rice and Barley AP Components under Abiotic Stress

Data from Genevestigator show that the same stress-responsive genes identified in the KCN treatment in rice are up-regulated under many abiotic and biotic stresses, including cold, drought, nutrient stress, and arsenate treatment (Table S5). Interestingly, in the salt studies available, OsAOX1a, OsAOX1d, OsNDB3 and OsNDB2 showed the highest up-regulation in shoot tissue, but were down-regulated in root tissue. We explored this further in rice exposed to 120 mM NaCl over a 12 days period to examine the specific AP response. In shoots, OsAOX1a, was up-regulated early in the stress while OsAOX1d, showed a later response and OsAOX1c was only up-regulated at 12 days (Figure 7A). In the roots, there was a decline in the abundance of all AOX isoform transcripts after the stress (Figure 7B). To elaborate this response further, mitochondria were isolated from shoot and root tissue at 9 days after salt application and respiratory activities determined. In both shoot and root mitochondria there was an increase in AOX capacity. In shoots this was reflected in an increase in AOX protein, especially as the monomeric active form (Figure 7C). The two bands present may reflect different gene products, but only N-terminal sequencing would confirm this. However, in soybean, different apparent Mr of AOX proteins in immunoblots was not indicative of different size proteins [45] In root mitochondria, overall AOX protein abundance did not change but there was a shift from the oxidised dimer to the monomeric form, consistent with the increase in AOX capacity. All the data for roots are consistent with the view that in response to salt stress, existing AOX protein is activated post-translationally, while in shoots there may be an increase in overall AOX protein as well as a post-translational activation.

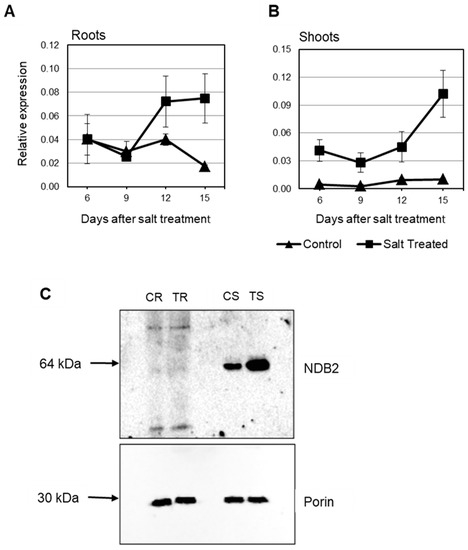

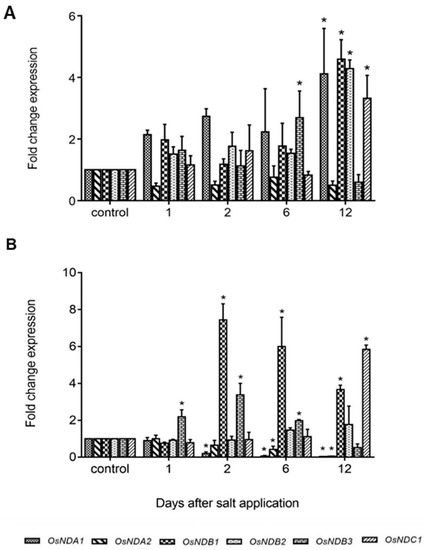

In this study, in shoots from salt stressed plants, OsNDB3 was the first ND gene to be up-regulated (day 6) while by day 12, OsNDA1, OsNDB1, OsNDB2 and OsNDC1 were all up-regulated, in agreement with Genevestigator data (Figure 8; Table S5). In roots, OsNDB3 was up-regulated at the earliest time-point, followed by OsNDB1 at day 2 and OsNDB2 at day 6 and OsNDC1 at day 12 (Figure 8). Further, there was a significant decrease in OsNDA1 and OsNDA2 levels in roots, reminiscent of the OsAOX gene response in root tissue. It is unknown whether this change in OsNDA transcript levels reflects a change in corresponding protein levels or activities. Antibodies for each ND in rice or barley are currently not available, but an antibody raised to a peptide-specific for the OsNDB2 isoform was developed and used to detect NDB2 protein in mitochondria isolated from shoot and root tissue. OsNDB2 protein was detectable in control shoot but not in root mitochondria (Figure 9C). There was an increase in OsNDB2 protein in mitochondria from day 9 salt treated shoot tissue but not root mitochondria, consistent with transcript data collected for this tissue (Figure 9A,B).
Genevestigator data showed that the same stress-responsive genes identified in the KCN treatment of barley were also up-regulated by many abiotic and biotic stresses (Table 3 and Table S6). HvAOX1a, HvAOX1d1 and HvAOX1d2 were the stress-responsive AOX isoforms, along with HvNDB3. No information for HvNDB2 is available in Genevestigator. Interestingly, HvNDA1 was reported to increase in some perturbations, but as the HvNDA1 and HvNDA2 show high sequence identity, it is possible that there may be a mis-identification of these genes in Genevestigator. Increases in abundance of AP gene transcripts occur with biotic stress in barley and are also seen in abiotic stresses such as cold and drought. To elaborate on the response to drought, total protein extracts were made from shoot tissue of barley grown under normal or moderate drought conditions and probed with the AOX antibody. Shoots from drought treated plants had higher AOX protein levels than control samples, indicating transcriptional and/or translational control (Figure 10). Since these protein extracts were obtained under reducing conditions, it is not clear if there is also a post-translational level of activation via disulphide reduction under these conditions, and this is worth further investigation.
It is well documented that AtAOX1a and AtNDB2 show a high level of co-expression under various stress conditions [14]. Transcriptomic datasets for perturbations in Genevestigator were scanned to determine the genes showing the highest correlation of expression with AtAOX1a and AtNDB2 as well as all rice and barley AP genes. Table S7 shows the level of correlation between AP genes. For example, AtNDB2 is the sixth most correlated gene expressed with AtAOX1a, confirming the close co-expression relationship between these genes during stress. Interestingly, AtNDA2 is also highly expressed with AtNDB2 and AtAOX1d lies within the top 100 genes for co-expression with AtAOX1a.
A similar analysis of rice and barley AP genes suggests that co-expression of AOX and ND genes also occurs in monocots. In both rice and barley, the genes with strongest correlated expression are AOX1a and AOX1d (HvAOX1d1 and HvAOX1d2, in barley). In rice, OsNDB3 and OsNDA1 are the isoforms most highly co-expressed with AOX isoforms. For barley, a close co-expression relationship exists between HvNDB3, HvAOX1d1 and HvAOX1d2 (Table S7).

3. General Discussion

Plant mitochondria contain a complex electron transport chain, characterised by ND and AOX proteins that constitute an alternative pathway, AP, which is not linked to energy conservation. Evidence suggests that the AP plays a role in plant abiotic stress tolerance through minimising ROS [44,46], influencing stress related amino acid synthesis [47], protecting cytochrome oxidase from ROS under photoinhibitory conditions, such as drought [48], and influencing stomatal function [49].
Many studies that have examined the role of the AP in plant growth and stress responses have focused on AOX, with the NDs often overlooked, and have rarely used monocot species. In this study, we have identified all the genes associated with the components of the AP in rice and barley, examined their expression under stress and identified the key genes involved in stress response.
As described previously, AOX is encoded by four genes in rice and barley, all clustering within the AOX1-like gene clade and none in the AOX2-like gene clade [19]. Recently, AOX2-like genes have been found in ancient monocot ancestors [50], but they are yet to be found in more recent monocots, such as rice. OsAOX1a and OsAOX1d were found to be located in a tandem arrangement on the same chromosome, and we now show that this section of the rice genome maps to a similar region in barley where a gene duplication has resulted in formation of HvAOX1d1 and HvAOX1d2, which are closely related in sequence. These closely located genes are highly co-expressed in both rice (OsAOX1a and OsAOX1d) and barley (HvAOX1a, HvAOX1d1 and HvAOX1d2) in the stress experiments in this study and in previous studies reported in Genevestigator data. While this co-expression was evident in previous studies where rice plants were exposed to stresses such as chilling, drought and salinity [20,22,51], this is the first report of this response for barley (Tables S6 and S7). AOX1c was not stress responsive in either rice or barley in our experiments. In other species there are some AOX1 genes that do not respond to stress (e.g., AtAOX1b and 1c in Arabidopsis, based on observations from the Genevestigator Perturbations data set), so this is not unique. However, the level of expression of AOX1c differed greatly between the two species. OsAOX1c was constitutively expressed in both shoot and root tissue of rice. In contrast, HvAOX1c was expressed at very low levels in shoots and was not detectable in roots of 12 days old barley plants, suggesting a species difference in the regulatory elements present in the promoter regions of this gene and tissue-specific roles not yet uncovered.
We also report for the first time a preliminary characterisation of the barley ND genes. All three subfamilies of plant ND genes, NDA, NDB and NDC are present in both rice and barley, but both species have fewer NDB genes than the well characterised Arabidopsis. The amino acid sequence can be a guide to substrate specificity of ND proteins. On this basis, apart from NDB1 and NDC1, all the rice and barley NDs apparently use NADH as a substrate, as described for Arabidopsis [39]. All the NDBs we have identified contain a conserved EF hand motif and so have the potential to be regulated by calcium binding, but rice and barley lack an equivalent to AtNDB4, an NADH-specific ND that does not bind calcium. The role of this protein in Arabidopsis has not yet been clarified, but its absence in rice and barley suggests a metabolic difference between these species. Further analysis revealed that the barley and rice NDB3 proteins lack the peroxisomal targeting sequences previously identified for OsNDB1 and OsNDB2 [24], suggesting that NDB3 in rice and barley is orthologous to AtNDB2.
Experiments with chemical and abiotic stress treatments show that a number of ND genes in both rice and barley are responsive to oxidative stress along with AOXs. The most stress-responsive of these genes was NDB3 in both monocots, but NDA1 or 2 and NDB2 also responded. However, NDB2 showed a different temporal response during KCN and salinity treatment of rice with lower, but sustained expression, possibly reflecting a response to different signals during the stress. Experiments with an antibody specific for OsNDB2 showed that the protein also increased in roots of stressed plants. Data in Genevestigator confirms the transcriptional response of these ND genes to a large number of stresses, both biotic and abiotic. Taken together, these observations indicate that NDB3 is the main stress-responsive ND gene in rice and barley, further suggesting that it serves a similar functional role as AtNDB2.

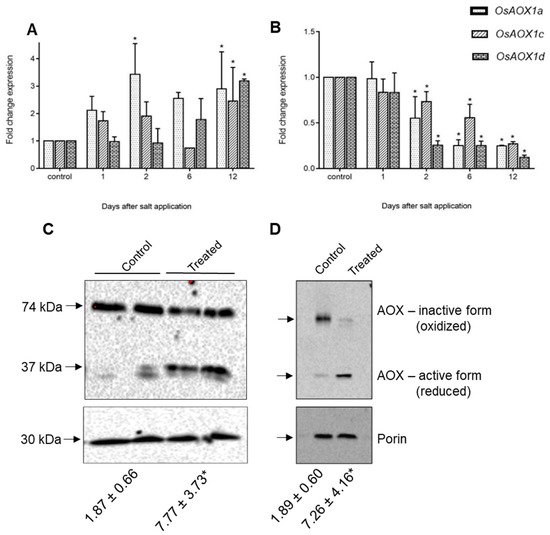

A more detailed analysis of the response of rice to saline conditions also suggested post-translational regulation of AOX by stress. Transcript abundance of various AOX genes, but especially OsAOX1a and OsAOX1d, gradually increased in shoots but decreased in roots. The results with shoots agree with those of Ohtsu et al. [20] and Feng et al. [21]. In contrast, Feng et al. [51] reported an increase of transcript abundance of AOX1a and AOX1d when roots were exposed to 200 mM and 300 mM salt stress for 12 h, but their experimental conditions may have caused a “salt shock”, which was avoided in our experiments. Ohtsu et al. [20] also reported an increase in transcript abundance of OsAOX1a and OsAOX1d under a similar ‘salt shock’ experiment, which then decreased gradually. In our experiments, salt concentration was gradually increased over time with several increments, perhaps resulting in different signals. Microarray data from Genevestigator clearly demonstrate the tissue-specific nature of OsAOX1 expression in rice in response to salinity stress and the patterns of OsAOX1a and OsAOX1d expression in various tissues from different cultivars are consistent with our results. In particular, there was a reduction of OsAOX1a and OsAOX1d transcript abundance in roots from the cultivars Pokkali, IR63731, IR29 and FL478, eight days after salt application (Table S5). Despite this decrease in AOX gene transcript over the long term, AOX capacity increased in mitochondria isolated from salt stressed rice root tissue. This may reflect post-translational regulation by reduction of AOX from its inactive oxidised dimer to an active reduced form. Such post-translational regulation of AOX capacity has also been observed during high light stress in the shade plant Allocasia [52] and in soybean leaves [53]. Since OsAOX1d has a serine at the CysI site involved in redox control of AOX activity, which will prevent its conversion to an inactive covalently linked dimer, it is likely that the protein we detected immunologically in roots was another AOX isoform.
The difference in results between the studies of Feng et al. [51], Ohtsu et al. [20] and the present study, suggests that different signals were involved in the roots under the different conditions imposed, one leading to a transcriptional upregulation of AOX genes, the other to post-translational regulation of existing protein. This may reflect different roles of AOX in response to a direct oxidative stress (KCN) versus salt stress where it might play a role in metabolite synthesis, but this remains to be proven. However, it does highlight the complexity of regulation of AOX and AP in plants.

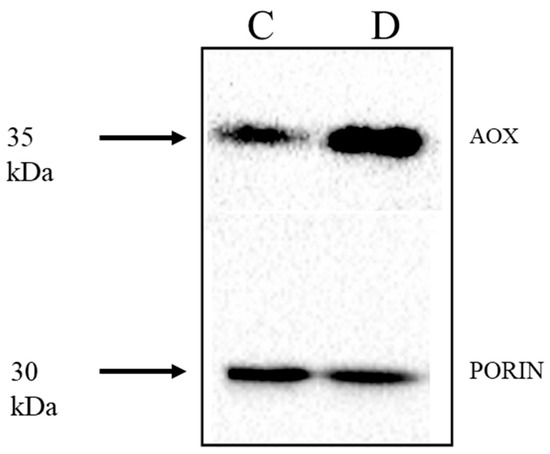

Less is known currently about the response of barley AP components to stress. Up-regulation of an AOX gene in response to cold has been reported for wild barley [54] and heat stress (HvAOX1a) for the commercial cultivar Golden Promise [28]. More recently, Zhao et al. [25] and Wang et al. [26] reported an increase in AOX protein linked to varieties of highland barley showing improved tolerance to low N, UVB and salt. We have undertaken a more detailed analysis of the AOX and ND gene family to oxidative, abiotic and biotic stresses, building on the previous work and confirming that these transcriptional responses are translated into higher AOX protein levels under drought stress. This suggests that AOX may play a similar role during drought to that shown in tobacco [48]. Whether ND protein increases as well awaits the development of antibodies to detect these proteins.
In conclusion, we have shown that there is a high level of co-expression of AOX1a and AOX1d, together with NDB3, in response to chemical and environmental stresses in rice and barley. This is reminiscent of the co-expression that has been well characterised in Arabidopsis for AtAOX1a and AtNDB2. Our results pave the way for an assessment of the role the AP path in these important cereal crops plants and the possible use of AP components as molecular markers in breeding programs.

4. Materials and Methods

4.1. Plant Material

Oryza sativa ssp. japonica, cv. Nipponbare or Hordeum vulgare, cv. Golden Promise were used for transcript level, protein level and enzyme activity analyses as described individually for each experiment.

4.2. Gene Identification

Nucleotide and amino acid sequences for all Arabidopsis AOXs (AtAOX1a, At3g22370; AtAOX1b, At3g22360; AtAOX1c, At3g27620; AtAOX1d, At1g32350; AtAOX2, At5g64210) and NDs (AtNDA1, At1g07180; AtNDA2, At2g29990; AtNDB1, At4g28220; AtNDB2, At4g05020; AtNDB3, At4g21490; AtNDB4, At2g20800; AtNDC1, At5g08740) were retrieved from the The Arabidopsis Information Resource [55] and used for BLASTp/BLASTn searches against protein/genomic reference sequences in the MSU RGAP Release 7 on Rice Genome Annotation Project database [56] to identify alternative pathway homologs in japonica rice. Putative japonica rice AP genes were then used in BLASTp/BLASTn searches against O. sativa ssp. indica group sequences on the Gramene database [57] to identify AOX and ND homologs in indica rice. The rice AP sequences (Table S1) were also used for BLASTp/BLASTn searches against reference sequences of genes from NCBI [58] and the International Barley Sequencing Consortium database [59] to identify AP homologs in barley. Protein sizes were determined using the predicted amino acid sequence and the ExPASy tool [60].

4.3. Protein Relationship Analyses

A protein relationship tree of NDs from rice, barley and Arabidopsis, was constructed using the neighbour-joining method [61] in the MEGA7 computer program [62]. Protein sequences identified above (Table 1 and Table S1) were aligned in Clustal Omega [63] following standard parameters. Phylogenetic tree construction was carried out using the Neighbour-joining method and Bootstrap of 1000 replications; “number of differences” as the substitution model and “complete deletion” for gaps/missing data treatment.

4.4. Subcellular Localization

Computational determination of the subcellular localization of identified AP genes from rice and barley was carried out using publicly available subcellular localization prediction programs; TargetP [64], Predotar [65], ChloroP 1.1 [66] and Plant-mPLOC [67]. Proteins targeting to the peroxisomes were predicted using PredPlantPTS1 [68].

4.5. Genevestigator Expression Analyses

Microarray probe-set IDs with high homology were retrieved for all Arabidopsis, rice and barley AP genes, except barley HvNDB2, which was not represented on the Affymetrix Barley Genome Array chip. At the time of analysis, the transcriptomic databases for rice and barley contained data for 2656 and 1822 samples, respectively, and featured many different stress experiments. The ‘Perturbation’ dataset was screened using the Condition Search Tool within Genevestigator [69] to assess the stress-responsiveness of each gene in all microarray datasets available on Genevestigator. Fold changes for each AP gene in response to selected biotic and abiotic stress treatments are given in Tables S5 (rice) and S6 (barley). The Similarity Search Tool for Co-expression was also applied to the “Perturbation” dataset to identify genes that may be co-expressed with particular AP genes from Arabidopsis, rice and barley during stress (Table S7).

4.6. Screening for Responsive AP Genes under Oxidative Stress

To generate oxidative stress, rice seedlings (O. sativa ssp. japonica, cv. Nipponbare) were grown on Petri dishes for three weeks, then exposed to the respiratory inhibitor, potassium cyanide (KCN, 5 mM) and barley seedlings (H. vulgare, cv. Golden Promise) were grown for two weeks on damp paper towel in petri dishes, then exposed to KCN (5 mM). RNA for gene expression analysis was extracted from shoot and root tissue collected at 6 h and 24 h for both KCN treated and control (no KCN) tissue.
O. sativa (cv. Nipponbare) seedlings grown in a hydroponic system, were exposed to salinity stress following transplantation of the seedlings (7–10 days old) to 12 L hydroponic tanks filled with constantly aerated nutrient solution [70], at 26 °C/22 °C (day/night), 12 h photoperiod and 75% relative humidity, 400–500 µE m−2·s−1. The solution was changed after two weeks and 120 mM salt stress was applied in two increments, 50 mM followed by a further 70 mM NaCl two days later. Supplementary CaCl2, 0.75 and 1 mM, was added respectively to keep constant activity of calcium. Salt was applied gradually for several increments, to avoid a salt “shock” and calcium was present to remove any complications from an induced calcium deficiency that can occur in the presence of sodium ions [71]. Root and shoot tissues were harvested from salt-treated and control tanks at pre-determined time points, and either snap-frozen in liquid nitrogen for gene expression analyses or used fresh for mitochondrial isolation and enzyme activity assays.
Drought tolerance assays were carried out using barley seedlings grown in soil. Seedlings (7 days old) of H. vulgare (cv. Golden Promise) were transferred from Petri dishes into Osmocote soil in pots. Each pot contained the same dry weight of soil and the same volume of water. The pants were grown in a glasshouse for 7 days at 23 °C/15 °C (day/night), 13 h photoperiod (1500 µmol m−2·s−1), with equal watering (to weight) before the drought treatment was initiated by completely withholding water for 14 days. Control plants continued to be watered as necessary. Shoot tissues were harvested from drought treated and control plants, immediately snap-frozen in liquid nitrogen and subsequently used for protein extraction and immunoblotting analyses.

4.7. Gene Expression Analysis Using qRT-PCR

Samples were snap frozen in liquid nitrogen then stored at −80 °C until use. In experiments with rice, the leaves (two youngest) and root were sampled separately. In experiments with barley the entire shoot and root were harvested separately. Total RNA was extracted using the TRIZOL-like extraction method [72] following recent modifications [71]. Genomic DNA contamination was eliminated by DNase treatment using DNase I (Invitrogen-ThermoFisher, Waltham, MA, USA). Single stranded cDNA synthesis was performed on 1 µg of DNase-treated RNA using iScript cDNA Synthesis Kit (Bio-Rad, Hercules, CA, USA). The qRT-PCR analysis was performed with a CFX96 Real Time PCR Detection System (Bio-Rad). For rice, reactions (10 μL) included SsoFast EvaGreen Supermix Master Mix (Bio-Rad) and 0.6 μM gene-specific primers (Table S8). For barley, reactions (10 µL) included KAPA SYBR-Fast qPCR Universal ReadyMix (Geneworks, Thebarton, Australia) and 0.2 µM gene-specific primers (Table S8).
The gene expression data obtained were normalized using the geometric average expression of three stable reference genes. For rice these were OsElF1 [70], OsPplase [73] and OsActin [73]. For barley, these were HvActin, HvUbiquitin and HvPdf (Protein phosphatase) based on their stable expression levels according to data from Genevestigator.

4.8. Protein and Enzyme Activity Assays in Isolated Rice Tissue Mitochondria

Mitochondrial isolation was carried out following the method described by Kristensen, et al. [74] with slight modifications. Purification of isolated mitochondria was carried out using a discontinuous Percoll gradient, which consisted of four layers: 6 mL of 60% (v/v) Percoll, 8 mL of 45% (v/v) Percoll, 10 mL of 28% (v/v) Percoll and 10 mL of 5% (v/v) Percoll.

4.9. Oxygen Electrode Assays

The oxygen uptake rate of mitochondria isolated from rice shoots or roots was measured in a standard reaction medium (0.3 M mannitol, 10 mM TES, 10 mM KH2PO4, 2 mM MgCl2, pH 7.2 at 25 °C using a Clark-type Oxygraph Plus oxygen electrode system (Hansatech Instruments Ltd., Pentney, UK). Total oxygen consumption rate of AOX was measured in the presence of the following components; 10 mM succinate, 5 mM pyruvate, 1 mM NADH, 1mM ATP, 1 mM ADP, 5 mM DTT. The cyanide resistant and the residual oxygen consumption rates were determined in the presence of 1 mM KCN and 250 nM OG (Octyl Gallate), respectively.

4.10. Immunoblot Analysis

Detection of AP protein levels in salt-treated and control rice shoot and root tissues was carried out on isolated mitochondria resolved on a 10% (v/v) Tris-glycine SDS-PAGE followed by immunoblotting. For barley tissue samples, protein was extracted from whole shoot or root tissue following the procedure of Umbach, et al. [75]. For both rice mitochondria and barley total protein extracts, samples were prepared either in the presence or absence of 200 mM DTT as indicated. Blots were probed with the monoclonal AOA antibody, with the peptide recognition sequence of RADEAHHRDVNH [76], or anti-porin antibody to show equal loading of samples on gel (supplied by Professor Harvey Millar, University of Western Australia).
The abundance of NDB2 protein was estimated by probing immunoblots with 1:8000 diluted polyclonal antibody OsNDB2, that was prepared by Biomatik (http://www.biomatik.com) with the peptide recognition sequence of CQDNQVLQINDGTGKKR.

4.11. Statistical Analyses

Data are generally expressed as mean ± SEM (Standard Error of the Mean). Analysis of variance or t-test was performed to determine whether there were significant differences between means of control and treated samples at 95% confidence level using GraphPad Prism (La Jolla, CA, USA).

Supplementary Materials

Supplementary materials can be found at https://www.mdpi.com/1422-0067/19/3/915/s1.

Author Contributions

Vajira R. Wanniarachchi and Lettee Dametto performed all the experimental work and conducted the bioinformatic and statistical analyses. Crystal Sweetman, Colin Jenkins and Yuri Shavrukov carried out bioinformatics analyses. Colin L. D. Jenkins, Kathleen L. Soole, David A. Day and Yuri Shavrukov conceived and designed the study.

Conflicts of Interest

The authors declare no conflict of interest.
