Next Article in Journal
MicroRNA-31 Emerges as a Predictive Biomarker of Pathological Response and Outcome in Locally Advanced Rectal Cancer
Next Article in Special Issue
Conductive Hybrid Crystal Composed from Polyoxomolybdate and Deprotonatable Ionic-Liquid Surfactant
Previous Article in Journal
Involvement and Clinical Aspects of MicroRNA in Osteosarcoma
Previous Article in Special Issue
Influence of Ionic Liquids on an Iron(III) Catalyzed Three-Component Coupling/Hydroarylation/Dehydrogenation Tandem Reaction
Article Menu
Issue 6 (June) cover image

Export Article

Open AccessArticle

An Efficient, Versatile, and Safe Access to Supported Metallic Nanoparticles on Porous Silicon with Ionic Liquids

CNRS-Université de Lyon-ESCPE Lyon, UMR 5265 C2P2, 43 Bd du 11 Novembre 1918, Villeurbanne 69616, France
CEA, LETI, MINATEC Campus, Grenoble 38054, France
Université Grenoble Alpes, Grenoble 38000, France
Author to whom correspondence should be addressed.
Academic Editors: Andreas Taubert and Peter Hesemann
Int. J. Mol. Sci. 2016, 17(6), 876;
Received: 30 March 2016 / Revised: 20 May 2016 / Accepted: 24 May 2016 / Published: 3 June 2016
(This article belongs to the Special Issue Ionic Liquids 2016 and Selected Papers from ILMAT III)
PDF [8879 KB, uploaded 3 June 2016]


The metallization of porous silicon (PSi) is generally realized through physical vapor deposition (PVD) or electrochemical processes using aqueous solutions. The former uses a strong vacuum and does not allow for a conformal deposition into the pores. In the latter, the water used as solvent causes oxidation of the silicon during the reduction of the salt precursors. Moreover, as PSi is hydrophobic, the metal penetration into the pores is restricted to the near-surface region. Using a solution of organometallic (OM) precursors in ionic liquid (IL), we have developed an easy and efficient way to fully metallize the pores throughout the several-µm-thick porous Si. This process affords supported metallic nanoparticles characterized by a narrow size distribution. This process is demonstrated for different metals (Pt, Pd, Cu, and Ru) and can probably be extended to other metals. Moreover, as no reducing agent is necessary (the decomposition in an argon atmosphere at 50 °C is fostered by surface silicon hydride groups borne by PSi), the safety and the cost of the process are improved. View Full-Text
Keywords: porous silicon; metallization; surface reactivity; metallic nanoparticles porous silicon; metallization; surface reactivity; metallic nanoparticles

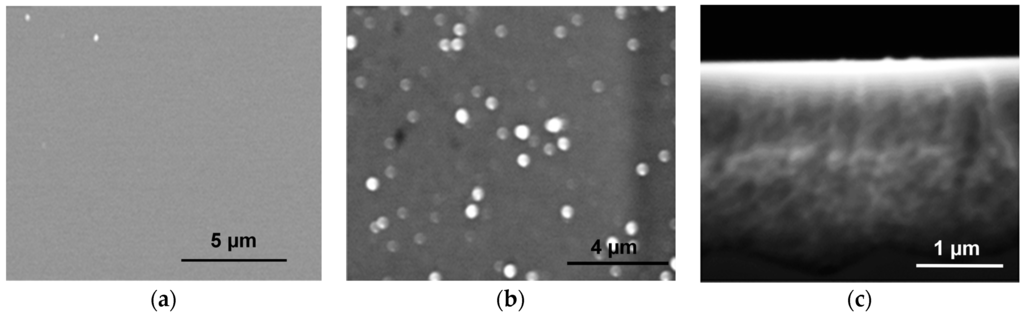

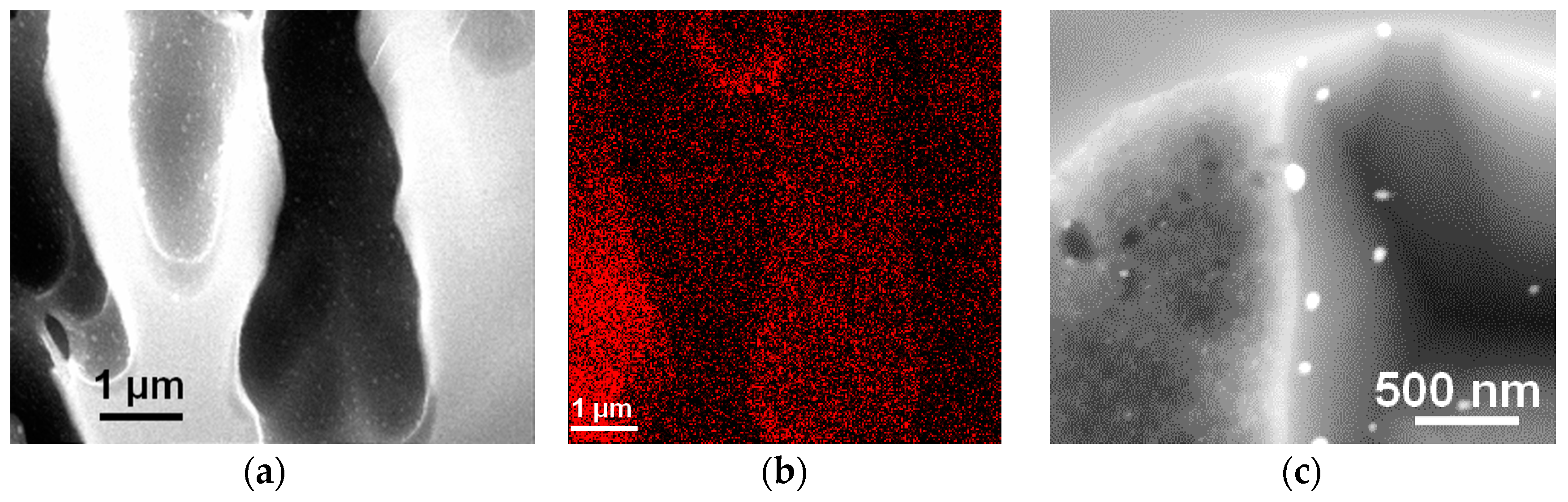

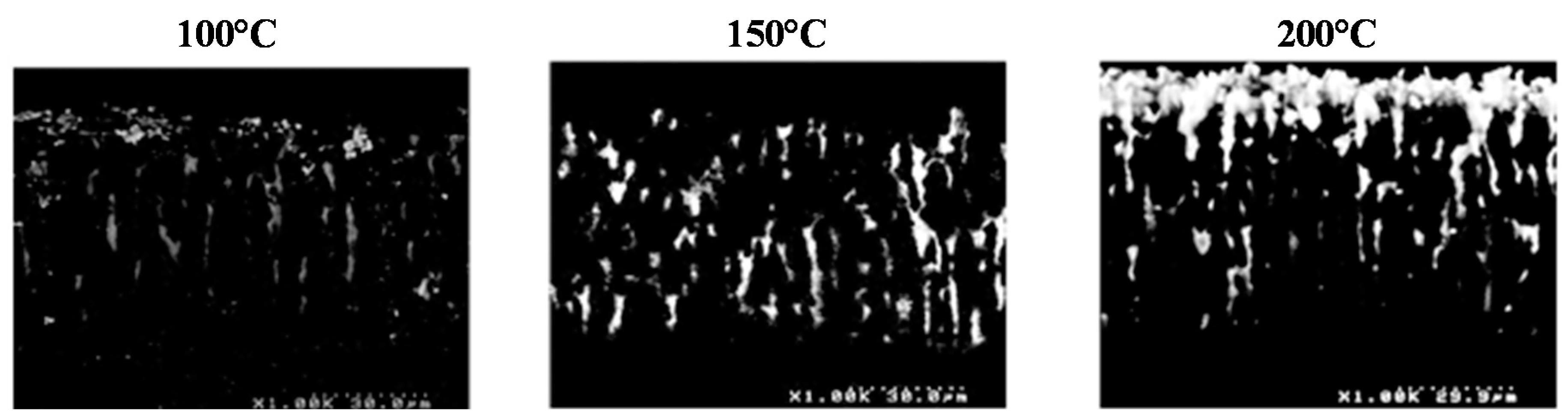

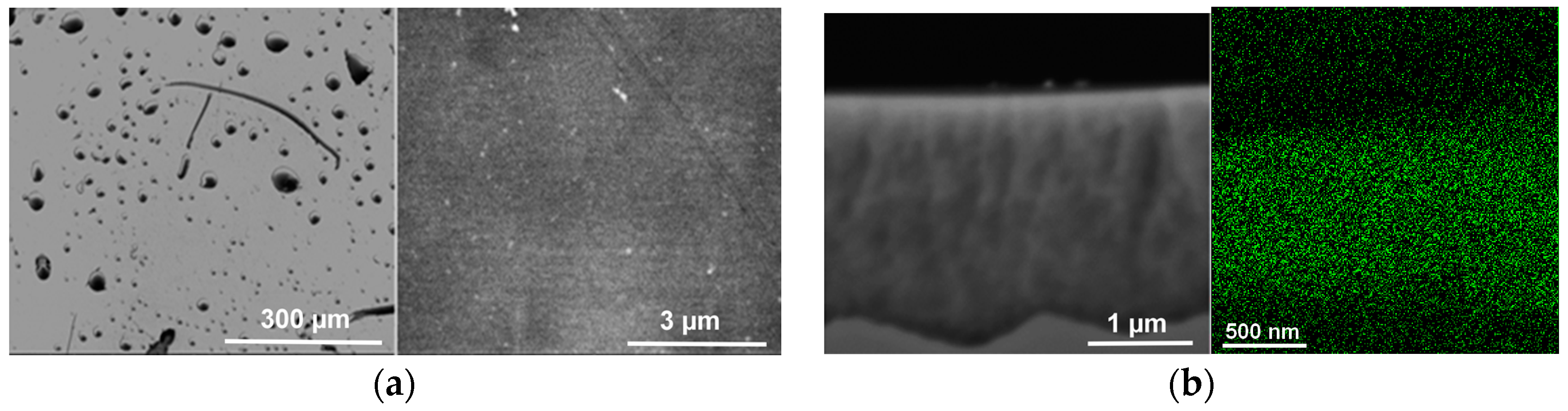

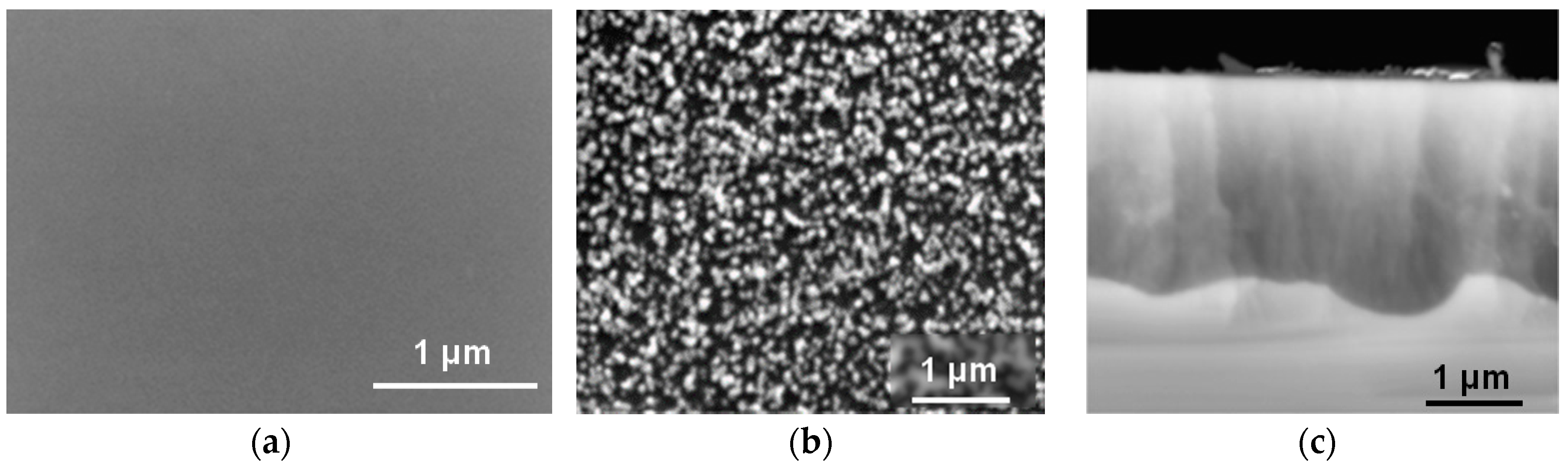

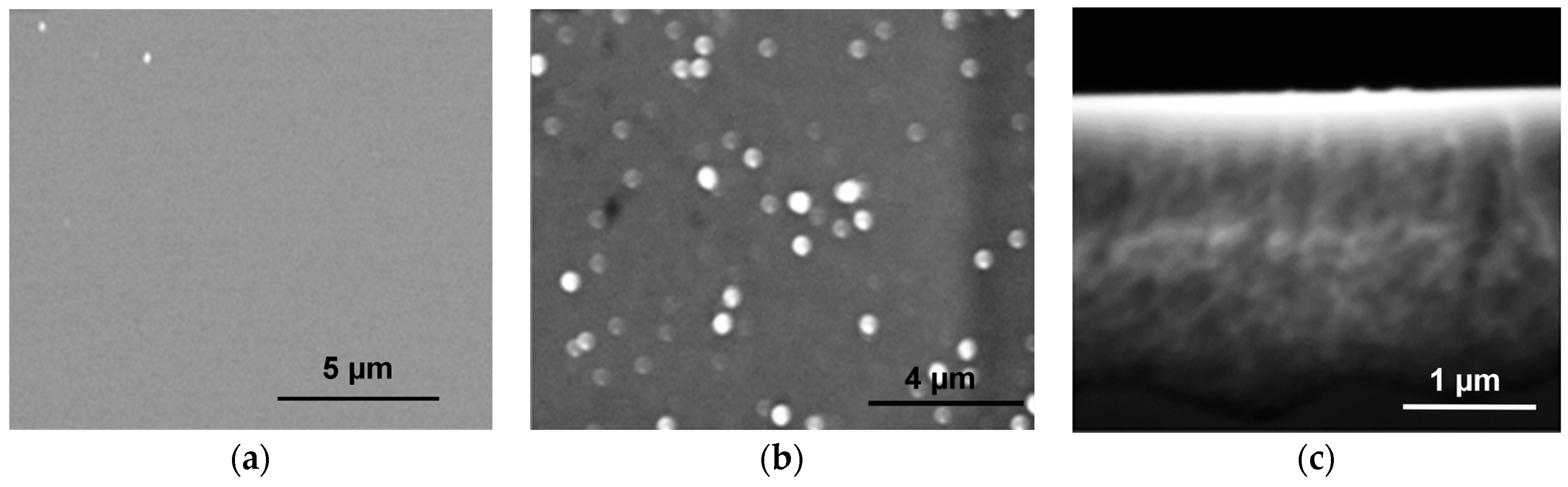

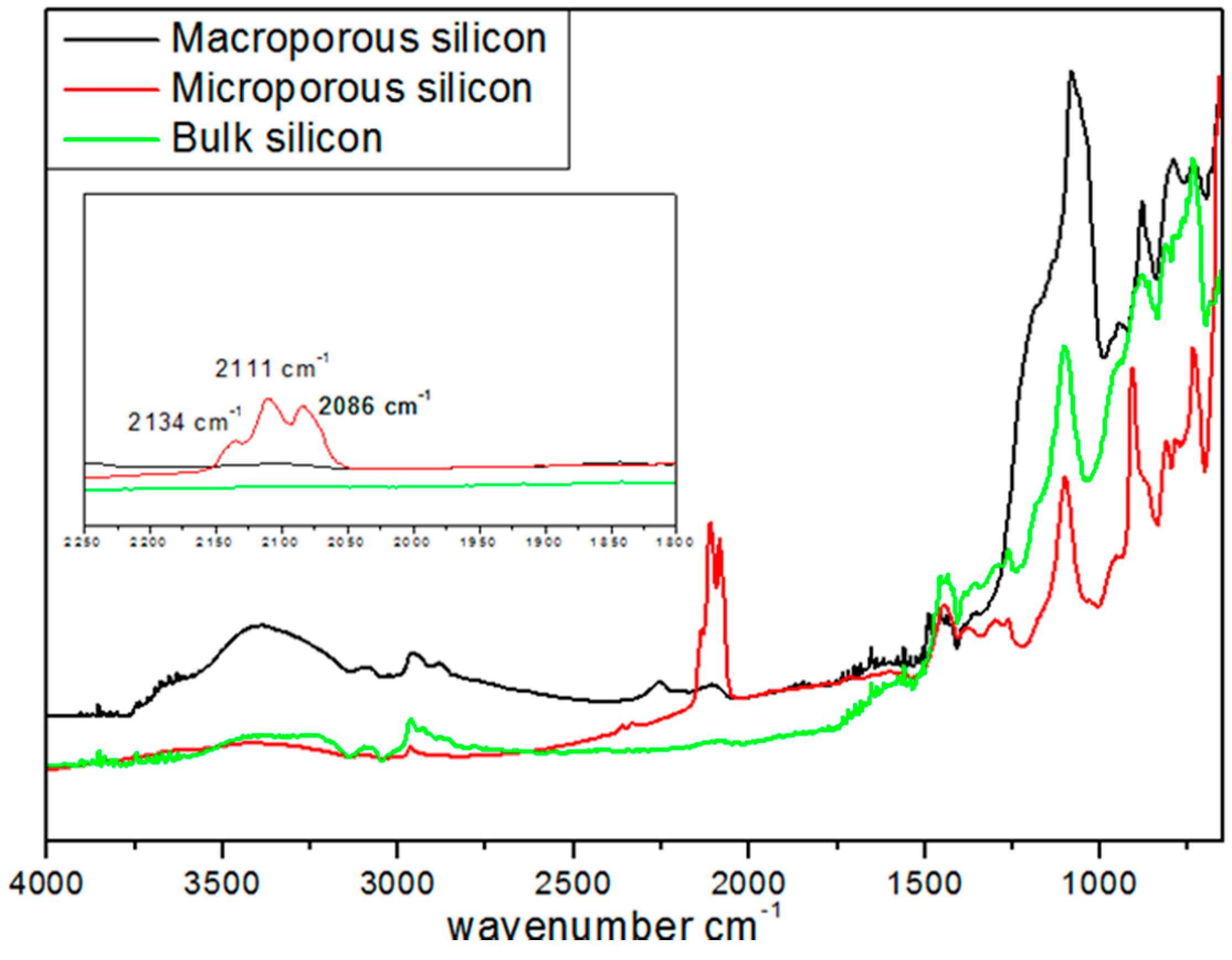

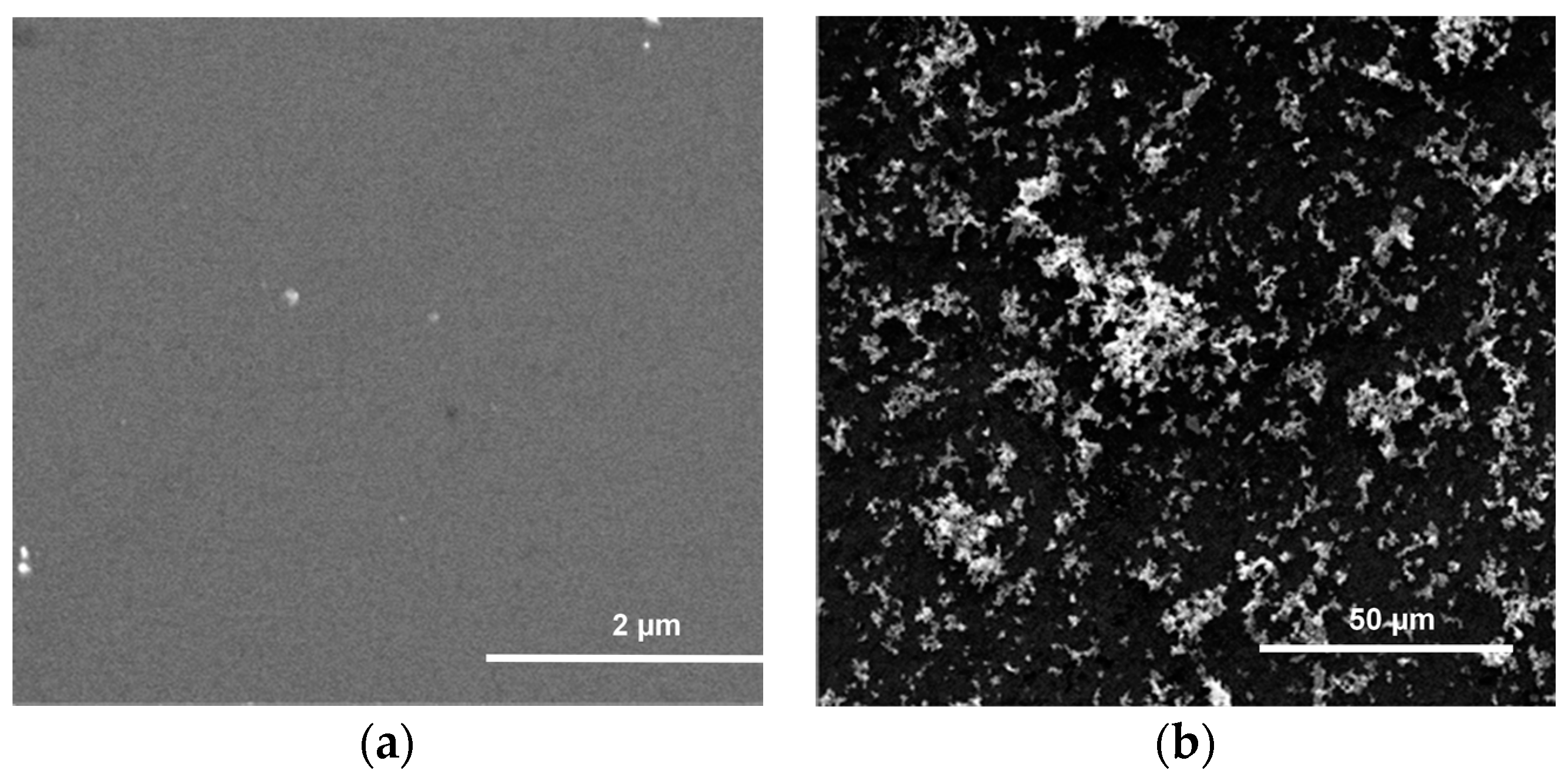

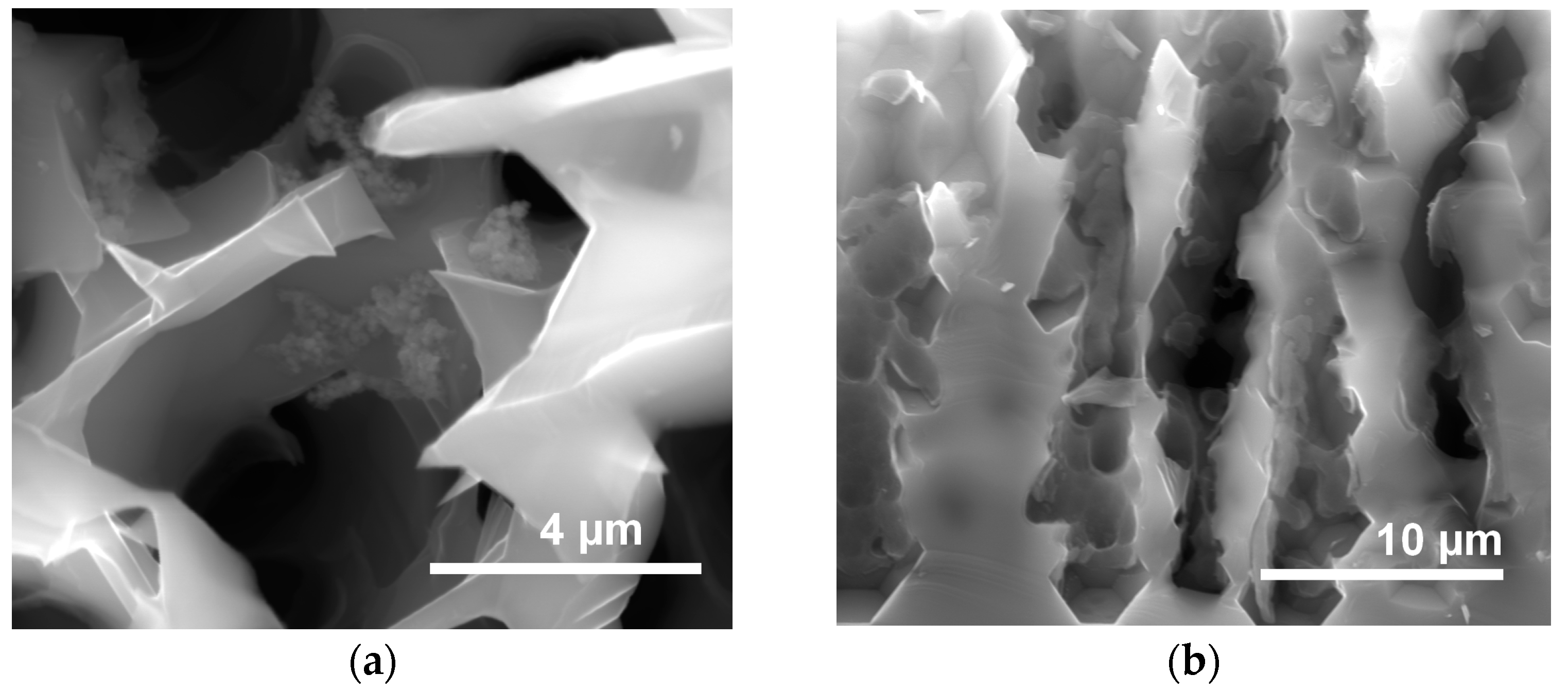

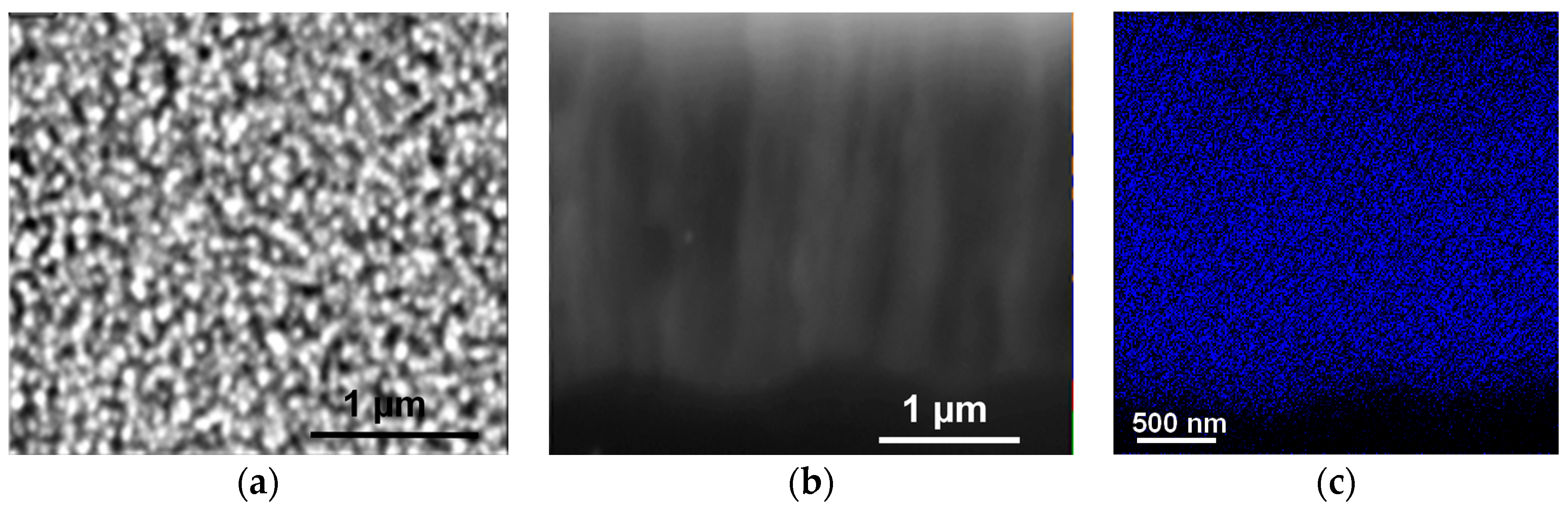

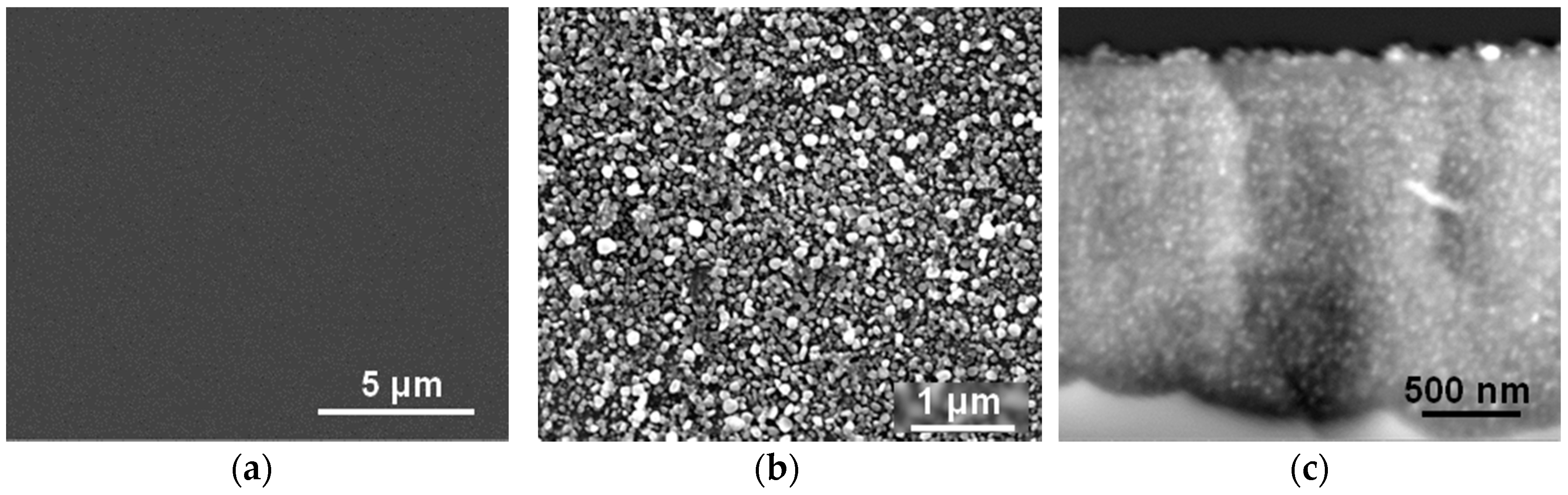

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Darwich, W.; Haumesser, P.-H.; Santini, C.C.; Gaillard, F. An Efficient, Versatile, and Safe Access to Supported Metallic Nanoparticles on Porous Silicon with Ionic Liquids. Int. J. Mol. Sci. 2016, 17, 876.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Int. J. Mol. Sci. EISSN 1422-0067 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
