Int. J. Mol. Sci. 2015, 16(12), 28087-28097; https://doi.org/10.3390/ijms161226084

Article
Transcriptome Profiling of Louisiana iris Root and Identification of Genes Involved in Lead-Stress Response
by Songqing Tian 1,2,†, Chunsun Gu 1,†, Liangqin Liu 3,†, Xudong Zhu 1,2, Yanhai Zhao 1 and Suzhen Huang 1,*
1
Institute of Botany, Jiangsu Province and Chinese Academy of Science, Nanjing 210014, China
2
Suzhou Polytechnical Institute of Agriculture, Suzhou 215008, China
3
College of Horticulture, Nanjing Agricultural University, Nanjing 210014, China
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Academic Editor: Eleftherios P. Eleftheriou
Received: 6 June 2015 / Accepted: 11 November 2015 / Published: 25 November 2015

Abstract

:
Louisiana iris is tolerant to and accumulates the heavy metal lead (Pb). However, there is limited knowledge of the molecular mechanisms behind this feature. We describe the transcriptome of Louisiana iris using Illumina sequencing technology. The root transcriptome of Louisiana iris under control and Pb-stress conditions was sequenced. Overall, 525,498 transcripts representing 313,958 unigenes were assembled using the clean raw reads. Among them, 43,015 unigenes were annotated and their functions classified using the euKaryotic Orthologous Groups (KOG) database. They were divided into 25 molecular families. In the Gene Ontology (GO) database, 50,174 unigenes were categorized into three GO trees (molecular function, cellular component and biological process). After analysis of differentially expressed genes, some Pb-stress-related genes were selected, including biosynthesis genes of chelating compounds, metal transporters, transcription factors and antioxidant-related genes. This study not only lays a foundation for further studies on differential genes under Pb stress, but also facilitates the molecular breeding of Louisiana iris.
Keywords:
Iris; Lead; transcriptome; RT-qPCR

1. Introduction

The contamination of water by toxic heavy metals can occur naturally during soil erosion and flooding or anthropogenically by automobile emissions of leaded gasoline, emissions from industrial factories of coal combustion, smelting and cement production, agrochemicals, insecticides and herbicides [1,2]. Lead (Pb) is a toxic heavy metal. The contamination of lakes, rivers, domestic waters and other water sources by Pb may lead to ecotoxicological problems in plants and animals, as well as damage to human health [3]. Plants could be effective heavy metal biological monitors, remediating contamination through rhizofiltration, phytostabilization or phytoextraction [4]. Therefore, identifying Pb hyperaccumulator plants, and the study of Pb absorption, transport and tolerance mechanisms in such plants, is very important.
Louisiana iris is an ornamental water plant, having originated in the marshes and swamps of the Gulf Coast States in the USA. Their natural habitat is comprised of wet, boggy areas that flood during the winter and spring [5]. New Louisiana iris cultivars grow well in various environmental uplands and wetlands, and are the most colorful of all of the Iris groups, making it a popular landscape plant. I. hexagona is one of its parents, and the I. hexagona population has become exposed to salt stress for more than 2000 years in southern Louisiana [6].
In recent years, RNA deep-sequencing (RNA-seq) has been used on several plants [7], including soybean [8], maize [9], cotton [10], chickpea [11], Chinese cabbage [12], potato [13], and Ammopiptanthus mongolicus [14]. It is a powerful method to screen for genes under biotic and abiotic stress conditions. Moreover, gene regulatory networks can be determined by RNA-seq. Some RNA-seq analyses of responses to Pb stress in plants have been reported. In the radish root, many differentially expressed genes (DEGs), which participated in defense and the detoxification of Pb, were identified [15]. In response to Pb treatments, the transcriptional profiles of over 1310 genes in common stress responses or different biological pathways were investigated in Arabidopsis thaliana [16]. These studies indicated that plants have formed a complete response and defense system through a series of regulatory genes in response to Pb stress.
In previous studies, I. tectorum, I. lactea var. chinesis and I. halophila were found to be resistant to heavy metals [17,18,19]. Louisiana iris was found to be tolerant to and accumulate Pb in our physiological studies [20]. In Iris research, the transcriptomes of floral and young leaf tissue from I. fulva have been described [5]. However, there are no reports of genetic or genomic information for Louisiana iris. In our study, we used Illumina sequencing technology to facilitate the understanding of Pb tolerance in Louisiana iris at a molecular regulatory level.

2. Results and Discussion

2.1. Sequencing and Reads Assembly

When plants are under heavy metal stress, there may be an intense metabolism modulation by 24 h [15,20]. Thus, a 24-h time course of Pb stress was used to characterize the Pb-responsive genes in our study. To obtain a global overview of the Louisiana iris gene expression profile under Pb-stress conditions, cDNAs from roots of control and Pb stressed Louisiana iris were sequenced using the Illumina HiSeq™ 2000 platform. We obtained approximately 71 million raw reads from the 200 mg/L−1 Pb-treated sample and 80 million raw reads from the control sample, and we removed low-complexity, low-quality and repeat reads. After strict quality checks and the cleaning of data, we had more than 128 million valid reads containing more than 12.0 G of nucleotides. The average read size and read valid ratio were 93.84 bp and 85.32%, respectively. After assembly, adaptor tags and repeat reads were filtered out, producing 525,498 transcripts, and the mean transcript size was 726 bp. After clustering using chrysalis clusters, the lengths of the max contig, min contig, whole dataset, average contig and N50 were 15,986, 205, 156,000,000, 497 and 572 bp, respectively, in 313,958 unigenes (Table 1). The length distribution of the assembled unigenes indicated that 239,396 (76.25%) unigenes ranged from 201 to 500 bp in length; 46,190 (14.71%) unigenes ranged from 501 to 1000 bp in length; 19,298 (6.15%) unigenes ranged from 1001 to 2000 bp in length; and 9074 (2.89%) unigenes were more than 2000 bp in length (Figure 1). During assembly, 7.42% of the unigene annotations matching genes in Phytophthora sojae, Tetrahymena thermophila, Albugo laibachii Nc14, Paramecium tetraurelia and Phytophthorain festans were found. Interestingly, many more unigenes matched to Phytophthora sojae than to others in “non-plant” organisms. The diseases caused by Phytophthora in Iris occurred from the early growing season until the flowering stage [21]. The Iris plant used in this experiment may have been infected by Phytophthora. The disease cannot be phenotypically detected by the naked eye. This may be why a significant proportion of the unigenes were annotated as Phytophthora sojae. Fortunately, this result could also help explain Pb-stress biology and is therefore still meaningful to our study.
Table 1. Overview of the sequencing and assembly.
Table 1. Overview of the sequencing and assembly.
ItemsNumber
Total unigenes313,958
Max contig length (bp)15,986
Min contig length (bp)205
Whole dataset length (bp)156,000,000
Average contig length (bp)497
N50572

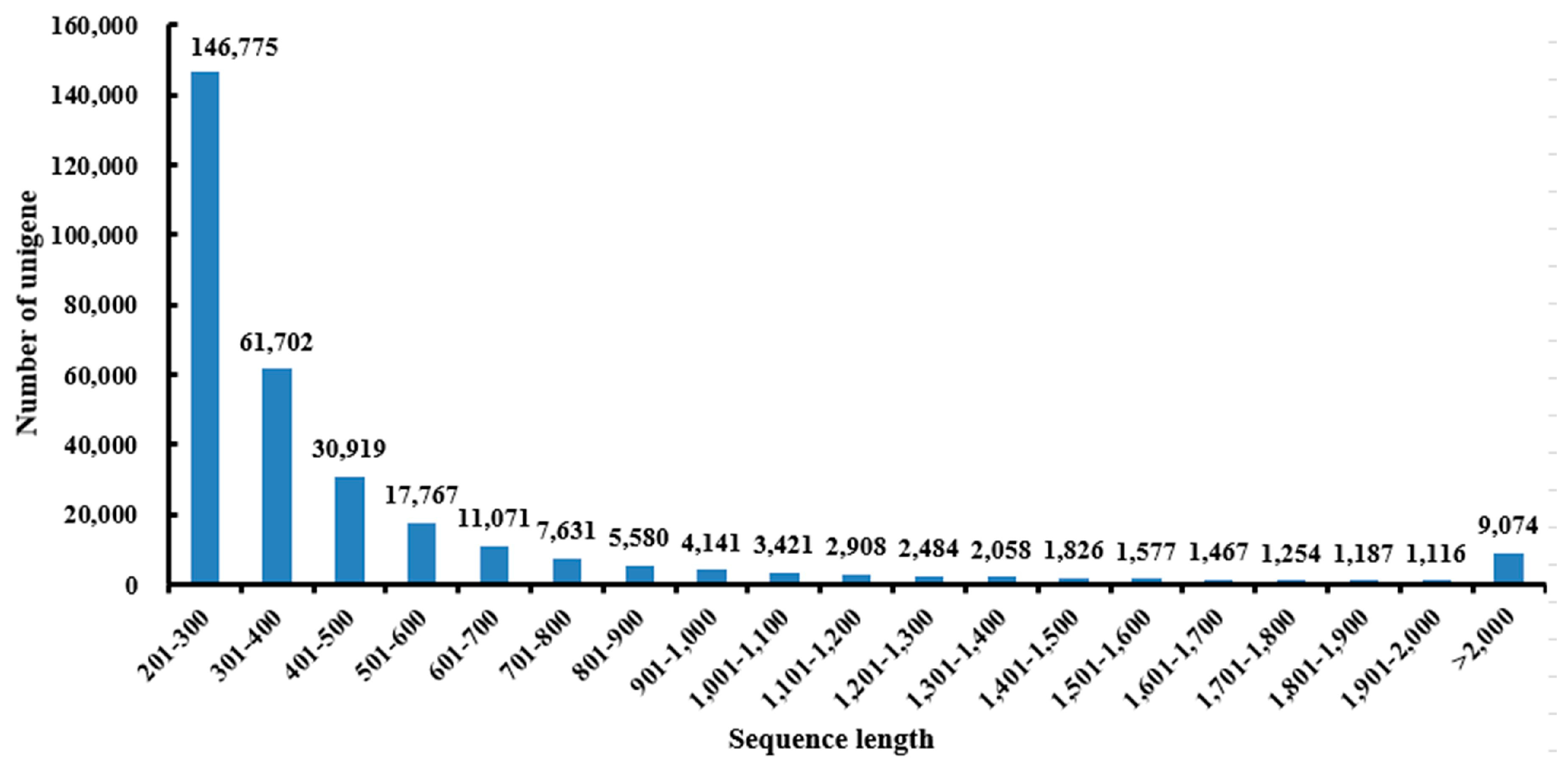

Figure 1. The length distribution of the assembled unigenes.
Figure 1. The length distribution of the assembled unigenes.
Ijms 16 26084 g001

2.2. Annotation of Unigenes

All of the unigenes were aligned against protein databases of Nr, SWISS-PROT, TrEMBL, Conserved Domain Database (CDD), Protein Families Database of Alignments and Hidden Markov Models (PFAM) and Eukaryotic orthologous groups (KOG). The number of aligned unigenes was 89,738 (28.58%) in Nr, 61,342 (19.54%) in SWISS-PROT, 93,087 (29.65%) in TrEMBL, 55,710 (17.74%) in CDD, 80,756 (25.72%) in PFAM and 43,015 (13.70%) in KOG (Table 2). In the Nr database, the top 10 species annotated were Vitis vinifera (36.17%), Oryza sativa Japonica Group (11.69%), Populus trichocarpa (9.32%), Ricinus communis (7.75%), Sorghum bicolor (6.99%), Brachypodium distachyon (6.57%), Glycine max (6.15%), Zea mays (5.41%), Oryza sativa Indica Group (5.14%) and Hordeum vulgare subsp. Vulgare (4.80%) (Figure 2). In the KOG database, 43,015 unigenes were classified into 25 functional categories (Figure 3). In the Gene ontology (GO) database, 50,174 unigenes were classified into the three ontologies, biological process, cellular component and molecular function (Figure 4). For biological process, “cellular process” and “metabolic process” had the highest numbers of isotigs. For cellular component, “cell” and “cell part” had the highest numbers of isotigs. For molecular function, “binding” and “catalytic activity” had the highest numbers of isotigs (Figure 4).
Table 2. List of annotations.
Table 2. List of annotations.
Annotation DatabaseNumber of AnnotationsPercent of Annotation (%)
Total unigene313,958-
Nr89,73828.58%
SWISS-PROT61,34219.54%
TrEMBL93,08729.65%
CDD55,71017.74%
PFAM80,75625.72%
KOG43,01513.70%
“-” means no percent of annotation.
Figure 2. The most represented species distribution.
Figure 2. The most represented species distribution.
Ijms 16 26084 g002

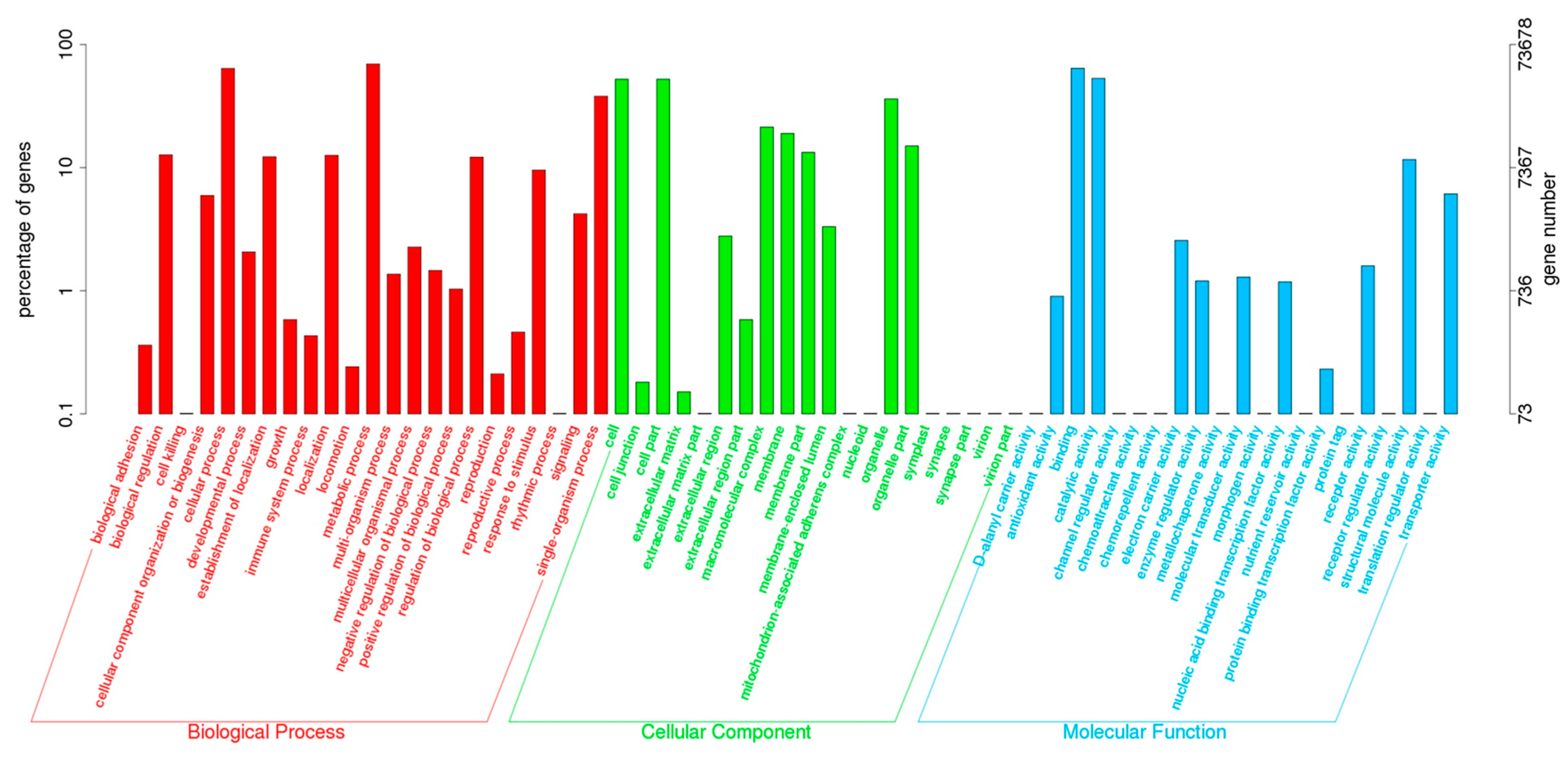

Figure 3. The GO classification of the assembled transcripts.
Figure 3. The GO classification of the assembled transcripts.
Ijms 16 26084 g003
Figure 4. Histogram of KOG classifications.
Figure 4. Histogram of KOG classifications.
Ijms 16 26084 g004
At the Bonferroni-corrected alpha level of p ≤ 0.05, 30,772 up-regulated DEGs were categorized into 804 GO terms (Table S1), and 29,990 DEGs involved in 720 predicted GO terms were significantly down-regulated (Table S2). The Pb-response genes were mapped to the Kyoto Encyclopedia of Genes and Genomes (KEGG) database. Among the enriched pathways of up-regulated genes (Table 3), the KEGG pathway analysis found 13,204 unigenes involved in 52 predicted KEGG metabolic pathways. Additionally, 15,666 unigenes were involved in 102 predicted KEGG metabolic pathways among the pathways enriched with down-regulated genes (Table 4). Partial pathways are shown in Table 3 and Table 4. Compared to the results in radish [15], the metabolism of xenobiotics by cytochrome P450 [ko00980] and gap junctions [ko04540] were also up- and down-regulated pathways, respectively, under Pb stress. The results suggest that the same regulatory pathways function in different species under Pb stress.
Table 3. Enriched pathways containing up-regulated genes under Pb stress.
Table 3. Enriched pathways containing up-regulated genes under Pb stress.
PathwayIdNumber of DEGs with Pathway Annotations (13,204)Number of Genes with Pathway Annotations (14,105)p-Value
Metabolism of xenobiotics by cytochrome P450ko00980134 (1.02%)287 (2.03%)3.06 × 10−8
Drug metabolism-cytochrome P450ko00982122 (0.92%)267 (1.89%)4.53 × 10−7
PPAR signaling pathwayko03320221 (1.67%)548 (3.89%)9.40 × 10−7
Protein processing in endoplasmic reticulumko04141796 (6.03%)2332 (16.53%)8.32 × 10−6
Ribosome biogenesis in eukaryotesko03008264 (2.00%)705 (5.00%)5.85 × 10−5
RNA polymeraseko03020122 (0.92%)297 (2.11%)1.94 × 10−4
Ubiquitin mediated proteolysisko04120392 (2.97%)1123 (7.06%)5.06 × 10−4
Proteasomeko03050313 (2.37%)886 (6.28%)9.74 × 10−4
ABC transportersko02010152 (1.15%)397 (2.81%)9.80 × 10−4
Peroxisomeko04146326 (2.47%)929 (6.59%)1.11 × 10−3
Glutathione metabolismko00480248 (1.88%)697 (4.94%)2.38 × 10−3
Alanine, aspartate and glutamate metabolismko00250210 (1.59)594 (4.21%)8.02 × 10−3
Pathways with p-value ≤ 0.05 are significantly enriched in DEGs.
Table 4. Enriched pathways containing down-regulated genes under Pb stress.
Table 4. Enriched pathways containing down-regulated genes under Pb stress.
PathwayIdNumber of DEGs with Pathway Annotations (13,204)Number of Genes with Pathway Annotations (14,105)p-Value
Ribosomeko030103988 (30.20%)8912 (63.18%)8.16 × 10−101
Citrate cycle (TCA cycle)ko00020566 (4.29%)1125 (7.98%)1.48 × 10−25
Regulation of actin cytoskeletonko04810584 (4.42%)1262 (8.95%)3.45 × 10−16
Gap junctionko04540269 (2.04%)527 (3.74%)1.67 × 10−13
Propanoate metabolismko00640342 (2.59%)722 (5.12%)2.32 × 10−11
MAPK signaling pathwayko04010440 (3.33%)1016 (7.20%)7.54 × 10−8
Calcium signaling pathwayko04020284 (2.15%)661 (4.69%)5.06 × 10−4
d-Glutamine and d-glutamate metabolismko0047133 (0.25%)58 (0.41%)8.42 × 10−4
Pathways with p-value ≤ 0.05 are significantly enriched in DEGs.

2.3. Validation by Real-Time RT-PCR

To validate the RNA-Seq technology, the expression levels of 12 candidate DEGs were detected using RT-qPCR (Table 5). The candidate genes selected for validation were associated with metal transporters, transcription factors and chelating compounds. Because AtNRT1.8 can mediate cadmium tolerance [22], we chose one NRT1 family gene, NRT1.2. The transcriptional expression patterns of nine genes (comp152611_c0_seq1, comp100849_c0_seq1, comp123900_c0_seq1, comp160851_c0_seq1, comp142858_c0_seq3, comp130772_c0_seq3, comp1017906_c0_seq1, comp162326_c2_seq1 and comp423843_c0_seq1) based on RT-qPCR showed an approximate agreement with those of the RNA-Seq-based gene expression patterns (Table 5). However, three genes (comp154333_c1_seq2, comp145580_c0_seq1 and comp147199_c0_seq1) did not show consistent expression levels between RT-qPCR and Illumina sequencing data (Table 5). The differences with respect to ratio and sensitivity between the two techniques may have led to the discrepancies [15].
Table 5. Validation of the RNA-Seq expression profiles of selected DEGs using qRT-PCR.
Table 5. Validation of the RNA-Seq expression profiles of selected DEGs using qRT-PCR.
Transcript IDDescriptionFold by RNA-SeqFold by qPCR
comp152611_c0_seq1Glutathione γ-glutamylcysteinyltransferase2.641.89
comp154333_c1_seq2Metallothionein-like protein type 21.903.68
comp100849_c0_seq1WRKY transcription factor 220.440.62
comp123900_c0_seq1EREBP-like factor1.261.55
comp145580_c0_seq1NAC domain-containing protein 903.585.22
comp160851_c0_seq1Metal transporter Nramp21.291.43
comp142858_c0_seq3Nitrate transporter 1.20.120.05
comp147199_c0_seq1Glutathione S-transferase6.738.33
comp130772_c0_seq3Ethylene-responsive transcription factor ERF0712.892.47
comp1017906_c0_seq1Zinc finger CCCH domain-containing protein 409.868.73
comp162326_c2_seq1Myb proto-oncogene protein. plant1.271.38
comp423843_c0_seq1Transcription factor bHLH1042.413.04

2.4. Analysis of Differential Gene Expression

In a previous study, no morphological differences were observed between the Pb-stressed seedling and control [23]. To elucidate the expression levels of functional genes and transcription factors under Pb stress, 3869 significantly changed genes were identified between control and Pb-stressed libraries using the reads per kilobase transcriptome per million mapped reads method. Among these, the number of up- and down-regulated genes was 1850 and 2019, respectively.
Some significant differential gene expressions were analyzed (Table S3). Metallothioneins (MTs) and phytochelatins (PCs) are two types of protein molecules in the biosynthesis of chelating compounds [24]. Class II MTs typically contain four categories (types 1–4) [25], and PCs are non-protein cysteine-rich oligopeptides that are capable of binding to various metals [26]. In the present study, two phytochelatin synthase DEGs, two metallothionein-like protein type 2 DEGs and one metallothionein-like protein type 3 DEG were found in the DEG analysis (Table S3). In A. corniculatum, the expression levels of AcMT genes were also induced by a certain concentration range of Pb stress compared with the control [27]. Moreover, MT genes were also affected by heavy metals in Iris lacteal [19], Brassica juncea [28] and Brassica campestris [29]. PCs have been demonstrated to be important in heavy metal detoxification and may be used as candidate genes in the phytoremediation of heavy metals [24]; they were found in alfalfa [20], Dianthus carthusianorum [30] and Lotus japonicus [31,32].
Transmembrane metal transporters are assumed to play key roles in heavy metal transport and detoxification [33]. ABC family transporters are the important heavy metal transporters [34]. In our study, the expression levels of ABC transporters were inhibited or induced. Another PDR-type ABC transporter, OsPDR9, is induced by heavy metals in rice roots [35]. AtPDR8, which encodes an ABC transporter, is a cadmium extrusion pump involved in heavy metal resistance [36]. Two zinc transporters (ZIP1 and ZIP3) showed inducible higher expression levels. However, ZIP8 and ZIP9 were down-regulated under Pb stress (Table S3). In rice, five ZIP transporter genes have been reported [37]. OsZIP1 is strongly inhibited by cadmium, whereas OsZIP3 is inhibited to a lesser extent by calcium [38]. OsZIP4 may be involved in the translocation of zinc [39]. It would be interesting to know the function of the ZIP gene family in Louisiana iris. Another ferrous iron transporter, iron-regulated protein 3 (IRT3), was down-regulated under Pb stress (Table S3). But IRT1 is more highly expressed in Solanum nigrum than in Solanum torvum [20]. In A. thaliana, the IRT1 protein mediates the uptake of heavy metals [40]. In Louisiana iris root, Pb may be a substrate of the IRT3 protein.
Three metal transporters, a copper transporter, CTR2, a magnesium transporter, MGT and a heavy metal P-type ATPase (HMA5), showed constitutive expression levels. However, their transcript levels significantly increased under Pb-stress conditions (Table S3). In A. thaliana, a five-member family of copper transporters (COPT1-5) was identified, and COPT1 and COPT2 were down-regulated under copper excess [41]. COPT5 acts as a copper exporter and is involved in the inter-organ reallocation of copper [42]. AtMRS2-11, a putative magnesium transporter, plays an important role in transporting magnesium in the chloroplast membrane system [43]. Moreover, a root-expressed magnesium transporter, MRS2-7, allows A. thaliana to grow in low-magnesium environments [44]. For HMA proteins, AtHMA2 is involved in cytoplasmic zinc homeostasis [45]. TcHMA3 is responsible for cadmium tonoplast-localized transportion [46]. TcHMA4 could display cadmium tolerance in the Thlaspi caerulescens cadmium hyperaccumulator [47]. AtHMA5 interacts with ATX1-like copper chaperones and functions in copper compartmentalization and detoxification [48]. High expression levels of CTR2, MGT and HMA5 in Louisiana iris roots may mediate Pb uptake and transport in plants.
Transcription factors are very important in gene expression regulation [49]. In our results, the transcript expression levels of one bHLH, five ERFs and one DREB were affected by Pb stress, meaning that transcription factors and plant heavy metal stress tolerance have a close relationship. These results had been found in previous studies. AtbHLH29 is involved in controlling iron acquisition [50]. Transgenic plants overexpressing FIT/AtbHLH38 or FIT/AtbHLH39 could exhibit more cadmium tolerance [51]. For the MYBs and ERFs, there were six DEGs, including up- and down-regulated genes, in radish under Pb stress [15]. DREB genes may play a role in copper tolerance in rice [52], and LbDREB was found to enhance copper tolerance in transgenic tobacco [53].
Pb stress can affect the activity of peroxidase, superoxide dismutase, and catalase in plants [54]. One peroxidase, two superoxide dismutases, and one catalase were highly expressed in Louisiana iris roots. The expression patterns were consistent with the physiological results (data not shown).

3. Experimental Section

3.1. Sampling

In our previous study, Louisiana iris hybrid “Professor Neil” was confirmed to be a tolerant cultivar that can be used for the phytoremediation of contaminated environments [23]. When the plants were under a 200 mg/L Pb(NO3)2 stress treatment, we did not observe any obvious damage. However, visible stress phenotypes (data not shown) can been seen at 400 mg/L Pb(NO3)2. Therefore, 200 mg/L Pb(NO3)2 stress was selected as the treatment. The root is not only the first tissue damaged but also the main tissue bearing the Pb stress. Roots were, therefore, chosen as the most suitable tissue for this experiment. The seedlings were prepared as described by Gu et al. [19]. The 200 mg/L Pb(NO3)2 stress treatment was given to tissue culture seedlings after they reached 10 cm height in the greenhouse of the Institute of Botany, Jiangsu Province and the Chinese Academy of Sciences (Nanjing, China). Fresh roots of seedlings (three plants per sample) were harvested at two times (0 and 24 h). Samples were immediately frozen in liquid nitrogen until used.

3.2. cDNA Library Preparation and Sequencing

Total RNA was isolated with Trizol reagent (Life Technologies, Inc., Grand Island, NY, USA) following the manufacturer’s instructions [5]. Potentially contaminating DNA was eliminated from the total RNA using DNaseI (RNase-free New England Biolabs, Ipswich, MA, USA). RNA quality was confirmed using an Agilent Technologies 2100 Bioanalyzer (Agilent Technologies, Palo Alto, CA, USA), and the RIN values were greater than 7. All of the samples had density absorption ratios A260/A280 between 1.9 and 2.1, and were adjusted to the same RNA concentration. First-strand cDNA was synthesized using the SMART cDNA Synthesis Kit (Clontech Laboratories, Inc., Mountain View, CA, USA). After the second-strand cDNA synthesis reaction, the cDNAs were purified using a QiaQuick PCR extraction kit (Qiagen, Hilden, Germany) and connected with sequencing adapters. The PCR amplifications were selected as templates. The resulting library was sequenced using the Illumina HiSeqTM 2000 platform (Illumina, San Diego, CA, USA).

3.3. Transcriptome Sequencing Results Analysis

Raw sequence processing and de novo assembly were performed following the procedures described by Wang et al. [15]. After the adapters and low quality tags were removed, high-quality clean reads were obtained and assembled using Trinity (trinityrnaseq_r2012-10-05) [55]. Subsequently, unigenes were acquired using the TIGR Gene Indices clustering tools (http://www.tigr.org/tdb/tgi.shtml) [56]. Furthermore, the unigenes were annotated using the BLASTx algorithm against Swiss-Prot, TrEMBL, NCBI, CDD, Pfam and KOG databases with an E-value ≤10−5. The Blast2Go program was used to analyze GO annotations of unigenes. KOG and KEGG were also used to complement GO functional characterizations and determine the sequence directions of the unigenes.

3.4. Real-Time RT-PCR

Total RNA was isolated from young Louisiana iris roots using the RNAiso reagent (TaKaRa, Bio, Tokyo, Japan). RT-qPCR assays were performed on a Mastercycler®ep realplex Real-Time System (Eppendorf, Hamburg, Germany) platform using the SYBR® Premix Ex Taq™ II (Perfect Real Time) (TaKaRa, Bio, Tokyo, Japan). UBC (Table S4) was used as the reference gene described by Gu et al. [57]. The amplifications were performed as follows: 60 s at 95 °C for denaturation, 40 cycles of 15 s at 95 °C, 30 s at 55 °C, and 30 s at 72 °C [58]. Each RT-qPCR reaction was performed in three biological replicates. The 2−∆∆Ct method was applied for mean values [59].

3.5. Analysis of Gene Differential Expression

To show the differential gene expression levels between control and Pb-stressed roots, we used the reads per kilobase transcriptome per million mapped reads method to calculate the gene expression levels [60]. Significantly, DEGs were identified by estimating the false discovery rate (p ≤ 0.001) and absolute values of the log2Ratio (Pb/control) ≥ 1.

4. Conclusions

In summary, the root transcriptome of Louisiana iris was first characterized by Illumina sequencing. Based on a digital gene expression analysis, many genes that are involved in Pb-stress responses were found. The rich genetic and genomic resources in the transcriptomic data lay a foundation for studying the molecular mechanisms of Louisiana iris tolerance to Pb stress.

Supplementary Materials

Supplementary materials can be found at https://www.mdpi.com/1422-0067/16/12/26084/s1.

Acknowledgments

The study was supported by the Qing Lan Project Foundation of Jiangsu Province, the Suzhou Science Foundation of China (Grant Number: SNG201209), the National Natural Science Foundation of China (Grant Number: 31301807), and the Science Foundation of JiangSu (Grant Number: BK20130734).

Author Contributions

Songqing Tian, Chunsun Gu and Suzhen Huang conceived the study and designed the experiments. Chunsun Gu, Liangqin Liu and Yanhai Zhao performed the experiments and Chunsun Gu and Xudong Zhu analysed the data with suggestions by Suzhen Huang, and Chunsun Gu wrote the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.
