Screening of Bioactive Microalgae from Freshwaters, Collected in Hue, Vietnam: Cytotoxic Constituents from Dolichospermum smithii HU04

Abstract

Background/Objectives: Microalgae are recognized as prolific producers of bioactive metabolites with pharmaceutical potential. This study aimed to isolate and characterize cytotoxic constituents from selected cytotoxic microalgae, collected in Hue city, Vietnam. Methods: Microalgal samples were collected from freshwater bodies, morphologically identified, and maintained in laboratory culture. Thirteen strains were successfully isolated and cultivated in BG11, Z8, and BBM media to determine optimal growth conditions. Cytotoxic effects of extracts/compounds were determined using the sulforhodamine B assay on human lung cancer (SK-LU-1) and human liver cancer (HepG2) cell lines. The methanol extract was partitioned with n-hexane and CH₂Cl₂, followed by extensive chromatographic separation and HPLC purification to afford twelve compounds, including two new and ten known compounds. The structures were elucidated by HR-ESI-MS and NMR spectra, chemical methods, and comparing compounds in the literature. Results: From the phytoplankton samples collected across six freshwater bodies in Hue city, Vietnam, thirteen microalgal strains were successfully isolated and purified under laboratory conditions. These strains were morphologically and taxonomically identified to be Microcystis aeruginosa HU05, Microcystis viridis HU13, Anabaena circinalis HU08, Aphanizomenon flos-aquae HU02, Dolichospermum smithii HU04, Calothrix braunii HU14, Nostoc muscorum HU12, Nostoc punctiforme HU11, Raphidiopsis raciborskii HU03, Lyngbya spiralis HU15, Planktothrix stagnina HU16, Phormidium subtilis HU06, and Scenedesmus quadricauda HU07. All methanol extracts of those microalgae were evaluated for cytotoxic activity. The MeOH extracts of M. viridis (HU13) and D. smithii (HU04) exhibited significant cytotoxic effects, with IC₅₀ values of 6.19 ± 0.80 and 4.89 ± 0.76 µg/mL for M. viridis, and 9.51 ± 0.84 and 8.32 ± 0.94 µg/mL for D. smithii against SK-LU-1 and HepG2 cell lines, respectively. Furthermore, chemical studies of D. smithii HU04 led to the isolation of two new compounds, smithioside A (1) and smithioside B (2) and ten known ones, 3,4,5-trimethoxyphenyl-1-O-β-D-glucopyranoside (3), 4′-hydroxy-3′-methoxyphenol-β-D-[6-O-(4″-hydroxy-3″,5″-dimethoxylbenzoate)]-glucopyranoside (4), 4′-hydroxy-2′,6′-dimethoxyphenol 1-O-β-D-(6-O-syringoyl)glucopyranoside (5), mallophenol B (6), pisoninol II (7), guaiacylglycerol (8), (E)-asarone (9), deacetylsarmentamide B (10), (E)-2-hexenyl-β-D-glucopyranoside (11), and 5,6-dihydropyridin-2(1H)-one (12). The cytotoxic activity of all isolated compounds was also evaluated against SK-LU-1 and HepG2 cancer cell lines. Compound 12 showed the strongest activity, with IC₅₀ values of 9.13 ± 0.89 µM (SK-LU-1) and 7.64 ± 0.46 µM (HepG2). Compounds 5 and 6 exhibited moderate cytotoxic activity on both human cancer cell lines with IC₅₀ values ranging from 25.99 to 51.47 µM. Conclusions: These results highlight the potential of Dolichospermum smithii HU04 as a source of bioactive compounds, particularly in anticancer applications. These findings suggest that D. smithii HU04 extracts could be developed for therapeutic purposes targeting cancer.

1. Introduction

Freshwater microalgae are ubiquitous across rivers, lakes, reservoirs, wetlands, and benthic biofilms, where they function as foundational primary producers that regulate nutrient cycling, support aquatic food webs, and deliver wide-ranging ecosystem services with societal relevance [1]. Although decades of bioprospecting have emphasized marine systems, the chemical space of freshwater microalgae remains comparatively less surveyed in many regions, representing a timely opportunity to uncover novel scaffolds and mechanisms. Methodologically, contemporary discovery pipelines couple taxonomic authentication (integrative morphology with DNA barcodes and environmental sequencing) to axenic culture with metabolite-inducing stress regimens, and then apply green extraction; subsequently, orthogonal fractionation [2]. Microalgae have been known as one of the largest and most diverse photosynthetic organisms. They are potential sources for bioactive compounds such as fatty acids, carotenoids, chlorophylls, phycobiliproteins, and vitamins. The compounds from microalgae have exhibited antitumor, anti-inflammatory, antibacterial, antifungal, and antiviral activities [3]. This paper reports on the isolation, identification and cytotoxic screening of extracts and isolated compounds from selected microalgae.

2. Results and Discussion

2.1. Sampling Sites and Environmental Characteristics

Microalgal samples were collected from six representative freshwater bodies in Hue city, Central Vietnam (Figure 1). These locations were selected to cover a diversity of hydrological and environmental conditions, including urban rivers and natural or man-made lakes that receive varying degrees of anthropogenic influence. The sampling sites comprised: (1) Huong River, (2) Nhu Y River, (3) Hoa My Lake, (4) Tinh Tam Lake, (5) Mung Lake, and (6) Truoi Lake.

Huong river is the main river flowing through Hue city, characterized by a moderate current and seasonal fluctuation in nutrient levels. The river receives moderate inputs from domestic and agricultural effluents and frequently experiences cyanobacterial blooms during the dry season. Sampling stations (SH1–SH5): SH1 (16.3980, 107.5750); SH2 (16.4510, 107.5460); SH3 (16.4640, 107.5820); SH4 (16.3138, 107.3428); SH5 (16.5480, 107.6145).

Nhu Y river is a small tributary of the Huong River, flowing through densely populated residential areas. This river segment is characterized by slow water movement and high levels of organic matter, creating eutrophic conditions favorable for filamentous cyanobacteria such as Planktothrix and Dolichospermum. Sampling sites (NY1-NY5): NY1 (16.4639, 107.6151), NY2 (16.4726, 107.6157), NY3 (16.4739, 107.6075), NY4 (16.4847, 107.6390), and NY5 (16.4845, 107.6225).

Hoa My lake is a shallow artificial lake situated in the northern urban area of Hue city. It receives surface runoff and aquaculture effluents from nearby communities. The lake’s eutrophic nature, with pH ranging from 6.8 to 7.6, provides favorable conditions for dense growth of planktonic algae and cyanobacteria. Sampling sites (HM1-HM5): HM1 (16.4990, 107.3170), HM2 (16.4982, 107.3203), HM3 (16.4956, 107.3181), HM4 (16.4925, 107.3234), and HM5 (16.4896, 107.3235).

Truoi lake is a large freshwater reservoir located approximately 30 km south of Hue city. It serves as a key water resource for irrigation and domestic use. The reservoir represents a relatively unpolluted ecosystem with clear water, stable pH (6.5–7.2), and high dissolved oxygen content (5.2–6.5 mg/L). Sampling sites (HT1-HT5): HT1 (16.2556, 107.7847), HT2 (16.2557, 107.7873), HT3 (16.2496, 107.7882), HT4 (16.2389, 107.7911), and HT5 (16.2476, 107.7987).

Mung lake is a small semi-urban freshwater body surrounded by agricultural land. Mung lake receives runoff rich in nutrients and organic matter, resulting in moderate eutrophication that promotes the growth of Microcystis, Nostoc, and Anabaena. Sampling sites (MN1-MN5): MN1 (16.4793, 107.5806), MN2 (16.4792, 107.5811), MN3 (16.4786, 107.5811), MN4 (16.4788, 107.5806), and MN5 (16.4789, 107.5809).

Tinh Tam lake is an ornamental lake located within the Imperial Citadel of Hue. It has limited water circulation and is enriched with organic debris from surrounding vegetation. Sampling sites (TT1-TT5): TT1 (16.4780, 107.5756), TT2 (16.4785, 107.5773), TT3 (16.4770, 107.5763), TT4 (16.4766, 107.5749), and TT5 (16.4774, 107.5759).

From the phytoplankton samples collected across six freshwater bodies in Hue city, thirteen microalgal strains were successfully isolated and purified under laboratory conditions. These strains were morphologically and taxonomically identified into eleven genera belonging to two algal divisions, cyanobacteria (12 species) and chlorophyta (1 species) (

Table 1. List of Collected Microalgae from Various Places of Hue City, Vietnam.

No.	Code	Classification	Place of Collection
		CYANOBACTERIA
		Chroococcales
1	M.a. HU05	Microcystis aeruginosa	Nhu Y river
2	M.v. HU13	Microcystis viridis	Tinh Tam lake
		Nostocales
3	A.c HU08	Anabaena circinalis	Hoa My lake
4	A.f. HU02	Aphanizomen flos-aquae	Huong river
5	D.s. HU04	Dolichospermum smithii	Huong river
6	C.b. HU14	Calothrix braunii	Tinh Tam lake
7	N.m. HU12	Nostoc muscorum	Tinh Tam lake
8	N.p. HU11	Nostoc punctiforme	Mung Lake
9	R.r. HU03	Raphidiopsis raciborskii	Huong river
		Oscillatoriales
10	L.s HU15	Lyngbya spiralis	Tinh Tam lake
11	P.s HU16	Phormidium stagnina	Mung lake
12	P.s. HU06	Planktothrixsubtilis	Nhu Y river
		CHLOROPHYTA
13	S.q. HU07	Scenedesmus quadricauda	Hoa My lake

) [4]. Morphological characteristics of microalgal strains have been shown in Figure 2.

2.2. Optimization of Culture Media for Small-Scale Cultivation of Microalgae

Small-scale culture experiments (5 L) were conducted to determine the optimal growth media for thirteen microalgal species isolated from freshwater bodies in Hue city. Each strain was cultivated in 5 L Erlenmeyer flasks containing 3 L of culture medium under controlled laboratory conditions (25 ± 2 °C, light intensity 1500–2000 lux, 12:12 h light–dark cycle, and gentle aeration with filtered air). Three standard freshwater media, BG11, Z8, and BBM, were tested for their ability to support biomass accumulation and stable growth.

The results showed that BG11 and Z8 media supported the best growth performance for most cyanobacterial strains, while BBM was more suitable for the green alga Scenedesmus quadricauda HU07. Among the heterocystous cyanobacteria, Dolichospermum smithii HU04, Anabaena circinalis HU08, and Aphanizomenon flos-aquae HU02 grew optimally in Z8 medium, reaching exponential phase after 8–10 days. Microcystis aeruginosa HU05 and Microcystis viridis HU13 exhibited robust planktonic growth in BG11 medium, while filamentous non-heterocystous species such as Raphidiopsis raciborskii HU03, Lyngbya spiralis HU15, Phormidium stagnina HU16, and Planktothrix subtilis HU06 also developed dense trichomes in the same medium. Benthic strains Nostoc punctiforme HU11 and Nostoc muscorum HU12 adhered strongly to the vessel walls and formed characteristic mucilaginous colonies in BG11. In contrast, the green alga Scenedesmus quadricauda HU07 displayed limited growth in cyanobacterial media but produced the highest cell density in BBM medium, consistent with its Chlorophyta physiology. Overall, BG11 was confirmed as the most suitable culture medium for small-scale biomass production of cyanobacteria, whereas Z8 provided a favorable alternative for heterocystous genera such as Dolichospermum and Anabaena (

Table 2. Biomass Information of Microalgae and Cytotoxic effects.

No.	Microalgae Name	Culture Medium	Dried Biomass (g/flask)	MeOH Extract (g)	Extraction Yield (%)	IC50 (µg/mL)
						SK-LU-1	HepG2
1	Microcystis aeruginosa	Z8	3.3	0.43	13.03	78.93 ± 7.42	47.39 ± 6.53
2	Microcystis viridis	Z8	3.1	0.35	11.29	6.19 ± 0.80	4.89 ± 0.76
3	Anabaena circinalis	Z8	3.0	0.37	12.33	88.55 ± 6.27	72.82 ± 3.99
4	Aphanizomen flos-aquae	Z8	1.7	0.21	12.36	>100	>100
5	Dolichospermum smithii	Z8	3.9	0.42	10.77	9.51 ± 0.84	8.32 ± 0.94
6	Calothrix braunii	Z8	2.1	0.28	13.33	>100	>100
7	Nostoc muscorum	Z8	2.9	0.36	12.41	>100	>100
8	Nostoc punctiforme	Z8	3.0	0.46	15.33	>100	>100
9	Raphidiopsis raciborskii	Z8	3.0	0.31	10.33	>100	>100
10	Lyngbya spiralis	Z8	1.8	0.22	12.22	>100	>100
11	Phormidium stagnina	Z8	1.5	0.20	13.33	>100	>100
12	Planktothrixsubtilis	Z8	4.1	0.53	12.93	>100	>100
13	Scenedesmus quadricauda	BBM	4.2	0.52	12.62	>100	>100

).

2.3. Large-Scale Cultivation of D. smithii HU04

Under the optimized conditions, Z8 medium; nitrogen supplied as NaNO₃ at 150%; phosphorus supplied as KH₂PO₄ at 200% of the Z8 standard; 10% inoculum (starter ~10⁶ cells/mL); pH 7.5; continuous aeration; 22–25 °C; 3000–4000 lux—D. smithii HU04 (flasks (150 L) reached harvest at day 10. Across the production run, a total of 2.0 Kg dry biomass was obtained, corresponding to ~19.5 g per flask (≈1.30 g/L), providing ample material for extraction, isolation, and bioassays (Table 2).

2.4. Cytotoxic Evaluation of Microalgal Extracts

The cytotoxic activities of methanol extracts obtained from thirteen microalgal species isolated in Hue city were evaluated against two human cancer cell lines, SK-LU-1 and HepG2 (Table 2). Among the tested samples, the MeOH extracts of M. viridis (HU13) and D. smithii (HU04) exhibited significant cytotoxic effects, with IC₅₀ values of 6.19 ± 0.80 and 4.89 ± 0.76 µg/mL (M. viridis), and 9.51 ± 0.84 and 8.32 ± 0.94 µg/mL (D. smithii) against SK-LU-1 and HepG2 cell lines, respectively. The remaining extracts displayed weak or no activity (IC₅₀ > 100 µg/mL). These results suggest that certain cyanobacteria from Hue freshwater ecosystems produce cytotoxic metabolites with promising anticancer potential. Similar findings have been reported in other cyanobacterial genera. Microcystis spp. are known to produce hepatotoxic and cytotoxic peptides such as microcystins and aeruginosins, which exhibit IC₅₀ values ranging from 5–30 µg/mL against HepG2 and HeLa cells [5]. Dolichospermum species have also been recognized for producing bioactive compounds, including peptides and alkaloids with significant apoptosis-inducing effects [2]. The cytotoxic activity of D. smithii HU04 is consistent with earlier reports that cyanobacteria belonging to the Nostocales order possess diverse secondary metabolites (phenolic glycosides, cyclic peptides, and alkaloid derivatives) with antitumor and antimicrobial properties [2]. These results highlight the importance of freshwater cyanobacteria from Vietnam as a potential source of pharmacologically active compounds. Overall, M. viridis HU13 and D. smithii HU04 were identified as the most promising candidates for further chemical investigation. The latter was selected for compound isolation and structural elucidation due to its higher biomass yield, balanced extraction efficiency (10.77%), and reproducible cytotoxic activity.

2.5. Structural Elucidation

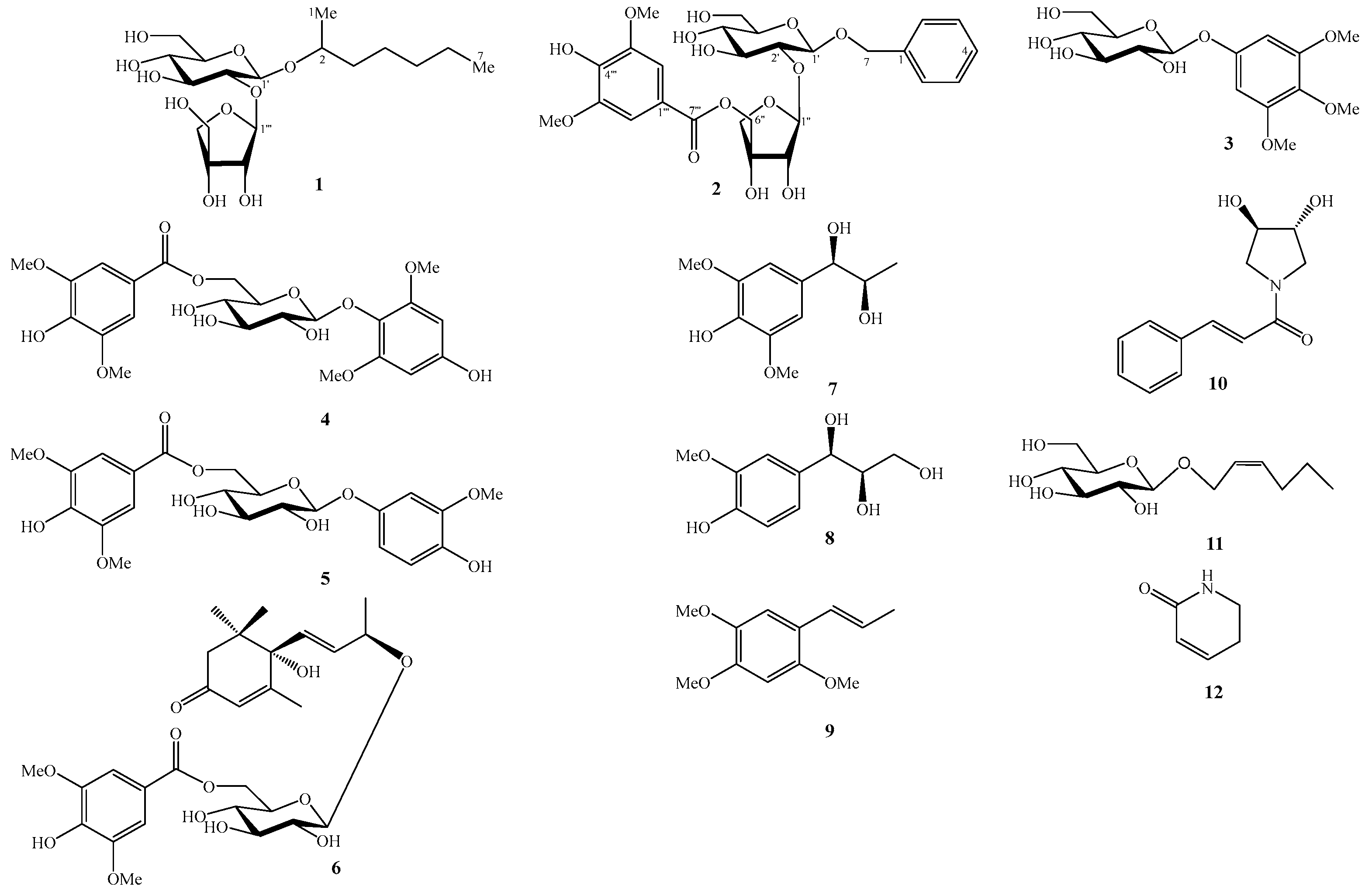

The known compounds were determined to be 3,4,5-trimethoxyphenyl-1-O-β-D-glucopyranoside (3) [6], 4′-hydroxy-3′-methoxyphenol-β-D-[6-O-(4″-hydroxy-3″,5″-dimethoxylbenzoate)]-glucopyranoside (4) [7], 4′-hydroxy-2′,6′-dimethoxyphenol 1-O-β-D-(6-O-syringoyl)glucopyranoside (5) [8], mallophenol B (6) [9], pisoninol II (7) [10], guaiacylglycerol (8) [11], (E)-asarone (9) [12], deacetylsarmentamide B (10) [13], (E)-2-hexenyl-β-D-glucopyranoside (11) [14], and 5,6-dihydropyridin-2(1H)-one (12) [15] by comparing their NMR data with those reported in the literature (Figure 3).

Compound 1 was obtained as a white amorphous powder. Its molecular formula was determined to be C₁₈H₃₄O₁₀ based on pseudo-ion peak at m/z 411.2220 [M+H]⁺ on the HR-ESI-MS (Calcd. for [C₁₈H₃₅O₁₀]⁺, 411.2225) and the ¹³C-NMR spectrum. The ¹H-NMR spectrum of 1 showed signals of two anomeric protons at δ_H 5.41 (1H, d, J = 1.8 Hz) and 4.41 (1H, d, J = 7.8 Hz), two methyl groups at δ_H 1.18 (3H, d, J = 6.0 Hz) and 0.93 (3H, t, J = 6.6 Hz). The ¹³C-NMR spectrum of 1 exhibited signals of 18 carbons, comprising one non-protonated carbon at δ_C 80.8, eight methines at δ_C 110.5, 100.7, 78.8, 78.6, 78.0, 77.7, 75.3, and 71.9, seven methylenes at δ_C 75.4, 66.3, 62.9, 38.4, 33.1, 26.1, and 23.7, and two methyl carbons at δ_C 19.6 and 14.4 (

Table 3. NMR Data for Compounds 1 and 2 in CD₃OD.

C		1			2
	δC  a	δH b (Mult., J = Hz)		δC  a	δH b (Mult., J = Hz)
1	19.6	1.18 (d, 6.0)		138.9	-
2	75.3	3.90 (m)		129.2	7.34 (d, 7.8)
3	38.4	1.45 (m)/1.61 (m)		129.2	7.22 (t, 7.8)
4	26.1	1.39 (m)		128.6	7.17 (t, 7.8)
5	33.1	1.31 (m)		129.2	7.22 (t, 7.8)
6	23.7	1.34 (m)		129.2	7.34 (d, 7.8)
7	14.4	0.93 (t, 6.6)		71.9	4.55 (d, 11.4) 4.91 (d, 11.4)
6-O-Glc
1′	100.7	4.41 (d, 7.8)		102.2	4.44 (d, 7.8)
2′	78.6	3.33 (dd, 7.8, 9.0)		78.9	3.50 (dd, 7.8, 9.6)
3′	78.8	3.49 (t, 9.0)		78.6	3.48 (m)
4′	71.9	3.31 (t, 9.0)		71.8	3.32 (m)
5′	77.7	3.24 (m)		78.0	3.27 (m)
6′	62.9	3.68 (dd, 5.4, 12.0) 3.86 (dd, 2.4, 12.0)		62.8	3.70 (dd, 6.0, 12.0) 3.90 (dd, 2.4, 12.0)
2′-O-Api
1″	110.5	5.41 (d, 1.8)		110.4	5.44 (d, 1.2)
2″	78.0	3.95 (d, 1.8)		78.5	4.01 (d, 1.2)
3″	80.8	-		79.2	-
4″	75.4	3.73 (d, 9.6) 4.08 (d, 9.6)		75.4	3.72 (d, 9.6) 4.04 (d, 9.6)
5″	66.3	3.62 (d, 11.4) 3.66 (d, 11.4)		66.8	4.27 (d, 11.4) 4.40 (d, 11.4)
5″-O-Syr
1‴				121.0	-
2‴, 6‴				108.6	7.36 (s)
3‴, 5‴				149.1	-
4‴				143.0	-
7‴				168.0	-
3‴/5‴-OMe				57.0	3.90 (s)

^a 150 MHz, ^b 600 MHz, Glc, glucopyranosyl, Api, apiofuranosyl, Syr, syringyl.

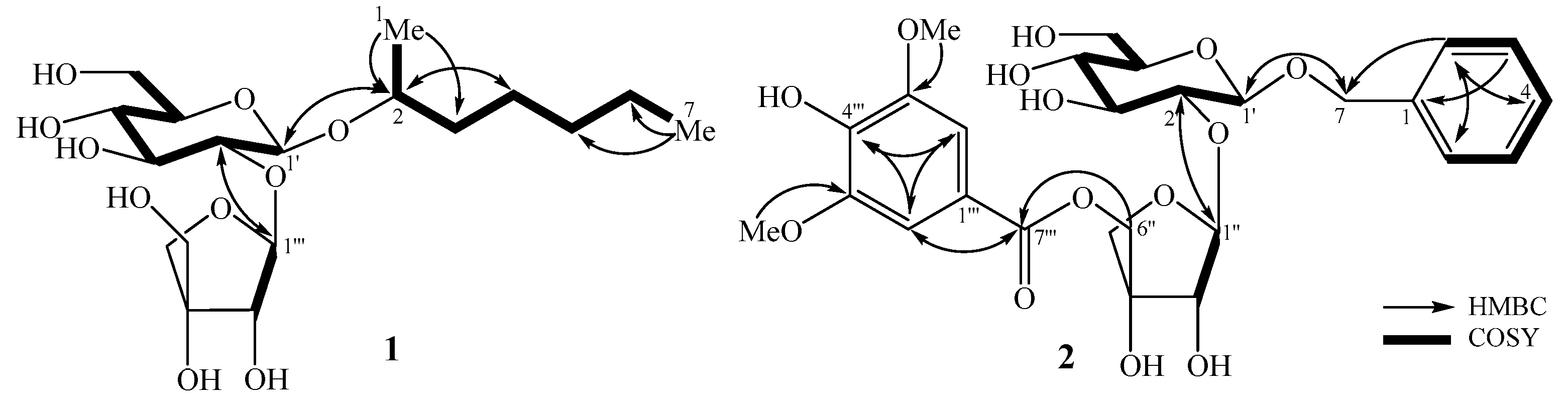

). Analysis of ¹H- and ¹³C-NMR spectra indicated that 1 contains two monosaccharide units and a heptane-2-ol unit, similar to oroxylumoside A, except for the difference of aglycone relative to the literature analogue [16]. The HMBC correlations from H-1 (δ_H 1.18) to C-2 (δ_C 75.3)/C-3 (δ_C 38.4), from H-2 (δ_H 3.90) to C-1 (δ_C 19.6)/C-3 (δ_C 38.4)/C-4 (δ_C 26.1), and from H-7 (δ_H 0.93) to C-5 (δ_C 33.1)/C-6 (δ_C 23.7) supported the presence of heptan-2-ol. Acid hydrolysis of 1 furnished D-apiose and D-glucose as sugar components (identified as trimethylsilyl (TMS) derivatives by a gas chromatography (GC) method). The HMBC correlations between api H-1″ (δ_H 5.41) and glc C-2′ (δ_H 78.6), between glc H-2′ (δ_H 3.33) and api C-1″ (δ_H 110.5), and between glc H-1′ (δ_H 4.41) and C-2 (δ_H 75.3) were observed (Figure 4). These observations suggested the sequence of sugar linkages to be D-apiofuranosyl-(1→2)-β-D-glucopyranoside and sugar moiety located at C-2 of heptane-2-ol. Accordingly, the structure of 1 was determined as heptan-2-ol 2-O-β-D-apiofuranosyl-(1→2)-β-D-glucopyranoside, a new compound named smithioside A.

Compound 2 was obtained as a white amorphous powder and its molecular formula, C₂₇H₃₄O₁₄, determined on the basis of HR-ESI-MS at m/z 581.1855 [M-H]⁻ (Calcd. for [C₂₇H₃₃O₁₄]⁻, 581.1875). The ¹H-NMR spectrum of 2 showed the signals of five protons of monosubstituted phenyl ring at δ_H 7.34 (2H, d, J = 7.8 Hz), 7.22 (2H, t, J = 7.8 Hz), and 7.17 (1H, t, J = 7.8 Hz), two aromatic protons at δ_H 7.36 (2H, s), and two anomeric protons at δ_H 4.40 (1H, d, J = 7.8 Hz) and 5.01 (1H, d, J = 2.4 Hz), indicating the presence of two sugar units. The ¹³C-NMR and HSQC spectra of 2 displayed 27 carbons, of which, 7 carbons were assigned to a benzyl unit at δ_C 71.9, 129.2 × 4, 128.6, and 138.9; 9 carbons to a syringyl unit at δ_C 57.0 × 2, 108.6 × 2, 121.0, 143.0, 149.1 × 2, and 168.0; and 11 carbons to two monosaccharide residues at δ_C 62.8, 66.8, 71.5, 75.4, 78.0, 78.5, 78.6, 78.9, 79.2, 102.2, and 110.4. Comparison of these data with hattushoside [17] indicated the absence of the p-hydroxy group on the phenyl ring relative to that reference. The ¹³C-NMR data of 2 are consistent with one β-apiofuranosyl and one β-glucopyranosyl unit [18]. The HMBC correlations between H-1″ (δ_H 5.44) and C-2′ (δ_C 78.9), and between H-2′ (δ 3.50) and C-1″ (δ 110.4) established the linkage β-D-apiofuranosyl-(1″→2′)-β-D-glucopyranoside. In addition, HMBC correlations between H-2/H-6 (δ_H 7.34) and C-4 (δ_C 128.6)/C-7 (δ_C 71.9), H-3/H-5 (δ_H 7.22) and C-1 (δ_C 138.9)/C-4 (δ_C 128.6) supported the presence of a benzyl unit; HMBC correlations between H-2‴/H-6‴ (δ_H 7.36) and C-3‴/C-5‴ (δ_C 149.1)/C-4 (δ_C 143.0)/C-7‴ (δ_C 168.0), and between the methoxy protons (δ_H 3.90) and C-3‴/C-5‴ (δ_C 149.1), confirmed presence of a syringyl unit (Figure 4). The HMBC correlations between H-7 (δ_H 4.55 and 4.91) and C-1 (δ_C 102.2) and between H-6″ (δ_H 4.27 and 4.40) and C-7‴ (δ_C 168.0) indicated the positions of benzyl and syringyl units at C-1′ and C-6″, respectively. Based on the above evidence, the structure of 2 was elucidated as benzyl-(5-O-syringyl)-β-D-apiofuranosyl-(1→2)-β-D-glucopyranoside and named smithioside B.

2.6. Cytotoxic Evaluation

The cytotoxicity of compounds 1–12 isolated from the biomass of Dolichospermum smithii HU04 was evaluated against two human cancer cell lines, SK-LU-1 and HepG2 (

Table 4. Effects of Compounds 1–12 from D. smithii on the Growth of Human Cancer Cells.

Compound	IC50 (µM)
	SK-LU-1	HepG2
1	>100	>100
2	>100	>100
3	>100	>100
4	79.80 ± 1.34	67.53 ± 2.87
5	51.47 ± 4.31	44.81 ± 1.32
6	29.77 ± 1.56	25.99 ± 2.17
7	>100	>100
8	>100	>100
9	84.06 ± 6.53	67.12 ± 5.91
10	74.69 ± 3.54	61.05 ± 3.50
11	>100	>100
12	9.13 ± 0.89	7.64 ± 0.46
Ellipticine	3.51 ± 0.38	3.42 ± 0.45

Ellipticine was used as a positive control.

). As results, compound 12 showed the strongest activity, with IC₅₀ values of 9.13 ± 0.89 µM (SK-LU-1) and 7.64 ± 0.46 µM (HepG2), similar to those of a positive control, ellipticine (IC₅₀ values of 3.51 ± 0.38 and 3.42 ± 0.45 µM, respectively). Compounds 5 and 6 exhibited moderate cytotoxic activity on both human cancer cell lines with IC₅₀ values ranging from 25.99 to 51.47 µM. Compounds 4, 9, and 10 exhibited weak cytotoxic effects (IC₅₀ values ranging from 61.05 to 84.06 µM. The remaining compounds 1–3, 7, 8, and 11 were inactive at the tested concentrations (IC₅₀ > 100 µM). Overall, HepG2 tended to be more sensitive than SK-LU-1, with consistently lower IC₅₀ values for the active compounds. Cyanobacteria (including the Anabaena/Dolichospermum/Aphanizomenon) are prolific producers of cytotoxic secondary metabolites; phylogenomic and review studies highlight abundant biosynthetic gene clusters and numerous antitumor leads from cyanobacteria overall [19]. 2-Pyridone frameworks showed significant cytotoxic activity in HepG2 and other tumor lines [20]. (E)-Asarone derivative typically shows moderate cytotoxic activity on HepG2 cell line [21] and carries genotoxic/carcinogenic concerns, so it is best kept as a reference rather than a lead.

3. Material and Methods

3.1. General

All NMR spectra were recorded on a Bruker 500 MHz and 600 MHz (Billerica, MA, USA). Data processing was performed with MestReNova ver. 9.0.1. HR-ESI-MS spectra were obtained using a Waters ACQUITY UPLC system (Milford, MA, USA) connected to a Xevo G2-XS QTOF at the Korea Basic Science Institute (KBSI, Metropolitan Seoul Center). Column chromatography (CC) was performed on silica-gel (Kieselgel 60, 230–400 mesh, Merck, Darmstadt, Germany) or RP-18 resins (30–50 μm, Fuji Silysia Chemical Ltd., Okazaki-shi, Japan). For thin layer chromatography (TLC), pre-coated silica-gel 60 F254 (0.25 mm, Merck) and RP-18 F254S (0.25 mm, Merck) plates were used.

3.2. Sampling and Sample Collection

Phytoplankton samples were collected from a range of freshwater environments across Hue province, central Vietnam. These included ponds, lakes, reservoir and rivers. Surface water samples were obtained using a 40 μm mesh plankton net and transferred into sterile 500 mL polyethylene bottles. Samples were stored at 4 °C, shaded containers and transported to the laboratory.

3.3. Isolation Strains

Isolation of microalgal strains was performed using a micropipette isolation technique under an inverted microscope (Olympus CK40, Tokyo, Japan). The isolation was carried out with BG11 (Blue-Green algae medium) [22,23], Z8 [24] and BBM (Bold’s Basal Medium) [25] culture media. The BG11 medium contained the following components (mg/L): NaNO₃, (1.500); K₂HPO₄, (30.5); MgSO₄.7H₂O, (75); CaCl₂·2H₂O, (36); C₆H₈O₇, (6); (NH₄)₅[Fe(C₆H₄O₇)₂], (6); Na₂EDTA-Mg, (1); and Na₂CO₃, (20). In addition, 1 (mL/L) of an A5 trace-metal solution was added, consisting of (mg/L): H₃BO₃ (2.860); MnCl₂·4H₂O (1.810); ZnSO₄·7H₂O (222); Na₂MoO₄·2H₂O (390); CuSO₄·5H₂O (79); and Co(NO₃)₂·6H₂O (49). The Z8 medium having the following chemical ingredients (mg/L): MgSO₄·7H₂O (25); NaNO₃ (467); Ca(NO₃)₂·4H₂O (59); K₂HPO₄·3H₂O (41); Na₂CO₃ (21); EDTA-Na₂ (3.705); FeCl₃ (2.8); Gaffron micronutrients, 1 mL (Gaffron micronutrients having the following chemical ingredients (mg/L): Na₂WO₄·2H₂O (3.3); (NH₄)₆Mo₇O₂₄·2H₂O (8.8); KBr (12); KI (8.3); ZnSO₄·7H₂O (28.7); Cd(NO₃)₂·4H₂O (15.5); Co(NO₃)₂·6H₂O (14.6); CuSO₄·5H₂O (12.5); NiSO₄(NH₄)₂SO₄·6H₂O (19.8); Cr(NO₃)₃·9H₂O (4.1); V₂O₅ (8.9); KAl(SO₄)₂·12H₂O (47.4); H₃BO₃ (310); MnSO₄·4H₂O (22.3) plus water to 1 L). The BBM medium contained the following components (mg/L): NaNO₃ (250); MgSO₄·7H₂O (75); NaCl (25); K₂HPO₄ (75); KH₂PO₄ (175); CaCl₂·2H₂O (25); H₃BO₃ (11.4); ZnSO₄·2H₂O (8.82); MnCl₂·4H₂O (1.44); MoO₃ (0.71); CuSO₄·5H₂O (1.57); Co(NO₃)₂·6H₂O (0.49); EDTANa (50); KOH (31); FeSO₄·7H₂O (4.98); and H₂SO₄ (0.001 mL). Under an inverted microscope (Olympus CK40), individual filaments or cells were isolated from phytoplankton samples using sterile glass Pasteur pipettes. The isolates were rinsed in several drops of sterilized culture medium to remove contaminating cells or suspended particles, and then transferred onto sterile agar plates containing BG11, Z8, or BBM (Bold’s Basal Medium). The plates were incubated under fluorescent light (1500–2000 lux) at 25 ± 3 °C with a 12:12 h light/dark photoperiod. Once a distinct single colony appeared on the agar plate, it was aseptically transferred onto a fresh agar medium for subculturing. This procedure was repeated four to five times to ensure the purity and stability of the isolated microalgal strains. The purified filaments or single colonies were then transferred into test tubes containing 10–20 mL of culture medium and incubated under the same conditions described above. The morphology of the isolated strains was examined using a light microscope (Olympus CX51) equipped with a charge-coupled device (CCD) camera for image capture. Identification of the isolated strains was based on their morphological features and performed according to the standard cyanobacterial and green algal taxonomic references, including [26,27]. The 13 strains included in this study were designated Microcystis aeruginosa HU05, Microcystis viridis HU13, Anabaena circinalis HU08, Aphanizomenon flos-aquae HU02, Dolichospermum smithii HU04, Calothrix braunii HU14, Nostoc muscorum HU12, Nostoc punctiforme HU11, Raphidiopsis raciborskii (HU03, Lyngbya spiralis HU15, Planktothrix stagnina HU16, Phormidium subtilis HU06, and Scenedesmus quadricauda HU07. Microalgae were preserved on agar plates at Institute of Science and Technology for Energy and Environment, Vietnam Academy of Science and Technology. In this method, cultures are grown on nutrient agar and stored at low temperature (4–10 °C) under low-light conditions to slow metabolic activity. During storage, periodic monitoring is required to prevent contamination and loss of strain characteristics.

3.4. Batch Cultivation and Harvesting Microalgae for Screening Cytotoxic Effects

For bioactivity screening, a total of 13 isolated algal strains were cultured under controlled laboratory conditions. The isolated strains were cultivated in 1000 mL Erlenmeyer flasks containing 500 mL of standard media, including Z8 medium for M. aeruginosa HU05, M. viridis HU13, A. flos-aquae HU02, N. muscorum HU12, N. punctiforme HU11, R. raciborskii HU03, C. braunii HU14, P. subtilis HU06, L. spiralis HU15, and P. stagnina HU16, A. circinalis HU08, D. smithii HU04; and BBM medium for S. quadricauda HU07. All cultures were aerated with filtered air (pore size 0.22 µm) and maintained at 25 ± 3 °C in a temperature-controlled room under cool white fluorescent lamps (1500–2000 lux) with a 12:12 h light–dark cycle for 14 days. The culture suspension of each strain was harvested by centrifugation at 10,000 rpm for 10 min, and the collected biomass was stored at −20 °C for further analysis. Biomass of all thirteen algae were ultrasonically extracted with methanol (MeOH) at 40 °C three times with MeOH: sample weight 20:1 (v/w).

3.5. Biomass Cultivation of D. smithii HU04

The selected strain D. smithii HU04 was initially inoculated into Z8 medium and cultivated at 25 ± 3 °C temperature with 1500–2000 lux light intensity for 12 h light/12 h dark photoperiod duration in a 1 L flask. The culture was subsequently scaled up to 5 and 20 L transparent flasks under the same conditions until reaching the exponential growth phase. Aeration was provided using filtered air. The cyanobacteria biomass was harvested by centrifugation at 10,000 rpm for 10 min at 4 °C. Biomass was harvested at day 10, triple rinse with distilled water, and drying at 80 °C to constant weight.

Optimized conditions for growth of the strain D. smithii HU04. Large-scale culture experiments (150 L flask). Under the optimized conditions—Z8 medium; nitrogen supplied as NaNO₃ at 150%; phosphorus supplied as KH₂PO₄ at 200% of the Z8 standard; 10% inoculum (starter ~10⁶ cells/mL); pH 7.5; continuous aeration; 22–25 °C; 3000–4000 lux—D. smithii HU04 reached harvest at day 10. Across the production run, a total of 2.0 kg dried biomass was obtained, providing sample material for extraction, isolation, and bioassays (Table 2).

3.6. Extraction and Purification of Compounds

Dried biomass of D. smithii HU04 (2.0 kg) was ultrasonically extracted with MeOH at 40 °C three times (each 6.0 L, 3 h). The combined MeOH extracts were evaporated in vacuo to give a dark solid residue (150 g). This crude extract was suspended in water (1.0 L) and partitioned successively with n-hexane and CH₂Cl₂ to obtain an n-hexane fraction (DS1, 15 g), a CH₂Cl₂ fraction (DS2, 22 g) and an aqueous layer (DS3). The DS2 fraction was separated on a silica gel column chromatography (CC), eluting with n-hexane/acetone (40:1, 20:1, 10:1, 5:1, 1:1, 0:1, v/v) to give six fractions DS2A (3.2 g), DS2B (2.0 g), DS2C (2.8 g), DS2D (2.5 g), DS2E (3.4 g), and DS2F (4.5 g).

The DS2B fraction was chromatographed on a silica gel CC eluting with n-hexane/EtOAc (20/1, v/v) to give two fractions DS2B1 (700 mg) and DS2B2 (800 mg). The DS2B1 fraction was separated on an RP-18 CC eluting with acetone/water (3/1, v/v) to give fractions DS2B1A (120 mg) and DS2B1B (172 mg). The DS2B1A fraction was purified by HPLC eluting with 60% acetonitrile (ACN) in water to yield compound 9 (10.0 mg, t_R 55.5 min). The DS2B2 fraction was fractionated on an RP-18 CC eluting with MeOH/water (1/2, v/v) to give fractions DS2B2A (350 mg) and DS2B2B (190 mg). The DS2B2A was then purified by HPLC eluting with 30% ACN in water to yield compound 12 (10.0 mg, t_R 27.2 min).

Next, the DS2D (2.5 g) fraction was chromatographed on a silica gel CC eluting with CH₂Cl₂/MeOH (9/1, v/v) to give two fractions DS2D1 (760 mg) and DS2D2 (450 mg). The DS2D1 fraction was separated on an RP-18 CC eluting with MeOH/water (1/1, v/v) to give three fractions DS2D1A (100 mg), DS2D1B (185 mg), and DS2D1C (80 mg). The DS2D1B fraction was chromatographed on an HPLC eluting with 20% ACN in water to yield compound 4 (40.0 mg, t_R 41.6 min). The DS2D2 fraction was fractionated on an RP-18 CC eluting with MeOH/water (1/2, v/v) to give two fractions DS2D2A (350 mg) and DS2D2B (120 mg). The DS2D2A was then chromatographed on an HPLC eluting with 20% ACN in water to yield compound 5 (60.0 mg, t_R 32.1 min).

Furthermore, The DS2E fraction was chromatographed on a silica gel CC eluting with CH₂Cl₂/MeOH (6/1, v/v) to give three fractions DS2E1 (500 mg), DS2E2 (600 mg), and DS2E3 (900 mg). The DS2E1 fraction was separated on an RP-18 CC eluting with MeOH/water (1/1.5, v/v) then purified by HPLC eluting with 27.5% ACN in water to yield compound 2 (8.0 mg, t_R 40.3 min). The DS2E3 fraction was separated on an RP-18 CC eluting with MeOH/water (1/1.5, v/v) to yield compound 7 (300 mg).

The aqueous fraction (DS3) was subjected to Diaion HP-20 CC using water to remove sugars and highly polar constituents, followed by 50% and 100% MeOH in water (each 1 L), affording fractions DS3A (18.0 g) and DS3B (10.0 g). The DS3A fraction was chromatographed on a silica gel CC eluting with a CH₂Cl₂/MeOH gradient (20/1, 10/1, 5/1, 2.5/1, v/v) to give four fractions DS3A1 (800 mg), DS3A2 (2.0 g), DS3A3 (10 g), and DS3A4 (4.0 g). The DS3A2 fraction was subjected to a silica gel CC using CH₂Cl₂/MeOH/water (5/1/0.1, v/v/v), resulting in DS3A2A (80 mg), DS3A2B (300 mg), and DS3A2C (150 mg). The DS3A2B fraction was purified on an RP-18 CC eluting with MeOH/water (1/1.5, v/v) then by HPLC eluting with 27.5% ACN in water to yield compound 10 (57.0 mg, t_R 37.7 min). The DS3A3 fraction was subjected to a silica gel CC using CH₂Cl₂/acetone/water (5/1/0.1, v/v/v) to give fractions DS3A3A (300 mg) and DS3A3B (250 mg). The DS3A3A fraction was purified on an RP-18 CC eluting with MeOH/water (1/1.5, v/v) then by HPLC eluting with 25.0% ACN in water to yield compound 1 (20.0 mg, t_R 23.2 min). The DS3A3B fraction was purified on an RP-18 CC eluting with MeOH/water (1/3, v/v) to yield compound 3 (6.0 mg).

The DS3B fraction was chromatographed on a silica gel CC eluting with a CH₂Cl₂/MeOH gradient (10/1, 5/1, 2.5/1, v/v), to give three fractions DS3B1 (750 mg), DS3B2 (1.5 g), and DS3B3 (5.0 g). The DS3B2 fraction was subjected to a silica gel CC using CH₂Cl₂/MeOH/water (4/1/0.1, v/v/v) to give fractions DS3B2A (300 mg) and DS3B2B (100 mg). The DS3B2A fraction was purified on an RP-18 CC eluting with MeOH/water (1/1.5, v/v) to yield compound 11 (40.0 mg). The DS3B3 fraction was subjected to a silica gel CC using CH₂Cl₂/acetone/water (1/2/0.1, v/v/v) to give fractions DS3B3A (900 mg) and DS3B3B (400 mg). The DS3B3A fraction was purified on an RP-18 CC eluting with acetone/water (1/1.5, v/v) then by HPLC eluting with 23% ACN in water to yield compound 6 (40.0 mg, t_R 47.2 min).

3.6.1. Smithioside A (1)

White amorphous powder; ${\left[\alpha \right]}_D^{25}$: −36.0 (c 0.1, MeOH); C₁₈H₃₄O₁₀, HR-ESI-MS: m/z 411.2220 [M+H]⁺ (Calcd. for [C₁₈H₃₅O₁₀]⁺, 411.2225); ¹H- and ¹³C-NMR (CD₃OD): see Table 3.

3.6.2. Smithioside B (2)

White amorphous powder; ${\left[\alpha \right]}_D^{25}$: −28.0 (c 0.1, MeOH); C₂₇H₃₄O₁₄, HR-ESI-MS: m/z 581.1855 [M-H]⁻ (Calcd. for [C₂₇H₃₃O₁₄]⁻, 581.1875); ¹H- and ¹³C-NMR (CD₃OD): see Table 3.

3.7. Acid Hydrolysis

See Supporting Information.

3.8. Cytotoxic Assays

Human cancer cell lines, including lung cancer SK-LU-1 and liver cancer (HepG2), were obtained from Milan University, Italy and Long Island University, USA. The cells were maintained and cultured in DMEM supplemented with FBS, trypsin-EDTA, L-glutamine, sodium pyruvate, NaHCO₃, and penicillin/streptomycin at 37 °C in a humidified atmosphere (5% CO₂ and 95% air). Cytotoxic effects of compounds were determined using the sulforhodamine B (SRB) assay as previously described [28]. In brief, the cells were incubated with/without compounds for three days in a 96-well culture plate. After incubation, cells were stained with sulforhodamine B and optical density (OD) was measured at 540 nm. The difference in OD between samples and vehicle well during experiments indicated the cell situation induced by the compounds. Results are expressed as the percentage of cell death in comparison with the vehicle as well. The dose–response curves of compounds were generated to determine IC₅₀ values of the compounds corresponding to each cell line. Ellipticine was used as a positive control throughout the experiments.

4. Conclusions

From the phytoplankton samples collected across six freshwater bodies in Hue city, Vietnam, thirteen microalgal strains were successfully isolated and purified under laboratory conditions. The MeOH extracts of M. viridis (HU13) and D. smithii (HU04) exhibited significant cytotoxic effects with IC₅₀ values of 6.19 ± 0.80 and 4.89 ± 0.76 µg/mL for M. viridis, and 9.51 ± 0.84 and 8.32 ± 0.94 µg/mL for D. smithii against SK-LU-1 and HepG2 cell lines, respectively. Furthermore, chemical studies of D. smithii HU04 led to the isolation of two new compounds, smithioside A (1) and smithioside B (2) and ten known ones. Compound 12 showed the strongest activity, with IC₅₀ values of 9.13 ± 0.89 µM (SK-LU-1) and 7.64 ± 0.46 µM (HepG2). Compounds 5 and 6 exhibited moderate cytotoxic activity on both human cancer cell lines with IC₅₀ values ranging from 25.99 to 51.47 µM. Taken together, these findings validate our integrated workflow from strain authentication and culture optimization to dereplication and focused bioassays, an efficient approach for prioritizing freshwater cyanobacterial leads. The findings suggest that D. smithii HU04 extracts could be developed for therapeutic purposes targeting cancer.
