Morphology-Dependent Transformation of Dicalcium Phosphate Dihydrate (DCPD) to Octacalcium Phosphate (OCP) and Its Stability in Simulated Physiological Fluids

Abstract

Calcium phosphate (CaP) materials are biocompatible and non-toxic to the body. However, they lack biointegration, exhibit a low resorption rate and can cause fibrous encapsulation throughout the implant material. A promising approach for dental or orthopedic regeneration is the use of dicalcium phosphate dihydrate (DCPD) and octacalcium phosphate (OCP), as they are well-suited to bone components. From a novel perspective, these apatites can be used as drug carriers for individuals with low tolerance to common excipients. In this study, the transformation of DCPD into different morphologies in DMEM was investigated using an induced dissolution and reprecipitation reaction solution. The DCPD transformation time was observed to be morphology-dependent and can occur between 48 and 168 h. In the interaction with simulated body fluid (SBF), simulated gastric fluid (SGF) and a combination of both (BFS/SGF), a higher mass loss was observed in SGF (~80%) than in the other fluids (~35%). The structural changes presented in DCPD and OCP before and after immersion in physiological fluids were analyzed by ATR-FTIR, SEM, XRD and EDS. The obtained OCP showed low stability in SGF compared to SBF and SBF/SGF, which indicates that it may be a suitable candidate for drug delivery in the digestive tract.

1. Introduction

Each year, more than 2 million bone grafting procedures are performed worldwide. The graft consists of an inorganic phase of mineral components (phosphate, calcium and hydroxyl groups) and an organic phase composed of collagen, which, when combined, give the bone strength and flexibility [1,2,3]. The regeneration mechanism is impaired due to bone fractures caused by bone loss. Osteological substitutes with compounds that allow bone regeneration as mechanical support are being sought [4,5]. Among the most studied synthetic bone grafts are calcium phosphates, in the form of calcium phosphate cement (CaP), which include apatites [6,7,8]. These materials are among the most important compounds found in nature due to characteristics that are similar to those of the inorganic components of bones. They have excellent biocompatibility, high bioactivity and low toxicity [9,10]. These compounds have multiple applications in various fields, including medicine, since they are used as fillings for dental defects and bone replacement, making them good candidates for bone tissue engineering applications [4,9,10,11,12]. CaPs such as hydroxyapatite (HA, Ca₅(PO₄)₃OH), brushite (DCPD, CaHPO₄·2H₂O) and tricalcium phosphates (TCP, Ca₃(PO₄)₂)) are used as precursors for the preparation of bone bioceramics and cements. Bioceramics usually consist of apatites that have advantages over pure HA or β-TCP due to their controllable biodegradation and better bioactivity, making them favorable for bone defect repair due to their good osteoconductivity and bioactivity [13,14]. HA, which is a bioceramic that does not have any toxic effect on the body and has great biocompatibility, has been used for the release of poorly soluble drugs with limited bioavailability [15,16,17,18]. Another apatite that meets the same conditions as HA is DCPD, which has good bioactivity, bioabsorbability, biodegradability and biocompatibility, which allows it to be rapidly resorbed in vivo, followed by the formation of new bone tissues under physiological conditions [5,6,19,20].

DCPD is considered one of the most feasible precursors of biological apatites, along with amorphous calcium phosphate (ACP, Ca₂H_y(PO₄)_x·nH₂O) and octacalcium phosphate (OCP, Ca₈(HPO₄)₂(PO₄)₄·5H₂O) [21,22]. OCP is an osteoconductor that stimulates bone cells and promotes bone regeneration processes due to the formation of new bone through osteoblasts and its biodegradation by osteoclast-like cells [23,24]. OCP can present various morphologies, such as prismatic crystals, needles or elongated crystals, granules or spherical particles, and sheets or plates, depending on the synthesis [2,3,10,20,23,24]. One method of OCP synthesis is through crystallization using Dulbecco’s modified Eagle medium (DMEM), which contains a combination of essential nutrients, minerals, vitamins and amino acids necessary to maintain cell growth and viability in culture [2,16,25,26]. There are several processes for obtaining OCP from DCPD in which the same pH conditions (7.0) and temperature (37 °C) are used with the precipitation method, using CaCl₂ as a source of Ca²⁺ and pH-stat, where the nucleation process occurs in alkaline conditions [27,28]. Another method is where a simulated body fluid (SBF) with the presence of Ca²⁺ is used, in which DCPD is immersed, observing the transformation into OCP from 1 day to 6 months [23]. One method to synthesize OCP is hydrothermal transformation using Dulbecco’s modified Eagle medium (DMEM), in which it has been observed that only the presence of Ca²⁺ ions influences the transformation of DCPD to OCP [25,26,29]. Furthermore, it was noticed that the transformation time decreases from 72 h to 2 h when the temperature is increased from 36.5 °C to 80 °C without stirring [29]. Based on this, the transformation of DCPD with different morphologies to OCP crystals is proposed in the present study using DMEM with stirring at a temperature of 36.5 °C. DCPD and OCP are immersed in SBF and simulated gastric fluid (SGF), and the combination of both fluids allows us to analyze the factors that affect the stability and undesirable properties of apatites with different structures, allowing us to consider biomaterials as drug vehicles.

2. Results and Discussion

2.1. Synthesis and Analysis of DCPD and OCP Degradation by Immersion in Different Simulated Fluids

The synthesis of DCPD with WL and FP morphologies yielded 44.5 ± 0.32% and 49.0 ± 0.24%, respectively. These results can be influenced by several factors, including temperature, pH and the initial concentration of the reactants, which is consistent with reports in the literature [30], which indicates that the maximum expected yield is less than 50%. Before immersion in the simulated fluids, a triplicate test was carried out with only water and DCPD at a 1/10 ratio (weight/volume), with a mass recovery after drying of 95.1 ± 0.4% for DCPD-FP and 94 ± 0.2% for DCPD-WL. Immersion of DCPD-FP in different simulated fluids showed that degradation depended on the medium in which it was immersed, with mass losses of 33.0 ± 0.17%, 40.2 ± 0.12% and 47.1 ± 0.22% for SBF, SGF and SBF/SGF, respectively. In the case of DCPD-WL, degradation after immersion was 35.8 ± 0.18%, 49.7 ± 0.40% and 27.1 ± 0.21% for SBF, SGF and SBF/SGF, respectively. This degradation may be associated with pH conditions, DCPD morphology and the presence of ions in the different simulated fluids due to the reactions occurring on the material surface [31].

In the transformation of DCPD to OCP, yields of 69.4 ± 0.21% were determined for the WL morphology and 79.9 ± 0.56% for FP. These results demonstrate that DCPD morphology directly influences the transformation to OCP, along with immersion time in DMEM. The OCP-FP obtained, when immersed in the different physiological fluids, showed degradations of 32.2 ± 0.13%, 79.6 ± 0.72% and 42.5 ± 0.28% for SBF, SGF and SBF/SGF, respectively. In the case of OCP-WL, degradation after immersion was 48.1 ± 0.34%, 73.4 ± 0.66% and 45.5 ± 0.18% for SBF, SGF and SBF/SGF, respectively. These results indicate that, in SGF, the presence of enzymes and the pH (at 1.2) of the medium significantly affect the stability of the OCP obtained with both morphologies compared to SBF and SBF/SGF [30,32].

2.2. Attenuated Total Reflectance Fourier Transform Infrared (ATR-FTIR) Spectroscopy of Synthesized DCPD Before and After Immersion in Simulated Fluids

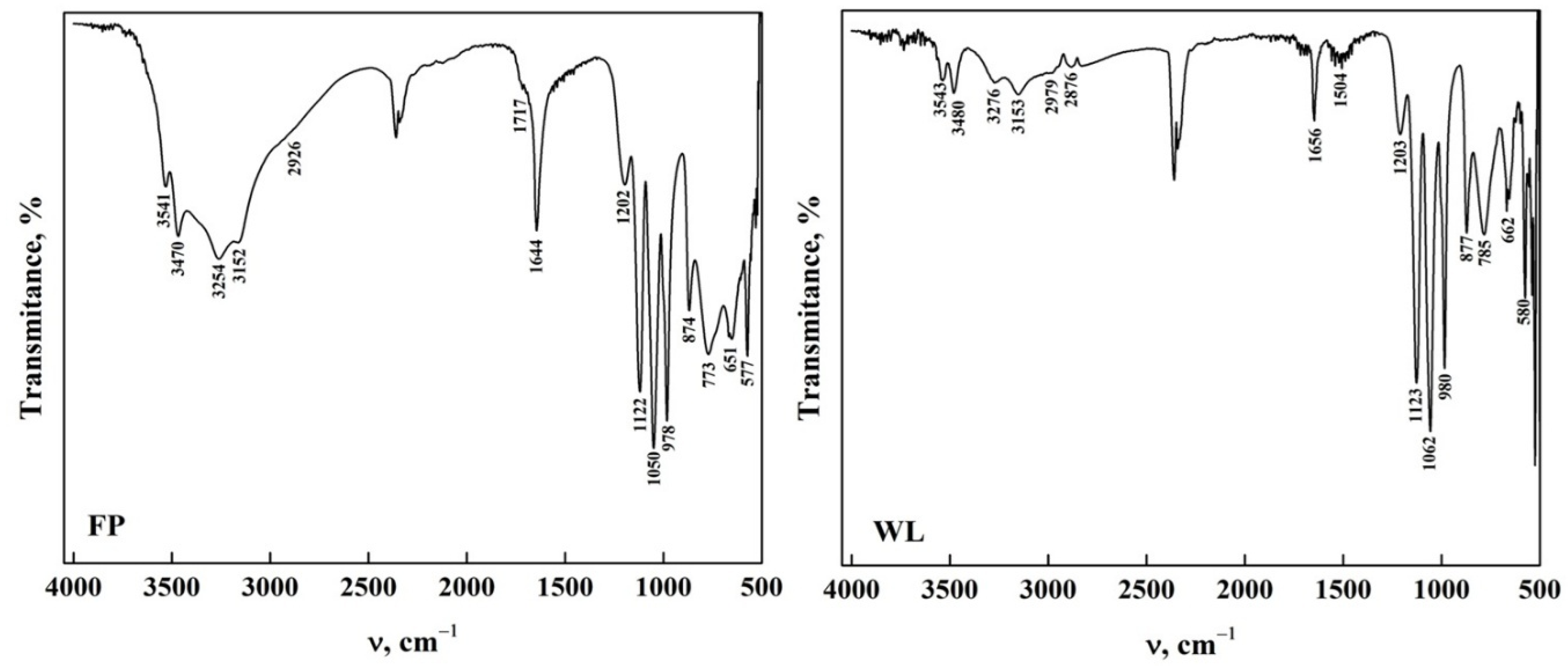

Figure 1 shows the ATR-FTIR spectra of DCPD with the two morphologies. Characteristic bands were observed in the stretching and bending mode of the H₂O molecule in the 4000–1500 cm⁻¹ region (functional group zone) [14,33,34,35]. It was noted that DCPD-FP has a higher intensity than DCPD-WL. In the fingerprint zone of the spectra (1500–400 cm⁻¹), a similarity is observed in the bands found in both spectra, referring to the phosphate groups (HPO₄²⁻ and PO₄³⁻) and the stretching of P-O and P-OH [36,37,38,39]. It is also observed that DCPD-FP has a higher intensity and better definition of bands than DCPD-WL, indicating a greater presence of functional groups on the surface of the biomaterial [14,17,35,40]. This allows us to assume that the spectra obtained from synthesized DCPD-FP better present the main characteristics of apatite than those from DCPD-WL [33,35,36,37,38,39,40]. All the bands observed in the spectra and their assignment are shown in

Table 1. Assignment of the ATR-FTIR bands of both DCPD structures.

WL	FP	Description	Reference
cm−1
3543	3541	O-H extension in the H2O molecule	[14,33,34,35]
3480	3470
3279	3254
3153	3152
2979		O-H stretching
	2926
2876	2870
1720 w	1717 w	Vibration of the HPO42− groups	[35,36,37]
	1644	O-H bending and rotation mode in the H2O molecule	[33,36,41]
1625
1215		Stretching due to P-O	[20,35,37]
	1202
1123	1122	Stretching vibrations ν′6 and ν″6 of the HPO4−2 groups	[35,36,41]
1062		Stretching of group PO43− and HPO42−	[35,36,38,39]
	1050
980	978	Asymmetric stretching of P-O	[20,33,34,37,38]
877		Asymmetric stretching of P-O-P
785		Asymmetric stretching of P-O
	773
	651	Bending mode O-P-O
622
580	577	Vibrations of phosphoric acid bonds (H-O-) P=O
530	527

w = weak.

.

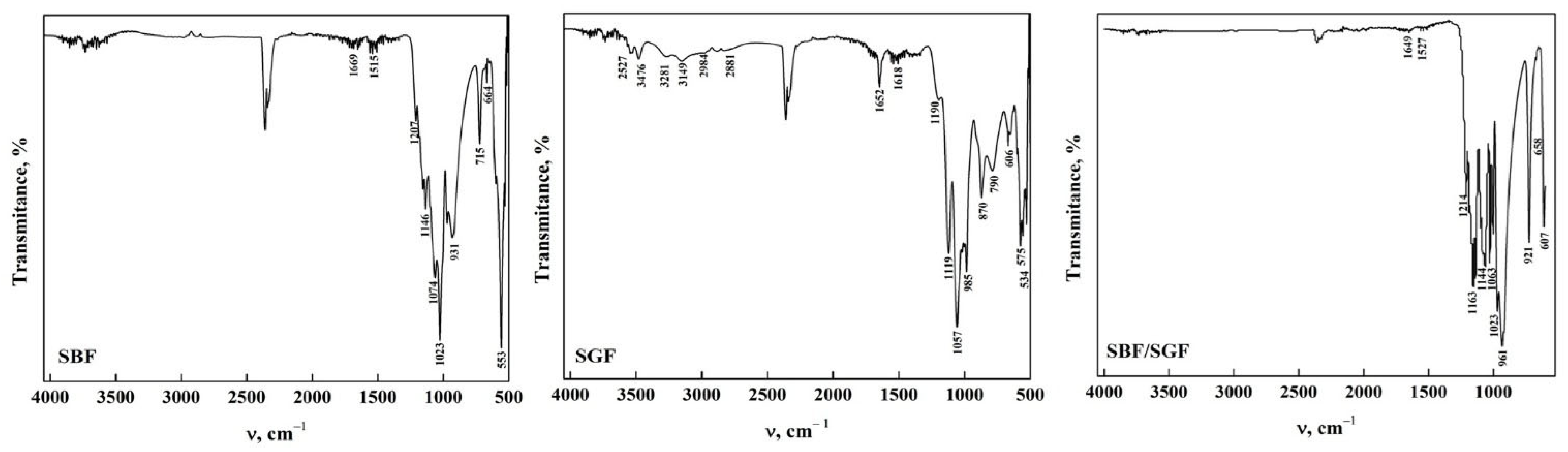

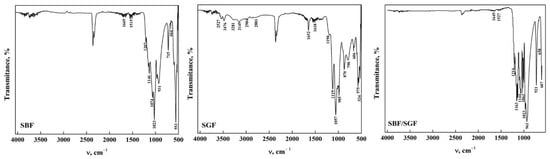

The ATR-FTIR spectra of DCPD-WL after immersion in different simulated fluids are shown in Figure 2. Significant changes in the stretching and bending zone of the O-H groups could be noticed, which are due to the nature of the solutions [20,33,41,42,43]. In DCPD immersed in SBF, it can be observed that only the weak bands at 3548, 3282, 2969 and 2866 cm⁻¹ are present compared to DCPD before immersion. This may be due to the change in the concentration of the functional groups due to the components of the simulated fluid [23,33,34,44]. Nevertheless, when DCPD is immersed in SGF, most of the bands remain; nonetheless, their intensity decreased, and the position of the bands changed with respect to those found in DCPD before immersion. This indicates that the changes in the apatite structure are limited due to the composition of the simulated fluid [33,34,36,41]. In the immersion with the SBF/SGF combination, the bands from 4000 cm⁻¹ to 1700 cm⁻¹ disappear and the intensity of the different bands related to the functional groups decrease significantly in comparison with DCPD before their interaction [23,33,34,41]. In the fingerprint region of the ATR-FTIR spectra, changes in the intensity and position of the phosphate group bands were observed after immersion in the simulated fluids [17,32,33,35]. The appearance of bands around 1520 cm⁻¹ and 1023 cm⁻¹ corresponding to the O-H-O bending mode of the residual H₂O and the stretching of the PO₃⁴⁻ (ν₃) group were also observed [35,36,37,38,43,44]. The immersion time in SBF of DCPD did not allow transformation to OCP to take place; as mentioned in the literature, it needs around 24 h or a temperature higher than 70 °C [17,29]. All the bands observed in the spectra are shown in

Table 2. Position and assignment of the ATR-FTIR bands of DCPD-WL after its interaction with simulated fluids.

BF	SGF	SBF/SBG	Description	Reference
cm−1
	3527		O-H extension in the H2O molecule	[21,35,36,41,42,43,44]
3548	3476
3282	3281
	3149
2969	2894		O-H stretching
2866	2881
1648	1652	1649	O-H bending and rotation mode in the H2O molecule
1525		1527	O-H-O bending mode of H2O residual
	1518
		1214	P=O stretching of the PO23− groups	[35,36,37,38,43,44]
1207
	1190		Bending mode (O-H) in the HPO42− groups	[35,36,37,38,41,43,44]
1185			P-OH stretching	[38]
		1163
1146		1144	P=O stretching of the PO2− groups	[20,35,36,37,38,41,42,44]
	1119		Stretching vibrations ν’6 and ν’’6 of the HPO42− groups
1075			Stretching of the PO43− and HPO42− groups	[35,36,38,39]
		1063	P=O stretching from the PO43− bond	[35,37,38,43,44]
	1057		ν3 (P-O) stretching of the PO43− groups	[20,34,35,36,37,38,41,42,43]
1023		1023	ν1 stretching of the PO43− group
981	985	981	Asymmetric stretching of P-O
972			Asymmetric stretching of P-O-P
		961
		921	P=O stretching of the PO43− group
877	876		Asymmetric stretching of P-O-P
	862		P-O stretching in the PO43− group	[35,36,37,38,41,42,43,44]
	790		Release of O-H out of the bending plane
715		719	P=O stretching of the PO2− groups
669	671	669	P-O deformation mode	[20,37,44]
612		612 w	Acid phosphate bond (H-O-) P=O
	606
	575		P=O bending mode
552		562
	534		O-P-O(H) bending mode	[34,35,36,41,43,44]

w = weak.

.

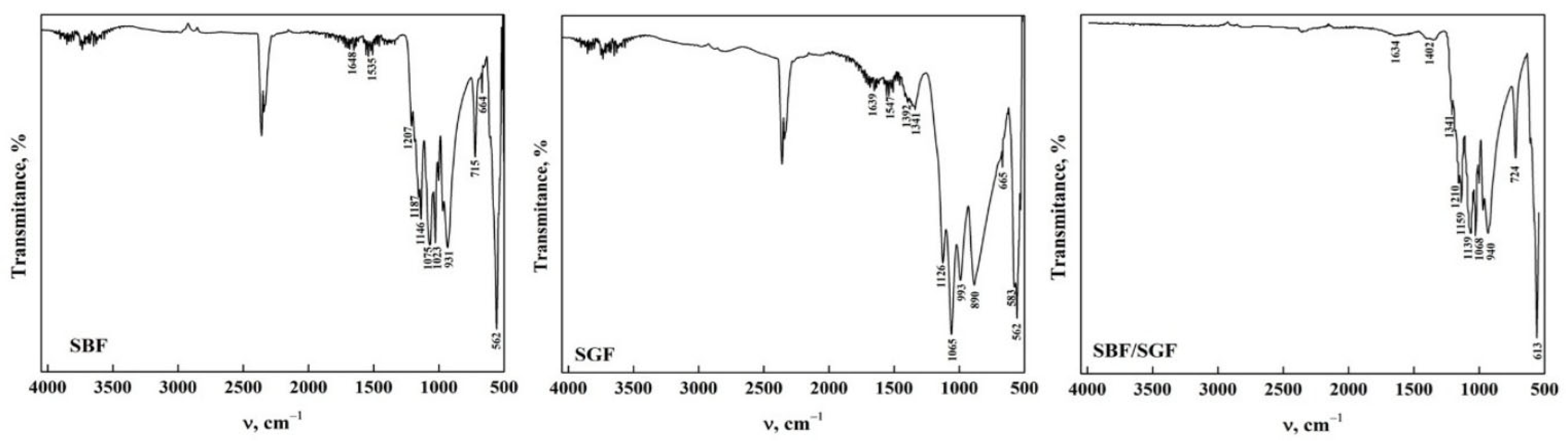

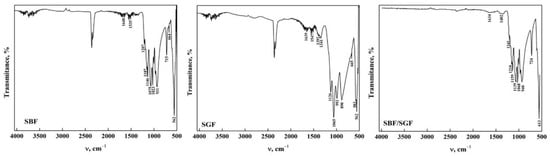

The ATR-FTIR spectra of DCPD-FP after immersion in the simulated fluids are shown in Figure 3. It could be observed that the position of the bands after immersion in SBF is similar to that of synthesized DCPD, although there is a decrease in the intensity of some bands. In addition, a band at 1515 cm⁻¹ was observed that corresponds to the O-H bending and rotation mode in the H₂O molecule [34,35,42,43]. This indicates that apatite stability is affected by the concentration of ions present in the fluid [40,44]. In DCPD after immersion in SGF, a similar situation occurs with respect to immersion with SBF, where the bands decrease in intensity and change position. In addition, bands related to the bending and rotation of water molecules appear at 1575 cm⁻¹ and 1402 cm⁻¹, respectively [34,35,42,43]. Other bands at 1341 cm⁻¹ and 1292 cm⁻¹ are attributed to the P-O-H bending mode [34,35,36,37,38,41,43,44]. In the case of DCPD after immersion in SBF/SGF, all bands between 4000 cm⁻¹ and 1700 cm⁻¹ disappear, and a shoulder appears at 1341 cm⁻¹ corresponding to the P-O-H bending mode [34,35,36,37,38,43,44]. The combination of both simulated fluids allows the changes in the ATR-FTIR spectra to take place in a more significant way compared to their individual effect. The immersion time in SBF and SBF/SGF (12 h) of DCPD did not allow the transformation of DCPD to OCP to take place; as mentioned in the literature, it needs around 24 h or a temperature higher than 70 °C [23,29]. The bands observed in the spectra and their assignment are shown in

Table 3. Position and assignment of ATR-FTIR bands of DCPD-FP after its interaction with simulated fluids.

SBF	SGF	SBF/SGF	Description	Reference
cm−1
3625	3439		O-H stretching in the H2O molecule	[20,34,35,42,43,44]
3372	3390
2960	2955		O-H stretching
2865	2875
1669			Bending and rotation mode of O-H in the H2O molecule
	1639	1634
	1575
1515
		1402	P-O-H bending mode	[35,36,37,38,41,43,44]
	1341	1341 w
	1292
1207		1210	P=O stretching of the PO2− groups
1167			P-OH stretching	[38]
		1159	Stretching vibrations ν′6 and ν″6 of the HPO42− groups	[35,37,42,43,44]
1146			P=O stretching of the PO2− groups
		1139	Stretching vibrations ν′6 and ν″6 of the HPO42− groups
	1126
1074			O-H-O bending mode from the H2O residual	[20,35,37,44]
	1065	1068
1023			Stretching of the PO43− (ν1) group
	993		Asymmetric stretching of P-O
981
		940	P-O stretching in the PO43− group	[20,35,36,37,41,42,43,44]
931		928	Asymmetric stretching of P-O-P
	890		P-O stretching in the PO43− group
877			Asymmetric stretching of P-O-P
715			P=O stretching of the PO2− groups
669	665		P-O deformation mode
612 w		613	Acid phosphate bond (H-O-) P=O
	583		O-P-O(H) bending mode	[35,36,41,42,44]
	562
553	534		P=O bending mode	[20,37,41]

w = weak.

.

2.3. Attenuated Total Reflectance Fourier Transform Infrared (ATR-FTIR) Spectroscopy of Synthesized OCP Before and After Immersion in Simulated Fluids

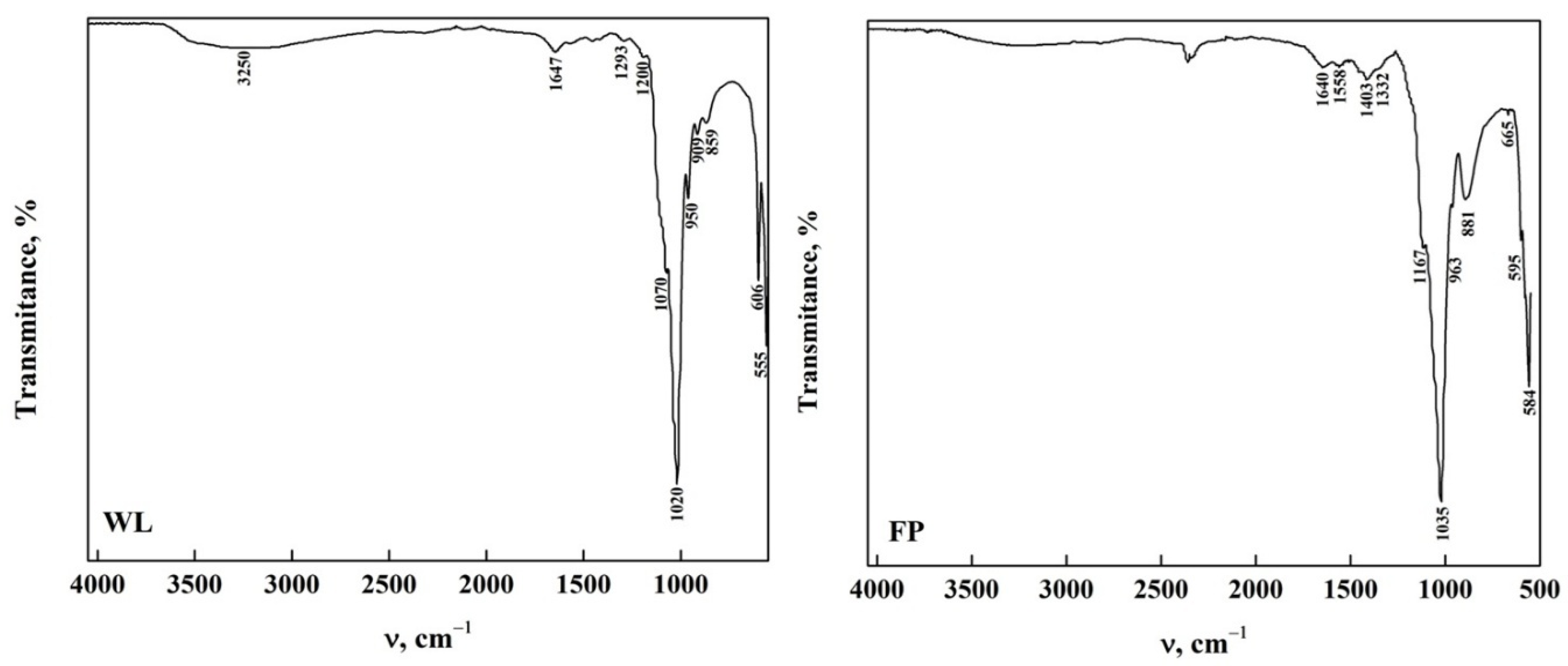

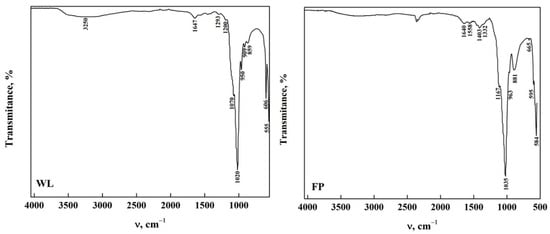

The ATR-FTIR spectra of OCP obtained from the phase transformation reaction by dissolution–precipitation of DCPD immersed in DMEM for 168 h are observed in Figure 4. In the OCP-WL and OCP-FP obtained, it was observed that the bands in the functional group region disappeared, except for a wide band around 3254 cm⁻¹ that corresponds to the stretching of the O-H extension in the H₂O molecule [20,23,34,35,44]. These changes indicate that there is an alteration of some functional groups present on the DCPD surface that allow the transformation to OCP [8,20,34,44]. In the area between 1700 cm⁻¹ and 400 cm⁻¹, the appearance of bands at 1158 cm⁻¹ and 1403 cm⁻¹ is attributed to the bending mode and the CO₃²⁻ (ν₃) stretching vibrations [8,23,42]. Moreover, the band corresponding to the CO₃²⁻ bending mode (ν₃) was detected at 881 cm⁻¹ [7,26,35,36,37,38,41]. The presence of carbonate and phosphate groups confirms the transformation of DCPD to OCP [23]. Figures S1 and S2 show the spectra of OCP-Wl and OCP-FP obtained at different immersion times in DMEM. It can be observed that the transformation of DCPD-WL is slow since OCP is obtained after 50 h of immersion in comparison with the transformation of DCPD-FP, where OCP-FP is obtained after 48 h. This may be influenced by the morphology, which could hinder a homogeneous transformation [29,35,40,43,45]. All the bands observed in the spectra and their assignment are shown in

Table 4. ATR-FTIR Band Assignment for OCP-WL and OCP-FP.

WL	FP	Description	Reference
cm−1
3256	3253	Stretching of the O-H extension in the H2O molecule	[20,34,35,44]
1647	1640	Bending and rotation mode of O-H in the H2O molecule	[8,23,36,37,38,42]
	1558	Bending mode of CO32− (ν3)
	1403	CO32− (ν3) stretching
	1332	PO43− (ν3) stretching
1293		Stretching of the P-O groups
1200 w
	1167 w	Bending mode of P-O
1070 w		P-O stretching	[23,35,37]
	1035	PO43− (ν3) stretching
1020
	963	ν1 (PO43−) stretching	[4,7,8,23]
950		PO43− (ν3) stretching	[7,14,23,26,35,36,37,38,41]
909
	881	Bending mode of CO32− (ν3)
859		P-OH stretching
	665 w	Bending mode of PO43− (ν4)	[8,23,44]
606		Bending mode of (ν4) PO43−	[23,35,43]
	595 w	P-O(H) stretching	[4,8,23,43,44]
	584
555		Bending mode of O-P-O(H)	[8,23,44]

w = weak.

.

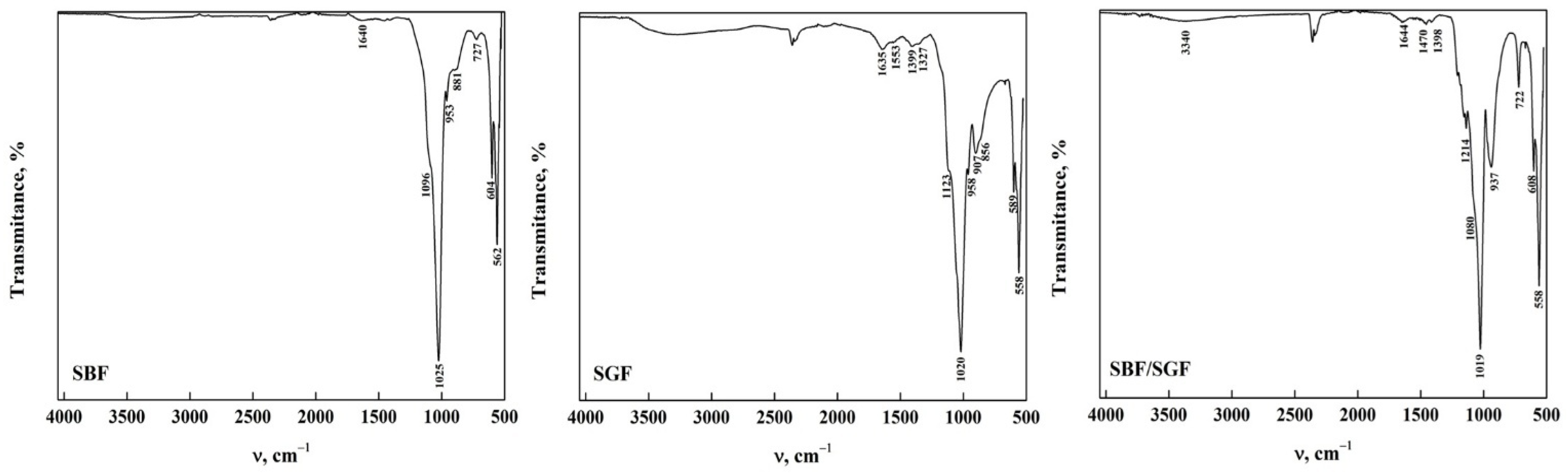

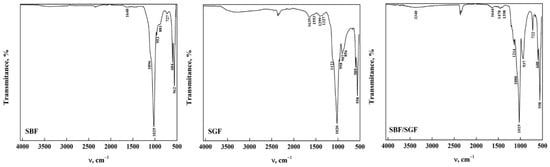

The ATR-FTIR spectra of OCP-WL after immersion in the simulated fluids are shown in Figure 5. In case of interaction with SBF, it was observed that the bands in OCP between 4000 cm⁻¹ and 1700 cm⁻¹ disappear in SBF. This indicates that the HA particles that may form due to the change in pH during the interaction result in nucleation of HA crystals [22,35,43,46]. Furthermore, the presence of SBF may contribute to the transformation of apatite during the immersion time [17,23,29]. The presence of a broad band around 3276 cm⁻¹ can be observed in OCP after immersion in SGF and SBF/SGF, indicating that the biomaterial may present a gradual transformation process caused by the low pH of the simulated fluid [22,47]. Furthermore, it was observed that the bands corresponding to the carbonate group significantly decrease their intensity, indicating a direct participation between the ions present in the simulated fluids and OCP [23,43]. This could be closely related to the morphology of the OCP obtained from DCPD, allowing us to infer that immersion in the simulated fluids is directly affected by the starting structure to obtain OCP-WL [48]. All the bands observed in the spectra and their assignment are shown in

Table 5. Position and assignment of ATR-FTIR bands of OCP-WL after its interaction with simulated fluids.

SBF	SGF	SBF/SBG	Description	Reference
cm−1
		3340	O-H stretching in the H2O molecule	[35,37,43,47,48,49]
	3213
1640		1644	Bending and rotation of O-H in the H2O molecule	[20,36,41,42,44]
	1635
1550 w	1553 w		Bending mode of CO32− (ν3)	[35,41,48,49]
1465 w		1470 w	Stretching of CO32− (ν3)
	1399	1398 w	Bending mode in the plane P-O-H	[41,43]
	1327 s
		1214	P=O stretching of the groups PO2−	[36,37,38,41,43,44]
	1123 s		Stretching of HPO42−	[35,37,41,49]
1096 s			Stretching of PO43− (ν3)	[35,43,44,49,50]
		1080
1025	1020	1019
953 w	958 w		Asymmetric stretching of P-O-P	[35,37]
		937
881			Bending mode of CO32− (ν3)	[23,26,35,43,44]
877
	856		Stretching of HPO42−
727		722	Bending of O-H out of the plane	[35]
		608	Acid phosphate bond (H-O-) P=O	[20,37,44]
604			Bending mode of PO43− (ν3)	[7,35,44,49]
	589		Bending mode of PO43− (ν4)	[23,35,41,44]
562				[20,37,44]
	558	558	Vibrations of O-P-O	[23,35,41,44]

w = weak; s = strong.

.

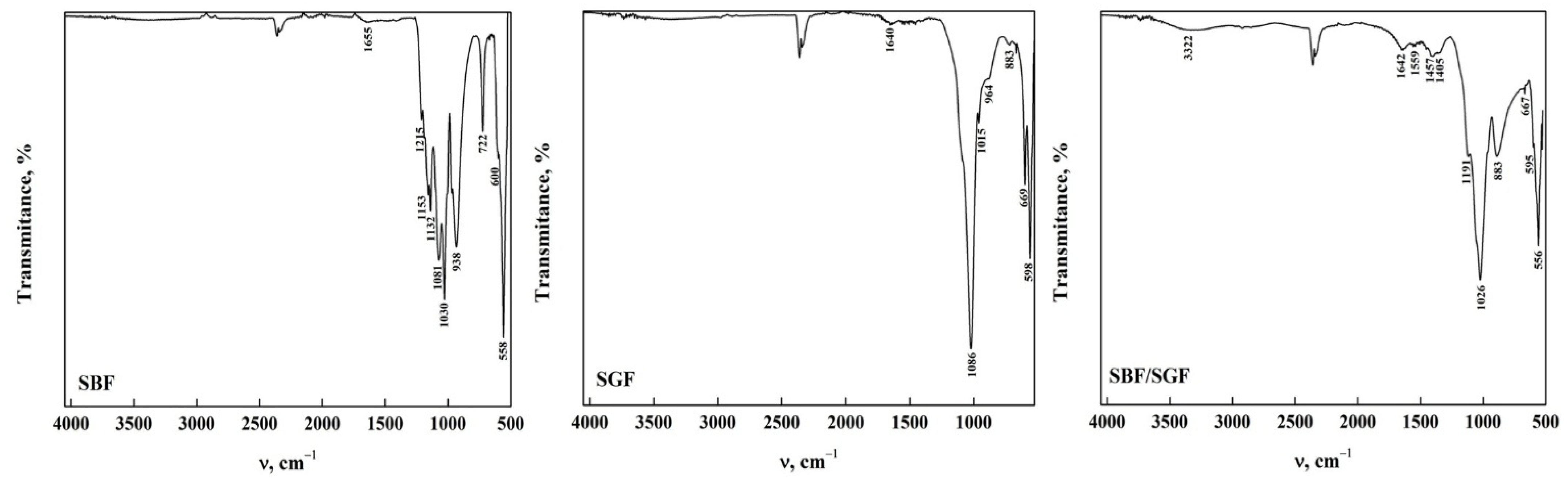

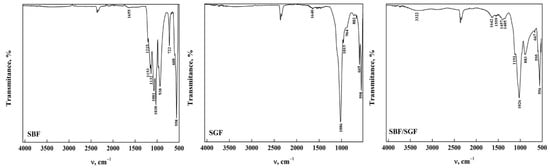

Figure 6 presents the ATR-FTIR spectra of the OCP-FP after immersion in the simulated fluids. It is observed that the bands between 4000 cm⁻¹ and 1700 cm⁻¹ disappeared when the OCP was immersed in SBF and SGF, except for a broad band around 3302 cm⁻¹ that remains after immersion. This is due to the formation of a layer in OCP when SBF was immersed and the degradation that occurred when SGF was immersed [30,31]. When immersed in SBF/SGF, it is observed that the O-H group band maintains an intensity that allows us to infer that the pH of the solution changes with the combination of both simulated fluids [36,41,43]. Most of the bands in the range between 1700 cm⁻¹ and 400 cm⁻¹ remain after immersion in the simulated fluids, including those corresponding to CO₃²⁻ bending and stretching at around 1560 cm⁻¹ and 1453 cm⁻¹, respectively [23,35,43]. A decrease in the band assigned to the CO₃²⁻ bending mode (ν₂) was observed around 882 cm⁻¹, indicating changes in the structure of the carbonate groups [19,35,43]. These results indicate that OCP can be used as an excipient due to its high degradation in SGF, which would allow release of the drug. All the bands observed in the spectra and their assignment are shown in

Table 6. Assignment of ATR-FTIR bands of OCP (FP) after its interaction with simulated fluids.

SBF	SGF	SBF/SBG	Description	Reference
cm−1
		3322	O-H stretching in the H2O molecule	[4,34,35,44]
3298	3287
	1640	1642	Bending and rotation mode of O-H in the H2O molecule	[14,36,41,42,43,44]
1655
	1565 w		Bending mode of CO32− (ν3)	[23,35,43]
1555 w		1559
	1450 w	1457	Stretching of CO32− (ν3)
		1405	Bending mode in the plane P-O-H
1215 w		1214	Stretching vibrations P=O of the PO2− groups	[23,26,35,43,44,50]
		1119 w	Stretching of PO43− (ν3)
1153			Bending mode of P-OH
1132 w			Stretching of HPO42−
1081			Stretching of PO43− (ν3)
	1086			[35,36,38,39]
	1015 w
1030		1026		[23,26,35,43,44,50]
	964 w		Asymmetric stretching of P-O-P	[35,37]
938			Bending mode of CO32− (ν2)	[23,35,43]
881 w	883 w	883 w
877			Asymmetric stretching P-O-P	[20,34,35,37,38]
722			P=O stretching of the PO2− groups	[35,36,37,38,43,44]
	669		Bending mode of PO43− (ν4)	[19,23,35,43,44,50]
600	598	595
558		556	Bending mode of P=O	[20,37,44]

w = weak.

.

2.4. Scanning Electron Microscopy (SEM) of Synthesized DCPD Before and After Immersion in Simulated Fluids

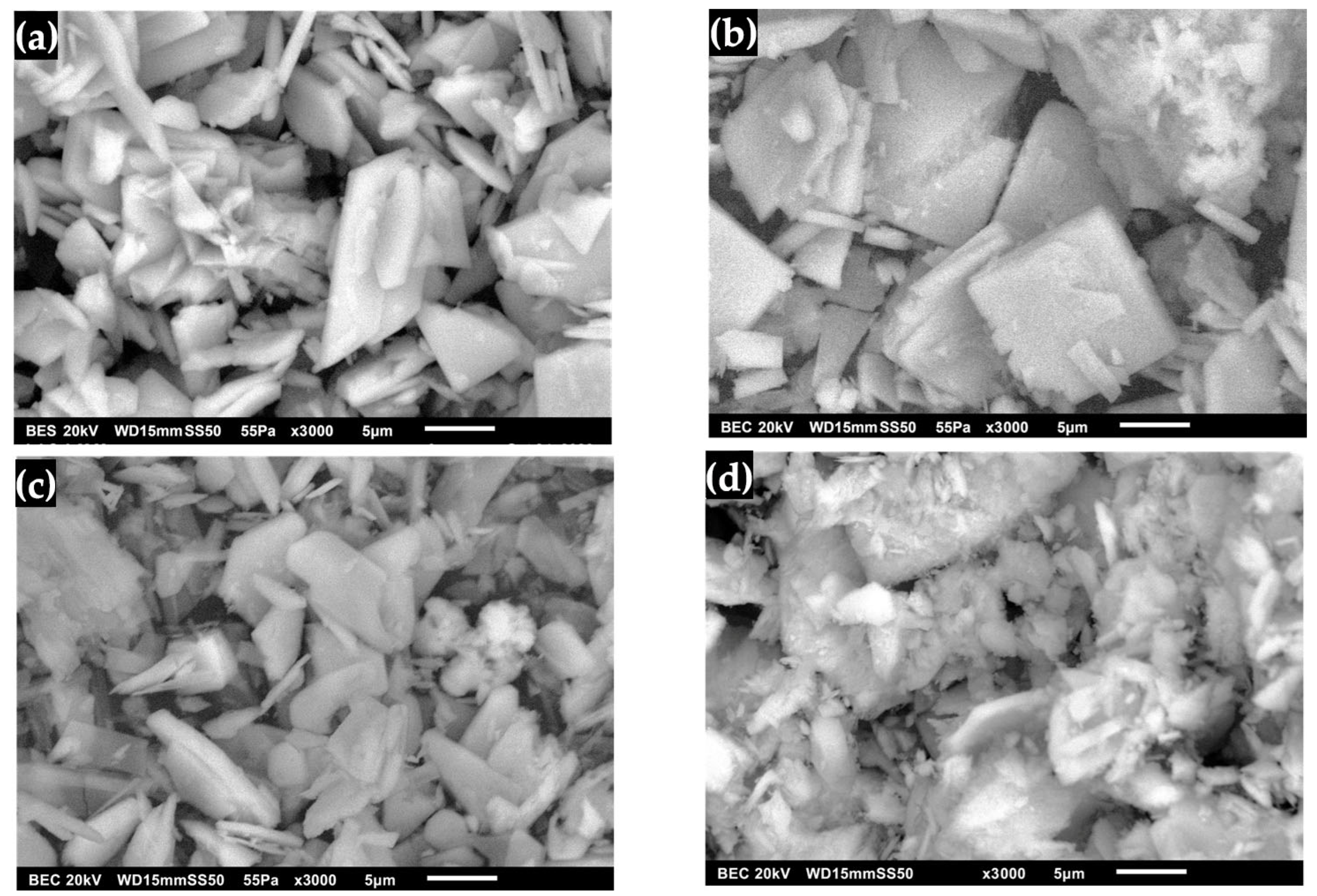

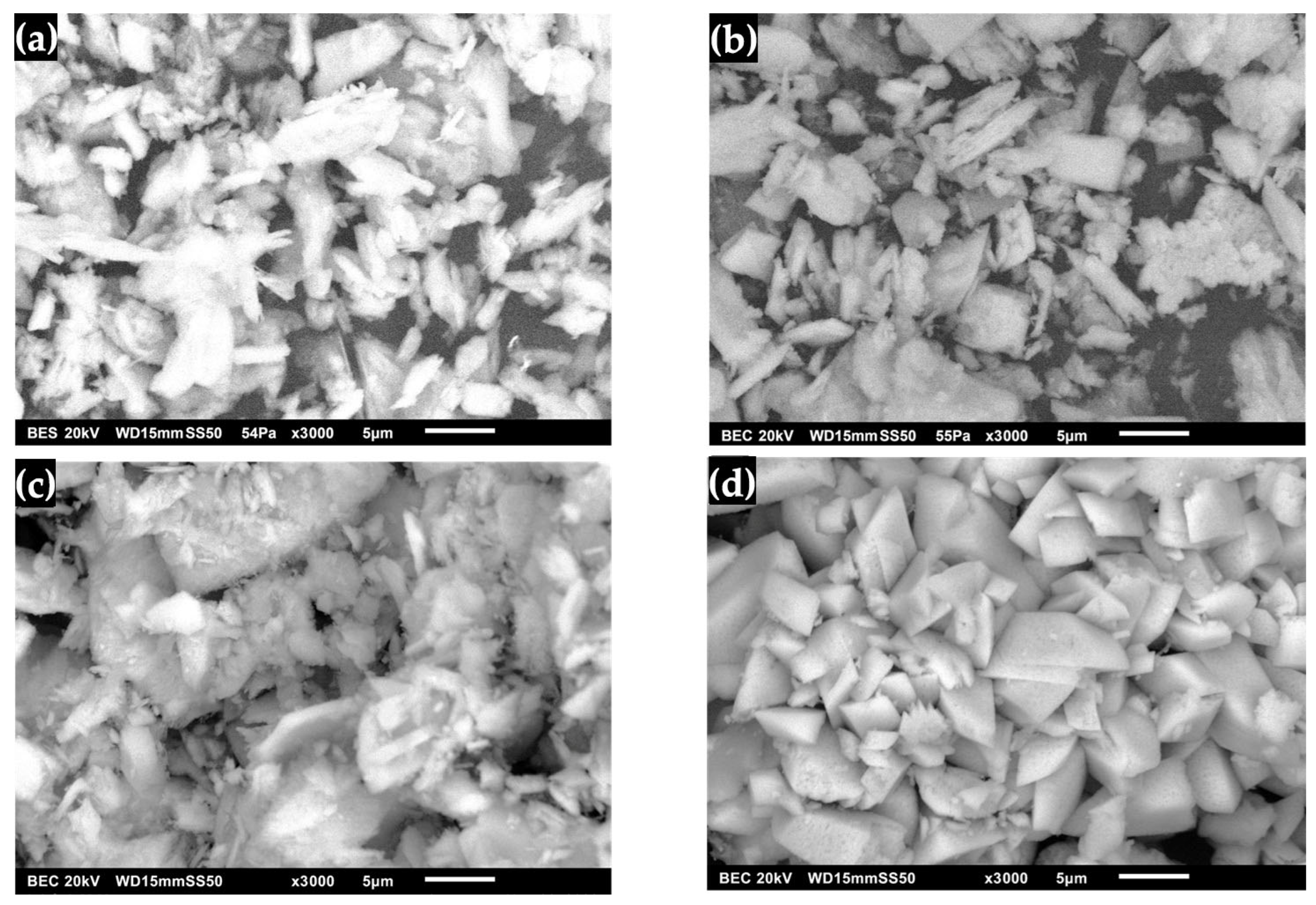

The morphology of DCPD with an FP structure is shown in Figure 7a, where compacted powder-like plates can be observed growing rapidly in two directions with a microrectangular appearance on the surface [36,37,41,42,51]. Figure 7b shows the micrographs of DCPD after immersion in SBF. Significant changes in the surface can be noticed due to a better definition of square lamellar particles and rectangular amorphous crystals forming angles with each other, and large square particles are no longer observed [31,39,43,52]. The morphology of DCPD after immersion in SBF was observed to retain part of the pointed lamellar morphology with rough edges. Increasing the contact time with SGF causes changes in the crystalline order, such as the unit cell parameters, and an increase in crystallinity [17,30]. Figure 7d shows the surface of the DCPD after immersion in the SBF/SGF mixture. Changes are observed in the stacked plates, where the surface becomes irregular [41,45,48].

The structure of synthesized DCPD with WL morphology is observed in Figure 8a, where agglomerated granulated powders can be distinguished that form the characteristic water lily structure of the surface [20,42,52,53]. The changes in the morphology of DCPD after its immersion in SBF are observed in Figure 8b, where it has the characteristic form of apatite, which begins to decompose, giving way to the formation of pointed plates with a rough surface [23,39,54,55]. In the case of immersion of DCPD in SGF (Figure 8c), an amorphous form with pointed crystals was observed that present a dispersion of DCPD crystals in the strong acid solution and the action of the enzyme present in the simulated fluid [23,56]. This indicates that the interaction of SGF with DCPD can result in changes on the surface of the biomaterial due to the formation of water-soluble salts, which lead to the formation of HA plates. Figure 8d shows DCPD after immersion in SBF/SGF, in which a granulated and agglomerated morphology is observed that is initially similar to a water lily and later transforms into an irregular rectangular shape [23,48]. This could be due to the change in the presence of Ca²⁺ ions due to the erosion of calcium phosphates, which is due to factors in the materials that regulate their dissolution under physiological conditions [23,25,27,28]. Given this difference in microstructure, the transformation with DMEM of DCPD to OCP can have a faster reaction rate on the FP surface than on the WL surface, as this form does not allow it to transform homogeneously into OCP [29].

2.5. Energy-Dispersive Spectroscopy (EDS) of Synthesized DCPD Before and After Immersion in Simulated Fluids

The elemental chemical composition of DCPD before and after immersion in physiological fluids is shown in

Table 7. Elemental analysis of DCPD with FP and WL morphology.

Biomaterials	C	O	Cl	Al	Na	Ca/P
FP	19.41	43.76	0.91	1.26	0	1.16 ± 0.08
SBF	14.535	43.24	0.43	1.4	1.4	1.10 ± 0.06
SGF	7.805	45.05	1.34	0	0	1.26 ± 0.07
SBF/SGF	49.02	44.17	1.09	0	0	1.11 ± 0.05
WL	7.25	55.57	0	0.78	0	1.19 ± 0.08
SBF	9.82	34.54	3.59	0	1.85	1.11 ± 0.06
SGF	14.08	52.68	0	0.4	1.44	1.06 ± 0.03
SBF/SGF	15.01	37.98	0	0.66	0	1.08 ± 0.04

, where the presence of C, O, P, Ca, and Na, among other elements, can be noted. The Ca/P ratio of the biomaterials had significant changes after their interaction with physiological fluids. In the case of DCPD-FP, a Ca/P ratio equal to 1.16 was observed, indicating the presence of amorphous calcium phosphates (ACPs) in the apatite. After immersion in SBF and SBF/SGF, the Ca/P ratio is 1.11 and 1.10, respectively. This indicates a change in the structure when it is transformed into calcium-deficient hydroxyapatite (CDHA) due to the presence of ions provided by SBF [2,3,56,57]. In the case of immersion in SGF, it is observed that the Ca/P ratio increases up to 1.26, which shows that the structure has stability with respect to this fluid [2,3,57]. It can be observed that the presence of C increases by around 29.74%, 73.85% and 15.23% after the interaction with SBF, SGF and SBF/SGF, respectively. On the other hand, the presence of O in the biomaterial after immersion in SGF remains practically the same as in DCPD. This indicates that it presents adequate stability in the presence of ions and pancreatin from the simulated fluid [2,3,57]. This is due to the precipitation of several CaP phases that depend on temperature and pH [57]. The Ca/P ratio of the biomaterials had significant changes after their interaction with physiological fluids. The Ca/P ratio for DCPD-WL has a value equal to 1.19, which indicates the presence of ACPs in the apatite. After immersion in SBF, the Ca/P ratio is 1.11; this indicates a change in the structure when it transforms into CDHA due to the presence of ions provided by SBF [2,3,30,57]. In the case of immersion in SGF and SBF/SGF, it is observed that the Ca/P ratio decreases to 1.06 and 1.08, respectively, indicating that the structure exhibits stability in these fluids [2,3,57]. In the case of the interaction between DCPD-WL and SBF and SBF/SGF, a decrease of approximately 35.88% in C and 29.62% in O was observed. These changes indicate different behaviors in the interaction of the biomaterial with the ions present in the different physiological fluids during the immersion process [2,3,30,57]. The different concentrations of ions present on the surface of each of the biomaterials can be directly related to the changes in the bands of the bonds of the functional groups observed in ATR-FTIR [2,3,30,57].

2.6. Scanning Electron Microscopy (SEM) of Synthesized OCP Before and After Immersion in Simulated Fluids

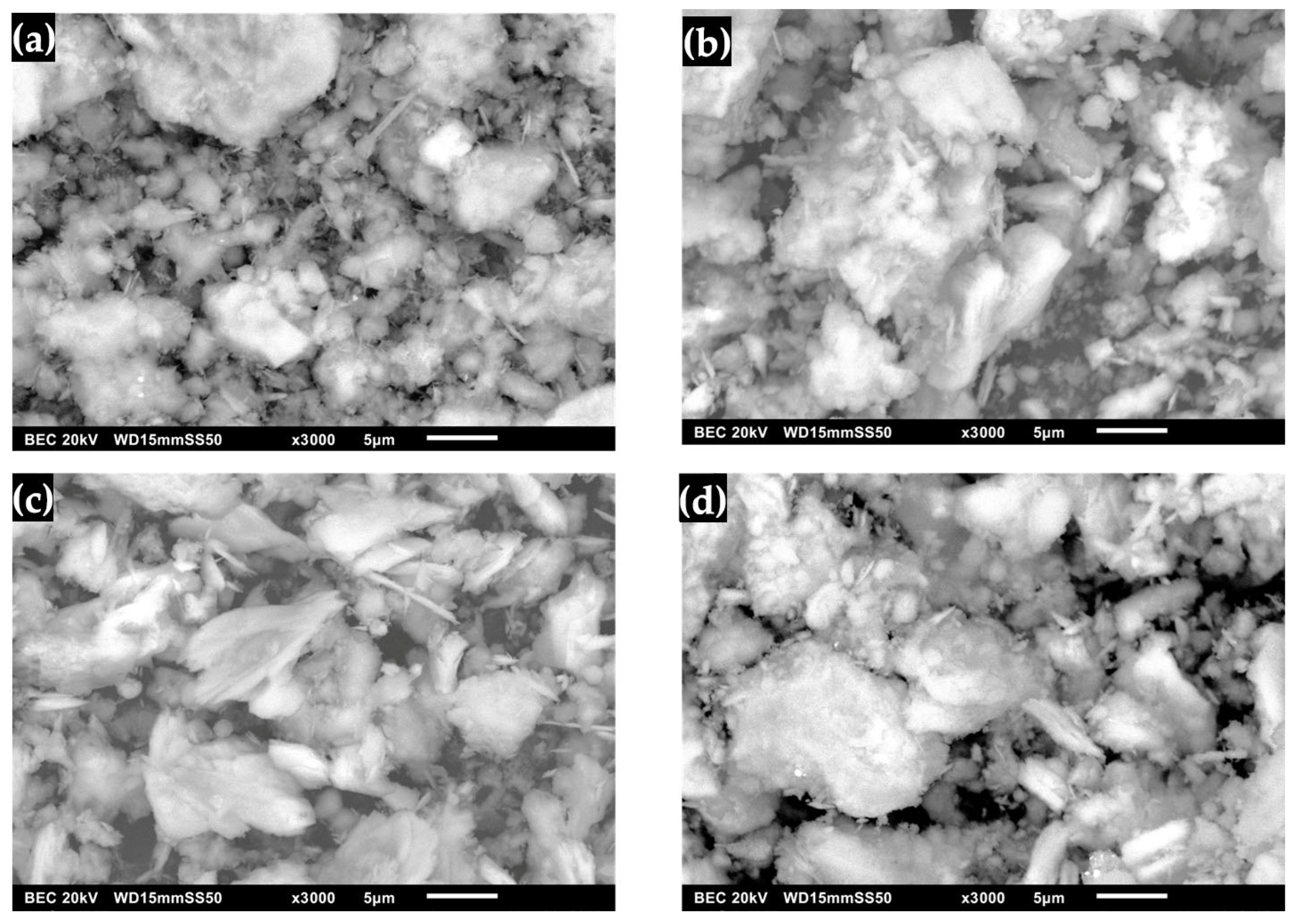

The transformation of DCPD to OCP with FP morphology is shown in Figure 9. It was observed that it no longer exhibits the shape of pointed lamellar particles, indicating that the surface morphology changed after immersion in DMEM (Figure 9a) [7,8,17,21,24,26]. Figure 9b shows the OCP after immersion in SBF, where the presence of a coating of lamellar crystals with round and irregular shapes that increased in size is observed [17,20]. This phenomenon is due to factors such as immersion time, temperature and pH, which caused crystal growth that contributed to the formation of a defined morphology aligned with the lamellar structure [20,24,26,27,29]. Furthermore, the use of an SBF solution leads to the formation of apatites as a bioactive coating [23,24,26]. In the micrograph of OCP after immersion in SGF (Figure 9c), the presence of plate-like shapes with sharp edges was observed, which allowed the formation of OCP crystals. This suggests that a progressive layer of crystallization and thickening occurred. This is associated with the enhanced formation of crystalline structures on the surface, with an increase in the amount of deposited material during prolonged immersion [20,23,24,27]. Upon immersing the obtained OCP in SBF/SGF, the formation of a network of plates and peaks was observed (Figure 9d). This can be attributed to the fact that the OCP can grow without transforming into HA. These results suggest that the driving force behind OCP formation depends on the concentration of CaCl₂, HCO₃ and other ions present in the solution, which play an important role in the kinetics of CaP phase formation [23,24,26,28,29,30].

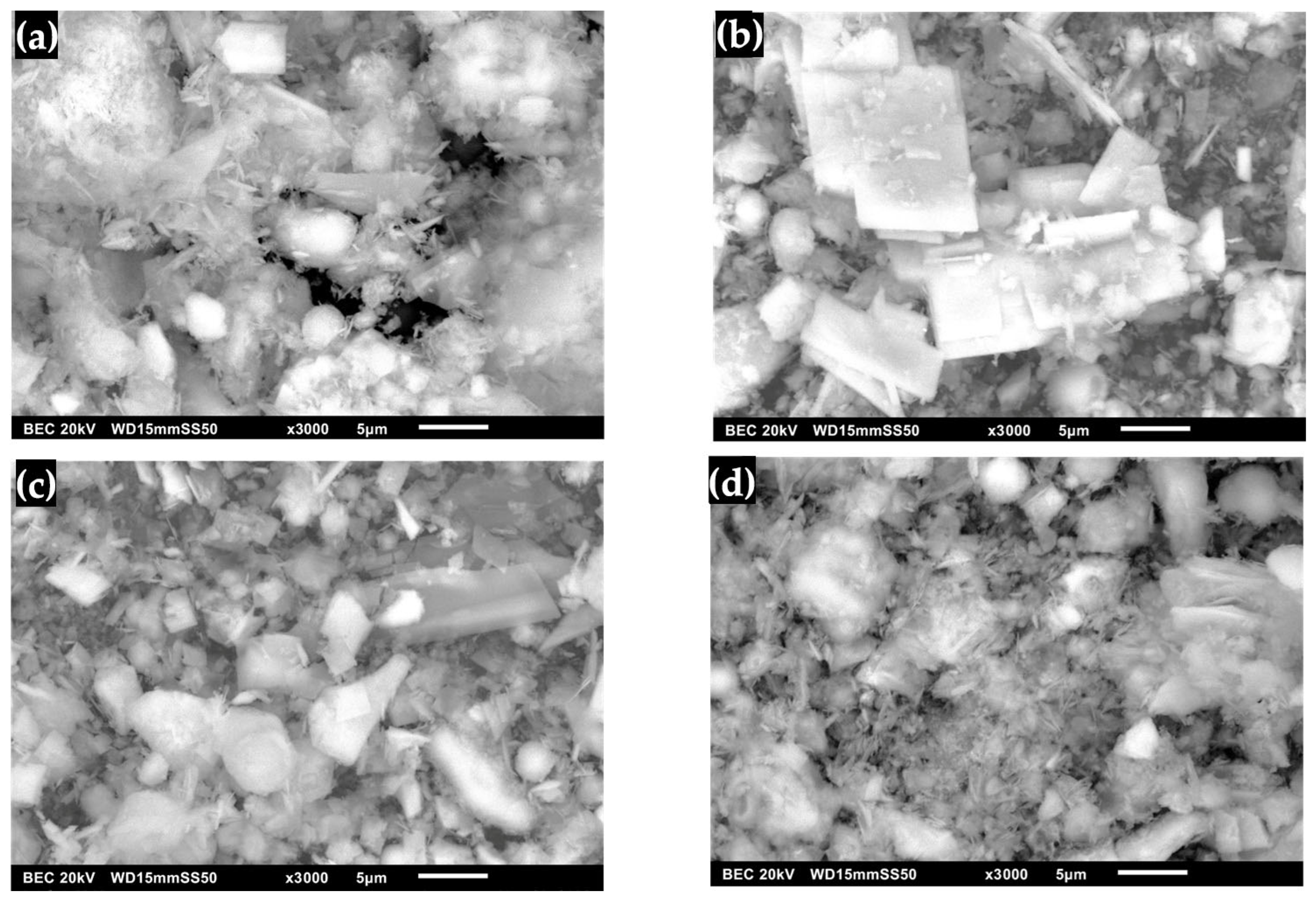

The transformation of OCP from DCPD with FP morphology is shown in Figure 10. The water lily shape characteristic of apatite is no longer observed. Instead, a smooth surface corresponding to the intrinsic shape of the OCP crystal can be seen, indicating the homogeneity of the biomaterial [7,8,23,26,40,50]. Figure 10b shows the OCP after immersion in SBF, where the formation of irregularly shaped lamellar structures that have increased in size is observed [23,25]. This process is influenced by immersion time, temperature and pH, allowing the growth of a defined morphology aligned with the laminar structure [23,25,31,40,50,54]. Figure 10c shows the micrograph of OCP after immersion with SGF, where pointed plates are present, allowing the formation of OCP crystals; this suggests that coating and coarsening occurred in OCP. This is associated with the formation of crystalline structures on the surface with an increase in the amount of deposited material during the immersion time [23,25,31,40]. Immersion of OCP in SBF/SGF is observed in Figure 10d, where a network of peaks is presented that can be attributed to the formation of HA [31,40,50,56]. This indicates that the concentration of HCO³⁻ and Ca²⁺ directly influences the formation of OCP [28,29,31,40,50,56].

2.7. Energy-Dispersive Spectroscopy (EDS) of Synthesized OCP Before and After Immersion in Simulated Fluids

The elemental chemical composition of DCPD before and after immersion in physiological fluids is shown in

Table 8. Elemental analysis of OCP obtained from DCPD with FP and WL morphology.

Biomaterials	C	O	Cl	Na	Mg	Ca/P
OCP-FP	17.25	43.3	0.31	0.52	0.23	1.31 ± 0.02
SBF	12.32	25.37	7.67	6.12	0.32	1.30 ± 0.01
SGF	23.86	44.71	0.67	0.35	0	1.36 ± 0.05
SBF/SGF	14.98	37.52	0.32	0.33	0	1.29 ± 0.03
OCP-WL	8.04	43.52	0	0.59	0	1.33 ± 0.04
SBF	19.11	34.63	4.81	4.58	0.21	1.31 ± 0.03
SGF	21.05	35.32	0.41	0.23	0	1.32 ± 0.05
SBF/SGF	11.87	43.46	1.3	2.04	0.23	1.34 ± 0.06

, where the elemental chemical composition of OCP-FP obtained has a Ca/P ratio equal to 1.31, which shows that the transformation of DCPD-FP was obtained and the Ca/P value of OCP is very close to the stoichiometric value of the apatite (1.33) [23,57]. OCP was immersed in SBF and SBF/SGF, where the Ca/P ratio was 1.30, indicating that it has good stability over time when immersed in this fluid. On the other hand, after immersion in SGF, the Ca/P ratio was 1.36 and 1.29. In addition, it was observed that the presence of C increases by 38.32% with interaction with SGF. Interaction with SBF and SBF/SGF resulted in decreases of 28.58% and 13.16%, respectively. The presence of O in the OCP after immersion in SGF remained essentially constant, indicating adequate stability in the presence of ions and pancreatin in the simulated fluid. The OCP immersed in SBF and SBF/SGF showed a decrease in the presence of O of 41.41% and an increase of 13.66%, respectively. For the LPA of OCP obtained, it is observed that the Ca/P value was 1.33; the transformation of DCPD into OCP and the Ca/P values after immersion in the simulated fluids are presented in Table 8 [17,51]. After immersion of OCP in SBF, SGF and SBF/SGF, Ca/P ratios of 1.31, 1.32 and 1.34 were obtained, indicating stability in the fluids throughout the immersion time [2,3,20,49]. It was observed that the presence of C in OCP-WL after interaction with SBF and SGF increased almost 2.5 times compared to that of the apatite before immersion. After immersion in SBF/SGF, a 1.5-fold increase was observed. It was observed that the O present in OCP after immersion in SBF and SGF decreased by 20.43% and 18.85%, respectively, compared to the apatite before immersion, and, in the case of immersion in SBF/SGF, the presence of O remained stable. The biological precursor to apatite formation in humans is OCP, which exhibits a water lily-like morphology [21,31,52]. However, the increased O and C values of OCP can be attributed to the loss of HPO₄⁻. Values greater than 1.33 in the Ca/P ratio can be attributed to a defective structure in OCP crystals [2,3,7,8,50,53,57].

2.8. X-Ray Diffraction (XRD) of Synthesized DCPD Before and After Immersion in Simulated Fluids

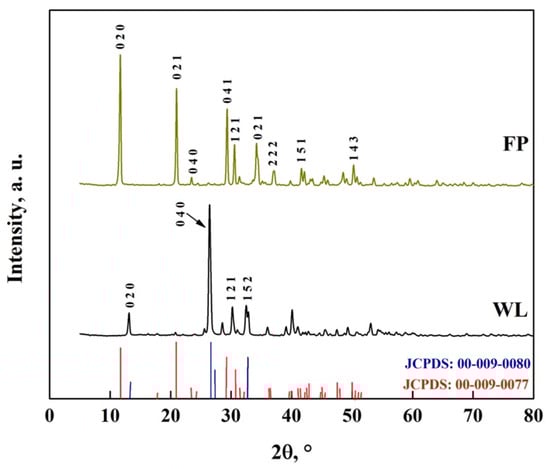

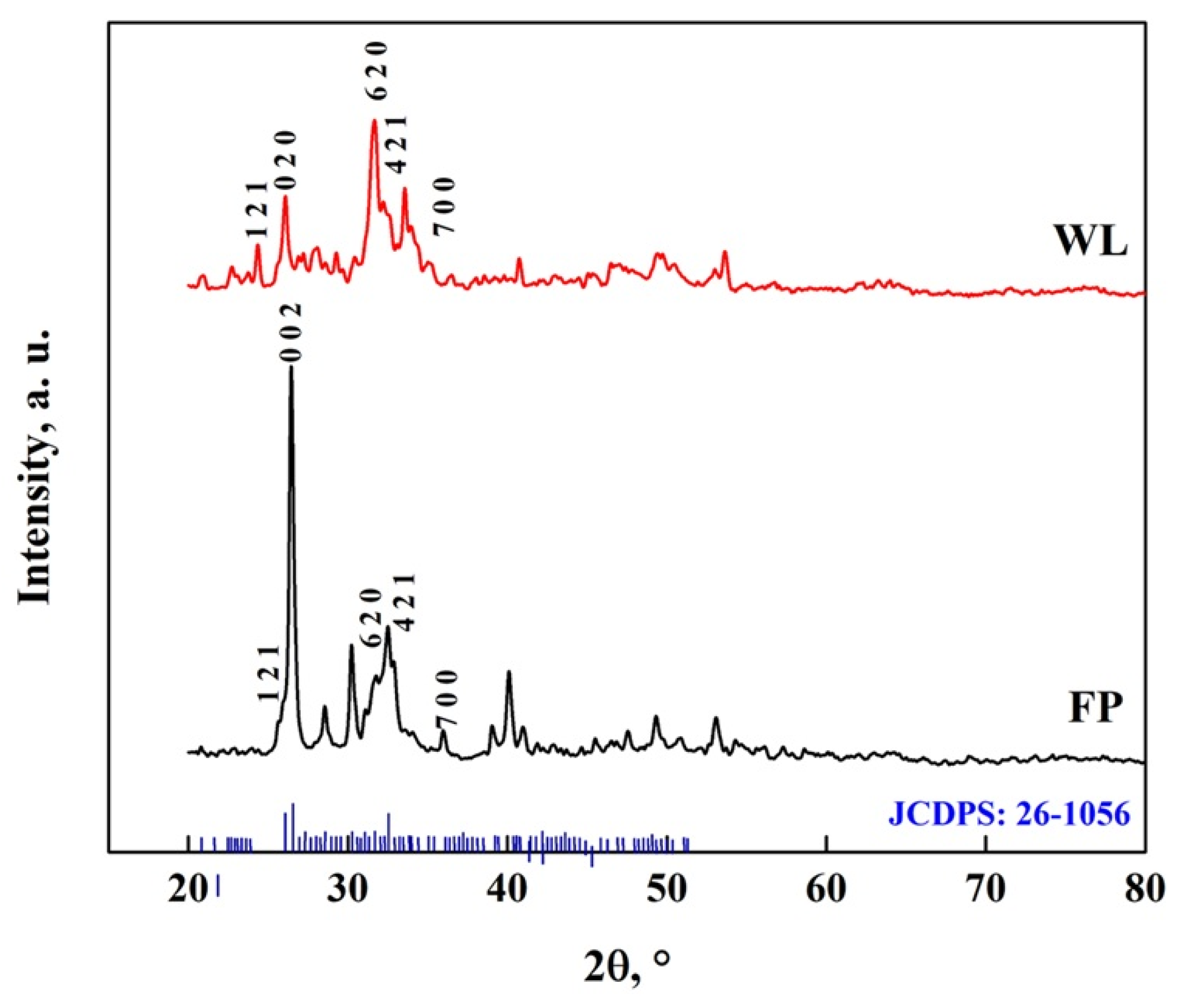

The crystal structure of DCPD-FP and DCPD-WL is shown in Figure 11. In the DCPD-FP pattern, peaks are observed at 11.8°, 21°, 23.2°, 29.4°, 30.5°, 31.6° and 34.4°, while in the DCPD-WL pattern, peaks are observed at 13.1°, 25.5°, 26.6°, 31.3°, 32.6° and 41°, with similar peaks observed in the patterns at 37.2°, 41.7° and 50.4° [10,26,52]. These peaks are characteristic of DCPD (JCPDS: 00-009-0077) and DCPA (JCPDS: 00-009-0080), which indicates that in both synthesized biomaterials, there is a mixture of apatites. It is also observed that the DCPD-FP peaks are more intense than those of DCPD-WL, which indicates that there is a different particle size and a greater presence of DCPD in the biomaterial [10,26,52,53,54,55,56,57,58,59,60,61,62,63,64].

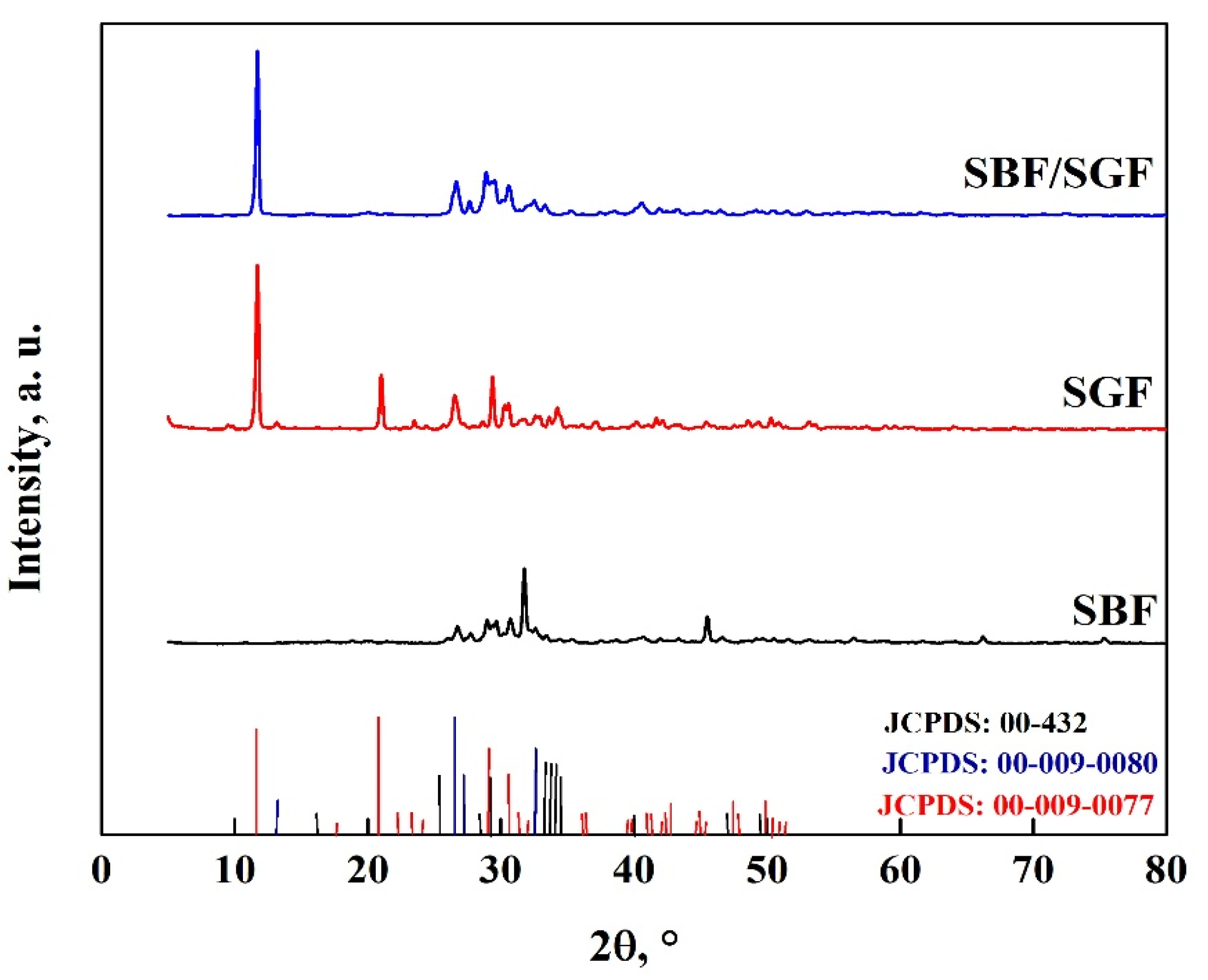

Figure 12 shows the XRD pattern of DCPD-FP after immersion in simulated fluids, where peaks appear at 26.4°, 27.8°, 28.9°, 32.4° and 33.2°, corresponding to the presence of HA particles (JCDPS: 00-423) in the biomaterial [22,64,65,66]. Other peaks observed with the different fluids, associated with the presence of HA, include 26.2° and 45.6° for SBF, 13.4° for SGF, and 28.9° and 33.5° for the SBF/SGF mixture, indicating the transformation of DCPD into HA [22,59,65,66]. Additionally, the disappearance of peaks at 11.8°, 21°, 23.2°, 34.4° and 37.2° after interaction with the simulated fluids suggests a modification of the DCPD crystalline structure [22,59,64,65,66].

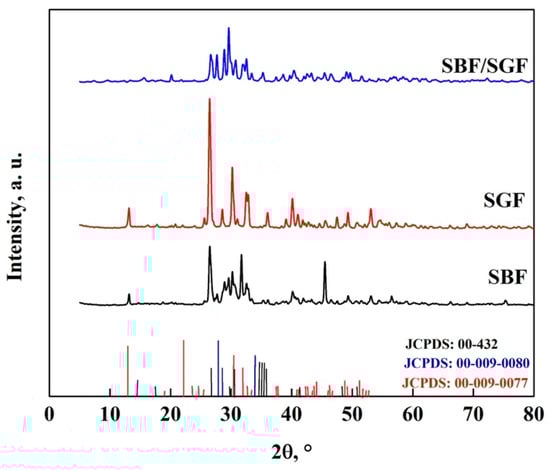

The XRD pattern of DCPD-WL after immersion in the simulated fluids is shown in Figure 13, where peaks appear at 27.8°, 28.9°, 33.5°, 38.6 and 49.4°, corresponding to the production of HA particles [10,26,59,60,61,62,63]. In addition, peaks related to the presence of HA and the transition from DCPA to DCPD appear in the different simulated fluids: 18.8° and 31.9° in SBF; 17.6°, 41.8°, 44.6° and 50.7° in SGF; and 15.8°, 35.2°, 37.2°, 38.7°, 43.2° and 46.4° in SBF/SGF [10,26,59,60,61,62,63]. With the interaction with SBF and SBF/SGF, the disappearance of peaks in the DCPD pattern was observed. In SBF, the peaks were 20.9° and 41°, and for SBF/SGF, they were 11.8°, 21°, 23.2°, 34.4° and 37.2°. During immersion in SGF, no significant changes were observed in the DCPD pattern, which indicates that there is greater crystalline stability than in the interaction with the other two fluids [10,26,59].

2.9. X-Ray Diffraction (XRD) of Synthesized OCP Before and After Immersion in Simulated Fluids

Through Rietveld analysis, a transformation fraction of OCP-WL of 61.2% for WL and 81.2% for FP was obtained, which indicates that a simpler morphology promotes a faster transformation rate [67,68]. The transformation of DCPD to OCP due to the interaction with DMEM is shown in Figure 14, where characteristic peaks of OCP (JCDPS: 26-1056) can be observed at 30.2°, 31.6°, 32.4°, 38.9°, 40.2°, 49.5° and 53.2° [7,8,50,58,59,67,68]. The peak observed at 26.5° is attributed to CaCO₃ particles; as it is in OCP-FP form, this is the one with the highest intensity [59,60]. In addition, several peaks appear at different positions of DCPD; in the case of OCP-FP, peaks are observed at 25.7°, 28.5°, 35.9°, 41.1°, 47.5° and 51°, while for OCP-WL, peaks are observed at 21.1°, 22.8°, 24.4°, 27.9°, 29.2°, 33.5°, 35.2°, 45.4°, 46.9° and 50.4°. These peaks correspond to the crystal structure of OCP [10,21,31,50,51,52,53,61,62]. This result indicates that DCPD transforms into OCP between 48 and 168 h [57,58,67,68].

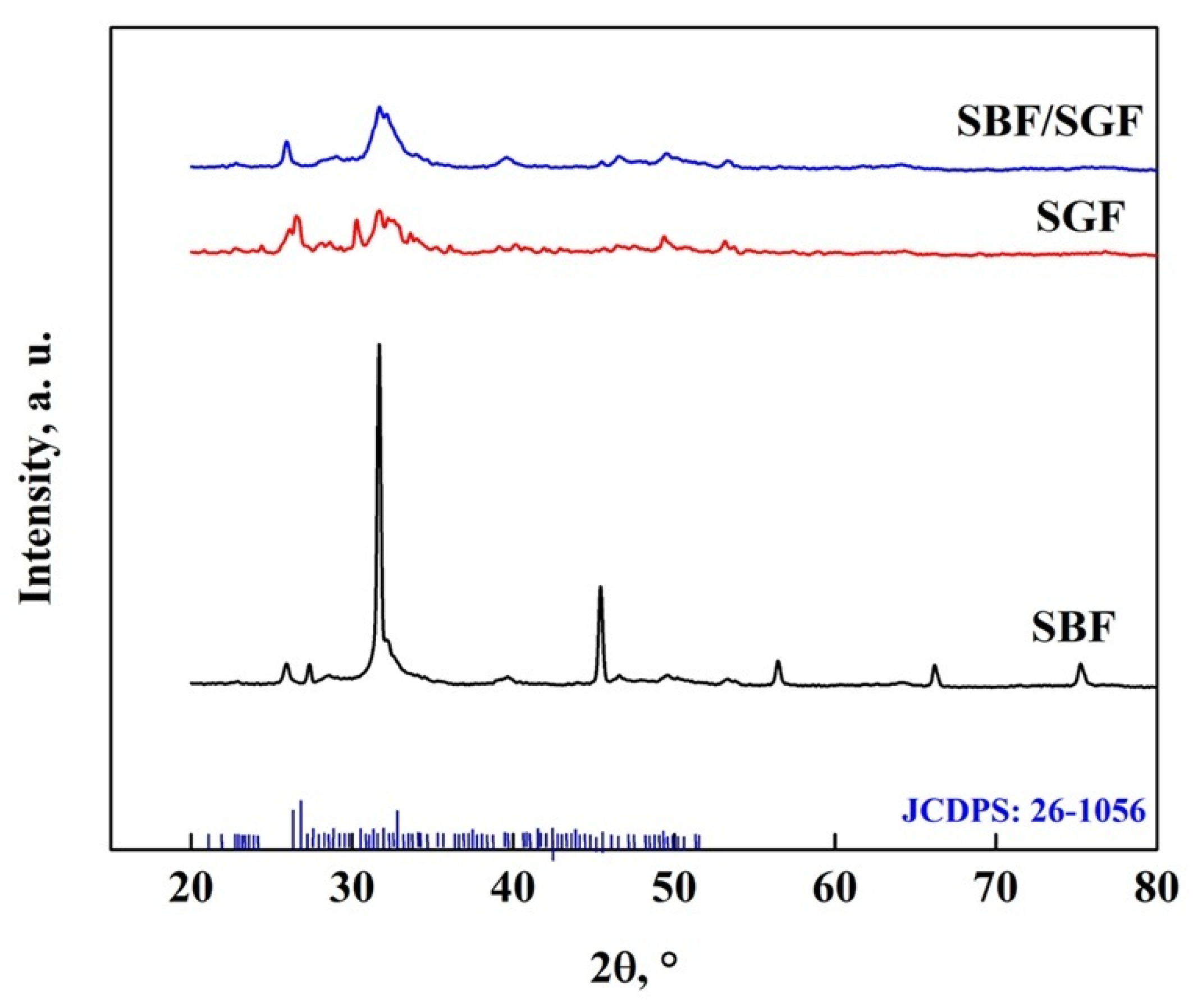

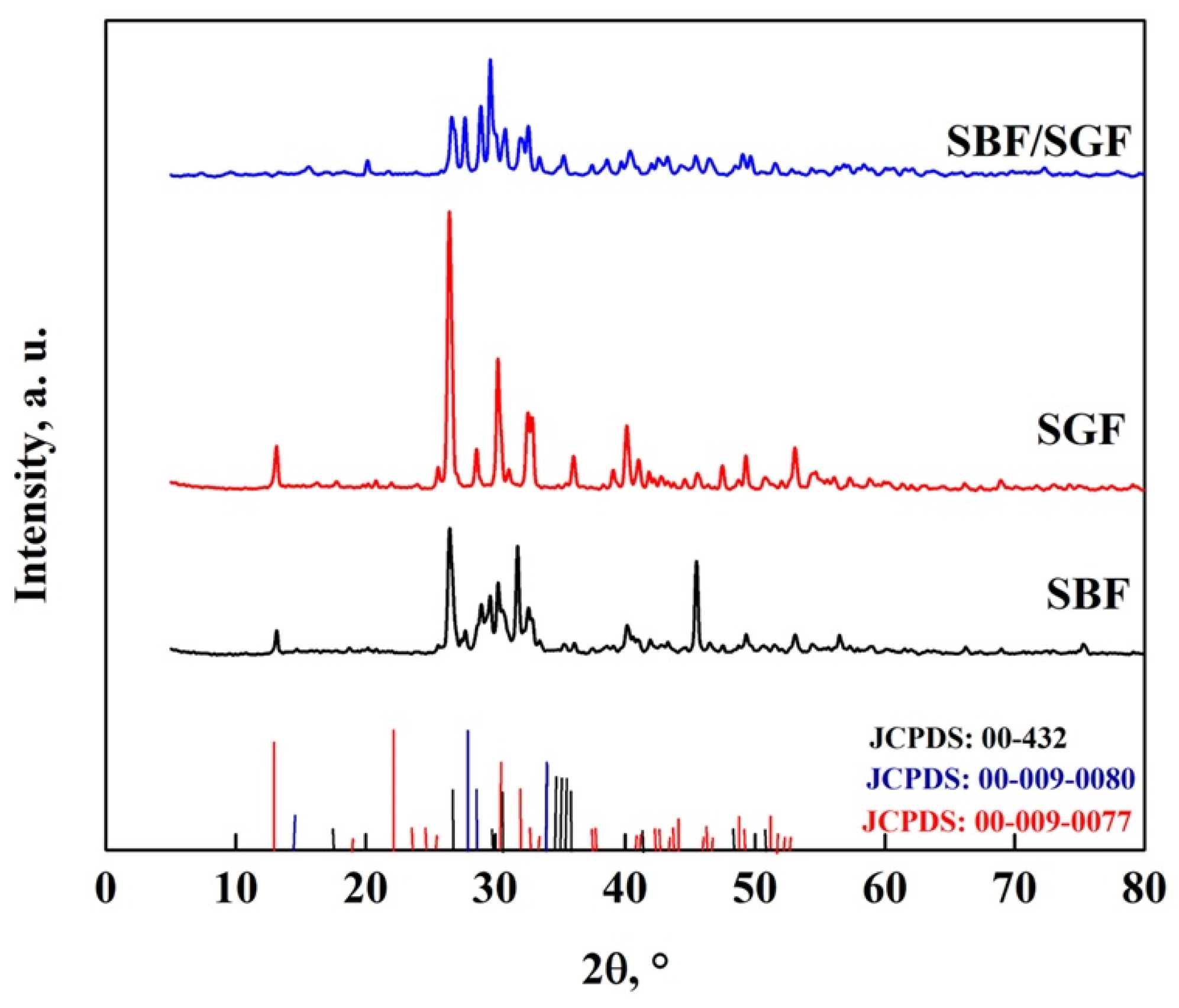

The interaction between the OCP-FP and the simulated fluids is shown in Figure 15, where it is observed that the simulated fluids cause changes in the crystallography of the apatite. Peaks appear at 27.7°, 29.6° and 45.6°, which are due to the HA particles obtained with the simulated fluids [7,8,25,40,47,69]. In addition, peaks related to DCPD particles were observed at 42°, 46.5° and 56.5° in the SBF immersion, and with the other fluids, the particles were not formed [7,8,25,45,56,57,58,67,68,69]. A peak at 51° also disappears, indicating that there are changes in the crystal structure of the OCP [7,25,40,53,57,58,68,69]. The stability of the biomaterial is related to the modification of the pattern in the different fluids, which has a greater impact on stability in SBF > SBF/SGF > SGF [7,25,40,57,58,59,61,68,69,70].

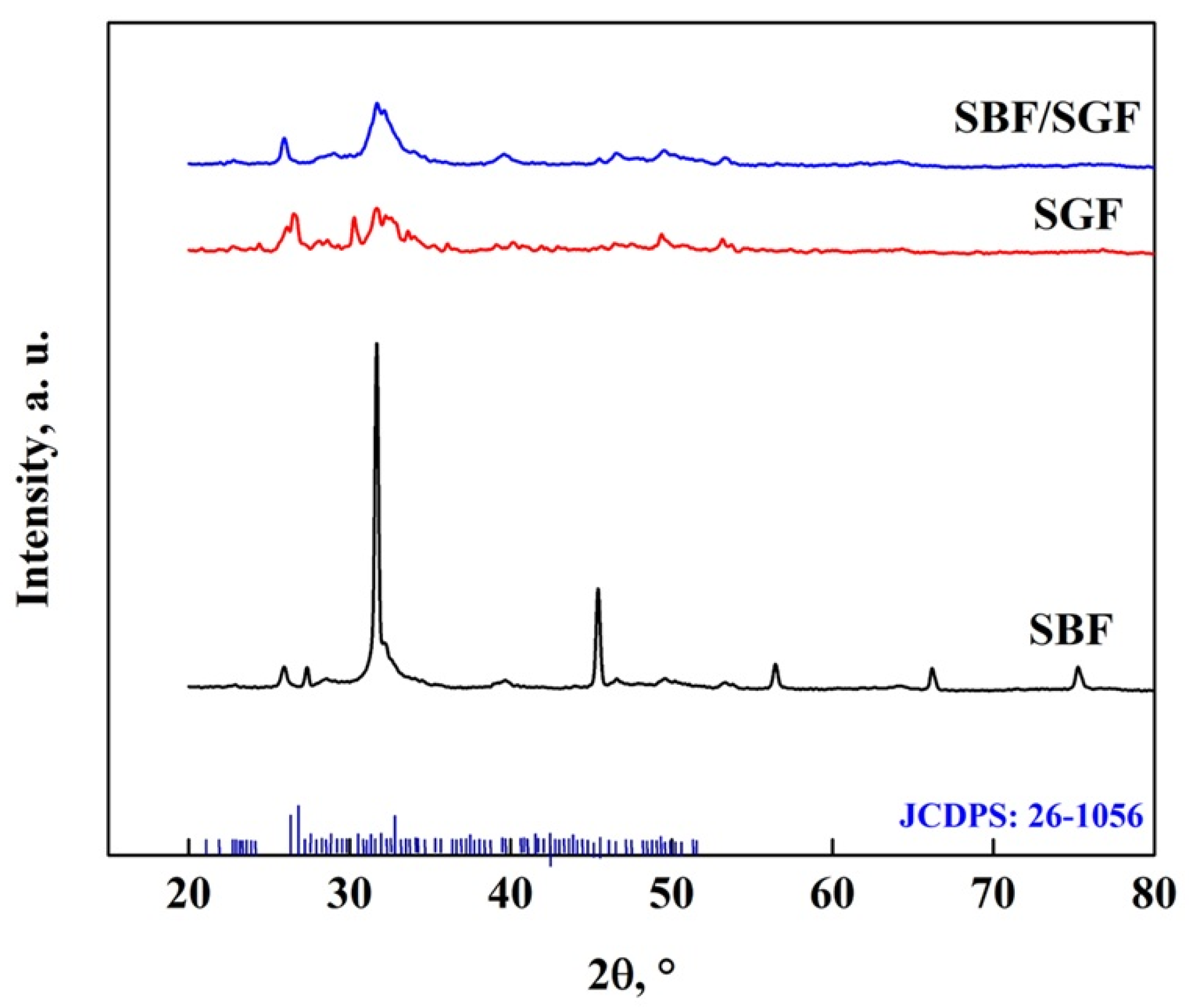

Figure 16 shows the XRD pattern of the OCP-WL after immersion in simulated fluids, where the appearance of peaks at 25.9° and 39.6° related to HA and DCPD particles, respectively, can be observed [7,40,50,58,59,68,69]. In addition, after immersion in SGF, a peak at 22° appears, which corresponds to the presence of DCPD particles [7,40,50,53,58,68,69]. The changes that occur in the OCP pattern in the different fluids show the disappearance of the peaks at 21.1°, 22.8°, 24.4°, 27.9°, 33.5°, 35.2°, 38.5°, 40.7° and 53°, which indicates changes in the crystalline structure of the OCP [7,25,40,57,70]. The stability of the OCP with the different simulated fluids follows the following behavior of greater impact: SBF/SGF > SBF > SGF [7,25,40,57,70].

3. Methods and Materials

3.1. DCPD Synthesis in Water Lily-Shaped Crystals (WL)

DCPD with WL morphology was synthesized by dissolving 40 g of ammonium dihydrogen phosphate (NH₄H₂PO₄, Jalmek 100%) in 340 mL of distilled water. The solution was stirred by adding 10 g of calcium carbonate (CaCO₃, Jalmek 100%). The suspension formed was stirred at 500 rpm at room temperature for 30 min. After this time had elapsed, the suspension particles were recovered and washed with 750 mL of distilled water. Finally, the powders obtained were dried for 24 h at 75 °C in a static air oven [6,22,40]. DCPD in its WL form was stored in a desiccator until use, and the synthesis was performed in quadruplicate.

3.2. DCPD Synthesis in Flat Plate-Shaped Crystals (FP)

For the formation of DCPD crystals in FP form, two solutions were prepared. In solution A, 0.835 g of monopotassium phosphate (KH₂PO₄) and 3.013 g of sodium hydrogen phosphate (Na₂HPO₄) were dissolved in 700 mL of distilled water. In solution B, 4.014 g of calcium chloride dihydrate (CaCl₂·2H₂O) was dissolved in 200 mL of distilled water. Then, solution B was rapidly added to solution A under stirring at 500 rpm at room temperature for 80 min. The solids recovered by filtration were dried for 24 h at 65 °C [22,26,44]. DCPD in its FP form was stored in a desiccator until use, and the synthesis was performed in quadruplicate.

3.3. Transformation of DCPD in WL and FP Shape into OCP Using DMEM Solution

For the transformation of DCPD in WL form to OCP, 1 g of DCPD was placed in a beaker with 50 mL of DMEM solution at a temperature of 36.5 °C for 24, 48 and 164 h to determine the effect of the contact time of DMEM solution on DCPD. The solutions were then filtered, washed with 500 mL of deionized water and left to dry at 65 °C for 24 h. For the transformation of DCPD in FP form to OCP in DMEM solution, 1 g of DCPD was placed in a beaker with 50 mL of DMEM solution at 36.5 °C for 24, 48 and 164 h to determine the effect of contact time of DMEM solution on DCPD. The solutions were then filtered, washed with 500 mL of deionized water and allowed to dry at 65 °C for 24 h. They were subsequently stored until use [9,22,26,44,50]. DCPD transformed into OCP was stored in a desiccator until use, and the synthesis was performed in triplicate.

3.4. Preparation of Body Fluid (SBF) and Simulated Gastric Fluid (SGF)

Human or simulated body extracellular fluid (SBF) solutions were prepared. This solution contains ions such as Cl⁻, HPO₄⁻, HCO₃²⁻, SO₂⁴⁻, Na⁺, K⁺, Mg²⁺ and Ca²⁺ dissolved in deionized water with a Ca/P ratio of 2, as shown in

Table 9. Preparation of 1 L of SBF solution [71].

Compound	SBF (10−3 mol/L)
NaCl	142.9
NaHCO3	4.3
KCl	7.4
K2HPO4	1.3
MgCl2	3.3
CaCl2	2.6
Na2SO4	0.51
Tris	5.05

[11,61]. Also, a HCl solution (0.1 M) was prepared to maintain a pH of 7.4 [26,48,70].

For the interaction of DCPD with SGF solution, concentrated NaCl, pepsin and HCl were dissolved in deionized water in the amounts shown in

Table 10. Preparation of 1 L of SGF and SIF solution.

Compound	SIF, (10−3 mol/L)
NaOH	38.2
Pancreatin	2 *
KH2PO4	0.050
HCl	226.6

* gram.

, maintaining the pH of the solution at 1.2 [54,56].

3.5. Study of DCPD and OCP Changes After Immersion in SBF, SGF and SBF/SGF

Each fluid solution was subjected to an autoclave sterilization process at 121 °C and 1 atm pressure for 15 min. After sterilization, a 1/10 ratio (weight/volume) of OCP or DCPD with SGF, SBF and SBF/SGF, respectively, was placed under vigorous stirring at 37 °C for 12 h. After this time, the powder was filtered and dried for 24 h at 75 °C in a static air oven and subsequently weighed [33,44,56,72]. The immersion process was repeated in triplicate for each simulated fluid and for each type of apatite.

3.6. Characterization of DCPD and OCP

To perform DCPD and OCP analysis before and after immersion in physiological fluids, attenuated total reflectance Fourier transform infrared spectroscopy (ATR-FTIR) was used in the wavenumber range of 4000 to 400 cm⁻¹ with a Thermo Scientific Nicolet iS10 analyzer (Waltham, MA, USA). A total of 32 scans were obtained with a resolution of 4 cm⁻¹. In addition, X-ray diffraction (XRD) patterns were obtained with a diffractometer (Ultima IV Rigaku, Cedar Park, TX, USA), with a radiation (Cu Kα) of 1.5406 Å measuring from 4° to 80° in 2θ with a step size of 0.03°. Scanning electron microscopy (SEM) images and energy-dispersive X-ray spectroscopy (EDS-EDX) values were obtained using a JOEL spectrometer (6510 pus, Peabody, MA, USA) following the ASTM E 1508 standard [73].

4. Conclusions

In this study, DCPD-FP and DCPD-WL were synthesized, from which the functional groups, morphology and characteristic crystalline structure of the apatite were identified, indicating that the synthesized DCPD has properties comparable to those of commercial biomaterials. Stability was studied when immersed in simulated fluids, where it was observed that DCPD-FP presents less degradation during the immersion time than DCPD-WL. In addition, modifications in the crystalline structure were observed after immersion in the simulated fluids mainly due to the formation of HA particles and changes in the morphology of the DCPD. The percentage of transformation of DCPD to OCP depended on the morphology. In addition, the formation rate depended on the morphology, as DCPD-FP was faster in transformation than DCPD-WL because the structure allows a more efficient interaction with DMEM. The functional groups, morphology and the crystalline structure of the OCP obtained were observed. Upon immersion in SBF, the formation of HA particles was observed, and apatite degradation was more significant (>70%) in SGF, suggesting that the biomaterial may be a good candidate as an excipient for drug delivery in living organisms.
