An Evaluation of the Impact of 60Co Irradiation on Volatile Organic Compounds of Olibanum Using Gas Chromatography Ion Mobility Spectrometry

by
Qiao Luo
1,2,
Shanshuo Liu
2,
Ye He
2,
Jiayao Liu
2,
Xinyu Zhang
2,
Liqiu Zheng
2 and
Dan Huang
2,*
1
The First Hospital of Hunan University of Chinese Medicine, Hunan University of Chinese Medicine, Changsha 410007, China
2
State Key Laboratory of Chinese Medicine Powder and Medicine Innovation in Hunan (Incubation), Science and Technology Innovation Center, Hunan University of Chinese Medicine, Changsha 410208, China
*
Author to whom correspondence should be addressed.
Molecules 2024, 29(7), 1671; https://doi.org/10.3390/molecules29071671
Submission received: 8 February 2024 / Revised: 27 March 2024 / Accepted: 31 March 2024 / Published: 8 April 2024
(This article belongs to the Special Issue State-of-the-Art Analytical Methods for Natural Products)
Browse Figures
Versions Notes

Abstract

:
Olibanum is a resinous traditional Chinese medicine that is directly used as a powder. It is widely used in China and is often combined with other traditional Chinese medicine powders to promote blood circulation and relieve pain, as well as to treat rheumatism, rheumatoid arthritis, and osteoarthritis. Powdered traditional Chinese medicine is often easily contaminated by microorganisms and 60Co irradiation is one of the good sterilization methods. Volatile organic compounds (VOCs) are the main active ingredient of olibanum. The aim of this study was to validate the optimum doses of 60Co irradiation and its effect on VOCs. 60Co irradiation was applied in different doses of 0 kGy, 1.5 kGy, 3.0 kGy, and 6.0 kGy. Changes in VOCs were detected using gas chromatography ion mobility spectrometry. A total of 81 VOCs were identified. The odor fingerprint results showed that, with an increase in irradiation dose, most of the VOCs of olibanum changed. Through principal component analysis, cluster analysis, and partial least squares discriminant analysis, it was demonstrated that, at 1.5 kGy, the impact of radiation on the VOCs of olibanum was minimal, indicating this is a relatively good irradiation dose. This study provides a theoretical basis for the irradiation processing and quality control of resinous medicinal materials such as olibanum and it also provides a good reference for irradiation technology development and its application to functional foods, thus making it both significant from a research perspective and useful from an application perspective.

1. Introduction

Traditional Chinese medicinal powders are made from crushed materials. Medicinal powder is an important ingredient in many traditional Chinese medicines and it is also widely used in health foods, such as Panacis Quinquefolii Radix powder, Notoginseng Radix ET Rhizoma powder, and Gastrodiae Rhizoma powder.
Traditional Chinese medicine powders are important dosage forms of traditional Chinese medicine. In addition to the more common granules, certain Chinese medicine tablets and capsules are made directly from Chinese medicine powder. The 2020 edition of the Chinese Pharmacopoeia recorded 666 types of powder preparations, which accounted for 57.07% of all traditional Chinese medicine preparation products.
Due to the high bacterial content of traditional Chinese medicine powder, it must be sterilized before use in the production of preparation products [1]. Therefore, the sterilization process is an important part of producing traditional Chinese medicine powder preparations. Currently, increasing attention is being paid to the impact of the sterilization process on a product’s quality.
Commonly used traditional Chinese medicine sterilization methods include heat sterilization (such as dry heat sterilization, moist heat sterilization, saturated steam sterilization, and superheated steam sterilization) and non-heat sterilization (drug sterilization, such as ethylene oxide sterilization, hydrogen oxide sterilization, etc., as well as ultraviolet sterilization and radiation sterilization) [2]. The characteristics of commonly used traditional Chinese medicine sterilization methods are shown in Table 1.
Olibanum is the bark of Boswellia carterii Birdw. or Boswellia bhaw-dajiana Birdw. There are approximately 30 species of it in the world and they are mainly cultivated in Ethiopia and Somalia [3]. Olibanum has a special aroma. Furthermore, it is used to promote blood circulation, emote blood stasis, disperse swelling, and promote tissue regeneration. Moreover, it is often used for chest disorders, heart pain, pain in the stomach duct, dysmenorrhea, amenorrhea, postpartum stasis and obstruction, abdominal pain caused by masses, rheumatalgia (i.e., the localized or systemic pain caused by diseases of the joints, muscles, bones, and tissues around the joints), hypertonicity of the sinews and vessels, traumatic injuries, swelling abscess, sores, and ulcers [4]. Clinically, it is also used for antibacterial [5,6,7], anti-tumor, and antiviral effects [8], as well as for the treatment of rheumatism, rheumatoid arthritis, and osteoarthritis [9].
As resinous medicinal materials soften when exposed to heat and become more viscous, heat sterilization is not suitable. Certain non-heat sterilization methods may produce unwanted drug residues or incomplete sterilization. This makes irradiation sterilization one of the most reliable sterilization methods for resinous medicinal materials. Irradiation sterilization is a cold sterilization method that uses highly penetrating gamma rays produced by 60Co, the main mechanism of which is destroying the DNA and RNA in microbial cells. This causes the damaged DNA and RNA to degrade, which causes the organisms to lose their ability to synthesize proteins and maintain their genetic functions, thereby exerting a bactericidal effect on microorganisms [10].
The maximum acceptable dose should be determined as the highest dose that does not affect the safety, efficacy, or stability of the drug during sterilization. The main parameter of radiation sterilization is the radiation dose and it should be as low as possible while still having a bactericidal effect. When performing radiation sterilization, it is necessary to determine the maximum and minimum dose values for the sterilization process, which involves evaluating the relationship between its dose values and the maximum and minimum dose values via means of dose distribution tests. Biological monitoring and periodic dose audits are also performed during sterilization to ensure the effectiveness of radiation sterilization and the continued validity of the dose.
The radiation dose absorbed by the sterilized item is monitored by the use of dosimeters, the placement of which is determined empirically to adequately verify that the dose absorbed by the sterilized item is within the specified limits. Dosimetry complies with national and international standards.
Irradiation has high sterilization efficiency and does not cause the temperature of the irradiated object to rise too significantly. It is particularly suitable for heat-sensitive and volatile products. Radiation sterilization has been widely used in foods and Chinese medicinal materials [11,12,13].
The chemical composition of some medicinal materials will change to a certain extent after being sterilized via irradiation at different doses. However, there are still only a few systematic studies on olibanum exposed to different irradiation doses. Gas chromatography ion mobility spectrometry (GC-IMS) is a highly adaptable rapid analysis technology with high sensitivity and high separation capability and it is widely used in the food industry, clinical medicine, traditional Chinese medicine, and other fields [14,15,16,17,18]. Olibanum contains a large number of volatile organic compounds (VOCs). GC-IMS can separate and identify various VOCs in olibanum samples. Understanding the types and contents of these compounds is crucial for evaluating the quality and authenticity of olibanum. Testing irradiated olibanum samples is more helpful in understanding the impact of irradiation treatment on VOCs in olibanum.
In 1997, the Chinese Ministry of Health issued the “60Co Irradiated Traditional Chinese Medicine Sterilization Dose Standard” (as an internal trial). This standard stipulates that the irradiation dose of traditional Chinese medicine material powder shall not exceed 6.0 kGy, while the irradiation dose of olibanum shall not exceed 3.0 kGy. The State Food and Drug Administration issued the “Technical Guidelines for Irradiation Sterilization of Traditional Chinese Medicines” in 2017, which recommends that the maximum overall average irradiation dose, in principle, of traditional Chinese medicines should not exceed 10.0 kGy in principle. The recommended irradiation dose for the powder of semi-finished traditional Chinese medicine containing olibanum should not exceed 3.0 kGy.
However, there has been no comprehensive evaluation of the changes in the components of olibanum caused by high-intensity irradiation. VOCs are the main active components of olibanum. Therefore, this study used GC-IMS combined with chemometrics to analyze the VOCs of olibanum, thereby aiming to explore the effects of 60Co irradiation at different doses (i.e., 0 kGy, 1.5 kGy, 3.0 kGy, and 6.0 kGy, which are represented by RX-01, RX-02, RX-03, and RX-04, respectively). The influence of irradiation on VOCs in olibanum provides a theoretical basis for the irradiation processing and quality control of olibanum and other resinous medicinal materials and it also provides new research ideas and methods for the modern processing and quality control of traditional Chinese medicine.

2. Results

2.1. GC-IMS Profiles of Olibanum at Different Irradiation Doses

The three-dimensional spectra of VOCs at 60Co doses of 0 kGy, 1.5 kGy, 3.0 kGy, and 6.0 kGy are shown in Figure 1 and they are represented by RX-01, RX-02, RX-03, and RX-04, respectively. The x, y, and z axes in the figure represent the migration time, gas chromatography retention time, and peak intensity, respectively. It can be seen from the three-dimensional spectra of the four groups of olibanum that there are certain differences in the olibanum peak signal intensity under different irradiation doses, thus indicating that there are certain differences in the content of olibanum volatile oil in each group. The height of the red bulge represents the intensity of the signal of the component in olibanum. The part with a high red bulge, which corresponds to a high content of the component, indicates that the signal was strong. The part with a low red bulge, which corresponds to a low content of the component, indicates that the signal was weak.
By projecting the three-dimensional GC-IMS spectra, four groups of two-dimensional GC-IMS images of olibanum can be obtained, as shown in Figure 2.
VOCs are represented by dots on either side of the RIP. The color indicates the concentration of the substance, with darker colors indicating higher concentrations. The background of the figure is blue and the red vertical line at 1.0 is the reactive ion peak (RIP). The retention time(s) of the gas chromatogram corresponds to the ordinate and the ion migration time (normalized processing) corresponds to the abscissa.
The background of the figure is blue and the red vertical line at 1.0 is the RIP (reactive ion peak).
We selected the spectrum of the RX-01 sample as a reference and subtracted the reference from the spectra of other samples to obtain a comparison chart of the differences between the samples. If the volatile organic matter content in the target sample and the reference were the same, then we subtracted the reference. The background was set as white and the presence of red meant that the concentration of the substance in the target sample was higher than the reference, whereas the presence of blue meant that the concentration of the substance in the target sample was lower than the reference. By comparing the two-dimensional spectra, the difference in the concentration of the volatile substances in each sample could be visually observed.
The three coordinate axes represent the migration time (x-axis), the retention time (y-axis), and the signal peak intensity (z-axis). From the figure, you can intuitively observe the differences in the volatile organic compounds in the different samples. From Figure 3, it can be seen that a blue color exists in the right-side region of RX-02, RX-03, and RX-04, which means that the concentration of the substance is lower than the reference concentration. In addition, a red color is found in the left side region, which means that the concentration of the substance is higher than the reference. It can be concluded that there are large differences in the content of the multiple VOCs, which is consistent with the results that were obtained from the 3D spectra and the top view.

2.2. Qualitative Analysis of the VOCs in Olibanum

In the GC-IMS two-dimensional spectrum, there were certain differences in the VOCs. Combined with the NIST and IMS databases that were built into the software, a qualitative analysis of VOCs was performed, the ion mobility spectrum of which is shown in Figure 4. Each point represents an organic substance and was qualitatively searched in the database based on its corresponding 2D data. The drift time is expressed on the abscissa and the retention time is expressed on the ordinate. A total of 81 VOCs were detected in this study, including 20 alcohols, 20 esters, 14 aldehydes, 13 ketones, 7 terpenes, 3 olefins, 2 pyridines, and 2 acids. The compounds 1-butanol, 3-methyl-, and acetate are represented by serial numbers 31 and 32 and 2-ethyl hexanol is represented by serial numbers 44 and 45 in Table 2, Table 3. All of these have the same retention time and it is now generally accepted that these compounds can be accurately characterized when the monomer and dimer are present at the same time.

2.3. Fingerprint Analysis of the Volatile Organic Compounds of Olibanum at Four Irradiation Doses

The VOC fingerprints of the four groups of irradiation doses of olibanum are shown in Figure 5. The GC-IMS analysis showed that the olibanum VOCs’ possessed higher contents of esters, ketones, and alcohols, followed by aldehydes. The fingerprint pattern showed that, as the irradiation intensity increased, the contents of limonene, 1-octen-3-one, menthol, isoamyl acetate, linalool, 2-hexene, linalool oxide, 2-heptyl, ketone, hexanal, geranyl acetate, phenylacetaldehyde, isobutyl butyrate, 2-ethylhexanol, ethyl decanoate, benzaldehyde, 2-decanone, and 2-octanone all decreased. RX-04 was found to have the highest content. However, as the irradiation intensity increased, the contents of octanol, amyl hexanoate, bornyl acetate, and (E)-2-hexenal gradually decreased, with the highest contents being found in RX-01, as shown in the purple box. The compounds contained in the purple boxes were significantly more abundant in RX-01 and could be used for identifying the characteristic VOCs of different irradiation intensities for octanol, amyl hexanoate, bornyl acetate, and (E)-2-hexenal, whereas the VOCs in the unboxed area showed a small difference in the content of VOCs among the four controls, thus making it difficult for them to be used as a VOCs to differentiate among the four treatments.

2.4. Chemometric Analysis

Chemometrics is a discipline that establishes a relationship between the measured values of chemical systems and the state of the system through statistical or mathematical methods. Applied mathematics, statistics, and computer science can obtain the composition, structure, and other relevant information of the material system to the maximum extent through the processing and analysis of measurement data and they are widely used in traditional Chinese medicine, food, medicine, and other fields.

2.4.1. Principal Component Analysis (PCA)

Principal component analysis (PCA) is one of the oldest multivariate techniques in statistics. When applied to regression analysis, a large number of potentially related variables can be summarized into a representative set of non-correlated variables, which can be used as an important tool for dimensionality reduction or large-scale data visualization [19]. This study used Originpro 2023b software to conduct the principal component analysis of the volatile organic compounds in olibanum after 60Co irradiation with different doses. The principal component scores were arranged from high to low according to the contribution rate and the scores of the first two principal components were visually analyzed, the results of which are shown in Figure 6. As the 60Co irradiation increased, the distance between each sample became larger and larger, thus indicating that the differences between the VOCs in the samples became more significant. The distance between Samples 1 and 2 was the smallest. This indicated that the appropriate irradiation dose was found in Sample 2 because it had the smallest impact on the substances in olibanum and, thus, its quality.

2.4.2. Cluster Analysis (CA)

Cluster analysis (CA) is the grouping of data objects based on the information found in the data describing the objects and their relationships [20]. In order to further build the identification model, this study used heat maps to visualize the data between samples and imported 81 volatile component peaks in olibanum after irradiation at 0 kGy, 1.5 kGy, 3.0 kGy, and 6.0 kGy 60Co doses into TBtools. The cluster analysis is depicted in Figure 7. It can be seen that RX-01 and RX-02 were in the same category and that RX-03 and RX-04 were also in the same category.

2.4.3. Partial Least-Squares Discriminant Analysis (PLS-DA)

SIMCA was used to conduct a partial least squares discriminant analysis (PLS-DA) [21] of each sample with a supervised pattern recognition method to observe the differences in olibanum after 60Co irradiation at 0 kGy, 1.5 kGy, 3 kGy, and 6 kGy doses. The results are shown in Figure 8. It can be seen from the figure that the main areas of olibanum irradiated with different doses do not intersect with each other and are clearly distinguished. RX-01 and RX-02 are both on the right side of the coordinate axis and the distance is farther than the other samples. This indicates that the difference in the VOCs is small, which is consistent with the PCA results. Additionally, according to the processed data, R2X = 0.878, R2Y = 0.992, and Q2 = 0.894, when R2 and Q2 are greater than 0.5, this indicates that the model has relatively accurate generalization and predictive abilities.
In addition, a variable projection importance map was also drawn. The results are shown in Figure 9. It is generally believed that the larger the VIP value, the more important it is. When the VIP value is greater than one, the variable is a more important value, and when the VIP value is less than 0.5, the variable is an unimportant value. It can be seen from the figure that (+)-limonene P, 2-Ethylpyridine M, β-Myrcen P, 2-Decanone M, Ethyl octanoate, β-Myrcene M, 2-Pentanone, (E)-2-hexen-1-al M, Ethyl heptanoate, 2-ethyl hexanol M, 2-Propanol D, 2-Hexanone M, Ethanol D, β-Myrcene D, 2-Methylpropyl butanoate, 1-Octen-3-one M, 1-Hydroxy-2-propanone D, Limonene D, 2-Propanol M, 2-Octanone D, Bornyl acetate D, (Z)-4-heptenal, L-Menthol D, phenylacetaldehyde M, ethyl pentanoate, 1-Propanol, and the VIP value of these substances are all greater than one. In addition, there are also important components that affect the differences between the groups of olibanum after different doses of irradiation.
At the same time, in order to judge whether the model is overfitted, we conducted 200 cross-validations to examine both the R2 and Q2 values. The results found no signs of overfitting (R2 = 0.922, Q2 = −0.168, as shown in Figure 10).

3. Discussion

This study used GC-IMS to detect a total of 81 types of VOCs, including alcohols, esters, aldehydes, ketones, terpenes, olefins, pyridines, and acids. First, the substance contents in the different groups of olibanum were compared and then PCA, CA, and PLS-DA were applied to analyze the four groups of olibanum. It was concluded that the volatile organic compounds of the four groups of olibanum were similar in composition but significantly different in content. In the four groups of olibanum, the contents of olibanum volatile oil esters, ketones, and alcohols, followed by aldehydes, were higher. Additionally, as the irradiation intensity increased, the contents of each volatile organic compound also changed and their contents differed in each sample group. According to previous literature reports, active ingredients such as terpenes and esters in olibanum volatile oil have analgesic, sedative, and antibacterial effects [22]. Most of these main ingredients did not significantly change due to the influence of irradiation, thereby indicating that 60Co irradiation sterilization would be predicted to have little effect on the efficacy of the VOCs in olibanum.
By analyzing the PCA results, it was found that PC1 and PC2 were 53.1% and 12.7%, respectively, and the cumulative contribution rate was 65.8%. The PCA results confirmed that there was a significant difference between the control group and the other three groups and the samples in each group were relatively different. After clustering, the repeatability was good in each group, the data similarity was high, and the results were relatively accurate. The results of PLS-DA were clearly separated among the four groups, thereby indicating that the differences between the groups are large. According to the results of the clustering heat map, it could be seen that RX-01 and RX-02 were closer and could be grouped into one category.
The important materials in the powder of traditional Chinese medicine have the same origins as medicine and food. Mycotoxins and harmful toxins may be present in raw medicinal materials and they may be directly transferred to preparations or foods; therefore, they must be sterilized before use [23]. Due to the heat-labile nature of olibanum itself, compared with the traditional heat sterilization method of traditional Chinese medicine, radiation sterilization reduces the difficulty of sterilization by avoiding the increase in viscosity of olibanum when heated. Compared with traditional heat sterilization, this method is more convenient, faster, and less expensive. The temperature changes during the sterilization process are small and it is suitable for sterilizing the volatile components of heat-sensitive traditional Chinese medicine. Compared with ultraviolet sterilization, radiation sterilization is more thorough and it is not limited to surface sterilization. Radiation sterilization can control the growth of microorganisms or kill microorganisms in a specific manner. Radiation sterilization is a highly safe process and it also produces an excellent sterilization effect. It can also retain the main active ingredients in olibanum while sterilizing. However, if the irradiation dose is too high, this may cause changes in some of the active ingredients in the olibanum.
GC-IMS is often used in the food industry [24], traditional Chinese medicine [25,26,27,28,29,30,31], the agricultural industry [32], and other fields [33]. In this study, VOCs such as esters, ketones, and alcohols were effectively identified by GC-IMS. This facilitated the qualitative and quantitative analyses. The “Technical Guidelines for Radiation Sterilization of Traditional Chinese Medicines” issued by the State Food and Drug Administration in 2017 stipulate that the maximum overall average irradiation dose of traditional Chinese medicines should in principle not exceed 10 kGy; therefore, on the premise of ensuring the full sterilization of olibanum, where the aim is to maintain the original properties of the olibanum medicinal materials, the changes in VOCs after irradiation were minimized, we selected a radiation dose of 1.5 kGy for the irradiation sterilization of olibanum. This study used GC-IMS to determine the content of the four groups of olibanum after irradiation and established a more efficient and convenient operation method, which provided the feasibility of applying 60Co irradiation sterilization to olibanum sterilization. Furthermore, we selected a radiation dose of 1.5 kGy as optimal for the irradiation sterilization of olibanum. In future research, we will further explore whether irradiation affects other physical and chemical properties or pharmacological activities.

4. Materials and Methods

4.1. Materials

Olibanum was provided by Chongqing Healn Drug Sales Co., Ltd., Chongqing, China. A voucher specimen (HNATCM2023-006) was stored in the sample room of the Science and Technology Innovation Center of the Hunan University of Chinese Medicine.

4.2. 60Co-γ Irradiation

Firstly, the olibanum was crushed into a powder at a low temperature (approximately 4 °C) and then divided into four equal parts for 60Co irradiation. The dose rates were 0, 1.5, 3.0, and 6.0 kGy/min. The 60Co γ radiation source was located at the Hunan Radiological Technology Application Research Center (Changsha, China).

4.3. Analysis by GC–IMS

4.3.1. Sample Preparation

A 20 mL headspace vial was filled with the powder samples of each sample and incubated for 15 min at 80 °C.

4.3.2. Headspace Conditional

The static headspace autosampler unit (CTC-PAL 3), which was manufactured by the CTC Analytics AG in Zwinger, Switzerland, allowed for the injection of 500 L of a headspace non-shunt injection, as well as a rotational speed of 500 revolutions per minute (rpm)\for 20 min. The injection needle temperature was 85 °C.

4.3.3. GC Conditional

MXT-WAX (15 m × 0.53 mm × 1.0 m, Restek Inc., Edmond, OK, USA) was used for chromatography. The column temperature was 60 °C. High-purity N2 (purity ≥ 99.999%) was used as the carrier gas. Moreover, the initial flow rate was held for 2 min at 2.00 mL/min. This was increased linearly to 10.00 mL/min within 8 min, then to 100.00 mL/min within 10 min, and was then held for 10 min.
The chromatography runtime was 30 min and the injection temperature was 80 °C; the run time was 30 min and the inlet temperature was 80 °C.

4.3.4. IMS Conditional

The instrument used in this study was the FlavorSpec® Gas Phase Ion Mobility Spectrometer from GAS (Dortmund, Germany); the ionization source was tritium (3H); the drift tube length was 53 mm; the electric field intensity was 500 V/cm; the drift tube temperature was 45 °C; the drift gas was a high-purity N2 (99.999%); the flow rate was 150 mL/min; and a positive ion mode was used.

4.4. Statistical Analysis

A qualitative and quantitative analysis of the spectrum and data was conducted using the analysis software Vocal, which was paired with the instrument. In order to analyze the substances qualitatively, the application software included the NIST and IMS databases. Using the Reporter plugin, we directly compared the spectrum differences between the samples (three-dimensional spectra, two-dimensional top views, and the difference spectra). Using the Gallery plot plug-in, we compared the fingerprints of different samples to intuitively and quantitatively compare the VOCs. Originpro 2023b software was used for principal component analysis (PCA), TBtools v2.026 was used for cluster analysis, and SIMCA 14.1 was used to conduct a partial least squares discriminant analysis (PLS-DA).

5. Conclusions

In this study, olibanum that was irradiated with different doses of 60Co was analyzed using GC-IMS. A total of 81 VOCs were detected, including 20 alcohols, 20 esters, 14 aldehydes, 13 ketones, 7 terpenes, 3 alkenes, 2 pyridines, and 2 acids. By establishing fingerprints through the characteristic components fitted by the Gallery plot plug-in software, the olibanum was found to contain the same VOCs after irradiation at different doses but their contents differed significantly. As the irradiation dose increased, the phenylacetaldehyde, 1-Octen-3-one, and limonene substances gradually increased, while the content of Pentyl hexanoate, 1-Octanone, (E)-2-hexen-1-al, and other substances decreased. In addition, statistical analyses such as principal component analysis (PCA), cluster analysis (CA), and partial least squares discriminant analysis (PLS-DA) also confirmed that the higher the dose of 60Co irradiation, the greater the changes in olibanum.
From this research, the results demonstrated that 1.5 kGy is a relatively good sterilization dose. This study provides a fast and efficient method for the analysis and evaluation of VOCs in olibanum and it also provides a good reference for irradiation technology development and application to functional foods, making it both significant from a research perspective and useful from an application perspective.
GC-IMS coupled with chemometrics offers several advantages:
  • Rapid detection and analysis—this method saves time and money by allowing samples to be detected and analyzed quickly without requiring complex sample processing;
  • High sensitivity and accuracy—GC-IMS is highly sensitive and can detect trace components and it can be used to analyze samples qualitatively and quantitatively when combined with chemometric methods;
  • Visualization and fingerprint recognition—using this technique, fingerprint spectra can be quickly generated and samples can be compared and identified more easily;
  • Multi-sample classification and clustering analysis—based on the differences of VOCs, this method can classify and cluster samples with different processing methods, thereby supporting sample quality control and optimization.

Author Contributions

Conceptualization, Q.L.; methodology, S.L.; software, Y.H.; validation, J.L.; formal analysis, X.Z.; investigation, Y.H.; resources, S.L.; data curation, S.L.; writing—original draft preparation, Q.L.; writing—review and editing, L.Z. and Y.H.; visualization, S.L.; supervision, D.H.; project administration, D.H.; funding acquisition, D.H. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Key Discipline Project on Chinese Pharmacology of Hunan University of Chinese Medicine (202302), Department of Science and Technology of Xiangxi Tujiazu and Miaozu Autonomous Prefecture (No. 2022JSGG03), and Department of Science and Technology of Hunan Province (No. 2021CB1012).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article.

Acknowledgments

This work was supported by the Special Development Project of Technical Innovation and Application in Chongqing (No. CSTC2021jscx-gksb-N0031); we would like to thank Li Yang for her valuable contributions to this research.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Chi, Y.M.; Xie, S.H.; Yao, L.; Zheng, J.; Xue, H.C.; Dong, L.Y.; Chen, J.F. Research and Industrialization Application of New Technologies for Sterilization of Traditional Chinese Medicine Raw Powder. Innov. World Wkly. 2021, 1, 86–93. [Google Scholar]
  2. Feng, S.J.; Wu, Z.F.; Wang, Y.Q.; Yue, P.F.; Zhang, S.J.; Yang, M. Current situation and problem analysis on sterilization process for Chinese materia medica. Chin. Tradit. Herb. Drugs 2015, 46, 2667–2673. [Google Scholar] [CrossRef]
  3. Wei, Y.L.; Lan, X.Q. Progress in Application research of 60Co Irradiation Sterilization on Traditional Chinese Medicine. Strait. Pharm. J. 2019, 31, 4–7. [Google Scholar] [CrossRef]
  4. Leminih, M.; Teketay, D. Frankincense and myrrh resources of Ethiopia I distribution production opportunities for dryland development and research needs. Ethiop. J. Sci. 2003, 26, 63–72. [Google Scholar] [CrossRef]
  5. Shen, T.; Lou, H.X. Bioactive constituents of myrrh and frankincense, two simultaneously prescribed gum resins in Chinese traditional medicine. Chem. Biodivers. 2008, 5, 540–553. [Google Scholar] [CrossRef] [PubMed]
  6. Almutairi, M.B.F.; Alrouji, M.; Almuhanna, Y.; Asad, M.; Joseph, B. In-vitro and in-vivo antibacterial effects of frankincense oil and its interaction with some antibiotics against multidrugresistant pathogens. Antibiotics 2022, 11, 1591. [Google Scholar] [CrossRef] [PubMed]
  7. Obiștioiu, D.; Hulea, A.; Cocan, I.; Alexa, E.; Negrea, M.; Popescu, I.; Herman, V.; Imbrea, I.M.; Mindru, G.H.; Suleiman, M.A.; et al. Boswellia Essential Oil: Natural Antioxidant as an Effective Antimicrobial and Anti-Inflammatory Agent. Antioxidants 2023, 12, 1807. [Google Scholar] [CrossRef] [PubMed]
  8. Al-Yasiry, A.R.M.; Kiczorowska, B. Frankincense—Therapeutic properties. Adv. Hyg. Exp. Med. 2016, 70, 380–391. [Google Scholar] [CrossRef] [PubMed]
  9. Frank, M.; Yang, Q.; Osban, J.; Azzarello, J.; Saban, M.; Saban, R.; Ashley, R.; Welter, J.; Fung, K.M.; Lin, H.K. Frankincense oil derived from Boswellia carteri induces tumor cell specific cytotoxicity. BMC Complement. Altern. Med. 2009, 9, 6. [Google Scholar] [CrossRef] [PubMed]
  10. Ragab, E.A.; Abd El-Wahab, M.F.; Doghish, A.S.; Salama, R.M.; Eissa, N.; Darwish, S.F. The journey of boswellic acids from synthesis to pharmacological activities. Naunyn-Schmiedeberg’s Arch. Pharmacol. 2024, 397, 1477–1504. [Google Scholar] [CrossRef] [PubMed]
  11. Lei, C.; Liu, J.J.; Zhou, W.C.; Zhou, W.; Li, S.X.; Huang, D. Influence of 60Co-γ Irradiation on the Components of Essential Oil of Curcuma. Molecules 2023, 28, 5877. [Google Scholar] [CrossRef] [PubMed]
  12. Xiang, Y.; Lei, C.; Hu, G.; Zhou, W.; Li, Y.; Huang, D. Investigation of 60Co Irradiation on the Volatile Organic Compounds from Finger Citron (Citri Sarcodactylis Fructus) Using GC–IMS. Foods 2023, 12, 3543. [Google Scholar] [CrossRef] [PubMed]
  13. He, Y.; Yin, L.; Zhou, W.; Wan, H.Y.; Lei, C.; Li, S.X.; Huang, D. Evaluation of 60Co Irradiation on Volatile Components of Turmeric (Curcumae Longae Rhizoma) Volatile Oil with GC-IMS. Foods 2023, 12, 2489. [Google Scholar] [CrossRef] [PubMed]
  14. Yin, J.X.; Wu, M.F.; Lin, R.M.; Li, X.; Ding, H.; Han, L.F.; Yang, W.Z.; Song, X.B.; Li, W.B.; Qu, H.B.; et al. Application and development trends of gas chromatography–ion mobility spectrometry for traditional Chinese medicine, clinical, food and environmental analysis. Microchem. J. 2021, 168, 106527. [Google Scholar] [CrossRef]
  15. Li, H.; Liu, J.M.; Wang, Z.Z.; Liu, X.D.; Yan, X.C.; Liu, S.S.; Li, X.; Liao, Z.Y.; He, X.Y. Process optimization of chili flavor beef tallow and analysis of its volatile compounds by GC-IMS. Int. J. Food Eng. 2021, 17, 507–516. [Google Scholar] [CrossRef]
  16. Yuan, J.; Li, H.; Cao, S.; Liu, Z.; Li, N.; Xu, D.; Mo, H.; Hu, L. Monitoring of Volatile Compounds of Ready-to-Eat Kiwifruit Using GC-IMS. Foods 2023, 24, 4394. [Google Scholar] [CrossRef] [PubMed]
  17. Gou, Y.; Han, Y.; Li, J.; Niu, X.; Ma, G.; Xu, Q. Discriminant Analysis of Aroma Differences between Cow Milk Powder and Special Milk Powder (Donkey, Camel, and Horse Milk Powder) in Xinjiang Based on GC-IMS and Multivariate Statistical Methods. Foods 2023, 12, 4036. [Google Scholar] [CrossRef]
  18. Kucukoglu, A.S.; Hiz, G.; Karaca, H. Effects of thermal and nonthermal treatments on microorganisms, pyrrolizidine alkaloids and volatile compounds in oregano (Origanum vulgare L.). Food Chem. 2023, 440, 138235. [Google Scholar] [CrossRef] [PubMed]
  19. Latif, S.H.A.; Alwan, A.S.; Mohamed, A.M. Principal component analysis as tool for data reduction with an application. EUREKA Phys. Eng. 2022, 5, 184–198. [Google Scholar] [CrossRef]
  20. Zheng, H.P. Composition identification of ancient glass products based on cluster analysis. Acad. J. Comput. Inf. Sci. 2022, 5, 38–43. [Google Scholar] [CrossRef]
  21. Liu, H.C.; Yu, Y.S.; Zou, B.; Yu, Y.Y.; Yang, J.G.; Xu, Y.J.; Chen, X.W.; Yang, F. Evaluation of Dynamic Changes and Regularity of Volatile Flavor Compounds for Different Green Plum (Prunus mume Sieb. et Zucc) Varieties during the Ripening Process by HS-GC–IMS with PLS-DA. Foods 2023, 12, 551. [Google Scholar] [CrossRef] [PubMed]
  22. Cao, B.; Wei, X.C.; Xu, X.R.; Zhang, H.Z.; Luo, C.H.; Feng, B.; Xu, R.C.; Zhao, S.Y.; Du, X.J.; Han, L.; et al. Seeing the Unseen of the Combination of Two Natural Resins, Frankincense and Myrrh: Changes in Chemical Constituents and Pharmacological Activities. Molecules 2019, 17, 3076. [Google Scholar] [CrossRef] [PubMed]
  23. Nie, L.X.; Cha, Y.F.; Li, J.; Yu, J.D.; Dai, Z.; Ma, S.C.; Zhu, J. Discussion on Quality Status of TCM Raw Powder Preparations Based on National Post-market Drug Surveillance in 2018. Chin. Pharm. J. 2019, 54, 1617–1621. [Google Scholar] [CrossRef]
  24. Wang, S.W.; Li, Y.X.; Qu, Y.; Guo, D.; Luo, S.; Wang, J.X.; Peng, C.R.; Zhang, X.B.; Jiang, H.Z. Enhancing effects of 60Co irradiation on the extraction and activities of phenolic components in edible Citri Sarcodactylis Fructus. Food Chem. 2023, 417, 135919. [Google Scholar] [CrossRef] [PubMed]
  25. Wang, H.X.; Li, X.Q.; Chen, Y. Effect of 60Co-γ Irradiation Sterilization on the Active Components of Indigo Naturalis. China Pharmarist. 2022, 25, 724–728. [Google Scholar] [CrossRef]
  26. Xu, Y.-F.; Peng, L.; Li, P.-H.; Zhang, Q.-L.; Gao, M.-X.; Zhou, Y.-J.; Li, W.-G.; Deng, G.-Q. Evaluation on the Quality of Lonicerae flos of Electron Beam Irradiation Sterilization Based on Spectrum-Effect Analysis. J. Nucl. Agric. Sci. 2022, 36, 745–753. [Google Scholar] [CrossRef]
  27. Ma, Y.; Han, Z.M.; Zhang, W.; Ma, J.; Guan, Y.X.; Zhang, G.M. Effects of 60Co-γ ray irradiation sterilization on quality of Buthus martensii Karsch powder. Chin. J. Pharmacovigil. 2023, 20, 519–523. [Google Scholar] [CrossRef]
  28. Wang, G.; Wang, D.; He, Y.; Fu, M.; Tang, Y.W.; Qing, C.; Gao, P.; Huang, M. Study on the Decontamination Process of Decoction Pieces of Ophiopogon japonicus and Rheum palmatum L. by Electron Beam Irradiation. J. Nucl. Agric. Sci. 2022, 36, 1579–1588. [Google Scholar]
  29. Luo, D.Q.; Zhao, S.S.; Tang, Y.R.; Wang, Q.J.; Liu, H.J.; Ma, S.C. Analysis of the Effect of 60Co-γ Irradiation Sterilization Technology on the Chemical Composition of Saffron Using UPLC and UPLC/Q-TOF-MS. J. Anal. Methods Chem. 2018, 2018, 2402676. [Google Scholar] [CrossRef] [PubMed]
  30. Badr, P.; Daneshamouz, S.; Mohammadi, A.A.; Akbarizadeh, A.R.; Afsharypuor, S. The effect of 60Co-gamma radio-sterilization on Boswellia carterii essential oil composition. Res. J. Pharmacogn. 2016, 3, 67–74. [Google Scholar]
  31. Gao, K.; Chen, J.B.; Wang, Y.H.; Qi, Y.L.; Chen, L.X.; Li, S.S.; Sun, Y.S. Effects of 60Co-γ and Electron Beam Irradiation on Storage Quality of Panax ginseng. Food Bioprocess Technol. 2018, 11, 1627–1638. [Google Scholar] [CrossRef]
  32. Wehr, J.B.; Kirchhof, G. Gamma Irradiation with 50 kGy Has a Limited Effect on Agronomic Properties of Air-Dry Soil. Soil Syst. 2021, 5, 28. [Google Scholar] [CrossRef]
  33. Rodríguez-Hernández, P.; Cardador, M.J.; Ríos-Reina, R.; Sánchez-Carvajal, J.M.; Galán-Relaño, Á.; Jurado-Martos, F.; Luque, I.; Arce, L.; Gómez-Laguna, J.; Rodríguez-Estévez, V. Detection of Mycobacterium tuberculosis complex field infections in cattle using fecal volatile organic compound analysis through gas chromatography-ion mobility spectrometry combined with chemometrics. Microbiol. Spectr. 2023, 11, e0174323. [Google Scholar] [CrossRef] [PubMed]
Molecules 29 01671 g001

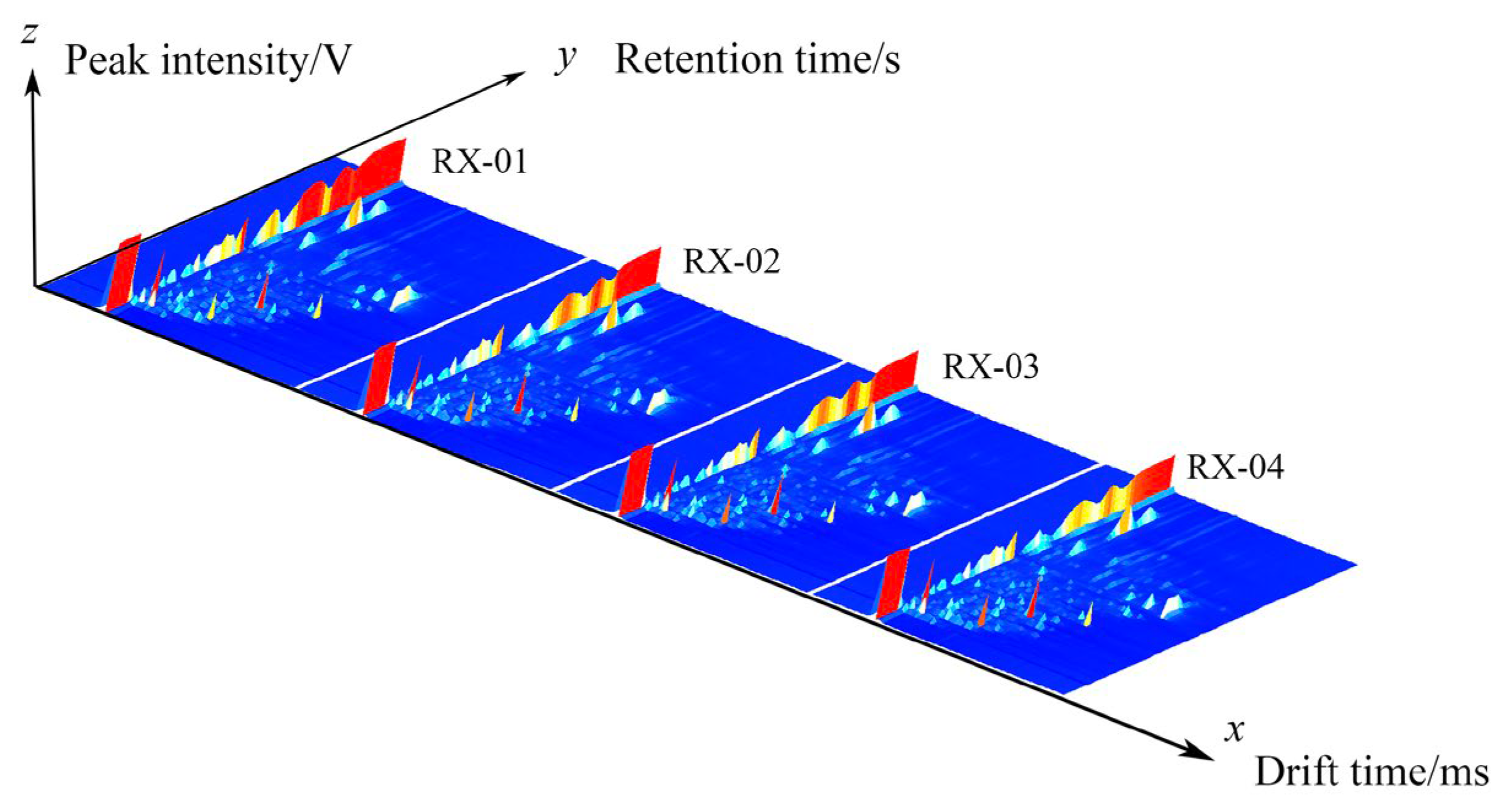

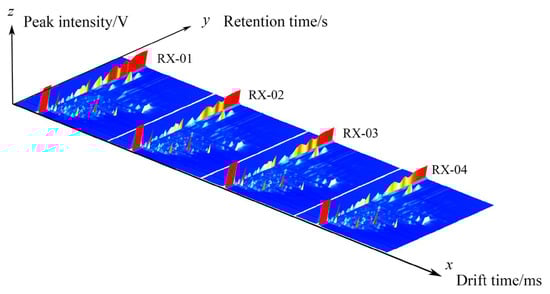

Figure 1. The three-dimensional spectra of the VOCs of the four groups of olibanum.
Figure 1. The three-dimensional spectra of the VOCs of the four groups of olibanum.
Molecules 29 01671 g001
Molecules 29 01671 g002

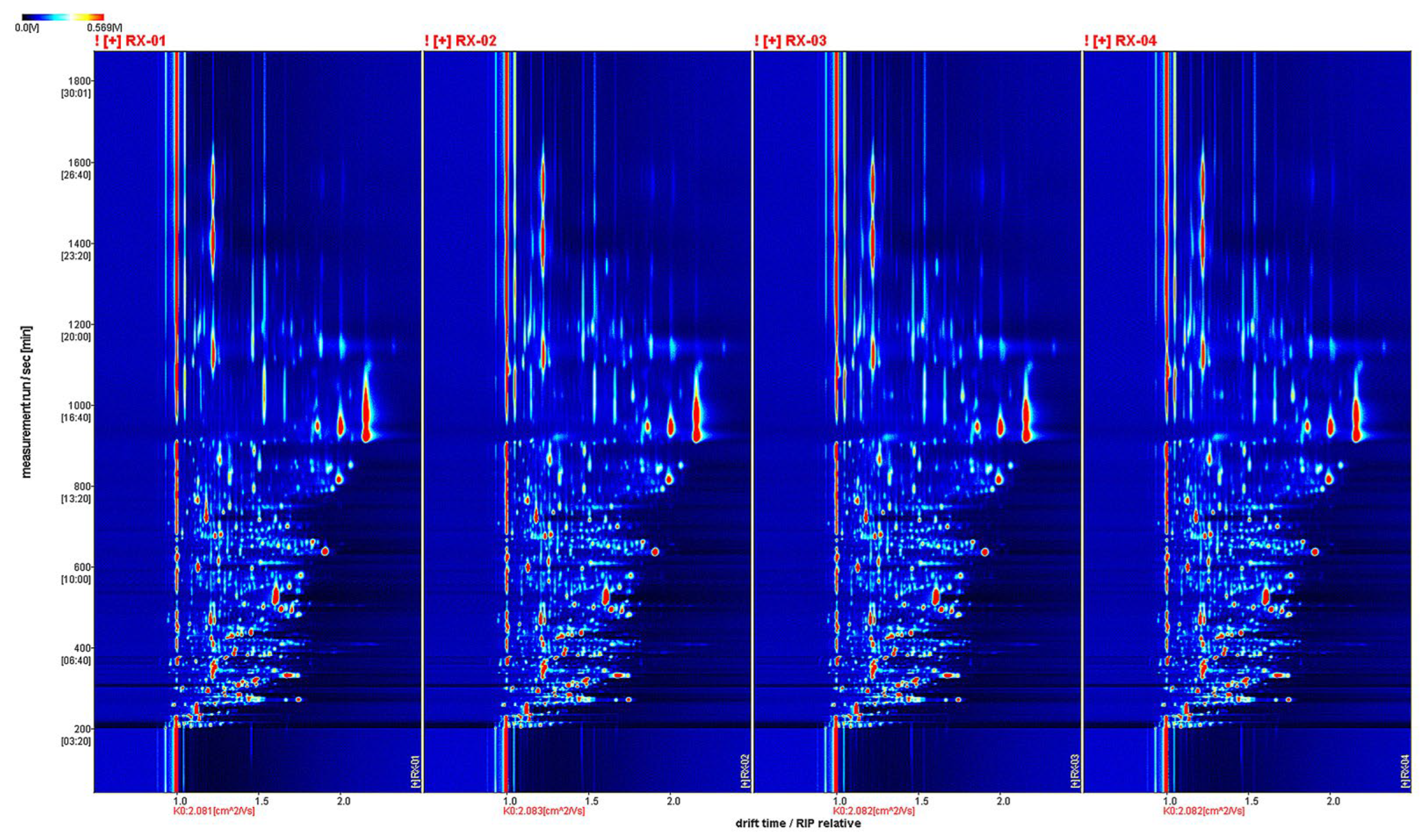

Figure 2. The two-dimensional spectra of the VOCs of the four groups in four groups of olibanum.
Figure 2. The two-dimensional spectra of the VOCs of the four groups in four groups of olibanum.
Molecules 29 01671 g002
Molecules 29 01671 g003

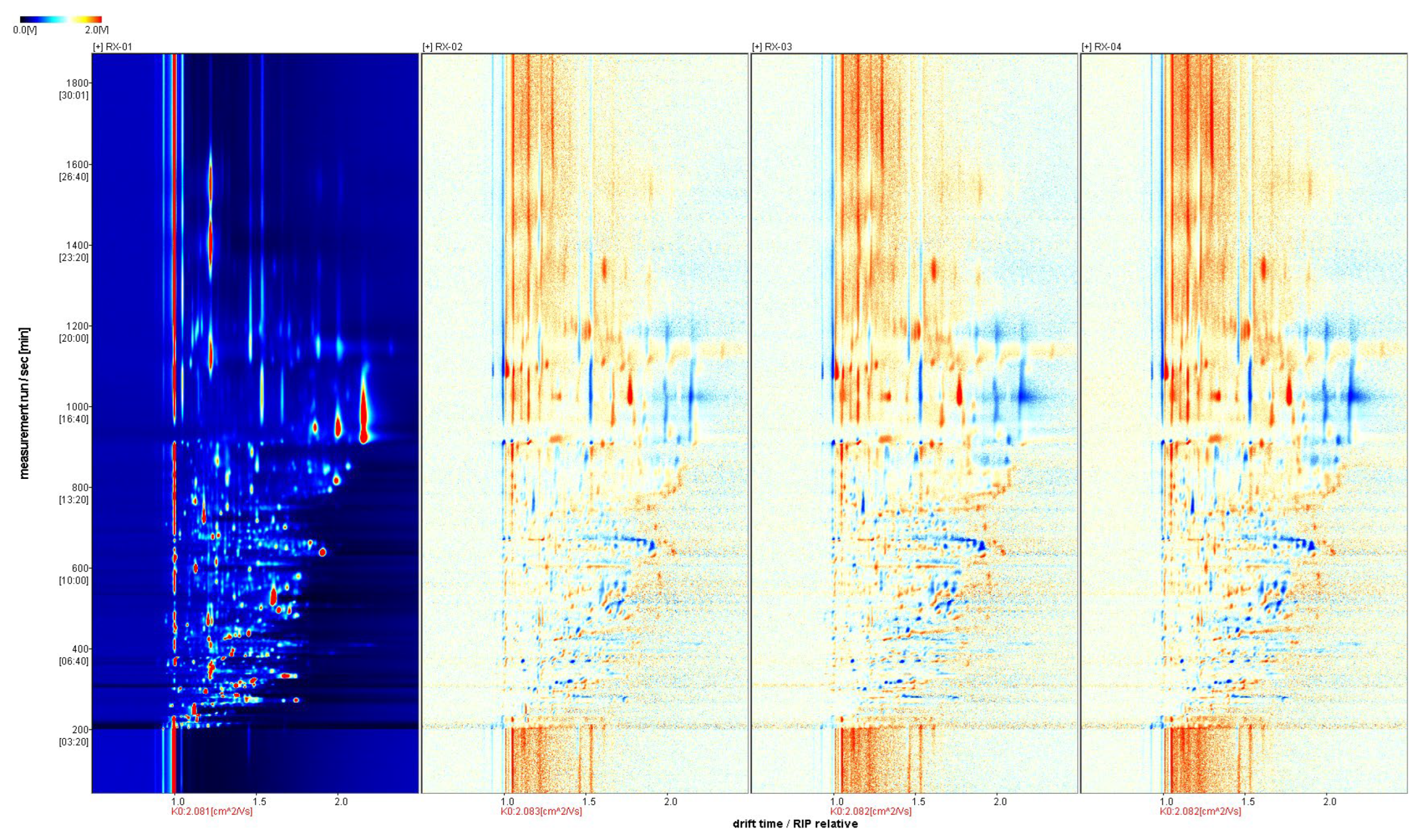

Figure 3. Analysis of the spectral differences between RX-01 and the other three groups of olibanum.
Figure 3. Analysis of the spectral differences between RX-01 and the other three groups of olibanum.
Molecules 29 01671 g003
Molecules 29 01671 g004

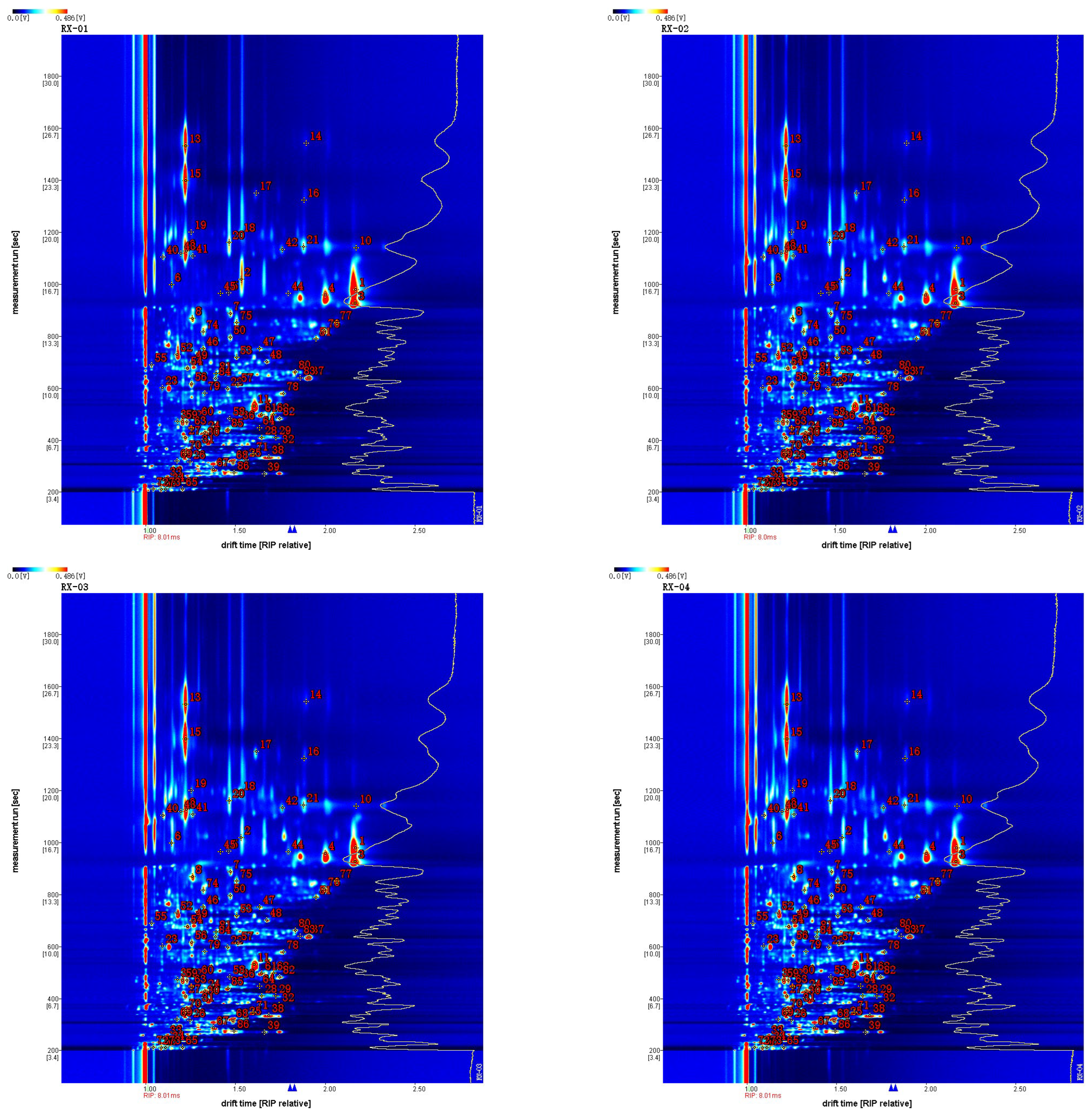

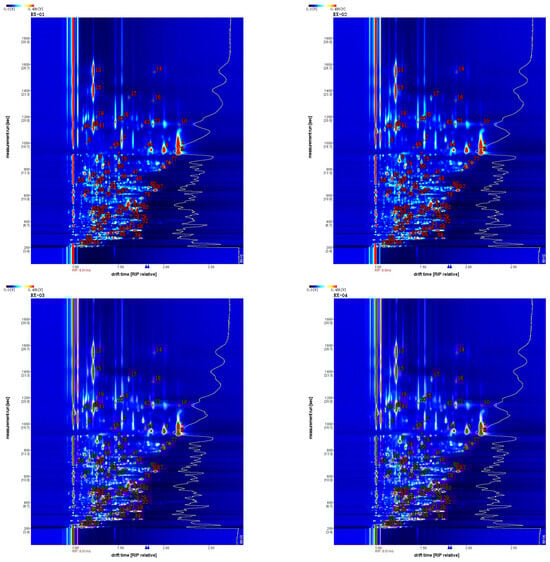

Figure 4. Characteristic peak position plot of the VOCs of olibanum with different irradiation doses. Note: RI is the retention index; Rt is the retention time; Dt is the migration time; and RIP rel refers to the normalization process.
Figure 4. Characteristic peak position plot of the VOCs of olibanum with different irradiation doses. Note: RI is the retention index; Rt is the retention time; Dt is the migration time; and RIP rel refers to the normalization process.
Molecules 29 01671 g004
Molecules 29 01671 g005

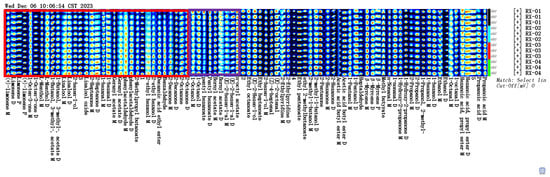

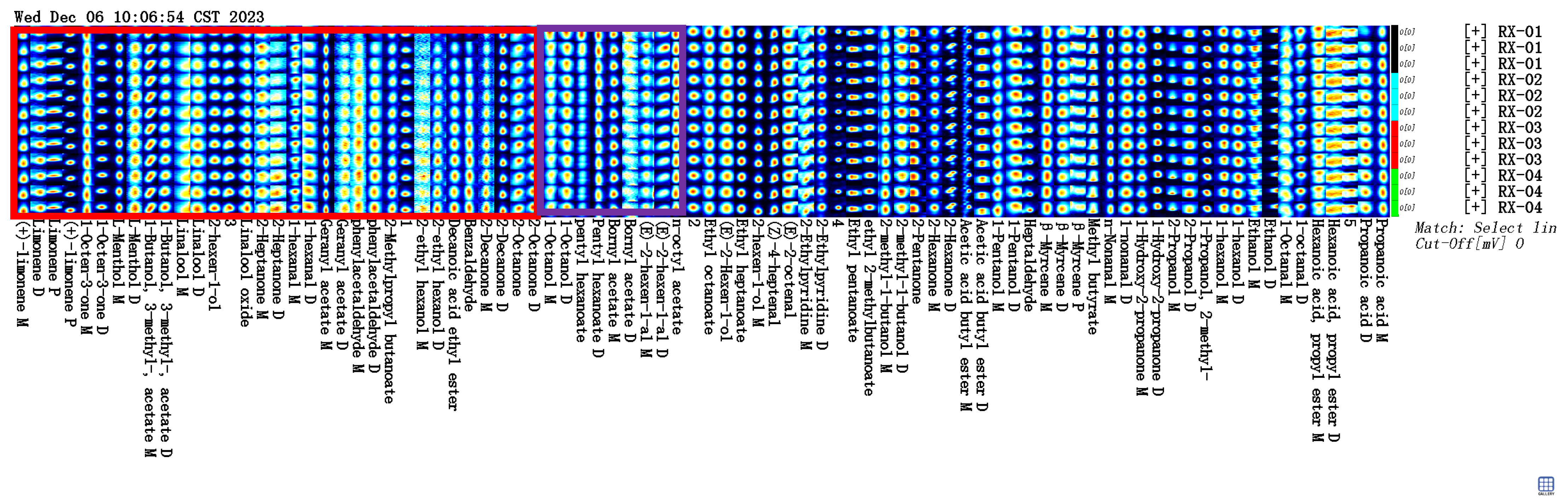

Figure 5. Gallery plot of the VOCs selected via GC-IMS.
Figure 5. Gallery plot of the VOCs selected via GC-IMS.
Molecules 29 01671 g005
Molecules 29 01671 g006

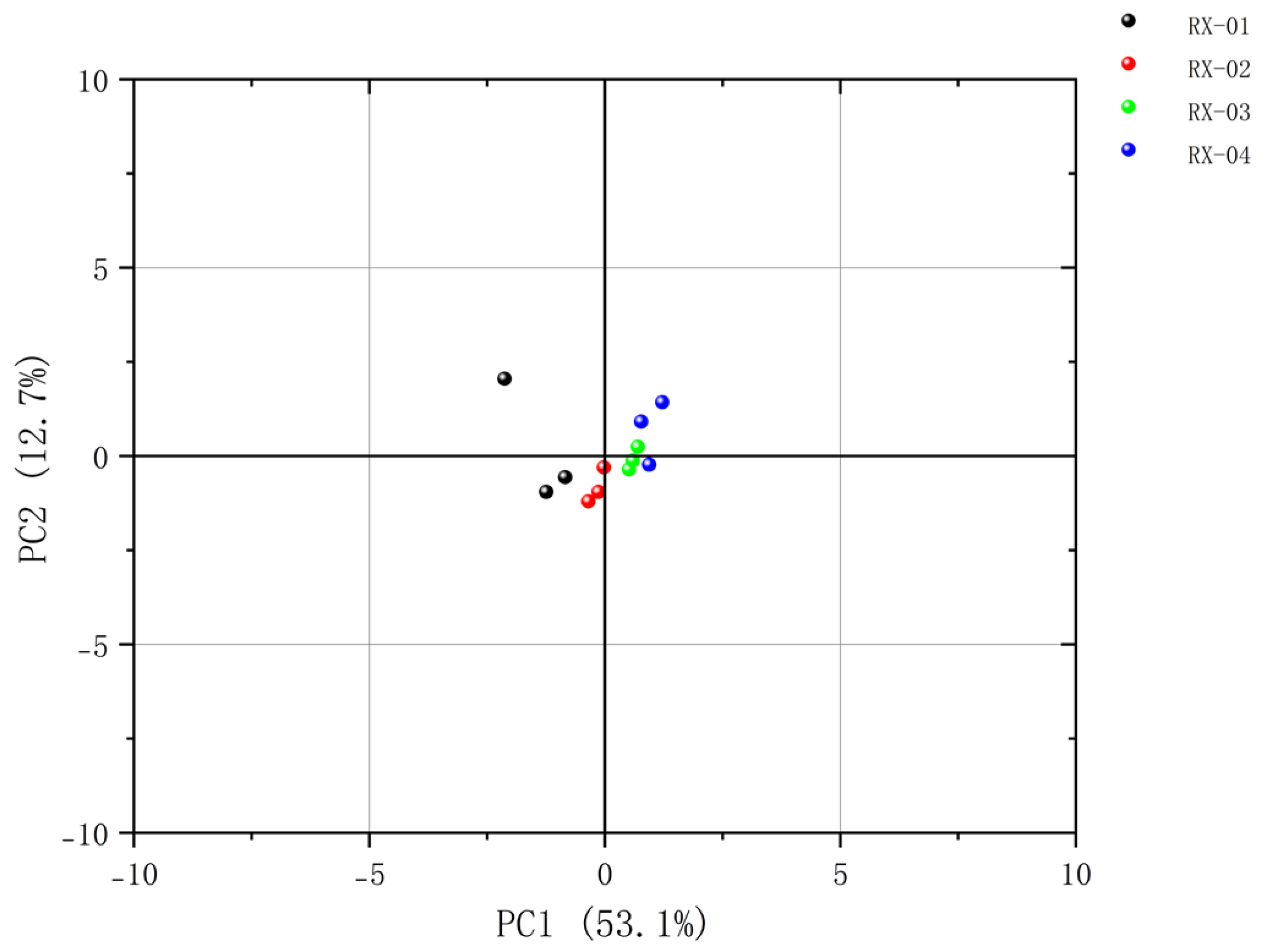

Figure 6. Plot of the PCA scores of the VOCs in the four groups of olibanum.
Figure 6. Plot of the PCA scores of the VOCs in the four groups of olibanum.
Molecules 29 01671 g006
Molecules 29 01671 g007

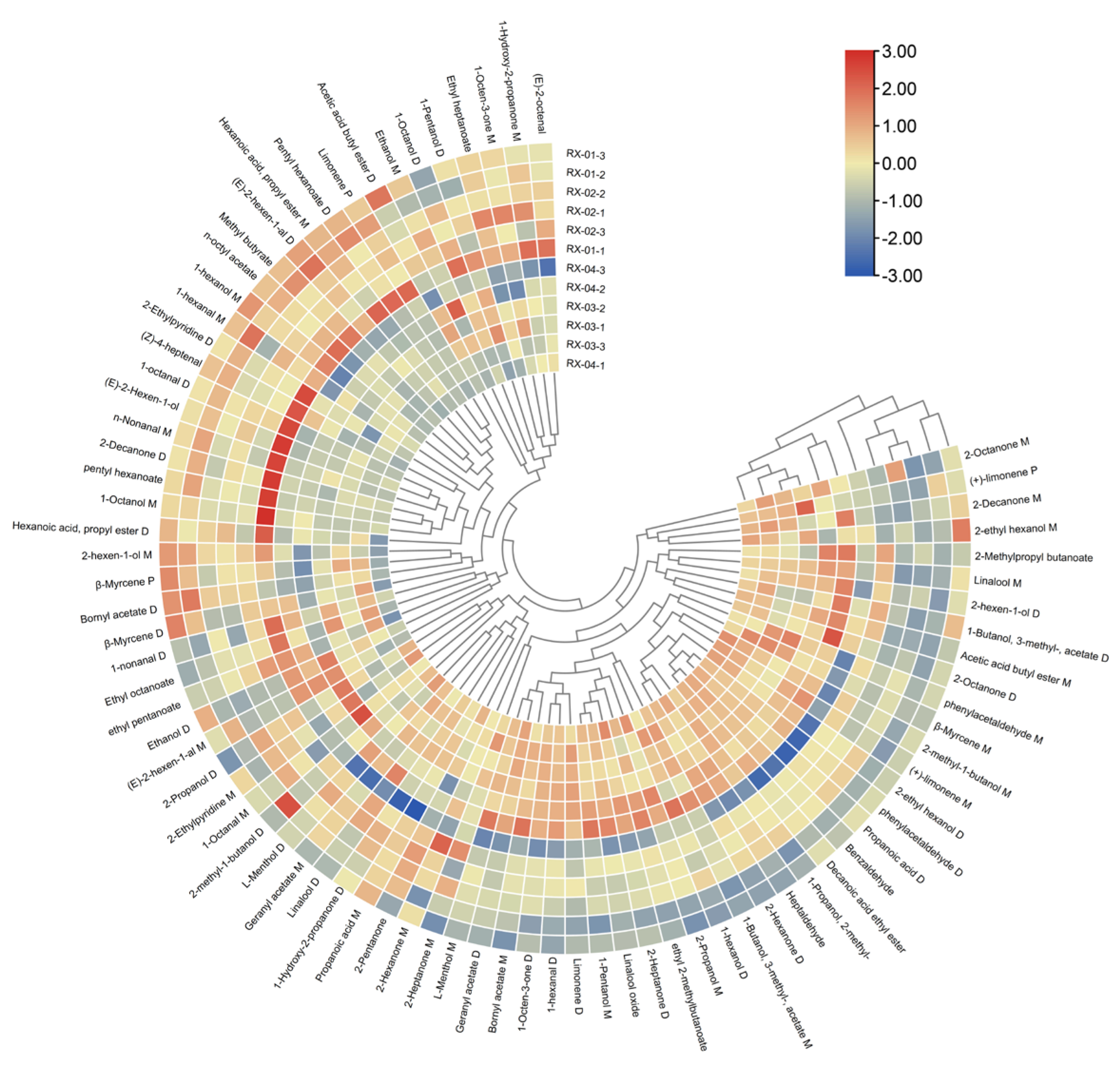

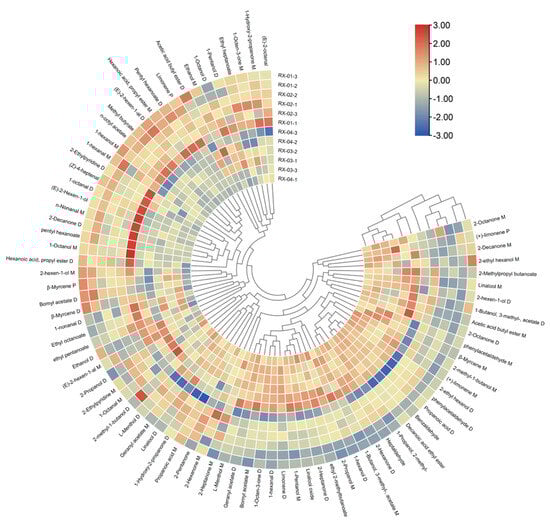

Figure 7. Cluster heat map of the VOCs in the four groups of olibanum.
Figure 7. Cluster heat map of the VOCs in the four groups of olibanum.
Molecules 29 01671 g007
Molecules 29 01671 g008

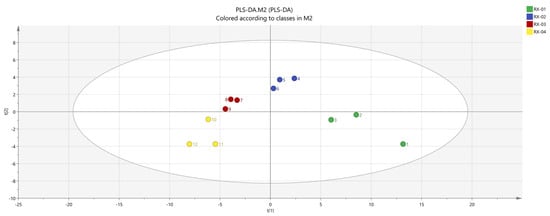

Figure 8. PLS−DA analysis of the VOCs in the four groups of olibanum.
Figure 8. PLS−DA analysis of the VOCs in the four groups of olibanum.
Molecules 29 01671 g008
Molecules 29 01671 g009

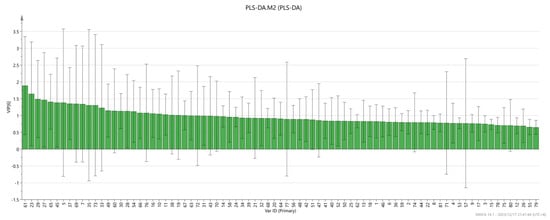

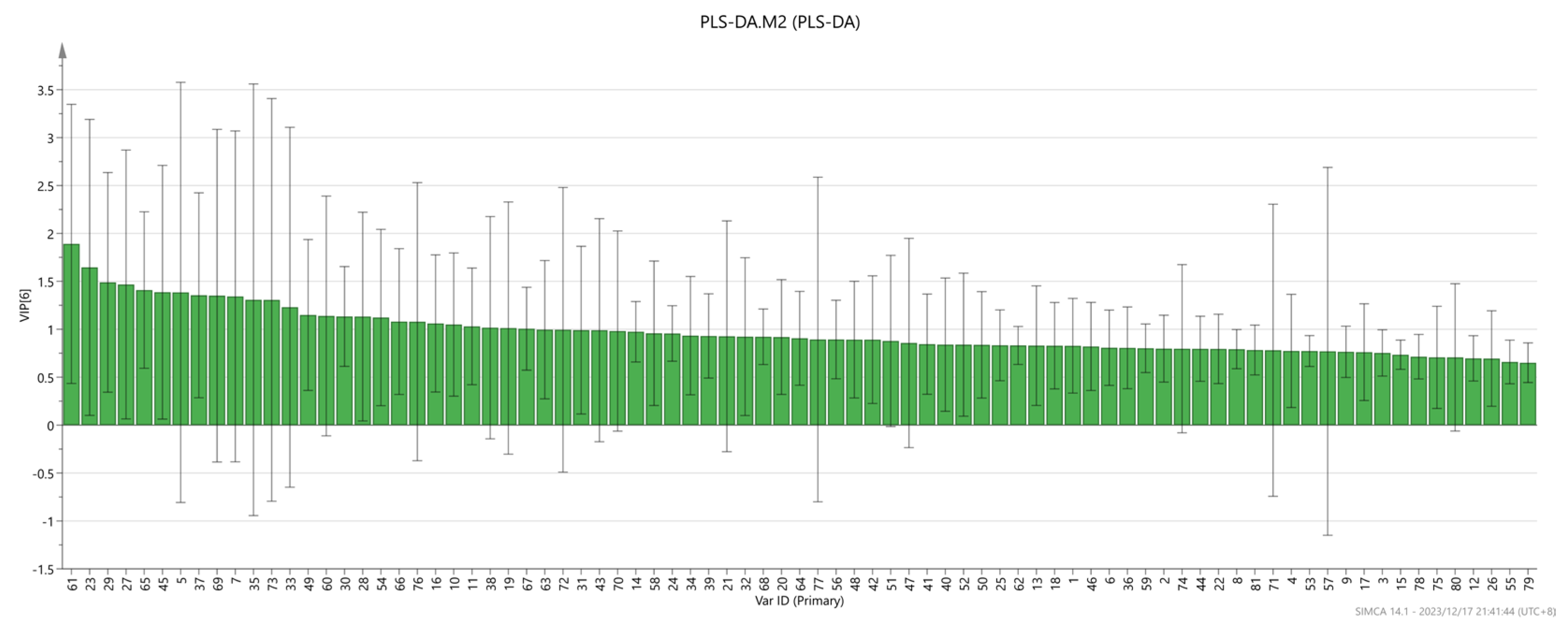

Figure 9. VIP values of the characteristic variables.
Figure 9. VIP values of the characteristic variables.
Molecules 29 01671 g009
Molecules 29 01671 g010

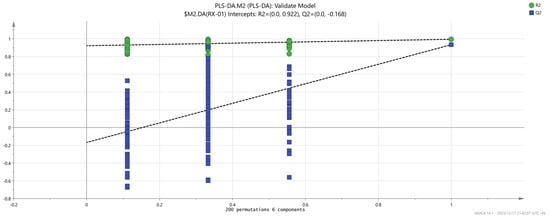

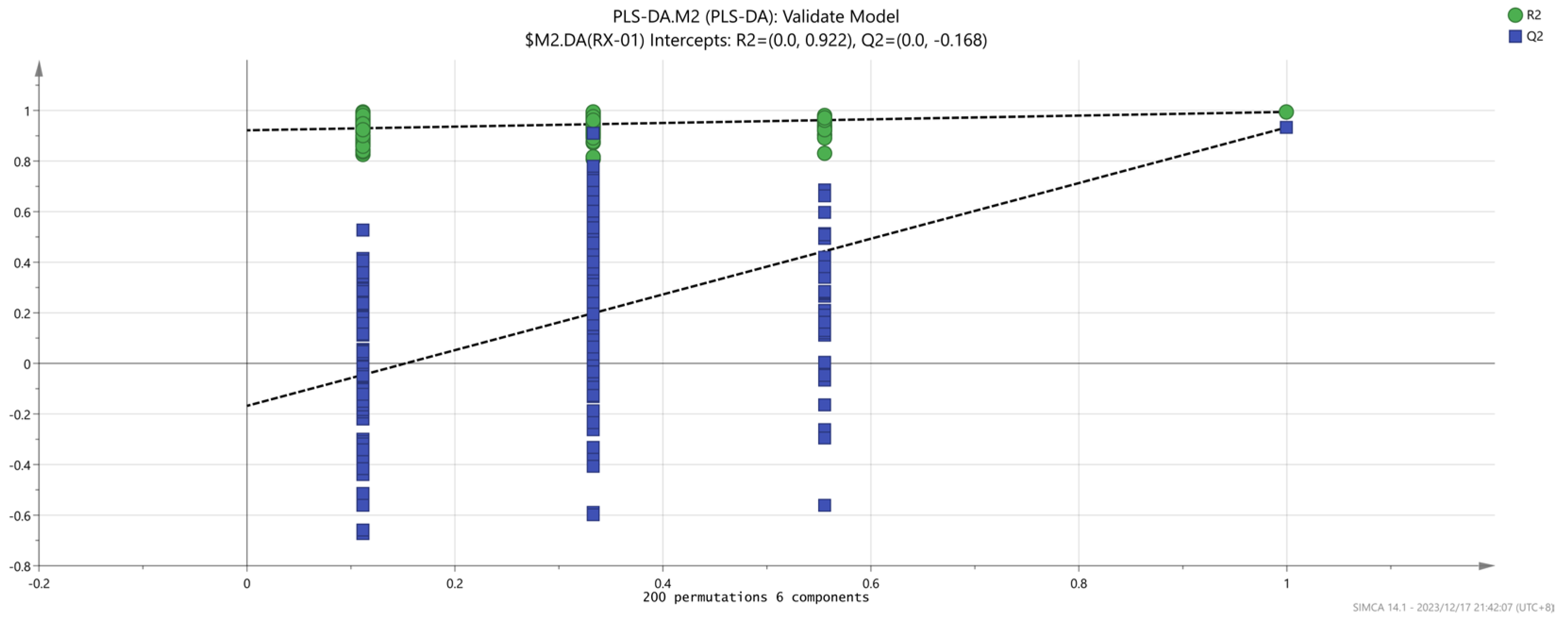

Figure 10. Permutation test results of the VOCs in the four groups of olibanum.
Figure 10. Permutation test results of the VOCs in the four groups of olibanum.
Molecules 29 01671 g010
Table 1. Comparison of the commonly used sterilization methods.
Table 1. Comparison of the commonly used sterilization methods.
Sterilization MethodsAdvantagesDisadvantages
Dry heat sterilization(1) It is suitable for items that are resistant to high temperatures.(1) Compared with moist heat sterilization, the sterilization effect is poor.
Saturated steam sterilization(1) It has a good sterilization effect and is suitable for items that should not be changed or damaged when exposed to high temperatures and humidity.(1) Chinese medicine powder is likely to absorb moisture and the sterilization, which is conducted using saturated steam, is more likely to cause it to agglomerate, which may increase the time required for the drying process or cause secondary pollution.
Drug sterilization(1) It can reduce the number of microorganisms and provide a certain level of sterility.
(2) It is suitable for surface sterilization and environmental sterilization.		(1) It is only effective on microbial reproductive bodies and cannot kill spores.
(2) There is a risk of drug residues.
(3) It is mostly used for sterilizing pieces and medicinal materials and there is almost no sterilization effect for powders.
Ultraviolet sterilization(1) Ultraviolet sterilization is the most suitable for surface sterilization and environmental sterilization.(1) Other than surface sterilization and environmental sterilization, other sterilization is not often used.
Table 2. Results of the component analysis of VOCs in olibanum.
Table 2. Results of the component analysis of VOCs in olibanum.
CountCompoundCAS#Molecular
Formula		MWRIRt/sDt/ms
1pentyl hexanoateC540078C11H22O2186.31510.4979.1462.17211
2Pentyl hexanoate DC540078C11H22O2186.31528.71017.4091.53722
3n-octyl acetateC112141C10H20O2172.31483.9926.5362.16943
42-Decanone DC693549C10H20O156.31499.5957.1452.00276
52-Decanone MC693549C10H20O156.31503.9965.9971.46578
6BenzaldehydeC100527C7H6O106.11519.3997.4781.14899
7Ethyl octanoateC106321C10H20O2172.31462.6886.2581.47563
8Linalool oxideC1365191C10H18O2170.31452.1867.0821.2651
9Bornyl acetate MC76493C12H20O2196.31577.51126.3391.23104
10Bornyl acetate DC76493C12H20O2196.31583.21139.672.17616
11(Z)-4-heptenalC6728310C7H12O112.21245.2530.8411.60822
122-methyl-1-butanol MC137326C5H12O88.11208.3470.581.23368
13Geranyl acetate MC105873C12H20O2196.31724.91531.621.22697
14Geranyl acetate DC105873C12H20O2196.317281541.5621.89759
15L-Menthol MC2216515C10H20O156.31681.31398.3961.22874
16L-Menthol DC2216515C10H20O156.31654.61322.8361.88697
17Decanoic acid ethyl esterC110383C12H24O2200.31664.61350.6741.62156
18phenylacetaldehyde DC122781C8H8O120.21603.71189.6111.52955
19phenylacetaldehyde MC122781C8H8O120.21607.41198.7331.25911
201-Octanol MC111875C8H18O130.21591.81160.41.46872
211-Octanol DC111875C8H18O130.21584.71143.3631.88349
222-Ethylpyridine DC100710C7H9N107.21280.7596.2721.46193
232-Ethylpyridine MC100710C7H9N107.21282.9600.6031.09944
24HeptaldehydeC111717C7H14O114.21180.5429.0921.33291
251-hexanal DC66251C6H12O100.21098.4324.741.56213
261-hexanal MC66251C6H12O100.21089.3315.531.25353
27β-Myrcene MC123353C10H16136.21166.8409.5621.2263
28β-Myrcene DC123353C10H16136.21166.4409.0081.65043
29β-Myrcene PC123353C10H16136.21167.2410.1171.72986
302-Methylpropyl butanoateC539902C8H16O2144.21161.5402.2041.33163
311-Butanol, 3-methyl-, acetate MC123922C7H14O2130.21141.9376.3151.3017
321-Butanol, 3-methyl-, acetate DC123922C7H14O2130.21141.9376.3151.74601
332-PentanoneC107879C5H10O86.11016.5251.561.12223
34Methyl butyrateC623427C5H10O2102.1981.4227.6291.13716
35(E)-2-hexen-1-al MC6728263C6H10O98.11209.4472.2271.18215
36(E)-2-hexen-1-al DC6728263C6H10O98.11207468.5461.52541
37Ethyl heptanoateC106309C9H18O2158.21306.3639.7381.91244
38ethyl pentanoate C539822C7H14O2130.21106.1333.3211.69079
39ethyl 2-methylbutanoateC7452791C7H14O2130.21040270.6911.66629
40Propanoic acid MC79094C3H6O274.11567.81103.7731.10089
41Propanoic acid DC79094C3H6O274.11569.61108.0251.26778
42Linalool DC78706C10H18O154.31580.51133.3741.76497
43Linalool MC78706C10H18O154.31573.71117.3261.20039
442-ethyl hexanol DC104767C8H18O130.21503.4965.0091.79735
452-ethyl hexanol MC104767C8H18O130.21503.4965.0091.42224
461-hexanol MC111273C6H14O102.21383.8752.0131.32506
471-hexanol DC111273C6H14O102.21383.1750.8741.63894
481-Octen-3-one DC4312996C8H14O126.21350.8701.9621.67677
491-Octen-3-one MC4312996C8H14O126.21348.3698.3971.26328
50n-Nonanal MC124196C9H18O142.21410.1794.3631.47424
511-nonanal DC124196C9H18O142.21406.9789.171.95326
522-hexen-1-ol MC2305217C6H12O100.21368.1727.7681.1783
532-hexen-1-ol DC2305217C6H12O100.21362.2718.8861.51225
541-Hydroxy-2-propanone DC116096C3H6O274.11333676.4271.23573
551-Hydroxy-2-propanone MC116096C3H6O274.11341.3688.1711.03734
561-Pentanol MC71410C5H12O88.11290.6615.9011.2604
571-Pentanol DC71410C5H12O88.11288.1611.0341.51755
582-methyl-1-butanol DC137326C5H12O88.11215.9482.3621.47147
59(+)-limonene MC138863C10H16136.21207.4469.1931.21097
60Limonene DC138863C10H16136.21215.9482.3951.29868
61(+)-limonene PC138863C10H16136.21224.4496.0011.65214
62Limonene PC138863C10H16136.21224.9496.7561.71661
632-Heptanone MC110430C7H14O114.21192.5446.8711.25839
642-Heptanone DC110430C7H14O114.21192446.1151.63832
652-Propanol DC67630C3H8O60.1950.7210.8871.20859
662-Propanol MC67630C3H8O60.1947.7209.3651.09106
671-Propanol, 2-methyl-C78831C4H10O74.11057.1285.4411.38133
682-Hexanone DC591786C6H12O100.21088.5314.7691.48915
692-Hexanone MC591786C6H12O100.21093.5319.6571.1786
70Acetic acid butyl ester MC123864C6H12O2116.21122.9352.8951.22652
71Acetic acid butyl ester DC123864C6H12O2116.21118347.0291.60157
72Ethanol MC64175C2H6O46.1951.8211.4891.04662
73Ethanol DC64175C2H6O46.1951.5211.351.11704
74(E)-2-octenalC2548870C8H14O126.21423.5816.941.32526
75(E)-2-Hexen-1-olC928950C6H12O100.21443.3851.4541.51189
762-Octanone DC111137C8H16O128.21271.1577.8821.77106
772-Octanone MC111137C8H16O128.21272.4580.4111.33372
781-octanal DC124130C8H16O128.21322.2661.3481.83779
791-Octanal MC124130C8H16O128.21317.2654.5061.39805
80Hexanoic acid, propyl ester DC626777C9H18O2158.21305.2638.3261.86479
81Hexanoic acid, propyl ester MC626777C9H18O2158.21303.5636.0141.39506
Table 3. The average area of VOCs in olibanum.
Table 3. The average area of VOCs in olibanum.
CountCompoundCAS#Molecular
Formula		RX-1RX-2RX-3RX-4
1pentyl hexanoateC540078C11H22O26166.214832.444562.94525.01
2Pentyl hexanoate DC540078C11H22O219689.21801916901.516726.6
3n-octyl acetateC112141C10H20O211749.211611.511459.611371.2
42-Decanone DC693549C10H20O1063210281.310192.410197.2
52-Decanone MC693549C10H20O374.511338.806404.039414.96
6BenzaldehydeC100527C7H6O709.1251025.711200.961199.4
7Ethyl octanoateC106321C10H20O21172.341172.341202.741151.07
8Linalool oxideC1365191C10H18O22204.962396.342593.392700.51
9Bornyl acetate MC76493C12H20O29335.959498.949641.879695.36
10Bornyl acetate DC76493C12H20O2979.352959.329936.968876.834
11(Z)-4-heptenalC6728310C7H12O15085.314809.714686.914807.7
122-methyl-1-butanol MC137326C5H12O1678.081793.711870.121910.35
13Geranyl acetate MC105873C12H20O213495.214007.214205.414030.5
14Geranyl acetate DC105873C12H20O2611.904663.192782.069780.187
15L-Menthol MC2216515C10H20O18963.419364.719792.619953.5
16L-Menthol DC2216515C10H20O718.083845.315804.558852.996
17Decanoic acid ethyl esterC110383C12H24O2801.7521043.141185.941178.22
18phenylacetaldehyde DC122781C8H8O961.0651197.631240.981258.83
19phenylacetaldehyde MC122781C8H8O257.619285.83319.445301.018
201-Octanol MC111875C8H18O2441.742150.022076.512156.68
211-Octanol DC111875C8H18O2381.872433.272397.482369.82
222-Ethylpyridine DC100710C7H9N833.436796.274777.981786.681
232-Ethylpyridine MC100710C7H9N438.986463.811436.835480.888
24HeptaldehydeC111717C7H14O2188.732371.512382.342460.87
251-hexanal DC66251C6H12O183.503206.681227.375230.236
261-hexanal MC66251C6H12O177.585170.648167.713167.05
27β-Myrcene MC123353C10H161326.281350.921420.171377.39
28β-Myrcene DC123353C10H16749.866714.263730.025706.984
29β-Myrcene PC123353C10H16566.134545.741558.405521.838
302-Methylpropyl butanoateC539902C8H16O2144.023151.716150.365166.674
311-Butanol, 3-methyl-, acetate MC123922C7H14O21137.221164.711204.891194.04
321-Butanol, 3-methyl-, acetate DC123922C7H14O2106.119103.849106.773114.743
332-PentanoneC107879C5H10O8824.479050.138928.288841.22
34Methyl butyrateC623427C5H10O21577.171539.721484.631494.26
35(E)-2-hexen-1-al MC6728263C6H10O293.772270.11277.362293.657
36(E)-2-hexen-1-al DC6728263C6H10O528.104480.33443.145413.408
37Ethyl heptanoateC106309C9H18O24723.984741.774687.614570.13
38ethyl pentanoateC539822C7H14O24341.314355.824340.364316.53
39ethyl 2-methylbutanoateC7452791C7H14O2584.269623.721631.426663.152
40Propanoic acid MC79094C3H6O2782.116829.134826.948805.403
41Propanoic acid DC79094C3H6O2459.302579.502607.948600.481
42Linalool DC78706C10H18O651.32701.026696.31699.998
43Linalool MC78706C10H18O882.766871.122960.994981.299
442-ethyl hexanol DC104767C8H18O439.375557.98580.149615.102
452-ethyl hexanol MC104767C8H18O170.445143.923174.288165.093
461-hexanol MC111273C6H14O1158.821136.341112.271087.17
471-hexanol DC111273C6H14O744.558768.731790.571783.4
481-Octen-3-one DC4312996C8H14O1028.761088.561143.761136.71
491-Octen-3-one MC4312996C8H14O761.036764.74757.642731.007
50n-Nonanal MC124196C9H18O1411.831336.421332.851318.52
511-nonanal DC124196C9H18O824.871817.941837.099825.528
522-hexen-1-ol MC2305217C6H12O6366.46305.746260.076209.13
532-hexen-1-ol DC2305217C6H12O646.994678.048718.526725.791
541-Hydroxy-2-propanone DC116096C3H6O21580.081754.461758.741687.98
551-Hydroxy-2-propanone MC116096C3H6O2398.082390.351377.894372.725
561-Pentanol MC71410C5H12O1692.331745.981789.171846.58
571-Pentanol DC71410C5H12O734.164731.392737.944727.874
582-methyl-1-butanol DC137326C5H12O184.259178.81177.609190.024
59(+)-limonene MC138863C10H163811.64116.814352.174622.78
60Limonene DC138863C10H16275.468287.89319.194310.758
61(+)-limonene PC138863C10H163639.863594.63702.993648.12
62Limonene PC138863C10H161813.811742.591648.431641.64
632-Heptanone MC110430C7H14O404.007426.06431.479419.199
642-Heptanone DC110430C7H14O114.195134.984146.059166.078
652-Propanol DC67630C3H8O682.751768.506722.871774.708
662-Propanol MC67630C3H8O755.315841.222850.021937.544
671-Propanol, 2-methyl-C78831C4H10O3808.373966.914025.483998.99
682-Hexanone DC591786C6H12O4367.64836.694900.915077.25
692-Hexanone MC591786C6H12O484.799517.764503.058502.545
70Acetic acid butyl ester MC123864C6H12O26989.786988.767063.677144.74
71Acetic acid butyl ester DC123864C6H12O21095.621094.131097.91082.23
72Ethanol MC64175C2H6O907.333919.473905.521914.475
73Ethanol DC64175C2H6O5851.255569.315786.195901.12
74(E)-2-octenalC2548870C8H14O1812.361813.371788.661772.13
75(E)-2-Hexen-1-olC928950C6H12O1302.661209.321163.191157.15
762-Octanone DC111137C8H16O1277.291266.131303.781341.46
772-Octanone MC111137C8H16O718.538722.205744.743739.138
781-octanal DC124130C8H16O1494.511403.391321.471290.42
791-Octanal MC124130C8H16O204.751209.574214.15219.14
80Hexanoic acid, propyl ester DC626777C9H18O2322.2311.512306.253298.796
81Hexanoic acid, propyl ester MC626777C9H18O2454.561409.236391.367363.406
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Luo, Q.; Liu, S.; He, Y.; Liu, J.; Zhang, X.; Zheng, L.; Huang, D. An Evaluation of the Impact of 60Co Irradiation on Volatile Organic Compounds of Olibanum Using Gas Chromatography Ion Mobility Spectrometry. Molecules 2024, 29, 1671. https://doi.org/10.3390/molecules29071671

AMA Style

Luo Q, Liu S, He Y, Liu J, Zhang X, Zheng L, Huang D. An Evaluation of the Impact of 60Co Irradiation on Volatile Organic Compounds of Olibanum Using Gas Chromatography Ion Mobility Spectrometry. Molecules. 2024; 29(7):1671. https://doi.org/10.3390/molecules29071671

Chicago/Turabian Style

Luo, Qiao, Shanshuo Liu, Ye He, Jiayao Liu, Xinyu Zhang, Liqiu Zheng, and Dan Huang. 2024. "An Evaluation of the Impact of 60Co Irradiation on Volatile Organic Compounds of Olibanum Using Gas Chromatography Ion Mobility Spectrometry" Molecules 29, no. 7: 1671. https://doi.org/10.3390/molecules29071671

Article Metrics

Back to TopTop
