Hybrid Green Materials Obtained by PCL Melt Blending with Diatomaceous Earth

by
Maria Rosalia Carotenuto
1,2,
Giuseppe Cavallaro
1,*,
Ileana Chinnici
2,
Giuseppe Lazzara
1 and
Stefana Milioto
1
1
Dipartimento di Fisica e Chimica “E. Segrè”, Università degli Studi di Palermo, Viale delle Scienze, Pad. 17, 90128 Palermo, Italy
2
INAF—Astronomical Observatory “G. S. Vaiana”, Piazza del Parlamento, 1, 90134 Palermo, Italy
*
Author to whom correspondence should be addressed.
Molecules 2024, 29(6), 1203; https://doi.org/10.3390/molecules29061203
Submission received: 20 February 2024 / Revised: 6 March 2024 / Accepted: 6 March 2024 / Published: 8 March 2024
(This article belongs to the Section Inorganic Chemistry)
Browse Figures
Versions Notes

Abstract

:
In this work, diatomaceous earth (Diat) was explored as filler for polycaprolactone (PCL) to obtain composite green materials with promising viscoelastic and thermal properties. The composites were prepared by blending variable Diat amounts (5, 15 and 50 wt%) with a molten PCL matrix. The viscoelastic characteristics of PCL/Diat hybrids were studied by Dynamic Mechanical Analysis (DMA) under an oscillatory regime, while the thermal properties were determined by Differential Scanning Calorimetry (DSC) and Thermogravimetric Analysis (TGA). We detected that the presence of Diat enhances the energy storage capacity of PCL for temperatures lower than the polymer melting point. Both DMA and DSC data revealed that the PCL melting temperature is slightly affected by the Diat addition, while the TGA results showed that the thermal stability of the polymer can be significantly improved by mixing PCL with diatomaceous earth. Moreover, we observed that the dispersion of Diat into the matrix favors the crystallization process of PCL. Interestingly, the improvements of PCL properties (elasticity, thermal stability, and crystallinity) are proportional to the Diat concentration of the composites. These findings reflect the interfacial compatibility between PCL and diatomaceous earth. In conclusion, this study highlights that the preparation of PCL/Diat hybrids by melt blending is suitable for the development of composite materials for technological applications, including the remediation of air pollutants within museum environments.

Graphical Abstract

1. Introduction

Diatomaceous earth (Diat) is a natural material derived by amorphous silica cell walls of dead diatoms deposited on marine sediments [1]. Chemically, Diat is composed of silicon dioxide (>90%), alumina and small quantities of iron oxides [2]. Moreover, the diatomaceous surface can contain impurities, including clays and calcium carbonate [3]. Diatomaceous earth possesses a large porosity (ca. 60%) with pores with a diameter ranging between 200 and 460 nm [4]. Diat particles are quite polydisperse in size and typically measure between 3 and 200 µm [5]. Diatomaceous earth can be used for numerous applications, including as a carrier for controlled release of functional drugs [6,7,8], adsorbent material for remediation [9,10] and reinforcement filler for polymers [11,12,13]. The literature reports that the mechanical properties of several polymers (polylactic acid [11], polyetherimide [12] and polyamide [13]) can be improved by dispersing Diat particles within the polymeric matrices. Diatomaceous earth is suitable for various environmental purposes. For example, Diat particles can be exploited as indicators of the quality of aquatic systems, as reported for the Zarafshan River in Uzbekistan [14]. Diat was successfully explored for the removal of atrazine and organophosphorus pesticides (parathion-methyl, chlorpyriphos, fenamiphos and methidathion) from river and waste waters [15]. Pornaroonthama et al. [16] proved that diatomaceous earth modified with a cationic surfactant (cetyltrimethylammonium bromide) and tetraethylenepentamine (TEPA) is effective in CO2 adsorption. The incorporation of carboxylic and amine functional groups on the surface of diatomaceous earth was explored to obtain adsorbent materials for zinc retention [17]. In this work, we investigated the suitability of diatomaceous earth as a filler for polycaprolactone (PCL), which is a biopolymer largely employed for biomedical and packaging purposes [18,19,20,21]. PCL is a biocompatible polymer suitable for numerous environmental applications, such as water remediation and air purification. It is reported that the combination of PCL with other biopolymers (chitosan and gelatin) leads to the fabrication of electrospun membranes with a removal capacity towards methylene blue from the aqueous phase [22]. PCL modified with thiol groups exhibited a high adsorption capacity towards Pb(II) and Cd(II) from water [23]. Filter membranes for wastewater treatment were fabricated by filling a PCL matrix with an amine-functionalized metal–organic framework [24]. In addition, elecrospun membranes based on PCL were used for air purification by the adsorption of both outdoor an indoor gaseous pollutants and bioaerosols [25]. Rao et al. evidenced that an air filter formed by PCL nanofibers is effective for capturing PM2.5 particles [26]. It was proved that PCL is effective as an anticorrosive coating of Mg alloys [27]. In the last decades, the addition of natural fillers (nanoclays, diatomaceous earth, nanocellulose, microwax, plants and animal fibers) within biopolymeric matrices was successfully exploited to improve the properties and functionalities of polymers, allowing one to extend their application areas [28,29,30,31,32,33,34]. The effects of diatomaceous earth on the PCL’s enzymatic degradation were investigated by Mitomo et al. [35]. Recently, PCL-bound diatomite filters for the removal of metal ions and micro/nanoplastics from water were fabricated by acetone mixtures [36]. It was detected that PCL/Diat composites possess a removal efficiency of ca. 90% towards cationic metal ions (Cu, Co, Pb, Cd, Cr). On the other hand, the adsorption capacity towards micro/nanoplastics depends on their specific sizes. The removal efficiency towards 1.1 µm plastics is up to 94%, while the adsorption capacity is slower (up to ca. 73%) for 100 nm plastics. The properties of biocomposite materials are strictly correlated with the adhesion between the polymer and filler [11,37,38]. The specific matrix/filler interactions can be studied by using different techniques, including thermal analysis methods. In this regard, the high interfacial interactions between PLA and Diat particles was evidenced by the enhancement of the polymer crystallinity detected by Differential Scanning Calorimetry (DSC) measurements [11]. Adhesion forces with the fillers can alter the polymer glass transition, which can be investigated by both DSC and Dynamic Mechanical Analysis (DMA) [32,39]. For instance, the presence of clay nanotubes within Funori induced a decrease of the glass transition temperature [32]. The addition of halloysite nanotubes reduced the heat capacity change related to the glass transition of Rosin 100, which is an esterified colophony [39]. As reported in the literature [40,41], an improvement of the polymer thermal stability can be attributed to barrier effect phenomena, which occur for composites with a homogeneous dispersion of the filler within the matrix. Namely, the presence of uniformly distributed fillers hinders the propagation of the volatile products generated by the polymer decomposition, inducing an increase in the thermal resistance to degradation. Thermal stabilization effects can be studied by Thermogravimetric Analysis (TGA), which also provides information on the organic/inorganic composition of biocomposite materials. Moreover, TGA is suitable for estimating the amount of water molecules physically adsorbed to both inorganic and organic materials [42,43,44]. Therefore, thermogravimetry can be explored to evaluate the influence of inorganic fillers on the moisture content of polymeric matrices. This work represents a starting step for the fabrication of PCL/Diat composites useful for environmental applications, since both components are biocompatible materials with relevant adsorption capacities towards inorganic and organic pollutants. In particular, further studies will be conducted to investigate the efficacy of PCL/Diat hybrids for air purification in museum showcases, which present high levels of volatile organic compounds (VOCs). For example, high concentrations of acetic and formic acid vapors are produced by the decomposition of wooden storage cabinets [45]. Recently, composite materials based on polymers and inorganic fillers were studied as adsorbents to improve the air quality in museum environments [46,47]. In this regard, we aim to fabricate biocompatible materials for the conservation of artworks.

2. Results and Discussion

2.1. Viscoelastic Properties of PCL/Diat Composites

The viscoelastic properties of PCL/Diat composites were studied by Dynamic Mechanical Analysis (DMA) within an oscillatory regime. Specifically, we determined the rheological moduli at variable temperatures by performing DMA tests under a heating ramp. Figure 1 shows the storage (G′) and loss (G″) moduli as functions of the temperature for PCL filled with variable amounts of Diat.
As a general result, G′ exhibited a sharp decrease in the temperature range between 50 and 70 °C (Figure 1a) that reflects a worsening of the elastic capacity of the materials. Namely, the composites reduced their energy storage ability due to the PCL melting. According to this consideration, the G′ vs. Temperature trend of pure PCL (see Supplementary Materials) evidenced a similar trend. We calculated the temperature at the G′ inflection point (TG′inf) in the range of 50–70 °C for both pure PCL and PCL/Diat composites. As shown in Table 1, TG′inf is slightly affected by the Diat addition within the PCL matrix, highlighting that the melting temperature is similar for pure polymer and composites. In general, G″ presents a maximum corresponding to TG′inf (Figure 1b), evidencing that the materials possess the highest capacity to dissipate energy due to their viscous behavior.
We evaluated the viscoelastic properties of the composites before PCL melting by considering the rheological moduli at temperatures lower than 50 °C. As evidenced in Figure 1, G′ shows a slight decreasing trend at 30–50 °C, ruling out any structural rearrangements of PCL/Diat composites within the mentioned temperature range. This finding was observed for pure PCL (see Supplementary Materials). Figure 2 shows the influence of the Diat concentration on the storage modulus at variable temperatures (30, 35 and 40 °C). We detected that G′ is enhanced by the PCL filling with Diat. Namely, the presence of the filler improved the PCL elasticity and, consequently, the storage energy ability during oscillating mechanical tests. These improvements are proportional to the Diat concentration. The enhancement of the storage energy capacity in the composite materials could be attributed to the adhesion of PCL on the Diat surface, in agreement with their good compatibility.
In addition to the storage modulus, we determined tan(δ) values of the composites at variable Diat filling amounts. It should be noted that tan(δ) was calculated as the G″/G′ ratio. As displayed in Figure 3, tan(δ) vs. Diat concentration shows decreasing trends for all investigated temperatures (30, 35 and 40 °C). Accordingly, we can state that the elastic contribution is enhanced by Diat addition within the PCL matrix, in agreement with the results reported in Figure 2. The PCL filling with small Diat amounts (5 and 15 wt%) generated tan(δ) reductions of ca. 50%, while tan(δ) variations were significantly larger (ca. 80%) for a Diat concentration of 50 wt%.

2.2. Effects of Diat Addition on the Melting and Crystallization Processes of PCL

Differential Scanning Calorimetry (DSC) was used to investigate the influence of Diat addition on the melting and crystallization processes of PCL. Specifically, DSC experiments under a heating ramp allowed us to investigate the thermodynamics of PCL melting, while DSC measurements under a cooling ramp were helpful to determine the thermodynamic parameters of PCL crystallization. As shown in Figure 4, DSC curves obtained by heating PCL/Diat composites present an endothermic peak in the range of 50–60 °C that can be ascribed to polymer melting. Accordingly, the DSC curve of pure PCL (see Supplementary Materials) evidenced an endothermic signal within the same temperature range. We calculated the melting temperature (Tm) values from the minima of the DSC endothermic signals, while the corresponding enthalpy variations (ΔHm) were estimated from the integration of the peaks. The obtained data are collected in Table 2.
We detected that Tm is slightly reduced (up to 4 °C) after the Diat addition within the PCL matrix. On the other hand, PCL/Diat composites exhibited larger ΔHm values compared to pure PCL. We determined that the presence of 50 wt% Diat generates an increase of ca. 14% of PCL melting enthalpy. As reported in the literature [48,49], the presence of fillers within the polymeric matrix can produce a ΔHm decrease, indicating the worsening of the polymer crystallinity. Opposite results (ΔHm increase) indicate that the fillers act as nucleating sites for the polymer crystallization [11]. Accordingly, we can hypothesize that diatomaceous earth dispersed in the polymeric matrix favors the crystal nucleation of PCL chains. Within this, Zglobicka et al. [11] evidenced that Diat particles act as nucleating agents for polylactic acid (PLA), increasing the polymer crystallinity. These results confirm the compatibility between PCL and Diat in the composites. Similar findings were detected for PCL/clays [50] and polylactide/layered silicates [51]. Figure 5 shows the DSC curves of PCL/Diat composites obtained by a cooling ramp. As expected, we observed an exothermic signal for all the composite materials due to the PCL crystallization. We determined the crystallization temperature (Tc) by the maxima of the peaks, while the crystallization enthalpy variation (ΔHc) was calculated by integrating the exothermic signals. The thermodynamic parameters of the PCL crystallization are summarized in Table 3, which also reports the data obtained from the analysis of the DSC curve under cooling for pure PCL (see Supplementary Materials).
We detected that Tc is not altered by the presence of diatomaceous earth, except for PCL/Diat 5 wt%, which evidenced a slight reduction (ca. 3 °C) of the crystallization temperature. For the crystallization enthalpy, we observed larger ΔHc absolute values for PCL/Diat composites than for pure polymer. These results confirm that the filler addition favors the crystallization process of PCL. The highest ΔHc enhancement (ca. 12%) was estimated for PCL/Diat 50 wt%. It should be noted that the Tm decrease (Table 2) in the composites is caused by the degree of crystal perfection, which can be found in the enthalpy of crystallization.

2.3. Thermal Stability of PCL/Diat Composites

The thermal stability of PCL/Diat composites was investigated by Thermogravimetric Analysis (TGA). Figure 6 compares the thermogravimetric (TG) curves of the composites with those of their pure components (PCL and Diat).
We observed that diatomaceous earth (inorganic filler) was thermally stable up to 800 °C, while PCL (organic polymer) was completely degraded at 600 °C. As expected, the residual matters at 800 °C (MR800) of PCL/Diat composites range between 0 and 100 wt% because they present both inorganic and organic molecules in their composition. The literature reports similar results for polymer/nanoclay hybrids [52]. Table 4 collects the MR800 values for all composite materials. Clearly, we estimated that MR800 is proportional to the Diat content of the composites.
The TG curves (Figure 6) evidenced that both pure PCL and PCL/Diat composites present two mass losses within ca. 200–600 °C that represent the temperature range of polymer decomposition. We evaluated the thermal stability of the materials from the temperature at the onset point of the first mass change, which is predominant for all the samples. As evidenced in Figure 3, the Diat addition within the PCL matrix induced significant increases of the onset temperature (Tons), highlighting that the composites are thermally more stable compared to pure polymer. Specifically, Tons was enhanced by 11, 19 and 41 °C for Diat concentrations of 5, 15 and 50 wt%, respectively. In general, the improvement of the thermal stability for composites with a homogeneous morphology might be attributed to the barrier effect of the inorganic fillers towards the volatile products generated from the polymer degradation [52]. This consideration is appropriate when interpreting the TGA results of PCL/Diat composites. The homogeneity of the composite materials highlights that PCL and Diat are interfacially compatible. Furthermore, the TG curves (Figure 6) evidenced that the PCL and PCL/Diat composites are hydrophobic, since they do not present any mass loss at 25–150 °C, which is the temperature range for the evaporation of water molecules physically adsorbed onto the surface of inorganic/organic materials.

3. Materials and Methods

3.1. Chemicals

Diatomaceous earth (Diat) and polycaprolactone (PCL) are from Sigma Aldrich (St. Louis, MO, USA). Both products were used without any purification. The chemical formulas of Diat and PCL are SiO2 and (C6H10O2)n, respectively. The average molecular mass of PCL is 80,000 g mol−1.

3.2. Preparation of PCL/Diat Composites

The composites were prepared through a melt blending procedure [53] by physically mixing Diat powder with molten PCL. In detail, 5 g of PCL were poured within a ceramic mortar, which was heated at 80 °C to guarantee that the polymer was in a molten state. Then, variable amounts of Diat powder were added within the mortar kept at 80 °C. Finally, molten PCL and Diat powders were mixed with a ceramic pestle for 15 min. The obtained materials were kept in a desiccator at 25 °C prior to their characterization. Table 5 collects the masses of PCL and diatomaceous earth employed for the preparation of the composites with variable compositions.

3.3. Characterization of PCL/Diat Composites

3.3.1. Dynamic Mechanical Analysis (DMA)

DMA experiments were conducted by means of DMA Q800 (TA Instruments, Milan, Italy), using a shear sandwich clamp. The measurements were carried out in an oscillatory regime (frequency of 1 Hz and strain amplitude of 0.5%) under a heating ramp, allowing one to determine the influence of the temperature on the viscoelastic properties of the PCL/Diat composites. The heating ramp was set at 2 °C min−1 within an interval of 30 and 70 °C. The surface of the investigated samples was 1 cm2, while their thickness ranged between 0.4 and 1.4 mm.

3.3.2. Differential Scanning Calorimetry (DSC)

DSC measurements were performed using micro-DSC III 106 (Setaram, Lyon, France) under Nitrogen atmosphere. Heating and cooling ramps were conducted within a range of 25 to 80 °C to investigate PCL melting and crystallization, respectively. The scanning rate was set at 1 °C min−1, while the mass of each sample was ca. 5 mg. It is important to evidence that the samples were subjected to two heating/cooling cycles in order to investigate the thermal history of PCL/Diat composites. In detail, the following thermal procedure was used: isotherm at 25 °C for 1 min, ramp 1 °C min−1 from 25 to 80 °C, isotherm at 80 °C for 1 min, and ramp 1 °C min−1 from 80 to 25 °C. This cycle was repeated two times. DSC curves (Figure 4 and Figure 5 and Supplementary Materials) and the corresponding thermodynamic parameters (Table 2 and Table 3) of melting and crystallization processes refer to the second cycle of measurements.

3.3.3. Thermogravimetric Analysis (TGA)

TGA tests were carried out through Q5000 IR (TA Instruments, Milan, Italy) under Nitrogen atmosphere. The gas flows were set at 25 and 10 cm3 min−1 for the sample and the balance, respectively. The samples (ca. 5 mg) were heated from 25 to 800 °C using a scanning rate of 20 °C min−1. According to the literature [54], the temperature calibration of the apparatus was conducted on the basis of the Curie temperatures of standards (nickel, cobalt and their alloys).

4. Conclusions

Green composites based on biocompatible components (polycaprolactone and diatomaceous earth) were successfully prepared by melt blending procedure. The concentration of diatomaceous earth was systematically varied from 5 to 50 wt%. The elasticity of polycaprolactone at 30–40 °C (before the PCL melting point) was improved by dispersing Diat within the polymeric matrix. This effect is stronger for composites with a high Diat content. In this regard, we calculated tan(δ) reductions of ca. 50% for Diat concentrations of 5 and 15 wt%, whereas tan(δ) decreased by ca. 80% for a Diat content of 50 wt%. Based on the DSC results, we detected that Diat can act as a nucleating site for PCL crystallization. Accordingly, the absolute values of PCL melting and crystallization enthalpies were enhanced by the presence of diatomaceous earth in the matrix. On the other hand, the variations on the melting and crystallization temperatures were negligible. The mixing with Diat generated relevant effects on the PCL thermal stability. According to TGA data, we observed that PCL can be thermally stabilized by dispersing diatomaceous earth into the polymer matrix due to the barrier effect of the filler. The highest thermal stabilization (ca. 41 °C) was calculated for the PCL/Diat 50 wt% composite. As a general consideration, the results obtained by thermal analysis methods highlighted the interfacial compatibility between PCL and diatomaceous earth. In conclusion, this work demonstrated that melt blending of PCL with diatomaceous earth represents an easy and efficient strategy to obtain biocompatible composites with viscoelastic and thermal properties that are improved when compared with pure polymer.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules29061203/s1, Figure S1: Storage and loss moduli as a function of temperature for pure PCL; Figure S2: DSC curve (heating ramp) for pristine PCL; Figure S3: DSC curve (cooling ramp) for pristine PCL.

Author Contributions

Conceptualization, G.C. and G.L.; methodology, M.R.C.; software, M.R.C.; validation, G.C., G.L. and I.C.; formal analysis, M.R.C.; investigation, M.R.C.; resources, S.M.; data curation, G.C.; writing—original draft preparation, G.C.; writing—review and editing, G.C.; visualization, M.R.C.; supervision, G.C., I.C. and G.L.; project administration, S.M.; funding acquisition, G.C. and S.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the University of Palermo, FFR 2024 and European Union—Next Generation EU (PRIN 2022 PNRR—NANOEURO project—Cod. B53D23025300001).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in article and Supplementary Materials.

Acknowledgments

This study has been carried out in the context of the SpecoLab project (https://openaccess.inaf.it/handle/20.500.12386/31362, accessed on 2 July 2022) contrasting the presence of pollutants in museum historical showcases.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Aggrey, P.; Nartey, M.; Kan, Y.; Cvjetinovic, J.; Andrews, A.; Salimon, A.I.; Dragnevski, K.I.; Korsunsky, A.M. On the Diatomite-Based Nanostructure-Preserving Material Synthesis for Energy Applications. RSC Adv. 2021, 11, 31884–31922. [Google Scholar] [CrossRef]
  2. Tsai, W.T.; Hsien, K.J.; Yang, J.M. Silica Adsorbent Prepared from Spent Diatomaceous Earth and Its Application to Removal of Dye from Aqueous Solution. J. Colloid Interface Sci. 2004, 275, 428–433. [Google Scholar] [CrossRef] [PubMed]
  3. Benkacem, T.; Hamdi, B.; Chamayou, A.; Balard, H.; Calvet, R. Physicochemical Characterization of a Diatomaceous upon an Acid Treatment: A Focus on Surface Properties by Inverse Gas Chromatography. Powder Technol. 2016, 294, 498–507. [Google Scholar] [CrossRef]
  4. Reka, A.A.; Pavlovski, B.; Fazlija, E.; Berisha, A.; Pacarizi, M.; Daghmehchi, M.; Sacalis, C.; Jovanovski, G.; Makreski, P.; Oral, A. Diatomaceous Earth: Characterization, Thermal Modification, and Application. Open Chem. 2021, 19, 451–461. [Google Scholar] [CrossRef]
  5. Dobrosielska, M.; Dobrucka, R.; Brząkalski, D.; Frydrych, M.; Kozera, P.; Wieczorek, M.; Jałbrzykowski, M.; Kurzydłowski, K.J.; Przekop, R.E. Influence of Diatomaceous Earth Particle Size on Mechanical Properties of PLA/Diatomaceous Earth Composites. Materials 2022, 15, 3607. [Google Scholar] [CrossRef] [PubMed]
  6. Uthappa, U.T.; Sriram, G.; Brahmkhatri, V.; Kigga, M.; Jung, H.-Y.; Altalhi, T.; Neelgund, G.M.; Kurkuri, M.D. Xerogel Modified Diatomaceous Earth Microparticles for Controlled Drug Release Studies. New J. Chem. 2018, 42, 11964–11971. [Google Scholar] [CrossRef]
  7. Łępicka, M.; Rodziewicz, M.; Kawalec, M.; Nowicka, K.; Tsybrii, Y.; Kurzydłowski, K.J. Diatomaceous Earth as a Drug-Loaded Carrier in a Glass-Ionomer Cement. J. Mech. Behav. Biomed. Mater. 2022, 133, 105324. [Google Scholar] [CrossRef] [PubMed]
  8. Uthappa, U.T.; Brahmkhatri, V.; Sriram, G.; Jung, H.-Y.; Yu, J.; Kurkuri, N.; Aminabhavi, T.M.; Altalhi, T.; Neelgund, G.M.; Kurkuri, M.D. Nature Engineered Diatom Biosilica as Drug Delivery Systems. J. Control. Release 2018, 281, 70–83. [Google Scholar] [CrossRef] [PubMed]
  9. Semenkova, A.; Belousov, P.; Rzhevskaia, A.; Izosimova, Y.; Maslakov, K.; Tolpeshta, I.; Romanchuk, A.; Krupskaya, V. U(VI) Sorption onto Natural Sorbents. J. Radioanal. Nucl. Chem. 2020, 326, 293–301. [Google Scholar] [CrossRef]
  10. Belousov, P.; Semenkova, A.; Egorova, T.; Romanchuk, A.; Zakusin, S.; Dorzhieva, O.; Tyupina, E.; Izosimova, Y.; Tolpeshta, I.; Chernov, M.; et al. Cesium Sorption and Desorption on Glauconite, Bentonite, Zeolite, and Diatomite. Minerals 2019, 9, 625. [Google Scholar] [CrossRef]
  11. Zglobicka, I.; Joka-Yildiz, M.; Molak, R.; Kawalec, M.; Dubicki, A.; Wroblewski, J.; Dydek, K.; Boczkowska, A.; Kurzydlowski, K.J. Poly(Lactic Acid) Matrix Reinforced with Diatomaceous Earth. Materials 2022, 15, 6210. [Google Scholar] [CrossRef]
  12. Cacciotti, I.; Rinaldi, M.; Fabbrizi, J.; Nanni, F. Innovative Polyetherimide and Diatomite Based Composites: Influence of the Diatomite Kind and Treatment. J. Mater. Res. Technol. 2019, 8, 1737–1745. [Google Scholar] [CrossRef]
  13. Dobrosielska, M.; Dobrucka, R.; Brząkalski, D.; Kozera, P.; Martyła, A.; Gabriel, E.; Kurzydłowski, K.J.; Przekop, R.E. Polyamide 11 Composites Reinforced with Diatomite Biofiller—Mechanical, Rheological and Crystallization Properties. Polymers 2023, 15, 1563. [Google Scholar] [CrossRef] [PubMed]
  14. Barinova, S.; Mamanazarova, K. Diatom Algae-Indicators of Water Quality in the Lower Zarafshan River, Uzbekistan. Water 2021, 13, 358. [Google Scholar] [CrossRef]
  15. Agdi, K.; Bouaid, A.; Esteban, A.M.; Hernando, P.F.; Azmani, A.; Camara, C. Removal of Atrazine and Four Organophosphorus Pesticides from Environmental Waters by Diatomaceous Earth–Remediation Method. J. Environ. Monit. 2000, 2, 420–423. [Google Scholar] [CrossRef]
  16. Pornaroonthama, P.; Thouchprasitchai, N.; Pongstabodee, S. CO2 Adsorption on Diatomaceous Earth Modified with Cetyltrimethylammonium Bromide and Functionalized with Tetraethylenepentamine: Optimization and Kinetics. J. Environ. Manag. 2015, 157, 194–204. [Google Scholar] [CrossRef] [PubMed]
  17. Sosa, G.L.; Fernández Morantes, C.; Flores, F.M.; Torres Sánchez, R.M.; Zalts, A.; Ramirez, S.A. Characterization of Diatomaceous Earth Modified by Organic Ligands for Enhanced Zinc Adsorption. J. Environ. Chem. Eng. 2019, 7, 103197. [Google Scholar] [CrossRef]
  18. Terzopoulou, Z.; Papageorgiou, D.G.; Papageorgiou, G.Z.; Bikiaris, D.N. Effect of Surface Functionalization of Halloysite Nanotubes on Synthesis and Thermal Properties of Poly(ε-Caprolactone). J. Mater. Sci. 2018, 53, 6519–6541. [Google Scholar] [CrossRef]
  19. Rahimkhoei, V.; Padervand, M.; Hedayat, M.; Seidi, F.; Dawi, E.A.; Akbari, A. Biomedical Applications of Electrospun Polycaprolactone-Based Carbohydrate Polymers: A Review. Int. J. Biol. Macromol. 2023, 253, 126642. [Google Scholar] [CrossRef]
  20. Tolba, E.; Salama, A.; Saleh, A.K.; Cruz-Maya, I.; Guarino, V. Sodium Alginate- and Cationic Cellulose-Functionalized Polycaprolactone Nanofibers for In Vitro and Antibacterial Applications. Molecules 2023, 28, 7305. [Google Scholar] [CrossRef]
  21. Alyamani, A.A.; Al-Musawi, M.H.; Albukhaty, S.; Sulaiman, G.M.; Ibrahim, K.M.; Ahmed, E.M.; Jabir, M.S.; Al-Karagoly, H.; Aljahmany, A.A.; Mohammed, M.K.A. Electrospun Polycaprolactone/Chitosan Nanofibers Containing Cordia Myxa Fruit Extract as Potential Biocompatible Antibacterial Wound Dressings. Molecules 2023, 28, 2501. [Google Scholar] [CrossRef]
  22. Baburaj, M.S.; Veeran, M.G.; Painuly, D.; Sreelekshmi, S.; Rajkumar, R.J.; Aprem, A.S. Fabrication and Characterisation of Polycaprolactone/Gelatin/Chitosan (PCL/GEL/CHI) Electrospun Nano-Membranes for Wastewater Purification. Desalination 2023, 563, 116709. [Google Scholar] [CrossRef]
  23. Körpınar, B.; Erdem Yayayürük, A.; Yayayürük, O.; Akat, H. Thiol–Ended Polycaprolactone: Synthesis, Preparation and Use in Pb(II) and Cd(II) Removal from Water Samples. Mater. Today Commun. 2021, 29, 102908. [Google Scholar] [CrossRef]
  24. Hani, A.; Haikal, R.R.; El-Mehalmey, W.A.; Safwat, Y.; Alkordi, M.H. Durable and Recyclable MOF@polycaprolactone Mixed-Matrix Membranes with Hierarchical Porosity for Wastewater Treatment. Nanoscale 2023, 15, 19617–19628. [Google Scholar] [CrossRef]
  25. Lv, D.; Zhu, M.; Jiang, Z.; Jiang, S.; Zhang, Q.; Xiong, R.; Huang, C. Green Electrospun Nanofibers and Their Application in Air Filtration. Macromol. Mater. Eng. 2018, 303, 1800336. [Google Scholar] [CrossRef]
  26. Rao, C.; Gu, F.; Zhao, P.; Sharmin, N.; Gu, H.; Fu, J. Capturing PM2.5 Emissions from 3D Printing via Nanofiber-Based Air Filter. Sci. Rep. 2017, 7, 10366. [Google Scholar] [CrossRef] [PubMed]
  27. Gnedenkov, A.S.; Filonina, V.S.; Sinebryukhov, S.L.; Gnedenkov, S.V. A Superior Corrosion Protection of Mg Alloy via Smart Nontoxic Hybrid Inhibitor-Containing Coatings. Molecules 2023, 28, 2538. [Google Scholar] [CrossRef] [PubMed]
  28. Kumar, P.; Kumar, M.; Roopa, C.P. Natural Nano-Fillers Materials for the Bio-Composites: A Review. J. Indian Chem. Soc. 2022, 99, 100715. [Google Scholar] [CrossRef]
  29. Boccalon, E.; Viscusi, G.; Lamberti, E.; Fancello, F.; Zara, S.; Sassi, P.; Marinozzi, M.; Nocchetti, M.; Gorrasi, G. Composite Films Containing Red Onion Skin Extract as Intelligent pH Indicators for Food Packaging. Appl. Surf. Sci. 2022, 593, 153319. [Google Scholar] [CrossRef]
  30. Viscusi, G.; Bugatti, V.; Gorrasi, G. Active Packaging Based on Cellulose Trays Coated with Layered Double Hydroxide as Nano-Carrier of Parahydroxybenzoate: Application to Fresh-Cut Iceberg Lettuce. Packag. Technol. Sci. 2021, 34, 353–360. [Google Scholar] [CrossRef]
  31. Lisuzzo, L.; Cavallaro, G.; Lazzara, G.; Milioto, S. Supramolecular Systems Based on Chitosan and Chemically Functionalized Nanocelluloses as Protective and Reinforcing Fillers of Paper Structure. Carbohydr. Polym. Technol. Appl. 2023, 6, 100380. [Google Scholar] [CrossRef]
  32. Cavallaro, G.; Lazzara, G.; Milioto, S. Nanocomposites Based on Halloysite Nanotubes and Sulphated Galactan from Red Seaweed Gloiopeltis: Properties and Delivery Capacity of Sodium Diclofenac. Int. J. Biol. Macromol. 2023, 234, 123645. [Google Scholar] [CrossRef]
  33. Kalay, S.; Stetsyshyn, Y.; Donchak, V.; Harhay, K.; Lishchynskyi, O.; Ohar, H.; Panchenko, Y.; Voronov, S.; Çulha, M. pH-Controlled Fluorescence Switching in Water-Dispersed Polymer Brushes Grafted to Modified Boron Nitride Nanotubes for Cellular Imaging. Beilstein J. Nanotechnol. 2019, 10, 2428–2439. [Google Scholar] [CrossRef] [PubMed]
  34. Sadjadi, S.; Malmir, M.; Heravi, M.M.; Kahangi, F.G. Biocompatible Starch-Halloysite Hybrid: An Efficient Support for Immobilizing Pd Species and Developing a Heterogeneous Catalyst for Ligand and Copper Free Coupling Reactions. Int. J. Biol. Macromol. 2018, 118, 1903–1911. [Google Scholar] [CrossRef] [PubMed]
  35. Mitomo, H.; Sasada, K.; Nishimura, K.; Yoshii, F.; Nagasawa, N. Radiation Effects on Blends of Poly(ε-Caprolactone) and Diatomites. J. Polym. Environ. 2004, 12, 95–103. [Google Scholar] [CrossRef]
  36. Han, G.; Oh, S.; Yeo, S.J.; Lee, J.; Lim, H. Eco-Friendly Polycaprolactone-Bound Diatomite Filter for the Removal of Metal Ions and Micro/Nanoplastics from Water. Sci. Total Environ. 2023, 905, 166956. [Google Scholar] [CrossRef] [PubMed]
  37. Lin, X.; Feng, Y.; He, Y.; Ding, S.; Liu, M. Engineering Design of Asymmetric Halloysite/Chitosan/Collagen Sponge with Hydrophobic Coating for High-Performance Hemostasis Dressing. Int. J. Biol. Macromol. 2023, 237, 124148. [Google Scholar] [CrossRef] [PubMed]
  38. Caruso, M.R.; D’Agostino, G.; Milioto, S.; Cavallaro, G.; Lazzara, G. A Review on Biopolymer-Based Treatments for Consolidation and Surface Protection of Cultural Heritage Materials. J. Mater. Sci. 2023, 58, 12954–12975. [Google Scholar] [CrossRef]
  39. Cavallaro, G.; Lazzara, G.; Milioto, S.; Parisi, F.; Ruisi, F. Nanocomposites Based on Esterified Colophony and Halloysite Clay Nanotubes as Consolidants for Waterlogged Archaeological Woods. Cellulose 2017, 24, 3367–3376. [Google Scholar] [CrossRef]
  40. Akinyi, C.; Iroh, J.O. Thermal Decomposition and Stability of Hybrid Graphene–Clay/Polyimide Nanocomposites. Polymers 2023, 15, 299. [Google Scholar] [CrossRef]
  41. Erceg, M.; Krešić, I.; Jakić, M.; Andričić, B. Kinetic Analysis of Poly(Ethylene Oxide)/Lithium Montmorillonite Nanocomposites. J. Therm. Anal. Calorim. 2017, 127, 789–797. [Google Scholar] [CrossRef]
  42. Lisuzzo, L.; Cavallaro, G.; Milioto, S.; Lazzara, G. Halloysite Nanotubes Filled with Salicylic Acid and Sodium Diclofenac: Effects of Vacuum Pumping on Loading and Release Properties. J. Nanostructure Chem. 2021, 11, 663–673. [Google Scholar] [CrossRef]
  43. Lisuzzo, L.; Cavallaro, G.; Milioto, S.; Lazzara, G. Coating of Silk Sutures by Halloysite/Wax Pickering Emulsions for Controlled Delivery of Eosin. Appl. Clay Sci. 2024, 247, 107217. [Google Scholar] [CrossRef]
  44. Taroni, T.; Cauteruccio, S.; Vago, R.; Franchi, S.; Barbero, N.; Licandro, E.; Ardizzone, S.; Meroni, D. Thiahelicene-Grafted Halloysite Nanotubes: Characterization, Biological Studies and pH Triggered Release. Appl. Surf. Sci. 2020, 520, 146351. [Google Scholar] [CrossRef]
  45. Tennent, N.H.; Baird, T. The Deterioration of Mollusca Collections: Identification of Shell Efflorescence. Stud. Conserv. 1985, 30, 73–85. [Google Scholar] [CrossRef]
  46. Kanth, A.P.; Soni, A.K. Application of Nanocomposites for Conservation of Materials of Cultural Heritage. J. Cult. Herit. 2023, 59, 120–130. [Google Scholar] [CrossRef]
  47. Seiß, V.; Thiel, S.; Eichelbaum, M. Preparation and Real World Applications of Titania Composite Materials for Photocatalytic Surface, Air, and Water Purification: State of the Art. Inorganics 2022, 10, 139. [Google Scholar] [CrossRef]
  48. Papananou, H.; Perivolari, E.; Chrissopoulou, K.; Anastasiadis, S.H. Tuning Polymer Crystallinity via the Appropriate Selection of Inorganic Nanoadditives. Polymer 2018, 157, 111–121. [Google Scholar] [CrossRef]
  49. Cavallaro, G.; Milioto, S.; Parisi, F.; Lazzara, G. Halloysite Nanotubes Loaded with Calcium Hydroxide: Alkaline Fillers for the Deacidification of Waterlogged Archeological Woods. ACS Appl. Mater. Interfaces 2018, 10, 27355–27364. [Google Scholar] [CrossRef]
  50. Maio, E.D.; Iannace, S.; Sorrentino, L.; Nicolais, L. Isothermal Crystallization in PCL/Clay Nanocomposites Investigated with Thermal and Rheometric Methods. Polymer 2004, 45, 8893–8900. [Google Scholar] [CrossRef]
  51. Nam, J.Y.; Sinha Ray, S.; Okamoto, M. Crystallization Behavior and Morphology of Biodegradable Polylactide/Layered Silicate Nanocomposite. Macromolecules 2003, 36, 7126–7131. [Google Scholar] [CrossRef]
  52. Lisuzzo, L.; Cavallaro, G.; Milioto, S.; Lazzara, G. Effects of Halloysite Content on the Thermo-Mechanical Performances of Composite Bioplastics. Appl. Clay Sci. 2020, 185, 105416. [Google Scholar] [CrossRef]
  53. Lazzara, G.; Milioto, S.; Gradzielski, M.; Prevost, S. Small Angle Neutron Scattering, X-Ray Diffraction, Differential Scanning Calorimetry, and Thermogravimetry Studies to Characterize the Properties of Clay Nanocomposites. J. Phys. Chem. C 2009, 113, 12213–12219. [Google Scholar] [CrossRef]
  54. Hasier, J.; Riolo, M.A.; Nash, P. Curie Temperature Determination via Thermogravimetric and Continuous Wavelet Transformation Analysis. EPJ Tech. Instrum. 2017, 4, 5. [Google Scholar] [CrossRef]
Molecules 29 01203 g001

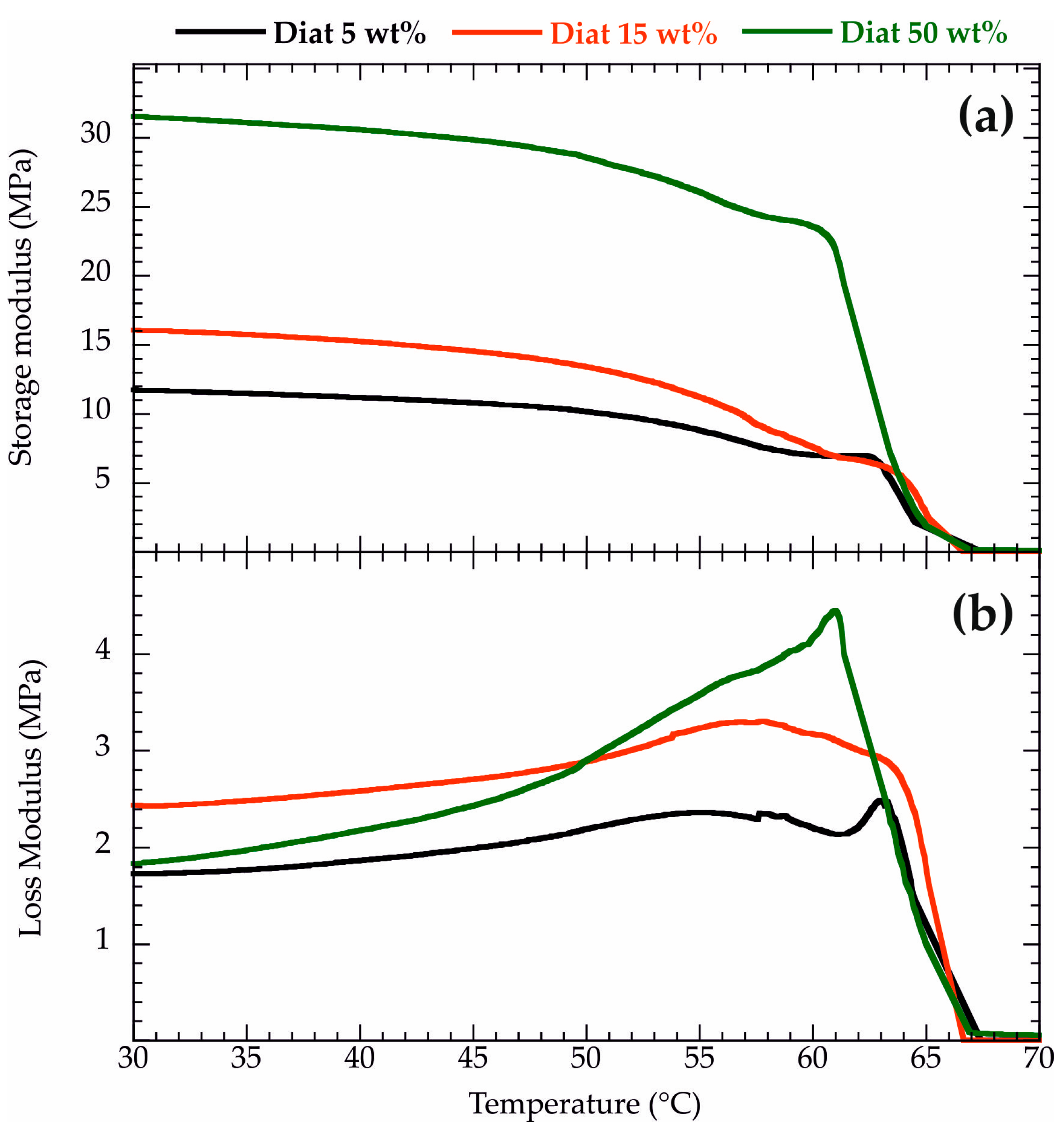

Figure 1. Storage (a) and loss (b) moduli as functions of temperature for PCL/Diat nanocomposites at variable compositions.
Figure 1. Storage (a) and loss (b) moduli as functions of temperature for PCL/Diat nanocomposites at variable compositions.
Molecules 29 01203 g001
Molecules 29 01203 g002

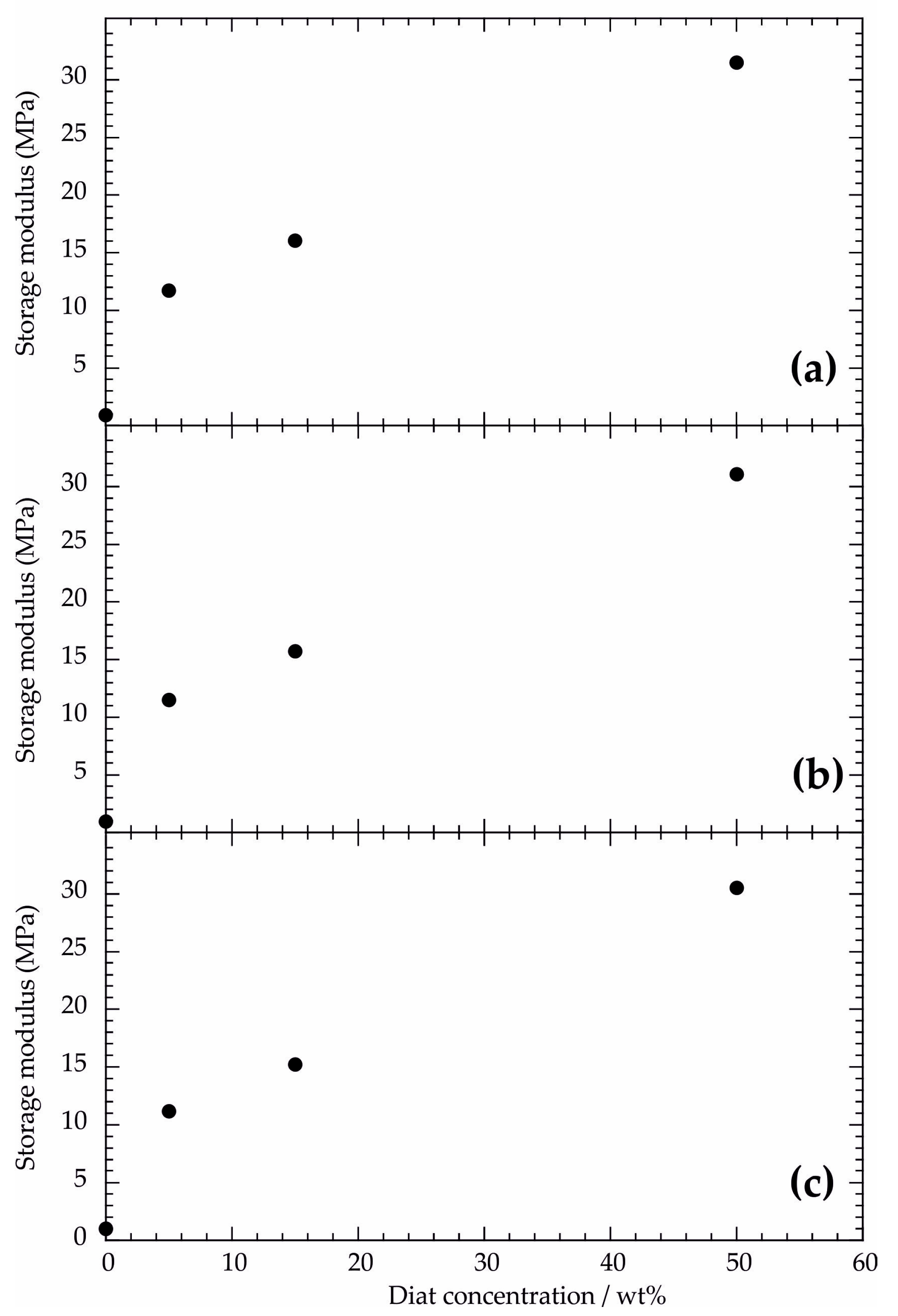

Figure 2. Storage modulus as a function of Diat concentration at 30 °C (a); 35 °C (b); and 40 °C (c).
Figure 2. Storage modulus as a function of Diat concentration at 30 °C (a); 35 °C (b); and 40 °C (c).
Molecules 29 01203 g002
Molecules 29 01203 g003

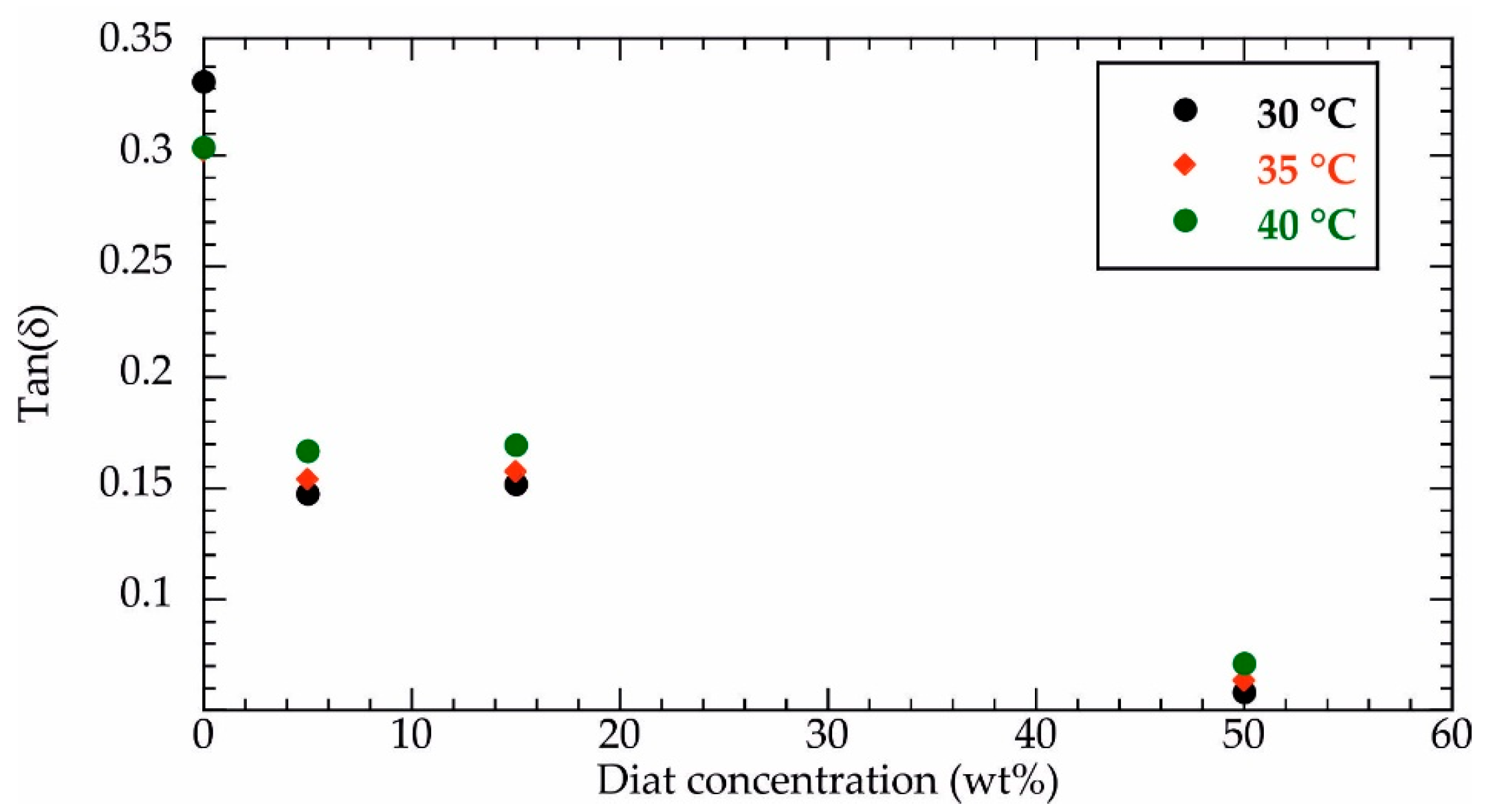

Figure 3. Tan(δ) as a function of Diat concentration at variable temperatures (30, 35 and 40 °C).
Figure 3. Tan(δ) as a function of Diat concentration at variable temperatures (30, 35 and 40 °C).
Molecules 29 01203 g003
Molecules 29 01203 g004

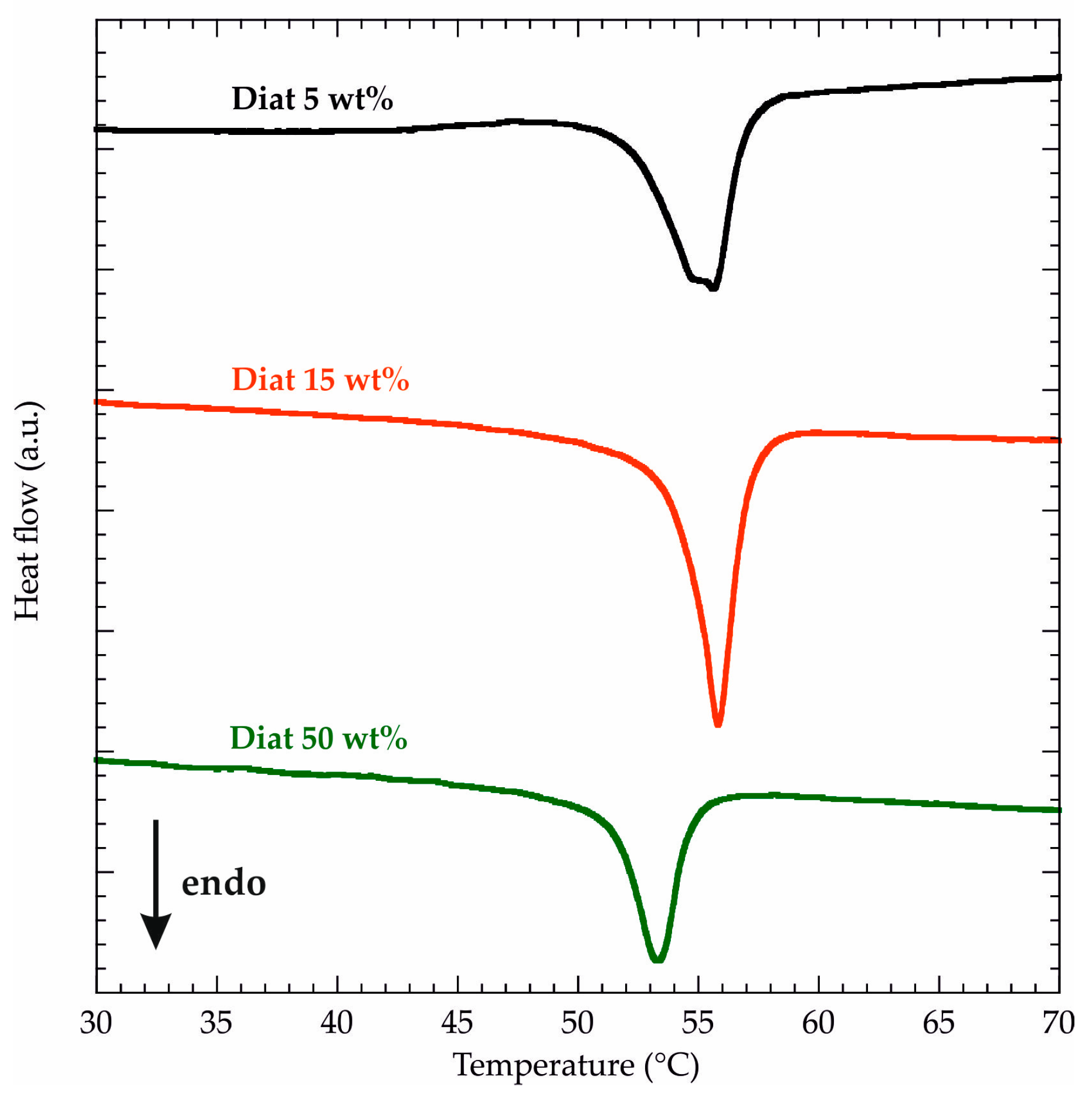

Figure 4. DSC curves (heating ramp) for PCL/Diat composites at variable compositions.
Figure 4. DSC curves (heating ramp) for PCL/Diat composites at variable compositions.
Molecules 29 01203 g004
Molecules 29 01203 g005
Figure 5. DSC curves (cooling ramp) for PCL/Diat composites at variable compositions.
Figure 5. DSC curves (cooling ramp) for PCL/Diat composites at variable compositions.
Molecules 29 01203 g005
Molecules 29 01203 g006

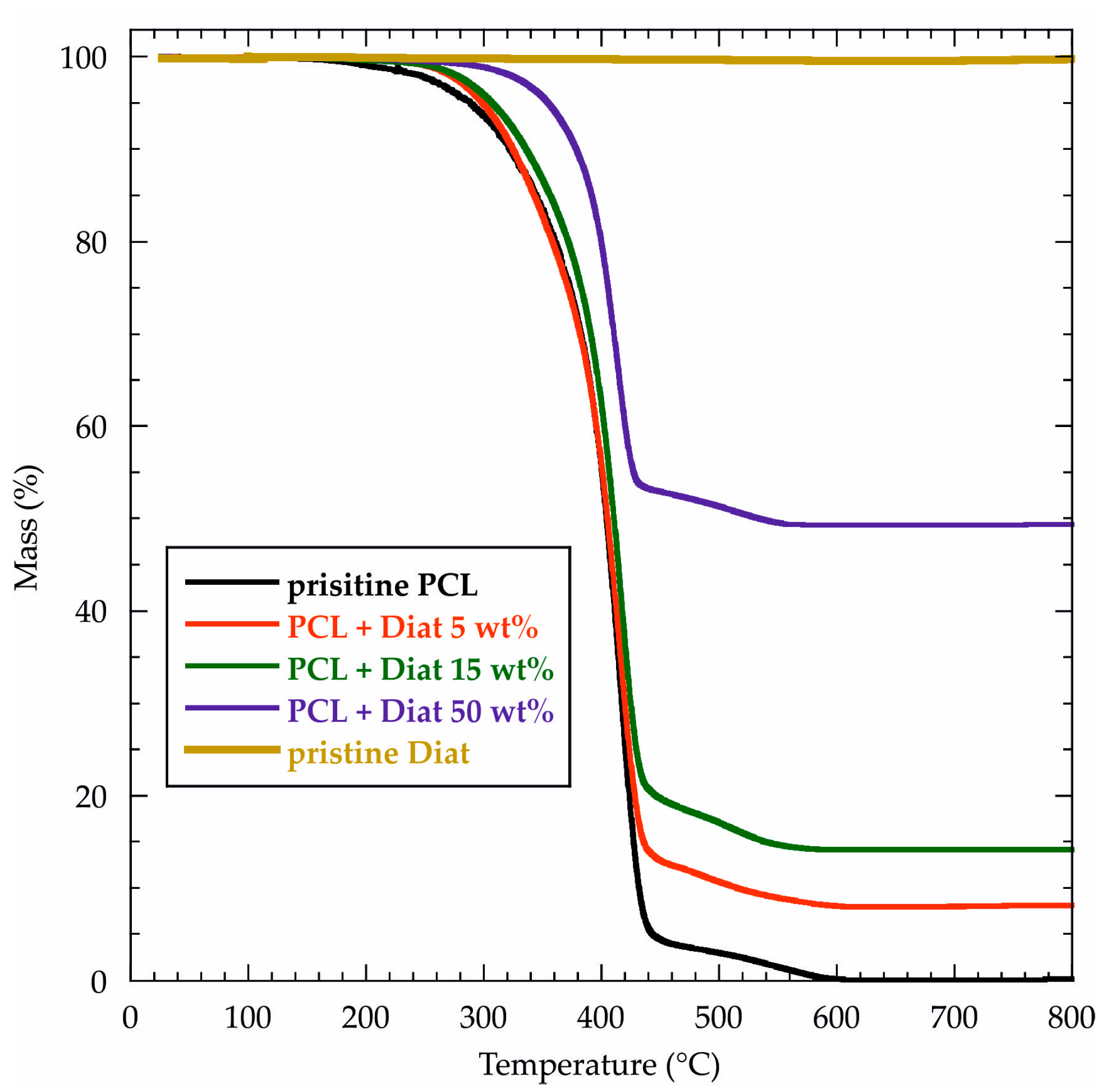

Figure 6. TG curves for pristine PCL, pristine Diat and PCL/Diat composites at variable compositions.
Figure 6. TG curves for pristine PCL, pristine Diat and PCL/Diat composites at variable compositions.
Molecules 29 01203 g006
Table 1. Temperature at G’ inflection point.
Table 1. Temperature at G’ inflection point.
SampleTG′inf (°C)
PCL66.0
PCL/Diat 5 wt%65.2
PCL/Diat 15 wt%65.3
PCL/Diat 50 wt%65.6
Table 2. Thermodynamic parameters of PCL melting obtained by DSC curves (heating ramp).
Table 2. Thermodynamic parameters of PCL melting obtained by DSC curves (heating ramp).
SampleTm (°C)ΔHm (J gPCL−1)
PCL57.368.0
PCL/Diat 5 wt%55.669.2
PCL/Diat 15 wt%55.876.6
PCL/Diat 50 wt%53.378.1
Table 3. Thermodynamic parameters of PCL melting obtained by DSC curves (cooling ramp).
Table 3. Thermodynamic parameters of PCL melting obtained by DSC curves (cooling ramp).
SampleTc (°C)ΔHc (J gPCL−1)
PCL36.7−68.4
PCL/Diat 5 wt%33.6−72.3
PCL/Diat 15 wt%36.9−72.1
PCL/Diat 50 wt%36.0−76.1
Table 4. Thermogravimetric parameters of pure PCL, pure Diat and PCL/Diat composites at variable compositions.
Table 4. Thermogravimetric parameters of pure PCL, pure Diat and PCL/Diat composites at variable compositions.
SampleTons (°C)MR800 (%)
PCL3110
PCL/Diat 5 wt%3228.07
PCL/Diat 15 wt%33014.1
PCL/Diat 50 wt%36249.3
Diat/99.5
Table 5. Amounts of PCL and Diat mixed for the preparation of the composites at variable compositions.
Table 5. Amounts of PCL and Diat mixed for the preparation of the composites at variable compositions.
SampleMass PCL/gMass Diat/g
PCL5.000
PCL/Diat 5 wt%5.000.26
PCL/Diat 15 wt%5.000.88
PCL/Diat 50 wt%5.005.00
