Synthesis of a 3,7-Disubstituted Isothiazolo[4,3-b]pyridine as a Potential Inhibitor of Cyclin G-Associated Kinase

by
Tom Grisez
1,
Nitha Panikkassery Ravi
1,
Mathy Froeyen
2,
Dominique Schols
3,
Luc Van Meervelt
4,
Steven De Jonghe
3 and
Wim Dehaen
1,*
1
Department of Chemistry, Sustainable Chemistry for Metals and Molecules, KU Leuven, Celestijnenlaan 200F, B-3001 Leuven, Belgium
2
Laboratory of Medicinal Chemistry, Rega Institute for Medical Research, Department of Pharmaceutical and Pharmacological Sciences, KU Leuven, Herestraat 49, P.O. Box 1041, B-3000 Leuven, Belgium
3
Laboratory of Virology and Chemotherapy, Rega Institute for Medical Research, Department of Microbiology, Immunology and Transplantation, KU Leuven, Herestraat 49, P.O. Box 1043, B-3000 Leuven, Belgium
4
Department of Chemistry, Biomolecular Architecture, KU Leuven, Celestijnenlaan 200F, B-3001 Leuven, Belgium
*
Author to whom correspondence should be addressed.
Molecules 2024, 29(5), 954; https://doi.org/10.3390/molecules29050954
Submission received: 15 January 2024 / Revised: 7 February 2024 / Accepted: 20 February 2024 / Published: 22 February 2024
(This article belongs to the Section Organic Chemistry)
Browse Figures
Versions Notes

Abstract

:
Disubstituted isothiazolo[4,3-b]pyridines are known inhibitors of cyclin G-associated kinase. Since 3-substituted-7-aryl-isothiazolo[4,3-b]pyridines remain elusive, a strategy was established to prepare this chemotype, starting from 2,4-dichloro-3-nitropyridine. Selective C-4 arylation using ligand-free Suzuki-Miyaura coupling and palladium-catalyzed aminocarbonylation functioned as key steps in the synthesis. The 3-N-morpholinyl-7-(3,4-dimethoxyphenyl)-isothiazolo[4,3-b]pyridine was completely devoid of GAK affinity, in contrast to its 3,5- and 3,6-disubstituted congeners. Molecular modeling was applied to rationalize its inactivity as a GAK ligand.

Graphical Abstract

1. Introduction

The Numb-associated kinase (NAK) family of serine/threonine kinases consists of four members in mammals: the adaptor-associated kinase I (AAK1), myristoylated and palmitoylated serine/threonine kinase I (MPSK1/STK16), BMP-2-induced kinase (BMP2K/BIKE), and cyclin G-associated kinase (GAK) [1]. The different NAKs are involved in a broad array of cellular activities, including trans-Golgi network (TGN) protein secretion [2,3,4], cell proliferation and differentiation [5], as well as cell division through mitosis [6].
GAK, specifically, is essential for clathrin-mediated endocytosis and plays an important role in the trans-Golgi network to lysosome trafficking [7,8]. GAK shares some functions with AAK1, including the ability to phosphorylate the adaptor protein 2 (AP2) µ–subunit [2]. This enhances the binding affinity of this unit for tyrosine- and dileucine-based sorting signals on receptor proteins in the plasma membrane [9,10]. Phosphorylation of the APs by GAK enhances their coupling to cargo proteins and recruits clathrin to the membrane to first form clathrin-coated pits and then clathrin-coated vesicles (CCVs) [7,11,12,13,14,15,16]. GAK is also involved in the uncoating of CCVs in the cytoplasm [7,17].
It has been demonstrated that GAK is required in the early and late stages of the lifecycle of various RNA viruses, such as the hepatitis C virus [18], the dengue virus, and the Ebola virus [19]. Hence, GAK has been designated as a “master regulator” of viral infection and is being pursued as a host target for the development of broad-spectrum antiviral agents. A repurposing approach has led to the identification of erlotinib (compound 1, Figure 1), an FDA-approved drug for the treatment of non-small-cell lung cancer, as a potent GAK inhibitor [8]. Erlotinib is endowed with broad-spectrum in vitro antiviral activity and displays in vivo activity in a preclinical murine model of hepatitis C virus infection [20]. The main pharmacological target of erlotinib is the epidermal growth factor receptor (EGFR), and its high GAK affinity is actually an off-target effect. Therefore, erlotinib is not an ideal probe to study GAK-related biology. In order to come up with potent, selective, and drug-like GAK inhibitors, two different chemotypes have been developed.
Several 4-anilinoquinolines and 4-anilinoquinazolines have been described with a nanomolar binding affinity to GAK and varying levels of kinase selectivity [21,22,23,24,25]. From this research, SGC-GAK-1 (compound 2, Figure 1) emerged as an excellent chemical probe for GAK. SGC-GAK-1 displays a potent GAK affinity, with an IC50 value of 48 nM in a GAK live cell target engagement assay and was over 50-fold selective for GAK when evaluated in a panel of more than 400 human kinases.
Our group has instead focused on isothiazolo[4,3-b]pyridine chemistry for the development of GAK inhibitors as broad-spectrum antiviral agents. The first series of isothia-zolo[4,3-b]pyridines carried a substituted aryl (usually a 3,4-dimethoxyphenyl or a 3-methoxy-4-amino-phenyl) at position 6 of the central scaffold, with structural modifications at position 3 [26]. GAK tolerated a considerable amount of structural variety in this position, ranging from saturated cycloaliphatic heterocycles (e.g., a morpholinyl, as found in compound 3, and a piperidinyl, as found in compound 4) to substituted phenyl rings (e.g., compound 5) [27]. More recently, the aryl group was moved from position 6 to position 5, yielding a series of 3,5-disubstituted isothiazolo[4,3-b]pyridines, exemplified by compound 6 [28]. Isothiazolo[4,3-b]pyridines 3–6 display potent GAK affinity and are endowed with cellular activity against various viruses [26,27,28].
In this work, the SAR of isothiazolo[4,3-b]pyridines as GAK inhibitors was expanded by moving the aryl group to position 7 of the scaffold, yielding a hitherto-unknown 3,7-disubstituted isothiazolo[4,3-b]pyridine. A 3,4-dimethoxyphenyl substituent was selected as the substituent at position 7, whereas, at position 3, a morpholinyl moiety was introduced, as this substitution pattern allows for a side-by-side comparison with the corresponding known 3,5- and 3,6-disubstituted isothiazolo[4,3-b]pyridines.

2. Results and Discussion

2.1. Chemistry

Previously, 3,6- (compound 8) and 3,5-disubstituted (compound 10) isothiazolo[4,3-b]pyridines were prepared from the commercially available halogenated 3-nitropicolinonitrile building blocks 7 and 9, respectively (Figure 2) [26,28]. In analogy, to access a 3,7-disubstituted isothiazolo[4,3-b]pyridine (compound 12), the availability of a C-4 halogenated 3-nitropicolinonitrile 11 is required. However, 4-halo-pyridines are not readily commercially available.
An alternative strategy was pursued starting from 2,4-dichloro-3-nitropyridine 13, which is a commercially available and inexpensive building block. The expected higher reactivity at the 2 position was circumvented using recently reported ligand-free Suzuki-Miyaura coupling under “Jeffery-Heck” reaction conditions [29]. Applying these reaction circumstances (using PdCl2 as the palladium salt, Na2CO3 as the inorganic base, and NBu4Br as the tetraalkylammonium additive) yielded the 4-arylated compound 14 in 66% yield (Scheme 1).
The product was initially characterized by 1H- and 13C-NMR spectroscopy, which was not conclusive due to the similarity in the expected signals of the two isomers. HMBC experiments seemed to support the formation of the desired isomer 14, as two long-range couplings were observed between a central carbon atom and two hydrogen atoms on the two aryl rings, as shown in Figure 3. This configuration would be more likely in the desired isomer.
As the designation of the regio-chemistry relied on the possibly ambiguous assignment of proton and carbon signals, the structure of 14 was confirmed by single-crystal X-ray crystallography (CCDC 2308765, Figure 4). The dihedral angle between both rings was 49.82(9)°. The best plane through the nitro group made an angle with the pyridine ring of 74.61(3)°.
The remaining chlorine at position 2 of the pyridine scaffold was exploited to introduce a nitrile group via a Rosenmund–Von Braun reaction (Scheme 2). This type of cyanation reactions typically requires harsh reaction conditions (150–280 °C) and usually starts from aryl iodides or aryl bromides. However, it has been shown that 2-chloro-6-methoxy-3-nitropyridine can be converted into 6-methoxy-3-nitropyridine-2-carbonitrile under rather mild reactions conditions (three equivalents of copper(I)cyanide in DMF at 90 °C for 5 h) [30]. Unfortunately, applying these reaction conditions to substrate 14 did not lead to the formation of the desired product 15, even after extensive heating for 24 h. Alternative cyanation procedures in which the cyanide anion was produced in situ from 2,4,6-trichloro-1,3,5-triazine (cyanuric chloride 16) and formamide in the presence of a base and then coupled via a heterogeneous palladium catalyst also did not afford the desired compound 15 [31].
The difficulties associated with the introduction of the nitrile moiety and the fact that, ultimately, a carbothioamide group needs to be installed at position 2 of the scaffold led us to redirect our efforts towards an aminocarbonylation reaction. The Pd-catalyzed aminocarbonylation of an aryl halide using a mixture of cyanuric chloride and dimethylformamide yielding a reactive amidating species has been shown previously to allow the installation of dimethylformamide on a (hetero)aryl scaffold [32]. Employing similar reaction conditions (i.e., using cyanuric chloride, formamide, and Pd(OAc)2/dppf as the catalytic system in DMF at 140 °C) on the 2-chloro-pyridine analogue 14 in an attempt to form the primary amide was unsuccessful, and no desired product 18 was isolated.
Therefore, alternative strategies to install the primary carboxamide moiety onto 2-chloropyridine 14 were explored. Carbon monoxide was generated in a two-chamber reactor by means of the reaction of mesyl chloride, formic acid, and triethylamine following a reported procedure [33]. Unfortunately, the different palladium-catalyzed reactions that were evaluated for the carbonylation of 2-chloropyridine 14 were unsuccessful. These included a phosphine-free approach using methoxyamine as the ammonia source and iodide as the palladium ligand [34] and a method using triphenylphosphine as the ligand, DMAP as the base, and formamide as the amine source [35].
Since the introduction of a primary amide was cumbersome, benzylamine was used as the amine source, as the benzyl group could theoretically be removed simultaneously with the reduction of the nitro group in the subsequent step. For the introduction of the benzylamide substituent by means of a palladium-catalyzed aminocarbonylation, Pd(OAc)2/Xantphos was selected as the catalytic system, sodium carbonate as the base, benzylamine as the amine, and toluene as the solvent, with CO gas generated in situ from mesyl chloride, formic acid, and triethylamine in a two-chamber reactor following a reported procedure [33]. Under these conditions (Entry 1, Table 1), the yield of the desired compound 20 was 23%, and the 2-benzylaminopyridine analogue 21 was also formed in 15% yield. Increasing the number of equivalents of the CO-surrogates from 1.3 to 2.6 (entries 1 and 2, respectively) improved the yield of compound 20 from 23% to 42%. To our delight, increasing the catalytic loading from 1% to 2.5% allowed us to further increase the yield of the desired compound 20 to 78%.
The catalytic hydrogenation of 20 using Pd/C and hydrogen gas yielded the complete reduction of the nitro to the corresponding amino group but did not cleave off the benzyl group. Alternative methods to remove the benzyl moiety, such as the treatment of 20 with Lewis and Brønsted–Lowry acids or oxidative cleavage with N-bromosuccinimide (NBS) and N-methylacetamide (NMA), were equally unsuccessful [36].
It was, therefore, decided to switch to the more electron-rich para-methoxybenzyl (PMB) protecting group, since this group had been anticipated to be easier to remove. Hence, the aminocarbonylation of 14 with p-methoxybenzylamine as the amine source using the previously optimized reaction conditions (i.e., 2.6 eq. of CO gas-surrogates and a catalyst loading of 2.5 mol%) yielded the desired compound 23 in 67% yield, along with a minor amount (6%) of side product 24 (Scheme 3). Oxidative cleavage with cerium ammonium nitrate (CAN) or acidic deprotection with trifluoroacetic acid (TFA) of the PMB-protecting group of intermediate 23 gave the 3-nitropyridine derivative 18 in good yield (84% and 75%, respectively). Unfortunately, the subsequent thionation of the amide moiety with phosphorus pentasulfide or Lawesson’s reagent did not provide compound 25. Therefore, the nitro group of intermediate 23 was first reduced by treatment with iron in acetic acid giving the 3-amino-pyridine analogue 26 in 89% yield. Then, treatment with Lawesson’s reagent in toluene afforded thioamide 27 in 51% yield. The work-up of this thionation reaction included refluxing the crude reaction mixture in a concentrated sodium bicarbonate solution to destroy the side products of the Lawesson’s reagent, which otherwise hampered the purification. Oxidative cyclization of the protected thioamide 27 provided the 3,7-disubstituted isothiazolo[4,3-b]pyridine 28 in 85% yield. The previously successful methods of deprotection of the PMB-group (CAN and TFA) afforded very complex reaction mixtures and low yields of the product on this substrate. Alternatively, oxidative deprotection using 2,3-dichloro-5,6-dicyano-1,4-benzoquinone (DDQ) afforded the 3-amino-isothiazolo[4,3-b]pyridine 29 in moderate yield (44%) in a much cleaner reaction. Finally, the exocyclic amino group was cyclized into a morpholine by means of treatment with bis(2-bromoethyl) ether in a diluted reaction mixture, affording target compound 12 in 52% yield.

2.2. GAK Affinity Studies

The 3,7-disubstituted isothiazolo[4,3-b]pyridine analogue 12 was evaluated for its GAK affinity in a LanthaScreen® Eu GAK binding assay [37], which is based on the displacement of a proprietary Alexa Fluor® 647-labeled, ATP-competitive GAK inhibitor known as a kinase tracer. When both the tracer and a europium-labeled anti-tag antibody are bound to GAK, a high degree of FRET (fluorescence resonance energy transfer) is observed from the europium (Eu) donor fluorophore to the Alexa Fluor® 647 acceptor fluorophore on the kinase tracer. An effective GAK inhibitor should displace the tracer, which would decrease the amount of observed FRET, which allows for the determination of the IC50 value.
The 3,7-disubstituted isothiazolo[4,3-b]pyridine analogue 12 completely lacked GAK affinity. This is in sharp contrast with the two other regio-isomers (i.e., the 3,5 and 3,6-disubstituted isothiazolo[4,3-b]pyridines 10 and 8) that did show potent GAK binding in the LanthaScreen assay (Table 2).

2.3. Molecular Modeling

To rationalize the lack of GAK affinity of the novel derivative 12, the three regio-isomeric isothiazolo[4,3-b]pyridines were submitted for a docking analysis using the experimentally determined co-crystal structure of compound 3 with GAK (PDB 4Y8D). As expected, the 3,6-disubstituted derivative 8 adopted a binding mode that is very similar to that of compound 3 in 4Y8D (Figure 5a). This means that compound 8 acts as a typeI kinase inhibitor, binding to the active conformation (also known as DFG-in) of GAK in the ATP-binding pocket. Key interactions between the isothiazolo[4,3-b]pyridine core of compound 8 and the hinge region of GAK include a hydrogen bond between the nitrogen of the isothiazole moiety and both the backbone NH and sidechain SH of Cys126 [38], along with a chalcogen bond (ChB) interaction [39] between the sulfur of the isothiazole ring and both the backbone oxygen of Glu124 and the alcoholic oxygen of Thr123. These residues’ backbones would normally form hydrogen bonds with the amine and N1 of adenosine (Figure 5a). The 3,4-dimethoxyphenyl moiety of compound 8 is oriented towards the solvent. The morpholinyl moiety contributes to binding by means of Van der Waals interactions with the sidechain atoms of residues Val54, Ala67, and Thr123.
The initial prediction of the binding mode by docking revealed that the 3,5-disubstituted analogue 10 did not dock in a similar way to compound 8, prevented by a steric clash between the para-methoxy group and the sidechain of Ala47. Careful examination of the existing GAK structures in the PDB database indicated that the loop with amino acids 38–57 is flexible. Superimposition of this loop from PDB entry 4C57 [4] onto the 4Y8D structure and repeating the docking resulted in a similar orientation of compound 10 to compound 8 in the binding pocket, maintaining all important interactions with the hinge region of GAK. (Figure 5b). This explains the similar activities of compounds 8 and 10 as GAK binders. The software also docked the 3,7-disubstituted analogue 12 in the same plane as the parent analogue 3 but with the isothiazole moiety rotated and shifted away from the hinge region so that no observable directional interactions were formed between the central scaffold of compound 12 and the kinase, which explained the lack of GAK affinity of isothiazolo[4,3-b]pyridine 12.

3. Materials and Methods

3.1. Chemistry

The chemicals were obtained from Acros Organics (Geel, Belgium), Alfa Aesar (Lancashire, UK), BLD Pharma (Reinbek, Germany), Fluorochem (Glossop, UK), J&K Scientific (Lommel, Belgium), Merck/Sigma Aldrich (Darmstadt, Germany), and TCI Chemicals (Zwijndrecht, Belgium) and were used without further purification unless otherwise specified. NMR measurements were performed on a Bruker Avance III HD 400 MHz or a Bruker Avance II+ 600 MHz, and chemical shifts (δ) were reported in parts per million (ppm) in reference to tetramethylsilane or the internal NMR solvent signal. Coupling constants (J) were reported in hertz (Hz). HR-MS spectra were acquired on a quadrupole orthogonal acceleration time-of-flight mass spectrometer (Synapt G2 HDMS, Waters, Milford, MA, USA). The samples were infused at 3 µL/min, and the spectra were obtained in a positive ionization mode with a resolution of 15000 (FWHM), using leucine enkephalin as the lock mass. Melting points were measured on a Reichert-Jung Thermovar system and are uncorrected. TLC analysis was performed on TLC aluminum sheets bought from Sigma Aldrich (pore diameter of 60 Å, fluorescent indicator at 254 nm). The products were visualized by UV irradiation at 254 or 365 nm or under visible light. Homemade two-chamber reactors were modeled after the COware design by the Skrydstrup group [40].

3.1.1. 2-Chloro-4-(3,4-dimethoxyphenyl)-3-nitropyridine (14)

To a 250 mL two-necked round-bottom flask (RBF) equipped with a stir bar were added PdCl2 (0.138 g, 0.777 mmol, 0.05 equiv.), 2,4-dichloro-3-nitropyridine (3.000 g, 15.5 mmol, 1.0 equiv.), 3,4-dimethoxyphenylboronic acid (3.112 g, 17.1 mmol, 1.1 equiv.), Na2CO3 (4.943 g, 46.6 mmol, 3.0 equiv.), and NBu4Br (25.058 g, 77.7 mmol, 5.0 equiv.); a condenser was attached; and the apparatus was then purged with nitrogen gas for 15 min in a sonication bath. To this were added DMF (62.2 mL) and water (1.5 mL), both purged separately with nitrogen gas for 15 min. The RBF was heated in an oil bath at 110 °C for 17 h under a nitrogen atmosphere. The apparatus was then left to cool. A total of 400 mL of water was added, and the products were extracted five times into EtOAc (125 mL). The organic layers were combined and washed five times with water and once with conc. brine (75 mL). The organic layers were dried with anhydrous sodium sulfate and filtered, and solvent was removed in vacuo. The product could be recrystallized from EtOH as orange crystals (2.95 g, 10.0 mmol, 64%) or, for smaller quantities, purified via silica gel column chromatography using petroleum ether (PE)/EtOAc (7:3). The title compound was, in this case, isolated as a yellow powder (1.12 g, 3.4 mmol, 66%).
MP 155.8–158.3 °C. 1H NMR (400 MHz, CDCl3) δ 8.49 (d, J = 5.1 Hz, 1H), 7.37 (d, J = 5.1 Hz, 1H), 6.97 (dd, J = 8.3, 2.0 Hz, 1H), 6.93 (d, J = 8.3 Hz, 1H), 6.88 (d, J = 2.0 Hz, 1H), 3.91 (s, 3H), 3.88 (s, 3H).13C NMR (101 MHz, CDCl3) δ 151.0, 150.0, 149.6, 145.2, 144.4, 142.3, 125.2, 124.3, 120.8, 111.8, 110.5, 56.13, 56.12. HR-MS (ESI-Q-TOF): m/z[M+H]+ C13H11ClN2O4 Calculated: 295.0480. Measured: 295.0484.

3.1.2. 4-(3,4-Dimethoxyphenyl)-3-nitropicolinamide (18)

Two procedures were used.
Procedure A: To a vial with a screw cap equipped with a stir bar was added 23 (50.0 mg, 118.1 µmol, 1.0 equiv.), followed by CAN (323.7 mg, 0.59 mmol, 5.0 equiv.), water (1.5 mL), and ACN (1.5 mL). The vial was heated at reflux for 3 h. Water (10 mL) was added, and the product was extracted three times into EtOAc (15 mL). The organic layers were combined, washed once with brine, dried with anhydrous sodium sulfate, and filtered. The solvent was removed in vacuo. The product was purified via silica gel column chromatography using PE/EtOAc (2:8). The title compound was isolated as slightly yellow flakes (30.0 mg, 0.1 mmol, 84%).
Procedure B: To an RBF (10 mL) equipped with a stir bar was added 23 (20.0 mg, 0.047 mmol, 1.0 equiv.), followed by TFA (0.47 mL). A condenser was attached, and the RBF was placed in an oil bath at 70 °C for 16 h. The RBF was allowed to cool, and a conc. sodium bicarbonate solution was added until neutralized. The products were extracted three times into EtOAc (10 mL). The organic layers were combined and washed with brine, dried with anhydrous sodium sulfate, and filtered. The solvent was removed in vacuo. The product was purified via silica gel column chromatography using PE/EtOAc (4:6). The title compound was isolated as slightly yellow flakes (10.3 mg, 0.033 mmol, 71%). The solubility of this compound in various NMR solvents was extremely low, and, as such, only a 1H NMR spectrum could be collected.
MP 254.4–257.4 °C. 1H NMR (400 MHz, DMSO-d6) δ 8.82 (d, J = 5.0 Hz, 1H), 8.39 (s, 1H), 8.00 (s, 1H), 7.85 (d, J = 5.0 Hz, 1H), 7.09 (d, J = 8.4 Hz, 1H), 7.02 (d, J = 2.2 Hz, 1H), 6.94 (dd, J = 8.3, 2.2 Hz, 1H), 3.81 (s, 3H), 3.78 (s, 3H).

3.1.3. N-Benzyl-4-(3,4-dimethoxyphenyl)-3-nitropicolinamide (20)

To chamber A of a flame-dried two-chamber reactor (10 mL) equipped with a stir bar in each chamber were added Pd(OAc)2 (1.0 mg, 4.5 µmol, 0.026 equiv.), XantPhos (3.0 mg, 5.2 µmol, 0.031 equiv.), Na2CO3 (53.9 mg, 0.51 mmol, 3.0 equiv.), and 14 (50.0 mg, 0.17 mmol, 1.0 equiv.). The apparatus was purged with nitrogen gas for 15 min. All the following reagents were added via a syringe. To chamber B was added dry nitrogen-purged toluene (2 mL). To this were added mesyl chloride (0.034 mL, 0.44 mmol, 2.6 equiv.) and formic acid (0.019 mL, 0.44 mmol, 2.6 equiv.). To chamber A were added dry nitrogen-purged toluene (0.5 mL) and para-methoxybenzylamine (27.3 mg, 0.25 mmol, 1.5 equiv.). Et3N (0.12 mL, 0.88 mmol, 5.2 equiv.) was added dropwise to chamber B at room temperature. After two minutes of stirring at room temperature, the two-chamber reactor was placed in an oil bath at 100 °C. After 2.5 h, the reactor was removed from the oil bath and allowed to cool fully. The reactor was vented while stirring for five minutes at room temperature. The contents were transferred to a separatory funnel; water (20 mL) was added; and the products were extracted three times into EtOAc (7.5 mL). The organic layers were combined and washed once with brine, dried with anhydrous sodium sulfate, and filtered. The solvent was removed in vacuo. The product was purified via silica gel column chromatography using PE/EtOAc (7:3–0:10). The title compound was isolated as a yellow powder (52.0 mg, 0.132 mmol, 78%).
MP 127.6–128.9 °C. 1H NMR (400 MHz, CDCl3) δ 8.60 (d, J = 4.9 Hz, 1H), 8.25 (t, J = 6.0 Hz, 1H), 7.55 (d, J = 4.9 Hz, 1H), 7.36 (d, J = 4.4 Hz, 4H), 7.30 (td, J = 8.9, 8.5, 4.5 Hz, 1H), 6.97 (dd, J = 8.3, 2.1 Hz, 1H), 6.92 (d, J = 8.3 Hz, 1H), 6.90 (d, J = 2.1 Hz, 1H), 4.63 (d, J = 6.1 Hz, 2H), 3.91 (s, 3H), 3.88 (s, 3H).13C NMR (101 MHz, CDCl3) δ 160.9, 150.7, 149.4, 148.7, 145.8, 143.8, 140.6, 137.7, 128.9 (2C), 128.3, 128.1 (2C), 127.8, 125.4, 121.1, 111.6, 111.0, 56.12, 56.09, 43.7.

3.1.4. N-Benzyl-4-(3,4-dimethoxyphenyl)-3-nitropyridin-2-amine (21)

The title compound was isolated as a side product of 20, eluting first off the column, isolated as a yellow oil (9.0 mg, 24.6 µmol, 15%).
MP 114.9–118 °C. 1H NMR (400 MHz, CDCl3) δ 8.28 (d, J = 4.9 Hz, 1H), 7.42–7.27 (m, 5H), 6.99 (t, J = 5.7 Hz, 1H), 6.91 (d, J = 8.3 Hz, 1H), 6.88 (dd, J = 8.3, 1.9 Hz, 1H), 6.80 (d, J = 1.9 Hz, 1H), 6.62 (d, J = 4.9 Hz, 1H), 4.79 (d, J = 5.5 Hz, 2H), 3.92 (s, 3H), 3.88 (s, 3H). 13C NMR (101 MHz, CDCl3) δ 151.8, 151.5, 149.9, 149.4, 147.1, 138.6, 130.3, 129.5, 128.9 (2C), 127.8 (2C), 127.6, 119.9, 115.1, 111.5, 110.4, 56.13, 56.07, 45.6.

3.1.5. 4-(3,4-Dimethoxyphenyl)-N-(4-methoxybenzyl)-3-nitropicolinamide (23)

To chamber A of a flame-dried two-chamber reactor (100 mL) equipped with a stir bar in each chamber were added Pd(OAc)2 (10.0 mg, 0.045 mmol, 0.026 equiv.), XantPhos (30.0 mg, 0.052 mmol, 0.031 equiv.), Na2CO3 (539.5 mg, 5.1 mmol, 3.0 equiv.), and 14 (500.0 mg, 1.697 mmol, 1.0 equiv.). The apparatus was purged with nitrogen gas for 15 min. All the following reagents were added via a syringe. To chamber B was added dry nitrogen-purged toluene (20 mL). To this were added mesyl chloride (0.341 mL, 4.4 mmol, 2.6 equiv.) and formic acid (0.189 mL, 4.4 mmol, 2.6 equiv.). To chamber A were added dry nitrogen-purged toluene (5 mL) and para-methoxybenzylamine (349.1 mg, 2.5 mmol, 1.5 equiv.). Et3N (1.2 mL, 8.8 mmol, 5.2 equiv.) was added dropwise to chamber B at room temperature. After two minutes of stirring at room temperature, the two-chamber reactor was placed in an oil bath at 100 °C. After 2.5 h, the reactor was removed from the oil bath and allowed to cool fully. The reactor was vented while stirring for five minutes at room temperature. The contents were transferred to a separatory funnel; water (200 mL) was added; and the products were extracted three times into EtOAc (75 mL). The organic layers were combined and washed once with brine, dried with anhydrous sodium sulfate, and filtered. The solvent was removed in vacuo. The product was purified via silica gel column chromatography using PE/EtOAc (7:3–0:10). The title compound was isolated as a yellow powder (480.0 mg, 1.06 mmol, 67%).
MP 175.5–177.5 °C 1H NMR (600 MHz, CDCl3) δ 8.59 (d, J = 4.9 Hz, 1H), 8.17 (t, J = 5.9 Hz, 1H), 7.54 (d, J = 4.9 Hz, 1H), 7.32–7.26 (m, 2H), 6.97 (dd, J = 8.3, 2.1 Hz, 1H), 6.93 (d, J = 8.3 Hz, 1H), 6.90 (d, J = 2.1 Hz, 1H), 6.90–6.86 (m, 2H), 4.57 (d, J = 5.9 Hz, 2H), 3.91 (s, 3H), 3.88 (s, 3H), 3.80 (s, 3H). 13C NMR (151 MHz, CDCl3) δ 160.7, 159.2, 150.7, 149.3, 148.5, 145.7, 143.7, 140.6, 129.7, 129.5 (2C), 128.1, 125.3, 121.0, 114.2 (2C), 111.5, 110.9, 55.99, 55.96, 55.3, 43.1. HR-MS (ESI-Q-TOF): m/z[M+H]+ C22H21N3O6 Calculated: 424.1503. Measured: 424.1496.

3.1.6. 4-(3,4-Dimethoxyphenyl)-N-(4-methoxybenzyl)-3-nitropyridin-2-amine (24)

The title compound was isolated as a side product of 23, eluting first off the column, isolated as a yellow oil (31.0 mg, 78.4 µmol, 6%).
MP 89.5–91.2 °C. 1H NMR (400 MHz, CDCl3) δ 8.28 (d, J = 4.9 Hz, 1H), 7.34–7.28 (m, 2H), 6.93–6.87 (m, 4H), 6.80 (d, J = 1.9 Hz, 1H), 6.61 (d, J = 4.9 Hz, 1H), 4.71 (d, J = 5.4 Hz, 2H), 3.91 (s, 3H), 3.88 (s, 3H), 3.81 (s, 3H). 13C NMR (101 MHz, CDCl3) δ 159.2, 151.5, 151.2, 149.9, 149.3, 147.2, 130.5, 130.2, 129.34, 129.20 (2C), 119.9, 115.0, 114.2 (2C), 111.5, 110.4, 56.10, 56.04, 55.4, 45.2.

3.1.7. 3-Amino-4-(3,4-dimethoxyphenyl)-N-(4-methoxybenzyl)picolinamide (26)

To a flame-dried vial with a screw cap equipped with a stir bar was added iron powder (263.8 mg, 4.7 mmol, 4.25 equiv.), followed by 23 (450.0 mg, 1.06 mmol, 1.0 equiv.) and AcOH (10.6 mL, 0.100 M). The vial was closed, brought under a nitrogen atmosphere, and then heated at 70 °C for 20 h. The solvent was removed in vacuo, and the remaining slurry was neutralized dropwise with a sodium bicarbonate solution until it reached a pH of 8. The product was extracted three times into EtOAc (75 mL). The organic layers were combined and washed three times with brine (20 mL) and then dried with anhydrous sodium sulfate and filtered. The solvent was removed in vacuo. The product was purified via silica gel column chromatography using PE/EtOAc (7:3). The title compound was isolated as an off-white powder (372.0 mg, 0.94 mmol, 89%) that fluoresced blue under UV light in solution.
MP 144.3–146.1 °C. 1H NMR (400 MHz, CDCl3) δ 8.50 (t, J = 6.0 Hz, 1H), 7.85 (d, J = 4.5 Hz, 1H), 7.34–7.28 (m, 2H), 7.08 (d, J = 4.5 Hz, 1H), 6.99 (d, J = 2.1 Hz, 2H), 6.94 (d, J = 1.6 Hz, 1H), 6.91–6.85 (m, 2H), 6.27 (s, 2H), 4.56 (d, J = 6.0 Hz, 2H), 3.94 (s, 3H), 3.90 (s, 3H), 3.80 (s, 3H). 13C NMR (101 MHz, CDCl3) δ 167.8, 158.9, 149.5, 149.3, 143.6, 136.7, 136.3, 130.7, 130.0, 129.1 (2C), 128.7, 127.4, 121.0, 114.1 (2C), 111.7, 111.5, 56.03, 56.01, 55.3, 42.6. HR-MS (ESI-Q-TOF): m/z[M+H]+ C22H23N3O4 Calculated: 394.1761. Measured: 394.1758.

3.1.8. 3-Amino-4-(3,4-dimethoxyphenyl)-N-(4-methoxybenzyl)pyridine-2-carbothioamide (27)

To a flame-dried vial with a screw cap equipped with a stir bar was added 26 (372.0 mg, 0.94 mmol, 1.0 equiv.), followed by Lawesson’s reagent (1.800 g, 4.45 mmol, 4.7 equiv.) and dry nitrogen-purged toluene (14.8 mL), and was heated in an oil bath at 110 °C for several hours. The solvent was removed in vacuo, after which conc. sodium bicarbonate (100 mL) and EtOAc (20 mL) were added and stirred vigorously at 70 °C for 5 h. The product was extracted three times into EtOAc (50 mL). The organic layers were combined, washed with brine, dried with anhydrous sodium sulfate, and filtered. The solvent was removed in vacuo. The product was purified via silica gel column chromatography using PE/EtOAc (7:3). The title compound was isolated as an orange powder (197.0 mg, 0.48 mmol, 51%).
MP 156.8–174.6 °C. 1H NMR (600 MHz, CDCl3) δ 10.54 (s, 1H), 7.82 (d, J = 4.3 Hz, 1H), 7.39–7.31 (m, 2H), 7.14 (s, 2H), 7.07 (d, J = 4.3 Hz, 1H), 6.98 (d, J = 2.2 Hz, 2H), 6.93 (d, J = 1.4 Hz, 1H), 6.93–6.91 (m, 2H), 4.90 (d, J = 5.4 Hz, 2H), 3.94 (s, 3H), 3.90 (s, 3H), 3.82 (s, 3H). 13C NMR (151 MHz, CDCl3) δ 190.0, 159.3, 149.5, 149.3, 144.2, 138.7, 135.2, 131.0, 129.7 (2C), 128.9, 128.8, 127.5, 121.1, 114.2 (2C), 111.8, 111.6, 56.1, 56.0, 55.3, 48.2. HR-MS (ESI-Q-TOF): m/z[M+H]+ C22H23N3O3S Calculated: 410.1532. Measured: 410.1511.

3.1.9. 7-(3,4-Dimethoxyphenyl)-N-(4-methoxybenzyl)isothiazolo[4,3-b]pyridin-3-amine (28)

To a vial with a screw cap equipped with a stir bar were added 27 (190.0 mg, 0.46 mmol, 1.0 equiv.), MeOH (5 mL), and DCM (25 mL). Under stirring at room temperature, 30% H2O2 in water (0.200 mL) was added dropwise. The vial was capped and stirred at 40 °C for 18h. Water (100 mL) was added, and the product was extracted three times with DCM (100 mL). The organic layers were combined and washed once with brine and then dried with anhydrous sodium sulfate and filtered. The solvent was removed in vacuo, and the residue was purified via silica gel column chromatography using PE/EtOAc (6:4–0:10 in steps of 10% every 50 mL). The title compound was isolated as a yellow powder that fluoresced green–yellow in solution under UV light (160.0 mg, 0.393 mmol, 85%).
MP 161.8–168.2 °C. 1H NMR (600 MHz, CDCl3) δ 8.36 (d, J = 4.2 Hz, 1H), 7.73 (d, J = 2.0 Hz, 1H), 7.68 (dd, J = 8.4, 2.0 Hz, 1H), 7.40–7.34 (m, 2H), 7.32 (d, J = 4.2 Hz, 1H), 7.01 (d, J = 8.4 Hz, 1H), 6.95–6.90 (m, 2H), 6.52 (t, J = 5.4 Hz, 1H), 4.51 (d, J = 5.3 Hz, 2H), 3.96 (s, 3H), 3.94 (s, 3H), 3.82 (s, 3H). 13C NMR (151 MHz, CDCl3) δ 171.3, 159.7, 152.6, 149.9, 148.9, 144.7, 139.8, 136.1, 129.5 (2C), 128.7, 127.7, 122.0, 120.7, 114.3 (2C), 112.4, 111.1, 56.0, 56.0, 55.3, 51.3. HR-MS (ESI-Q-TOF): m/z[M+H]+ C22H21N3O3S Calculated: 408.1376. Measured 408.1369.

3.1.10. 7-(3,4-Dimethoxyphenyl)isothiazolo[4,3-b]pyridin-3-amine (29)

To a vial with a screw cap equipped with a stir bar was added 28 (140.0 mg, 0.34 mmol, 1.0 equiv.), followed by DCM (6.9 mL) and water (0.3 mL). To this was added DDQ (171.4 mg, 0.76 mmol, 2.2 equiv.) at room temperature, and then this was stirred for 6 h at room temperature. A conc. sodium bicarbonate solution was added, and the product was extracted three times into DCM (50 mL). The organic layers were combined and washed with a conc. sodium bicarbonate solution and a conc. brine solution and then dried with anhydrous sodium sulfate and filtered. The solvent was removed in vacuo. The title compound was purified via silica gel column chromatography using PE/EtOAc (3:7) and isolated as a brown powder that fluoresced green-yellow in solution under UV-light (43.0 mg, 0.15 mmol, 44%).
MP 201.3–205.1 °C. 1H NMR (600 MHz, CDCl3) δ 8.45 (d, J = 4.2 Hz, 1H), 7.72 (d, J = 2.0 Hz, 1H), 7.69 (dd, J = 8.3, 2.1 Hz, 1H), 7.32 (d, J = 4.2 Hz, 1H), 7.02 (d, J = 8.3 Hz, 1H), 5.62 (s, 2H), 3.97 (s, 3H), 3.95 (s, 3H). 13C NMR (151 MHz, CDCl3) δ 169.5, 152.9, 150.1, 148.9, 145.9, 140.3, 137.0, 128.4, 122.1, 120.5, 112.5, 111.2, 56.1, 56.0. HR-MS (ESI-Q-TOF): m/z[M+H]+ C14H13N3O2S Calculated: 288.0801. Measured: 288.0808.

3.1.11. 4-(7-(3,4-Dimethoxyphenyl)isothiazolo[4,3-b]pyridin-3-yl)morpholine (12)

To an oven-dried vial with a screw cap equipped with a stir bar was added 29 (20.0 mg, 69.6 µmol, 1.4 equiv.), followed by anhydrous K2CO3 (19.2 mg, 139.2 µmol, 2.9 equiv.). The vial was purged with nitrogen gas. Dry nitrogen-purged DMF (15.0 mL) was then added. Bis(2-bromoethyl)ether (11.3 mg, 48.7 µmol, 1.0 equiv.) was added via a syringe. The vial was placed in a hot oil bath at 100 °C for 3 h. Water was added, and the product was extracted three times into EtOAc (50 mL). The organic layers were washed three times with water (15 mL) and once with brine (15 mL) and then dried with anhydrous sodium sulfate and filtered. The solvent was removed in vacuo, and the residue was purified via silica gel column chromatography using PE/EtOAc (4:6). The title compound was isolated as an orange powder that fluoresced green–yellow in solution under UV light (9.0 mg, 25.2 µmol, 52%).
MP 156.2–159.8 °C. 1H NMR (600 MHz, CDCl3) δ 8.42 (d, J = 4.2 Hz, 1H), 7.65–7.59 (m, 2H), 7.26 (d, J = 4.0 Hz, 1H), 7.01 (d, J = 8.1 Hz, 1H), 3.99–3.93 (m, 14H). 13C NMR (151 MHz, CDCl3) δ 173.8, 154.7, 149.9, 148.9, 144.8, 140.4, 136.6, 128.6, 122.2, 120.2, 112.5, 111.2, 66.3 (2C), 56.04, 56.01, 50.6 (2C). HR-MS (ESI-Q-TOF): m/z[M+H]+ C18H19N3O3S Calculated: 358.1220. Measured: 358.1219.

3.2. GAK Affinity Studies

The GAK affinity studies were performed by Thermo Fisher Scientific (SelectScreen services), as described before [27]. Briefly, compounds 8, 10, and 12 were evaluated in a LanthaScreen™ GAK binding assay in which 10 titrations of the test compound solubilized in DMSO were transferred to a 384-well plate. This was followed by the addition of the kinase buffer (50 mM HEPES pH 7.5, 0.01% BRIJ-35, 10 mM MgCl, and 1 mM EGTA), the 2X kinase antibody (Eu Anti GST) mixture, and the 4X Tracer 222 solution. After shaking for 30 s and incubation for one hour at room temperature, the plate was read on a fluorescence plate reader. When the bound tracer in the active site was displaced by the test compound, fluorescence was not observed. The collected data were compared to a 0% displacement control with pure DMSO and a 100% displacement control with staurosporine, a known inhibitor of GAK, and were plotted against the logarithmic concentration parameter. The IC50 values were then extracted and calculated.

3.3. X-ray Crystallography

For the X-ray crystallography, a suitable crystal of compound 14 was selected, and intensity data were collected at 293(2) K on an Agilent SuperNova diffractometer with an Eos CCD detector using MoKα radiation. Using Olex2 [41], the structure was solved with the SHELXT [42] structure solution program using intrinsic phasing and refined with the SHELXL [43] refinement package using full-matrix least-squares minimization on F2. Non-hydrogen atoms were refined anisotropically, and hydrogen atoms were refined in the riding mode with isotropic temperature factors fixed at 1.2 times Ueq of the parent atoms (1.5 for the methyl groups). The crystal data, data collection, and structure refinement details are summarized in Table S1.

3.4. Molecular Modeling

Dockings were performed with Autodock Vina 1.2.3 [44]. PDB entry 4Y8D [26] (human GAK kinase) was prepared for docking in the ATP-binding site. The resulting figures were made using UCSF Chimera [45].

4. Conclusions

In order to expand the SAR of isothiazolo[4,3-b]pyridines as GAK inhibitors, a 3,7-disubstituted isothiazolo[4,3-b]pyridine was needed. To access this unexplored chemotype, a novel synthetic procedure was developed, starting from 2,4-dichloro-3-nitropyridine as a building block. A regio-selective C-4 Suzuki arylation reaction and palladium-catalyzed aminocarbonylation were the key steps in this synthetic sequence. Unlike the 3,5- and 3,6-disubstituted isomers, the 3-N-(morpholinyl)-7-(3,4-dimethoxyphenyl)-isothiazolo[4,3-b]pyridine was completely inactive as a GAK inhibitor. Molecular modeling demonstrated that the substituent at position 7 prevented effective interactions between the isothiazole moiety and the kinase hinge region.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/molecules29050954/s1: Table S1: Crystal data and structure refinement for compound 14. Figures S1–S21: Copies of NMR spectra of the intermediates and the final compound.

Author Contributions

Conceptualization, T.G., N.P.R., W.D. and S.D.J.; methodology, T.G., N.P.R., W.D. and S.D.J.; formal analysis, L.V.M. and M.F.; investigation, T.G.; resources, W.D., L.V.M., M.F. and S.D.J.; writing—original draft preparation, T.G., S.D.J., L.V.M. and M.F.; writing—review and editing, T.G., S.D.J. and W.D.; visualization, T.G., S.D.J., L.V.M. and M.F.; supervision, N.P.R., D.S., S.D.J. and W.D.; project administration, D.S., S.D.J. and W.D.; funding acquisition, D.S., S.D.J. and W.D. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by award number W81XWH2110456 from the Department of Defense (DoD, United States Army Medical Research Acquisition Activity, USAMRAA). Tom Grisez is holder of a Strategic Basic research grant by the Research Foundation—Flanders (FWO), grant number 1SH1F24N. Mass spectrometry was made possible by the support of the Hercules Foundation of the Flemish Government (grant 20100225–7). X-ray crystallography was made possible by the support of the Hercules Foundation of the Flemish Government (grant AKUL/09/0035).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Crystallographic data for compound 14 have been deposited with the Cambridge Crystallographic Data Centre as supplementary publication number CCDC 2308765.

Acknowledgments

We would like to thank Jef Rozenski for the HR-MS measurements and Joachim Demaerel for his advice on the chemical synthesis route.

Conflicts of Interest

The authors declare no conflicts of interest. The funders had no role in the following aspects of the study: the design of the study; the collection, analyses, or interpretation of data; the writing of the manuscript; or the decision to publish the results.

References

  1. Sorrell, F.J.; Szklarz, M.; Abdul Azeez, K.R.; Elkins, J.M.; Knapp, S. Family-Wide Structural Analysis of Human Numb-Associated Protein Kinases. Structure 2016, 24, 401–411. [Google Scholar] [CrossRef]
  2. Ricotta, D.; Conner, S.D.; Schmid, S.L.; von Figura, K.; Höning, S. Phosphorylation of the AP2 μ Subunit by AAK1 Mediates High Affinity Binding to Membrane Protein Sorting Signals. J. Cell Biol. 2002, 156, 791–795. [Google Scholar] [CrossRef]
  3. Borner, G.H.H.; Antrobus, R.; Hirst, J.; Bhumbra, G.S.; Kozik, P.; Jackson, L.P.; Sahlender, D.A.; Robinson, M.S. Multivariate Proteomic Profiling Identifies Novel Accessory Proteins of Coated Vesicles. J. Cell Biol. 2012, 197, 141–160. [Google Scholar] [CrossRef]
  4. Chaikuad, A.; Keates, T.; Vincke, C.; Kaufholz, M.; Zenn, M.; Zimmermann, B.; Gutiérrez, C.; Zhang, R.; Hatzos-Skintges, C.; Joachimiak, A.; et al. Structure of Cyclin G-Associated Kinase (GAK) Trapped in Different Conformations Using Nanobodies. Biochem. J. 2014, 459, 59–69. [Google Scholar] [CrossRef]
  5. Kearns, A.E.; Donohue, M.M.; Sanyal, B.; Demay, M.B. Cloning and Characterization of a Novel Protein Kinase That Impairs Osteoblast Differentiation In Vitro *. J. Biol. Chem. 2001, 276, 42213–42218. [Google Scholar] [CrossRef]
  6. Shimizu, H.; Nagamori, I.; Yabuta, N.; Nojima, H. GAK, a Regulator of Clathrin-Mediated Membrane Traffic, Also Controls Centrosome Integrity and Chromosome Congression. J. Cell Sci. 2009, 122 Pt 17, 3145–3152. [Google Scholar] [CrossRef]
  7. Zhang, C.X.; Engqvist-Goldstein, Å.E.Y.; Carreno, S.; Owen, D.J.; Smythe, E.; Drubin, D.G. Multiple Roles for Cyclin G-Associated Kinase in Clathrin-Mediated Sorting Events. Traffic 2005, 6, 1103–1113. [Google Scholar] [CrossRef]
  8. Neveu, G.; Barouch-Bentov, R.; Ziv-Av, A.; Gerber, D.; Jacob, Y.; Einav, S. Identification and Targeting of an Interaction between a Tyrosine Motif within Hepatitis C Virus Core Protein and AP2M1 Essential for Viral Assembly. PLoS Pathog. 2012, 8, e1002845. [Google Scholar] [CrossRef]
  9. Aguilar, R.C.; Ohno, H.; Roche, K.W.; Bonifacino, J.S. Functional Domain Mapping of the Clathrin-Associated Adaptor Medium Chains Mu1 and Mu2. J. Biol. Chem. 1997, 272, 27160–27166. [Google Scholar] [CrossRef]
  10. Owen, D.J.; Evans, P.R. A Structural Explanation for the Recognition of Tyrosine-Based Endocytotic Signals. Science 1998, 282, 1327–1332. [Google Scholar] [CrossRef]
  11. Olusanya, O.; Andrews, P.D.; Swedlow, J.R.; Smythe, E. Phosphorylation of Threonine 156 of the Μ2 Subunit of the AP2 Complex Is Essential for Endocytosis In Vitro and In Vivo. Curr. Biol. 2001, 11, 896–900. [Google Scholar] [CrossRef]
  12. Ghosh, P.; Kornfeld, S. AP-1 Binding to Sorting Signals and Release from Clathrin-Coated Vesicles Is Regulated by Phosphorylation. J. Cell Biol. 2003, 160, 699–708. [Google Scholar] [CrossRef]
  13. Collins, B.M.; McCoy, A.J.; Kent, H.M.; Evans, P.R.; Owen, D.J. Molecular Architecture and Functional Model of the Endocytic AP2 Complex. Cell 2002, 109, 523–535. [Google Scholar] [CrossRef]
  14. Lee, D.; Zhao, X.; Zhang, F.; Eisenberg, E.; Greene, L.E. Depletion of GAK/Auxilin 2 Inhibits Receptor-Mediated Endocytosis and Recruitment of Both Clathrin and Clathrin Adaptors. J. Cell Sci. 2005, 118, 4311–4321. [Google Scholar] [CrossRef]
  15. Korolchuk, V.I.; Banting, G. CK2 and GAK/Auxilin2 Are Major Protein Kinases in Clathrin-Coated Vesicles. Traffic 2002, 3, 428–439. [Google Scholar] [CrossRef]
  16. Hinshaw, J.E. Dynamin and Its Role in Membrane Fission. Annu. Rev. Cell Dev. Biol. 2000, 16, 483–519. [Google Scholar] [CrossRef]
  17. Xing, Y.; Böcking, T.; Wolf, M.; Grigorieff, N.; Kirchhausen, T.; Harrison, S.C. Structure of Clathrin Coat with Bound Hsc70 and Auxilin: Mechanism of Hsc70-Facilitated Disassembly. EMBO J. 2010, 29, 655–665. [Google Scholar] [CrossRef]
  18. Neveu, G.; Ziv-Av, A.; Barouch-Bentov, R.; Berkerman, E.; Mulholland, J.; Einav, S. AP-2-Associated Protein Kinase 1 and Cyclin G-Associated Kinase Regulate Hepatitis C Virus Entry and Are Potential Drug Targets. J. Virol. 2015, 89, 4387–4404. [Google Scholar] [CrossRef]
  19. Bekerman, E.; Neveu, G.; Shulla, A.; Brannan, J.; Pu, S.-Y.; Wang, S.; Xiao, F.; Barouch-Bentov, R.; Bakken, R.R.; Mateo, R.; et al. Anticancer Kinase Inhibitors Impair Intracellular Viral Trafficking and Exert Broad-Spectrum Antiviral Effects. J. Clin. Investig. 2017, 127, 1338–1352. [Google Scholar] [CrossRef]
  20. Lupberger, J.; Zeisel, M.B.; Xiao, F.; Thumann, C.; Fofana, I.; Zona, L.; Davis, C.; Mee, C.J.; Turek, M.; Gorke, S.; et al. EGFR and EphA2 Are Host Factors for Hepatitis C Virus Entry and Possible Targets for Antiviral Therapy. Nat. Med. 2011, 17, 589–595. [Google Scholar] [CrossRef]
  21. Asquith, C.R.M.; Laitinen, T.; Bennett, J.M.; Godoi, P.H.; East, M.P.; Tizzard, G.J.; Graves, L.M.; Johnson, G.L.; Dornsife, R.E.; Wells, C.I.; et al. Identification and Optimization of 4-Anilinoquinolines as Inhibitors of Cyclin G Associated Kinase. ChemMedChem 2018, 13, 48–66. [Google Scholar] [CrossRef]
  22. Asquith, C.R.M.; Laitinen, T.; Bennett, J.M.; Wells, C.I.; Elkins, J.M.; Zuercher, W.J.; Tizzard, G.J.; Poso, A. Design and Analysis of the 4-Anilinoquin(Az)Oline Kinase Inhibition Profiles of GAK/SLK/STK10 Using Quantitative Structure-Activity Relationships. ChemMedChem 2020, 15, 26–49. [Google Scholar] [CrossRef]
  23. Asquith, C.R.M.; Berger, B.-T.; Wan, J.; Bennett, J.M.; Capuzzi, S.J.; Crona, D.J.; Drewry, D.H.; East, M.P.; Elkins, J.M.; Fedorov, O.; et al. SGC-GAK-1: A Chemical Probe for Cyclin G Associated Kinase (GAK). J. Med. Chem. 2019, 62, 2830–2836. [Google Scholar] [CrossRef]
  24. Saul, S.; Pu, S.-Y.; Zuercher, W.J.; Einav, S.; Asquith, C.R.M. Potent Antiviral Activity of Novel Multi-Substituted 4-Anilinoquin(Az)Olines. Bioorg. Med. Chem. Lett. 2020, 30, 127284. [Google Scholar] [CrossRef] [PubMed]
  25. Saul, S.; Huang, P.-T.; Einav, S.; Asquith, C.R.M. Identification and Evaluation of 4-Anilinoquin(Az)Olines as Potent Inhibitors of Both Dengue Virus (DENV) and Venezuelan Equine Encephalitis Virus (VEEV). Bioorg. Med. Chem. Lett. 2021, 52, 128407. [Google Scholar] [CrossRef] [PubMed]
  26. Kovackova, S.; Chang, L.; Bekerman, E.; Neveu, G.; Barouch-Bentov, R.; Chaikuad, A.; Heroven, C.; Šála, M.; De Jonghe, S.; Knapp, S.; et al. Selective Inhibitors of Cyclin G Associated Kinase (GAK) as Anti-Hepatitis C Agents. J. Med. Chem. 2015, 58, 3393–3410. [Google Scholar] [CrossRef] [PubMed]
  27. Martinez-Gualda, B.; Saul, S.; Froeyen, M.; Schols, D.; Herdewijn, P.; Einav, S.; De Jonghe, S. Discovery of 3-Phenyl- and 3-N-Piperidinyl-Isothiazolo[4,3-b]Pyridines as Highly Potent Inhibitors of Cyclin G-Associated Kinase. Eur. J. Med. Chem. 2021, 213, 113158. [Google Scholar] [CrossRef]
  28. Martinez-Gualda, B.; Pu, S.-Y.; Froeyen, M.; Herdewijn, P.; Einav, S.; De Jonghe, S. Structure-Activity Relationship Study of the Pyridine Moiety of Isothiazolo[4,3-b]Pyridines as Antiviral Agents Targeting Cyclin G-Associated Kinase. Bioorg. Med. Chem. 2020, 28, 115188. [Google Scholar] [CrossRef]
  29. Norman, J.P.; Larson, N.G.; Entz, E.D.; Neufeldt, S.R. Unconventional Site Selectivity in Palladium-Catalyzed Cross-Couplings of Dichloroheteroarenes under Ligand-Controlled and Ligand-Free Systems. J. Org. Chem. 2022, 87, 7414–7421. [Google Scholar] [CrossRef]
  30. Piersanti, G.; Giorgi, L.; Bartoccini, F.; Tarzia, G.; Minetti, P.; Gallo, G.; Giorgi, F.; Castorina, M.; Ghirardi, O.; Carminati, P. Synthesis of Benzo[1,2-d;3,4-D′]Diimidazole and 1H-Pyrazolo[4,3-b]Pyridine as Putative A2A Receptor Antagonists. Org. Biomol. Chem. 2007, 5, 2567–2571. [Google Scholar] [CrossRef]
  31. Niknam, E.; Panahi, F.; Khalafi-Nezhad, A. Palladium-Catalyzed Cyanation of Aryl Halides Using Formamide and Cyanuric Chloride as a New “CN” Source. Eur. J. Org. Chem. 2020, 2020, 2699–2707. [Google Scholar] [CrossRef]
  32. Iranpoor, N.; Panahi, F.; Roozbin, F.; Erfan, S.; Rahimi, S. Palladium-Catalyzed Aminocarbonylation of Aryl Halides with 2,4,6-Trichloro-1,3,5-Triazine/Formamide Mixed Reagent. Eur. J. Org. Chem. 2016, 2016, 1781–1787. [Google Scholar] [CrossRef]
  33. Veryser, C.; Mileghem, S.V.; Egle, B.; Gilles, P.; Borggraeve, W.M.D. Low-Cost Instant CO Generation at Room Temperature Using Formic Acid, Mesyl Chloride and Triethylamine. React. Chem. Eng. 2016, 1, 142–146. [Google Scholar] [CrossRef]
  34. Gadge, S.T.; Bhanage, B.M. A Phosphine-Free Approach to Primary Amides by Palladium-Catalyzed Aminocarbonylation of Aryl and Heteroaryl Iodides Using Methoxylamine Hydrochloride as an Ammonia Equivalent. Synlett 2014, 25, 85–88. [Google Scholar] [CrossRef]
  35. Schnyder, A.; Beller, M.; Mehltretter, G.; Nsenda, T.; Studer, M.; Indolese, A.F. Synthesis of Primary Aromatic Amides by Aminocarbonylation of Aryl Halides Using Formamide as an Ammonia Synthon. J. Org. Chem. 2001, 66, 4311–4315. [Google Scholar] [CrossRef] [PubMed]
  36. Kuang, L.; Zhou, J.; Chen, S.; Ding, K. Room-Temperature Debenzylation of N-Benzylcarboxamides by N-Bromosuccinimide. Synthesis 2007, 20, 3129–3134. [Google Scholar] [CrossRef]
  37. Lebakken, C.S.; Riddle, S.M.; Singh, U.; Frazee, W.J.; Eliason, H.C.; Gao, Y.; Reichling, L.J.; Marks, B.D.; Vogel, K.W. Development and Applications of a Broad-Coverage, TR-FRET-Based Kinase Binding Assay Platform. J. Biomol. Screen. 2009, 14, 924–935. [Google Scholar] [CrossRef]
  38. Zhou, P.; Tian, F.; Lv, F.; Shang, Z. Geometric Characteristics of Hydrogen Bonds Involving Sulfur Atoms in Proteins. Proteins Struct. Funct. Bioinforma. 2009, 76, 151–163. [Google Scholar] [CrossRef]
  39. Kříž, K.; Fanfrlík, J.; Lepšík, M. Chalcogen Bonding in Protein−Ligand Complexes: PDB Survey and Quantum Mechanical Calculations. ChemPhysChem 2018, 19, 2540–2548. [Google Scholar] [CrossRef]
  40. Hermange, P.; Lindhardt, A.T.; Taaning, R.H.; Bjerglund, K.; Lupp, D.; Skrydstrup, T. Ex Situ Generation of Stoichiometric and Substoichiometric 12CO and 13CO and Its Efficient Incorporation in Palladium Catalyzed Aminocarbonylations. J. Am. Chem. Soc. 2011, 133, 6061–6071. [Google Scholar] [CrossRef]
  41. Dolomanov, O.V.; Bourhis, L.J.; Gildea, R.J.; Howard, J.A.K.; Puschmann, H. OLEX2: A Complete Structure Solution, Refinement and Analysis Program. J. Appl. Crystallogr. 2009, 42, 339–341. [Google Scholar] [CrossRef]
  42. Sheldrick, G.M. SHELXT—Integrated Space-Group and Crystal-Structure Determination. Acta Crystallogr. Sect. Found. Adv. 2015, A71, 3–8. [Google Scholar] [CrossRef] [PubMed]
  43. Sheldrick, G.M. Crystal Structure Refinement with SHELXL. Acta Crystallogr. Sect. C Struct. Chem. 2015, C71, 3–8. [Google Scholar] [CrossRef] [PubMed]
  44. Eberhardt, J.; Santos-Martins, D.; Tillack, A.F.; Forli, S. AutoDock Vina 1.2.0: New Docking Methods, Expanded Force Field, and Python Bindings. J. Chem. Inf. Model. 2021, 61, 3891–3898. [Google Scholar] [CrossRef] [PubMed]
  45. Pettersen, E.F.; Goddard, T.D.; Huang, C.C.; Couch, G.S.; Greenblatt, D.M.; Meng, E.C.; Ferrin, T.E. UCSF Chimera—A Visualization System for Exploratory Research and Analysis. J. Comput. Chem. 2004, 25, 1605–1612. [Google Scholar] [CrossRef]
Molecules 29 00954 g001

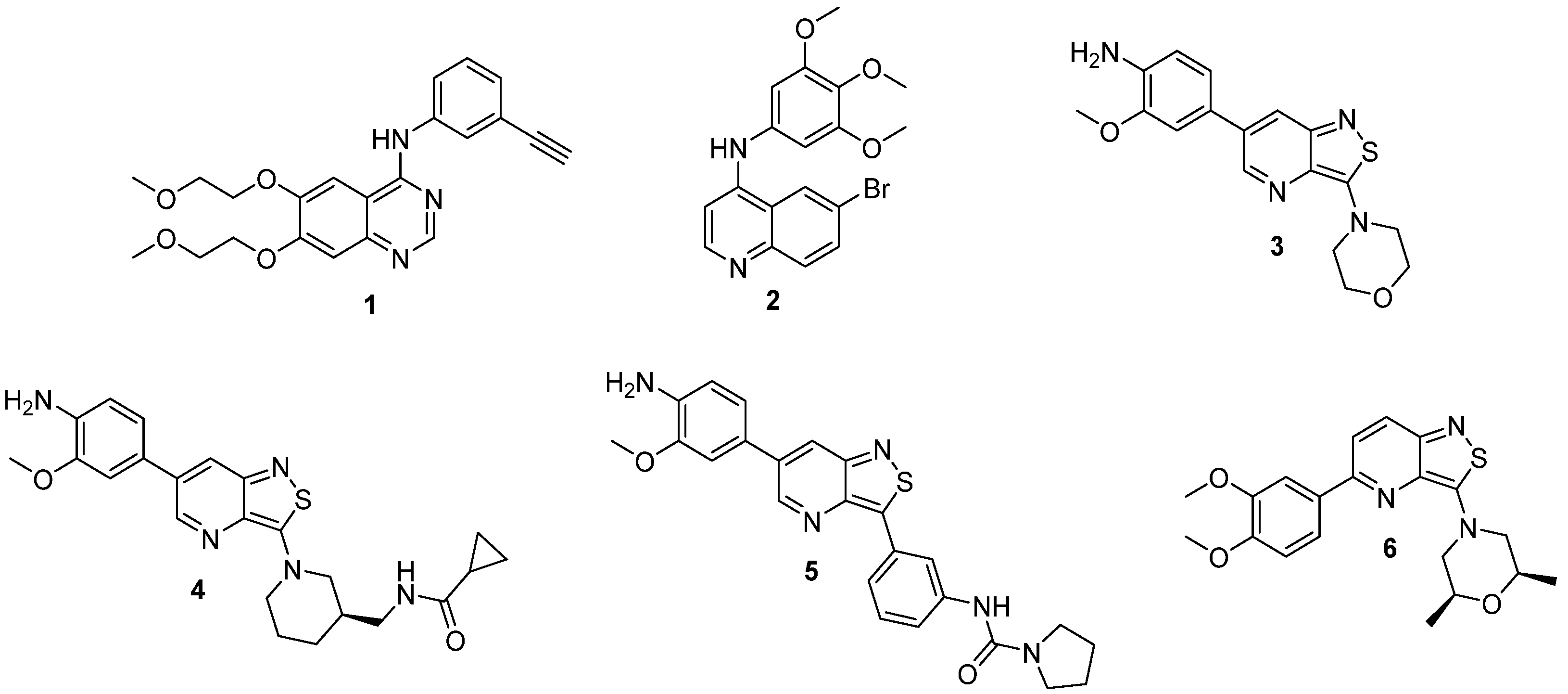

Figure 1. Previously reported GAK inhibitors.
Figure 1. Previously reported GAK inhibitors.
Molecules 29 00954 g001
Molecules 29 00954 g002

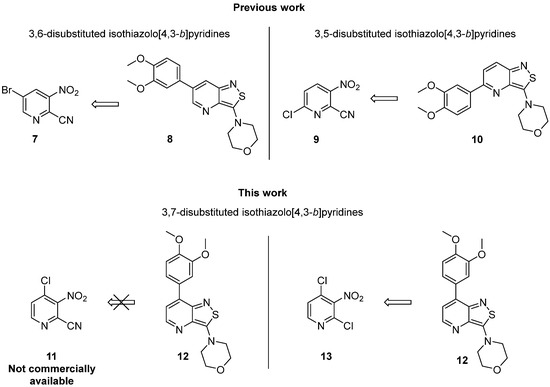

Figure 2. Retrosynthesis of various isothiazolo[4,3-b]pyridines.
Figure 2. Retrosynthesis of various isothiazolo[4,3-b]pyridines.
Molecules 29 00954 g002
Molecules 29 00954 sch001

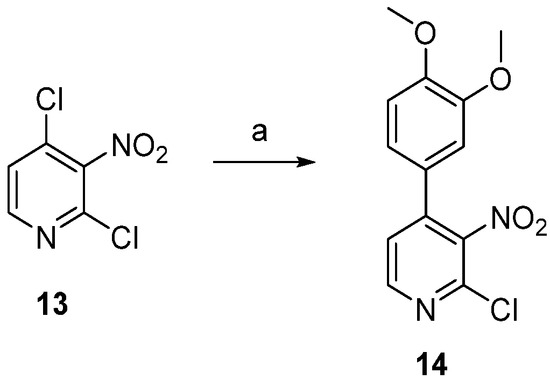

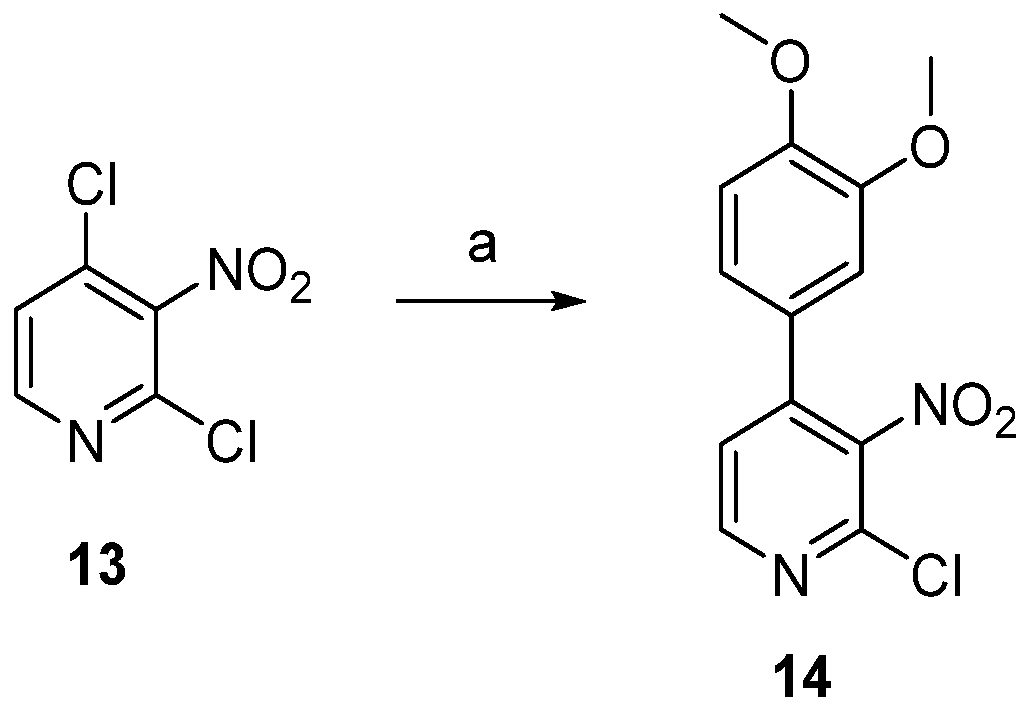

Scheme 1. Synthesis of 2-chloro-3-nitro-4-(3,4-dimethoxyphenyl)pyridine (14). Reagents and conditions: (a) PdCl2, NBu4Br, Na2CO3, DMF/water 20:1, 110 °C, 17 h.
Scheme 1. Synthesis of 2-chloro-3-nitro-4-(3,4-dimethoxyphenyl)pyridine (14). Reagents and conditions: (a) PdCl2, NBu4Br, Na2CO3, DMF/water 20:1, 110 °C, 17 h.
Molecules 29 00954 sch001
Molecules 29 00954 g003

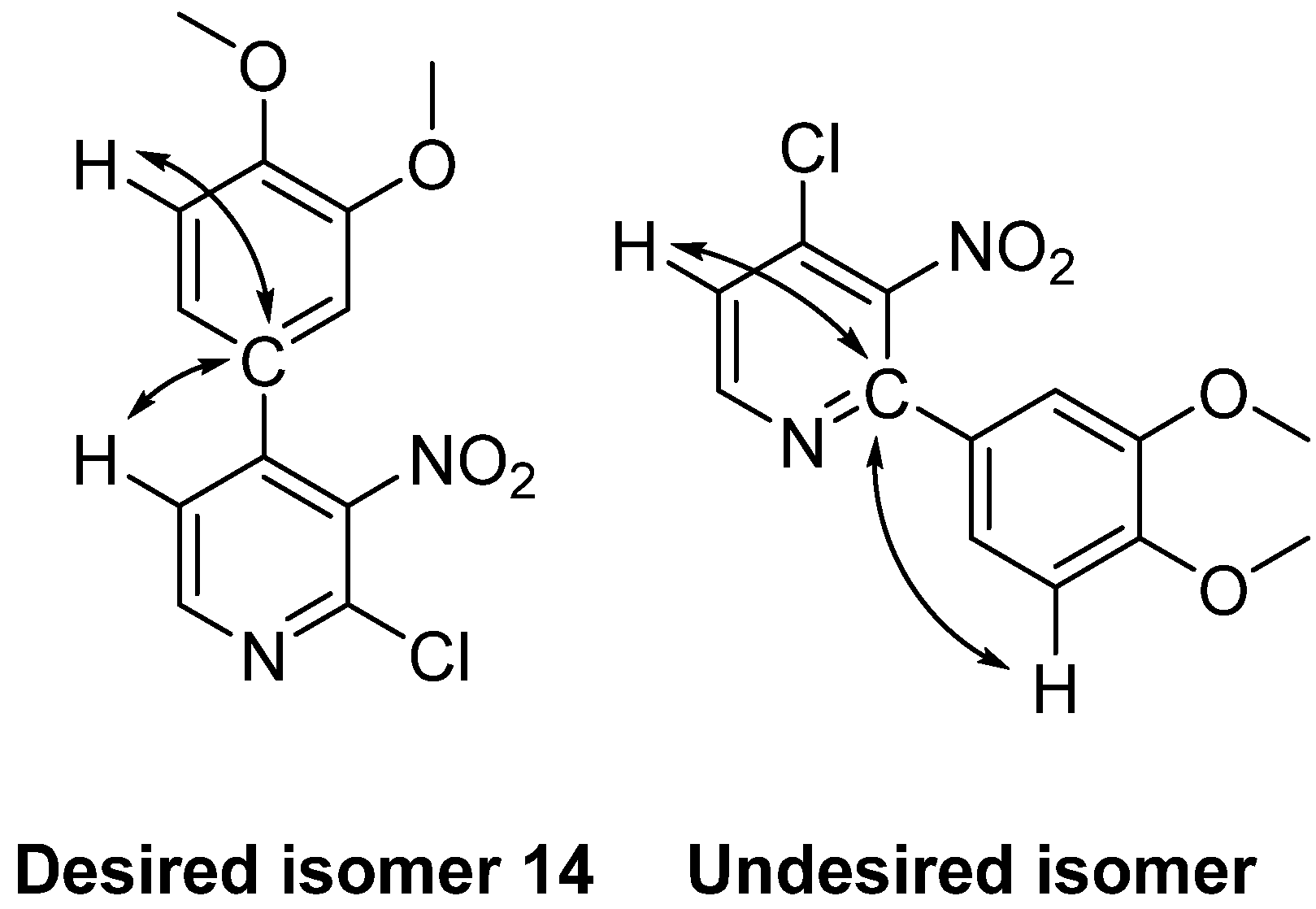

Figure 3. Long-range C-H couplings in the two possible isomers.
Figure 3. Long-range C-H couplings in the two possible isomers.
Molecules 29 00954 g003
Molecules 29 00954 g004

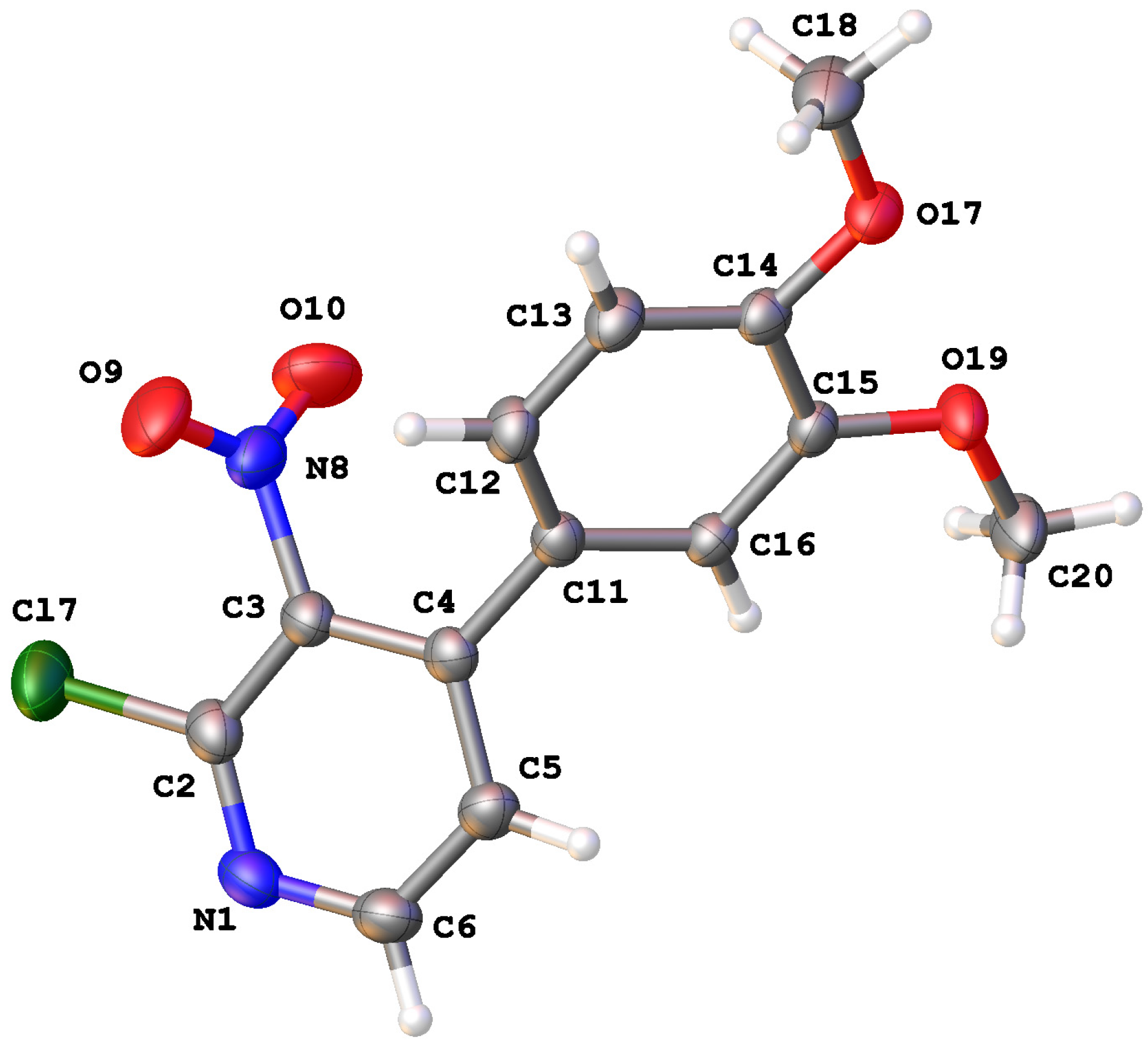

Figure 4. View of the crystal structure of compound 14, showing the numbering scheme and thermal ellipsoids at the 30% probability level.
Figure 4. View of the crystal structure of compound 14, showing the numbering scheme and thermal ellipsoids at the 30% probability level.
Molecules 29 00954 g004
Molecules 29 00954 sch002

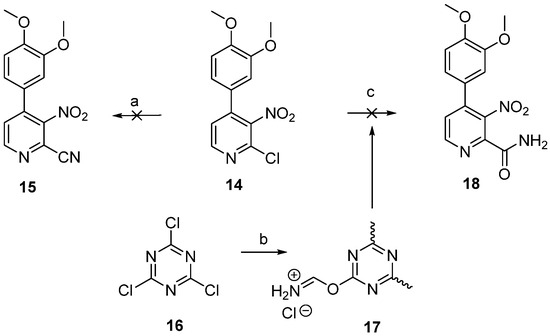

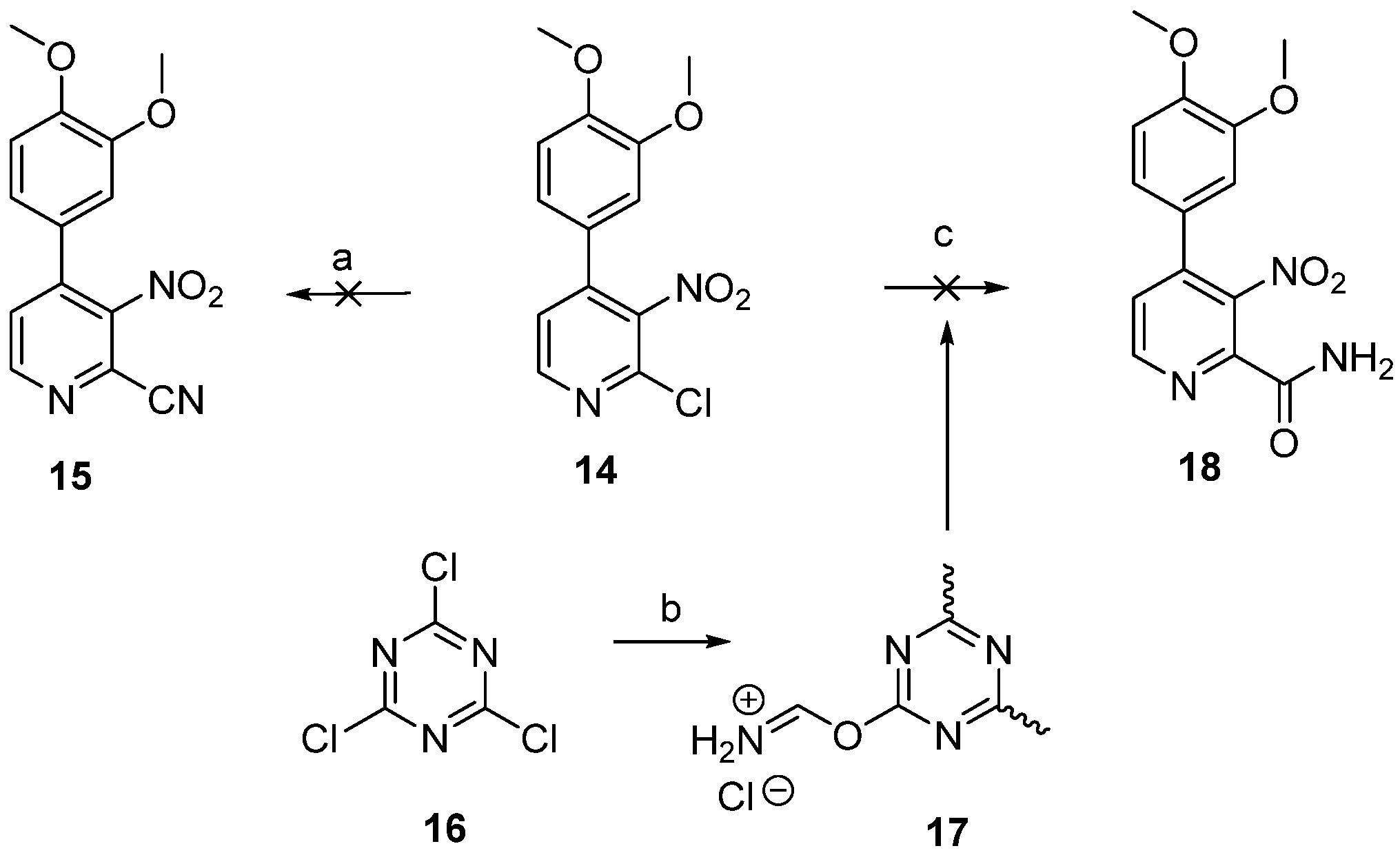

Scheme 2. Synthesis of a 3-nitro-4-aryl-picolinamide 18. Reagents and conditions: (a) Cu(I)CN, DMF, 90 °C, 24 h; (b) formamide, rt, 2 h; and (c) Pd(OAc)2, dppf, DMF, 140 °C, 24 h.
Scheme 2. Synthesis of a 3-nitro-4-aryl-picolinamide 18. Reagents and conditions: (a) Cu(I)CN, DMF, 90 °C, 24 h; (b) formamide, rt, 2 h; and (c) Pd(OAc)2, dppf, DMF, 140 °C, 24 h.
Molecules 29 00954 sch002
Molecules 29 00954 sch003

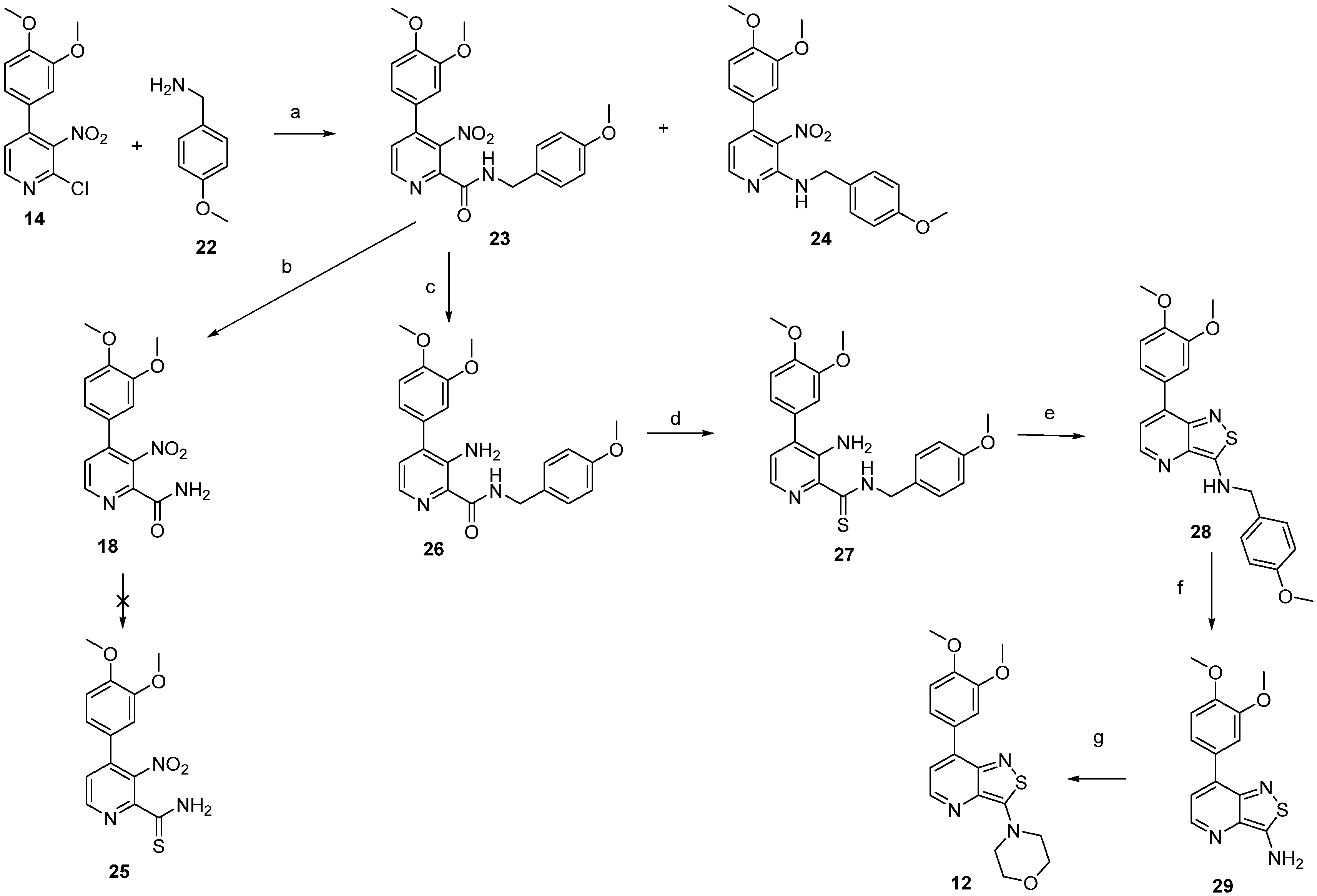

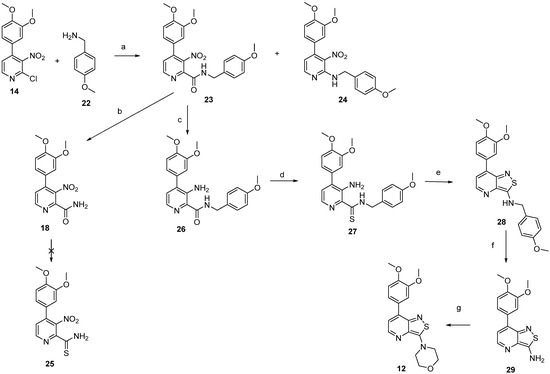

Scheme 3. Synthesis of isothiazolo[4,3-b]pyridine 12. Reagents and conditions: (a) chamber A: Na2CO3, Pd(OAc)2, XantPhos, toluene; chamber B: HCOOH, MsCl, Et3N, toluene, 100 °C, 2.5 h; (b) CAN, ACN/water, 80 °C, 3 h or TFA, 70 °C, 16 h; (c) Fe powder, AcOH, 70 °C, 20 h; (d) Lawesson’s reagent, toluene, 100 °C, 2 h; (e) H2O2 (30% in water), DCM/MeOH, 40 °C, 18 h; (f) DDQ, DCM/water, RT, 4 h; and (g) bis(2-bromodiethyl)ether, K2CO3, DMF, 100 °C, 3 h.
Scheme 3. Synthesis of isothiazolo[4,3-b]pyridine 12. Reagents and conditions: (a) chamber A: Na2CO3, Pd(OAc)2, XantPhos, toluene; chamber B: HCOOH, MsCl, Et3N, toluene, 100 °C, 2.5 h; (b) CAN, ACN/water, 80 °C, 3 h or TFA, 70 °C, 16 h; (c) Fe powder, AcOH, 70 °C, 20 h; (d) Lawesson’s reagent, toluene, 100 °C, 2 h; (e) H2O2 (30% in water), DCM/MeOH, 40 °C, 18 h; (f) DDQ, DCM/water, RT, 4 h; and (g) bis(2-bromodiethyl)ether, K2CO3, DMF, 100 °C, 3 h.
Molecules 29 00954 sch003
Molecules 29 00954 g005

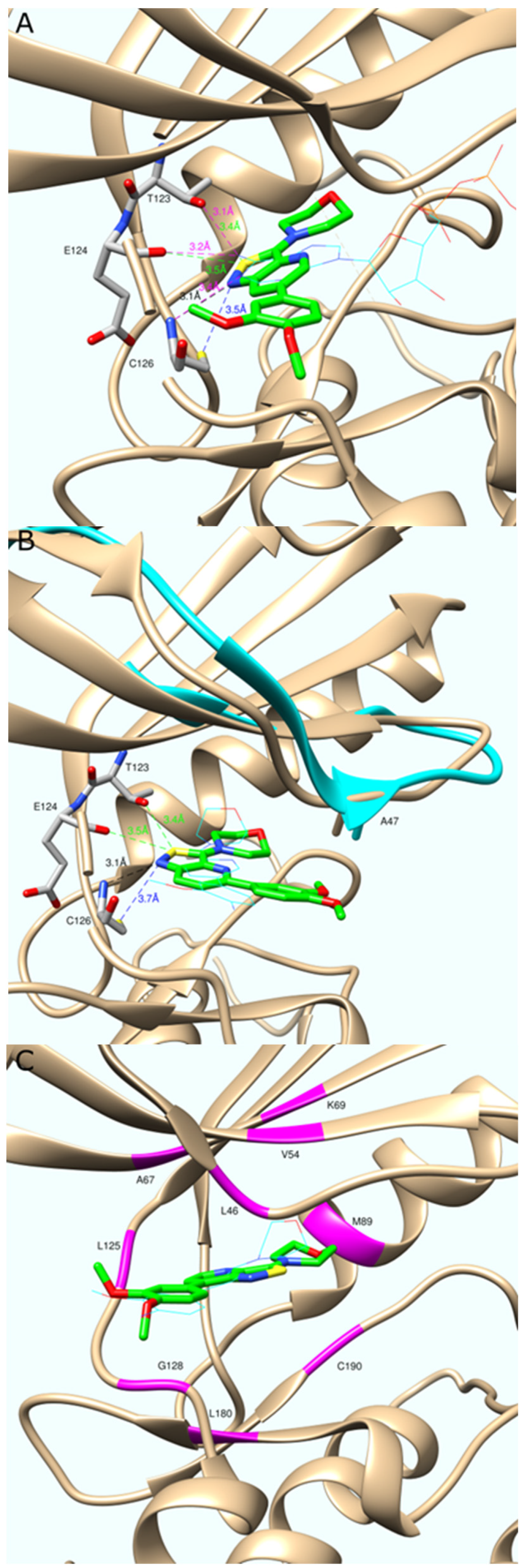

Figure 5. (A) Isothiazolo[4,3-b]pyridine 8 binds in a similar way to isothiazolo[4,3-b]pyridine 3 and is shown together with superimposed ATP (wire) from PDB entry 1ATP. Hydrogen bonds from ATP to the hinge region of GAK are shown in magenta. The hydrogen bond from compound 8 is shown in black, the ChB interactions in green, and the SH-N-hydrogen bond in blue. (B) Isothiazolo[4,3-b]pyridine 10 docks in the same plane as isothiazolo[4,3-b]pyridine 3, maintaining the same interactions as compound 8, if an induced fit is allowed for the loop containing residue A47 to prevent a clash with the A47 sidechain. The original loop orientation is shown in the cyan ribbon. Reference isothiazolo[4,3-b]pyridine 3 from PDB entry 4Y8D is shown in wire. (C) Isothiazolo[4,3-b]pyridine 12 docks in the same plane as isothiazolo[4,3-b]pyridine 3 but rotated and shifted, with no specific interactions. Residues having possible Van der Waals contact with this inhibitor are labeled and colored in magenta. The compound from PDB entry 4Y8D is shown in wire for reference.
Figure 5. (A) Isothiazolo[4,3-b]pyridine 8 binds in a similar way to isothiazolo[4,3-b]pyridine 3 and is shown together with superimposed ATP (wire) from PDB entry 1ATP. Hydrogen bonds from ATP to the hinge region of GAK are shown in magenta. The hydrogen bond from compound 8 is shown in black, the ChB interactions in green, and the SH-N-hydrogen bond in blue. (B) Isothiazolo[4,3-b]pyridine 10 docks in the same plane as isothiazolo[4,3-b]pyridine 3, maintaining the same interactions as compound 8, if an induced fit is allowed for the loop containing residue A47 to prevent a clash with the A47 sidechain. The original loop orientation is shown in the cyan ribbon. Reference isothiazolo[4,3-b]pyridine 3 from PDB entry 4Y8D is shown in wire. (C) Isothiazolo[4,3-b]pyridine 12 docks in the same plane as isothiazolo[4,3-b]pyridine 3 but rotated and shifted, with no specific interactions. Residues having possible Van der Waals contact with this inhibitor are labeled and colored in magenta. The compound from PDB entry 4Y8D is shown in wire for reference.
Molecules 29 00954 g005

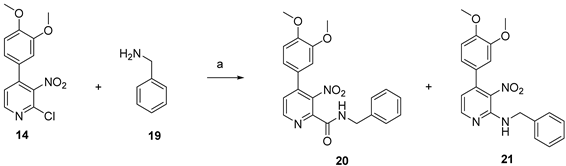

Table 1. Palladium-catalyzed aminocarbonylation of compound 14 using CO and benzylamine.
Table 1. Palladium-catalyzed aminocarbonylation of compound 14 using CO and benzylamine.
Molecules 29 00954 i001
EntryEquivalents of CO Catalyst Loading Yield of 20 Yield of 21
11.31 mol%23%15%
22.61 mol%42%50%
32.62.5 mol%78%15%
Reaction conditions: chamber A: Na2CO3, Pd(OAc)2, XantPhos, toluene; and chamber B: HCOOH, MsCl, Et3N, toluene; 100 °C, 2.5 h.
Table 2. GAK affinity data of isothiazolo[4,3-b]pyridines 8, 10, and 12.
Table 2. GAK affinity data of isothiazolo[4,3-b]pyridines 8, 10, and 12.
Compound 3,5-disubstituted isothiazolo[4,3-b]pyridine 103,6-disubstituted isothiazolo[4,3-b]pyridine 83,7-disubstituted isothiazolo[4,3-b]pyridine 12
Structure Molecules 29 00954 i002Molecules 29 00954 i003Molecules 29 00954 i004
GAK IC50 (µM)0.124 [28]0.442>10
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Grisez, T.; Ravi, N.P.; Froeyen, M.; Schols, D.; Van Meervelt, L.; De Jonghe, S.; Dehaen, W. Synthesis of a 3,7-Disubstituted Isothiazolo[4,3-b]pyridine as a Potential Inhibitor of Cyclin G-Associated Kinase. Molecules 2024, 29, 954. https://doi.org/10.3390/molecules29050954

AMA Style

Grisez T, Ravi NP, Froeyen M, Schols D, Van Meervelt L, De Jonghe S, Dehaen W. Synthesis of a 3,7-Disubstituted Isothiazolo[4,3-b]pyridine as a Potential Inhibitor of Cyclin G-Associated Kinase. Molecules. 2024; 29(5):954. https://doi.org/10.3390/molecules29050954

Chicago/Turabian Style

Grisez, Tom, Nitha Panikkassery Ravi, Mathy Froeyen, Dominique Schols, Luc Van Meervelt, Steven De Jonghe, and Wim Dehaen. 2024. "Synthesis of a 3,7-Disubstituted Isothiazolo[4,3-b]pyridine as a Potential Inhibitor of Cyclin G-Associated Kinase" Molecules 29, no. 5: 954. https://doi.org/10.3390/molecules29050954

APA Style

Grisez, T., Ravi, N. P., Froeyen, M., Schols, D., Van Meervelt, L., De Jonghe, S., & Dehaen, W. (2024). Synthesis of a 3,7-Disubstituted Isothiazolo[4,3-b]pyridine as a Potential Inhibitor of Cyclin G-Associated Kinase. Molecules, 29(5), 954. https://doi.org/10.3390/molecules29050954

Article Metrics

Back to TopTop
