Article

Synthesis, Structure, and Properties of 2D Lanthanide(III) Coordination Polymers Constructed from Cyclotriphosphazene-Functionlized Hexacarboxylate Ligand

1
School of Pharmacy, Hubei University of Science and Technology, Xianning 437100, China
2
Hubei Key Laboratory of Radiation Chemistry and Functional Materials, School of Nuclear Technology and Chemistry & Biology, Hubei University of Science and Technology, Xianning 437100, China
*
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Molecules 2024, 29(23), 5602; https://doi.org/10.3390/molecules29235602
Submission received: 10 October 2024 / Revised: 18 November 2024 / Accepted: 21 November 2024 / Published: 27 November 2024
(This article belongs to the Special Issue Advances in Coordination Chemistry 2.0)

Abstract

:
The design and synthesis of novel lanthanide-based coordination polymers (Ln-CPs) from flexible organic ligands is still attractive and challenging. In this work, two isostructural Ln-CPs with a unique 2D network, namely, [Ln2(H3L)2(DMF)]]n (Ln = Dy for 1, Tb for 2) based on a flexible polycarboxylic acid ligand hexakis(4-carboxylato-phenoxy)cyclotriphosphazene (H6L), have been solvothermally synthesized and structurally characterized. Significantly, it is the first observation of polycarboxylic acid ligands participating in coordination in the construction of coordination polymers in the form of semi-deprotonation. Magnetic measurements showed the presence of field-induced slow magnetic relaxation in complex 1. The luminescence property of 2 had been studied in the solid state at room temperature.

1. Introduction

The design and synthesis of novel coordination polymers have garnered significant attention, not only due to their intriguing structures but also because of their noteworthy physical properties and potential applications in magnetism, luminescence, catalysis, and so on [1,2]. In contrast to the well-established transition metals, CPs, lanthanides are virtually underdeveloped owing to some intrinsic characteristics of lanthanide ions such as the high and variable coordination numbers as well as the small energy difference among various coordination geometries [3,4].
Based on the large-spin multiplicity of the spin ground state and the intrinsic magnetic anisotropy, lanthanide ions, particularly dysprosium ions, have long been regarded as the best candidates for the construction of single-molecule magnets for their promising applications in spintronics, high-density magnetic storage, and quantum computing [5,6,7]. In addition, Ln-CPs are well-known candidates showing enhanced photoluminescence characteristics due to f-f transition [8,9]. The above is especially true for Eu(III) and Tb(III) compounds. Therefore, there is an exciting benefit to constructing novel magnetic or luminescent materials consisting of lanthanide ions and appropriate functionalized polycarboxylic acid ligands. As far as we know, various rigid aromatic multicarboxylates have been widely employed in the construction of structurally diverse CPs; however, limited lanthanide-based CPs (Ln-CPs) have been reported when examining flexible functionalized organic ligands [10,11,12].
As a flexible cyclotriphosphazene-functionalized hexacarboxylate ligand, hexakis(4-carboxylatophenoxy) cyclotriphosphazene (H6L, Scheme 1) decorated with six free-swinging peripheral arms can develop versatile coordination modes due to the flexible connector between the central cyclotriphosphazene scaffold and the ambient benzoate. Generally, lanthanide ions prefer binding carboxylate oxygen atoms according to the HSAB (hard and soft acid and base) principle, which may increase the chances of successful construction of the Ln-CPs. Furthermore, the easily prepared H6L ligand has been applied to build a number of coordination polymers with various topological structures, such as 2D layer network {[Eu2(L)(H2O)4](H2O)4(DMF)2}n [13], 3D open frameworks {[Ho4L2(CH3COO)(H2O)]·(CH3)2NH2·20DMA}n [14], and several transition metals and alkaline earth-based coordination polymers [15,16,17,18,19], exhibiting remarkable and inconstant coordination ability. However, without exception, all six carboxylic acid groups in the ligand were deprotonated and participated in the coordination when constructing these coordination polymers. This limits the structural diversification and functionalization of coordination polymers.
Taking into account all of the aforementioned considerations, the excellent flexible ligand H6L based on the fully substituted cyclotriphosphazene inorganic scaffold was selected specifically to investigate the role of reaction conditions in the structural control of Ln-CPs. Herein, two novel isostructural two-dimensional Ln-CPs, [Dy2(H3L)2(DMF)]]n (1) and [Tb2(H3L)2(DMF)]]n (2), were solvothermally synthesized under the condition of strong acidity. Their crystal structure and magnetic and luminescence properties were described in detail. Interestingly, for the first time, it was observed that polycarboxylic acid ligands participated in the construction of coordination polymers with semi-deprotonation.

2. Results and Discussion

2.1. Synthesis and Characterization

Two novel 2D Ln-CPs were successfully fabricated by the solvothermal reaction of Ln(NO3)3·6H2O (Ln = Dy, Tb), including H6L, a concentrated nitric acid with rated molar ratio in a mixed solvent of DMF/H2O (v/v, 4 mL/1 mL) at 130 °C for 72 h, resulting in the formation of block-shaped colorless crystals. It is worth noting the importance of the amount of concentrated nitric acid for the synthesis of the Ln-CP crystalline materials. A missing or excessive amount of nitric acid during synthesis can contribute to the creation of materials poorly suited for single-crystal X-ray diffraction analysis. In addition, when a small amount of concentrated nitric acid was added to adjust the pH to 2–3, another reported two-dimensional coordination polymer was obtained with all six carboxyl groups in the structure being deprotonated [13]. These results indicate that nitric acid here may play an important role in regulating the deprotonation of ligands and the kinetics of crystal nucleation and growth [20,21,22,23].
The structures were characterized by single-crystal X-ray diffraction, and the phase purity was confirmed by good consistency between the measured X-ray diffraction patterns and the theoretical simulated ones based on crystallographic data (Figure S1). The IR spectra reveal signature absorption bands mainly ascribed to the asymmetric (vas ca. 1600 and 1536 cm−1) and symmetric (vas ca. 1423 cm−1) stretching oscillations of the carboxylate groups. A strong absorption peak of –COOH near 1699 cm−1 is also observed, suggesting that some of the carboxylic groups in the organic moieties of complexes 12 are not deprotonated, which is consistent with the analysis of X-ray diffraction (Figure S2). The TGA of 12 under a nitrogen atmosphere displays that there is no weight loss before 390 °C, indicating no free guest molecules or coordinated molecules with low boiling points in the whole molecular system, and these results are in agreement with the crystal structures. Above 390 °C, the apparent weight loss is due to the collapse of the whole framework. The results indicate that they have good thermal stability.

2.2. Structural Characterization

Both complexes 12 are isostructural as analyzed by single-crystal and powder X-ray diffraction (Table S1, Figure S1). Herein, the structures are described in detail only for complex 1 as an exception. Single-crystal X-ray diffraction analysis shows that complex 1 crystallizes in the triclinic space group P21/c, with an asymmetric unit composed of two crystallographically independent DyIII ions, two semi-protonated hexacarboxylate ligands H3L, and one coordinated DMF solvent molecule (Figure 1a). The two DyIII centers show different kinds of coordination modes. As shown in Figure 1b, the seven coordinated Dy1 ions are connected with six O atoms from five different carboxylate groups of four distinct partially deprotonated ligands H3L and one from the coordinated DMF molecules, resulting in a distorted decahedron geometry, while the six coordinated Dy2 ions feature a distorted octahedral geometry occupied by six O atoms from six different carboxylate groups of five distinct aforementioned ligands. The Dy1 and Dy2 ions are connected by two syn–syn μ2 chelating carboxyls into a dinuclear structure. The bond distance of Dy–O ranges from 2.210(3) to 2.440(3) Å, which is quite comparable to the ones reported for carboxylate-bridged dysprosium complexes [24,25,26]. The distances of adjacent Dy1···Dy1 and Dy2···Dy2 are 8.926(15) and 9.258(15) Å, respectively.
Concerning the six-armed organic linker, three of the six 4-carboxylato-phenoxy substituents are dispersed on either side of the central cyclotriphosphazene ring, which is almost planar. The average P-N bond length is 1.5823 Å, and the average N–P–N and P–N–P angles are 116.94° and 121.87°, respectively, which are very similar to those previously reported for cyclotriphosphazene derivatives [13,14,15,16]. Interestingly, only one side of the carboxylic groups is deprotonated and participates in coordination with DyIII ions; the other side is on the shelf (Figure 2a). As far as we know, such semi-deprotonated coordination polymers constructed with polycarboxylic acid ligands are first observed here, and harsh strong acid synthesis conditions may be the main reason for this unusual configuration. A large number of flexible free carboxylic groups remained at both ends of the structure providing the possibility for further functionalization. Moreover, it is noteworthy that neither the nitrogen atoms nor the oxygen atoms connected to phosphorus atoms on the cyclotriphosphazene ring participate in the coordination with the metal centers. The deprotonated carboxylic groups employ two different coordination modes that can be separately summarized as the chelating mode (μ1: η1η1) and the bridging mode (μ2: η1η1) (Figure S4), while the two bridged carboxylate groups connect two metal center ions with different coordination geometries to form a binuclear metal core (Figure 2b).
Interestingly, each metal center is also interconnected with neighboring metal ions via two bridged carboxylic acid groups, with every four head-to-head dimers connected to two neighboring six coordinated Dy2 ions, forming a ten-membered metal ring. Ring 1 and ring 2 and ring 3 and ring 4 are found to have the same configuration, all by sharing two adjacent Dy2 centers. Meanwhile, ring 1 and ring 3 and ring 2 and ring 4 are linked with each other by sharing the edge formed by adjacent Dy2-Dy1-Dy2. In this way, the zero-dimensional cluster unit of the ten-membered metal ring Dy10 is further expanded by bridged carboxylic acid groups, giving rise to a two-dimensional network structure along the crystallographic a-axis (Figure 3), which is particularly rare in Ln-CPs.

2.3. Magnetic Properties

2.3.1. Static Magnetic Measurements

The direct-current (dc) magnetic susceptibility data of compound 1 were collected on polycrystalline samples in the temperature range of 300–2 K under an applied field of 1 KOe as can be seen in Figure 4a. At 300 K, the χMT value is 27.31 cm3 K mol−1, which is close to the desirable value of 28.34 cm3 K mol−1 for two uncoupled DyIII ions (6H15/2, S = 5/2, L = 5, and g = 4/3). With the temperature cooling, the χMT value gradually decreases above 50 K and rapidly decreases to the minimum value of 21.26 cm3 K mol−1 at around 7 K, and then rapidly increases to 22.75 cm3 K mol−1 at 2 K. This behavior is probably attributed to the competing ferromagnetic and antiferromagnetic coupling between the DyIII centers [27,28,29]. Meanwhile, the curve of χM−1 versus T obeys the Curie–Weiss law in the range from 300 to 50 K, resulting in Weiss constants being –1.43. The negative Weiss parameter further verifies the existence of weak intramolecular antiferromagnetic interactions.
The isothermal field dependence of magnetization was measured at 2–5 K in the field range of 0–7 T (Figure 4b). The magnetization values increase rapidly from 0 to 2 T, then increase gently from 2 to 7 T, and finally attain the value of 11.28 at 7 T and 2 K, which is prominently smaller than the theoretical saturation value of 20 for two non-interacting DyIII ions. This behavior reveals the presence of significant magnetic anisotropy and/or low-lying excited states [30,31].

2.3.2. Dynamic Magnetic Measurements

Considering the significant magnetic anisotropy of DyIII ions, temperature-dependent alternating current (ac) magnetic susceptibility studies were first performed using a 3.5 Oe ac field oscillating at frequencies in the 1–1000 Hz range to explore the possibility of magnetodynamics. As shown in Figure S5, no obvious out-of-phase (χ″) signals were found at zero dc field, which might be assigned to the fast quantum tunneling of magnetization (QTM). In order to determine the optimal dc field to suppress the QTM, the ac magnetic susceptibilities of 1 were then measured again in the optimized 1000 dc Oe. Both the temperature- and frequency-dependent out-of-phase (χ″) signals were seen but no well-defined maximum peaks were observed (Figure 5 and Figure S5), indicating the slow relaxation of the magnetization behavior characteristic of SMM with a relatively small energy barrier [32,33].

2.4. Luminescent Properties of Solid-State 2 and H6L

Taking into account the excellent luminescent properties of the Tb(III) ion, the luminescent spectra of compound 2 and the ligand H6L were investigated in the solid state at room temperature. As shown in Figure 6, H6L did not show an obvious fluorescence emission peak. When excited at 360 nm, 2 shows green luminescence with four characteristic emission peaks of Tb3+ ions, located at 493 nm, 554 nm, 586 nm, and 627 nm, which may be attributed to the 5D47FJ (J = 6, 5, 4, 3) transition of Tb3+ ions. The strongest emission peak is located at 554 nm, corresponding to the 5D47F7 transition. It is worth noting that the ligand has no obvious emission peak, while the fluorescence emission of simple Tb3+ is very weak. When the ligand reacts with Tb3+ to form compound 2, a significant solid fluorescence emission peak appears, indicating that the ligand, as an “antenna” [34,35,36], can effectively transmit the energy of absorbed excitation light to metal Tb3+ ions. In addition, the excitation spectrum and quantum yield of the ligand H6L and compound 2 were also investigated (Figures S7–S10), and the results further prove the occurrence of the antenna effect.

3. Materials and Methods

3.1. Materials and Measurements

All chemicals were commercially acquired and used directly without further purification unless otherwise specified. Dy(NO3)3·6H2O, Tb(NO3)3·6H2O, N,N-dimethylformamide (DMF), and concentrated HNO3 were purchased from Sinopharm Chemical Reagent (Shanghai, China). The hexacarboxylic acid ligand H6L was synthesized according to the reported method [13]. Elemental analyses (C, H, and N) were performed on a Perkin-Elmer 2400 analyzer (PerkinElmer, Waltham, MA, USA). Powder X-ray diffraction (PXRD) experiments were carried out at room temperature with an X’pert PRO automatic diffractometer (Cu Ka, Panalytical Company, Almelo, The Netherlands) in the range of 5–50°, and the step size was 0.02° in the 2θ angle. The IR spectra of the synthesized materials were documented in the range of 400–4000 cm−1 on a Nicolet 5DX spectrometer (KBr pellets, Thermo Fisher Scientific, Waltham, MA, USA). Thermogravimetric analyses (TGAs) were conducted on a Perkin-Elmer TG-7 thermal analyzer, heated from 25 to 600 °C in a N2 atmosphere at a rate of 10 °C/min. Magnetic susceptibility measurements were tested on Quantum Design MPMS XL-7 magnetometer (Quantum Design, San Diego, CA, USA) with a temperature range of 2–300 K and a magnetic field of 1000 Oe.

3.2. Synthesis of 1

A mixture of hexacarboxylic acid ligand H6L (6 mg, 6.26 μmol) and Dy(NO3)3·6H2O (12 mg, 26.31 μmol) was added into the mixed solvent of DMF/H2O (v/v, 4 mL/1 mL) in a 25 mL Teflon-lined stainless steel autoclave. After adding 0.2 mL of 8 M HNO3, the sealed autoclave was heated to 130 °C for 3 days, then slowly cooled to room temperature, and colorless block-shaped crystals that were ideal for single-crystal X-ray diffraction were achieved. The crystalline samples were washed with mother liquor, then washed three times with acetone and dried in a vacuum oven at 60 °C (yield 56%, based on H6L). Elemental anal. Calcd (%): H 2.37%, C 45.43%, N 4.26%; found H 2.19%, C 45.97%, N 4.30%. FTIR (KBr pellet, cm−1): 3454 (br), 3084 (w), 2996 (w), 2671 (w), 2537 (w), 1932 (w), 1699 (s), 1607 (s), 1536 (s), 1423 (s), 1270 (m), 1154 (s), 957 (s), 887 (w), 856 (m), 785 (m), 734 (w), 696 (w).

3.3. Synthesis of 2

The synthesis procedure of 2 was similar to that of 1 except that Tb(NO3)3·6H2O was used instead of Dy(NO3)3·6H2O; colorless block-shaped crystals suitable for single-crystal X-ray diffraction were obtained (yield 47%, based on H6L). Elemental anal. Calcd (%): H 2.37%, C 45.57%, N 4.28%; found H 2.21%, C 45.86%, N 4.52%. FTIR (KBr pellet, cm−1): 3454 (br), 3083 (w), 2995 (w), 2670 (w), 2537 (w), 1930 (w), 1699 (s), 1605 (s), 1536 (s), 1423 (s), 1270 (m), 1155 (s), 956 (s), 885 (w), 854 (m), 783 (m), 734 (w), 695 (w).

3.4. Single-Crystal X-Ray Diffraction Analysis

The X-ray diffraction data of both complexes were collected at 298 K on a Bruker APEX-II CCD diffractometer (MoKα radiation source, λ = 0.71073 Å, Bruker, Billerica, MA, USA). The structures of complexes were solved via direct methods with the SHELXT program [37,38] to locate the non-hydrogen atoms from the experimental structures, and then anisotropic refinement was carried out by SHELXTL-2014 using a full-matrix least-squares procedure based on F2 values. The positions of the hydrogen atoms were geometrically fixed at calculated distances and can ride on the parent atoms. Details of the crystal data and refinement parameters for compounds 12 are shown in Table 1. The important bond lengths and angles are presented in Tables S1 and S2 (Supporting Information). CCDC 2,384,305 and 2,384,307 include the supplementary crystallographic data for this paper. These data are freely available from The Cambridge Crystallographic Data Centre.

4. Conclusions

In conclusion, we have successfully constructed two new lanthanide-based CPs from a flexible cyclotriphosphazene-functionalized hexacarboxylate under the condition of strong acidity using the hydrothermal method. The structures were characterized to be an attractive 2D network structure with ten-membered metal rings linked by bridged carboxyl groups along the crystallographic a-axis. Compound 1 showed weak antiferromagnetic coupling within the metal centers through carboxyl oxygen bridging and behaved as a field-induced SMM, and 2 exhibited attractive luminescence properties. Moreover, in the harsh strong acid synthesis environment, polycarboxylic acid ligands participate in coordination in a semi-protonated state for the first time, which makes these constructed unusual lanthanide-based CPs retain a large number of flexible free carboxyl groups that can interact with metal ions or small organic molecules. Following this lead, more efforts to develop their interesting applications in sensing and adsorption are underway.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/molecules29235602/s1: Figure S1. FT-IR spectra of compounds 12. Figure S2. The simulated X-ray powder diffraction patterns (black) and the experimental ones (red) of compounds 12. Figure S3. TGA curve of compounds 12. Table S1. Selected bond distances (Å) and angles (°) for 1. Table S2. Selected bond distances (Å) and angles (°) for 2. Figure S4. Two different coordination modes of the deprotonated carboxylate groups in hexacarboxylate ligand H6L. Figure S5. Temperature dependence of the in-phase (χ′) and out-of-phase (χ″) ac susceptibility data for 1 in a zero applied dc field. Figure S6. Frequency dependence of the out-of-phase (χ″) ac susceptibility data for 1 in a 1000 Oe applied dc field. Figure S7. The excitation spectra of ligand H6L (λem = 440 nm). Figure S8. The excitation spectra of compound 2em = 545 nm). Figure S9. The quantum yield of ligand H6L (λem = 352 nm). Figure S10. The quantum yield of compound 2em = 352 nm).

Author Contributions

Conceptualization, P.H.; methodology, Q.J. and Y.Y.; software, X.Z.; validation, Q.J. and Y.Y.; formal analysis, Z.L. and J.W.; investigation, Q.J. and Y.Y.; resources, X.Z.; data curation, Q.J.; writing—original draft preparation, P.H.; writing—review and editing, L.J.; visualization, L.J.; supervision, L.J.; project administration, P.H.; funding acquisition, L.J. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Hubei Provincial Natural Science Foundation of China (2024AFB1038), the Special Fund Projects of Hubei Key Laboratory of Radiation Chemistry and Functional Materials (2021ZX07 and 2022ZX05), the Research and Development Fund Project of Hubei University of Science and Technology (2023-25GP02), and the Innovation Team Project of Hubei University of Science and Technology (2023T09).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data will be made available upon reasonable request.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Li, N.; Feng, R.; Zhu, J.; Chang, Z.; Bu, X.H. Conformation versatility of ligands in coordination polymers: From structural diversity to properties and applications. Coord. Chem. Rev. 2018, 375, 558–586. [Google Scholar] [CrossRef]
  2. Ou, Y.C.; Zhong, R.M.; Wu, J.Z. Recent advances in structures and applications of coordination polymers based on cyclohexanepolycarboxylate ligands. Dalton Trans. 2022, 51, 2992–3003. [Google Scholar] [CrossRef]
  3. Li, X.Z.; Tian, C.B.; Sun, Q.F. Coordination-directed self-assembly of functional polynuclear lanthanide supramolecular architectures. Chem. Rev. 2022, 122, 6374–6458. [Google Scholar] [CrossRef] [PubMed]
  4. Torres, J.; Kremer, C. Coordination chemistry of lanthanide ions with X-(CH2-COO-)2 (X = O, NH, S) ligands: The leading role of X as carboxylate-connecting group. Coord. Chem. Rev. 2023, 494, 215347. [Google Scholar] [CrossRef]
  5. Wan, Q.; Wakizaka, M.; Yamashita, M. Single-ion magnetism behaviors in lanthanide(III) based coordination frameworks. Inorg. Chem. Front. 2023, 10, 5212–5224. [Google Scholar] [CrossRef]
  6. Wang, Y.X.; Ma, Y.; Chai, Y.; Shi, W.; Sun, Y.; Cheng, P. Observation of magnetodielectric effect in a dysprosium-based single-molecule magnet. J. Am. Chem. Soc. 2018, 140, 7795–7798. [Google Scholar] [CrossRef] [PubMed]
  7. Zhu, Z.; Guo, M.; Li, X.L.; Tang, J. Molecular magnetism of lanthanide: Advances and perspectives. Coord. Chem. Rev. 2019, 378, 350–364. [Google Scholar] [CrossRef]
  8. Yuan, G.; Chen, Z.Q.; Zhang, C.; Xie, Z.Y.; Liu, S.Y.; Meng, X.H.; Hao, X.R. 2D lanthanide coordination polymers as multi-responsive luminescence sensors for selective and sensitive recognition of Cr(VI)/MnO4 anions and broad-spectrum detection of antibiotics. J. Solid State Chem. 2022, 315, 123442. [Google Scholar] [CrossRef]
  9. Petiote, L.; Cabral, F.M.; Formiga, A.L.B.; Mazali, I.O.; Sigoli, F.A. A series of three isostructural 1D lanthanide coordination network based on 4, 4′, 4″-((benzene-1, 3, 5-triyltris (methylene))tris(oxy))tribenzoate ligand: Synthesis, crystal structure and photophysical properties. Inorg. Chim. Acta 2019, 494, 21–29. [Google Scholar] [CrossRef]
  10. Boone, M.; Artizzu, F.; Goura, J.; Mara, D.; Van Deun, R.; D’hooghe, M. Lanthanide phosphonate coordination polymers. Coord. Chem. Rev. 2024, 501, 215525. [Google Scholar] [CrossRef]
  11. Ren, Y.; Ma, Z.; Gao, T.; Liang, Y. Advance progress on luminescent sensing of nitroaromatics by crystalline lanthanide-organic complexes. Molecules 2023, 28, 4481–4501. [Google Scholar] [CrossRef] [PubMed]
  12. Kumar, M.; Qiu, C.Q.; Zaręba, J.K.; Frontera, A.; Jassal, A.K.; Sahoo, S.C.; Sheikh, H.N. Magnetic, luminescence, topological and theoretical studies of structurally diverse supramolecular lanthanide coordination polymers with flexible glutaric acid as a linker. New J. Chem. 2019, 43, 14546–14564. [Google Scholar] [CrossRef]
  13. Yu, W.J.; Chen, X.; Li, J.; Li, B.; Tao, J. Lanthanide coordination polymers with hexa-carboxylate ligands derived from cyclotriphosphazene as bridging linkers: Synthesis, thermal and luminescent properties. CrystEngComm 2013, 15, 7732–7739. [Google Scholar] [CrossRef]
  14. Ling, Y.; Jiao, J.; Zhang, M.; Liu, H.; Bai, D.; Feng, Y.; He, Y. A porous lanthanide metal-organic framework based on a flexible cyclotriphosphazene-functionalized hexacarboxylate exhibiting selective gas adsorption. CrystEngComm 2016, 18, 6254–6261. [Google Scholar] [CrossRef]
  15. Li, B.; Li, Z.; Wei, R.; Yu, F.; Chen, X.; Xie, Y.P.; Tao, J. A three-dimensional complex with a one-dimensional cobalt-hydroxyl chain based on planar nonanuclear clusters showing spin-canted antiferromagnetism. Inorg. Chem. 2015, 54, 3331–3336. [Google Scholar] [CrossRef]
  16. Ling, Y.; Bai, D.; Feng, Y.; He, Y. Alkaline earth-based coordination polymers derived from a cyclotriphosphazene-functionalized hexacarboxylate. J. Solid State Chem. 2016, 242, 47–54. [Google Scholar] [CrossRef]
  17. Chen, X.; Chen, Z.; Xu, S.; Chen, Y.; Tong, J.P.; Li, B. A self-assembled metal-organic framework for enhanced UO22+ fluorescence sensing: Integration of an octa-nuclear zinc cluster with hexakis (4-carboxyphenoxy) cyclotriphosphazene. CrystEngComm 2024, 26, 3341–3348. [Google Scholar] [CrossRef]
  18. Chen, X.; Dong, H.X.; Peng, H.N.; Hong, L.M.; Luo, D.; Zhuang, G.L.; Ye, Q. Three Cd (II) coordination polymers constructed from a series of multidentate ligands derived from cyclotriphosphazene: Synthesis, structures and luminescence properties. CrystEngComm 2018, 20, 3535–3542. [Google Scholar] [CrossRef]
  19. Jeevananthan, V.; Senadi, G.C.; Muthu, K.; Arumugam, A.; Shanmugan, S. Construction of Indium(III)-Organic Framework Based on a Flexible Cyclotriphosphazene-Derived Hexacarboxylate as a Reusable Green Catalyst for the Synthesis of Bioactive Aza-Heterocycles. Inorg. Chem. 2024, 63, 5446–5463. [Google Scholar] [CrossRef]
  20. Xiao, Y.; Chen, C.; Wu, Y.; Yin, Y.; Wu, H.; Li, H.; Zheng, B.; Huo, F. Fabrication of Two-Dimensional Metal-Organic Framework Nanosheets through Crystal Dissolution-Growth Kinetics. ACS App. Mater. Interfaces 2022, 14, 7192–7199. [Google Scholar] [CrossRef]
  21. Falcaro, P.; Ricco, R.; Doherty, C.M.; Liang, K.; Hill, A.J.; Styles, M.J. MOF positioning technology and device fabrication. Chem. Soc. Rev. 2014, 43, 5513–5560. [Google Scholar] [CrossRef] [PubMed]
  22. Seetharaj, R.; Vandana, P.V.; Arya, P.; Mathew, S. Dependence of solvents, pH, molar ratio and temperature in tuning metal organic framework architecture. Arab. J. Chem. 2019, 12, 295–315. [Google Scholar] [CrossRef]
  23. Li, Y.L.; Wang, H.L.; Zhu, Z.H.; Liang, F.P.; Zou, H.H. Recent advances in the structural design and regulation of lanthanide clusters: Formation and self-assembly mechanisms. Coord. Chem. Rev. 2023, 493, 215322. [Google Scholar] [CrossRef]
  24. Chen, F.G.; Xu, W.; Chen, J.; Xiao, H.P.; Wang, H.Y.; Chen, Z.; Ge, J.Y. Dysprosium(III) metal-organic framework demonstrating ratiometric luminescent detection of pH, magnetism, and proton conduction. Inorg. Chem. 2022, 61, 5388–5396. [Google Scholar] [CrossRef]
  25. Tu, H.R.; Chen, P.; Zhang, W.Y.; Tian, Y.M.; Sun, W.B. Different single-molecule magnets behaviors of carboxyl bridged dinuclear Dy(III) complexes induced by charged and neutral ligand. Inorg. Chim. Acta 2019, 494, 42–48. [Google Scholar] [CrossRef]
  26. Lin, S.Y.; Zhao, L.; Ke, H.; Guo, Y.N.; Tang, J.; Guo, Y.; Dou, J. Steric hindrances create a discrete linear Dy4 complex exhibiting SMM behaviour. Dalton Trans. 2012, 41, 3248–3252. [Google Scholar] [CrossRef] [PubMed]
  27. Yu, S.; Hu, Z.; Chen, Z.; Li, B.; Zhang, Y.Q.; Liang, Y.; Liu, D.; Yao, D.; Liang, F.P. Two Dy(III) single-molecule magnets with their performance tuned by Schiff base ligands. Inorg. Chem. 2019, 58, 1191–1200. [Google Scholar] [CrossRef]
  28. Bera, S.P.; Mondal, A.; Konar, S. Investigation of the role of terminal ligands in magnetic relaxation in a series of dinuclear dysprosium complexes. Inorg. Chem. Front. 2020, 7, 3352–3363. [Google Scholar] [CrossRef]
  29. Zhang, L.; Xiong, J.; Meng, Y.S.; Liu, T. Structures and magnetic relaxation properties of cyclopentadienyl/β-diketonate/trispyrazolylborate hybridized dysprosium single-molecule magnets. Chin. Chem. Let. 2023, 34, 108055. [Google Scholar] [CrossRef]
  30. Huang, X.D.; Ma, X.F.; Shang, T.; Zhang, Y.Q.; Zheng, L.M. Photocontrollable magnetism and photoluminescence in a binuclear dysprosium anthracene complex. Inorg. Chem. 2022, 62, 1864–1874. [Google Scholar] [CrossRef]
  31. Gusev, A.; Nemec, I.; Herchel, R.; Baluda, Y.; Babeshkin, K.; Efimov, N.; Kiskin, M.; Linert, W. Lanthanide(III) SMMs with cationic and anionic complex fragments formed by a Schiff base: Structure, luminescence, magnetic properties and ab initio calculations. Dalton Trans. 2024, 53, 11531–11542. [Google Scholar] [CrossRef] [PubMed]
  32. Chin, W.; Lin, P.H. Influence of energy barriers in triangular dysprosium single-molecule magnets through different substitutions on a nitrophenolate-type coligand. Inorg. Chem. 2018, 57, 12448–12451. [Google Scholar] [CrossRef] [PubMed]
  33. Jeon, I.R.; Clérac, R. Controlled association of single-molecule magnets (SMMs) into coordination networks: Towards a new generation of magnetic materials. Dalton Trans. 2012, 41, 9569–9586. [Google Scholar] [CrossRef] [PubMed]
  34. Beltrán-Leiva, M.J.; Solis-Céspedes, E.; Páez-Hernández, D. The role of the excited state dynamic of the antenna ligand in the lanthanide sensitization mechanism. Dalton Trans. 2020, 49, 7444–7450. [Google Scholar] [CrossRef] [PubMed]
  35. Pershagen, E.; Nordholm, J.; Borbas, K.E. Luminescent lanthanide complexes with analyte-triggered antenna formation. J. Am. Chem. Soc. 2012, 134, 9832–9835. [Google Scholar] [CrossRef]
  36. Li, Y.L.; Wang, H.L.; Chen, Z.C.; Zhu, Z.H.; Liu, Y.C.; Yang, R.Y.; Liang, F.P.; Zou, H.H. Lanthanoid hydrogen-bonded organic frameworks: Enhancement of luminescence by the coordination-promoted antenna effect and applications in heavy-metal ion sensing and sterilization. Chem. Eng. J. 2023, 451, 138880. [Google Scholar] [CrossRef]
  37. Sheldrick, G.M. SHELXL-2014, Program for Refinement of Crystal Structures; University of Göttingen: Göttingen, Germany, 2014. [Google Scholar]
  38. Sheldrick, G.M. SHELXS-2014, Program for Solution of Crystal Structures; University of Göttingen: Göttingen, Germany, 2014. [Google Scholar]

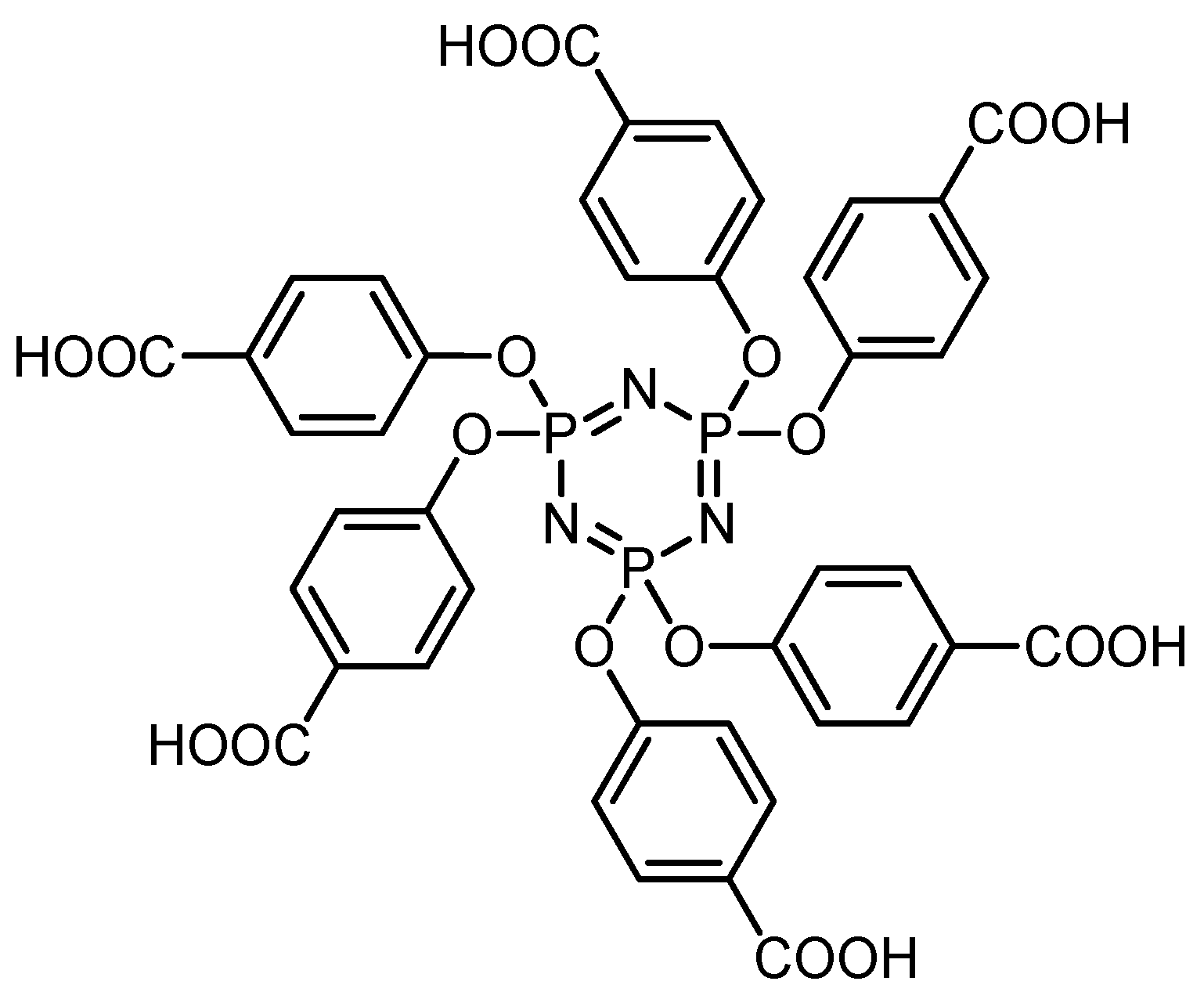

Scheme 1. The structure of hexacarboxylic acid ligand H6L used in this work.
Scheme 1. The structure of hexacarboxylic acid ligand H6L used in this work.
Molecules 29 05602 sch001

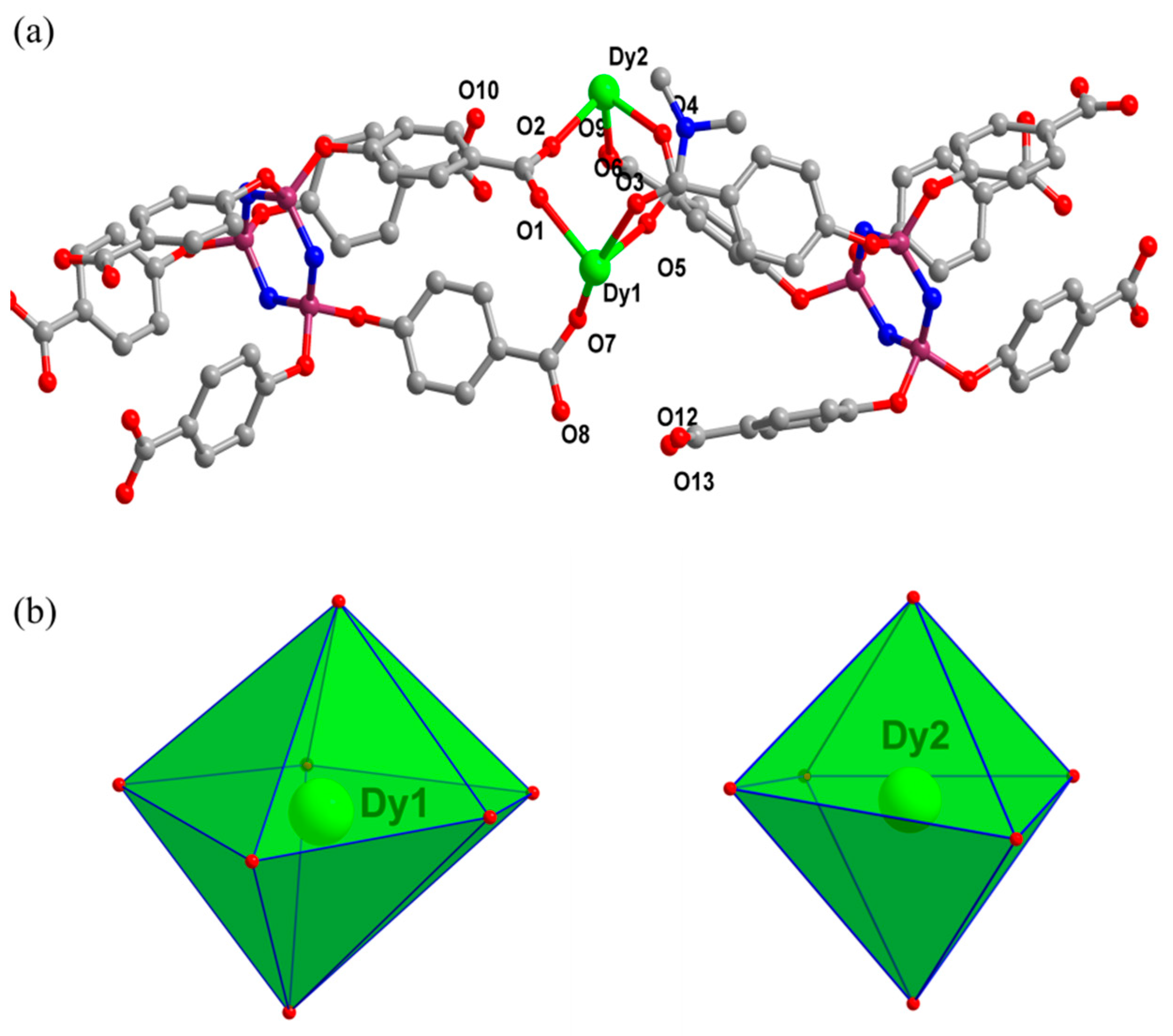

Figure 1. (a) The perspective view of the asymmetric unit of compound 1 with partial atoms labeled. Hydrogen atoms have been omitted for clarity. (b) The coordination geometry of the Dy1 ion (left) and Dy2 (right) ion in compound 1. Color code: DyIII, bright green; O, red; N, blue; P, plum; C, gray.
Figure 1. (a) The perspective view of the asymmetric unit of compound 1 with partial atoms labeled. Hydrogen atoms have been omitted for clarity. (b) The coordination geometry of the Dy1 ion (left) and Dy2 (right) ion in compound 1. Color code: DyIII, bright green; O, red; N, blue; P, plum; C, gray.
Molecules 29 05602 g001

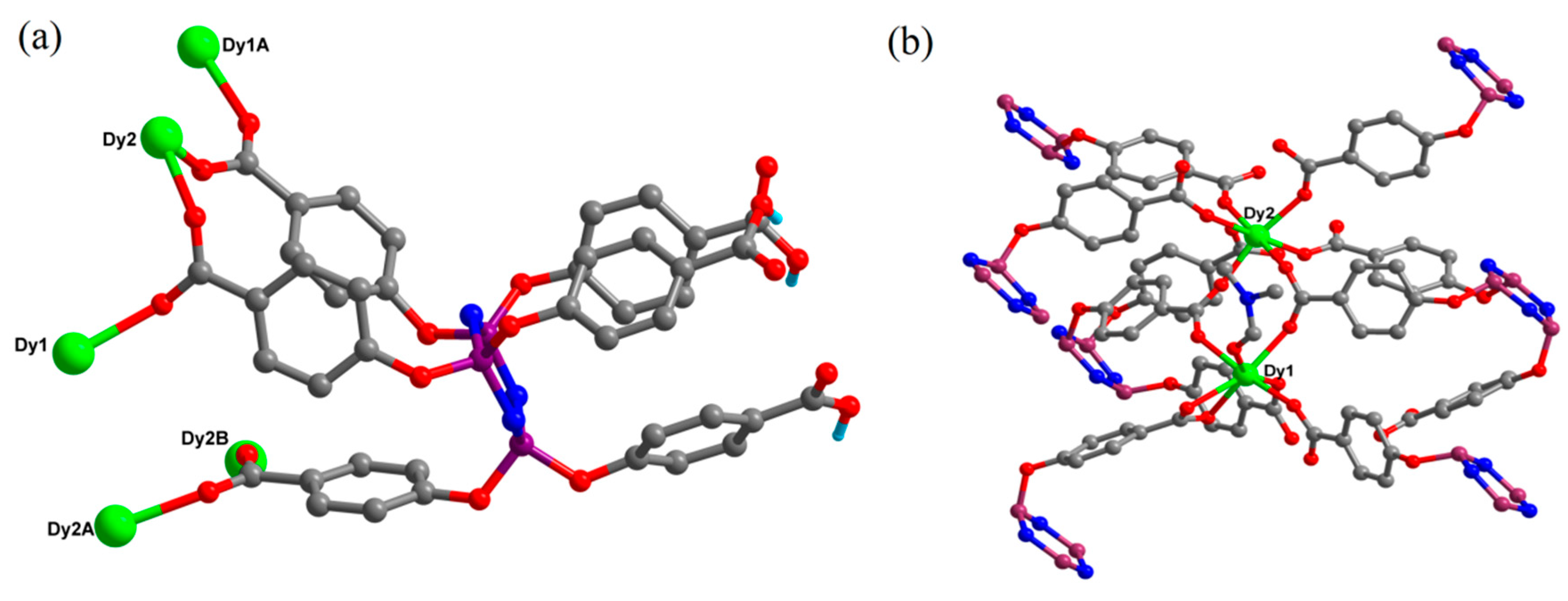

Figure 2. The connection mode of the semi-protonated hexacarboxylic acid ligand (a) and dinuclear unit (b) of compound 1. Asymmetry code: A, x, 1/2 − y, −1/2 + z; B, 1 − x, −1/2 + y, 3/2 − z. Color code: DyIII, bright green; O, red; N, blue; P, plum; C, gray; H, sky blue.
Figure 2. The connection mode of the semi-protonated hexacarboxylic acid ligand (a) and dinuclear unit (b) of compound 1. Asymmetry code: A, x, 1/2 − y, −1/2 + z; B, 1 − x, −1/2 + y, 3/2 − z. Color code: DyIII, bright green; O, red; N, blue; P, plum; C, gray; H, sky blue.
Molecules 29 05602 g002

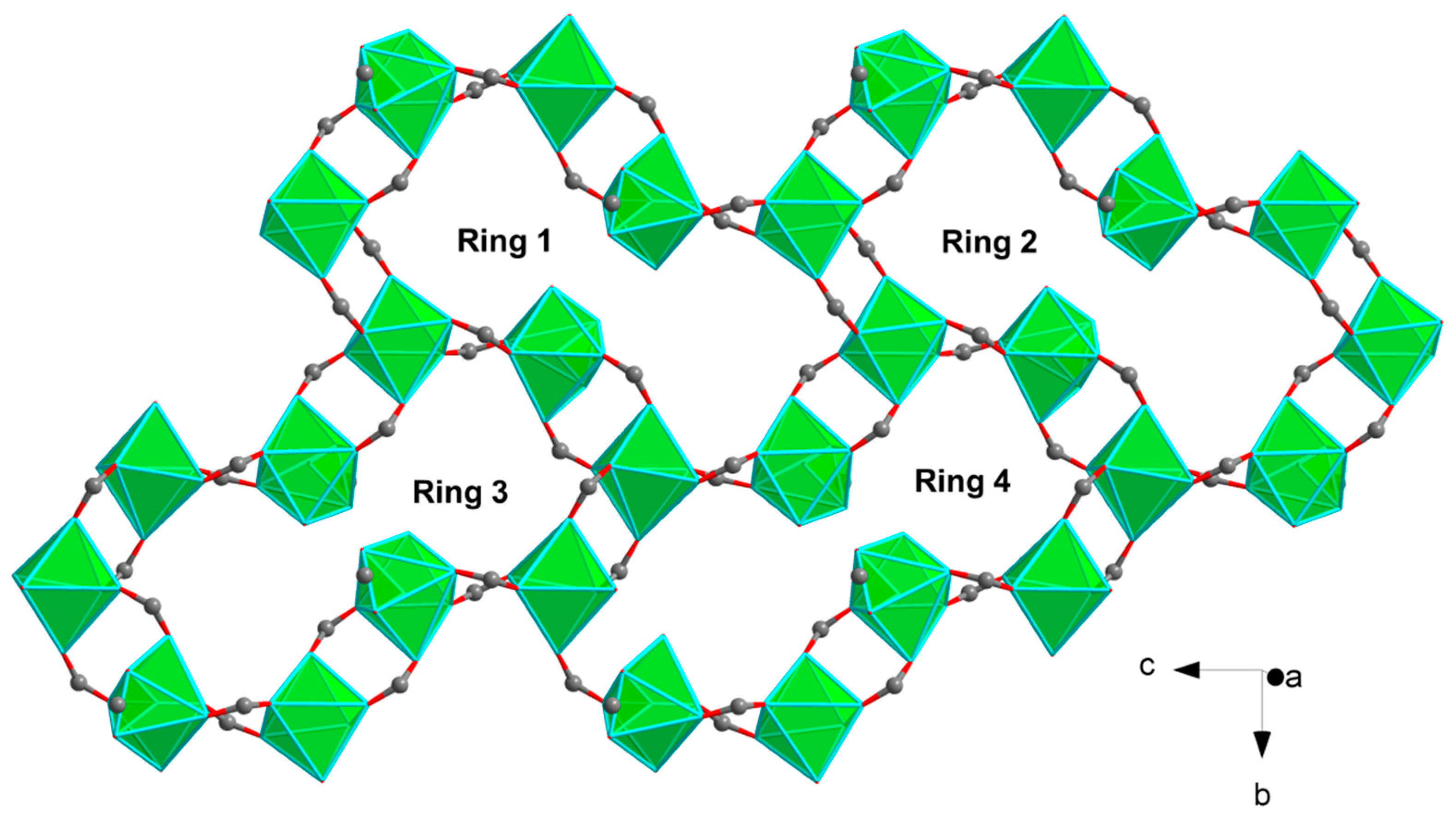

Figure 3. The 2D network structure of compound 1 with ten-membered metal rings along the a-axis.
Figure 3. The 2D network structure of compound 1 with ten-membered metal rings along the a-axis.
Molecules 29 05602 g003

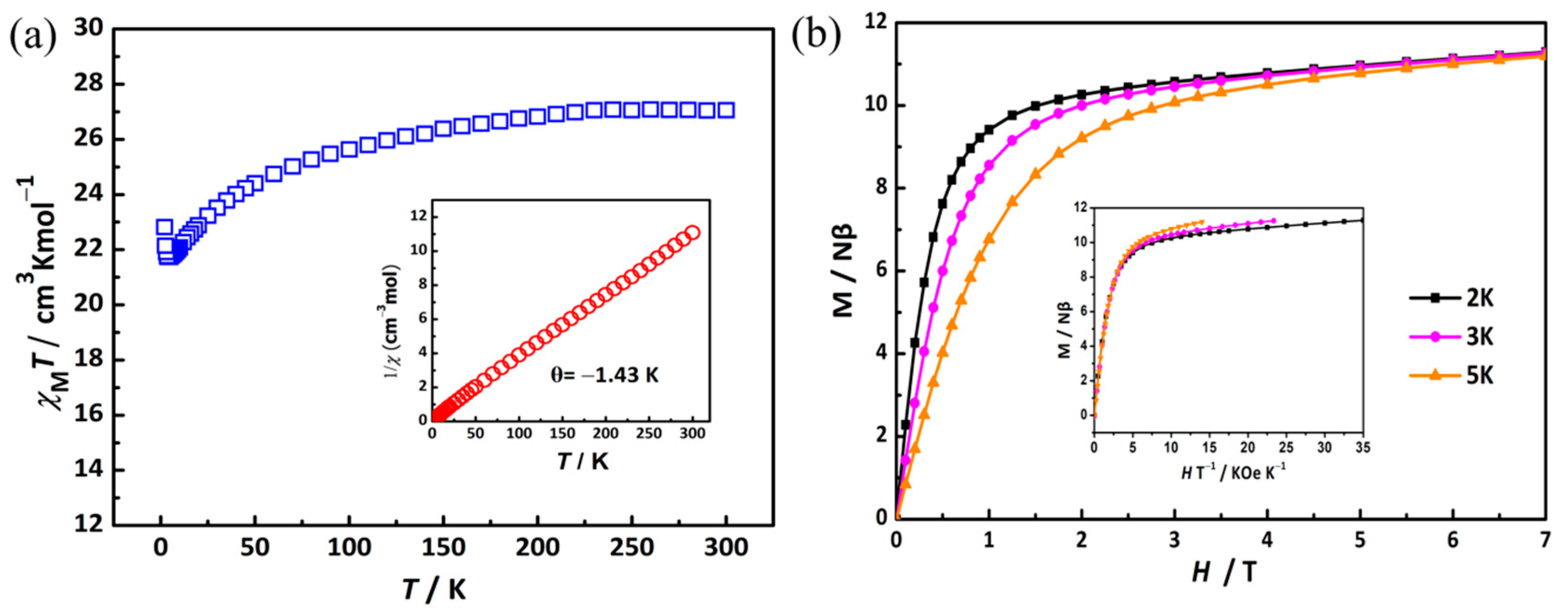

Figure 4. (a) Plots of χMT vs. T for compound 1. (b) M vs. H and M vs. H/T (inset) plots for compound 1 at 2–5 K. The solid lines show a guide for the eyes.
Figure 4. (a) Plots of χMT vs. T for compound 1. (b) M vs. H and M vs. H/T (inset) plots for compound 1 at 2–5 K. The solid lines show a guide for the eyes.
Molecules 29 05602 g004

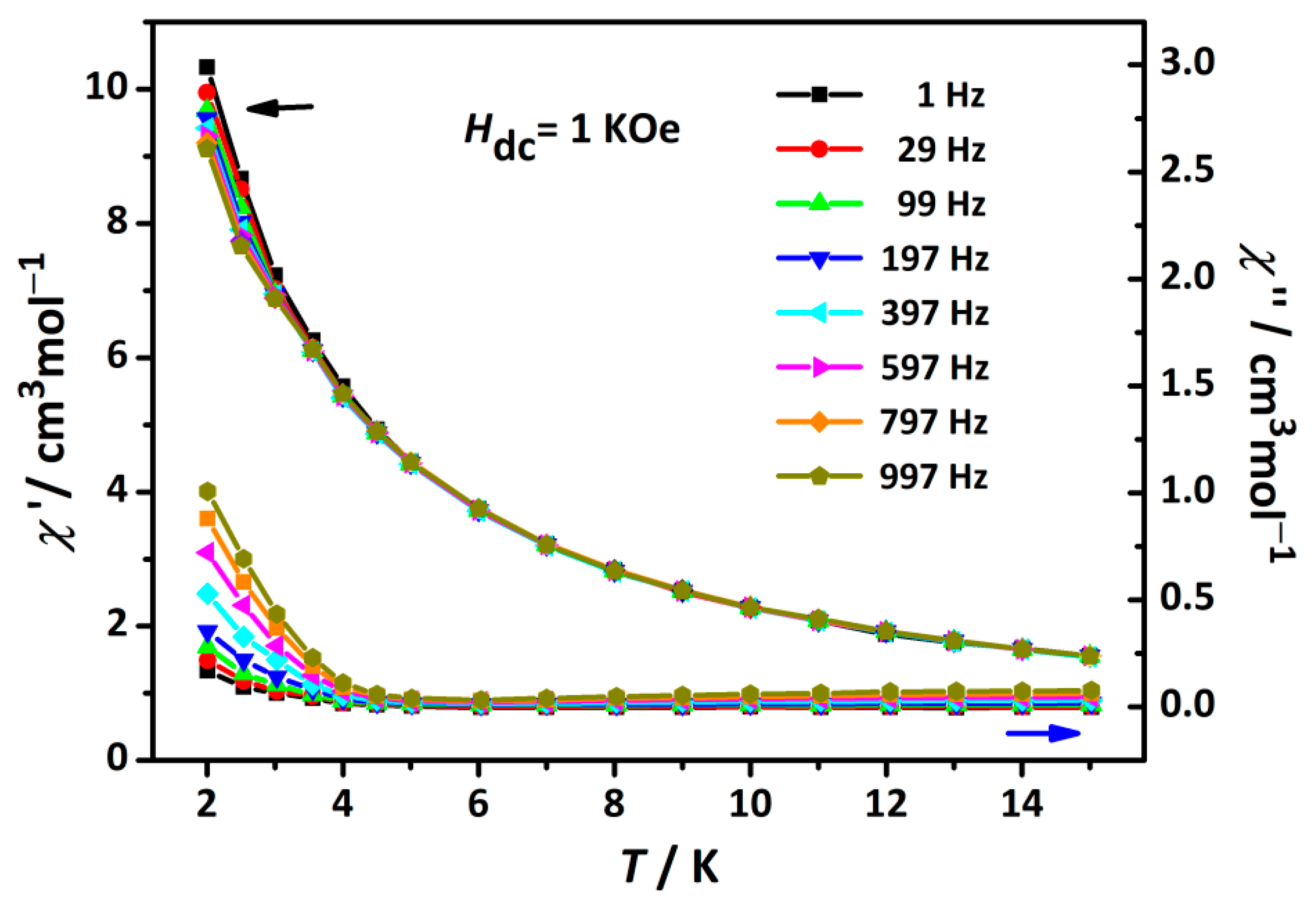

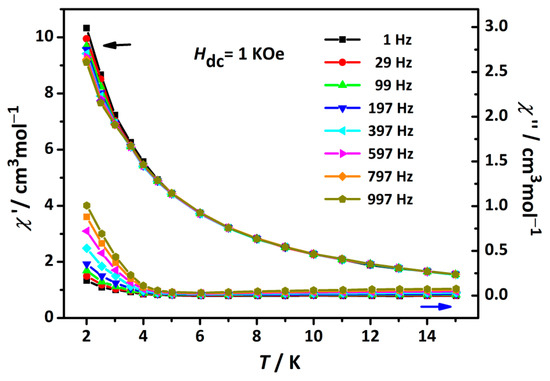

Figure 5. Temperature dependence of the in-phase and out-of-phase ac magnetic susceptibility signals at the indicated frequencies for compound 1 under the optimal dc field.
Figure 5. Temperature dependence of the in-phase and out-of-phase ac magnetic susceptibility signals at the indicated frequencies for compound 1 under the optimal dc field.
Molecules 29 05602 g005

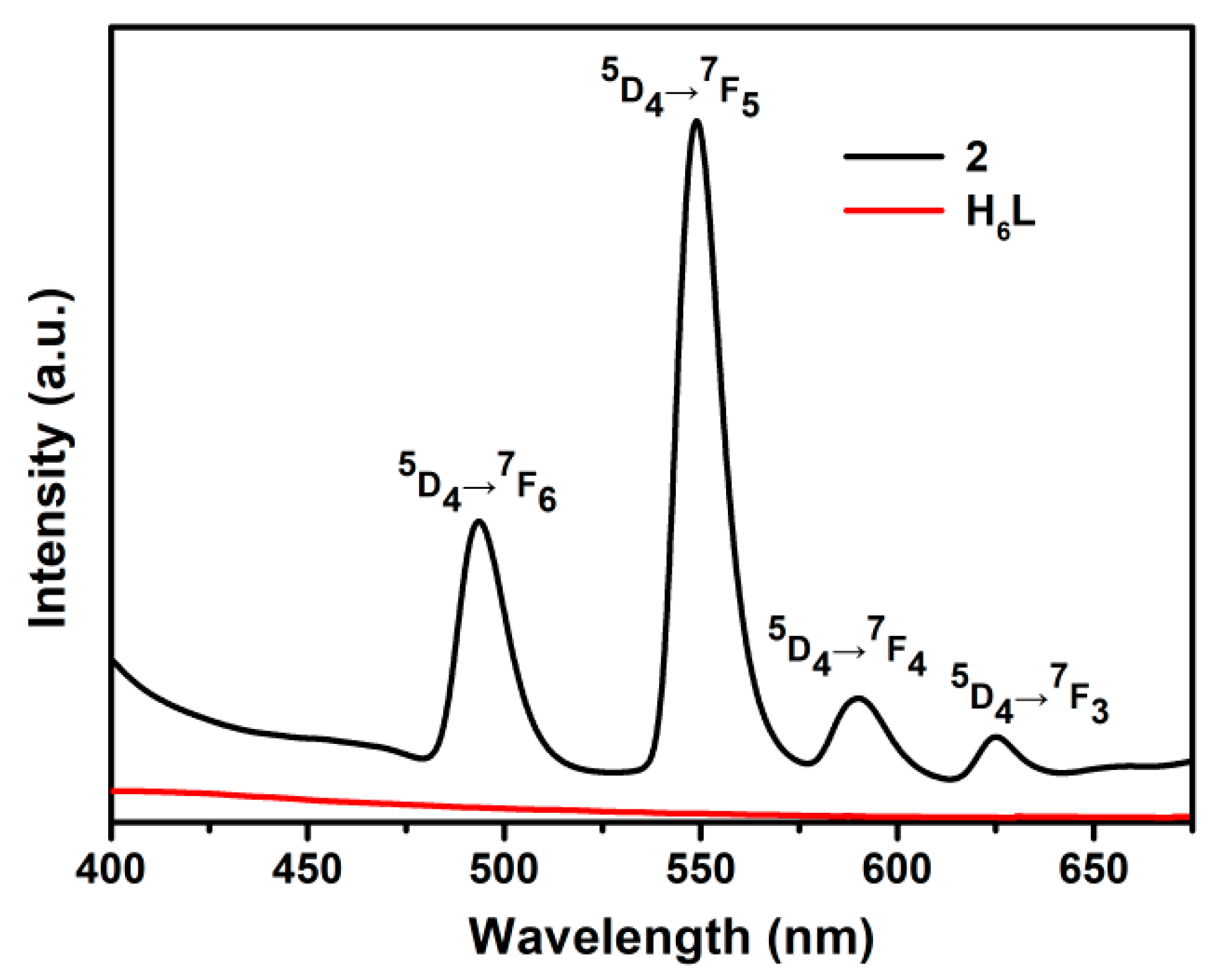

Figure 6. Room temperature solid-state emission spectra of compound 2 and H6L under excitation of 352 nm.
Figure 6. Room temperature solid-state emission spectra of compound 2 and H6L under excitation of 352 nm.
Molecules 29 05602 g006
Table 1. Crystal data and structure refinements for compounds 12.
Table 1. Crystal data and structure refinements for compounds 12.
Compound12
FormulaC87H54 Dy2N7O37P6C87H54 Tb2N7O37P6
Mr (g mol−1)2301.22294.06
Crystal systemMonoclinicMonoclinic
Space groupP21/cP21/c
a32.278 (7)32.335 (7)
b16.642 (3)16.637 (3)
c16.308 (3)16.305 (3)
α9090
β103.09 (3)103.04 (3)
γ9090
V38533 (3)8545 (3)
Z44
Dc (g cm−3)1.7911.783
μ (mm−1)1.9521.855
F(000)45764568
Reflections collected21,48814,146
Unique reflections22,88215,049
Rint0.08740.1010
Goodness of fit on F21.2211.026
R1 a, wR2b [I > 2σ(I)]0.0878, 0.24560.0662, 0.1788
R1, wR2 (all data)0.0899, 0.25240.0666, 0.1796
CCDC2,384,3052,384,307
a R1 = ∑||Fo| − |Fc||/∑|Fo|. b wR2 = [∑w(Fo2Fc2)2/∑w(Fo2)2]1/2.
