Efficient Charge Carriers Separation and Transfer Driven by Interface Electric Field in FeS2@ZnIn2S4 Heterojunction Boost Hydrogen Evolution

by
Haijun Qiao
1,*,
Rui Du
2,
Sifan Zhou
2,
Qi Wang
2,
Jingyu Ren
2,
Danjun Wang
2,* and
Huifeng Li
3
1
College of Science, Gansu Agricultural University, Lanzhou 730070, China
2
College of Chemistry and Chemical Engineering, Shaanxi Key Laboratory of Chemical Reaction Engineering, Yan’an University, Yan’an 716000, China
3
Beijing Key Laboratory of Energy Conversion and Storage Materials, College of Chemistry, Beijing Normal University, Beijing 100875, China
*
Authors to whom correspondence should be addressed.
Molecules 2024, 29(17), 4269; https://doi.org/10.3390/molecules29174269
Submission received: 16 August 2024 / Revised: 31 August 2024 / Accepted: 5 September 2024 / Published: 9 September 2024
(This article belongs to the Section Photochemistry)
Browse Figures
Versions Notes

Abstract

:
Photocatalytic H2 evolution technology is regarded as a promising and green route for the urgent requirement of efficient H2 production. At present, low efficiency is a major bottleneck that limits the practical application of photocatalytic H2 evolution. The construction of high-activity photocatalysts is highly crucial for achieving advanced hydrogen generation. Herein, a new S-scheme FeS2@ZnIn2S4 (FeS2@ZIS) heterostructure as the photocatalyst was developed for enhanced photocatalytic H2 evolution. Density function theory (DFT) calculation results strongly demonstrated that FeS2@ZIS generates a giant interface electric field (IEF), thus promoting the separation efficiency of photogenerated charge carriers for efficient visible-light-driven hydrogen evolution. At optimal conditions, the H2 production rate of the 8%FeS2@ZIS is 5.3 and 3.6 times higher than that of the pure FeS2 and ZIS, respectively. The experimental results further indicate that the close contact between FeS2 and ZIS promotes the formation of the S-scheme heterojunction, where the interfacial charge transfer achieves spatial separation of charge carriers. This further broadens the light absorption range of the FeS2@ZIS and improves the utilization rate of photogenerated charge carriers. This work thus offers new insights that the FeS2-based co-catalyst can enrich the research on S-scheme heterojunction photocatalysts and improve the transfer and separation efficiency of photogenerated carriers for photocatalytic hydrogen production.

1. Introduction

In recent years, the conversion of solar energy into available chemical energy through artificial photosynthesis has attracted much attention. The development and utilization of renewable solar energy is expected to solve the problem of energy shortage in modern society [1,2,3]. Hydrogen energy (H2) is an advanced clean energy with high calorific value, no pollution, and environmentally friendly characteristics that have a broad application prospect [4,5,6]. Furthermore, according to previously reported research, the dramatic increase in global demand for hydrogen and the creation of huge revenues through the hydrogen economy have led to hydrogen energy being an important cornerstone of the plan to achieve net zero and sustainable development [7]. Photocatalytic technology can realize the conversion of solar energy to H2 through artificial photosynthesis, a process of pollution-free, high-energy utilization and conversion [8,9]. However, low efficiency has been a major bottleneck that limits the practical application of photocatalytic H2 evolution. Therefore, the design and development of new types of high-performance photocatalysts for H2 production are the key to solving this problem [10,11].
So far, various semiconductor materials have been found to produce H2 during water splitting. Among them, metal sulfide semiconductor materials, such as CdS [12,13,14], ZnS [15,16], In2S3 [17,18], etc., are widely used as H2 production photocatalysts because of their excellent light absorption and suitable band structure. ZnIn2S4 (ZIS) is a widely used metal sulfide photocatalyst with a wide light absorption, tunable band gap, high stability, and low toxicity [19]. However, the performance of photocatalytic H2 production of the pristine ZnIn2S4 is largely limited by the rapid reorganization of photoborne carriers [20,21]. Currently, many methods have been tried to improve the H2 production activity of single photocatalysts, such as doping, defect engineering, sensitization, and heterostructures. Generally, constructing heterostructures can effectively enhance the separation of photogenerated carriers and improve their photocatalytic properties [22,23]. Precious metals, such as Au, Pd, and Pt, have been widely recognized as effective photocatalytic co-catalysts for hydrogen production [24,25,26]. However, their low abundance and high cost have seriously restricted large-scale applications [27,28]. It is necessary to find new semiconductors as low-price alternatives to precious metals. FeS2 is an ideal co-catalyst with excellent electrical conductivity and light absorption ability [29,30]. At the same time, FeS2 and ZIS form a semiconductor–semiconductor heterojunction through the interface interaction, which is not only conducive to the rapid separation of the photogenerated carrier to accelerate HER kinetics but can also further broaden the light absorption of heterostructured catalysts [31,32,33].
Herein, a novel S-scheme FeS2@ZnIn2S4 (FeS2@ZIS) heterostructure was synthesized by a simple electrostatic self-assembly method. It was confirmed that the formation of the heterostructure broadens the light absorption range, while the S-scheme charge transfer mechanism facilitates the separation and transfer of photocarriers. The composite catalyst shows higher H2 evolution efficiency than the individual ZIS and FeS2 and also exhibits good photostability. The H2 production rate of the optimal composite catalyst (8% FeS2@ZIS) is 5.3 and 3.6 times higher than that of FeS2 and ZIS, respectively.

2. Results and Discussion

2.1. Structure and Morphology Analysis

FeS2@ZIS heterostructures were prepared by the electrostatic self-assembly process. As shown in the Zeta potentiogram (Figure 1a), the pure FeS2 and ZIS samples have opposite electrification, 7.7 and −32.5 mV, respectively. Therefore, the FeS2@ZIS heterostructures are assembled by electrostatic attraction. The crystal structures of the prepared catalysts were studied by XRD. As shown in Figure 1b, four characteristic diffraction peaks appeared at 21.59°, 27.69°, 30.45° and 47.17° for the prepared ZIS, corresponding to the (006), (102), (104) and (110) crystal faces of ZIS (JCPDS Card NO. 65-2023), respectively [34]. The XRD pattern of FeS2 showed that it is composed of two different crystalline phases, corresponding to FeS2 (JCPDS Card NO. 02-0908) and FeS2 (JCPDS Card NO. 26-0801), respectively [35]. Due to the small content of FeS2, only the characteristic diffraction peak belonging to ZIS appeared in the XRD pattern of the FeS2@ZIS composite catalyst. Figure 1c shows the XRD patterns of FeS2@ZIS in different proportions. With the increase in FeS2 loading, the intensity of XRD diffraction peaks for the composite catalyst gradually decreased, which is because the crystallinity of the catalysts decreases upon the surface loading of FeS2.
The structure and morphology characteristics of the prepared catalysts were analyzed by SEM and TEM tests. As shown by the SEM image in Figure 2a, pure FeS2 shows an irregular structure. SEM and TEM images of pure ZIS show a uniform spheroidal structure composed of a large number of flakes (Figure 2b,d). Figure 2c,e correspond to SEM and TEM images of the 8%FeS2@ZIS nanocomposite catalyst. Upon recombination with FeS2, 8% FeS2@ZIS also exhibits a sphere structure composed of thin nanosheets. However, the surface of the FeS2@ZIS complex sphere collapses due to the surface load of FeS2. From the HR-TEM image of the composite catalyst, the (006) and (102) crystal faces belonging to ZSI can be observed, with crystal face spacings of 0.41 nm and 0.32 nm, respectively (Figure 2f). At the same time, the (110) and (200) crystal faces belonging to FeS2 (JCPDS Card NO. 02-0908) and FeS2 (JCPDS Card NO. 26-0801) were also observed, and the crystal face spacing was 0.34 and 0.27 nm, respectively. This provided evidence for the successful preparation of the FeS2@ZIS composite catalyst. In addition, it can be seen from the EDX-mapping element spectrum at FeS2@ZIS that Zn, In, S, and Fe elements were evenly distributed in the composite sample (Figure 2g–k).
The structural composition and surface valence states of the prepared catalysts were analyzed by the XPS test. The XPS survey spectrum in Figure S1 contains all the elements in ZIS and 8%FeS2@ZIS. In Figure 3a, the XPS high-resolution spectra of Zn 2p of pristine ZIS are deconvolved into two peaks, belonging to Zn 2p3/2 and Zn 2p1/2 at 1022.03 and 1045.06 eV, respectively [36]. The peaks of the binding energies at 445.12 and 452.27 eV in the In 3d high-resolution spectra of the ZIS correspond to In 3d5/3 and In 3d2/3, respectively (Figure 3b) [37]. As shown in Figure 3c, the S 2p spectrum of ZIS is deconvolved into two peaks around 161.90 and 163.10 eV, corresponding to S 2p3/2 and S 2p1/2, respectively. In the case of FeS2, the main S state contains five contributions: the peaks at 162.28 and 163.46 eV correspond to S 2p3/2 and S 2p1/2 of S22−; the surfaces S22− at 161.46 and 162.90 eV arise from band bending in the space charge region; and SX at 164.50 eV is derived from a polysulfide (Sn2−) or the nuclear pore effect [38,39]. In Figure 3d, the peaks of the Fe 2p spectrum of FeS2 at 711.76 and 707.49 eV correspond to Fe 2p3/2, and the other two peaks at 725.23 and 720.10 eV correspond to Fe 2p1/2, indicating the presence of FeS2 [40]. Furthermore, the peak at 708.9 eV is due to the oxidation of Fe2+ to Fe3+ [41]. As shown in Figure 3a–d, after forming the FeS2@ZIS composite, compared with pure ZIS, the peaks of Zn 2p, In 3d, and S 2p in the composite shift towards the direction of higher binding energy. Conversely, the S 2p peak in the composite shifts towards a lower binding energy relative to FeS2. The opposite shift of the binding energy is caused by the interface interaction between FeS2 and ZIS after the formation of the heterostructure.

2.2. HER Performance

The H2 production activity of the catalysts was systematically studied using Na2S/Na2SO3 as the sacrificial agent. Figure 4a compares the H2 production activity of FeS2@ZIS composite catalysts with different amounts of FeS2 loading. With the increase in FeS2 loading, the H2 production efficiency gradually increased, and the highest H2 production performance was obtained when the mass fraction of FeS2 in the composite was 8%, yielding 4543 μmol g−1 within 3 h. The H2 production rate showed a decrease when further increasing the concentration of FeS2 in the complex, probably because excessive FeS2 loading formed the carrier composite center on the surface of the catalyst, thus inhibiting the photocatalytic HER. As shown in Figure 4b, the H2 production performance of different catalysts within 3 h was compared, and the H2 production rate of the optimal composite catalyst (8%FeS2@ZIS) was 5.3 and 3.6 times higher than that of the pristine FeS2 and ZIS, respectively. Although the H2 production activity of 8%FeS2@ZIS was less active than most reports suggest, it is a significant improvement over pure FeS2 and ZnIn2S4 [42]. Figure 4c shows the comparison of the photocatalytic H2 production performance of the 8%FeS2@ZIS composite catalyst in different sacrificial agent systems (triethanolamine, Na2S/Na2SO3, lactic acid, ethanol, methanol, and without sacrificial agent). The sacrificial agent assumes the role of capturing light holes and inhibiting the carrier recombination during the photocatalytic reaction. The H2 production of the composite catalyst is almost zero within 3 h without a sacrificial agent, while high H2 production performance can be obtained in the photocatalytic system with Na2S/Na2SO3, triethanolamine, and lactic acid as a sacrificial agent. Figure 4d compares the effect of the catalyst dosage on H2 production performance. In the Na2S/Na2SO3 sacrifice agent system, the optimal amount of the catalyst is 30 mg, and an excessive catalyst will block the simulated sunlight in the system, thus reducing the photocatalytic H2 production rate. Moreover, the stability of the catalyst during the photocatalytic reactions is an important factor in the evaluation of catalyst performance. As shown in Figure 4e, the stability test of the catalyst showed that the H2 production of 8%FeS2@ZIS increased linearly within 24 h. As shown in Figure 4f and Figure S2, the XRD and SEM test results of the samples before and after the photocatalytic reaction were compared. Relative to those before the photocatalytic reaction, the crystal structure and morphology of the catalyst did not change significantly, which further proved the stability of FeS2@ZIS.

2.3. Photocatalysis Mechanism

The light absorption properties and band structures of the catalyst were studied by UV-Vis DRS and VB-XPS spectra. As shown in Figure 5a, the light absorption edge of the pristine ZIS was located at 530 nm, and the absorption edge of the composite sample was redshifted after the introduction of FeS2. With the increase in FeS2 concentration in FeS2@ZIS, the light absorption range of the composite catalyst gradually increased, and the light absorption in the visible region was enhanced. As shown in Figure 5b and the inserted figure, the energy band gaps (Eg) corresponding to ZIS and FeS2 were calculated using the transformed Kubelka–Munk function and were 2.21 and 1.77 eV, respectively. The EVBM of the sample was determined by the VB-XPS test, and the EVBM of FeS2 and ZIS were −0.13 and 1.70 V, respectively (Figure 5c). In addition, for n-type semiconductors, the Fermi level (Ef) is usually 0.1–0.3 eV below the conduction band, so the Ef can be obtained by the Mott–Schottky (M-S) test to further verify the band structure of the prepared catalyst [43]. As shown in Figure 5d,e, the Ef of FeS2 and ZIS were −1.60 V and −0.34 V, respectively, so the band structure of the catalyst obtained was reasonable.
The photogenerated charge carrier separation properties of photocatalysts were evaluated by photoelectrochemistry, PL, and TR-PL testing. As shown by the i-t curve in Figure 6a, FeS2 exhibits a low photocurrent density due to the rapid photogenerated e−/h+ recombination. After the formation of the composite catalyst, 8% FeS2@ZIS shows enhanced photocurrent response compared with the pristine FeS2 and ZIS [44]. As shown in Figure 6b, the arc radius of the electrochemical impedance spectral (EIS) Nyquist plot of 8% FeS2@ZIS is smaller than that of bare ZIS and FeS2, indicating a lower interfacial charge transfer resistance [45]. The EIS spectra are composed of the ohmic resistance (R1), the charge transfer resistance (R2), and the constant phase element, where the R2 value can reflect the electron transport capacity of the sample [46]. Furthermore, the fitting impedance results (Figure 6b and Table S1) show that the three catalysts have a similar R1. Relative to the bare FeS2 and ZIS, the R2 of the 8%FeS2@ZIS is significantly reduced (Table S1), indicating that the charge transfer efficiency is significantly improved after the formation of the composite catalyst. The EIS result indicates that 8%FeS2@ZIS has the strongest separation and transfer ability of photogenerated carriers, thus promoting the photocatalyst performance. As shown in Figure 6c, the catalyst surface hydrogen production dynamics were explored by the LSV test. Compared with FeS2 and ZIS, the 8%FeS2@ZIS composite has a higher photocurrent density and a lower HER overpotential at the same potential and photocurrent density, indicating that the 8%FeS2@ZIS composite has the best electron transfer efficiency as an electrode [47,48]. The rapid recombination of photogenerated carriers enhances the fluorescence of catalyst material. As shown in Figure 6d, the PL intensity of 8%FeS2@ZIS at about 820 nm is weakened compared with the pristine ZIS, indicating that the formation of the composite effectively inhibits the photogenerated carrier recombination. The TR-PL results indicate (Figure 6e) that the average lifetime of the 8%FeS2@ZIS composite (2.78 ns) is increased compared to pure ZIS (2.27 ns), indicating that the heterostructure achieves more efficient charge transfer [49]. The above analyses confirm that the separation and transfer of photogenerated carriers can be accelerated through the heterogeneous interface after the formation of heterogeneous structures so as to achieve efficient carrier utilization and, thus, improve the photocatalytic hydrogen production rate.
The separation efficiency of photogenerated electron/hole pairs was further revealed by DMPO radical trapping experiments with ESR spectroscopy. As shown in Figure 7a–f, no radical generation was observed in all samples under dark conditions. The conduction band positions of FeS2 (−1.90 V) and ZIS (−0.51 V) both met the formation potential of superoxide free radicals (O2 + eCB-→·O2− at −0.33 V vs. NHE), so four broad peaks of equal intensity were detected in the methanol solution after illumination, corresponding to the DMPO-·O2− signal. With the extension of illumination time, the concentration of ·O2− generated in the solution gradually increased, and thus, the peak intensity gradually increased. Since the valence band maximum of FeS2 (−0.13 V) and ZIS (1.77 V) did not meet the generation potential of ·OH (OH− + hVB+→·OH + H+ at 1.99 V vs. NHE), no DMPO-·OH signal was detected under light illumination. As shown in Figure 7a–c, 8% FeS2@ZIS exhibited a stronger ESR signal of DMPO-·O2− than that of both FeS2 and ZIS, respectively. The above analysis results show that the construction of the FeS2@ZIS heterojunction can effectively accelerate the transfer of photogenerated charge carriers, thus improving the photocatalytic hydrogen production performance.
To determine the effect of the specific surface area and pore structure on the hydrogen production properties, samples were tested for nitrogen adsorption–desorption. In Figure S3, ZIS and 8%FeS2@ZIS show similar surface areas of 68.16 m2 g−1 and 64.19 m2 g−1, respectively, and both have mesoporous structures. Therefore, the pore structure and the specific surface area of the catalyst after forming the composites did not change significantly due to the small amount of FeS2 loading.
Based on the above characterization and experimental results, the charge transfer mechanism of the composite catalyst will be further discussed. As shown in Figure 8a,b, due to the staggered band structure of FeS2 and ZIS, spontaneous electron transfer can occur at the heterogeneous interface upon the two semiconductors being brought into contact. According to the M-S test results, the transfer direction of the electrons at the heterogeneous interface is from FeS2 with higher Ef to ZIS with lower Ef until the Fermi level of both semiconductors reaches agreement. The transfer of electrons between semiconductors leads to the formation of an internal electric field (IEF) at the heterogeneous interface that is opposite to the direction of electron flow. Due to the loss of electrons, the electric potential at the interface of FeS2 increases, and the band bends upward. On the contrary, the band edge at the heterojunction interface of the ZIS side is bent downward due to electron enrichment, and opposite band bending can prevent the continuous flow of electrons. As shown in Figure 8c, under light, the VB electrons of the semiconductor are excited to CB while leaving photogenerated holes in the same position of VB. Under the action of IEF, the photogenerated h+ of VB in FeS2 and the photogenerated e- of CB in ZIS migrate to the heterogeneous interface and recombine. The photogenerated electrons of CB in FeS2 migrate to the surface and participate in the HER, while the photogenerated h+, retained at the VB of ZIS, is consumed by the hole-trapping agent (Na2S/Na2SO3). Therefore, the charge transfer of the prepared FeS2@ZIS heterostructures conforms to the S-scheme mechanism.
The promotion of charge carrier separation by the IEF in the FeS2@ZIS heterostructure was further confirmed using density functional theory (DFT) calculations. At the FeS2/ZnIn2S4 heterogeneous interface, the electrons were expected to transfer from FeS2 to ZnIn2S4. The DFT results indicated that there was electron transfer potential (ΔV = 1.81 eV) between the FeS2 and ZnIn2S4 regions (Figure 9a), indicating the existence of an IEF directed from FeS2 to ZnIn2S4. The IEF drove the photogenerated electron transfer from ZnIn2S4 to FeS2. Figure 9b shows the charge density difference in FeS2@ZIS, where the yellow and blue regions represent electron accumulation and electron depletion, further confirming that the IEF from FeS2 to ZnIn2S4 drives the electron transfer from ZnIn2S4 to FeS2.
The electronic localization function (ELF) visualizes the electron density distribution around the S-S bond (Figure 9c). The smaller the value, the stronger the delocalization of the electron, while the larger the value, the stronger the localization of the electron. When the value of the isosurface level is 0.7, no electrons appear; when the value is 0.4, electrons gather on the S-S bond. The smaller the value, the more electrons accumulate on the S-S bond, indicating strong delocalization and high electron kinetic energy. Therefore, the S-S bond acts as an electron bridge to promote charge separation, transmission, and migration. Through the distribution of charge density, it is further confirmed which atom contribute to the VBM and CBM of FeS2 and ZnIn2S4 (Figure 9d). The results show that the VBM and CBM of FeS2 are contributed by S and Fe atoms, while the VBM and CBM of ZnIn2S4 are contributed by Zn and S atoms. This further proves that holes on FeS2 recombine with electrons on ZnIn2S4 through the S-S bond, thus forming an S-scheme heterojunction between FeS2 and ZnIn2S4.

3. Experimental Section

3.1. Synthesis of FeS2/ZIS Photocatalyst

Preparation of ZnIn2S4(ZIS). Generally, Zn(NO3)2∙6H2O (1 mmol) and InCl3∙4H2O (2 mmol) were dissolved in 60 mL of deionized water, and then thioacetamide (10 mmol) was added to the solution under agitation. After stirring at room temperature for 30 min, the mixture was transferred to a 100 mL hydrothermal reactor and heated at 160 °C for 12 h. The mixture is then cooled naturally to room temperature. The obtained light-yellow product was centrifuged, washed 3 times with deionized water and ethanol, and dried at 60 °C for 12 h. The resulting ZnIn2S4 is designated ZIS.
Preparation of FeS2. In total, 1 mmol of FeCl3·6H2O and 6 mmol of thiourea were dissolved in 40 mL of deionized water and stirred for 10 min. The transparent solution was then transferred to a 50 mL stainless steel autoclave coated with Teflon and reacted for 24 h at 180 °C. The reaction was cooled to room temperature, and the resulting FeS2 precipitate was washed by centrifugation. Finally, the products were dried at 80 °C for 24 h.
Preparation FeS2@ZIS. The FeS2@ZIS photocatalyst was prepared via a facile electrostatic self-assembly method. Typically, 0.3 g of ZnIn2S4 was dissolved in 30 mL of deionized water and stirred for 30 min. Then, 0.024 g of prepared FeS2 was added and continuously stirred for 24 h. The obtained precipitates were washed with deionized water and dried overnight at 70 °C to obtain a FeS2@ZIS complex. x%FeS2@ZIS with a different mass ratio was prepared by changing the mass of added FeS2.

3.2. Characterization of the Samples

The crystal structure of as-prepared samples was investigated by powder X-ray diffraction (Shimadzu XRD-7000) (Kyoto, Japan). The UV-Vis diffuse reflectance spectra were used to investigate the optical characteristics of the samples (Shimadzu, UV-2550). Scanning electron microscopy (SEM, JSM-6700F) (Japan electronics, Kyoto, Japan) and transmission electron microscopy (TEM, JEOL-F200) (Japan electronics, Kyoto, Japan) were performed to observe the morphology of the samples. Raman spectroscopy was measured on a Horiba LabRAM HR Evolution instrument. X-ray photoelectron spectroscopy (XPS) was performed on a PHI-5400 (America PE) 250 xi system. Photoluminescence spectra (PL) and time-resolved photoluminescence spectra (TR-PL) were conducted on an Edinburgh FLS1000 instrument (Livingston, UK). Electron spin resonance spectra (ESR) were measured by Bruker ESR JES-FA200 (Billerica, MA, USA).

3.3. Photocatalytic Activity Evaluation

The photocatalytic HER performance of the samples was carried out in a closed apparatus (Labsobar-IIIAG, Beijing Pect Light Technology Co., Ltd., Beijing, China). Typically, 30 mg of the sample was dispersed into 100 mL of Na2S/Na2SO3 aqueous solution. A 300 W xenon lamp was used as the light source. The produced H2 was tested by gas chromatography (FulliGC9790II, Taizhou, China). Comparative analysis was carried out where the Na2S/Na2SO3 solution was replaced with 20 mL of various sacrificial agents (methanol, ethanol, triethanolamine, and lactic acid) and 80 mL of H2O, while all other conditions were held constant.

3.4. Theoretical Calculations

All the calculations used Vienna Ab-initio Simulation Package (VASP) to perform DFT calculations. The Perdew–Burke–Ernzerhof functional was used for exchange–correlation effects, and the DFT + D3 was employed to handle weak interactions. The cut-off energy for the plane-wave basis was 450 eV. K-points were 2 × 2 × 1 in the Brillouin zone. A 15 Å layer vacuum was applied at Z-axis of slab models to avoid the periodic effect. Energy and maximum stress were converged to 10−5 eV and 0.03 eV/Å, respectively.

4. Conclusions

Novel FeS2@ZIS nanocomposites were constructed by an electrostatic self-assembly approach for photocatalytic H2 evolution, and the obtained FeS2@ZIS photocatalyst exhibited highly enhanced H2 evolution. Morphology, optical, and textural properties and the phase structure of the heterojunction of FeS2@ZIS nanocomposites were investigated in detail. The obtained heterostructures showed the following advantages over pristine FeS2 and ZIS: firstly, the S-scheme charge transfer mechanism promotes photogenerated carrier separation and transfer and improves the utilization of carriers through interfacial charge transfer; secondly, the formation of the heterostructure broadens the light absorption range of the nanocomposite catalyst, and improves the utilization rate of light energy; thirdly, the H2 production rate of the optimal composite catalyst (8%FeS2@ZIS) is 5.3 and 3.6 times that of pristine FeS2 and ZIS, respectively; and, fourthly, the stability experiments show that the FeS2@ZIS sample can maintain a stable rate of H2 generation with good photocatalytic durability. Therefore, this work provides an effective way to fabricate new types of heterostructure-based photocatalysts for efficient H2 evolution for promising clean energy applications.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/molecules29174269/s1: Figure S1: XPS survey spectra of ZIS and 8%FeS2@ZIS heterostructure; Figure S2: SEM of FeS2@ZIS after photocatalytic reaction; Figure S3: N2 adsorption–desorption isotherms (a) and pore size distribution curves (inset) of ZIS and FeS2@ZIS (b); Table S1: The equivalent circuit model for EIS of samples. Table S2: The comparison of H2 evolution rate over FeS2@ZnIn2S4 photocatalysts with previously published results [50,51,52,53,54,55,56,57,58].

Author Contributions

Methodology, supervision, and writing—original draft preparation, H.Q. and R.D.; writing—review and editing, S.Z. and Q.W.; data curation, J.R.; supervision, D.W. and H.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China, grant number 22168040.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are available on request due to restrictions, e.g., privacy or ethical.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Xu, X.; Zhong, Y.; Shao, Z. Double Perovskites in Catalysis, Electrocatalysis, and Photo (electro) Catalysis. Trends Chem. 2019, 1, 410–424. [Google Scholar] [CrossRef]
  2. Song, H.; Luo, S.; Huang, H.; Deng, B.; Ye, J. Solar-Driven Hydrogen Production: Recent Advances, Challenges, and Future Perspectives. ACS Energy Lett. 2022, 7, 1043–1065. [Google Scholar] [CrossRef]
  3. Li, H.; Li, R.; Liu, G.; Zhai, M.; Yu, J. Noble Metal-Free Single-and Dual-Atom Catalysts for Artificial Photosynthesis. Adv. Mater. 2023, 36, 2301307. [Google Scholar] [CrossRef]
  4. Ganguly, P.; Harb, M.; Cao, Z.; Cavallo, L.; Breen, A.; Dervin, S.; Dionysiou, D.D.; Pillai, S.C. 2D Nanomaterials for Photocatalytic Hydrogen Production. ACS Energy Lett. 2019, 4, 1687–1709. [Google Scholar] [CrossRef]
  5. Cai, J.; Shen, J.; Zhang, X.; Ng, Y.H.; Huang, J.; Guo, W.; Lin, C.; Lai, Y. Light-Driven Sustainable Hydrogen Production Utilizing TiO2 Nanostructures: A Review. Small Methods 2019, 3, 1800184. [Google Scholar] [CrossRef]
  6. Qi, J.; Zhang, W.; Cao, R. Solar-to-Hydrogen Energy Conversion Based on Water Splitting. Adv. Energy Mater. 2018, 8, 1701620. [Google Scholar] [CrossRef]
  7. Guan, D.; Wang, B.; Zhang, J.; Shi, R.; Jiao, K.; Li, L.; Ni, M. Hydrogen Society: From Present to Future. Energy Environ. Sci. 2023, 16, 4926–4943. [Google Scholar] [CrossRef]
  8. Tentu, R.D.; Basu, S. Photocatalytic Water Splitting for Hydrogen Production. Curr. Opin. Electrochem. 2017, 5, 56–62. [Google Scholar] [CrossRef]
  9. Wang, Y.; Suzuki, H.; Xie, J.; Tomita, O.; Martin, D.J.; Higashi, M.; Kong, D.; Abe, R.; Tang, J. Mimicking Natural Photosynthesis: Solar to Renewable H2 Fuel Synthesis by Z-Scheme Water Splitting Systems. Chem. Rev. 2018, 118, 5201–5241. [Google Scholar] [CrossRef]
  10. Hisatomi, T.; Kubota, J.; Domen, K. Recent Advances in Semiconductors for Photocatalytic and Photoelectrochemical Water Splitting. Chem. Soc. Rev. 2014, 43, 7520–7535. [Google Scholar] [CrossRef]
  11. Sun, H.; Xue, W.; Fan, J.; Liu, E.; Yu, Q. Preparation of Ni12P5-Decorated Cd0.5Zn0.5S for Efficient Photocatalytic H2 Evolution. J. Alloys Compd. 2021, 854, 156951. [Google Scholar] [CrossRef]
  12. Li, B.; Guo, W.; Lu, X.F.; Hou, Y.; Ding, Z.; Wang, S. Position-Selected Cocatalyst Modification on a Z-Scheme Cd0.5Zn0.5S/NiTiO3 Photocatalyst for Boosted H2 Evolution. Mater. Rep. Energy 2023, 3, 100230. [Google Scholar] [CrossRef]
  13. Xue, X.; Dong, W.; Luan, Q.; Gao, H.; Wang, G. Novel Interfacial Lateral Electron Migration Pathway Formed by Constructing Metallized CoP2/CdS Interface for Excellent Photocatalytic Hydrogen Production. Appl. Catal. B Environ. 2023, 334, 122860. [Google Scholar] [CrossRef]
  14. Kalia, R.; Pirzada, B.M.; Kunchala, R.K.; Naidu, B.S. Noble Metal Free Efficient Photocatalytic Hydrogen Generation by TaON/CdS Semiconductor Nanocomposites under Natural Sunlight. Int. J. Hydrogen Energy 2023, 48, 16246–16258. [Google Scholar] [CrossRef]
  15. Kang, E.; Kim, J.H. Highly Boosted Photocatalytic H2 Production from ZnS Particles Assisted by Cd-Cu Co-Doping. J. Environ. Chem. Eng. 2023, 11, 109833. [Google Scholar] [CrossRef]
  16. Huang, J.; Chen, J.; Liu, W.; Zhang, J.; Chen, J.; Li, Y. Copper-Doped Zinc Sulfide Nanoframes with Three-Dimensional Photocatalytic Surfaces for Enhanced Solar Driven H2 Production. Chin. J. Catal. 2022, 43, 782–792. [Google Scholar] [CrossRef]
  17. Zhang, R.; Jia, X.; Li, Y.; Yu, X.; Xing, Y. Oxidation Coatalyst Modified In2S3 with Efficient Interfacial Charge Transfer for Boosting Photocatalytic H2 Evolution. Int. J. Hydrogen Energy 2022, 47, 25300–25308. [Google Scholar] [CrossRef]
  18. Liu, Y.; He, Y.; Li, C.; Shi, Z.; Feng, S. Indium-Vacancy-Rich In2S3/Ni@C Photocatalyst with Chemical Bonds for Producing Hydrogen and Benzylamine Oxidation. Sep. Purif. Technol. 2023, 324, 124571. [Google Scholar] [CrossRef]
  19. Wang, Z.; Su, B.; Xu, J.; Hou, Y.; Ding, Z. Direct Z-scheme ZnIn2S4/LaNiO3 Nanohybrid with Enhanced Photocatalytic Performance for H2 Evolution. Int. J. Hydrogen Energy 2020, 45, 4113–4121. [Google Scholar] [CrossRef]
  20. Liu, J.; Chen, G.; Sun, J. Ag2S-Modified ZnIn2S4 Nanosheets for Photocatalytic H2 Generation. ACS Appl. Nano Mater. 2020, 3, 11017–11024. [Google Scholar] [CrossRef]
  21. Sun, G.; Tai, Z.; Li, F.; Ye, Q.; Wang, T.; Fang, Z.; Jia, L.; Liu, W.; Wang, H. Construction of ZnIn2S4/CdS/PdS S-Scheme Heterostructure for Efficient Photocatalytic H2 Production. Small 2023, 19, 2207758. [Google Scholar] [CrossRef]
  22. Zhang, H.; Wang, Z.; Zhang, J.; Dai, K. Metal-Sulfide-Based Heterojunction Photocatalysts: Principles, Impact, Applications, and In-Situ Characterization. Chin. J. Catal. 2023, 49, 42–67. [Google Scholar] [CrossRef]
  23. Di, T.; Deng, Q.; Wang, G.; Wang, S.; Wang, L.; Ma, Y. Photodeposition of CoOx and MoS2 on CdS as Dual Cocatalysts for Photocatalytic H2 Production. J. Mater. Sci. Technol. 2022, 124, 209–216. [Google Scholar] [CrossRef]
  24. Cha, G.; Schmuki, P.; Altomare, M. Anodic TiO2 Nanotube Membranes: Site-Selective Pt-Activation and Photocatalytic H2 Evolution. Electrochim. Acta 2017, 258, 302–310. [Google Scholar] [CrossRef]
  25. Kunthakudee, N.; Puangpetch, T.; Ramakul, P.; Serivalsatit, K.; Hunsom, M. Light-Assisted Synthesis of Au/TiO2 Nanoparticles for H2 Production by Photocatalytic Water Splitting. Int. J. Hydrogen Energy 2022, 47, 23570–23582. [Google Scholar] [CrossRef]
  26. Lv, T.; Xiao, B.; Xia, F.; Chen, M.; Zhao, J.; Ma, Y.; Wu, J.; Zhang, J.; Zhang, Y.; Liu, Q. Insights Into Synergistic Effect of Pd Single Atoms and Sub-Nanoclusters on TiO2 for Enhanced Photocatalytic H2 Evolution. Chem. Eng. J. 2022, 450, 137873. [Google Scholar] [CrossRef]
  27. Li, X.; Yu, J.; Jaroniec, M.; Chen, X. Cocatalysts for Selective Photoreduction of CO2 into Solar Fuels. Chem. Rev. 2019, 119, 3962–4179. [Google Scholar] [CrossRef]
  28. Xue, J.; Liu, H.; Zeng, S.; Feng, Y.; Zhang, Y.; Zhu, Y.; Cheng, M.; Zhang, H.; Shi, L.; Zhang, G. Bifunctional Cobalt-Doped ZnIn2S4 Hierarchical Nanotubes Endow Noble-Metal Cocatalyst-Free Photocatalytic H2 Production Coupled with Benzyl Alcohol Oxidation. Sol. RRL 2022, 6, 2101042. [Google Scholar] [CrossRef]
  29. Liang, Z.; Shen, R.; Ng, Y.H.; Zhang, P.; Xiang, Q.; Li, X. A review on 2D MoS2 Cocatalysts in Photocatalytic H2 Production. J. Mater. Sci. Technol. 2020, 56, 89–121. [Google Scholar] [CrossRef]
  30. Chang, K.; Hai, X.; Ye, J. Transition Metal Disulfides as Noble-Metal-Alternative Co-catalysts for Solar Hydrogen Production. Adv. Energy Mater. 2016, 6, 1502555. [Google Scholar] [CrossRef]
  31. Li, M.; Sun, J.; Chen, G.; Yao, S.; Cong, B.; Liu, P. Construction Photothermal/Pyroelectric Property of Hollow FeS2/Bi2S3 Nanostructure with Enhanced Full Spectrum Photocatalytic Activity. Appl. Catal. B Environ. 2021, 298, 120573. [Google Scholar] [CrossRef]
  32. Goh, M.S.; Moon, H.; Park, H.; Kim, S.; Yoon, T.; Joo, S.W.; Son, N.; Kang, M. Sustainable and Stable Hydrogen Production over Petal-shaped CdS/FeS2 S-Scheme Heterojunction by Photocatalytic Water Splitting. Int. J. Hydrogen Energy 2022, 47, 27911–27929. [Google Scholar] [CrossRef]
  33. Xu, X.; Pan, Y.; Ge, L.; Chen, Y.; Mao, X.; Guan, D.; Shao, Z. High-Performance Perovskite Composite Electrocatalysts Enabled by Controllable Interface Engineering. Small 2021, 17, 2101573. [Google Scholar] [CrossRef]
  34. Wang, R.N.; Zeng, F.L.; Chen, X.L.; Zhu, H.L.; Qu, L.B.; Huang, X.Q.; Tang, S.; Zhao, Y.F.; Yu, B. Recyclable ZnIn2S4 Microspheres for Photocatalytic Azolation of N-Heterocycles. ACS Sustain. Chem. Eng. 2022, 10, 14212–14219. [Google Scholar] [CrossRef]
  35. Tan, L.; Yue, J.; Yang, Z.; Niu, X.; Yang, Y.; Zhang, J.; Zhu, Y. A Polymorphic FeS2 Cathode Enabled by Copper Current Collector Induced Displacement Redox Mechanism. ACS Nano 2021, 15, 11694–11703. [Google Scholar] [CrossRef]
  36. Du, C.; Zhang, Q.; Lin, Z.; Yan, B.; Xia, C.; Yang, G. Half-Unit-Cell ZnIn2S4 Monolayer with Sulfur Vacancies for Photocatalytic Hydrogen Evolution. Appl. Catal. B Environ. 2019, 248, 193–201. [Google Scholar] [CrossRef]
  37. Liu, H.; Zhang, J.; Ao, D. Construction of Heterostructured ZnIn2S4@ NH2-MIL-125 (Ti) Nanocomposites for Visible-Light- Driven H2 Production. Appl. Catal. B Environ. 2018, 221, 433–442. [Google Scholar] [CrossRef]
  38. Samad, L.; Cabán-Acevedo, M.; Shearer, M.J.; Park, K.; Hamers, R.J.; Jin, S. Direct Chemical Vapor Deposition Synthesis of Phase-Pure Iron Pyrite (FeS2) Thin Films. Chem. Mater. 2015, 27, 3108–3114. [Google Scholar] [CrossRef]
  39. Nesbitt, H.; Bancroft, G.; Pratt, A.; Scaini, M. Sulfur and Iron Surface States on Fractured Pyrite Surfaces. Am. Mineral. 1998, 83, 1067–1076. [Google Scholar] [CrossRef]
  40. Xia, Y.; Yang, F.; Zhang, B.; Xu, C.; Yang, W.; Li, Y. Fabrication of Novel FeS2 NWs/Ti3C2 Cathode for Photo-Electro-Fenton Degradation of Sulfamethazine. Chem. Eng. J. 2021, 426, 130719. [Google Scholar] [CrossRef]
  41. Chen, J.; Zhou, X.; Mei, C.; Xu, J.; Zhou, S.; Wong, C.P. Pyrite FeS2 Nanobelts as High-Performance Anode Material for Aqueous Pseudocapacitor. Electrochim. Acta 2016, 222, 172–176. [Google Scholar] [CrossRef]
  42. Mamiyev, Z.; Balayeva, N.O. Metal Sulfide Photocatalysts for Hydrogen Generation: A Review of Recent Advances. Catalysts 2022, 12, 1316. [Google Scholar] [CrossRef]
  43. Geng, M.; Peng, Y.; Zhang, Y.; Guo, X.; Yu, F.; Yang, X.; Xie, G.; Dong, W.; Liu, C.; Li, J. Hierarchical ZnIn2S4: A Promising Cocatalyst to Boost Visible-Light-Driven Photocatalytic Hydrogen Evolution of In(OH)3. Int. J. Hydrogen Energy 2019, 44, 5787–5798. [Google Scholar] [CrossRef]
  44. Yu, B.; Chen, X.; Huang, C.; Yao, W. 2D CdS Functionalized by NiS2-Doped Carbon Nanosheets for Photocatalytic H2 Evolution. Appl. Surf. Sci. 2022, 592, 153259. [Google Scholar] [CrossRef]
  45. Wang, S.; Guan, B.Y.; Wang, X.; Lou, X.W. Formation of Hierarchical Co9S8@ ZnIn2S4 Heterostructured Cages as An Efficient Photocatalyst for Hydrogen Evolution. J. Am. Chem. Soc. 2018, 140, 15145–15148. [Google Scholar] [CrossRef] [PubMed]
  46. Zhang, H.; Guan, D.; Gu, Y.; Xu, H.; Wang, C.; Shao, Z.; Guo, Y. Tuning Synergy between Nickel and Iron in Ruddlesden-Popper Perovskites through Controllable Crystal Dimensionalities towards Enhanced Oxygen-Evolving Activity and Stability. Carbon Energy 2024, 6, e465. [Google Scholar] [CrossRef]
  47. Zeng, R.; Cheng, C.; Xing, F.; Zou, Y.; Ding, K.; Huang, C. Dual Vacancies Induced Local Polarization Electric Field for High-Performance Photocatalytic H2 Production. Appl. Catal. B Environ. 2022, 316, 121680. [Google Scholar] [CrossRef]
  48. Zhang, X.; Yan, J.; Lee, L.Y.S. Highly Promoted Hydrogen Production Enabled by Interfacial PN Chemical Bonds in Copper Phosphosulfide Z-Scheme Composite. Appl. Catal. B Environ. 2021, 283, 119624. [Google Scholar] [CrossRef]
  49. Pan, B.; Wu, Y.; Rhimi, B.; Qin, J.; Huang, Y.; Yuan, M.; Wang, C. Oxygen-Doping of ZnIn2S4 Nanosheets towards Boosted Photocatalytic CO2 Reduction. J. Energy Chem. 2021, 57, 1–9. [Google Scholar] [CrossRef]
  50. Qiao, F.; Liu, W.; Yang, J.; Liu, Y.; Yuan, J. Fabrication of ZnO/CuInS2 Heterojunction for Boosting Photocatalytic Hydrogen Production. Int. J. Hydrogen Energy 2024, 53, 840–847. [Google Scholar] [CrossRef]
  51. Zhou, P.; Chen, H.; Chao, Y.; Zhang, Q.; Zhang, W.; Lv, F.; Guo, S. Single-Atom Pt-I3 Sites on All-Inorganic Cs2SnI6 Perovskite for Efficient Photocatalytic Hydrogen Production. Nat. Commun. 2021, 12, 4412. [Google Scholar] [CrossRef]
  52. Li, J.; Yao, J.; Yu, Q.; Zhang, X.; Carabineiro, S.A.; Xiong, X.; Lv, K. Understanding the Unique Ohmic-Junction for Enhancing the Photocatalytic Activity of CoS2/MgIn2S4 towards Hydrogen Production. Appl. Catal. B 2024, 351, 123950. [Google Scholar] [CrossRef]
  53. Yao, B.; Wang, S.; Yao, H.; Pang, X.; Li, Y.; Sun, J. Photothermal and Pyroelectric Effects in Hollow FeS2/CdS Nanocomposites for Enhanced Photocatalytic Hydrogen Evolution. Surf. Interfaces 2024, 49, 104370. [Google Scholar] [CrossRef]
  54. Liu, J.; Qiu, L.; Liu, Z.; Tang, Y.; Cheng, L.; Chen, Z.; Duo, S. Boosting the Photocatalytic Activity for H2 Production of Bi2O2Se/CdS Heterojunction. Mater. Lett. 2023, 345, 134498. [Google Scholar] [CrossRef]
  55. Nagakawa, H.; Ochiai, T.; Takekuma, Y.; Konuma, S.; Nagata, M. Effective Photocatalytic Hydrogen Evolution by Cascadal Carrier Transfer in the Reverse Direction. ACS Omega 2018, 3, 12770–12777. [Google Scholar] [CrossRef]
  56. Lu, X.; Quan, L.; Hou, H.; Qian, J.; Liu, Z.; Zhang, Q. Fabrication of 1D/2D Y-doped CeO2/ZnIn2S4 S-Scheme Photocatalyst for Enhanced Photocatalytic H2 Evolution. J. Alloys Compd. 2022, 925, 166552. [Google Scholar] [CrossRef]
  57. Li, F.; Liao, B.; Shen, J.; Ke, J.; Zhang, R.; Wang, Y.; Niu, Y. Enhancing Photocatalytic Activities for Sustainable Hydrogen Evolution on Structurally Matched CuInS2/ZnIn2S4 Heterojunctions. Molecules 2024, 29, 2447. [Google Scholar] [CrossRef]
  58. Wei, N.; Wu, Y.; Wang, M.; Sun, W.; Li, Z.; Ding, L.; Cui, H. Construction of Noble-Metal-Free TiO2 Nanobelt/ZnIn2S4 Nanosheet Heterojunction Nanocomposite for Highly Efficient Photocatalytic Hydrogen Evolution. Nanotechnology 2018, 30, 045701. [Google Scholar] [CrossRef]
Molecules 29 04269 g001

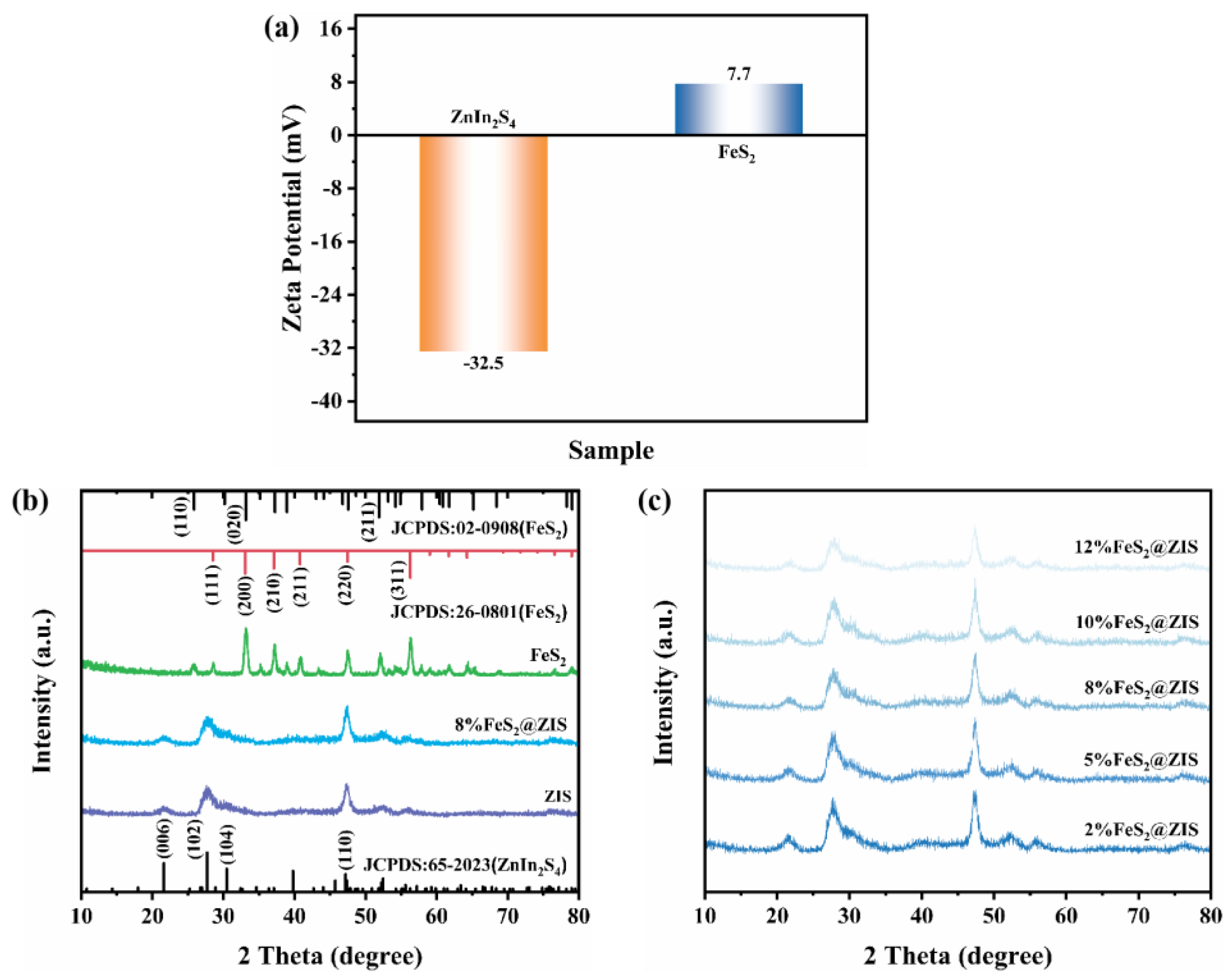

Figure 1. (a) Zeta potentials of the prepared ZnIn2S4 and FeS2; (b) XRD pattern of the prepared FeS2, ZnIn2S4, and FeS2@ZnIn2S4; (c) XRD pattern of x% FeS2@ZIS with different FeS2 loadings.
Figure 1. (a) Zeta potentials of the prepared ZnIn2S4 and FeS2; (b) XRD pattern of the prepared FeS2, ZnIn2S4, and FeS2@ZnIn2S4; (c) XRD pattern of x% FeS2@ZIS with different FeS2 loadings.
Molecules 29 04269 g001
Molecules 29 04269 g002

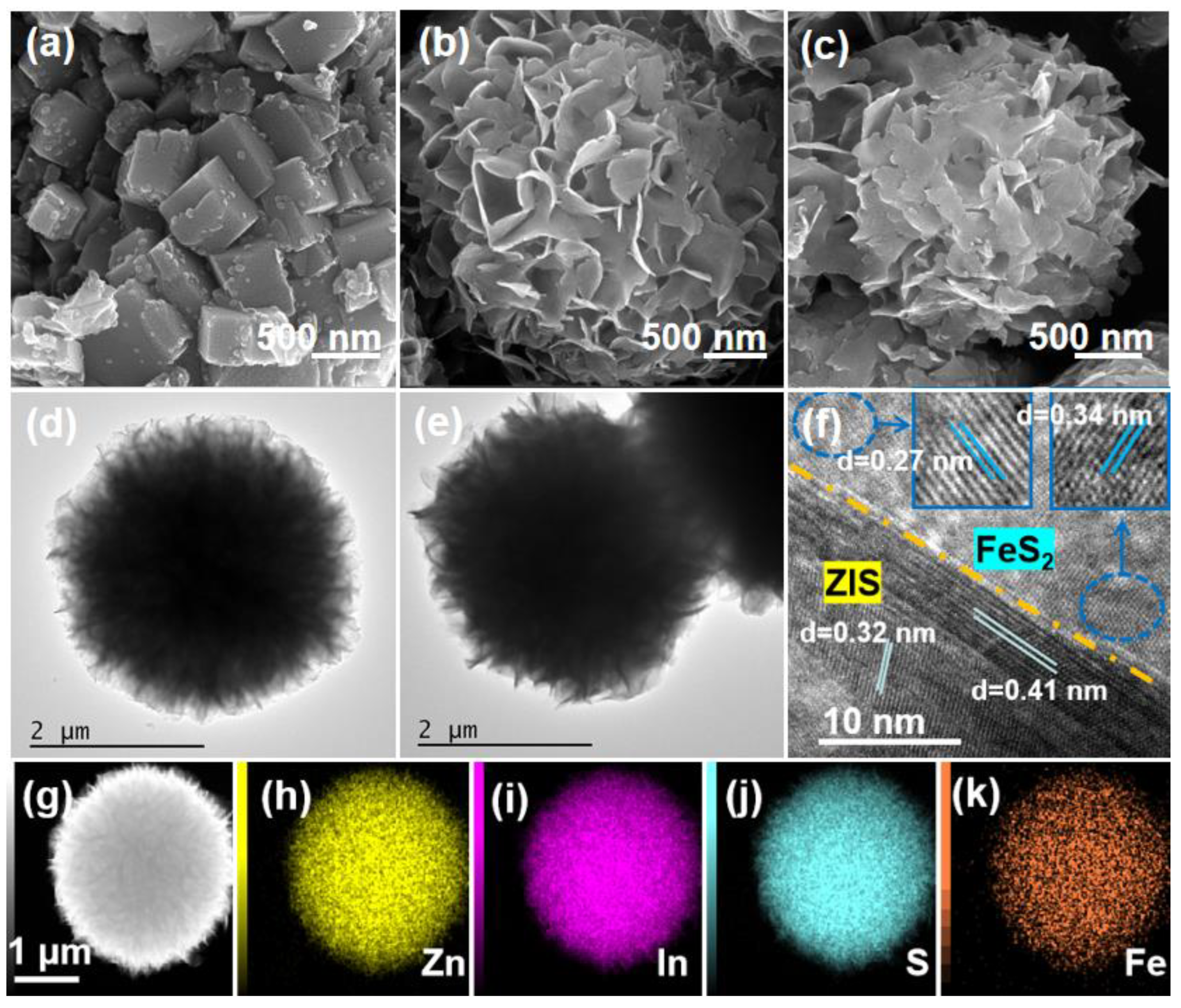

Figure 2. SEM images of (a) FeS2, (b) ZIS, and (c) 8%FeS2@ZIS; TEM images of (d) ZIS and (e) 8%FeS2@ZIS; (f) HR-TEM images of 8%FeS2@ZIS; and (g–k) EDX-mapping images of 8%FeS2@ZIS.
Figure 2. SEM images of (a) FeS2, (b) ZIS, and (c) 8%FeS2@ZIS; TEM images of (d) ZIS and (e) 8%FeS2@ZIS; (f) HR-TEM images of 8%FeS2@ZIS; and (g–k) EDX-mapping images of 8%FeS2@ZIS.
Molecules 29 04269 g002
Molecules 29 04269 g003

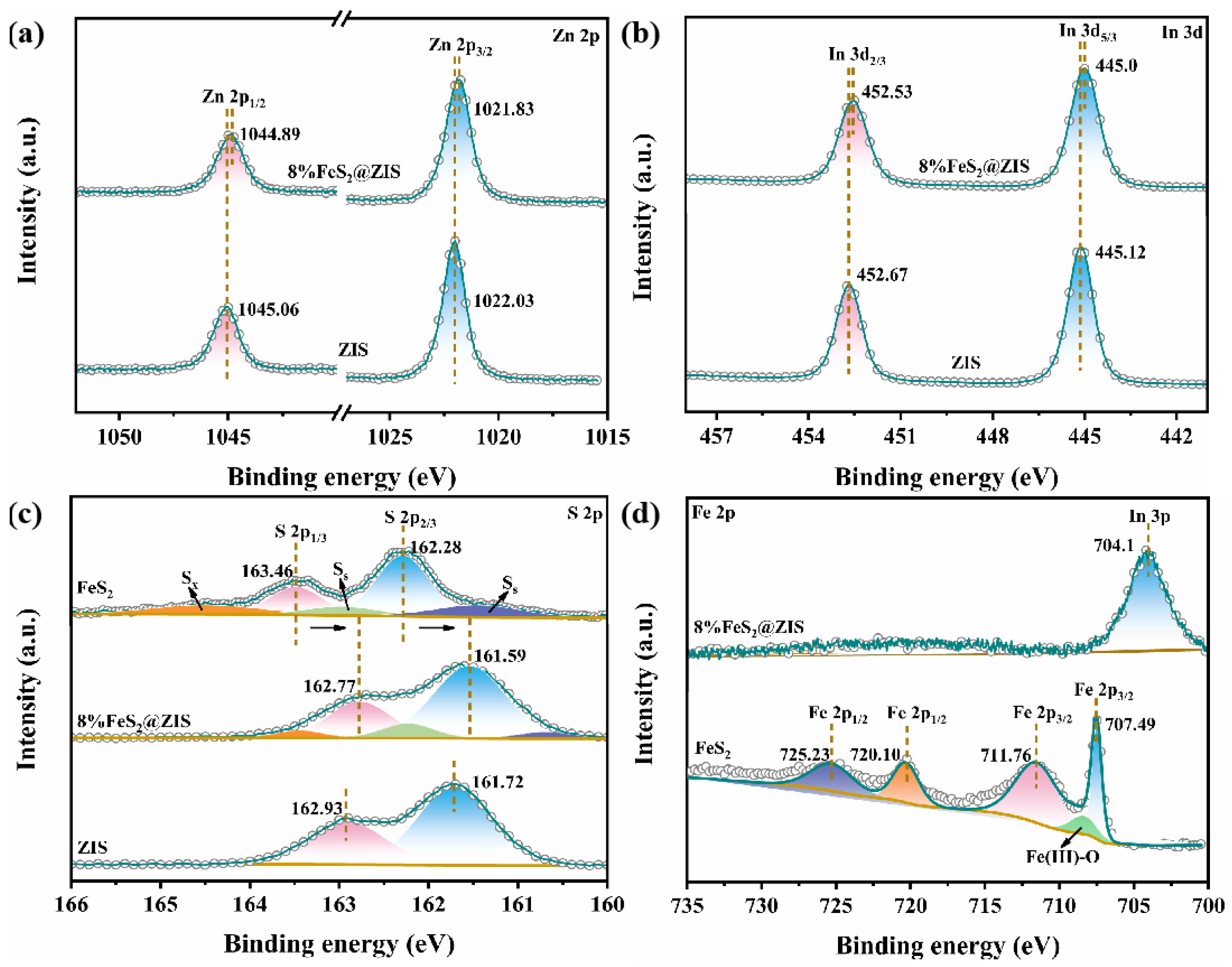

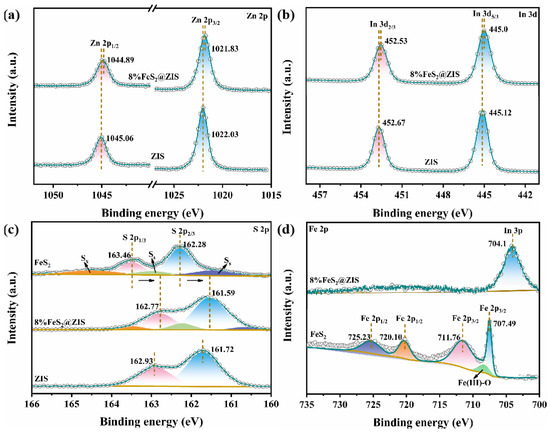

Figure 3. XPS spectra of the ZIS, FeS2, and 8%FeS2@ZIS heterostructure: (a) Zn 2p, (b) In 3d, (c) S 2p, and (d) Fe 2p.
Figure 3. XPS spectra of the ZIS, FeS2, and 8%FeS2@ZIS heterostructure: (a) Zn 2p, (b) In 3d, (c) S 2p, and (d) Fe 2p.
Molecules 29 04269 g003
Molecules 29 04269 g004

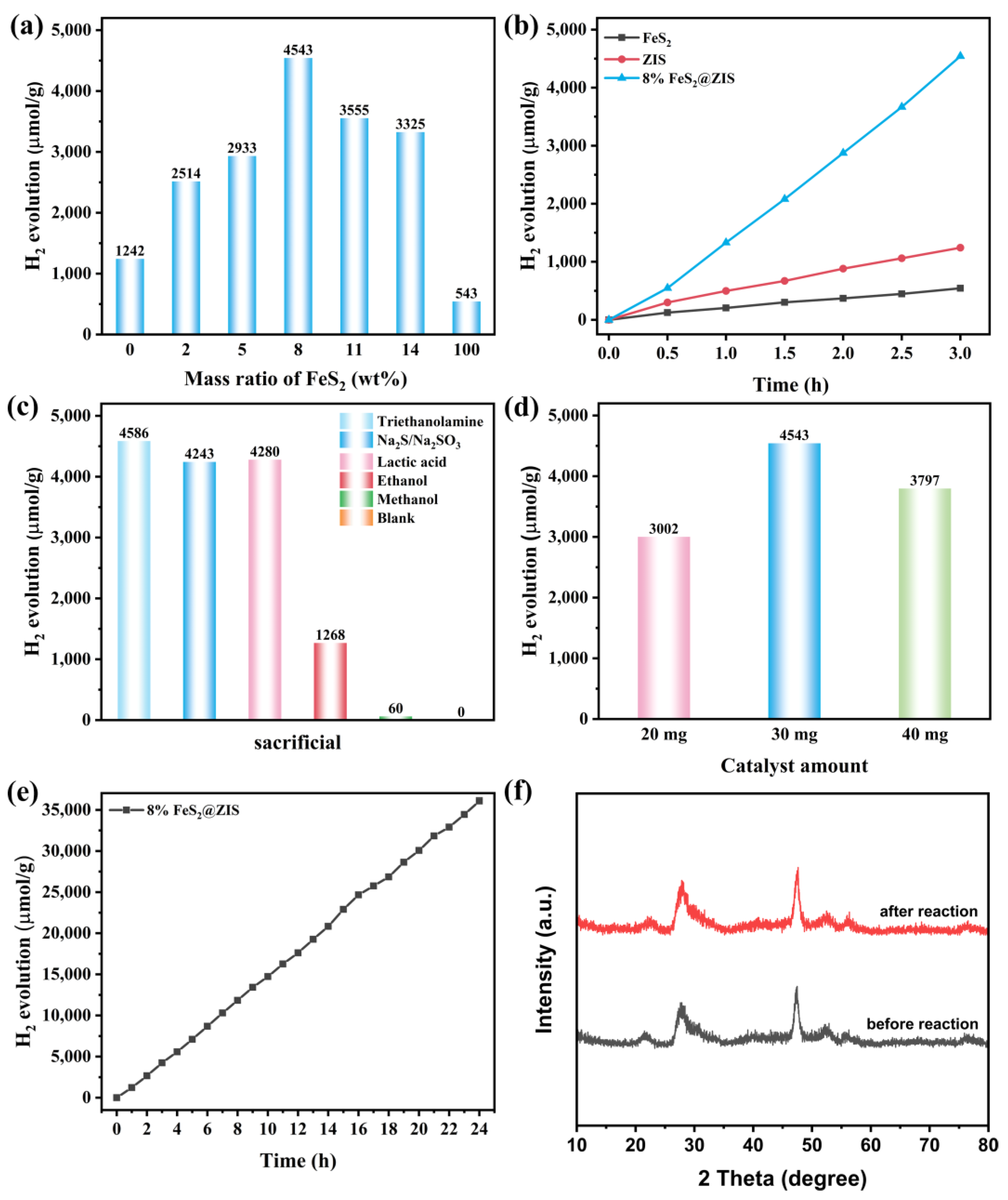

Figure 4. (a) H2 production activity of x% FeS2@ZIS for different proportions of FeS2 loading; (b) H2 production activity of FeS2, ZIS, and 8%FeS2@ZIS within 3 h; (c) Photocatalytic H2 production activity of 8%FeS2@ZIS with different sacrificial agents; (d) H2 production activity of different dosages of catalyst; (e) H2 production activity within 24 h of the 8%FeS2@ZIS sample; and (f) XRD patterns of the 8%FeS2@ZIS sample before and after the photocatalytic reaction.
Figure 4. (a) H2 production activity of x% FeS2@ZIS for different proportions of FeS2 loading; (b) H2 production activity of FeS2, ZIS, and 8%FeS2@ZIS within 3 h; (c) Photocatalytic H2 production activity of 8%FeS2@ZIS with different sacrificial agents; (d) H2 production activity of different dosages of catalyst; (e) H2 production activity within 24 h of the 8%FeS2@ZIS sample; and (f) XRD patterns of the 8%FeS2@ZIS sample before and after the photocatalytic reaction.
Molecules 29 04269 g004
Molecules 29 04269 g005

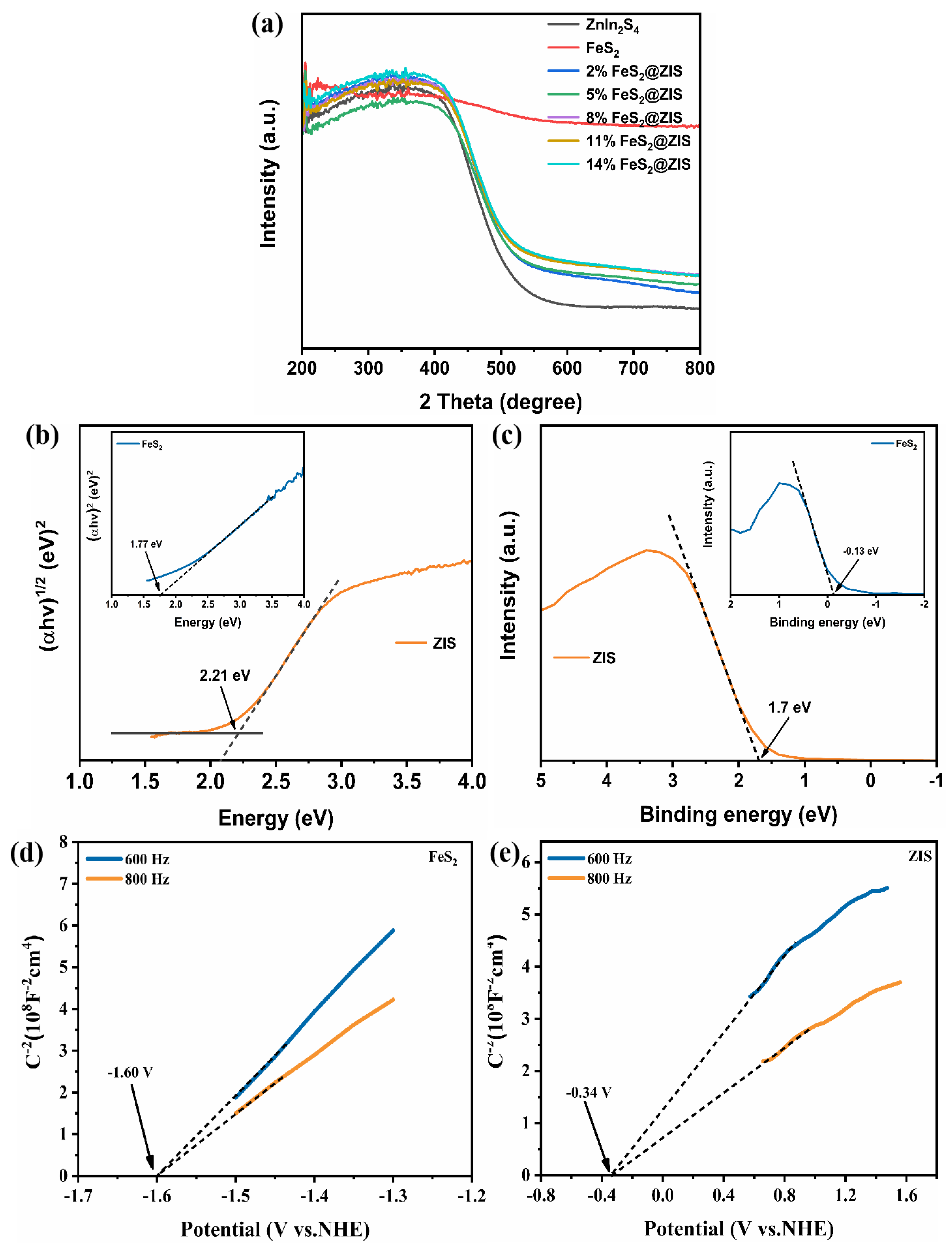

Figure 5. (a) UV-Vis DRS of FeS2, ZIS, and X%FeS2@ZIS samples; (b) band gap energy of FeS2 and ZIS; (c) VB-XPS spectra of FeS2 and ZIS; and (d,e) Mott–Schottky plot of FeS2 and ZIS.
Figure 5. (a) UV-Vis DRS of FeS2, ZIS, and X%FeS2@ZIS samples; (b) band gap energy of FeS2 and ZIS; (c) VB-XPS spectra of FeS2 and ZIS; and (d,e) Mott–Schottky plot of FeS2 and ZIS.
Molecules 29 04269 g005
Molecules 29 04269 g006

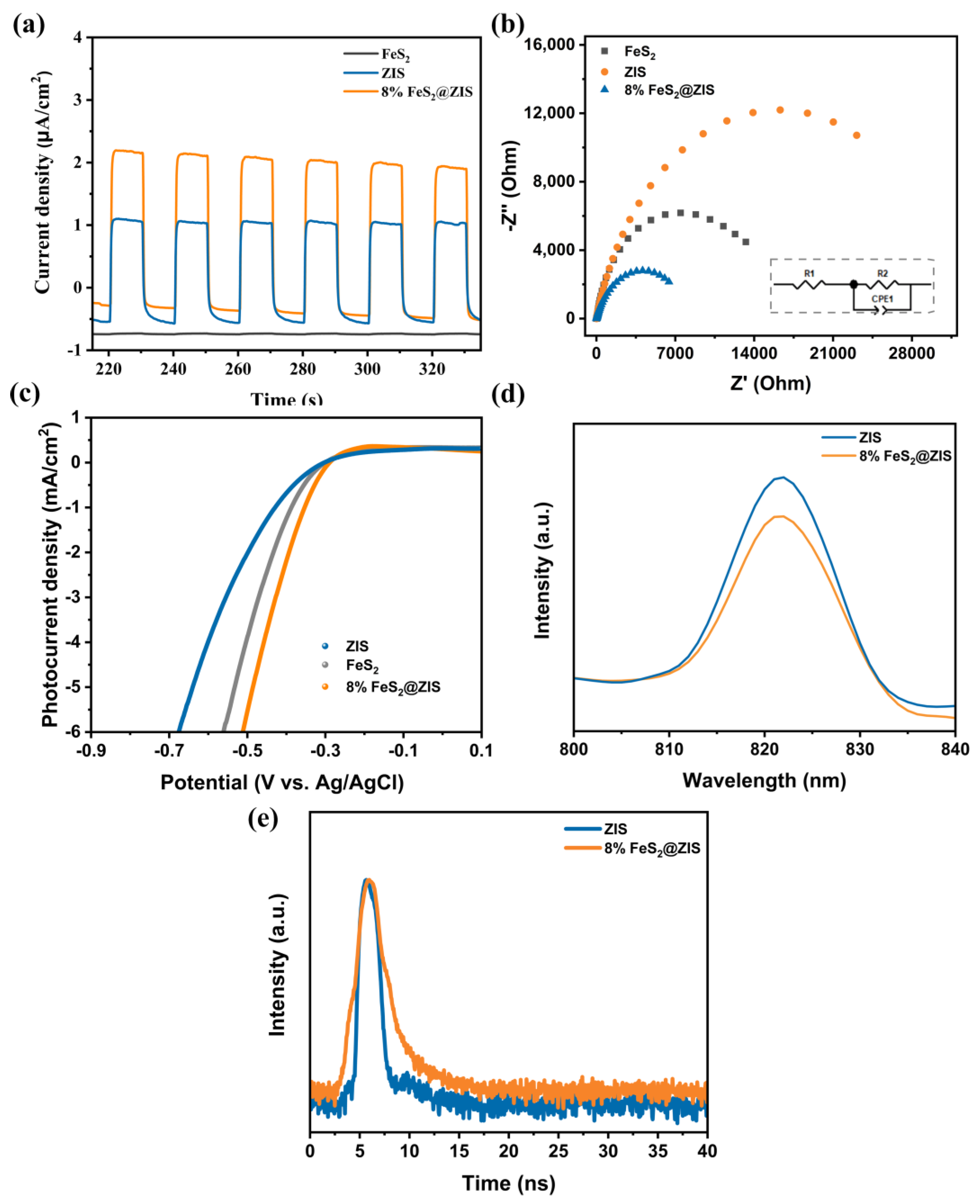

Figure 6. (a) Transient photocurrent response curves of FeS2, ZIS, and 8%FeS2@ZIS; (b) EIS curves of FeS2, ZIS and 8% FeS2@ZIS; (c) LSV curves for FeS, ZIS and 8% FeS2@ZIS; (d) PL spectra of ZIS and 8% FeS2@ ZIS; and (e) TR-PL spectra of ZIS and 8%FeS2@ZIS.
Figure 6. (a) Transient photocurrent response curves of FeS2, ZIS, and 8%FeS2@ZIS; (b) EIS curves of FeS2, ZIS and 8% FeS2@ZIS; (c) LSV curves for FeS, ZIS and 8% FeS2@ZIS; (d) PL spectra of ZIS and 8% FeS2@ ZIS; and (e) TR-PL spectra of ZIS and 8%FeS2@ZIS.
Molecules 29 04269 g006
Molecules 29 04269 g007

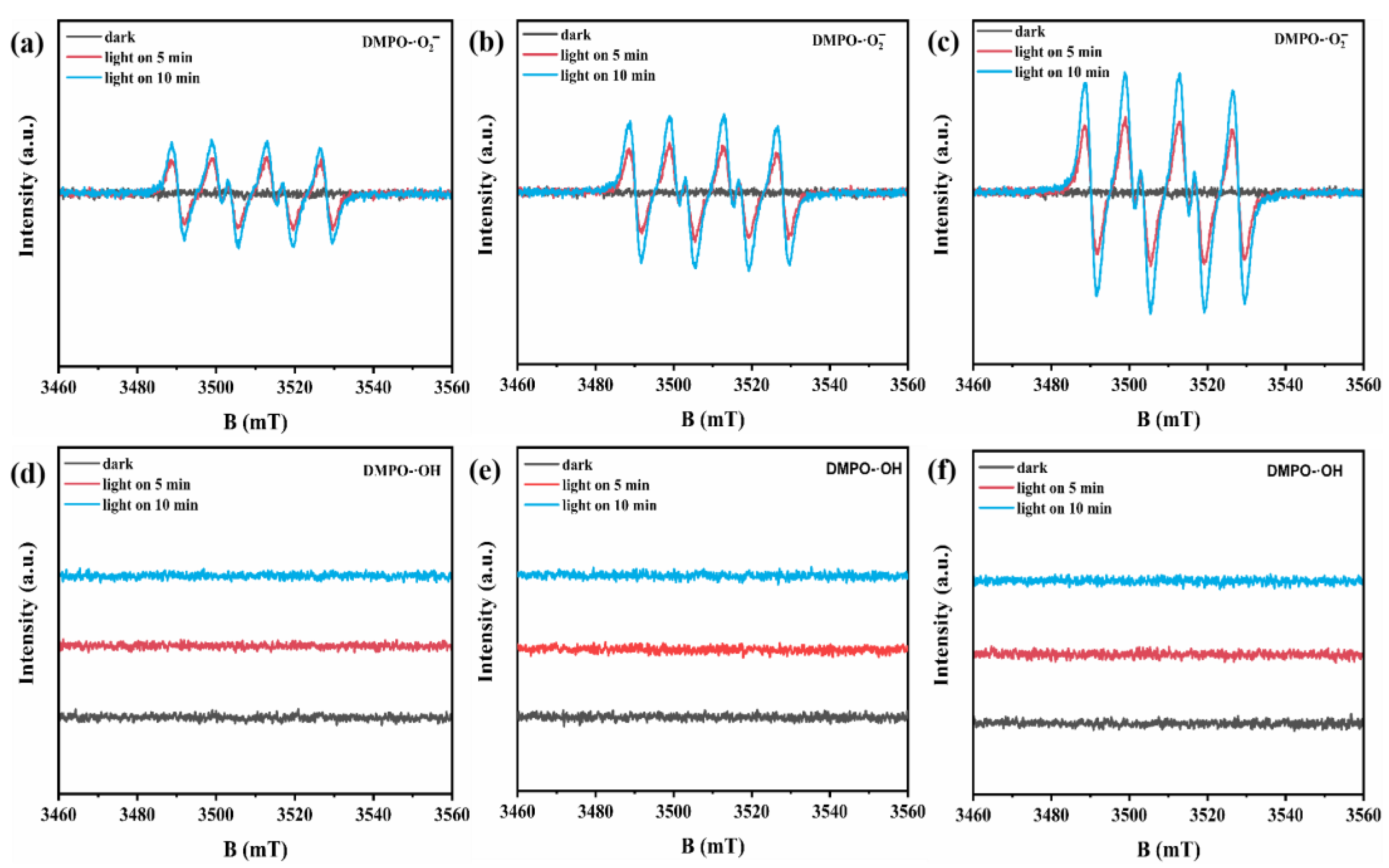

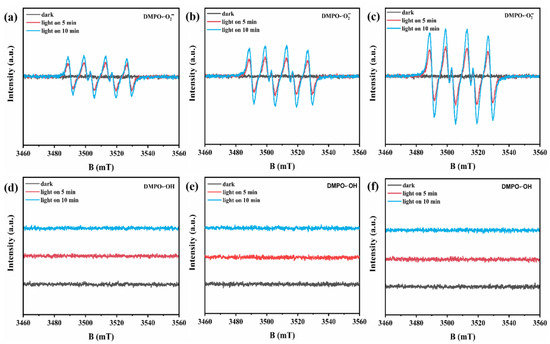

Figure 7. ESR spectra of DMPO-·O2− in menthol of FeS2 (a), ZIS (b), and 8%FeS2@ZIS (c) under dark and light illumination; DMPO-·OH in aqueous solution of FeS2 (d), ZIS (e), and 8%FeS2@ZIS (f) under dark and light illumination.
Figure 7. ESR spectra of DMPO-·O2− in menthol of FeS2 (a), ZIS (b), and 8%FeS2@ZIS (c) under dark and light illumination; DMPO-·OH in aqueous solution of FeS2 (d), ZIS (e), and 8%FeS2@ZIS (f) under dark and light illumination.
Molecules 29 04269 g007
Molecules 29 04269 g008
Figure 8. Photocatalytic mechanism for HER over the FeS2@ZIS S-scheme heterojunction (a) before contact, (b) upon contact, and (c) under illumination.
Figure 8. Photocatalytic mechanism for HER over the FeS2@ZIS S-scheme heterojunction (a) before contact, (b) upon contact, and (c) under illumination.
Molecules 29 04269 g008
Molecules 29 04269 g009

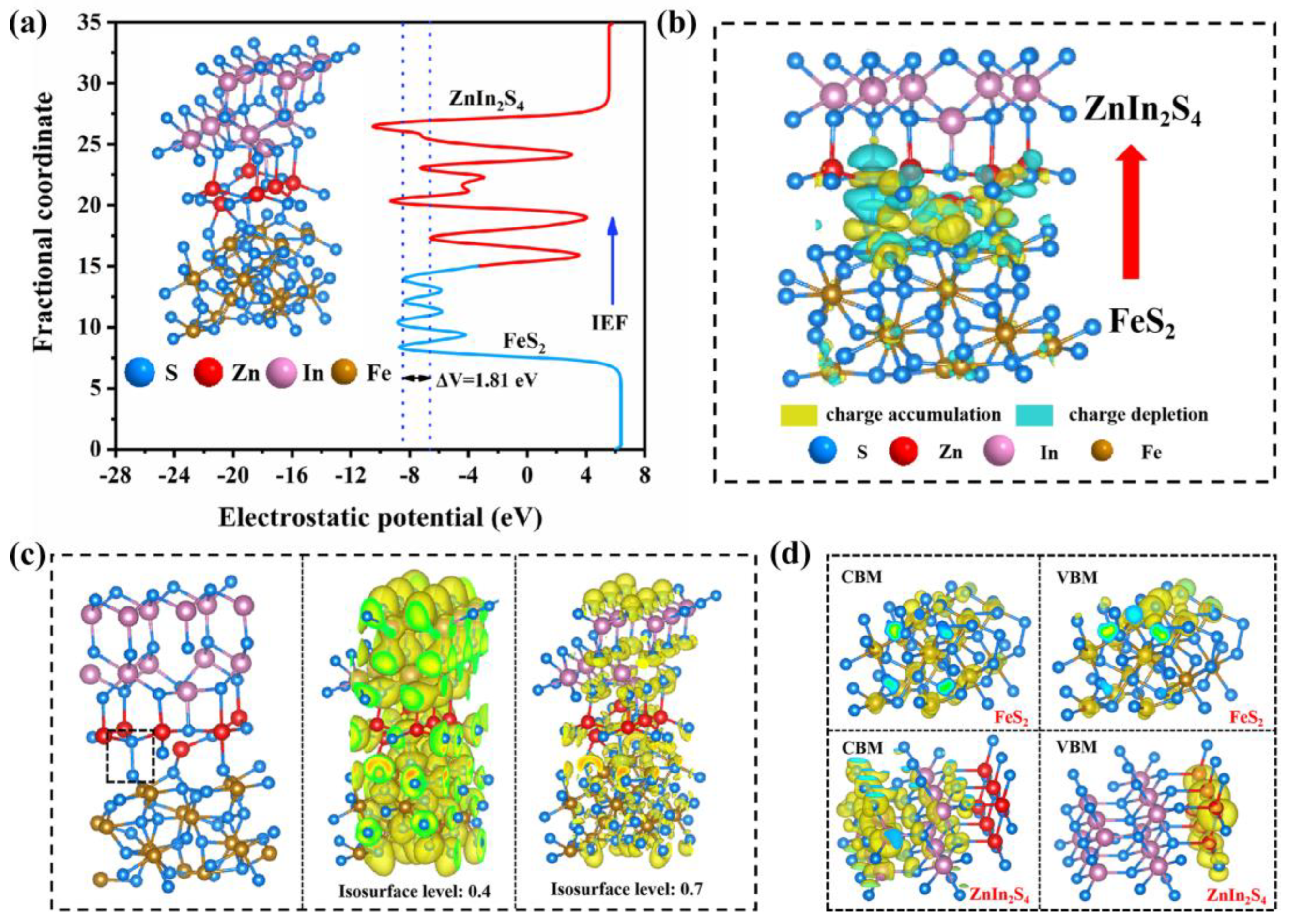

Figure 9. (a) Electrostatic potential profile of FeS2@ZIS; (b) charge density difference for FeS2@ZIS; (c) electronic local function (ELF) of FeS2@ZIS; and (d) conduction band minimum and valence band maximum charge distributions of FeS2 and ZnIn2S4.
