Silicon-28-Tetrafluoride as an Educt of Isotope-Engineered Silicon Compounds and Bulk Materials for Quantum Systems

Abstract

This review provides a summary of the existing literature on a crucial raw material for the production of isotopically pure semiconductors, which are essential for the development of second-generation quantum systems. Silicon-28-tetrafluoride (²⁸SiF₄) is used as an educt for several isotope-engineered chemicals, such as silane-28 (²⁸SiH₄) and silicon-28-trichloride (²⁸SiHCl₃), which are needed in the pursuit of various quantum technologies. We are exploring the entire chain from the synthesis of ²⁸SiF₄ to quantum applications. This includes the chemical properties of SiF₄, isotopic enrichment, conversion to silanes, conversion to bulk ²⁸Si and thin films, the physical properties of ²⁸Si (spin neutrality, thermal conductivity, optical properties), and the applications in quantum computing, photonics, and quantum sensing techniques.

1. Introduction

Fluorine is monoisotopic, which makes its gaseous compounds well-suited for isotopic enrichment. A popular example is the enrichment of stable, non-radioactive isotopes. This review covers the enrichment, chemical properties, conversion, and application of silicon-28 tetrafluoride ²⁸SiF₄.

For a considerable period of time, the study of isotopically pure semiconductors was a minor area of interest within the fields of chemistry, physics, and materials science. It is known that the mass of the atomic nucleus can alter the properties of a molecule. However, this effect was considered to be negligible for the majority of properties and for most elements heavier than hydrogen. It is now understood that these seemingly minor changes are of significant importance in microelectronics, metrology, and quantum system technology. In particular, the latter has led to a rapid increase in demand for isotopically pure semiconductors, most notably ²⁸Si.

The development and production of second-generation quantum systems, including semiconductor quantum computer chips and quantum sensors, is contingent upon the availability of ²⁸Si [1,2]. These quantum computers are based on the use of trapped electrons as quantum bits (qubits) whose spin is utilized. The main advantages of ²⁸Si can be attributed to three central properties:

(i)

Spin vacuum: The coherence of the electron spin states is disrupted by the interference of nuclear spins, for instance, from ²⁹Si nuclei, which results in the loss of functionality of the qubits [3]. Silicon crystals made of nuclear-spin-free stable isotopes like ²⁸Si and ³⁰Si are ideal for hosting spin quantum bits due to their coherent properties, which are not disrupted by host nuclear spins. The property known as spin vacuum results in sharp ensemble donor resonances and extended spin relaxation times [4]. In pure ²⁸Si material, the theoretical maximum for qubit decoherence times is 10 h [5]. In addition to quantum computing, the ²⁸Si spin vacuum is also employed to stabilize optically active quantum dots in silicon [6].

(ii)

High thermal conductivity: The phonon scattering and, consequently, the thermal conductivity are markedly changed at low temperatures in the isotopically pure materials [4,7]. The formation of scattering modes is primarily caused by the presence of impurities, doping agents, defects, and the natural mass distribution of isotopes. It is possible to reduce the impact of the former factors by optimizing the crystal growth and deposition processes. The thermal conductivity of high-purity, monocrystalline, low-defect ^natSi with a natural isotope distribution is 45 Wcm⁻¹K⁻¹ at a temperature of 21 K. With the use of isotopically pure ²⁸Si, the thermal conductivity at 21 K can be increased to 450 Wcm⁻¹K⁻¹ when the material is 99.99% pure. This value exceeds the previous maximum conductivity of ¹²C diamond at 104 K of 410 Wcm⁻¹K⁻¹. Consequently, the highest thermal conductivity ever measured for a dielectric was achieved [7].

(iii)

Sharp spectroscopic states: The analysis of photoluminescence spectra indicates that the homogeneous mass of the ²⁸Si atoms in the crystal lattice results in a shift of the band gap by 58 meV [8]. Furthermore, high-energy measurements reveal a more concise fine structure of the non-phononic photoluminescence lines of the bound excitons. The optimized fine structure in the photoluminescence spectrum can be used for excitonic processes in isotopically pure materials with high resolution, for example, for quantum sensing.

The first steps from the laboratory to technical application are currently being discussed for some second-generation quantum systems [9]. However, a significant proportion of the technologies in question remain at the conceptual stage, with few tangible outcomes. One reason for this is that the required ²⁸Si is the end product of a complex value chain, which makes it challenging to obtain. Furthermore, there is a lack of well-functioning, stable production routes that can facilitate the necessary processes.

This review paper follows the necessary technical steps to precure ²⁸Si in its applicable forms, in particular ²⁸SiH₄ and bulk ²⁸Si, from ²⁸SiF₄.

It is not possible to enrich elemental silicon on an industrial scale. Even monosilane (SiH₄), which is frequently used for Si synthesis in industry, is unsuitable for this purpose. Enrichment occurs almost exclusively with silicon tetrafluoride (SiF₄). Since ²⁸SiF₄ has only been used for research purposes so far, there are no data on the price development of the enriched gas. However, due to the high energy input required for enrichment, prices can be expected to be in the order of EUR 100,000 per kg for a purity of 99.9%. Each additional order of magnitude of isotopic purity can increase the price significantly. Similarly, the conversion of SiF₄ to SiH₄ or Si is anticipated to elevate the price by a factor of 2–10.

Its high price is attributable to the great technical effort involved in its manufacture. The only commercially viable method is its enrichment by a magnitude of centrifuges. These use the counter-current centrifuge principle. The method described in the paper offers only a low separation performance per center joint, which requires a large number in a cascade.

For this reason, there have always been competing approaches to enrichment, some of which are still being pursued: thermal diffusion, targeted excitation of individual isotopes using laser radiation (also known as the SILEX process) or microwaves, as well as the separation of isotopes using cyclotrons. As we describe later, these methods often provide unsatisfactory results.

The prospective commercialization of selected quantum technologies is contingent upon the availability of ²⁸SiF₄ as a pivotal precursor material. It is necessary to prepare isotopically pure SiF₄ for material synthesis to improve silicon’s physical properties, especially in the context of quantum technology development [10]. This highlights the critical role of isotopically pure silicon tetrafluoride in advancing cutting-edge technologies.

Historically, further processing of ²⁸SiF₄ has been a challenge, which often only was solved by international cooperation. Also, up to this day, no stable and commercially viable method has been introduced. The earliest reported source mentioning pure ²⁸Si was an American experiment, which was vague about its origin [11]. Unfortunately, no details are given as to how it was produced. The enrichment was probably carried out using a cyclotron, and from there, the simplest possible further processing was used: ²⁸SiO₂ was produced by combustion, which was then reduced with Al powder [12]. When isotope-pure silicon regained interest at the beginning of the 1990s, this process was taken up again. However, there were disadvantages: high losses, heavy contamination with Al, and only bulk ²⁸Si as a product. Alternative routes that produced ²⁸SiH₄ as a final or intermediate product were introduced: H-substitution with metal hydrides such as CaH₂, LiAlH₄, and NaH.

In this article, we present the first comprehensive overview of this crucial isotopically pure material. We examine ²⁸SiF₄ in depth, exploring its synthesis, properties, enrichment, further processing, and applications.

2. Chemical Properties and Processing of ²⁸SiF₄

2.1. Synthesis and Selected Properties of SiF₄ (and ²⁸SiF₄)

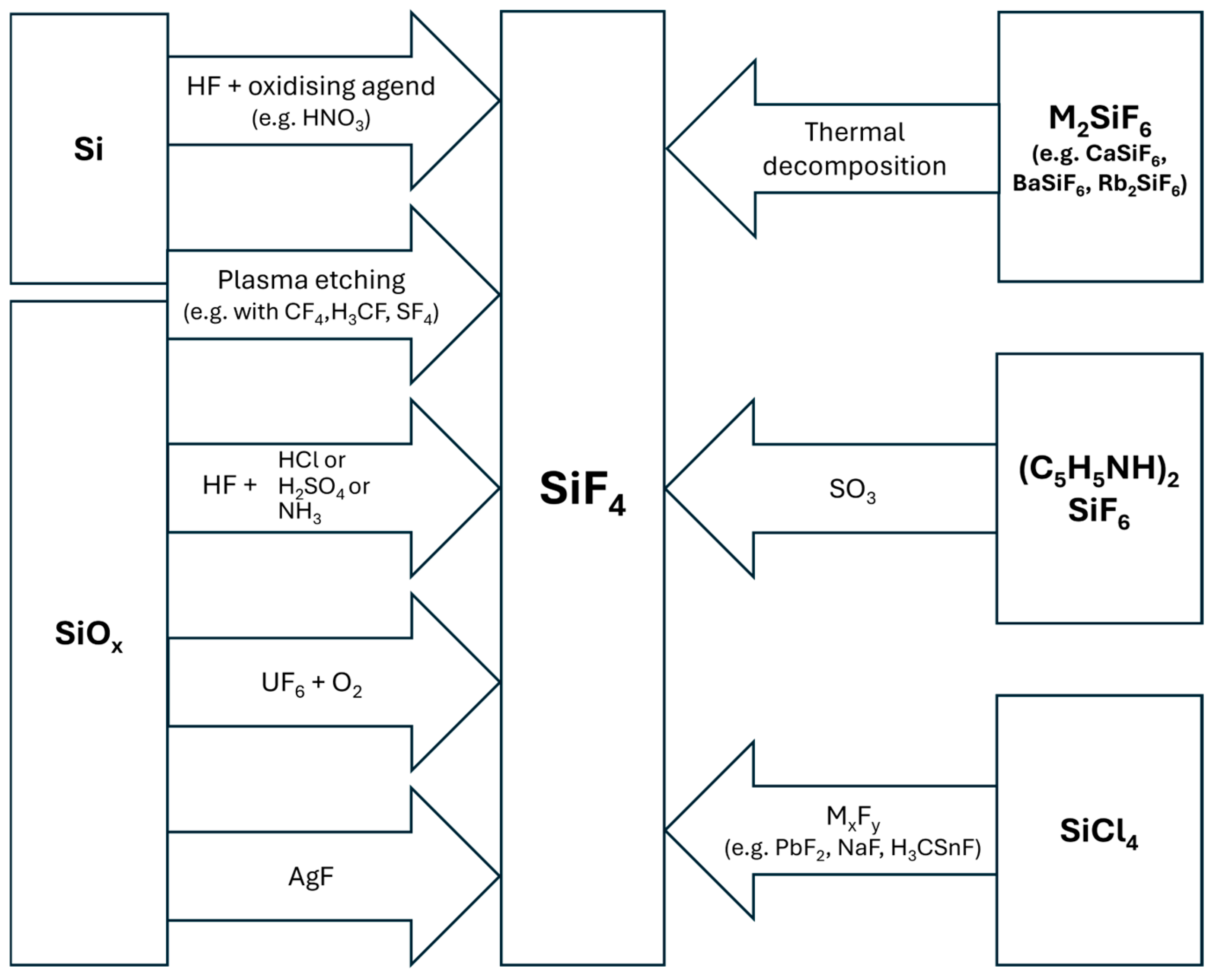

The synthesis procedures of silicon tetrafluoride are typically conducted with chemicals that are not isotopically enriched. Furthermore, all chemical reactions leading to SiF₄ would proceed in a similar manner with educts containing any of the stable isotopes ²⁸Si, ²⁹Si, and ³⁰Si. This is due to the small, relatively insignificant differences in molecular masses. In contrast, reactions involving hydrogen (or deuterium) exhibit significant differences in reaction rates and, consequently, product yields [13]. Nevertheless, non-mass-dependent isotope effects are known to be important for selected properties (see Section 2.1.3 and Section 2.1.4) [13]. However, they do not play a role in the chemical synthesis routes to prepare SiF₄. In the following picture, a synthesis workflow is depicted (Figure 1).

2.1.1. Synthesis Routes and Formation of SiF₄

Few review articles on the general laboratory preparation and industrial chemical synthesis of SiF₄ have been published. While there are brief overviews available, to the best of our knowledge, all of them are in Chinese [14,15,16] or in Russian [17,18]. Consequently, it seems prudent to provide a compilation of the published synthesis routes to SiF₄ in this review.

The earliest reports known on the synthesis and properties of SiF₄ date back to the late 18th and early 19th centuries. Chemists such as H. Davy [19] and others described the reaction of fluorspar (CaF₂) (1) with sulfuric acid in the presence of glass powder or in glassware, yielding gaseous products that most likely consisted mainly of SiF₄ (2). For reaction (2), the reaction enthalpy is −137.11 kJ/mol [20].

CaF₂ + H₂SO₄ → 2 HF + CaSO₄

(1)

4 HF + SiO₂ → SiF₄ + H₂O

(2)

This synthesis also works reasonably well with metal silicates and other SiO_x-containing substances, provided that a sufficient excess of sulfuric acid is utilized to prevent the silicon fluoride from being hydrolyzed. The purity of the obtained product varies depending on the purity of the starting materials and other reaction parameters.

Significant quantities of SiF₄ are generated as a byproduct in the production of phosphate fertilizers. This occurs when fluorapatite Ca₅(PO₄)₃F and/or CaF₂ contained in phosphate raw materials are treated together with SiO₂ or silicate minerals. It is common for phosphate rock to contain about 3–4% fluoride [21]. During the process, the fluorine present in the rocks is predominantly converted to hexafluoro silicic acid H₂SiF₆. The latter is formed from a further reaction of HF with SiF₄. The majority of the H₂SiF₆ is used in the production of AlF₃. However, it can also be used to reproduce SiF₄ and HF upon heating (see below).

The direct preparation of SiF₄ from the elements is possible. It is highly exothermic with a reaction enthalpy of -1615 kJ/mol (see Table 1). Thus, if no precautions are taken, a reaction at room temperature can cause ignition and inflammation. However, fluorination of elemental silicon at −70 °C in freon-11 yields SiF₄ (3) in a smooth and immediate reaction (reaction enthalpy −1615.78 kJ/mol) [22,23].

Si + 2 F₂ → SiF₄

(3)

Binary fluorides may be employed as fluorinating agents in order to exclusively obtain SiF₄, even in high purity. Uranium fluorides UF₆ and UF₄ are examples. In the latter case, high-purity SiO₂ reacted in air at elevated temperatures of 400–800 °C in accordance with the following equation [24]:

3 UF₄(s) + 3 SiO₂(s) + O₂(g) → U₃O₈(s) + 3 SiF₄(g)

(4)

Solid silicon monoxide, SiO, reacts at 450 °C with silver fluoride, AgF, to give SiF₄ [25]:

2 SiO + 4 AgF → SiF₄ + SiO₂ + 4 Ag

(5)

A standard and well-investigated laboratory process for the production of SiF₄ is the thermal decomposition of metal hexafluoro silicates M₂(SiF₆) with M = alkali metal (Li, Na, K, Rb, Cs), e.g., sodium [26], or M(SiF₆) with M = alkaline earth (Ca, Sr, Ba) metal, etc. J. Zachara and W. Wigniewski conducted a thermolysis study and found the expected reaction behavior for Li₂SiF₆, Na₂SiF₆, CaSiF₆, SrSiF₆, and BaSiF₆ (reaction enthalpy −2970 kJ/mol at 655 K [27]) predicted by the following equations [28]:

M₂SiF₆(s) → 2MF(s) + SiF₄(g)

(6)

MSiF₆(s) → MF₂(s) + SiF₄(g)

(7)

For K₂SiF₆, Rb₂SiF₆, and Cs₂SiF₆, they found the following:

3 M₂SiF₆(s) → 2 M₃SiF₇(s) + SiF₄(g)

(8)

The temperature of maximum mass loss during the decomposition of the investigated fluorosilicates under investigation exhibited a clear correlation, with values ranging from 300 °C for M = Ca to 810 °C for M = Rb. This correlation can be attributed to the fact that the larger the charge density on the metal cation, the lower the decomposition temperature.

The initial metal fluorosilicates may be prepared from the corresponding metal carbonates and hydrofluoric acid or, alternatively, by precipitation if the solubility of the hexafluoro silicate is low. The presence of carbonate impurities may result in the contamination of the generated SiF₄ gas with C1–C4 hydrocarbons [29].

Pyridinium hexafluoro silicate reacts already at room temperature with SO₃ (obtained by distillation of oleum in vacuum) to give SiF₄ [30]:

(C₅H₅NH)₂SiF₆ + 2 SO₃ → 2 C₅H₅NHSO₃F + SiF₄

(9)

An alternative approach involved the preparation of pure SiF₄ in 66% yield from SiCl₄ by refluxing with PbF₂ in MeCN [31]. Other metal fluorides, such as NaF, can be used in place of the lead salt [32].

A more feasible laboratory route to SiF₄ is based on trimethyltin fluoride, a mild fluorinating agent. The solid reagent is treated with liquid SiCl₄ at room temperature, furnishing SiF₄ with a 97% yield. No solvent is necessary [33]:

4 Me₃SnF(s) + SiCl₄(l) → 4 Me₃SnCl + SiF₄

(10)

A metathesis reaction between SiCl₄ and CaF₂ can be performed at 400–500 °C to prepare SiF₄ [34]. At slightly higher temperatures, a dry mixture of SiO₂ and PbF₂, mixed in stoichiometric amounts under a high vacuum, also yields SiF₄ [35].

In many cases, acidic wet chemical etching and dissolution of silicon [36] involves the use of solutions containing HF to produce wafers for the photovoltaic and semiconductor industries. The resulting SiF₄ is partially dissolved as H₂SiF₆ or in ionic form as [HSiF₆]⁻ and [SiF₆]²⁻, depending on the pH value. In order to achieve optimal reaction rates, an oxidizing reagent is typically required. In the absence of an oxidizing agent, aqueous HF solutions or HF solutions containing additional non-oxidizing components, such as sulfuric acid (H₂SO₄), hydrochloric acid (HCl), or ammonia (NH₃), will dissolve materials (usually in layered forms), in which the silicon is already oxidized, such as SiO₂, SiO_x, SiO_xN_y, or SiO_xP_yH_z (phosphor silicate glass, PSG) forming SiF₄. In the case of elemental silicon, nitric acid (HNO₃) is often employed as the oxidizing agent. However, numerous alternative compounds can be used, including ozone (O₃) [37], hydrogen peroxide (H₂O₂) [38], nitrosyl ion (NO⁺) salts [39], chlorine (Cl₂) [40], or bromine (Br₂) [41]. If no oxidizing agent is present, the dissolution of silicon is not observed, resulting in the formation of a Si-H surface passivation [35]. However, a recent study has reported the dissolution of silicon in a hydrofluoric acid solution at a very low rate, which may be attributed to the presence of dissolved oxygen acting as the required oxidizing agent [42]. At very low concentrations of HNO₃, silicon is oxidized under the formation of hydrogen and nitrogen monoxide [43,44].

$$\mathrm{Si}+{\displaystyle \frac{z}{3}} {\mathrm{HNO}}_3+6 \mathrm{HF} \to {\mathrm{H}}_2{\mathrm{SiF}}_6+{\displaystyle \frac{4-z}{2}} {\mathrm{H}}_2+{\displaystyle \frac{z}{3}} \mathrm{NO}+{\displaystyle \frac{2z}{3}} {\mathrm{H}}_2\mathrm{O} (2 \le z \le 4)$$

(11)

In the semiconductor industry, during the formation of silicon-based micro-electro-mechanical devices, photovoltaic cells are processed, and in related industrial branches, the formation of SiF₄ also occurs during the dry chemical etching of silicon-containing materials. An example of the latter is fluorocarbon-based plasmas, which are employed for the dry (plasma-assisted) etching of ultra-low-κ silica layers [45]. Similarly, the formation of SiF₄ is observed when other fluorine-containing chemicals are used for dry (plasma-assisted) etching in the aforementioned areas. Examples include SF₆ [46] and NF₃ [47]. The most prevalent directional etching currently in use is reactive-ion etching (RIE). RIE typically employs a multitude of different etching gases, frequently containing fluorine (e.g., CF₄, HBr, O₂, CH₃F, SF₆) in a plasma mixture with high ion energies (∼1 keV) for directionality [48]. Moreover, plasma-less gas-phase cleaning [49] and, more recently, thermal atomic layer etching (ALE) [50] approaches have been developed. SiF₄ is formed in all cases involving Si, SiC, SiO₂, or other silicon-containing substrates. This is attributed to the extremely high thermodynamic stability and the very high volatility of SiF₄.

Due to the extremely high global warming potential and persistence of SF₆ in the atmosphere, a recent proposal has been put forth to transform this species (which is used, for instance, as an insulator gas in various applications and for dry chemical etching as previously mentioned) into SiF₄ via a process mediated by Fe₂O₃/Cr₂O₃ composites [51].

2.1.2. Solid State, Gas Phase, and Electronic Structure of SiF₄

The tetrahedral molecule structure of SiF₄ has been the subject of extensive study for decades. One of the most intriguing features is its very short Si-F bond length. The solid-state molecular structure was first reported by G. Natta in 1930, who resolved powder X-ray diffraction data obtained at −170 °C [52]. He determined a value for the Si–F bond length of 156 ± 1 pm. The SiF₄ molecules are arranged in a body-centered cubic lattice. In 1934, L. O. Brockway and F. T. Wall performed electron diffraction in the gas phase and found an atomic distance of 154 ± 1 pm [53]. Single crystal structure analyses confirmed this result. A measurement at -117 °C gave a Si-F bond length of 154.01 ± 0.06 pm (cubic space group I43m, Z = 2, a = 547.6 ± 0.1 pm) [54]. These experimental results deviated from the simple theoretical approach to calculating bond length values of molecular species from the sum of covalent atomic radii. In order to include ionic bonding contributions, corrected atomic radii values were derived [55]. An ionic bond contribution of 70% was derived from the difference in electronegativity between silicon (EN_PAULING = 1.9) and fluorine (EN_PAULING = 4.0) [56]. However, this amount of ionic character, if uncompensated, would place a very large charge of +2.8 on the silicon atom in SiF₄. Consequently, the concept of multiple bonding or pi-back-donation was proposed by L. Pauling. This would reduce the charge on the silicon atom [35]. A 65% double-bond character in SiF₄ would result in a positive charge value of +0.2. Furthermore, he proposed that the unusual thermal stability (see below) of SiF₄ was due to its resonant structure and a bond order of approximately 1.5 for the four Si-F bonds in SiF₄. However, in other approaches, for example, those of R. J. Gillespie and others, SiF₄ and related molecules such as BF₃ have been described as predominantly ionic molecules [57].

A high-resolution rotational spectroscopy investigation of ²⁸SiF₄ was conducted using infrared–microwave double-resonance spectroscopy in order to gain insight into the matter [58]. K. J. Donald et al. have published ab initio molecular orbital calculations employing a natural bond orbital population analysis to rationalize bonding patterns in halosilanes and halogermanes (MH_4−nX_n, n = 1–4; M = Si, Ge; X = F, Cl, Br). In contrast to the heavier halogens Cl and Br, the geometric and electronic properties of the fluorine compounds are unique. These observations include an n-independent charge density at the F atoms and a significant decrease in the M–F bond length as n increases [59]. In a recent theoretical study based on adaptive natural density partitioning (AdNDP) analysis, it was suggested that there are five 5c-2e back-donating bonds in addition to the four 2c-2e sigma bonds [60]. The authors propose that the synergistic back-donation and 18e rule are prevalent in pentatomic tetrahedral compounds, as well as in isoelectronic molecules and ions, such as ClO₄⁻, SO₄²⁻, PO₄³⁻, and XeO₄.

2.1.3. Physical and Chemical Properties

The properties of chemical compounds are, in general, dependent on their isotope composition [61]. However, in most cases, the differences are very small and can be neglected. This holds also true for ²⁸SiF₄, ²⁹SiF₄, and ³⁰SiF₄, as well as for mixtures of these molecules. A summary of the most relevant physical properties of SiF₄ based on the naturally occurring silicon isotope mixture is listed in the following Table 1.

Table 1. Physical data of SiF₄.

Property	Symbol	Unit	Value	Reference
Melting point	mp	°C	−95.0 (sublm.)	[62]
Boiling point	bp	K	177.1	[63]
Critical temperature	TC	K	259	[64]
Critical pressure	pC	bar	37.1457	[64]
Vapor pressure	P°	Pa	3.36 × 10⁵ (at 190 K)	[65]
Heat capacity	C	J/molK	73.621	[66]
Ionization potential	IE	eV	15.29 ± 0.08	[67]
Bond dissociation energy (homolysis)	D0	kJ/mol	565	[68]
Appearance energy (heterolysis, SiF3+)	AE	eV	16.2 ± 0.1	[69]
Standard enthalpy of formation	ΔHf	kJ/mol	−1615 (at 298 K)	[66]
Standard entropy	S	J/molK	282.76 (at 298 K)	[66]
Viscosity	v	m2/s	0.404 × 106 (at 300 K; 975 kPa)	[70]
Density	ρ	g/cm3	0.00469 (at 760 mmHg)	[71]

Table 1. Physical data of SiF₄.

Property	Symbol	Unit	Value	Reference
Melting point	mp	°C	−95.0 (sublm.)	[62]
Boiling point	bp	K	177.1	[63]
Critical temperature	TC	K	259	[64]
Critical pressure	pC	bar	37.1457	[64]
Vapor pressure	P°	Pa	3.36 × 10⁵ (at 190 K)	[65]
Heat capacity	C	J/molK	73.621	[66]
Ionization potential	IE	eV	15.29 ± 0.08	[67]
Bond dissociation energy (homolysis)	D0	kJ/mol	565	[68]
Appearance energy (heterolysis, SiF3+)	AE	eV	16.2 ± 0.1	[69]
Standard enthalpy of formation	ΔHf	kJ/mol	−1615 (at 298 K)	[66]
Standard entropy	S	J/molK	282.76 (at 298 K)	[66]
Viscosity	v	m2/s	0.404 × 106 (at 300 K; 975 kPa)	[70]
Density	ρ	g/cm3	0.00469 (at 760 mmHg)	[71]

2.1.4. Isotope-Dependent Physical/Chemical Properties

Isotope-dependent properties are particularly noteworthy in spectroscopy, where variations in mass and nuclear characteristics significantly influence the behavior of the compound. To illustrate, the mass-dependent properties of silicon tetrafluoride are most evident in vibrational and rotational spectroscopy, as well as mass spectrometry.

The abundance of silicon and fluorine atoms exerts a profound influence on the vibrational frequencies of SiF₄, resulting in a shift toward lower frequencies. Heavier isotopes result in lower vibrational frequencies. For instance, the common isotopes ²⁸Si and ¹⁹F create specific vibrational modes detectable by infrared (IR) and Raman spectroscopy [68].

Furthermore, rotational spectroscopy is influenced by the moment of inertia of SiF₄. Consequently, the rotational constants are altered, resulting in a shift of the rotational spectra accordingly. These changes are of crucial importance for the identification of different isotopic compositions of SiF₄ [72].

It is evident that mass spectrometry is influenced by the mass of the detected compound. Consequently, these techniques can be valuable for identifying the isotopic composition of compounds [73,74].

It is important to also consider the nuclear spin, which is a non-mass-dependent property and can be observed in nuclear magnetic resonance (NMR) spectroscopy. In the case of ¹⁹F NMR spectroscopy, the fluorine nuclei in silicon tetrafluoride provide a strong signal due to their 100% natural abundance and magnetic properties. In contrast, ²⁹Si NMR spectroscopy can provide detailed insights into the local chemical environment of the silicon nucleus in SiF₄. Due to its nuclear spin of ½, ²⁹Si interacts with external magnetic fields. In contrast, ²⁸Si does not interact with such fields due to its nuclear spin of zero [75]. These NMR techniques are essential for studying the structural and electronic properties of SiF₄ without the direct influence of isotopic mass [76,77].

Furthermore, the optical and electronic properties of the substance must be discussed. In silicon tetrafluoride, isotopic variation has a less pronounced effect compared to vibrational and rotational properties. However, subtle differences can still occur. The electronic transitions observed in SiF₄, as evidenced by UV-visible spectroscopy, are primarily determined by the electronic structure of the molecule. Isotopic substitution generally does not significantly alter these transitions, as they are more dependent on the electronic configuration than on the nuclear masses. However, isotopic effects can still lead to slight shifts or changes in the intensity of spectral lines due to subtle differences in nucleus–electron interactions [78].

Electronic properties, including ionization energy and electron affinity, are largely isotopically invariant. The mass of the isotopes has a minimal effect on the electronic structure, indicating that the chemical reactivity and bonding characteristics of SiF₄ remain consistent across different isotopic compositions [79].

2.1.5. Further Selected Properties of SiF₄

Silicon tetrafluoride is a highly toxic and corrosive substance. Inhalation can cause severe respiratory irritation, including coughing, choking, and mucous membrane damage. High concentrations can lead to pulmonary edema, a serious condition characterized by fluid accumulation in the lungs. Prolonged exposure to lower concentrations can cause chronic respiratory issues such as bronchitis or COPD. In the presence of moisture, the substance will react and form hydrofluoric acid (HF), which can cause severe burns to the skin and eye and penetrate deep into tissues, resulting in delayed symptoms and potential bone damage [80,81].

It is of the utmost importance to implement the appropriate safety measures, including the use of personal protective equipment (PPE) and adequate ventilation when handling SiF₄. It is also essential to have effective emergency protocols in place to manage any accidental exposure [82].

Silicon tetrafluoride does not occur in nature in a free state due to its reactivity. However, it can be formed through interactions between fluorine-containing minerals and silicon materials. In volcanic areas, fluorine-containing gases from magma can react with silicon dioxide (SiO₂) to produce SiF₄ [83].

Fluorine and silicon are both abundant in the earth’s crust. Some minerals containing fluorine include fluorite (CaF₂) and cryolite (Na₃AlF₆), while silicon is the second most abundant element, found in silicates and quartz (SiO₂). The industrial production of SiF₄ is achieved through a controlled process involving the reaction of hydrofluoric acid with silicon dioxide or silicate minerals, ensuring the safe and efficient production of the desired product [80].

2.2. Important Applications of SiF₄

Silicon tetrafluoride is a versatile compound with a wide range of applications across various industries, particularly in microelectronics, photovoltaics (PV), and organic synthesis. Its distinctive chemical properties render it invaluable in numerous processes and technologies.

In addition to monosilane (SiH₄), SiF₄ is employed as a precursor in chemical vapor deposition (CVD) processes for silicon-containing films, which are utilized in a range of microelectronic applications [84,85]. SiF₄ offers advantages such as the elimination of silicon gas-phase nucleation and parasitic deposition during epitaxial growth [86]. Furthermore, SiF₄ has been employed in plasma-enhanced CVD, demonstrating potential for use in optoelectronics applications [87]. Nevertheless, most well-established CVD processes and common commercial SiC and Si deposition processes are conducted with SiH₄ rather than with SiF₄. The higher rates and yields achieved with SiH₄ as a precursor, coupled with the superior purity of commercially available SiH₄ in comparison to SiF₄, explain the preference for SiH₄ (and other precursors) in most established CVD processes. Furthermore, SiF₄ is a highly toxic and corrosive gas that requires careful handling and specialized equipment to ensure the safety of operators and the surrounding environment. This safety aspect must be given due consideration when opting for SiF₄ as a precursor in CVD processes.

Silicon tetrafluoride is a key component in a range of purification processes for silicon. One notable approach involves the conversion of impure silicon into SiF₄, which can then be distilled to remove contaminants. The purified SiF₄ is subsequently reduced back to silicon, resulting in highly pure silicon suitable for electronic applications. An effective purification process is essential for producing the ultra-pure silicon necessary for high-performance electronic devices and solar panels [88,89].

In the semiconductor industry, SiF₄ is employed as a dopant gas for silicon ion implantation. This process entails the introduction of dopant atoms into silicon wafers with the objective of modifying their electrical properties. Silicon tetrafluoride serves as a source of silicon ions, enabling precise doping profiles, which are essential for the functionality of semiconductor devices [90,91].

As a potent fluorination agent, SiF₄ is employed in processes that require the introduction of fluorine atoms into organic and inorganic compounds. This fluorination capability is essential in the production of various specialty chemicals and materials that benefit from the unique properties imparted by fluorine, such as increased stability and resistance to degradation [92,93].

Silicon tetrafluoride is a key source of fluorine in processes requiring controlled fluorine concentrations, such as the formation of low-κ dielectric films. These films, which have low dielectric constants, are crucial for reducing capacitive coupling in integrated circuits, thereby enhancing their speed and performance. The controlled release of fluorine from SiF₄ ensures the formation of high-quality low-κ films with the desired properties [94,95].

Silicon tetrafluoride is also employed in the production of fluorosilicic acid (H₂SiF₆), a compound that is widely utilized in water fluoridation, the manufacturing of aluminum fluoride, and a variety of other industrial applications. The reaction of SiF₄ with water can result in the formation of fluorosilicic acid, thereby underscoring the role of SiF₄ in chemical manufacturing [96,97].

In organic synthesis, silicon tetrafluoride functions as a Lewis acid catalyst. Its ability to accept electron pairs renders it an effective compound in facilitating various chemical reactions, including those involved in the synthesis of complex organic molecules. This catalytic property is of particular value in the pharmaceutical and chemical industries, where precise and efficient chemical transformations are necessary [98,99].

SiF₄ is employed as an educt in the synthesis of a vast array of silicon tetrafluoride adducts, which are compounds formed by the combination of SiF₄ with other molecules usually containing higher coordinated (usually octahedrally, i.e., six-fold coordinated) silicon atoms [100]. These adducts exhibit a multitude of applications in chemical synthesis and materials science, thereby demonstrating the versatility of SiF₄ as a precursor in the production of complex compounds [101,102].

In conclusion, silicon tetrafluoride is a crucial compound with a multitude of applications in synthesis, purification, catalysis, and material production. Its role in the microelectronics and PV industries, as well as its utility in organic synthesis and fluorine chemistry, exemplifies its significance in the advancement of technology and manufacturing processes.

3. Enrichment

For some applications, particularly in quantum systems, natural Si is insufficient, and isotopically pure ²⁸Si is required. Enrichment is usually carried out with SiF₄, as it fulfills the chemical and physical requirements of a substance to be enriched [103,104]:

(i)

The vapor pressure of the substance must exceed 5⁻¹⁰ mmHg (≙ 0.7–1.3 kPa) as the majority of enrichment techniques require gaseous sources;

(ii)

The substance must not react chemically with the materials of the enrichment chamber. Enrichment techniques exploit the slight differences in the physical properties of different isotopes. To exploit these properties, the working gas is introduced into enrichment chambers, which are usually made of stainless steel or special high-temperature alloys;

(iii)

Most enrichment techniques exploit the mass-dependent inertia of the isotopes. For sufficient enrichment, the molecular mass of the molecules must not be less than 40 u. Higher molecular masses are usually associated with higher enrichment rates and lower energy consumption;

(iv)

During the enrichment process, the working gas is usually heated either purposefully or by unwanted dissipative processes. The substance to be enriched must have a sufficiently high thermal stability;

(v)

There should be no chemical reaction between the molecules of the working gas. Anion exchange or atom exchange would result in an incomplete enrichment. Any interaction between the molecules of the substance should be minimized.

Only a few other substances meet the requirements, including SiF₄ and a few uranyl compounds. SiF₄ is well suited as SiF₄ is readily available and as the element fluorine is mononuclidic (¹⁹F, 9 protons and 10 neutrons in the nucleus). Thus, the mass distribution of SiF₄ depends only on the mass distribution of the Si nucleus (

Table 2. Comparison of the isotope distribution between SiF₄ and SiH₄ [106]. As hydrogen has three stable isotopes while fluorine is mononuclear, the mass distribution in SiH₄ is more complex. For this reason, silicon enrichment processes are usually based on SiF₄.

	Nucleon Number Si	Nucleon Number F/H	Isotopic Ratio	Molar Mass
28SiF4	28	19	92.23%	103.94 u
29SiF4	29	19	4.67%	104.94 u
30SiF4	30	19	3.10%	105.93 u
28Si1H4	28	1	92.219(4)%	32.01 u
28Si2H4	28	2	0.010(6)%	36.03 u
29Si1H4	29	1	4.669(5)%	33.01 u
29Si2H4	29	2	0.000(5)%	37.03 u
30Si1H4	30	1	3.099(6)%	34.00 u
30Si2H4	30	2	0.000(4)%	38.14 u

). In contrast, the mass distribution in, e.g., SiH₄ is more complex. In addition, SiH₄ would not follow requirements (ii), (iii), and (v). Common to all enrichment technologies is that higher molar masses allow higher enrichment levels to be achieved. The required mass selectivity of ≤1 u represents a major technical hurdle, as industrial enrichment processes must be able to deliver several tonnes of isotopically pure material per year [105]. Only a few technologies meet these high requirements, despite the great efforts of many national and international research projects with high political support to find technical solutions for the enrichment of radioactive nuclei for civil and military purposes.

3.1. Gas Centrifuge

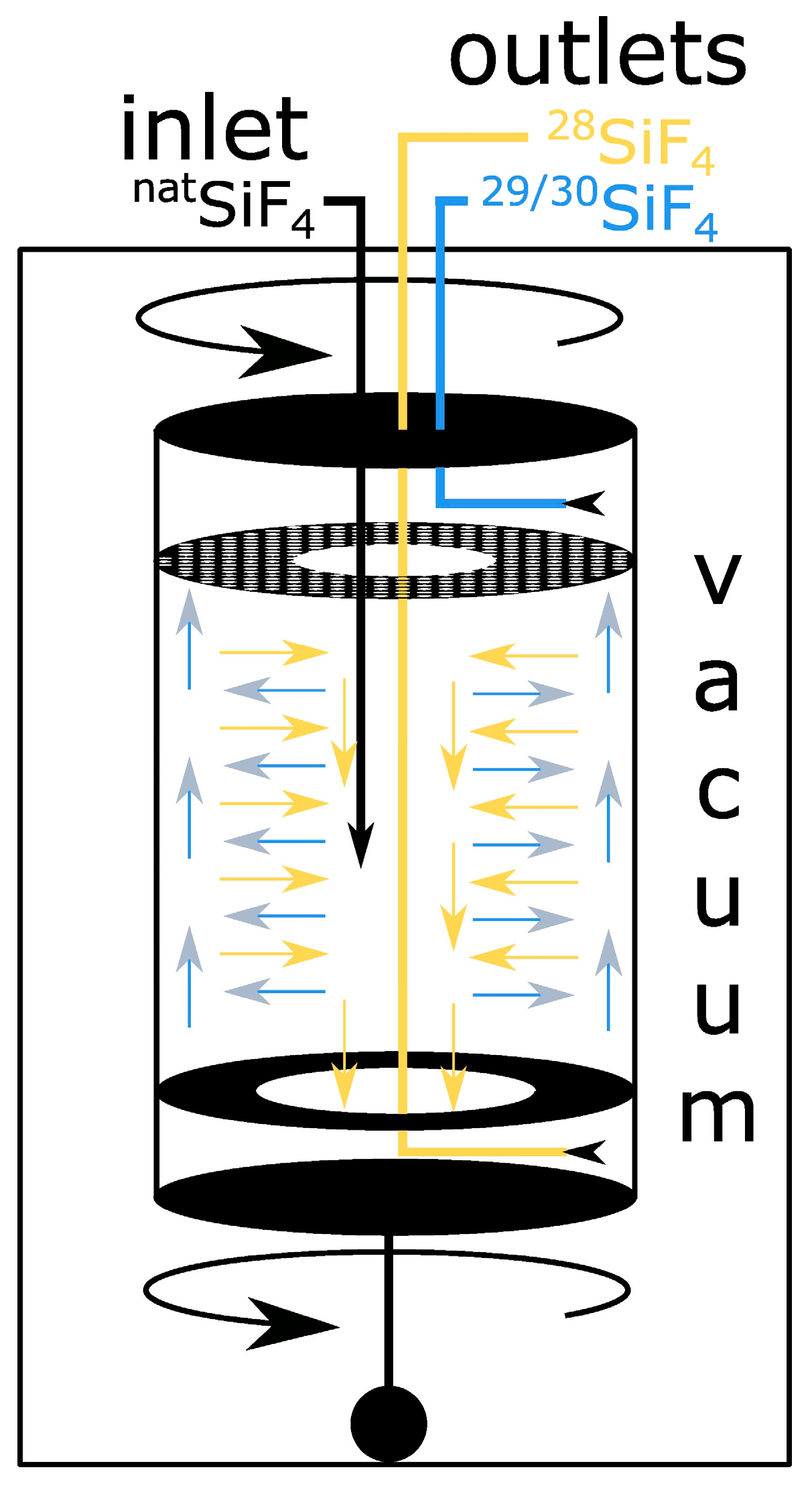

In gas centrifuges, isotope enrichment is achieved by employing the mass-dependent inertia of molecules. For the enrichment of uranium-235, this process has prevailed against its competitors and is the only enrichment technology of economic relevance today [107]. Isotope separation takes place in rotating cylinders. A gas, e.g., SiF₄ or UF₆, fed into the cylinders is subjected to permanent acceleration. The resulting inertial force F can be calculated using the simple relationship

$$F=M{v}^2{r}^{-1}$$

(12)

(M—molar mass; v—circulation speed; r—radius of cylinder).

Modern gas centrifuges, also known as the ZIPPE or KAMENEV centrifuges, consist of tall, vertically rotating cylinders. Usually, they are made of carbon fiber-reinforced steel with a cylinder radius of 5 cm and can achieve rotational speeds of 750 ms⁻¹ and beyond [108]. The separative power only depends on the rotational speed, not on the diameter of the cylinder [109]. High rotational speeds are no longer achieved by simple electric motors but by a rotating magnetic field that causes the cylinder itself to rotate. A force of up to 12,000 eVm (>1,000,000 g) acts on one molecule of SiF₄. This is countered by a pressure gradient between the gas compressed against the cylinder wall and the vacuum created at the axis of rotation. If the pressure at the wall is too high, resulting from fast circulation speeds, the gas can condense on the walls of the centrifuge.

There are several approaches to increase the degree of enrichment without increasing the rotation speed even further. The most important is the countercurrent centrifuge (Figure 2). In addition to the gas flow from the inside to the outside, a vertical pressure difference is created that pushes the molecules close to the axis of rotation downward (or upward). By heating the head of the cylinder and changing the geometry of the cylinder’s interior, a counterflow can be created that maintains or even increases the internal pressure differences. This flow results in horizontal zones within the cylinder. In each zone, horizontal enrichment occurs from the inside (light molecules) to the outside (heavy molecules). Due to the vertical pressure difference, the heavy molecules are slowly released to the zone above (or below), while the light molecules migrate to the zone below (or above). The degree of enrichment increases with each additional zone. This results in two strategies. On the one hand, many short centrifuges can be connected. The degree of enrichment can be increased by connecting the centrifuges in series, and the throughput can be increased by connecting them in parallel. This technical solution is highly flexible and can be quickly adapted to changing system parameters or product requirements. The second strategy is based on a small number of tall centrifuges. This allows many enrichment zones to be realized within one cylinder. As a result, the process runs faster and requires fewer maintenance-intensive individual components. It also minimizes contamination from cylinder walls and gas lines. The challenge with this method is the stability of the tall cylinders. When starting up the rotary motors, the bending frequencies of the cylinders must be passed. Cylinders longer than 1 m run the risk of critical deformation if they are not stabilized by specialized spring constructions.

In 2010, the so-called Stuxnet malware spread, capable of infiltrating plant control systems. Although the origin of the computer worm has never been determined, many experts believe it was designed specifically to damage the gas centrifuges of the Iranian nuclear program by keeping the rotation frequency of the cylinders at their bending frequency [104].

The TC-21 centrifuges of the British company Urenco have a length of 5 m with a radius of 10 cm and rotational speeds of 770 ms⁻¹ [103]. Urenco is the world’s largest producer of isotopically pure materials and relies entirely on gas centrifuges. Only the enrichment facilities of the Russian TVEL Fuel Company, a subsidiary of the state-owned Atomenergoprom group, have a similar production capacity.

Both Urenco and TVEL have demonstrated the ability to enrich ²⁸SiF₄ to an isotopic purity of up to 99.9999%. Since Europe imposed economic sanctions on Russia, it is no longer possible to import enriched ²⁸SiF₄ from Russia to most Western countries.

3.2. Laser Separation

Since it was known that chemical isotopes have different excitation wavelengths, this property has been used to enrich isotopes. As early as the 1970s, research activities with this goal began in both the USA and Russia [110].

Basically, two families of techniques can be distinguished: Atomic Vapor Laser Isotope Separation (AVLIS) and Molecular Laser Isotope Separation (MLIS). In AVLIS, attempts were made to excite ²³⁵U directly in atomic vapor at 2500 K [111]. For this purpose, very narrow-band lasers with a wavelength of about 600 nm were developed in order not to excite other U isotopes. Several technical problems were encountered: The AVLIS systems are very susceptible to corrosion due to the high temperatures. At the same time, the throughput is low, so an excessively high uranium concentration in the gas phase leads to a transition of the excited states due to collisions between the atoms; thus, since the 1990s, only MLIS approaches have been pursued [112,113,114,115]. These use molecules such as UF₆ or SiF₄ as starting materials. One approach was to first excite the isotopes isotope-selectively with a laser pulse and then force them to dissociate selectively. The resulting ²³⁵UF₅ could be trapped as a solid. For uranium, both pulse wavelengths are around 16 µm. This approach was also abandoned because too many impure isotopes dissociated even without excitation due to the chemical equilibrium of the system.

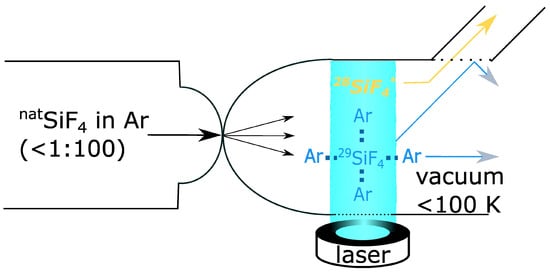

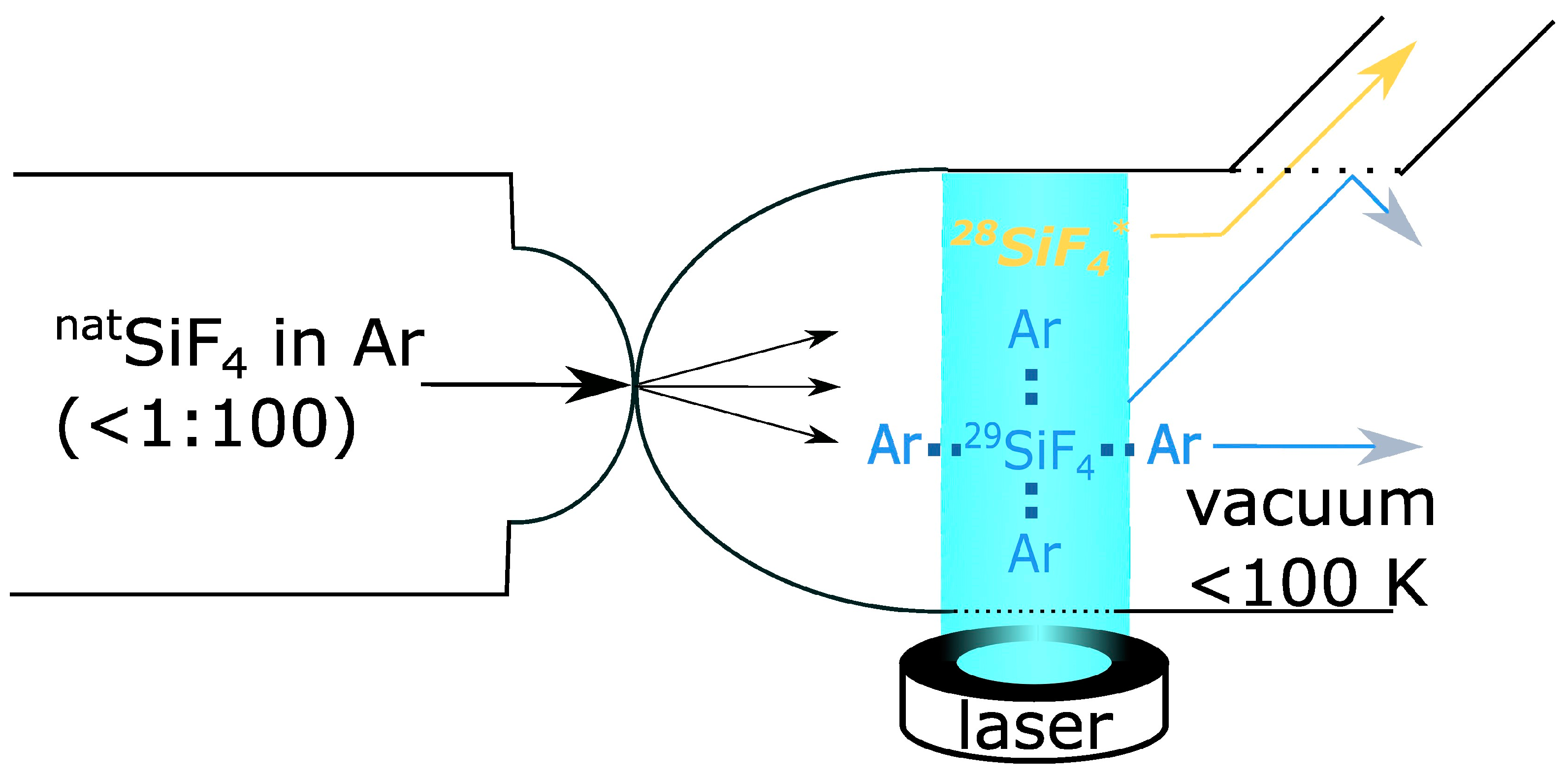

Only the Silex process (Figure 3) is still used today [116]. UF₆ is highly diluted in a carrier gas and expanded through a nozzle into a vacuum chamber. The Joule-Thompson effect cools the gas to about 80 K. However, the dilution prevents the UF₆ from condensing in the gas phase. Instead, clusters of fluoride and carrier gas particles form. After selective laser excitation of the ²³⁵UF₆ species, these no longer form clusters and move through the gas phase faster than the cluster-bound UF₆ molecules. The isotopically pure fluorides can be collected in a shielding device.

The Australian company Silex Systems Limited has been developing the process since 1992. The process is of political relevance because this dual-use technology can, in principle, be set up in laboratories of less than 300 square meters and does not require significant energy [106]. The realization of such systems for military purposes could, therefore, go unnoticed for a long time. However, even after 30 years of development, the technology is not yet mature enough to achieve high throughput with high quality.

Since 2019, Silex Systems Limited has been working with the University of New South Wales (UNSW) and Silicon Quantum Computing Pty Ltd. to research the production of isotopically pure ²⁸SiF₄ or ²⁸Si [117]. A few grams of the material with a purity of 99.998% have already been obtained.

On August 17, 2023, it was announced that isotope enrichment research would receive $5.1 million in funding from the Defence Trailblazer for Concept to Sovereign Capability Program, a strategic partnership between the University of Adelaide and UNSW Sydney supported by the Department of Education through the Trailblazer Universities Program. The goal is to develop and implement a production facility capable of producing up to 10 kg of enriched ²⁸Si in the form of solid ²⁸Si or ²⁸SiF₄ by 2027 [118,119].

3.3. Gas Diffusion

Until 2013, large quantities of ²³⁵U were enriched by gas diffusion in France and the United States. Today, there is only one small plant operated by the China National Nuclear Corporation in Gansu Province.

This family of enrichment techniques is based on Onsager’s reciprocal relations [120,121]. These state that a field or gradient can generate a force that creates a new gradient. The best-known example is the thermoelectric effect (e.g., Seebeck effect), where a temperature gradient on an electrical conductor leads to a voltage field. In isotope enrichment, on the other hand, gradient fields are used to achieve different diffusion rates for molecules of different masses. For Knudsen diffusion [122] through a pore smaller than the free path of the gas particles, it applies.

$$D\approx \sqrt[2]{{\displaystyle \frac{32RT}{9\pi M}}{r}^2}$$

(13)

(D—diffusion constant; R—gas constant; T—temperature; M—molar mass; r—pore radius.) From a technical point of view, two chambers with different pressures are separated by a semi-permeable membrane [123]. The pores in the membrane only allow the Knudsen diffusion. Since the diffusion constant of the light molecules is greater, they diffuse into the low-pressure chamber faster than the heavy molecules. The degree of enrichment is further increased by a temperature gradient, which both influences the diffusion constant and allows thermal diffusion. However, the effects used are rather weak, which is why the enrichment level is 100–150 times worse than in modern gas centrifuges. For this reason, the gas diffusion process is repeated up to 1200 times until the isotopic purity is high enough for technical applications.

As a result, the energy cost of operating a gas diffusion plant is about 50 times higher than that of a gas centrifuge. The only advantage is the much higher throughput possible with gas diffusion. Creative attempts have been made to make commercial use of the residual heat. At Pierrelatte on the Rhône, for example, a crocodile farm was opened near the reactors to use the heat for the reptiles [124,125]. Despite these efforts, all western plants were shut down by 2013 due to inefficiency.

In principle, there is nothing to prevent the enrichment of ²⁸SiF₄ by gas diffusion. However, according to our research, no experimental tests have ever been carried out.

3.4. Other and Discontinued Technologies

The California University Cyclotron (Calutron) was an oversized mass separator used by the U.S. to enrich uranium for nuclear weapons during World War II. Ernest Lawrence developed the system based on isotope separation in a mass spectrometer [126,127,128]. Molecules are fragmented and ionized. Magnetic fields are used to force the ions into circular orbits, the radius of which depends on the ion mass. By varying the magnetic field, specific masses can be released and collected. The operation of a cyclotron is extremely energy-intensive, which is why this method has only been used on a small scale since the end of the Second World War [129,130]. The enrichment of very small amounts of ²⁸Si by this method is conceivable but probably not economical.

The subject of silicon enrichment in magnetic fields has recently been the subject of renewed interest. The silicon atoms were ionized and separated according to their mass using a cyclotron [131,132,133]. However, the ²⁸Si ions (typically Si⁻ or Si²⁺) are not measured using a mass spectrometer but are implanted into a Si wafer via an ion beam. The ²⁸Si ions displace the natural ²⁹Si and ³⁰Si atoms, resulting in an enriched ²⁸Si layer in close proximity to the surface. By employing a velocity selector, also known as a Wien filter, enrichment levels of 99.9997% ²⁸Si could be achieved at a depth of up to 100–200 nm [134].

An aerodynamic nozzle process was developed in Germany in the 1980s [135,136,137]. The goal was to find a simple alternative to gas centrifuges. A concentrated, highly accelerated gas stream was directed through a nozzle onto a narrow bend. Similar to the cylinders of centrifuges, an inertial force of varying strength acts on the gas molecules. As a result, lighter molecules follow a tighter curve than their heavier counterparts. A similar process, the vortex tube process, has been used to enrich uranium in South Africa [138,139]. However, the process requires 60 times more energy than gas centrifuges and even more than gas diffusion. This process could be a technically feasible way to enrich ²⁸SiF₄, but the energy costs would be high.

4. Conversion to Silanes and Solid Silicon

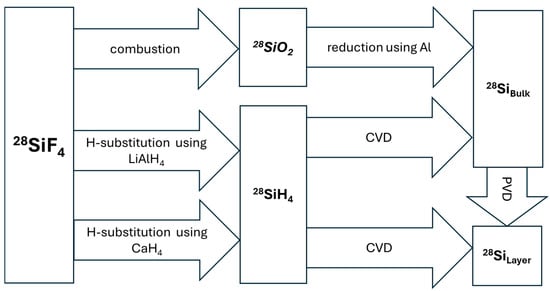

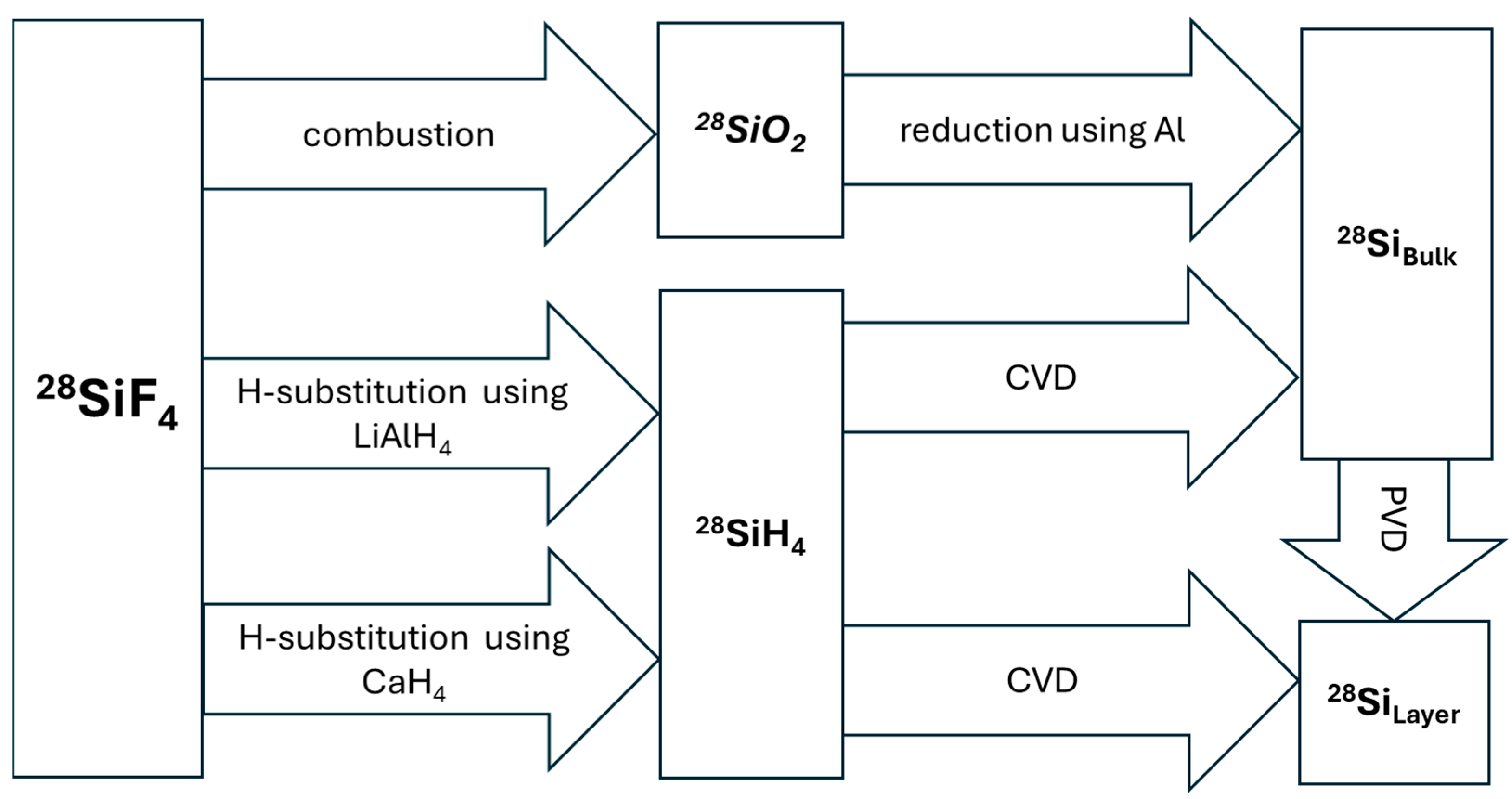

To date, ²⁸SiF₄ has no common technical use besides its conversion into silane (²⁸SiH₄) and subsequently into solid silicon (²⁸Si). The primary reason for this is that SiF₄ has not been adopted as a standard in the chemical vapor deposition (CVD) processes of the microelectronics industry, especially in established CMOS manufacturing technologies (cf. Section 2.2). Due to the high thermodynamic stability of silicon tetrafluoride, the direct decomposition process to form elemental silicon is of low yield, highlighting the relevance of a conversion process into less stable silanes. Figure 4 gives an overview of the chemical reaction paths performed to synthesize ²⁸SiH₄ and ²⁸Si from ²⁸SiF₄.

4.1. Conversion to Bulk ²⁸Si via ²⁸SiO₂

For a long time, the aim was to produce ²⁸Si as bulk material. The main strategy was the conversion of ²⁸SiF₄ to ²⁸SiO₂ and the subsequent direct depiction of bulk material through the reduction of ²⁸SiO₂ using Al powder. The ²⁸SiO₂ powder is reduced at 1100 °C with high-purity Al powder, and the products are separated with a chemical gas transport reaction and tellurium (Te) [140].

²⁸SiF₄ + O₂ → ²⁸SiO₂ + 2 F₂

(14)

3 ²⁸SiO₂ + 4 Al → 3 ²⁸Si + 2 Al₂O₃

(15)

From the literature, it can be concluded that this method or a similar approach for ²⁸Si bulk material was established as early as 1958 in the USA [11]. There are no data available for the enrichment levels of these samples, and it can be suspected that the material was sourced from the Oak Ridge National Laboratory (ORNL, USA).

The method was revived around 1994 [136] in an American–Russian–German study. ²⁸SiO₂ was sourced from ORNL and from the Russian National Metrology Institute (NMI). Notably, NMI material was discarded due to high impurities of unspecified origin, whereas ORNL material was reduced with the Al-method as described above in a collaboration between Physikalisch-Technische Bundesanstalt (PTB) and Wacker-Chemitronic in Germany.

Czochralski (CZ) growth with a ^natSi seed crystal is used to produce chemically pure ²⁸Si single crystals. If an ultra-pure, single-crystalline bulk material is required, the float-zone process can be used to produce a single crystal out of the polycrystalline bulk material. In this method, an inductive heater is moved slowly along the rotating polycrystalline silicon rod, forming a moving “melt zone” at the rod. Due to the thermodynamic preference of impurities in the liquid phase, an enrichment inside the melting zone is achieved while impurities accumulate at the crystal tail. This results in a purification of the solidifying silicon, which can be crystallized using a seeding crystal [141]. In 1994, crystals of 300 g exhibited notable impurities from C (1.3 × 1017 cm⁻³), O (1.1 × 1016 cm⁻³), and B (1018 cm⁻³) were obtained [136]. Another batch was sourced from the Russian Institute of Meteorology (NIM) but was not refined further due to high starting contamination. Approaches in the 1990s used ²⁸SiO₂ and resulted in contamination issues. Since the powder was reduced by Al and then sintered into a starting rod, impurities of Al and O were introduced. To circumvent these steps, a primary refinement to ²⁸SiH₄ was proposed [12].

4.2. Conversion to ²⁸SiH₄

The conversion of inert fluorides to isotopically pure semiconductor precursors presents a particular challenge. The chemical reduction of silicon tetrafluoride has been studied since the 1960s as a method to produce silane. Given the exceptionally high negative standard enthalpy of formation of silicon tetrafluoride (−1615 kJ/mol [66]), while silane has a positive standard enthalpy of formation, a significant amount of chemical energy must be applied to convert SiF₄ to SiH₄. This conversion requires a highly exothermic process, with an enthalpy change exceeding 2000 kJ/mol. Hydrogenation is the key strategy to convert the SiF₄ into the thermodynamically less stable monosilane SiH₄.

Generally, the quantitative conversion of semimetal halides (MX_y) to their hydrogen compounds (MH_y) is feasible using hydrides (AH_x).

MXy + AH_x → MH_y + AX_x

(16)

In early research, conversions have been carried out using dissolved alkali hydrides containing aluminum (Al), lithium (Li), sodium (Na), or combinations thereof. The advantage of this method is that these hydrides can be dissolved in organic solvents like dimethyl ether, diethylene glycol, or tetrahydrofuran [12,142]. Efforts in the late 1990s to produce isotope-pure silicon utilized the reduction with lithium aluminum hydride (LiAlH₄) or sodium aluminum hydride (NaAlH₄). For example, LiAlH₄ can convert SiF₄ into SiH₄ in diethyl ether [31].

SiF₄ + LiAlH₄ → SiH₄ + LiF + AlF₃

(17)

P. A. Lefrancois found that a slurry of sodium hydride in a high boiling solvent such as diphenyl ether can completely convert SiF₄ into monosilane at 250 °C in under two seconds of contact time [143].

SiF₄ + 4 NaH → SiH₄ + 4 NaF

(18)

However, the resulting fluorine salts slurry the solvent, making these methods technically very challenging to implement and scale up. Additionally, the solvent introduces organic solvents, which can act as carbon sources—electrically active donors in silicon. Additionally, metals such as aluminum are also electrically active in silicon, necessitating extensive purification. However, yields exceeding 99% have been reported [12].

Progress has been made with a then-novel approach using solid calcium hydride (CaH₂) for reduction. This method’s simplicity is advantageous, as it only involves ²⁸SiF₄ and CaH₂, avoiding the introduction of critical impurities, especially C and Al.

SiF₄ + 2 CaH₂ → SiH₄ + CaF₂

(19)

This reaction can be carried out in various ways. The solid–gas-phase reaction between SiF₄ and CaH₂ as a filtration combustion at temperatures lower than 300 °C was reported [144]. Higher reaction temperatures are problematic in this system due to the thermal decomposition of the formed monosilane. However, the low conversion rate due to the insufficient contact area requires several reruns of this reaction in order to obtain satisfactory yields of SiH₄ [145]. To solve this problem, it is possible to enlarge the active surface by using milling bodies [146] or by performing the synthesis in an eutectic salt melt of KCl and LiCl with CaH₂ solved in it [147]. The high temperatures of the salt melt (~400 °C) lead to yield losses due to thermal decomposition. A disadvantage of this synthesis is the still relatively high levels of impurities such as CH₄, C₂H₄, or (SiH₃)₂O in the obtained silane up to 2 mol % [148,149]. Furthermore, due to the production process, the obtained silane contains calcium impurities in the ppm range, which can pose a problem for semiconductor or quantum applications [150].

Since the ²⁸SiF₄ used is very expensive, efficiency plays a major role—i.e., the conversion of ²⁸Si from the raw material into the target material. For the CaH₂ approach, efficiencies of up to 90% were stated [12]. However, Voltaix, an American chemical company that uses the CaH₂ process, only achieves efficiencies of 66% [151].

4.3. Conversion to Bulk ²⁸Si via ²⁸SiH₄

For bulk ²⁸Si synthesis, the thermal decomposition of ²⁸SiH₄ in an adapted Siemens oven is used, with further processing by float zone refinement.

$${}^{28}\mathrm{SiH}_4 \stackrel{\mathsf{\Delta }}{\to }{}^{28}\mathrm{Si} + 2 {\mathrm{H}}_2$$

(20)

The reaction conditions, such as temperature and pressure, are crucial for the quality and the structure of the grown layer, allowing the formation of polycrystalline silicon [152]. If a slim silicon rod is used as a substrate, the formation of a larger bulk rod of polycrystalline silicon is possible. This method was adapted using ²⁸SiH₄ to produce the ²⁸Si bulk material for the Avogadro project [136,153]. Notably, significant quantities (5 kg) of ²⁸SiH₄ were produced beforehand using the CaH₂ approach.

4.4. Conversion to Thin ²⁸Si Layers

SiH₄ is particularly interesting for layer deposition of thin ²⁸Si films for quantum systems, which means that further processing into bulk material takes a back seat—instead, layers are used in low-pressure CVD processes. Epitaxial growth is possible at 650 °C at a pressure of 20 mmHg, allowing the formation of an epilayer of ²⁸Si on a silicon wafer with natural isotopic composition. This method allows the production of epilayers with up to 300 mm in diameter [154].

However, more conventional technical methods would prefer halogenated silicon compounds, primarily trichlorosilane (SiHCl₃) or tetrachlorosilane (SiCl₄), which are commonly used in industry. Silicon bromide (SiBr₄) is another theoretical option. Due to the high Si-F bond stability, the direct conversion of SiF₄ into chlorosilanes or bromosilanes is not known. To date, for the deposition of ²⁸Si layers, only ²⁸SiH₄ has been used as a precursor.

Larger molecules, such as disilane (Si₂H₆), have no significant applications and are not discussed further.

Another method besides CVD for the fabrication of thin silicon films on different substrates is physical vapor deposition (PVD). In this method, the material is sputtered, thermally evaporated, or plasma evaporated under a vacuum and deposited at low temperatures. This method is rather unusual for pure silicon layers [155].

A more specialized variant of the PVD is molecular beam epitaxy (MBE). As the name suggests, epitaxial growth of a layer on a crystalline substrate is achievable. In ultra-high vacuum conditions, the material is heated and transported as a “molecular” beam toward the also heated substrate where it decomposes. With this method, very high-purity silicon epilayers that are suitable for device applications can be achieved [156].

5. Novel Physical Properties of ²⁸Si Resulting from Isotope Enrichment and Its Applications

The significance of silicon-28-fluoride in the value chain for silicon-28 single crystals and silicon-28 layers was previously highlighted. Among various silicon compounds, SiF₄ is one of the few that meets the stringent material requirements for isotope enrichment (see Section 3). Nevertheless, the direct reduction of SiF₄ to Si is not known. This can be attributed to the high binding energies of the Si-F bond and the unfavorable pentatomic tetrahedral configuration with unusually short bond distances, which may be due to 5c-2e bonds (see Section 2). Accordingly, the molecule must be converted to silicon-28-oxide (²⁸SiO₂) or silane-28 (²⁸SiH₄) prior to the reduction to solid silicon-28 (see Section 4). ²⁸SiH₄ has the significant advantage that it can be employed in CVD processes, which are well-established in microelectronic process technology (see Figure 3). The value chain for ²⁸Si is correspondingly lengthy, with individual process steps being time-consuming and costly. Nevertheless, demand for the material is increasing. This is due to the altered properties of the isotope-pure semiconductor (

Table 3. Technically significant differences in the physicochemical properties of natural silicon (^natSi) and isotopically pure silicon-28 (²⁸Si).

	natSi	28Si	Reference
Mass distribution	92.2%—28 u	100%—28 u	[102]
	4.7%—29 u
	3.1%—30 u
Thermal conductivity @ 21 K	45 Wcm−1K−1	450 Wcm−1K−1	[7]
Band gap	1.12 eV	1.06 eV	[8]
Nuclear spin	I = 1/2; Ī = √3/2 ħ	I = 0; Ī = 0 ħ

and Figure 5).

In accordance with the established grades for semiconductor materials that are pertinent in industry, specifically ‘solar grade’ and ‘electronic grade’, ²⁸Si, which is characterized by high isotopic and chemical purity, is frequently termed ‘quantum grade’ [157].

5.1. Mass Distribution|Avogadro Project

The Avogadro project represents the most significant and extensive research project based on ²⁸Si to date [158]. The fundamental concept was first proposed in 1968 [159]. It was theorized that if a perfectly round sphere of ²⁸Si could be produced and its volume determined precisely, the Avogadro constant could be measured directly. The requisite conditions were the availability of precise data regarding the bond length between the ²⁸Si atoms, an exceptionally high degree of chemical purity, and a crystalline structure of near-perfect quality. However, these conditions were not within the realm of technical possibility at the time.

Starting in 2003, a further attempt was made [157]. On this occasion, a second motivation was identified in addition to the determination of the Avogadro constant. In 1999, the International Bureau of Weights and Measures (BIPM) concluded that the International System of Units (SI) should be modernized. In particular, the definition of the kilogram was deemed to be no longer appropriate. The revised definition stated that “the kilogram is the unit of mass; it is equal to the mass of the international prototype of the kilogram” [160]. The international prototype of the kilogram (IPK) has been preserved in the Pavillon de Breteuil in Sèvres, situated to the southwest of Paris, since 1889. Despite the IPK’s durability, it is gradually losing mass. It is hypothesized that the platinum–iridium (9:1) alloy is leaking hydrogen gas [161]. Over the past century, the IPK has lost a minimum of 50 µg in mass [162].

In order to develop a new definition, a proposal was put forth suggesting the production of a perfect sphere made of ²⁸Si as one of several approaches. The objective was to create a sphere with a mass of precisely 1 kg, which could be reproduced at any time, using the Avogadro constant and the trivial mass distribution.

Until 2019, a substantial investment in research and development was made as part of the Avogadro project, with the objective of redefining the kilogram. The Physikalisch-Technische Bundesanstalt (PTB) in Braunschweig, Germany, led a multi-stage process involving numerous international partners. The enrichment of ²⁸SiF₄ was conducted in Krasnoyarsk, Russia, while the conversion of ²⁸SiF₄ into polycrystalline ²⁸Si was performed in Nizhniy Novgorod, also in Russia. Subsequently, a ²⁸Si single crystal was grown using a float zone process at the Leibniz Institute for Crystal Growth (IKZ) in Berlin. In Australia, the crystal was cut and polished with the objective of achieving the most perfect spherical shape possible. The PTB assumed responsibility for the quality management of the project. The spherical interferometry method was developed at the PTB for the specific purpose of being used in the Avogadro project [163]. According to the New York Times, this is ‘one of the roundest man-made objects in the world’ [164].

The 144th Meter Convention on 20 May 2019 marked the redefinition of the SI units, which had been announced two decades previously. At this event, the ²⁸Si sphere was not chosen as the basis for redefining the kilogram. Instead, the following is now applicable: “The kilogram, symbol kg, is the SI unit of mass. It is defined by taking the fixed numerical value of the Planck constant h to be 6.62607015 × 10⁻³⁴ when expressed in the unit J⋅s, which is equal to kg⋅m²⋅s⁻¹, where the meter and the second are defined in terms of c and Δν_Cs” [165]. Therefore, the kilogram is determined using a Kibble balance utilizing the Josephson effect and the quantum Hall effect [166].

It is noteworthy that the Avogadro project, which has been operational for over a decade and a half, did yield two significant achievements. The first notable achievement was the determination of the Avogadro constant. The value of 6.02214076(12) 10⁻²³ mol⁻¹ determined in 2015 met all the criteria to set the constant exactly and irrevocably at this value in 2018 [167]. Another success of the Avogadro project is the first realization of a major international project with isotopically pure semiconductors. A temporary supply chain was established, and novel processes for the production, purification, and characterization of ²⁸Si were devised [168,169,170,171,172,173,174,175,176]. It can be concluded that without the Avogadro project, the altered characteristics of ²⁸Si would not have come into focus, and the increased demand observed in recent years (and proposed for coming years) would not have materialized.

5.2. Thermal Conductivity|Cryogenics

The thermal conductivity of silicon-28 has been found to be the highest ever recorded in a solid-state dielectric [7]. High-purity, single-crystal, low-defect ^natSi with a natural isotope distribution achieves a thermal conductivity of 45 Wcm⁻¹K⁻¹ at a temperature of 21 K. By using isotopically pure ²⁸Si (99.99%), the thermal conductivity at 21 K can be increased tenfold to 450 Wcm⁻¹K⁻¹ and exceeds the maximum conductivity of ¹²C diamond at 104 K of 410 Wcm⁻¹K⁻¹. In contrast, an order of magnitude lower purity (99.92%) has a thermal conductivity of only 280 W cm⁻¹K⁻¹.

The reason for the high dependence of the thermal conductivity at low temperatures on the isotopic purity can be found in the phonon scattering modes of the crystal lattice [4]. Each additional mode reduces the thermal conductivity. Scattering modes are mainly caused by impurities, doping, imperfections, defects, and the natural mass distribution of the isotopes. Former factors are minimized by crystal growth and deposition processes. Close to the minimum temperature, scattering effects of lattice distortions caused by atom mass distribution—not defects—are dominant [177].

The high thermal conductivity of ²⁸Si makes it an attractive option for use in cryogenic technology. In particular, technologies that operate at approximately 21 K and in which heat must be dissipated can benefit from the use of the isotope-pure semiconductor.

One illustrative example is that of X-ray optics and optical elements in synchrotron emitters. The high-energy radiation generates heat when passing through lenses and mirrors, which can result in the deformation of the components and an increase in measurement uncertainty. Some systems are already constructed from natural silicon or require Si wafers as a platform. Examples of this include micropore X-ray optics, piezoelectric actuators, and monochromators [178,179,180]. The thermal load to which the optics are exposed by the sources of the latest generation (free-electron lasers, synchrotrons) represents a significant challenge for the materials employed. The utilization of ²⁸Si can enhance heat dissipation, thereby minimizing measurement inaccuracies.

The potential utilization of ²⁸Si in gravitational wave observatories is currently under discussion. A significant proportion of these large-scale physics experiments employ laser interferometry [181,182]. A laser beam is reflected between mirrors. A gravitational wave results in a slight displacement of the mirror position, which can be quantified by measuring the path difference of the laser light and the resulting interference pattern. It is essential that the mirrors possess a sufficiently substantial mass and are capable of unrestricted movement. Since 2015, gravitational waves have been detected using second-generation detectors, for example, at the Laser Interferometer Gravitational Wave Observatory (LIGO) in the USA [180]. However, the sensitivity of the measurements was insufficient for precise data analysis. This was due to two factors: seismic movements and thermal movements of the mirrors.

Third-generation gravitational wave observatories, such as the European Einstein Telescope, are designed with the objective of reducing the aforementioned sources of noise [183,184]. The apparatus will comprise three mirrors arranged in a triangular configuration at a depth of between 200 and 300 m below the Earth’s surface. The side length of the equilateral triangle is to be 10 kilometers. Two measurement ranges are planned. The low-frequency range (1–250 Hz) will utilize a laser beam power of 18 kW, while the high-frequency range (up to 10 kHz) will employ a beam power of 3 MW.

The seismic movements can be reduced as the seismic noise underground is less pronounced than on the Earth’s surface [185]. To minimize thermal noise, the mirrors for the low-frequency measurements are planned to be cooled to 10–20 K [182]. As the energy dissipates into the mirror surface when the laser beam is reflected, the mirror must be made of a material with high thermal conductivity. Given that the mass of the mirrors should be in the order of 100 kg, it is not feasible to manufacture them entirely from ²⁸Si [186]. Currently, the production of such large quantities of the isotopically pure semiconductor is not possible. An alternative proposal is to manufacture the wire that holds the mirrors in place from ²⁸Si single crystals. The first wires have already been produced in test runs at the Leibniz Institute for Crystal Growth (IKZ) in Berlin [187,188].

The construction of the Einstein Telescope has yet to commence. The Meuse-Rhine Euroregion (comprising Germany, Belgium, and the Netherlands), Sardinia (Italy), and Lusatia in Saxony (Germany) are under consideration as potential construction sites. The German Centre for Astrophysics (DZA) is currently being established in Lusatia, with a focus on topics such as gravitational waves [189]. Fourth-generation gravitational wave detectors are already being planned with the objective of establishing interstellar satellite laser paths of 2.5 million km or more (Laser Interferometer Space Antenna, LISA) [190].

Another area of interest for the low thermal conductivity of ²⁸Si is low-temperature microelectronics, where an increase in the heat conductivity of the already-used silicon would enable more compact packaging. Since the effect only begins at very low temperatures, efforts in this area have been suspended; however, they could face a revival for quantum applications like quantum computing, where systems are cooled close to absolute zero anyway. This is particularly the case given that certain quantum technologies are contingent upon another property of ²⁸Si, namely spin neutrality.

5.3. Nuclear Spin|Quantum Technologies

The observation of quantum effects necessitates the utilization of environments that are devoid of any form of interference. It is for this reason that quantum mechanical models and thought experiments consistently assume the existence of completely isolated particles within a closed system. In empirical experiments, these conditions can be approximated in an ultra-high vacuum. It is a contradiction that in order to realize quantum effects in technological applications, especially in microelectronics, it is necessary to stabilize the quantum states in dense solids. This presents a challenge for material synthesis and crystal growth, as non-diamagnetic defects must be avoided in the crystal lattice, as they can follow, transmit, or even amplify internal and external magnetic fields (positive magnetic susceptibility) [191,192,193].

Some quantum technology applications employ the spin of electrons. Their interaction is not limited to defects but also encompasses the nuclear spin present in the lattice. It is, therefore, evident that materials with nuclear spin quantum numbers ≠ 0 cannot be employed as platforms. This applies to all isotopes with an odd number of nucleons, exemplified by ²⁹Si in natural silicon. Consequently, the utilization of isotopically pure ²⁸Si (or ^28/30Si) is essential for the realization of spintronic quantum technologies [3,194,195,196]. The spin-neutral environment thus created is also known as a spin vacuum.

One example of the application of this technology is the embedding of optical emitters within silicon waveguides [6]. The objective is to generate radiating transitions in an indirect semiconductor with the aid of doping [197,198]. However, the ²⁹Si nuclear spin interacts with the emitters, thereby significantly reducing the decoherence time of the radiating states. Isotopically enriched 28-silicon-on-insulator (28-SOI) chips can serve as an interference-free platform in the future and may play an important role in telecommunications in the future.

Moreover, semiconductor quantum computers utilize the spins of electrons as the base for quantum bits (qubits), which are manipulated and measured in order to perform complex arithmetic operations. A comprehensive overview of semiconductor quantum computers can be found in the relevant literature [1,199,200,201,202,203].

The semiconductor quantum computer approaches can be broadly classified into two main categories: the generation of two-dimensional electron gases (2DEG) and the generation of single defects [1].

2DEGs can be exemplary realized in structures comprising ²⁸Si and metal-oxide-semiconductor (MOS) components [204]. A 2DEG is confined at the ²⁸Si/²⁸SiO₂ interface. These structures have previously been realized on 300 mm wafers using ²⁸Si-CVD and have undergone a complete industry-oriented process, including lithographic preparation [2,154,205]. However, the oxidic nature of the SiO₂ results in a high level of disorder at the interface, which represents a disadvantage of this structure [1,206].

As an alternative, 2DEGs can also be realized at interfaces between ²⁸Si layers and silicon–germanium layers (Si_xGe_x−1) layers, typically with a composition of x = 0.7 [207]. The interface disorder is less pronounced in this case. A lattice mismatch exists between the layers (²⁸Si and Si_xGe_x−1), resulting in a tensile strain of the ²⁸Si layer. The consequence of this is an alteration in the lattice parameter, which in turn affects the electronic structure of the ²⁸Si. This phenomenon is known as valley splitting [208,209]. It results in the splitting of a low-lying energy level. A second splitting occurs as a result of the application of an external magnetic field, a phenomenon known as the Zeeman effect. This results in the formation of an energetic fine structure. The spin coupling (or entanglement) of the two electrons in the levels now determines which value the qubit assumes [210]. The spins can also take on a superposition state, provided they are not subjected to any external interactions. The nuclear spin of the ²⁹Si atoms would disrupt this intermediate state. It is theoretically possible for decoherence times of 10 h to be achieved in perfect ²⁸Si layers [5]. ²⁸Si/SiGe structures have been realized using both CVD [203] and PVD [211] processes.

Similarly, a two-dimensional hole gas (2DHG) can be generated, wherein the role of electrons is fulfilled by holes [212]. This is not achievable in ²⁸Si; instead, isotope-engineered germanium is used.

In addition to the generation of 2DEG/2DHG, a further possibility is the generation of isolated defects. In this approach, individual atoms with nuclear spin are introduced into a spin-neutral environment (²⁸Si), or a very low concentration of atoms with nuclear spin is achieved. The isolated nuclear spin generates a weak magnetic field with which individual electrons can couple, resulting in a hyperfine structure with several discrete energy levels for the electron. The electron can be read out via a radiating transition, such as a color center.

The second method is employed, for instance, in the incorporation of phosphorus-31 atoms into ²⁸Si [213,214,215]. In this process, both the electrons and the nuclear spin originate from the ³¹P. This approach is relatively challenging due to the necessity of developing industry-compatible methodologies for the targeted introduction of the ³¹P atoms.

An alternative approach is the utilization of silicon carbide (SiC). SiC is a semiconductor that has already been employed in a number of industrial applications.

The use of ²⁸Si¹²C enables the incorporation of qubits into the color centers of the material [216,217]. This is achieved by the statistical distribution of ²⁹Si atoms, which are present in a low, adjusted concentration, and their coupling with individual electrons in carbon vacancies (V_Si^e). It should be noted that the origin of the electron and nuclear spin differs. Nevertheless, a readable color center is also formed. The optimum ²⁹Si concentration is currently estimated to be 1%.

5.4. Further Selected Properties and Potential Applications

In addition to the aforementioned properties, isotope-pure ²⁸Si exhibits a number of secondary characteristics that may be of interest in specific instances or for research purposes.

The phonon modes resulting from the isotope distribution (see Section 5.2) impact not only thermal conductivity but also neutron scattering and Raman measurements [218]. Even minimal alterations in the asymmetric mode of lattice vibrations can result in a shift of up to 10 cm⁻¹ in the Raman spectra.

Furthermore, the isotopic purity of a material can also exert an influence on photoluminescence (PL) measurements [8]. It has been possible to record the non-phononic exciton transitions of boron and phosphorus dopant atoms in ²⁸Si, with a markedly sharper line width (<0.014 cm⁻¹) than that observed in ^natSi. These highly precise measurements have enabled the fine structure in the spectrum to be resolved, which was previously obscured by the statistical isotope distribution.

Both effects, shifting of the Raman shift and the splitting of PL peaks, can be used as characterization tools of the isotope purity of silicon and for doping control. Moreover, further insights into the excitonic processes of dopants in semiconductors could be obtained.

A band gap shift of 58 meV can also be derived from the PL measurements [8]. As a result, the band gap of silicon can be set with great precision through isotope engineering [176].

It is anticipated that further insight into the phononic processes in semiconductors, and in semiconductor nanoparticles in particular, will be provided by the growth of isotopically pure Si nanowires [219]. The structures are produced via the vapor–liquid–solid (VLS) process [220]. In this variant of liquid-phase epitaxy, liquid gold droplets are deposited on a silicon substrate [221,222]. In an atmosphere saturated with silicon and an ultra-high vacuum, individual silicon atoms are dissolved in the liquid metal. Eventually, the droplet becomes supersaturated and deposits Si epitaxially at the interface with the Si substrate [223]. In principle, nanowires with isotopic gradients can also be produced in this way. One potential application of these isotopically engineered nanowires is in the creation of qubits, for example, through the targeted insertion of ³¹P atoms or through the development of all-silicon magnetic resonance quantum devices [217]. The use of isotopically modified nanowires for thermoelectrics or in microelectronics for better heat dissipation has also been discussed [224,225].

It can be reasonably assumed that the production of isotope-pure solar cells is a viable proposition. The enhanced thermal conductivity, in conjunction with the projected augmented carrier lifetime, should confer a distinct advantage in the domain of photovoltaics [226]. The conversion efficiency is reported to have increased by 0.7–2.5% to a maximum of 22.6% through the utilization of ²⁸Si (isotopic purity: 98%) [227]. This outcome may also be attributed to the mitigation of charge carrier degradation on boron–oxygen clusters. Multiple national initiatives, including those in Japan [228], Germany [229], and Norway [230], have been undertaken with the objective of developing ²⁸Si solar cells. In addition to enhancing efficiency, the empirical measurement of excitonic processes during the generation and movement of charge carriers has also been a key focus.

The potential of ²⁸Si for investigating fundamental physical phenomena and advancing technological innovation is vast. However, the material’s limited availability and the inherent complexities of its value chain are currently impeding the progress of numerous research and development initiatives.
