Article

Low-Temperature Terpolymerizable Benzoxazine Monomer Bearing Norbornene and Furan Groups: Synthesis, Characterization, Polymerization, and Properties of Its Polymer

by
Yin Lu
1,
Yaliang Peng
1,
Yi Yang
1,
Jiahao Liu
2 and
Kan Zhang
1,*
1
Research School of Polymeric Materials, School of Materials Science and Engineering, Jiangsu University, Zhenjiang 212013, China
2
School of Mechanical Engineering, Jiangsu University, Zhenjiang 212013, China
*
Author to whom correspondence should be addressed.
Molecules 2023, 28(9), 3944; https://doi.org/10.3390/molecules28093944
Submission received: 21 March 2023 / Revised: 4 May 2023 / Accepted: 5 May 2023 / Published: 7 May 2023
(This article belongs to the Section Materials Chemistry)
Browse Figures
Versions Notes

Abstract

:
There is an urgency to produce novel high-performance resins to support the rapid development of the aerospace field and the electronic industry. In the present work, we designed and consequently synthesized a benzoxazine monomer (oHPNI-fa) bearing both norbornene and furan groups through the flexible benzoxazine structural design capability. The molecular structure of oHPNI-fa was verified by the combination characterization of nuclear magnetic resonance spectrum, FT-IR technology, and high-resolution mass spectrum. The thermally activated terpolymerization was monitored by in situ FT-IR as well as differential scanning calorimetry (DSC). Moreover, the low-temperature-curing characteristics of oHPNI-fa have also been revealed and discussed in the current study. Furthermore, the curing kinetics of the oHPNI-fa were investigated by the Kissinger and Ozawa methods. The resulting highly cross-linked thermoset based on oHPNI-fa showed excellent thermal stability as well as flame retardancy (Td10 of 425 °C, THR of 4.9 KJg−1). The strategy for molecular design utilized in the current work gives a guide to the development of high-performance resins which can potentially be applied in the aerospace and electronics industries.

1. Introduction

The use of polymer matrix composites in aircraft design provides significant benefits, including increased fuel efficiency, reduced weight, improved damage tolerance, and enhanced durability. These materials are also more resistant to fatigue and corrosion and can withstand high temperatures and extreme environments, making them ideal for use in aerospace applications [1,2,3]. Through the advancements in material science and manufacturing technology, engineers have been able to design and produce polymer matrix composites with tailored properties specific to their intended applications. This has allowed for the development of aircraft that are faster, more maneuverable, and more efficient than ever before [4,5]. Furthermore, the use of polymer matrix composites in aerospace manufacturing has also contributed to the reduction of the environmental impact of air travel. The reduced weight of aircraft has led to decreased fuel consumption, resulting in lower greenhouse gas emissions and a more sustainable aviation industry. Overall, the application of polymer matrix composites in aerospace manufacturing has been a key factor in the development of more advanced and efficient aircraft, contributing to the safety, reliability, and sustainability of the aviation industry [6,7,8,9].
In recent years, the development of advanced materials has been a major focus in the aerospace industry. Structural thermosets such as PMR families are an example of new materials that are being used in aerospace and military applications. PMR-15 is a polyimide-based thermosetting resin that contains norbornene functionality. It is renowned for its exceptional thermal stability, chemical resistance, and mechanical strength, and its high resistance to shock and vibration makes it an ideal material for use in aerospace and military technology [10,11].PMR-15 also exhibits a lightweight characteristic and possesses a low coefficient of thermal expansion, which makes it suitable for use in high-temperature environments [12,13,14]. However, a major drawback of norbornene end-capped polymers, including PMR-15, is that they require a high polymerization temperature in excess of 300 °C to generate the cross-linked network that is necessary for their thermal and mechanical properties (Scheme 1a) [15]. Despite these challenges, recent studies have shown that the curing temperature of norbornene can be significantly reduced by incorporating it into smart ortho-benzoxazines. Smart ortho-benzoxazines are a type of monomer that can be polymerized at relatively low temperatures, typically between 180 °C and 220 °C. The resulting polymers exhibit excellent thermal stability, chemical resistance, and mechanical performance that are comparable to those demonstrated by PMR-15 and other norbornene-based materials. Moreover, these polymers possess a low coefficient of thermal expansion, making them a suitable choice for high-temperature aerospace applications [15,16,17]. The use of smart ortho-benzoxazine polymers could offer significant advantages over other thermosets in aerospace and military applications. They are lightweight, easy to process, and can be easily incorporated into complex structures. Moreover, their ability to be cured at low temperatures would reduce manufacturing costs and allow them to be used in a wider range of applications [15,16,17]. The aerospace industry is always seeking new advanced materials that can improve the performance, durability, and safety of aerospace technology. The development of smart ortho-benzoxazines is exciting because they offer the potential for high-performance materials that can be cured at low temperatures, making them cost-effective and easy to incorporate into complex structures.
As a novel emerging structural resin, benzoxazine resin has demonstrated various incomparable advantages [18,19,20,21,22]. The most appealing aspect of benzoxazine resin is its flexible structure design capability as well as the high-performance properties of its polymer [23,24,25]. Recently, a new series of benzoxazine resins with high-performance characteristics, namely, ortho-imide functional benzoxazines, have been reported and systematically investigated by our research group [26,27]. Interestingly, these ortho-functional polybenzoxazines with rigid imide moiety display a number of desirable characteristics, including unexpected low-temperature curing, higher values of Tg, and improved thermal stability, compared to conventional polybenzoxazines generated from para-functional counterparts [28,29]. In addition, the synthesis of ortho-functional polybenzoxazines with additional chemical groups, such as alkynyl, cyan group, and phthalonitrile units, have also been reported [15,27,30,31]. Previous studies relating to ortho-imide functional benzoxazines indicate the possibility of designing high-performance thermosets based on smart benzoxazine resins.
The world’s fossil resources are facing depletion at an alarming rate, making the switch to renewable sources and the development of corresponding technologies a necessity. This has led to a surge of interest in sustainable materials science, which has seen significant advances in the development of new polymers with desired and controllable properties. However, the practical application of benzoxazine resins, especially on an industrial scale, faces similar challenges to most other commercialized polymeric materials in terms of the availability of its raw materials. In response, researchers have been working tirelessly to synthesize sustainable benzoxazine through biomass resources, resulting in the creation of furan-based benzoxazine, which has made up a significant proportion of all reports [32,33,34,35,36,37,38]. Despite the complex mechanism behind the ring-opening polymerization (ROP) of benzoxazine, research has shown that the improvement in the characteristics of furan-containing polybenzoxazines can be associated with an increase in the number of reactive centers, leading to a higher degree of cross-linking [36,39,40]. Furthermore, bio-benzoxazine monomers have demonstrated relatively lower curing temperatures, which make them even more attractive for industrial use. The development of sustainable benzoxazine has also presented an opportunity for researchers to actively pursue a more environmentally friendly future. The use of renewable resources to synthesize the bio-benzoxazine monomer has provided a promising alternative to traditional fossil-based systems. As such, research advances in the field of sustainable materials science, specifically in the development of benzoxazine resins, are a crucial step in ensuring a sustainable future for the planet. In light of this, it is of the utmost importance for the research community to continue its efforts in exploring sustainable alternatives and to make significant strides towards overcoming the challenges associated with a practical industrial application of sustainable materials, and furan-based materials might be a promising choice. The typical curing behavior of furan-based benzoxazine (PH-fa) is proposed in Scheme 1b [34,41].
From all the above findings, we are inspired to incorporate both norbornene and furan structures into ortho-benzoxazine to obtain high-performance thermosetting resin with low curing temperature and excellent properties. Herein, oHPNI-fa, a new benzoxazine monomer, has been designed and synthesized. In order to obtain a thorough grasp of the numerous polymerization processes of the recently discovered norbornene–benzoxazine–furan thermosetting system, two benzoxazine monomers, which only contain the norbornene or furan groups, were also prepared as counterparts. More significantly, the obtained oHPNI-fa provides a sample to investigate in depth the structural changes during the polymerization of a terpolymerizable monomer. Furthermore, this work also provides a very compelling illustration for actual applications, particularly for high-performance regions demanding non-flammable polymeric matrices.

2. Results and Discussion

2.1. Design, Synthesis, and Structural Characterization of the Benzoxazine Monomer

Based on thorough investigations of ortho-functional benzoxazine, ortho-imide-based benzoxazine was chosen as the central structure due to its advantage in high-yield synthesis [26]. We then sought out ways to incorporate the norbornene and furan groups into the benzoxazine monomer structure. Consequently, an ortho-norbornene phenol (oHPNI) was chosen as the phenol source, and furfurylamine was selected as the amine source to conduct a Mannich condensation. As a result, we were successful in developing and creating a benzoxazine monomer containing both norbornene and furan functionalities.
The molecular structure of novel monomer containing both norbornene and furan functionalities was first characterized by NMR technology, which is shown in Figure 1. 1H NMR spectra of oHPNI-fa in CDCl3 is illustrated in Figure 1a. The -CH2- group in the oxazine ring is responsible for two singlet resonances with similar intensity for 1,3-benzoxazines. On the other hand, two doublets are seen for oHPNI-fa at 4.02 and 4.04 ppm and 4.85 and 4.89 ppm, which can be credited to Ar-CH2-N and -O-CH2-N, respectively. Since the norbornene endcap and imide five-membered ring is on a different plane, which permits the occurrence of atropisomerism in oHPNI-fa, so the two peaks occurred in the form of a typical branching resonance [27]. Moreover, the three protons that come from the furan group have respective concentrations of 7.43, 6.34, and 6.27 ppm. The protons of the double bond in the norbornene group are responsible for the singlet at 6.18 ppm. In Figure 1b, the 13C NMR spectrum of oHPNI-fa is also shown. The typical four carbons in the furan structure are responsible for resonances at 109.3, 110.1, 142.6, and 149.3 ppm, respectively. In addition, the -C=C- bond in the norbornene group causes the signal at 134.5 ppm. The typical carbon resonances for the oxazine ring, Ar-O-CH2-N- and Ar-CH2-N-, are found at 82.2 ppm and 49.0 ppm, respectively. Moreover, the typical aromatic carbon in the furan ring, -N-CH2-fur, can be found at 47.9 ppm. The findings from the 1H-13C HMQC spectrum (Figure 1c) confirm the precise distribution for the carbons in the norbornene, furan, and oxazine structure in oHPNI-fa. All the above findings confirm the successful incorporation of the furan and norbornene groups into the benzoxazine monomer.
FTIR analysis was conducted to further validate the chemical structures of oHPNI-fa, and the resulting spectra of PH-fa, oHPNI-a, and oHPNI-fa are displayed in Figure 2. The oxazine ring, norbornene, and furan are all presented in the current synthesized benzoxazine monomer, which is supported by the marked absorption bands in Figure 2. The distinctive band around 755 cm−1 is undoubtedly caused by out-of-plane in-phase wagging of the C-H bond in the furan structure, and bands at 1501 and 1081 cm−1, which are credited to the C=C stretching and C–O antisymmetric stretching in furan, can also be observed [42]. Moreover, the imide group is allocated to the distinctive bands at 1769 and 1701 cm−1. The asymmetric and symmetric stretching modes of the imide I (C-C(C=O)-C) are responsible for the usual doublet bands at 1769 and 1701 cm−1. The axial stretching of the C-N bond is attributed to the band at 1385 cm−1. The C-O-C asymmetric stretching mode-induced band at 1226 cm−1 further supports the idea that the monomer contains oxazine ring aromatic ether. At 925 cm−1, the recognizable oxazine-related pattern can be found [43].
The HR-MS spectrum is presented in Figure S1. The pronated species of oHPNI-fa was found to be 377.1494, which is very close to the calculated theoretical mass of oHPNI-fa. Based on the aforementioned spectroscopic methods, it has now been proven that the current work successfully synthesized the newly designed benzoxazine monomer, oHPNI-fa.

2.2. Polymerization Behaviors of oHPNI-fa

DSC-TG was used to investigate the thermally stimulated polymerization behavior of oHPNI-fa. It is well known that the purity of benzoxazine samples may result in different DSC thermograms of the same benzoxazine sample. Thus, we only used very pure samples of benzoxazine resin in the current study, which will show reliable mechanisms in terms of thermally activated ring-opening polymerization of benzoxazines. The DSC-TG curves of PH-fa, oHPNI-a, and oHPNI-fa are given in Figure 3. PH-fa, a mono functional benzoxazine monomer, is synthesized from phenol and furfurylamine, whereas oHPNI-a is intended to be a monofunctional benzoxazine with solely norbornene group. The extremely sharp endothermic peaks that appear on each thermogram in Figure 3 demonstrate the excellent purity of the benzoxazine monomers. oHPNI-a has a highest polymerization temperature centered at 259.4 °C, whereas PH-fa displays a lower polymerization temperature, at 237.2 °C, than PH-a (a benzoxazine monomer produced by Mannich condensation of phenol and aniline), by 35 °C, which clearly indicates that the addition of furan into the benzoxazine monomer can greatly facilitate the polymerization of the oxazine ring [44]. Moreover, oHPNI-fa shows the lowest polymerization temperature centered at 227.8 °C. Both PH-fa and oHPNI-a have much higher polymerization temperatures than the benzoxazine with norbornene and furan substituents. In oHPNI-fa, three sets of thermally stimulated polymerization should occur, including cross-linking of the furan group, olefin polymerization, and typically ring-opening of oxazine ring. Nevertheless, there is only a sole exothermic peak that can be seen for oHPNI-fa, as shown in the DSC program displayed in Figure 3c, which might be explained by overlapping heat events that occur during the polymerization. The DSC findings suggest the presence of a self-catalytic polymerization process that may be brought about by interactions between benzoxazine, furan, and norbornene, since both furan and norbornene groups are included in a single benzoxazine structure.
Figure 3 also compares the TGA thermograms of three monomers (PH-fa, oHPNI-a, and oHPNI-fa). Prior to the cross-linking of PH-fa, a significant quantity of evaporation (up to 76% of the original mass) can be seen, while no clear weight decrease for oHPNI-a or oHPNI-fa was observed. Little weight decrease was found for oHPNI-a (10.9%) and oHPNI-fa (4.7%) before the polymerization temperature, which is substantially lower than that of PH-fa. The heat stability of benzoxazine resins throughout the polymerization processes has therefore been greatly enhanced with the incorporation of the norbornene and furan structure. Notably, oHPNI-a and oHPNI-fa possess smaller weight reductions than many other reported monofunctional benzoxazines [45,46].
According to the theories proposed by Kissinger and Ozawa [47,48], Figure 4 depicts the plots of ln(β/Tp2) and ln(β) against 1/Tp for oHPNI-fa. The plots for PH-fa and oHPNI-a are also shown in Figures S2 and S3. The activation energies (Ea) are estimated and are shown in Table 1. oHPNI-fa has a substantially greater activation energy than PH-fa and oHPNI-a. Despite the fact that oHPNI-fa goes through a terpolymerization process that is different to the dual copolymerization process for PH-fa and oHPNI-a, this does not imply that oHPNI-fa is more difficult to activate into the polymerization process.
Figure 5 depicts the in situ FT-IR spectra of oHPNI-fa following various heat treatments. The thermal behavior of benzoxazine monomer can be monitored using the distinctive absorption bands at 1222 and 924 cm−1 which are contributed by the C-O-C antisymmetric stretching mode and benzoxazine-related mode, respectively. When the temperature rises, both bands become weaker until they completely vanish at 220 °C. Additionally, the distinctive bands of the internal C-H in the furan structure at 750 cm−1 decline when temperature rises to 200 °C and completely vanish at 220 °C, which indicates the complete cross-linking of the furan structure. Moreover, the characteristic band of the C=C group at 689 cm−1, which is due to the out-of-plane bending motion of olefinic -C-H bands, reduces considerably from 180 °C to 220 °C, indicating the simultaneous cross-linking of the norbornene structure. Furthermore, the broadband in the range of 3500–3200 cm−1, which is a result of the -OH band, also appears as the heating temperature increases. According to the DSC data, the norbornene polymerization temperature in oHPNI-fa is substantially lower than it is in PH-fa and oHPNI-a, which indicates that three processes, including cross-linking of both the furan structure, oxazine ring, and norbornene functionalities, are active during the exotherm in the DSC profile of oHPNI-fa. The furan group can thus speed up the additional cross-linking of the C=C band as well as the polymerization of the oxazine group. The results of this study suggest that additional polymerization reactions from the furan and norbornene functionalities have a great impact on the cross-linking events in forming poly(oHPNI-fa). The proposed terpolymerization process of oHPNI-fa is shown in Scheme 2.

2.3. Thermal Stability and Anti-Flame Properties of Highly Cross-Linked Thermoset

The results obtained from the DMA test are shown in Figure 6. The Tg (glass transition temperature) of poly(oHPNI-fa) was found to be 287 °C, which presented as the peak from the curve of tan δ. The copolymerization of norbornene, benzoxazine, and the furan structure bring about the well cross-linked frameworks, resulting in such an attritive glass transition temperature of poly(oHPNI-fa).
The thermogravimetric analysis (TGA) performed under N2 was used to examine the thermal stability of highly cross-linked thermosets. Figure 7 displays the TG and DTG curves. Table 2 summarizes the data of the char yield values at 800 °C (Yc) and the temperatures with weight loss of 5% (Td5) and 10% (Td10) during the TGA measurements. There is a high Yc value of 56% for the derived polybenzoxazines. When it comes to conventional polybenzoxazines, the initial weight-loss stage typically occurs between 250 °C and 400 °C, which is linked to flaws in the polybenzoxazine networks that result in the partial breakdown of terminal groups. However, in terms of poly(oHPNI-fa), the Td5 value is found to be as high as 395 °C. The maximum recorded weight loss is approximately 480 °C. Poly(oHPNI-fa) has a remarkable thermal stability as a result of its densely cross-linked networks that are contributed by copolymerization of the norbornene, benzoxazine, and furan structures. Moreover, poly(oHPNI-fa) displays a char yield (Yc) up to 56%. The high char yield and initial decomposition temperature point to the remarkable thermal stability of poly(oHPNI-fa).
The LOI (limiting oxygen index) value, which was determined from the Yc via the van Krevelen equation to quantify the flame retardancy of polybenzoxazines using TGA measurements, is shown as follows [49].
LOI (%) = 0.4Yc + 17.5
The calculated LOI value for poly(oHPNI-fa) based on the above TGA result was 39.9, which far exceeds the self-extinguishing standard (LOI > 28) [50]. This implies that the highly cross-linked resin obtained in the current work may have a promising flame-retardant property.
From the calculated LOI value mentioned above, we further investigated the flame-retardant property of poly(oHPNI-fa). As shown in Figure 8, poly(oHPNI-fa) was discovered to have HRC and THR values of 56.8 Jg−1K−1 and 4.9 kJg−1, respectively. Better flame retardancy is often indicated by lower HRC and THR values. Polymers can be considered non-ignitable materials that satisfy the stringent specifications set out by the FAA (Federal Aviation Administration) to be used in commercial airplanes when the HRC value is less than 100 Jg−1K−1 [51]. Because of their extremely low flammability, thermosets based on the terpolymerized polybenzoxazine offer tremendous application potential in both the aviation and electronic industries according to the MCC results. Table 2 summarizes the thermal and anti-flame characteristics of poly(oHPNI-fa).

3. Materials and Methods

3.1. Materials

The following were obtained from Aladdin Reagent, China: 4-aminophenol (98%), endo-5-norbornene-2,3-dicarboxylic anhydride, paraformaldehyde (99%), furfurylamine (99%), and sodium hydroxide (NaOH) (98%). Toluene and ethanol were purchased from Shanghai First Chemical Co., Shanghai, China. All the above chemicals were used as received. oHPNI and oHPNI-a were synthesized according to the previous report [17]. PH-fa was synthesized according to our recent report [34].

3.2. Characterization

The nuclear magnetic resonance spectra (1H NMR, 13C NMR, and 2D 1H-13C HMQC) were recorded with the Bruker AVANCE II 400 MHz NMR spectrometer. Chloroform-d was used as solvent in all the NMR tests, the average number of transients was 64, and the total number of transients was 1024. Infrared spectra were collected using a Fourier transform infrared (FT-IR) spectrometer (Nicolet Nexus 670), using KBr technology to supplement the molecular studies of NMR. The measurements were made with a 4 cm−1 resolution. An Elementar Vario EL-III was used to record the elemental analysis for the newly obtained monomer. High-resolution mass spectrometry (HR-MS) analysis was carried out on a Thermo Scientific Q Exactive Orbitrap. DSC thermograms were obtained using a NETZSCH differential scanning calorimeter (Model STA449C) under a nitrogen flow rate of 60 mL/min, with different temperature ramps rates of 5, 10, 15, and 20 °C/min. With a NETZSCH DMA/242E analyzer, dynamic mechanical analysis (DMA) was performed using a tension mode with a frequency of 5 Hz under air. A 3 °C/min heating rate was chosen for DMA measurements. Thermogravimetric analysis (TGA) was performed on a NETZSCH STA449 thermogravimetric analyzer while it was being purged with nitrogen at a flow rate of 40 mL/min. The heating rate for TGA was 10 °C/min. Heat release rates (HRR, W/g) of the obtained polymer were measured with a microscale combustion calorimeter (FTT-FAA-PCFC, Fire Testing Technology Limited Co., East Grinstead, UK) under the ASTM 7309-2007a standard and a heating rate of 1 °C/s was selected. The MCC was tested under an atmosphere with a mixture of nitrogen and oxygen in a ratio of 8:2.

3.3. Synthesis of (3aR,4S,7R,7aS)-2-(3-(Furan-2-ylmethyl)-3,4-dihydro-2H-benzo[e][1,3]oxazin-8-yl)-3a,4,7,7a-tetrahydro-1H-4,7-methanoisoindole-1,3(2H)-dione (Abbreviated as oHPNI-fa)

Firstly, into a 250 mL single-neck flask, oHPNI (2.552 g, 0.010 mol), furfurylamine (0.972 g, 0.010 mol), paraformaldehyde (0.66 g, 0.022 mol), and 120 mL of toluene were added with a magnetic stirrer. The solid was dissolved at 60 °C with the help of magnetic stirring. The entire system was then gradually heated to 110 °C and reacted for 6 h. The reaction solution was rinsed twice with distilled water and once with an aqueous solution of 1 N NaOH after the system had cooled down to room temperature, and then the recrystallization was performed (toluene:ethanol = 1:1). Eventually, 48 h was allocated for drying in a vacuum oven at 50 °C to obtain the pale-yellow crystal product. (yield ca. 76%). The chemical reaction is shown in Scheme 3.
1H NMR (400 MHz, Chloroform-d) δ 7.43 (dd, J = 4.5, 1.8 Hz, 1H), 7.04–6.87 (m, 2H), 6.82 (dd, J = 7.8, 1.7 Hz, 1H), 6.34 (ddd, J = 5.3, 3.2, 1.9 Hz, 1H), 6.27 (dt, J = 13.9, 2.2 Hz, 2H), 6.18 (d, J = 1.9 Hz, 1H), 4.87 (d, J = 15.8 Hz, 2H), 4.03 (d, J = 5.4 Hz, 2H), 3.90 (d, J = 3.6 Hz, 2H), 3.53–3.39 (m, 4H), 1.84–1.73 (m, 1H), 1.66–1.55 (m, 1H).
13C NMR (101 MHz, Chloroform-d) δ 176.52, 176.40, 151.26, 149.52, 149.38, 142.70, 134.63, 134.53, 128.57, 127.58, 127.16, 120.83, 120.69, 120.22, 119.43, 110.18, 109.32, 82.34, 81.68, 52.32, 51.93, 49.36, 49.06, 48.12, 48.01, 46.56, 46.07, 45.30.
HR-MS (ESI) (m/z), [M + H]+ calcd for C22H21N2O4+, 377.1496; found, 377.1494.
Anal. calcd for C17H14N2O4: C, 70.20; H, 5.36; N, 7.44. Found: C, 70.17; H, 5.38%; N, 7.42.

4. Conclusions

In the current work, a terpolymerizable benzoxazine resin containing both functionalities of norbornene as well as furan group was designed and successfully synthesized. The newly obtained benzoxazine can be regarded as partial bio-based thermosetting resin since one of the raw materials, furfurylamine, is obtained from the natural renewable resource. Even though there are no additional polymerization catalysts or anti-flammable chemicals present, the obtained thermosetting resin still possessed both low temperature polymerization and non-flammable properties. With a Tg of 287 °C and a Td5 temperature of 395 °C, the resultant thermoset also demonstrated excellent thermal stability. As a result, the multifunctional halogen-free thermosetting resin obtained in this study has an infinite potential to replace halogenated polymers in many high-performance industries.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules28093944/s1, Figure S1: HR-MS spectrum of oHPNI-fa; Figure S2: (a) DSC thermograms of PH-fa at different heating rates. (b) Representations of the calculation of activation energy for PH-fa.; Figure S3: (a) DSC thermograms of oHPNI-a at different heating rates. (b) Representations of the calculation of activation energy for oHPNI-a. 1H NMR spectrum of PH-fa and oHPNI-a are also included.

Author Contributions

Methodology, Y.L.; validation, Y.L.; formal analysis, Y.L.; investigation, Y.L., Y.P., and Y.Y.; data curation, Y.L., Y.P., and J.L.; writing—original draft preparation, Y.L.; writing—review and editing, K.Z.; supervision, K.Z.; project administration, K.Z.; funding acquisition, K.Z. All authors have read and agreed to the published version of this manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (NSFC) (No. 52073125).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data will be made available on request.

Acknowledgments

The authors gratefully acknowledge the financial support of the National Natural Science Foundation of China (NSFC) (No. 52073125).

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the benzoxazine monomer are available from the authors.

References

  1. Gupta, M. Polymer Composite; New Age International: Chennai, India, 2007. [Google Scholar]
  2. Lyu, M.-Y.; Choi, T.G. Research trends in polymer materials for use in lightweight vehicles. Int. J. Precis. Eng. Man. 2015, 16, 213–220. [Google Scholar] [CrossRef]
  3. Kesarwani, S. Polymer composites in aviation sector. Int. J. Eng. Res 2017, 6, 518–525. [Google Scholar] [CrossRef]
  4. Forintos, N.; Czigany, T. Multifunctional application of carbon fiber reinforced polymer composites: Electrical properties of the reinforcing carbon fibers–A short review. Compos. B Eng. 2019, 162, 331–343. [Google Scholar] [CrossRef]
  5. Das, S. Life cycle assessment of carbon fiber-reinforced polymer composites. Int. J. Life Cycle. Assess. 2011, 16, 268–282. [Google Scholar] [CrossRef]
  6. Ogasawara, T.; Hirano, Y.; Yoshimura, A. Coupled thermal–electrical analysis for carbon fiber/epoxy composites exposed to simulated lightning current. Compos. Part A Appl. Sci. Manuf. 2010, 41, 973–981. [Google Scholar] [CrossRef]
  7. Awasthi, S.; Wood, J.L. Carbon/carbon composite materials for aircraft brakes. In Proceedings of the 12th Annual Conference on Composites and Advanced Ceramic Materials: Ceramic Engineering and Science Proceedings, Cocoa Beach, FL, USA, 17–22 January 1988; pp. 553–559. [Google Scholar]
  8. Soutis, C. Carbon fiber reinforced plastics in aircraft construction. Mat. Sci. Eng. A 2005, 412, 171–176. [Google Scholar] [CrossRef]
  9. Soutis, C. Fibre reinforced composites in aircraft construction. Prog. Aerosp. Sci. 2005, 41, 143–151. [Google Scholar] [CrossRef]
  10. Hu, A.; Hao, J.; He, T.; Yang, S. Synthesis and characterization of high-temperature fluorine-containing PMR polyimides. Macromolecules 1999, 32, 8046–8051. [Google Scholar] [CrossRef]
  11. Wilson, D. PMR-15 processing, properties and problems—A review. Br. Polym. J. 1988, 20, 405–416. [Google Scholar] [CrossRef]
  12. Pascal, T.; Audigier, D.; Mercier, R.; Sillion, B. A soluble nadimide end-capped fluorinated resin. Polymer 1991, 32, 1119–1125. [Google Scholar] [CrossRef]
  13. Turk, M.J.; Ansari, A.S.; Alston, W.B.; Gahn, G.S.; Frimer, A.A.; Scheiman, D.A. Evaluation of the thermal oxidative stability of polyimides via TGA techniques. J. Polym. Sci. Part A Polym. Chem. 1999, 37, 3943–3956. [Google Scholar] [CrossRef]
  14. Meador, M.A. Recent advances in the development of processable high-temperature polymers. Annu. Rev. Mater. Sci. 1998, 28, 599–630. [Google Scholar] [CrossRef]
  15. Zhang, K.; Yu, X. Catalyst-free and low-temperature terpolymerization in a single-component benzoxazine resin containing both norbornene and acetylene functionalities. Macromolecules 2018, 51, 6524–6533. [Google Scholar] [CrossRef]
  16. Zhang, K.; Qiu, J.; Li, S.; Shang, Z.; Wang, J. Remarkable improvement of thermal stability of main-chain benzoxazine oligomer by incorporating o-norbornene as terminal functionality. J. Appl. Polym. Sci. 2017, 134, 45408. [Google Scholar] [CrossRef]
  17. Zhang, K.; Ishida, H. Thermally stable polybenzoxazines via ortho-norbornene functional benzoxazine monomers: Unique advantages in monomer synthesis, processing and polymer properties. Polymer 2015, 66, 240–248. [Google Scholar] [CrossRef]
  18. Hao, B.; Lu, Y.; Zhang, Y.; Zhang, K. Synthetic approaches to bio-based flame-retardant polymeric materials. In Bio-Based Flame-retardant Technology for Polymeric Materials; Elsevier: Amsterdam, The Netherlands, 2022; pp. 29–60. [Google Scholar]
  19. Zhang, K.; Liu, Y.; Ishida, H. Polymerization of an AB-type benzoxazine monomer toward different polybenzoxazine networks: When diels–alder reaction meets benzoxazine chemistry in a single-component resin. Macromolecules 2019, 52, 7386–7395. [Google Scholar] [CrossRef]
  20. Machado, I.; Shaer, C.; Hurdle, K.; Calado, V.; Ishida, H. Towards the development of green flame retardancy by polybenzoxazines. Prog. Polym. Sci. 2021, 121, 101435. [Google Scholar] [CrossRef]
  21. Lyu, Y.; Ishida, H. Natural-sourced benzoxazine resins, homopolymers, blends and composites: A review of their synthesis, manufacturing and applications. Prog. Polym. Sci. 2019, 99, 101168. [Google Scholar] [CrossRef]
  22. Ghosh, N.; Kiskan, B.; Yagci, Y. Polybenzoxazines—New high performance thermosetting resins: Synthesis and properties. Prog. Polym. Sci. 2007, 32, 1344–1391. [Google Scholar] [CrossRef]
  23. Mohamed, M.G.; Li, C.-J.; Khan, M.A.R.; Liaw, C.-C.; Zhang, K.; Kuo, S.-W. Formaldehyde-Free Synthesis of Fully Bio-Based Multifunctional Bisbenzoxazine Resins from Natural Renewable Starting Materials. Macromolecules 2022, 55, 3106–3115. [Google Scholar] [CrossRef]
  24. Oliveira, J.R.; Kotzebue, L.R.V.; Freitas, D.B.; Mattos, A.L.A.; da Costa Júnior, A.E.; Mazzetto, S.E.; Lomonaco, D. Towards novel high-performance bio-composites: Polybenzoxazine-based matrix reinforced with Manicaria saccifera fabrics. Compos. B Eng. 2020, 194, 108060. [Google Scholar] [CrossRef]
  25. Machado, I.; Rachita, E.; Fuller, E.; Calado, V.N.M.; Ishida, H. Very High-Char-Yielding Elastomers Based on the Copolymers of a Catechol/Furfurylamine Benzoxazine and Polydimethylsiloxane Oligomers. ACS Sustain. Chem. Eng. 2021, 9, 16637–16650. [Google Scholar] [CrossRef]
  26. Lu, Y.; Yu, X.; Han, L.; Zhang, K. Recent Progress of High Performance Thermosets Based on Norbornene Functional Benzoxazine Resins. Polymers 2021, 13, 1417. [Google Scholar] [CrossRef]
  27. Zhang, K.; Yu, X.; Wang, Y.; Liu, Y. Thermally Activated Structural Changes of a Norbornene–Benzoxazine–Phthalonitrile Thermosetting System: Simple Synthesis, Self-Catalyzed Polymerization, and Outstanding Flame Retardancy. ACS Appl. Polym. Mater. 2019, 1, 2713–2722. [Google Scholar] [CrossRef]
  28. Yu, X.; Shang, Z.; Zhang, K. Thermally stable polybenzoxazines via tetrahydrophthalimide-functional monobenzoxazines: Synthesis, characterization and thermally activated polymerization kinetics. Thermochim. Acta 2019, 675, 29–37. [Google Scholar] [CrossRef]
  29. Zhang, K.; Liu, J.; Ohashi, S.; Liu, X.; Han, Z.; Ishida, H. Synthesis of high thermal stability polybenzoxazoles via ortho-imide-functional benzoxazine monomers. J. Polym. Sci. Part A Polym. Chem. 2015, 53, 1330–1338. [Google Scholar] [CrossRef]
  30. Yu, X.; Zhang, K. Studies on the isomeric effect of nitrile functionality on the polymerization and thermal properties of ortho-norbornene-based benzoxazine resins. J. Polym. Res. 2020, 27, 130. [Google Scholar] [CrossRef]
  31. Lu, Y.; Yu, X.; Evans, C.J.; Yang, S.; Zhang, K. Elucidating the role of acetylene in ortho-phthalimide functional benzoxazines: Design, synthesis, and structure–property investigations. Polym. Chem. 2021, 12, 5059–5068. [Google Scholar] [CrossRef]
  32. Zhao, W.; Hao, B.; Lu, Y.; Zhang, K. Thermal latent and Low-Temperature polymerization of a Bio-Benzoxazine resin from natural renewable chrysin and furfurylamine. Eur. Polym. J. 2022, 166, 111041. [Google Scholar] [CrossRef]
  33. Yang, Y.; Lu, Y.; Zhang, K. A highly thermally stable benzoxazine resin derived from norbornene and natural renewable tyramine and furfurylamine. Eur. Polym. J. 2023, 187, 111895. [Google Scholar] [CrossRef]
  34. Lu, Y.; Liu, J.; Zhao, W.; Zhang, K. Bio-benzoxazine structural design strategy toward highly thermally stable and intrinsically flame-retardant thermosets. Chem. Eng. J. 2023, 457, 141232. [Google Scholar] [CrossRef]
  35. Lu, Y.; Zhang, Y.; Zhang, K. Renewable Biomass Resources to Access Halogen-and Phosphorus-Free Flame Retardant Thermosets with Ultra-Low Heat Release Capacity. Chem. Eng. J. 2022, 22, 137670. [Google Scholar] [CrossRef]
  36. Zhang, K.; Liu, Y.; Han, M.; Froimowicz, P. Smart and sustainable design of latent catalyst-containing benzoxazine-bio-resins and application studies. Green Chem. 2020, 22, 1209–1219. [Google Scholar] [CrossRef]
  37. Lu, Y.; Zhang, K. Synthesis and properties of biobased mono-benzoxazine resins from natural renewable pterostilbene. Eur. Polym. J. 2021, 156, 110607. [Google Scholar] [CrossRef]
  38. Mukherjee, S.; Amarnath, N.; Lochab, B. Oxazine Ring-Substituted 4th Generation Benzoxazine Monomers & Polymers: Stereoelectronic Effect of Phenyl Substituents on Thermal Properties. Macromolecules 2021, 54, 10001–10016. [Google Scholar]
  39. Zhang, K.; Han, M.; Liu, Y.; Froimowicz, P. Design and synthesis of bio-based high-performance trioxazine benzoxazine resin via natural renewable resources. ACS Sustain. Chem. Eng. 2019, 7, 9399–9407. [Google Scholar] [CrossRef]
  40. Kotzebue, L.R.; de Oliveira, J.S.R.; da Silva, J.B.; Mazzetto, S.E.; Ishida, H.; Lomonaco, D. Development of fully biobased high-performance bis-benzoxazine under environmentally friendly conditions. ACS Sustain. Chem. Eng. 2018, 6, 5485–5494. [Google Scholar] [CrossRef]
  41. Liu, Y.L.; Chou, C.I. High performance benzoxazine monomers and polymers containing furan groups. J. Polym. Sci. Part A Polym. Chem. 2005, 43, 5267–5282. [Google Scholar] [CrossRef]
  42. Hao, B.; Han, L.; Liu, Y.; Zhang, K. An apigenin-based bio-benzoxazine with three polymerizable functionalities: Sustainable synthesis, thermal latent polymerization, and excellent thermal properties of its thermosets. Polym. Chem. 2020, 11, 5800–5809. [Google Scholar] [CrossRef]
  43. Han, L.; Iguchi, D.; Gil, P.; Heyl, T.R.; Sedwick, V.M.; Arza, C.R.; Ohashi, S.; Lacks, D.J.; Ishida, H. Oxazine ring-related vibrational modes of benzoxazine monomers using fully aromatically substituted, deuterated, 15N isotope exchanged, and oxazine-ring-substituted compounds and theoretical calculations. J. Phys. Chem. A 2017, 121, 6269–6282. [Google Scholar] [CrossRef]
  44. Han, L.; Salum, M.L.; Zhang, K.; Froimowicz, P.; Ishida, H. Intrinsic self-initiating thermal ring-opening polymerization of 1, 3-benzoxazines without the influence of impurities using very high purity crystals. J. Polym. Sci. Part A Polym. Chem. 2017, 55, 3434–3445. [Google Scholar] [CrossRef]
  45. Zhang, K.; Han, L.; Nie, Y.; Szigeti, M.L.; Ishida, H. Examining the effect of hydroxyl groups on the thermal properties of polybenzoxazines: Using molecular design and Monte Carlo simulation. RSC Adv. 2018, 8, 18038–18050. [Google Scholar] [CrossRef] [PubMed]
  46. Sini, N.; Endo, T. Toward elucidating the role of number of oxazine rings and intermediates in the benzoxazine backbone on their thermal characteristics. Macromolecules 2016, 49, 8466–8478. [Google Scholar] [CrossRef]
  47. Ozawa, T. Kinetics of non-isothermal crystallization. Polymer 1971, 12, 150–158. [Google Scholar] [CrossRef]
  48. Kissinger, H.E. Reaction kinetics in differential thermal analysis. Anal. Chem. 1957, 29, 1702–1706. [Google Scholar] [CrossRef]
  49. Van Krevelen, D. Some basic aspects of flame resistance of polymeric materials. Polymer 1975, 16, 615–620. [Google Scholar] [CrossRef]
  50. Shan, F.; Ohashi, S.; Erlichman, A.; Ishida, H. Non-flammable thiazole-functional monobenzoxazines: Synthesis, polymerization, thermal and thermomechanical properties, and flammability studies. Polymer 2018, 157, 38–49. [Google Scholar] [CrossRef]
  51. Lyon, R.; Walters, R.; Stoliarov, S. Thermal analysis of flammability. J. Therm. Anal. Calorim. 2007, 89, 441–448. [Google Scholar] [CrossRef]
Molecules 28 03944 sch001 550

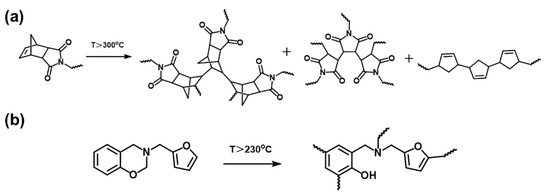

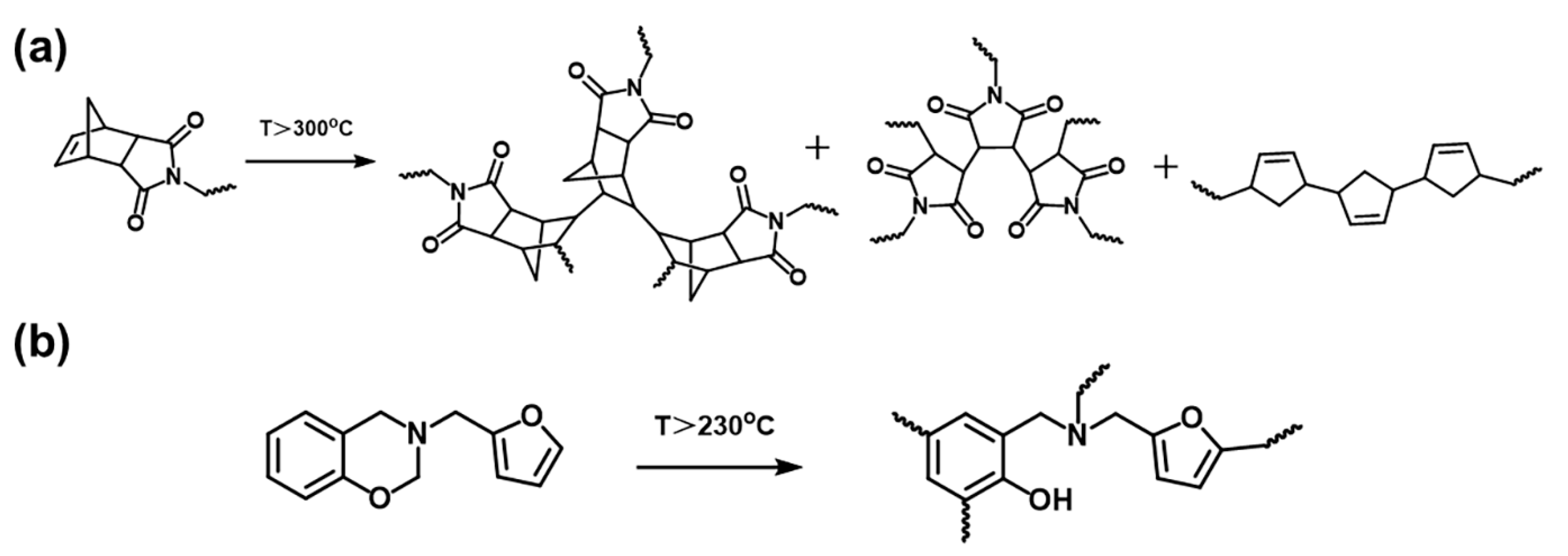

Scheme 1. Polymerization behavior of the nadic-end-capped oligomer (a) and furan-based benzoxazine (b).
Scheme 1. Polymerization behavior of the nadic-end-capped oligomer (a) and furan-based benzoxazine (b).
Molecules 28 03944 sch001
Molecules 28 03944 g001 550

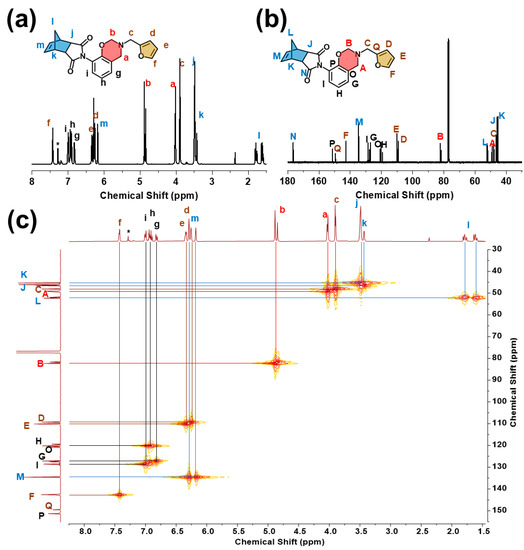

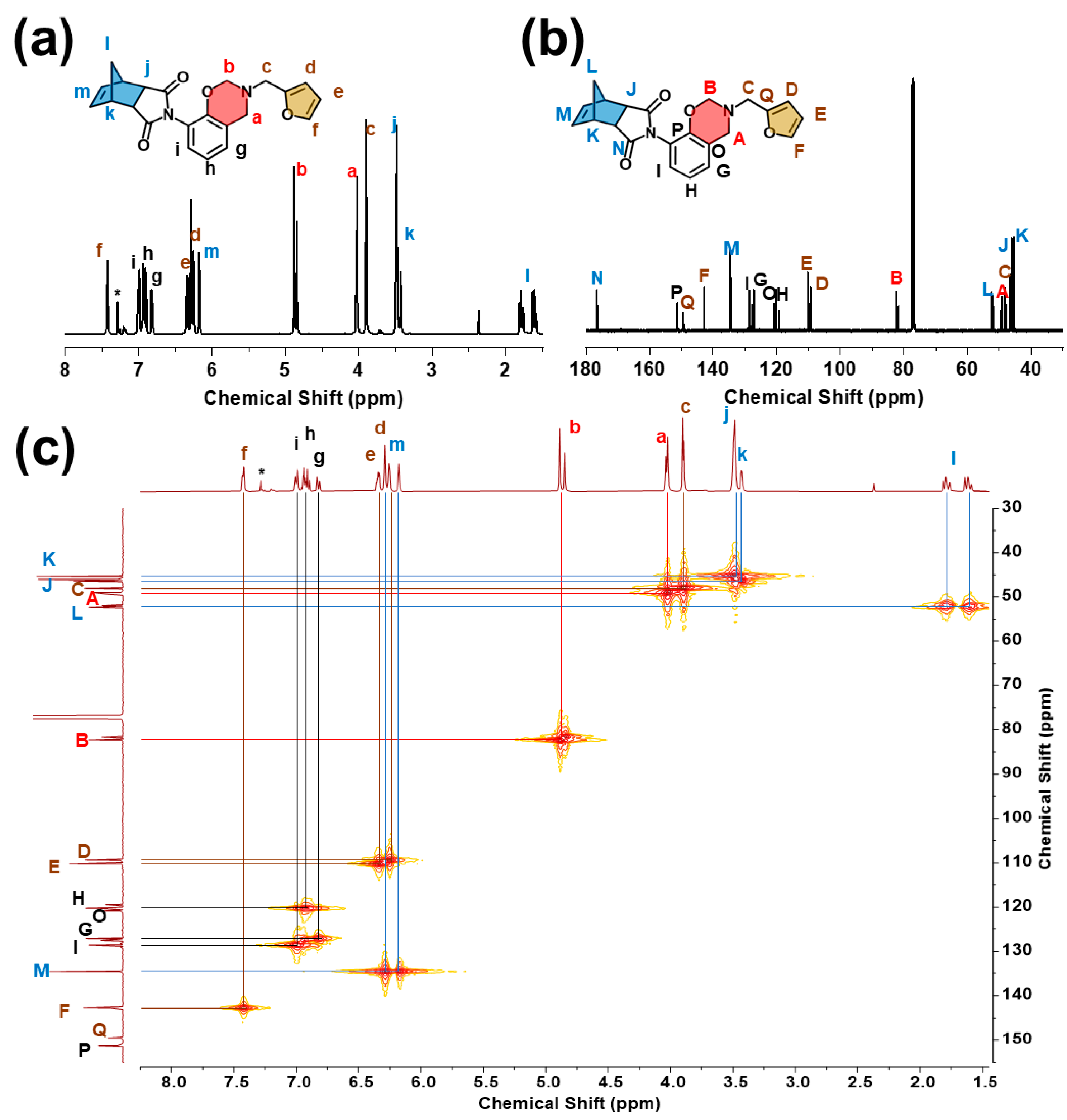

Figure 1. 1H (a), 13C (b), and 1H-13C HMQC (c) NMR spectra of oHPNI-fa in CDCl3 (*: CDCl3, lowercase: H proton, capital: C).
Figure 1. 1H (a), 13C (b), and 1H-13C HMQC (c) NMR spectra of oHPNI-fa in CDCl3 (*: CDCl3, lowercase: H proton, capital: C).
Molecules 28 03944 g001
Molecules 28 03944 g002 550

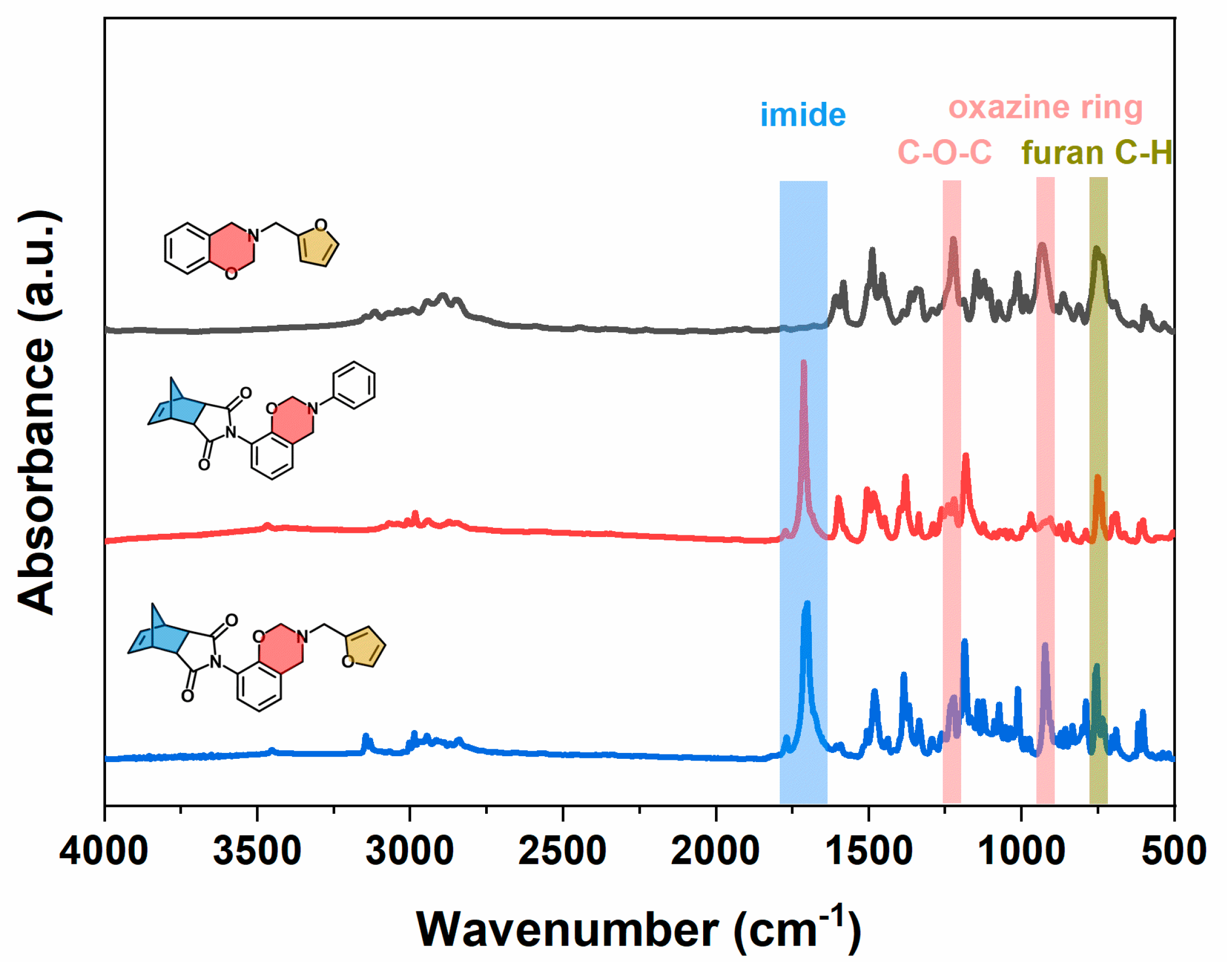

Figure 2. FT-IR spectra of PH-fa, oHPNI-a, and oHPNI-fa.
Figure 2. FT-IR spectra of PH-fa, oHPNI-a, and oHPNI-fa.
Molecules 28 03944 g002
Molecules 28 03944 g003 550

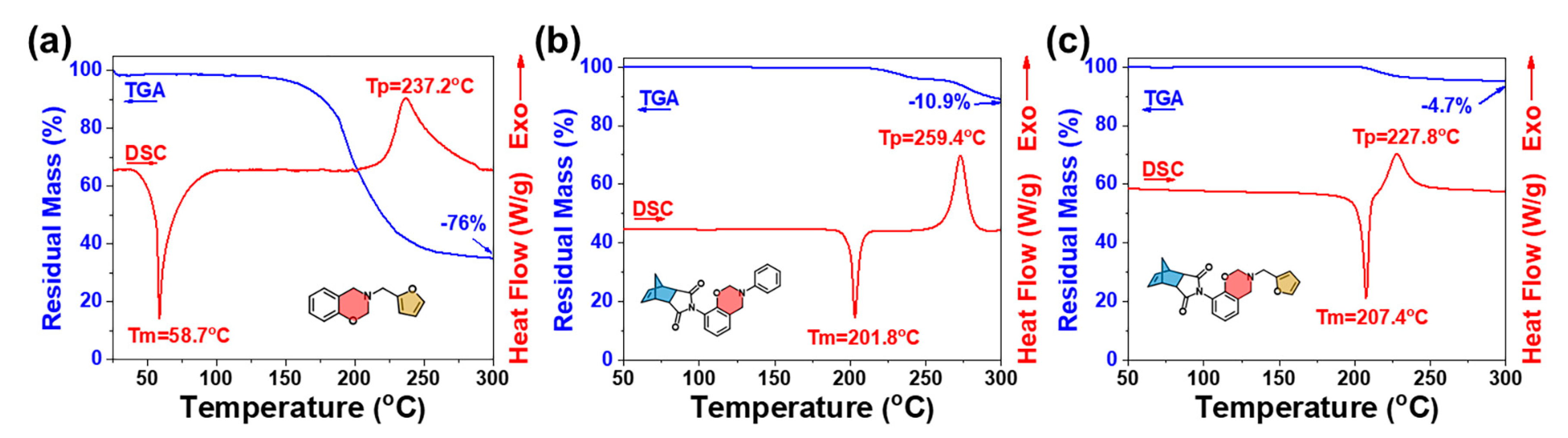

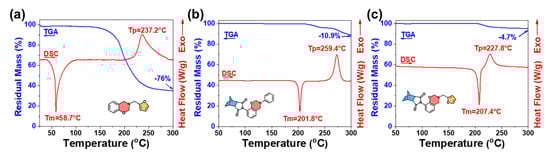

Figure 3. DSC-TG thermograms of PH-fa (a), oHPNI-a (b), and oHPNI-fa (c).
Figure 3. DSC-TG thermograms of PH-fa (a), oHPNI-a (b), and oHPNI-fa (c).
Molecules 28 03944 g003
Molecules 28 03944 g004 550

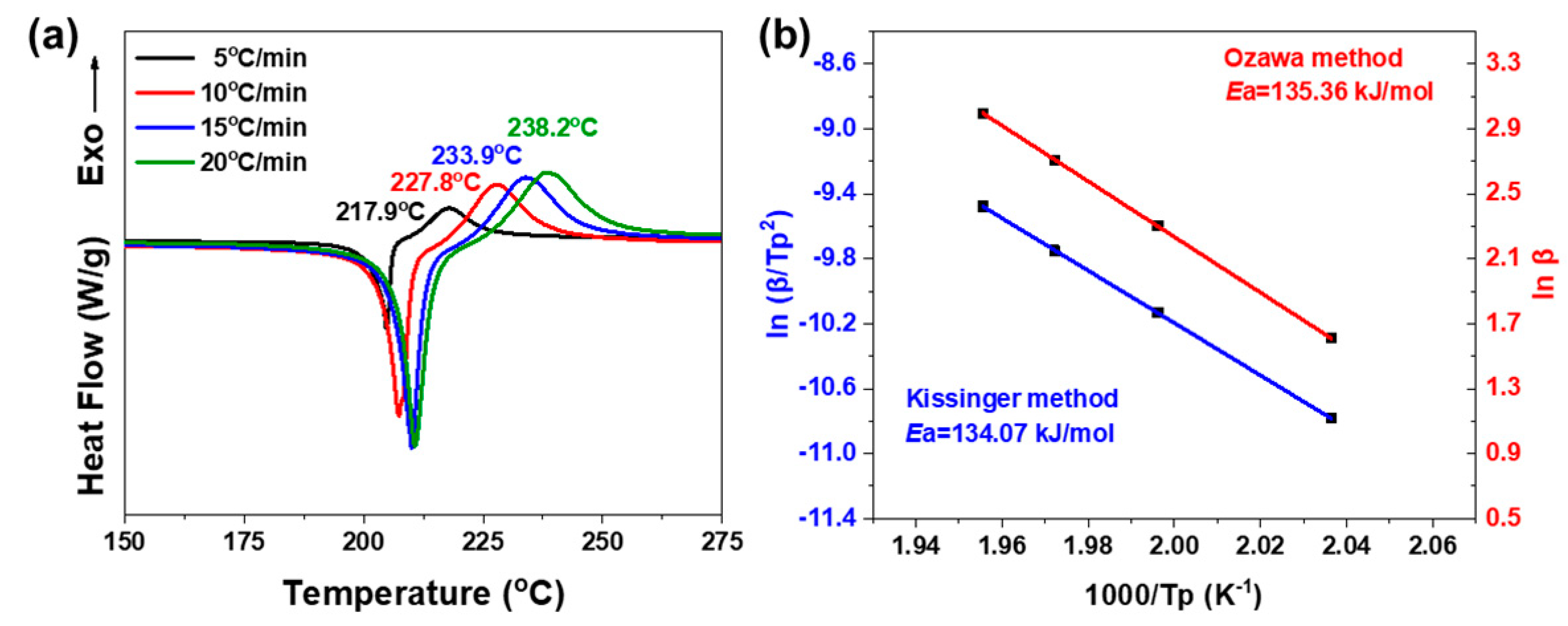

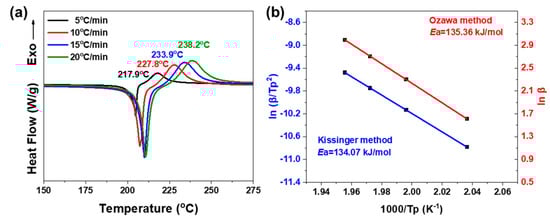

Figure 4. (a) DSC curves of oHPNI-fa at different heating rates. (b) Representations of Kissinger and Ozawa methods for the calculation of activation energy for oHPNI-fa.
Figure 4. (a) DSC curves of oHPNI-fa at different heating rates. (b) Representations of Kissinger and Ozawa methods for the calculation of activation energy for oHPNI-fa.
Molecules 28 03944 g004
Molecules 28 03944 g005 550

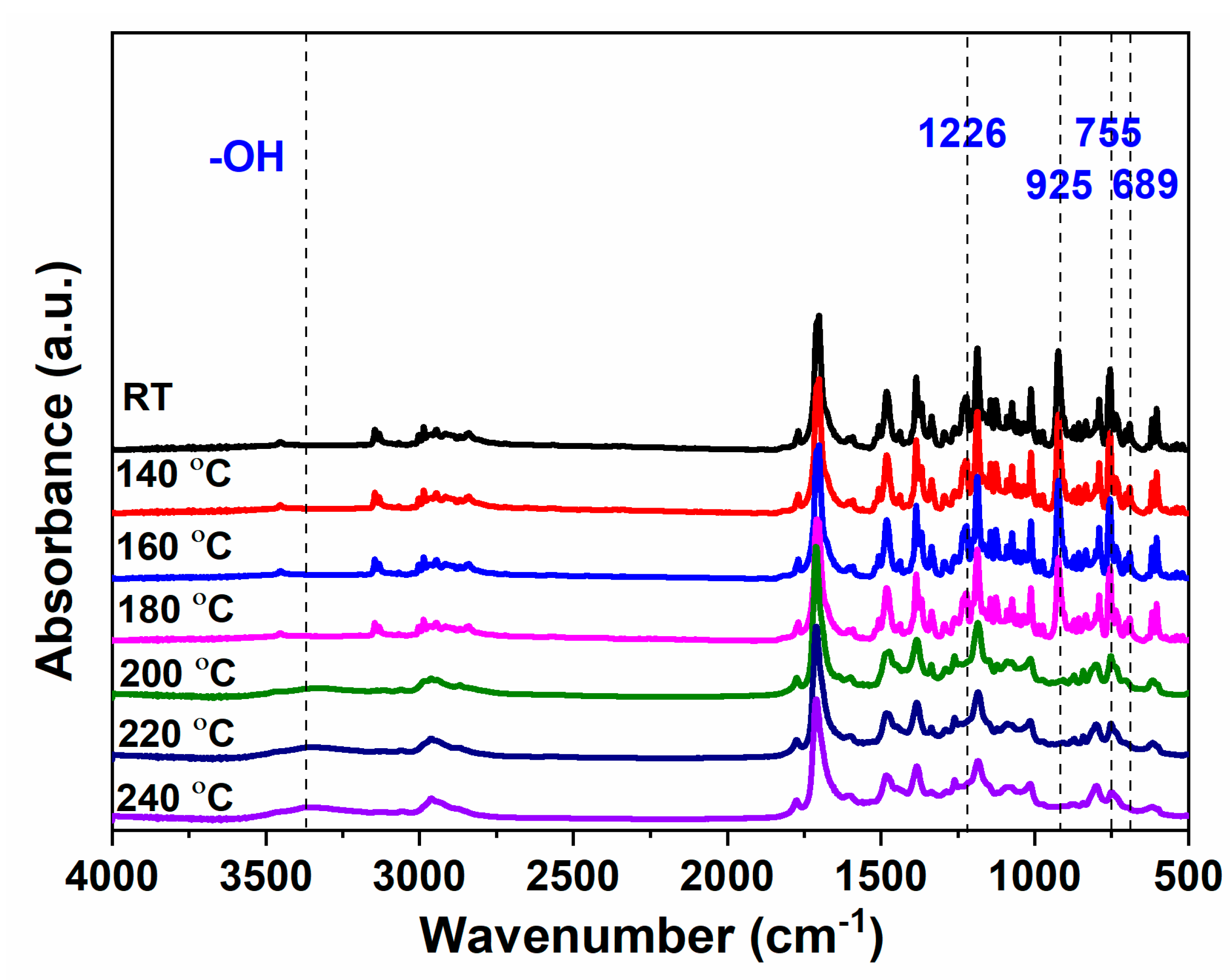

Figure 5. In situ FT-IR spectra of oHPNI-fa after various thermal treatments.
Figure 5. In situ FT-IR spectra of oHPNI-fa after various thermal treatments.
Molecules 28 03944 g005
Molecules 28 03944 sch002 550

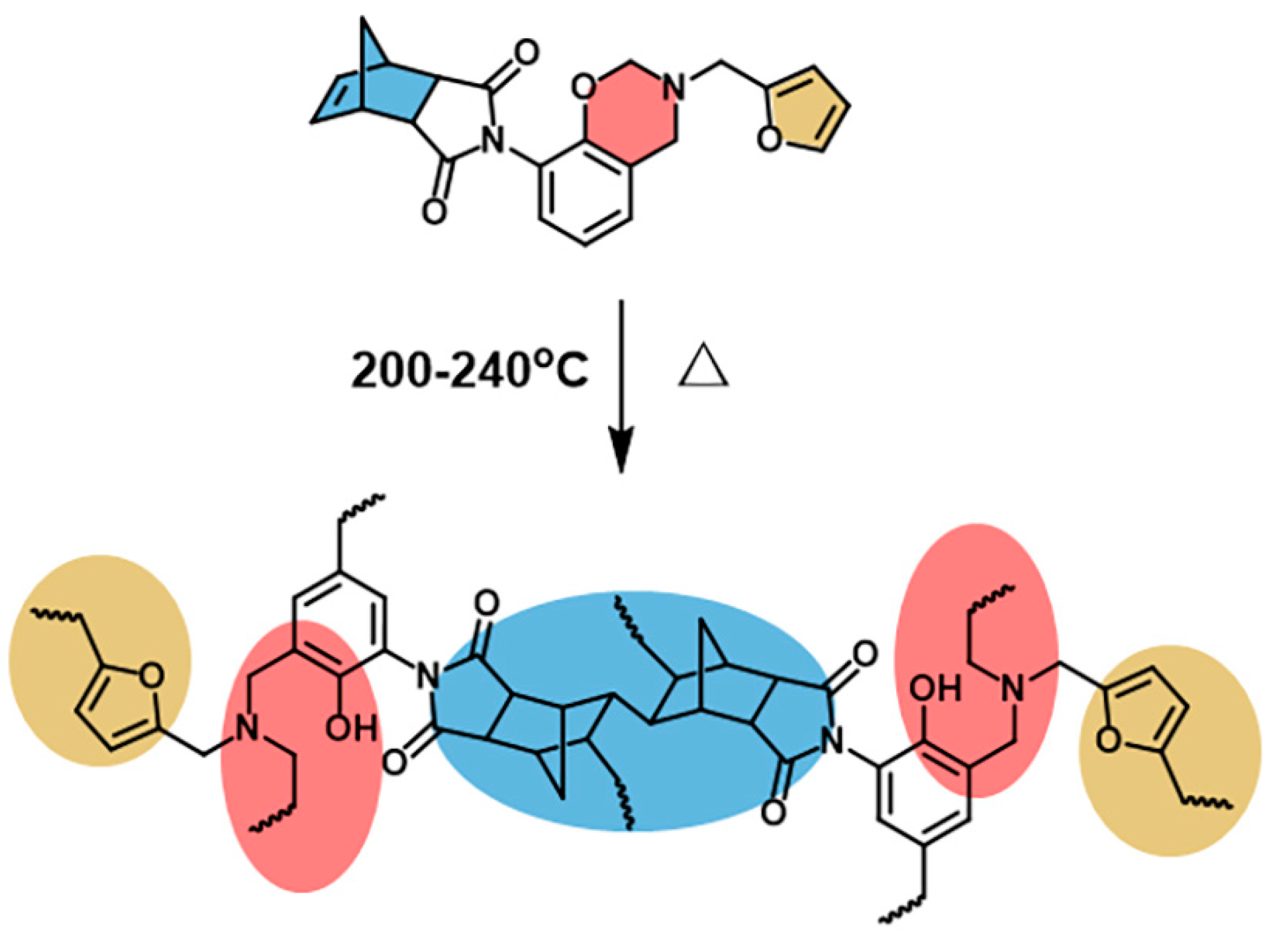

Scheme 2. Proposed thermal behaviors of oHPNI-fa.
Scheme 2. Proposed thermal behaviors of oHPNI-fa.
Molecules 28 03944 sch002
Molecules 28 03944 g006 550

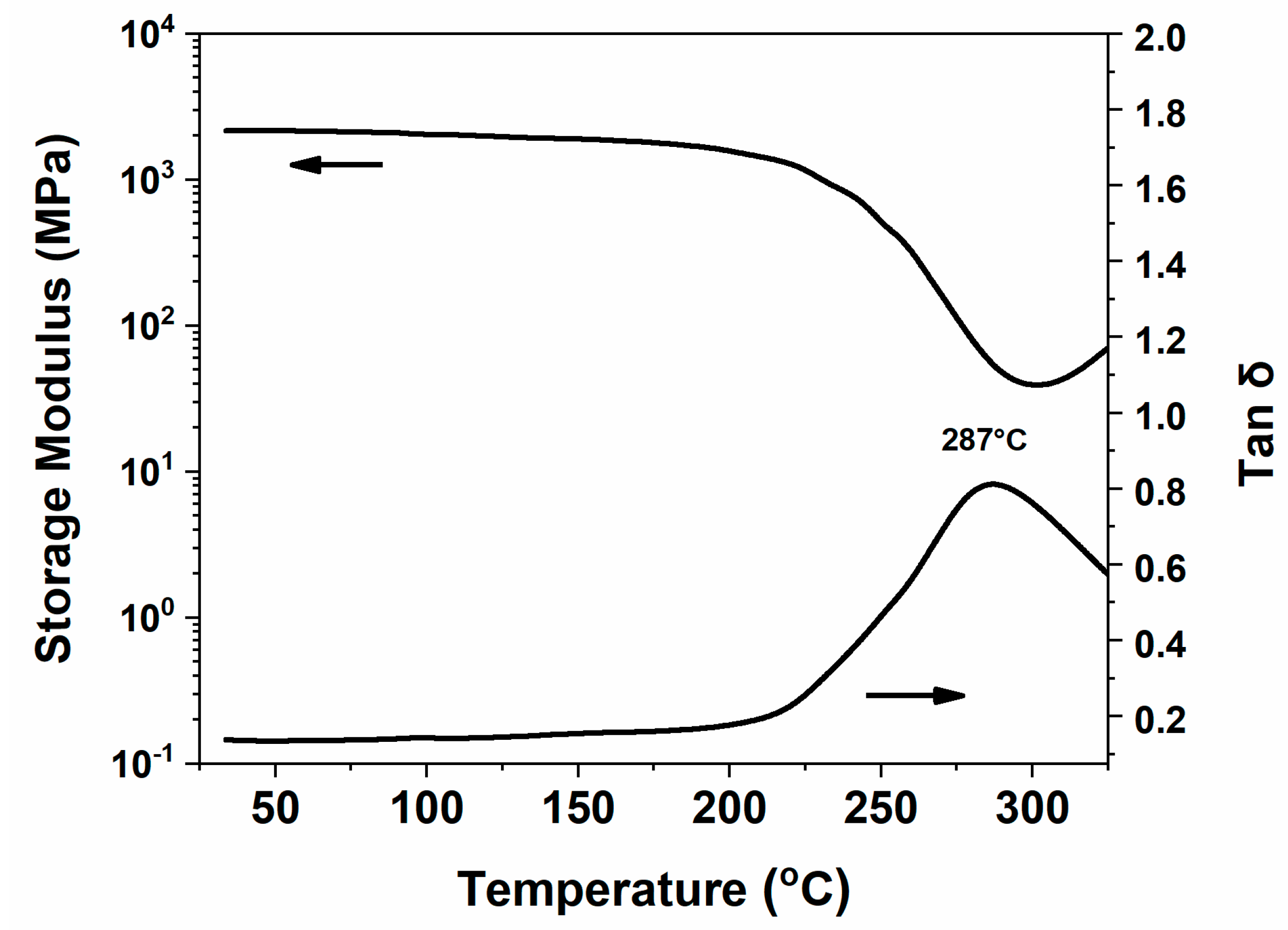

Figure 6. DMA result of poly(oHPNI-fa).
Figure 6. DMA result of poly(oHPNI-fa).
Molecules 28 03944 g006
Molecules 28 03944 g007 550

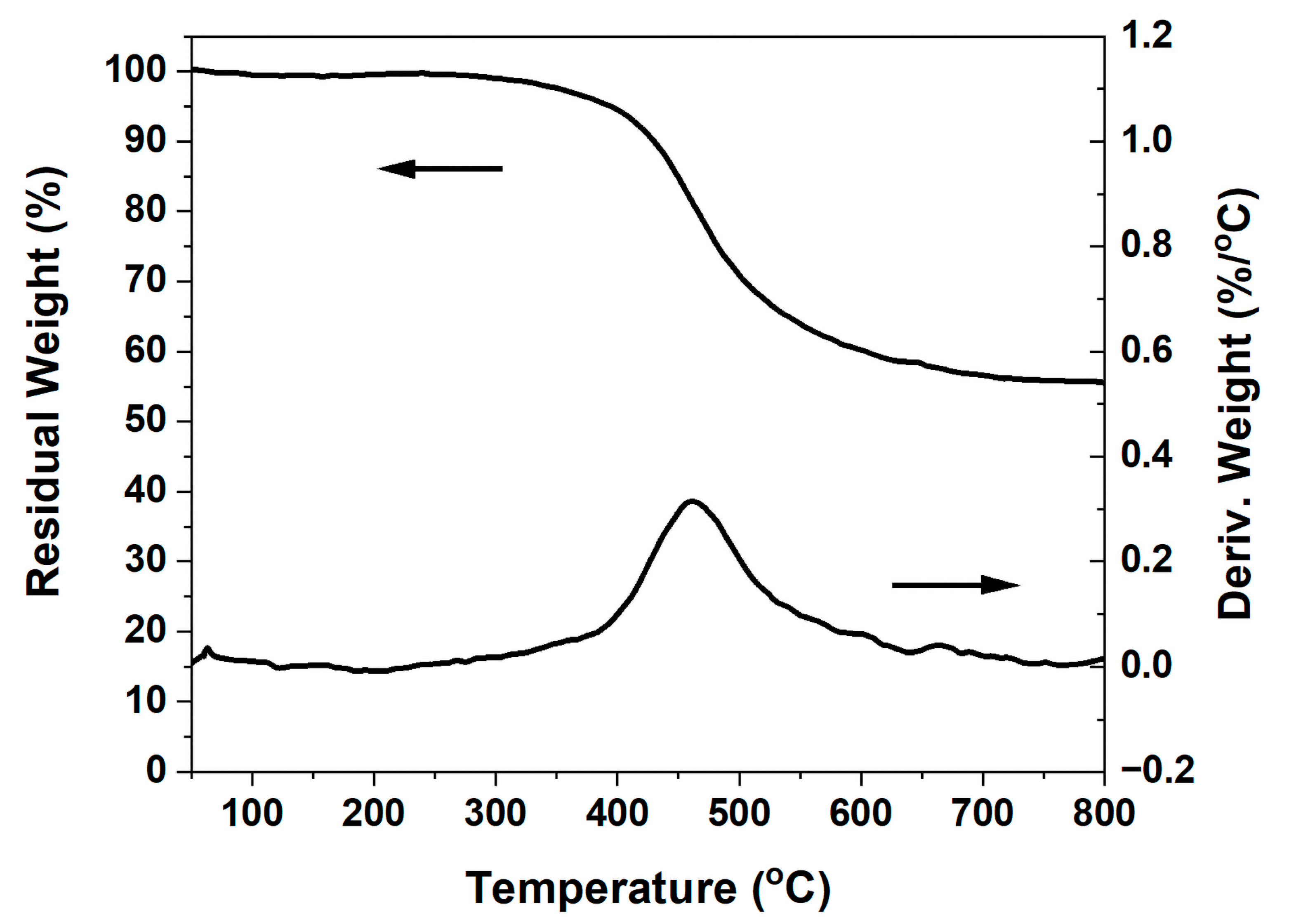

Figure 7. The thermogravimetric analysis and derivative weight loss curves of poly(oHPNI-fa).
Figure 7. The thermogravimetric analysis and derivative weight loss curves of poly(oHPNI-fa).
Molecules 28 03944 g007
Molecules 28 03944 g008 550

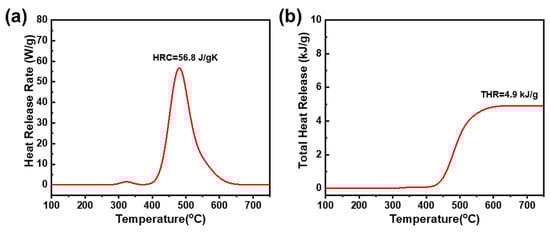

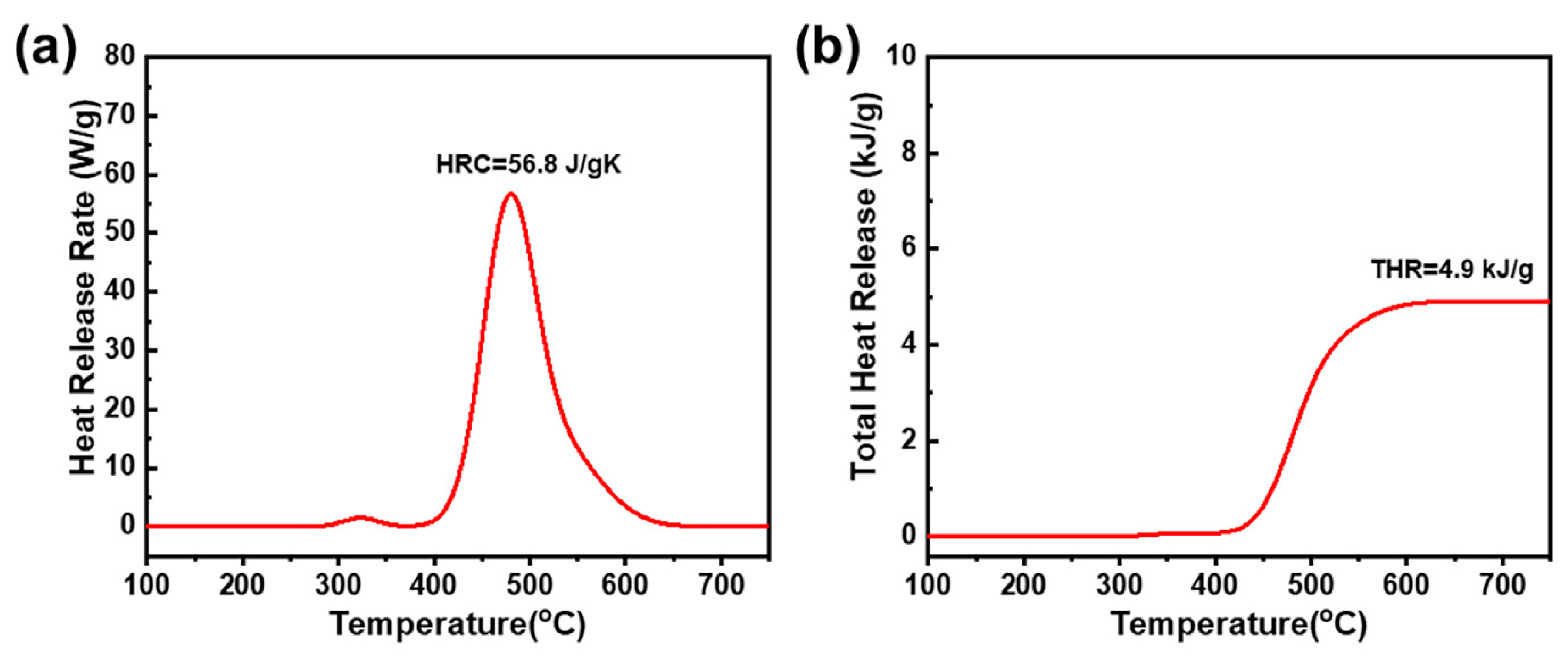

Figure 8. Heat release rate (a) and total heat release (b) versus temperature for poly(oHPNI-fa).
Figure 8. Heat release rate (a) and total heat release (b) versus temperature for poly(oHPNI-fa).
Molecules 28 03944 g008
Molecules 28 03944 sch003 550

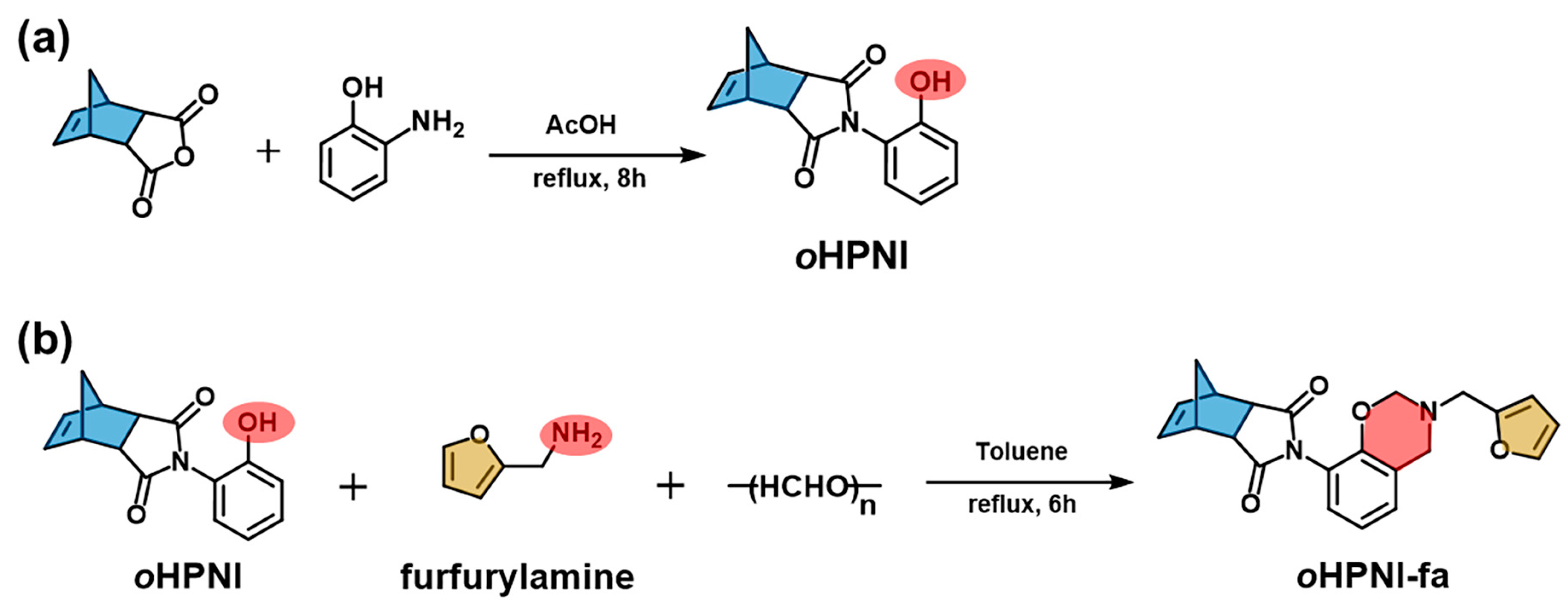

Scheme 3. Synthesis of oHPNI (a) and oHPNI-fa (b).
Scheme 3. Synthesis of oHPNI (a) and oHPNI-fa (b).
Molecules 28 03944 sch003
Table
Table 1. DSC data and activation energy of benzoxazine monomers.
Table 1. DSC data and activation energy of benzoxazine monomers.
MonomerEa (KJ/mol)
KissingerOzawa
PH-fa77.1381.41
oHPNI-a117.92120.51
oHPNI-fa134.07135.36
Table
Table 2. Thermal and anti-flame characteristics of poly(oHPNI-fa).
Table 2. Thermal and anti-flame characteristics of poly(oHPNI-fa).
SampleTg (DMA)
(°C)		Td5
(°C)		Td10
(°C)		Yc
(wt.%)		HRC
(Jg−1K−1)		THR
(kJg−1)
poly(oHPNI-fa)2873954255656.84.9
