Facile Attachment of Halides and Pseudohalides to Dodecaborate(2-) via Pd-catalyzed Cross-Coupling

Abstract

Cross-coupling reactions with [B₁₂H₁₁I]²⁻ as one partner have been used successfully for Kumada and Buchwald Hartwig couplings with Pd catalysis. Here, we found that the iodide could be substituted easily, and unexpectedly, with other halides such as Br and Cl, and with pseudohalides such as cyanide, azide, and isocyanate. We found that for Cl, Br, N₃, and NCO, tetrabutylammonium salts—or sodium salts—were successful halide sources, whereas for cyanide, CuCN was the only halide source that allowed a successful exchange. The azide could be reacted further in a click reaction with triazoles. While no substitution with fluoride occurred, tetrabutylammonium fluoride in the presence of water led to [B₁₂H₁₁OH]²⁻. Yields were high to very high, and reaction times were short when using a microwave oven as a heating source.

1. Introduction

Dodecaborate clusters are of increasing interest because of their special supramolecular properties: they are water soluble due to their inherent charge, and yet they can interact strongly with hydrophobic surfaces. This can be used in, e.g., their binding to the interior of cyclodextrins [1,2,3,4], or to the outside surface of cucurbiturils [5], and it also manifests itself in large retention factors in chromatography on hydrophilic matrices in water [6]. They can form ionic liquids even with Li⁺ as the cation [7]. At the basis of these phenomena is the weak interaction of the cluster with water as a solvent [8]. While a proper choice of counterion allows good to excellent solubility in water, the solvent interacts only weakly and can therefore be removed easily. This phenomenon makes dodecaborate compounds the first example of superchaotropic agents [4,9].

Such properties are not found in organic compounds. Making full use of these properties requires that the boron cluster is attached to other (organic, organometallic, or inorganic) units. This requires that suitable functionalization methods allow the dodecaborate to react with other functional groups in other building blocks, so that a linkage between them can combine properties from both components. In the past, known types of reactions have been rather limited, and they were achieved mostly by attaching organic moieties to heteroatoms such as O [10,11], N [12,13,14], and S [2,15] (for an overview, see Scheme 1).

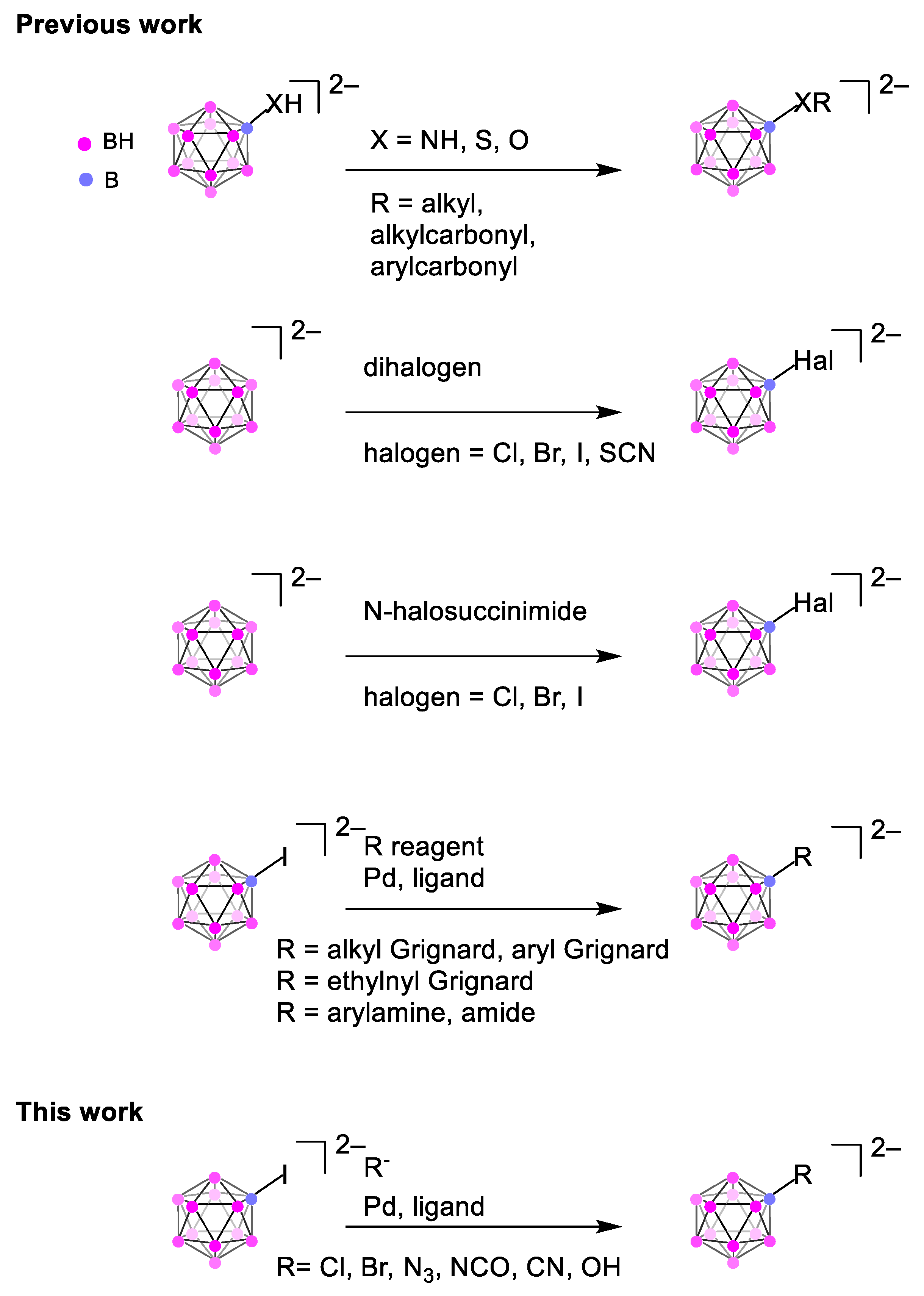

Recently, we have found that Pd-catalyzed cross-coupling with anilines and amides of monoiodo-dodecaborate ([B₁₂H₁₁I]²⁻) leads to the formation of B–N-linkers between the dodecaborate and the organic moiety [16]. Previously, [B₁₂H₁₁I]²⁻ was reacted under Kumada coupling conditions with Grignard reagents [17,18]. The procedure to introduce an iodine atom into the [B₁₂H₁₂]²⁻ cluster could be improved considerably by using not molecular iodine, but N-iodosuccinimide, resulting in very clean stoichiometric iodinations [19]. The corresponding N-chloro- and N-bromosuccinimides result in the corresponding chloro- and bromododecaborates, again in clean reactions with well-controllable stoichiometry. The [B₁₂H₁₁NH₃]⁻ was obtained before by reaction with hydroxylamine-O-sulfonic acid; using a Buchwald–Hartwig cross-coupling, we could obtain [B₁₂H₁₁NH₃]⁻ from [B₁₂H₁₁I]²⁻ with urea as source of nitrogen, followed by acid-catalyzed hydrolysis.

While the selective introduction of a single halogen atom is possible, the formation of [B₁₂H₁₁OH]²⁻, described before [20], uses strongly acidic conditions; it therefore usually leads also to di-substituted products as byproducts [20]. Other dodecaborate substituents such as cyanide, azide, cyanate, and thiocyanate have not been described. The isocyanate derivative has been obtained before through a Curtius rearrangement of a carbonyl azide [21].

In the course of our continued exploration of the further reactivity of [B₁₂H₁₁I]²⁻, especially with respect to other Pd-catalyzed reactions, reactions with apparently innocent salts, such as NaBr and tetrabutylammonium bromide, occurred. We were very surprised to find that an exchange of the iodide with other nucleophiles was possible, and we could obtain compounds which had not been obtained before. Several of these compounds can be reacted further, while others might be unwanted side products in further reactions.

2. Results

Our investigation started with an observation when we tried to run Pd-catalyzed cross-coupling reactions in a heterogeneous system of water and immiscible solvents. In order to increase the solubility of water-soluble anions, we wanted to resort to phase transfer catalysts such as Bu₄NBr to transfer the anion into the organic phase. To our surprise, even in the absence of any further reagent (except KOH, which would serve as a base for other reactions) we found conversion of [B₁₂H₁₁I]²⁻ to the corresponding [B₁₂H₁₁Br]²⁻. Halogen exchange is known to occur in aryl halides [22], but we had not observed this reaction when further, probably better, groups with good ability to interact with the Pd cation were present. We therefore checked further salts, first with the tetrabutylammonium cation, and then with Na⁺ as the counterion.

Successful exchange reactions could be performed using Pd₂(dba)₃ as the Pd source and Davephos as the ligand in DMSO, as previously found for Buchwald–Hartwig type cross-couplings (Ref. [16]). For the reaction with the halides and pseudohalides Br⁻, Cl⁻, and N₃⁻, the choice of counterion (Bu₄N⁺ or Na⁺) did not matter, and the corresponding derivatives were obtained in good yield. Depending on the workup, there might be a partial or complete exchange of the cation when starting with Bu₄N⁺ salts of the cluster and using a sodium halide as a halide source.

Reactions were considerably faster, at identical temperatures, when conducted with microwave heating. This is in agreement with our previous experience with substitution reactions on dodecaborates [16,23]. We attribute this to the inherent dipole of the cluster and the ionic conduction, both of which are known to increase the energy transfer of microwave radiation into the solution.

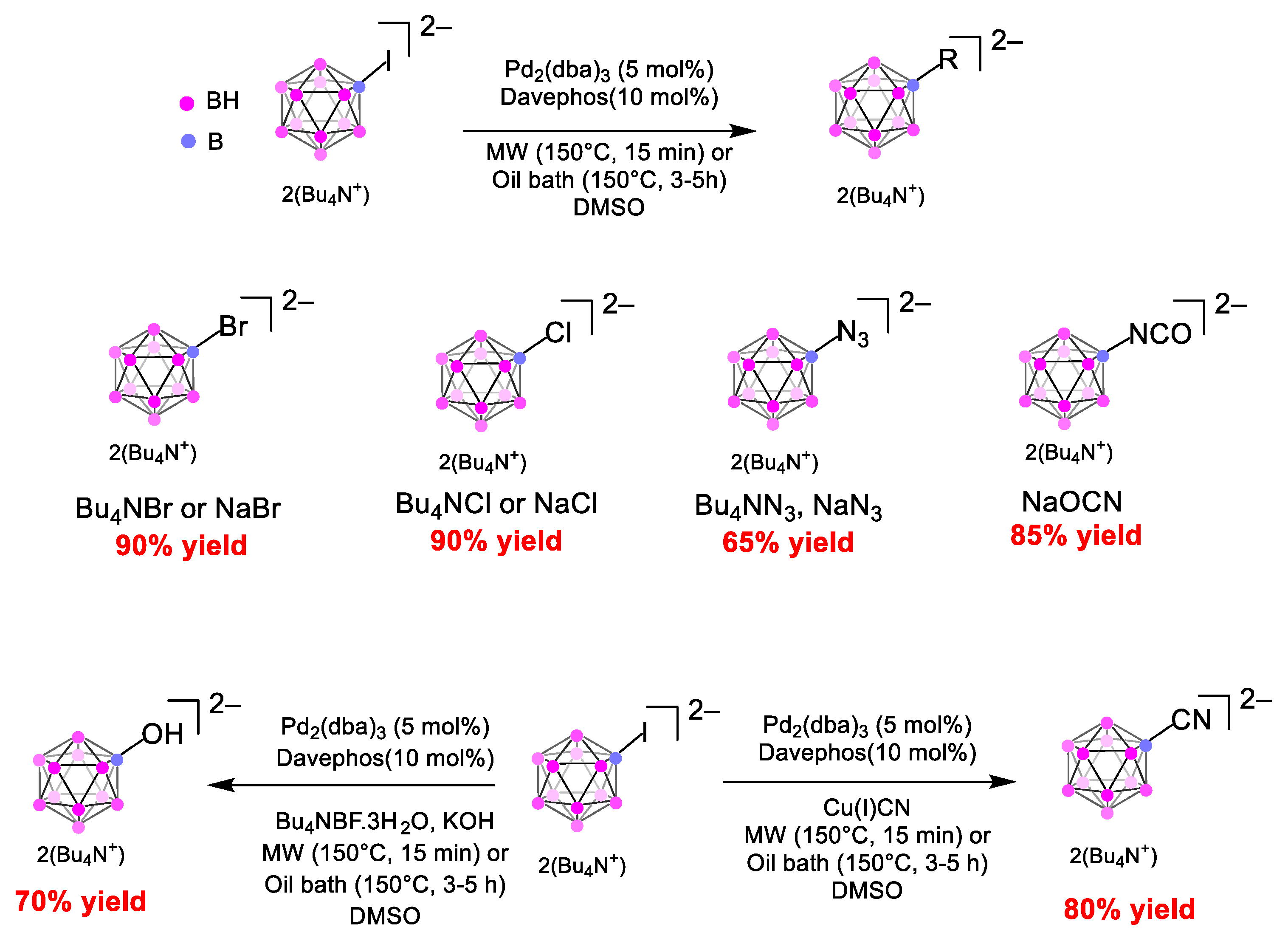

We then checked whether KOH as base (required for Buchwald–Hartwig or Suzuki reactions) was necessary by leaving it out, and the reaction proceeded equally well without KOH. Scheme 2 shows the conditions and the scope.

We were able to obtain an isocyanate using NaNCO as a cyanate donor. This compound has been obtained before by the reaction of the CO derivative of dodecaborate [24] with sodium azide through a Curtius rearrangement [21]. On the basis of the ¹¹B NMR spectrum, we identified the N atom as the B-bonded atom, which resonates at −10 ppm in agreement with the product described in the literature [21]. For oxygen compounds bound to B, boron-11 resonances at positive ppm values (relative to BF₃ etherate) are observed [20,25], while the compound isolated here, as all other B-N cluster bonds, has a resonance at negative ppm values for the heteroatom-substituted B atom.

The analogous reaction with thiocyanate did not provide any product. This might, in part, be attributed to strong interactions between the sulfur of the thiocyanate and the Pd atom (observed for similar structures not containing boron [26]), preventing any further reactions. The thiocyanate had been obtained before by the reaction of the dirhodanide pseudohalogen with [B₁₂H₁₂]²⁻ [27], in a reaction similar to other halogenation reactions.

When trying to exchange the iodide of [B₁₂H₁₁I]²⁻ with F⁻, using anhydrous tetrabutylammonium fluoride, or NaF, we did not succeed in obtaining any substitution with fluoride. When using the trihydrate of the Bu₄NF and KOH as a hydroxide source, a very clean reaction to [B₁₂H₁₁OH]²⁻ occurred. Given the ease of preparing [B₁₂H₁₁I]²⁻ in its pure monosubstituted form with N-iodosuccinimide and its smooth conversion to [B₁₂H₁₁OH]²⁻ described here, this route might be preferable to the routes described in the past, which used aqueous acid.

The hydroxy derivative was a side product when using the common hydroxides (sodium, potassium, tetrabutylammonium—the latter either in water or in THF). With these reagents, only a little hydroxydodecaborate (20% at most) was formed. This also manifests itself in the observation that KOH is a good base for cross-coupling reactions, both here and in the Buchwald–Hartwig reaction, without the formation of hydroxydodecaborate [16]. This is in contrast with the reaction of aryl halides with KOH in water, which, under Pd catalysis, leads to phenols in excellent yields [28].

For CN⁻ as anion, neither tetrabutylammonium nor sodium as countercations gave the desired product. In addition, KCN, Zn(CN)₂, and K₄[Fe(CN)₆] did not provide any cyano products. Only its copper(I) salt could be used successfully (Scheme 2).

Previously, the complete replacement of the iodine atoms on [B₁₂I₁₂]²⁻ with CN⁻, using Pd salts and prolonged high-temperature heating with microwave irradiation, has been reported by Kamin et al. [29]. A bulky Pd ligand, tBuPrettPhos, more space demanding than the Davephos used here, was needed for achieving reasonable yields.

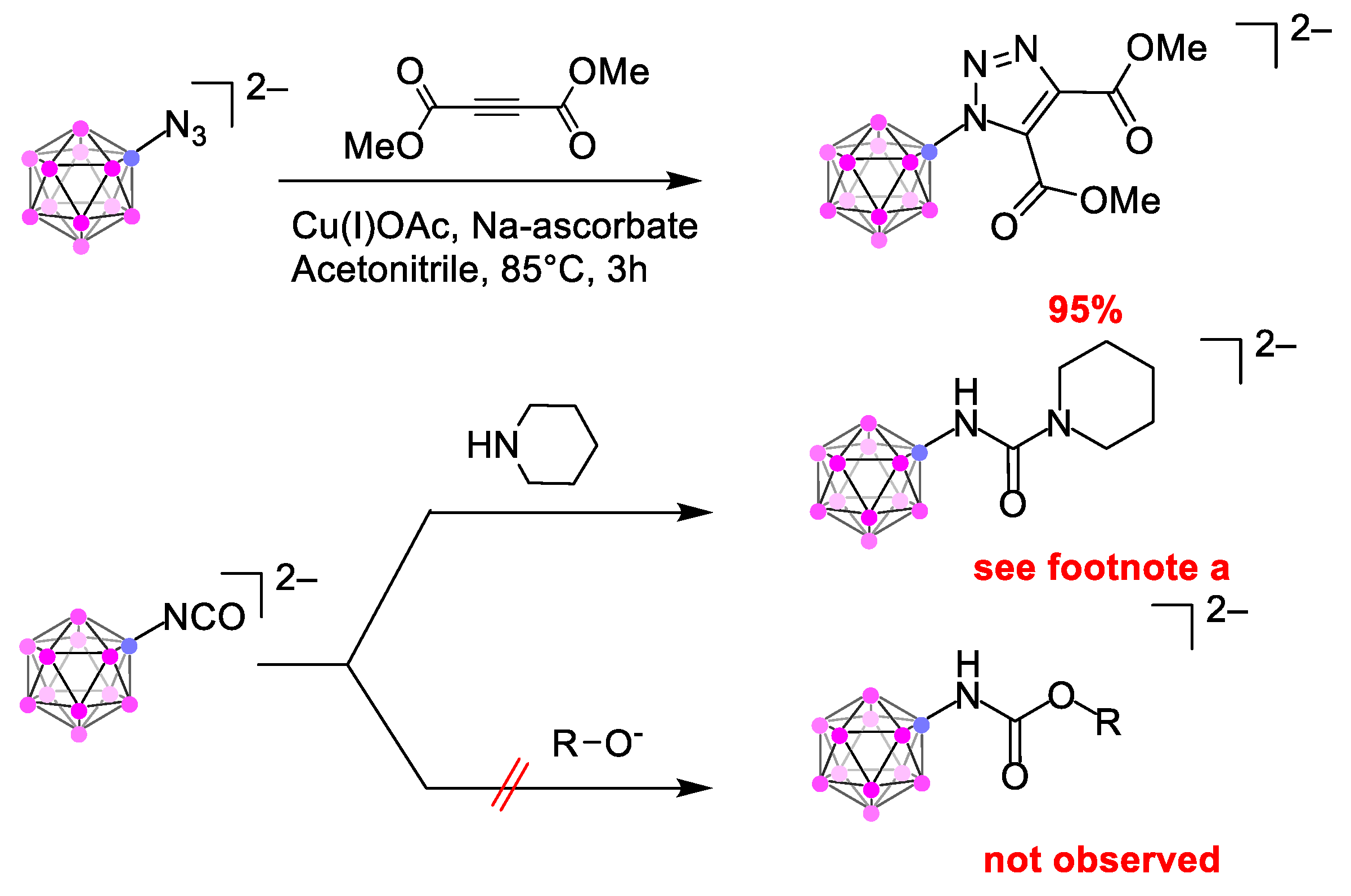

Further reactions of the new compounds obtained here (see Scheme 3) are also of great interest.

The azide obtained here for the first time invites one to perform click chemistry. While this has been described for carboranyl azides [30], such reactions have not yet been described for the dodecaborate cluster. As a prototype reaction, we used acetylene dimethylcarboxylate. The desired product was obtained in excellent yield after only short reaction times and a simple workup.

The isocyanate (described previously and used for reactions by others [21]) is known to react to the corresponding urea derivative with amines. We tested whether we could also cause a reaction with alcohols under basic conditions to the corresponding carbamates. To our surprise, alkoxides could not react to form the desired product. We attribute this to the large electron density donated by the cluster to the carbonyl carbon. We have seen previously that the cluster considerably increases the pK_a values of the –SH and the –NH₂ groups attached to it [15,31].

3. Discussion

The exchange reactions described here work only with [B₁₂H₁₁I]²⁻ as the starting material. The bromide and the chloride did not react; we had already observed this for cross-coupling reactions with amides and anilines [16]. This is in contrast to carboranes, where the bromide can undergo reactions to the isocyanate and azide, and to the amides [30].

We speculate that the exchange with the halides and pseudohalides happens after the oxidative insertion of the Pd into the B–I bond, similar to the mechanisms proposed for the aryl halide exchange [22]. The iodide that had been bound originally to the cluster can exchange with the incoming halide or pseudohalide, and the resulting complex undergoes reductive elimination to the final product. While one would expect this to work in both directions, we found before that in contrast to [B₁₂H₁₁I]²⁻, the chloro- or bromoderivatives were non-reactive in cross-coupling with Pd under Buchwald–Hartwig conditions [16]. Thus, even if the formation of the bromo- or chloro-dodecaborate might not be an energetically favored reaction, due to the low reactivity of the product under cross-coupling conditions, the oxidative insertion of Pd into the B–Br or B–Cl bond will not be possible, and the product will therefore accumulate. The fluoride might be too hard a nucleophile to bind well to the Pd (which is known to be a soft electrophile) and to replace the iodide in the complex.

Our results might also be of importance when salts are added as presumably non-reacting additives to cross-coupling reactions with [B₁₂H₁₁I]²⁻, as the anions of the salts might react preferentially.

The surprising formation of [B₁₂H₁₁OH]²⁻ offers a new route to this compound, which can act as a nucleophile and be alkylated or acylated [11].

The preparation of the isocyanate has been achieved before through a multistep reaction from the carbonyl-substituted cluster [21]. The method proposed here is an alternative, which might result in an easier preparation of this compound.

While the bromo- and chloro-dodecaborates will be largely chemically inert, the pseudohalogens azide, isocyanate, and cyanide can react further. The reaction of the isocyanate with amines is known [21]. Even more interesting for further reactions is the click reaction of the azide with alkynes. As the click reaction occurs under mild conditions, and there are plenty of potential alkyne reaction partners, their conjugation with the dodecaborate and its unique properties might open up new opportunities in cellular transport of attached biological effectors [32], in covalent stabilization of non-covalent networks [33], and in further applications.

4. Materials and Methods

Dodecahydrido-closo-dodecaborate was purchased as Cs⁺ salt from BASF. It was converted to tetrabutylammonium salt by precipitation from an aqueous solution with Bu₄NCl dissolved in water. All other chemicals and solvents were from Sigma-Aldrich, St. Louis, MO, USA, or Carl Roth, Karlsruhe, Germany, and were used as received.

¹¹B NMR spectra were recorded on a JEOL 400 MHz spectrometer at 25 °C. Chemical shifts were referenced relative to external BF₃ etherate. MestReNova V10.0.2-15465 S3 software (Mestrelab Research, Santiago de Compostela, Spain) was used to visualize the spectra. Coupling constants (J) are reported in Hertz (Hz). NMR spectra of the new compounds described here are provided in the Supplementary Materials (Figures S1–S16).

Mass spectra were recorded on a Waters QTOF Premier spectrometer in negative mode, using acetonitrile as solvent for electrospray. The m/z values reported below are those of the most intense peaks. MS spectra of the new compounds described here are provided in the Supplementary Materials (Figures S17–S22).

Reagents and solvents were commercially available and used without further purification. The [B₁₂H₁₁I]²⁻ (Bu₄N)₂ was prepared according to the literature procedure, with some modifications. Tetrabutylammonium bromide, tetrabutylammonium chloride, tetrabutylammonium fluoride trihydrate, copper cyanide, sodium bromide, sodium chloride, tetrabutylammonium azide, sodium azide, Davephos, and Pd₂(dba)₃ were purchased from Sigma-Aldrich and were used as received. The DMSO, dichloromethane, acetonitrile, and silica gel (Grade 60, 230–400 Mesh) were from Carl Roth. Celite (545 filter aid, not acid washed, powder) was from Fisher. All cross-coupling reactions were performed in an oven-dried 10 mL round-bottom flask. The thin-layer chromatography (TLC) AluSil plates were from MachereyNagel, Düren, Germany. The TLC samples for borane-containing compounds were stained with 1 wt.% PdCl₂ in 6 M HCl and were developed using a heat gun. An open-vessel microwave oven (CEM Discover, Model 908860, or HNZXIB, Model MCR-3) was used.

4.1. General Procedure

A dry 10 mL round-bottom flask fitted with condenser was charged with 1.0 equivalents of: (Bu₄N)₂B₁₂H₁₁I, Pd₂(dba)₃ (5 mol%); Davephos (10 mol%); 3–5 equivalents of tetrabutylammonium bromide or NaBr for synthesis of (Bu₄N)₂B₁₂H₁₁Br; Tetrabutylammonium chloride or NaCl for synthesis of (Bu₄N)₂B₁₂H₁₁Cl; Tetrabutylammonium azide or NaN₃ for synthesis of (Bu₄N)₂B₁₂H₁₁N₃; Tetrabutylammonium fluoride·3H₂O and 5.0 equivalents of KOH were used for the synthesis of (Bu₄N)₂B₁₂H₁₁OH; and copper(I)cyanide was used for the synthesis of (Bu₄N)₂B₁₂H₁₁CN. Subsequently, 2.0 mL of anhydrous DMSO was added. The reaction flask was filled with N₂ and connected to a condenser. The round-bottom flask was placed in a CEM microwave oven and heated to 150 °C, at a maximum power of 300 W, for 15 min with stirring (high), or heated in an oil bath at 150 °C for 3–5 h until the starting (Bu₄N)₂B₁₂H₁₁I was completely consumed, as judged by ¹¹B NMR and TLC. The mixture was cooled to room temperature and then filtered through a funnel filled with cotton, celite, and filter paper. The resulting solution was concentrated under reduced pressure and the crude product was subjected to silica gel chromatography using a gradient of acetonitrile (0–25%) in DCM.

The spectroscopic data of the compounds known from the literature (Br, Cl, OH) agree with the literature data.

(Bu₄N)₂B₁₂H₁₁Br: ¹¹B NMR (129 MHz, DMSO-d₆, δ): −19.30 (d, J = 128 Hz, 1B, B-H), −16.27 (d, J = 134 Hz, 5B, B-H), −14.71 (d, J = 136 Hz, 5B, B-H), −8.91 (s, 1B, B-Br). HRMS (ESI/TOF) m/z for B₁₂H₁₁Br [M]²⁻: 110.55 (found: 110.57).

(Bu₄N)₂B₁₂H₁₁Cl: ¹¹B NMR (129 MHz, DMSO-d₆, δ): −20.8 (d, J = 129 Hz, 1B, B-H), −17.2 (d, J = 129 Hz, 5B, B-H), −15.5 (d, J = 131 Hz, 5B, B-H), −3.7 (s, 1B, B-Cl). HRMS (ESI/TOF) m/z for B₁₂H₁₁Cl [M]²⁻: 88.08 (found: 88.10).

(Bu₄N)₂B₁₂H₁₁N₃: ¹¹B NMR (129 MHz, DMSO-d₆, δ): −19.61 (d, J = 129 Hz, 1B, B-H), −16.07 (d, J = 129 Hz, 5B, B-H), −16.43 (d, J = 131 Hz, 5B, B-H), −2.68 (s, 1B, B-N₃). HRMS (ESI/TOF) m/z for B₁₂H₁₁N₃ [M]²⁻: 91.60 (found: 91.62).

(Bu₄N)₂B₁₂H₁₁OH: ¹¹B NMR (129 MHz, DMSO-d₆, δ): −25.81 (d, J = 129 Hz, 1B, B-H), −19.71 (d, J = 125 Hz, 5B, B-H), −17.08 (d, J = 124 Hz, 5B, B-H), 4.23 (s, 1B, B-OH). HRMS (ESI/TOF) m/z for B₁₂H₁₁OH [M]²⁻: 79.10 (found: 79.10).

(Bu₄N)₂B₁₂H₁₁CN: ¹¹B NMR (129 MHz, DMSO-d₆, δ): −22.86 (s, 1B, B-CN) −18.60 (d, J = 149 Hz, 1B, B-H), −16.43 (d, J = 123 Hz, 10B, B-H). HRMS (ESI/TOF) m/z for B₁₂H₁₁N₃ [M]²⁻: 83.60 (found: 83.61).

(Bu₄N)₂B₁₂H₁₁NCO: ¹¹B NMR (129 MHz, DMSO-d₆, δ): −21.25 (d, J = 123.7 Hz, 1B, B-H), −18.72 (d, J = 154.14 Hz, 5B, B-H), −17.40 (d, J = 154.14 Hz, 5B, B-H), −9.75 (s, 1B, B-NCO). HRMS (ESI/TOF) m/z for B₁₂H₁₁NCO [M]²⁻: 91.59 (found 91.60).

4.2. Click Reaction

(Bu₄N)₂B₁₂H₁₁N₃, (1 mmol) was dissolved in CH₃CN; subsequently, Cu(I)OAc (0.2 mmol) and sodium ascorbate (0.3 mmol) were added. Then, dimethyl but-2-ynedioate (2.0 mmol) was added to the mixture and the reaction mixture was stirred at 85 °C for 3 h. The reaction progress was monitored by TLC and NMR. After the complete consumption of the starting material, the reaction mixture was allowed to cool to room temperature, and the insoluble materials were removed via filtration. The desired product was collected in 95% yield by a short plug of silica gel using 1:1 DCM:Acetonitrile.

¹¹B NMR (129 MHz, Acetonitrile-d₃, δ): −5.4 (s, 1B), −16.4 (d, J = 50 Hz, 5B), −17.1 (d, J = 48.9 Hz, 5B), −18.4 (d, J = 83 Hz, 1B). ¹H NMR (400 MHz, Acetonitrile-d₃, δ): 0.95–0.98 (t, 24H), 1.31–1.40, 16H), 1.56–1.64 (m, 16H), 3.07, 3.09, 3.11 (m, 16H), 3.80 (s, 3H), 3.84 (s, 3H). HRMS (ESI/TOF) m/z for B₁₂H₁₇C₆O₄N₃ [M]²⁻: 162.61 (found: 162.60).

5. Conclusions

We have found that [B₁₂H₁₁I]²⁻ reacts with other halides and pseudohalides under cross-coupling conditions to yield compounds which have not been previously obtained, and to yield other products in a simple manner. Several of these compounds can be reacted further, thus considerably broadening the possibilities of linking the dodecaborate cluster to other fragments of interest for biology, drug development, and material sciences.
