One-Pot Synthesis, E-/Z-Equilibrium in Solution of 3-Hetarylaminomethylidenefuran-2(3H)-ones and the Way to Selective Synthesis of the E-Enamines

by
Alexandra S. Tikhomolova
1,*,
Vyacheslav S. Grinev
1,2 and
Alevtina Yu. Yegorova
1
1
Institute of Chemistry, N.G. Chernyshevsky Saratov National Research State University, 83 Ulitsa Astrakhanskaya, 410012 Saratov, Russia
2
Institute of Biochemistry and Physiology of Plants and Microorganisms—Subdivision of the Federal State Budgetary Research Institution Saratov Federal Scientific Centre of the Russian Academy of Sciences (IBPPM RAS), 13 Prospekt Entuziastov, 410049 Saratov, Russia
*
Author to whom correspondence should be addressed.
Molecules 2023, 28(3), 963; https://doi.org/10.3390/molecules28030963
Submission received: 2 December 2022 / Revised: 13 January 2023 / Accepted: 15 January 2023 / Published: 18 January 2023
(This article belongs to the Special Issue Recent Advances in the Use of Azoles in Medicinal Chemistry)
Browse Figures
Review Reports Versions Notes

Abstract

:
We describe a method to synthesize a new class of hetarylaminomethylidene derivatives of furan-2(3H)-ones. The method uses 5-(4-chlorophenyl)furan-2(3H)-one, triethyl orthoformate, and heterocyclic amines with different ring sizes and heteroatoms under refluxing in absolute isopropyl alcohol. The obtained enamines exist in an equilibrium of E- and Z-isomers, whose configurations relative to the double exocyclic C=C bond were confirmed with a set of NMR spectroscopy data. The E-/Z-equilibrium of the synthesized compounds is affected by the configuration of the intermediate, the volume of its substituents, the site of enolate attack, the presence of intramolecular interactions of amino components, the time of the transformation, the order of mixing of the initial reagents, and the use of polar solvents in the NMR experiment. The advantages of the method are that the reaction time is short, the product yield is high, and product purification is easy.

1. Introduction

The chemistry of furan compounds is a promising direction in modern research owing to their unique physicochemical properties. Furans are used widely as the basis for many pharmaceutical and therapeutic agents that are structurally similar to their natural counterparts. Furans are convenient intermediates in the synthesis of drugs, such as furosemide 1, a popular diuretic, and cefuroxime 2, a penicillin derivative [1] (Figure 1). Furan compounds are used as anticancer drugs [2,3,4,5] and serve as a framework for the development of new HIV inhibitors [6,7,8], antioxidant [9] and antibacterial [10,11,12] drugs, and agents for the prevention and treatment of diseases associated with estrogen deficiency [13].
Introduction of an aminomethylidene fragment into the meso-position of the furan-2(3H)-one ring will allow these compounds to act as highly effective “building blocks” in the synthesis of complex hybrid molecules with practically important properties. Owing to the pronounced push–pull character [14,15] of the C=C bond, which is ensured by the carbonyl group and its conjugated amino group, these enamines are electrophilic substrates. The interaction with various nucleophiles falls on the sterically unhindered β-position of the C=C bond, which makes it possible to modify such systems in various directions. This leads to the improvement of methods used to make new heterocyclic structures with different sets of heteroatoms, which are candidates for drugs.
Various methods to make enamine compounds have been proposed. One very promising direction in organic synthesis is the use of the highly reactive triethyl orthoformate [16,17]. Combining ortho esters with active methylene compounds and amines in a one-pot interaction yields a wide class of enamines, and the transformations proceed under mild conditions and in a short period. In this way, various biologically active compounds can be made. Noncyclic compounds, the most common of which are cyclohexanedione derivatives [17,18,19,20], can act as carriers of the active methylene component [18,19]. Active methylene heterocyclic compounds [21] with different ring sizes and heterocycles containing a methyl group in the side chain [22,23] are widely used.
Such transformations can be carried out on the basis of 1,2-diamino-4-phenylimidazole and yield practically promising products of various heterocyclic compounds [24,25,26]. There may be additional heterocyclization yielding dihydroimidazoquinolinones in a one-pot reaction of 1,2-diamino-4-phenylimidazole with cyclohexanedione and triethyl orthoformate, proceeding at the C-3 position of the imidazole fragment [27].
Compounds of the furan-2(3H)-one series, containing a hetarylaminomethylidene fragment, have been poorly studied due to the lack of simple and reliable synthetic methods and of information about the chemical behavior of the furans in various reactions. Therefore, the synthesis of such systems remains a relevant task.

2. Results and Discussion

2.1. Optimization of the Reaction Conditions

Previously, we have examined the possibility of synthesizing arylaminomethylidene derivatives of furan-2(3H)-ones by a three-component reaction. The reaction proceeds in a one-pot mode and includes aryl-substituted furan-2(3H)-ones 3, an ortho ester 4 as an electrophilic agent, and aromatic amines 5a–e bearing electron-withdrawing substituents [28,29] (Scheme 1).
We now propose a method for the preparation of 3-hetarylaminomethylidenefuran-2(3H)-ones 9a–f on the basis of the interaction of 5-(4-chlorophenyl)furan-2(3H)-one 7 as a representative 5-arylfuran-2(3H)-one with triethyl orthoformate 4 and heterocyclic amines 8a–f (Scheme 2).
To find the optimal conditions for the synthesis of hetarylaminomethylidene derivatives of furan-2(3H)-ones 9, we examined the three-component one-pot reaction of 5-(4-chlorophenyl)furan-2(3H)-one 7 with an excess of triethyl orthoformate 4 and 2-aminopyridine 8a as a heterocyclic amine. We investigated the effect of various solvents on the transformation time and the product yield. The solvents were polar protic (absolute ethanol and isopropyl alcohol), polar aprotic (1,4-dioxane), and nonpolar (absolute benzene and toluene) (Table 1).
Under reflux conditions, the best results were achieved with the polar protic solvent anhydrous isopropyl alcohol. After pyridine amines had been introduced, the reaction yielded new 5-(4-chlorophenyl)-3-[(R-pyridin-2-ylamino)methylidene]furan-2(3H)-ones 9a,b. When 2-aminopyridine 8a was used, the reaction rate was high (25 min). When an electron-donating substituent, the hydroxyl group, was introduced into the 2-aminopyridine molecule, the transformation yielded 5-(4-chlorophenyl)-3-{[(3-hydroxypyridine-2-yl)amino]methylidene}furan-2(3H)-one 8b and the reduction increased the reaction time to 5 min. This could be explained by an increase in the nucleophilic properties of the amino group owing to the electron-donating effect of the hydroxyl group. Of note, the transformation proceeded smoothly in other solvents, with yields of 60–70%.

2.2. Scheme for the Synthesis of Enamines 9a–f

On the basis of the obtained results, we suggest a probable scheme for the formation of transformation products in several directions. Specifically, in pathway A, the reaction proceeds through the formation of ethoxyimine intermediate 10 in situ by nucleophilic addition of amines 8a–c,f to triethyl orthoformate 4, which loses two EtOH molecules. Subsequently, 5-(4-chlorophenyl)furan-2(3H)-one 7 reacts with imine 10 to form intermediate 11, after which another EtOH molecule is eliminated to give the desired products 9a–c,f. Pathway B can serve as an alternative mechanism, in which the initial reaction is that of the 5-(4-chlorophenyl)-furan-2(3H)-one molecule 7 with triethyl orthoformate 4 to form ethoxymethylene derivative 12, which is further converted with amino components 8a–c,f through intermediate compounds 11 to desired 3-hetarylaminomethylidenefuran-2(3H)-ones 9a–c,f (Scheme 3).
All isolated products were newly synthesized and fully characterized with a set of analytical and detailed spectral data, including those by FTIR and NMR spectroscopy.
In the FTIR spectrum of compound 9a, recorded in a KBr matrix, the bands attributed to the stretching vibrations of the amino group are observed in the region of 3265–3223 cm−1. The absorption band of the stretching mode of the lactone carbonyl appears at 1725 cm−1, and the stretching vibrations of the conjugated exocyclic C=C double bond appear at 1638 cm−1. This confirms the existence of compounds 9a–f in the aminomethylidene form. An additional confirmation of the existence of 9a in the aminomethylidene form comes from the NMR spectroscopy data. Two sets of signals in the 1H NMR spectra of compounds 9a–c allow us to interpret them as the existence of an equilibrium of E- and Z-forms in solution, the appearance of which is due to the push–pull nature of enamines, in which the furan-2(3H)-one moiety acts as an acceptor group [28,29]. The duplication of the signals in the 1H NMR spectra recorded in DMSO-d6 is observed for signals of exocyclic protons, singlets of vinyl protons at C-4 of the furan-2(3H)-one fragment, and doublets of NH protons for the E- and Z-isomers (Figure 2).

2.3. E/Z-Isomerization Study of Enamines 9a–f

With a 2D NOESY experiment, it was possible to determine the configuration of compounds 9a–f by using 5-(4-chlorophenyl)-3-[(pyridin-2-ylamino)methylidene]furan-2(3H)-one 9a as an example. It was also possible to assign the signals of the protons for E- and Z-isomers separately. In the 2D NOESY spectra, the cross peaks of the NH group and the vinyl proton of the furan-2(3H)-one fragment, observed at 7.10/10.85 ppm, are due to the steric closeness of the protons. The shape of the spectra and the closeness of the protons correspond to the E-configuration. The Z-isomer showed cross peaks at 6.96/8.50 ppm, related to the proton at C-4 and the proton of the exocyclic C=C bond (Figure 3). Enamine systems 9a–f are push–pull compounds with a furanone ring as an acceptor, and the amine heterocyclic fragment acts as a donor group. To evaluate the effect of the donor strength of the amine heterocyclic fragment on the E-/Z-equilibrium, we consider a set of enamines with the same acceptor group. The position of E-/Z-equilibrium is influenced by two factors: the donor strength and the presence of intramolecular interactions (H-bond, steric repulsion of H atoms). In the case of a favorable combination of these factors (i.e., high donor strength and the absence of intramolecular interactions), the push–pull nature is expected to be maximal with an isomer ratio of approximately 1:1. The assignment of the integral intensities of the signals for the NH-group protons in the 1H NMR spectra makes it possible to determine the content of the corresponding isomers in equilibrium mixtures: that of the Z-isomer, from the signal at 10.36 ppm (0.13H), and that of the E-isomer, from the signal at 10.85 ppm (0.87H) for compound 9a. Scheme 2 shows the ratios between the obtained E-/Z-isomers of compounds 9a–f.
The presence of an OH group in the aminopyridine moiety at the C-3 position led to a complete shift of the equilibrium toward the Z-form, as compared to 9a. Product 9b existed in the DMSO-d6 solution in the Z-form, and the presence of the E-isomer was not detected. This fact can be explained by additional intramolecular interactions among the proton of the OH group, the proton of the NH group, and the oxygen atom of the furanone ring; these interactions make the Z-isomer more stable.
The shift of the E-/Z-equilibrium toward the E-diastereomer and the decrease in the proportion of Z-diastereomers in the NMR spectra in DMSO-d6 is probably due to the ability of DMSO-d6 to accept hydrogen bonds [30,31]. However, the effect of other nonpolar deuterated solvents (benzene-d6, acetone-d6, chloroform-d) on the ratio of Z- to E-hetarylaminomethylidenefuran-2(3H)-ones could not be revealed because of their low solubility. It is known that when NMR spectra are recorded in acetone, closely related arylaminomethylidenefuran-2(3H)-ones based on aromatic amines lead to a shift in the equilibrium in favor of the Z-configuration, which is stabilized owing to the formation of an intramolecular hydrogen bond. This can be explained by the fact that acetone does not have the properties of a strong acceptor; therefore, an increase in the proportion of Z-isomers is most probable [29].

2.4. Selective Synthesis of Enamines 9d,e in the E-Form

The optimized conditions, scope, and versatility of this protocol allowed us to investigate transformations with various five-membered heterocyclic amines 8c–f. We chose heterocyclic amines with a reduced donor load. Efforts to carry out transformations under one-pot reaction conditions in the case of aminotriazole and aminothiazole failed, which can be explained by the impossibility of the formation of intermediate 10 by way of pathway A (Scheme 3). Thus, we propose an alternative route for the reaction with sequential mixing of the initial components 7 and 4, which allows us to direct the process through the initial in situ formation of the ethoxymethylene derivative of furan-2(3H)-one 12, which then reacts with an amine reagent, added in portions. The transformation involving 2-aminothiazole 8e proceeded similarly (Scheme 4).
Compounds 9d,e were shown to have the E-configuration, which can be explained, on the one hand, by an increase in the rotation barrier around the C=C bond. On the other hand, the observed selectivity may be due to the increase in the reaction time, as compared to the use of other amines (kinetic control of the reaction), which indicates the transformation of the kinetic Z-adduct into the thermodynamically more stable E-isomer [32].

2.5. Enamine Synthesis Based on Diaminoheterocycle

In the case of diaminoheterocycles, the structure of which includes two amino groups differing in their donor properties, the question arises of the direction of the reaction. When such a diamine (specifically, 1,2-diamino-4-phenylimidazole) is used, this one-pot conversion proceeds smoothly, and the yields are high. The use of 1,2-diamino-4-phenylimidazole as an amino component in this interaction is promising because one could expect interactions involving the “hydrazine” amino group (path A) and the primary amino group (path B) (Scheme 5).
When running the reaction under conditions similar to those described above, we found that the aminomethylidene derivative furan-2(3H)-one 9f was formed with the participation of the amino group without affecting the “hydrazine” amino group, which was established from the spectral data. We believe that this serves as another example of the newly discovered inverse α-effect [33]. It was shown that 9f existed in a DMSO-d6 solution as a mixture of E- and Z-isomers in a ratio close to 1:1, which can be explained by the high donor properties of the “non-hydrazine” amino group and by the absence of intramolecular interactions, in contrast to 9d,e.

2.6. Evaluation of the Barrier Energy for the E-/Z-Transition of Enamines 9a–f

We first evaluated the relative energies of the E- and Z-isomers to determine the most thermodynamically stable form for each heterocyclic enamine 9a–f both in vacuum and in DMSO solution. The magnitude of the energy barrier was evaluated by molecular modeling of the probable push–pull E-/Z-isomerization. The values of the barriers for 9a–e were between 44.48 and 55.00 kcal/mol in vacuum and between 28.92 and 39.50 kcal/mol in DMSO, with a minimum for 9c. Enamines 9d and 9e, which completely exist in the E-form, were found to have 6.1 and 10.5% higher transition barriers with respect to the corresponding mean value for enamines 9a–f (Table 2).
These data indicate that the reason for the existence of E-/Z-isomers in the obtained ratios is hardly their direct transition. The predominance of the E-form is probably associated with the structure of intermediate 11, which is determined by the attack of the enolate (hydroxy furan) form of furanone 7.

2.7. Stereochemical Interpretation of the Synthesis of Enamines 9a–f

Because the reaction often results in the predominance of the less thermodynamically stable E-isomers, we propose a stereochemical description of the formation mechanism for the more preferable E-form. The more stable E-form of ethyl N-(hetaryl-2-yl)formimidate 10 contains a diastereotopic plane that can be attacked by the nucleophilic enolate of 7 from different sites (Scheme 6).
The attack from where the less sterically bulky hydrogen atom is located is more preferable and gives rise to 5-(4-chlorophenyl)-3-[ethoxy(hetaryl-2-ylamino)methyl]furan-2(3H)-one 11. As a result of the elimination of the ethanol from the antiperiplanar position (if seen along the C–C bond), an E-enamine appears.
Alternatively, the nucleophile attack from the site where the bulkier ethoxy group is located gives rise to isomeric 5-(4-chlorophenyl)-3-[ethoxy(hetaryl-2-ylamino)methyl]furan-2(3H)-ones 11′. The rotation around the simple C–N bond in these structures can stabilize the 11′ form through an intermolecular hydrogen bond. The antiperiplanar elimination of an ethanol molecule gives rise to a Z-form of enamines 9a–f.
Thus, on the one hand, the formation of E-form enamines 9a–f is preferred over that of the corresponding Z-isomers. On the other hand, the content of Z-isomers in the product mixture may strongly increase under favorable factors, such as the formation of an intramolecular hydrogen bond and the steric volume of the amine’s heterocyclic part.

3. Materials and Methods

3.1. Physical Measurements

FTIR spectra were collected on an FSM-1201 Fourier spectrometer (Infraspek, St. Petersburg, Russia) in the range 4000–400 cm−1 with a spectral resolution of 4 cm−1. Samples were mixed with ground KBr (FTIR grade, Sigma–Aldrich, Saint Louis, MO, USA) and pressed into pellets by removing water and air traces under reduced pressure. 1H (400 MHz) and 13C NMR (100 MHz) spectra in DMSO-d6 were recorded with a Varian (Agilent) 400 spectrometer (Agilent Technologies, Santa Clara, CA, USA), and the internal standard was TMS (see Supplementary Materials). Chemical shifts (δ) are reported in ppm. Elemental analysis was done on an Elementar Vario MICRO cube CHNS analyzer (Elementar Analysensysteme GmbH, Hanau, Germany). Melting points were determined on a Stuart™ SMP10 melting point apparatus (Cole-Parmer, Beacon Road, Stone, Staffordshire, ST15 OSA, UK). The progress of the reaction and the purity of the synthesized compounds were monitored by TLC on ALUGRAM® SIL G UV254 plates (MACHEREY-NAGEL GmbH & Co. KG, Düren, Germany), with hexane–ethyl acetate–acetone (2:2:1) as the eluent.

3.2. Synthesis and Characterization of Compounds 9a–c,f

A mixture of 1 mmol of 5-(4-chlorophenyl)furan-2(3H)-one (7), 9 mmol of triethyl orthoformate (4), and 1 mmol of the corresponding heterocyclic amine (8a–d) was refluxed in 7 mL of absolute isopropyl alcohol. The precipitated crystals were filtered, washed with isopropyl alcohol, recrystallized from DMF, and dried.
(Z,E)-5-(4-chlorophenyl)-3-[(pyridin-2-ylamino)methylidene]furan-2(3H)-one (9a). Yellow crystals (DMF), yield 0.22 g (75%), mp 275–276 °C; FTIR (KBr), ν, cm−1: 3265–3223 (NH), 1722 (C=O), 1637 (C=C); 1H NMR (400 MHz, DMSO-d6): δ 6.96 (s, 0.13H, Fu), 7.06–7.06 (m, 2H, Py), 7.10 (s, 0.87H, Fu), 7.49 (d, J = 8.0 Hz, 2H, Ar), 7.56 (d, J = 8.0 Hz, 2H, Ar), 7.75–7.79 (t, 1H, Py), 8.30 (d, J = 4.0 Hz, 1H, Py), 8.35 (d, J = 12.0 Hz, 0.87H, =CH), 8.54 (d, J = 12.0 Hz, 0.13H, =CH), 10.35 (d, J = 12.0 Hz, 0.13H, NH), 10.86 (d, J = 12.0 Hz, 0.87H, NH), 13C NMR (100 MHz, DMSO-d6): δ 100.83 (4-Fu), 110.00 (3-Fu), 112.06 (Py), 119.49 (Py), 125.34, 125.70, 125.75, 128.28, 129.59, 133.27, 135.12 (6-Fu), 139.42 (Py), 146.85 (5-Fu), 148.85 (Py), 151.76 (Py), 170.16 (C=O). Anal. calcd. for C16H11ClN2O2: C: 64.33%; H: 3.71%; N: 9.38%; Cl: 11.87%; Found: C: 64.75%; H: 3.98%; N: 9.82%; Cl: 12.06%.
(Z)-5-(4-Chlorophenyl)-3-{[(3-hydroxypyridin-2-yl)amino]methylidene}furan-2(3H)-one (9b). Yellow crystals (DMF), yield 0.25 g (80%), mp 258–260 °C; FTIR (KBr), ν, cm−1: 3348 (OH), 3289 (NH), 1774 (C=O), 1689 (C=C); 1H NMR (400 MHz, DMSO-d6): δ 6.99 (t, J = 8.0 Hz, 1H, Py), 7.02 (s, 1H, Fu), 7.24 (d, J = 8.0 Hz, 1H, Py) 7.53 (d, J = 8.6 Hz, 2H, Ar), 7.60 (d, J = 8.7 Hz, 2H, Ar), 7.82 (d, J = 4.8 Hz, 1H, Py) 8.57 (d, J = 12.7 Hz, 1H, =CH), 10.39 (d, J = 12.8 Hz, 1H, NH), 10.92 (s, 1H, OH). 13C NMR (100 MHz, DMSO-d6): δ 101.2 (4-Fu), 104.2 (3-Fu), 120.9, 121.3, 121.7, 122.2, 126.0, 128.3, 132.6, 137.4 (6-Fu), 138.7 (Py), 141.0 (C-OH), 146.2, 155.2 (Py), 170.1 (C=O). Anal. calcd. for C16H11ClN2O3: C: 61.06%; H: 3.52%; N: 8.90%; Cl: 11.26%; Found: C: 61.55%; H: 3.98%; N: 9.15%; Cl: 11.78%.
(Z,E)-4-{[(5-[4-chlorophenyl]-2-oxofuran-3[2H]-ylidene)methyl]amino}-1,5-dimethyl-2-phenyl-1,2-dihydro-3H-pyrazole-3-one (9c). Yellow crystals (DMF), yield 0.25 g (81%), mp 229–239 °C; FTIR (KBr), ν, cm−1: 3414 (NH), 1751 (C=O), 1685 (C=C), 1649 (C=O); 1H NMR (400 MHz, DMSO-d6): δ 2.31 (d, J = 8.0 Hz, 3H, CH3), 3.05 (d, J = 4.0 Hz, 3H, CH3), 6.86 (s, 0.14H, Fu), 7.10 (s, 0.86H, Fu), 7.33-7.56 (m, 4H, Ar), 7.88 (s, J = 12.0 Hz, 0.86H, =CH), 8.06 (d, J = 16.0 Hz, 0.14H, =CH), 9.54 (d, J = 12.0 Hz, 0.14H, NH), 9.69 (d, J = 12.0, 0.86H Hz, NH); 13C NMR (100 MHz, DMSO-d6): δ 10.79 (CH3), 36.40 (CH3-N), 101.13 (4-Fu), 111.10 (3-Fu), 124.48, 124.99, 125.23, 127.26, 128.82, 129.92, 129.49, 129.64, 129.67, 132.44, 134.96, 143.22 (6-Fu), 144.48, 146.62 (5-Fu), 160.31 (C=O), 170.03 (C=O). Anal. calcd. for C22H18ClN3O3: C: 64.79%; H: 4.45%; N: 10.30%; Cl: 8.69%; Found: C: 65.08%; H: 4.13%; N: 9.98%; Cl: 9.13%.
(Z,E)-5-(4-chlorophenyl)-3-{[(1-amino-4-phenyl-1H-imidazol-2-yl)amino]methylene}furan-2(3H)-one (9f). Yellow crystals (DMF), yield 0.16 g (59%), mp 246–248 °C; FTIR (KBr), ν, cm−1: 3327 (NH2), 3267 (NH), 1713 (C=O), 1653 (C=C); 1H NMR (400 MHz, DMSO-d6): δ 6.04 (s, 2H, NH2), 6.14 (s, 2H, NH2), 7.00 (s, 0.54H, Fu), 7.20 (s, 0.46H, Fu), 7.16 (s, 0.46H, CHimidazole), 7.18 (s, 0.54H, CHimidazole), 8.03 (s, 0.54H, =CH), 8.24 (s, 0.46H, =CH), 10.40 (s, 0.46H, NH), 10.69 (s, 0.54H, NH); 13C NMR (100 MHz, DMSO-d6): δ 100.98 (4-Fu), 103.63, 109.39 (3-Fu), 116.45 (Cimidazole), 124.34, 125.42, 125.66, 128.39, 128.79, 129.37, 129.54, 134.89, 138.27 (6-Fu), 145.31 (5-Fu), 156.71, 169.44 (C=O). Anal. calcd. for C20H15ClN4O2: C: 63.41%; H: 3.99%; N: 14.79%; Cl: 9.36%; Found: C: 63.86%; H: 4.13%; N: 14.58%; Cl: 9.13%.

3.3. Synthesis and Characterization of Compounds 9d,e

A mixture of 1 mmol of 5-(4-chlorophenyl)furan-2(3H)-one (7) and 9 mmol of triethyl orthoformate (4) was heated for 30 min in 7 mL of absolute isopropyl alcohol. Next, the corresponding heterocyclic amine (8d,e) was added portionwise for 1 h. The precipitated crystals were filtered, washed with isopropyl alcohol, recrystallized from DMF, and dried.
(E)-5-(4-chlorophenyl)-3-[(1H-1,2,4-triazol-3-amino)methylidene]-3H-furan-2-one (9d). Brown crystals (DMF), yield 0.19 g (65%), mp 255–256 °C; FTIR (KBr), ν, cm−1: 3435 (NH), 3346 (NH), 1738 (C=O), 1650 (C=C); 1H NMR (400 MHz, DMSO-d6): δ 7.17 (s, 1H, Fu), 7.46-7.54 (m, 4H, Ar), 7.92 (d, J = 12.0 Hz, 1H, =CH), 8.46 (s, 1H, CHtriazole), 11.31 (d, 1H, J = 12.0 Hz, NH), 13.82 (s, 1H, NHtriazole); 13C NMR (100 MHz, DMSO-d6): δ 100.92 (4-Fu), 113.74 (3-Fu), 125.64, 127.78, 128.35, 129.57, 130.27, 133.15, 137.53 (6-Fu), 144.26, 146.16 (5-Fu), 159.05 (Ctriazole), 170.14 (C=O). Anal. calcd. for C13H9ClN4O2: C: 54.09%; H: 3.14%; N: 19.41%; Cl: 12.28%; Found: C: 53.92%; H: 3.24%; N: 19.61%; Cl: 11.93%.
(E)-5-(4-chlorophenyl)-3-[(thiazol-2-ylamino)methylidene]furan-2(3H)-one (9e). Brown crystals (DMF), yield 0.18 g (60%), mp 256–257 °C; FTIR (KBr), ν, cm−1: 3265 (NH), 1726 (C=O), 1662 (C=C); 1H NMR (400 MHz, DMSO-d6): δ 7.05 (s, 1H, Fu), 7.24 (d, J = 4.0 Hz, 1H, =CHthiazole), 7.42 (d, J = 4.0 Hz, 1H, =CHthiazole), 7.51 (d, J = 8.0 Hz, 2H, Ar), 7.58 (d, J = 8.0 Hz, 2H, Ar), 7.90 (s, 1H, =CH), 11.84 (s, 1H, NH); 13C NMR (100 MHz, DMSO-d6): δ 100.42 (4-Fu), 103.48 (3-Fu), 113.99 (Cthiazole), 125.86, 126.00, 127.96, 129.43, 129.62, 133.68, 134.94 (6-Fu), 140.00 (Cthiazole), 147.49 (5-Fu), 162.12 (Cthiazole), 169.78 (C=O). Anal. calcd. for C14H9ClN2O2S: C: 55.18%; H: 2.98%; N: 9.19%; Cl: 11.73%; S: 10.52%; Found: C: 54.99%; H: 3.16%; N: 9.50%; Cl: 12.02%; S: 10.87%.

3.4. DFT Calculations

All structures (E- and Z-forms) were fully optimized by using Becke’s three-parameter hybrid functional combined with the Lee–Yang–Parr correlation functional (B3LYP [34,35,36]) with the 6-311++G(d) basis set. Two stages were used; stage 1 was in vacuo, and stage 2 was in a DMSO solution. In the latter case, a polarizable continuum model (PCM) was used.
To evaluate the magnitude of the energy of the possible E-/Z-transitions, we used a formalism proposed for rotation around the partly delocalized C=C bond [29,37]. The optimized coordinates of the E-forms were used for relaxed scans of the C(=O)–C=C–N torsion angle with an increment of 2°. The energy profiles of the rotation processes were analyzed for extrema to evaluate the barrier energy. Calculations were also done at two stages—in vacuo and in a DMSO solution (PCM approach). The structure for each of enamines 9a–f at the global maxima on the curve was optimized as a transition state (TS). The Hamiltonians of the TSs were analyzed for imaginary vibrational modes.

4. Conclusions

We have shown that it is possible to synthesize enamines based on furan-2(3H)-one. The synthesized compounds exist in solution as a mixture of E- and Z-isomers, the ratio between which is determined by a set of factors. One of these factors is the reaction mode. In the one-pot mode, the E-form predominates, and the sequential mixing of the starting reagents in the case of aminotriazole and aminothiazole yields only the E-form, which can also be explained by the higher energy barrier values for the E-/Z-transition, as compared with those for other amines. Stereochemically, the synthesis of enamines proceeds preferably through the initial interaction of the triethyl orthoformate and the amine reagent with the formation of an ethoxyimine intermediate. The configuration of the final product, enamine, is determined by the attack of the enolized form of furanone. The proposed mechanism is the most preferable for the formation of E-form enamines.

Supplementary Materials

NMR data of the synthesized compounds can be downloaded at: https://www.mdpi.com/article/10.3390/molecules28030963/s1, Figure S1. 1H & 13C NMR spectrum of compound 9a; Figure S2. NOESY spectrum of compound 9a & 1H NMR spectrum of compound 9b; Figure S3. 1H & 13C NMR spectrum of compound 9c; Figure S4. 1H & 13C NMR spectrum of compound 9d; Figure S5. 1H & 13C NMR spectrum of compound 9e; Figure S6. 1H & 13C NMR spectrum of compound 9f

Author Contributions

Conceptualization, methodology, software, A.S.T.; validation, A.S.T., V.S.G.; formal analysis, investigation, resources and data curation, A.S.T., V.S.G.; writing—original draft preparation, A.S.T.; writing—review and editing, A.S.T., V.S.G.; visualization, A.S.T., V.S.G.; supervision, A.Y.Y.; project administration, A.Y.Y.; funding acquisition, V.S.G. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Russian Science Foundation (grant no. 22-23-00171 to V.S. Grinev).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds 9a–e are available from the authors on demand.

References

  1. Banerjee, R.; HKS, K.; Banerjee, M. Medicinal significance of furan derivatives: A Review. Int. J. Rev. Life. Sci. 2012, 2, 7–16. [Google Scholar]
  2. Abdel-Hamid, H.F.; Soliman, A.; Helaly, F.M.; Ragab, S. Cytotoxic potency and induced biochemical parameters in mice serum of new furan derivatives against liver cancer cell line. Acta Pol. Pharm. 2011, 68, 499–505. [Google Scholar] [PubMed]
  3. Sicak, Y. Design and antiproliferative and antioxidant activities of furan-based thiosemicarbazides and 1,2,4-triazoles: Their structure-activity relationship and SwissADME predictions. Med. Chem. Res. Lett. 2021, 30, 1557–1568. [Google Scholar] [CrossRef]
  4. Vicidomini, C.; Cioffi, F.; Broersen, K.; Roviello, V.; Riccardi, C.; Montesarchio, D.; Capasso, D.; Di Gaetano, S.; Musumeci, D.; Roviello, G. Benzodifurans for biomedical applications: BZ4, a selective anti-proliferative and anti-amyloid lead compound. Future Med. Chem. 2019, 11, 285–302. [Google Scholar] [CrossRef] [PubMed]
  5. Kwiecien, H.; Peruzynska, M.; Stachowicz, K.; Piotrowska, K.; Bujak, I.; Kopytko, P.; Droździk, M. Synthesis and biological evaluation of 3-functionalized 2-phenyl- and 2-alkylbenzo[b]furans as antiproliferative agents against human melanoma cell line. Bioorg. Chem. 2019, 88, 102930–102941. [Google Scholar] [CrossRef]
  6. Jiang, S.; Tala, S.R.; Lu, H.; Zou, D.; Avan, I.; Ibrahim, T.S.; Abo-Dya, N.E.; Abdelmajied, A.; Debnath, A.K.; Katritzky, A.K. Design, synthesis, and biological activity of a novel series of 2,5-disubstituted furans/pyrroles as HIV-1 fusion inhibitors targeting gp41. Bioorg. Med. Chem. Lett. 2011, 21, 6895–6898. [Google Scholar] [CrossRef]
  7. Rawal, R.K.; Prabhakar, I.S.; Katti, S.B.; Clercq, E. 2-(Aryl)-3-furan-2-ylmethyl-thiazolidin-4-ones as selective HIV-RT Inhibitors. Bioorg. Med. Chem. 2005, 13, 6771–6776. [Google Scholar] [CrossRef]
  8. Jiang, S.; Tala, S.R.; Lu, H.; Abo-Dya, N.E.; Avan, I.; Gyanda, K.; Lu, L.; Katritzky, A.K.; Debnath, A.K. Design, synthesis, and biological activity of novel 5-((arylfuran/1H-pyrrol-2-yl)methylene)-2-thioxo-3-(3-(trifluoromethyl)phenyl)thiazolidin-4-ones as HIV-1 fusion inhibitors targeting gp41. J. Med. Chem. 2011, 54, 572–579. [Google Scholar] [CrossRef]
  9. Mehta, D.K.; Das, R. Synthesis and in-vitro antioxidant activity of some new 2,5-disubstituted-1,3,4-oxadiazoles containing furan moiety. Int. J. Pharm. Sci. Res. 2011, 2, 2959–2963. [Google Scholar]
  10. Donlawson, C.; Nweneka, D.O.; Orie, K.; Okah, R. Synthesis and bioactivity of 1-((2-carbamoylguanidino)(furan-2-ylmethyl)urea. Am. J. Anal. Chem. 2020, 11, 280–288. [Google Scholar] [CrossRef]
  11. Xia, L.; Idhayadhulla, A.; Lee, Y.R.; Wee, Y.-J.; Kim, S.H. Anti-tyrosinase, antioxidant, and antibacterial activities of novel 5-hydroxy-4-acetyl-2,3-dihydronaphtho[1,2-b]furans. Eur. J. Med. Chem. 2014, 86, 605–612. [Google Scholar] [CrossRef]
  12. Malladi, S.; Nadh, V.; Suresh Babu, K.; Suri Babu, P. Beni-Suef U. J. App. Sci. 2017, 6, 345–353. [Google Scholar] [CrossRef]
  13. Pu, W.; Yuan, Y.; Lu, D.; Wang, X.; Liu, H.; Wang, C.; Wang, F.; Zhang, G. 2-Phenylbenzo[b]furans: Synthesis and promoting activity on estrogen biosynthesis. Bioorg. Med. Chem. Lett. 2016, 26, 5497–5500. [Google Scholar] [CrossRef]
  14. Kleinpeter, E.; Klod, S.; Rudorf, W.-D. Electronic state of Push−Pull alkenes: An experimental dynamic NMR and theoretical ab Initio MO study. J. Org. Chem. 2004, 69, 4317–4329. [Google Scholar] [CrossRef]
  15. Obydennov, D.L.; Chernyshova, E.V.; Sosnovskikh, V.Y. Acyclic enaminodiones in the synthesis of heterocyclic compounds. Chem. Heterocycl. Compd. 2020, 56, 1241–1253. [Google Scholar] [CrossRef]
  16. Shikhaliev, K.S.; Kryl’skaya, V.I.; Potapov, A.Y. Threecomponent synthesis of 4-aryl-5-cyano-2-hetarylaminopyrimidines. Rus. Chem. Bull. 2006, 55, 1089–1090. [Google Scholar] [CrossRef]
  17. Komkov, A.V.; Prezent, M.A.; Ignatenko, A.V.; Yakovlev, I.P.; Dorokhov, V.A. Synthesis of new pyrido[2,3-d]pyrimidine derivatives by three-component condensation of 5-acetyl-4-aminopyrimidines, cyclohexane-1,3-diones, and orthocarboxylic acid esters. Rus. Chem. Bull. 2006, 55, 2085–2090. [Google Scholar] [CrossRef]
  18. Kryl’skij, D.V.; Shihaliev, H.S.; Potapov, A.Y. Trekhkomponentnye kondensacii s uchastiem getarilguanidinov. Izv. Vuzov. Himiya i Him. Tekhnologiya 2005, 48, 61–63. (In Russian) [Google Scholar]
  19. Antonov, A.N.; Tyurin, R.V.; Minyaeva, L.G.; Mezheritskii, V.V. Specific example of the Mannich reaction in the series of 5-acetyl-6-aminoacenaphthene and its derivatives. Rus. J. Org. Chem. 2007, 43, 998–1001. [Google Scholar] [CrossRef]
  20. Pyrko, A.N. Synthesis of new benzo[c]phenanthridine derivatives. Rus. J. Org. Chem. 2010, 46, 1843–1847. [Google Scholar] [CrossRef]
  21. Erkin, A.V.; Ramsh, S.M. A domino reaction of 3-methyl-1-[6-methyl-2-(methylsulfanyl)pyrimidin-4-yl]-4-[(phenylimino)methyl]-1H-pyrazol-5-ol with heterocyclic ch acids. Chem. Heterocycl. Compd. 2014, 50, 1102–1106. [Google Scholar] [CrossRef]
  22. Kosulina, T.P.; Pushkareva, K.S.; Bychenko, N.I.; Morenets, I.P.; Kul’nevich, V.G. 2-Methyl-4(5H)-oxazolonium salts in reaction with ethyl orthoformate and aromatic amines. Chem. Heterocycl. Compd. 1999, 35, 635–636. [Google Scholar] [CrossRef]
  23. Tkachenko, Y.N.; Tsupak, E.B.; Pozharskii, A.F. Pyrrolopyrimidines. A convenient method for the production of 6-(2-aminovinyl)-5-nitropyrimidines and their transformation into pyrrolo[3,2-d]pyrimidines. Chem. Heterocycl. Compd. 2000, 36, 307–310. [Google Scholar] [CrossRef]
  24. Bressi, J.C.; de Jong, R.; Wu, Y.; Jennings, A.J.; Brown, J.W.; O’Connell, S.; Tari, L.W.; Skene, R.J.; Vu, P.; Navre, M.; et al. Benzimidazole and imidazole inhibitors of histone deacetylases: Synthesis and biological activity. Bioorg. Med. Chem. Lett. 2010, 20, 3138–3141. [Google Scholar] [CrossRef]
  25. Gupta, V.; Kant, V. A Review on biological activity of imidazole and thiazole moieties and their derivatives. Science International. 2013, 1, 253–260. [Google Scholar] [CrossRef] [Green Version]
  26. Chaudhari, D.; Salunke-Gawali, S.; Chakravarty, D.; Shaikh, S.R.; Lande, D.N.; Gejji, S.P.; Raoa, P.K.; Satputed, S.; Puranikc, V.G.; Gonnade, R.G. Synthesis and biological activity of imidazole based 1,4- naphthoquinones. New J. Chem. 2020, 44, 6889–6901. [Google Scholar] [CrossRef]
  27. Vandyshev, D.Y.; Shikhaliev, K.S.; Potapov, A.Y.; Krysin, M.Y. Cascade two- and three-component cyclization reactions using 1,2-diamino-4-phenylimidazole and cyclohexane-1,3-diones. Chem. Heterocycl. Compd. 2014, 50, 1316–1321. [Google Scholar] [CrossRef]
  28. Osipov, A.K.; Anis’kov, A.A.; Yegorova, A.Y. Synthesis and configuration of (arylamino)methylidene-3H-furan-2-ones. Rus. J. Org. Chem. 2017, 53, 210–214. [Google Scholar] [CrossRef]
  29. Osipov, A.K.; Anis’kov, A.A.; Grinev, V.S.; Yegorova, A.Y. Study of E/Z isomerization of (arylamino)methylidenefuran-2(3H)-ones by 1H, 13C, 15N spectroscopy and DFT calculations in different solvents. Magn. Reson. Chem. 2017, 55, 730–737. [Google Scholar] [CrossRef]
  30. Lei, Y.; Li, H.; Pan, H.; Han, S. Structures and hydrogen bonding analysis of N,N-dimethylformamide and N,N-dimethylformamide-water mixtures by molecular dynamics simulations. J. Phys. Chem. A 2003, 107, 1574–1583. [Google Scholar] [CrossRef]
  31. Luzara, A.; Chandler, D. Structure and hydrogen bond dynamics of water-dimethyl sulfoxide mixtures by computer simulations. J. Chem. Phys. 1993, 98, 8160–8173. [Google Scholar] [CrossRef] [Green Version]
  32. Trofimov, B.A.; Schmidt, E.Y.; Ushakov, I.A.; Zorina, N.V.; Skital’tseva, E.V.; Protsuk, N.I.; Mikhaleva, A.I. Base-catalyzed stereoselective vinylation of ketones with arylacetylenes: A new C(sp3)-C(sp2) bond-forming reaction. Chem.—A Eur. J. 2010, 16, 8516–8521. [Google Scholar] [CrossRef]
  33. Juaristi, E.; dos Passos Gomes, G.; Terent’ev, A.O.; Notario, R.; Alabugin, I.V. Stereoelectronic Interactions as a Probe for the Existence of the Intramolecular α-Effect. J. Am. Chem. Soc. 2017, 139, 10799–10813. [Google Scholar] [CrossRef]
  34. Becke, A.D. Perspective on “Density functional thermochemistry. III. The role of exact exchange”. J. Chem. Phys. 1993, 98, 5648–5652. [Google Scholar] [CrossRef] [Green Version]
  35. Becke, A.D. Density-functional exchange-energy approximation with correct asymptotic behavior. Phys. Rev. A 1988, 38, 3098–3100. [Google Scholar] [CrossRef]
  36. Lee, C.; Yang, W.; Parr, R.G. Development of the Colle-Salvetti correlation-energy formula into a functional of the electron density. Phys. Rev. B 1988, 37, 785–789. [Google Scholar] [CrossRef] [Green Version]
  37. Sulima, A.; Cheng, K.; Jacobson, A.E.; Rice, R.C.; Gawrischc, K.; Lee, Y.-S. Z and E rotamers of N-formyl-1-bromo-4-hydroxy-3-methoxymorphinan-6-one and their interconversion as studied by 1H/13C NMR spectroscopy and quantum chemical calculations. Magn. Reson. Chem. 2013, 51, 82–88. [Google Scholar] [CrossRef]
Molecules 28 00963 g001 550

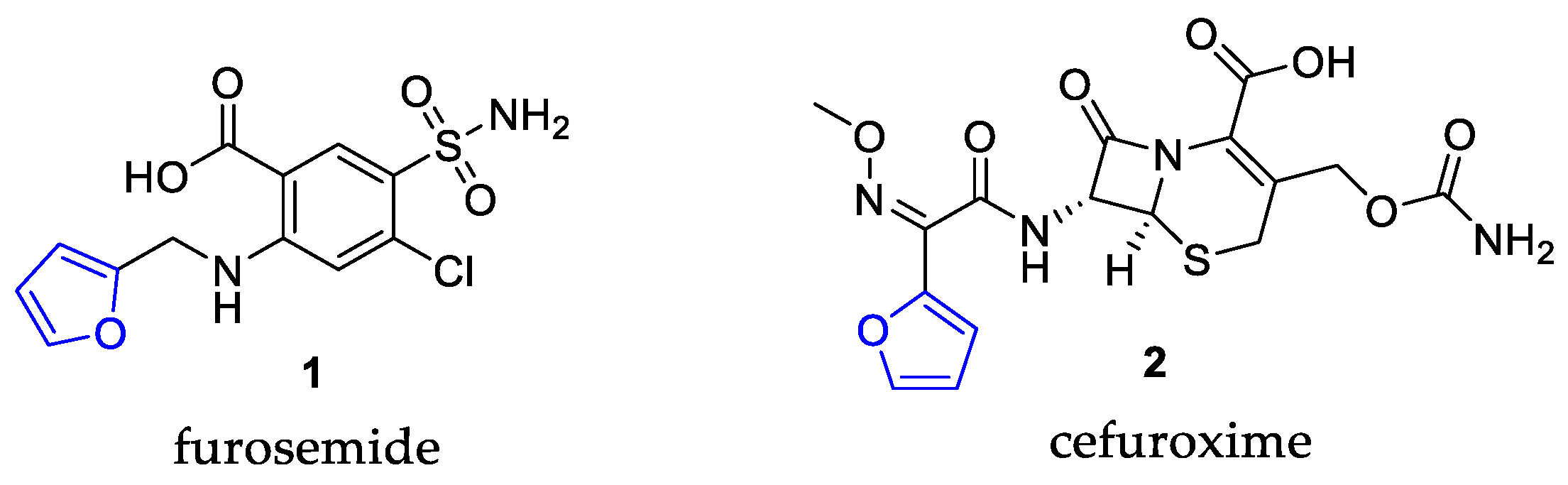

Figure 1. Biologically active compounds of the furan series.
Figure 1. Biologically active compounds of the furan series.
Molecules 28 00963 g001
Molecules 28 00963 sch001 550

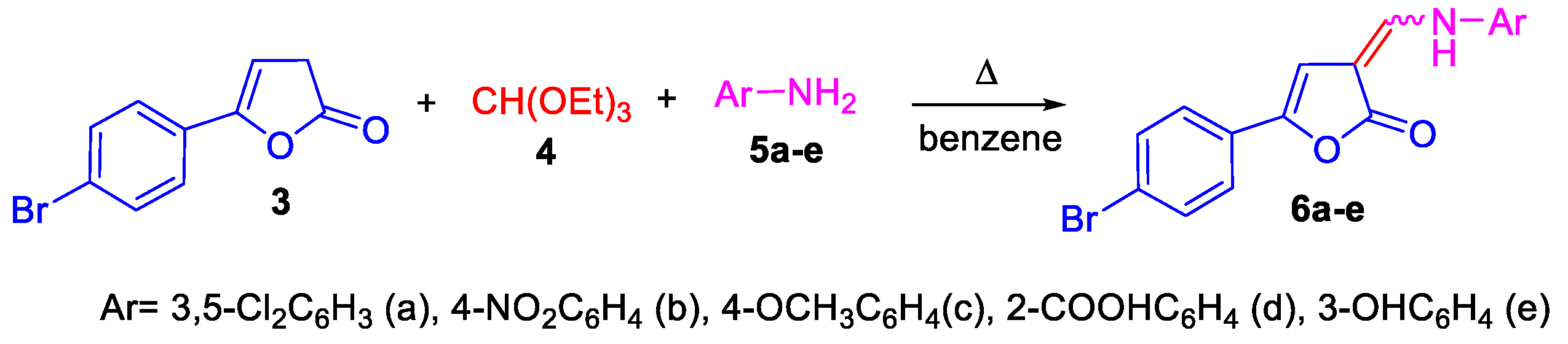

Scheme 1. General scheme for the three-component synthesis of 5-(4-bromophenyl)-3-(R-phenylamino)methylidenefuran-2(3H)-ones.
Scheme 1. General scheme for the three-component synthesis of 5-(4-bromophenyl)-3-(R-phenylamino)methylidenefuran-2(3H)-ones.
Molecules 28 00963 sch001
Molecules 28 00963 sch002 550

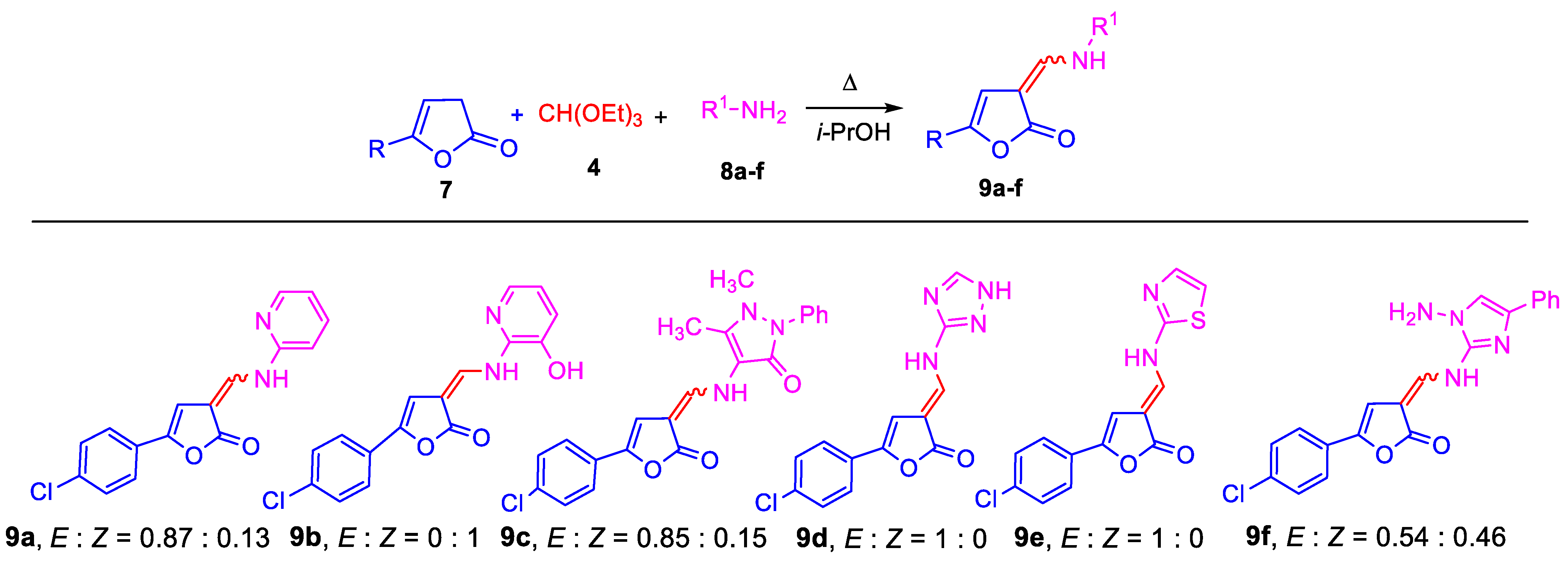

Scheme 2. General scheme for the synthesis of 3-hetarylaminomethylidenefuran-2(3H)-ones 9a–f.
Scheme 2. General scheme for the synthesis of 3-hetarylaminomethylidenefuran-2(3H)-ones 9a–f.
Molecules 28 00963 sch002
Molecules 28 00963 sch003 550

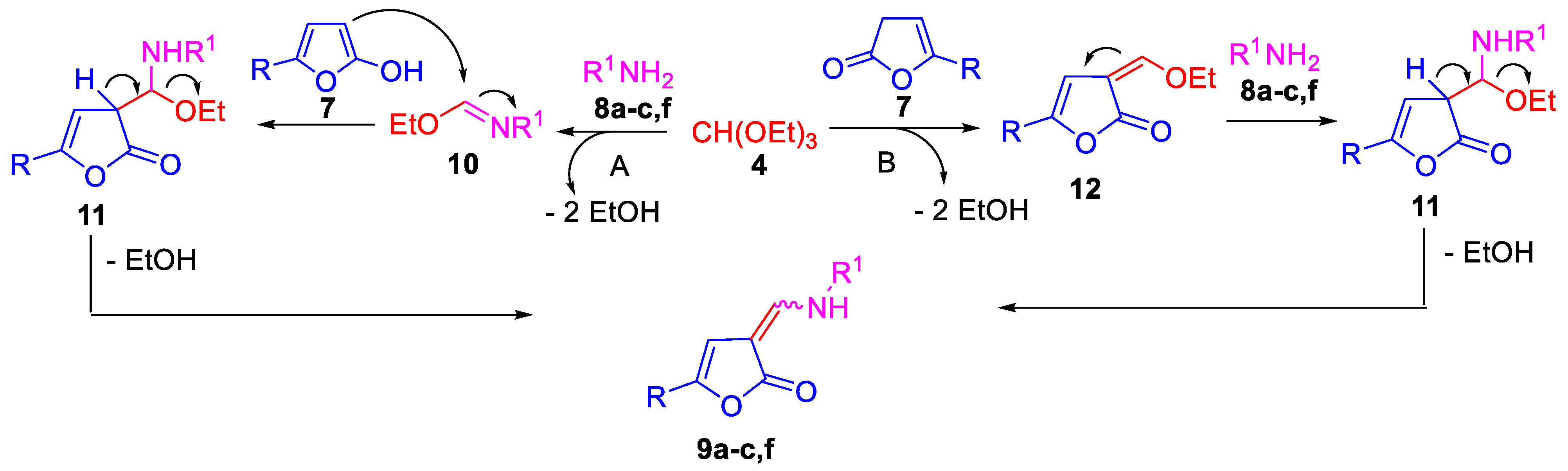

Scheme 3. Probable mechanism for the formation of products 9a–c,f.
Scheme 3. Probable mechanism for the formation of products 9a–c,f.
Molecules 28 00963 sch003
Molecules 28 00963 g002 550

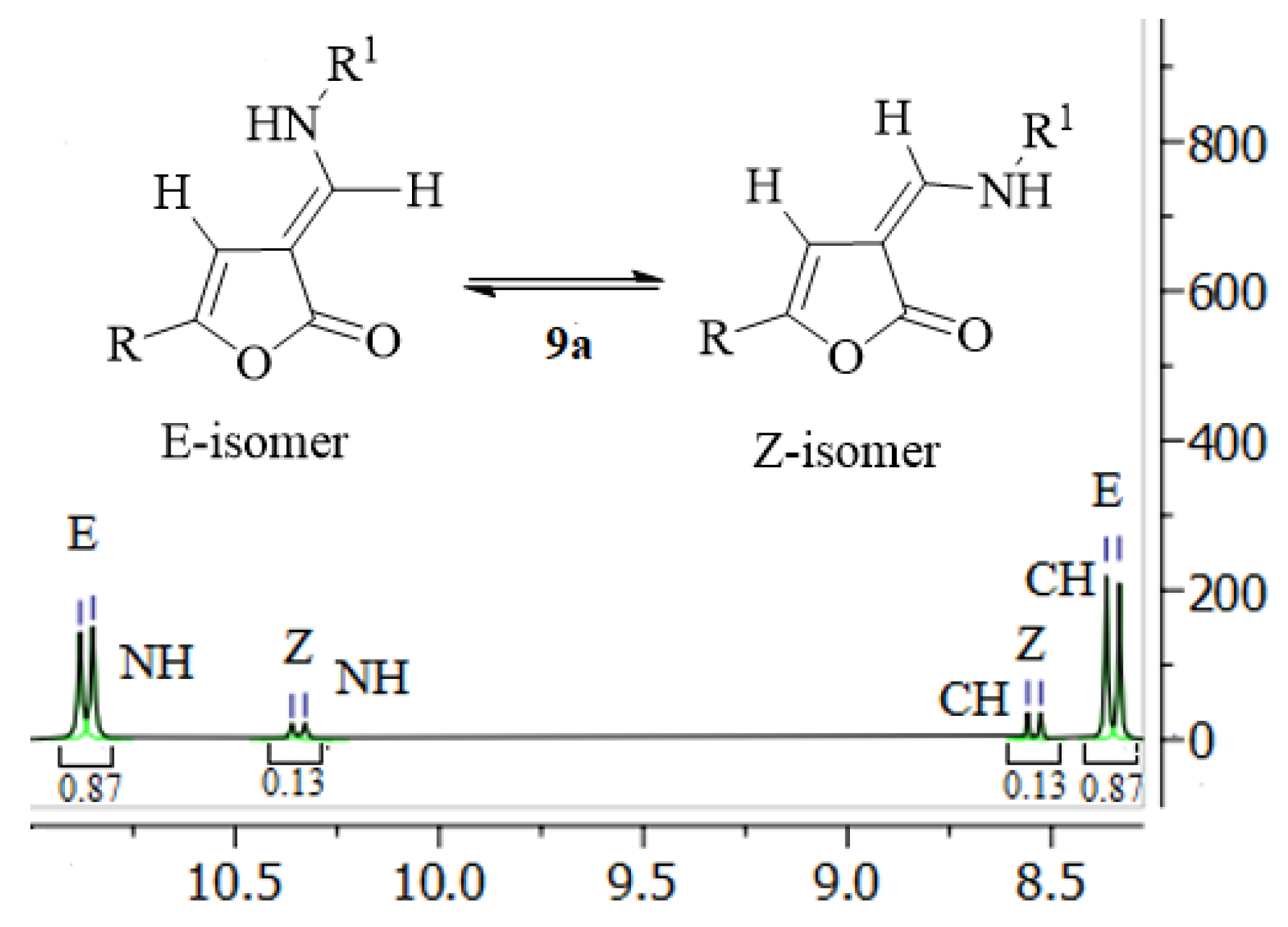

Figure 2. Fragment of the 1H NMR spectrum of 5-(4-chlorophenyl)-3-(pyridin-2-ylamino)methylidenefuran-2(3H)-one 9a, showing signals of Z- and E-forms.
Figure 2. Fragment of the 1H NMR spectrum of 5-(4-chlorophenyl)-3-(pyridin-2-ylamino)methylidenefuran-2(3H)-one 9a, showing signals of Z- and E-forms.
Molecules 28 00963 g002
Molecules 28 00963 g003 550

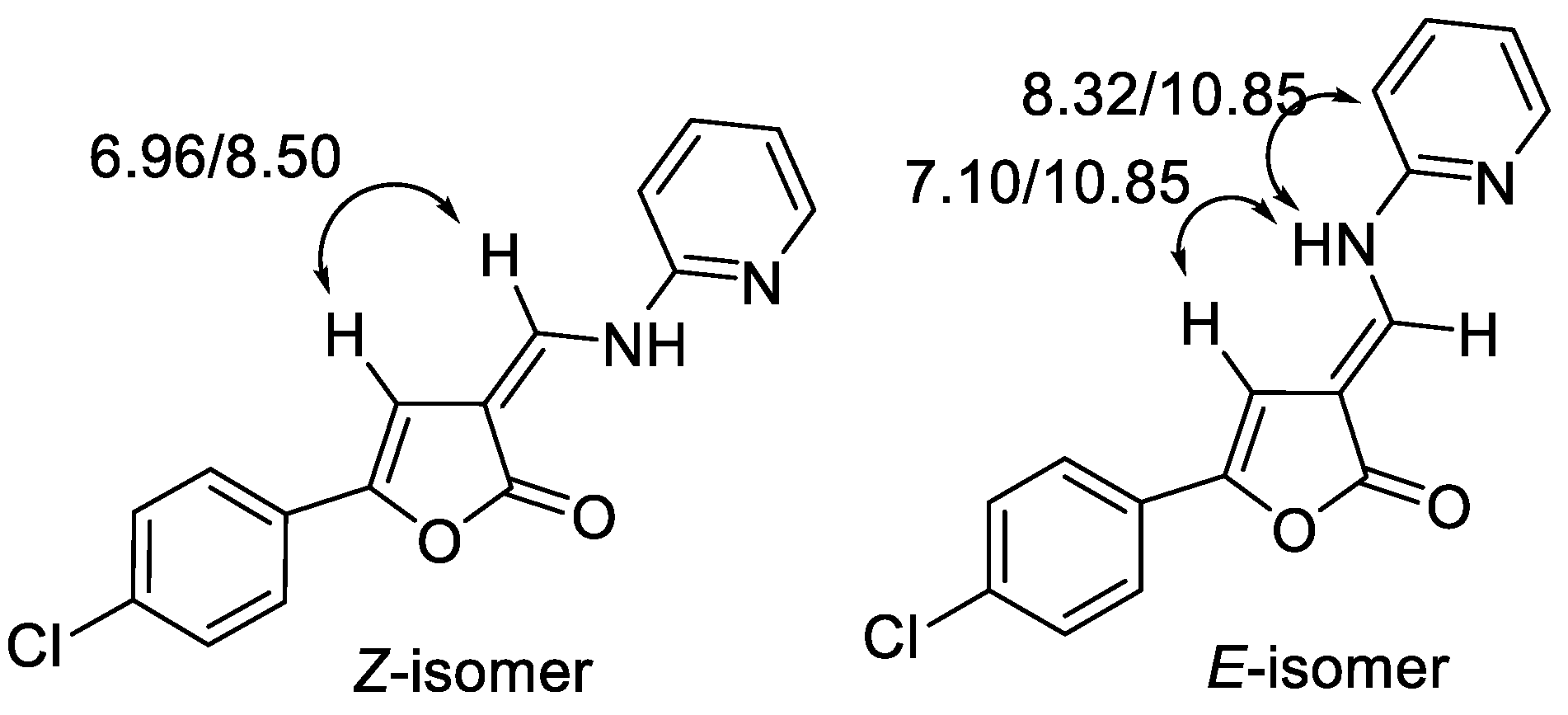

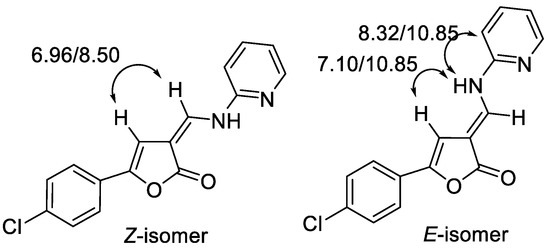

Figure 3. Key NOE-contacts for Z- and E-5-(4-chlorophenyl)-3-(pyridin-2-ylamino)methylidenefuran-2(3H)-one 9a.
Figure 3. Key NOE-contacts for Z- and E-5-(4-chlorophenyl)-3-(pyridin-2-ylamino)methylidenefuran-2(3H)-one 9a.
Molecules 28 00963 g003
Molecules 28 00963 sch004 550

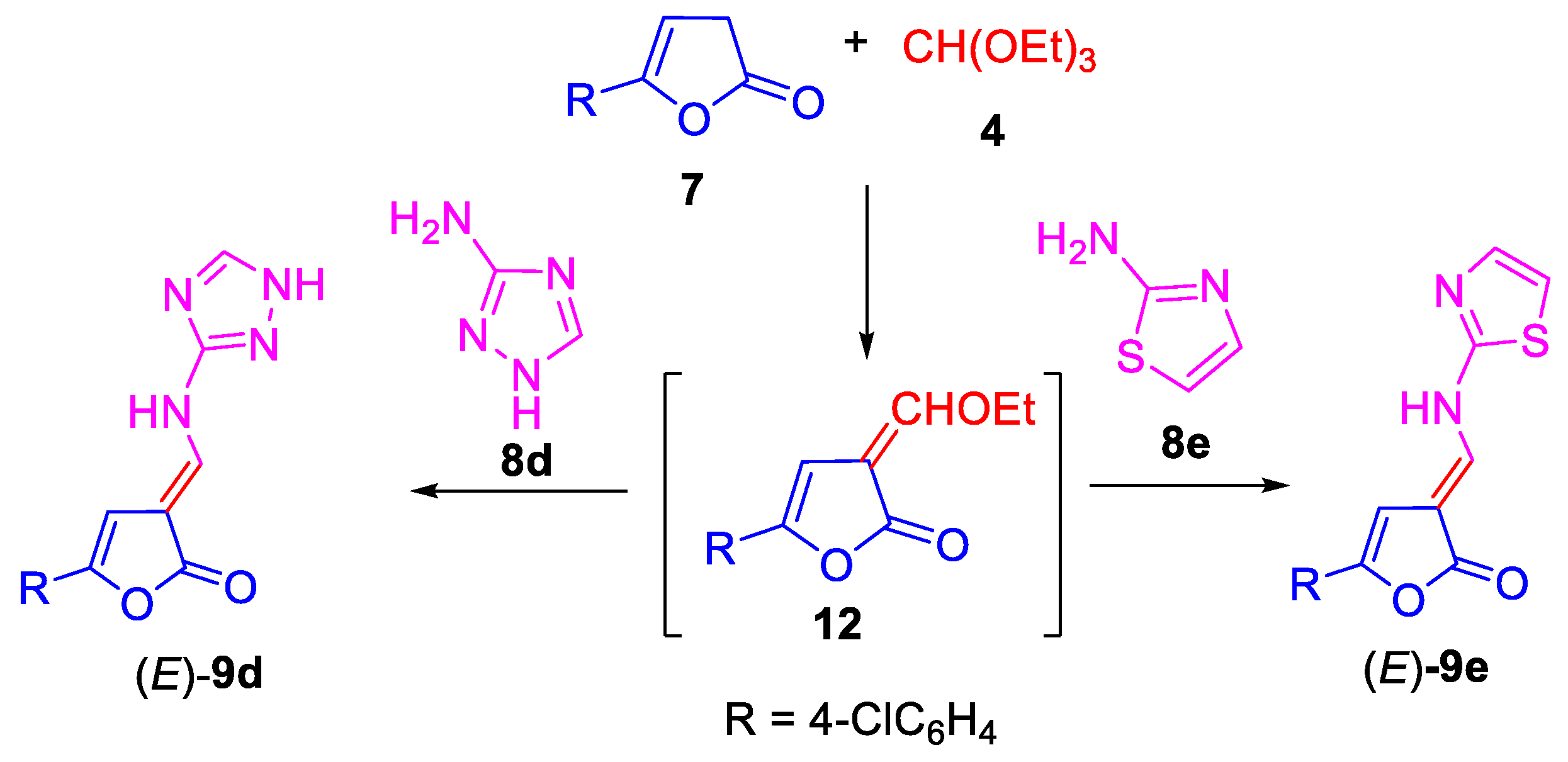

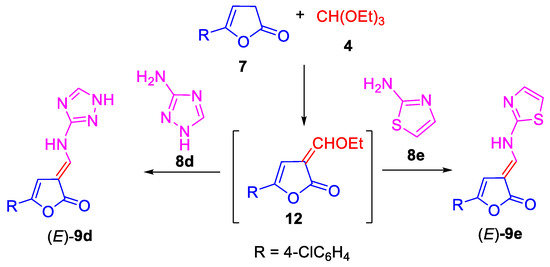

Scheme 4. General synthetic scheme involving 5-(4-chlorophenyl)furan-2(3H)-one, triethyl orthoformate, aminotriazole, and aminothiazole.
Scheme 4. General synthetic scheme involving 5-(4-chlorophenyl)furan-2(3H)-one, triethyl orthoformate, aminotriazole, and aminothiazole.
Molecules 28 00963 sch004
Molecules 28 00963 sch005 550

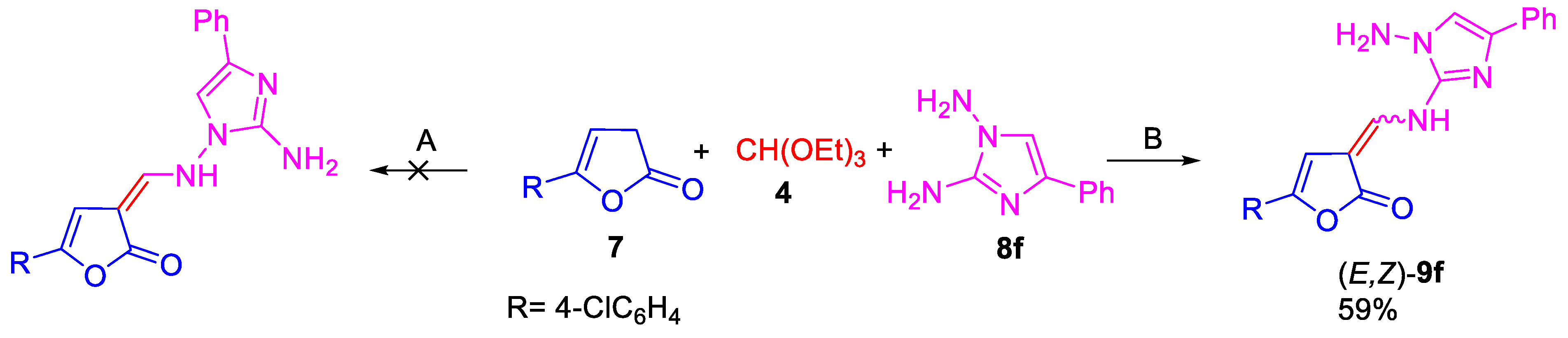

Scheme 5. Ways of the interaction of arylfuran-2(3H)-one, triethyl orthoformate, and 1,2-diamino-4-phenylimidazole.
Scheme 5. Ways of the interaction of arylfuran-2(3H)-one, triethyl orthoformate, and 1,2-diamino-4-phenylimidazole.
Molecules 28 00963 sch005
Molecules 28 00963 sch006 550

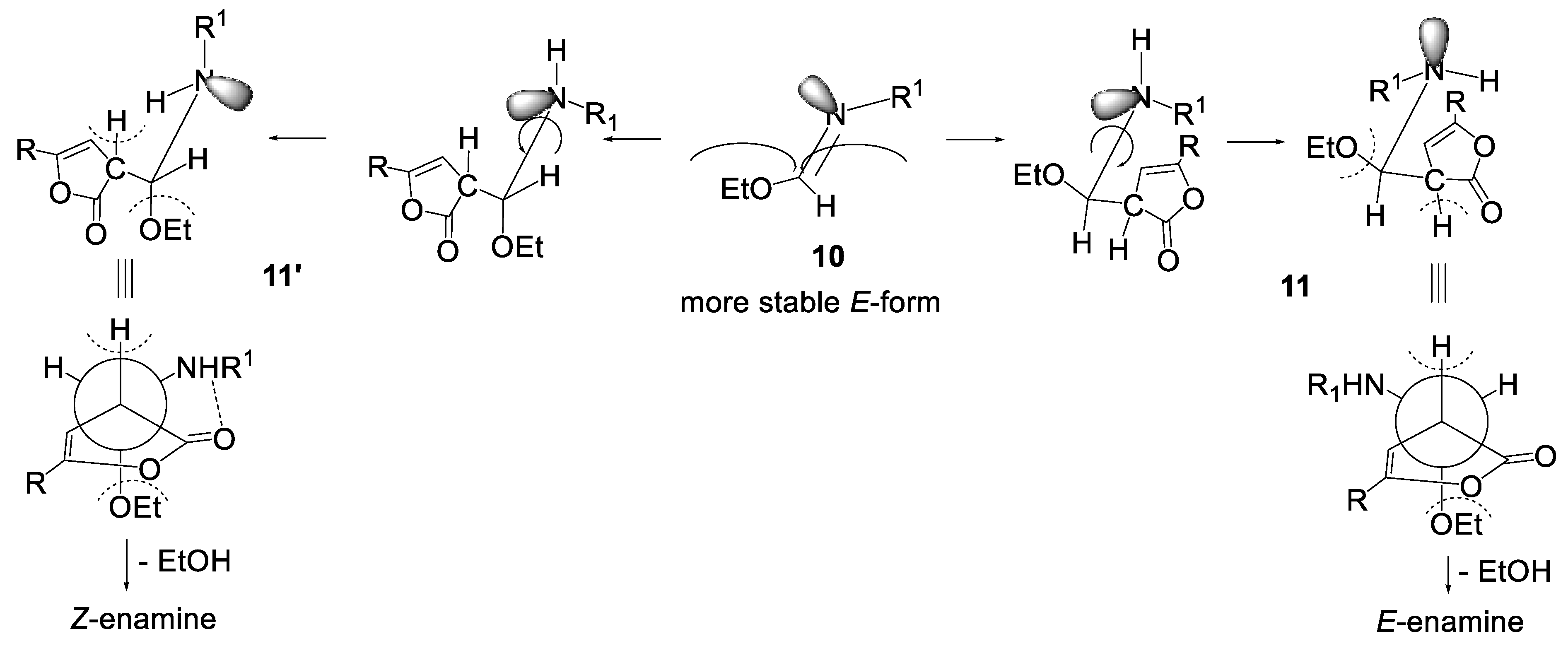

Scheme 6. Proposed stereochemical interpretation of the formation mechanism for 9a–f.
Scheme 6. Proposed stereochemical interpretation of the formation mechanism for 9a–f.
Molecules 28 00963 sch006
Table
Table 1. Optimization of the reaction conditions for 5-(4-chlorophenyl)-3-[(pyridin-2-ylamino)methylene]furan-2(3H)-one 9a.
Table 1. Optimization of the reaction conditions for 5-(4-chlorophenyl)-3-[(pyridin-2-ylamino)methylene]furan-2(3H)-one 9a.
EntrySolventHeating MethodTime (min)Yield (Z:E) (%)
1EtOHReflux3067
2i-PrOHReflux2575
31,4-DioxaneReflux3270
4TolueneReflux3565
5BenzeneReflux4060
Table
Table 2. Relative energy values for the E-, Z-, and TS forms of enamines 9a–f at the B3LYP/6-311++G(d) level of theory. The energies of the Z-isomers were minimal. All other energies are relative to the corresponding values of the Z-isomers.
Table 2. Relative energy values for the E-, Z-, and TS forms of enamines 9a–f at the B3LYP/6-311++G(d) level of theory. The energies of the Z-isomers were minimal. All other energies are relative to the corresponding values of the Z-isomers.
CompoundE-Isomer
(Vacuum/DMSO)		TS (Vacuum/DMSO)Z-Isomer (Vacuum/DMSO)
9a5.60/1.6052.80/36.540.00/0.00
9b3.96/1.4851.48/36.200.00/0.00
9c0.65/1.2144.48/28.920.00/0.00
9d4.21/1.4952.52/37.900.00/0.00
9e5.59/1.7955.00/39.500.00/0.00
9f4.77/1.5250.68/35.390.00/0.00
